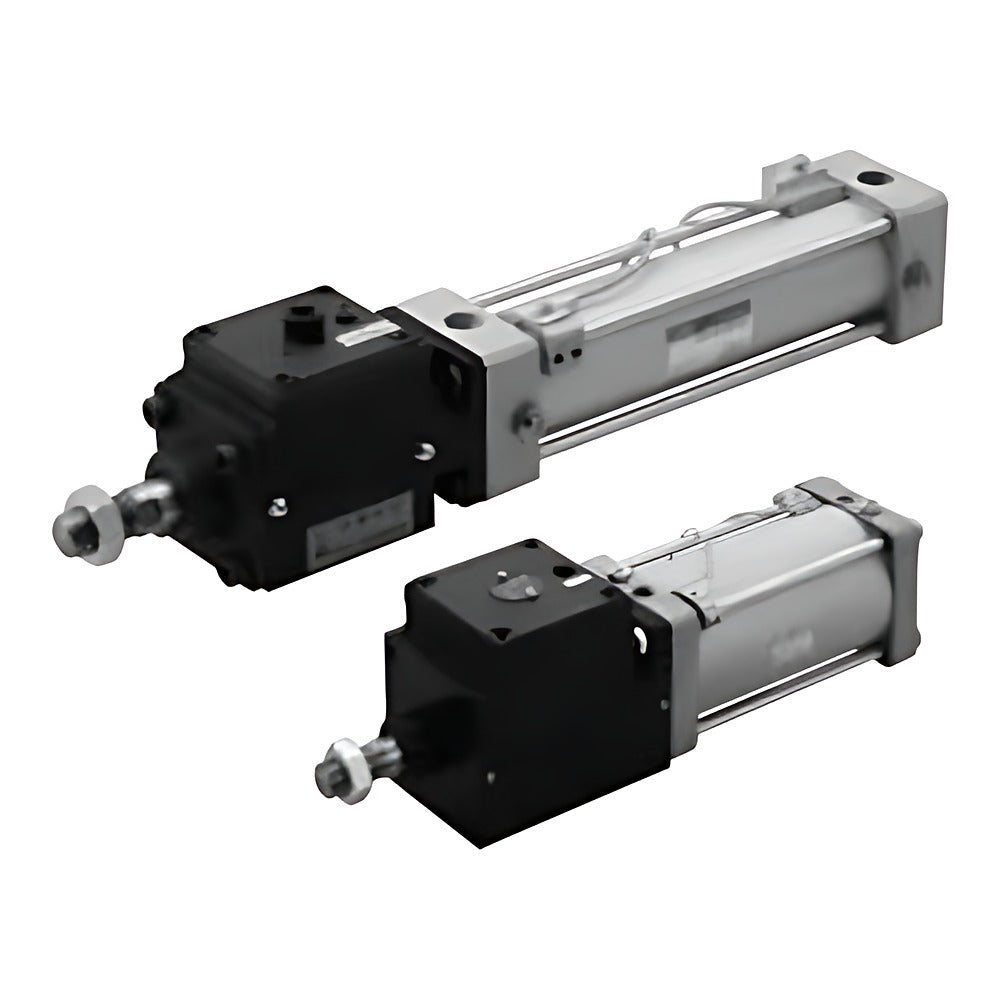

CKD JSC3-H Cell Top Cylinder with Brake, Low Hydraulic (40-100)

The CKD JSC3-H is a double-acting, low-hydraulic Cell Top cylinder with an integrated air-released brake for intermediate stopping and drop prevention, bore 40 to 100 mm.

Key features

Integrated spring-applied brake released by air pressure; holding force 980 to 6178 N
Cylinder body operates on hydraulic fluid (low hydraulic), brake section on compressed air
Switch magnet built in as standard; T-type and H0/H0Y (JSC3-HL2) switches available
JSC3-SH type with low-pressure brake release (0.25 MPa)
Air cushion standard (code B both ends); R/H/N cushion, NPT/G ports, bellows and accessories on order
Repair seal kits JSC3-H-40K to JSC3-H-100K; brake section must not be disassembled

Specifications

Operation	Double acting, low hydraulic
Working fluid	Hydraulic fluid (brake: compressed air)
Max. working pressure	1.0 MPa
Proof pressure	1.6 MPa
Ambient temperature	5 to 50 C
Cushion (listed codes)	Air cushion both ends (B)
Port thread (listed codes)	Rc
Max. stroke	600 to 800 mm (by bore)
Magnet	Built in
Source	CKD Korea catalog CB-030SK-9, p. 906-917

JSC3-SH-00-40B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm
JSC3-SH-00-40B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm
JSC3-SH-00-40B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm
JSC3-SH-00-40B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm
JSC3-SH-00-40B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm
JSC3-SH-00-40B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm
JSC3-SH-00-40B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm
JSC3-SH-00-40B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm
JSC3-SH-00-40B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm
JSC3-SH-00-40B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm
JSC3-SH-00-40B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm
JSC3-SH-00-50B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm
JSC3-SH-00-50B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm
JSC3-SH-00-50B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm
JSC3-SH-00-50B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm
JSC3-SH-00-50B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm
JSC3-SH-00-50B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm
JSC3-SH-00-50B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm
JSC3-SH-00-50B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm
JSC3-SH-00-50B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm
JSC3-SH-00-50B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm
JSC3-SH-00-50B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm
JSC3-SH-00-63B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm
JSC3-SH-00-63B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm
JSC3-SH-00-63B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm
JSC3-SH-00-63B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm
JSC3-SH-00-63B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm
JSC3-SH-00-63B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm
JSC3-SH-00-63B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm
JSC3-SH-00-63B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm
JSC3-SH-00-63B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm
JSC3-SH-00-63B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm
JSC3-SH-00-63B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm
JSC3-SH-00-80B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm
JSC3-SH-00-80B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm
JSC3-SH-00-80B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm
JSC3-SH-00-80B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm
JSC3-SH-00-80B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm
JSC3-SH-00-80B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm
JSC3-SH-00-80B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm
JSC3-SH-00-80B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm
JSC3-SH-00-80B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm
JSC3-SH-00-80B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm
JSC3-SH-00-80B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm
JSC3-SH-00-100B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm
JSC3-SH-00-100B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm
JSC3-SH-00-100B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm
JSC3-SH-00-100B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm
JSC3-SH-00-100B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm
JSC3-SH-00-100B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm
JSC3-SH-00-100B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm
JSC3-SH-00-100B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm
JSC3-SH-00-100B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm
JSC3-SH-00-100B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm
JSC3-SH-00-100B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm
JSC3-SH-LB-40B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm
JSC3-SH-LB-40B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm
JSC3-SH-LB-40B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm
JSC3-SH-LB-40B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm
JSC3-SH-LB-40B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm
JSC3-SH-LB-40B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm
JSC3-SH-LB-40B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm
JSC3-SH-LB-40B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm
JSC3-SH-LB-40B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm
JSC3-SH-LB-40B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm
JSC3-SH-LB-40B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm
JSC3-SH-LB-50B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm
JSC3-SH-LB-50B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm
JSC3-SH-LB-50B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm
JSC3-SH-LB-50B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm
JSC3-SH-LB-50B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm
JSC3-SH-LB-50B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm
JSC3-SH-LB-50B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm
JSC3-SH-LB-50B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 350 mm
JSC3-SH-LB-50B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 400 mm
JSC3-SH-LB-50B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 450 mm
JSC3-SH-LB-50B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 500 mm
JSC3-SH-LB-63B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm
JSC3-SH-LB-63B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm
JSC3-SH-LB-63B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm
JSC3-SH-LB-63B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm
JSC3-SH-LB-63B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm
JSC3-SH-LB-63B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm
JSC3-SH-LB-63B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm
JSC3-SH-LB-63B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm
JSC3-SH-LB-63B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm
JSC3-SH-LB-63B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm
JSC3-SH-LB-63B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm
JSC3-SH-LB-80B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm
JSC3-SH-LB-80B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm
JSC3-SH-LB-80B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm
JSC3-SH-LB-80B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm
JSC3-SH-LB-80B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm
JSC3-SH-LB-80B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm
JSC3-SH-LB-80B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm
JSC3-SH-LB-80B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm
JSC3-SH-LB-80B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm
JSC3-SH-LB-80B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm
JSC3-SH-LB-80B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm
JSC3-SH-LB-100B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm
JSC3-SH-LB-100B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm
JSC3-SH-LB-100B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm
JSC3-SH-LB-100B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm
JSC3-SH-LB-100B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm
JSC3-SH-LB-100B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm
JSC3-SH-LB-100B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm
JSC3-SH-LB-100B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm
JSC3-SH-LB-100B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm
JSC3-SH-LB-100B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm
JSC3-SH-LB-100B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm
JSC3-SH-FA-40B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 50 mm
JSC3-SH-FA-40B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 75 mm
JSC3-SH-FA-40B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 100 mm
JSC3-SH-FA-40B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 150 mm
JSC3-SH-FA-40B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 200 mm
JSC3-SH-FA-40B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 250 mm
JSC3-SH-FA-40B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 300 mm
JSC3-SH-FA-40B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 350 mm
JSC3-SH-FA-40B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 400 mm
JSC3-SH-FA-40B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 450 mm
JSC3-SH-FA-40B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 500 mm
JSC3-SH-FA-50B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 50 mm
JSC3-SH-FA-50B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 75 mm
JSC3-SH-FA-50B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 100 mm
JSC3-SH-FA-50B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 150 mm
JSC3-SH-FA-50B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 200 mm
JSC3-SH-FA-50B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 250 mm
JSC3-SH-FA-50B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 300 mm
JSC3-SH-FA-50B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 350 mm
JSC3-SH-FA-50B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 400 mm
JSC3-SH-FA-50B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 450 mm
JSC3-SH-FA-50B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 500 mm
JSC3-SH-FA-63B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 50 mm
JSC3-SH-FA-63B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 75 mm
JSC3-SH-FA-63B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 100 mm
JSC3-SH-FA-63B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 150 mm
JSC3-SH-FA-63B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 200 mm
JSC3-SH-FA-63B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 250 mm
JSC3-SH-FA-63B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 300 mm
JSC3-SH-FA-63B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 350 mm
JSC3-SH-FA-63B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 400 mm
JSC3-SH-FA-63B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 450 mm
JSC3-SH-FA-63B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 500 mm
JSC3-SH-FA-80B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 50 mm
JSC3-SH-FA-80B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 75 mm
JSC3-SH-FA-80B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 100 mm
JSC3-SH-FA-80B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 150 mm
JSC3-SH-FA-80B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 200 mm
JSC3-SH-FA-80B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 250 mm
JSC3-SH-FA-80B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 300 mm
JSC3-SH-FA-80B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 350 mm
JSC3-SH-FA-80B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 400 mm
JSC3-SH-FA-80B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 450 mm
JSC3-SH-FA-80B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 500 mm
JSC3-SH-FA-100B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 50 mm
JSC3-SH-FA-100B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 75 mm
JSC3-SH-FA-100B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 100 mm
JSC3-SH-FA-100B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 150 mm
JSC3-SH-FA-100B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 200 mm
JSC3-SH-FA-100B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 250 mm
JSC3-SH-FA-100B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 300 mm
JSC3-SH-FA-100B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 350 mm
JSC3-SH-FA-100B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 400 mm
JSC3-SH-FA-100B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 450 mm
JSC3-SH-FA-100B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 500 mm
JSC3-SH-FB-40B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 50 mm
JSC3-SH-FB-40B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 75 mm
JSC3-SH-FB-40B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 100 mm
JSC3-SH-FB-40B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 150 mm
JSC3-SH-FB-40B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 200 mm
JSC3-SH-FB-40B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 250 mm
JSC3-SH-FB-40B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 300 mm
JSC3-SH-FB-40B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 350 mm
JSC3-SH-FB-40B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 400 mm
JSC3-SH-FB-40B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 450 mm
JSC3-SH-FB-40B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 500 mm
JSC3-SH-FB-50B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 50 mm
JSC3-SH-FB-50B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 75 mm
JSC3-SH-FB-50B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 100 mm
JSC3-SH-FB-50B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 150 mm
JSC3-SH-FB-50B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 200 mm
JSC3-SH-FB-50B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 250 mm
JSC3-SH-FB-50B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 300 mm
JSC3-SH-FB-50B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 350 mm
JSC3-SH-FB-50B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 400 mm
JSC3-SH-FB-50B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 450 mm
JSC3-SH-FB-50B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 500 mm
JSC3-SH-FB-63B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 50 mm
JSC3-SH-FB-63B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 75 mm
JSC3-SH-FB-63B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 100 mm
JSC3-SH-FB-63B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 150 mm
JSC3-SH-FB-63B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 200 mm
JSC3-SH-FB-63B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 250 mm
JSC3-SH-FB-63B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 300 mm
JSC3-SH-FB-63B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 350 mm
JSC3-SH-FB-63B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 400 mm
JSC3-SH-FB-63B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 450 mm
JSC3-SH-FB-63B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 500 mm
JSC3-SH-FB-80B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 50 mm
JSC3-SH-FB-80B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 75 mm
JSC3-SH-FB-80B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 100 mm
JSC3-SH-FB-80B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 150 mm
JSC3-SH-FB-80B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 200 mm
JSC3-SH-FB-80B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 250 mm
JSC3-SH-FB-80B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 300 mm
JSC3-SH-FB-80B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 350 mm
JSC3-SH-FB-80B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 400 mm
JSC3-SH-FB-80B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 450 mm
JSC3-SH-FB-80B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 500 mm
JSC3-SH-FB-100B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 50 mm
JSC3-SH-FB-100B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 75 mm
JSC3-SH-FB-100B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 100 mm
JSC3-SH-FB-100B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 150 mm
JSC3-SH-FB-100B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 200 mm
JSC3-SH-FB-100B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 250 mm
JSC3-SH-FB-100B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 300 mm
JSC3-SH-FB-100B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 350 mm
JSC3-SH-FB-100B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 400 mm
JSC3-SH-FB-100B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 450 mm
JSC3-SH-FB-100B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 500 mm
JSC3-SH-FC-40B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 50 mm
JSC3-SH-FC-40B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 75 mm
JSC3-SH-FC-40B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 100 mm
JSC3-SH-FC-40B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 150 mm
JSC3-SH-FC-40B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 200 mm
JSC3-SH-FC-40B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 250 mm
JSC3-SH-FC-40B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 300 mm
JSC3-SH-FC-40B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 350 mm
JSC3-SH-FC-40B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 400 mm
JSC3-SH-FC-40B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 450 mm
JSC3-SH-FC-40B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 500 mm
JSC3-SH-FC-50B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 50 mm
JSC3-SH-FC-50B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 75 mm
JSC3-SH-FC-50B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 100 mm
JSC3-SH-FC-50B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 150 mm
JSC3-SH-FC-50B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 200 mm
JSC3-SH-FC-50B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 250 mm
JSC3-SH-FC-50B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 300 mm
JSC3-SH-FC-50B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 350 mm
JSC3-SH-FC-50B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 400 mm
JSC3-SH-FC-50B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 450 mm
JSC3-SH-FC-50B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 500 mm
JSC3-SH-FC-63B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 50 mm
JSC3-SH-FC-63B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 75 mm
JSC3-SH-FC-63B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 100 mm
JSC3-SH-FC-63B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 150 mm
JSC3-SH-FC-63B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 200 mm
JSC3-SH-FC-63B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 250 mm
JSC3-SH-FC-63B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 300 mm
JSC3-SH-FC-63B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 350 mm
JSC3-SH-FC-63B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 400 mm
JSC3-SH-FC-63B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 450 mm
JSC3-SH-FC-63B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 500 mm
JSC3-SH-FC-80B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 50 mm
JSC3-SH-FC-80B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 75 mm
JSC3-SH-FC-80B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 100 mm
JSC3-SH-FC-80B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 150 mm
JSC3-SH-FC-80B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 200 mm
JSC3-SH-FC-80B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 250 mm
JSC3-SH-FC-80B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 300 mm
JSC3-SH-FC-80B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 350 mm
JSC3-SH-FC-80B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 400 mm
JSC3-SH-FC-80B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 450 mm
JSC3-SH-FC-80B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 500 mm
JSC3-SH-FC-100B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 50 mm
JSC3-SH-FC-100B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 75 mm
JSC3-SH-FC-100B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 100 mm
JSC3-SH-FC-100B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 150 mm
JSC3-SH-FC-100B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 200 mm
JSC3-SH-FC-100B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 250 mm
JSC3-SH-FC-100B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 300 mm
JSC3-SH-FC-100B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 350 mm
JSC3-SH-FC-100B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 400 mm
JSC3-SH-FC-100B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 450 mm
JSC3-SH-FC-100B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 500 mm
JSC3-SH-CA-40B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm
JSC3-SH-CA-40B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm
JSC3-SH-CA-40B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm
JSC3-SH-CA-40B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm
JSC3-SH-CA-40B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm
JSC3-SH-CA-40B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm
JSC3-SH-CA-40B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm
JSC3-SH-CA-40B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm
JSC3-SH-CA-40B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm
JSC3-SH-CA-40B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm
JSC3-SH-CA-40B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm
JSC3-SH-CA-50B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm
JSC3-SH-CA-50B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm
JSC3-SH-CA-50B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm
JSC3-SH-CA-50B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm
JSC3-SH-CA-50B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm
JSC3-SH-CA-50B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm
JSC3-SH-CA-50B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm
JSC3-SH-CA-50B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm
JSC3-SH-CA-50B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm
JSC3-SH-CA-50B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm
JSC3-SH-CA-50B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm
JSC3-SH-CA-63B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm
JSC3-SH-CA-63B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm
JSC3-SH-CA-63B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm
JSC3-SH-CA-63B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm
JSC3-SH-CA-63B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm
JSC3-SH-CA-63B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm
JSC3-SH-CA-63B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm
JSC3-SH-CA-63B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm
JSC3-SH-CA-63B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm
JSC3-SH-CA-63B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm
JSC3-SH-CA-63B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm
JSC3-SH-CA-80B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm
JSC3-SH-CA-80B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm
JSC3-SH-CA-80B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm
JSC3-SH-CA-80B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm
JSC3-SH-CA-80B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm
JSC3-SH-CA-80B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm
JSC3-SH-CA-80B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm
JSC3-SH-CA-80B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm
JSC3-SH-CA-80B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm
JSC3-SH-CA-80B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm
JSC3-SH-CA-80B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm
JSC3-SH-CA-100B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm
JSC3-SH-CA-100B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm
JSC3-SH-CA-100B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm
JSC3-SH-CA-100B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm
JSC3-SH-CA-100B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm
JSC3-SH-CA-100B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm
JSC3-SH-CA-100B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm
JSC3-SH-CA-100B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm
JSC3-SH-CA-100B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm
JSC3-SH-CA-100B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm
JSC3-SH-CA-100B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm
JSC3-SH-CB-40B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm
JSC3-SH-CB-40B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm
JSC3-SH-CB-40B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm
JSC3-SH-CB-40B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm
JSC3-SH-CB-40B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm
JSC3-SH-CB-40B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm
JSC3-SH-CB-40B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm
JSC3-SH-CB-40B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm
JSC3-SH-CB-40B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm
JSC3-SH-CB-40B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm
JSC3-SH-CB-40B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm
JSC3-SH-CB-50B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm
JSC3-SH-CB-50B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm
JSC3-SH-CB-50B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm
JSC3-SH-CB-50B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm
JSC3-SH-CB-50B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm
JSC3-SH-CB-50B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm
JSC3-SH-CB-50B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm
JSC3-SH-CB-50B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm
JSC3-SH-CB-50B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm
JSC3-SH-CB-50B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm
JSC3-SH-CB-50B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm
JSC3-SH-CB-63B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm
JSC3-SH-CB-63B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm
JSC3-SH-CB-63B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm
JSC3-SH-CB-63B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm
JSC3-SH-CB-63B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm
JSC3-SH-CB-63B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm
JSC3-SH-CB-63B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm
JSC3-SH-CB-63B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm
JSC3-SH-CB-63B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm
JSC3-SH-CB-63B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm
JSC3-SH-CB-63B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm
JSC3-SH-CB-80B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm
JSC3-SH-CB-80B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm
JSC3-SH-CB-80B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm
JSC3-SH-CB-80B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm
JSC3-SH-CB-80B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm
JSC3-SH-CB-80B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm
JSC3-SH-CB-80B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm
JSC3-SH-CB-80B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm
JSC3-SH-CB-80B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm
JSC3-SH-CB-80B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm
JSC3-SH-CB-80B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm
JSC3-SH-CB-100B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm
JSC3-SH-CB-100B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm
JSC3-SH-CB-100B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm
JSC3-SH-CB-100B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm
JSC3-SH-CB-100B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm
JSC3-SH-CB-100B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm
JSC3-SH-CB-100B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm
JSC3-SH-CB-100B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm
JSC3-SH-CB-100B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm
JSC3-SH-CB-100B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm
JSC3-SH-CB-100B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm
JSC3-SH-TC-40B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm
JSC3-SH-TC-40B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm
JSC3-SH-TC-40B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm
JSC3-SH-TC-40B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm
JSC3-SH-TC-40B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm
JSC3-SH-TC-40B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm
JSC3-SH-TC-40B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm
JSC3-SH-TC-40B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm
JSC3-SH-TC-40B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm
JSC3-SH-TC-40B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm
JSC3-SH-TC-40B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm
JSC3-SH-TC-50B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm
JSC3-SH-TC-50B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm
JSC3-SH-TC-50B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm
JSC3-SH-TC-50B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm
JSC3-SH-TC-50B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm
JSC3-SH-TC-50B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm
JSC3-SH-TC-50B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm
JSC3-SH-TC-50B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm
JSC3-SH-TC-50B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm
JSC3-SH-TC-50B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm
JSC3-SH-TC-50B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm
JSC3-SH-TC-63B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm
JSC3-SH-TC-63B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm
JSC3-SH-TC-63B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm
JSC3-SH-TC-63B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm
JSC3-SH-TC-63B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm
JSC3-SH-TC-63B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm
JSC3-SH-TC-63B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm
JSC3-SH-TC-63B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm
JSC3-SH-TC-63B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm
JSC3-SH-TC-63B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm
JSC3-SH-TC-63B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm
JSC3-SH-TC-80B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm
JSC3-SH-TC-80B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm
JSC3-SH-TC-80B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm
JSC3-SH-TC-80B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm
JSC3-SH-TC-80B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm
JSC3-SH-TC-80B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm
JSC3-SH-TC-80B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm
JSC3-SH-TC-80B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm
JSC3-SH-TC-80B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm
JSC3-SH-TC-80B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm
JSC3-SH-TC-80B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm
JSC3-SH-TC-100B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm
JSC3-SH-TC-100B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm
JSC3-SH-TC-100B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm
JSC3-SH-TC-100B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm
JSC3-SH-TC-100B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm
JSC3-SH-TC-100B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm
JSC3-SH-TC-100B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm
JSC3-SH-TC-100B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm
JSC3-SH-TC-100B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm
JSC3-SH-TC-100B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm
JSC3-SH-TC-100B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm
JSC3-SH-TA-40B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 50 mm
JSC3-SH-TA-40B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 75 mm
JSC3-SH-TA-40B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 100 mm
JSC3-SH-TA-40B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 150 mm
JSC3-SH-TA-40B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 200 mm
JSC3-SH-TA-40B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 250 mm
JSC3-SH-TA-40B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 300 mm
JSC3-SH-TA-40B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 350 mm
JSC3-SH-TA-40B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 400 mm
JSC3-SH-TA-40B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 450 mm
JSC3-SH-TA-40B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 500 mm
JSC3-SH-TA-50B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 50 mm
JSC3-SH-TA-50B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 75 mm
JSC3-SH-TA-50B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 100 mm
JSC3-SH-TA-50B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 150 mm
JSC3-SH-TA-50B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 200 mm
JSC3-SH-TA-50B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 250 mm
JSC3-SH-TA-50B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 300 mm
JSC3-SH-TA-50B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 350 mm
JSC3-SH-TA-50B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 400 mm
JSC3-SH-TA-50B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 450 mm
JSC3-SH-TA-50B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 500 mm
JSC3-SH-TA-63B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 50 mm
JSC3-SH-TA-63B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 75 mm
JSC3-SH-TA-63B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 100 mm
JSC3-SH-TA-63B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 150 mm
JSC3-SH-TA-63B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 200 mm
JSC3-SH-TA-63B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 250 mm
JSC3-SH-TA-63B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 300 mm
JSC3-SH-TA-63B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 350 mm
JSC3-SH-TA-63B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 400 mm
JSC3-SH-TA-63B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 450 mm
JSC3-SH-TA-63B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 500 mm
JSC3-SH-TA-80B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 50 mm
JSC3-SH-TA-80B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 75 mm
JSC3-SH-TA-80B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 100 mm
JSC3-SH-TA-80B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 150 mm
JSC3-SH-TA-80B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 200 mm
JSC3-SH-TA-80B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 250 mm
JSC3-SH-TA-80B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 300 mm
JSC3-SH-TA-80B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 350 mm
JSC3-SH-TA-80B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 400 mm
JSC3-SH-TA-80B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 450 mm
JSC3-SH-TA-80B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 500 mm
JSC3-SH-TA-100B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 50 mm
JSC3-SH-TA-100B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 75 mm
JSC3-SH-TA-100B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 100 mm
JSC3-SH-TA-100B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 150 mm
JSC3-SH-TA-100B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 200 mm
JSC3-SH-TA-100B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 250 mm
JSC3-SH-TA-100B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 300 mm
JSC3-SH-TA-100B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 350 mm
JSC3-SH-TA-100B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 400 mm
JSC3-SH-TA-100B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 450 mm
JSC3-SH-TA-100B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 500 mm
JSC3-SH-TB-40B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 50 mm
JSC3-SH-TB-40B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 75 mm
JSC3-SH-TB-40B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 100 mm
JSC3-SH-TB-40B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 150 mm
JSC3-SH-TB-40B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 200 mm
JSC3-SH-TB-40B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 250 mm
JSC3-SH-TB-40B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 300 mm
JSC3-SH-TB-40B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 350 mm
JSC3-SH-TB-40B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 400 mm
JSC3-SH-TB-40B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 450 mm
JSC3-SH-TB-40B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 500 mm
JSC3-SH-TB-50B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 50 mm
JSC3-SH-TB-50B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 75 mm
JSC3-SH-TB-50B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 100 mm
JSC3-SH-TB-50B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 150 mm
JSC3-SH-TB-50B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 200 mm
JSC3-SH-TB-50B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 250 mm
JSC3-SH-TB-50B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 300 mm
JSC3-SH-TB-50B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 350 mm
JSC3-SH-TB-50B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 400 mm
JSC3-SH-TB-50B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 450 mm
JSC3-SH-TB-50B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 500 mm
JSC3-SH-TB-63B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 50 mm
JSC3-SH-TB-63B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 75 mm
JSC3-SH-TB-63B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 100 mm
JSC3-SH-TB-63B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 150 mm
JSC3-SH-TB-63B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 200 mm
JSC3-SH-TB-63B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 250 mm
JSC3-SH-TB-63B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 300 mm
JSC3-SH-TB-63B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 350 mm
JSC3-SH-TB-63B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 400 mm
JSC3-SH-TB-63B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 450 mm
JSC3-SH-TB-63B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 500 mm
JSC3-SH-TB-80B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 50 mm
JSC3-SH-TB-80B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 75 mm
JSC3-SH-TB-80B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 100 mm
JSC3-SH-TB-80B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 150 mm
JSC3-SH-TB-80B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 200 mm
JSC3-SH-TB-80B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 250 mm
JSC3-SH-TB-80B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 300 mm
JSC3-SH-TB-80B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 350 mm
JSC3-SH-TB-80B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 400 mm
JSC3-SH-TB-80B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 450 mm
JSC3-SH-TB-80B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 500 mm
JSC3-SH-TB-100B-50		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 50 mm
JSC3-SH-TB-100B-75		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 75 mm
JSC3-SH-TB-100B-100		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 100 mm
JSC3-SH-TB-100B-150		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 150 mm
JSC3-SH-TB-100B-200		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 200 mm
JSC3-SH-TB-100B-250		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 250 mm
JSC3-SH-TB-100B-300		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 300 mm
JSC3-SH-TB-100B-350		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 350 mm
JSC3-SH-TB-100B-400		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 400 mm
JSC3-SH-TB-100B-450		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 450 mm
JSC3-SH-TB-100B-500		Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 500 mm

Pneumatic CylindersCKD

550 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD JSC3-H Cell Top Cylinder with Brake, Low Hydraulic (40-100)

Brand CKD·Pneumatic Cylinders

Available part numbers (550)

JSC3-SH-00-40B-50, JSC3-SH-00-40B-75, JSC3-SH-00-40B-100, JSC3-SH-00-40B-150, JSC3-SH-00-40B-200, JSC3-SH-00-40B-250, JSC3-SH-00-40B-300, JSC3-SH-00-40B-350, JSC3-SH-00-40B-400, JSC3-SH-00-40B-450 + 540 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	JSC3-SH-00-40B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm
	JSC3-SH-00-40B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm
	JSC3-SH-00-40B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm
	JSC3-SH-00-40B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm
	JSC3-SH-00-40B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm
	JSC3-SH-00-40B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm
	JSC3-SH-00-40B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm
	JSC3-SH-00-40B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm
	JSC3-SH-00-40B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm
	JSC3-SH-00-40B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm
	JSC3-SH-00-40B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm
	JSC3-SH-00-50B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm
	JSC3-SH-00-50B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm
	JSC3-SH-00-50B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm
	JSC3-SH-00-50B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm
	JSC3-SH-00-50B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm
	JSC3-SH-00-50B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm
	JSC3-SH-00-50B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm
	JSC3-SH-00-50B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm
	JSC3-SH-00-50B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm
	JSC3-SH-00-50B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm
	JSC3-SH-00-50B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm
	JSC3-SH-00-63B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm
	JSC3-SH-00-63B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm
	JSC3-SH-00-63B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm
	JSC3-SH-00-63B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm
	JSC3-SH-00-63B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm
	JSC3-SH-00-63B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm
	JSC3-SH-00-63B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm
	JSC3-SH-00-63B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm
	JSC3-SH-00-63B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm
	JSC3-SH-00-63B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm
	JSC3-SH-00-63B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm
	JSC3-SH-00-80B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm
	JSC3-SH-00-80B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm
	JSC3-SH-00-80B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm
	JSC3-SH-00-80B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm
	JSC3-SH-00-80B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm
	JSC3-SH-00-80B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm
	JSC3-SH-00-80B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm
	JSC3-SH-00-80B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm
	JSC3-SH-00-80B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm
	JSC3-SH-00-80B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm
	JSC3-SH-00-80B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm
	JSC3-SH-00-100B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm
	JSC3-SH-00-100B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm
	JSC3-SH-00-100B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm
	JSC3-SH-00-100B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm
	JSC3-SH-00-100B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm
	JSC3-SH-00-100B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm
	JSC3-SH-00-100B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm
	JSC3-SH-00-100B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm
	JSC3-SH-00-100B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm
	JSC3-SH-00-100B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm
	JSC3-SH-00-100B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm
	JSC3-SH-LB-40B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm
	JSC3-SH-LB-40B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm
	JSC3-SH-LB-40B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm
	JSC3-SH-LB-40B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm
	JSC3-SH-LB-40B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm
	JSC3-SH-LB-40B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm
	JSC3-SH-LB-40B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm
	JSC3-SH-LB-40B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm
	JSC3-SH-LB-40B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm
	JSC3-SH-LB-40B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm
	JSC3-SH-LB-40B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm
	JSC3-SH-LB-50B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm
	JSC3-SH-LB-50B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm
	JSC3-SH-LB-50B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm
	JSC3-SH-LB-50B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm
	JSC3-SH-LB-50B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm
	JSC3-SH-LB-50B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm
	JSC3-SH-LB-50B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm
	JSC3-SH-LB-50B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 350 mm
	JSC3-SH-LB-50B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 400 mm
	JSC3-SH-LB-50B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 450 mm
	JSC3-SH-LB-50B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 500 mm
	JSC3-SH-LB-63B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm
	JSC3-SH-LB-63B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm
	JSC3-SH-LB-63B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm
	JSC3-SH-LB-63B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm
	JSC3-SH-LB-63B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm
	JSC3-SH-LB-63B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm
	JSC3-SH-LB-63B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm
	JSC3-SH-LB-63B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm
	JSC3-SH-LB-63B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm
	JSC3-SH-LB-63B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm
	JSC3-SH-LB-63B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm
	JSC3-SH-LB-80B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm
	JSC3-SH-LB-80B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm
	JSC3-SH-LB-80B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm
	JSC3-SH-LB-80B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm
	JSC3-SH-LB-80B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm
	JSC3-SH-LB-80B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm
	JSC3-SH-LB-80B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm
	JSC3-SH-LB-80B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm
	JSC3-SH-LB-80B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm
	JSC3-SH-LB-80B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm
	JSC3-SH-LB-80B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm
	JSC3-SH-LB-100B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm
	JSC3-SH-LB-100B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm
	JSC3-SH-LB-100B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm
	JSC3-SH-LB-100B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm
	JSC3-SH-LB-100B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm
	JSC3-SH-LB-100B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm
	JSC3-SH-LB-100B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm
	JSC3-SH-LB-100B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm
	JSC3-SH-LB-100B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm
	JSC3-SH-LB-100B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm
	JSC3-SH-LB-100B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm
	JSC3-SH-FA-40B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 50 mm
	JSC3-SH-FA-40B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 75 mm
	JSC3-SH-FA-40B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 100 mm
	JSC3-SH-FA-40B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 150 mm
	JSC3-SH-FA-40B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 200 mm
	JSC3-SH-FA-40B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 250 mm
	JSC3-SH-FA-40B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 300 mm
	JSC3-SH-FA-40B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 350 mm
	JSC3-SH-FA-40B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 400 mm
	JSC3-SH-FA-40B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 450 mm
	JSC3-SH-FA-40B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 40 mm \| Stroke: 500 mm
	JSC3-SH-FA-50B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 50 mm
	JSC3-SH-FA-50B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 75 mm
	JSC3-SH-FA-50B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 100 mm
	JSC3-SH-FA-50B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 150 mm
	JSC3-SH-FA-50B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 200 mm
	JSC3-SH-FA-50B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 250 mm
	JSC3-SH-FA-50B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 300 mm
	JSC3-SH-FA-50B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 350 mm
	JSC3-SH-FA-50B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 400 mm
	JSC3-SH-FA-50B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 450 mm
	JSC3-SH-FA-50B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 50 mm \| Stroke: 500 mm
	JSC3-SH-FA-63B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 50 mm
	JSC3-SH-FA-63B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 75 mm
	JSC3-SH-FA-63B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 100 mm
	JSC3-SH-FA-63B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 150 mm
	JSC3-SH-FA-63B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 200 mm
	JSC3-SH-FA-63B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 250 mm
	JSC3-SH-FA-63B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 300 mm
	JSC3-SH-FA-63B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 350 mm
	JSC3-SH-FA-63B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 400 mm
	JSC3-SH-FA-63B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 450 mm
	JSC3-SH-FA-63B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 63 mm \| Stroke: 500 mm
	JSC3-SH-FA-80B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 50 mm
	JSC3-SH-FA-80B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 75 mm
	JSC3-SH-FA-80B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 100 mm
	JSC3-SH-FA-80B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 150 mm
	JSC3-SH-FA-80B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 200 mm
	JSC3-SH-FA-80B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 250 mm
	JSC3-SH-FA-80B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 300 mm
	JSC3-SH-FA-80B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 350 mm
	JSC3-SH-FA-80B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 400 mm
	JSC3-SH-FA-80B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 450 mm
	JSC3-SH-FA-80B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 80 mm \| Stroke: 500 mm
	JSC3-SH-FA-100B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 50 mm
	JSC3-SH-FA-100B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 75 mm
	JSC3-SH-FA-100B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 100 mm
	JSC3-SH-FA-100B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 150 mm
	JSC3-SH-FA-100B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 200 mm
	JSC3-SH-FA-100B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 250 mm
	JSC3-SH-FA-100B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 300 mm
	JSC3-SH-FA-100B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 350 mm
	JSC3-SH-FA-100B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 400 mm
	JSC3-SH-FA-100B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 450 mm
	JSC3-SH-FA-100B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end flange \| Bore: 100 mm \| Stroke: 500 mm
	JSC3-SH-FB-40B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 50 mm
	JSC3-SH-FB-40B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 75 mm
	JSC3-SH-FB-40B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 100 mm
	JSC3-SH-FB-40B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 150 mm
	JSC3-SH-FB-40B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 200 mm
	JSC3-SH-FB-40B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 250 mm
	JSC3-SH-FB-40B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 300 mm
	JSC3-SH-FB-40B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 350 mm
	JSC3-SH-FB-40B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 400 mm
	JSC3-SH-FB-40B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 450 mm
	JSC3-SH-FB-40B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 40 mm \| Stroke: 500 mm
	JSC3-SH-FB-50B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 50 mm
	JSC3-SH-FB-50B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 75 mm
	JSC3-SH-FB-50B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 100 mm
	JSC3-SH-FB-50B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 150 mm
	JSC3-SH-FB-50B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 200 mm
	JSC3-SH-FB-50B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 250 mm
	JSC3-SH-FB-50B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 300 mm
	JSC3-SH-FB-50B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 350 mm
	JSC3-SH-FB-50B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 400 mm
	JSC3-SH-FB-50B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 450 mm
	JSC3-SH-FB-50B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 50 mm \| Stroke: 500 mm
	JSC3-SH-FB-63B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 50 mm
	JSC3-SH-FB-63B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 75 mm
	JSC3-SH-FB-63B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 100 mm
	JSC3-SH-FB-63B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 150 mm
	JSC3-SH-FB-63B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 200 mm
	JSC3-SH-FB-63B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 250 mm
	JSC3-SH-FB-63B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 300 mm
	JSC3-SH-FB-63B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 350 mm
	JSC3-SH-FB-63B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 400 mm
	JSC3-SH-FB-63B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 450 mm
	JSC3-SH-FB-63B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 63 mm \| Stroke: 500 mm
	JSC3-SH-FB-80B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 50 mm
	JSC3-SH-FB-80B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 75 mm
	JSC3-SH-FB-80B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 100 mm
	JSC3-SH-FB-80B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 150 mm
	JSC3-SH-FB-80B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 200 mm
	JSC3-SH-FB-80B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 250 mm
	JSC3-SH-FB-80B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 300 mm
	JSC3-SH-FB-80B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 350 mm
	JSC3-SH-FB-80B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 400 mm
	JSC3-SH-FB-80B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 450 mm
	JSC3-SH-FB-80B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 80 mm \| Stroke: 500 mm
	JSC3-SH-FB-100B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 50 mm
	JSC3-SH-FB-100B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 75 mm
	JSC3-SH-FB-100B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 100 mm
	JSC3-SH-FB-100B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 150 mm
	JSC3-SH-FB-100B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 200 mm
	JSC3-SH-FB-100B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 250 mm
	JSC3-SH-FB-100B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 300 mm
	JSC3-SH-FB-100B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 350 mm
	JSC3-SH-FB-100B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 400 mm
	JSC3-SH-FB-100B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 450 mm
	JSC3-SH-FB-100B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end flange \| Bore: 100 mm \| Stroke: 500 mm
	JSC3-SH-FC-40B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 50 mm
	JSC3-SH-FC-40B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 75 mm
	JSC3-SH-FC-40B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 100 mm
	JSC3-SH-FC-40B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 150 mm
	JSC3-SH-FC-40B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 200 mm
	JSC3-SH-FC-40B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 250 mm
	JSC3-SH-FC-40B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 300 mm
	JSC3-SH-FC-40B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 350 mm
	JSC3-SH-FC-40B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 400 mm
	JSC3-SH-FC-40B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 450 mm
	JSC3-SH-FC-40B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 40 mm \| Stroke: 500 mm
	JSC3-SH-FC-50B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 50 mm
	JSC3-SH-FC-50B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 75 mm
	JSC3-SH-FC-50B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 100 mm
	JSC3-SH-FC-50B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 150 mm
	JSC3-SH-FC-50B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 200 mm
	JSC3-SH-FC-50B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 250 mm
	JSC3-SH-FC-50B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 300 mm
	JSC3-SH-FC-50B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 350 mm
	JSC3-SH-FC-50B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 400 mm
	JSC3-SH-FC-50B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 450 mm
	JSC3-SH-FC-50B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 50 mm \| Stroke: 500 mm
	JSC3-SH-FC-63B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 50 mm
	JSC3-SH-FC-63B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 75 mm
	JSC3-SH-FC-63B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 100 mm
	JSC3-SH-FC-63B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 150 mm
	JSC3-SH-FC-63B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 200 mm
	JSC3-SH-FC-63B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 250 mm
	JSC3-SH-FC-63B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 300 mm
	JSC3-SH-FC-63B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 350 mm
	JSC3-SH-FC-63B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 400 mm
	JSC3-SH-FC-63B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 450 mm
	JSC3-SH-FC-63B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 63 mm \| Stroke: 500 mm
	JSC3-SH-FC-80B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 50 mm
	JSC3-SH-FC-80B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 75 mm
	JSC3-SH-FC-80B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 100 mm
	JSC3-SH-FC-80B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 150 mm
	JSC3-SH-FC-80B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 200 mm
	JSC3-SH-FC-80B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 250 mm
	JSC3-SH-FC-80B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 300 mm
	JSC3-SH-FC-80B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 350 mm
	JSC3-SH-FC-80B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 400 mm
	JSC3-SH-FC-80B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 450 mm
	JSC3-SH-FC-80B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 80 mm \| Stroke: 500 mm
	JSC3-SH-FC-100B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 50 mm
	JSC3-SH-FC-100B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 75 mm
	JSC3-SH-FC-100B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 100 mm
	JSC3-SH-FC-100B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 150 mm
	JSC3-SH-FC-100B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 200 mm
	JSC3-SH-FC-100B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 250 mm
	JSC3-SH-FC-100B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 300 mm
	JSC3-SH-FC-100B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 350 mm
	JSC3-SH-FC-100B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 400 mm
	JSC3-SH-FC-100B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 450 mm
	JSC3-SH-FC-100B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end special flange \| Bore: 100 mm \| Stroke: 500 mm
	JSC3-SH-CA-40B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm
	JSC3-SH-CA-40B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm
	JSC3-SH-CA-40B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm
	JSC3-SH-CA-40B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm
	JSC3-SH-CA-40B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm
	JSC3-SH-CA-40B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm
	JSC3-SH-CA-40B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm
	JSC3-SH-CA-40B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm
	JSC3-SH-CA-40B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm
	JSC3-SH-CA-40B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm
	JSC3-SH-CA-40B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm
	JSC3-SH-CA-50B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm
	JSC3-SH-CA-50B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm
	JSC3-SH-CA-50B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm
	JSC3-SH-CA-50B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm
	JSC3-SH-CA-50B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm
	JSC3-SH-CA-50B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm
	JSC3-SH-CA-50B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm
	JSC3-SH-CA-50B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm
	JSC3-SH-CA-50B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm
	JSC3-SH-CA-50B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm
	JSC3-SH-CA-50B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm
	JSC3-SH-CA-63B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm
	JSC3-SH-CA-63B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm
	JSC3-SH-CA-63B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm
	JSC3-SH-CA-63B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm
	JSC3-SH-CA-63B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm
	JSC3-SH-CA-63B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm
	JSC3-SH-CA-63B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm
	JSC3-SH-CA-63B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm
	JSC3-SH-CA-63B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm
	JSC3-SH-CA-63B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm
	JSC3-SH-CA-63B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm
	JSC3-SH-CA-80B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm
	JSC3-SH-CA-80B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm
	JSC3-SH-CA-80B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm
	JSC3-SH-CA-80B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm
	JSC3-SH-CA-80B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm
	JSC3-SH-CA-80B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm
	JSC3-SH-CA-80B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm
	JSC3-SH-CA-80B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm
	JSC3-SH-CA-80B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm
	JSC3-SH-CA-80B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm
	JSC3-SH-CA-80B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm
	JSC3-SH-CA-100B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm
	JSC3-SH-CA-100B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm
	JSC3-SH-CA-100B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm
	JSC3-SH-CA-100B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm
	JSC3-SH-CA-100B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm
	JSC3-SH-CA-100B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm
	JSC3-SH-CA-100B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm
	JSC3-SH-CA-100B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm
	JSC3-SH-CA-100B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm
	JSC3-SH-CA-100B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm
	JSC3-SH-CA-100B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm
	JSC3-SH-CB-40B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm
	JSC3-SH-CB-40B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm
	JSC3-SH-CB-40B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm
	JSC3-SH-CB-40B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm
	JSC3-SH-CB-40B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm
	JSC3-SH-CB-40B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm
	JSC3-SH-CB-40B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm
	JSC3-SH-CB-40B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm
	JSC3-SH-CB-40B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm
	JSC3-SH-CB-40B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm
	JSC3-SH-CB-40B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm
	JSC3-SH-CB-50B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm
	JSC3-SH-CB-50B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm
	JSC3-SH-CB-50B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm
	JSC3-SH-CB-50B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm
	JSC3-SH-CB-50B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm
	JSC3-SH-CB-50B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm
	JSC3-SH-CB-50B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm
	JSC3-SH-CB-50B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm
	JSC3-SH-CB-50B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm
	JSC3-SH-CB-50B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm
	JSC3-SH-CB-50B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm
	JSC3-SH-CB-63B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm
	JSC3-SH-CB-63B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm
	JSC3-SH-CB-63B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm
	JSC3-SH-CB-63B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm
	JSC3-SH-CB-63B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm
	JSC3-SH-CB-63B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm
	JSC3-SH-CB-63B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm
	JSC3-SH-CB-63B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm
	JSC3-SH-CB-63B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm
	JSC3-SH-CB-63B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm
	JSC3-SH-CB-63B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm
	JSC3-SH-CB-80B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm
	JSC3-SH-CB-80B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm
	JSC3-SH-CB-80B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm
	JSC3-SH-CB-80B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm
	JSC3-SH-CB-80B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm
	JSC3-SH-CB-80B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm
	JSC3-SH-CB-80B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm
	JSC3-SH-CB-80B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm
	JSC3-SH-CB-80B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm
	JSC3-SH-CB-80B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm
	JSC3-SH-CB-80B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm
	JSC3-SH-CB-100B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm
	JSC3-SH-CB-100B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm
	JSC3-SH-CB-100B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm
	JSC3-SH-CB-100B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm
	JSC3-SH-CB-100B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm
	JSC3-SH-CB-100B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm
	JSC3-SH-CB-100B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm
	JSC3-SH-CB-100B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm
	JSC3-SH-CB-100B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm
	JSC3-SH-CB-100B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm
	JSC3-SH-CB-100B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm
	JSC3-SH-TC-40B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm
	JSC3-SH-TC-40B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm
	JSC3-SH-TC-40B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm
	JSC3-SH-TC-40B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm
	JSC3-SH-TC-40B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm
	JSC3-SH-TC-40B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm
	JSC3-SH-TC-40B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm
	JSC3-SH-TC-40B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm
	JSC3-SH-TC-40B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm
	JSC3-SH-TC-40B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm
	JSC3-SH-TC-40B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm
	JSC3-SH-TC-50B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm
	JSC3-SH-TC-50B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm
	JSC3-SH-TC-50B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm
	JSC3-SH-TC-50B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm
	JSC3-SH-TC-50B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm
	JSC3-SH-TC-50B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm
	JSC3-SH-TC-50B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm
	JSC3-SH-TC-50B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm
	JSC3-SH-TC-50B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm
	JSC3-SH-TC-50B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm
	JSC3-SH-TC-50B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm
	JSC3-SH-TC-63B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm
	JSC3-SH-TC-63B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm
	JSC3-SH-TC-63B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm
	JSC3-SH-TC-63B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm
	JSC3-SH-TC-63B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm
	JSC3-SH-TC-63B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm
	JSC3-SH-TC-63B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm
	JSC3-SH-TC-63B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm
	JSC3-SH-TC-63B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm
	JSC3-SH-TC-63B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm
	JSC3-SH-TC-63B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm
	JSC3-SH-TC-80B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm
	JSC3-SH-TC-80B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm
	JSC3-SH-TC-80B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm
	JSC3-SH-TC-80B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm
	JSC3-SH-TC-80B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm
	JSC3-SH-TC-80B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm
	JSC3-SH-TC-80B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm
	JSC3-SH-TC-80B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm
	JSC3-SH-TC-80B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm
	JSC3-SH-TC-80B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm
	JSC3-SH-TC-80B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm
	JSC3-SH-TC-100B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm
	JSC3-SH-TC-100B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm
	JSC3-SH-TC-100B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm
	JSC3-SH-TC-100B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm
	JSC3-SH-TC-100B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm
	JSC3-SH-TC-100B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm
	JSC3-SH-TC-100B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm
	JSC3-SH-TC-100B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm
	JSC3-SH-TC-100B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm
	JSC3-SH-TC-100B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm
	JSC3-SH-TC-100B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm
	JSC3-SH-TA-40B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 50 mm
	JSC3-SH-TA-40B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 75 mm
	JSC3-SH-TA-40B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 100 mm
	JSC3-SH-TA-40B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 150 mm
	JSC3-SH-TA-40B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 200 mm
	JSC3-SH-TA-40B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 250 mm
	JSC3-SH-TA-40B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 300 mm
	JSC3-SH-TA-40B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 350 mm
	JSC3-SH-TA-40B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 400 mm
	JSC3-SH-TA-40B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 450 mm
	JSC3-SH-TA-40B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 40 mm \| Stroke: 500 mm
	JSC3-SH-TA-50B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 50 mm
	JSC3-SH-TA-50B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 75 mm
	JSC3-SH-TA-50B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 100 mm
	JSC3-SH-TA-50B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 150 mm
	JSC3-SH-TA-50B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 200 mm
	JSC3-SH-TA-50B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 250 mm
	JSC3-SH-TA-50B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 300 mm
	JSC3-SH-TA-50B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 350 mm
	JSC3-SH-TA-50B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 400 mm
	JSC3-SH-TA-50B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 450 mm
	JSC3-SH-TA-50B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 50 mm \| Stroke: 500 mm
	JSC3-SH-TA-63B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 50 mm
	JSC3-SH-TA-63B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 75 mm
	JSC3-SH-TA-63B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 100 mm
	JSC3-SH-TA-63B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 150 mm
	JSC3-SH-TA-63B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 200 mm
	JSC3-SH-TA-63B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 250 mm
	JSC3-SH-TA-63B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 300 mm
	JSC3-SH-TA-63B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 350 mm
	JSC3-SH-TA-63B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 400 mm
	JSC3-SH-TA-63B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 450 mm
	JSC3-SH-TA-63B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 63 mm \| Stroke: 500 mm
	JSC3-SH-TA-80B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 50 mm
	JSC3-SH-TA-80B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 75 mm
	JSC3-SH-TA-80B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 100 mm
	JSC3-SH-TA-80B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 150 mm
	JSC3-SH-TA-80B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 200 mm
	JSC3-SH-TA-80B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 250 mm
	JSC3-SH-TA-80B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 300 mm
	JSC3-SH-TA-80B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 350 mm
	JSC3-SH-TA-80B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 400 mm
	JSC3-SH-TA-80B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 450 mm
	JSC3-SH-TA-80B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 80 mm \| Stroke: 500 mm
	JSC3-SH-TA-100B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 50 mm
	JSC3-SH-TA-100B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 75 mm
	JSC3-SH-TA-100B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 100 mm
	JSC3-SH-TA-100B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 150 mm
	JSC3-SH-TA-100B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 200 mm
	JSC3-SH-TA-100B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 250 mm
	JSC3-SH-TA-100B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 300 mm
	JSC3-SH-TA-100B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 350 mm
	JSC3-SH-TA-100B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 400 mm
	JSC3-SH-TA-100B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 450 mm
	JSC3-SH-TA-100B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Rod-end trunnion \| Bore: 100 mm \| Stroke: 500 mm
	JSC3-SH-TB-40B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 50 mm
	JSC3-SH-TB-40B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 75 mm
	JSC3-SH-TB-40B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 100 mm
	JSC3-SH-TB-40B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 150 mm
	JSC3-SH-TB-40B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 200 mm
	JSC3-SH-TB-40B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 250 mm
	JSC3-SH-TB-40B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 300 mm
	JSC3-SH-TB-40B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 350 mm
	JSC3-SH-TB-40B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 400 mm
	JSC3-SH-TB-40B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 450 mm
	JSC3-SH-TB-40B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 40 mm \| Stroke: 500 mm
	JSC3-SH-TB-50B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 50 mm
	JSC3-SH-TB-50B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 75 mm
	JSC3-SH-TB-50B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 100 mm
	JSC3-SH-TB-50B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 150 mm
	JSC3-SH-TB-50B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 200 mm
	JSC3-SH-TB-50B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 250 mm
	JSC3-SH-TB-50B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 300 mm
	JSC3-SH-TB-50B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 350 mm
	JSC3-SH-TB-50B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 400 mm
	JSC3-SH-TB-50B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 450 mm
	JSC3-SH-TB-50B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 50 mm \| Stroke: 500 mm
	JSC3-SH-TB-63B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 50 mm
	JSC3-SH-TB-63B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 75 mm
	JSC3-SH-TB-63B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 100 mm
	JSC3-SH-TB-63B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 150 mm
	JSC3-SH-TB-63B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 200 mm
	JSC3-SH-TB-63B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 250 mm
	JSC3-SH-TB-63B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 300 mm
	JSC3-SH-TB-63B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 350 mm
	JSC3-SH-TB-63B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 400 mm
	JSC3-SH-TB-63B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 450 mm
	JSC3-SH-TB-63B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 63 mm \| Stroke: 500 mm
	JSC3-SH-TB-80B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 50 mm
	JSC3-SH-TB-80B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 75 mm
	JSC3-SH-TB-80B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 100 mm
	JSC3-SH-TB-80B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 150 mm
	JSC3-SH-TB-80B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 200 mm
	JSC3-SH-TB-80B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 250 mm
	JSC3-SH-TB-80B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 300 mm
	JSC3-SH-TB-80B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 350 mm
	JSC3-SH-TB-80B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 400 mm
	JSC3-SH-TB-80B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 450 mm
	JSC3-SH-TB-80B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 80 mm \| Stroke: 500 mm
	JSC3-SH-TB-100B-50	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 50 mm
	JSC3-SH-TB-100B-75	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 75 mm
	JSC3-SH-TB-100B-100	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 100 mm
	JSC3-SH-TB-100B-150	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 150 mm
	JSC3-SH-TB-100B-200	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 200 mm
	JSC3-SH-TB-100B-250	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 250 mm
	JSC3-SH-TB-100B-300	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 300 mm
	JSC3-SH-TB-100B-350	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 350 mm
	JSC3-SH-TB-100B-400	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 400 mm
	JSC3-SH-TB-100B-450	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 450 mm
	JSC3-SH-TB-100B-500	Item: Cylinder \| Brake release: Low-pressure 0.25 MPa \| Mounting: Head-end trunnion \| Bore: 100 mm \| Stroke: 500 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD JSC3-H Cell Top Cylinder with Brake, Low Hydraulic (40-100)
