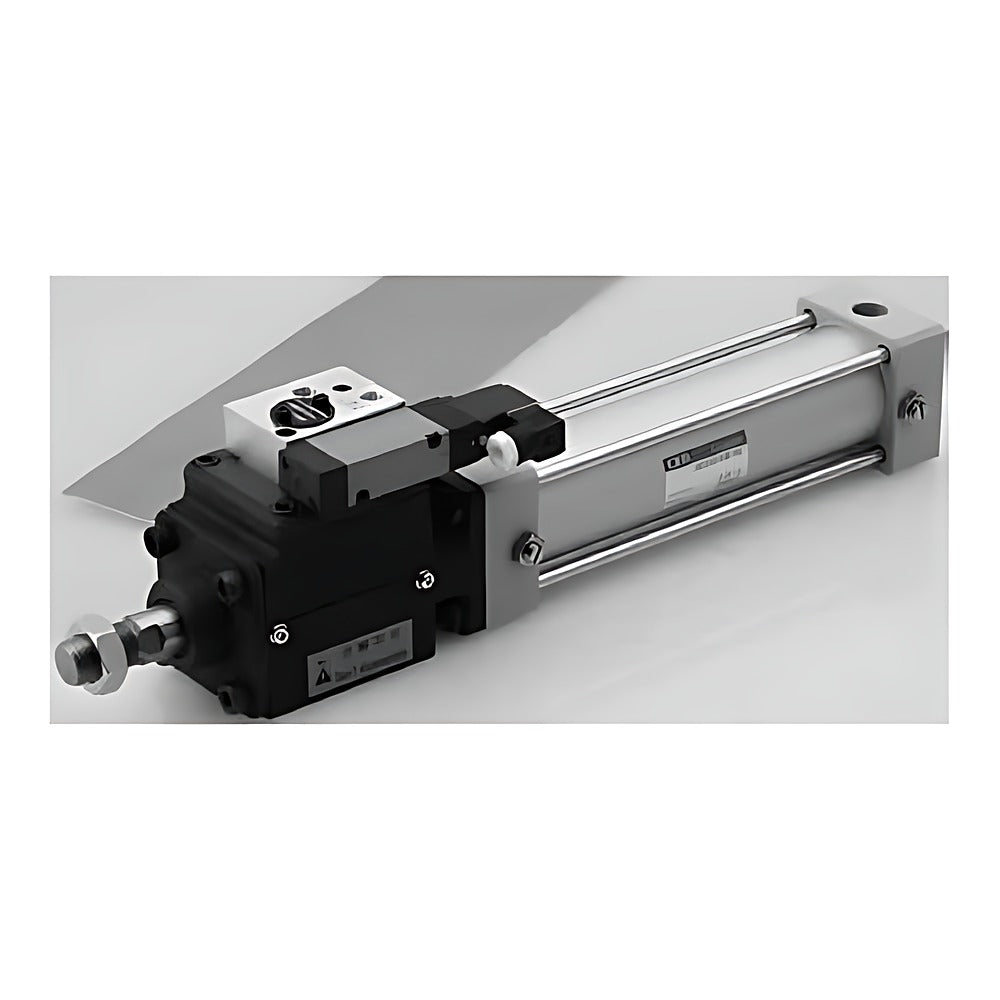

CKD JSC3/JSC4-N Cell Top Brake Cylinder (40-180)

CKD JSC3 (bore 40-100) and JSC4-N (bore 125-180) cell top cylinders are double-acting non-lube cylinders with a built-in mechanical brake for intermediate stops, drop prevention and work locking.

Key features

Cell top cylinder with eccentric-ring mechanical brake: high stop accuracy and strong holding force; brake engages on exhaust
Manual brake release bolt supplied; brake section must not be disassembled (strong spring)
Auto switches, lead length, switch quantity, cushion R/H/N, cushion needle position S/T and indicator G not expanded
Low release pressure type (S prefix, 0.25 MPa) available; NPT (N) / G (G) ports on order
Accessories: I, Y, B1, B2, B3, B4 knuckles and brackets; S1/JSC3 bracket part numbers ordered separately
JSC4 available without magnet (JSC4-N) or switch-ready (JSC4-LN); standard strokes JSC3 50-500 mm, JSC4 50-300 mm

Specifications

Action	Double acting, non-lube
Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	Brake 0.3 MPa; cylinder 0.1 MPa (JSC3), 0.05 MPa (JSC4)
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (JSC4 -5 to 60 C)
Piston speed	50 to 1000 mm/s
Cushion	Air cushion both sides (B)
Source	CKD Korea catalog CB-030SK-9, p. 855-897

JSC3-00-40B-50		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
JSC3-00-40B-75		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
JSC3-00-40B-100		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
JSC3-00-40B-150		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
JSC3-00-40B-200		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
JSC3-00-40B-250		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
JSC3-00-40B-300		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
JSC3-00-40B-350		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
JSC3-00-40B-400		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
JSC3-00-40B-450		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
JSC3-00-40B-500		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
JSC3-00-50B-50		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
JSC3-00-50B-75		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
JSC3-00-50B-100		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
JSC3-00-50B-150		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
JSC3-00-50B-200		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
JSC3-00-50B-250		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
JSC3-00-50B-300		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
JSC3-00-50B-350		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
JSC3-00-50B-400		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
JSC3-00-50B-450		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
JSC3-00-50B-500		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
JSC3-00-63B-50		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
JSC3-00-63B-75		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
JSC3-00-63B-100		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
JSC3-00-63B-150		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
JSC3-00-63B-200		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
JSC3-00-63B-250		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
JSC3-00-63B-300		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
JSC3-00-63B-350		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
JSC3-00-63B-400		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
JSC3-00-63B-450		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
JSC3-00-63B-500		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
JSC3-00-80B-50		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
JSC3-00-80B-75		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
JSC3-00-80B-100		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
JSC3-00-80B-150		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
JSC3-00-80B-200		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
JSC3-00-80B-250		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
JSC3-00-80B-300		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
JSC3-00-80B-350		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
JSC3-00-80B-400		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
JSC3-00-80B-450		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
JSC3-00-80B-500		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
JSC3-00-100B-50		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
JSC3-00-100B-75		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
JSC3-00-100B-100		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
JSC3-00-100B-150		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
JSC3-00-100B-200		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
JSC3-00-100B-250		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
JSC3-00-100B-300		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
JSC3-00-100B-350		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
JSC3-00-100B-400		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
JSC3-00-100B-450		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
JSC3-00-100B-500		Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
JSC3-LB-40B-50		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
JSC3-LB-40B-75		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
JSC3-LB-40B-100		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
JSC3-LB-40B-150		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
JSC3-LB-40B-200		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
JSC3-LB-40B-250		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
JSC3-LB-40B-300		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
JSC3-LB-40B-350		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
JSC3-LB-40B-400		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
JSC3-LB-40B-450		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
JSC3-LB-40B-500		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
JSC3-LB-50B-50		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
JSC3-LB-50B-75		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
JSC3-LB-50B-100		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
JSC3-LB-50B-150		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
JSC3-LB-50B-200		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
JSC3-LB-50B-250		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
JSC3-LB-50B-300		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
JSC3-LB-50B-350		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
JSC3-LB-50B-400		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
JSC3-LB-50B-450		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
JSC3-LB-50B-500		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
JSC3-LB-63B-50		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
JSC3-LB-63B-75		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
JSC3-LB-63B-100		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
JSC3-LB-63B-150		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
JSC3-LB-63B-200		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
JSC3-LB-63B-250		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
JSC3-LB-63B-300		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
JSC3-LB-63B-350		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
JSC3-LB-63B-400		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
JSC3-LB-63B-450		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
JSC3-LB-63B-500		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
JSC3-LB-80B-50		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
JSC3-LB-80B-75		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
JSC3-LB-80B-100		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
JSC3-LB-80B-150		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
JSC3-LB-80B-200		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
JSC3-LB-80B-250		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
JSC3-LB-80B-300		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
JSC3-LB-80B-350		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
JSC3-LB-80B-400		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
JSC3-LB-80B-450		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
JSC3-LB-80B-500		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
JSC3-LB-100B-50		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
JSC3-LB-100B-75		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
JSC3-LB-100B-100		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
JSC3-LB-100B-150		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
JSC3-LB-100B-200		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
JSC3-LB-100B-250		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
JSC3-LB-100B-300		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
JSC3-LB-100B-350		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
JSC3-LB-100B-400		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
JSC3-LB-100B-450		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
JSC3-LB-100B-500		Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
JSC3-FA-40B-50		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
JSC3-FA-40B-75		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
JSC3-FA-40B-100		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
JSC3-FA-40B-150		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
JSC3-FA-40B-200		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
JSC3-FA-40B-250		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
JSC3-FA-40B-300		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
JSC3-FA-40B-350		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
JSC3-FA-40B-400		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
JSC3-FA-40B-450		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
JSC3-FA-40B-500		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
JSC3-FA-50B-50		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
JSC3-FA-50B-75		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
JSC3-FA-50B-100		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
JSC3-FA-50B-150		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
JSC3-FA-50B-200		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
JSC3-FA-50B-250		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
JSC3-FA-50B-300		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
JSC3-FA-50B-350		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
JSC3-FA-50B-400		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
JSC3-FA-50B-450		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
JSC3-FA-50B-500		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
JSC3-FA-63B-50		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
JSC3-FA-63B-75		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
JSC3-FA-63B-100		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
JSC3-FA-63B-150		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
JSC3-FA-63B-200		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
JSC3-FA-63B-250		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
JSC3-FA-63B-300		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
JSC3-FA-63B-350		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
JSC3-FA-63B-400		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
JSC3-FA-63B-450		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
JSC3-FA-63B-500		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
JSC3-FA-80B-50		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
JSC3-FA-80B-75		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
JSC3-FA-80B-100		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
JSC3-FA-80B-150		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
JSC3-FA-80B-200		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
JSC3-FA-80B-250		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
JSC3-FA-80B-300		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
JSC3-FA-80B-350		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
JSC3-FA-80B-400		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
JSC3-FA-80B-450		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
JSC3-FA-80B-500		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
JSC3-FA-100B-50		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
JSC3-FA-100B-75		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
JSC3-FA-100B-100		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
JSC3-FA-100B-150		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
JSC3-FA-100B-200		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
JSC3-FA-100B-250		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
JSC3-FA-100B-300		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
JSC3-FA-100B-350		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
JSC3-FA-100B-400		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
JSC3-FA-100B-450		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
JSC3-FA-100B-500		Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
JSC3-FB-40B-50		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
JSC3-FB-40B-75		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
JSC3-FB-40B-100		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
JSC3-FB-40B-150		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
JSC3-FB-40B-200		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
JSC3-FB-40B-250		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
JSC3-FB-40B-300		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
JSC3-FB-40B-350		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
JSC3-FB-40B-400		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
JSC3-FB-40B-450		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
JSC3-FB-40B-500		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
JSC3-FB-50B-50		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
JSC3-FB-50B-75		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
JSC3-FB-50B-100		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
JSC3-FB-50B-150		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
JSC3-FB-50B-200		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
JSC3-FB-50B-250		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
JSC3-FB-50B-300		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
JSC3-FB-50B-350		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
JSC3-FB-50B-400		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
JSC3-FB-50B-450		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
JSC3-FB-50B-500		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
JSC3-FB-63B-50		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
JSC3-FB-63B-75		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
JSC3-FB-63B-100		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
JSC3-FB-63B-150		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
JSC3-FB-63B-200		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
JSC3-FB-63B-250		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
JSC3-FB-63B-300		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
JSC3-FB-63B-350		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
JSC3-FB-63B-400		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
JSC3-FB-63B-450		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
JSC3-FB-63B-500		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
JSC3-FB-80B-50		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
JSC3-FB-80B-75		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
JSC3-FB-80B-100		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
JSC3-FB-80B-150		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
JSC3-FB-80B-200		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
JSC3-FB-80B-250		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
JSC3-FB-80B-300		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
JSC3-FB-80B-350		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
JSC3-FB-80B-400		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
JSC3-FB-80B-450		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
JSC3-FB-80B-500		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
JSC3-FB-100B-50		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
JSC3-FB-100B-75		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
JSC3-FB-100B-100		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
JSC3-FB-100B-150		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
JSC3-FB-100B-200		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
JSC3-FB-100B-250		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
JSC3-FB-100B-300		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
JSC3-FB-100B-350		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
JSC3-FB-100B-400		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
JSC3-FB-100B-450		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
JSC3-FB-100B-500		Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
JSC3-FC-40B-50		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
JSC3-FC-40B-75		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
JSC3-FC-40B-100		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
JSC3-FC-40B-150		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
JSC3-FC-40B-200		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
JSC3-FC-40B-250		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
JSC3-FC-40B-300		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
JSC3-FC-40B-350		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
JSC3-FC-40B-400		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
JSC3-FC-40B-450		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
JSC3-FC-40B-500		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
JSC3-FC-50B-50		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
JSC3-FC-50B-75		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
JSC3-FC-50B-100		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
JSC3-FC-50B-150		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
JSC3-FC-50B-200		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
JSC3-FC-50B-250		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
JSC3-FC-50B-300		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
JSC3-FC-50B-350		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
JSC3-FC-50B-400		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
JSC3-FC-50B-450		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
JSC3-FC-50B-500		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
JSC3-FC-63B-50		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
JSC3-FC-63B-75		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
JSC3-FC-63B-100		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
JSC3-FC-63B-150		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
JSC3-FC-63B-200		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
JSC3-FC-63B-250		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
JSC3-FC-63B-300		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
JSC3-FC-63B-350		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
JSC3-FC-63B-400		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
JSC3-FC-63B-450		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
JSC3-FC-63B-500		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
JSC3-FC-80B-50		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
JSC3-FC-80B-75		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
JSC3-FC-80B-100		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
JSC3-FC-80B-150		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
JSC3-FC-80B-200		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
JSC3-FC-80B-250		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
JSC3-FC-80B-300		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
JSC3-FC-80B-350		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
JSC3-FC-80B-400		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
JSC3-FC-80B-450		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
JSC3-FC-80B-500		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
JSC3-FC-100B-50		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
JSC3-FC-100B-75		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
JSC3-FC-100B-100		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
JSC3-FC-100B-150		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
JSC3-FC-100B-200		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
JSC3-FC-100B-250		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
JSC3-FC-100B-300		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
JSC3-FC-100B-350		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
JSC3-FC-100B-400		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
JSC3-FC-100B-450		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
JSC3-FC-100B-500		Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
JSC3-CA-40B-50		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
JSC3-CA-40B-75		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
JSC3-CA-40B-100		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
JSC3-CA-40B-150		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
JSC3-CA-40B-200		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
JSC3-CA-40B-250		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
JSC3-CA-40B-300		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
JSC3-CA-40B-350		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
JSC3-CA-40B-400		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
JSC3-CA-40B-450		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
JSC3-CA-40B-500		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
JSC3-CA-50B-50		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
JSC3-CA-50B-75		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
JSC3-CA-50B-100		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
JSC3-CA-50B-150		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
JSC3-CA-50B-200		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
JSC3-CA-50B-250		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
JSC3-CA-50B-300		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
JSC3-CA-50B-350		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
JSC3-CA-50B-400		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
JSC3-CA-50B-450		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
JSC3-CA-50B-500		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
JSC3-CA-63B-50		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
JSC3-CA-63B-75		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
JSC3-CA-63B-100		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
JSC3-CA-63B-150		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
JSC3-CA-63B-200		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
JSC3-CA-63B-250		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
JSC3-CA-63B-300		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
JSC3-CA-63B-350		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
JSC3-CA-63B-400		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
JSC3-CA-63B-450		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
JSC3-CA-63B-500		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
JSC3-CA-80B-50		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
JSC3-CA-80B-75		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
JSC3-CA-80B-100		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
JSC3-CA-80B-150		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
JSC3-CA-80B-200		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
JSC3-CA-80B-250		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
JSC3-CA-80B-300		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
JSC3-CA-80B-350		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
JSC3-CA-80B-400		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
JSC3-CA-80B-450		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
JSC3-CA-80B-500		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
JSC3-CA-100B-50		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
JSC3-CA-100B-75		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
JSC3-CA-100B-100		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
JSC3-CA-100B-150		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
JSC3-CA-100B-200		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
JSC3-CA-100B-250		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
JSC3-CA-100B-300		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
JSC3-CA-100B-350		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
JSC3-CA-100B-400		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
JSC3-CA-100B-450		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
JSC3-CA-100B-500		Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
JSC3-CB-40B-50		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
JSC3-CB-40B-75		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
JSC3-CB-40B-100		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
JSC3-CB-40B-150		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
JSC3-CB-40B-200		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
JSC3-CB-40B-250		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
JSC3-CB-40B-300		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
JSC3-CB-40B-350		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
JSC3-CB-40B-400		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
JSC3-CB-40B-450		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
JSC3-CB-40B-500		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
JSC3-CB-50B-50		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
JSC3-CB-50B-75		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
JSC3-CB-50B-100		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
JSC3-CB-50B-150		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
JSC3-CB-50B-200		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
JSC3-CB-50B-250		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
JSC3-CB-50B-300		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
JSC3-CB-50B-350		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
JSC3-CB-50B-400		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
JSC3-CB-50B-450		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
JSC3-CB-50B-500		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
JSC3-CB-63B-50		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
JSC3-CB-63B-75		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
JSC3-CB-63B-100		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
JSC3-CB-63B-150		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
JSC3-CB-63B-200		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
JSC3-CB-63B-250		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
JSC3-CB-63B-300		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
JSC3-CB-63B-350		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
JSC3-CB-63B-400		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
JSC3-CB-63B-450		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
JSC3-CB-63B-500		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
JSC3-CB-80B-50		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
JSC3-CB-80B-75		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
JSC3-CB-80B-100		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
JSC3-CB-80B-150		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
JSC3-CB-80B-200		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
JSC3-CB-80B-250		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
JSC3-CB-80B-300		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
JSC3-CB-80B-350		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
JSC3-CB-80B-400		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
JSC3-CB-80B-450		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
JSC3-CB-80B-500		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
JSC3-CB-100B-50		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
JSC3-CB-100B-75		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
JSC3-CB-100B-100		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
JSC3-CB-100B-150		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
JSC3-CB-100B-200		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
JSC3-CB-100B-250		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
JSC3-CB-100B-300		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
JSC3-CB-100B-350		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
JSC3-CB-100B-400		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
JSC3-CB-100B-450		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
JSC3-CB-100B-500		Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
JSC3-TC-40B-50		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
JSC3-TC-40B-75		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
JSC3-TC-40B-100		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
JSC3-TC-40B-150		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
JSC3-TC-40B-200		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
JSC3-TC-40B-250		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
JSC3-TC-40B-300		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
JSC3-TC-40B-350		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
JSC3-TC-40B-400		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
JSC3-TC-40B-450		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
JSC3-TC-40B-500		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
JSC3-TC-50B-50		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
JSC3-TC-50B-75		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
JSC3-TC-50B-100		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
JSC3-TC-50B-150		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
JSC3-TC-50B-200		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
JSC3-TC-50B-250		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
JSC3-TC-50B-300		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
JSC3-TC-50B-350		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
JSC3-TC-50B-400		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
JSC3-TC-50B-450		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
JSC3-TC-50B-500		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
JSC3-TC-63B-50		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
JSC3-TC-63B-75		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
JSC3-TC-63B-100		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
JSC3-TC-63B-150		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
JSC3-TC-63B-200		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
JSC3-TC-63B-250		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
JSC3-TC-63B-300		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
JSC3-TC-63B-350		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
JSC3-TC-63B-400		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
JSC3-TC-63B-450		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
JSC3-TC-63B-500		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
JSC3-TC-80B-50		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
JSC3-TC-80B-75		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
JSC3-TC-80B-100		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
JSC3-TC-80B-150		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
JSC3-TC-80B-200		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
JSC3-TC-80B-250		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
JSC3-TC-80B-300		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
JSC3-TC-80B-350		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
JSC3-TC-80B-400		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
JSC3-TC-80B-450		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
JSC3-TC-80B-500		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
JSC3-TC-100B-50		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
JSC3-TC-100B-75		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
JSC3-TC-100B-100		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
JSC3-TC-100B-150		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
JSC3-TC-100B-200		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
JSC3-TC-100B-250		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
JSC3-TC-100B-300		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
JSC3-TC-100B-350		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
JSC3-TC-100B-400		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
JSC3-TC-100B-450		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
JSC3-TC-100B-500		Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
JSC3-TA-40B-50		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
JSC3-TA-40B-75		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
JSC3-TA-40B-100		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
JSC3-TA-40B-150		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
JSC3-TA-40B-200		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
JSC3-TA-40B-250		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
JSC3-TA-40B-300		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
JSC3-TA-40B-350		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
JSC3-TA-40B-400		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
JSC3-TA-40B-450		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
JSC3-TA-40B-500		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
JSC3-TA-50B-50		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
JSC3-TA-50B-75		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
JSC3-TA-50B-100		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
JSC3-TA-50B-150		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
JSC3-TA-50B-200		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
JSC3-TA-50B-250		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
JSC3-TA-50B-300		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
JSC3-TA-50B-350		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
JSC3-TA-50B-400		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
JSC3-TA-50B-450		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
JSC3-TA-50B-500		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
JSC3-TA-63B-50		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
JSC3-TA-63B-75		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
JSC3-TA-63B-100		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
JSC3-TA-63B-150		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
JSC3-TA-63B-200		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
JSC3-TA-63B-250		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
JSC3-TA-63B-300		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
JSC3-TA-63B-350		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
JSC3-TA-63B-400		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
JSC3-TA-63B-450		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
JSC3-TA-63B-500		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
JSC3-TA-80B-50		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
JSC3-TA-80B-75		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
JSC3-TA-80B-100		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
JSC3-TA-80B-150		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
JSC3-TA-80B-200		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
JSC3-TA-80B-250		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
JSC3-TA-80B-300		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
JSC3-TA-80B-350		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
JSC3-TA-80B-400		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
JSC3-TA-80B-450		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
JSC3-TA-80B-500		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
JSC3-TA-100B-50		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
JSC3-TA-100B-75		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
JSC3-TA-100B-100		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
JSC3-TA-100B-150		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
JSC3-TA-100B-200		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
JSC3-TA-100B-250		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
JSC3-TA-100B-300		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
JSC3-TA-100B-350		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
JSC3-TA-100B-400		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
JSC3-TA-100B-450		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
JSC3-TA-100B-500		Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
JSC3-TB-40B-50		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
JSC3-TB-40B-75		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
JSC3-TB-40B-100		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
JSC3-TB-40B-150		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
JSC3-TB-40B-200		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
JSC3-TB-40B-250		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
JSC3-TB-40B-300		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
JSC3-TB-40B-350		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
JSC3-TB-40B-400		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
JSC3-TB-40B-450		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
JSC3-TB-40B-500		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
JSC3-TB-50B-50		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
JSC3-TB-50B-75		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
JSC3-TB-50B-100		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
JSC3-TB-50B-150		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
JSC3-TB-50B-200		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
JSC3-TB-50B-250		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
JSC3-TB-50B-300		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
JSC3-TB-50B-350		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
JSC3-TB-50B-400		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
JSC3-TB-50B-450		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
JSC3-TB-50B-500		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
JSC3-TB-63B-50		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
JSC3-TB-63B-75		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
JSC3-TB-63B-100		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
JSC3-TB-63B-150		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
JSC3-TB-63B-200		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
JSC3-TB-63B-250		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
JSC3-TB-63B-300		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
JSC3-TB-63B-350		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
JSC3-TB-63B-400		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
JSC3-TB-63B-450		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
JSC3-TB-63B-500		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
JSC3-TB-80B-50		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
JSC3-TB-80B-75		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
JSC3-TB-80B-100		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
JSC3-TB-80B-150		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
JSC3-TB-80B-200		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
JSC3-TB-80B-250		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
JSC3-TB-80B-300		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
JSC3-TB-80B-350		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
JSC3-TB-80B-400		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
JSC3-TB-80B-450		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
JSC3-TB-80B-500		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
JSC3-TB-100B-50		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
JSC3-TB-100B-75		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
JSC3-TB-100B-100		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
JSC3-TB-100B-150		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
JSC3-TB-100B-200		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
JSC3-TB-100B-250		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
JSC3-TB-100B-300		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
JSC3-TB-100B-350		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
JSC3-TB-100B-400		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
JSC3-TB-100B-450		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
JSC3-TB-100B-500		Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
JSC4-N-LB-125B-50		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-N-LB-125B-75		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-N-LB-125B-100		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-N-LB-125B-150		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-N-LB-125B-200		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-N-LB-125B-250		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-N-LB-125B-300		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-N-LB-140B-50		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-N-LB-140B-75		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-N-LB-140B-100		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-N-LB-140B-150		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-N-LB-140B-200		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-N-LB-140B-250		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-N-LB-140B-300		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-N-LB-160B-50		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-N-LB-160B-75		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-N-LB-160B-100		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-N-LB-160B-150		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-N-LB-160B-200		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-N-LB-160B-250		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-N-LB-160B-300		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-N-LB-180B-50		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-N-LB-180B-75		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-N-LB-180B-100		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-N-LB-180B-150		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-N-LB-180B-200		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-N-LB-180B-250		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-N-LB-180B-300		Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-N-FA-125B-50		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-N-FA-125B-75		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-N-FA-125B-100		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-N-FA-125B-150		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-N-FA-125B-200		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-N-FA-125B-250		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-N-FA-125B-300		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-N-FA-140B-50		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-N-FA-140B-75		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-N-FA-140B-100		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-N-FA-140B-150		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-N-FA-140B-200		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-N-FA-140B-250		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-N-FA-140B-300		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-N-FA-160B-50		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-N-FA-160B-75		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-N-FA-160B-100		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-N-FA-160B-150		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-N-FA-160B-200		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-N-FA-160B-250		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-N-FA-160B-300		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-N-FA-180B-50		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-N-FA-180B-75		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-N-FA-180B-100		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-N-FA-180B-150		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-N-FA-180B-200		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-N-FA-180B-250		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-N-FA-180B-300		Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-N-FB-125B-50		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-N-FB-125B-75		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-N-FB-125B-100		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-N-FB-125B-150		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-N-FB-125B-200		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-N-FB-125B-250		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-N-FB-125B-300		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-N-FB-140B-50		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-N-FB-140B-75		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-N-FB-140B-100		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-N-FB-140B-150		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-N-FB-140B-200		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-N-FB-140B-250		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-N-FB-140B-300		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-N-FB-160B-50		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-N-FB-160B-75		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-N-FB-160B-100		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-N-FB-160B-150		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-N-FB-160B-200		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-N-FB-160B-250		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-N-FB-160B-300		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-N-FB-180B-50		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-N-FB-180B-75		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-N-FB-180B-100		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-N-FB-180B-150		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-N-FB-180B-200		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-N-FB-180B-250		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-N-FB-180B-300		Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-N-CA-125B-50		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-N-CA-125B-75		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-N-CA-125B-100		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-N-CA-125B-150		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-N-CA-125B-200		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-N-CA-125B-250		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-N-CA-125B-300		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-N-CA-140B-50		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-N-CA-140B-75		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-N-CA-140B-100		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-N-CA-140B-150		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-N-CA-140B-200		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-N-CA-140B-250		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-N-CA-140B-300		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-N-CA-160B-50		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-N-CA-160B-75		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-N-CA-160B-100		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-N-CA-160B-150		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-N-CA-160B-200		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-N-CA-160B-250		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-N-CA-160B-300		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-N-CA-180B-50		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-N-CA-180B-75		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-N-CA-180B-100		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-N-CA-180B-150		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-N-CA-180B-200		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-N-CA-180B-250		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-N-CA-180B-300		Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-N-CB-125B-50		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-N-CB-125B-75		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-N-CB-125B-100		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-N-CB-125B-150		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-N-CB-125B-200		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-N-CB-125B-250		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-N-CB-125B-300		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-N-CB-140B-50		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-N-CB-140B-75		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-N-CB-140B-100		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-N-CB-140B-150		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-N-CB-140B-200		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-N-CB-140B-250		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-N-CB-140B-300		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-N-CB-160B-50		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-N-CB-160B-75		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-N-CB-160B-100		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-N-CB-160B-150		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-N-CB-160B-200		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-N-CB-160B-250		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-N-CB-160B-300		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-N-CB-180B-50		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-N-CB-180B-75		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-N-CB-180B-100		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-N-CB-180B-150		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-N-CB-180B-200		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-N-CB-180B-250		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-N-CB-180B-300		Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-N-TC-125B-50		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-N-TC-125B-75		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-N-TC-125B-100		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-N-TC-125B-150		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-N-TC-125B-200		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-N-TC-125B-250		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-N-TC-125B-300		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-N-TC-140B-50		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-N-TC-140B-75		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-N-TC-140B-100		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-N-TC-140B-150		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-N-TC-140B-200		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-N-TC-140B-250		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-N-TC-140B-300		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-N-TC-160B-50		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-N-TC-160B-75		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-N-TC-160B-100		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-N-TC-160B-150		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-N-TC-160B-200		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-N-TC-160B-250		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-N-TC-160B-300		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-N-TC-180B-50		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-N-TC-180B-75		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-N-TC-180B-100		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-N-TC-180B-150		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-N-TC-180B-200		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-N-TC-180B-250		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-N-TC-180B-300		Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-N-TA-125B-50		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-N-TA-125B-75		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-N-TA-125B-100		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-N-TA-125B-150		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-N-TA-125B-200		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-N-TA-125B-250		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-N-TA-125B-300		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-N-TA-140B-50		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-N-TA-140B-75		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-N-TA-140B-100		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-N-TA-140B-150		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-N-TA-140B-200		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-N-TA-140B-250		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-N-TA-140B-300		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-N-TA-160B-50		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-N-TA-160B-75		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-N-TA-160B-100		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-N-TA-160B-150		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-N-TA-160B-200		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-N-TA-160B-250		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-N-TA-160B-300		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-N-TA-180B-50		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-N-TA-180B-75		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-N-TA-180B-100		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-N-TA-180B-150		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-N-TA-180B-200		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-N-TA-180B-250		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-N-TA-180B-300		Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-N-TB-125B-50		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-N-TB-125B-75		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-N-TB-125B-100		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-N-TB-125B-150		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-N-TB-125B-200		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-N-TB-125B-250		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-N-TB-125B-300		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-N-TB-140B-50		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-N-TB-140B-75		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-N-TB-140B-100		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-N-TB-140B-150		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-N-TB-140B-200		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-N-TB-140B-250		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-N-TB-140B-300		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-N-TB-160B-50		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-N-TB-160B-75		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-N-TB-160B-100		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-N-TB-160B-150		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-N-TB-160B-200		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-N-TB-160B-250		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-N-TB-160B-300		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-N-TB-180B-50		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-N-TB-180B-75		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-N-TB-180B-100		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-N-TB-180B-150		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-N-TB-180B-200		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-N-TB-180B-250		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-N-TB-180B-300		Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-LN-LB-125B-50		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-LN-LB-125B-75		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-LN-LB-125B-100		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-LN-LB-125B-150		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-LN-LB-125B-200		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-LN-LB-125B-250		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-LN-LB-125B-300		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-LN-LB-140B-50		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-LN-LB-140B-75		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-LN-LB-140B-100		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-LN-LB-140B-150		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-LN-LB-140B-200		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-LN-LB-140B-250		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-LN-LB-140B-300		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-LN-LB-160B-50		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-LN-LB-160B-75		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-LN-LB-160B-100		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-LN-LB-160B-150		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-LN-LB-160B-200		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-LN-LB-160B-250		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-LN-LB-160B-300		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-LN-LB-180B-50		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-LN-LB-180B-75		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-LN-LB-180B-100		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-LN-LB-180B-150		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-LN-LB-180B-200		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-LN-LB-180B-250		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-LN-LB-180B-300		Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-LN-FA-125B-50		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-LN-FA-125B-75		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-LN-FA-125B-100		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-LN-FA-125B-150		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-LN-FA-125B-200		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-LN-FA-125B-250		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-LN-FA-125B-300		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-LN-FA-140B-50		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-LN-FA-140B-75		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-LN-FA-140B-100		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-LN-FA-140B-150		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-LN-FA-140B-200		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-LN-FA-140B-250		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-LN-FA-140B-300		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-LN-FA-160B-50		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-LN-FA-160B-75		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-LN-FA-160B-100		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-LN-FA-160B-150		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-LN-FA-160B-200		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-LN-FA-160B-250		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-LN-FA-160B-300		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-LN-FA-180B-50		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-LN-FA-180B-75		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-LN-FA-180B-100		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-LN-FA-180B-150		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-LN-FA-180B-200		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-LN-FA-180B-250		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-LN-FA-180B-300		Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-LN-FB-125B-50		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-LN-FB-125B-75		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-LN-FB-125B-100		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-LN-FB-125B-150		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-LN-FB-125B-200		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-LN-FB-125B-250		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-LN-FB-125B-300		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-LN-FB-140B-50		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-LN-FB-140B-75		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-LN-FB-140B-100		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-LN-FB-140B-150		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-LN-FB-140B-200		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-LN-FB-140B-250		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-LN-FB-140B-300		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-LN-FB-160B-50		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-LN-FB-160B-75		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-LN-FB-160B-100		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-LN-FB-160B-150		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-LN-FB-160B-200		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-LN-FB-160B-250		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-LN-FB-160B-300		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-LN-FB-180B-50		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-LN-FB-180B-75		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-LN-FB-180B-100		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-LN-FB-180B-150		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-LN-FB-180B-200		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-LN-FB-180B-250		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-LN-FB-180B-300		Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-LN-CA-125B-50		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-LN-CA-125B-75		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-LN-CA-125B-100		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-LN-CA-125B-150		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-LN-CA-125B-200		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-LN-CA-125B-250		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-LN-CA-125B-300		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-LN-CA-140B-50		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-LN-CA-140B-75		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-LN-CA-140B-100		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-LN-CA-140B-150		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-LN-CA-140B-200		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-LN-CA-140B-250		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-LN-CA-140B-300		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-LN-CA-160B-50		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-LN-CA-160B-75		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-LN-CA-160B-100		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-LN-CA-160B-150		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-LN-CA-160B-200		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-LN-CA-160B-250		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-LN-CA-160B-300		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-LN-CA-180B-50		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-LN-CA-180B-75		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-LN-CA-180B-100		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-LN-CA-180B-150		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-LN-CA-180B-200		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-LN-CA-180B-250		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-LN-CA-180B-300		Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-LN-CB-125B-50		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-LN-CB-125B-75		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-LN-CB-125B-100		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-LN-CB-125B-150		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-LN-CB-125B-200		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-LN-CB-125B-250		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-LN-CB-125B-300		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-LN-CB-140B-50		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-LN-CB-140B-75		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-LN-CB-140B-100		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-LN-CB-140B-150		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-LN-CB-140B-200		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-LN-CB-140B-250		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-LN-CB-140B-300		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-LN-CB-160B-50		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-LN-CB-160B-75		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-LN-CB-160B-100		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-LN-CB-160B-150		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-LN-CB-160B-200		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-LN-CB-160B-250		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-LN-CB-160B-300		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-LN-CB-180B-50		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-LN-CB-180B-75		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-LN-CB-180B-100		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-LN-CB-180B-150		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-LN-CB-180B-200		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-LN-CB-180B-250		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-LN-CB-180B-300		Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-LN-TC-125B-50		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-LN-TC-125B-75		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-LN-TC-125B-100		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-LN-TC-125B-150		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-LN-TC-125B-200		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-LN-TC-125B-250		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-LN-TC-125B-300		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-LN-TC-140B-50		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-LN-TC-140B-75		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-LN-TC-140B-100		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-LN-TC-140B-150		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-LN-TC-140B-200		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-LN-TC-140B-250		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-LN-TC-140B-300		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-LN-TC-160B-50		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-LN-TC-160B-75		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-LN-TC-160B-100		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-LN-TC-160B-150		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-LN-TC-160B-200		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-LN-TC-160B-250		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-LN-TC-160B-300		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-LN-TC-180B-50		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-LN-TC-180B-75		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-LN-TC-180B-100		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-LN-TC-180B-150		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-LN-TC-180B-200		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-LN-TC-180B-250		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-LN-TC-180B-300		Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-LN-TA-125B-50		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-LN-TA-125B-75		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-LN-TA-125B-100		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-LN-TA-125B-150		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-LN-TA-125B-200		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-LN-TA-125B-250		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-LN-TA-125B-300		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-LN-TA-140B-50		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-LN-TA-140B-75		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-LN-TA-140B-100		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-LN-TA-140B-150		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-LN-TA-140B-200		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-LN-TA-140B-250		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-LN-TA-140B-300		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-LN-TA-160B-50		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-LN-TA-160B-75		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-LN-TA-160B-100		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-LN-TA-160B-150		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-LN-TA-160B-200		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-LN-TA-160B-250		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-LN-TA-160B-300		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-LN-TA-180B-50		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-LN-TA-180B-75		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-LN-TA-180B-100		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-LN-TA-180B-150		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-LN-TA-180B-200		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-LN-TA-180B-250		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-LN-TA-180B-300		Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-LN-TB-125B-50		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-LN-TB-125B-75		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-LN-TB-125B-100		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-LN-TB-125B-150		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-LN-TB-125B-200		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-LN-TB-125B-250		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-LN-TB-125B-300		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-LN-TB-140B-50		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-LN-TB-140B-75		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-LN-TB-140B-100		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-LN-TB-140B-150		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-LN-TB-140B-200		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-LN-TB-140B-250		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-LN-TB-140B-300		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-LN-TB-160B-50		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-LN-TB-160B-75		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-LN-TB-160B-100		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-LN-TB-160B-150		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-LN-TB-160B-200		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-LN-TB-160B-250		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-LN-TB-160B-300		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-LN-TB-180B-50		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-LN-TB-180B-75		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-LN-TB-180B-100		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-LN-TB-180B-150		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-LN-TB-180B-200		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-LN-TB-180B-250		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-LN-TB-180B-300		Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N

Pneumatic CylindersCKD

998 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD JSC3/JSC4-N Cell Top Brake Cylinder (40-180)

Brand CKD·Pneumatic Cylinders

Available part numbers (998)

JSC3-00-40B-50, JSC3-00-40B-75, JSC3-00-40B-100, JSC3-00-40B-150, JSC3-00-40B-200, JSC3-00-40B-250, JSC3-00-40B-300, JSC3-00-40B-350, JSC3-00-40B-400, JSC3-00-40B-450 + 988 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	JSC3-00-40B-50	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
	JSC3-00-40B-75	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
	JSC3-00-40B-100	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
	JSC3-00-40B-150	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
	JSC3-00-40B-200	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
	JSC3-00-40B-250	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
	JSC3-00-40B-300	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
	JSC3-00-40B-350	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
	JSC3-00-40B-400	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
	JSC3-00-40B-450	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
	JSC3-00-40B-500	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
	JSC3-00-50B-50	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
	JSC3-00-50B-75	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
	JSC3-00-50B-100	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
	JSC3-00-50B-150	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
	JSC3-00-50B-200	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
	JSC3-00-50B-250	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
	JSC3-00-50B-300	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
	JSC3-00-50B-350	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
	JSC3-00-50B-400	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
	JSC3-00-50B-450	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
	JSC3-00-50B-500	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
	JSC3-00-63B-50	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
	JSC3-00-63B-75	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
	JSC3-00-63B-100	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
	JSC3-00-63B-150	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
	JSC3-00-63B-200	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
	JSC3-00-63B-250	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
	JSC3-00-63B-300	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
	JSC3-00-63B-350	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
	JSC3-00-63B-400	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
	JSC3-00-63B-450	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
	JSC3-00-63B-500	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
	JSC3-00-80B-50	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
	JSC3-00-80B-75	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
	JSC3-00-80B-100	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
	JSC3-00-80B-150	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
	JSC3-00-80B-200	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
	JSC3-00-80B-250	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
	JSC3-00-80B-300	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
	JSC3-00-80B-350	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
	JSC3-00-80B-400	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
	JSC3-00-80B-450	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
	JSC3-00-80B-500	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
	JSC3-00-100B-50	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
	JSC3-00-100B-75	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
	JSC3-00-100B-100	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
	JSC3-00-100B-150	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
	JSC3-00-100B-200	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
	JSC3-00-100B-250	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
	JSC3-00-100B-300	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
	JSC3-00-100B-350	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
	JSC3-00-100B-400	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
	JSC3-00-100B-450	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
	JSC3-00-100B-500	Model: JSC3 (switch magnet) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
	JSC3-LB-40B-50	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
	JSC3-LB-40B-75	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
	JSC3-LB-40B-100	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
	JSC3-LB-40B-150	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
	JSC3-LB-40B-200	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
	JSC3-LB-40B-250	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
	JSC3-LB-40B-300	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
	JSC3-LB-40B-350	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
	JSC3-LB-40B-400	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
	JSC3-LB-40B-450	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
	JSC3-LB-40B-500	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
	JSC3-LB-50B-50	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
	JSC3-LB-50B-75	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
	JSC3-LB-50B-100	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
	JSC3-LB-50B-150	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
	JSC3-LB-50B-200	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
	JSC3-LB-50B-250	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
	JSC3-LB-50B-300	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
	JSC3-LB-50B-350	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
	JSC3-LB-50B-400	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
	JSC3-LB-50B-450	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
	JSC3-LB-50B-500	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
	JSC3-LB-63B-50	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
	JSC3-LB-63B-75	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
	JSC3-LB-63B-100	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
	JSC3-LB-63B-150	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
	JSC3-LB-63B-200	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
	JSC3-LB-63B-250	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
	JSC3-LB-63B-300	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
	JSC3-LB-63B-350	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
	JSC3-LB-63B-400	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
	JSC3-LB-63B-450	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
	JSC3-LB-63B-500	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
	JSC3-LB-80B-50	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
	JSC3-LB-80B-75	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
	JSC3-LB-80B-100	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
	JSC3-LB-80B-150	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
	JSC3-LB-80B-200	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
	JSC3-LB-80B-250	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
	JSC3-LB-80B-300	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
	JSC3-LB-80B-350	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
	JSC3-LB-80B-400	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
	JSC3-LB-80B-450	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
	JSC3-LB-80B-500	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
	JSC3-LB-100B-50	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
	JSC3-LB-100B-75	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
	JSC3-LB-100B-100	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
	JSC3-LB-100B-150	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
	JSC3-LB-100B-200	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
	JSC3-LB-100B-250	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
	JSC3-LB-100B-300	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
	JSC3-LB-100B-350	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
	JSC3-LB-100B-400	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
	JSC3-LB-100B-450	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
	JSC3-LB-100B-500	Model: JSC3 (switch magnet) \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
	JSC3-FA-40B-50	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
	JSC3-FA-40B-75	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
	JSC3-FA-40B-100	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
	JSC3-FA-40B-150	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
	JSC3-FA-40B-200	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
	JSC3-FA-40B-250	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
	JSC3-FA-40B-300	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
	JSC3-FA-40B-350	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
	JSC3-FA-40B-400	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
	JSC3-FA-40B-450	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
	JSC3-FA-40B-500	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
	JSC3-FA-50B-50	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
	JSC3-FA-50B-75	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
	JSC3-FA-50B-100	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
	JSC3-FA-50B-150	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
	JSC3-FA-50B-200	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
	JSC3-FA-50B-250	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
	JSC3-FA-50B-300	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
	JSC3-FA-50B-350	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
	JSC3-FA-50B-400	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
	JSC3-FA-50B-450	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
	JSC3-FA-50B-500	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
	JSC3-FA-63B-50	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
	JSC3-FA-63B-75	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
	JSC3-FA-63B-100	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
	JSC3-FA-63B-150	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
	JSC3-FA-63B-200	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
	JSC3-FA-63B-250	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
	JSC3-FA-63B-300	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
	JSC3-FA-63B-350	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
	JSC3-FA-63B-400	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
	JSC3-FA-63B-450	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
	JSC3-FA-63B-500	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
	JSC3-FA-80B-50	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
	JSC3-FA-80B-75	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
	JSC3-FA-80B-100	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
	JSC3-FA-80B-150	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
	JSC3-FA-80B-200	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
	JSC3-FA-80B-250	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
	JSC3-FA-80B-300	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
	JSC3-FA-80B-350	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
	JSC3-FA-80B-400	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
	JSC3-FA-80B-450	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
	JSC3-FA-80B-500	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
	JSC3-FA-100B-50	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
	JSC3-FA-100B-75	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
	JSC3-FA-100B-100	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
	JSC3-FA-100B-150	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
	JSC3-FA-100B-200	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
	JSC3-FA-100B-250	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
	JSC3-FA-100B-300	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
	JSC3-FA-100B-350	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
	JSC3-FA-100B-400	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
	JSC3-FA-100B-450	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
	JSC3-FA-100B-500	Model: JSC3 (switch magnet) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
	JSC3-FB-40B-50	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
	JSC3-FB-40B-75	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
	JSC3-FB-40B-100	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
	JSC3-FB-40B-150	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
	JSC3-FB-40B-200	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
	JSC3-FB-40B-250	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
	JSC3-FB-40B-300	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
	JSC3-FB-40B-350	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
	JSC3-FB-40B-400	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
	JSC3-FB-40B-450	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
	JSC3-FB-40B-500	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
	JSC3-FB-50B-50	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
	JSC3-FB-50B-75	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
	JSC3-FB-50B-100	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
	JSC3-FB-50B-150	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
	JSC3-FB-50B-200	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
	JSC3-FB-50B-250	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
	JSC3-FB-50B-300	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
	JSC3-FB-50B-350	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
	JSC3-FB-50B-400	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
	JSC3-FB-50B-450	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
	JSC3-FB-50B-500	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
	JSC3-FB-63B-50	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
	JSC3-FB-63B-75	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
	JSC3-FB-63B-100	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
	JSC3-FB-63B-150	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
	JSC3-FB-63B-200	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
	JSC3-FB-63B-250	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
	JSC3-FB-63B-300	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
	JSC3-FB-63B-350	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
	JSC3-FB-63B-400	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
	JSC3-FB-63B-450	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
	JSC3-FB-63B-500	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
	JSC3-FB-80B-50	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
	JSC3-FB-80B-75	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
	JSC3-FB-80B-100	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
	JSC3-FB-80B-150	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
	JSC3-FB-80B-200	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
	JSC3-FB-80B-250	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
	JSC3-FB-80B-300	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
	JSC3-FB-80B-350	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
	JSC3-FB-80B-400	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
	JSC3-FB-80B-450	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
	JSC3-FB-80B-500	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
	JSC3-FB-100B-50	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
	JSC3-FB-100B-75	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
	JSC3-FB-100B-100	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
	JSC3-FB-100B-150	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
	JSC3-FB-100B-200	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
	JSC3-FB-100B-250	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
	JSC3-FB-100B-300	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
	JSC3-FB-100B-350	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
	JSC3-FB-100B-400	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
	JSC3-FB-100B-450	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
	JSC3-FB-100B-500	Model: JSC3 (switch magnet) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
	JSC3-FC-40B-50	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
	JSC3-FC-40B-75	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
	JSC3-FC-40B-100	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
	JSC3-FC-40B-150	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
	JSC3-FC-40B-200	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
	JSC3-FC-40B-250	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
	JSC3-FC-40B-300	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
	JSC3-FC-40B-350	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
	JSC3-FC-40B-400	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
	JSC3-FC-40B-450	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
	JSC3-FC-40B-500	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
	JSC3-FC-50B-50	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
	JSC3-FC-50B-75	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
	JSC3-FC-50B-100	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
	JSC3-FC-50B-150	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
	JSC3-FC-50B-200	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
	JSC3-FC-50B-250	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
	JSC3-FC-50B-300	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
	JSC3-FC-50B-350	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
	JSC3-FC-50B-400	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
	JSC3-FC-50B-450	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
	JSC3-FC-50B-500	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
	JSC3-FC-63B-50	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
	JSC3-FC-63B-75	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
	JSC3-FC-63B-100	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
	JSC3-FC-63B-150	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
	JSC3-FC-63B-200	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
	JSC3-FC-63B-250	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
	JSC3-FC-63B-300	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
	JSC3-FC-63B-350	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
	JSC3-FC-63B-400	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
	JSC3-FC-63B-450	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
	JSC3-FC-63B-500	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
	JSC3-FC-80B-50	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
	JSC3-FC-80B-75	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
	JSC3-FC-80B-100	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
	JSC3-FC-80B-150	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
	JSC3-FC-80B-200	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
	JSC3-FC-80B-250	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
	JSC3-FC-80B-300	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
	JSC3-FC-80B-350	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
	JSC3-FC-80B-400	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
	JSC3-FC-80B-450	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
	JSC3-FC-80B-500	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
	JSC3-FC-100B-50	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
	JSC3-FC-100B-75	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
	JSC3-FC-100B-100	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
	JSC3-FC-100B-150	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
	JSC3-FC-100B-200	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
	JSC3-FC-100B-250	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
	JSC3-FC-100B-300	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
	JSC3-FC-100B-350	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
	JSC3-FC-100B-400	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
	JSC3-FC-100B-450	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
	JSC3-FC-100B-500	Model: JSC3 (switch magnet) \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
	JSC3-CA-40B-50	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
	JSC3-CA-40B-75	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
	JSC3-CA-40B-100	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
	JSC3-CA-40B-150	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
	JSC3-CA-40B-200	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
	JSC3-CA-40B-250	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
	JSC3-CA-40B-300	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
	JSC3-CA-40B-350	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
	JSC3-CA-40B-400	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
	JSC3-CA-40B-450	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
	JSC3-CA-40B-500	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
	JSC3-CA-50B-50	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
	JSC3-CA-50B-75	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
	JSC3-CA-50B-100	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
	JSC3-CA-50B-150	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
	JSC3-CA-50B-200	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
	JSC3-CA-50B-250	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
	JSC3-CA-50B-300	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
	JSC3-CA-50B-350	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
	JSC3-CA-50B-400	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
	JSC3-CA-50B-450	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
	JSC3-CA-50B-500	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
	JSC3-CA-63B-50	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
	JSC3-CA-63B-75	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
	JSC3-CA-63B-100	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
	JSC3-CA-63B-150	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
	JSC3-CA-63B-200	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
	JSC3-CA-63B-250	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
	JSC3-CA-63B-300	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
	JSC3-CA-63B-350	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
	JSC3-CA-63B-400	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
	JSC3-CA-63B-450	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
	JSC3-CA-63B-500	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
	JSC3-CA-80B-50	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
	JSC3-CA-80B-75	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
	JSC3-CA-80B-100	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
	JSC3-CA-80B-150	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
	JSC3-CA-80B-200	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
	JSC3-CA-80B-250	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
	JSC3-CA-80B-300	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
	JSC3-CA-80B-350	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
	JSC3-CA-80B-400	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
	JSC3-CA-80B-450	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
	JSC3-CA-80B-500	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
	JSC3-CA-100B-50	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
	JSC3-CA-100B-75	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
	JSC3-CA-100B-100	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
	JSC3-CA-100B-150	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
	JSC3-CA-100B-200	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
	JSC3-CA-100B-250	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
	JSC3-CA-100B-300	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
	JSC3-CA-100B-350	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
	JSC3-CA-100B-400	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
	JSC3-CA-100B-450	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
	JSC3-CA-100B-500	Model: JSC3 (switch magnet) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
	JSC3-CB-40B-50	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
	JSC3-CB-40B-75	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
	JSC3-CB-40B-100	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
	JSC3-CB-40B-150	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
	JSC3-CB-40B-200	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
	JSC3-CB-40B-250	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
	JSC3-CB-40B-300	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
	JSC3-CB-40B-350	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
	JSC3-CB-40B-400	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
	JSC3-CB-40B-450	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
	JSC3-CB-40B-500	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
	JSC3-CB-50B-50	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
	JSC3-CB-50B-75	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
	JSC3-CB-50B-100	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
	JSC3-CB-50B-150	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
	JSC3-CB-50B-200	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
	JSC3-CB-50B-250	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
	JSC3-CB-50B-300	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
	JSC3-CB-50B-350	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
	JSC3-CB-50B-400	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
	JSC3-CB-50B-450	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
	JSC3-CB-50B-500	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
	JSC3-CB-63B-50	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
	JSC3-CB-63B-75	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
	JSC3-CB-63B-100	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
	JSC3-CB-63B-150	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
	JSC3-CB-63B-200	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
	JSC3-CB-63B-250	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
	JSC3-CB-63B-300	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
	JSC3-CB-63B-350	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
	JSC3-CB-63B-400	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
	JSC3-CB-63B-450	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
	JSC3-CB-63B-500	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
	JSC3-CB-80B-50	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
	JSC3-CB-80B-75	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
	JSC3-CB-80B-100	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
	JSC3-CB-80B-150	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
	JSC3-CB-80B-200	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
	JSC3-CB-80B-250	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
	JSC3-CB-80B-300	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
	JSC3-CB-80B-350	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
	JSC3-CB-80B-400	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
	JSC3-CB-80B-450	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
	JSC3-CB-80B-500	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
	JSC3-CB-100B-50	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
	JSC3-CB-100B-75	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
	JSC3-CB-100B-100	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
	JSC3-CB-100B-150	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
	JSC3-CB-100B-200	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
	JSC3-CB-100B-250	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
	JSC3-CB-100B-300	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
	JSC3-CB-100B-350	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
	JSC3-CB-100B-400	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
	JSC3-CB-100B-450	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
	JSC3-CB-100B-500	Model: JSC3 (switch magnet) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
	JSC3-TC-40B-50	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
	JSC3-TC-40B-75	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
	JSC3-TC-40B-100	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
	JSC3-TC-40B-150	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
	JSC3-TC-40B-200	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
	JSC3-TC-40B-250	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
	JSC3-TC-40B-300	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
	JSC3-TC-40B-350	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
	JSC3-TC-40B-400	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
	JSC3-TC-40B-450	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
	JSC3-TC-40B-500	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
	JSC3-TC-50B-50	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
	JSC3-TC-50B-75	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
	JSC3-TC-50B-100	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
	JSC3-TC-50B-150	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
	JSC3-TC-50B-200	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
	JSC3-TC-50B-250	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
	JSC3-TC-50B-300	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
	JSC3-TC-50B-350	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
	JSC3-TC-50B-400	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
	JSC3-TC-50B-450	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
	JSC3-TC-50B-500	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
	JSC3-TC-63B-50	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
	JSC3-TC-63B-75	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
	JSC3-TC-63B-100	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
	JSC3-TC-63B-150	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
	JSC3-TC-63B-200	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
	JSC3-TC-63B-250	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
	JSC3-TC-63B-300	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
	JSC3-TC-63B-350	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
	JSC3-TC-63B-400	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
	JSC3-TC-63B-450	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
	JSC3-TC-63B-500	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
	JSC3-TC-80B-50	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
	JSC3-TC-80B-75	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
	JSC3-TC-80B-100	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
	JSC3-TC-80B-150	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
	JSC3-TC-80B-200	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
	JSC3-TC-80B-250	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
	JSC3-TC-80B-300	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
	JSC3-TC-80B-350	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
	JSC3-TC-80B-400	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
	JSC3-TC-80B-450	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
	JSC3-TC-80B-500	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
	JSC3-TC-100B-50	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
	JSC3-TC-100B-75	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
	JSC3-TC-100B-100	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
	JSC3-TC-100B-150	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
	JSC3-TC-100B-200	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
	JSC3-TC-100B-250	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
	JSC3-TC-100B-300	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
	JSC3-TC-100B-350	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
	JSC3-TC-100B-400	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
	JSC3-TC-100B-450	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
	JSC3-TC-100B-500	Model: JSC3 (switch magnet) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
	JSC3-TA-40B-50	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
	JSC3-TA-40B-75	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
	JSC3-TA-40B-100	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
	JSC3-TA-40B-150	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
	JSC3-TA-40B-200	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
	JSC3-TA-40B-250	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
	JSC3-TA-40B-300	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
	JSC3-TA-40B-350	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
	JSC3-TA-40B-400	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
	JSC3-TA-40B-450	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
	JSC3-TA-40B-500	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
	JSC3-TA-50B-50	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
	JSC3-TA-50B-75	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
	JSC3-TA-50B-100	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
	JSC3-TA-50B-150	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
	JSC3-TA-50B-200	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
	JSC3-TA-50B-250	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
	JSC3-TA-50B-300	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
	JSC3-TA-50B-350	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
	JSC3-TA-50B-400	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
	JSC3-TA-50B-450	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
	JSC3-TA-50B-500	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
	JSC3-TA-63B-50	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
	JSC3-TA-63B-75	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
	JSC3-TA-63B-100	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
	JSC3-TA-63B-150	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
	JSC3-TA-63B-200	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
	JSC3-TA-63B-250	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
	JSC3-TA-63B-300	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
	JSC3-TA-63B-350	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
	JSC3-TA-63B-400	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
	JSC3-TA-63B-450	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
	JSC3-TA-63B-500	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
	JSC3-TA-80B-50	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
	JSC3-TA-80B-75	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
	JSC3-TA-80B-100	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
	JSC3-TA-80B-150	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
	JSC3-TA-80B-200	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
	JSC3-TA-80B-250	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
	JSC3-TA-80B-300	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
	JSC3-TA-80B-350	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
	JSC3-TA-80B-400	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
	JSC3-TA-80B-450	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
	JSC3-TA-80B-500	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
	JSC3-TA-100B-50	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
	JSC3-TA-100B-75	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
	JSC3-TA-100B-100	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
	JSC3-TA-100B-150	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
	JSC3-TA-100B-200	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
	JSC3-TA-100B-250	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
	JSC3-TA-100B-300	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
	JSC3-TA-100B-350	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
	JSC3-TA-100B-400	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
	JSC3-TA-100B-450	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
	JSC3-TA-100B-500	Model: JSC3 (switch magnet) \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
	JSC3-TB-40B-50	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
	JSC3-TB-40B-75	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
	JSC3-TB-40B-100	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
	JSC3-TB-40B-150	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
	JSC3-TB-40B-200	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
	JSC3-TB-40B-250	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
	JSC3-TB-40B-300	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
	JSC3-TB-40B-350	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
	JSC3-TB-40B-400	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
	JSC3-TB-40B-450	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
	JSC3-TB-40B-500	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
	JSC3-TB-50B-50	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
	JSC3-TB-50B-75	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
	JSC3-TB-50B-100	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
	JSC3-TB-50B-150	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
	JSC3-TB-50B-200	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
	JSC3-TB-50B-250	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
	JSC3-TB-50B-300	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
	JSC3-TB-50B-350	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
	JSC3-TB-50B-400	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
	JSC3-TB-50B-450	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
	JSC3-TB-50B-500	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
	JSC3-TB-63B-50	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
	JSC3-TB-63B-75	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
	JSC3-TB-63B-100	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
	JSC3-TB-63B-150	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
	JSC3-TB-63B-200	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
	JSC3-TB-63B-250	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
	JSC3-TB-63B-300	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
	JSC3-TB-63B-350	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
	JSC3-TB-63B-400	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
	JSC3-TB-63B-450	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
	JSC3-TB-63B-500	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
	JSC3-TB-80B-50	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
	JSC3-TB-80B-75	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
	JSC3-TB-80B-100	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
	JSC3-TB-80B-150	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
	JSC3-TB-80B-200	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
	JSC3-TB-80B-250	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
	JSC3-TB-80B-300	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
	JSC3-TB-80B-350	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
	JSC3-TB-80B-400	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
	JSC3-TB-80B-450	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
	JSC3-TB-80B-500	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
	JSC3-TB-100B-50	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
	JSC3-TB-100B-75	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
	JSC3-TB-100B-100	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
	JSC3-TB-100B-150	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
	JSC3-TB-100B-200	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
	JSC3-TB-100B-250	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
	JSC3-TB-100B-300	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
	JSC3-TB-100B-350	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
	JSC3-TB-100B-400	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
	JSC3-TB-100B-450	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
	JSC3-TB-100B-500	Model: JSC3 (switch magnet) \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
	JSC4-N-LB-125B-50	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-N-LB-125B-75	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-N-LB-125B-100	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-N-LB-125B-150	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-N-LB-125B-200	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-N-LB-125B-250	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-N-LB-125B-300	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-N-LB-140B-50	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-N-LB-140B-75	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-N-LB-140B-100	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-N-LB-140B-150	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-N-LB-140B-200	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-N-LB-140B-250	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-N-LB-140B-300	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-N-LB-160B-50	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-N-LB-160B-75	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-N-LB-160B-100	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-N-LB-160B-150	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-N-LB-160B-200	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-N-LB-160B-250	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-N-LB-160B-300	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-N-LB-180B-50	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-N-LB-180B-75	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-N-LB-180B-100	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-N-LB-180B-150	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-N-LB-180B-200	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-N-LB-180B-250	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-N-LB-180B-300	Model: JSC4-N (no magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-N-FA-125B-50	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-N-FA-125B-75	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-N-FA-125B-100	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-N-FA-125B-150	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-N-FA-125B-200	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-N-FA-125B-250	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-N-FA-125B-300	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-N-FA-140B-50	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-N-FA-140B-75	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-N-FA-140B-100	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-N-FA-140B-150	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-N-FA-140B-200	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-N-FA-140B-250	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-N-FA-140B-300	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-N-FA-160B-50	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-N-FA-160B-75	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-N-FA-160B-100	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-N-FA-160B-150	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-N-FA-160B-200	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-N-FA-160B-250	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-N-FA-160B-300	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-N-FA-180B-50	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-N-FA-180B-75	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-N-FA-180B-100	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-N-FA-180B-150	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-N-FA-180B-200	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-N-FA-180B-250	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-N-FA-180B-300	Model: JSC4-N (no magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-N-FB-125B-50	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-N-FB-125B-75	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-N-FB-125B-100	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-N-FB-125B-150	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-N-FB-125B-200	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-N-FB-125B-250	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-N-FB-125B-300	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-N-FB-140B-50	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-N-FB-140B-75	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-N-FB-140B-100	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-N-FB-140B-150	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-N-FB-140B-200	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-N-FB-140B-250	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-N-FB-140B-300	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-N-FB-160B-50	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-N-FB-160B-75	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-N-FB-160B-100	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-N-FB-160B-150	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-N-FB-160B-200	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-N-FB-160B-250	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-N-FB-160B-300	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-N-FB-180B-50	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-N-FB-180B-75	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-N-FB-180B-100	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-N-FB-180B-150	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-N-FB-180B-200	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-N-FB-180B-250	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-N-FB-180B-300	Model: JSC4-N (no magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-N-CA-125B-50	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-N-CA-125B-75	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-N-CA-125B-100	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-N-CA-125B-150	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-N-CA-125B-200	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-N-CA-125B-250	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-N-CA-125B-300	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-N-CA-140B-50	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-N-CA-140B-75	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-N-CA-140B-100	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-N-CA-140B-150	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-N-CA-140B-200	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-N-CA-140B-250	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-N-CA-140B-300	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-N-CA-160B-50	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-N-CA-160B-75	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-N-CA-160B-100	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-N-CA-160B-150	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-N-CA-160B-200	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-N-CA-160B-250	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-N-CA-160B-300	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-N-CA-180B-50	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-N-CA-180B-75	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-N-CA-180B-100	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-N-CA-180B-150	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-N-CA-180B-200	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-N-CA-180B-250	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-N-CA-180B-300	Model: JSC4-N (no magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-N-CB-125B-50	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-N-CB-125B-75	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-N-CB-125B-100	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-N-CB-125B-150	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-N-CB-125B-200	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-N-CB-125B-250	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-N-CB-125B-300	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-N-CB-140B-50	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-N-CB-140B-75	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-N-CB-140B-100	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-N-CB-140B-150	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-N-CB-140B-200	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-N-CB-140B-250	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-N-CB-140B-300	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-N-CB-160B-50	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-N-CB-160B-75	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-N-CB-160B-100	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-N-CB-160B-150	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-N-CB-160B-200	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-N-CB-160B-250	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-N-CB-160B-300	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-N-CB-180B-50	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-N-CB-180B-75	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-N-CB-180B-100	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-N-CB-180B-150	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-N-CB-180B-200	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-N-CB-180B-250	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-N-CB-180B-300	Model: JSC4-N (no magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-N-TC-125B-50	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-N-TC-125B-75	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-N-TC-125B-100	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-N-TC-125B-150	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-N-TC-125B-200	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-N-TC-125B-250	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-N-TC-125B-300	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-N-TC-140B-50	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-N-TC-140B-75	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-N-TC-140B-100	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-N-TC-140B-150	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-N-TC-140B-200	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-N-TC-140B-250	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-N-TC-140B-300	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-N-TC-160B-50	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-N-TC-160B-75	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-N-TC-160B-100	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-N-TC-160B-150	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-N-TC-160B-200	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-N-TC-160B-250	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-N-TC-160B-300	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-N-TC-180B-50	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-N-TC-180B-75	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-N-TC-180B-100	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-N-TC-180B-150	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-N-TC-180B-200	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-N-TC-180B-250	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-N-TC-180B-300	Model: JSC4-N (no magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-N-TA-125B-50	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-N-TA-125B-75	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-N-TA-125B-100	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-N-TA-125B-150	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-N-TA-125B-200	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-N-TA-125B-250	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-N-TA-125B-300	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-N-TA-140B-50	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-N-TA-140B-75	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-N-TA-140B-100	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-N-TA-140B-150	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-N-TA-140B-200	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-N-TA-140B-250	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-N-TA-140B-300	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-N-TA-160B-50	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-N-TA-160B-75	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-N-TA-160B-100	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-N-TA-160B-150	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-N-TA-160B-200	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-N-TA-160B-250	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-N-TA-160B-300	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-N-TA-180B-50	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-N-TA-180B-75	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-N-TA-180B-100	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-N-TA-180B-150	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-N-TA-180B-200	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-N-TA-180B-250	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-N-TA-180B-300	Model: JSC4-N (no magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-N-TB-125B-50	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-N-TB-125B-75	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-N-TB-125B-100	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-N-TB-125B-150	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-N-TB-125B-200	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-N-TB-125B-250	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-N-TB-125B-300	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-N-TB-140B-50	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-N-TB-140B-75	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-N-TB-140B-100	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-N-TB-140B-150	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-N-TB-140B-200	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-N-TB-140B-250	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-N-TB-140B-300	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-N-TB-160B-50	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-N-TB-160B-75	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-N-TB-160B-100	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-N-TB-160B-150	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-N-TB-160B-200	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-N-TB-160B-250	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-N-TB-160B-300	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-N-TB-180B-50	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-N-TB-180B-75	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-N-TB-180B-100	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-N-TB-180B-150	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-N-TB-180B-200	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-N-TB-180B-250	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-N-TB-180B-300	Model: JSC4-N (no magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-LN-LB-125B-50	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-LN-LB-125B-75	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-LN-LB-125B-100	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-LN-LB-125B-150	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-LN-LB-125B-200	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-LN-LB-125B-250	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-LN-LB-125B-300	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-LN-LB-140B-50	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-LN-LB-140B-75	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-LN-LB-140B-100	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-LN-LB-140B-150	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-LN-LB-140B-200	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-LN-LB-140B-250	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-LN-LB-140B-300	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-LN-LB-160B-50	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-LN-LB-160B-75	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-LN-LB-160B-100	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-LN-LB-160B-150	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-LN-LB-160B-200	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-LN-LB-160B-250	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-LN-LB-160B-300	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-LN-LB-180B-50	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-LN-LB-180B-75	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-LN-LB-180B-100	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-LN-LB-180B-150	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-LN-LB-180B-200	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-LN-LB-180B-250	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-LN-LB-180B-300	Model: JSC4-LN (switch magnet) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-LN-FA-125B-50	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-LN-FA-125B-75	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-LN-FA-125B-100	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-LN-FA-125B-150	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-LN-FA-125B-200	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-LN-FA-125B-250	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-LN-FA-125B-300	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-LN-FA-140B-50	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-LN-FA-140B-75	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-LN-FA-140B-100	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-LN-FA-140B-150	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-LN-FA-140B-200	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-LN-FA-140B-250	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-LN-FA-140B-300	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-LN-FA-160B-50	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-LN-FA-160B-75	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-LN-FA-160B-100	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-LN-FA-160B-150	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-LN-FA-160B-200	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-LN-FA-160B-250	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-LN-FA-160B-300	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-LN-FA-180B-50	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-LN-FA-180B-75	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-LN-FA-180B-100	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-LN-FA-180B-150	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-LN-FA-180B-200	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-LN-FA-180B-250	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-LN-FA-180B-300	Model: JSC4-LN (switch magnet) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-LN-FB-125B-50	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-LN-FB-125B-75	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-LN-FB-125B-100	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-LN-FB-125B-150	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-LN-FB-125B-200	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-LN-FB-125B-250	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-LN-FB-125B-300	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-LN-FB-140B-50	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-LN-FB-140B-75	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-LN-FB-140B-100	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-LN-FB-140B-150	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-LN-FB-140B-200	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-LN-FB-140B-250	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-LN-FB-140B-300	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-LN-FB-160B-50	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-LN-FB-160B-75	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-LN-FB-160B-100	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-LN-FB-160B-150	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-LN-FB-160B-200	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-LN-FB-160B-250	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-LN-FB-160B-300	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-LN-FB-180B-50	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-LN-FB-180B-75	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-LN-FB-180B-100	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-LN-FB-180B-150	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-LN-FB-180B-200	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-LN-FB-180B-250	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-LN-FB-180B-300	Model: JSC4-LN (switch magnet) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-LN-CA-125B-50	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-LN-CA-125B-75	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-LN-CA-125B-100	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-LN-CA-125B-150	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-LN-CA-125B-200	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-LN-CA-125B-250	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-LN-CA-125B-300	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-LN-CA-140B-50	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-LN-CA-140B-75	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-LN-CA-140B-100	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-LN-CA-140B-150	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-LN-CA-140B-200	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-LN-CA-140B-250	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-LN-CA-140B-300	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-LN-CA-160B-50	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-LN-CA-160B-75	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-LN-CA-160B-100	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-LN-CA-160B-150	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-LN-CA-160B-200	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-LN-CA-160B-250	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-LN-CA-160B-300	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-LN-CA-180B-50	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-LN-CA-180B-75	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-LN-CA-180B-100	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-LN-CA-180B-150	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-LN-CA-180B-200	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-LN-CA-180B-250	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-LN-CA-180B-300	Model: JSC4-LN (switch magnet) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-LN-CB-125B-50	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-LN-CB-125B-75	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-LN-CB-125B-100	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-LN-CB-125B-150	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-LN-CB-125B-200	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-LN-CB-125B-250	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-LN-CB-125B-300	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-LN-CB-140B-50	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-LN-CB-140B-75	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-LN-CB-140B-100	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-LN-CB-140B-150	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-LN-CB-140B-200	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-LN-CB-140B-250	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-LN-CB-140B-300	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-LN-CB-160B-50	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-LN-CB-160B-75	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-LN-CB-160B-100	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-LN-CB-160B-150	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-LN-CB-160B-200	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-LN-CB-160B-250	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-LN-CB-160B-300	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-LN-CB-180B-50	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-LN-CB-180B-75	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-LN-CB-180B-100	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-LN-CB-180B-150	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-LN-CB-180B-200	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-LN-CB-180B-250	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-LN-CB-180B-300	Model: JSC4-LN (switch magnet) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-LN-TC-125B-50	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-LN-TC-125B-75	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-LN-TC-125B-100	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-LN-TC-125B-150	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-LN-TC-125B-200	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-LN-TC-125B-250	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-LN-TC-125B-300	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-LN-TC-140B-50	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-LN-TC-140B-75	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-LN-TC-140B-100	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-LN-TC-140B-150	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-LN-TC-140B-200	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-LN-TC-140B-250	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-LN-TC-140B-300	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-LN-TC-160B-50	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-LN-TC-160B-75	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-LN-TC-160B-100	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-LN-TC-160B-150	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-LN-TC-160B-200	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-LN-TC-160B-250	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-LN-TC-160B-300	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-LN-TC-180B-50	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-LN-TC-180B-75	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-LN-TC-180B-100	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-LN-TC-180B-150	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-LN-TC-180B-200	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-LN-TC-180B-250	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-LN-TC-180B-300	Model: JSC4-LN (switch magnet) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-LN-TA-125B-50	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-LN-TA-125B-75	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-LN-TA-125B-100	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-LN-TA-125B-150	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-LN-TA-125B-200	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-LN-TA-125B-250	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-LN-TA-125B-300	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-LN-TA-140B-50	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-LN-TA-140B-75	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-LN-TA-140B-100	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-LN-TA-140B-150	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-LN-TA-140B-200	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-LN-TA-140B-250	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-LN-TA-140B-300	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-LN-TA-160B-50	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-LN-TA-160B-75	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-LN-TA-160B-100	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-LN-TA-160B-150	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-LN-TA-160B-200	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-LN-TA-160B-250	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-LN-TA-160B-300	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-LN-TA-180B-50	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-LN-TA-180B-75	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-LN-TA-180B-100	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-LN-TA-180B-150	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-LN-TA-180B-200	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-LN-TA-180B-250	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-LN-TA-180B-300	Model: JSC4-LN (switch magnet) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-LN-TB-125B-50	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-LN-TB-125B-75	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-LN-TB-125B-100	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-LN-TB-125B-150	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-LN-TB-125B-200	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-LN-TB-125B-250	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-LN-TB-125B-300	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-LN-TB-140B-50	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-LN-TB-140B-75	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-LN-TB-140B-100	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-LN-TB-140B-150	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-LN-TB-140B-200	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-LN-TB-140B-250	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-LN-TB-140B-300	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-LN-TB-160B-50	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-LN-TB-160B-75	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-LN-TB-160B-100	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-LN-TB-160B-150	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-LN-TB-160B-200	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-LN-TB-160B-250	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-LN-TB-160B-300	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-LN-TB-180B-50	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-LN-TB-180B-75	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-LN-TB-180B-100	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-LN-TB-180B-150	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-LN-TB-180B-200	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-LN-TB-180B-250	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-LN-TB-180B-300	Model: JSC4-LN (switch magnet) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD JSC3/JSC4-N Cell Top Brake Cylinder (40-180)
