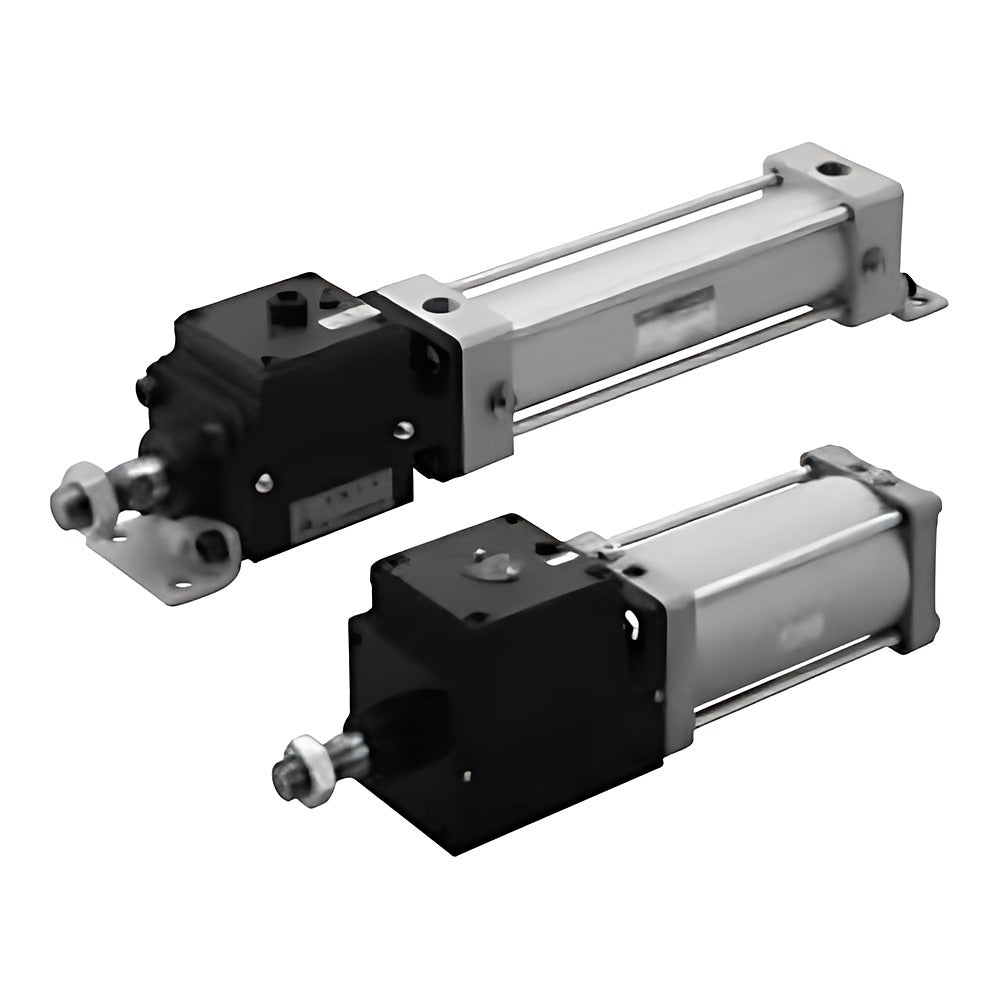

CKD JSC3-T/JSC4-T Cell Top Brake Cylinder (Heat Resistant)

CKD JSC3-T / JSC4-T heat-resistant cell top cylinders are double-acting brake cylinders for ambient temperatures up to 120 C, bore 40 to 180 mm, without auto switch capability.

Key features

Heat-resistant construction for 5 to 120 C ambient; no auto switches; lubrication not allowed
Mechanical brake for intermediate stops and drop prevention; holding force 980 to 20000 N
Cushion R/H/N, cushion needle position S/T and indicator G not expanded; low release pressure type (S prefix) available
Options: bellows L (250 C), stainless rod M; accessories I, Y, B1-B4
JSC4-T (bore 125-180) is made to order

Specifications

Action	Double acting, heat resistant
Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	Brake 0.3 MPa; cylinder 0.1 MPa (JSC3-T), 0.05 MPa (JSC4-T)
Proof pressure	1.6 MPa
Ambient temperature	5 to 120 C
Cushion	Air cushion both sides (B)
Source	CKD Korea catalog CB-030SK-9, p. 918-923

JSC3-T-00-40B-50		Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
JSC3-T-00-40B-75		Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
JSC3-T-00-40B-100		Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
JSC3-T-00-40B-150		Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
JSC3-T-00-40B-200		Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
JSC3-T-00-40B-250		Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
JSC3-T-00-40B-300		Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
JSC3-T-00-40B-350		Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
JSC3-T-00-40B-400		Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
JSC3-T-00-40B-450		Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
JSC3-T-00-40B-500		Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
JSC3-T-00-50B-50		Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
JSC3-T-00-50B-75		Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
JSC3-T-00-50B-100		Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
JSC3-T-00-50B-150		Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
JSC3-T-00-50B-200		Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
JSC3-T-00-50B-250		Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
JSC3-T-00-50B-300		Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
JSC3-T-00-50B-350		Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
JSC3-T-00-50B-400		Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
JSC3-T-00-50B-450		Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
JSC3-T-00-50B-500		Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
JSC3-T-00-63B-50		Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
JSC3-T-00-63B-75		Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
JSC3-T-00-63B-100		Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
JSC3-T-00-63B-150		Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
JSC3-T-00-63B-200		Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
JSC3-T-00-63B-250		Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
JSC3-T-00-63B-300		Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
JSC3-T-00-63B-350		Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
JSC3-T-00-63B-400		Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
JSC3-T-00-63B-450		Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
JSC3-T-00-63B-500		Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
JSC3-T-00-80B-50		Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
JSC3-T-00-80B-75		Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
JSC3-T-00-80B-100		Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
JSC3-T-00-80B-150		Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
JSC3-T-00-80B-200		Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
JSC3-T-00-80B-250		Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
JSC3-T-00-80B-300		Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
JSC3-T-00-80B-350		Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
JSC3-T-00-80B-400		Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
JSC3-T-00-80B-450		Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
JSC3-T-00-80B-500		Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
JSC3-T-00-100B-50		Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
JSC3-T-00-100B-75		Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
JSC3-T-00-100B-100		Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
JSC3-T-00-100B-150		Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
JSC3-T-00-100B-200		Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
JSC3-T-00-100B-250		Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
JSC3-T-00-100B-300		Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
JSC3-T-00-100B-350		Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
JSC3-T-00-100B-400		Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
JSC3-T-00-100B-450		Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
JSC3-T-00-100B-500		Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
JSC3-T-LB-40B-50		Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
JSC3-T-LB-40B-75		Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
JSC3-T-LB-40B-100		Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
JSC3-T-LB-40B-150		Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
JSC3-T-LB-40B-200		Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
JSC3-T-LB-40B-250		Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
JSC3-T-LB-40B-300		Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
JSC3-T-LB-40B-350		Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
JSC3-T-LB-40B-400		Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
JSC3-T-LB-40B-450		Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
JSC3-T-LB-40B-500		Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
JSC3-T-LB-50B-50		Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
JSC3-T-LB-50B-75		Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
JSC3-T-LB-50B-100		Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
JSC3-T-LB-50B-150		Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
JSC3-T-LB-50B-200		Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
JSC3-T-LB-50B-250		Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
JSC3-T-LB-50B-300		Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
JSC3-T-LB-50B-350		Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
JSC3-T-LB-50B-400		Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
JSC3-T-LB-50B-450		Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
JSC3-T-LB-50B-500		Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
JSC3-T-LB-63B-50		Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
JSC3-T-LB-63B-75		Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
JSC3-T-LB-63B-100		Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
JSC3-T-LB-63B-150		Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
JSC3-T-LB-63B-200		Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
JSC3-T-LB-63B-250		Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
JSC3-T-LB-63B-300		Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
JSC3-T-LB-63B-350		Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
JSC3-T-LB-63B-400		Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
JSC3-T-LB-63B-450		Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
JSC3-T-LB-63B-500		Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
JSC3-T-LB-80B-50		Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
JSC3-T-LB-80B-75		Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
JSC3-T-LB-80B-100		Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
JSC3-T-LB-80B-150		Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
JSC3-T-LB-80B-200		Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
JSC3-T-LB-80B-250		Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
JSC3-T-LB-80B-300		Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
JSC3-T-LB-80B-350		Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
JSC3-T-LB-80B-400		Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
JSC3-T-LB-80B-450		Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
JSC3-T-LB-80B-500		Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
JSC3-T-LB-100B-50		Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
JSC3-T-LB-100B-75		Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
JSC3-T-LB-100B-100		Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
JSC3-T-LB-100B-150		Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
JSC3-T-LB-100B-200		Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
JSC3-T-LB-100B-250		Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
JSC3-T-LB-100B-300		Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
JSC3-T-LB-100B-350		Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
JSC3-T-LB-100B-400		Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
JSC3-T-LB-100B-450		Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
JSC3-T-LB-100B-500		Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
JSC3-T-FA-40B-50		Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
JSC3-T-FA-40B-75		Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
JSC3-T-FA-40B-100		Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
JSC3-T-FA-40B-150		Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
JSC3-T-FA-40B-200		Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
JSC3-T-FA-40B-250		Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
JSC3-T-FA-40B-300		Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
JSC3-T-FA-40B-350		Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
JSC3-T-FA-40B-400		Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
JSC3-T-FA-40B-450		Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
JSC3-T-FA-40B-500		Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
JSC3-T-FA-50B-50		Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
JSC3-T-FA-50B-75		Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
JSC3-T-FA-50B-100		Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
JSC3-T-FA-50B-150		Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
JSC3-T-FA-50B-200		Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
JSC3-T-FA-50B-250		Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
JSC3-T-FA-50B-300		Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
JSC3-T-FA-50B-350		Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
JSC3-T-FA-50B-400		Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
JSC3-T-FA-50B-450		Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
JSC3-T-FA-50B-500		Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
JSC3-T-FA-63B-50		Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
JSC3-T-FA-63B-75		Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
JSC3-T-FA-63B-100		Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
JSC3-T-FA-63B-150		Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
JSC3-T-FA-63B-200		Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
JSC3-T-FA-63B-250		Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
JSC3-T-FA-63B-300		Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
JSC3-T-FA-63B-350		Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
JSC3-T-FA-63B-400		Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
JSC3-T-FA-63B-450		Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
JSC3-T-FA-63B-500		Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
JSC3-T-FA-80B-50		Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
JSC3-T-FA-80B-75		Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
JSC3-T-FA-80B-100		Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
JSC3-T-FA-80B-150		Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
JSC3-T-FA-80B-200		Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
JSC3-T-FA-80B-250		Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
JSC3-T-FA-80B-300		Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
JSC3-T-FA-80B-350		Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
JSC3-T-FA-80B-400		Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
JSC3-T-FA-80B-450		Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
JSC3-T-FA-80B-500		Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
JSC3-T-FA-100B-50		Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
JSC3-T-FA-100B-75		Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
JSC3-T-FA-100B-100		Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
JSC3-T-FA-100B-150		Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
JSC3-T-FA-100B-200		Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
JSC3-T-FA-100B-250		Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
JSC3-T-FA-100B-300		Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
JSC3-T-FA-100B-350		Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
JSC3-T-FA-100B-400		Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
JSC3-T-FA-100B-450		Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
JSC3-T-FA-100B-500		Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
JSC3-T-FB-40B-50		Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
JSC3-T-FB-40B-75		Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
JSC3-T-FB-40B-100		Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
JSC3-T-FB-40B-150		Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
JSC3-T-FB-40B-200		Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
JSC3-T-FB-40B-250		Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
JSC3-T-FB-40B-300		Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
JSC3-T-FB-40B-350		Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
JSC3-T-FB-40B-400		Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
JSC3-T-FB-40B-450		Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
JSC3-T-FB-40B-500		Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
JSC3-T-FB-50B-50		Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
JSC3-T-FB-50B-75		Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
JSC3-T-FB-50B-100		Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
JSC3-T-FB-50B-150		Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
JSC3-T-FB-50B-200		Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
JSC3-T-FB-50B-250		Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
JSC3-T-FB-50B-300		Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
JSC3-T-FB-50B-350		Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
JSC3-T-FB-50B-400		Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
JSC3-T-FB-50B-450		Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
JSC3-T-FB-50B-500		Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
JSC3-T-FB-63B-50		Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
JSC3-T-FB-63B-75		Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
JSC3-T-FB-63B-100		Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
JSC3-T-FB-63B-150		Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
JSC3-T-FB-63B-200		Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
JSC3-T-FB-63B-250		Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
JSC3-T-FB-63B-300		Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
JSC3-T-FB-63B-350		Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
JSC3-T-FB-63B-400		Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
JSC3-T-FB-63B-450		Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
JSC3-T-FB-63B-500		Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
JSC3-T-FB-80B-50		Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
JSC3-T-FB-80B-75		Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
JSC3-T-FB-80B-100		Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
JSC3-T-FB-80B-150		Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
JSC3-T-FB-80B-200		Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
JSC3-T-FB-80B-250		Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
JSC3-T-FB-80B-300		Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
JSC3-T-FB-80B-350		Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
JSC3-T-FB-80B-400		Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
JSC3-T-FB-80B-450		Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
JSC3-T-FB-80B-500		Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
JSC3-T-FB-100B-50		Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
JSC3-T-FB-100B-75		Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
JSC3-T-FB-100B-100		Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
JSC3-T-FB-100B-150		Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
JSC3-T-FB-100B-200		Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
JSC3-T-FB-100B-250		Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
JSC3-T-FB-100B-300		Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
JSC3-T-FB-100B-350		Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
JSC3-T-FB-100B-400		Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
JSC3-T-FB-100B-450		Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
JSC3-T-FB-100B-500		Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
JSC3-T-FC-40B-50		Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
JSC3-T-FC-40B-75		Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
JSC3-T-FC-40B-100		Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
JSC3-T-FC-40B-150		Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
JSC3-T-FC-40B-200		Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
JSC3-T-FC-40B-250		Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
JSC3-T-FC-40B-300		Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
JSC3-T-FC-40B-350		Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
JSC3-T-FC-40B-400		Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
JSC3-T-FC-40B-450		Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
JSC3-T-FC-40B-500		Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
JSC3-T-FC-50B-50		Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
JSC3-T-FC-50B-75		Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
JSC3-T-FC-50B-100		Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
JSC3-T-FC-50B-150		Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
JSC3-T-FC-50B-200		Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
JSC3-T-FC-50B-250		Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
JSC3-T-FC-50B-300		Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
JSC3-T-FC-50B-350		Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
JSC3-T-FC-50B-400		Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
JSC3-T-FC-50B-450		Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
JSC3-T-FC-50B-500		Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
JSC3-T-FC-63B-50		Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
JSC3-T-FC-63B-75		Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
JSC3-T-FC-63B-100		Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
JSC3-T-FC-63B-150		Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
JSC3-T-FC-63B-200		Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
JSC3-T-FC-63B-250		Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
JSC3-T-FC-63B-300		Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
JSC3-T-FC-63B-350		Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
JSC3-T-FC-63B-400		Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
JSC3-T-FC-63B-450		Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
JSC3-T-FC-63B-500		Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
JSC3-T-FC-80B-50		Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
JSC3-T-FC-80B-75		Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
JSC3-T-FC-80B-100		Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
JSC3-T-FC-80B-150		Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
JSC3-T-FC-80B-200		Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
JSC3-T-FC-80B-250		Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
JSC3-T-FC-80B-300		Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
JSC3-T-FC-80B-350		Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
JSC3-T-FC-80B-400		Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
JSC3-T-FC-80B-450		Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
JSC3-T-FC-80B-500		Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
JSC3-T-FC-100B-50		Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
JSC3-T-FC-100B-75		Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
JSC3-T-FC-100B-100		Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
JSC3-T-FC-100B-150		Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
JSC3-T-FC-100B-200		Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
JSC3-T-FC-100B-250		Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
JSC3-T-FC-100B-300		Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
JSC3-T-FC-100B-350		Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
JSC3-T-FC-100B-400		Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
JSC3-T-FC-100B-450		Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
JSC3-T-FC-100B-500		Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
JSC3-T-CA-40B-50		Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
JSC3-T-CA-40B-75		Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
JSC3-T-CA-40B-100		Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
JSC3-T-CA-40B-150		Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
JSC3-T-CA-40B-200		Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
JSC3-T-CA-40B-250		Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
JSC3-T-CA-40B-300		Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
JSC3-T-CA-40B-350		Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
JSC3-T-CA-40B-400		Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
JSC3-T-CA-40B-450		Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
JSC3-T-CA-40B-500		Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
JSC3-T-CA-50B-50		Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
JSC3-T-CA-50B-75		Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
JSC3-T-CA-50B-100		Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
JSC3-T-CA-50B-150		Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
JSC3-T-CA-50B-200		Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
JSC3-T-CA-50B-250		Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
JSC3-T-CA-50B-300		Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
JSC3-T-CA-50B-350		Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
JSC3-T-CA-50B-400		Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
JSC3-T-CA-50B-450		Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
JSC3-T-CA-50B-500		Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
JSC3-T-CA-63B-50		Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
JSC3-T-CA-63B-75		Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
JSC3-T-CA-63B-100		Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
JSC3-T-CA-63B-150		Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
JSC3-T-CA-63B-200		Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
JSC3-T-CA-63B-250		Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
JSC3-T-CA-63B-300		Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
JSC3-T-CA-63B-350		Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
JSC3-T-CA-63B-400		Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
JSC3-T-CA-63B-450		Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
JSC3-T-CA-63B-500		Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
JSC3-T-CA-80B-50		Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
JSC3-T-CA-80B-75		Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
JSC3-T-CA-80B-100		Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
JSC3-T-CA-80B-150		Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
JSC3-T-CA-80B-200		Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
JSC3-T-CA-80B-250		Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
JSC3-T-CA-80B-300		Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
JSC3-T-CA-80B-350		Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
JSC3-T-CA-80B-400		Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
JSC3-T-CA-80B-450		Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
JSC3-T-CA-80B-500		Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
JSC3-T-CA-100B-50		Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
JSC3-T-CA-100B-75		Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
JSC3-T-CA-100B-100		Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
JSC3-T-CA-100B-150		Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
JSC3-T-CA-100B-200		Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
JSC3-T-CA-100B-250		Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
JSC3-T-CA-100B-300		Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
JSC3-T-CA-100B-350		Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
JSC3-T-CA-100B-400		Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
JSC3-T-CA-100B-450		Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
JSC3-T-CA-100B-500		Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
JSC3-T-CB-40B-50		Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
JSC3-T-CB-40B-75		Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
JSC3-T-CB-40B-100		Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
JSC3-T-CB-40B-150		Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
JSC3-T-CB-40B-200		Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
JSC3-T-CB-40B-250		Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
JSC3-T-CB-40B-300		Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
JSC3-T-CB-40B-350		Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
JSC3-T-CB-40B-400		Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
JSC3-T-CB-40B-450		Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
JSC3-T-CB-40B-500		Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
JSC3-T-CB-50B-50		Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
JSC3-T-CB-50B-75		Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
JSC3-T-CB-50B-100		Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
JSC3-T-CB-50B-150		Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
JSC3-T-CB-50B-200		Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
JSC3-T-CB-50B-250		Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
JSC3-T-CB-50B-300		Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
JSC3-T-CB-50B-350		Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
JSC3-T-CB-50B-400		Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
JSC3-T-CB-50B-450		Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
JSC3-T-CB-50B-500		Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
JSC3-T-CB-63B-50		Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
JSC3-T-CB-63B-75		Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
JSC3-T-CB-63B-100		Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
JSC3-T-CB-63B-150		Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
JSC3-T-CB-63B-200		Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
JSC3-T-CB-63B-250		Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
JSC3-T-CB-63B-300		Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
JSC3-T-CB-63B-350		Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
JSC3-T-CB-63B-400		Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
JSC3-T-CB-63B-450		Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
JSC3-T-CB-63B-500		Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
JSC3-T-CB-80B-50		Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
JSC3-T-CB-80B-75		Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
JSC3-T-CB-80B-100		Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
JSC3-T-CB-80B-150		Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
JSC3-T-CB-80B-200		Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
JSC3-T-CB-80B-250		Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
JSC3-T-CB-80B-300		Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
JSC3-T-CB-80B-350		Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
JSC3-T-CB-80B-400		Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
JSC3-T-CB-80B-450		Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
JSC3-T-CB-80B-500		Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
JSC3-T-CB-100B-50		Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
JSC3-T-CB-100B-75		Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
JSC3-T-CB-100B-100		Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
JSC3-T-CB-100B-150		Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
JSC3-T-CB-100B-200		Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
JSC3-T-CB-100B-250		Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
JSC3-T-CB-100B-300		Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
JSC3-T-CB-100B-350		Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
JSC3-T-CB-100B-400		Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
JSC3-T-CB-100B-450		Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
JSC3-T-CB-100B-500		Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
JSC3-T-TC-40B-50		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
JSC3-T-TC-40B-75		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
JSC3-T-TC-40B-100		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
JSC3-T-TC-40B-150		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
JSC3-T-TC-40B-200		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
JSC3-T-TC-40B-250		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
JSC3-T-TC-40B-300		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
JSC3-T-TC-40B-350		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
JSC3-T-TC-40B-400		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
JSC3-T-TC-40B-450		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
JSC3-T-TC-40B-500		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
JSC3-T-TC-50B-50		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
JSC3-T-TC-50B-75		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
JSC3-T-TC-50B-100		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
JSC3-T-TC-50B-150		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
JSC3-T-TC-50B-200		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
JSC3-T-TC-50B-250		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
JSC3-T-TC-50B-300		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
JSC3-T-TC-50B-350		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
JSC3-T-TC-50B-400		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
JSC3-T-TC-50B-450		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
JSC3-T-TC-50B-500		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
JSC3-T-TC-63B-50		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
JSC3-T-TC-63B-75		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
JSC3-T-TC-63B-100		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
JSC3-T-TC-63B-150		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
JSC3-T-TC-63B-200		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
JSC3-T-TC-63B-250		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
JSC3-T-TC-63B-300		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
JSC3-T-TC-63B-350		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
JSC3-T-TC-63B-400		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
JSC3-T-TC-63B-450		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
JSC3-T-TC-63B-500		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
JSC3-T-TC-80B-50		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
JSC3-T-TC-80B-75		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
JSC3-T-TC-80B-100		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
JSC3-T-TC-80B-150		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
JSC3-T-TC-80B-200		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
JSC3-T-TC-80B-250		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
JSC3-T-TC-80B-300		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
JSC3-T-TC-80B-350		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
JSC3-T-TC-80B-400		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
JSC3-T-TC-80B-450		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
JSC3-T-TC-80B-500		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
JSC3-T-TC-100B-50		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
JSC3-T-TC-100B-75		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
JSC3-T-TC-100B-100		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
JSC3-T-TC-100B-150		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
JSC3-T-TC-100B-200		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
JSC3-T-TC-100B-250		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
JSC3-T-TC-100B-300		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
JSC3-T-TC-100B-350		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
JSC3-T-TC-100B-400		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
JSC3-T-TC-100B-450		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
JSC3-T-TC-100B-500		Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
JSC3-T-TA-40B-50		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
JSC3-T-TA-40B-75		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
JSC3-T-TA-40B-100		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
JSC3-T-TA-40B-150		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
JSC3-T-TA-40B-200		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
JSC3-T-TA-40B-250		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
JSC3-T-TA-40B-300		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
JSC3-T-TA-40B-350		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
JSC3-T-TA-40B-400		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
JSC3-T-TA-40B-450		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
JSC3-T-TA-40B-500		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
JSC3-T-TA-50B-50		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
JSC3-T-TA-50B-75		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
JSC3-T-TA-50B-100		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
JSC3-T-TA-50B-150		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
JSC3-T-TA-50B-200		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
JSC3-T-TA-50B-250		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
JSC3-T-TA-50B-300		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
JSC3-T-TA-50B-350		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
JSC3-T-TA-50B-400		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
JSC3-T-TA-50B-450		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
JSC3-T-TA-50B-500		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
JSC3-T-TA-63B-50		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
JSC3-T-TA-63B-75		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
JSC3-T-TA-63B-100		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
JSC3-T-TA-63B-150		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
JSC3-T-TA-63B-200		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
JSC3-T-TA-63B-250		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
JSC3-T-TA-63B-300		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
JSC3-T-TA-63B-350		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
JSC3-T-TA-63B-400		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
JSC3-T-TA-63B-450		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
JSC3-T-TA-63B-500		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
JSC3-T-TA-80B-50		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
JSC3-T-TA-80B-75		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
JSC3-T-TA-80B-100		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
JSC3-T-TA-80B-150		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
JSC3-T-TA-80B-200		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
JSC3-T-TA-80B-250		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
JSC3-T-TA-80B-300		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
JSC3-T-TA-80B-350		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
JSC3-T-TA-80B-400		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
JSC3-T-TA-80B-450		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
JSC3-T-TA-80B-500		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
JSC3-T-TA-100B-50		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
JSC3-T-TA-100B-75		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
JSC3-T-TA-100B-100		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
JSC3-T-TA-100B-150		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
JSC3-T-TA-100B-200		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
JSC3-T-TA-100B-250		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
JSC3-T-TA-100B-300		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
JSC3-T-TA-100B-350		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
JSC3-T-TA-100B-400		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
JSC3-T-TA-100B-450		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
JSC3-T-TA-100B-500		Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
JSC3-T-TB-40B-50		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
JSC3-T-TB-40B-75		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
JSC3-T-TB-40B-100		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
JSC3-T-TB-40B-150		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
JSC3-T-TB-40B-200		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
JSC3-T-TB-40B-250		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
JSC3-T-TB-40B-300		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
JSC3-T-TB-40B-350		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
JSC3-T-TB-40B-400		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
JSC3-T-TB-40B-450		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
JSC3-T-TB-40B-500		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
JSC3-T-TB-50B-50		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
JSC3-T-TB-50B-75		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
JSC3-T-TB-50B-100		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
JSC3-T-TB-50B-150		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
JSC3-T-TB-50B-200		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
JSC3-T-TB-50B-250		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
JSC3-T-TB-50B-300		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
JSC3-T-TB-50B-350		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
JSC3-T-TB-50B-400		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
JSC3-T-TB-50B-450		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
JSC3-T-TB-50B-500		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
JSC3-T-TB-63B-50		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
JSC3-T-TB-63B-75		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
JSC3-T-TB-63B-100		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
JSC3-T-TB-63B-150		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
JSC3-T-TB-63B-200		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
JSC3-T-TB-63B-250		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
JSC3-T-TB-63B-300		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
JSC3-T-TB-63B-350		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
JSC3-T-TB-63B-400		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
JSC3-T-TB-63B-450		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
JSC3-T-TB-63B-500		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
JSC3-T-TB-80B-50		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
JSC3-T-TB-80B-75		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
JSC3-T-TB-80B-100		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
JSC3-T-TB-80B-150		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
JSC3-T-TB-80B-200		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
JSC3-T-TB-80B-250		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
JSC3-T-TB-80B-300		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
JSC3-T-TB-80B-350		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
JSC3-T-TB-80B-400		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
JSC3-T-TB-80B-450		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
JSC3-T-TB-80B-500		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
JSC3-T-TB-100B-50		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
JSC3-T-TB-100B-75		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
JSC3-T-TB-100B-100		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
JSC3-T-TB-100B-150		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
JSC3-T-TB-100B-200		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
JSC3-T-TB-100B-250		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
JSC3-T-TB-100B-300		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
JSC3-T-TB-100B-350		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
JSC3-T-TB-100B-400		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
JSC3-T-TB-100B-450		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
JSC3-T-TB-100B-500		Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
JSC4-T-LB-125B-50		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-T-LB-125B-75		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-T-LB-125B-100		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-T-LB-125B-150		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-T-LB-125B-200		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-T-LB-125B-250		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-T-LB-125B-300		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-T-LB-125B-350		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 350 mm \| Holding force: 9600 N
JSC4-T-LB-125B-400		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 400 mm \| Holding force: 9600 N
JSC4-T-LB-125B-450		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 450 mm \| Holding force: 9600 N
JSC4-T-LB-125B-500		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 500 mm \| Holding force: 9600 N
JSC4-T-LB-140B-50		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-T-LB-140B-75		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-T-LB-140B-100		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-T-LB-140B-150		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-T-LB-140B-200		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-T-LB-140B-250		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-T-LB-140B-300		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-T-LB-140B-350		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 350 mm \| Holding force: 12000 N
JSC4-T-LB-140B-400		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 400 mm \| Holding force: 12000 N
JSC4-T-LB-140B-450		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 450 mm \| Holding force: 12000 N
JSC4-T-LB-140B-500		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 500 mm \| Holding force: 12000 N
JSC4-T-LB-160B-50		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-T-LB-160B-75		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-T-LB-160B-100		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-T-LB-160B-150		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-T-LB-160B-200		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-T-LB-160B-250		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-T-LB-160B-300		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-T-LB-160B-350		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 350 mm \| Holding force: 15800 N
JSC4-T-LB-160B-400		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 400 mm \| Holding force: 15800 N
JSC4-T-LB-160B-450		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 450 mm \| Holding force: 15800 N
JSC4-T-LB-160B-500		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 500 mm \| Holding force: 15800 N
JSC4-T-LB-180B-50		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-T-LB-180B-75		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-T-LB-180B-100		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-T-LB-180B-150		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-T-LB-180B-200		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-T-LB-180B-250		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-T-LB-180B-300		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-T-LB-180B-350		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 350 mm \| Holding force: 20000 N
JSC4-T-LB-180B-400		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 400 mm \| Holding force: 20000 N
JSC4-T-LB-180B-450		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 450 mm \| Holding force: 20000 N
JSC4-T-LB-180B-500		Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 500 mm \| Holding force: 20000 N
JSC4-T-FA-125B-50		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-T-FA-125B-75		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-T-FA-125B-100		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-T-FA-125B-150		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-T-FA-125B-200		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-T-FA-125B-250		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-T-FA-125B-300		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-T-FA-125B-350		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 350 mm \| Holding force: 9600 N
JSC4-T-FA-125B-400		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 400 mm \| Holding force: 9600 N
JSC4-T-FA-125B-450		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 450 mm \| Holding force: 9600 N
JSC4-T-FA-125B-500		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 500 mm \| Holding force: 9600 N
JSC4-T-FA-140B-50		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-T-FA-140B-75		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-T-FA-140B-100		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-T-FA-140B-150		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-T-FA-140B-200		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-T-FA-140B-250		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-T-FA-140B-300		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-T-FA-140B-350		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 350 mm \| Holding force: 12000 N
JSC4-T-FA-140B-400		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 400 mm \| Holding force: 12000 N
JSC4-T-FA-140B-450		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 450 mm \| Holding force: 12000 N
JSC4-T-FA-140B-500		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 500 mm \| Holding force: 12000 N
JSC4-T-FA-160B-50		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-T-FA-160B-75		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-T-FA-160B-100		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-T-FA-160B-150		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-T-FA-160B-200		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-T-FA-160B-250		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-T-FA-160B-300		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-T-FA-160B-350		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 350 mm \| Holding force: 15800 N
JSC4-T-FA-160B-400		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 400 mm \| Holding force: 15800 N
JSC4-T-FA-160B-450		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 450 mm \| Holding force: 15800 N
JSC4-T-FA-160B-500		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 500 mm \| Holding force: 15800 N
JSC4-T-FA-180B-50		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-T-FA-180B-75		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-T-FA-180B-100		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-T-FA-180B-150		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-T-FA-180B-200		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-T-FA-180B-250		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-T-FA-180B-300		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-T-FA-180B-350		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 350 mm \| Holding force: 20000 N
JSC4-T-FA-180B-400		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 400 mm \| Holding force: 20000 N
JSC4-T-FA-180B-450		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 450 mm \| Holding force: 20000 N
JSC4-T-FA-180B-500		Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 500 mm \| Holding force: 20000 N
JSC4-T-FB-125B-50		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-T-FB-125B-75		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-T-FB-125B-100		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-T-FB-125B-150		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-T-FB-125B-200		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-T-FB-125B-250		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-T-FB-125B-300		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-T-FB-125B-350		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 350 mm \| Holding force: 9600 N
JSC4-T-FB-125B-400		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 400 mm \| Holding force: 9600 N
JSC4-T-FB-125B-450		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 450 mm \| Holding force: 9600 N
JSC4-T-FB-125B-500		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 500 mm \| Holding force: 9600 N
JSC4-T-FB-140B-50		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-T-FB-140B-75		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-T-FB-140B-100		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-T-FB-140B-150		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-T-FB-140B-200		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-T-FB-140B-250		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-T-FB-140B-300		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-T-FB-140B-350		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 350 mm \| Holding force: 12000 N
JSC4-T-FB-140B-400		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 400 mm \| Holding force: 12000 N
JSC4-T-FB-140B-450		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 450 mm \| Holding force: 12000 N
JSC4-T-FB-140B-500		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 500 mm \| Holding force: 12000 N
JSC4-T-FB-160B-50		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-T-FB-160B-75		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-T-FB-160B-100		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-T-FB-160B-150		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-T-FB-160B-200		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-T-FB-160B-250		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-T-FB-160B-300		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-T-FB-160B-350		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 350 mm \| Holding force: 15800 N
JSC4-T-FB-160B-400		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 400 mm \| Holding force: 15800 N
JSC4-T-FB-160B-450		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 450 mm \| Holding force: 15800 N
JSC4-T-FB-160B-500		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 500 mm \| Holding force: 15800 N
JSC4-T-FB-180B-50		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-T-FB-180B-75		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-T-FB-180B-100		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-T-FB-180B-150		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-T-FB-180B-200		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-T-FB-180B-250		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-T-FB-180B-300		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-T-FB-180B-350		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 350 mm \| Holding force: 20000 N
JSC4-T-FB-180B-400		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 400 mm \| Holding force: 20000 N
JSC4-T-FB-180B-450		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 450 mm \| Holding force: 20000 N
JSC4-T-FB-180B-500		Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 500 mm \| Holding force: 20000 N
JSC4-T-CA-125B-50		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-T-CA-125B-75		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-T-CA-125B-100		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-T-CA-125B-150		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-T-CA-125B-200		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-T-CA-125B-250		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-T-CA-125B-300		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-T-CA-125B-350		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 350 mm \| Holding force: 9600 N
JSC4-T-CA-125B-400		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 400 mm \| Holding force: 9600 N
JSC4-T-CA-125B-450		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 450 mm \| Holding force: 9600 N
JSC4-T-CA-125B-500		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 500 mm \| Holding force: 9600 N
JSC4-T-CA-140B-50		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-T-CA-140B-75		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-T-CA-140B-100		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-T-CA-140B-150		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-T-CA-140B-200		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-T-CA-140B-250		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-T-CA-140B-300		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-T-CA-140B-350		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 350 mm \| Holding force: 12000 N
JSC4-T-CA-140B-400		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 400 mm \| Holding force: 12000 N
JSC4-T-CA-140B-450		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 450 mm \| Holding force: 12000 N
JSC4-T-CA-140B-500		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 500 mm \| Holding force: 12000 N
JSC4-T-CA-160B-50		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-T-CA-160B-75		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-T-CA-160B-100		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-T-CA-160B-150		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-T-CA-160B-200		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-T-CA-160B-250		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-T-CA-160B-300		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-T-CA-160B-350		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 350 mm \| Holding force: 15800 N
JSC4-T-CA-160B-400		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 400 mm \| Holding force: 15800 N
JSC4-T-CA-160B-450		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 450 mm \| Holding force: 15800 N
JSC4-T-CA-160B-500		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 500 mm \| Holding force: 15800 N
JSC4-T-CA-180B-50		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-T-CA-180B-75		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-T-CA-180B-100		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-T-CA-180B-150		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-T-CA-180B-200		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-T-CA-180B-250		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-T-CA-180B-300		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-T-CA-180B-350		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 350 mm \| Holding force: 20000 N
JSC4-T-CA-180B-400		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 400 mm \| Holding force: 20000 N
JSC4-T-CA-180B-450		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 450 mm \| Holding force: 20000 N
JSC4-T-CA-180B-500		Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 500 mm \| Holding force: 20000 N
JSC4-T-CB-125B-50		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-T-CB-125B-75		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-T-CB-125B-100		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-T-CB-125B-150		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-T-CB-125B-200		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-T-CB-125B-250		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-T-CB-125B-300		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-T-CB-125B-350		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 350 mm \| Holding force: 9600 N
JSC4-T-CB-125B-400		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 400 mm \| Holding force: 9600 N
JSC4-T-CB-125B-450		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 450 mm \| Holding force: 9600 N
JSC4-T-CB-125B-500		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 500 mm \| Holding force: 9600 N
JSC4-T-CB-140B-50		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-T-CB-140B-75		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-T-CB-140B-100		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-T-CB-140B-150		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-T-CB-140B-200		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-T-CB-140B-250		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-T-CB-140B-300		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-T-CB-140B-350		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 350 mm \| Holding force: 12000 N
JSC4-T-CB-140B-400		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 400 mm \| Holding force: 12000 N
JSC4-T-CB-140B-450		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 450 mm \| Holding force: 12000 N
JSC4-T-CB-140B-500		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 500 mm \| Holding force: 12000 N
JSC4-T-CB-160B-50		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-T-CB-160B-75		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-T-CB-160B-100		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-T-CB-160B-150		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-T-CB-160B-200		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-T-CB-160B-250		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-T-CB-160B-300		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-T-CB-160B-350		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 350 mm \| Holding force: 15800 N
JSC4-T-CB-160B-400		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 400 mm \| Holding force: 15800 N
JSC4-T-CB-160B-450		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 450 mm \| Holding force: 15800 N
JSC4-T-CB-160B-500		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 500 mm \| Holding force: 15800 N
JSC4-T-CB-180B-50		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-T-CB-180B-75		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-T-CB-180B-100		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-T-CB-180B-150		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-T-CB-180B-200		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-T-CB-180B-250		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-T-CB-180B-300		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-T-CB-180B-350		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 350 mm \| Holding force: 20000 N
JSC4-T-CB-180B-400		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 400 mm \| Holding force: 20000 N
JSC4-T-CB-180B-450		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 450 mm \| Holding force: 20000 N
JSC4-T-CB-180B-500		Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 500 mm \| Holding force: 20000 N
JSC4-T-TC-125B-50		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-T-TC-125B-75		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-T-TC-125B-100		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-T-TC-125B-150		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-T-TC-125B-200		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-T-TC-125B-250		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-T-TC-125B-300		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-T-TC-125B-350		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 350 mm \| Holding force: 9600 N
JSC4-T-TC-125B-400		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 400 mm \| Holding force: 9600 N
JSC4-T-TC-125B-450		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 450 mm \| Holding force: 9600 N
JSC4-T-TC-125B-500		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 500 mm \| Holding force: 9600 N
JSC4-T-TC-140B-50		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-T-TC-140B-75		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-T-TC-140B-100		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-T-TC-140B-150		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-T-TC-140B-200		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-T-TC-140B-250		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-T-TC-140B-300		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-T-TC-140B-350		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 350 mm \| Holding force: 12000 N
JSC4-T-TC-140B-400		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 400 mm \| Holding force: 12000 N
JSC4-T-TC-140B-450		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 450 mm \| Holding force: 12000 N
JSC4-T-TC-140B-500		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 500 mm \| Holding force: 12000 N
JSC4-T-TC-160B-50		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-T-TC-160B-75		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-T-TC-160B-100		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-T-TC-160B-150		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-T-TC-160B-200		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-T-TC-160B-250		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-T-TC-160B-300		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-T-TC-160B-350		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 350 mm \| Holding force: 15800 N
JSC4-T-TC-160B-400		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 400 mm \| Holding force: 15800 N
JSC4-T-TC-160B-450		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 450 mm \| Holding force: 15800 N
JSC4-T-TC-160B-500		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 500 mm \| Holding force: 15800 N
JSC4-T-TC-180B-50		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-T-TC-180B-75		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-T-TC-180B-100		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-T-TC-180B-150		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-T-TC-180B-200		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-T-TC-180B-250		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-T-TC-180B-300		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-T-TC-180B-350		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 350 mm \| Holding force: 20000 N
JSC4-T-TC-180B-400		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 400 mm \| Holding force: 20000 N
JSC4-T-TC-180B-450		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 450 mm \| Holding force: 20000 N
JSC4-T-TC-180B-500		Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 500 mm \| Holding force: 20000 N
JSC4-T-TA-125B-50		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-T-TA-125B-75		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-T-TA-125B-100		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-T-TA-125B-150		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-T-TA-125B-200		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-T-TA-125B-250		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-T-TA-125B-300		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-T-TA-125B-350		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 350 mm \| Holding force: 9600 N
JSC4-T-TA-125B-400		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 400 mm \| Holding force: 9600 N
JSC4-T-TA-125B-450		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 450 mm \| Holding force: 9600 N
JSC4-T-TA-125B-500		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 500 mm \| Holding force: 9600 N
JSC4-T-TA-140B-50		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-T-TA-140B-75		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-T-TA-140B-100		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-T-TA-140B-150		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-T-TA-140B-200		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-T-TA-140B-250		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-T-TA-140B-300		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-T-TA-140B-350		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 350 mm \| Holding force: 12000 N
JSC4-T-TA-140B-400		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 400 mm \| Holding force: 12000 N
JSC4-T-TA-140B-450		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 450 mm \| Holding force: 12000 N
JSC4-T-TA-140B-500		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 500 mm \| Holding force: 12000 N
JSC4-T-TA-160B-50		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-T-TA-160B-75		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-T-TA-160B-100		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-T-TA-160B-150		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-T-TA-160B-200		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-T-TA-160B-250		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-T-TA-160B-300		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-T-TA-160B-350		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 350 mm \| Holding force: 15800 N
JSC4-T-TA-160B-400		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 400 mm \| Holding force: 15800 N
JSC4-T-TA-160B-450		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 450 mm \| Holding force: 15800 N
JSC4-T-TA-160B-500		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 500 mm \| Holding force: 15800 N
JSC4-T-TA-180B-50		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-T-TA-180B-75		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-T-TA-180B-100		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-T-TA-180B-150		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-T-TA-180B-200		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-T-TA-180B-250		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-T-TA-180B-300		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-T-TA-180B-350		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 350 mm \| Holding force: 20000 N
JSC4-T-TA-180B-400		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 400 mm \| Holding force: 20000 N
JSC4-T-TA-180B-450		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 450 mm \| Holding force: 20000 N
JSC4-T-TA-180B-500		Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 500 mm \| Holding force: 20000 N
JSC4-T-TB-125B-50		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
JSC4-T-TB-125B-75		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
JSC4-T-TB-125B-100		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
JSC4-T-TB-125B-150		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
JSC4-T-TB-125B-200		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
JSC4-T-TB-125B-250		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
JSC4-T-TB-125B-300		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
JSC4-T-TB-125B-350		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 350 mm \| Holding force: 9600 N
JSC4-T-TB-125B-400		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 400 mm \| Holding force: 9600 N
JSC4-T-TB-125B-450		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 450 mm \| Holding force: 9600 N
JSC4-T-TB-125B-500		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 500 mm \| Holding force: 9600 N
JSC4-T-TB-140B-50		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
JSC4-T-TB-140B-75		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
JSC4-T-TB-140B-100		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
JSC4-T-TB-140B-150		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
JSC4-T-TB-140B-200		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
JSC4-T-TB-140B-250		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
JSC4-T-TB-140B-300		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
JSC4-T-TB-140B-350		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 350 mm \| Holding force: 12000 N
JSC4-T-TB-140B-400		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 400 mm \| Holding force: 12000 N
JSC4-T-TB-140B-450		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 450 mm \| Holding force: 12000 N
JSC4-T-TB-140B-500		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 500 mm \| Holding force: 12000 N
JSC4-T-TB-160B-50		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
JSC4-T-TB-160B-75		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
JSC4-T-TB-160B-100		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
JSC4-T-TB-160B-150		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
JSC4-T-TB-160B-200		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
JSC4-T-TB-160B-250		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
JSC4-T-TB-160B-300		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
JSC4-T-TB-160B-350		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 350 mm \| Holding force: 15800 N
JSC4-T-TB-160B-400		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 400 mm \| Holding force: 15800 N
JSC4-T-TB-160B-450		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 450 mm \| Holding force: 15800 N
JSC4-T-TB-160B-500		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 500 mm \| Holding force: 15800 N
JSC4-T-TB-180B-50		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
JSC4-T-TB-180B-75		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
JSC4-T-TB-180B-100		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
JSC4-T-TB-180B-150		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
JSC4-T-TB-180B-200		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
JSC4-T-TB-180B-250		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
JSC4-T-TB-180B-300		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
JSC4-T-TB-180B-350		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 350 mm \| Holding force: 20000 N
JSC4-T-TB-180B-400		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 400 mm \| Holding force: 20000 N
JSC4-T-TB-180B-450		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 450 mm \| Holding force: 20000 N
JSC4-T-TB-180B-500		Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 500 mm \| Holding force: 20000 N

Pneumatic CylindersCKD

902 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD JSC3-T/JSC4-T Cell Top Brake Cylinder (Heat Resistant)

Brand CKD·Pneumatic Cylinders

Available part numbers (902)

JSC3-T-00-40B-50, JSC3-T-00-40B-75, JSC3-T-00-40B-100, JSC3-T-00-40B-150, JSC3-T-00-40B-200, JSC3-T-00-40B-250, JSC3-T-00-40B-300, JSC3-T-00-40B-350, JSC3-T-00-40B-400, JSC3-T-00-40B-450 + 892 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	JSC3-T-00-40B-50	Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
	JSC3-T-00-40B-75	Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
	JSC3-T-00-40B-100	Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
	JSC3-T-00-40B-150	Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
	JSC3-T-00-40B-200	Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
	JSC3-T-00-40B-250	Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
	JSC3-T-00-40B-300	Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
	JSC3-T-00-40B-350	Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
	JSC3-T-00-40B-400	Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
	JSC3-T-00-40B-450	Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
	JSC3-T-00-40B-500	Model: JSC3-T \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
	JSC3-T-00-50B-50	Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
	JSC3-T-00-50B-75	Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
	JSC3-T-00-50B-100	Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
	JSC3-T-00-50B-150	Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
	JSC3-T-00-50B-200	Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
	JSC3-T-00-50B-250	Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
	JSC3-T-00-50B-300	Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
	JSC3-T-00-50B-350	Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
	JSC3-T-00-50B-400	Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
	JSC3-T-00-50B-450	Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
	JSC3-T-00-50B-500	Model: JSC3-T \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
	JSC3-T-00-63B-50	Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
	JSC3-T-00-63B-75	Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
	JSC3-T-00-63B-100	Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
	JSC3-T-00-63B-150	Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
	JSC3-T-00-63B-200	Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
	JSC3-T-00-63B-250	Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
	JSC3-T-00-63B-300	Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
	JSC3-T-00-63B-350	Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
	JSC3-T-00-63B-400	Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
	JSC3-T-00-63B-450	Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
	JSC3-T-00-63B-500	Model: JSC3-T \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
	JSC3-T-00-80B-50	Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
	JSC3-T-00-80B-75	Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
	JSC3-T-00-80B-100	Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
	JSC3-T-00-80B-150	Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
	JSC3-T-00-80B-200	Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
	JSC3-T-00-80B-250	Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
	JSC3-T-00-80B-300	Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
	JSC3-T-00-80B-350	Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
	JSC3-T-00-80B-400	Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
	JSC3-T-00-80B-450	Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
	JSC3-T-00-80B-500	Model: JSC3-T \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
	JSC3-T-00-100B-50	Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
	JSC3-T-00-100B-75	Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
	JSC3-T-00-100B-100	Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
	JSC3-T-00-100B-150	Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
	JSC3-T-00-100B-200	Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
	JSC3-T-00-100B-250	Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
	JSC3-T-00-100B-300	Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
	JSC3-T-00-100B-350	Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
	JSC3-T-00-100B-400	Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
	JSC3-T-00-100B-450	Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
	JSC3-T-00-100B-500	Model: JSC3-T \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
	JSC3-T-LB-40B-50	Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
	JSC3-T-LB-40B-75	Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
	JSC3-T-LB-40B-100	Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
	JSC3-T-LB-40B-150	Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
	JSC3-T-LB-40B-200	Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
	JSC3-T-LB-40B-250	Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
	JSC3-T-LB-40B-300	Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
	JSC3-T-LB-40B-350	Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
	JSC3-T-LB-40B-400	Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
	JSC3-T-LB-40B-450	Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
	JSC3-T-LB-40B-500	Model: JSC3-T \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
	JSC3-T-LB-50B-50	Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
	JSC3-T-LB-50B-75	Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
	JSC3-T-LB-50B-100	Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
	JSC3-T-LB-50B-150	Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
	JSC3-T-LB-50B-200	Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
	JSC3-T-LB-50B-250	Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
	JSC3-T-LB-50B-300	Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
	JSC3-T-LB-50B-350	Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
	JSC3-T-LB-50B-400	Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
	JSC3-T-LB-50B-450	Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
	JSC3-T-LB-50B-500	Model: JSC3-T \| Mounting: Axial foot \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
	JSC3-T-LB-63B-50	Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
	JSC3-T-LB-63B-75	Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
	JSC3-T-LB-63B-100	Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
	JSC3-T-LB-63B-150	Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
	JSC3-T-LB-63B-200	Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
	JSC3-T-LB-63B-250	Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
	JSC3-T-LB-63B-300	Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
	JSC3-T-LB-63B-350	Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
	JSC3-T-LB-63B-400	Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
	JSC3-T-LB-63B-450	Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
	JSC3-T-LB-63B-500	Model: JSC3-T \| Mounting: Axial foot \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
	JSC3-T-LB-80B-50	Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
	JSC3-T-LB-80B-75	Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
	JSC3-T-LB-80B-100	Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
	JSC3-T-LB-80B-150	Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
	JSC3-T-LB-80B-200	Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
	JSC3-T-LB-80B-250	Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
	JSC3-T-LB-80B-300	Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
	JSC3-T-LB-80B-350	Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
	JSC3-T-LB-80B-400	Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
	JSC3-T-LB-80B-450	Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
	JSC3-T-LB-80B-500	Model: JSC3-T \| Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
	JSC3-T-LB-100B-50	Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
	JSC3-T-LB-100B-75	Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
	JSC3-T-LB-100B-100	Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
	JSC3-T-LB-100B-150	Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
	JSC3-T-LB-100B-200	Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
	JSC3-T-LB-100B-250	Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
	JSC3-T-LB-100B-300	Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
	JSC3-T-LB-100B-350	Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
	JSC3-T-LB-100B-400	Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
	JSC3-T-LB-100B-450	Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
	JSC3-T-LB-100B-500	Model: JSC3-T \| Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
	JSC3-T-FA-40B-50	Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
	JSC3-T-FA-40B-75	Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
	JSC3-T-FA-40B-100	Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
	JSC3-T-FA-40B-150	Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
	JSC3-T-FA-40B-200	Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
	JSC3-T-FA-40B-250	Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
	JSC3-T-FA-40B-300	Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
	JSC3-T-FA-40B-350	Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
	JSC3-T-FA-40B-400	Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
	JSC3-T-FA-40B-450	Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
	JSC3-T-FA-40B-500	Model: JSC3-T \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
	JSC3-T-FA-50B-50	Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
	JSC3-T-FA-50B-75	Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
	JSC3-T-FA-50B-100	Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
	JSC3-T-FA-50B-150	Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
	JSC3-T-FA-50B-200	Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
	JSC3-T-FA-50B-250	Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
	JSC3-T-FA-50B-300	Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
	JSC3-T-FA-50B-350	Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
	JSC3-T-FA-50B-400	Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
	JSC3-T-FA-50B-450	Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
	JSC3-T-FA-50B-500	Model: JSC3-T \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
	JSC3-T-FA-63B-50	Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
	JSC3-T-FA-63B-75	Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
	JSC3-T-FA-63B-100	Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
	JSC3-T-FA-63B-150	Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
	JSC3-T-FA-63B-200	Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
	JSC3-T-FA-63B-250	Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
	JSC3-T-FA-63B-300	Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
	JSC3-T-FA-63B-350	Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
	JSC3-T-FA-63B-400	Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
	JSC3-T-FA-63B-450	Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
	JSC3-T-FA-63B-500	Model: JSC3-T \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
	JSC3-T-FA-80B-50	Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
	JSC3-T-FA-80B-75	Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
	JSC3-T-FA-80B-100	Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
	JSC3-T-FA-80B-150	Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
	JSC3-T-FA-80B-200	Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
	JSC3-T-FA-80B-250	Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
	JSC3-T-FA-80B-300	Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
	JSC3-T-FA-80B-350	Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
	JSC3-T-FA-80B-400	Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
	JSC3-T-FA-80B-450	Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
	JSC3-T-FA-80B-500	Model: JSC3-T \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
	JSC3-T-FA-100B-50	Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
	JSC3-T-FA-100B-75	Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
	JSC3-T-FA-100B-100	Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
	JSC3-T-FA-100B-150	Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
	JSC3-T-FA-100B-200	Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
	JSC3-T-FA-100B-250	Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
	JSC3-T-FA-100B-300	Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
	JSC3-T-FA-100B-350	Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
	JSC3-T-FA-100B-400	Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
	JSC3-T-FA-100B-450	Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
	JSC3-T-FA-100B-500	Model: JSC3-T \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
	JSC3-T-FB-40B-50	Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
	JSC3-T-FB-40B-75	Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
	JSC3-T-FB-40B-100	Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
	JSC3-T-FB-40B-150	Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
	JSC3-T-FB-40B-200	Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
	JSC3-T-FB-40B-250	Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
	JSC3-T-FB-40B-300	Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
	JSC3-T-FB-40B-350	Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
	JSC3-T-FB-40B-400	Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
	JSC3-T-FB-40B-450	Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
	JSC3-T-FB-40B-500	Model: JSC3-T \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
	JSC3-T-FB-50B-50	Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
	JSC3-T-FB-50B-75	Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
	JSC3-T-FB-50B-100	Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
	JSC3-T-FB-50B-150	Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
	JSC3-T-FB-50B-200	Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
	JSC3-T-FB-50B-250	Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
	JSC3-T-FB-50B-300	Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
	JSC3-T-FB-50B-350	Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
	JSC3-T-FB-50B-400	Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
	JSC3-T-FB-50B-450	Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
	JSC3-T-FB-50B-500	Model: JSC3-T \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
	JSC3-T-FB-63B-50	Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
	JSC3-T-FB-63B-75	Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
	JSC3-T-FB-63B-100	Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
	JSC3-T-FB-63B-150	Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
	JSC3-T-FB-63B-200	Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
	JSC3-T-FB-63B-250	Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
	JSC3-T-FB-63B-300	Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
	JSC3-T-FB-63B-350	Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
	JSC3-T-FB-63B-400	Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
	JSC3-T-FB-63B-450	Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
	JSC3-T-FB-63B-500	Model: JSC3-T \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
	JSC3-T-FB-80B-50	Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
	JSC3-T-FB-80B-75	Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
	JSC3-T-FB-80B-100	Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
	JSC3-T-FB-80B-150	Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
	JSC3-T-FB-80B-200	Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
	JSC3-T-FB-80B-250	Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
	JSC3-T-FB-80B-300	Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
	JSC3-T-FB-80B-350	Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
	JSC3-T-FB-80B-400	Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
	JSC3-T-FB-80B-450	Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
	JSC3-T-FB-80B-500	Model: JSC3-T \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
	JSC3-T-FB-100B-50	Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
	JSC3-T-FB-100B-75	Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
	JSC3-T-FB-100B-100	Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
	JSC3-T-FB-100B-150	Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
	JSC3-T-FB-100B-200	Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
	JSC3-T-FB-100B-250	Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
	JSC3-T-FB-100B-300	Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
	JSC3-T-FB-100B-350	Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
	JSC3-T-FB-100B-400	Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
	JSC3-T-FB-100B-450	Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
	JSC3-T-FB-100B-500	Model: JSC3-T \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
	JSC3-T-FC-40B-50	Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
	JSC3-T-FC-40B-75	Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
	JSC3-T-FC-40B-100	Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
	JSC3-T-FC-40B-150	Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
	JSC3-T-FC-40B-200	Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
	JSC3-T-FC-40B-250	Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
	JSC3-T-FC-40B-300	Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
	JSC3-T-FC-40B-350	Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
	JSC3-T-FC-40B-400	Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
	JSC3-T-FC-40B-450	Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
	JSC3-T-FC-40B-500	Model: JSC3-T \| Mounting: Head special flange \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
	JSC3-T-FC-50B-50	Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
	JSC3-T-FC-50B-75	Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
	JSC3-T-FC-50B-100	Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
	JSC3-T-FC-50B-150	Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
	JSC3-T-FC-50B-200	Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
	JSC3-T-FC-50B-250	Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
	JSC3-T-FC-50B-300	Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
	JSC3-T-FC-50B-350	Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
	JSC3-T-FC-50B-400	Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
	JSC3-T-FC-50B-450	Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
	JSC3-T-FC-50B-500	Model: JSC3-T \| Mounting: Head special flange \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
	JSC3-T-FC-63B-50	Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
	JSC3-T-FC-63B-75	Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
	JSC3-T-FC-63B-100	Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
	JSC3-T-FC-63B-150	Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
	JSC3-T-FC-63B-200	Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
	JSC3-T-FC-63B-250	Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
	JSC3-T-FC-63B-300	Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
	JSC3-T-FC-63B-350	Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
	JSC3-T-FC-63B-400	Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
	JSC3-T-FC-63B-450	Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
	JSC3-T-FC-63B-500	Model: JSC3-T \| Mounting: Head special flange \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
	JSC3-T-FC-80B-50	Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
	JSC3-T-FC-80B-75	Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
	JSC3-T-FC-80B-100	Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
	JSC3-T-FC-80B-150	Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
	JSC3-T-FC-80B-200	Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
	JSC3-T-FC-80B-250	Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
	JSC3-T-FC-80B-300	Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
	JSC3-T-FC-80B-350	Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
	JSC3-T-FC-80B-400	Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
	JSC3-T-FC-80B-450	Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
	JSC3-T-FC-80B-500	Model: JSC3-T \| Mounting: Head special flange \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
	JSC3-T-FC-100B-50	Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
	JSC3-T-FC-100B-75	Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
	JSC3-T-FC-100B-100	Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
	JSC3-T-FC-100B-150	Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
	JSC3-T-FC-100B-200	Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
	JSC3-T-FC-100B-250	Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
	JSC3-T-FC-100B-300	Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
	JSC3-T-FC-100B-350	Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
	JSC3-T-FC-100B-400	Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
	JSC3-T-FC-100B-450	Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
	JSC3-T-FC-100B-500	Model: JSC3-T \| Mounting: Head special flange \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
	JSC3-T-CA-40B-50	Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
	JSC3-T-CA-40B-75	Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
	JSC3-T-CA-40B-100	Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
	JSC3-T-CA-40B-150	Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
	JSC3-T-CA-40B-200	Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
	JSC3-T-CA-40B-250	Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
	JSC3-T-CA-40B-300	Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
	JSC3-T-CA-40B-350	Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
	JSC3-T-CA-40B-400	Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
	JSC3-T-CA-40B-450	Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
	JSC3-T-CA-40B-500	Model: JSC3-T \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
	JSC3-T-CA-50B-50	Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
	JSC3-T-CA-50B-75	Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
	JSC3-T-CA-50B-100	Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
	JSC3-T-CA-50B-150	Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
	JSC3-T-CA-50B-200	Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
	JSC3-T-CA-50B-250	Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
	JSC3-T-CA-50B-300	Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
	JSC3-T-CA-50B-350	Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
	JSC3-T-CA-50B-400	Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
	JSC3-T-CA-50B-450	Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
	JSC3-T-CA-50B-500	Model: JSC3-T \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
	JSC3-T-CA-63B-50	Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
	JSC3-T-CA-63B-75	Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
	JSC3-T-CA-63B-100	Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
	JSC3-T-CA-63B-150	Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
	JSC3-T-CA-63B-200	Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
	JSC3-T-CA-63B-250	Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
	JSC3-T-CA-63B-300	Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
	JSC3-T-CA-63B-350	Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
	JSC3-T-CA-63B-400	Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
	JSC3-T-CA-63B-450	Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
	JSC3-T-CA-63B-500	Model: JSC3-T \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
	JSC3-T-CA-80B-50	Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
	JSC3-T-CA-80B-75	Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
	JSC3-T-CA-80B-100	Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
	JSC3-T-CA-80B-150	Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
	JSC3-T-CA-80B-200	Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
	JSC3-T-CA-80B-250	Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
	JSC3-T-CA-80B-300	Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
	JSC3-T-CA-80B-350	Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
	JSC3-T-CA-80B-400	Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
	JSC3-T-CA-80B-450	Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
	JSC3-T-CA-80B-500	Model: JSC3-T \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
	JSC3-T-CA-100B-50	Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
	JSC3-T-CA-100B-75	Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
	JSC3-T-CA-100B-100	Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
	JSC3-T-CA-100B-150	Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
	JSC3-T-CA-100B-200	Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
	JSC3-T-CA-100B-250	Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
	JSC3-T-CA-100B-300	Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
	JSC3-T-CA-100B-350	Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
	JSC3-T-CA-100B-400	Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
	JSC3-T-CA-100B-450	Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
	JSC3-T-CA-100B-500	Model: JSC3-T \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
	JSC3-T-CB-40B-50	Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
	JSC3-T-CB-40B-75	Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
	JSC3-T-CB-40B-100	Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
	JSC3-T-CB-40B-150	Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
	JSC3-T-CB-40B-200	Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
	JSC3-T-CB-40B-250	Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
	JSC3-T-CB-40B-300	Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
	JSC3-T-CB-40B-350	Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
	JSC3-T-CB-40B-400	Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
	JSC3-T-CB-40B-450	Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
	JSC3-T-CB-40B-500	Model: JSC3-T \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
	JSC3-T-CB-50B-50	Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
	JSC3-T-CB-50B-75	Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
	JSC3-T-CB-50B-100	Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
	JSC3-T-CB-50B-150	Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
	JSC3-T-CB-50B-200	Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
	JSC3-T-CB-50B-250	Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
	JSC3-T-CB-50B-300	Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
	JSC3-T-CB-50B-350	Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
	JSC3-T-CB-50B-400	Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
	JSC3-T-CB-50B-450	Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
	JSC3-T-CB-50B-500	Model: JSC3-T \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
	JSC3-T-CB-63B-50	Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
	JSC3-T-CB-63B-75	Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
	JSC3-T-CB-63B-100	Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
	JSC3-T-CB-63B-150	Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
	JSC3-T-CB-63B-200	Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
	JSC3-T-CB-63B-250	Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
	JSC3-T-CB-63B-300	Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
	JSC3-T-CB-63B-350	Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
	JSC3-T-CB-63B-400	Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
	JSC3-T-CB-63B-450	Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
	JSC3-T-CB-63B-500	Model: JSC3-T \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
	JSC3-T-CB-80B-50	Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
	JSC3-T-CB-80B-75	Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
	JSC3-T-CB-80B-100	Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
	JSC3-T-CB-80B-150	Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
	JSC3-T-CB-80B-200	Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
	JSC3-T-CB-80B-250	Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
	JSC3-T-CB-80B-300	Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
	JSC3-T-CB-80B-350	Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
	JSC3-T-CB-80B-400	Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
	JSC3-T-CB-80B-450	Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
	JSC3-T-CB-80B-500	Model: JSC3-T \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
	JSC3-T-CB-100B-50	Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
	JSC3-T-CB-100B-75	Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
	JSC3-T-CB-100B-100	Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
	JSC3-T-CB-100B-150	Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
	JSC3-T-CB-100B-200	Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
	JSC3-T-CB-100B-250	Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
	JSC3-T-CB-100B-300	Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
	JSC3-T-CB-100B-350	Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
	JSC3-T-CB-100B-400	Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
	JSC3-T-CB-100B-450	Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
	JSC3-T-CB-100B-500	Model: JSC3-T \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
	JSC3-T-TC-40B-50	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
	JSC3-T-TC-40B-75	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
	JSC3-T-TC-40B-100	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
	JSC3-T-TC-40B-150	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
	JSC3-T-TC-40B-200	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
	JSC3-T-TC-40B-250	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
	JSC3-T-TC-40B-300	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
	JSC3-T-TC-40B-350	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
	JSC3-T-TC-40B-400	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
	JSC3-T-TC-40B-450	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
	JSC3-T-TC-40B-500	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
	JSC3-T-TC-50B-50	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
	JSC3-T-TC-50B-75	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
	JSC3-T-TC-50B-100	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
	JSC3-T-TC-50B-150	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
	JSC3-T-TC-50B-200	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
	JSC3-T-TC-50B-250	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
	JSC3-T-TC-50B-300	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
	JSC3-T-TC-50B-350	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
	JSC3-T-TC-50B-400	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
	JSC3-T-TC-50B-450	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
	JSC3-T-TC-50B-500	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
	JSC3-T-TC-63B-50	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
	JSC3-T-TC-63B-75	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
	JSC3-T-TC-63B-100	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
	JSC3-T-TC-63B-150	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
	JSC3-T-TC-63B-200	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
	JSC3-T-TC-63B-250	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
	JSC3-T-TC-63B-300	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
	JSC3-T-TC-63B-350	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
	JSC3-T-TC-63B-400	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
	JSC3-T-TC-63B-450	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
	JSC3-T-TC-63B-500	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
	JSC3-T-TC-80B-50	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
	JSC3-T-TC-80B-75	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
	JSC3-T-TC-80B-100	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
	JSC3-T-TC-80B-150	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
	JSC3-T-TC-80B-200	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
	JSC3-T-TC-80B-250	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
	JSC3-T-TC-80B-300	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
	JSC3-T-TC-80B-350	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
	JSC3-T-TC-80B-400	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
	JSC3-T-TC-80B-450	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
	JSC3-T-TC-80B-500	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
	JSC3-T-TC-100B-50	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
	JSC3-T-TC-100B-75	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
	JSC3-T-TC-100B-100	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
	JSC3-T-TC-100B-150	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
	JSC3-T-TC-100B-200	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
	JSC3-T-TC-100B-250	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
	JSC3-T-TC-100B-300	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
	JSC3-T-TC-100B-350	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
	JSC3-T-TC-100B-400	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
	JSC3-T-TC-100B-450	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
	JSC3-T-TC-100B-500	Model: JSC3-T \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
	JSC3-T-TA-40B-50	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
	JSC3-T-TA-40B-75	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
	JSC3-T-TA-40B-100	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
	JSC3-T-TA-40B-150	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
	JSC3-T-TA-40B-200	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
	JSC3-T-TA-40B-250	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
	JSC3-T-TA-40B-300	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
	JSC3-T-TA-40B-350	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
	JSC3-T-TA-40B-400	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
	JSC3-T-TA-40B-450	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
	JSC3-T-TA-40B-500	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
	JSC3-T-TA-50B-50	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
	JSC3-T-TA-50B-75	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
	JSC3-T-TA-50B-100	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
	JSC3-T-TA-50B-150	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
	JSC3-T-TA-50B-200	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
	JSC3-T-TA-50B-250	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
	JSC3-T-TA-50B-300	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
	JSC3-T-TA-50B-350	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
	JSC3-T-TA-50B-400	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
	JSC3-T-TA-50B-450	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
	JSC3-T-TA-50B-500	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
	JSC3-T-TA-63B-50	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
	JSC3-T-TA-63B-75	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
	JSC3-T-TA-63B-100	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
	JSC3-T-TA-63B-150	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
	JSC3-T-TA-63B-200	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
	JSC3-T-TA-63B-250	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
	JSC3-T-TA-63B-300	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
	JSC3-T-TA-63B-350	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
	JSC3-T-TA-63B-400	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
	JSC3-T-TA-63B-450	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
	JSC3-T-TA-63B-500	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
	JSC3-T-TA-80B-50	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
	JSC3-T-TA-80B-75	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
	JSC3-T-TA-80B-100	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
	JSC3-T-TA-80B-150	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
	JSC3-T-TA-80B-200	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
	JSC3-T-TA-80B-250	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
	JSC3-T-TA-80B-300	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
	JSC3-T-TA-80B-350	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
	JSC3-T-TA-80B-400	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
	JSC3-T-TA-80B-450	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
	JSC3-T-TA-80B-500	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
	JSC3-T-TA-100B-50	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
	JSC3-T-TA-100B-75	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
	JSC3-T-TA-100B-100	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
	JSC3-T-TA-100B-150	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
	JSC3-T-TA-100B-200	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
	JSC3-T-TA-100B-250	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
	JSC3-T-TA-100B-300	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
	JSC3-T-TA-100B-350	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
	JSC3-T-TA-100B-400	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
	JSC3-T-TA-100B-450	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
	JSC3-T-TA-100B-500	Model: JSC3-T \| Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
	JSC3-T-TB-40B-50	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Holding force: 980 N
	JSC3-T-TB-40B-75	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Holding force: 980 N
	JSC3-T-TB-40B-100	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Holding force: 980 N
	JSC3-T-TB-40B-150	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Holding force: 980 N
	JSC3-T-TB-40B-200	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Holding force: 980 N
	JSC3-T-TB-40B-250	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Holding force: 980 N
	JSC3-T-TB-40B-300	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Holding force: 980 N
	JSC3-T-TB-40B-350	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Holding force: 980 N
	JSC3-T-TB-40B-400	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Holding force: 980 N
	JSC3-T-TB-40B-450	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Holding force: 980 N
	JSC3-T-TB-40B-500	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Holding force: 980 N
	JSC3-T-TB-50B-50	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Holding force: 1569 N
	JSC3-T-TB-50B-75	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Holding force: 1569 N
	JSC3-T-TB-50B-100	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Holding force: 1569 N
	JSC3-T-TB-50B-150	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Holding force: 1569 N
	JSC3-T-TB-50B-200	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Holding force: 1569 N
	JSC3-T-TB-50B-250	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Holding force: 1569 N
	JSC3-T-TB-50B-300	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Holding force: 1569 N
	JSC3-T-TB-50B-350	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Holding force: 1569 N
	JSC3-T-TB-50B-400	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Holding force: 1569 N
	JSC3-T-TB-50B-450	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Holding force: 1569 N
	JSC3-T-TB-50B-500	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Holding force: 1569 N
	JSC3-T-TB-63B-50	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Holding force: 2451 N
	JSC3-T-TB-63B-75	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Holding force: 2451 N
	JSC3-T-TB-63B-100	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Holding force: 2451 N
	JSC3-T-TB-63B-150	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Holding force: 2451 N
	JSC3-T-TB-63B-200	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Holding force: 2451 N
	JSC3-T-TB-63B-250	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Holding force: 2451 N
	JSC3-T-TB-63B-300	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Holding force: 2451 N
	JSC3-T-TB-63B-350	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Holding force: 2451 N
	JSC3-T-TB-63B-400	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Holding force: 2451 N
	JSC3-T-TB-63B-450	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Holding force: 2451 N
	JSC3-T-TB-63B-500	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Holding force: 2451 N
	JSC3-T-TB-80B-50	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Holding force: 3922 N
	JSC3-T-TB-80B-75	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Holding force: 3922 N
	JSC3-T-TB-80B-100	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Holding force: 3922 N
	JSC3-T-TB-80B-150	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Holding force: 3922 N
	JSC3-T-TB-80B-200	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Holding force: 3922 N
	JSC3-T-TB-80B-250	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Holding force: 3922 N
	JSC3-T-TB-80B-300	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Holding force: 3922 N
	JSC3-T-TB-80B-350	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Holding force: 3922 N
	JSC3-T-TB-80B-400	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Holding force: 3922 N
	JSC3-T-TB-80B-450	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Holding force: 3922 N
	JSC3-T-TB-80B-500	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Holding force: 3922 N
	JSC3-T-TB-100B-50	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Holding force: 6178 N
	JSC3-T-TB-100B-75	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Holding force: 6178 N
	JSC3-T-TB-100B-100	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Holding force: 6178 N
	JSC3-T-TB-100B-150	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Holding force: 6178 N
	JSC3-T-TB-100B-200	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Holding force: 6178 N
	JSC3-T-TB-100B-250	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Holding force: 6178 N
	JSC3-T-TB-100B-300	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Holding force: 6178 N
	JSC3-T-TB-100B-350	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Holding force: 6178 N
	JSC3-T-TB-100B-400	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Holding force: 6178 N
	JSC3-T-TB-100B-450	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Holding force: 6178 N
	JSC3-T-TB-100B-500	Model: JSC3-T \| Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Holding force: 6178 N
	JSC4-T-LB-125B-50	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-T-LB-125B-75	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-T-LB-125B-100	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-T-LB-125B-150	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-T-LB-125B-200	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-T-LB-125B-250	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-T-LB-125B-300	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-T-LB-125B-350	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 350 mm \| Holding force: 9600 N
	JSC4-T-LB-125B-400	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 400 mm \| Holding force: 9600 N
	JSC4-T-LB-125B-450	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 450 mm \| Holding force: 9600 N
	JSC4-T-LB-125B-500	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 125 mm \| Stroke: 500 mm \| Holding force: 9600 N
	JSC4-T-LB-140B-50	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-T-LB-140B-75	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-T-LB-140B-100	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-T-LB-140B-150	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-T-LB-140B-200	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-T-LB-140B-250	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-T-LB-140B-300	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-T-LB-140B-350	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 350 mm \| Holding force: 12000 N
	JSC4-T-LB-140B-400	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 400 mm \| Holding force: 12000 N
	JSC4-T-LB-140B-450	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 450 mm \| Holding force: 12000 N
	JSC4-T-LB-140B-500	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 140 mm \| Stroke: 500 mm \| Holding force: 12000 N
	JSC4-T-LB-160B-50	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-T-LB-160B-75	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-T-LB-160B-100	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-T-LB-160B-150	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-T-LB-160B-200	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-T-LB-160B-250	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-T-LB-160B-300	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-T-LB-160B-350	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 350 mm \| Holding force: 15800 N
	JSC4-T-LB-160B-400	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 400 mm \| Holding force: 15800 N
	JSC4-T-LB-160B-450	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 450 mm \| Holding force: 15800 N
	JSC4-T-LB-160B-500	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 160 mm \| Stroke: 500 mm \| Holding force: 15800 N
	JSC4-T-LB-180B-50	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-T-LB-180B-75	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-T-LB-180B-100	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-T-LB-180B-150	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-T-LB-180B-200	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-T-LB-180B-250	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-T-LB-180B-300	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-T-LB-180B-350	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 350 mm \| Holding force: 20000 N
	JSC4-T-LB-180B-400	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 400 mm \| Holding force: 20000 N
	JSC4-T-LB-180B-450	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 450 mm \| Holding force: 20000 N
	JSC4-T-LB-180B-500	Model: JSC4-T (MTO) \| Mounting: Axial foot \| Bore: 180 mm \| Stroke: 500 mm \| Holding force: 20000 N
	JSC4-T-FA-125B-50	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-T-FA-125B-75	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-T-FA-125B-100	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-T-FA-125B-150	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-T-FA-125B-200	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-T-FA-125B-250	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-T-FA-125B-300	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-T-FA-125B-350	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 350 mm \| Holding force: 9600 N
	JSC4-T-FA-125B-400	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 400 mm \| Holding force: 9600 N
	JSC4-T-FA-125B-450	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 450 mm \| Holding force: 9600 N
	JSC4-T-FA-125B-500	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 125 mm \| Stroke: 500 mm \| Holding force: 9600 N
	JSC4-T-FA-140B-50	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-T-FA-140B-75	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-T-FA-140B-100	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-T-FA-140B-150	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-T-FA-140B-200	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-T-FA-140B-250	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-T-FA-140B-300	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-T-FA-140B-350	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 350 mm \| Holding force: 12000 N
	JSC4-T-FA-140B-400	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 400 mm \| Holding force: 12000 N
	JSC4-T-FA-140B-450	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 450 mm \| Holding force: 12000 N
	JSC4-T-FA-140B-500	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 140 mm \| Stroke: 500 mm \| Holding force: 12000 N
	JSC4-T-FA-160B-50	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-T-FA-160B-75	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-T-FA-160B-100	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-T-FA-160B-150	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-T-FA-160B-200	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-T-FA-160B-250	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-T-FA-160B-300	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-T-FA-160B-350	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 350 mm \| Holding force: 15800 N
	JSC4-T-FA-160B-400	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 400 mm \| Holding force: 15800 N
	JSC4-T-FA-160B-450	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 450 mm \| Holding force: 15800 N
	JSC4-T-FA-160B-500	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 160 mm \| Stroke: 500 mm \| Holding force: 15800 N
	JSC4-T-FA-180B-50	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-T-FA-180B-75	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-T-FA-180B-100	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-T-FA-180B-150	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-T-FA-180B-200	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-T-FA-180B-250	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-T-FA-180B-300	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-T-FA-180B-350	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 350 mm \| Holding force: 20000 N
	JSC4-T-FA-180B-400	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 400 mm \| Holding force: 20000 N
	JSC4-T-FA-180B-450	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 450 mm \| Holding force: 20000 N
	JSC4-T-FA-180B-500	Model: JSC4-T (MTO) \| Mounting: Rod flange \| Bore: 180 mm \| Stroke: 500 mm \| Holding force: 20000 N
	JSC4-T-FB-125B-50	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-T-FB-125B-75	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-T-FB-125B-100	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-T-FB-125B-150	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-T-FB-125B-200	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-T-FB-125B-250	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-T-FB-125B-300	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-T-FB-125B-350	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 350 mm \| Holding force: 9600 N
	JSC4-T-FB-125B-400	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 400 mm \| Holding force: 9600 N
	JSC4-T-FB-125B-450	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 450 mm \| Holding force: 9600 N
	JSC4-T-FB-125B-500	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 125 mm \| Stroke: 500 mm \| Holding force: 9600 N
	JSC4-T-FB-140B-50	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-T-FB-140B-75	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-T-FB-140B-100	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-T-FB-140B-150	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-T-FB-140B-200	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-T-FB-140B-250	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-T-FB-140B-300	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-T-FB-140B-350	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 350 mm \| Holding force: 12000 N
	JSC4-T-FB-140B-400	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 400 mm \| Holding force: 12000 N
	JSC4-T-FB-140B-450	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 450 mm \| Holding force: 12000 N
	JSC4-T-FB-140B-500	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 140 mm \| Stroke: 500 mm \| Holding force: 12000 N
	JSC4-T-FB-160B-50	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-T-FB-160B-75	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-T-FB-160B-100	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-T-FB-160B-150	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-T-FB-160B-200	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-T-FB-160B-250	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-T-FB-160B-300	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-T-FB-160B-350	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 350 mm \| Holding force: 15800 N
	JSC4-T-FB-160B-400	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 400 mm \| Holding force: 15800 N
	JSC4-T-FB-160B-450	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 450 mm \| Holding force: 15800 N
	JSC4-T-FB-160B-500	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 160 mm \| Stroke: 500 mm \| Holding force: 15800 N
	JSC4-T-FB-180B-50	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-T-FB-180B-75	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-T-FB-180B-100	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-T-FB-180B-150	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-T-FB-180B-200	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-T-FB-180B-250	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-T-FB-180B-300	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-T-FB-180B-350	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 350 mm \| Holding force: 20000 N
	JSC4-T-FB-180B-400	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 400 mm \| Holding force: 20000 N
	JSC4-T-FB-180B-450	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 450 mm \| Holding force: 20000 N
	JSC4-T-FB-180B-500	Model: JSC4-T (MTO) \| Mounting: Head flange \| Bore: 180 mm \| Stroke: 500 mm \| Holding force: 20000 N
	JSC4-T-CA-125B-50	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-T-CA-125B-75	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-T-CA-125B-100	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-T-CA-125B-150	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-T-CA-125B-200	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-T-CA-125B-250	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-T-CA-125B-300	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-T-CA-125B-350	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 350 mm \| Holding force: 9600 N
	JSC4-T-CA-125B-400	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 400 mm \| Holding force: 9600 N
	JSC4-T-CA-125B-450	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 450 mm \| Holding force: 9600 N
	JSC4-T-CA-125B-500	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 125 mm \| Stroke: 500 mm \| Holding force: 9600 N
	JSC4-T-CA-140B-50	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-T-CA-140B-75	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-T-CA-140B-100	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-T-CA-140B-150	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-T-CA-140B-200	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-T-CA-140B-250	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-T-CA-140B-300	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-T-CA-140B-350	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 350 mm \| Holding force: 12000 N
	JSC4-T-CA-140B-400	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 400 mm \| Holding force: 12000 N
	JSC4-T-CA-140B-450	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 450 mm \| Holding force: 12000 N
	JSC4-T-CA-140B-500	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 140 mm \| Stroke: 500 mm \| Holding force: 12000 N
	JSC4-T-CA-160B-50	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-T-CA-160B-75	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-T-CA-160B-100	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-T-CA-160B-150	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-T-CA-160B-200	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-T-CA-160B-250	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-T-CA-160B-300	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-T-CA-160B-350	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 350 mm \| Holding force: 15800 N
	JSC4-T-CA-160B-400	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 400 mm \| Holding force: 15800 N
	JSC4-T-CA-160B-450	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 450 mm \| Holding force: 15800 N
	JSC4-T-CA-160B-500	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 160 mm \| Stroke: 500 mm \| Holding force: 15800 N
	JSC4-T-CA-180B-50	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-T-CA-180B-75	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-T-CA-180B-100	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-T-CA-180B-150	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-T-CA-180B-200	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-T-CA-180B-250	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-T-CA-180B-300	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-T-CA-180B-350	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 350 mm \| Holding force: 20000 N
	JSC4-T-CA-180B-400	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 400 mm \| Holding force: 20000 N
	JSC4-T-CA-180B-450	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 450 mm \| Holding force: 20000 N
	JSC4-T-CA-180B-500	Model: JSC4-T (MTO) \| Mounting: Single clevis \| Bore: 180 mm \| Stroke: 500 mm \| Holding force: 20000 N
	JSC4-T-CB-125B-50	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-T-CB-125B-75	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-T-CB-125B-100	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-T-CB-125B-150	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-T-CB-125B-200	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-T-CB-125B-250	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-T-CB-125B-300	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-T-CB-125B-350	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 350 mm \| Holding force: 9600 N
	JSC4-T-CB-125B-400	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 400 mm \| Holding force: 9600 N
	JSC4-T-CB-125B-450	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 450 mm \| Holding force: 9600 N
	JSC4-T-CB-125B-500	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 125 mm \| Stroke: 500 mm \| Holding force: 9600 N
	JSC4-T-CB-140B-50	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-T-CB-140B-75	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-T-CB-140B-100	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-T-CB-140B-150	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-T-CB-140B-200	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-T-CB-140B-250	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-T-CB-140B-300	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-T-CB-140B-350	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 350 mm \| Holding force: 12000 N
	JSC4-T-CB-140B-400	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 400 mm \| Holding force: 12000 N
	JSC4-T-CB-140B-450	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 450 mm \| Holding force: 12000 N
	JSC4-T-CB-140B-500	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 140 mm \| Stroke: 500 mm \| Holding force: 12000 N
	JSC4-T-CB-160B-50	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-T-CB-160B-75	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-T-CB-160B-100	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-T-CB-160B-150	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-T-CB-160B-200	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-T-CB-160B-250	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-T-CB-160B-300	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-T-CB-160B-350	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 350 mm \| Holding force: 15800 N
	JSC4-T-CB-160B-400	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 400 mm \| Holding force: 15800 N
	JSC4-T-CB-160B-450	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 450 mm \| Holding force: 15800 N
	JSC4-T-CB-160B-500	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 160 mm \| Stroke: 500 mm \| Holding force: 15800 N
	JSC4-T-CB-180B-50	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-T-CB-180B-75	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-T-CB-180B-100	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-T-CB-180B-150	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-T-CB-180B-200	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-T-CB-180B-250	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-T-CB-180B-300	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-T-CB-180B-350	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 350 mm \| Holding force: 20000 N
	JSC4-T-CB-180B-400	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 400 mm \| Holding force: 20000 N
	JSC4-T-CB-180B-450	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 450 mm \| Holding force: 20000 N
	JSC4-T-CB-180B-500	Model: JSC4-T (MTO) \| Mounting: Double clevis \| Bore: 180 mm \| Stroke: 500 mm \| Holding force: 20000 N
	JSC4-T-TC-125B-50	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-T-TC-125B-75	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-T-TC-125B-100	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-T-TC-125B-150	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-T-TC-125B-200	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-T-TC-125B-250	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-T-TC-125B-300	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-T-TC-125B-350	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 350 mm \| Holding force: 9600 N
	JSC4-T-TC-125B-400	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 400 mm \| Holding force: 9600 N
	JSC4-T-TC-125B-450	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 450 mm \| Holding force: 9600 N
	JSC4-T-TC-125B-500	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 125 mm \| Stroke: 500 mm \| Holding force: 9600 N
	JSC4-T-TC-140B-50	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-T-TC-140B-75	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-T-TC-140B-100	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-T-TC-140B-150	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-T-TC-140B-200	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-T-TC-140B-250	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-T-TC-140B-300	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-T-TC-140B-350	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 350 mm \| Holding force: 12000 N
	JSC4-T-TC-140B-400	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 400 mm \| Holding force: 12000 N
	JSC4-T-TC-140B-450	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 450 mm \| Holding force: 12000 N
	JSC4-T-TC-140B-500	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 140 mm \| Stroke: 500 mm \| Holding force: 12000 N
	JSC4-T-TC-160B-50	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-T-TC-160B-75	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-T-TC-160B-100	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-T-TC-160B-150	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-T-TC-160B-200	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-T-TC-160B-250	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-T-TC-160B-300	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-T-TC-160B-350	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 350 mm \| Holding force: 15800 N
	JSC4-T-TC-160B-400	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 400 mm \| Holding force: 15800 N
	JSC4-T-TC-160B-450	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 450 mm \| Holding force: 15800 N
	JSC4-T-TC-160B-500	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 160 mm \| Stroke: 500 mm \| Holding force: 15800 N
	JSC4-T-TC-180B-50	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-T-TC-180B-75	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-T-TC-180B-100	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-T-TC-180B-150	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-T-TC-180B-200	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-T-TC-180B-250	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-T-TC-180B-300	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-T-TC-180B-350	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 350 mm \| Holding force: 20000 N
	JSC4-T-TC-180B-400	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 400 mm \| Holding force: 20000 N
	JSC4-T-TC-180B-450	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 450 mm \| Holding force: 20000 N
	JSC4-T-TC-180B-500	Model: JSC4-T (MTO) \| Mounting: Center trunnion \| Bore: 180 mm \| Stroke: 500 mm \| Holding force: 20000 N
	JSC4-T-TA-125B-50	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-T-TA-125B-75	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-T-TA-125B-100	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-T-TA-125B-150	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-T-TA-125B-200	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-T-TA-125B-250	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-T-TA-125B-300	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-T-TA-125B-350	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 350 mm \| Holding force: 9600 N
	JSC4-T-TA-125B-400	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 400 mm \| Holding force: 9600 N
	JSC4-T-TA-125B-450	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 450 mm \| Holding force: 9600 N
	JSC4-T-TA-125B-500	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 125 mm \| Stroke: 500 mm \| Holding force: 9600 N
	JSC4-T-TA-140B-50	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-T-TA-140B-75	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-T-TA-140B-100	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-T-TA-140B-150	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-T-TA-140B-200	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-T-TA-140B-250	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-T-TA-140B-300	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-T-TA-140B-350	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 350 mm \| Holding force: 12000 N
	JSC4-T-TA-140B-400	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 400 mm \| Holding force: 12000 N
	JSC4-T-TA-140B-450	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 450 mm \| Holding force: 12000 N
	JSC4-T-TA-140B-500	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 140 mm \| Stroke: 500 mm \| Holding force: 12000 N
	JSC4-T-TA-160B-50	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-T-TA-160B-75	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-T-TA-160B-100	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-T-TA-160B-150	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-T-TA-160B-200	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-T-TA-160B-250	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-T-TA-160B-300	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-T-TA-160B-350	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 350 mm \| Holding force: 15800 N
	JSC4-T-TA-160B-400	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 400 mm \| Holding force: 15800 N
	JSC4-T-TA-160B-450	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 450 mm \| Holding force: 15800 N
	JSC4-T-TA-160B-500	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 160 mm \| Stroke: 500 mm \| Holding force: 15800 N
	JSC4-T-TA-180B-50	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-T-TA-180B-75	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-T-TA-180B-100	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-T-TA-180B-150	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-T-TA-180B-200	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-T-TA-180B-250	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-T-TA-180B-300	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-T-TA-180B-350	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 350 mm \| Holding force: 20000 N
	JSC4-T-TA-180B-400	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 400 mm \| Holding force: 20000 N
	JSC4-T-TA-180B-450	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 450 mm \| Holding force: 20000 N
	JSC4-T-TA-180B-500	Model: JSC4-T (MTO) \| Mounting: Rod trunnion \| Bore: 180 mm \| Stroke: 500 mm \| Holding force: 20000 N
	JSC4-T-TB-125B-50	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 50 mm \| Holding force: 9600 N
	JSC4-T-TB-125B-75	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 75 mm \| Holding force: 9600 N
	JSC4-T-TB-125B-100	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 100 mm \| Holding force: 9600 N
	JSC4-T-TB-125B-150	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 150 mm \| Holding force: 9600 N
	JSC4-T-TB-125B-200	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 200 mm \| Holding force: 9600 N
	JSC4-T-TB-125B-250	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 250 mm \| Holding force: 9600 N
	JSC4-T-TB-125B-300	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 300 mm \| Holding force: 9600 N
	JSC4-T-TB-125B-350	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 350 mm \| Holding force: 9600 N
	JSC4-T-TB-125B-400	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 400 mm \| Holding force: 9600 N
	JSC4-T-TB-125B-450	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 450 mm \| Holding force: 9600 N
	JSC4-T-TB-125B-500	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 125 mm \| Stroke: 500 mm \| Holding force: 9600 N
	JSC4-T-TB-140B-50	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 50 mm \| Holding force: 12000 N
	JSC4-T-TB-140B-75	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 75 mm \| Holding force: 12000 N
	JSC4-T-TB-140B-100	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 100 mm \| Holding force: 12000 N
	JSC4-T-TB-140B-150	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 150 mm \| Holding force: 12000 N
	JSC4-T-TB-140B-200	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 200 mm \| Holding force: 12000 N
	JSC4-T-TB-140B-250	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 250 mm \| Holding force: 12000 N
	JSC4-T-TB-140B-300	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 300 mm \| Holding force: 12000 N
	JSC4-T-TB-140B-350	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 350 mm \| Holding force: 12000 N
	JSC4-T-TB-140B-400	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 400 mm \| Holding force: 12000 N
	JSC4-T-TB-140B-450	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 450 mm \| Holding force: 12000 N
	JSC4-T-TB-140B-500	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 140 mm \| Stroke: 500 mm \| Holding force: 12000 N
	JSC4-T-TB-160B-50	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 50 mm \| Holding force: 15800 N
	JSC4-T-TB-160B-75	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 75 mm \| Holding force: 15800 N
	JSC4-T-TB-160B-100	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 100 mm \| Holding force: 15800 N
	JSC4-T-TB-160B-150	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 150 mm \| Holding force: 15800 N
	JSC4-T-TB-160B-200	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 200 mm \| Holding force: 15800 N
	JSC4-T-TB-160B-250	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 250 mm \| Holding force: 15800 N
	JSC4-T-TB-160B-300	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 300 mm \| Holding force: 15800 N
	JSC4-T-TB-160B-350	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 350 mm \| Holding force: 15800 N
	JSC4-T-TB-160B-400	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 400 mm \| Holding force: 15800 N
	JSC4-T-TB-160B-450	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 450 mm \| Holding force: 15800 N
	JSC4-T-TB-160B-500	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 160 mm \| Stroke: 500 mm \| Holding force: 15800 N
	JSC4-T-TB-180B-50	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 50 mm \| Holding force: 20000 N
	JSC4-T-TB-180B-75	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 75 mm \| Holding force: 20000 N
	JSC4-T-TB-180B-100	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 100 mm \| Holding force: 20000 N
	JSC4-T-TB-180B-150	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 150 mm \| Holding force: 20000 N
	JSC4-T-TB-180B-200	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 200 mm \| Holding force: 20000 N
	JSC4-T-TB-180B-250	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 250 mm \| Holding force: 20000 N
	JSC4-T-TB-180B-300	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 300 mm \| Holding force: 20000 N
	JSC4-T-TB-180B-350	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 350 mm \| Holding force: 20000 N
	JSC4-T-TB-180B-400	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 400 mm \| Holding force: 20000 N
	JSC4-T-TB-180B-450	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 450 mm \| Holding force: 20000 N
	JSC4-T-TB-180B-500	Model: JSC4-T (MTO) \| Mounting: Head trunnion \| Bore: 180 mm \| Stroke: 500 mm \| Holding force: 20000 N

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD JSC3-T/JSC4-T Cell Top Brake Cylinder (Heat Resistant)
