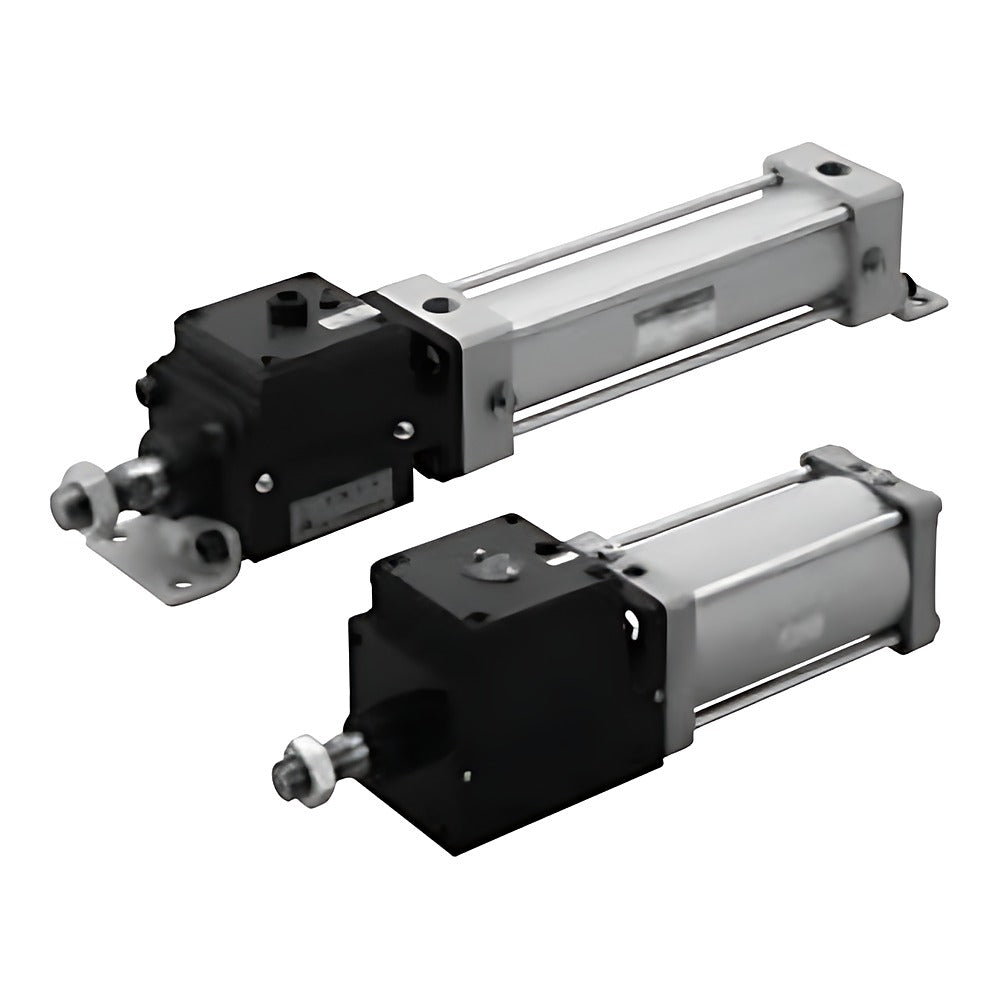

CKD JSC3-T/JSC4-T Cell Top Cylinder with Brake, Heat Resistant

CKD JSC3-T/JSC4-T Cell Top Cylinder with Brake, Heat Resistant

The CKD JSC3-T and JSC4-T are heat-resistant (5 to 120 C) double-acting Cell Top cylinders with integrated brake, bore 40 to 180 mm.

Key features

  • Ambient temperature range 5 to 120 C with heat-resistant seals; no switch
  • Integrated air-released brake; holding force 980 to 20000 N
  • JSC3-ST type with low-pressure brake release (0.25 MPa)
  • Air cushion standard (code B); R/H/N cushion, NPT/G ports, bellows L, stainless rod M on order
  • Repair seal kits JSC3-T-40K to JSC4-T-180K

Specifications

Operation Double acting, heat resistant
Working fluid Compressed air
Max. working pressure 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature 5 to 120 C
Piston speed 50 to 1000 mm/s
Cushion (listed codes) Air cushion both ends (B)
Port thread (listed codes) Rc
Lubrication Not allowed (periodic grease)
Source CKD Korea catalog CB-030SK-9, p. 918-923
JSC3-ST-00-40B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
JSC3-ST-00-40B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
JSC3-ST-00-40B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
JSC3-ST-00-40B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
JSC3-ST-00-40B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
JSC3-ST-00-40B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 250 mm
JSC3-ST-00-40B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 300 mm
JSC3-ST-00-40B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 350 mm
JSC3-ST-00-40B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 400 mm
JSC3-ST-00-40B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 450 mm
JSC3-ST-00-40B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 500 mm
JSC3-ST-00-50B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 50 mm
JSC3-ST-00-50B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 75 mm
JSC3-ST-00-50B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 100 mm
JSC3-ST-00-50B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 150 mm
JSC3-ST-00-50B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 200 mm
JSC3-ST-00-50B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 250 mm
JSC3-ST-00-50B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 300 mm
JSC3-ST-00-50B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 350 mm
JSC3-ST-00-50B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 400 mm
JSC3-ST-00-50B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 450 mm
JSC3-ST-00-50B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 500 mm
JSC3-ST-00-63B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 50 mm
JSC3-ST-00-63B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 75 mm
JSC3-ST-00-63B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 100 mm
JSC3-ST-00-63B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 150 mm
JSC3-ST-00-63B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 200 mm
JSC3-ST-00-63B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 250 mm
JSC3-ST-00-63B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 300 mm
JSC3-ST-00-63B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 350 mm
JSC3-ST-00-63B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 400 mm
JSC3-ST-00-63B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 450 mm
JSC3-ST-00-63B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 500 mm
JSC3-ST-00-80B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 50 mm
JSC3-ST-00-80B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 75 mm
JSC3-ST-00-80B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 100 mm
JSC3-ST-00-80B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 150 mm
JSC3-ST-00-80B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 200 mm
JSC3-ST-00-80B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 250 mm
JSC3-ST-00-80B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 300 mm
JSC3-ST-00-80B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 350 mm
JSC3-ST-00-80B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 400 mm
JSC3-ST-00-80B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 450 mm
JSC3-ST-00-80B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 500 mm
JSC3-ST-00-100B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 50 mm
JSC3-ST-00-100B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 75 mm
JSC3-ST-00-100B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 100 mm
JSC3-ST-00-100B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 150 mm
JSC3-ST-00-100B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 200 mm
JSC3-ST-00-100B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 250 mm
JSC3-ST-00-100B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 300 mm
JSC3-ST-00-100B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 350 mm
JSC3-ST-00-100B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 400 mm
JSC3-ST-00-100B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 450 mm
JSC3-ST-00-100B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 500 mm
JSC3-ST-LB-40B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 50 mm
JSC3-ST-LB-40B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 75 mm
JSC3-ST-LB-40B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 100 mm
JSC3-ST-LB-40B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 150 mm
JSC3-ST-LB-40B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 200 mm
JSC3-ST-LB-40B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 250 mm
JSC3-ST-LB-40B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 300 mm
JSC3-ST-LB-40B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 350 mm
JSC3-ST-LB-40B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 400 mm
JSC3-ST-LB-40B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 450 mm
JSC3-ST-LB-40B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 500 mm
JSC3-ST-LB-50B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 50 mm
JSC3-ST-LB-50B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 75 mm
JSC3-ST-LB-50B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 100 mm
JSC3-ST-LB-50B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 150 mm
JSC3-ST-LB-50B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 200 mm
JSC3-ST-LB-50B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 250 mm
JSC3-ST-LB-50B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 300 mm
JSC3-ST-LB-50B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 350 mm
JSC3-ST-LB-50B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 400 mm
JSC3-ST-LB-50B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 450 mm
JSC3-ST-LB-50B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 500 mm
JSC3-ST-LB-63B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 50 mm
JSC3-ST-LB-63B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 75 mm
JSC3-ST-LB-63B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 100 mm
JSC3-ST-LB-63B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 150 mm
JSC3-ST-LB-63B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 200 mm
JSC3-ST-LB-63B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 250 mm
JSC3-ST-LB-63B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 300 mm
JSC3-ST-LB-63B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 350 mm
JSC3-ST-LB-63B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 400 mm
JSC3-ST-LB-63B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 450 mm
JSC3-ST-LB-63B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 500 mm
JSC3-ST-LB-80B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 50 mm
JSC3-ST-LB-80B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 75 mm
JSC3-ST-LB-80B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 100 mm
JSC3-ST-LB-80B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 150 mm
JSC3-ST-LB-80B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 200 mm
JSC3-ST-LB-80B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 250 mm
JSC3-ST-LB-80B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 300 mm
JSC3-ST-LB-80B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 350 mm
JSC3-ST-LB-80B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 400 mm
JSC3-ST-LB-80B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 450 mm
JSC3-ST-LB-80B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 500 mm
JSC3-ST-LB-100B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 50 mm
JSC3-ST-LB-100B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 75 mm
JSC3-ST-LB-100B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 100 mm
JSC3-ST-LB-100B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 150 mm
JSC3-ST-LB-100B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 200 mm
JSC3-ST-LB-100B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 250 mm
JSC3-ST-LB-100B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 300 mm
JSC3-ST-LB-100B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 350 mm
JSC3-ST-LB-100B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 400 mm
JSC3-ST-LB-100B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 450 mm
JSC3-ST-LB-100B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 500 mm
JSC3-ST-FA-40B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm
JSC3-ST-FA-40B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm
JSC3-ST-FA-40B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm
JSC3-ST-FA-40B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm
JSC3-ST-FA-40B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm
JSC3-ST-FA-40B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 250 mm
JSC3-ST-FA-40B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm
JSC3-ST-FA-40B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 350 mm
JSC3-ST-FA-40B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 400 mm
JSC3-ST-FA-40B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 450 mm
JSC3-ST-FA-40B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 500 mm
JSC3-ST-FA-50B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 50 mm
JSC3-ST-FA-50B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 75 mm
JSC3-ST-FA-50B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 100 mm
JSC3-ST-FA-50B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 150 mm
JSC3-ST-FA-50B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 200 mm
JSC3-ST-FA-50B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 250 mm
JSC3-ST-FA-50B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 300 mm
JSC3-ST-FA-50B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 350 mm
JSC3-ST-FA-50B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 400 mm
JSC3-ST-FA-50B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 450 mm
JSC3-ST-FA-50B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 500 mm
JSC3-ST-FA-63B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 50 mm
JSC3-ST-FA-63B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 75 mm
JSC3-ST-FA-63B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 100 mm
JSC3-ST-FA-63B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 150 mm
JSC3-ST-FA-63B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 200 mm
JSC3-ST-FA-63B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 250 mm
JSC3-ST-FA-63B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 300 mm
JSC3-ST-FA-63B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 350 mm
JSC3-ST-FA-63B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 400 mm
JSC3-ST-FA-63B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 450 mm
JSC3-ST-FA-63B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 500 mm
JSC3-ST-FA-80B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 50 mm
JSC3-ST-FA-80B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 75 mm
JSC3-ST-FA-80B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 100 mm
JSC3-ST-FA-80B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 150 mm
JSC3-ST-FA-80B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 200 mm
JSC3-ST-FA-80B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 250 mm
JSC3-ST-FA-80B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 300 mm
JSC3-ST-FA-80B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 350 mm
JSC3-ST-FA-80B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 400 mm
JSC3-ST-FA-80B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 450 mm
JSC3-ST-FA-80B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 500 mm
JSC3-ST-FA-100B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 50 mm
JSC3-ST-FA-100B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 75 mm
JSC3-ST-FA-100B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 100 mm
JSC3-ST-FA-100B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 150 mm
JSC3-ST-FA-100B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 200 mm
JSC3-ST-FA-100B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 250 mm
JSC3-ST-FA-100B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 300 mm
JSC3-ST-FA-100B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 350 mm
JSC3-ST-FA-100B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 400 mm
JSC3-ST-FA-100B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 450 mm
JSC3-ST-FA-100B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 500 mm
JSC3-ST-FB-40B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 50 mm
JSC3-ST-FB-40B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 75 mm
JSC3-ST-FB-40B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 100 mm
JSC3-ST-FB-40B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 150 mm
JSC3-ST-FB-40B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 200 mm
JSC3-ST-FB-40B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 250 mm
JSC3-ST-FB-40B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 300 mm
JSC3-ST-FB-40B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 350 mm
JSC3-ST-FB-40B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 400 mm
JSC3-ST-FB-40B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 450 mm
JSC3-ST-FB-40B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 500 mm
JSC3-ST-FB-50B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 50 mm
JSC3-ST-FB-50B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 75 mm
JSC3-ST-FB-50B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 100 mm
JSC3-ST-FB-50B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 150 mm
JSC3-ST-FB-50B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 200 mm
JSC3-ST-FB-50B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 250 mm
JSC3-ST-FB-50B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 300 mm
JSC3-ST-FB-50B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 350 mm
JSC3-ST-FB-50B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 400 mm
JSC3-ST-FB-50B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 450 mm
JSC3-ST-FB-50B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 500 mm
JSC3-ST-FB-63B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 50 mm
JSC3-ST-FB-63B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 75 mm
JSC3-ST-FB-63B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 100 mm
JSC3-ST-FB-63B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 150 mm
JSC3-ST-FB-63B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 200 mm
JSC3-ST-FB-63B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 250 mm
JSC3-ST-FB-63B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 300 mm
JSC3-ST-FB-63B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 350 mm
JSC3-ST-FB-63B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 400 mm
JSC3-ST-FB-63B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 450 mm
JSC3-ST-FB-63B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 500 mm
JSC3-ST-FB-80B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 50 mm
JSC3-ST-FB-80B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 75 mm
JSC3-ST-FB-80B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 100 mm
JSC3-ST-FB-80B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 150 mm
JSC3-ST-FB-80B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 200 mm
JSC3-ST-FB-80B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 250 mm
JSC3-ST-FB-80B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 300 mm
JSC3-ST-FB-80B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 350 mm
JSC3-ST-FB-80B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 400 mm
JSC3-ST-FB-80B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 450 mm
JSC3-ST-FB-80B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 500 mm
JSC3-ST-FB-100B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 50 mm
JSC3-ST-FB-100B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 75 mm
JSC3-ST-FB-100B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 100 mm
JSC3-ST-FB-100B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 150 mm
JSC3-ST-FB-100B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 200 mm
JSC3-ST-FB-100B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 250 mm
JSC3-ST-FB-100B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 300 mm
JSC3-ST-FB-100B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 350 mm
JSC3-ST-FB-100B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 400 mm
JSC3-ST-FB-100B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 450 mm
JSC3-ST-FB-100B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 500 mm
JSC3-ST-FC-40B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 50 mm
JSC3-ST-FC-40B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 75 mm
JSC3-ST-FC-40B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 100 mm
JSC3-ST-FC-40B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 150 mm
JSC3-ST-FC-40B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 200 mm
JSC3-ST-FC-40B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 250 mm
JSC3-ST-FC-40B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 300 mm
JSC3-ST-FC-40B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 350 mm
JSC3-ST-FC-40B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 400 mm
JSC3-ST-FC-40B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 450 mm
JSC3-ST-FC-40B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 500 mm
JSC3-ST-FC-50B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 50 mm
JSC3-ST-FC-50B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 75 mm
JSC3-ST-FC-50B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 100 mm
JSC3-ST-FC-50B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 150 mm
JSC3-ST-FC-50B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 200 mm
JSC3-ST-FC-50B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 250 mm
JSC3-ST-FC-50B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 300 mm
JSC3-ST-FC-50B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 350 mm
JSC3-ST-FC-50B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 400 mm
JSC3-ST-FC-50B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 450 mm
JSC3-ST-FC-50B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 500 mm
JSC3-ST-FC-63B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 50 mm
JSC3-ST-FC-63B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 75 mm
JSC3-ST-FC-63B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 100 mm
JSC3-ST-FC-63B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 150 mm
JSC3-ST-FC-63B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 200 mm
JSC3-ST-FC-63B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 250 mm
JSC3-ST-FC-63B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 300 mm
JSC3-ST-FC-63B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 350 mm
JSC3-ST-FC-63B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 400 mm
JSC3-ST-FC-63B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 450 mm
JSC3-ST-FC-63B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 500 mm
JSC3-ST-FC-80B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 50 mm
JSC3-ST-FC-80B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 75 mm
JSC3-ST-FC-80B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 100 mm
JSC3-ST-FC-80B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 150 mm
JSC3-ST-FC-80B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 200 mm
JSC3-ST-FC-80B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 250 mm
JSC3-ST-FC-80B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 300 mm
JSC3-ST-FC-80B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 350 mm
JSC3-ST-FC-80B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 400 mm
JSC3-ST-FC-80B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 450 mm
JSC3-ST-FC-80B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 500 mm
JSC3-ST-FC-100B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 50 mm
JSC3-ST-FC-100B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 75 mm
JSC3-ST-FC-100B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 100 mm
JSC3-ST-FC-100B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 150 mm
JSC3-ST-FC-100B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 200 mm
JSC3-ST-FC-100B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 250 mm
JSC3-ST-FC-100B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 300 mm
JSC3-ST-FC-100B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 350 mm
JSC3-ST-FC-100B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 400 mm
JSC3-ST-FC-100B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 450 mm
JSC3-ST-FC-100B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 500 mm
JSC3-ST-CA-40B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm
JSC3-ST-CA-40B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm
JSC3-ST-CA-40B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm
JSC3-ST-CA-40B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm
JSC3-ST-CA-40B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm
JSC3-ST-CA-40B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 250 mm
JSC3-ST-CA-40B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 300 mm
JSC3-ST-CA-40B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 350 mm
JSC3-ST-CA-40B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 400 mm
JSC3-ST-CA-40B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 450 mm
JSC3-ST-CA-40B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 500 mm
JSC3-ST-CA-50B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 50 mm
JSC3-ST-CA-50B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 75 mm
JSC3-ST-CA-50B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 100 mm
JSC3-ST-CA-50B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 150 mm
JSC3-ST-CA-50B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 200 mm
JSC3-ST-CA-50B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 250 mm
JSC3-ST-CA-50B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 300 mm
JSC3-ST-CA-50B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 350 mm
JSC3-ST-CA-50B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 400 mm
JSC3-ST-CA-50B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 450 mm
JSC3-ST-CA-50B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 500 mm
JSC3-ST-CA-63B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 50 mm
JSC3-ST-CA-63B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 75 mm
JSC3-ST-CA-63B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 100 mm
JSC3-ST-CA-63B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 150 mm
JSC3-ST-CA-63B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 200 mm
JSC3-ST-CA-63B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 250 mm
JSC3-ST-CA-63B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 300 mm
JSC3-ST-CA-63B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 350 mm
JSC3-ST-CA-63B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 400 mm
JSC3-ST-CA-63B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 450 mm
JSC3-ST-CA-63B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 500 mm
JSC3-ST-CA-80B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 50 mm
JSC3-ST-CA-80B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 75 mm
JSC3-ST-CA-80B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 100 mm
JSC3-ST-CA-80B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 150 mm
JSC3-ST-CA-80B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 200 mm
JSC3-ST-CA-80B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 250 mm
JSC3-ST-CA-80B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 300 mm
JSC3-ST-CA-80B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 350 mm
JSC3-ST-CA-80B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 400 mm
JSC3-ST-CA-80B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 450 mm
JSC3-ST-CA-80B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 500 mm
JSC3-ST-CA-100B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 50 mm
JSC3-ST-CA-100B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 75 mm
JSC3-ST-CA-100B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 100 mm
JSC3-ST-CA-100B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 150 mm
JSC3-ST-CA-100B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 200 mm
JSC3-ST-CA-100B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 250 mm
JSC3-ST-CA-100B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 300 mm
JSC3-ST-CA-100B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 350 mm
JSC3-ST-CA-100B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 400 mm
JSC3-ST-CA-100B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 450 mm
JSC3-ST-CA-100B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 500 mm
JSC3-ST-CB-40B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 50 mm
JSC3-ST-CB-40B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 75 mm
JSC3-ST-CB-40B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 100 mm
JSC3-ST-CB-40B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 150 mm
JSC3-ST-CB-40B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 200 mm
JSC3-ST-CB-40B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 250 mm
JSC3-ST-CB-40B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 300 mm
JSC3-ST-CB-40B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 350 mm
JSC3-ST-CB-40B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 400 mm
JSC3-ST-CB-40B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 450 mm
JSC3-ST-CB-40B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 500 mm
JSC3-ST-CB-50B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 50 mm
JSC3-ST-CB-50B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 75 mm
JSC3-ST-CB-50B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 100 mm
JSC3-ST-CB-50B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 150 mm
JSC3-ST-CB-50B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 200 mm
JSC3-ST-CB-50B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 250 mm
JSC3-ST-CB-50B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 300 mm
JSC3-ST-CB-50B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 350 mm
JSC3-ST-CB-50B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 400 mm
JSC3-ST-CB-50B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 450 mm
JSC3-ST-CB-50B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 500 mm
JSC3-ST-CB-63B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 50 mm
JSC3-ST-CB-63B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 75 mm
JSC3-ST-CB-63B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 100 mm
JSC3-ST-CB-63B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 150 mm
JSC3-ST-CB-63B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 200 mm
JSC3-ST-CB-63B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 250 mm
JSC3-ST-CB-63B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 300 mm
JSC3-ST-CB-63B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 350 mm
JSC3-ST-CB-63B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 400 mm
JSC3-ST-CB-63B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 450 mm
JSC3-ST-CB-63B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 500 mm
JSC3-ST-CB-80B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 50 mm
JSC3-ST-CB-80B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 75 mm
JSC3-ST-CB-80B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 100 mm
JSC3-ST-CB-80B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 150 mm
JSC3-ST-CB-80B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 200 mm
JSC3-ST-CB-80B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 250 mm
JSC3-ST-CB-80B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 300 mm
JSC3-ST-CB-80B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 350 mm
JSC3-ST-CB-80B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 400 mm
JSC3-ST-CB-80B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 450 mm
JSC3-ST-CB-80B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 500 mm
JSC3-ST-CB-100B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 50 mm
JSC3-ST-CB-100B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 75 mm
JSC3-ST-CB-100B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 100 mm
JSC3-ST-CB-100B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 150 mm
JSC3-ST-CB-100B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 200 mm
JSC3-ST-CB-100B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 250 mm
JSC3-ST-CB-100B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 300 mm
JSC3-ST-CB-100B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 350 mm
JSC3-ST-CB-100B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 400 mm
JSC3-ST-CB-100B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 450 mm
JSC3-ST-CB-100B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 500 mm
JSC3-ST-TC-40B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 50 mm
JSC3-ST-TC-40B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 75 mm
JSC3-ST-TC-40B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 100 mm
JSC3-ST-TC-40B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 150 mm
JSC3-ST-TC-40B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 200 mm
JSC3-ST-TC-40B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 250 mm
JSC3-ST-TC-40B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 300 mm
JSC3-ST-TC-40B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 350 mm
JSC3-ST-TC-40B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 400 mm
JSC3-ST-TC-40B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 450 mm
JSC3-ST-TC-40B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 500 mm
JSC3-ST-TC-50B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 50 mm
JSC3-ST-TC-50B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 75 mm
JSC3-ST-TC-50B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 100 mm
JSC3-ST-TC-50B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 150 mm
JSC3-ST-TC-50B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 200 mm
JSC3-ST-TC-50B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 250 mm
JSC3-ST-TC-50B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 300 mm
JSC3-ST-TC-50B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 350 mm
JSC3-ST-TC-50B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 400 mm
JSC3-ST-TC-50B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 450 mm
JSC3-ST-TC-50B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 500 mm
JSC3-ST-TC-63B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 50 mm
JSC3-ST-TC-63B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 75 mm
JSC3-ST-TC-63B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 100 mm
JSC3-ST-TC-63B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 150 mm
JSC3-ST-TC-63B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 200 mm
JSC3-ST-TC-63B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 250 mm
JSC3-ST-TC-63B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 300 mm
JSC3-ST-TC-63B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 350 mm
JSC3-ST-TC-63B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 400 mm
JSC3-ST-TC-63B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 450 mm
JSC3-ST-TC-63B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 500 mm
JSC3-ST-TC-80B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 50 mm
JSC3-ST-TC-80B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 75 mm
JSC3-ST-TC-80B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 100 mm
JSC3-ST-TC-80B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 150 mm
JSC3-ST-TC-80B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 200 mm
JSC3-ST-TC-80B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 250 mm
JSC3-ST-TC-80B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 300 mm
JSC3-ST-TC-80B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 350 mm
JSC3-ST-TC-80B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 400 mm
JSC3-ST-TC-80B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 450 mm
JSC3-ST-TC-80B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 500 mm
JSC3-ST-TC-100B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 50 mm
JSC3-ST-TC-100B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 75 mm
JSC3-ST-TC-100B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 100 mm
JSC3-ST-TC-100B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 150 mm
JSC3-ST-TC-100B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 200 mm
JSC3-ST-TC-100B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 250 mm
JSC3-ST-TC-100B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 300 mm
JSC3-ST-TC-100B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 350 mm
JSC3-ST-TC-100B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 400 mm
JSC3-ST-TC-100B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 450 mm
JSC3-ST-TC-100B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 500 mm
JSC3-ST-TA-40B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 50 mm
JSC3-ST-TA-40B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 75 mm
JSC3-ST-TA-40B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 100 mm
JSC3-ST-TA-40B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 150 mm
JSC3-ST-TA-40B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 200 mm
JSC3-ST-TA-40B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 250 mm
JSC3-ST-TA-40B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 300 mm
JSC3-ST-TA-40B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 350 mm
JSC3-ST-TA-40B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 400 mm
JSC3-ST-TA-40B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 450 mm
JSC3-ST-TA-40B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 500 mm
JSC3-ST-TA-50B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 50 mm
JSC3-ST-TA-50B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 75 mm
JSC3-ST-TA-50B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 100 mm
JSC3-ST-TA-50B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 150 mm
JSC3-ST-TA-50B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 200 mm
JSC3-ST-TA-50B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 250 mm
JSC3-ST-TA-50B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 300 mm
JSC3-ST-TA-50B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 350 mm
JSC3-ST-TA-50B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 400 mm
JSC3-ST-TA-50B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 450 mm
JSC3-ST-TA-50B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 500 mm
JSC3-ST-TA-63B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 50 mm
JSC3-ST-TA-63B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 75 mm
JSC3-ST-TA-63B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 100 mm
JSC3-ST-TA-63B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 150 mm
JSC3-ST-TA-63B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 200 mm
JSC3-ST-TA-63B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 250 mm
JSC3-ST-TA-63B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 300 mm
JSC3-ST-TA-63B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 350 mm
JSC3-ST-TA-63B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 400 mm
JSC3-ST-TA-63B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 450 mm
JSC3-ST-TA-63B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 500 mm
JSC3-ST-TA-80B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 50 mm
JSC3-ST-TA-80B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 75 mm
JSC3-ST-TA-80B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 100 mm
JSC3-ST-TA-80B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 150 mm
JSC3-ST-TA-80B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 200 mm
JSC3-ST-TA-80B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 250 mm
JSC3-ST-TA-80B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 300 mm
JSC3-ST-TA-80B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 350 mm
JSC3-ST-TA-80B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 400 mm
JSC3-ST-TA-80B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 450 mm
JSC3-ST-TA-80B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 500 mm
JSC3-ST-TA-100B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 50 mm
JSC3-ST-TA-100B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 75 mm
JSC3-ST-TA-100B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 100 mm
JSC3-ST-TA-100B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 150 mm
JSC3-ST-TA-100B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 200 mm
JSC3-ST-TA-100B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 250 mm
JSC3-ST-TA-100B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 300 mm
JSC3-ST-TA-100B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 350 mm
JSC3-ST-TA-100B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 400 mm
JSC3-ST-TA-100B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 450 mm
JSC3-ST-TA-100B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 500 mm
JSC3-ST-TB-40B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 50 mm
JSC3-ST-TB-40B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 75 mm
JSC3-ST-TB-40B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 100 mm
JSC3-ST-TB-40B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 150 mm
JSC3-ST-TB-40B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 200 mm
JSC3-ST-TB-40B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 250 mm
JSC3-ST-TB-40B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 300 mm
JSC3-ST-TB-40B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 350 mm
JSC3-ST-TB-40B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 400 mm
JSC3-ST-TB-40B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 450 mm
JSC3-ST-TB-40B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 500 mm
JSC3-ST-TB-50B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 50 mm
JSC3-ST-TB-50B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 75 mm
JSC3-ST-TB-50B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 100 mm
JSC3-ST-TB-50B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 150 mm
JSC3-ST-TB-50B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 200 mm
JSC3-ST-TB-50B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 250 mm
JSC3-ST-TB-50B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 300 mm
JSC3-ST-TB-50B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 350 mm
JSC3-ST-TB-50B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 400 mm
JSC3-ST-TB-50B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 450 mm
JSC3-ST-TB-50B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 500 mm
JSC3-ST-TB-63B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 50 mm
JSC3-ST-TB-63B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 75 mm
JSC3-ST-TB-63B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 100 mm
JSC3-ST-TB-63B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 150 mm
JSC3-ST-TB-63B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 200 mm
JSC3-ST-TB-63B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 250 mm
JSC3-ST-TB-63B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 300 mm
JSC3-ST-TB-63B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 350 mm
JSC3-ST-TB-63B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 400 mm
JSC3-ST-TB-63B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 450 mm
JSC3-ST-TB-63B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 500 mm
JSC3-ST-TB-80B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 50 mm
JSC3-ST-TB-80B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 75 mm
JSC3-ST-TB-80B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 100 mm
JSC3-ST-TB-80B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 150 mm
JSC3-ST-TB-80B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 200 mm
JSC3-ST-TB-80B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 250 mm
JSC3-ST-TB-80B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 300 mm
JSC3-ST-TB-80B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 350 mm
JSC3-ST-TB-80B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 400 mm
JSC3-ST-TB-80B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 450 mm
JSC3-ST-TB-80B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 500 mm
JSC3-ST-TB-100B-50 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 50 mm
JSC3-ST-TB-100B-75 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 75 mm
JSC3-ST-TB-100B-100 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 100 mm
JSC3-ST-TB-100B-150 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 150 mm
JSC3-ST-TB-100B-200 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 200 mm
JSC3-ST-TB-100B-250 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 250 mm
JSC3-ST-TB-100B-300 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 300 mm
JSC3-ST-TB-100B-350 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 350 mm
JSC3-ST-TB-100B-400 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 400 mm
JSC3-ST-TB-100B-450 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 450 mm
JSC3-ST-TB-100B-500 Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 500 mm
JSC4-T-FC-125B-50 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 125 mm | Stroke: 50 mm
JSC4-T-FC-125B-75 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 125 mm | Stroke: 75 mm
JSC4-T-FC-125B-100 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 125 mm | Stroke: 100 mm
JSC4-T-FC-125B-150 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 125 mm | Stroke: 150 mm
JSC4-T-FC-125B-200 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 125 mm | Stroke: 200 mm
JSC4-T-FC-125B-250 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 125 mm | Stroke: 250 mm
JSC4-T-FC-125B-300 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 125 mm | Stroke: 300 mm
JSC4-T-FC-140B-50 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 140 mm | Stroke: 50 mm
JSC4-T-FC-140B-75 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 140 mm | Stroke: 75 mm
JSC4-T-FC-140B-100 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 140 mm | Stroke: 100 mm
JSC4-T-FC-140B-150 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 140 mm | Stroke: 150 mm
JSC4-T-FC-140B-200 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 140 mm | Stroke: 200 mm
JSC4-T-FC-140B-250 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 140 mm | Stroke: 250 mm
JSC4-T-FC-140B-300 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 140 mm | Stroke: 300 mm
JSC4-T-FC-160B-50 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 160 mm | Stroke: 50 mm
JSC4-T-FC-160B-75 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 160 mm | Stroke: 75 mm
JSC4-T-FC-160B-100 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 160 mm | Stroke: 100 mm
JSC4-T-FC-160B-150 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 160 mm | Stroke: 150 mm
JSC4-T-FC-160B-200 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 160 mm | Stroke: 200 mm
JSC4-T-FC-160B-250 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 160 mm | Stroke: 250 mm
JSC4-T-FC-160B-300 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 160 mm | Stroke: 300 mm
JSC4-T-FC-180B-50 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 180 mm | Stroke: 50 mm
JSC4-T-FC-180B-75 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 180 mm | Stroke: 75 mm
JSC4-T-FC-180B-100 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 180 mm | Stroke: 100 mm
JSC4-T-FC-180B-150 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 180 mm | Stroke: 150 mm
JSC4-T-FC-180B-200 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 180 mm | Stroke: 200 mm
JSC4-T-FC-180B-250 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 180 mm | Stroke: 250 mm
JSC4-T-FC-180B-300 Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 180 mm | Stroke: 300 mm
Pneumatic CylindersCKD
578 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD JSC3-T/JSC4-T Cell Top Cylinder with Brake, Heat Resistant

Brand CKD·Pneumatic Cylinders

Available part numbers (578)

JSC3-ST-00-40B-50, JSC3-ST-00-40B-75, JSC3-ST-00-40B-100, JSC3-ST-00-40B-150, JSC3-ST-00-40B-200, JSC3-ST-00-40B-250, JSC3-ST-00-40B-300, JSC3-ST-00-40B-350, JSC3-ST-00-40B-400, JSC3-ST-00-40B-450 + 568 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JSC3-ST-00-40B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm
JSC3-ST-00-40B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm
JSC3-ST-00-40B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm
JSC3-ST-00-40B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm
JSC3-ST-00-40B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm
JSC3-ST-00-40B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 250 mm
JSC3-ST-00-40B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 300 mm
JSC3-ST-00-40B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 350 mm
JSC3-ST-00-40B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 400 mm
JSC3-ST-00-40B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 450 mm
JSC3-ST-00-40B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 40 mm | Stroke: 500 mm
JSC3-ST-00-50B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 50 mm
JSC3-ST-00-50B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 75 mm
JSC3-ST-00-50B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 100 mm
JSC3-ST-00-50B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 150 mm
JSC3-ST-00-50B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 200 mm
JSC3-ST-00-50B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 250 mm
JSC3-ST-00-50B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 300 mm
JSC3-ST-00-50B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 350 mm
JSC3-ST-00-50B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 400 mm
JSC3-ST-00-50B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 450 mm
JSC3-ST-00-50B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 50 mm | Stroke: 500 mm
JSC3-ST-00-63B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 50 mm
JSC3-ST-00-63B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 75 mm
JSC3-ST-00-63B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 100 mm
JSC3-ST-00-63B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 150 mm
JSC3-ST-00-63B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 200 mm
JSC3-ST-00-63B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 250 mm
JSC3-ST-00-63B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 300 mm
JSC3-ST-00-63B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 350 mm
JSC3-ST-00-63B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 400 mm
JSC3-ST-00-63B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 450 mm
JSC3-ST-00-63B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 63 mm | Stroke: 500 mm
JSC3-ST-00-80B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 50 mm
JSC3-ST-00-80B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 75 mm
JSC3-ST-00-80B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 100 mm
JSC3-ST-00-80B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 150 mm
JSC3-ST-00-80B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 200 mm
JSC3-ST-00-80B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 250 mm
JSC3-ST-00-80B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 300 mm
JSC3-ST-00-80B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 350 mm
JSC3-ST-00-80B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 400 mm
JSC3-ST-00-80B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 450 mm
JSC3-ST-00-80B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 80 mm | Stroke: 500 mm
JSC3-ST-00-100B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 50 mm
JSC3-ST-00-100B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 75 mm
JSC3-ST-00-100B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 100 mm
JSC3-ST-00-100B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 150 mm
JSC3-ST-00-100B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 200 mm
JSC3-ST-00-100B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 250 mm
JSC3-ST-00-100B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 300 mm
JSC3-ST-00-100B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 350 mm
JSC3-ST-00-100B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 400 mm
JSC3-ST-00-100B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 450 mm
JSC3-ST-00-100B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Basic | Bore: 100 mm | Stroke: 500 mm
JSC3-ST-LB-40B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 50 mm
JSC3-ST-LB-40B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 75 mm
JSC3-ST-LB-40B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 100 mm
JSC3-ST-LB-40B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 150 mm
JSC3-ST-LB-40B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 200 mm
JSC3-ST-LB-40B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 250 mm
JSC3-ST-LB-40B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 300 mm
JSC3-ST-LB-40B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 350 mm
JSC3-ST-LB-40B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 400 mm
JSC3-ST-LB-40B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 450 mm
JSC3-ST-LB-40B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 40 mm | Stroke: 500 mm
JSC3-ST-LB-50B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 50 mm
JSC3-ST-LB-50B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 75 mm
JSC3-ST-LB-50B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 100 mm
JSC3-ST-LB-50B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 150 mm
JSC3-ST-LB-50B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 200 mm
JSC3-ST-LB-50B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 250 mm
JSC3-ST-LB-50B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 300 mm
JSC3-ST-LB-50B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 350 mm
JSC3-ST-LB-50B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 400 mm
JSC3-ST-LB-50B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 450 mm
JSC3-ST-LB-50B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 50 mm | Stroke: 500 mm
JSC3-ST-LB-63B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 50 mm
JSC3-ST-LB-63B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 75 mm
JSC3-ST-LB-63B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 100 mm
JSC3-ST-LB-63B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 150 mm
JSC3-ST-LB-63B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 200 mm
JSC3-ST-LB-63B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 250 mm
JSC3-ST-LB-63B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 300 mm
JSC3-ST-LB-63B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 350 mm
JSC3-ST-LB-63B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 400 mm
JSC3-ST-LB-63B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 450 mm
JSC3-ST-LB-63B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 63 mm | Stroke: 500 mm
JSC3-ST-LB-80B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 50 mm
JSC3-ST-LB-80B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 75 mm
JSC3-ST-LB-80B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 100 mm
JSC3-ST-LB-80B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 150 mm
JSC3-ST-LB-80B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 200 mm
JSC3-ST-LB-80B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 250 mm
JSC3-ST-LB-80B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 300 mm
JSC3-ST-LB-80B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 350 mm
JSC3-ST-LB-80B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 400 mm
JSC3-ST-LB-80B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 450 mm
JSC3-ST-LB-80B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 80 mm | Stroke: 500 mm
JSC3-ST-LB-100B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 50 mm
JSC3-ST-LB-100B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 75 mm
JSC3-ST-LB-100B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 100 mm
JSC3-ST-LB-100B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 150 mm
JSC3-ST-LB-100B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 200 mm
JSC3-ST-LB-100B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 250 mm
JSC3-ST-LB-100B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 300 mm
JSC3-ST-LB-100B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 350 mm
JSC3-ST-LB-100B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 400 mm
JSC3-ST-LB-100B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 450 mm
JSC3-ST-LB-100B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Axial foot | Bore: 100 mm | Stroke: 500 mm
JSC3-ST-FA-40B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm
JSC3-ST-FA-40B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm
JSC3-ST-FA-40B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm
JSC3-ST-FA-40B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm
JSC3-ST-FA-40B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm
JSC3-ST-FA-40B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 250 mm
JSC3-ST-FA-40B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm
JSC3-ST-FA-40B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 350 mm
JSC3-ST-FA-40B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 400 mm
JSC3-ST-FA-40B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 450 mm
JSC3-ST-FA-40B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 500 mm
JSC3-ST-FA-50B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 50 mm
JSC3-ST-FA-50B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 75 mm
JSC3-ST-FA-50B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 100 mm
JSC3-ST-FA-50B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 150 mm
JSC3-ST-FA-50B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 200 mm
JSC3-ST-FA-50B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 250 mm
JSC3-ST-FA-50B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 300 mm
JSC3-ST-FA-50B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 350 mm
JSC3-ST-FA-50B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 400 mm
JSC3-ST-FA-50B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 450 mm
JSC3-ST-FA-50B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 500 mm
JSC3-ST-FA-63B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 50 mm
JSC3-ST-FA-63B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 75 mm
JSC3-ST-FA-63B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 100 mm
JSC3-ST-FA-63B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 150 mm
JSC3-ST-FA-63B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 200 mm
JSC3-ST-FA-63B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 250 mm
JSC3-ST-FA-63B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 300 mm
JSC3-ST-FA-63B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 350 mm
JSC3-ST-FA-63B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 400 mm
JSC3-ST-FA-63B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 450 mm
JSC3-ST-FA-63B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 500 mm
JSC3-ST-FA-80B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 50 mm
JSC3-ST-FA-80B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 75 mm
JSC3-ST-FA-80B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 100 mm
JSC3-ST-FA-80B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 150 mm
JSC3-ST-FA-80B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 200 mm
JSC3-ST-FA-80B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 250 mm
JSC3-ST-FA-80B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 300 mm
JSC3-ST-FA-80B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 350 mm
JSC3-ST-FA-80B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 400 mm
JSC3-ST-FA-80B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 450 mm
JSC3-ST-FA-80B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 500 mm
JSC3-ST-FA-100B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 50 mm
JSC3-ST-FA-100B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 75 mm
JSC3-ST-FA-100B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 100 mm
JSC3-ST-FA-100B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 150 mm
JSC3-ST-FA-100B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 200 mm
JSC3-ST-FA-100B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 250 mm
JSC3-ST-FA-100B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 300 mm
JSC3-ST-FA-100B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 350 mm
JSC3-ST-FA-100B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 400 mm
JSC3-ST-FA-100B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 450 mm
JSC3-ST-FA-100B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 500 mm
JSC3-ST-FB-40B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 50 mm
JSC3-ST-FB-40B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 75 mm
JSC3-ST-FB-40B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 100 mm
JSC3-ST-FB-40B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 150 mm
JSC3-ST-FB-40B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 200 mm
JSC3-ST-FB-40B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 250 mm
JSC3-ST-FB-40B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 300 mm
JSC3-ST-FB-40B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 350 mm
JSC3-ST-FB-40B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 400 mm
JSC3-ST-FB-40B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 450 mm
JSC3-ST-FB-40B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 500 mm
JSC3-ST-FB-50B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 50 mm
JSC3-ST-FB-50B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 75 mm
JSC3-ST-FB-50B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 100 mm
JSC3-ST-FB-50B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 150 mm
JSC3-ST-FB-50B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 200 mm
JSC3-ST-FB-50B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 250 mm
JSC3-ST-FB-50B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 300 mm
JSC3-ST-FB-50B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 350 mm
JSC3-ST-FB-50B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 400 mm
JSC3-ST-FB-50B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 450 mm
JSC3-ST-FB-50B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 50 mm | Stroke: 500 mm
JSC3-ST-FB-63B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 50 mm
JSC3-ST-FB-63B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 75 mm
JSC3-ST-FB-63B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 100 mm
JSC3-ST-FB-63B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 150 mm
JSC3-ST-FB-63B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 200 mm
JSC3-ST-FB-63B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 250 mm
JSC3-ST-FB-63B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 300 mm
JSC3-ST-FB-63B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 350 mm
JSC3-ST-FB-63B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 400 mm
JSC3-ST-FB-63B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 450 mm
JSC3-ST-FB-63B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 63 mm | Stroke: 500 mm
JSC3-ST-FB-80B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 50 mm
JSC3-ST-FB-80B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 75 mm
JSC3-ST-FB-80B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 100 mm
JSC3-ST-FB-80B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 150 mm
JSC3-ST-FB-80B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 200 mm
JSC3-ST-FB-80B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 250 mm
JSC3-ST-FB-80B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 300 mm
JSC3-ST-FB-80B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 350 mm
JSC3-ST-FB-80B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 400 mm
JSC3-ST-FB-80B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 450 mm
JSC3-ST-FB-80B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 80 mm | Stroke: 500 mm
JSC3-ST-FB-100B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 50 mm
JSC3-ST-FB-100B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 75 mm
JSC3-ST-FB-100B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 100 mm
JSC3-ST-FB-100B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 150 mm
JSC3-ST-FB-100B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 200 mm
JSC3-ST-FB-100B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 250 mm
JSC3-ST-FB-100B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 300 mm
JSC3-ST-FB-100B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 350 mm
JSC3-ST-FB-100B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 400 mm
JSC3-ST-FB-100B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 450 mm
JSC3-ST-FB-100B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end flange | Bore: 100 mm | Stroke: 500 mm
JSC3-ST-FC-40B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 50 mm
JSC3-ST-FC-40B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 75 mm
JSC3-ST-FC-40B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 100 mm
JSC3-ST-FC-40B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 150 mm
JSC3-ST-FC-40B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 200 mm
JSC3-ST-FC-40B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 250 mm
JSC3-ST-FC-40B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 300 mm
JSC3-ST-FC-40B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 350 mm
JSC3-ST-FC-40B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 400 mm
JSC3-ST-FC-40B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 450 mm
JSC3-ST-FC-40B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 40 mm | Stroke: 500 mm
JSC3-ST-FC-50B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 50 mm
JSC3-ST-FC-50B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 75 mm
JSC3-ST-FC-50B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 100 mm
JSC3-ST-FC-50B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 150 mm
JSC3-ST-FC-50B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 200 mm
JSC3-ST-FC-50B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 250 mm
JSC3-ST-FC-50B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 300 mm
JSC3-ST-FC-50B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 350 mm
JSC3-ST-FC-50B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 400 mm
JSC3-ST-FC-50B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 450 mm
JSC3-ST-FC-50B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 50 mm | Stroke: 500 mm
JSC3-ST-FC-63B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 50 mm
JSC3-ST-FC-63B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 75 mm
JSC3-ST-FC-63B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 100 mm
JSC3-ST-FC-63B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 150 mm
JSC3-ST-FC-63B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 200 mm
JSC3-ST-FC-63B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 250 mm
JSC3-ST-FC-63B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 300 mm
JSC3-ST-FC-63B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 350 mm
JSC3-ST-FC-63B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 400 mm
JSC3-ST-FC-63B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 450 mm
JSC3-ST-FC-63B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 63 mm | Stroke: 500 mm
JSC3-ST-FC-80B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 50 mm
JSC3-ST-FC-80B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 75 mm
JSC3-ST-FC-80B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 100 mm
JSC3-ST-FC-80B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 150 mm
JSC3-ST-FC-80B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 200 mm
JSC3-ST-FC-80B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 250 mm
JSC3-ST-FC-80B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 300 mm
JSC3-ST-FC-80B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 350 mm
JSC3-ST-FC-80B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 400 mm
JSC3-ST-FC-80B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 450 mm
JSC3-ST-FC-80B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 80 mm | Stroke: 500 mm
JSC3-ST-FC-100B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 50 mm
JSC3-ST-FC-100B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 75 mm
JSC3-ST-FC-100B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 100 mm
JSC3-ST-FC-100B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 150 mm
JSC3-ST-FC-100B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 200 mm
JSC3-ST-FC-100B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 250 mm
JSC3-ST-FC-100B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 300 mm
JSC3-ST-FC-100B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 350 mm
JSC3-ST-FC-100B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 400 mm
JSC3-ST-FC-100B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 450 mm
JSC3-ST-FC-100B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end special flange | Bore: 100 mm | Stroke: 500 mm
JSC3-ST-CA-40B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm
JSC3-ST-CA-40B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm
JSC3-ST-CA-40B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm
JSC3-ST-CA-40B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm
JSC3-ST-CA-40B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm
JSC3-ST-CA-40B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 250 mm
JSC3-ST-CA-40B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 300 mm
JSC3-ST-CA-40B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 350 mm
JSC3-ST-CA-40B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 400 mm
JSC3-ST-CA-40B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 450 mm
JSC3-ST-CA-40B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 40 mm | Stroke: 500 mm
JSC3-ST-CA-50B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 50 mm
JSC3-ST-CA-50B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 75 mm
JSC3-ST-CA-50B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 100 mm
JSC3-ST-CA-50B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 150 mm
JSC3-ST-CA-50B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 200 mm
JSC3-ST-CA-50B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 250 mm
JSC3-ST-CA-50B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 300 mm
JSC3-ST-CA-50B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 350 mm
JSC3-ST-CA-50B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 400 mm
JSC3-ST-CA-50B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 450 mm
JSC3-ST-CA-50B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 50 mm | Stroke: 500 mm
JSC3-ST-CA-63B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 50 mm
JSC3-ST-CA-63B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 75 mm
JSC3-ST-CA-63B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 100 mm
JSC3-ST-CA-63B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 150 mm
JSC3-ST-CA-63B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 200 mm
JSC3-ST-CA-63B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 250 mm
JSC3-ST-CA-63B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 300 mm
JSC3-ST-CA-63B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 350 mm
JSC3-ST-CA-63B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 400 mm
JSC3-ST-CA-63B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 450 mm
JSC3-ST-CA-63B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 63 mm | Stroke: 500 mm
JSC3-ST-CA-80B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 50 mm
JSC3-ST-CA-80B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 75 mm
JSC3-ST-CA-80B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 100 mm
JSC3-ST-CA-80B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 150 mm
JSC3-ST-CA-80B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 200 mm
JSC3-ST-CA-80B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 250 mm
JSC3-ST-CA-80B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 300 mm
JSC3-ST-CA-80B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 350 mm
JSC3-ST-CA-80B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 400 mm
JSC3-ST-CA-80B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 450 mm
JSC3-ST-CA-80B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 80 mm | Stroke: 500 mm
JSC3-ST-CA-100B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 50 mm
JSC3-ST-CA-100B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 75 mm
JSC3-ST-CA-100B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 100 mm
JSC3-ST-CA-100B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 150 mm
JSC3-ST-CA-100B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 200 mm
JSC3-ST-CA-100B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 250 mm
JSC3-ST-CA-100B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 300 mm
JSC3-ST-CA-100B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 350 mm
JSC3-ST-CA-100B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 400 mm
JSC3-ST-CA-100B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 450 mm
JSC3-ST-CA-100B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Single clevis | Bore: 100 mm | Stroke: 500 mm
JSC3-ST-CB-40B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 50 mm
JSC3-ST-CB-40B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 75 mm
JSC3-ST-CB-40B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 100 mm
JSC3-ST-CB-40B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 150 mm
JSC3-ST-CB-40B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 200 mm
JSC3-ST-CB-40B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 250 mm
JSC3-ST-CB-40B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 300 mm
JSC3-ST-CB-40B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 350 mm
JSC3-ST-CB-40B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 400 mm
JSC3-ST-CB-40B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 450 mm
JSC3-ST-CB-40B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 40 mm | Stroke: 500 mm
JSC3-ST-CB-50B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 50 mm
JSC3-ST-CB-50B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 75 mm
JSC3-ST-CB-50B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 100 mm
JSC3-ST-CB-50B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 150 mm
JSC3-ST-CB-50B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 200 mm
JSC3-ST-CB-50B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 250 mm
JSC3-ST-CB-50B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 300 mm
JSC3-ST-CB-50B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 350 mm
JSC3-ST-CB-50B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 400 mm
JSC3-ST-CB-50B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 450 mm
JSC3-ST-CB-50B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 50 mm | Stroke: 500 mm
JSC3-ST-CB-63B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 50 mm
JSC3-ST-CB-63B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 75 mm
JSC3-ST-CB-63B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 100 mm
JSC3-ST-CB-63B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 150 mm
JSC3-ST-CB-63B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 200 mm
JSC3-ST-CB-63B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 250 mm
JSC3-ST-CB-63B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 300 mm
JSC3-ST-CB-63B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 350 mm
JSC3-ST-CB-63B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 400 mm
JSC3-ST-CB-63B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 450 mm
JSC3-ST-CB-63B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 63 mm | Stroke: 500 mm
JSC3-ST-CB-80B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 50 mm
JSC3-ST-CB-80B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 75 mm
JSC3-ST-CB-80B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 100 mm
JSC3-ST-CB-80B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 150 mm
JSC3-ST-CB-80B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 200 mm
JSC3-ST-CB-80B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 250 mm
JSC3-ST-CB-80B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 300 mm
JSC3-ST-CB-80B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 350 mm
JSC3-ST-CB-80B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 400 mm
JSC3-ST-CB-80B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 450 mm
JSC3-ST-CB-80B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 80 mm | Stroke: 500 mm
JSC3-ST-CB-100B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 50 mm
JSC3-ST-CB-100B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 75 mm
JSC3-ST-CB-100B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 100 mm
JSC3-ST-CB-100B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 150 mm
JSC3-ST-CB-100B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 200 mm
JSC3-ST-CB-100B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 250 mm
JSC3-ST-CB-100B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 300 mm
JSC3-ST-CB-100B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 350 mm
JSC3-ST-CB-100B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 400 mm
JSC3-ST-CB-100B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 450 mm
JSC3-ST-CB-100B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Double clevis | Bore: 100 mm | Stroke: 500 mm
JSC3-ST-TC-40B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 50 mm
JSC3-ST-TC-40B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 75 mm
JSC3-ST-TC-40B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 100 mm
JSC3-ST-TC-40B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 150 mm
JSC3-ST-TC-40B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 200 mm
JSC3-ST-TC-40B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 250 mm
JSC3-ST-TC-40B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 300 mm
JSC3-ST-TC-40B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 350 mm
JSC3-ST-TC-40B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 400 mm
JSC3-ST-TC-40B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 450 mm
JSC3-ST-TC-40B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 500 mm
JSC3-ST-TC-50B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 50 mm
JSC3-ST-TC-50B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 75 mm
JSC3-ST-TC-50B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 100 mm
JSC3-ST-TC-50B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 150 mm
JSC3-ST-TC-50B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 200 mm
JSC3-ST-TC-50B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 250 mm
JSC3-ST-TC-50B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 300 mm
JSC3-ST-TC-50B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 350 mm
JSC3-ST-TC-50B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 400 mm
JSC3-ST-TC-50B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 450 mm
JSC3-ST-TC-50B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 500 mm
JSC3-ST-TC-63B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 50 mm
JSC3-ST-TC-63B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 75 mm
JSC3-ST-TC-63B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 100 mm
JSC3-ST-TC-63B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 150 mm
JSC3-ST-TC-63B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 200 mm
JSC3-ST-TC-63B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 250 mm
JSC3-ST-TC-63B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 300 mm
JSC3-ST-TC-63B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 350 mm
JSC3-ST-TC-63B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 400 mm
JSC3-ST-TC-63B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 450 mm
JSC3-ST-TC-63B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 500 mm
JSC3-ST-TC-80B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 50 mm
JSC3-ST-TC-80B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 75 mm
JSC3-ST-TC-80B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 100 mm
JSC3-ST-TC-80B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 150 mm
JSC3-ST-TC-80B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 200 mm
JSC3-ST-TC-80B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 250 mm
JSC3-ST-TC-80B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 300 mm
JSC3-ST-TC-80B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 350 mm
JSC3-ST-TC-80B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 400 mm
JSC3-ST-TC-80B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 450 mm
JSC3-ST-TC-80B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 500 mm
JSC3-ST-TC-100B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 50 mm
JSC3-ST-TC-100B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 75 mm
JSC3-ST-TC-100B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 100 mm
JSC3-ST-TC-100B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 150 mm
JSC3-ST-TC-100B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 200 mm
JSC3-ST-TC-100B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 250 mm
JSC3-ST-TC-100B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 300 mm
JSC3-ST-TC-100B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 350 mm
JSC3-ST-TC-100B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 400 mm
JSC3-ST-TC-100B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 450 mm
JSC3-ST-TC-100B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 500 mm
JSC3-ST-TA-40B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 50 mm
JSC3-ST-TA-40B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 75 mm
JSC3-ST-TA-40B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 100 mm
JSC3-ST-TA-40B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 150 mm
JSC3-ST-TA-40B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 200 mm
JSC3-ST-TA-40B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 250 mm
JSC3-ST-TA-40B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 300 mm
JSC3-ST-TA-40B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 350 mm
JSC3-ST-TA-40B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 400 mm
JSC3-ST-TA-40B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 450 mm
JSC3-ST-TA-40B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 500 mm
JSC3-ST-TA-50B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 50 mm
JSC3-ST-TA-50B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 75 mm
JSC3-ST-TA-50B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 100 mm
JSC3-ST-TA-50B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 150 mm
JSC3-ST-TA-50B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 200 mm
JSC3-ST-TA-50B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 250 mm
JSC3-ST-TA-50B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 300 mm
JSC3-ST-TA-50B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 350 mm
JSC3-ST-TA-50B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 400 mm
JSC3-ST-TA-50B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 450 mm
JSC3-ST-TA-50B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 50 mm | Stroke: 500 mm
JSC3-ST-TA-63B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 50 mm
JSC3-ST-TA-63B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 75 mm
JSC3-ST-TA-63B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 100 mm
JSC3-ST-TA-63B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 150 mm
JSC3-ST-TA-63B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 200 mm
JSC3-ST-TA-63B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 250 mm
JSC3-ST-TA-63B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 300 mm
JSC3-ST-TA-63B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 350 mm
JSC3-ST-TA-63B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 400 mm
JSC3-ST-TA-63B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 450 mm
JSC3-ST-TA-63B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 63 mm | Stroke: 500 mm
JSC3-ST-TA-80B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 50 mm
JSC3-ST-TA-80B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 75 mm
JSC3-ST-TA-80B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 100 mm
JSC3-ST-TA-80B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 150 mm
JSC3-ST-TA-80B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 200 mm
JSC3-ST-TA-80B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 250 mm
JSC3-ST-TA-80B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 300 mm
JSC3-ST-TA-80B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 350 mm
JSC3-ST-TA-80B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 400 mm
JSC3-ST-TA-80B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 450 mm
JSC3-ST-TA-80B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 80 mm | Stroke: 500 mm
JSC3-ST-TA-100B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 50 mm
JSC3-ST-TA-100B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 75 mm
JSC3-ST-TA-100B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 100 mm
JSC3-ST-TA-100B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 150 mm
JSC3-ST-TA-100B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 200 mm
JSC3-ST-TA-100B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 250 mm
JSC3-ST-TA-100B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 300 mm
JSC3-ST-TA-100B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 350 mm
JSC3-ST-TA-100B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 400 mm
JSC3-ST-TA-100B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 450 mm
JSC3-ST-TA-100B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Rod-end trunnion | Bore: 100 mm | Stroke: 500 mm
JSC3-ST-TB-40B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 50 mm
JSC3-ST-TB-40B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 75 mm
JSC3-ST-TB-40B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 100 mm
JSC3-ST-TB-40B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 150 mm
JSC3-ST-TB-40B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 200 mm
JSC3-ST-TB-40B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 250 mm
JSC3-ST-TB-40B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 300 mm
JSC3-ST-TB-40B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 350 mm
JSC3-ST-TB-40B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 400 mm
JSC3-ST-TB-40B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 450 mm
JSC3-ST-TB-40B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 500 mm
JSC3-ST-TB-50B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 50 mm
JSC3-ST-TB-50B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 75 mm
JSC3-ST-TB-50B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 100 mm
JSC3-ST-TB-50B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 150 mm
JSC3-ST-TB-50B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 200 mm
JSC3-ST-TB-50B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 250 mm
JSC3-ST-TB-50B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 300 mm
JSC3-ST-TB-50B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 350 mm
JSC3-ST-TB-50B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 400 mm
JSC3-ST-TB-50B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 450 mm
JSC3-ST-TB-50B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 50 mm | Stroke: 500 mm
JSC3-ST-TB-63B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 50 mm
JSC3-ST-TB-63B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 75 mm
JSC3-ST-TB-63B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 100 mm
JSC3-ST-TB-63B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 150 mm
JSC3-ST-TB-63B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 200 mm
JSC3-ST-TB-63B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 250 mm
JSC3-ST-TB-63B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 300 mm
JSC3-ST-TB-63B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 350 mm
JSC3-ST-TB-63B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 400 mm
JSC3-ST-TB-63B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 450 mm
JSC3-ST-TB-63B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 63 mm | Stroke: 500 mm
JSC3-ST-TB-80B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 50 mm
JSC3-ST-TB-80B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 75 mm
JSC3-ST-TB-80B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 100 mm
JSC3-ST-TB-80B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 150 mm
JSC3-ST-TB-80B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 200 mm
JSC3-ST-TB-80B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 250 mm
JSC3-ST-TB-80B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 300 mm
JSC3-ST-TB-80B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 350 mm
JSC3-ST-TB-80B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 400 mm
JSC3-ST-TB-80B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 450 mm
JSC3-ST-TB-80B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 80 mm | Stroke: 500 mm
JSC3-ST-TB-100B-50Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 50 mm
JSC3-ST-TB-100B-75Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 75 mm
JSC3-ST-TB-100B-100Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 100 mm
JSC3-ST-TB-100B-150Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 150 mm
JSC3-ST-TB-100B-200Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 200 mm
JSC3-ST-TB-100B-250Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 250 mm
JSC3-ST-TB-100B-300Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 300 mm
JSC3-ST-TB-100B-350Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 350 mm
JSC3-ST-TB-100B-400Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 400 mm
JSC3-ST-TB-100B-450Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 450 mm
JSC3-ST-TB-100B-500Item: Cylinder | Model: JSC3-ST (low-pressure release) | Mounting: Head-end trunnion | Bore: 100 mm | Stroke: 500 mm
JSC4-T-FC-125B-50Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 125 mm | Stroke: 50 mm
JSC4-T-FC-125B-75Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 125 mm | Stroke: 75 mm
JSC4-T-FC-125B-100Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 125 mm | Stroke: 100 mm
JSC4-T-FC-125B-150Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 125 mm | Stroke: 150 mm
JSC4-T-FC-125B-200Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 125 mm | Stroke: 200 mm
JSC4-T-FC-125B-250Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 125 mm | Stroke: 250 mm
JSC4-T-FC-125B-300Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 125 mm | Stroke: 300 mm
JSC4-T-FC-140B-50Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 140 mm | Stroke: 50 mm
JSC4-T-FC-140B-75Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 140 mm | Stroke: 75 mm
JSC4-T-FC-140B-100Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 140 mm | Stroke: 100 mm
JSC4-T-FC-140B-150Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 140 mm | Stroke: 150 mm
JSC4-T-FC-140B-200Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 140 mm | Stroke: 200 mm
JSC4-T-FC-140B-250Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 140 mm | Stroke: 250 mm
JSC4-T-FC-140B-300Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 140 mm | Stroke: 300 mm
JSC4-T-FC-160B-50Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 160 mm | Stroke: 50 mm
JSC4-T-FC-160B-75Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 160 mm | Stroke: 75 mm
JSC4-T-FC-160B-100Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 160 mm | Stroke: 100 mm
JSC4-T-FC-160B-150Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 160 mm | Stroke: 150 mm
JSC4-T-FC-160B-200Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 160 mm | Stroke: 200 mm
JSC4-T-FC-160B-250Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 160 mm | Stroke: 250 mm
JSC4-T-FC-160B-300Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 160 mm | Stroke: 300 mm
JSC4-T-FC-180B-50Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 180 mm | Stroke: 50 mm
JSC4-T-FC-180B-75Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 180 mm | Stroke: 75 mm
JSC4-T-FC-180B-100Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 180 mm | Stroke: 100 mm
JSC4-T-FC-180B-150Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 180 mm | Stroke: 150 mm
JSC4-T-FC-180B-200Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 180 mm | Stroke: 200 mm
JSC4-T-FC-180B-250Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 180 mm | Stroke: 250 mm
JSC4-T-FC-180B-300Item: Cylinder | Model: JSC4-T | Mounting: Head-end special flange | Bore: 180 mm | Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
