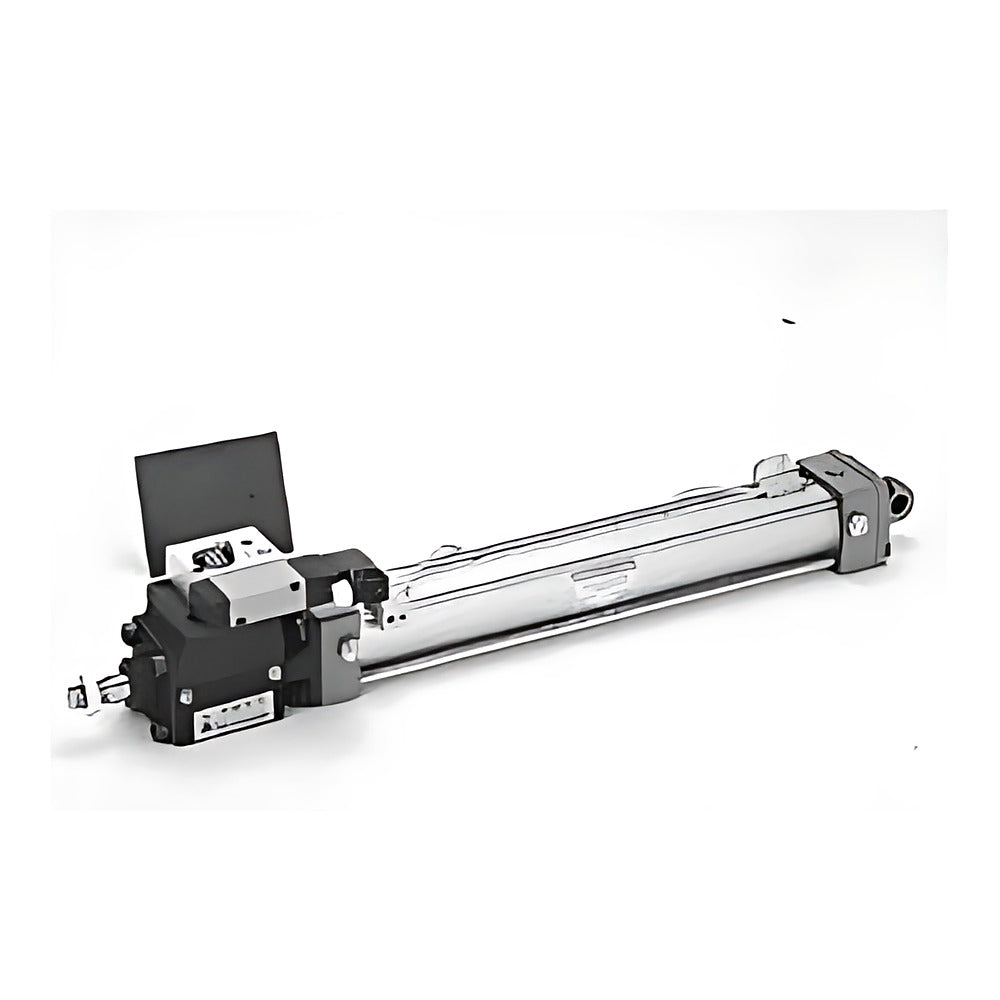

CKD JSC3-V Cell Top Cylinder with Brake Valve (80-100)

CKD JSC3-V cell top cylinder with built-in brake and mounted brake release solenoid valve, bore 80-100 mm.

Key features

Cell top cylinder with eccentric-ring mechanical brake: high stop accuracy and strong holding force; brake engages on exhaust
Manual brake release bolt supplied; brake section must not be disassembled (strong spring)
Auto switches, lead length, switch quantity, cushion R/H/N, cushion needle position S/T and indicator G not expanded
Low release pressure type (S prefix, 0.25 MPa) available; NPT (N) / G (G) ports on order
Accessories: I, Y, B1, B2, B3, B4 knuckles and brackets; S1/JSC3 bracket part numbers ordered separately
Integrated brake release solenoid valve (4KB2 equivalent), coil AC100V / AC200V / DC24V / DC12V expanded

Specifications

Action	Double acting with brake release valve
Fluid	Compressed air
Max. operating pressure	1.0 MPa
Min. operating pressure	Brake 0.3 MPa, cylinder 0.1 MPa
Proof pressure	1.6 MPa
Piston speed	50 to 1000 mm/s
Cushion	Air cushion both sides (B)
Source	CKD Korea catalog CB-030SK-9, p. 898-905

JSC3-V-00-80B-50-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSC3-V-00-80B-50-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSC3-V-00-80B-50-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSC3-V-00-80B-50-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSC3-V-00-80B-75-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSC3-V-00-80B-75-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSC3-V-00-80B-75-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSC3-V-00-80B-75-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSC3-V-00-80B-100-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSC3-V-00-80B-100-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSC3-V-00-80B-100-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSC3-V-00-80B-100-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSC3-V-00-80B-150-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSC3-V-00-80B-150-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSC3-V-00-80B-150-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSC3-V-00-80B-150-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSC3-V-00-80B-200-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSC3-V-00-80B-200-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSC3-V-00-80B-200-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSC3-V-00-80B-200-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSC3-V-00-80B-250-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSC3-V-00-80B-250-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSC3-V-00-80B-250-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSC3-V-00-80B-250-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSC3-V-00-80B-300-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSC3-V-00-80B-300-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSC3-V-00-80B-300-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSC3-V-00-80B-300-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSC3-V-00-80B-350-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSC3-V-00-80B-350-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSC3-V-00-80B-350-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSC3-V-00-80B-350-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSC3-V-00-80B-400-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSC3-V-00-80B-400-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSC3-V-00-80B-400-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSC3-V-00-80B-400-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSC3-V-00-80B-450-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSC3-V-00-80B-450-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSC3-V-00-80B-450-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSC3-V-00-80B-450-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSC3-V-00-80B-500-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSC3-V-00-80B-500-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSC3-V-00-80B-500-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSC3-V-00-80B-500-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSC3-V-00-100B-50-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSC3-V-00-100B-50-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSC3-V-00-100B-50-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSC3-V-00-100B-50-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSC3-V-00-100B-75-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSC3-V-00-100B-75-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSC3-V-00-100B-75-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSC3-V-00-100B-75-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSC3-V-00-100B-100-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSC3-V-00-100B-100-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSC3-V-00-100B-100-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSC3-V-00-100B-100-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSC3-V-00-100B-150-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSC3-V-00-100B-150-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSC3-V-00-100B-150-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSC3-V-00-100B-150-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSC3-V-00-100B-200-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSC3-V-00-100B-200-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSC3-V-00-100B-200-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSC3-V-00-100B-200-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSC3-V-00-100B-250-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSC3-V-00-100B-250-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSC3-V-00-100B-250-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSC3-V-00-100B-250-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSC3-V-00-100B-300-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSC3-V-00-100B-300-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSC3-V-00-100B-300-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSC3-V-00-100B-300-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSC3-V-00-100B-350-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSC3-V-00-100B-350-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSC3-V-00-100B-350-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSC3-V-00-100B-350-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSC3-V-00-100B-400-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSC3-V-00-100B-400-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSC3-V-00-100B-400-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSC3-V-00-100B-400-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSC3-V-00-100B-450-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSC3-V-00-100B-450-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSC3-V-00-100B-450-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSC3-V-00-100B-450-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSC3-V-00-100B-500-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSC3-V-00-100B-500-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSC3-V-00-100B-500-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSC3-V-00-100B-500-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSC3-V-LB-80B-50-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSC3-V-LB-80B-50-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSC3-V-LB-80B-50-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSC3-V-LB-80B-50-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSC3-V-LB-80B-75-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSC3-V-LB-80B-75-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSC3-V-LB-80B-75-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSC3-V-LB-80B-75-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSC3-V-LB-80B-100-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSC3-V-LB-80B-100-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSC3-V-LB-80B-100-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSC3-V-LB-80B-100-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSC3-V-LB-80B-150-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSC3-V-LB-80B-150-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSC3-V-LB-80B-150-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSC3-V-LB-80B-150-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSC3-V-LB-80B-200-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSC3-V-LB-80B-200-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSC3-V-LB-80B-200-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSC3-V-LB-80B-200-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSC3-V-LB-80B-250-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSC3-V-LB-80B-250-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSC3-V-LB-80B-250-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSC3-V-LB-80B-250-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSC3-V-LB-80B-300-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSC3-V-LB-80B-300-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSC3-V-LB-80B-300-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSC3-V-LB-80B-300-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSC3-V-LB-80B-350-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSC3-V-LB-80B-350-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSC3-V-LB-80B-350-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSC3-V-LB-80B-350-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSC3-V-LB-80B-400-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSC3-V-LB-80B-400-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSC3-V-LB-80B-400-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSC3-V-LB-80B-400-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSC3-V-LB-80B-450-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSC3-V-LB-80B-450-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSC3-V-LB-80B-450-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSC3-V-LB-80B-450-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSC3-V-LB-80B-500-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSC3-V-LB-80B-500-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSC3-V-LB-80B-500-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSC3-V-LB-80B-500-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSC3-V-LB-100B-50-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSC3-V-LB-100B-50-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSC3-V-LB-100B-50-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSC3-V-LB-100B-50-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSC3-V-LB-100B-75-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSC3-V-LB-100B-75-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSC3-V-LB-100B-75-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSC3-V-LB-100B-75-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSC3-V-LB-100B-100-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSC3-V-LB-100B-100-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSC3-V-LB-100B-100-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSC3-V-LB-100B-100-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSC3-V-LB-100B-150-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSC3-V-LB-100B-150-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSC3-V-LB-100B-150-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSC3-V-LB-100B-150-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSC3-V-LB-100B-200-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSC3-V-LB-100B-200-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSC3-V-LB-100B-200-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSC3-V-LB-100B-200-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSC3-V-LB-100B-250-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSC3-V-LB-100B-250-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSC3-V-LB-100B-250-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSC3-V-LB-100B-250-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSC3-V-LB-100B-300-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSC3-V-LB-100B-300-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSC3-V-LB-100B-300-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSC3-V-LB-100B-300-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSC3-V-LB-100B-350-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSC3-V-LB-100B-350-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSC3-V-LB-100B-350-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSC3-V-LB-100B-350-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSC3-V-LB-100B-400-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSC3-V-LB-100B-400-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSC3-V-LB-100B-400-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSC3-V-LB-100B-400-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSC3-V-LB-100B-450-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSC3-V-LB-100B-450-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSC3-V-LB-100B-450-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSC3-V-LB-100B-450-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSC3-V-LB-100B-500-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSC3-V-LB-100B-500-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSC3-V-LB-100B-500-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSC3-V-LB-100B-500-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSC3-V-FA-80B-50-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSC3-V-FA-80B-50-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSC3-V-FA-80B-50-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSC3-V-FA-80B-50-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSC3-V-FA-80B-75-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSC3-V-FA-80B-75-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSC3-V-FA-80B-75-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSC3-V-FA-80B-75-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSC3-V-FA-80B-100-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSC3-V-FA-80B-100-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSC3-V-FA-80B-100-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSC3-V-FA-80B-100-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSC3-V-FA-80B-150-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSC3-V-FA-80B-150-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSC3-V-FA-80B-150-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSC3-V-FA-80B-150-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSC3-V-FA-80B-200-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSC3-V-FA-80B-200-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSC3-V-FA-80B-200-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSC3-V-FA-80B-200-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSC3-V-FA-80B-250-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSC3-V-FA-80B-250-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSC3-V-FA-80B-250-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSC3-V-FA-80B-250-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSC3-V-FA-80B-300-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSC3-V-FA-80B-300-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSC3-V-FA-80B-300-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSC3-V-FA-80B-300-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSC3-V-FA-80B-350-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSC3-V-FA-80B-350-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSC3-V-FA-80B-350-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSC3-V-FA-80B-350-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSC3-V-FA-80B-400-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSC3-V-FA-80B-400-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSC3-V-FA-80B-400-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSC3-V-FA-80B-400-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSC3-V-FA-80B-450-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSC3-V-FA-80B-450-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSC3-V-FA-80B-450-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSC3-V-FA-80B-450-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSC3-V-FA-80B-500-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSC3-V-FA-80B-500-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSC3-V-FA-80B-500-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSC3-V-FA-80B-500-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSC3-V-FA-100B-50-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSC3-V-FA-100B-50-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSC3-V-FA-100B-50-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSC3-V-FA-100B-50-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSC3-V-FA-100B-75-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSC3-V-FA-100B-75-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSC3-V-FA-100B-75-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSC3-V-FA-100B-75-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSC3-V-FA-100B-100-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSC3-V-FA-100B-100-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSC3-V-FA-100B-100-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSC3-V-FA-100B-100-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSC3-V-FA-100B-150-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSC3-V-FA-100B-150-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSC3-V-FA-100B-150-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSC3-V-FA-100B-150-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSC3-V-FA-100B-200-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSC3-V-FA-100B-200-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSC3-V-FA-100B-200-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSC3-V-FA-100B-200-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSC3-V-FA-100B-250-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSC3-V-FA-100B-250-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSC3-V-FA-100B-250-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSC3-V-FA-100B-250-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSC3-V-FA-100B-300-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSC3-V-FA-100B-300-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSC3-V-FA-100B-300-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSC3-V-FA-100B-300-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSC3-V-FA-100B-350-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSC3-V-FA-100B-350-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSC3-V-FA-100B-350-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSC3-V-FA-100B-350-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSC3-V-FA-100B-400-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSC3-V-FA-100B-400-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSC3-V-FA-100B-400-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSC3-V-FA-100B-400-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSC3-V-FA-100B-450-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSC3-V-FA-100B-450-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSC3-V-FA-100B-450-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSC3-V-FA-100B-450-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSC3-V-FA-100B-500-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSC3-V-FA-100B-500-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSC3-V-FA-100B-500-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSC3-V-FA-100B-500-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSC3-V-FB-80B-50-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSC3-V-FB-80B-50-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSC3-V-FB-80B-50-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSC3-V-FB-80B-50-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSC3-V-FB-80B-75-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSC3-V-FB-80B-75-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSC3-V-FB-80B-75-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSC3-V-FB-80B-75-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSC3-V-FB-80B-100-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSC3-V-FB-80B-100-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSC3-V-FB-80B-100-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSC3-V-FB-80B-100-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSC3-V-FB-80B-150-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSC3-V-FB-80B-150-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSC3-V-FB-80B-150-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSC3-V-FB-80B-150-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSC3-V-FB-80B-200-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSC3-V-FB-80B-200-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSC3-V-FB-80B-200-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSC3-V-FB-80B-200-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSC3-V-FB-80B-250-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSC3-V-FB-80B-250-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSC3-V-FB-80B-250-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSC3-V-FB-80B-250-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSC3-V-FB-80B-300-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSC3-V-FB-80B-300-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSC3-V-FB-80B-300-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSC3-V-FB-80B-300-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSC3-V-FB-80B-350-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSC3-V-FB-80B-350-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSC3-V-FB-80B-350-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSC3-V-FB-80B-350-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSC3-V-FB-80B-400-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSC3-V-FB-80B-400-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSC3-V-FB-80B-400-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSC3-V-FB-80B-400-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSC3-V-FB-80B-450-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSC3-V-FB-80B-450-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSC3-V-FB-80B-450-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSC3-V-FB-80B-450-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSC3-V-FB-80B-500-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSC3-V-FB-80B-500-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSC3-V-FB-80B-500-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSC3-V-FB-80B-500-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSC3-V-FB-100B-50-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSC3-V-FB-100B-50-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSC3-V-FB-100B-50-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSC3-V-FB-100B-50-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSC3-V-FB-100B-75-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSC3-V-FB-100B-75-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSC3-V-FB-100B-75-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSC3-V-FB-100B-75-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSC3-V-FB-100B-100-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSC3-V-FB-100B-100-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSC3-V-FB-100B-100-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSC3-V-FB-100B-100-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSC3-V-FB-100B-150-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSC3-V-FB-100B-150-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSC3-V-FB-100B-150-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSC3-V-FB-100B-150-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSC3-V-FB-100B-200-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSC3-V-FB-100B-200-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSC3-V-FB-100B-200-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSC3-V-FB-100B-200-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSC3-V-FB-100B-250-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSC3-V-FB-100B-250-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSC3-V-FB-100B-250-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSC3-V-FB-100B-250-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSC3-V-FB-100B-300-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSC3-V-FB-100B-300-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSC3-V-FB-100B-300-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSC3-V-FB-100B-300-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSC3-V-FB-100B-350-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSC3-V-FB-100B-350-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSC3-V-FB-100B-350-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSC3-V-FB-100B-350-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSC3-V-FB-100B-400-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSC3-V-FB-100B-400-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSC3-V-FB-100B-400-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSC3-V-FB-100B-400-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSC3-V-FB-100B-450-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSC3-V-FB-100B-450-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSC3-V-FB-100B-450-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSC3-V-FB-100B-450-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSC3-V-FB-100B-500-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSC3-V-FB-100B-500-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSC3-V-FB-100B-500-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSC3-V-FB-100B-500-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSC3-V-FC-80B-50-1		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSC3-V-FC-80B-50-2		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSC3-V-FC-80B-50-3		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSC3-V-FC-80B-50-4		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSC3-V-FC-80B-75-1		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSC3-V-FC-80B-75-2		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSC3-V-FC-80B-75-3		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSC3-V-FC-80B-75-4		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSC3-V-FC-80B-100-1		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSC3-V-FC-80B-100-2		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSC3-V-FC-80B-100-3		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSC3-V-FC-80B-100-4		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSC3-V-FC-80B-150-1		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSC3-V-FC-80B-150-2		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSC3-V-FC-80B-150-3		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSC3-V-FC-80B-150-4		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSC3-V-FC-80B-200-1		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSC3-V-FC-80B-200-2		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSC3-V-FC-80B-200-3		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSC3-V-FC-80B-200-4		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSC3-V-FC-80B-250-1		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSC3-V-FC-80B-250-2		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSC3-V-FC-80B-250-3		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSC3-V-FC-80B-250-4		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSC3-V-FC-80B-300-1		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSC3-V-FC-80B-300-2		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSC3-V-FC-80B-300-3		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSC3-V-FC-80B-300-4		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSC3-V-FC-80B-350-1		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSC3-V-FC-80B-350-2		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSC3-V-FC-80B-350-3		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSC3-V-FC-80B-350-4		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSC3-V-FC-80B-400-1		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSC3-V-FC-80B-400-2		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSC3-V-FC-80B-400-3		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSC3-V-FC-80B-400-4		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSC3-V-FC-80B-450-1		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSC3-V-FC-80B-450-2		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSC3-V-FC-80B-450-3		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSC3-V-FC-80B-450-4		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSC3-V-FC-80B-500-1		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSC3-V-FC-80B-500-2		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSC3-V-FC-80B-500-3		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSC3-V-FC-80B-500-4		Mounting: Head special flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSC3-V-FC-100B-50-1		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSC3-V-FC-100B-50-2		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSC3-V-FC-100B-50-3		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSC3-V-FC-100B-50-4		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSC3-V-FC-100B-75-1		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSC3-V-FC-100B-75-2		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSC3-V-FC-100B-75-3		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSC3-V-FC-100B-75-4		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSC3-V-FC-100B-100-1		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSC3-V-FC-100B-100-2		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSC3-V-FC-100B-100-3		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSC3-V-FC-100B-100-4		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSC3-V-FC-100B-150-1		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSC3-V-FC-100B-150-2		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSC3-V-FC-100B-150-3		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSC3-V-FC-100B-150-4		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSC3-V-FC-100B-200-1		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSC3-V-FC-100B-200-2		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSC3-V-FC-100B-200-3		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSC3-V-FC-100B-200-4		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSC3-V-FC-100B-250-1		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSC3-V-FC-100B-250-2		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSC3-V-FC-100B-250-3		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSC3-V-FC-100B-250-4		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSC3-V-FC-100B-300-1		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSC3-V-FC-100B-300-2		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSC3-V-FC-100B-300-3		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSC3-V-FC-100B-300-4		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSC3-V-FC-100B-350-1		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSC3-V-FC-100B-350-2		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSC3-V-FC-100B-350-3		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSC3-V-FC-100B-350-4		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSC3-V-FC-100B-400-1		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSC3-V-FC-100B-400-2		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSC3-V-FC-100B-400-3		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSC3-V-FC-100B-400-4		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSC3-V-FC-100B-450-1		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSC3-V-FC-100B-450-2		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSC3-V-FC-100B-450-3		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSC3-V-FC-100B-450-4		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSC3-V-FC-100B-500-1		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSC3-V-FC-100B-500-2		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSC3-V-FC-100B-500-3		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSC3-V-FC-100B-500-4		Mounting: Head special flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSC3-V-CA-80B-50-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSC3-V-CA-80B-50-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSC3-V-CA-80B-50-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSC3-V-CA-80B-50-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSC3-V-CA-80B-75-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSC3-V-CA-80B-75-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSC3-V-CA-80B-75-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSC3-V-CA-80B-75-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSC3-V-CA-80B-100-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSC3-V-CA-80B-100-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSC3-V-CA-80B-100-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSC3-V-CA-80B-100-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSC3-V-CA-80B-150-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSC3-V-CA-80B-150-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSC3-V-CA-80B-150-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSC3-V-CA-80B-150-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSC3-V-CA-80B-200-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSC3-V-CA-80B-200-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSC3-V-CA-80B-200-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSC3-V-CA-80B-200-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSC3-V-CA-80B-250-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSC3-V-CA-80B-250-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSC3-V-CA-80B-250-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSC3-V-CA-80B-250-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSC3-V-CA-80B-300-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSC3-V-CA-80B-300-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSC3-V-CA-80B-300-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSC3-V-CA-80B-300-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSC3-V-CA-80B-350-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSC3-V-CA-80B-350-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSC3-V-CA-80B-350-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSC3-V-CA-80B-350-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSC3-V-CA-80B-400-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSC3-V-CA-80B-400-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSC3-V-CA-80B-400-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSC3-V-CA-80B-400-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSC3-V-CA-80B-450-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSC3-V-CA-80B-450-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSC3-V-CA-80B-450-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSC3-V-CA-80B-450-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSC3-V-CA-80B-500-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSC3-V-CA-80B-500-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSC3-V-CA-80B-500-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSC3-V-CA-80B-500-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSC3-V-CA-100B-50-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSC3-V-CA-100B-50-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSC3-V-CA-100B-50-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSC3-V-CA-100B-50-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSC3-V-CA-100B-75-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSC3-V-CA-100B-75-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSC3-V-CA-100B-75-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSC3-V-CA-100B-75-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSC3-V-CA-100B-100-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSC3-V-CA-100B-100-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSC3-V-CA-100B-100-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSC3-V-CA-100B-100-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSC3-V-CA-100B-150-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSC3-V-CA-100B-150-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSC3-V-CA-100B-150-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSC3-V-CA-100B-150-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSC3-V-CA-100B-200-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSC3-V-CA-100B-200-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSC3-V-CA-100B-200-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSC3-V-CA-100B-200-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSC3-V-CA-100B-250-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSC3-V-CA-100B-250-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSC3-V-CA-100B-250-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSC3-V-CA-100B-250-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSC3-V-CA-100B-300-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSC3-V-CA-100B-300-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSC3-V-CA-100B-300-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSC3-V-CA-100B-300-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSC3-V-CA-100B-350-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSC3-V-CA-100B-350-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSC3-V-CA-100B-350-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSC3-V-CA-100B-350-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSC3-V-CA-100B-400-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSC3-V-CA-100B-400-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSC3-V-CA-100B-400-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSC3-V-CA-100B-400-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSC3-V-CA-100B-450-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSC3-V-CA-100B-450-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSC3-V-CA-100B-450-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSC3-V-CA-100B-450-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSC3-V-CA-100B-500-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSC3-V-CA-100B-500-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSC3-V-CA-100B-500-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSC3-V-CA-100B-500-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSC3-V-CB-80B-50-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSC3-V-CB-80B-50-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSC3-V-CB-80B-50-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSC3-V-CB-80B-50-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSC3-V-CB-80B-75-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSC3-V-CB-80B-75-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSC3-V-CB-80B-75-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSC3-V-CB-80B-75-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSC3-V-CB-80B-100-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSC3-V-CB-80B-100-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSC3-V-CB-80B-100-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSC3-V-CB-80B-100-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSC3-V-CB-80B-150-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSC3-V-CB-80B-150-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSC3-V-CB-80B-150-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSC3-V-CB-80B-150-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSC3-V-CB-80B-200-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSC3-V-CB-80B-200-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSC3-V-CB-80B-200-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSC3-V-CB-80B-200-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSC3-V-CB-80B-250-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSC3-V-CB-80B-250-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSC3-V-CB-80B-250-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSC3-V-CB-80B-250-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSC3-V-CB-80B-300-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSC3-V-CB-80B-300-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSC3-V-CB-80B-300-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSC3-V-CB-80B-300-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSC3-V-CB-80B-350-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSC3-V-CB-80B-350-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSC3-V-CB-80B-350-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSC3-V-CB-80B-350-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSC3-V-CB-80B-400-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSC3-V-CB-80B-400-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSC3-V-CB-80B-400-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSC3-V-CB-80B-400-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSC3-V-CB-80B-450-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSC3-V-CB-80B-450-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSC3-V-CB-80B-450-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSC3-V-CB-80B-450-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSC3-V-CB-80B-500-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSC3-V-CB-80B-500-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSC3-V-CB-80B-500-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSC3-V-CB-80B-500-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSC3-V-CB-100B-50-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSC3-V-CB-100B-50-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSC3-V-CB-100B-50-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSC3-V-CB-100B-50-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSC3-V-CB-100B-75-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSC3-V-CB-100B-75-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSC3-V-CB-100B-75-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSC3-V-CB-100B-75-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSC3-V-CB-100B-100-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSC3-V-CB-100B-100-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSC3-V-CB-100B-100-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSC3-V-CB-100B-100-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSC3-V-CB-100B-150-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSC3-V-CB-100B-150-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSC3-V-CB-100B-150-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSC3-V-CB-100B-150-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSC3-V-CB-100B-200-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSC3-V-CB-100B-200-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSC3-V-CB-100B-200-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSC3-V-CB-100B-200-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSC3-V-CB-100B-250-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSC3-V-CB-100B-250-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSC3-V-CB-100B-250-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSC3-V-CB-100B-250-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSC3-V-CB-100B-300-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSC3-V-CB-100B-300-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSC3-V-CB-100B-300-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSC3-V-CB-100B-300-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSC3-V-CB-100B-350-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSC3-V-CB-100B-350-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSC3-V-CB-100B-350-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSC3-V-CB-100B-350-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSC3-V-CB-100B-400-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSC3-V-CB-100B-400-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSC3-V-CB-100B-400-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSC3-V-CB-100B-400-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSC3-V-CB-100B-450-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSC3-V-CB-100B-450-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSC3-V-CB-100B-450-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSC3-V-CB-100B-450-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSC3-V-CB-100B-500-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSC3-V-CB-100B-500-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSC3-V-CB-100B-500-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSC3-V-CB-100B-500-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSC3-V-TC-80B-50-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSC3-V-TC-80B-50-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSC3-V-TC-80B-50-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSC3-V-TC-80B-50-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSC3-V-TC-80B-75-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSC3-V-TC-80B-75-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSC3-V-TC-80B-75-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSC3-V-TC-80B-75-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSC3-V-TC-80B-100-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSC3-V-TC-80B-100-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSC3-V-TC-80B-100-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSC3-V-TC-80B-100-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSC3-V-TC-80B-150-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSC3-V-TC-80B-150-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSC3-V-TC-80B-150-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSC3-V-TC-80B-150-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSC3-V-TC-80B-200-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSC3-V-TC-80B-200-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSC3-V-TC-80B-200-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSC3-V-TC-80B-200-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSC3-V-TC-80B-250-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSC3-V-TC-80B-250-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSC3-V-TC-80B-250-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSC3-V-TC-80B-250-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSC3-V-TC-80B-300-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSC3-V-TC-80B-300-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSC3-V-TC-80B-300-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSC3-V-TC-80B-300-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSC3-V-TC-80B-350-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSC3-V-TC-80B-350-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSC3-V-TC-80B-350-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSC3-V-TC-80B-350-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSC3-V-TC-80B-400-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSC3-V-TC-80B-400-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSC3-V-TC-80B-400-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSC3-V-TC-80B-400-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSC3-V-TC-80B-450-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSC3-V-TC-80B-450-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSC3-V-TC-80B-450-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSC3-V-TC-80B-450-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSC3-V-TC-80B-500-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSC3-V-TC-80B-500-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSC3-V-TC-80B-500-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSC3-V-TC-80B-500-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSC3-V-TC-100B-50-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSC3-V-TC-100B-50-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSC3-V-TC-100B-50-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSC3-V-TC-100B-50-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSC3-V-TC-100B-75-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSC3-V-TC-100B-75-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSC3-V-TC-100B-75-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSC3-V-TC-100B-75-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSC3-V-TC-100B-100-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSC3-V-TC-100B-100-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSC3-V-TC-100B-100-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSC3-V-TC-100B-100-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSC3-V-TC-100B-150-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSC3-V-TC-100B-150-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSC3-V-TC-100B-150-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSC3-V-TC-100B-150-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSC3-V-TC-100B-200-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSC3-V-TC-100B-200-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSC3-V-TC-100B-200-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSC3-V-TC-100B-200-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSC3-V-TC-100B-250-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSC3-V-TC-100B-250-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSC3-V-TC-100B-250-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSC3-V-TC-100B-250-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSC3-V-TC-100B-300-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSC3-V-TC-100B-300-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSC3-V-TC-100B-300-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSC3-V-TC-100B-300-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSC3-V-TC-100B-350-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSC3-V-TC-100B-350-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSC3-V-TC-100B-350-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSC3-V-TC-100B-350-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSC3-V-TC-100B-400-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSC3-V-TC-100B-400-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSC3-V-TC-100B-400-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSC3-V-TC-100B-400-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSC3-V-TC-100B-450-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSC3-V-TC-100B-450-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSC3-V-TC-100B-450-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSC3-V-TC-100B-450-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSC3-V-TC-100B-500-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSC3-V-TC-100B-500-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSC3-V-TC-100B-500-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSC3-V-TC-100B-500-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSC3-V-TA-80B-50-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSC3-V-TA-80B-50-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSC3-V-TA-80B-50-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSC3-V-TA-80B-50-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSC3-V-TA-80B-75-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSC3-V-TA-80B-75-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSC3-V-TA-80B-75-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSC3-V-TA-80B-75-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSC3-V-TA-80B-100-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSC3-V-TA-80B-100-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSC3-V-TA-80B-100-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSC3-V-TA-80B-100-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSC3-V-TA-80B-150-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSC3-V-TA-80B-150-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSC3-V-TA-80B-150-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSC3-V-TA-80B-150-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSC3-V-TA-80B-200-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSC3-V-TA-80B-200-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSC3-V-TA-80B-200-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSC3-V-TA-80B-200-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSC3-V-TA-80B-250-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSC3-V-TA-80B-250-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSC3-V-TA-80B-250-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSC3-V-TA-80B-250-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSC3-V-TA-80B-300-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSC3-V-TA-80B-300-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSC3-V-TA-80B-300-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSC3-V-TA-80B-300-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSC3-V-TA-80B-350-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSC3-V-TA-80B-350-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSC3-V-TA-80B-350-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSC3-V-TA-80B-350-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSC3-V-TA-80B-400-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSC3-V-TA-80B-400-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSC3-V-TA-80B-400-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSC3-V-TA-80B-400-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSC3-V-TA-80B-450-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSC3-V-TA-80B-450-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSC3-V-TA-80B-450-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSC3-V-TA-80B-450-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSC3-V-TA-80B-500-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSC3-V-TA-80B-500-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSC3-V-TA-80B-500-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSC3-V-TA-80B-500-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSC3-V-TA-100B-50-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSC3-V-TA-100B-50-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSC3-V-TA-100B-50-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSC3-V-TA-100B-50-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSC3-V-TA-100B-75-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSC3-V-TA-100B-75-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSC3-V-TA-100B-75-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSC3-V-TA-100B-75-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSC3-V-TA-100B-100-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSC3-V-TA-100B-100-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSC3-V-TA-100B-100-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSC3-V-TA-100B-100-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSC3-V-TA-100B-150-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSC3-V-TA-100B-150-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSC3-V-TA-100B-150-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSC3-V-TA-100B-150-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSC3-V-TA-100B-200-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSC3-V-TA-100B-200-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSC3-V-TA-100B-200-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSC3-V-TA-100B-200-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSC3-V-TA-100B-250-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSC3-V-TA-100B-250-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSC3-V-TA-100B-250-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSC3-V-TA-100B-250-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSC3-V-TA-100B-300-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSC3-V-TA-100B-300-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSC3-V-TA-100B-300-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSC3-V-TA-100B-300-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSC3-V-TA-100B-350-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSC3-V-TA-100B-350-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSC3-V-TA-100B-350-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSC3-V-TA-100B-350-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSC3-V-TA-100B-400-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSC3-V-TA-100B-400-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSC3-V-TA-100B-400-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSC3-V-TA-100B-400-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSC3-V-TA-100B-450-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSC3-V-TA-100B-450-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSC3-V-TA-100B-450-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSC3-V-TA-100B-450-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSC3-V-TA-100B-500-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSC3-V-TA-100B-500-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSC3-V-TA-100B-500-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSC3-V-TA-100B-500-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSC3-V-TB-80B-50-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSC3-V-TB-80B-50-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSC3-V-TB-80B-50-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSC3-V-TB-80B-50-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSC3-V-TB-80B-75-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSC3-V-TB-80B-75-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSC3-V-TB-80B-75-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSC3-V-TB-80B-75-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSC3-V-TB-80B-100-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSC3-V-TB-80B-100-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSC3-V-TB-80B-100-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSC3-V-TB-80B-100-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSC3-V-TB-80B-150-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSC3-V-TB-80B-150-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSC3-V-TB-80B-150-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSC3-V-TB-80B-150-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSC3-V-TB-80B-200-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSC3-V-TB-80B-200-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSC3-V-TB-80B-200-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSC3-V-TB-80B-200-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSC3-V-TB-80B-250-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSC3-V-TB-80B-250-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSC3-V-TB-80B-250-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSC3-V-TB-80B-250-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSC3-V-TB-80B-300-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSC3-V-TB-80B-300-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSC3-V-TB-80B-300-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSC3-V-TB-80B-300-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSC3-V-TB-80B-350-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSC3-V-TB-80B-350-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSC3-V-TB-80B-350-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSC3-V-TB-80B-350-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSC3-V-TB-80B-400-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSC3-V-TB-80B-400-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSC3-V-TB-80B-400-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSC3-V-TB-80B-400-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSC3-V-TB-80B-450-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSC3-V-TB-80B-450-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSC3-V-TB-80B-450-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSC3-V-TB-80B-450-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSC3-V-TB-80B-500-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSC3-V-TB-80B-500-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSC3-V-TB-80B-500-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSC3-V-TB-80B-500-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSC3-V-TB-100B-50-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSC3-V-TB-100B-50-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSC3-V-TB-100B-50-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSC3-V-TB-100B-50-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSC3-V-TB-100B-75-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSC3-V-TB-100B-75-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSC3-V-TB-100B-75-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSC3-V-TB-100B-75-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSC3-V-TB-100B-100-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSC3-V-TB-100B-100-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSC3-V-TB-100B-100-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSC3-V-TB-100B-100-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSC3-V-TB-100B-150-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSC3-V-TB-100B-150-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSC3-V-TB-100B-150-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSC3-V-TB-100B-150-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSC3-V-TB-100B-200-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSC3-V-TB-100B-200-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSC3-V-TB-100B-200-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSC3-V-TB-100B-200-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSC3-V-TB-100B-250-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSC3-V-TB-100B-250-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSC3-V-TB-100B-250-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSC3-V-TB-100B-250-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSC3-V-TB-100B-300-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSC3-V-TB-100B-300-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSC3-V-TB-100B-300-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSC3-V-TB-100B-300-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSC3-V-TB-100B-350-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSC3-V-TB-100B-350-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSC3-V-TB-100B-350-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSC3-V-TB-100B-350-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSC3-V-TB-100B-400-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSC3-V-TB-100B-400-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSC3-V-TB-100B-400-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSC3-V-TB-100B-400-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSC3-V-TB-100B-450-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSC3-V-TB-100B-450-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSC3-V-TB-100B-450-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSC3-V-TB-100B-450-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSC3-V-TB-100B-500-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSC3-V-TB-100B-500-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSC3-V-TB-100B-500-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSC3-V-TB-100B-500-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V

Pneumatic CylindersCKD

880 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD JSC3-V Cell Top Cylinder with Brake Valve (80-100)

Brand CKD·Pneumatic Cylinders

Available part numbers (880)

JSC3-V-00-80B-50-1, JSC3-V-00-80B-50-2, JSC3-V-00-80B-50-3, JSC3-V-00-80B-50-4, JSC3-V-00-80B-75-1, JSC3-V-00-80B-75-2, JSC3-V-00-80B-75-3, JSC3-V-00-80B-75-4, JSC3-V-00-80B-100-1, JSC3-V-00-80B-100-2 + 870 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	JSC3-V-00-80B-50-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSC3-V-00-80B-50-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSC3-V-00-80B-50-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSC3-V-00-80B-50-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSC3-V-00-80B-75-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSC3-V-00-80B-75-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSC3-V-00-80B-75-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSC3-V-00-80B-75-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSC3-V-00-80B-100-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSC3-V-00-80B-100-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSC3-V-00-80B-100-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSC3-V-00-80B-100-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSC3-V-00-80B-150-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSC3-V-00-80B-150-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSC3-V-00-80B-150-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSC3-V-00-80B-150-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSC3-V-00-80B-200-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSC3-V-00-80B-200-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSC3-V-00-80B-200-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSC3-V-00-80B-200-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSC3-V-00-80B-250-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSC3-V-00-80B-250-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSC3-V-00-80B-250-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSC3-V-00-80B-250-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSC3-V-00-80B-300-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSC3-V-00-80B-300-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSC3-V-00-80B-300-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSC3-V-00-80B-300-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSC3-V-00-80B-350-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSC3-V-00-80B-350-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSC3-V-00-80B-350-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSC3-V-00-80B-350-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSC3-V-00-80B-400-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSC3-V-00-80B-400-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSC3-V-00-80B-400-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSC3-V-00-80B-400-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSC3-V-00-80B-450-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSC3-V-00-80B-450-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSC3-V-00-80B-450-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSC3-V-00-80B-450-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSC3-V-00-80B-500-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSC3-V-00-80B-500-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSC3-V-00-80B-500-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSC3-V-00-80B-500-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSC3-V-00-100B-50-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSC3-V-00-100B-50-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSC3-V-00-100B-50-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSC3-V-00-100B-50-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSC3-V-00-100B-75-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSC3-V-00-100B-75-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSC3-V-00-100B-75-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSC3-V-00-100B-75-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSC3-V-00-100B-100-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSC3-V-00-100B-100-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSC3-V-00-100B-100-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSC3-V-00-100B-100-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSC3-V-00-100B-150-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSC3-V-00-100B-150-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSC3-V-00-100B-150-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSC3-V-00-100B-150-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSC3-V-00-100B-200-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSC3-V-00-100B-200-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSC3-V-00-100B-200-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSC3-V-00-100B-200-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSC3-V-00-100B-250-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSC3-V-00-100B-250-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSC3-V-00-100B-250-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSC3-V-00-100B-250-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSC3-V-00-100B-300-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSC3-V-00-100B-300-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSC3-V-00-100B-300-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSC3-V-00-100B-300-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSC3-V-00-100B-350-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSC3-V-00-100B-350-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSC3-V-00-100B-350-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSC3-V-00-100B-350-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSC3-V-00-100B-400-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSC3-V-00-100B-400-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSC3-V-00-100B-400-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSC3-V-00-100B-400-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSC3-V-00-100B-450-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSC3-V-00-100B-450-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSC3-V-00-100B-450-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSC3-V-00-100B-450-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSC3-V-00-100B-500-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSC3-V-00-100B-500-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSC3-V-00-100B-500-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSC3-V-00-100B-500-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSC3-V-LB-80B-50-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSC3-V-LB-80B-50-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSC3-V-LB-80B-50-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSC3-V-LB-80B-50-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSC3-V-LB-80B-75-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSC3-V-LB-80B-75-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSC3-V-LB-80B-75-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSC3-V-LB-80B-75-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSC3-V-LB-80B-100-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSC3-V-LB-80B-100-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSC3-V-LB-80B-100-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSC3-V-LB-80B-100-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSC3-V-LB-80B-150-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSC3-V-LB-80B-150-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSC3-V-LB-80B-150-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSC3-V-LB-80B-150-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSC3-V-LB-80B-200-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSC3-V-LB-80B-200-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSC3-V-LB-80B-200-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSC3-V-LB-80B-200-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSC3-V-LB-80B-250-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSC3-V-LB-80B-250-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSC3-V-LB-80B-250-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSC3-V-LB-80B-250-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSC3-V-LB-80B-300-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSC3-V-LB-80B-300-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSC3-V-LB-80B-300-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSC3-V-LB-80B-300-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSC3-V-LB-80B-350-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSC3-V-LB-80B-350-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSC3-V-LB-80B-350-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSC3-V-LB-80B-350-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSC3-V-LB-80B-400-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSC3-V-LB-80B-400-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSC3-V-LB-80B-400-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSC3-V-LB-80B-400-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSC3-V-LB-80B-450-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSC3-V-LB-80B-450-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSC3-V-LB-80B-450-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSC3-V-LB-80B-450-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSC3-V-LB-80B-500-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSC3-V-LB-80B-500-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSC3-V-LB-80B-500-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSC3-V-LB-80B-500-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSC3-V-LB-100B-50-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSC3-V-LB-100B-50-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSC3-V-LB-100B-50-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSC3-V-LB-100B-50-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSC3-V-LB-100B-75-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSC3-V-LB-100B-75-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSC3-V-LB-100B-75-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSC3-V-LB-100B-75-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSC3-V-LB-100B-100-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSC3-V-LB-100B-100-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSC3-V-LB-100B-100-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSC3-V-LB-100B-100-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSC3-V-LB-100B-150-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSC3-V-LB-100B-150-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSC3-V-LB-100B-150-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSC3-V-LB-100B-150-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSC3-V-LB-100B-200-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSC3-V-LB-100B-200-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSC3-V-LB-100B-200-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSC3-V-LB-100B-200-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSC3-V-LB-100B-250-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSC3-V-LB-100B-250-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSC3-V-LB-100B-250-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSC3-V-LB-100B-250-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSC3-V-LB-100B-300-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSC3-V-LB-100B-300-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSC3-V-LB-100B-300-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSC3-V-LB-100B-300-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSC3-V-LB-100B-350-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSC3-V-LB-100B-350-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSC3-V-LB-100B-350-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSC3-V-LB-100B-350-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSC3-V-LB-100B-400-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSC3-V-LB-100B-400-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSC3-V-LB-100B-400-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSC3-V-LB-100B-400-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSC3-V-LB-100B-450-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSC3-V-LB-100B-450-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSC3-V-LB-100B-450-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSC3-V-LB-100B-450-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSC3-V-LB-100B-500-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSC3-V-LB-100B-500-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSC3-V-LB-100B-500-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSC3-V-LB-100B-500-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSC3-V-FA-80B-50-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSC3-V-FA-80B-50-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSC3-V-FA-80B-50-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSC3-V-FA-80B-50-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSC3-V-FA-80B-75-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSC3-V-FA-80B-75-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSC3-V-FA-80B-75-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSC3-V-FA-80B-75-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSC3-V-FA-80B-100-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSC3-V-FA-80B-100-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSC3-V-FA-80B-100-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSC3-V-FA-80B-100-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSC3-V-FA-80B-150-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSC3-V-FA-80B-150-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSC3-V-FA-80B-150-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSC3-V-FA-80B-150-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSC3-V-FA-80B-200-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSC3-V-FA-80B-200-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSC3-V-FA-80B-200-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSC3-V-FA-80B-200-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSC3-V-FA-80B-250-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSC3-V-FA-80B-250-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSC3-V-FA-80B-250-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSC3-V-FA-80B-250-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSC3-V-FA-80B-300-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSC3-V-FA-80B-300-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSC3-V-FA-80B-300-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSC3-V-FA-80B-300-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSC3-V-FA-80B-350-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSC3-V-FA-80B-350-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSC3-V-FA-80B-350-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSC3-V-FA-80B-350-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSC3-V-FA-80B-400-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSC3-V-FA-80B-400-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSC3-V-FA-80B-400-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSC3-V-FA-80B-400-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSC3-V-FA-80B-450-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSC3-V-FA-80B-450-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSC3-V-FA-80B-450-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSC3-V-FA-80B-450-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSC3-V-FA-80B-500-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSC3-V-FA-80B-500-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSC3-V-FA-80B-500-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSC3-V-FA-80B-500-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSC3-V-FA-100B-50-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSC3-V-FA-100B-50-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSC3-V-FA-100B-50-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSC3-V-FA-100B-50-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSC3-V-FA-100B-75-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSC3-V-FA-100B-75-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSC3-V-FA-100B-75-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSC3-V-FA-100B-75-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSC3-V-FA-100B-100-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSC3-V-FA-100B-100-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSC3-V-FA-100B-100-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSC3-V-FA-100B-100-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSC3-V-FA-100B-150-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSC3-V-FA-100B-150-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSC3-V-FA-100B-150-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSC3-V-FA-100B-150-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSC3-V-FA-100B-200-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSC3-V-FA-100B-200-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSC3-V-FA-100B-200-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSC3-V-FA-100B-200-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSC3-V-FA-100B-250-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSC3-V-FA-100B-250-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSC3-V-FA-100B-250-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSC3-V-FA-100B-250-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSC3-V-FA-100B-300-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSC3-V-FA-100B-300-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSC3-V-FA-100B-300-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSC3-V-FA-100B-300-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSC3-V-FA-100B-350-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSC3-V-FA-100B-350-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSC3-V-FA-100B-350-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSC3-V-FA-100B-350-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSC3-V-FA-100B-400-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSC3-V-FA-100B-400-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSC3-V-FA-100B-400-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSC3-V-FA-100B-400-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSC3-V-FA-100B-450-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSC3-V-FA-100B-450-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSC3-V-FA-100B-450-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSC3-V-FA-100B-450-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSC3-V-FA-100B-500-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSC3-V-FA-100B-500-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSC3-V-FA-100B-500-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSC3-V-FA-100B-500-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSC3-V-FB-80B-50-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSC3-V-FB-80B-50-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSC3-V-FB-80B-50-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSC3-V-FB-80B-50-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSC3-V-FB-80B-75-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSC3-V-FB-80B-75-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSC3-V-FB-80B-75-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSC3-V-FB-80B-75-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSC3-V-FB-80B-100-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSC3-V-FB-80B-100-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSC3-V-FB-80B-100-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSC3-V-FB-80B-100-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSC3-V-FB-80B-150-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSC3-V-FB-80B-150-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSC3-V-FB-80B-150-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSC3-V-FB-80B-150-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSC3-V-FB-80B-200-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSC3-V-FB-80B-200-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSC3-V-FB-80B-200-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSC3-V-FB-80B-200-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSC3-V-FB-80B-250-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSC3-V-FB-80B-250-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSC3-V-FB-80B-250-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSC3-V-FB-80B-250-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSC3-V-FB-80B-300-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSC3-V-FB-80B-300-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSC3-V-FB-80B-300-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSC3-V-FB-80B-300-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSC3-V-FB-80B-350-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSC3-V-FB-80B-350-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSC3-V-FB-80B-350-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSC3-V-FB-80B-350-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSC3-V-FB-80B-400-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSC3-V-FB-80B-400-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSC3-V-FB-80B-400-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSC3-V-FB-80B-400-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSC3-V-FB-80B-450-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSC3-V-FB-80B-450-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSC3-V-FB-80B-450-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSC3-V-FB-80B-450-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSC3-V-FB-80B-500-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSC3-V-FB-80B-500-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSC3-V-FB-80B-500-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSC3-V-FB-80B-500-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSC3-V-FB-100B-50-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSC3-V-FB-100B-50-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSC3-V-FB-100B-50-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSC3-V-FB-100B-50-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSC3-V-FB-100B-75-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSC3-V-FB-100B-75-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSC3-V-FB-100B-75-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSC3-V-FB-100B-75-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSC3-V-FB-100B-100-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSC3-V-FB-100B-100-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSC3-V-FB-100B-100-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSC3-V-FB-100B-100-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSC3-V-FB-100B-150-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSC3-V-FB-100B-150-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSC3-V-FB-100B-150-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSC3-V-FB-100B-150-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSC3-V-FB-100B-200-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSC3-V-FB-100B-200-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSC3-V-FB-100B-200-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSC3-V-FB-100B-200-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSC3-V-FB-100B-250-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSC3-V-FB-100B-250-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSC3-V-FB-100B-250-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSC3-V-FB-100B-250-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSC3-V-FB-100B-300-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSC3-V-FB-100B-300-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSC3-V-FB-100B-300-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSC3-V-FB-100B-300-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSC3-V-FB-100B-350-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSC3-V-FB-100B-350-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSC3-V-FB-100B-350-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSC3-V-FB-100B-350-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSC3-V-FB-100B-400-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSC3-V-FB-100B-400-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSC3-V-FB-100B-400-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSC3-V-FB-100B-400-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSC3-V-FB-100B-450-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSC3-V-FB-100B-450-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSC3-V-FB-100B-450-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSC3-V-FB-100B-450-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSC3-V-FB-100B-500-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSC3-V-FB-100B-500-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSC3-V-FB-100B-500-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSC3-V-FB-100B-500-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSC3-V-FC-80B-50-1	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSC3-V-FC-80B-50-2	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSC3-V-FC-80B-50-3	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSC3-V-FC-80B-50-4	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSC3-V-FC-80B-75-1	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSC3-V-FC-80B-75-2	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSC3-V-FC-80B-75-3	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSC3-V-FC-80B-75-4	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSC3-V-FC-80B-100-1	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSC3-V-FC-80B-100-2	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSC3-V-FC-80B-100-3	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSC3-V-FC-80B-100-4	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSC3-V-FC-80B-150-1	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSC3-V-FC-80B-150-2	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSC3-V-FC-80B-150-3	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSC3-V-FC-80B-150-4	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSC3-V-FC-80B-200-1	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSC3-V-FC-80B-200-2	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSC3-V-FC-80B-200-3	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSC3-V-FC-80B-200-4	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSC3-V-FC-80B-250-1	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSC3-V-FC-80B-250-2	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSC3-V-FC-80B-250-3	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSC3-V-FC-80B-250-4	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSC3-V-FC-80B-300-1	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSC3-V-FC-80B-300-2	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSC3-V-FC-80B-300-3	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSC3-V-FC-80B-300-4	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSC3-V-FC-80B-350-1	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSC3-V-FC-80B-350-2	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSC3-V-FC-80B-350-3	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSC3-V-FC-80B-350-4	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSC3-V-FC-80B-400-1	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSC3-V-FC-80B-400-2	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSC3-V-FC-80B-400-3	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSC3-V-FC-80B-400-4	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSC3-V-FC-80B-450-1	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSC3-V-FC-80B-450-2	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSC3-V-FC-80B-450-3	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSC3-V-FC-80B-450-4	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSC3-V-FC-80B-500-1	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSC3-V-FC-80B-500-2	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSC3-V-FC-80B-500-3	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSC3-V-FC-80B-500-4	Mounting: Head special flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSC3-V-FC-100B-50-1	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSC3-V-FC-100B-50-2	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSC3-V-FC-100B-50-3	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSC3-V-FC-100B-50-4	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSC3-V-FC-100B-75-1	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSC3-V-FC-100B-75-2	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSC3-V-FC-100B-75-3	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSC3-V-FC-100B-75-4	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSC3-V-FC-100B-100-1	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSC3-V-FC-100B-100-2	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSC3-V-FC-100B-100-3	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSC3-V-FC-100B-100-4	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSC3-V-FC-100B-150-1	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSC3-V-FC-100B-150-2	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSC3-V-FC-100B-150-3	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSC3-V-FC-100B-150-4	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSC3-V-FC-100B-200-1	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSC3-V-FC-100B-200-2	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSC3-V-FC-100B-200-3	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSC3-V-FC-100B-200-4	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSC3-V-FC-100B-250-1	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSC3-V-FC-100B-250-2	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSC3-V-FC-100B-250-3	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSC3-V-FC-100B-250-4	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSC3-V-FC-100B-300-1	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSC3-V-FC-100B-300-2	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSC3-V-FC-100B-300-3	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSC3-V-FC-100B-300-4	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSC3-V-FC-100B-350-1	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSC3-V-FC-100B-350-2	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSC3-V-FC-100B-350-3	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSC3-V-FC-100B-350-4	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSC3-V-FC-100B-400-1	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSC3-V-FC-100B-400-2	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSC3-V-FC-100B-400-3	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSC3-V-FC-100B-400-4	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSC3-V-FC-100B-450-1	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSC3-V-FC-100B-450-2	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSC3-V-FC-100B-450-3	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSC3-V-FC-100B-450-4	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSC3-V-FC-100B-500-1	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSC3-V-FC-100B-500-2	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSC3-V-FC-100B-500-3	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSC3-V-FC-100B-500-4	Mounting: Head special flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSC3-V-CA-80B-50-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSC3-V-CA-80B-50-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSC3-V-CA-80B-50-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSC3-V-CA-80B-50-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSC3-V-CA-80B-75-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSC3-V-CA-80B-75-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSC3-V-CA-80B-75-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSC3-V-CA-80B-75-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSC3-V-CA-80B-100-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSC3-V-CA-80B-100-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSC3-V-CA-80B-100-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSC3-V-CA-80B-100-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSC3-V-CA-80B-150-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSC3-V-CA-80B-150-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSC3-V-CA-80B-150-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSC3-V-CA-80B-150-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSC3-V-CA-80B-200-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSC3-V-CA-80B-200-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSC3-V-CA-80B-200-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSC3-V-CA-80B-200-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSC3-V-CA-80B-250-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSC3-V-CA-80B-250-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSC3-V-CA-80B-250-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSC3-V-CA-80B-250-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSC3-V-CA-80B-300-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSC3-V-CA-80B-300-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSC3-V-CA-80B-300-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSC3-V-CA-80B-300-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSC3-V-CA-80B-350-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSC3-V-CA-80B-350-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSC3-V-CA-80B-350-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSC3-V-CA-80B-350-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSC3-V-CA-80B-400-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSC3-V-CA-80B-400-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSC3-V-CA-80B-400-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSC3-V-CA-80B-400-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSC3-V-CA-80B-450-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSC3-V-CA-80B-450-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSC3-V-CA-80B-450-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSC3-V-CA-80B-450-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSC3-V-CA-80B-500-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSC3-V-CA-80B-500-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSC3-V-CA-80B-500-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSC3-V-CA-80B-500-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSC3-V-CA-100B-50-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSC3-V-CA-100B-50-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSC3-V-CA-100B-50-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSC3-V-CA-100B-50-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSC3-V-CA-100B-75-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSC3-V-CA-100B-75-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSC3-V-CA-100B-75-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSC3-V-CA-100B-75-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSC3-V-CA-100B-100-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSC3-V-CA-100B-100-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSC3-V-CA-100B-100-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSC3-V-CA-100B-100-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSC3-V-CA-100B-150-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSC3-V-CA-100B-150-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSC3-V-CA-100B-150-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSC3-V-CA-100B-150-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSC3-V-CA-100B-200-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSC3-V-CA-100B-200-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSC3-V-CA-100B-200-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSC3-V-CA-100B-200-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSC3-V-CA-100B-250-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSC3-V-CA-100B-250-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSC3-V-CA-100B-250-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSC3-V-CA-100B-250-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSC3-V-CA-100B-300-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSC3-V-CA-100B-300-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSC3-V-CA-100B-300-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSC3-V-CA-100B-300-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSC3-V-CA-100B-350-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSC3-V-CA-100B-350-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSC3-V-CA-100B-350-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSC3-V-CA-100B-350-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSC3-V-CA-100B-400-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSC3-V-CA-100B-400-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSC3-V-CA-100B-400-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSC3-V-CA-100B-400-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSC3-V-CA-100B-450-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSC3-V-CA-100B-450-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSC3-V-CA-100B-450-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSC3-V-CA-100B-450-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSC3-V-CA-100B-500-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSC3-V-CA-100B-500-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSC3-V-CA-100B-500-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSC3-V-CA-100B-500-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSC3-V-CB-80B-50-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSC3-V-CB-80B-50-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSC3-V-CB-80B-50-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSC3-V-CB-80B-50-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSC3-V-CB-80B-75-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSC3-V-CB-80B-75-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSC3-V-CB-80B-75-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSC3-V-CB-80B-75-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSC3-V-CB-80B-100-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSC3-V-CB-80B-100-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSC3-V-CB-80B-100-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSC3-V-CB-80B-100-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSC3-V-CB-80B-150-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSC3-V-CB-80B-150-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSC3-V-CB-80B-150-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSC3-V-CB-80B-150-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSC3-V-CB-80B-200-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSC3-V-CB-80B-200-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSC3-V-CB-80B-200-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSC3-V-CB-80B-200-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSC3-V-CB-80B-250-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSC3-V-CB-80B-250-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSC3-V-CB-80B-250-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSC3-V-CB-80B-250-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSC3-V-CB-80B-300-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSC3-V-CB-80B-300-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSC3-V-CB-80B-300-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSC3-V-CB-80B-300-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSC3-V-CB-80B-350-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSC3-V-CB-80B-350-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSC3-V-CB-80B-350-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSC3-V-CB-80B-350-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSC3-V-CB-80B-400-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSC3-V-CB-80B-400-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSC3-V-CB-80B-400-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSC3-V-CB-80B-400-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSC3-V-CB-80B-450-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSC3-V-CB-80B-450-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSC3-V-CB-80B-450-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSC3-V-CB-80B-450-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSC3-V-CB-80B-500-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSC3-V-CB-80B-500-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSC3-V-CB-80B-500-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSC3-V-CB-80B-500-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSC3-V-CB-100B-50-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSC3-V-CB-100B-50-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSC3-V-CB-100B-50-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSC3-V-CB-100B-50-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSC3-V-CB-100B-75-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSC3-V-CB-100B-75-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSC3-V-CB-100B-75-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSC3-V-CB-100B-75-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSC3-V-CB-100B-100-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSC3-V-CB-100B-100-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSC3-V-CB-100B-100-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSC3-V-CB-100B-100-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSC3-V-CB-100B-150-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSC3-V-CB-100B-150-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSC3-V-CB-100B-150-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSC3-V-CB-100B-150-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSC3-V-CB-100B-200-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSC3-V-CB-100B-200-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSC3-V-CB-100B-200-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSC3-V-CB-100B-200-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSC3-V-CB-100B-250-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSC3-V-CB-100B-250-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSC3-V-CB-100B-250-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSC3-V-CB-100B-250-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSC3-V-CB-100B-300-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSC3-V-CB-100B-300-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSC3-V-CB-100B-300-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSC3-V-CB-100B-300-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSC3-V-CB-100B-350-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSC3-V-CB-100B-350-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSC3-V-CB-100B-350-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSC3-V-CB-100B-350-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSC3-V-CB-100B-400-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSC3-V-CB-100B-400-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSC3-V-CB-100B-400-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSC3-V-CB-100B-400-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSC3-V-CB-100B-450-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSC3-V-CB-100B-450-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSC3-V-CB-100B-450-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSC3-V-CB-100B-450-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSC3-V-CB-100B-500-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSC3-V-CB-100B-500-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSC3-V-CB-100B-500-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSC3-V-CB-100B-500-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSC3-V-TC-80B-50-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSC3-V-TC-80B-50-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSC3-V-TC-80B-50-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSC3-V-TC-80B-50-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSC3-V-TC-80B-75-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSC3-V-TC-80B-75-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSC3-V-TC-80B-75-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSC3-V-TC-80B-75-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSC3-V-TC-80B-100-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSC3-V-TC-80B-100-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSC3-V-TC-80B-100-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSC3-V-TC-80B-100-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSC3-V-TC-80B-150-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSC3-V-TC-80B-150-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSC3-V-TC-80B-150-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSC3-V-TC-80B-150-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSC3-V-TC-80B-200-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSC3-V-TC-80B-200-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSC3-V-TC-80B-200-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSC3-V-TC-80B-200-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSC3-V-TC-80B-250-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSC3-V-TC-80B-250-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSC3-V-TC-80B-250-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSC3-V-TC-80B-250-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSC3-V-TC-80B-300-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSC3-V-TC-80B-300-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSC3-V-TC-80B-300-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSC3-V-TC-80B-300-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSC3-V-TC-80B-350-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSC3-V-TC-80B-350-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSC3-V-TC-80B-350-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSC3-V-TC-80B-350-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSC3-V-TC-80B-400-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSC3-V-TC-80B-400-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSC3-V-TC-80B-400-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSC3-V-TC-80B-400-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSC3-V-TC-80B-450-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSC3-V-TC-80B-450-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSC3-V-TC-80B-450-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSC3-V-TC-80B-450-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSC3-V-TC-80B-500-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSC3-V-TC-80B-500-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSC3-V-TC-80B-500-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSC3-V-TC-80B-500-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSC3-V-TC-100B-50-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSC3-V-TC-100B-50-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSC3-V-TC-100B-50-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSC3-V-TC-100B-50-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSC3-V-TC-100B-75-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSC3-V-TC-100B-75-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSC3-V-TC-100B-75-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSC3-V-TC-100B-75-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSC3-V-TC-100B-100-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSC3-V-TC-100B-100-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSC3-V-TC-100B-100-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSC3-V-TC-100B-100-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSC3-V-TC-100B-150-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSC3-V-TC-100B-150-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSC3-V-TC-100B-150-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSC3-V-TC-100B-150-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSC3-V-TC-100B-200-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSC3-V-TC-100B-200-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSC3-V-TC-100B-200-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSC3-V-TC-100B-200-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSC3-V-TC-100B-250-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSC3-V-TC-100B-250-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSC3-V-TC-100B-250-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSC3-V-TC-100B-250-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSC3-V-TC-100B-300-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSC3-V-TC-100B-300-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSC3-V-TC-100B-300-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSC3-V-TC-100B-300-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSC3-V-TC-100B-350-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSC3-V-TC-100B-350-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSC3-V-TC-100B-350-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSC3-V-TC-100B-350-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSC3-V-TC-100B-400-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSC3-V-TC-100B-400-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSC3-V-TC-100B-400-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSC3-V-TC-100B-400-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSC3-V-TC-100B-450-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSC3-V-TC-100B-450-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSC3-V-TC-100B-450-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSC3-V-TC-100B-450-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSC3-V-TC-100B-500-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSC3-V-TC-100B-500-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSC3-V-TC-100B-500-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSC3-V-TC-100B-500-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSC3-V-TA-80B-50-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSC3-V-TA-80B-50-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSC3-V-TA-80B-50-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSC3-V-TA-80B-50-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSC3-V-TA-80B-75-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSC3-V-TA-80B-75-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSC3-V-TA-80B-75-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSC3-V-TA-80B-75-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSC3-V-TA-80B-100-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSC3-V-TA-80B-100-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSC3-V-TA-80B-100-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSC3-V-TA-80B-100-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSC3-V-TA-80B-150-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSC3-V-TA-80B-150-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSC3-V-TA-80B-150-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSC3-V-TA-80B-150-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSC3-V-TA-80B-200-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSC3-V-TA-80B-200-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSC3-V-TA-80B-200-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSC3-V-TA-80B-200-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSC3-V-TA-80B-250-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSC3-V-TA-80B-250-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSC3-V-TA-80B-250-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSC3-V-TA-80B-250-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSC3-V-TA-80B-300-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSC3-V-TA-80B-300-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSC3-V-TA-80B-300-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSC3-V-TA-80B-300-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSC3-V-TA-80B-350-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSC3-V-TA-80B-350-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSC3-V-TA-80B-350-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSC3-V-TA-80B-350-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSC3-V-TA-80B-400-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSC3-V-TA-80B-400-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSC3-V-TA-80B-400-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSC3-V-TA-80B-400-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSC3-V-TA-80B-450-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSC3-V-TA-80B-450-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSC3-V-TA-80B-450-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSC3-V-TA-80B-450-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSC3-V-TA-80B-500-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSC3-V-TA-80B-500-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSC3-V-TA-80B-500-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSC3-V-TA-80B-500-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSC3-V-TA-100B-50-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSC3-V-TA-100B-50-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSC3-V-TA-100B-50-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSC3-V-TA-100B-50-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSC3-V-TA-100B-75-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSC3-V-TA-100B-75-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSC3-V-TA-100B-75-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSC3-V-TA-100B-75-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSC3-V-TA-100B-100-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSC3-V-TA-100B-100-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSC3-V-TA-100B-100-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSC3-V-TA-100B-100-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSC3-V-TA-100B-150-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSC3-V-TA-100B-150-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSC3-V-TA-100B-150-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSC3-V-TA-100B-150-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSC3-V-TA-100B-200-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSC3-V-TA-100B-200-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSC3-V-TA-100B-200-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSC3-V-TA-100B-200-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSC3-V-TA-100B-250-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSC3-V-TA-100B-250-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSC3-V-TA-100B-250-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSC3-V-TA-100B-250-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSC3-V-TA-100B-300-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSC3-V-TA-100B-300-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSC3-V-TA-100B-300-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSC3-V-TA-100B-300-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSC3-V-TA-100B-350-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSC3-V-TA-100B-350-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSC3-V-TA-100B-350-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSC3-V-TA-100B-350-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSC3-V-TA-100B-400-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSC3-V-TA-100B-400-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSC3-V-TA-100B-400-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSC3-V-TA-100B-400-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSC3-V-TA-100B-450-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSC3-V-TA-100B-450-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSC3-V-TA-100B-450-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSC3-V-TA-100B-450-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSC3-V-TA-100B-500-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSC3-V-TA-100B-500-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSC3-V-TA-100B-500-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSC3-V-TA-100B-500-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSC3-V-TB-80B-50-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSC3-V-TB-80B-50-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSC3-V-TB-80B-50-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSC3-V-TB-80B-50-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSC3-V-TB-80B-75-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSC3-V-TB-80B-75-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSC3-V-TB-80B-75-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSC3-V-TB-80B-75-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSC3-V-TB-80B-100-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSC3-V-TB-80B-100-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSC3-V-TB-80B-100-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSC3-V-TB-80B-100-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSC3-V-TB-80B-150-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSC3-V-TB-80B-150-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSC3-V-TB-80B-150-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSC3-V-TB-80B-150-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSC3-V-TB-80B-200-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSC3-V-TB-80B-200-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSC3-V-TB-80B-200-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSC3-V-TB-80B-200-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSC3-V-TB-80B-250-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSC3-V-TB-80B-250-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSC3-V-TB-80B-250-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSC3-V-TB-80B-250-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSC3-V-TB-80B-300-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSC3-V-TB-80B-300-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSC3-V-TB-80B-300-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSC3-V-TB-80B-300-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSC3-V-TB-80B-350-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSC3-V-TB-80B-350-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSC3-V-TB-80B-350-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSC3-V-TB-80B-350-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSC3-V-TB-80B-400-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSC3-V-TB-80B-400-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSC3-V-TB-80B-400-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSC3-V-TB-80B-400-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSC3-V-TB-80B-450-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSC3-V-TB-80B-450-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSC3-V-TB-80B-450-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSC3-V-TB-80B-450-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSC3-V-TB-80B-500-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSC3-V-TB-80B-500-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSC3-V-TB-80B-500-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSC3-V-TB-80B-500-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSC3-V-TB-100B-50-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSC3-V-TB-100B-50-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSC3-V-TB-100B-50-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSC3-V-TB-100B-50-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSC3-V-TB-100B-75-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSC3-V-TB-100B-75-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSC3-V-TB-100B-75-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSC3-V-TB-100B-75-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSC3-V-TB-100B-100-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSC3-V-TB-100B-100-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSC3-V-TB-100B-100-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSC3-V-TB-100B-100-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSC3-V-TB-100B-150-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSC3-V-TB-100B-150-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSC3-V-TB-100B-150-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSC3-V-TB-100B-150-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSC3-V-TB-100B-200-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSC3-V-TB-100B-200-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSC3-V-TB-100B-200-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSC3-V-TB-100B-200-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSC3-V-TB-100B-250-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSC3-V-TB-100B-250-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSC3-V-TB-100B-250-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSC3-V-TB-100B-250-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSC3-V-TB-100B-300-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSC3-V-TB-100B-300-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSC3-V-TB-100B-300-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSC3-V-TB-100B-300-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSC3-V-TB-100B-350-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSC3-V-TB-100B-350-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSC3-V-TB-100B-350-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSC3-V-TB-100B-350-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSC3-V-TB-100B-400-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSC3-V-TB-100B-400-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSC3-V-TB-100B-400-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSC3-V-TB-100B-400-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSC3-V-TB-100B-450-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSC3-V-TB-100B-450-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSC3-V-TB-100B-450-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSC3-V-TB-100B-450-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSC3-V-TB-100B-500-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSC3-V-TB-100B-500-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSC3-V-TB-100B-500-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSC3-V-TB-100B-500-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD JSC3-V Cell Top Cylinder with Brake Valve (80-100)
