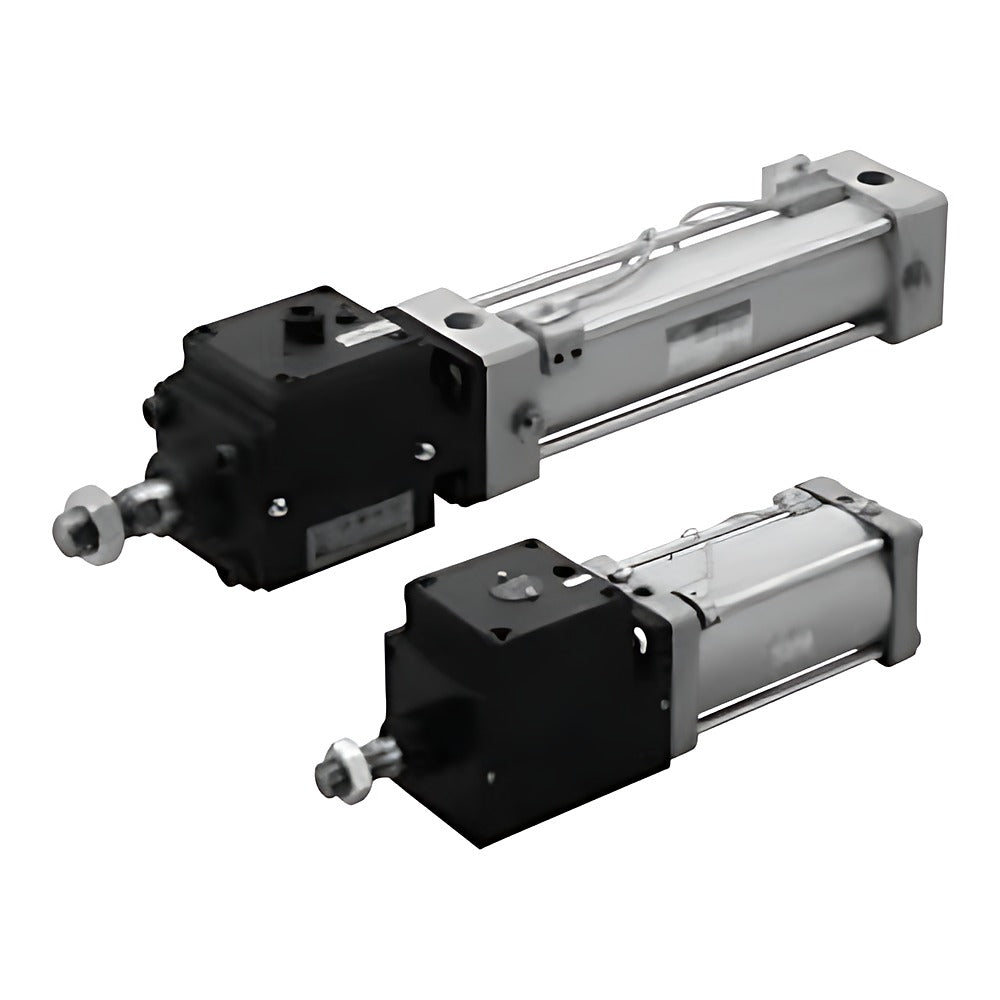

CKD JSC4-H Cell Top Cylinder with Brake, Low Hydraulic (125-180)

CKD JSC4-H Cell Top Cylinder with Brake, Low Hydraulic (125-180)

The CKD JSC4-H is a large-bore (125 to 180 mm) double-acting, low-hydraulic Cell Top cylinder with an integrated brake for intermediate stopping and drop prevention.

Key features

  • Integrated air-released brake; holding force 9600 to 20000 N
  • JSC4-H without switch magnet, JSC4-LH with switch magnet for T-type switches
  • Air cushion standard (code B); cushion needle position R/S/T and C2 check valve as options
  • Mounting brackets shipped attached; -S092 made-to-order type is JSC3-LH mount compatible
  • Repair seal kits JSC4-H-125K to JSC4-H-180K

Specifications

Operation Double acting, low hydraulic
Working fluid Hydraulic fluid (brake: compressed air)
Max. working pressure 1.0 MPa
Proof pressure 1.6 MPa
Ambient temperature 5 to 50 C
Cushion (listed codes) Air cushion both ends (B)
Port thread (listed codes) Rc
Max. stroke 800 to 900 mm (by bore)
Source CKD Korea catalog CB-030SK-9, p. 906-917
