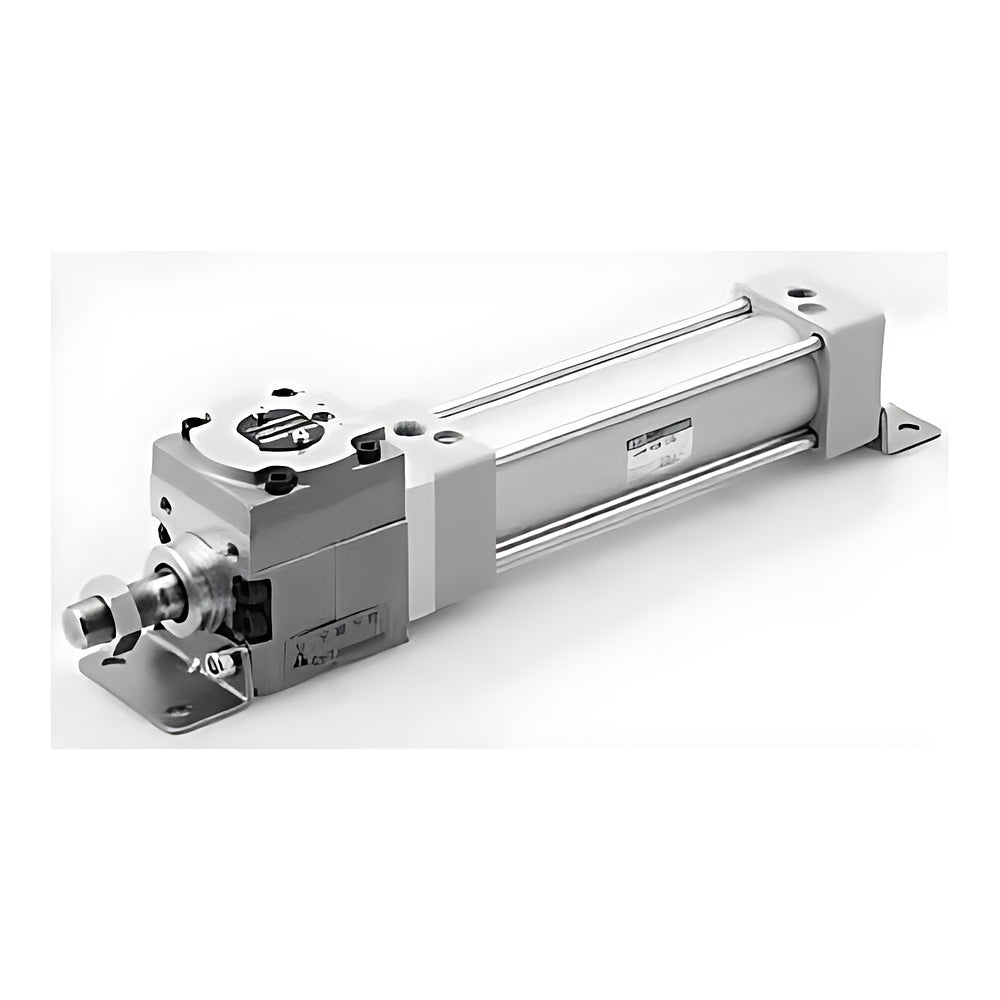

CKD JSG-V Tie-Rod Cylinder with Brake Release Valve (80-100)

CKD JSG-V tie-rod cylinder with brake and integrated brake release solenoid valve (4KB2 equivalent), bore 80-100 mm.

Key features

Brake mechanism of the proven JSC3 mounted on the SCG tie-rod cylinder for intermediate stops and drop prevention
Compact brake section with small T-type auto switches that do not protrude
Switch magnet built in; auto switches, lead length and switch quantity not expanded
Brake release valve coil AC100V, AC200V, DC24V or DC12V (expanded); rubber cushion not available for JSG-V
Options: bellows J, stainless rod M; accessories I, Y, B1, B2, B3, B4; NPT (N) / G (G) ports on order
Intermediate strokes in 1 mm steps; max. stroke 600 / 700 / 800 mm, made to order up to 1500 mm

Specifications

Action	Double acting with brake release valve
Fluid	Compressed air
Max. operating pressure	1.0 MPa (JSG), 0.7 MPa (JSG-V)
Min. operating pressure	0.3 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C
Piston speed	50 to 1000 mm/s
Cushion	Air cushion both sides (B)
Lubrication	Not required
Holding force	980 / 1569 / 2451 / 3922 / 6178 N
Source	CKD Korea catalog CB-030SK-9, p. 825-848

JSG-V-00-80B-25-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSG-V-00-80B-25-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSG-V-00-80B-25-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSG-V-00-80B-25-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC12V
JSG-V-00-80B-50-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSG-V-00-80B-50-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSG-V-00-80B-50-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSG-V-00-80B-50-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSG-V-00-80B-75-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSG-V-00-80B-75-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSG-V-00-80B-75-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSG-V-00-80B-75-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSG-V-00-80B-100-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSG-V-00-80B-100-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSG-V-00-80B-100-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSG-V-00-80B-100-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSG-V-00-80B-150-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSG-V-00-80B-150-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSG-V-00-80B-150-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSG-V-00-80B-150-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSG-V-00-80B-200-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSG-V-00-80B-200-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSG-V-00-80B-200-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSG-V-00-80B-200-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSG-V-00-80B-250-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSG-V-00-80B-250-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSG-V-00-80B-250-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSG-V-00-80B-250-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSG-V-00-80B-300-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSG-V-00-80B-300-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSG-V-00-80B-300-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSG-V-00-80B-300-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSG-V-00-80B-350-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSG-V-00-80B-350-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSG-V-00-80B-350-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSG-V-00-80B-350-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSG-V-00-80B-400-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSG-V-00-80B-400-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSG-V-00-80B-400-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSG-V-00-80B-400-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSG-V-00-80B-450-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSG-V-00-80B-450-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSG-V-00-80B-450-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSG-V-00-80B-450-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSG-V-00-80B-500-1		Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSG-V-00-80B-500-2		Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSG-V-00-80B-500-3		Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSG-V-00-80B-500-4		Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSG-V-00-100B-25-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSG-V-00-100B-25-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSG-V-00-100B-25-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSG-V-00-100B-25-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC12V
JSG-V-00-100B-50-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSG-V-00-100B-50-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSG-V-00-100B-50-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSG-V-00-100B-50-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSG-V-00-100B-75-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSG-V-00-100B-75-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSG-V-00-100B-75-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSG-V-00-100B-75-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSG-V-00-100B-100-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSG-V-00-100B-100-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSG-V-00-100B-100-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSG-V-00-100B-100-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSG-V-00-100B-150-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSG-V-00-100B-150-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSG-V-00-100B-150-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSG-V-00-100B-150-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSG-V-00-100B-200-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSG-V-00-100B-200-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSG-V-00-100B-200-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSG-V-00-100B-200-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSG-V-00-100B-250-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSG-V-00-100B-250-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSG-V-00-100B-250-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSG-V-00-100B-250-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSG-V-00-100B-300-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSG-V-00-100B-300-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSG-V-00-100B-300-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSG-V-00-100B-300-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSG-V-00-100B-350-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSG-V-00-100B-350-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSG-V-00-100B-350-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSG-V-00-100B-350-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSG-V-00-100B-400-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSG-V-00-100B-400-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSG-V-00-100B-400-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSG-V-00-100B-400-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSG-V-00-100B-450-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSG-V-00-100B-450-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSG-V-00-100B-450-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSG-V-00-100B-450-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSG-V-00-100B-500-1		Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSG-V-00-100B-500-2		Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSG-V-00-100B-500-3		Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSG-V-00-100B-500-4		Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSG-V-LB-80B-25-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSG-V-LB-80B-25-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSG-V-LB-80B-25-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSG-V-LB-80B-25-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC12V
JSG-V-LB-80B-50-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSG-V-LB-80B-50-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSG-V-LB-80B-50-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSG-V-LB-80B-50-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSG-V-LB-80B-75-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSG-V-LB-80B-75-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSG-V-LB-80B-75-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSG-V-LB-80B-75-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSG-V-LB-80B-100-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSG-V-LB-80B-100-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSG-V-LB-80B-100-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSG-V-LB-80B-100-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSG-V-LB-80B-150-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSG-V-LB-80B-150-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSG-V-LB-80B-150-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSG-V-LB-80B-150-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSG-V-LB-80B-200-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSG-V-LB-80B-200-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSG-V-LB-80B-200-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSG-V-LB-80B-200-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSG-V-LB-80B-250-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSG-V-LB-80B-250-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSG-V-LB-80B-250-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSG-V-LB-80B-250-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSG-V-LB-80B-300-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSG-V-LB-80B-300-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSG-V-LB-80B-300-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSG-V-LB-80B-300-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSG-V-LB-80B-350-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSG-V-LB-80B-350-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSG-V-LB-80B-350-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSG-V-LB-80B-350-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSG-V-LB-80B-400-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSG-V-LB-80B-400-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSG-V-LB-80B-400-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSG-V-LB-80B-400-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSG-V-LB-80B-450-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSG-V-LB-80B-450-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSG-V-LB-80B-450-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSG-V-LB-80B-450-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSG-V-LB-80B-500-1		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSG-V-LB-80B-500-2		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSG-V-LB-80B-500-3		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSG-V-LB-80B-500-4		Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSG-V-LB-100B-25-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSG-V-LB-100B-25-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSG-V-LB-100B-25-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSG-V-LB-100B-25-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC12V
JSG-V-LB-100B-50-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSG-V-LB-100B-50-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSG-V-LB-100B-50-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSG-V-LB-100B-50-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSG-V-LB-100B-75-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSG-V-LB-100B-75-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSG-V-LB-100B-75-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSG-V-LB-100B-75-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSG-V-LB-100B-100-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSG-V-LB-100B-100-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSG-V-LB-100B-100-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSG-V-LB-100B-100-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSG-V-LB-100B-150-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSG-V-LB-100B-150-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSG-V-LB-100B-150-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSG-V-LB-100B-150-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSG-V-LB-100B-200-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSG-V-LB-100B-200-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSG-V-LB-100B-200-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSG-V-LB-100B-200-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSG-V-LB-100B-250-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSG-V-LB-100B-250-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSG-V-LB-100B-250-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSG-V-LB-100B-250-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSG-V-LB-100B-300-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSG-V-LB-100B-300-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSG-V-LB-100B-300-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSG-V-LB-100B-300-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSG-V-LB-100B-350-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSG-V-LB-100B-350-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSG-V-LB-100B-350-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSG-V-LB-100B-350-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSG-V-LB-100B-400-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSG-V-LB-100B-400-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSG-V-LB-100B-400-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSG-V-LB-100B-400-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSG-V-LB-100B-450-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSG-V-LB-100B-450-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSG-V-LB-100B-450-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSG-V-LB-100B-450-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSG-V-LB-100B-500-1		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSG-V-LB-100B-500-2		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSG-V-LB-100B-500-3		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSG-V-LB-100B-500-4		Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSG-V-FA-80B-25-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSG-V-FA-80B-25-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSG-V-FA-80B-25-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSG-V-FA-80B-25-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC12V
JSG-V-FA-80B-50-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSG-V-FA-80B-50-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSG-V-FA-80B-50-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSG-V-FA-80B-50-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSG-V-FA-80B-75-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSG-V-FA-80B-75-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSG-V-FA-80B-75-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSG-V-FA-80B-75-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSG-V-FA-80B-100-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSG-V-FA-80B-100-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSG-V-FA-80B-100-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSG-V-FA-80B-100-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSG-V-FA-80B-150-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSG-V-FA-80B-150-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSG-V-FA-80B-150-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSG-V-FA-80B-150-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSG-V-FA-80B-200-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSG-V-FA-80B-200-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSG-V-FA-80B-200-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSG-V-FA-80B-200-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSG-V-FA-80B-250-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSG-V-FA-80B-250-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSG-V-FA-80B-250-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSG-V-FA-80B-250-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSG-V-FA-80B-300-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSG-V-FA-80B-300-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSG-V-FA-80B-300-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSG-V-FA-80B-300-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSG-V-FA-80B-350-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSG-V-FA-80B-350-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSG-V-FA-80B-350-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSG-V-FA-80B-350-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSG-V-FA-80B-400-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSG-V-FA-80B-400-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSG-V-FA-80B-400-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSG-V-FA-80B-400-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSG-V-FA-80B-450-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSG-V-FA-80B-450-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSG-V-FA-80B-450-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSG-V-FA-80B-450-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSG-V-FA-80B-500-1		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSG-V-FA-80B-500-2		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSG-V-FA-80B-500-3		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSG-V-FA-80B-500-4		Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSG-V-FA-100B-25-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSG-V-FA-100B-25-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSG-V-FA-100B-25-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSG-V-FA-100B-25-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC12V
JSG-V-FA-100B-50-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSG-V-FA-100B-50-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSG-V-FA-100B-50-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSG-V-FA-100B-50-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSG-V-FA-100B-75-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSG-V-FA-100B-75-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSG-V-FA-100B-75-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSG-V-FA-100B-75-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSG-V-FA-100B-100-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSG-V-FA-100B-100-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSG-V-FA-100B-100-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSG-V-FA-100B-100-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSG-V-FA-100B-150-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSG-V-FA-100B-150-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSG-V-FA-100B-150-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSG-V-FA-100B-150-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSG-V-FA-100B-200-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSG-V-FA-100B-200-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSG-V-FA-100B-200-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSG-V-FA-100B-200-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSG-V-FA-100B-250-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSG-V-FA-100B-250-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSG-V-FA-100B-250-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSG-V-FA-100B-250-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSG-V-FA-100B-300-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSG-V-FA-100B-300-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSG-V-FA-100B-300-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSG-V-FA-100B-300-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSG-V-FA-100B-350-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSG-V-FA-100B-350-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSG-V-FA-100B-350-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSG-V-FA-100B-350-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSG-V-FA-100B-400-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSG-V-FA-100B-400-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSG-V-FA-100B-400-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSG-V-FA-100B-400-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSG-V-FA-100B-450-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSG-V-FA-100B-450-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSG-V-FA-100B-450-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSG-V-FA-100B-450-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSG-V-FA-100B-500-1		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSG-V-FA-100B-500-2		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSG-V-FA-100B-500-3		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSG-V-FA-100B-500-4		Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSG-V-FB-80B-25-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSG-V-FB-80B-25-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSG-V-FB-80B-25-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSG-V-FB-80B-25-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC12V
JSG-V-FB-80B-50-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSG-V-FB-80B-50-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSG-V-FB-80B-50-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSG-V-FB-80B-50-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSG-V-FB-80B-75-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSG-V-FB-80B-75-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSG-V-FB-80B-75-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSG-V-FB-80B-75-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSG-V-FB-80B-100-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSG-V-FB-80B-100-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSG-V-FB-80B-100-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSG-V-FB-80B-100-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSG-V-FB-80B-150-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSG-V-FB-80B-150-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSG-V-FB-80B-150-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSG-V-FB-80B-150-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSG-V-FB-80B-200-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSG-V-FB-80B-200-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSG-V-FB-80B-200-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSG-V-FB-80B-200-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSG-V-FB-80B-250-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSG-V-FB-80B-250-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSG-V-FB-80B-250-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSG-V-FB-80B-250-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSG-V-FB-80B-300-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSG-V-FB-80B-300-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSG-V-FB-80B-300-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSG-V-FB-80B-300-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSG-V-FB-80B-350-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSG-V-FB-80B-350-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSG-V-FB-80B-350-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSG-V-FB-80B-350-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSG-V-FB-80B-400-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSG-V-FB-80B-400-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSG-V-FB-80B-400-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSG-V-FB-80B-400-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSG-V-FB-80B-450-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSG-V-FB-80B-450-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSG-V-FB-80B-450-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSG-V-FB-80B-450-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSG-V-FB-80B-500-1		Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSG-V-FB-80B-500-2		Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSG-V-FB-80B-500-3		Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSG-V-FB-80B-500-4		Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSG-V-FB-100B-25-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSG-V-FB-100B-25-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSG-V-FB-100B-25-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSG-V-FB-100B-25-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC12V
JSG-V-FB-100B-50-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSG-V-FB-100B-50-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSG-V-FB-100B-50-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSG-V-FB-100B-50-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSG-V-FB-100B-75-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSG-V-FB-100B-75-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSG-V-FB-100B-75-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSG-V-FB-100B-75-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSG-V-FB-100B-100-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSG-V-FB-100B-100-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSG-V-FB-100B-100-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSG-V-FB-100B-100-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSG-V-FB-100B-150-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSG-V-FB-100B-150-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSG-V-FB-100B-150-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSG-V-FB-100B-150-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSG-V-FB-100B-200-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSG-V-FB-100B-200-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSG-V-FB-100B-200-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSG-V-FB-100B-200-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSG-V-FB-100B-250-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSG-V-FB-100B-250-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSG-V-FB-100B-250-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSG-V-FB-100B-250-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSG-V-FB-100B-300-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSG-V-FB-100B-300-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSG-V-FB-100B-300-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSG-V-FB-100B-300-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSG-V-FB-100B-350-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSG-V-FB-100B-350-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSG-V-FB-100B-350-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSG-V-FB-100B-350-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSG-V-FB-100B-400-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSG-V-FB-100B-400-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSG-V-FB-100B-400-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSG-V-FB-100B-400-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSG-V-FB-100B-450-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSG-V-FB-100B-450-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSG-V-FB-100B-450-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSG-V-FB-100B-450-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSG-V-FB-100B-500-1		Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSG-V-FB-100B-500-2		Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSG-V-FB-100B-500-3		Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSG-V-FB-100B-500-4		Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSG-V-CA-80B-25-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSG-V-CA-80B-25-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSG-V-CA-80B-25-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSG-V-CA-80B-25-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC12V
JSG-V-CA-80B-50-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSG-V-CA-80B-50-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSG-V-CA-80B-50-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSG-V-CA-80B-50-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSG-V-CA-80B-75-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSG-V-CA-80B-75-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSG-V-CA-80B-75-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSG-V-CA-80B-75-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSG-V-CA-80B-100-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSG-V-CA-80B-100-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSG-V-CA-80B-100-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSG-V-CA-80B-100-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSG-V-CA-80B-150-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSG-V-CA-80B-150-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSG-V-CA-80B-150-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSG-V-CA-80B-150-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSG-V-CA-80B-200-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSG-V-CA-80B-200-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSG-V-CA-80B-200-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSG-V-CA-80B-200-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSG-V-CA-80B-250-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSG-V-CA-80B-250-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSG-V-CA-80B-250-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSG-V-CA-80B-250-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSG-V-CA-80B-300-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSG-V-CA-80B-300-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSG-V-CA-80B-300-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSG-V-CA-80B-300-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSG-V-CA-80B-350-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSG-V-CA-80B-350-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSG-V-CA-80B-350-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSG-V-CA-80B-350-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSG-V-CA-80B-400-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSG-V-CA-80B-400-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSG-V-CA-80B-400-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSG-V-CA-80B-400-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSG-V-CA-80B-450-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSG-V-CA-80B-450-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSG-V-CA-80B-450-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSG-V-CA-80B-450-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSG-V-CA-80B-500-1		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSG-V-CA-80B-500-2		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSG-V-CA-80B-500-3		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSG-V-CA-80B-500-4		Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSG-V-CA-100B-25-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSG-V-CA-100B-25-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSG-V-CA-100B-25-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSG-V-CA-100B-25-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC12V
JSG-V-CA-100B-50-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSG-V-CA-100B-50-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSG-V-CA-100B-50-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSG-V-CA-100B-50-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSG-V-CA-100B-75-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSG-V-CA-100B-75-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSG-V-CA-100B-75-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSG-V-CA-100B-75-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSG-V-CA-100B-100-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSG-V-CA-100B-100-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSG-V-CA-100B-100-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSG-V-CA-100B-100-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSG-V-CA-100B-150-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSG-V-CA-100B-150-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSG-V-CA-100B-150-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSG-V-CA-100B-150-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSG-V-CA-100B-200-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSG-V-CA-100B-200-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSG-V-CA-100B-200-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSG-V-CA-100B-200-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSG-V-CA-100B-250-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSG-V-CA-100B-250-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSG-V-CA-100B-250-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSG-V-CA-100B-250-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSG-V-CA-100B-300-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSG-V-CA-100B-300-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSG-V-CA-100B-300-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSG-V-CA-100B-300-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSG-V-CA-100B-350-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSG-V-CA-100B-350-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSG-V-CA-100B-350-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSG-V-CA-100B-350-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSG-V-CA-100B-400-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSG-V-CA-100B-400-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSG-V-CA-100B-400-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSG-V-CA-100B-400-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSG-V-CA-100B-450-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSG-V-CA-100B-450-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSG-V-CA-100B-450-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSG-V-CA-100B-450-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSG-V-CA-100B-500-1		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSG-V-CA-100B-500-2		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSG-V-CA-100B-500-3		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSG-V-CA-100B-500-4		Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSG-V-CB-80B-25-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSG-V-CB-80B-25-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSG-V-CB-80B-25-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSG-V-CB-80B-25-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC12V
JSG-V-CB-80B-50-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSG-V-CB-80B-50-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSG-V-CB-80B-50-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSG-V-CB-80B-50-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSG-V-CB-80B-75-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSG-V-CB-80B-75-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSG-V-CB-80B-75-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSG-V-CB-80B-75-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSG-V-CB-80B-100-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSG-V-CB-80B-100-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSG-V-CB-80B-100-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSG-V-CB-80B-100-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSG-V-CB-80B-150-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSG-V-CB-80B-150-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSG-V-CB-80B-150-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSG-V-CB-80B-150-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSG-V-CB-80B-200-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSG-V-CB-80B-200-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSG-V-CB-80B-200-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSG-V-CB-80B-200-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSG-V-CB-80B-250-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSG-V-CB-80B-250-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSG-V-CB-80B-250-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSG-V-CB-80B-250-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSG-V-CB-80B-300-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSG-V-CB-80B-300-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSG-V-CB-80B-300-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSG-V-CB-80B-300-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSG-V-CB-80B-350-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSG-V-CB-80B-350-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSG-V-CB-80B-350-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSG-V-CB-80B-350-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSG-V-CB-80B-400-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSG-V-CB-80B-400-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSG-V-CB-80B-400-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSG-V-CB-80B-400-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSG-V-CB-80B-450-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSG-V-CB-80B-450-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSG-V-CB-80B-450-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSG-V-CB-80B-450-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSG-V-CB-80B-500-1		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSG-V-CB-80B-500-2		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSG-V-CB-80B-500-3		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSG-V-CB-80B-500-4		Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSG-V-CB-100B-25-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSG-V-CB-100B-25-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSG-V-CB-100B-25-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSG-V-CB-100B-25-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC12V
JSG-V-CB-100B-50-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSG-V-CB-100B-50-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSG-V-CB-100B-50-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSG-V-CB-100B-50-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSG-V-CB-100B-75-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSG-V-CB-100B-75-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSG-V-CB-100B-75-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSG-V-CB-100B-75-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSG-V-CB-100B-100-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSG-V-CB-100B-100-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSG-V-CB-100B-100-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSG-V-CB-100B-100-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSG-V-CB-100B-150-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSG-V-CB-100B-150-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSG-V-CB-100B-150-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSG-V-CB-100B-150-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSG-V-CB-100B-200-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSG-V-CB-100B-200-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSG-V-CB-100B-200-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSG-V-CB-100B-200-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSG-V-CB-100B-250-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSG-V-CB-100B-250-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSG-V-CB-100B-250-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSG-V-CB-100B-250-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSG-V-CB-100B-300-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSG-V-CB-100B-300-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSG-V-CB-100B-300-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSG-V-CB-100B-300-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSG-V-CB-100B-350-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSG-V-CB-100B-350-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSG-V-CB-100B-350-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSG-V-CB-100B-350-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSG-V-CB-100B-400-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSG-V-CB-100B-400-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSG-V-CB-100B-400-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSG-V-CB-100B-400-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSG-V-CB-100B-450-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSG-V-CB-100B-450-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSG-V-CB-100B-450-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSG-V-CB-100B-450-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSG-V-CB-100B-500-1		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSG-V-CB-100B-500-2		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSG-V-CB-100B-500-3		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSG-V-CB-100B-500-4		Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSG-V-TA-80B-25-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSG-V-TA-80B-25-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSG-V-TA-80B-25-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSG-V-TA-80B-25-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC12V
JSG-V-TA-80B-50-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSG-V-TA-80B-50-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSG-V-TA-80B-50-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSG-V-TA-80B-50-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSG-V-TA-80B-75-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSG-V-TA-80B-75-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSG-V-TA-80B-75-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSG-V-TA-80B-75-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSG-V-TA-80B-100-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSG-V-TA-80B-100-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSG-V-TA-80B-100-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSG-V-TA-80B-100-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSG-V-TA-80B-150-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSG-V-TA-80B-150-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSG-V-TA-80B-150-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSG-V-TA-80B-150-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSG-V-TA-80B-200-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSG-V-TA-80B-200-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSG-V-TA-80B-200-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSG-V-TA-80B-200-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSG-V-TA-80B-250-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSG-V-TA-80B-250-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSG-V-TA-80B-250-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSG-V-TA-80B-250-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSG-V-TA-80B-300-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSG-V-TA-80B-300-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSG-V-TA-80B-300-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSG-V-TA-80B-300-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSG-V-TA-80B-350-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSG-V-TA-80B-350-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSG-V-TA-80B-350-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSG-V-TA-80B-350-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSG-V-TA-80B-400-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSG-V-TA-80B-400-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSG-V-TA-80B-400-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSG-V-TA-80B-400-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSG-V-TA-80B-450-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSG-V-TA-80B-450-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSG-V-TA-80B-450-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSG-V-TA-80B-450-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSG-V-TA-80B-500-1		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSG-V-TA-80B-500-2		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSG-V-TA-80B-500-3		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSG-V-TA-80B-500-4		Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSG-V-TA-100B-25-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSG-V-TA-100B-25-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSG-V-TA-100B-25-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSG-V-TA-100B-25-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC12V
JSG-V-TA-100B-50-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSG-V-TA-100B-50-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSG-V-TA-100B-50-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSG-V-TA-100B-50-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSG-V-TA-100B-75-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSG-V-TA-100B-75-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSG-V-TA-100B-75-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSG-V-TA-100B-75-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSG-V-TA-100B-100-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSG-V-TA-100B-100-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSG-V-TA-100B-100-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSG-V-TA-100B-100-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSG-V-TA-100B-150-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSG-V-TA-100B-150-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSG-V-TA-100B-150-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSG-V-TA-100B-150-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSG-V-TA-100B-200-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSG-V-TA-100B-200-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSG-V-TA-100B-200-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSG-V-TA-100B-200-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSG-V-TA-100B-250-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSG-V-TA-100B-250-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSG-V-TA-100B-250-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSG-V-TA-100B-250-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSG-V-TA-100B-300-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSG-V-TA-100B-300-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSG-V-TA-100B-300-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSG-V-TA-100B-300-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSG-V-TA-100B-350-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSG-V-TA-100B-350-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSG-V-TA-100B-350-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSG-V-TA-100B-350-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSG-V-TA-100B-400-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSG-V-TA-100B-400-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSG-V-TA-100B-400-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSG-V-TA-100B-400-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSG-V-TA-100B-450-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSG-V-TA-100B-450-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSG-V-TA-100B-450-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSG-V-TA-100B-450-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSG-V-TA-100B-500-1		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSG-V-TA-100B-500-2		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSG-V-TA-100B-500-3		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSG-V-TA-100B-500-4		Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSG-V-TB-80B-25-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSG-V-TB-80B-25-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSG-V-TB-80B-25-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSG-V-TB-80B-25-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC12V
JSG-V-TB-80B-50-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSG-V-TB-80B-50-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSG-V-TB-80B-50-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSG-V-TB-80B-50-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSG-V-TB-80B-75-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSG-V-TB-80B-75-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSG-V-TB-80B-75-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSG-V-TB-80B-75-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSG-V-TB-80B-100-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSG-V-TB-80B-100-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSG-V-TB-80B-100-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSG-V-TB-80B-100-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSG-V-TB-80B-150-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSG-V-TB-80B-150-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSG-V-TB-80B-150-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSG-V-TB-80B-150-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSG-V-TB-80B-200-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSG-V-TB-80B-200-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSG-V-TB-80B-200-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSG-V-TB-80B-200-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSG-V-TB-80B-250-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSG-V-TB-80B-250-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSG-V-TB-80B-250-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSG-V-TB-80B-250-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSG-V-TB-80B-300-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSG-V-TB-80B-300-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSG-V-TB-80B-300-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSG-V-TB-80B-300-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSG-V-TB-80B-350-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSG-V-TB-80B-350-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSG-V-TB-80B-350-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSG-V-TB-80B-350-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSG-V-TB-80B-400-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSG-V-TB-80B-400-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSG-V-TB-80B-400-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSG-V-TB-80B-400-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSG-V-TB-80B-450-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSG-V-TB-80B-450-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSG-V-TB-80B-450-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSG-V-TB-80B-450-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSG-V-TB-80B-500-1		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSG-V-TB-80B-500-2		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSG-V-TB-80B-500-3		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSG-V-TB-80B-500-4		Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSG-V-TB-100B-25-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSG-V-TB-100B-25-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSG-V-TB-100B-25-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSG-V-TB-100B-25-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC12V
JSG-V-TB-100B-50-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSG-V-TB-100B-50-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSG-V-TB-100B-50-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSG-V-TB-100B-50-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSG-V-TB-100B-75-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSG-V-TB-100B-75-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSG-V-TB-100B-75-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSG-V-TB-100B-75-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSG-V-TB-100B-100-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSG-V-TB-100B-100-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSG-V-TB-100B-100-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSG-V-TB-100B-100-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSG-V-TB-100B-150-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSG-V-TB-100B-150-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSG-V-TB-100B-150-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSG-V-TB-100B-150-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSG-V-TB-100B-200-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSG-V-TB-100B-200-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSG-V-TB-100B-200-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSG-V-TB-100B-200-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSG-V-TB-100B-250-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSG-V-TB-100B-250-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSG-V-TB-100B-250-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSG-V-TB-100B-250-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSG-V-TB-100B-300-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSG-V-TB-100B-300-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSG-V-TB-100B-300-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSG-V-TB-100B-300-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSG-V-TB-100B-350-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSG-V-TB-100B-350-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSG-V-TB-100B-350-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSG-V-TB-100B-350-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSG-V-TB-100B-400-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSG-V-TB-100B-400-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSG-V-TB-100B-400-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSG-V-TB-100B-400-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSG-V-TB-100B-450-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSG-V-TB-100B-450-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSG-V-TB-100B-450-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSG-V-TB-100B-450-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSG-V-TB-100B-500-1		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSG-V-TB-100B-500-2		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSG-V-TB-100B-500-3		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSG-V-TB-100B-500-4		Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSG-V-TC-80B-25-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSG-V-TC-80B-25-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSG-V-TC-80B-25-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSG-V-TC-80B-25-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC12V
JSG-V-TC-80B-50-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSG-V-TC-80B-50-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSG-V-TC-80B-50-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSG-V-TC-80B-50-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSG-V-TC-80B-75-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSG-V-TC-80B-75-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSG-V-TC-80B-75-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSG-V-TC-80B-75-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSG-V-TC-80B-100-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSG-V-TC-80B-100-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSG-V-TC-80B-100-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSG-V-TC-80B-100-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSG-V-TC-80B-150-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSG-V-TC-80B-150-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSG-V-TC-80B-150-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSG-V-TC-80B-150-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSG-V-TC-80B-200-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSG-V-TC-80B-200-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSG-V-TC-80B-200-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSG-V-TC-80B-200-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSG-V-TC-80B-250-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSG-V-TC-80B-250-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSG-V-TC-80B-250-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSG-V-TC-80B-250-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSG-V-TC-80B-300-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSG-V-TC-80B-300-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSG-V-TC-80B-300-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSG-V-TC-80B-300-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSG-V-TC-80B-350-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSG-V-TC-80B-350-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSG-V-TC-80B-350-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSG-V-TC-80B-350-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSG-V-TC-80B-400-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSG-V-TC-80B-400-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSG-V-TC-80B-400-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSG-V-TC-80B-400-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSG-V-TC-80B-450-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSG-V-TC-80B-450-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSG-V-TC-80B-450-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSG-V-TC-80B-450-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSG-V-TC-80B-500-1		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSG-V-TC-80B-500-2		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSG-V-TC-80B-500-3		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSG-V-TC-80B-500-4		Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
JSG-V-TC-100B-25-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSG-V-TC-100B-25-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSG-V-TC-100B-25-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSG-V-TC-100B-25-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC12V
JSG-V-TC-100B-50-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSG-V-TC-100B-50-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSG-V-TC-100B-50-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSG-V-TC-100B-50-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
JSG-V-TC-100B-75-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSG-V-TC-100B-75-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSG-V-TC-100B-75-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSG-V-TC-100B-75-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
JSG-V-TC-100B-100-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSG-V-TC-100B-100-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSG-V-TC-100B-100-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSG-V-TC-100B-100-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
JSG-V-TC-100B-150-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSG-V-TC-100B-150-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSG-V-TC-100B-150-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSG-V-TC-100B-150-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
JSG-V-TC-100B-200-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSG-V-TC-100B-200-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSG-V-TC-100B-200-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSG-V-TC-100B-200-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
JSG-V-TC-100B-250-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSG-V-TC-100B-250-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSG-V-TC-100B-250-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSG-V-TC-100B-250-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
JSG-V-TC-100B-300-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSG-V-TC-100B-300-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSG-V-TC-100B-300-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSG-V-TC-100B-300-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
JSG-V-TC-100B-350-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
JSG-V-TC-100B-350-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
JSG-V-TC-100B-350-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
JSG-V-TC-100B-350-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
JSG-V-TC-100B-400-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
JSG-V-TC-100B-400-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
JSG-V-TC-100B-400-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
JSG-V-TC-100B-400-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
JSG-V-TC-100B-450-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
JSG-V-TC-100B-450-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
JSG-V-TC-100B-450-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
JSG-V-TC-100B-450-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
JSG-V-TC-100B-500-1		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
JSG-V-TC-100B-500-2		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
JSG-V-TC-100B-500-3		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
JSG-V-TC-100B-500-4		Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V

Pneumatic CylindersCKD

864 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD JSG-V Tie-Rod Cylinder with Brake Release Valve (80-100)

Brand CKD·Pneumatic Cylinders

Available part numbers (864)

JSG-V-00-80B-25-1, JSG-V-00-80B-25-2, JSG-V-00-80B-25-3, JSG-V-00-80B-25-4, JSG-V-00-80B-50-1, JSG-V-00-80B-50-2, JSG-V-00-80B-50-3, JSG-V-00-80B-50-4, JSG-V-00-80B-75-1, JSG-V-00-80B-75-2 + 854 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	JSG-V-00-80B-25-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSG-V-00-80B-25-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSG-V-00-80B-25-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSG-V-00-80B-25-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC12V
	JSG-V-00-80B-50-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSG-V-00-80B-50-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSG-V-00-80B-50-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSG-V-00-80B-50-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSG-V-00-80B-75-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSG-V-00-80B-75-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSG-V-00-80B-75-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSG-V-00-80B-75-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSG-V-00-80B-100-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSG-V-00-80B-100-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSG-V-00-80B-100-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSG-V-00-80B-100-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSG-V-00-80B-150-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSG-V-00-80B-150-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSG-V-00-80B-150-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSG-V-00-80B-150-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSG-V-00-80B-200-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSG-V-00-80B-200-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSG-V-00-80B-200-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSG-V-00-80B-200-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSG-V-00-80B-250-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSG-V-00-80B-250-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSG-V-00-80B-250-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSG-V-00-80B-250-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSG-V-00-80B-300-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSG-V-00-80B-300-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSG-V-00-80B-300-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSG-V-00-80B-300-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSG-V-00-80B-350-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSG-V-00-80B-350-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSG-V-00-80B-350-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSG-V-00-80B-350-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSG-V-00-80B-400-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSG-V-00-80B-400-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSG-V-00-80B-400-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSG-V-00-80B-400-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSG-V-00-80B-450-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSG-V-00-80B-450-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSG-V-00-80B-450-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSG-V-00-80B-450-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSG-V-00-80B-500-1	Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSG-V-00-80B-500-2	Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSG-V-00-80B-500-3	Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSG-V-00-80B-500-4	Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSG-V-00-100B-25-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSG-V-00-100B-25-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSG-V-00-100B-25-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSG-V-00-100B-25-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC12V
	JSG-V-00-100B-50-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSG-V-00-100B-50-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSG-V-00-100B-50-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSG-V-00-100B-50-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSG-V-00-100B-75-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSG-V-00-100B-75-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSG-V-00-100B-75-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSG-V-00-100B-75-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSG-V-00-100B-100-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSG-V-00-100B-100-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSG-V-00-100B-100-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSG-V-00-100B-100-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSG-V-00-100B-150-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSG-V-00-100B-150-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSG-V-00-100B-150-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSG-V-00-100B-150-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSG-V-00-100B-200-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSG-V-00-100B-200-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSG-V-00-100B-200-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSG-V-00-100B-200-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSG-V-00-100B-250-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSG-V-00-100B-250-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSG-V-00-100B-250-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSG-V-00-100B-250-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSG-V-00-100B-300-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSG-V-00-100B-300-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSG-V-00-100B-300-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSG-V-00-100B-300-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSG-V-00-100B-350-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSG-V-00-100B-350-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSG-V-00-100B-350-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSG-V-00-100B-350-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSG-V-00-100B-400-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSG-V-00-100B-400-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSG-V-00-100B-400-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSG-V-00-100B-400-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSG-V-00-100B-450-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSG-V-00-100B-450-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSG-V-00-100B-450-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSG-V-00-100B-450-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSG-V-00-100B-500-1	Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSG-V-00-100B-500-2	Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSG-V-00-100B-500-3	Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSG-V-00-100B-500-4	Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSG-V-LB-80B-25-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSG-V-LB-80B-25-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSG-V-LB-80B-25-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSG-V-LB-80B-25-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC12V
	JSG-V-LB-80B-50-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSG-V-LB-80B-50-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSG-V-LB-80B-50-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSG-V-LB-80B-50-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSG-V-LB-80B-75-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSG-V-LB-80B-75-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSG-V-LB-80B-75-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSG-V-LB-80B-75-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSG-V-LB-80B-100-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSG-V-LB-80B-100-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSG-V-LB-80B-100-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSG-V-LB-80B-100-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSG-V-LB-80B-150-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSG-V-LB-80B-150-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSG-V-LB-80B-150-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSG-V-LB-80B-150-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSG-V-LB-80B-200-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSG-V-LB-80B-200-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSG-V-LB-80B-200-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSG-V-LB-80B-200-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSG-V-LB-80B-250-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSG-V-LB-80B-250-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSG-V-LB-80B-250-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSG-V-LB-80B-250-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSG-V-LB-80B-300-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSG-V-LB-80B-300-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSG-V-LB-80B-300-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSG-V-LB-80B-300-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSG-V-LB-80B-350-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSG-V-LB-80B-350-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSG-V-LB-80B-350-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSG-V-LB-80B-350-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSG-V-LB-80B-400-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSG-V-LB-80B-400-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSG-V-LB-80B-400-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSG-V-LB-80B-400-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSG-V-LB-80B-450-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSG-V-LB-80B-450-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSG-V-LB-80B-450-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSG-V-LB-80B-450-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSG-V-LB-80B-500-1	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSG-V-LB-80B-500-2	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSG-V-LB-80B-500-3	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSG-V-LB-80B-500-4	Mounting: Axial foot \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSG-V-LB-100B-25-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSG-V-LB-100B-25-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSG-V-LB-100B-25-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSG-V-LB-100B-25-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC12V
	JSG-V-LB-100B-50-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSG-V-LB-100B-50-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSG-V-LB-100B-50-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSG-V-LB-100B-50-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSG-V-LB-100B-75-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSG-V-LB-100B-75-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSG-V-LB-100B-75-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSG-V-LB-100B-75-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSG-V-LB-100B-100-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSG-V-LB-100B-100-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSG-V-LB-100B-100-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSG-V-LB-100B-100-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSG-V-LB-100B-150-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSG-V-LB-100B-150-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSG-V-LB-100B-150-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSG-V-LB-100B-150-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSG-V-LB-100B-200-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSG-V-LB-100B-200-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSG-V-LB-100B-200-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSG-V-LB-100B-200-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSG-V-LB-100B-250-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSG-V-LB-100B-250-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSG-V-LB-100B-250-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSG-V-LB-100B-250-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSG-V-LB-100B-300-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSG-V-LB-100B-300-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSG-V-LB-100B-300-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSG-V-LB-100B-300-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSG-V-LB-100B-350-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSG-V-LB-100B-350-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSG-V-LB-100B-350-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSG-V-LB-100B-350-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSG-V-LB-100B-400-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSG-V-LB-100B-400-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSG-V-LB-100B-400-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSG-V-LB-100B-400-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSG-V-LB-100B-450-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSG-V-LB-100B-450-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSG-V-LB-100B-450-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSG-V-LB-100B-450-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSG-V-LB-100B-500-1	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSG-V-LB-100B-500-2	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSG-V-LB-100B-500-3	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSG-V-LB-100B-500-4	Mounting: Axial foot \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSG-V-FA-80B-25-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSG-V-FA-80B-25-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSG-V-FA-80B-25-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSG-V-FA-80B-25-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC12V
	JSG-V-FA-80B-50-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSG-V-FA-80B-50-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSG-V-FA-80B-50-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSG-V-FA-80B-50-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSG-V-FA-80B-75-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSG-V-FA-80B-75-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSG-V-FA-80B-75-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSG-V-FA-80B-75-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSG-V-FA-80B-100-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSG-V-FA-80B-100-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSG-V-FA-80B-100-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSG-V-FA-80B-100-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSG-V-FA-80B-150-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSG-V-FA-80B-150-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSG-V-FA-80B-150-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSG-V-FA-80B-150-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSG-V-FA-80B-200-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSG-V-FA-80B-200-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSG-V-FA-80B-200-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSG-V-FA-80B-200-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSG-V-FA-80B-250-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSG-V-FA-80B-250-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSG-V-FA-80B-250-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSG-V-FA-80B-250-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSG-V-FA-80B-300-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSG-V-FA-80B-300-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSG-V-FA-80B-300-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSG-V-FA-80B-300-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSG-V-FA-80B-350-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSG-V-FA-80B-350-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSG-V-FA-80B-350-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSG-V-FA-80B-350-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSG-V-FA-80B-400-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSG-V-FA-80B-400-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSG-V-FA-80B-400-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSG-V-FA-80B-400-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSG-V-FA-80B-450-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSG-V-FA-80B-450-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSG-V-FA-80B-450-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSG-V-FA-80B-450-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSG-V-FA-80B-500-1	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSG-V-FA-80B-500-2	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSG-V-FA-80B-500-3	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSG-V-FA-80B-500-4	Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSG-V-FA-100B-25-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSG-V-FA-100B-25-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSG-V-FA-100B-25-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSG-V-FA-100B-25-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC12V
	JSG-V-FA-100B-50-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSG-V-FA-100B-50-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSG-V-FA-100B-50-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSG-V-FA-100B-50-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSG-V-FA-100B-75-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSG-V-FA-100B-75-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSG-V-FA-100B-75-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSG-V-FA-100B-75-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSG-V-FA-100B-100-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSG-V-FA-100B-100-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSG-V-FA-100B-100-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSG-V-FA-100B-100-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSG-V-FA-100B-150-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSG-V-FA-100B-150-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSG-V-FA-100B-150-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSG-V-FA-100B-150-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSG-V-FA-100B-200-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSG-V-FA-100B-200-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSG-V-FA-100B-200-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSG-V-FA-100B-200-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSG-V-FA-100B-250-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSG-V-FA-100B-250-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSG-V-FA-100B-250-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSG-V-FA-100B-250-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSG-V-FA-100B-300-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSG-V-FA-100B-300-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSG-V-FA-100B-300-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSG-V-FA-100B-300-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSG-V-FA-100B-350-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSG-V-FA-100B-350-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSG-V-FA-100B-350-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSG-V-FA-100B-350-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSG-V-FA-100B-400-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSG-V-FA-100B-400-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSG-V-FA-100B-400-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSG-V-FA-100B-400-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSG-V-FA-100B-450-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSG-V-FA-100B-450-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSG-V-FA-100B-450-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSG-V-FA-100B-450-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSG-V-FA-100B-500-1	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSG-V-FA-100B-500-2	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSG-V-FA-100B-500-3	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSG-V-FA-100B-500-4	Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSG-V-FB-80B-25-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSG-V-FB-80B-25-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSG-V-FB-80B-25-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSG-V-FB-80B-25-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC12V
	JSG-V-FB-80B-50-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSG-V-FB-80B-50-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSG-V-FB-80B-50-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSG-V-FB-80B-50-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSG-V-FB-80B-75-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSG-V-FB-80B-75-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSG-V-FB-80B-75-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSG-V-FB-80B-75-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSG-V-FB-80B-100-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSG-V-FB-80B-100-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSG-V-FB-80B-100-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSG-V-FB-80B-100-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSG-V-FB-80B-150-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSG-V-FB-80B-150-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSG-V-FB-80B-150-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSG-V-FB-80B-150-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSG-V-FB-80B-200-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSG-V-FB-80B-200-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSG-V-FB-80B-200-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSG-V-FB-80B-200-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSG-V-FB-80B-250-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSG-V-FB-80B-250-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSG-V-FB-80B-250-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSG-V-FB-80B-250-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSG-V-FB-80B-300-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSG-V-FB-80B-300-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSG-V-FB-80B-300-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSG-V-FB-80B-300-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSG-V-FB-80B-350-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSG-V-FB-80B-350-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSG-V-FB-80B-350-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSG-V-FB-80B-350-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSG-V-FB-80B-400-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSG-V-FB-80B-400-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSG-V-FB-80B-400-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSG-V-FB-80B-400-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSG-V-FB-80B-450-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSG-V-FB-80B-450-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSG-V-FB-80B-450-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSG-V-FB-80B-450-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSG-V-FB-80B-500-1	Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSG-V-FB-80B-500-2	Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSG-V-FB-80B-500-3	Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSG-V-FB-80B-500-4	Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSG-V-FB-100B-25-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSG-V-FB-100B-25-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSG-V-FB-100B-25-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSG-V-FB-100B-25-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC12V
	JSG-V-FB-100B-50-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSG-V-FB-100B-50-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSG-V-FB-100B-50-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSG-V-FB-100B-50-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSG-V-FB-100B-75-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSG-V-FB-100B-75-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSG-V-FB-100B-75-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSG-V-FB-100B-75-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSG-V-FB-100B-100-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSG-V-FB-100B-100-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSG-V-FB-100B-100-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSG-V-FB-100B-100-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSG-V-FB-100B-150-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSG-V-FB-100B-150-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSG-V-FB-100B-150-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSG-V-FB-100B-150-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSG-V-FB-100B-200-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSG-V-FB-100B-200-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSG-V-FB-100B-200-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSG-V-FB-100B-200-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSG-V-FB-100B-250-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSG-V-FB-100B-250-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSG-V-FB-100B-250-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSG-V-FB-100B-250-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSG-V-FB-100B-300-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSG-V-FB-100B-300-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSG-V-FB-100B-300-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSG-V-FB-100B-300-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSG-V-FB-100B-350-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSG-V-FB-100B-350-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSG-V-FB-100B-350-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSG-V-FB-100B-350-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSG-V-FB-100B-400-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSG-V-FB-100B-400-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSG-V-FB-100B-400-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSG-V-FB-100B-400-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSG-V-FB-100B-450-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSG-V-FB-100B-450-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSG-V-FB-100B-450-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSG-V-FB-100B-450-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSG-V-FB-100B-500-1	Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSG-V-FB-100B-500-2	Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSG-V-FB-100B-500-3	Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSG-V-FB-100B-500-4	Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSG-V-CA-80B-25-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSG-V-CA-80B-25-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSG-V-CA-80B-25-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSG-V-CA-80B-25-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC12V
	JSG-V-CA-80B-50-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSG-V-CA-80B-50-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSG-V-CA-80B-50-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSG-V-CA-80B-50-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSG-V-CA-80B-75-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSG-V-CA-80B-75-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSG-V-CA-80B-75-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSG-V-CA-80B-75-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSG-V-CA-80B-100-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSG-V-CA-80B-100-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSG-V-CA-80B-100-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSG-V-CA-80B-100-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSG-V-CA-80B-150-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSG-V-CA-80B-150-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSG-V-CA-80B-150-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSG-V-CA-80B-150-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSG-V-CA-80B-200-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSG-V-CA-80B-200-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSG-V-CA-80B-200-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSG-V-CA-80B-200-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSG-V-CA-80B-250-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSG-V-CA-80B-250-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSG-V-CA-80B-250-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSG-V-CA-80B-250-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSG-V-CA-80B-300-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSG-V-CA-80B-300-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSG-V-CA-80B-300-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSG-V-CA-80B-300-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSG-V-CA-80B-350-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSG-V-CA-80B-350-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSG-V-CA-80B-350-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSG-V-CA-80B-350-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSG-V-CA-80B-400-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSG-V-CA-80B-400-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSG-V-CA-80B-400-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSG-V-CA-80B-400-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSG-V-CA-80B-450-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSG-V-CA-80B-450-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSG-V-CA-80B-450-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSG-V-CA-80B-450-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSG-V-CA-80B-500-1	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSG-V-CA-80B-500-2	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSG-V-CA-80B-500-3	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSG-V-CA-80B-500-4	Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSG-V-CA-100B-25-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSG-V-CA-100B-25-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSG-V-CA-100B-25-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSG-V-CA-100B-25-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC12V
	JSG-V-CA-100B-50-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSG-V-CA-100B-50-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSG-V-CA-100B-50-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSG-V-CA-100B-50-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSG-V-CA-100B-75-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSG-V-CA-100B-75-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSG-V-CA-100B-75-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSG-V-CA-100B-75-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSG-V-CA-100B-100-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSG-V-CA-100B-100-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSG-V-CA-100B-100-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSG-V-CA-100B-100-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSG-V-CA-100B-150-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSG-V-CA-100B-150-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSG-V-CA-100B-150-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSG-V-CA-100B-150-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSG-V-CA-100B-200-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSG-V-CA-100B-200-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSG-V-CA-100B-200-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSG-V-CA-100B-200-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSG-V-CA-100B-250-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSG-V-CA-100B-250-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSG-V-CA-100B-250-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSG-V-CA-100B-250-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSG-V-CA-100B-300-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSG-V-CA-100B-300-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSG-V-CA-100B-300-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSG-V-CA-100B-300-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSG-V-CA-100B-350-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSG-V-CA-100B-350-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSG-V-CA-100B-350-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSG-V-CA-100B-350-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSG-V-CA-100B-400-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSG-V-CA-100B-400-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSG-V-CA-100B-400-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSG-V-CA-100B-400-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSG-V-CA-100B-450-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSG-V-CA-100B-450-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSG-V-CA-100B-450-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSG-V-CA-100B-450-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSG-V-CA-100B-500-1	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSG-V-CA-100B-500-2	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSG-V-CA-100B-500-3	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSG-V-CA-100B-500-4	Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSG-V-CB-80B-25-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSG-V-CB-80B-25-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSG-V-CB-80B-25-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSG-V-CB-80B-25-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC12V
	JSG-V-CB-80B-50-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSG-V-CB-80B-50-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSG-V-CB-80B-50-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSG-V-CB-80B-50-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSG-V-CB-80B-75-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSG-V-CB-80B-75-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSG-V-CB-80B-75-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSG-V-CB-80B-75-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSG-V-CB-80B-100-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSG-V-CB-80B-100-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSG-V-CB-80B-100-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSG-V-CB-80B-100-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSG-V-CB-80B-150-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSG-V-CB-80B-150-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSG-V-CB-80B-150-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSG-V-CB-80B-150-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSG-V-CB-80B-200-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSG-V-CB-80B-200-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSG-V-CB-80B-200-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSG-V-CB-80B-200-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSG-V-CB-80B-250-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSG-V-CB-80B-250-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSG-V-CB-80B-250-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSG-V-CB-80B-250-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSG-V-CB-80B-300-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSG-V-CB-80B-300-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSG-V-CB-80B-300-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSG-V-CB-80B-300-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSG-V-CB-80B-350-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSG-V-CB-80B-350-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSG-V-CB-80B-350-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSG-V-CB-80B-350-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSG-V-CB-80B-400-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSG-V-CB-80B-400-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSG-V-CB-80B-400-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSG-V-CB-80B-400-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSG-V-CB-80B-450-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSG-V-CB-80B-450-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSG-V-CB-80B-450-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSG-V-CB-80B-450-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSG-V-CB-80B-500-1	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSG-V-CB-80B-500-2	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSG-V-CB-80B-500-3	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSG-V-CB-80B-500-4	Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSG-V-CB-100B-25-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSG-V-CB-100B-25-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSG-V-CB-100B-25-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSG-V-CB-100B-25-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC12V
	JSG-V-CB-100B-50-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSG-V-CB-100B-50-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSG-V-CB-100B-50-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSG-V-CB-100B-50-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSG-V-CB-100B-75-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSG-V-CB-100B-75-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSG-V-CB-100B-75-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSG-V-CB-100B-75-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSG-V-CB-100B-100-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSG-V-CB-100B-100-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSG-V-CB-100B-100-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSG-V-CB-100B-100-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSG-V-CB-100B-150-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSG-V-CB-100B-150-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSG-V-CB-100B-150-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSG-V-CB-100B-150-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSG-V-CB-100B-200-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSG-V-CB-100B-200-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSG-V-CB-100B-200-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSG-V-CB-100B-200-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSG-V-CB-100B-250-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSG-V-CB-100B-250-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSG-V-CB-100B-250-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSG-V-CB-100B-250-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSG-V-CB-100B-300-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSG-V-CB-100B-300-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSG-V-CB-100B-300-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSG-V-CB-100B-300-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSG-V-CB-100B-350-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSG-V-CB-100B-350-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSG-V-CB-100B-350-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSG-V-CB-100B-350-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSG-V-CB-100B-400-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSG-V-CB-100B-400-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSG-V-CB-100B-400-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSG-V-CB-100B-400-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSG-V-CB-100B-450-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSG-V-CB-100B-450-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSG-V-CB-100B-450-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSG-V-CB-100B-450-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSG-V-CB-100B-500-1	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSG-V-CB-100B-500-2	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSG-V-CB-100B-500-3	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSG-V-CB-100B-500-4	Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSG-V-TA-80B-25-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSG-V-TA-80B-25-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSG-V-TA-80B-25-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSG-V-TA-80B-25-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC12V
	JSG-V-TA-80B-50-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSG-V-TA-80B-50-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSG-V-TA-80B-50-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSG-V-TA-80B-50-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSG-V-TA-80B-75-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSG-V-TA-80B-75-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSG-V-TA-80B-75-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSG-V-TA-80B-75-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSG-V-TA-80B-100-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSG-V-TA-80B-100-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSG-V-TA-80B-100-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSG-V-TA-80B-100-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSG-V-TA-80B-150-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSG-V-TA-80B-150-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSG-V-TA-80B-150-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSG-V-TA-80B-150-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSG-V-TA-80B-200-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSG-V-TA-80B-200-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSG-V-TA-80B-200-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSG-V-TA-80B-200-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSG-V-TA-80B-250-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSG-V-TA-80B-250-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSG-V-TA-80B-250-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSG-V-TA-80B-250-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSG-V-TA-80B-300-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSG-V-TA-80B-300-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSG-V-TA-80B-300-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSG-V-TA-80B-300-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSG-V-TA-80B-350-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSG-V-TA-80B-350-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSG-V-TA-80B-350-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSG-V-TA-80B-350-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSG-V-TA-80B-400-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSG-V-TA-80B-400-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSG-V-TA-80B-400-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSG-V-TA-80B-400-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSG-V-TA-80B-450-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSG-V-TA-80B-450-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSG-V-TA-80B-450-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSG-V-TA-80B-450-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSG-V-TA-80B-500-1	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSG-V-TA-80B-500-2	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSG-V-TA-80B-500-3	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSG-V-TA-80B-500-4	Mounting: Rod trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSG-V-TA-100B-25-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSG-V-TA-100B-25-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSG-V-TA-100B-25-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSG-V-TA-100B-25-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC12V
	JSG-V-TA-100B-50-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSG-V-TA-100B-50-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSG-V-TA-100B-50-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSG-V-TA-100B-50-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSG-V-TA-100B-75-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSG-V-TA-100B-75-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSG-V-TA-100B-75-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSG-V-TA-100B-75-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSG-V-TA-100B-100-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSG-V-TA-100B-100-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSG-V-TA-100B-100-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSG-V-TA-100B-100-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSG-V-TA-100B-150-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSG-V-TA-100B-150-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSG-V-TA-100B-150-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSG-V-TA-100B-150-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSG-V-TA-100B-200-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSG-V-TA-100B-200-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSG-V-TA-100B-200-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSG-V-TA-100B-200-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSG-V-TA-100B-250-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSG-V-TA-100B-250-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSG-V-TA-100B-250-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSG-V-TA-100B-250-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSG-V-TA-100B-300-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSG-V-TA-100B-300-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSG-V-TA-100B-300-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSG-V-TA-100B-300-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSG-V-TA-100B-350-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSG-V-TA-100B-350-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSG-V-TA-100B-350-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSG-V-TA-100B-350-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSG-V-TA-100B-400-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSG-V-TA-100B-400-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSG-V-TA-100B-400-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSG-V-TA-100B-400-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSG-V-TA-100B-450-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSG-V-TA-100B-450-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSG-V-TA-100B-450-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSG-V-TA-100B-450-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSG-V-TA-100B-500-1	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSG-V-TA-100B-500-2	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSG-V-TA-100B-500-3	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSG-V-TA-100B-500-4	Mounting: Rod trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSG-V-TB-80B-25-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSG-V-TB-80B-25-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSG-V-TB-80B-25-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSG-V-TB-80B-25-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC12V
	JSG-V-TB-80B-50-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSG-V-TB-80B-50-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSG-V-TB-80B-50-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSG-V-TB-80B-50-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSG-V-TB-80B-75-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSG-V-TB-80B-75-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSG-V-TB-80B-75-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSG-V-TB-80B-75-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSG-V-TB-80B-100-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSG-V-TB-80B-100-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSG-V-TB-80B-100-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSG-V-TB-80B-100-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSG-V-TB-80B-150-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSG-V-TB-80B-150-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSG-V-TB-80B-150-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSG-V-TB-80B-150-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSG-V-TB-80B-200-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSG-V-TB-80B-200-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSG-V-TB-80B-200-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSG-V-TB-80B-200-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSG-V-TB-80B-250-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSG-V-TB-80B-250-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSG-V-TB-80B-250-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSG-V-TB-80B-250-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSG-V-TB-80B-300-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSG-V-TB-80B-300-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSG-V-TB-80B-300-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSG-V-TB-80B-300-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSG-V-TB-80B-350-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSG-V-TB-80B-350-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSG-V-TB-80B-350-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSG-V-TB-80B-350-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSG-V-TB-80B-400-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSG-V-TB-80B-400-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSG-V-TB-80B-400-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSG-V-TB-80B-400-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSG-V-TB-80B-450-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSG-V-TB-80B-450-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSG-V-TB-80B-450-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSG-V-TB-80B-450-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSG-V-TB-80B-500-1	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSG-V-TB-80B-500-2	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSG-V-TB-80B-500-3	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSG-V-TB-80B-500-4	Mounting: Head trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSG-V-TB-100B-25-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSG-V-TB-100B-25-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSG-V-TB-100B-25-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSG-V-TB-100B-25-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC12V
	JSG-V-TB-100B-50-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSG-V-TB-100B-50-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSG-V-TB-100B-50-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSG-V-TB-100B-50-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSG-V-TB-100B-75-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSG-V-TB-100B-75-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSG-V-TB-100B-75-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSG-V-TB-100B-75-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSG-V-TB-100B-100-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSG-V-TB-100B-100-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSG-V-TB-100B-100-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSG-V-TB-100B-100-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSG-V-TB-100B-150-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSG-V-TB-100B-150-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSG-V-TB-100B-150-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSG-V-TB-100B-150-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSG-V-TB-100B-200-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSG-V-TB-100B-200-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSG-V-TB-100B-200-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSG-V-TB-100B-200-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSG-V-TB-100B-250-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSG-V-TB-100B-250-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSG-V-TB-100B-250-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSG-V-TB-100B-250-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSG-V-TB-100B-300-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSG-V-TB-100B-300-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSG-V-TB-100B-300-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSG-V-TB-100B-300-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSG-V-TB-100B-350-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSG-V-TB-100B-350-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSG-V-TB-100B-350-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSG-V-TB-100B-350-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSG-V-TB-100B-400-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSG-V-TB-100B-400-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSG-V-TB-100B-400-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSG-V-TB-100B-400-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSG-V-TB-100B-450-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSG-V-TB-100B-450-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSG-V-TB-100B-450-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSG-V-TB-100B-450-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSG-V-TB-100B-500-1	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSG-V-TB-100B-500-2	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSG-V-TB-100B-500-3	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSG-V-TB-100B-500-4	Mounting: Head trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSG-V-TC-80B-25-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSG-V-TC-80B-25-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSG-V-TC-80B-25-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSG-V-TC-80B-25-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Valve voltage: DC12V
	JSG-V-TC-80B-50-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSG-V-TC-80B-50-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSG-V-TC-80B-50-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSG-V-TC-80B-50-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSG-V-TC-80B-75-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSG-V-TC-80B-75-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSG-V-TC-80B-75-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSG-V-TC-80B-75-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSG-V-TC-80B-100-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSG-V-TC-80B-100-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSG-V-TC-80B-100-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSG-V-TC-80B-100-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSG-V-TC-80B-150-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSG-V-TC-80B-150-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSG-V-TC-80B-150-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSG-V-TC-80B-150-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSG-V-TC-80B-200-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSG-V-TC-80B-200-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSG-V-TC-80B-200-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSG-V-TC-80B-200-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSG-V-TC-80B-250-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSG-V-TC-80B-250-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSG-V-TC-80B-250-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSG-V-TC-80B-250-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSG-V-TC-80B-300-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSG-V-TC-80B-300-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSG-V-TC-80B-300-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSG-V-TC-80B-300-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSG-V-TC-80B-350-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSG-V-TC-80B-350-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSG-V-TC-80B-350-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSG-V-TC-80B-350-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSG-V-TC-80B-400-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSG-V-TC-80B-400-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSG-V-TC-80B-400-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSG-V-TC-80B-400-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSG-V-TC-80B-450-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSG-V-TC-80B-450-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSG-V-TC-80B-450-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSG-V-TC-80B-450-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSG-V-TC-80B-500-1	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSG-V-TC-80B-500-2	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSG-V-TC-80B-500-3	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSG-V-TC-80B-500-4	Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Valve voltage: DC12V
	JSG-V-TC-100B-25-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSG-V-TC-100B-25-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSG-V-TC-100B-25-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSG-V-TC-100B-25-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Valve voltage: DC12V
	JSG-V-TC-100B-50-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSG-V-TC-100B-50-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSG-V-TC-100B-50-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSG-V-TC-100B-50-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Valve voltage: DC12V
	JSG-V-TC-100B-75-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSG-V-TC-100B-75-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSG-V-TC-100B-75-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSG-V-TC-100B-75-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Valve voltage: DC12V
	JSG-V-TC-100B-100-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSG-V-TC-100B-100-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSG-V-TC-100B-100-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSG-V-TC-100B-100-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Valve voltage: DC12V
	JSG-V-TC-100B-150-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSG-V-TC-100B-150-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSG-V-TC-100B-150-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSG-V-TC-100B-150-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Valve voltage: DC12V
	JSG-V-TC-100B-200-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSG-V-TC-100B-200-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSG-V-TC-100B-200-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSG-V-TC-100B-200-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Valve voltage: DC12V
	JSG-V-TC-100B-250-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSG-V-TC-100B-250-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSG-V-TC-100B-250-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSG-V-TC-100B-250-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Valve voltage: DC12V
	JSG-V-TC-100B-300-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSG-V-TC-100B-300-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSG-V-TC-100B-300-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSG-V-TC-100B-300-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Valve voltage: DC12V
	JSG-V-TC-100B-350-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC100V
	JSG-V-TC-100B-350-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: AC200V
	JSG-V-TC-100B-350-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC24V
	JSG-V-TC-100B-350-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Valve voltage: DC12V
	JSG-V-TC-100B-400-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC100V
	JSG-V-TC-100B-400-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: AC200V
	JSG-V-TC-100B-400-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC24V
	JSG-V-TC-100B-400-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Valve voltage: DC12V
	JSG-V-TC-100B-450-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC100V
	JSG-V-TC-100B-450-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: AC200V
	JSG-V-TC-100B-450-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC24V
	JSG-V-TC-100B-450-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Valve voltage: DC12V
	JSG-V-TC-100B-500-1	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC100V
	JSG-V-TC-100B-500-2	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: AC200V
	JSG-V-TC-100B-500-3	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC24V
	JSG-V-TC-100B-500-4	Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Valve voltage: DC12V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD JSG-V Tie-Rod Cylinder with Brake Release Valve (80-100)
