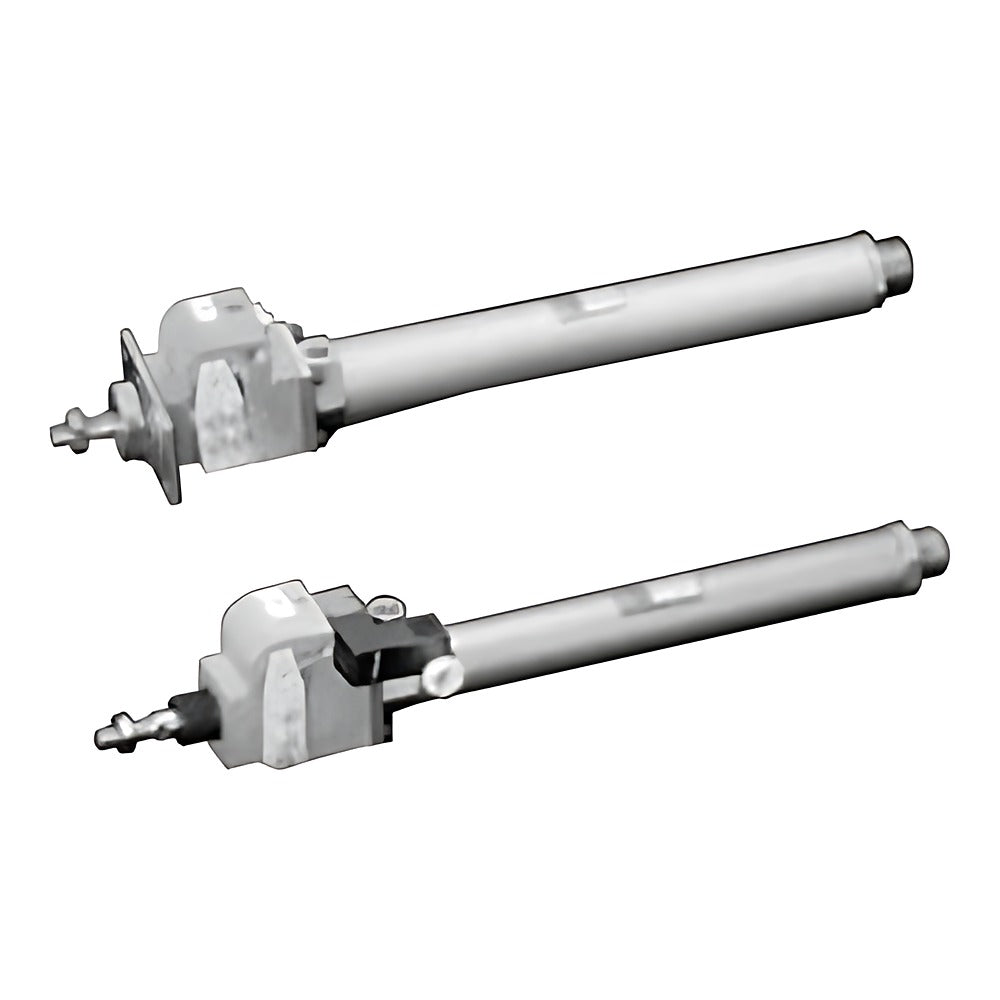

CKD JSM2 Cell Top Brake Cylinder (Small Bore, Repairable, 20-40)

CKD JSM2 cell top cylinder is a small-bore disassemblable double-acting cylinder with a built-in mechanical brake for intermediate stops and drop prevention, available with an integrated brake release valve (JSM2-V).

Key features

Disassemblable cylinder section - seal kits JSM2-20K / 30K / 40K available
Mechanical brake locks the rod when air or power is lost; holding force 186 / 431 / 765 N
Switch magnet built in; T-type auto switches, lead length and switch quantity (R, H, D, T, 4) not expanded
JSM2-V carries a P5136 brake release valve with AC100V, AC200V or DC24V coil
Options: bellows J / L, stainless rod M, same-side ports P, brake cover U; accessories I, Y, B2
Intermediate strokes 1 to 700 mm in 1 mm steps; low hydraulic types JSM2-H / JSM2-VH made to order

Specifications

Action	Double acting with brake
Fluid	Compressed air
Max. operating pressure	0.7 MPa (JSM2), 0.6 MPa (JSM2-V)
Min. operating pressure	Brake 0.35 MPa, cylinder 0.10 MPa
Proof pressure	1.05 MPa
Ambient temperature	-10 to 60 C (JSM2-V -10 to 50 C)
Port size	Cylinder Rc1/8; brake M5 (20) / Rc1/8 (30, 40)
Piston speed	50 to 500 mm/s
Cushion	None
Source	CKD Korea catalog CB-030SK-9, p. 808-819

JSM2-00-20-25		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: None
JSM2-00-20-50		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: None
JSM2-00-20-75		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: None
JSM2-00-20-100		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: None
JSM2-00-20-125		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: None
JSM2-00-20-150		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: None
JSM2-00-20-175		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: None
JSM2-00-20-200		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: None
JSM2-00-20-250		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: None
JSM2-00-20-300		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: None
JSM2-00-30-25		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: None
JSM2-00-30-50		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: None
JSM2-00-30-75		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: None
JSM2-00-30-100		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: None
JSM2-00-30-125		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: None
JSM2-00-30-150		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: None
JSM2-00-30-175		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: None
JSM2-00-30-200		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: None
JSM2-00-30-250		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: None
JSM2-00-30-300		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: None
JSM2-00-40-25		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: None
JSM2-00-40-50		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: None
JSM2-00-40-75		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: None
JSM2-00-40-100		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: None
JSM2-00-40-125		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: None
JSM2-00-40-150		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: None
JSM2-00-40-175		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: None
JSM2-00-40-200		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: None
JSM2-00-40-250		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: None
JSM2-00-40-300		Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: None
JSM2-LB-20-25		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: None
JSM2-LB-20-50		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: None
JSM2-LB-20-75		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: None
JSM2-LB-20-100		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: None
JSM2-LB-20-125		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: None
JSM2-LB-20-150		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: None
JSM2-LB-20-175		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: None
JSM2-LB-20-200		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: None
JSM2-LB-20-250		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: None
JSM2-LB-20-300		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: None
JSM2-LB-30-25		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: None
JSM2-LB-30-50		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: None
JSM2-LB-30-75		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: None
JSM2-LB-30-100		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: None
JSM2-LB-30-125		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: None
JSM2-LB-30-150		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: None
JSM2-LB-30-175		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: None
JSM2-LB-30-200		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: None
JSM2-LB-30-250		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: None
JSM2-LB-30-300		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: None
JSM2-LB-40-25		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: None
JSM2-LB-40-50		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: None
JSM2-LB-40-75		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: None
JSM2-LB-40-100		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: None
JSM2-LB-40-125		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: None
JSM2-LB-40-150		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: None
JSM2-LB-40-175		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: None
JSM2-LB-40-200		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: None
JSM2-LB-40-250		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: None
JSM2-LB-40-300		Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: None
JSM2-FA-20-25		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: None
JSM2-FA-20-50		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: None
JSM2-FA-20-75		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: None
JSM2-FA-20-100		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: None
JSM2-FA-20-125		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: None
JSM2-FA-20-150		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: None
JSM2-FA-20-175		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: None
JSM2-FA-20-200		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: None
JSM2-FA-20-250		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: None
JSM2-FA-20-300		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: None
JSM2-FA-30-25		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: None
JSM2-FA-30-50		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: None
JSM2-FA-30-75		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: None
JSM2-FA-30-100		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: None
JSM2-FA-30-125		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: None
JSM2-FA-30-150		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: None
JSM2-FA-30-175		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: None
JSM2-FA-30-200		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: None
JSM2-FA-30-250		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: None
JSM2-FA-30-300		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: None
JSM2-FA-40-25		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: None
JSM2-FA-40-50		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: None
JSM2-FA-40-75		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: None
JSM2-FA-40-100		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: None
JSM2-FA-40-125		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: None
JSM2-FA-40-150		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: None
JSM2-FA-40-175		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: None
JSM2-FA-40-200		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: None
JSM2-FA-40-250		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: None
JSM2-FA-40-300		Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: None
JSM2-CA-20-25		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: None
JSM2-CA-20-50		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: None
JSM2-CA-20-75		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: None
JSM2-CA-20-100		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: None
JSM2-CA-20-125		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: None
JSM2-CA-20-150		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: None
JSM2-CA-20-175		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: None
JSM2-CA-20-200		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: None
JSM2-CA-20-250		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: None
JSM2-CA-20-300		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: None
JSM2-CA-30-25		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: None
JSM2-CA-30-50		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: None
JSM2-CA-30-75		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: None
JSM2-CA-30-100		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: None
JSM2-CA-30-125		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: None
JSM2-CA-30-150		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: None
JSM2-CA-30-175		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: None
JSM2-CA-30-200		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: None
JSM2-CA-30-250		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: None
JSM2-CA-30-300		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: None
JSM2-CA-40-25		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: None
JSM2-CA-40-50		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: None
JSM2-CA-40-75		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: None
JSM2-CA-40-100		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: None
JSM2-CA-40-125		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: None
JSM2-CA-40-150		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: None
JSM2-CA-40-175		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: None
JSM2-CA-40-200		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: None
JSM2-CA-40-250		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: None
JSM2-CA-40-300		Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: None
JSM2-TA-20-25		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: None
JSM2-TA-20-50		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: None
JSM2-TA-20-75		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: None
JSM2-TA-20-100		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: None
JSM2-TA-20-125		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: None
JSM2-TA-20-150		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: None
JSM2-TA-20-175		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: None
JSM2-TA-20-200		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: None
JSM2-TA-20-250		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: None
JSM2-TA-20-300		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: None
JSM2-TA-30-25		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: None
JSM2-TA-30-50		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: None
JSM2-TA-30-75		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: None
JSM2-TA-30-100		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: None
JSM2-TA-30-125		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: None
JSM2-TA-30-150		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: None
JSM2-TA-30-175		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: None
JSM2-TA-30-200		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: None
JSM2-TA-30-250		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: None
JSM2-TA-30-300		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: None
JSM2-TA-40-25		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: None
JSM2-TA-40-50		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: None
JSM2-TA-40-75		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: None
JSM2-TA-40-100		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: None
JSM2-TA-40-125		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: None
JSM2-TA-40-150		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: None
JSM2-TA-40-175		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: None
JSM2-TA-40-200		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: None
JSM2-TA-40-250		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: None
JSM2-TA-40-300		Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: None
JSM2-TB-20-25		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: None
JSM2-TB-20-50		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: None
JSM2-TB-20-75		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: None
JSM2-TB-20-100		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: None
JSM2-TB-20-125		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: None
JSM2-TB-20-150		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: None
JSM2-TB-20-175		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: None
JSM2-TB-20-200		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: None
JSM2-TB-20-250		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: None
JSM2-TB-20-300		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: None
JSM2-TB-30-25		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: None
JSM2-TB-30-50		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: None
JSM2-TB-30-75		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: None
JSM2-TB-30-100		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: None
JSM2-TB-30-125		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: None
JSM2-TB-30-150		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: None
JSM2-TB-30-175		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: None
JSM2-TB-30-200		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: None
JSM2-TB-30-250		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: None
JSM2-TB-30-300		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: None
JSM2-TB-40-25		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: None
JSM2-TB-40-50		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: None
JSM2-TB-40-75		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: None
JSM2-TB-40-100		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: None
JSM2-TB-40-125		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: None
JSM2-TB-40-150		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: None
JSM2-TB-40-175		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: None
JSM2-TB-40-200		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: None
JSM2-TB-40-250		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: None
JSM2-TB-40-300		Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: None
JSM2-V-00-20-25-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSM2-V-00-20-25-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSM2-V-00-20-25-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSM2-V-00-20-50-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSM2-V-00-20-50-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSM2-V-00-20-50-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSM2-V-00-20-75-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSM2-V-00-20-75-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSM2-V-00-20-75-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSM2-V-00-20-100-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSM2-V-00-20-100-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSM2-V-00-20-100-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSM2-V-00-20-125-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC100V
JSM2-V-00-20-125-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC200V
JSM2-V-00-20-125-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: DC24V
JSM2-V-00-20-150-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSM2-V-00-20-150-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSM2-V-00-20-150-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSM2-V-00-20-175-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC100V
JSM2-V-00-20-175-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC200V
JSM2-V-00-20-175-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: DC24V
JSM2-V-00-20-200-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSM2-V-00-20-200-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSM2-V-00-20-200-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSM2-V-00-20-250-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSM2-V-00-20-250-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSM2-V-00-20-250-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSM2-V-00-20-300-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSM2-V-00-20-300-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSM2-V-00-20-300-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSM2-V-00-30-25-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSM2-V-00-30-25-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSM2-V-00-30-25-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSM2-V-00-30-50-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSM2-V-00-30-50-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSM2-V-00-30-50-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSM2-V-00-30-75-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSM2-V-00-30-75-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSM2-V-00-30-75-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSM2-V-00-30-100-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSM2-V-00-30-100-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSM2-V-00-30-100-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSM2-V-00-30-125-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC100V
JSM2-V-00-30-125-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC200V
JSM2-V-00-30-125-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: DC24V
JSM2-V-00-30-150-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSM2-V-00-30-150-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSM2-V-00-30-150-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSM2-V-00-30-175-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC100V
JSM2-V-00-30-175-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC200V
JSM2-V-00-30-175-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: DC24V
JSM2-V-00-30-200-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSM2-V-00-30-200-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSM2-V-00-30-200-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSM2-V-00-30-250-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSM2-V-00-30-250-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSM2-V-00-30-250-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSM2-V-00-30-300-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSM2-V-00-30-300-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSM2-V-00-30-300-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSM2-V-00-40-25-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSM2-V-00-40-25-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSM2-V-00-40-25-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSM2-V-00-40-50-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSM2-V-00-40-50-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSM2-V-00-40-50-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSM2-V-00-40-75-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSM2-V-00-40-75-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSM2-V-00-40-75-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSM2-V-00-40-100-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSM2-V-00-40-100-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSM2-V-00-40-100-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSM2-V-00-40-125-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC100V
JSM2-V-00-40-125-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC200V
JSM2-V-00-40-125-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: DC24V
JSM2-V-00-40-150-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSM2-V-00-40-150-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSM2-V-00-40-150-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSM2-V-00-40-175-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC100V
JSM2-V-00-40-175-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC200V
JSM2-V-00-40-175-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: DC24V
JSM2-V-00-40-200-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSM2-V-00-40-200-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSM2-V-00-40-200-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSM2-V-00-40-250-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSM2-V-00-40-250-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSM2-V-00-40-250-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSM2-V-00-40-300-1		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSM2-V-00-40-300-2		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSM2-V-00-40-300-3		Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSM2-V-LB-20-25-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSM2-V-LB-20-25-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSM2-V-LB-20-25-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSM2-V-LB-20-50-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSM2-V-LB-20-50-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSM2-V-LB-20-50-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSM2-V-LB-20-75-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSM2-V-LB-20-75-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSM2-V-LB-20-75-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSM2-V-LB-20-100-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSM2-V-LB-20-100-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSM2-V-LB-20-100-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSM2-V-LB-20-125-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC100V
JSM2-V-LB-20-125-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC200V
JSM2-V-LB-20-125-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: DC24V
JSM2-V-LB-20-150-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSM2-V-LB-20-150-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSM2-V-LB-20-150-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSM2-V-LB-20-175-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC100V
JSM2-V-LB-20-175-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC200V
JSM2-V-LB-20-175-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: DC24V
JSM2-V-LB-20-200-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSM2-V-LB-20-200-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSM2-V-LB-20-200-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSM2-V-LB-20-250-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSM2-V-LB-20-250-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSM2-V-LB-20-250-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSM2-V-LB-20-300-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSM2-V-LB-20-300-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSM2-V-LB-20-300-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSM2-V-LB-30-25-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSM2-V-LB-30-25-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSM2-V-LB-30-25-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSM2-V-LB-30-50-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSM2-V-LB-30-50-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSM2-V-LB-30-50-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSM2-V-LB-30-75-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSM2-V-LB-30-75-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSM2-V-LB-30-75-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSM2-V-LB-30-100-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSM2-V-LB-30-100-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSM2-V-LB-30-100-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSM2-V-LB-30-125-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC100V
JSM2-V-LB-30-125-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC200V
JSM2-V-LB-30-125-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: DC24V
JSM2-V-LB-30-150-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSM2-V-LB-30-150-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSM2-V-LB-30-150-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSM2-V-LB-30-175-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC100V
JSM2-V-LB-30-175-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC200V
JSM2-V-LB-30-175-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: DC24V
JSM2-V-LB-30-200-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSM2-V-LB-30-200-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSM2-V-LB-30-200-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSM2-V-LB-30-250-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSM2-V-LB-30-250-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSM2-V-LB-30-250-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSM2-V-LB-30-300-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSM2-V-LB-30-300-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSM2-V-LB-30-300-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSM2-V-LB-40-25-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSM2-V-LB-40-25-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSM2-V-LB-40-25-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSM2-V-LB-40-50-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSM2-V-LB-40-50-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSM2-V-LB-40-50-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSM2-V-LB-40-75-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSM2-V-LB-40-75-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSM2-V-LB-40-75-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSM2-V-LB-40-100-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSM2-V-LB-40-100-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSM2-V-LB-40-100-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSM2-V-LB-40-125-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC100V
JSM2-V-LB-40-125-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC200V
JSM2-V-LB-40-125-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: DC24V
JSM2-V-LB-40-150-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSM2-V-LB-40-150-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSM2-V-LB-40-150-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSM2-V-LB-40-175-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC100V
JSM2-V-LB-40-175-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC200V
JSM2-V-LB-40-175-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: DC24V
JSM2-V-LB-40-200-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSM2-V-LB-40-200-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSM2-V-LB-40-200-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSM2-V-LB-40-250-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSM2-V-LB-40-250-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSM2-V-LB-40-250-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSM2-V-LB-40-300-1		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSM2-V-LB-40-300-2		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSM2-V-LB-40-300-3		Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSM2-V-FA-20-25-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSM2-V-FA-20-25-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSM2-V-FA-20-25-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSM2-V-FA-20-50-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSM2-V-FA-20-50-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSM2-V-FA-20-50-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSM2-V-FA-20-75-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSM2-V-FA-20-75-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSM2-V-FA-20-75-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSM2-V-FA-20-100-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSM2-V-FA-20-100-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSM2-V-FA-20-100-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSM2-V-FA-20-125-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC100V
JSM2-V-FA-20-125-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC200V
JSM2-V-FA-20-125-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: DC24V
JSM2-V-FA-20-150-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSM2-V-FA-20-150-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSM2-V-FA-20-150-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSM2-V-FA-20-175-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC100V
JSM2-V-FA-20-175-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC200V
JSM2-V-FA-20-175-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: DC24V
JSM2-V-FA-20-200-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSM2-V-FA-20-200-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSM2-V-FA-20-200-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSM2-V-FA-20-250-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSM2-V-FA-20-250-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSM2-V-FA-20-250-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSM2-V-FA-20-300-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSM2-V-FA-20-300-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSM2-V-FA-20-300-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSM2-V-FA-30-25-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSM2-V-FA-30-25-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSM2-V-FA-30-25-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSM2-V-FA-30-50-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSM2-V-FA-30-50-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSM2-V-FA-30-50-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSM2-V-FA-30-75-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSM2-V-FA-30-75-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSM2-V-FA-30-75-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSM2-V-FA-30-100-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSM2-V-FA-30-100-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSM2-V-FA-30-100-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSM2-V-FA-30-125-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC100V
JSM2-V-FA-30-125-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC200V
JSM2-V-FA-30-125-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: DC24V
JSM2-V-FA-30-150-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSM2-V-FA-30-150-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSM2-V-FA-30-150-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSM2-V-FA-30-175-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC100V
JSM2-V-FA-30-175-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC200V
JSM2-V-FA-30-175-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: DC24V
JSM2-V-FA-30-200-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSM2-V-FA-30-200-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSM2-V-FA-30-200-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSM2-V-FA-30-250-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSM2-V-FA-30-250-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSM2-V-FA-30-250-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSM2-V-FA-30-300-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSM2-V-FA-30-300-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSM2-V-FA-30-300-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSM2-V-FA-40-25-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSM2-V-FA-40-25-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSM2-V-FA-40-25-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSM2-V-FA-40-50-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSM2-V-FA-40-50-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSM2-V-FA-40-50-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSM2-V-FA-40-75-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSM2-V-FA-40-75-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSM2-V-FA-40-75-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSM2-V-FA-40-100-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSM2-V-FA-40-100-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSM2-V-FA-40-100-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSM2-V-FA-40-125-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC100V
JSM2-V-FA-40-125-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC200V
JSM2-V-FA-40-125-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: DC24V
JSM2-V-FA-40-150-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSM2-V-FA-40-150-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSM2-V-FA-40-150-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSM2-V-FA-40-175-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC100V
JSM2-V-FA-40-175-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC200V
JSM2-V-FA-40-175-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: DC24V
JSM2-V-FA-40-200-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSM2-V-FA-40-200-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSM2-V-FA-40-200-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSM2-V-FA-40-250-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSM2-V-FA-40-250-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSM2-V-FA-40-250-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSM2-V-FA-40-300-1		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSM2-V-FA-40-300-2		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSM2-V-FA-40-300-3		Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSM2-V-CA-20-25-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSM2-V-CA-20-25-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSM2-V-CA-20-25-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSM2-V-CA-20-50-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSM2-V-CA-20-50-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSM2-V-CA-20-50-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSM2-V-CA-20-75-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSM2-V-CA-20-75-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSM2-V-CA-20-75-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSM2-V-CA-20-100-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSM2-V-CA-20-100-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSM2-V-CA-20-100-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSM2-V-CA-20-125-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC100V
JSM2-V-CA-20-125-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC200V
JSM2-V-CA-20-125-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: DC24V
JSM2-V-CA-20-150-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSM2-V-CA-20-150-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSM2-V-CA-20-150-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSM2-V-CA-20-175-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC100V
JSM2-V-CA-20-175-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC200V
JSM2-V-CA-20-175-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: DC24V
JSM2-V-CA-20-200-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSM2-V-CA-20-200-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSM2-V-CA-20-200-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSM2-V-CA-20-250-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSM2-V-CA-20-250-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSM2-V-CA-20-250-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSM2-V-CA-20-300-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSM2-V-CA-20-300-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSM2-V-CA-20-300-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSM2-V-CA-30-25-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSM2-V-CA-30-25-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSM2-V-CA-30-25-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSM2-V-CA-30-50-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSM2-V-CA-30-50-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSM2-V-CA-30-50-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSM2-V-CA-30-75-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSM2-V-CA-30-75-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSM2-V-CA-30-75-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSM2-V-CA-30-100-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSM2-V-CA-30-100-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSM2-V-CA-30-100-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSM2-V-CA-30-125-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC100V
JSM2-V-CA-30-125-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC200V
JSM2-V-CA-30-125-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: DC24V
JSM2-V-CA-30-150-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSM2-V-CA-30-150-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSM2-V-CA-30-150-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSM2-V-CA-30-175-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC100V
JSM2-V-CA-30-175-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC200V
JSM2-V-CA-30-175-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: DC24V
JSM2-V-CA-30-200-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSM2-V-CA-30-200-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSM2-V-CA-30-200-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSM2-V-CA-30-250-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSM2-V-CA-30-250-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSM2-V-CA-30-250-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSM2-V-CA-30-300-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSM2-V-CA-30-300-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSM2-V-CA-30-300-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSM2-V-CA-40-25-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSM2-V-CA-40-25-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSM2-V-CA-40-25-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSM2-V-CA-40-50-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSM2-V-CA-40-50-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSM2-V-CA-40-50-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSM2-V-CA-40-75-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSM2-V-CA-40-75-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSM2-V-CA-40-75-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSM2-V-CA-40-100-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSM2-V-CA-40-100-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSM2-V-CA-40-100-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSM2-V-CA-40-125-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC100V
JSM2-V-CA-40-125-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC200V
JSM2-V-CA-40-125-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: DC24V
JSM2-V-CA-40-150-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSM2-V-CA-40-150-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSM2-V-CA-40-150-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSM2-V-CA-40-175-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC100V
JSM2-V-CA-40-175-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC200V
JSM2-V-CA-40-175-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: DC24V
JSM2-V-CA-40-200-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSM2-V-CA-40-200-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSM2-V-CA-40-200-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSM2-V-CA-40-250-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSM2-V-CA-40-250-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSM2-V-CA-40-250-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSM2-V-CA-40-300-1		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSM2-V-CA-40-300-2		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSM2-V-CA-40-300-3		Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSM2-V-TA-20-25-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSM2-V-TA-20-25-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSM2-V-TA-20-25-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSM2-V-TA-20-50-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSM2-V-TA-20-50-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSM2-V-TA-20-50-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSM2-V-TA-20-75-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSM2-V-TA-20-75-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSM2-V-TA-20-75-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSM2-V-TA-20-100-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSM2-V-TA-20-100-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSM2-V-TA-20-100-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSM2-V-TA-20-125-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC100V
JSM2-V-TA-20-125-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC200V
JSM2-V-TA-20-125-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: DC24V
JSM2-V-TA-20-150-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSM2-V-TA-20-150-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSM2-V-TA-20-150-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSM2-V-TA-20-175-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC100V
JSM2-V-TA-20-175-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC200V
JSM2-V-TA-20-175-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: DC24V
JSM2-V-TA-20-200-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSM2-V-TA-20-200-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSM2-V-TA-20-200-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSM2-V-TA-20-250-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSM2-V-TA-20-250-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSM2-V-TA-20-250-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSM2-V-TA-20-300-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSM2-V-TA-20-300-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSM2-V-TA-20-300-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSM2-V-TA-30-25-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSM2-V-TA-30-25-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSM2-V-TA-30-25-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSM2-V-TA-30-50-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSM2-V-TA-30-50-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSM2-V-TA-30-50-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSM2-V-TA-30-75-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSM2-V-TA-30-75-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSM2-V-TA-30-75-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSM2-V-TA-30-100-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSM2-V-TA-30-100-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSM2-V-TA-30-100-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSM2-V-TA-30-125-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC100V
JSM2-V-TA-30-125-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC200V
JSM2-V-TA-30-125-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: DC24V
JSM2-V-TA-30-150-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSM2-V-TA-30-150-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSM2-V-TA-30-150-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSM2-V-TA-30-175-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC100V
JSM2-V-TA-30-175-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC200V
JSM2-V-TA-30-175-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: DC24V
JSM2-V-TA-30-200-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSM2-V-TA-30-200-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSM2-V-TA-30-200-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSM2-V-TA-30-250-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSM2-V-TA-30-250-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSM2-V-TA-30-250-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSM2-V-TA-30-300-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSM2-V-TA-30-300-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSM2-V-TA-30-300-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSM2-V-TA-40-25-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSM2-V-TA-40-25-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSM2-V-TA-40-25-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSM2-V-TA-40-50-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSM2-V-TA-40-50-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSM2-V-TA-40-50-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSM2-V-TA-40-75-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSM2-V-TA-40-75-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSM2-V-TA-40-75-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSM2-V-TA-40-100-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSM2-V-TA-40-100-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSM2-V-TA-40-100-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSM2-V-TA-40-125-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC100V
JSM2-V-TA-40-125-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC200V
JSM2-V-TA-40-125-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: DC24V
JSM2-V-TA-40-150-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSM2-V-TA-40-150-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSM2-V-TA-40-150-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSM2-V-TA-40-175-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC100V
JSM2-V-TA-40-175-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC200V
JSM2-V-TA-40-175-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: DC24V
JSM2-V-TA-40-200-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSM2-V-TA-40-200-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSM2-V-TA-40-200-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSM2-V-TA-40-250-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSM2-V-TA-40-250-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSM2-V-TA-40-250-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSM2-V-TA-40-300-1		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSM2-V-TA-40-300-2		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSM2-V-TA-40-300-3		Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSM2-V-TB-20-25-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSM2-V-TB-20-25-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSM2-V-TB-20-25-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSM2-V-TB-20-50-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSM2-V-TB-20-50-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSM2-V-TB-20-50-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSM2-V-TB-20-75-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSM2-V-TB-20-75-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSM2-V-TB-20-75-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSM2-V-TB-20-100-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSM2-V-TB-20-100-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSM2-V-TB-20-100-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSM2-V-TB-20-125-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC100V
JSM2-V-TB-20-125-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC200V
JSM2-V-TB-20-125-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: DC24V
JSM2-V-TB-20-150-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSM2-V-TB-20-150-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSM2-V-TB-20-150-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSM2-V-TB-20-175-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC100V
JSM2-V-TB-20-175-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC200V
JSM2-V-TB-20-175-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: DC24V
JSM2-V-TB-20-200-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSM2-V-TB-20-200-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSM2-V-TB-20-200-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSM2-V-TB-20-250-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSM2-V-TB-20-250-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSM2-V-TB-20-250-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSM2-V-TB-20-300-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSM2-V-TB-20-300-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSM2-V-TB-20-300-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSM2-V-TB-30-25-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSM2-V-TB-30-25-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSM2-V-TB-30-25-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSM2-V-TB-30-50-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSM2-V-TB-30-50-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSM2-V-TB-30-50-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSM2-V-TB-30-75-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSM2-V-TB-30-75-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSM2-V-TB-30-75-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSM2-V-TB-30-100-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSM2-V-TB-30-100-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSM2-V-TB-30-100-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSM2-V-TB-30-125-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC100V
JSM2-V-TB-30-125-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC200V
JSM2-V-TB-30-125-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: DC24V
JSM2-V-TB-30-150-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSM2-V-TB-30-150-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSM2-V-TB-30-150-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSM2-V-TB-30-175-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC100V
JSM2-V-TB-30-175-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC200V
JSM2-V-TB-30-175-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: DC24V
JSM2-V-TB-30-200-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSM2-V-TB-30-200-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSM2-V-TB-30-200-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSM2-V-TB-30-250-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSM2-V-TB-30-250-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSM2-V-TB-30-250-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSM2-V-TB-30-300-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSM2-V-TB-30-300-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSM2-V-TB-30-300-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: DC24V
JSM2-V-TB-40-25-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC100V
JSM2-V-TB-40-25-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC200V
JSM2-V-TB-40-25-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: DC24V
JSM2-V-TB-40-50-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC100V
JSM2-V-TB-40-50-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC200V
JSM2-V-TB-40-50-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: DC24V
JSM2-V-TB-40-75-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC100V
JSM2-V-TB-40-75-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC200V
JSM2-V-TB-40-75-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: DC24V
JSM2-V-TB-40-100-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC100V
JSM2-V-TB-40-100-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC200V
JSM2-V-TB-40-100-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: DC24V
JSM2-V-TB-40-125-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC100V
JSM2-V-TB-40-125-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC200V
JSM2-V-TB-40-125-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: DC24V
JSM2-V-TB-40-150-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC100V
JSM2-V-TB-40-150-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC200V
JSM2-V-TB-40-150-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: DC24V
JSM2-V-TB-40-175-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC100V
JSM2-V-TB-40-175-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC200V
JSM2-V-TB-40-175-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: DC24V
JSM2-V-TB-40-200-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC100V
JSM2-V-TB-40-200-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC200V
JSM2-V-TB-40-200-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: DC24V
JSM2-V-TB-40-250-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC100V
JSM2-V-TB-40-250-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC200V
JSM2-V-TB-40-250-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: DC24V
JSM2-V-TB-40-300-1		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC100V
JSM2-V-TB-40-300-2		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC200V
JSM2-V-TB-40-300-3		Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: DC24V

Pneumatic CylindersCKD

720 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD JSM2 Cell Top Brake Cylinder (Small Bore, Repairable, 20-40)

Brand CKD·Pneumatic Cylinders

Available part numbers (720)

JSM2-00-20-25, JSM2-00-20-50, JSM2-00-20-75, JSM2-00-20-100, JSM2-00-20-125, JSM2-00-20-150, JSM2-00-20-175, JSM2-00-20-200, JSM2-00-20-250, JSM2-00-20-300 + 710 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	JSM2-00-20-25	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: None
	JSM2-00-20-50	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: None
	JSM2-00-20-75	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: None
	JSM2-00-20-100	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: None
	JSM2-00-20-125	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: None
	JSM2-00-20-150	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: None
	JSM2-00-20-175	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: None
	JSM2-00-20-200	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: None
	JSM2-00-20-250	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: None
	JSM2-00-20-300	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: None
	JSM2-00-30-25	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: None
	JSM2-00-30-50	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: None
	JSM2-00-30-75	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: None
	JSM2-00-30-100	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: None
	JSM2-00-30-125	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: None
	JSM2-00-30-150	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: None
	JSM2-00-30-175	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: None
	JSM2-00-30-200	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: None
	JSM2-00-30-250	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: None
	JSM2-00-30-300	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: None
	JSM2-00-40-25	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: None
	JSM2-00-40-50	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: None
	JSM2-00-40-75	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: None
	JSM2-00-40-100	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: None
	JSM2-00-40-125	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: None
	JSM2-00-40-150	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: None
	JSM2-00-40-175	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: None
	JSM2-00-40-200	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: None
	JSM2-00-40-250	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: None
	JSM2-00-40-300	Model: JSM2 (no valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: None
	JSM2-LB-20-25	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: None
	JSM2-LB-20-50	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: None
	JSM2-LB-20-75	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: None
	JSM2-LB-20-100	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: None
	JSM2-LB-20-125	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: None
	JSM2-LB-20-150	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: None
	JSM2-LB-20-175	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: None
	JSM2-LB-20-200	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: None
	JSM2-LB-20-250	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: None
	JSM2-LB-20-300	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: None
	JSM2-LB-30-25	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: None
	JSM2-LB-30-50	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: None
	JSM2-LB-30-75	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: None
	JSM2-LB-30-100	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: None
	JSM2-LB-30-125	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: None
	JSM2-LB-30-150	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: None
	JSM2-LB-30-175	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: None
	JSM2-LB-30-200	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: None
	JSM2-LB-30-250	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: None
	JSM2-LB-30-300	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: None
	JSM2-LB-40-25	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: None
	JSM2-LB-40-50	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: None
	JSM2-LB-40-75	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: None
	JSM2-LB-40-100	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: None
	JSM2-LB-40-125	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: None
	JSM2-LB-40-150	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: None
	JSM2-LB-40-175	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: None
	JSM2-LB-40-200	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: None
	JSM2-LB-40-250	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: None
	JSM2-LB-40-300	Model: JSM2 (no valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: None
	JSM2-FA-20-25	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: None
	JSM2-FA-20-50	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: None
	JSM2-FA-20-75	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: None
	JSM2-FA-20-100	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: None
	JSM2-FA-20-125	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: None
	JSM2-FA-20-150	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: None
	JSM2-FA-20-175	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: None
	JSM2-FA-20-200	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: None
	JSM2-FA-20-250	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: None
	JSM2-FA-20-300	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: None
	JSM2-FA-30-25	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: None
	JSM2-FA-30-50	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: None
	JSM2-FA-30-75	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: None
	JSM2-FA-30-100	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: None
	JSM2-FA-30-125	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: None
	JSM2-FA-30-150	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: None
	JSM2-FA-30-175	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: None
	JSM2-FA-30-200	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: None
	JSM2-FA-30-250	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: None
	JSM2-FA-30-300	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: None
	JSM2-FA-40-25	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: None
	JSM2-FA-40-50	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: None
	JSM2-FA-40-75	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: None
	JSM2-FA-40-100	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: None
	JSM2-FA-40-125	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: None
	JSM2-FA-40-150	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: None
	JSM2-FA-40-175	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: None
	JSM2-FA-40-200	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: None
	JSM2-FA-40-250	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: None
	JSM2-FA-40-300	Model: JSM2 (no valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: None
	JSM2-CA-20-25	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: None
	JSM2-CA-20-50	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: None
	JSM2-CA-20-75	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: None
	JSM2-CA-20-100	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: None
	JSM2-CA-20-125	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: None
	JSM2-CA-20-150	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: None
	JSM2-CA-20-175	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: None
	JSM2-CA-20-200	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: None
	JSM2-CA-20-250	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: None
	JSM2-CA-20-300	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: None
	JSM2-CA-30-25	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: None
	JSM2-CA-30-50	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: None
	JSM2-CA-30-75	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: None
	JSM2-CA-30-100	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: None
	JSM2-CA-30-125	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: None
	JSM2-CA-30-150	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: None
	JSM2-CA-30-175	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: None
	JSM2-CA-30-200	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: None
	JSM2-CA-30-250	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: None
	JSM2-CA-30-300	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: None
	JSM2-CA-40-25	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: None
	JSM2-CA-40-50	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: None
	JSM2-CA-40-75	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: None
	JSM2-CA-40-100	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: None
	JSM2-CA-40-125	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: None
	JSM2-CA-40-150	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: None
	JSM2-CA-40-175	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: None
	JSM2-CA-40-200	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: None
	JSM2-CA-40-250	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: None
	JSM2-CA-40-300	Model: JSM2 (no valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: None
	JSM2-TA-20-25	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: None
	JSM2-TA-20-50	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: None
	JSM2-TA-20-75	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: None
	JSM2-TA-20-100	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: None
	JSM2-TA-20-125	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: None
	JSM2-TA-20-150	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: None
	JSM2-TA-20-175	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: None
	JSM2-TA-20-200	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: None
	JSM2-TA-20-250	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: None
	JSM2-TA-20-300	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: None
	JSM2-TA-30-25	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: None
	JSM2-TA-30-50	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: None
	JSM2-TA-30-75	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: None
	JSM2-TA-30-100	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: None
	JSM2-TA-30-125	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: None
	JSM2-TA-30-150	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: None
	JSM2-TA-30-175	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: None
	JSM2-TA-30-200	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: None
	JSM2-TA-30-250	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: None
	JSM2-TA-30-300	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: None
	JSM2-TA-40-25	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: None
	JSM2-TA-40-50	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: None
	JSM2-TA-40-75	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: None
	JSM2-TA-40-100	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: None
	JSM2-TA-40-125	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: None
	JSM2-TA-40-150	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: None
	JSM2-TA-40-175	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: None
	JSM2-TA-40-200	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: None
	JSM2-TA-40-250	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: None
	JSM2-TA-40-300	Model: JSM2 (no valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: None
	JSM2-TB-20-25	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: None
	JSM2-TB-20-50	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: None
	JSM2-TB-20-75	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: None
	JSM2-TB-20-100	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: None
	JSM2-TB-20-125	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: None
	JSM2-TB-20-150	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: None
	JSM2-TB-20-175	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: None
	JSM2-TB-20-200	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: None
	JSM2-TB-20-250	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: None
	JSM2-TB-20-300	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: None
	JSM2-TB-30-25	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: None
	JSM2-TB-30-50	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: None
	JSM2-TB-30-75	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: None
	JSM2-TB-30-100	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: None
	JSM2-TB-30-125	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: None
	JSM2-TB-30-150	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: None
	JSM2-TB-30-175	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: None
	JSM2-TB-30-200	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: None
	JSM2-TB-30-250	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: None
	JSM2-TB-30-300	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: None
	JSM2-TB-40-25	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: None
	JSM2-TB-40-50	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: None
	JSM2-TB-40-75	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: None
	JSM2-TB-40-100	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: None
	JSM2-TB-40-125	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: None
	JSM2-TB-40-150	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: None
	JSM2-TB-40-175	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: None
	JSM2-TB-40-200	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: None
	JSM2-TB-40-250	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: None
	JSM2-TB-40-300	Model: JSM2 (no valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: None
	JSM2-V-00-20-25-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSM2-V-00-20-25-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSM2-V-00-20-25-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSM2-V-00-20-50-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSM2-V-00-20-50-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSM2-V-00-20-50-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSM2-V-00-20-75-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSM2-V-00-20-75-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSM2-V-00-20-75-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSM2-V-00-20-100-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSM2-V-00-20-100-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSM2-V-00-20-100-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSM2-V-00-20-125-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC100V
	JSM2-V-00-20-125-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC200V
	JSM2-V-00-20-125-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: DC24V
	JSM2-V-00-20-150-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSM2-V-00-20-150-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSM2-V-00-20-150-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSM2-V-00-20-175-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC100V
	JSM2-V-00-20-175-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC200V
	JSM2-V-00-20-175-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: DC24V
	JSM2-V-00-20-200-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSM2-V-00-20-200-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSM2-V-00-20-200-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSM2-V-00-20-250-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSM2-V-00-20-250-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSM2-V-00-20-250-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSM2-V-00-20-300-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSM2-V-00-20-300-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSM2-V-00-20-300-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSM2-V-00-30-25-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSM2-V-00-30-25-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSM2-V-00-30-25-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSM2-V-00-30-50-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSM2-V-00-30-50-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSM2-V-00-30-50-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSM2-V-00-30-75-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSM2-V-00-30-75-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSM2-V-00-30-75-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSM2-V-00-30-100-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSM2-V-00-30-100-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSM2-V-00-30-100-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSM2-V-00-30-125-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC100V
	JSM2-V-00-30-125-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC200V
	JSM2-V-00-30-125-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: DC24V
	JSM2-V-00-30-150-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSM2-V-00-30-150-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSM2-V-00-30-150-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSM2-V-00-30-175-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC100V
	JSM2-V-00-30-175-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC200V
	JSM2-V-00-30-175-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: DC24V
	JSM2-V-00-30-200-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSM2-V-00-30-200-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSM2-V-00-30-200-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSM2-V-00-30-250-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSM2-V-00-30-250-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSM2-V-00-30-250-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSM2-V-00-30-300-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSM2-V-00-30-300-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSM2-V-00-30-300-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSM2-V-00-40-25-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSM2-V-00-40-25-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSM2-V-00-40-25-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSM2-V-00-40-50-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSM2-V-00-40-50-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSM2-V-00-40-50-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSM2-V-00-40-75-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSM2-V-00-40-75-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSM2-V-00-40-75-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSM2-V-00-40-100-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSM2-V-00-40-100-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSM2-V-00-40-100-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSM2-V-00-40-125-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC100V
	JSM2-V-00-40-125-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC200V
	JSM2-V-00-40-125-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: DC24V
	JSM2-V-00-40-150-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSM2-V-00-40-150-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSM2-V-00-40-150-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSM2-V-00-40-175-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC100V
	JSM2-V-00-40-175-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC200V
	JSM2-V-00-40-175-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: DC24V
	JSM2-V-00-40-200-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSM2-V-00-40-200-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSM2-V-00-40-200-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSM2-V-00-40-250-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSM2-V-00-40-250-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSM2-V-00-40-250-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSM2-V-00-40-300-1	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSM2-V-00-40-300-2	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSM2-V-00-40-300-3	Model: JSM2-V (brake valve) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSM2-V-LB-20-25-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSM2-V-LB-20-25-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSM2-V-LB-20-25-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSM2-V-LB-20-50-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSM2-V-LB-20-50-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSM2-V-LB-20-50-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSM2-V-LB-20-75-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSM2-V-LB-20-75-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSM2-V-LB-20-75-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSM2-V-LB-20-100-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSM2-V-LB-20-100-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSM2-V-LB-20-100-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSM2-V-LB-20-125-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC100V
	JSM2-V-LB-20-125-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC200V
	JSM2-V-LB-20-125-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: DC24V
	JSM2-V-LB-20-150-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSM2-V-LB-20-150-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSM2-V-LB-20-150-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSM2-V-LB-20-175-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC100V
	JSM2-V-LB-20-175-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC200V
	JSM2-V-LB-20-175-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: DC24V
	JSM2-V-LB-20-200-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSM2-V-LB-20-200-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSM2-V-LB-20-200-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSM2-V-LB-20-250-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSM2-V-LB-20-250-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSM2-V-LB-20-250-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSM2-V-LB-20-300-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSM2-V-LB-20-300-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSM2-V-LB-20-300-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSM2-V-LB-30-25-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSM2-V-LB-30-25-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSM2-V-LB-30-25-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSM2-V-LB-30-50-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSM2-V-LB-30-50-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSM2-V-LB-30-50-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSM2-V-LB-30-75-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSM2-V-LB-30-75-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSM2-V-LB-30-75-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSM2-V-LB-30-100-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSM2-V-LB-30-100-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSM2-V-LB-30-100-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSM2-V-LB-30-125-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC100V
	JSM2-V-LB-30-125-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC200V
	JSM2-V-LB-30-125-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: DC24V
	JSM2-V-LB-30-150-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSM2-V-LB-30-150-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSM2-V-LB-30-150-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSM2-V-LB-30-175-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC100V
	JSM2-V-LB-30-175-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC200V
	JSM2-V-LB-30-175-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: DC24V
	JSM2-V-LB-30-200-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSM2-V-LB-30-200-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSM2-V-LB-30-200-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSM2-V-LB-30-250-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSM2-V-LB-30-250-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSM2-V-LB-30-250-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSM2-V-LB-30-300-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSM2-V-LB-30-300-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSM2-V-LB-30-300-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSM2-V-LB-40-25-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSM2-V-LB-40-25-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSM2-V-LB-40-25-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSM2-V-LB-40-50-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSM2-V-LB-40-50-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSM2-V-LB-40-50-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSM2-V-LB-40-75-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSM2-V-LB-40-75-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSM2-V-LB-40-75-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSM2-V-LB-40-100-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSM2-V-LB-40-100-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSM2-V-LB-40-100-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSM2-V-LB-40-125-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC100V
	JSM2-V-LB-40-125-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC200V
	JSM2-V-LB-40-125-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: DC24V
	JSM2-V-LB-40-150-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSM2-V-LB-40-150-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSM2-V-LB-40-150-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSM2-V-LB-40-175-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC100V
	JSM2-V-LB-40-175-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC200V
	JSM2-V-LB-40-175-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: DC24V
	JSM2-V-LB-40-200-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSM2-V-LB-40-200-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSM2-V-LB-40-200-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSM2-V-LB-40-250-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSM2-V-LB-40-250-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSM2-V-LB-40-250-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSM2-V-LB-40-300-1	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSM2-V-LB-40-300-2	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSM2-V-LB-40-300-3	Model: JSM2-V (brake valve) \| Mounting: Axial foot \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSM2-V-FA-20-25-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSM2-V-FA-20-25-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSM2-V-FA-20-25-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSM2-V-FA-20-50-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSM2-V-FA-20-50-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSM2-V-FA-20-50-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSM2-V-FA-20-75-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSM2-V-FA-20-75-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSM2-V-FA-20-75-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSM2-V-FA-20-100-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSM2-V-FA-20-100-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSM2-V-FA-20-100-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSM2-V-FA-20-125-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC100V
	JSM2-V-FA-20-125-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC200V
	JSM2-V-FA-20-125-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: DC24V
	JSM2-V-FA-20-150-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSM2-V-FA-20-150-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSM2-V-FA-20-150-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSM2-V-FA-20-175-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC100V
	JSM2-V-FA-20-175-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC200V
	JSM2-V-FA-20-175-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: DC24V
	JSM2-V-FA-20-200-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSM2-V-FA-20-200-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSM2-V-FA-20-200-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSM2-V-FA-20-250-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSM2-V-FA-20-250-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSM2-V-FA-20-250-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSM2-V-FA-20-300-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSM2-V-FA-20-300-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSM2-V-FA-20-300-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSM2-V-FA-30-25-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSM2-V-FA-30-25-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSM2-V-FA-30-25-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSM2-V-FA-30-50-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSM2-V-FA-30-50-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSM2-V-FA-30-50-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSM2-V-FA-30-75-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSM2-V-FA-30-75-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSM2-V-FA-30-75-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSM2-V-FA-30-100-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSM2-V-FA-30-100-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSM2-V-FA-30-100-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSM2-V-FA-30-125-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC100V
	JSM2-V-FA-30-125-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC200V
	JSM2-V-FA-30-125-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: DC24V
	JSM2-V-FA-30-150-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSM2-V-FA-30-150-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSM2-V-FA-30-150-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSM2-V-FA-30-175-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC100V
	JSM2-V-FA-30-175-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC200V
	JSM2-V-FA-30-175-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: DC24V
	JSM2-V-FA-30-200-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSM2-V-FA-30-200-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSM2-V-FA-30-200-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSM2-V-FA-30-250-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSM2-V-FA-30-250-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSM2-V-FA-30-250-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSM2-V-FA-30-300-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSM2-V-FA-30-300-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSM2-V-FA-30-300-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSM2-V-FA-40-25-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSM2-V-FA-40-25-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSM2-V-FA-40-25-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSM2-V-FA-40-50-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSM2-V-FA-40-50-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSM2-V-FA-40-50-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSM2-V-FA-40-75-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSM2-V-FA-40-75-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSM2-V-FA-40-75-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSM2-V-FA-40-100-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSM2-V-FA-40-100-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSM2-V-FA-40-100-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSM2-V-FA-40-125-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC100V
	JSM2-V-FA-40-125-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC200V
	JSM2-V-FA-40-125-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: DC24V
	JSM2-V-FA-40-150-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSM2-V-FA-40-150-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSM2-V-FA-40-150-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSM2-V-FA-40-175-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC100V
	JSM2-V-FA-40-175-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC200V
	JSM2-V-FA-40-175-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: DC24V
	JSM2-V-FA-40-200-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSM2-V-FA-40-200-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSM2-V-FA-40-200-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSM2-V-FA-40-250-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSM2-V-FA-40-250-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSM2-V-FA-40-250-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSM2-V-FA-40-300-1	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSM2-V-FA-40-300-2	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSM2-V-FA-40-300-3	Model: JSM2-V (brake valve) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSM2-V-CA-20-25-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSM2-V-CA-20-25-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSM2-V-CA-20-25-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSM2-V-CA-20-50-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSM2-V-CA-20-50-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSM2-V-CA-20-50-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSM2-V-CA-20-75-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSM2-V-CA-20-75-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSM2-V-CA-20-75-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSM2-V-CA-20-100-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSM2-V-CA-20-100-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSM2-V-CA-20-100-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSM2-V-CA-20-125-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC100V
	JSM2-V-CA-20-125-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC200V
	JSM2-V-CA-20-125-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: DC24V
	JSM2-V-CA-20-150-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSM2-V-CA-20-150-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSM2-V-CA-20-150-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSM2-V-CA-20-175-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC100V
	JSM2-V-CA-20-175-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC200V
	JSM2-V-CA-20-175-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: DC24V
	JSM2-V-CA-20-200-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSM2-V-CA-20-200-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSM2-V-CA-20-200-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSM2-V-CA-20-250-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSM2-V-CA-20-250-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSM2-V-CA-20-250-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSM2-V-CA-20-300-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSM2-V-CA-20-300-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSM2-V-CA-20-300-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSM2-V-CA-30-25-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSM2-V-CA-30-25-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSM2-V-CA-30-25-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSM2-V-CA-30-50-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSM2-V-CA-30-50-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSM2-V-CA-30-50-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSM2-V-CA-30-75-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSM2-V-CA-30-75-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSM2-V-CA-30-75-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSM2-V-CA-30-100-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSM2-V-CA-30-100-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSM2-V-CA-30-100-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSM2-V-CA-30-125-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC100V
	JSM2-V-CA-30-125-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC200V
	JSM2-V-CA-30-125-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: DC24V
	JSM2-V-CA-30-150-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSM2-V-CA-30-150-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSM2-V-CA-30-150-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSM2-V-CA-30-175-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC100V
	JSM2-V-CA-30-175-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC200V
	JSM2-V-CA-30-175-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: DC24V
	JSM2-V-CA-30-200-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSM2-V-CA-30-200-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSM2-V-CA-30-200-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSM2-V-CA-30-250-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSM2-V-CA-30-250-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSM2-V-CA-30-250-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSM2-V-CA-30-300-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSM2-V-CA-30-300-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSM2-V-CA-30-300-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSM2-V-CA-40-25-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSM2-V-CA-40-25-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSM2-V-CA-40-25-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSM2-V-CA-40-50-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSM2-V-CA-40-50-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSM2-V-CA-40-50-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSM2-V-CA-40-75-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSM2-V-CA-40-75-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSM2-V-CA-40-75-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSM2-V-CA-40-100-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSM2-V-CA-40-100-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSM2-V-CA-40-100-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSM2-V-CA-40-125-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC100V
	JSM2-V-CA-40-125-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC200V
	JSM2-V-CA-40-125-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: DC24V
	JSM2-V-CA-40-150-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSM2-V-CA-40-150-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSM2-V-CA-40-150-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSM2-V-CA-40-175-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC100V
	JSM2-V-CA-40-175-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC200V
	JSM2-V-CA-40-175-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: DC24V
	JSM2-V-CA-40-200-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSM2-V-CA-40-200-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSM2-V-CA-40-200-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSM2-V-CA-40-250-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSM2-V-CA-40-250-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSM2-V-CA-40-250-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSM2-V-CA-40-300-1	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSM2-V-CA-40-300-2	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSM2-V-CA-40-300-3	Model: JSM2-V (brake valve) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSM2-V-TA-20-25-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSM2-V-TA-20-25-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSM2-V-TA-20-25-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSM2-V-TA-20-50-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSM2-V-TA-20-50-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSM2-V-TA-20-50-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSM2-V-TA-20-75-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSM2-V-TA-20-75-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSM2-V-TA-20-75-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSM2-V-TA-20-100-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSM2-V-TA-20-100-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSM2-V-TA-20-100-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSM2-V-TA-20-125-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC100V
	JSM2-V-TA-20-125-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC200V
	JSM2-V-TA-20-125-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: DC24V
	JSM2-V-TA-20-150-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSM2-V-TA-20-150-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSM2-V-TA-20-150-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSM2-V-TA-20-175-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC100V
	JSM2-V-TA-20-175-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC200V
	JSM2-V-TA-20-175-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: DC24V
	JSM2-V-TA-20-200-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSM2-V-TA-20-200-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSM2-V-TA-20-200-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSM2-V-TA-20-250-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSM2-V-TA-20-250-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSM2-V-TA-20-250-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSM2-V-TA-20-300-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSM2-V-TA-20-300-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSM2-V-TA-20-300-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSM2-V-TA-30-25-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSM2-V-TA-30-25-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSM2-V-TA-30-25-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSM2-V-TA-30-50-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSM2-V-TA-30-50-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSM2-V-TA-30-50-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSM2-V-TA-30-75-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSM2-V-TA-30-75-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSM2-V-TA-30-75-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSM2-V-TA-30-100-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSM2-V-TA-30-100-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSM2-V-TA-30-100-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSM2-V-TA-30-125-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC100V
	JSM2-V-TA-30-125-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC200V
	JSM2-V-TA-30-125-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: DC24V
	JSM2-V-TA-30-150-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSM2-V-TA-30-150-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSM2-V-TA-30-150-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSM2-V-TA-30-175-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC100V
	JSM2-V-TA-30-175-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC200V
	JSM2-V-TA-30-175-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: DC24V
	JSM2-V-TA-30-200-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSM2-V-TA-30-200-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSM2-V-TA-30-200-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSM2-V-TA-30-250-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSM2-V-TA-30-250-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSM2-V-TA-30-250-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSM2-V-TA-30-300-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSM2-V-TA-30-300-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSM2-V-TA-30-300-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSM2-V-TA-40-25-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSM2-V-TA-40-25-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSM2-V-TA-40-25-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSM2-V-TA-40-50-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSM2-V-TA-40-50-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSM2-V-TA-40-50-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSM2-V-TA-40-75-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSM2-V-TA-40-75-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSM2-V-TA-40-75-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSM2-V-TA-40-100-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSM2-V-TA-40-100-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSM2-V-TA-40-100-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSM2-V-TA-40-125-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC100V
	JSM2-V-TA-40-125-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC200V
	JSM2-V-TA-40-125-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: DC24V
	JSM2-V-TA-40-150-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSM2-V-TA-40-150-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSM2-V-TA-40-150-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSM2-V-TA-40-175-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC100V
	JSM2-V-TA-40-175-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC200V
	JSM2-V-TA-40-175-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: DC24V
	JSM2-V-TA-40-200-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSM2-V-TA-40-200-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSM2-V-TA-40-200-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSM2-V-TA-40-250-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSM2-V-TA-40-250-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSM2-V-TA-40-250-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSM2-V-TA-40-300-1	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSM2-V-TA-40-300-2	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSM2-V-TA-40-300-3	Model: JSM2-V (brake valve) \| Mounting: Rod trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSM2-V-TB-20-25-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSM2-V-TB-20-25-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSM2-V-TB-20-25-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSM2-V-TB-20-50-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSM2-V-TB-20-50-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSM2-V-TB-20-50-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSM2-V-TB-20-75-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSM2-V-TB-20-75-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSM2-V-TB-20-75-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSM2-V-TB-20-100-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSM2-V-TB-20-100-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSM2-V-TB-20-100-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSM2-V-TB-20-125-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC100V
	JSM2-V-TB-20-125-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: AC200V
	JSM2-V-TB-20-125-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 125 mm \| Valve voltage: DC24V
	JSM2-V-TB-20-150-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSM2-V-TB-20-150-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSM2-V-TB-20-150-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSM2-V-TB-20-175-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC100V
	JSM2-V-TB-20-175-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: AC200V
	JSM2-V-TB-20-175-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 175 mm \| Valve voltage: DC24V
	JSM2-V-TB-20-200-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSM2-V-TB-20-200-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSM2-V-TB-20-200-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSM2-V-TB-20-250-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSM2-V-TB-20-250-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSM2-V-TB-20-250-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSM2-V-TB-20-300-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSM2-V-TB-20-300-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSM2-V-TB-20-300-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 20 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSM2-V-TB-30-25-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSM2-V-TB-30-25-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSM2-V-TB-30-25-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSM2-V-TB-30-50-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSM2-V-TB-30-50-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSM2-V-TB-30-50-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSM2-V-TB-30-75-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSM2-V-TB-30-75-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSM2-V-TB-30-75-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSM2-V-TB-30-100-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSM2-V-TB-30-100-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSM2-V-TB-30-100-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSM2-V-TB-30-125-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC100V
	JSM2-V-TB-30-125-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: AC200V
	JSM2-V-TB-30-125-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 125 mm \| Valve voltage: DC24V
	JSM2-V-TB-30-150-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSM2-V-TB-30-150-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSM2-V-TB-30-150-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSM2-V-TB-30-175-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC100V
	JSM2-V-TB-30-175-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: AC200V
	JSM2-V-TB-30-175-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 175 mm \| Valve voltage: DC24V
	JSM2-V-TB-30-200-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSM2-V-TB-30-200-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSM2-V-TB-30-200-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSM2-V-TB-30-250-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSM2-V-TB-30-250-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSM2-V-TB-30-250-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSM2-V-TB-30-300-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSM2-V-TB-30-300-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSM2-V-TB-30-300-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 30 mm \| Stroke: 300 mm \| Valve voltage: DC24V
	JSM2-V-TB-40-25-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC100V
	JSM2-V-TB-40-25-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: AC200V
	JSM2-V-TB-40-25-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Valve voltage: DC24V
	JSM2-V-TB-40-50-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC100V
	JSM2-V-TB-40-50-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: AC200V
	JSM2-V-TB-40-50-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Valve voltage: DC24V
	JSM2-V-TB-40-75-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC100V
	JSM2-V-TB-40-75-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: AC200V
	JSM2-V-TB-40-75-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Valve voltage: DC24V
	JSM2-V-TB-40-100-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC100V
	JSM2-V-TB-40-100-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: AC200V
	JSM2-V-TB-40-100-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Valve voltage: DC24V
	JSM2-V-TB-40-125-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC100V
	JSM2-V-TB-40-125-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: AC200V
	JSM2-V-TB-40-125-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Valve voltage: DC24V
	JSM2-V-TB-40-150-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC100V
	JSM2-V-TB-40-150-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: AC200V
	JSM2-V-TB-40-150-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Valve voltage: DC24V
	JSM2-V-TB-40-175-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC100V
	JSM2-V-TB-40-175-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: AC200V
	JSM2-V-TB-40-175-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Valve voltage: DC24V
	JSM2-V-TB-40-200-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC100V
	JSM2-V-TB-40-200-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: AC200V
	JSM2-V-TB-40-200-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Valve voltage: DC24V
	JSM2-V-TB-40-250-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC100V
	JSM2-V-TB-40-250-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: AC200V
	JSM2-V-TB-40-250-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Valve voltage: DC24V
	JSM2-V-TB-40-300-1	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC100V
	JSM2-V-TB-40-300-2	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: AC200V
	JSM2-V-TB-40-300-3	Model: JSM2-V (brake valve) \| Mounting: Head trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Valve voltage: DC24V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD JSM2 Cell Top Brake Cylinder (Small Bore, Repairable, 20-40)
