CKD K60570 F.R.L Kit Set Type (Rc1/8, Rc1/4)

CKD K60570 F.R.L Kit Set Type (Rc1/8, Rc1/4)

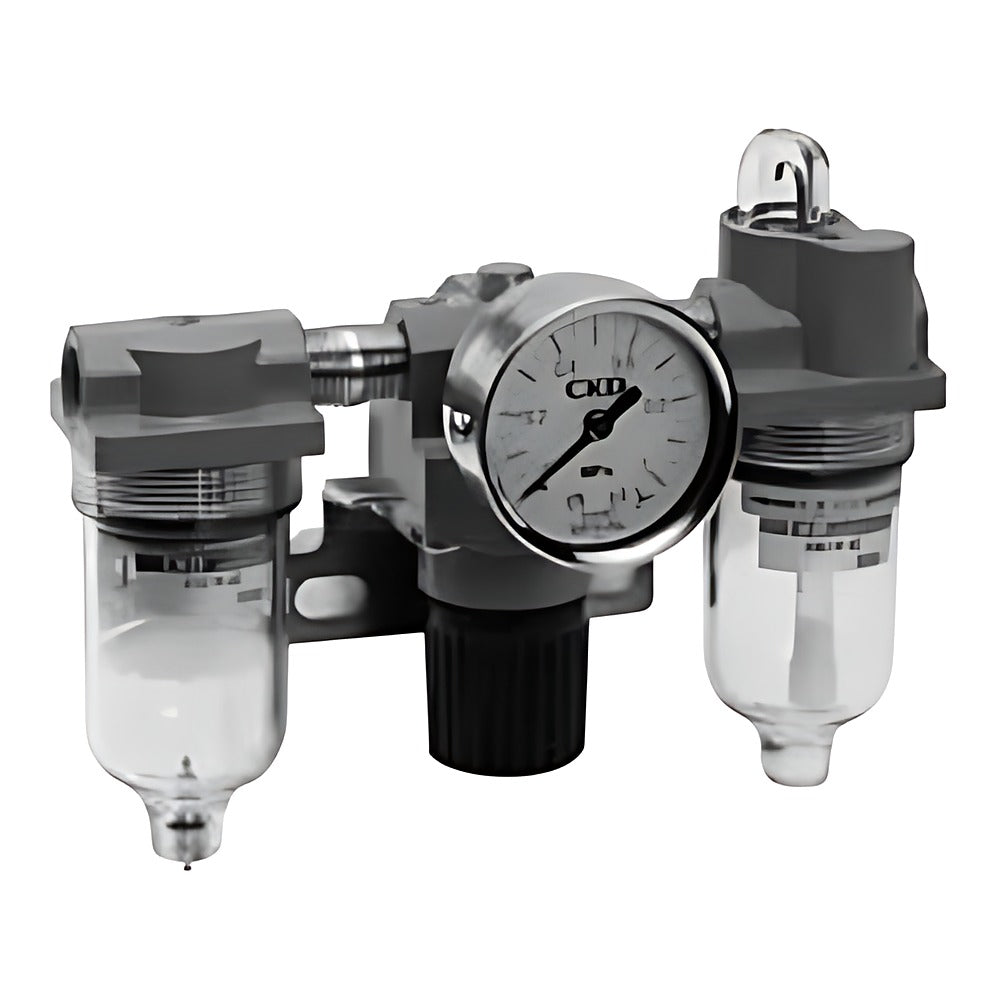

CKD K60570 miniature F.R.L kit combining A1019 filter, B2019 regulator and A3019 lubricator with gauge and bracket.

Key features

  • Pre-assembled filter, regulator and lubricator set
  • Supplied with G49D-6-P10 pressure gauge and 6506 wall bracket (suffix GB)
  • 5 um filtration, relieving regulator 0.04 to 0.83 MPa
  • Economist-type lubricator, 25 cm3 oil capacity
  • Rc1/8 or Rc1/4 ports

Specifications

Max. operating pressure 1.0 MPa
Proof pressure 1.5 MPa
Ambient/fluid temperature 5 to 65 C
Filtration 5 um
Set pressure 0.04 to 0.83 MPa
Min. drip flow 20 L/min (ANR)
Lubricant Turbine oil ISO VG32
Mass 0.7 kg
Standard equipment Gauge G49D-6-P10, bracket 6506
Source CKD Korea catalog CB-024SK-9, p. 480-481
K60570-1C-GB Port: Rc1/8 | Filter: A1019-1C | Regulator: B2019-1C | Lubricator: A3019-1C
K60570-2C-GB Port: Rc1/4 | Filter: A1019-2C | Regulator: B2019-2C | Lubricator: A3019-2C
Air Preparation UnitsCKD
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD K60570 F.R.L Kit Set Type (Rc1/8, Rc1/4)

Brand CKD·Air Preparation Units

Available part numbers (2)

K60570-1C-GB, K60570-2C-GB

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K60570-1C-GBPort: Rc1/8 | Filter: A1019-1C | Regulator: B2019-1C | Lubricator: A3019-1C
K60570-2C-GBPort: Rc1/4 | Filter: A1019-2C | Regulator: B2019-2C | Lubricator: A3019-2C
