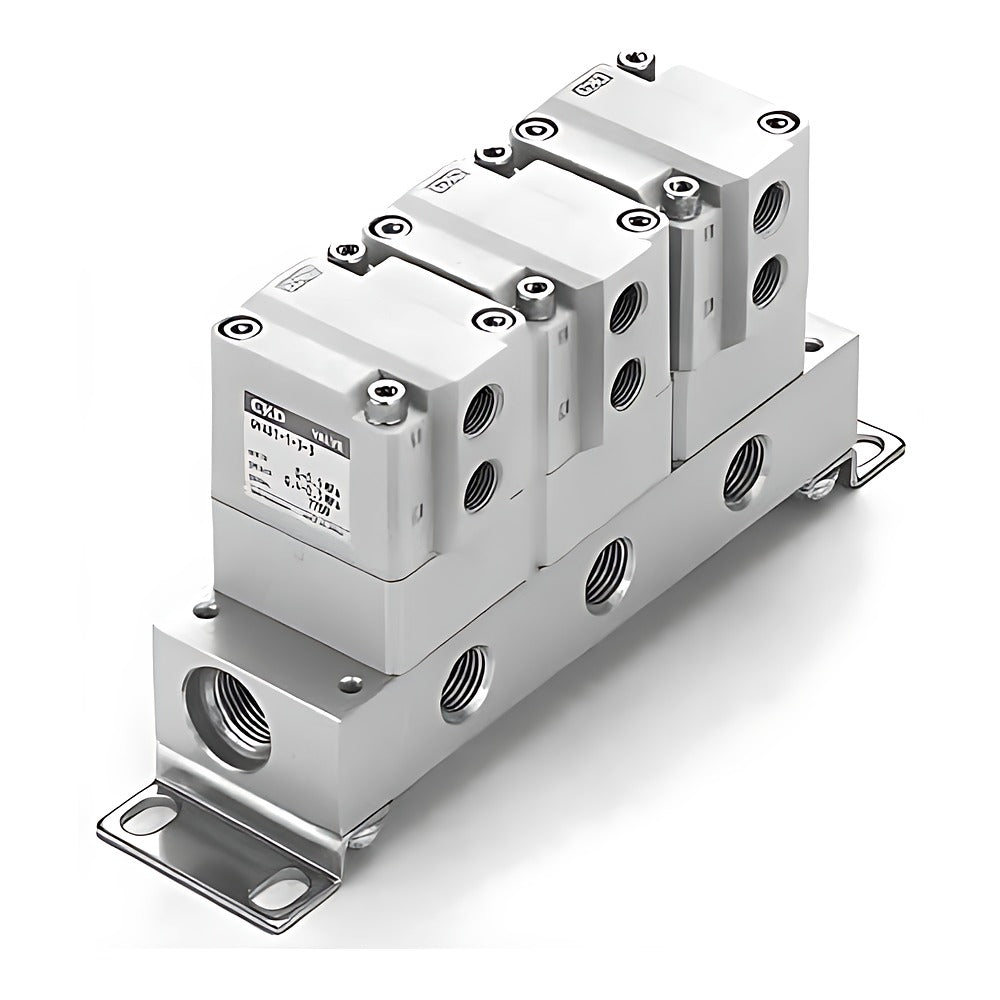

CKD LAD Diaphragm Type Cylinder Valve (Rc3/8-Rc1)

CKD LAD Diaphragm Type Cylinder Valve (Rc3/8-Rc1)

CKD LAD diaphragm-type air-operated cylinder valves isolate the actuator from the flow path for grease-free control of pure water, water, air and N2.

Key features

  • NC, NO and double-acting types, Rc3/8 to Rc1
  • PPS resin or SCS13 stainless body; PTFE or EPDM diaphragm
  • Lightweight PPS actuator; diaphragm isolation keeps the wetted path grease-free
  • Options: 1 (flow adjustment), B (mounting plate), 1B (both), e.g. LAD1-15A-CB
  • PTFE type: 0-0.3 MPa, fluid 5-90 C (SCS13 body 5-100 C); EPDM type: up to 0.5 MPa

Specifications

Fluid Water, pure water, air, N2
Seat leakage 0 (water)
Back pressure 0-0.1 MPa
Ambient temperature 0-60 C
Pilot pressure 0.3-0.5 MPa (Rc1/8)
Mounting Any orientation
Source CKD Korea catalog CB-03-1SK-9, p. 624-629
LAD1-10A-P Operation: NC | Port: Rc3/8 | Body / diaphragm: PPS / EPDM
LAD1-10A-C Operation: NC | Port: Rc3/8 | Body / diaphragm: PPS / PTFE
LAD1-10A-R Operation: NC | Port: Rc3/8 | Body / diaphragm: SCS13 stainless / EPDM
LAD1-10A-F Operation: NC | Port: Rc3/8 | Body / diaphragm: SCS13 stainless / PTFE
LAD1-15A-P Operation: NC | Port: Rc1/2 | Body / diaphragm: PPS / EPDM
LAD1-15A-C Operation: NC | Port: Rc1/2 | Body / diaphragm: PPS / PTFE
LAD1-15A-R Operation: NC | Port: Rc1/2 | Body / diaphragm: SCS13 stainless / EPDM
LAD1-15A-F Operation: NC | Port: Rc1/2 | Body / diaphragm: SCS13 stainless / PTFE
LAD1-20A-P Operation: NC | Port: Rc3/4 | Body / diaphragm: PPS / EPDM
LAD1-20A-C Operation: NC | Port: Rc3/4 | Body / diaphragm: PPS / PTFE
LAD1-20A-R Operation: NC | Port: Rc3/4 | Body / diaphragm: SCS13 stainless / EPDM
LAD1-20A-F Operation: NC | Port: Rc3/4 | Body / diaphragm: SCS13 stainless / PTFE
LAD1-25A-P Operation: NC | Port: Rc1 | Body / diaphragm: PPS / EPDM
LAD1-25A-C Operation: NC | Port: Rc1 | Body / diaphragm: PPS / PTFE
LAD1-25A-R Operation: NC | Port: Rc1 | Body / diaphragm: SCS13 stainless / EPDM
LAD1-25A-F Operation: NC | Port: Rc1 | Body / diaphragm: SCS13 stainless / PTFE
LAD2-10A-P Operation: NO | Port: Rc3/8 | Body / diaphragm: PPS / EPDM
LAD2-10A-C Operation: NO | Port: Rc3/8 | Body / diaphragm: PPS / PTFE
LAD2-10A-R Operation: NO | Port: Rc3/8 | Body / diaphragm: SCS13 stainless / EPDM
LAD2-10A-F Operation: NO | Port: Rc3/8 | Body / diaphragm: SCS13 stainless / PTFE
LAD2-15A-P Operation: NO | Port: Rc1/2 | Body / diaphragm: PPS / EPDM
LAD2-15A-C Operation: NO | Port: Rc1/2 | Body / diaphragm: PPS / PTFE
LAD2-15A-R Operation: NO | Port: Rc1/2 | Body / diaphragm: SCS13 stainless / EPDM
LAD2-15A-F Operation: NO | Port: Rc1/2 | Body / diaphragm: SCS13 stainless / PTFE
LAD2-20A-P Operation: NO | Port: Rc3/4 | Body / diaphragm: PPS / EPDM
LAD2-20A-C Operation: NO | Port: Rc3/4 | Body / diaphragm: PPS / PTFE
LAD2-20A-R Operation: NO | Port: Rc3/4 | Body / diaphragm: SCS13 stainless / EPDM
LAD2-20A-F Operation: NO | Port: Rc3/4 | Body / diaphragm: SCS13 stainless / PTFE
LAD2-25A-P Operation: NO | Port: Rc1 | Body / diaphragm: PPS / EPDM
LAD2-25A-C Operation: NO | Port: Rc1 | Body / diaphragm: PPS / PTFE
LAD2-25A-R Operation: NO | Port: Rc1 | Body / diaphragm: SCS13 stainless / EPDM
LAD2-25A-F Operation: NO | Port: Rc1 | Body / diaphragm: SCS13 stainless / PTFE
LAD3-10A-P Operation: Double acting | Port: Rc3/8 | Body / diaphragm: PPS / EPDM
LAD3-10A-C Operation: Double acting | Port: Rc3/8 | Body / diaphragm: PPS / PTFE
LAD3-10A-R Operation: Double acting | Port: Rc3/8 | Body / diaphragm: SCS13 stainless / EPDM
LAD3-10A-F Operation: Double acting | Port: Rc3/8 | Body / diaphragm: SCS13 stainless / PTFE
LAD3-15A-P Operation: Double acting | Port: Rc1/2 | Body / diaphragm: PPS / EPDM
LAD3-15A-C Operation: Double acting | Port: Rc1/2 | Body / diaphragm: PPS / PTFE
LAD3-15A-R Operation: Double acting | Port: Rc1/2 | Body / diaphragm: SCS13 stainless / EPDM
LAD3-15A-F Operation: Double acting | Port: Rc1/2 | Body / diaphragm: SCS13 stainless / PTFE
LAD3-20A-P Operation: Double acting | Port: Rc3/4 | Body / diaphragm: PPS / EPDM
LAD3-20A-C Operation: Double acting | Port: Rc3/4 | Body / diaphragm: PPS / PTFE
LAD3-20A-R Operation: Double acting | Port: Rc3/4 | Body / diaphragm: SCS13 stainless / EPDM
LAD3-20A-F Operation: Double acting | Port: Rc3/4 | Body / diaphragm: SCS13 stainless / PTFE
LAD3-25A-P Operation: Double acting | Port: Rc1 | Body / diaphragm: PPS / EPDM
LAD3-25A-C Operation: Double acting | Port: Rc1 | Body / diaphragm: PPS / PTFE
LAD3-25A-R Operation: Double acting | Port: Rc1 | Body / diaphragm: SCS13 stainless / EPDM
LAD3-25A-F Operation: Double acting | Port: Rc1 | Body / diaphragm: SCS13 stainless / PTFE
Air Operated ValvesCKD
48 product codes available in this family
