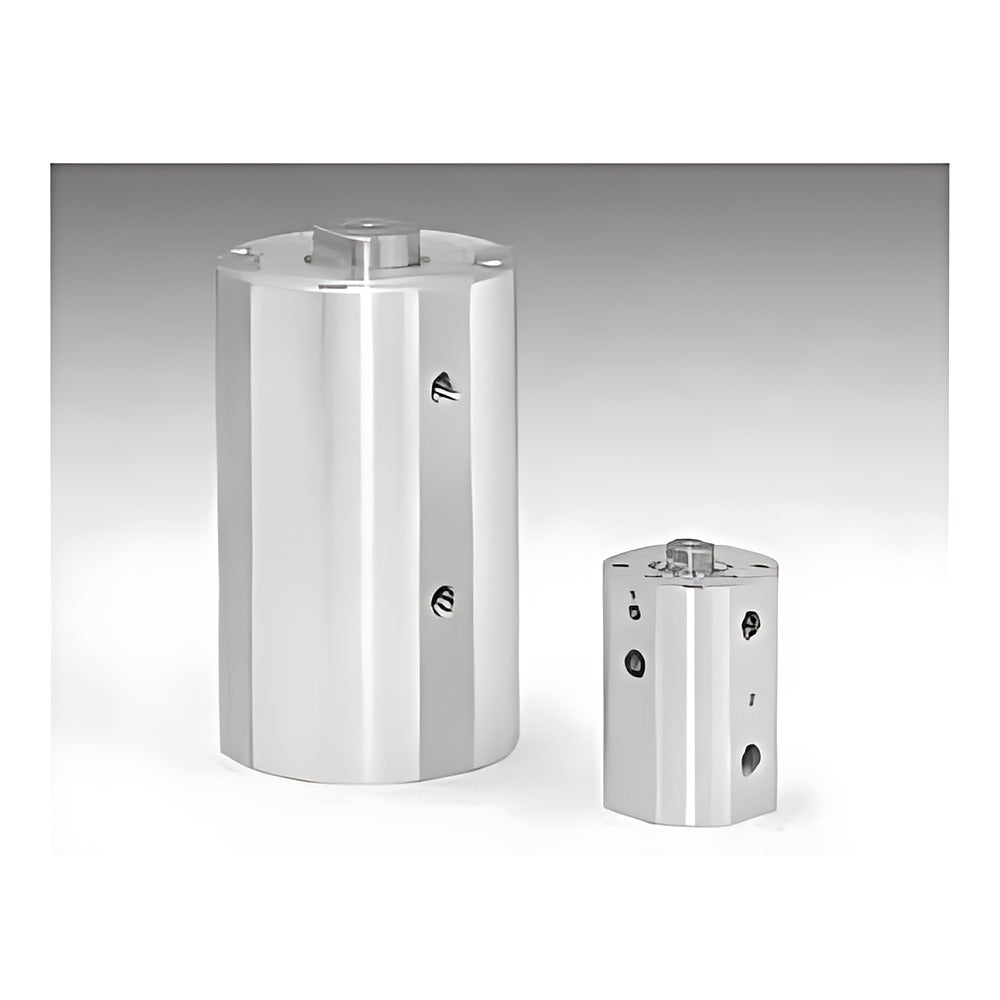

CKD LBC Air Bearing Actuator (Single Acting, Push)

CKD LBC Air Bearing Actuator (Single Acting, Push)

CKD LBC single-acting push actuator with a non-contact air bearing for zero sliding resistance, enabling fine load control from 0.01 N with an electro-pneumatic regulator.

Key features

  • Non-contact static-pressure air bearing: sliding resistance zero
  • Fine load control combined with EV2500-FL electro-pneumatic regulator
  • Suitable for clean environments; no rod return mechanism
  • Three sizes: 1 N, 5 N and 30 N rated thrust
  • Not disassemblable; mounting surface flatness 0.01 mm or less required

Specifications

Action Single acting, push (no return)
Fluid Clean compressed air (JIS B 8392-1 1.4.2)
Air bearing pressure 0.3 to 0.5 MPa
Thrust port pressure 0.002 to 0.1 MPa
Ambient temperature 5 to 35 C
Proof pressure 0.75 MPa
Bearing air consumption 2.5 L/min (01/05), 7.5 L/min (30)
Source CKD Korea catalog CB-030SK-9, p. 1083-1092
LBC-01 Rated thrust: 1 N | Pressure area: 10 mm2 | Thrust range: 0.02 to 1.0 N | Stroke: 5 mm | Mass: 50 g
LBC-05 Rated thrust: 5 N | Pressure area: 50 mm2 | Thrust range: 0.1 to 5.0 N | Stroke: 5 mm | Mass: 45 g
LBC-30 Rated thrust: 30 N | Pressure area: 314 mm2 | Thrust range: 0.6 to 31.4 N | Stroke: 30 mm | Mass: 345 g
