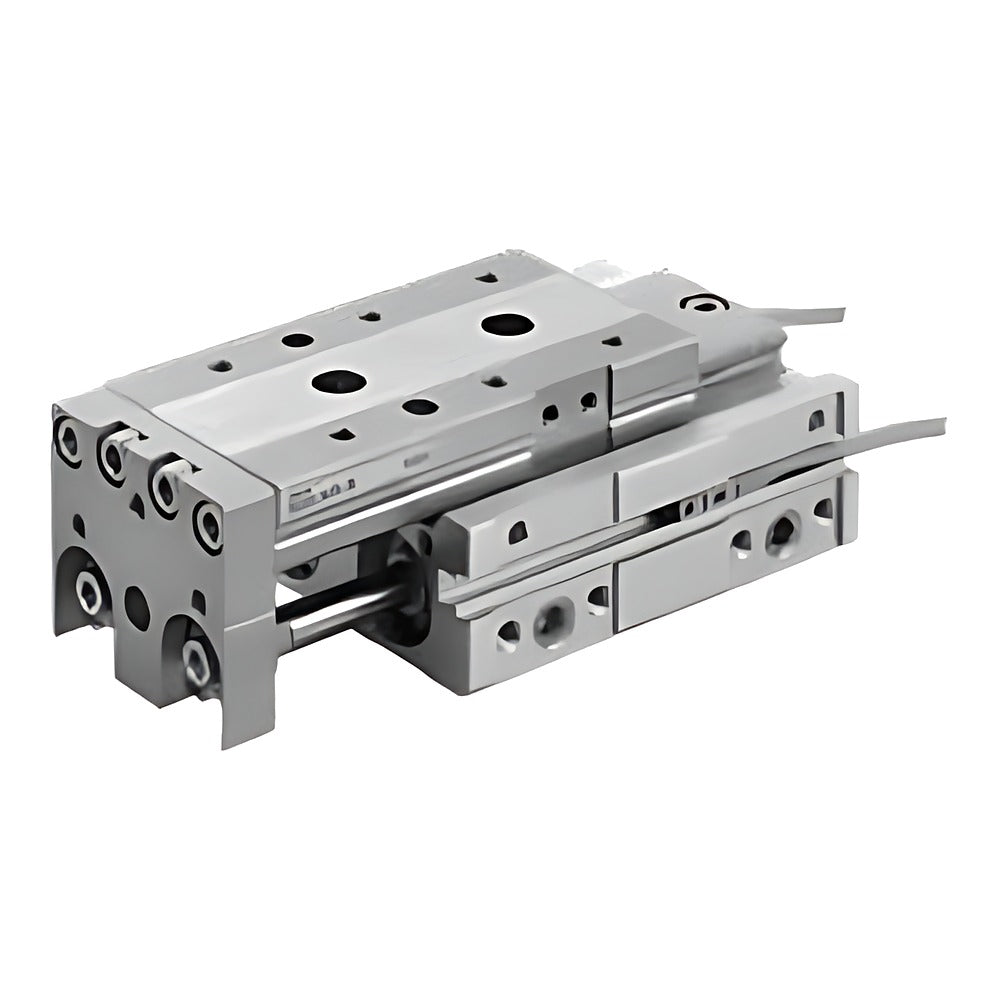

CKD LCG-P4/P40-HP1 Linear Slide Cylinder (Secondary Battery)

CKD LCG-P4/P40-HP1 Linear Slide Cylinder (Secondary Battery)

CKD LCG-P4/P40-HP1 linear slide cylinder for secondary-battery production, bore ø6 to ø25, rust-proofed guide option for ø20/25.

Key features

  • Secondary-battery (P4 series) material restrictions: copper, zinc and nickel based materials and Zn/electroless Ni plating limited
  • Ultra-low dew point grease: long life even at -70°C dew point, durability 10 million cycles or more (CKD conditions)
  • Standard strokes only (10-150 mm by bore)
  • Stopper options S1-S6 (stroke adjusting) and A1-A6 (shock absorber) with D/T/N options; listed codes without stopper
  • U: rust-proof treated table and rail (ø20, ø25), black finish, for humid environments
  • Switch magnet built in; example form LCG-20-40-SW81-R-A1DTUP4-HP1

Specifications

Specification Secondary-battery P4/P40, long-life HP1
Action Double acting
Max. operating pressure 0.7 MPa
Port size M3 / M5 / Rc1/8
Cushion Rubber cushion
Source CKD Korea catalog CC-1421KR-7, p. 214-216
LCG-6-10-P4-HP1 Bore: 6 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P4
LCG-6-10-P40-HP1 Bore: 6 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P40
LCG-6-20-P4-HP1 Bore: 6 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P4
LCG-6-20-P40-HP1 Bore: 6 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P40
LCG-6-30-P4-HP1 Bore: 6 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P4
LCG-6-30-P40-HP1 Bore: 6 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P40
LCG-6-40-P4-HP1 Bore: 6 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P4
LCG-6-40-P40-HP1 Bore: 6 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P40
LCG-6-50-P4-HP1 Bore: 6 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P4
LCG-6-50-P40-HP1 Bore: 6 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P40
LCG-8-10-P4-HP1 Bore: 8 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P4
LCG-8-10-P40-HP1 Bore: 8 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P40
LCG-8-20-P4-HP1 Bore: 8 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P4
LCG-8-20-P40-HP1 Bore: 8 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P40
LCG-8-30-P4-HP1 Bore: 8 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P4
LCG-8-30-P40-HP1 Bore: 8 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P40
LCG-8-40-P4-HP1 Bore: 8 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P4
LCG-8-40-P40-HP1 Bore: 8 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P40
LCG-8-50-P4-HP1 Bore: 8 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P4
LCG-8-50-P40-HP1 Bore: 8 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P40
LCG-8-75-P4-HP1 Bore: 8 mm | Stroke: 75 mm | Rust-proof guide: No | Version: P4
LCG-8-75-P40-HP1 Bore: 8 mm | Stroke: 75 mm | Rust-proof guide: No | Version: P40
LCG-12-10-P4-HP1 Bore: 12 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P4
LCG-12-10-P40-HP1 Bore: 12 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P40
LCG-12-20-P4-HP1 Bore: 12 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P4
LCG-12-20-P40-HP1 Bore: 12 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P40
LCG-12-30-P4-HP1 Bore: 12 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P4
LCG-12-30-P40-HP1 Bore: 12 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P40
LCG-12-40-P4-HP1 Bore: 12 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P4
LCG-12-40-P40-HP1 Bore: 12 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P40
LCG-12-50-P4-HP1 Bore: 12 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P4
LCG-12-50-P40-HP1 Bore: 12 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P40
LCG-12-75-P4-HP1 Bore: 12 mm | Stroke: 75 mm | Rust-proof guide: No | Version: P4
LCG-12-75-P40-HP1 Bore: 12 mm | Stroke: 75 mm | Rust-proof guide: No | Version: P40
LCG-12-100-P4-HP1 Bore: 12 mm | Stroke: 100 mm | Rust-proof guide: No | Version: P4
LCG-12-100-P40-HP1 Bore: 12 mm | Stroke: 100 mm | Rust-proof guide: No | Version: P40
LCG-16-10-P4-HP1 Bore: 16 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P4
LCG-16-10-P40-HP1 Bore: 16 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P40
LCG-16-20-P4-HP1 Bore: 16 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P4
LCG-16-20-P40-HP1 Bore: 16 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P40
LCG-16-30-P4-HP1 Bore: 16 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P4
LCG-16-30-P40-HP1 Bore: 16 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P40
LCG-16-40-P4-HP1 Bore: 16 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P4
LCG-16-40-P40-HP1 Bore: 16 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P40
LCG-16-50-P4-HP1 Bore: 16 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P4
LCG-16-50-P40-HP1 Bore: 16 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P40
LCG-16-75-P4-HP1 Bore: 16 mm | Stroke: 75 mm | Rust-proof guide: No | Version: P4
LCG-16-75-P40-HP1 Bore: 16 mm | Stroke: 75 mm | Rust-proof guide: No | Version: P40
LCG-16-100-P4-HP1 Bore: 16 mm | Stroke: 100 mm | Rust-proof guide: No | Version: P4
LCG-16-100-P40-HP1 Bore: 16 mm | Stroke: 100 mm | Rust-proof guide: No | Version: P40
LCG-16-125-P4-HP1 Bore: 16 mm | Stroke: 125 mm | Rust-proof guide: No | Version: P4
LCG-16-125-P40-HP1 Bore: 16 mm | Stroke: 125 mm | Rust-proof guide: No | Version: P40
LCG-20-10-P4-HP1 Bore: 20 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P4
LCG-20-10-P40-HP1 Bore: 20 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P40
LCG-20-10-UP4-HP1 Bore: 20 mm | Stroke: 10 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-20-10-UP40-HP1 Bore: 20 mm | Stroke: 10 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-20-20-P4-HP1 Bore: 20 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P4
LCG-20-20-P40-HP1 Bore: 20 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P40
LCG-20-20-UP4-HP1 Bore: 20 mm | Stroke: 20 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-20-20-UP40-HP1 Bore: 20 mm | Stroke: 20 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-20-30-P4-HP1 Bore: 20 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P4
LCG-20-30-P40-HP1 Bore: 20 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P40
LCG-20-30-UP4-HP1 Bore: 20 mm | Stroke: 30 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-20-30-UP40-HP1 Bore: 20 mm | Stroke: 30 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-20-40-P4-HP1 Bore: 20 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P4
LCG-20-40-P40-HP1 Bore: 20 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P40
LCG-20-40-UP4-HP1 Bore: 20 mm | Stroke: 40 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-20-40-UP40-HP1 Bore: 20 mm | Stroke: 40 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-20-50-P4-HP1 Bore: 20 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P4
LCG-20-50-P40-HP1 Bore: 20 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P40
LCG-20-50-UP4-HP1 Bore: 20 mm | Stroke: 50 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-20-50-UP40-HP1 Bore: 20 mm | Stroke: 50 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-20-75-P4-HP1 Bore: 20 mm | Stroke: 75 mm | Rust-proof guide: No | Version: P4
LCG-20-75-P40-HP1 Bore: 20 mm | Stroke: 75 mm | Rust-proof guide: No | Version: P40
LCG-20-75-UP4-HP1 Bore: 20 mm | Stroke: 75 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-20-75-UP40-HP1 Bore: 20 mm | Stroke: 75 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-20-100-P4-HP1 Bore: 20 mm | Stroke: 100 mm | Rust-proof guide: No | Version: P4
LCG-20-100-P40-HP1 Bore: 20 mm | Stroke: 100 mm | Rust-proof guide: No | Version: P40
LCG-20-100-UP4-HP1 Bore: 20 mm | Stroke: 100 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-20-100-UP40-HP1 Bore: 20 mm | Stroke: 100 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-20-125-P4-HP1 Bore: 20 mm | Stroke: 125 mm | Rust-proof guide: No | Version: P4
LCG-20-125-P40-HP1 Bore: 20 mm | Stroke: 125 mm | Rust-proof guide: No | Version: P40
LCG-20-125-UP4-HP1 Bore: 20 mm | Stroke: 125 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-20-125-UP40-HP1 Bore: 20 mm | Stroke: 125 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-20-150-P4-HP1 Bore: 20 mm | Stroke: 150 mm | Rust-proof guide: No | Version: P4
LCG-20-150-P40-HP1 Bore: 20 mm | Stroke: 150 mm | Rust-proof guide: No | Version: P40
LCG-20-150-UP4-HP1 Bore: 20 mm | Stroke: 150 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-20-150-UP40-HP1 Bore: 20 mm | Stroke: 150 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-25-10-P4-HP1 Bore: 25 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P4
LCG-25-10-P40-HP1 Bore: 25 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P40
LCG-25-10-UP4-HP1 Bore: 25 mm | Stroke: 10 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-25-10-UP40-HP1 Bore: 25 mm | Stroke: 10 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-25-20-P4-HP1 Bore: 25 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P4
LCG-25-20-P40-HP1 Bore: 25 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P40
LCG-25-20-UP4-HP1 Bore: 25 mm | Stroke: 20 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-25-20-UP40-HP1 Bore: 25 mm | Stroke: 20 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-25-30-P4-HP1 Bore: 25 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P4
LCG-25-30-P40-HP1 Bore: 25 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P40
LCG-25-30-UP4-HP1 Bore: 25 mm | Stroke: 30 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-25-30-UP40-HP1 Bore: 25 mm | Stroke: 30 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-25-40-P4-HP1 Bore: 25 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P4
LCG-25-40-P40-HP1 Bore: 25 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P40
LCG-25-40-UP4-HP1 Bore: 25 mm | Stroke: 40 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-25-40-UP40-HP1 Bore: 25 mm | Stroke: 40 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-25-50-P4-HP1 Bore: 25 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P4
LCG-25-50-P40-HP1 Bore: 25 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P40
LCG-25-50-UP4-HP1 Bore: 25 mm | Stroke: 50 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-25-50-UP40-HP1 Bore: 25 mm | Stroke: 50 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-25-75-P4-HP1 Bore: 25 mm | Stroke: 75 mm | Rust-proof guide: No | Version: P4
LCG-25-75-P40-HP1 Bore: 25 mm | Stroke: 75 mm | Rust-proof guide: No | Version: P40
LCG-25-75-UP4-HP1 Bore: 25 mm | Stroke: 75 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-25-75-UP40-HP1 Bore: 25 mm | Stroke: 75 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-25-100-P4-HP1 Bore: 25 mm | Stroke: 100 mm | Rust-proof guide: No | Version: P4
LCG-25-100-P40-HP1 Bore: 25 mm | Stroke: 100 mm | Rust-proof guide: No | Version: P40
LCG-25-100-UP4-HP1 Bore: 25 mm | Stroke: 100 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-25-100-UP40-HP1 Bore: 25 mm | Stroke: 100 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-25-125-P4-HP1 Bore: 25 mm | Stroke: 125 mm | Rust-proof guide: No | Version: P4
LCG-25-125-P40-HP1 Bore: 25 mm | Stroke: 125 mm | Rust-proof guide: No | Version: P40
LCG-25-125-UP4-HP1 Bore: 25 mm | Stroke: 125 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-25-125-UP40-HP1 Bore: 25 mm | Stroke: 125 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-25-150-P4-HP1 Bore: 25 mm | Stroke: 150 mm | Rust-proof guide: No | Version: P4
LCG-25-150-P40-HP1 Bore: 25 mm | Stroke: 150 mm | Rust-proof guide: No | Version: P40
LCG-25-150-UP4-HP1 Bore: 25 mm | Stroke: 150 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-25-150-UP40-HP1 Bore: 25 mm | Stroke: 150 mm | Rust-proof guide: Yes (U) | Version: P40
Guided CylindersCKD
124 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD LCG-P4/P40-HP1 Linear Slide Cylinder (Secondary Battery)

Brand CKD·Guided Cylinders

Available part numbers (124)

LCG-6-10-P4-HP1, LCG-6-10-P40-HP1, LCG-6-20-P4-HP1, LCG-6-20-P40-HP1, LCG-6-30-P4-HP1, LCG-6-30-P40-HP1, LCG-6-40-P4-HP1, LCG-6-40-P40-HP1, LCG-6-50-P4-HP1, LCG-6-50-P40-HP1 + 114 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LCG-6-10-P4-HP1Bore: 6 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P4
LCG-6-10-P40-HP1Bore: 6 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P40
LCG-6-20-P4-HP1Bore: 6 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P4
LCG-6-20-P40-HP1Bore: 6 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P40
LCG-6-30-P4-HP1Bore: 6 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P4
LCG-6-30-P40-HP1Bore: 6 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P40
LCG-6-40-P4-HP1Bore: 6 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P4
LCG-6-40-P40-HP1Bore: 6 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P40
LCG-6-50-P4-HP1Bore: 6 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P4
LCG-6-50-P40-HP1Bore: 6 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P40
LCG-8-10-P4-HP1Bore: 8 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P4
LCG-8-10-P40-HP1Bore: 8 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P40
LCG-8-20-P4-HP1Bore: 8 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P4
LCG-8-20-P40-HP1Bore: 8 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P40
LCG-8-30-P4-HP1Bore: 8 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P4
LCG-8-30-P40-HP1Bore: 8 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P40
LCG-8-40-P4-HP1Bore: 8 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P4
LCG-8-40-P40-HP1Bore: 8 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P40
LCG-8-50-P4-HP1Bore: 8 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P4
LCG-8-50-P40-HP1Bore: 8 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P40
LCG-8-75-P4-HP1Bore: 8 mm | Stroke: 75 mm | Rust-proof guide: No | Version: P4
LCG-8-75-P40-HP1Bore: 8 mm | Stroke: 75 mm | Rust-proof guide: No | Version: P40
LCG-12-10-P4-HP1Bore: 12 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P4
LCG-12-10-P40-HP1Bore: 12 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P40
LCG-12-20-P4-HP1Bore: 12 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P4
LCG-12-20-P40-HP1Bore: 12 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P40
LCG-12-30-P4-HP1Bore: 12 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P4
LCG-12-30-P40-HP1Bore: 12 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P40
LCG-12-40-P4-HP1Bore: 12 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P4
LCG-12-40-P40-HP1Bore: 12 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P40
LCG-12-50-P4-HP1Bore: 12 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P4
LCG-12-50-P40-HP1Bore: 12 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P40
LCG-12-75-P4-HP1Bore: 12 mm | Stroke: 75 mm | Rust-proof guide: No | Version: P4
LCG-12-75-P40-HP1Bore: 12 mm | Stroke: 75 mm | Rust-proof guide: No | Version: P40
LCG-12-100-P4-HP1Bore: 12 mm | Stroke: 100 mm | Rust-proof guide: No | Version: P4
LCG-12-100-P40-HP1Bore: 12 mm | Stroke: 100 mm | Rust-proof guide: No | Version: P40
LCG-16-10-P4-HP1Bore: 16 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P4
LCG-16-10-P40-HP1Bore: 16 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P40
LCG-16-20-P4-HP1Bore: 16 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P4
LCG-16-20-P40-HP1Bore: 16 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P40
LCG-16-30-P4-HP1Bore: 16 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P4
LCG-16-30-P40-HP1Bore: 16 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P40
LCG-16-40-P4-HP1Bore: 16 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P4
LCG-16-40-P40-HP1Bore: 16 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P40
LCG-16-50-P4-HP1Bore: 16 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P4
LCG-16-50-P40-HP1Bore: 16 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P40
LCG-16-75-P4-HP1Bore: 16 mm | Stroke: 75 mm | Rust-proof guide: No | Version: P4
LCG-16-75-P40-HP1Bore: 16 mm | Stroke: 75 mm | Rust-proof guide: No | Version: P40
LCG-16-100-P4-HP1Bore: 16 mm | Stroke: 100 mm | Rust-proof guide: No | Version: P4
LCG-16-100-P40-HP1Bore: 16 mm | Stroke: 100 mm | Rust-proof guide: No | Version: P40
LCG-16-125-P4-HP1Bore: 16 mm | Stroke: 125 mm | Rust-proof guide: No | Version: P4
LCG-16-125-P40-HP1Bore: 16 mm | Stroke: 125 mm | Rust-proof guide: No | Version: P40
LCG-20-10-P4-HP1Bore: 20 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P4
LCG-20-10-P40-HP1Bore: 20 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P40
LCG-20-10-UP4-HP1Bore: 20 mm | Stroke: 10 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-20-10-UP40-HP1Bore: 20 mm | Stroke: 10 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-20-20-P4-HP1Bore: 20 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P4
LCG-20-20-P40-HP1Bore: 20 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P40
LCG-20-20-UP4-HP1Bore: 20 mm | Stroke: 20 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-20-20-UP40-HP1Bore: 20 mm | Stroke: 20 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-20-30-P4-HP1Bore: 20 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P4
LCG-20-30-P40-HP1Bore: 20 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P40
LCG-20-30-UP4-HP1Bore: 20 mm | Stroke: 30 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-20-30-UP40-HP1Bore: 20 mm | Stroke: 30 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-20-40-P4-HP1Bore: 20 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P4
LCG-20-40-P40-HP1Bore: 20 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P40
LCG-20-40-UP4-HP1Bore: 20 mm | Stroke: 40 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-20-40-UP40-HP1Bore: 20 mm | Stroke: 40 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-20-50-P4-HP1Bore: 20 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P4
LCG-20-50-P40-HP1Bore: 20 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P40
LCG-20-50-UP4-HP1Bore: 20 mm | Stroke: 50 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-20-50-UP40-HP1Bore: 20 mm | Stroke: 50 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-20-75-P4-HP1Bore: 20 mm | Stroke: 75 mm | Rust-proof guide: No | Version: P4
LCG-20-75-P40-HP1Bore: 20 mm | Stroke: 75 mm | Rust-proof guide: No | Version: P40
LCG-20-75-UP4-HP1Bore: 20 mm | Stroke: 75 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-20-75-UP40-HP1Bore: 20 mm | Stroke: 75 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-20-100-P4-HP1Bore: 20 mm | Stroke: 100 mm | Rust-proof guide: No | Version: P4
LCG-20-100-P40-HP1Bore: 20 mm | Stroke: 100 mm | Rust-proof guide: No | Version: P40
LCG-20-100-UP4-HP1Bore: 20 mm | Stroke: 100 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-20-100-UP40-HP1Bore: 20 mm | Stroke: 100 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-20-125-P4-HP1Bore: 20 mm | Stroke: 125 mm | Rust-proof guide: No | Version: P4
LCG-20-125-P40-HP1Bore: 20 mm | Stroke: 125 mm | Rust-proof guide: No | Version: P40
LCG-20-125-UP4-HP1Bore: 20 mm | Stroke: 125 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-20-125-UP40-HP1Bore: 20 mm | Stroke: 125 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-20-150-P4-HP1Bore: 20 mm | Stroke: 150 mm | Rust-proof guide: No | Version: P4
LCG-20-150-P40-HP1Bore: 20 mm | Stroke: 150 mm | Rust-proof guide: No | Version: P40
LCG-20-150-UP4-HP1Bore: 20 mm | Stroke: 150 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-20-150-UP40-HP1Bore: 20 mm | Stroke: 150 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-25-10-P4-HP1Bore: 25 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P4
LCG-25-10-P40-HP1Bore: 25 mm | Stroke: 10 mm | Rust-proof guide: No | Version: P40
LCG-25-10-UP4-HP1Bore: 25 mm | Stroke: 10 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-25-10-UP40-HP1Bore: 25 mm | Stroke: 10 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-25-20-P4-HP1Bore: 25 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P4
LCG-25-20-P40-HP1Bore: 25 mm | Stroke: 20 mm | Rust-proof guide: No | Version: P40
LCG-25-20-UP4-HP1Bore: 25 mm | Stroke: 20 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-25-20-UP40-HP1Bore: 25 mm | Stroke: 20 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-25-30-P4-HP1Bore: 25 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P4
LCG-25-30-P40-HP1Bore: 25 mm | Stroke: 30 mm | Rust-proof guide: No | Version: P40
LCG-25-30-UP4-HP1Bore: 25 mm | Stroke: 30 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-25-30-UP40-HP1Bore: 25 mm | Stroke: 30 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-25-40-P4-HP1Bore: 25 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P4
LCG-25-40-P40-HP1Bore: 25 mm | Stroke: 40 mm | Rust-proof guide: No | Version: P40
LCG-25-40-UP4-HP1Bore: 25 mm | Stroke: 40 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-25-40-UP40-HP1Bore: 25 mm | Stroke: 40 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-25-50-P4-HP1Bore: 25 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P4
LCG-25-50-P40-HP1Bore: 25 mm | Stroke: 50 mm | Rust-proof guide: No | Version: P40
LCG-25-50-UP4-HP1Bore: 25 mm | Stroke: 50 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-25-50-UP40-HP1Bore: 25 mm | Stroke: 50 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-25-75-P4-HP1Bore: 25 mm | Stroke: 75 mm | Rust-proof guide: No | Version: P4
LCG-25-75-P40-HP1Bore: 25 mm | Stroke: 75 mm | Rust-proof guide: No | Version: P40
LCG-25-75-UP4-HP1Bore: 25 mm | Stroke: 75 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-25-75-UP40-HP1Bore: 25 mm | Stroke: 75 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-25-100-P4-HP1Bore: 25 mm | Stroke: 100 mm | Rust-proof guide: No | Version: P4
LCG-25-100-P40-HP1Bore: 25 mm | Stroke: 100 mm | Rust-proof guide: No | Version: P40
LCG-25-100-UP4-HP1Bore: 25 mm | Stroke: 100 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-25-100-UP40-HP1Bore: 25 mm | Stroke: 100 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-25-125-P4-HP1Bore: 25 mm | Stroke: 125 mm | Rust-proof guide: No | Version: P4
LCG-25-125-P40-HP1Bore: 25 mm | Stroke: 125 mm | Rust-proof guide: No | Version: P40
LCG-25-125-UP4-HP1Bore: 25 mm | Stroke: 125 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-25-125-UP40-HP1Bore: 25 mm | Stroke: 125 mm | Rust-proof guide: Yes (U) | Version: P40
LCG-25-150-P4-HP1Bore: 25 mm | Stroke: 150 mm | Rust-proof guide: No | Version: P4
LCG-25-150-P40-HP1Bore: 25 mm | Stroke: 150 mm | Rust-proof guide: No | Version: P40
LCG-25-150-UP4-HP1Bore: 25 mm | Stroke: 150 mm | Rust-proof guide: Yes (U) | Version: P4
LCG-25-150-UP40-HP1Bore: 25 mm | Stroke: 150 mm | Rust-proof guide: Yes (U) | Version: P40

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
