CKD LCG-P7 Linear Slide Cylinder (Clean Room, Bore 6-25)

CKD LCG-P7 Linear Slide Cylinder (Clean Room, Bore 6-25)

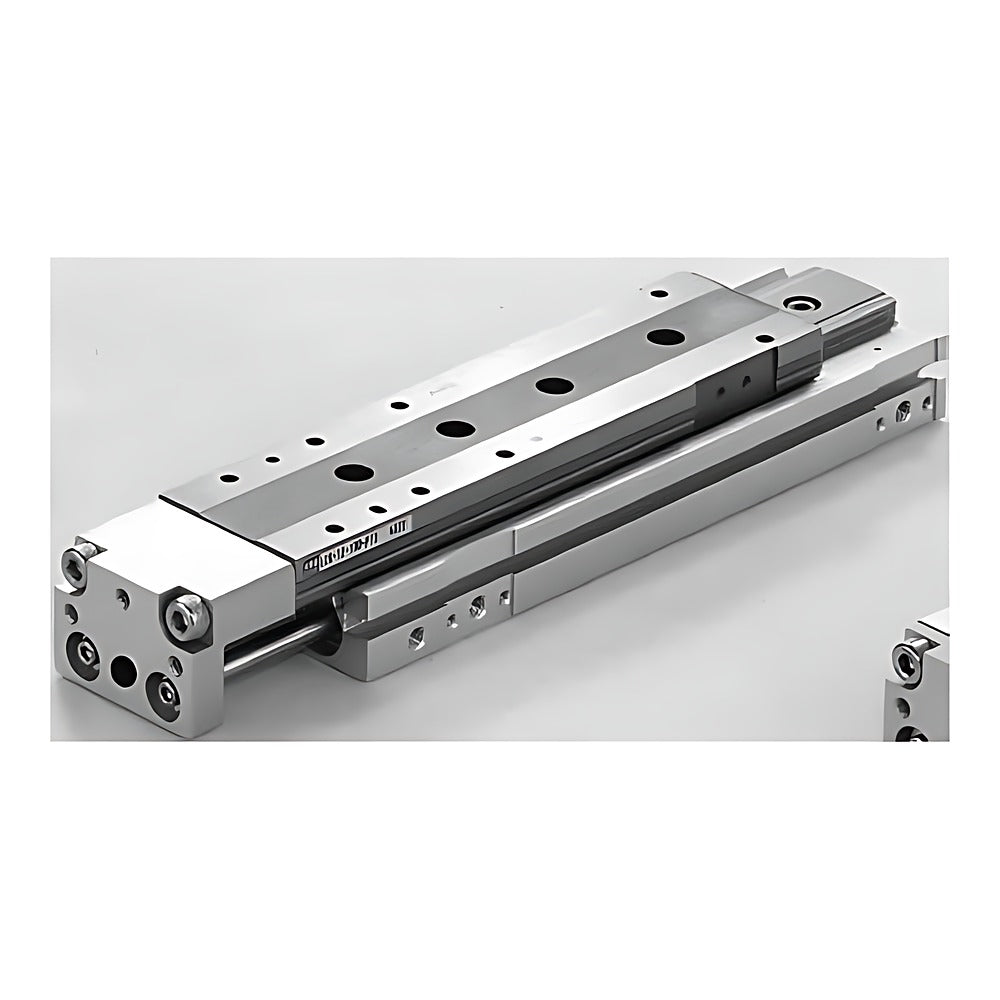

CKD LCG-P7 clean-room linear slide cylinder with a 4-row ball linear guide for high-precision small-part transfer and positioning in clean environments.

Key features

  • Linear guide with 4-row, 2-point-contact ball arrangement (bore 12 and up) for high precision and rigidity
  • Twin-rod double-acting cylinder integrated with slide table; symmetrical layout possible
  • Clean-room P7 series: P72 exhaust processing (exhaust piped out via relief port) or P73 vacuum suction (vacuum sweep of the relief port)
  • Bore 20/25: optional U rust-proof treatment of table and rail (black finish) for humid environments
  • Magnet built in; switches (F/T series), lead length and quantity are added code blocks
  • Optional stroke-adjusting stoppers S1-S6 (5 mm per side), stopper ports (D), nitrided stopper block (T), port plugs (N)

Specifications

Operation Double acting, twin rod
Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.15 MPa
Proof pressure 1.05 MPa
Ambient temperature -10 to 60 C (no freezing)
Piston speed 50 to 500 mm/s
Stroke tolerance +2.0/0 mm
Cushion Rubber cushion
Lubrication Not allowed
Source CKD Korea catalog CB-033S-4, p. 182-211
LCG-20-10-UP72 Bore: 20 mm | Stroke: 10 mm | Port: M5 | Rust-proofing: Rust-proof guide (U) | Clean spec: P72 exhaust processing
LCG-20-10-UP73 Bore: 20 mm | Stroke: 10 mm | Port: M5 | Rust-proofing: Rust-proof guide (U) | Clean spec: P73 vacuum suction
LCG-20-20-UP72 Bore: 20 mm | Stroke: 20 mm | Port: M5 | Rust-proofing: Rust-proof guide (U) | Clean spec: P72 exhaust processing
LCG-20-20-UP73 Bore: 20 mm | Stroke: 20 mm | Port: M5 | Rust-proofing: Rust-proof guide (U) | Clean spec: P73 vacuum suction
LCG-20-30-UP72 Bore: 20 mm | Stroke: 30 mm | Port: M5 | Rust-proofing: Rust-proof guide (U) | Clean spec: P72 exhaust processing
LCG-20-30-UP73 Bore: 20 mm | Stroke: 30 mm | Port: M5 | Rust-proofing: Rust-proof guide (U) | Clean spec: P73 vacuum suction
LCG-20-40-UP72 Bore: 20 mm | Stroke: 40 mm | Port: M5 | Rust-proofing: Rust-proof guide (U) | Clean spec: P72 exhaust processing
LCG-20-40-UP73 Bore: 20 mm | Stroke: 40 mm | Port: M5 | Rust-proofing: Rust-proof guide (U) | Clean spec: P73 vacuum suction
LCG-20-50-UP72 Bore: 20 mm | Stroke: 50 mm | Port: M5 | Rust-proofing: Rust-proof guide (U) | Clean spec: P72 exhaust processing
LCG-20-50-UP73 Bore: 20 mm | Stroke: 50 mm | Port: M5 | Rust-proofing: Rust-proof guide (U) | Clean spec: P73 vacuum suction
LCG-20-75-UP72 Bore: 20 mm | Stroke: 75 mm | Port: M5 | Rust-proofing: Rust-proof guide (U) | Clean spec: P72 exhaust processing
LCG-20-75-UP73 Bore: 20 mm | Stroke: 75 mm | Port: M5 | Rust-proofing: Rust-proof guide (U) | Clean spec: P73 vacuum suction
LCG-20-100-UP72 Bore: 20 mm | Stroke: 100 mm | Port: M5 | Rust-proofing: Rust-proof guide (U) | Clean spec: P72 exhaust processing
LCG-20-100-UP73 Bore: 20 mm | Stroke: 100 mm | Port: M5 | Rust-proofing: Rust-proof guide (U) | Clean spec: P73 vacuum suction
LCG-20-125-UP72 Bore: 20 mm | Stroke: 125 mm | Port: M5 | Rust-proofing: Rust-proof guide (U) | Clean spec: P72 exhaust processing
LCG-20-125-UP73 Bore: 20 mm | Stroke: 125 mm | Port: M5 | Rust-proofing: Rust-proof guide (U) | Clean spec: P73 vacuum suction
LCG-20-150-UP72 Bore: 20 mm | Stroke: 150 mm | Port: M5 | Rust-proofing: Rust-proof guide (U) | Clean spec: P72 exhaust processing
LCG-20-150-UP73 Bore: 20 mm | Stroke: 150 mm | Port: M5 | Rust-proofing: Rust-proof guide (U) | Clean spec: P73 vacuum suction
LCG-25-10-UP72 Bore: 25 mm | Stroke: 10 mm | Port: Rc1/8 | Rust-proofing: Rust-proof guide (U) | Clean spec: P72 exhaust processing
LCG-25-10-UP73 Bore: 25 mm | Stroke: 10 mm | Port: Rc1/8 | Rust-proofing: Rust-proof guide (U) | Clean spec: P73 vacuum suction
LCG-25-20-UP72 Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8 | Rust-proofing: Rust-proof guide (U) | Clean spec: P72 exhaust processing
LCG-25-20-UP73 Bore: 25 mm | Stroke: 20 mm | Port: Rc1/8 | Rust-proofing: Rust-proof guide (U) | Clean spec: P73 vacuum suction
LCG-25-30-UP72 Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8 | Rust-proofing: Rust-proof guide (U) | Clean spec: P72 exhaust processing
LCG-25-30-UP73 Bore: 25 mm | Stroke: 30 mm | Port: Rc1/8 | Rust-proofing: Rust-proof guide (U) | Clean spec: P73 vacuum suction
LCG-25-40-UP72 Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8 | Rust-proofing: Rust-proof guide (U) | Clean spec: P72 exhaust processing
LCG-25-40-UP73 Bore: 25 mm | Stroke: 40 mm | Port: Rc1/8 | Rust-proofing: Rust-proof guide (U) | Clean spec: P73 vacuum suction
LCG-25-50-UP72 Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8 | Rust-proofing: Rust-proof guide (U) | Clean spec: P72 exhaust processing
LCG-25-50-UP73 Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8 | Rust-proofing: Rust-proof guide (U) | Clean spec: P73 vacuum suction
LCG-25-75-UP72 Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8 | Rust-proofing: Rust-proof guide (U) | Clean spec: P72 exhaust processing
LCG-25-75-UP73 Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8 | Rust-proofing: Rust-proof guide (U) | Clean spec: P73 vacuum suction
LCG-25-100-UP72 Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8 | Rust-proofing: Rust-proof guide (U) | Clean spec: P72 exhaust processing
LCG-25-100-UP73 Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8 | Rust-proofing: Rust-proof guide (U) | Clean spec: P73 vacuum suction
LCG-25-125-UP72 Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8 | Rust-proofing: Rust-proof guide (U) | Clean spec: P72 exhaust processing
LCG-25-125-UP73 Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8 | Rust-proofing: Rust-proof guide (U) | Clean spec: P73 vacuum suction
LCG-25-150-UP72 Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8 | Rust-proofing: Rust-proof guide (U) | Clean spec: P72 exhaust processing
LCG-25-150-UP73 Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8 | Rust-proofing: Rust-proof guide (U) | Clean spec: P73 vacuum suction
