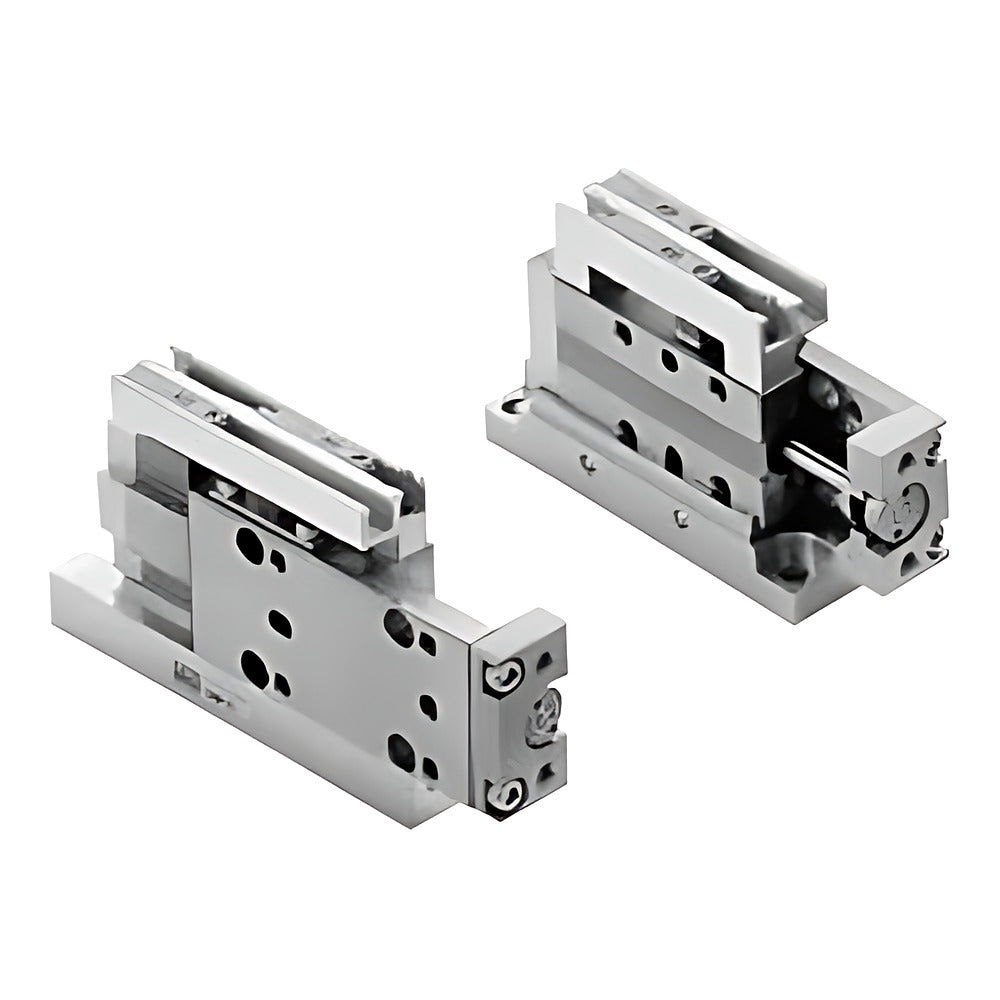

CKD LCM-A Linear Slide Cylinder (Side Mounting)

CKD LCM-A Linear Slide Cylinder (Side Mounting)

CKD LCM-A series miniature linear slide cylinder in a side-mounting configuration, with right- or left-hand table direction.

Key features

  • Side-mounting body for installation in narrow spaces; units can be mounted side by side
  • Integrated cylinder, linear guide and stainless steel slide table
  • Rubber cushion on bore 6 and 8; piston speed 30-500 mm/s
  • Cylinder switches F2S/F3S/F2H/F2V/F3H/F3V/F2YH/F2YV/F3YH/F3YV/F3PH/F3PV (R/H/D) ordered in the code; magnet + switch rail options F1/F2, positioning pins J*, lead 3 m
  • Buffer (B), magnet only (M) and positioning pins (J*) available as options

Specifications

Action Double acting
Fluid Compressed air
Max. operating pressure 0.7 MPa
Proof pressure 1.05 MPa
Ambient temperature 0 to 60 C
Port size M3
Stroke tolerance +1.0 / 0 mm
Lubrication Not required
Min. operating pressure 0.2 MPa (bore 4.5/6), 0.15 MPa (bore 8)
Source CKD Korea catalog CB-030SK-9, p. 118-127
LCM-A-4.5-5-R Bore: 4.5 mm | Stroke: 5 mm | Table direction: Right (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-4.5-5-R-M Bore: 4.5 mm | Stroke: 5 mm | Table direction: Right (viewed from rod side) | Magnet: Yes (option M)
LCM-A-4.5-5-L Bore: 4.5 mm | Stroke: 5 mm | Table direction: Left (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-4.5-5-L-M Bore: 4.5 mm | Stroke: 5 mm | Table direction: Left (viewed from rod side) | Magnet: Yes (option M)
LCM-A-4.5-10-R Bore: 4.5 mm | Stroke: 10 mm | Table direction: Right (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-4.5-10-R-M Bore: 4.5 mm | Stroke: 10 mm | Table direction: Right (viewed from rod side) | Magnet: Yes (option M)
LCM-A-4.5-10-L Bore: 4.5 mm | Stroke: 10 mm | Table direction: Left (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-4.5-10-L-M Bore: 4.5 mm | Stroke: 10 mm | Table direction: Left (viewed from rod side) | Magnet: Yes (option M)
LCM-A-6-5-R Bore: 6 mm | Stroke: 5 mm | Table direction: Right (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-6-5-R-M Bore: 6 mm | Stroke: 5 mm | Table direction: Right (viewed from rod side) | Magnet: Yes (option M)
LCM-A-6-5-L Bore: 6 mm | Stroke: 5 mm | Table direction: Left (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-6-5-L-M Bore: 6 mm | Stroke: 5 mm | Table direction: Left (viewed from rod side) | Magnet: Yes (option M)
LCM-A-6-10-R Bore: 6 mm | Stroke: 10 mm | Table direction: Right (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-6-10-R-M Bore: 6 mm | Stroke: 10 mm | Table direction: Right (viewed from rod side) | Magnet: Yes (option M)
LCM-A-6-10-L Bore: 6 mm | Stroke: 10 mm | Table direction: Left (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-6-10-L-M Bore: 6 mm | Stroke: 10 mm | Table direction: Left (viewed from rod side) | Magnet: Yes (option M)
LCM-A-6-15-R Bore: 6 mm | Stroke: 15 mm | Table direction: Right (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-6-15-R-M Bore: 6 mm | Stroke: 15 mm | Table direction: Right (viewed from rod side) | Magnet: Yes (option M)
LCM-A-6-15-L Bore: 6 mm | Stroke: 15 mm | Table direction: Left (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-6-15-L-M Bore: 6 mm | Stroke: 15 mm | Table direction: Left (viewed from rod side) | Magnet: Yes (option M)
LCM-A-6-20-R Bore: 6 mm | Stroke: 20 mm | Table direction: Right (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-6-20-R-M Bore: 6 mm | Stroke: 20 mm | Table direction: Right (viewed from rod side) | Magnet: Yes (option M)
LCM-A-6-20-L Bore: 6 mm | Stroke: 20 mm | Table direction: Left (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-6-20-L-M Bore: 6 mm | Stroke: 20 mm | Table direction: Left (viewed from rod side) | Magnet: Yes (option M)
LCM-A-6-30-R Bore: 6 mm | Stroke: 30 mm | Table direction: Right (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-6-30-R-M Bore: 6 mm | Stroke: 30 mm | Table direction: Right (viewed from rod side) | Magnet: Yes (option M)
LCM-A-6-30-L Bore: 6 mm | Stroke: 30 mm | Table direction: Left (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-6-30-L-M Bore: 6 mm | Stroke: 30 mm | Table direction: Left (viewed from rod side) | Magnet: Yes (option M)
LCM-A-8-5-R Bore: 8 mm | Stroke: 5 mm | Table direction: Right (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-8-5-R-M Bore: 8 mm | Stroke: 5 mm | Table direction: Right (viewed from rod side) | Magnet: Yes (option M)
LCM-A-8-5-L Bore: 8 mm | Stroke: 5 mm | Table direction: Left (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-8-5-L-M Bore: 8 mm | Stroke: 5 mm | Table direction: Left (viewed from rod side) | Magnet: Yes (option M)
LCM-A-8-10-R Bore: 8 mm | Stroke: 10 mm | Table direction: Right (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-8-10-R-M Bore: 8 mm | Stroke: 10 mm | Table direction: Right (viewed from rod side) | Magnet: Yes (option M)
LCM-A-8-10-L Bore: 8 mm | Stroke: 10 mm | Table direction: Left (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-8-10-L-M Bore: 8 mm | Stroke: 10 mm | Table direction: Left (viewed from rod side) | Magnet: Yes (option M)
LCM-A-8-15-R Bore: 8 mm | Stroke: 15 mm | Table direction: Right (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-8-15-R-M Bore: 8 mm | Stroke: 15 mm | Table direction: Right (viewed from rod side) | Magnet: Yes (option M)
LCM-A-8-15-L Bore: 8 mm | Stroke: 15 mm | Table direction: Left (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-8-15-L-M Bore: 8 mm | Stroke: 15 mm | Table direction: Left (viewed from rod side) | Magnet: Yes (option M)
LCM-A-8-20-R Bore: 8 mm | Stroke: 20 mm | Table direction: Right (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-8-20-R-M Bore: 8 mm | Stroke: 20 mm | Table direction: Right (viewed from rod side) | Magnet: Yes (option M)
LCM-A-8-20-L Bore: 8 mm | Stroke: 20 mm | Table direction: Left (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-8-20-L-M Bore: 8 mm | Stroke: 20 mm | Table direction: Left (viewed from rod side) | Magnet: Yes (option M)
LCM-A-8-30-R Bore: 8 mm | Stroke: 30 mm | Table direction: Right (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-8-30-R-M Bore: 8 mm | Stroke: 30 mm | Table direction: Right (viewed from rod side) | Magnet: Yes (option M)
LCM-A-8-30-L Bore: 8 mm | Stroke: 30 mm | Table direction: Left (viewed from rod side) | Magnet: No (no switch magnet)
LCM-A-8-30-L-M Bore: 8 mm | Stroke: 30 mm | Table direction: Left (viewed from rod side) | Magnet: Yes (option M)
Guided CylindersCKD
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD LCM-A Linear Slide Cylinder (Side Mounting)

Brand CKD·Guided Cylinders

Available part numbers (48)

LCM-A-4.5-5-R, LCM-A-4.5-5-R-M, LCM-A-4.5-5-L, LCM-A-4.5-5-L-M, LCM-A-4.5-10-R, LCM-A-4.5-10-R-M, LCM-A-4.5-10-L, LCM-A-4.5-10-L-M, LCM-A-6-5-R, LCM-A-6-5-R-M + 38 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
