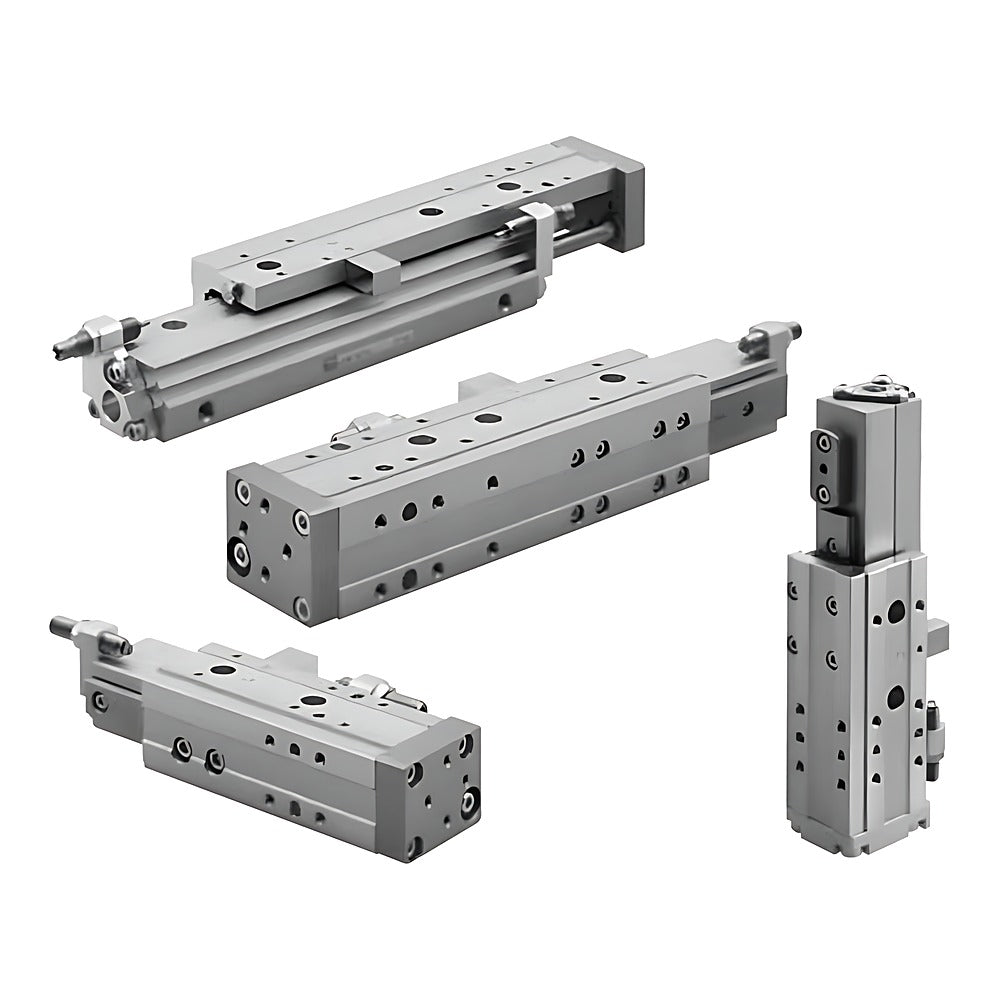

CKD LCW Linear Slide Cylinder (Multi-Function, Bore 12-20)

CKD LCW Linear Slide Cylinder (Multi-Function, Bore 12-20)

CKD LCW series multi-function double-acting linear slide cylinder in bores 12, 16 and 20 mm, with frequently used features fitted as standard.

Key features

  • Mounting from three faces; piping and switch mounting on the same side (piping direction R or L)
  • Stopper selectable: rubber cushion (std), long rubber cushion S, metal with rubber M/MS, shock absorber A
  • Stroke adjusting range up to 28 mm (push) with intermediate-stroke stoppers
  • Built-in magnet for F/T type auto switches
  • Metal stopper: use at 0.4 MPa or more for metal contact, 50-200 mm/s
  • Seal kits LCW-12K, LCW-16K, LCW-20K available

Specifications

Series LCW
Action Double acting
Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.15 MPa
Proof pressure 1.05 MPa
Ambient temperature -10 to 60 C (no freezing)
Cushion Rubber cushion
Port size M5
Piston speed 50 to 500 mm/s
Lubrication Not required
Source CKD Korea catalog CB-030SK-9, p. 287-310
LCW-12-30-R Bore: 12 mm | Stroke: 30 mm | Piping: Right (from rod side) | Stopper: Rubber cushion (std)
LCW-12-30-R-S Bore: 12 mm | Stroke: 30 mm | Piping: Right (from rod side) | Stopper: Rubber cushion long
LCW-12-30-R-M Bore: 12 mm | Stroke: 30 mm | Piping: Right (from rod side) | Stopper: Metal w/ rubber cushion
LCW-12-30-R-MS Bore: 12 mm | Stroke: 30 mm | Piping: Right (from rod side) | Stopper: Metal w/ rubber, long
LCW-12-30-R-A Bore: 12 mm | Stroke: 30 mm | Piping: Right (from rod side) | Stopper: Shock absorber
LCW-12-30-L Bore: 12 mm | Stroke: 30 mm | Piping: Left (from rod side) | Stopper: Rubber cushion (std)
LCW-12-30-L-S Bore: 12 mm | Stroke: 30 mm | Piping: Left (from rod side) | Stopper: Rubber cushion long
LCW-12-30-L-M Bore: 12 mm | Stroke: 30 mm | Piping: Left (from rod side) | Stopper: Metal w/ rubber cushion
LCW-12-30-L-MS Bore: 12 mm | Stroke: 30 mm | Piping: Left (from rod side) | Stopper: Metal w/ rubber, long
LCW-12-30-L-A Bore: 12 mm | Stroke: 30 mm | Piping: Left (from rod side) | Stopper: Shock absorber
LCW-12-50-R Bore: 12 mm | Stroke: 50 mm | Piping: Right (from rod side) | Stopper: Rubber cushion (std)
LCW-12-50-R-S Bore: 12 mm | Stroke: 50 mm | Piping: Right (from rod side) | Stopper: Rubber cushion long
LCW-12-50-R-M Bore: 12 mm | Stroke: 50 mm | Piping: Right (from rod side) | Stopper: Metal w/ rubber cushion
LCW-12-50-R-MS Bore: 12 mm | Stroke: 50 mm | Piping: Right (from rod side) | Stopper: Metal w/ rubber, long
LCW-12-50-R-A Bore: 12 mm | Stroke: 50 mm | Piping: Right (from rod side) | Stopper: Shock absorber
LCW-12-50-L Bore: 12 mm | Stroke: 50 mm | Piping: Left (from rod side) | Stopper: Rubber cushion (std)
LCW-12-50-L-S Bore: 12 mm | Stroke: 50 mm | Piping: Left (from rod side) | Stopper: Rubber cushion long
LCW-12-50-L-M Bore: 12 mm | Stroke: 50 mm | Piping: Left (from rod side) | Stopper: Metal w/ rubber cushion
LCW-12-50-L-MS Bore: 12 mm | Stroke: 50 mm | Piping: Left (from rod side) | Stopper: Metal w/ rubber, long
LCW-12-50-L-A Bore: 12 mm | Stroke: 50 mm | Piping: Left (from rod side) | Stopper: Shock absorber
LCW-12-75-R Bore: 12 mm | Stroke: 75 mm | Piping: Right (from rod side) | Stopper: Rubber cushion (std)
LCW-12-75-R-S Bore: 12 mm | Stroke: 75 mm | Piping: Right (from rod side) | Stopper: Rubber cushion long
LCW-12-75-R-M Bore: 12 mm | Stroke: 75 mm | Piping: Right (from rod side) | Stopper: Metal w/ rubber cushion
LCW-12-75-R-MS Bore: 12 mm | Stroke: 75 mm | Piping: Right (from rod side) | Stopper: Metal w/ rubber, long
LCW-12-75-R-A Bore: 12 mm | Stroke: 75 mm | Piping: Right (from rod side) | Stopper: Shock absorber
LCW-12-75-L Bore: 12 mm | Stroke: 75 mm | Piping: Left (from rod side) | Stopper: Rubber cushion (std)
LCW-12-75-L-S Bore: 12 mm | Stroke: 75 mm | Piping: Left (from rod side) | Stopper: Rubber cushion long
LCW-12-75-L-M Bore: 12 mm | Stroke: 75 mm | Piping: Left (from rod side) | Stopper: Metal w/ rubber cushion
LCW-12-75-L-MS Bore: 12 mm | Stroke: 75 mm | Piping: Left (from rod side) | Stopper: Metal w/ rubber, long
LCW-12-75-L-A Bore: 12 mm | Stroke: 75 mm | Piping: Left (from rod side) | Stopper: Shock absorber
LCW-16-30-R Bore: 16 mm | Stroke: 30 mm | Piping: Right (from rod side) | Stopper: Rubber cushion (std)
LCW-16-30-R-S Bore: 16 mm | Stroke: 30 mm | Piping: Right (from rod side) | Stopper: Rubber cushion long
LCW-16-30-R-M Bore: 16 mm | Stroke: 30 mm | Piping: Right (from rod side) | Stopper: Metal w/ rubber cushion
LCW-16-30-R-MS Bore: 16 mm | Stroke: 30 mm | Piping: Right (from rod side) | Stopper: Metal w/ rubber, long
LCW-16-30-R-A Bore: 16 mm | Stroke: 30 mm | Piping: Right (from rod side) | Stopper: Shock absorber
LCW-16-30-L Bore: 16 mm | Stroke: 30 mm | Piping: Left (from rod side) | Stopper: Rubber cushion (std)
LCW-16-30-L-S Bore: 16 mm | Stroke: 30 mm | Piping: Left (from rod side) | Stopper: Rubber cushion long
LCW-16-30-L-M Bore: 16 mm | Stroke: 30 mm | Piping: Left (from rod side) | Stopper: Metal w/ rubber cushion
LCW-16-30-L-MS Bore: 16 mm | Stroke: 30 mm | Piping: Left (from rod side) | Stopper: Metal w/ rubber, long
LCW-16-30-L-A Bore: 16 mm | Stroke: 30 mm | Piping: Left (from rod side) | Stopper: Shock absorber
LCW-16-50-R Bore: 16 mm | Stroke: 50 mm | Piping: Right (from rod side) | Stopper: Rubber cushion (std)
LCW-16-50-R-S Bore: 16 mm | Stroke: 50 mm | Piping: Right (from rod side) | Stopper: Rubber cushion long
LCW-16-50-R-M Bore: 16 mm | Stroke: 50 mm | Piping: Right (from rod side) | Stopper: Metal w/ rubber cushion
LCW-16-50-R-MS Bore: 16 mm | Stroke: 50 mm | Piping: Right (from rod side) | Stopper: Metal w/ rubber, long
LCW-16-50-R-A Bore: 16 mm | Stroke: 50 mm | Piping: Right (from rod side) | Stopper: Shock absorber
LCW-16-50-L Bore: 16 mm | Stroke: 50 mm | Piping: Left (from rod side) | Stopper: Rubber cushion (std)
LCW-16-50-L-S Bore: 16 mm | Stroke: 50 mm | Piping: Left (from rod side) | Stopper: Rubber cushion long
LCW-16-50-L-M Bore: 16 mm | Stroke: 50 mm | Piping: Left (from rod side) | Stopper: Metal w/ rubber cushion
LCW-16-50-L-MS Bore: 16 mm | Stroke: 50 mm | Piping: Left (from rod side) | Stopper: Metal w/ rubber, long
LCW-16-50-L-A Bore: 16 mm | Stroke: 50 mm | Piping: Left (from rod side) | Stopper: Shock absorber
LCW-16-75-R Bore: 16 mm | Stroke: 75 mm | Piping: Right (from rod side) | Stopper: Rubber cushion (std)
LCW-16-75-R-S Bore: 16 mm | Stroke: 75 mm | Piping: Right (from rod side) | Stopper: Rubber cushion long
LCW-16-75-R-M Bore: 16 mm | Stroke: 75 mm | Piping: Right (from rod side) | Stopper: Metal w/ rubber cushion
LCW-16-75-R-MS Bore: 16 mm | Stroke: 75 mm | Piping: Right (from rod side) | Stopper: Metal w/ rubber, long
LCW-16-75-R-A Bore: 16 mm | Stroke: 75 mm | Piping: Right (from rod side) | Stopper: Shock absorber
LCW-16-75-L Bore: 16 mm | Stroke: 75 mm | Piping: Left (from rod side) | Stopper: Rubber cushion (std)
LCW-16-75-L-S Bore: 16 mm | Stroke: 75 mm | Piping: Left (from rod side) | Stopper: Rubber cushion long
LCW-16-75-L-M Bore: 16 mm | Stroke: 75 mm | Piping: Left (from rod side) | Stopper: Metal w/ rubber cushion
LCW-16-75-L-MS Bore: 16 mm | Stroke: 75 mm | Piping: Left (from rod side) | Stopper: Metal w/ rubber, long
LCW-16-75-L-A Bore: 16 mm | Stroke: 75 mm | Piping: Left (from rod side) | Stopper: Shock absorber
LCW-20-30-R Bore: 20 mm | Stroke: 30 mm | Piping: Right (from rod side) | Stopper: Rubber cushion (std)
LCW-20-30-R-S Bore: 20 mm | Stroke: 30 mm | Piping: Right (from rod side) | Stopper: Rubber cushion long
LCW-20-30-R-M Bore: 20 mm | Stroke: 30 mm | Piping: Right (from rod side) | Stopper: Metal w/ rubber cushion
LCW-20-30-R-MS Bore: 20 mm | Stroke: 30 mm | Piping: Right (from rod side) | Stopper: Metal w/ rubber, long
LCW-20-30-R-A Bore: 20 mm | Stroke: 30 mm | Piping: Right (from rod side) | Stopper: Shock absorber
LCW-20-30-L Bore: 20 mm | Stroke: 30 mm | Piping: Left (from rod side) | Stopper: Rubber cushion (std)
LCW-20-30-L-S Bore: 20 mm | Stroke: 30 mm | Piping: Left (from rod side) | Stopper: Rubber cushion long
LCW-20-30-L-M Bore: 20 mm | Stroke: 30 mm | Piping: Left (from rod side) | Stopper: Metal w/ rubber cushion
LCW-20-30-L-MS Bore: 20 mm | Stroke: 30 mm | Piping: Left (from rod side) | Stopper: Metal w/ rubber, long
LCW-20-30-L-A Bore: 20 mm | Stroke: 30 mm | Piping: Left (from rod side) | Stopper: Shock absorber
LCW-20-50-R Bore: 20 mm | Stroke: 50 mm | Piping: Right (from rod side) | Stopper: Rubber cushion (std)
LCW-20-50-R-S Bore: 20 mm | Stroke: 50 mm | Piping: Right (from rod side) | Stopper: Rubber cushion long
LCW-20-50-R-M Bore: 20 mm | Stroke: 50 mm | Piping: Right (from rod side) | Stopper: Metal w/ rubber cushion
LCW-20-50-R-MS Bore: 20 mm | Stroke: 50 mm | Piping: Right (from rod side) | Stopper: Metal w/ rubber, long
LCW-20-50-R-A Bore: 20 mm | Stroke: 50 mm | Piping: Right (from rod side) | Stopper: Shock absorber
LCW-20-50-L Bore: 20 mm | Stroke: 50 mm | Piping: Left (from rod side) | Stopper: Rubber cushion (std)
LCW-20-50-L-S Bore: 20 mm | Stroke: 50 mm | Piping: Left (from rod side) | Stopper: Rubber cushion long
LCW-20-50-L-M Bore: 20 mm | Stroke: 50 mm | Piping: Left (from rod side) | Stopper: Metal w/ rubber cushion
LCW-20-50-L-MS Bore: 20 mm | Stroke: 50 mm | Piping: Left (from rod side) | Stopper: Metal w/ rubber, long
LCW-20-50-L-A Bore: 20 mm | Stroke: 50 mm | Piping: Left (from rod side) | Stopper: Shock absorber
LCW-20-75-R Bore: 20 mm | Stroke: 75 mm | Piping: Right (from rod side) | Stopper: Rubber cushion (std)
LCW-20-75-R-S Bore: 20 mm | Stroke: 75 mm | Piping: Right (from rod side) | Stopper: Rubber cushion long
LCW-20-75-R-M Bore: 20 mm | Stroke: 75 mm | Piping: Right (from rod side) | Stopper: Metal w/ rubber cushion
LCW-20-75-R-MS Bore: 20 mm | Stroke: 75 mm | Piping: Right (from rod side) | Stopper: Metal w/ rubber, long
LCW-20-75-R-A Bore: 20 mm | Stroke: 75 mm | Piping: Right (from rod side) | Stopper: Shock absorber
LCW-20-75-L Bore: 20 mm | Stroke: 75 mm | Piping: Left (from rod side) | Stopper: Rubber cushion (std)
LCW-20-75-L-S Bore: 20 mm | Stroke: 75 mm | Piping: Left (from rod side) | Stopper: Rubber cushion long
LCW-20-75-L-M Bore: 20 mm | Stroke: 75 mm | Piping: Left (from rod side) | Stopper: Metal w/ rubber cushion
LCW-20-75-L-MS Bore: 20 mm | Stroke: 75 mm | Piping: Left (from rod side) | Stopper: Metal w/ rubber, long
LCW-20-75-L-A Bore: 20 mm | Stroke: 75 mm | Piping: Left (from rod side) | Stopper: Shock absorber
