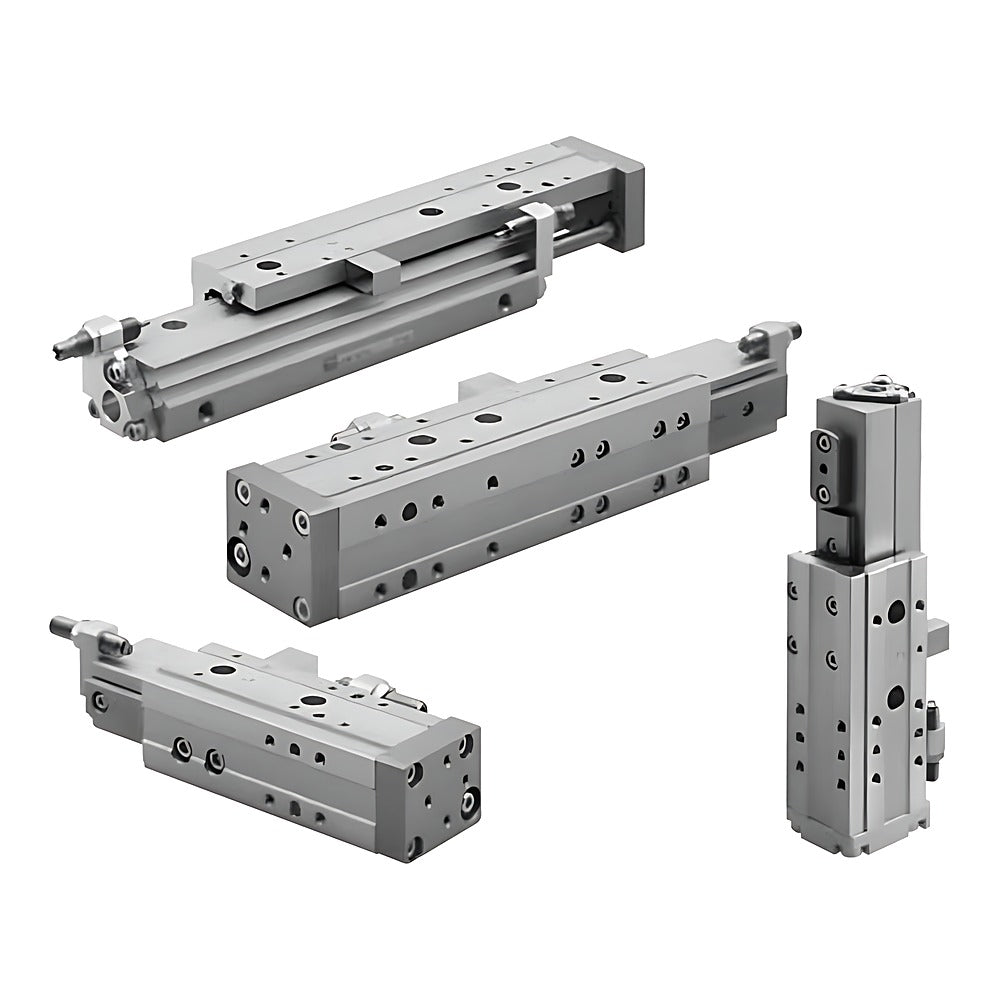

CKD LCW-Q Linear Slide Cylinder (Drop Prevention, Bore 12-20)

CKD LCW-Q Linear Slide Cylinder (Drop Prevention, Bore 12-20)

CKD LCW-Q series multi-function linear slide cylinder with a head-side drop prevention mechanism (H), bores 12, 16 and 20 mm.

Key features

  • Head-side drop prevention lock; holding force 15.5 / 27.6 / 47.6 N (bore 12 / 16 / 20)
  • Piping direction R or L with piping and switches on the same face
  • Stopper selectable: rubber cushion (std), S, M, MS or shock absorber A
  • Built-in magnet for F/T type auto switches
  • Seal kits LCW-Q-12HK, LCW-Q-16HK, LCW-Q-20HK available

Specifications

Series LCW-Q
Action Double acting
Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.15 MPa
Proof pressure 1.05 MPa
Ambient temperature -10 to 60 C (no freezing)
Cushion Rubber cushion
Lock Head side drop prevention (H)
Port size M5
Piston speed 50 to 500 mm/s
Source CKD Korea catalog CB-030SK-9, p. 312-329
