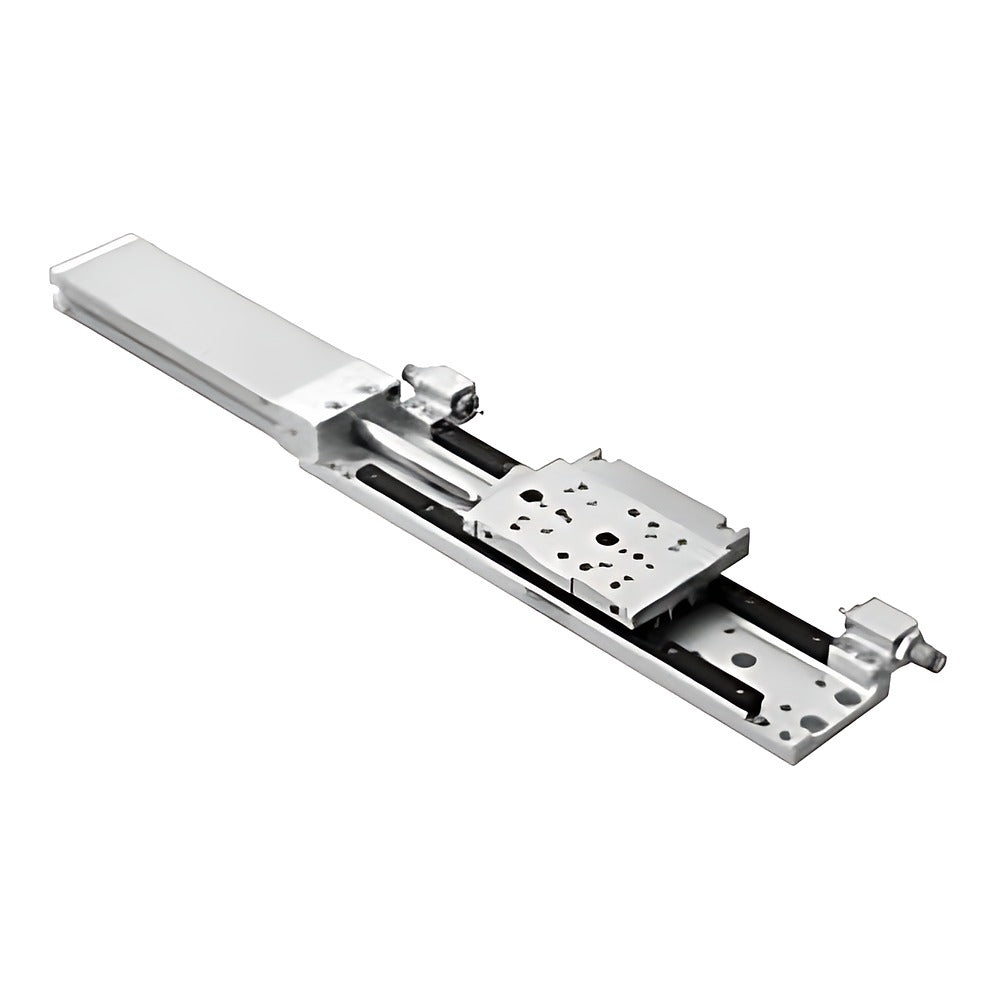

CKD LCX-L-P7 Linear Slide Cylinder (Clean Room, Long Stroke)

CKD LCX-L-P7 clean-room linear slide cylinder, double acting long-stroke type with exhaust (P72) or vacuum suction (P73) structure.

Key features

Clean room specification: P72 exhaust treatment or P73 vacuum suction via M5 relief port
Long strokes 75 to 150 mm, bore 25 and 32 mm, switch magnet built in
Optional stoppers: rubber cushion (S1-S6) or metal (M1-M6), T suffix nitrided block
Cylinder-only part number LCX-CYL-25L-100-P72 format for replacement
Fluorine grease used in the guide

Specifications

Action	Double acting, single rod
Fluid	Compressed air
Operating pressure	0.15 to 0.7 MPa
Proof pressure	1.05 MPa
Port size	M5
Relief port	M5
Piston speed	20 to 500 mm/s
Cushion	Rubber cushion
Stroke tolerance	+2.0/0 mm
Lubrication	Not allowed
Source	CKD Korea catalog CB-030SK-9, p. 380-384

LCX-25L-75-P72		Bore: 25 mm \| Stroke: 75 mm \| Clean spec: P72 exhaust
LCX-25L-75-P73		Bore: 25 mm \| Stroke: 75 mm \| Clean spec: P73 vacuum suction
LCX-25L-100-P72		Bore: 25 mm \| Stroke: 100 mm \| Clean spec: P72 exhaust
LCX-25L-100-P73		Bore: 25 mm \| Stroke: 100 mm \| Clean spec: P73 vacuum suction
LCX-25L-125-P72		Bore: 25 mm \| Stroke: 125 mm \| Clean spec: P72 exhaust
LCX-25L-125-P73		Bore: 25 mm \| Stroke: 125 mm \| Clean spec: P73 vacuum suction
LCX-25L-150-P72		Bore: 25 mm \| Stroke: 150 mm \| Clean spec: P72 exhaust
LCX-25L-150-P73		Bore: 25 mm \| Stroke: 150 mm \| Clean spec: P73 vacuum suction
LCX-32L-75-P72		Bore: 32 mm \| Stroke: 75 mm \| Clean spec: P72 exhaust
LCX-32L-75-P73		Bore: 32 mm \| Stroke: 75 mm \| Clean spec: P73 vacuum suction
LCX-32L-100-P72		Bore: 32 mm \| Stroke: 100 mm \| Clean spec: P72 exhaust
LCX-32L-100-P73		Bore: 32 mm \| Stroke: 100 mm \| Clean spec: P73 vacuum suction
LCX-32L-125-P72		Bore: 32 mm \| Stroke: 125 mm \| Clean spec: P72 exhaust
LCX-32L-125-P73		Bore: 32 mm \| Stroke: 125 mm \| Clean spec: P73 vacuum suction
LCX-32L-150-P72		Bore: 32 mm \| Stroke: 150 mm \| Clean spec: P72 exhaust
LCX-32L-150-P73		Bore: 32 mm \| Stroke: 150 mm \| Clean spec: P73 vacuum suction

Guided CylindersCKD

16 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD LCX-L-P7 Linear Slide Cylinder (Clean Room, Long Stroke)

Brand CKD·Guided Cylinders

Available part numbers (16)

LCX-25L-75-P72, LCX-25L-75-P73, LCX-25L-100-P72, LCX-25L-100-P73, LCX-25L-125-P72, LCX-25L-125-P73, LCX-25L-150-P72, LCX-25L-150-P73, LCX-32L-75-P72, LCX-32L-75-P73 + 6 more — see full table ↓
