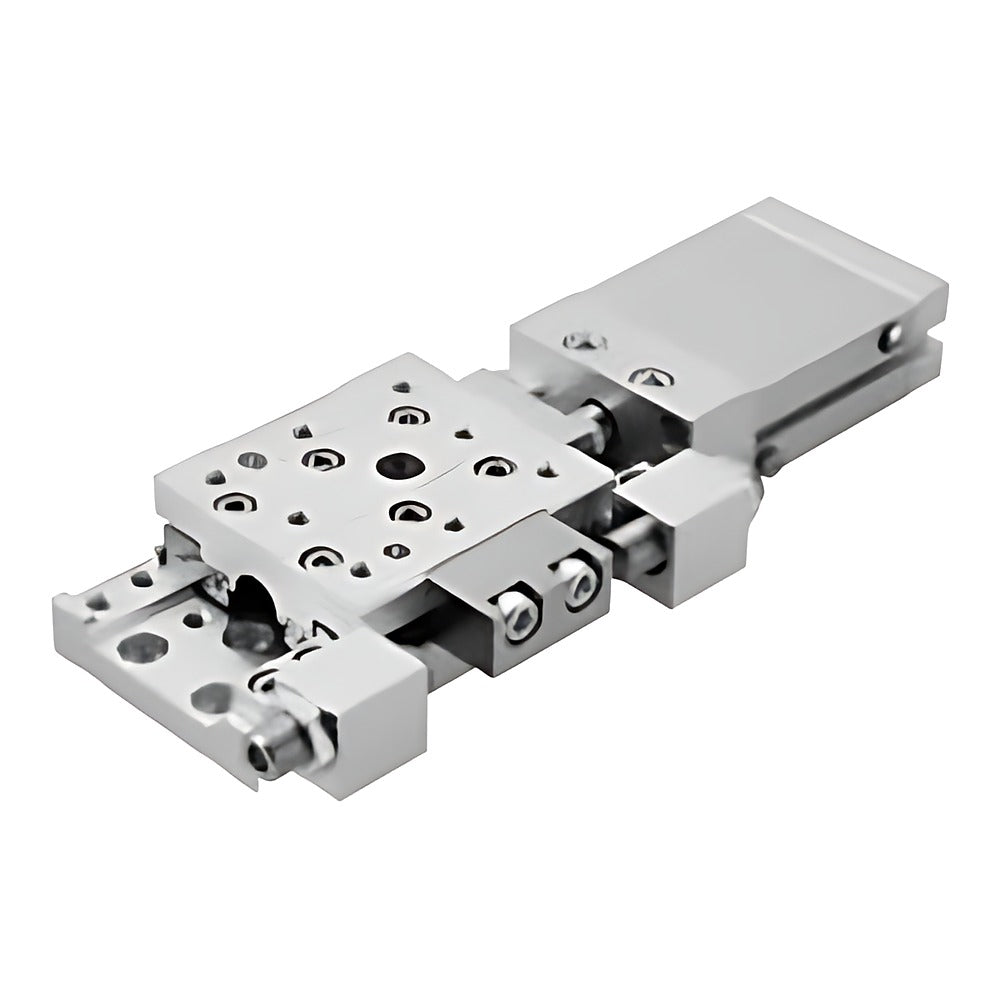

CKD LCX Linear Slide Cylinder (Slim, Bore 25-32)

CKD LCX series slim, lightweight and rigid double-acting linear slide cylinder in bores 25 and 32 mm, strokes 10 to 50 mm.

Key features

Height reduced 43% versus previous CKD model; suited to cross and 2-stage unit combinations
Rubber cushion stopper (S1-S6), metal stopper (M1-M6), shock absorber stopper (A1-A6), nitrided block (T) and positioning hole (E) are ordered as suffixes
Spare cylinder unit LCX-CYL-<bore>-<stroke>; positioning bolt LCX-25-J and stopper blocks LCX-25-SB1/SB2 sold separately
Built-in magnet for T type auto switches
Metal stopper: 20-200 mm/s
Seal kits LCX-25K and LCX-32K available

Specifications

Series	LCX
Action	Double acting
Fluid	Compressed air
Max. operating pressure	0.7 MPa
Min. operating pressure	0.15 MPa
Proof pressure	1.05 MPa
Ambient temperature	-10 to 60 C (no freezing)
Cushion	Rubber cushion
Port size	M5
Lubrication	Not allowed
Piston speed	20 to 500 mm/s
Source	CKD Korea catalog CB-030SK-9, p. 337-351

LCX-25-10		Item: Cylinder \| Bore: 25 mm \| Stroke: 10 mm
LCX-25-20		Item: Cylinder \| Bore: 25 mm \| Stroke: 20 mm
LCX-25-30		Item: Cylinder \| Bore: 25 mm \| Stroke: 30 mm
LCX-25-40		Item: Cylinder \| Bore: 25 mm \| Stroke: 40 mm
LCX-25-50		Item: Cylinder \| Bore: 25 mm \| Stroke: 50 mm
LCX-32-10		Item: Cylinder \| Bore: 32 mm \| Stroke: 10 mm
LCX-32-20		Item: Cylinder \| Bore: 32 mm \| Stroke: 20 mm
LCX-32-30		Item: Cylinder \| Bore: 32 mm \| Stroke: 30 mm
LCX-32-40		Item: Cylinder \| Bore: 32 mm \| Stroke: 40 mm
LCX-32-50		Item: Cylinder \| Bore: 32 mm \| Stroke: 50 mm
LCX-CYL-25-10		Item: Cylinder unit (spare) \| Bore: 25 mm \| Stroke: 10 mm
LCX-CYL-25-20		Item: Cylinder unit (spare) \| Bore: 25 mm \| Stroke: 20 mm
LCX-CYL-25-30		Item: Cylinder unit (spare) \| Bore: 25 mm \| Stroke: 30 mm
LCX-CYL-25-40		Item: Cylinder unit (spare) \| Bore: 25 mm \| Stroke: 40 mm
LCX-CYL-25-50		Item: Cylinder unit (spare) \| Bore: 25 mm \| Stroke: 50 mm
LCX-CYL-32-10		Item: Cylinder unit (spare) \| Bore: 32 mm \| Stroke: 10 mm
LCX-CYL-32-20		Item: Cylinder unit (spare) \| Bore: 32 mm \| Stroke: 20 mm
LCX-CYL-32-30		Item: Cylinder unit (spare) \| Bore: 32 mm \| Stroke: 30 mm
LCX-CYL-32-40		Item: Cylinder unit (spare) \| Bore: 32 mm \| Stroke: 40 mm
LCX-CYL-32-50		Item: Cylinder unit (spare) \| Bore: 32 mm \| Stroke: 50 mm
