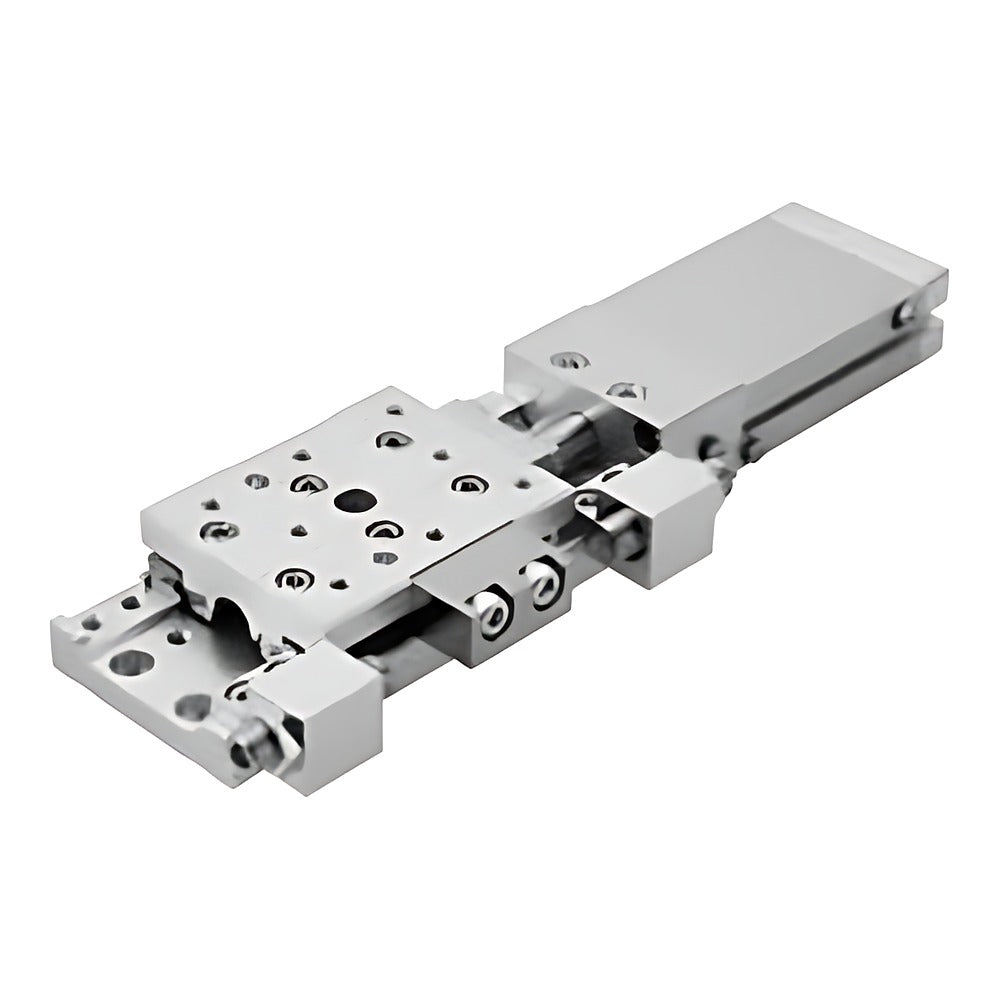

CKD LCX-P7 Linear Slide Cylinder (Clean Room, Bore 25-32)

CKD LCX-P7 Linear Slide Cylinder (Clean Room, Bore 25-32)

CKD LCX-P7 series clean-room version of the LCX slim linear slide cylinder, with exhaust-relief (P72) or vacuum-suction (P73) construction.

Key features

  • P72: relief port exhaust processing; P73: vacuum suction; relief port M5
  • Bores 25 and 32 mm, strokes 10 to 50 mm
  • Rubber cushion (S1-S6) and metal (M1-M6) stoppers, T and positioning hole E as suffixes
  • Spare cylinder unit LCX-CYL-<bore>-<stroke>-P72/P73
  • Non-lubricated operation only

Specifications

Series LCX-P7
Action Double acting
Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.15 MPa
Proof pressure 1.05 MPa
Ambient temperature -10 to 60 C (no freezing)
Cushion Rubber cushion
Port size M5
Lubrication Not allowed
Piston speed 20 to 500 mm/s
Source CKD Korea catalog CB-030SK-9, p. 358-363
LCX-25-10-P72 Item: Cylinder | Bore: 25 mm | Stroke: 10 mm | Clean spec: P72 Exhaust relief
LCX-CYL-25-10-P72 Item: Cylinder unit (spare) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P72 Exhaust relief
LCX-25-10-P73 Item: Cylinder | Bore: 25 mm | Stroke: 10 mm | Clean spec: P73 Vacuum suction
LCX-CYL-25-10-P73 Item: Cylinder unit (spare) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P73 Vacuum suction
LCX-25-20-P72 Item: Cylinder | Bore: 25 mm | Stroke: 20 mm | Clean spec: P72 Exhaust relief
LCX-CYL-25-20-P72 Item: Cylinder unit (spare) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P72 Exhaust relief
LCX-25-20-P73 Item: Cylinder | Bore: 25 mm | Stroke: 20 mm | Clean spec: P73 Vacuum suction
LCX-CYL-25-20-P73 Item: Cylinder unit (spare) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P73 Vacuum suction
LCX-25-30-P72 Item: Cylinder | Bore: 25 mm | Stroke: 30 mm | Clean spec: P72 Exhaust relief
LCX-CYL-25-30-P72 Item: Cylinder unit (spare) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P72 Exhaust relief
LCX-25-30-P73 Item: Cylinder | Bore: 25 mm | Stroke: 30 mm | Clean spec: P73 Vacuum suction
LCX-CYL-25-30-P73 Item: Cylinder unit (spare) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P73 Vacuum suction
LCX-25-40-P72 Item: Cylinder | Bore: 25 mm | Stroke: 40 mm | Clean spec: P72 Exhaust relief
LCX-CYL-25-40-P72 Item: Cylinder unit (spare) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P72 Exhaust relief
LCX-25-40-P73 Item: Cylinder | Bore: 25 mm | Stroke: 40 mm | Clean spec: P73 Vacuum suction
LCX-CYL-25-40-P73 Item: Cylinder unit (spare) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P73 Vacuum suction
LCX-25-50-P72 Item: Cylinder | Bore: 25 mm | Stroke: 50 mm | Clean spec: P72 Exhaust relief
LCX-CYL-25-50-P72 Item: Cylinder unit (spare) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P72 Exhaust relief
LCX-25-50-P73 Item: Cylinder | Bore: 25 mm | Stroke: 50 mm | Clean spec: P73 Vacuum suction
LCX-CYL-25-50-P73 Item: Cylinder unit (spare) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P73 Vacuum suction
LCX-32-10-P72 Item: Cylinder | Bore: 32 mm | Stroke: 10 mm | Clean spec: P72 Exhaust relief
LCX-CYL-32-10-P72 Item: Cylinder unit (spare) | Bore: 32 mm | Stroke: 10 mm | Clean spec: P72 Exhaust relief
LCX-32-10-P73 Item: Cylinder | Bore: 32 mm | Stroke: 10 mm | Clean spec: P73 Vacuum suction
LCX-CYL-32-10-P73 Item: Cylinder unit (spare) | Bore: 32 mm | Stroke: 10 mm | Clean spec: P73 Vacuum suction
LCX-32-20-P72 Item: Cylinder | Bore: 32 mm | Stroke: 20 mm | Clean spec: P72 Exhaust relief
LCX-CYL-32-20-P72 Item: Cylinder unit (spare) | Bore: 32 mm | Stroke: 20 mm | Clean spec: P72 Exhaust relief
LCX-32-20-P73 Item: Cylinder | Bore: 32 mm | Stroke: 20 mm | Clean spec: P73 Vacuum suction
LCX-CYL-32-20-P73 Item: Cylinder unit (spare) | Bore: 32 mm | Stroke: 20 mm | Clean spec: P73 Vacuum suction
LCX-32-30-P72 Item: Cylinder | Bore: 32 mm | Stroke: 30 mm | Clean spec: P72 Exhaust relief
LCX-CYL-32-30-P72 Item: Cylinder unit (spare) | Bore: 32 mm | Stroke: 30 mm | Clean spec: P72 Exhaust relief
LCX-32-30-P73 Item: Cylinder | Bore: 32 mm | Stroke: 30 mm | Clean spec: P73 Vacuum suction
LCX-CYL-32-30-P73 Item: Cylinder unit (spare) | Bore: 32 mm | Stroke: 30 mm | Clean spec: P73 Vacuum suction
LCX-32-40-P72 Item: Cylinder | Bore: 32 mm | Stroke: 40 mm | Clean spec: P72 Exhaust relief
LCX-CYL-32-40-P72 Item: Cylinder unit (spare) | Bore: 32 mm | Stroke: 40 mm | Clean spec: P72 Exhaust relief
LCX-32-40-P73 Item: Cylinder | Bore: 32 mm | Stroke: 40 mm | Clean spec: P73 Vacuum suction
LCX-CYL-32-40-P73 Item: Cylinder unit (spare) | Bore: 32 mm | Stroke: 40 mm | Clean spec: P73 Vacuum suction
LCX-32-50-P72 Item: Cylinder | Bore: 32 mm | Stroke: 50 mm | Clean spec: P72 Exhaust relief
LCX-CYL-32-50-P72 Item: Cylinder unit (spare) | Bore: 32 mm | Stroke: 50 mm | Clean spec: P72 Exhaust relief
LCX-32-50-P73 Item: Cylinder | Bore: 32 mm | Stroke: 50 mm | Clean spec: P73 Vacuum suction
LCX-CYL-32-50-P73 Item: Cylinder unit (spare) | Bore: 32 mm | Stroke: 50 mm | Clean spec: P73 Vacuum suction
Guided CylindersCKD
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD LCX-P7 Linear Slide Cylinder (Clean Room, Bore 25-32)

Brand CKD·Guided Cylinders

Available part numbers (40)

LCX-25-10-P72, LCX-CYL-25-10-P72, LCX-25-10-P73, LCX-CYL-25-10-P73, LCX-25-20-P72, LCX-CYL-25-20-P72, LCX-25-20-P73, LCX-CYL-25-20-P73, LCX-25-30-P72, LCX-CYL-25-30-P72 + 30 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LCX-25-10-P72Item: Cylinder | Bore: 25 mm | Stroke: 10 mm | Clean spec: P72 Exhaust relief
LCX-CYL-25-10-P72Item: Cylinder unit (spare) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P72 Exhaust relief
LCX-25-10-P73Item: Cylinder | Bore: 25 mm | Stroke: 10 mm | Clean spec: P73 Vacuum suction
LCX-CYL-25-10-P73Item: Cylinder unit (spare) | Bore: 25 mm | Stroke: 10 mm | Clean spec: P73 Vacuum suction
LCX-25-20-P72Item: Cylinder | Bore: 25 mm | Stroke: 20 mm | Clean spec: P72 Exhaust relief
LCX-CYL-25-20-P72Item: Cylinder unit (spare) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P72 Exhaust relief
LCX-25-20-P73Item: Cylinder | Bore: 25 mm | Stroke: 20 mm | Clean spec: P73 Vacuum suction
LCX-CYL-25-20-P73Item: Cylinder unit (spare) | Bore: 25 mm | Stroke: 20 mm | Clean spec: P73 Vacuum suction
LCX-25-30-P72Item: Cylinder | Bore: 25 mm | Stroke: 30 mm | Clean spec: P72 Exhaust relief
LCX-CYL-25-30-P72Item: Cylinder unit (spare) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P72 Exhaust relief
LCX-25-30-P73Item: Cylinder | Bore: 25 mm | Stroke: 30 mm | Clean spec: P73 Vacuum suction
LCX-CYL-25-30-P73Item: Cylinder unit (spare) | Bore: 25 mm | Stroke: 30 mm | Clean spec: P73 Vacuum suction
LCX-25-40-P72Item: Cylinder | Bore: 25 mm | Stroke: 40 mm | Clean spec: P72 Exhaust relief
LCX-CYL-25-40-P72Item: Cylinder unit (spare) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P72 Exhaust relief
LCX-25-40-P73Item: Cylinder | Bore: 25 mm | Stroke: 40 mm | Clean spec: P73 Vacuum suction
LCX-CYL-25-40-P73Item: Cylinder unit (spare) | Bore: 25 mm | Stroke: 40 mm | Clean spec: P73 Vacuum suction
LCX-25-50-P72Item: Cylinder | Bore: 25 mm | Stroke: 50 mm | Clean spec: P72 Exhaust relief
LCX-CYL-25-50-P72Item: Cylinder unit (spare) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P72 Exhaust relief
LCX-25-50-P73Item: Cylinder | Bore: 25 mm | Stroke: 50 mm | Clean spec: P73 Vacuum suction
LCX-CYL-25-50-P73Item: Cylinder unit (spare) | Bore: 25 mm | Stroke: 50 mm | Clean spec: P73 Vacuum suction
LCX-32-10-P72Item: Cylinder | Bore: 32 mm | Stroke: 10 mm | Clean spec: P72 Exhaust relief
LCX-CYL-32-10-P72Item: Cylinder unit (spare) | Bore: 32 mm | Stroke: 10 mm | Clean spec: P72 Exhaust relief
LCX-32-10-P73Item: Cylinder | Bore: 32 mm | Stroke: 10 mm | Clean spec: P73 Vacuum suction
LCX-CYL-32-10-P73Item: Cylinder unit (spare) | Bore: 32 mm | Stroke: 10 mm | Clean spec: P73 Vacuum suction
LCX-32-20-P72Item: Cylinder | Bore: 32 mm | Stroke: 20 mm | Clean spec: P72 Exhaust relief
LCX-CYL-32-20-P72Item: Cylinder unit (spare) | Bore: 32 mm | Stroke: 20 mm | Clean spec: P72 Exhaust relief
LCX-32-20-P73Item: Cylinder | Bore: 32 mm | Stroke: 20 mm | Clean spec: P73 Vacuum suction
LCX-CYL-32-20-P73Item: Cylinder unit (spare) | Bore: 32 mm | Stroke: 20 mm | Clean spec: P73 Vacuum suction
LCX-32-30-P72Item: Cylinder | Bore: 32 mm | Stroke: 30 mm | Clean spec: P72 Exhaust relief
LCX-CYL-32-30-P72Item: Cylinder unit (spare) | Bore: 32 mm | Stroke: 30 mm | Clean spec: P72 Exhaust relief
LCX-32-30-P73Item: Cylinder | Bore: 32 mm | Stroke: 30 mm | Clean spec: P73 Vacuum suction
LCX-CYL-32-30-P73Item: Cylinder unit (spare) | Bore: 32 mm | Stroke: 30 mm | Clean spec: P73 Vacuum suction
LCX-32-40-P72Item: Cylinder | Bore: 32 mm | Stroke: 40 mm | Clean spec: P72 Exhaust relief
LCX-CYL-32-40-P72Item: Cylinder unit (spare) | Bore: 32 mm | Stroke: 40 mm | Clean spec: P72 Exhaust relief
LCX-32-40-P73Item: Cylinder | Bore: 32 mm | Stroke: 40 mm | Clean spec: P73 Vacuum suction
LCX-CYL-32-40-P73Item: Cylinder unit (spare) | Bore: 32 mm | Stroke: 40 mm | Clean spec: P73 Vacuum suction
LCX-32-50-P72Item: Cylinder | Bore: 32 mm | Stroke: 50 mm | Clean spec: P72 Exhaust relief
LCX-CYL-32-50-P72Item: Cylinder unit (spare) | Bore: 32 mm | Stroke: 50 mm | Clean spec: P72 Exhaust relief
LCX-32-50-P73Item: Cylinder | Bore: 32 mm | Stroke: 50 mm | Clean spec: P73 Vacuum suction
LCX-CYL-32-50-P73Item: Cylinder unit (spare) | Bore: 32 mm | Stroke: 50 mm | Clean spec: P73 Vacuum suction
