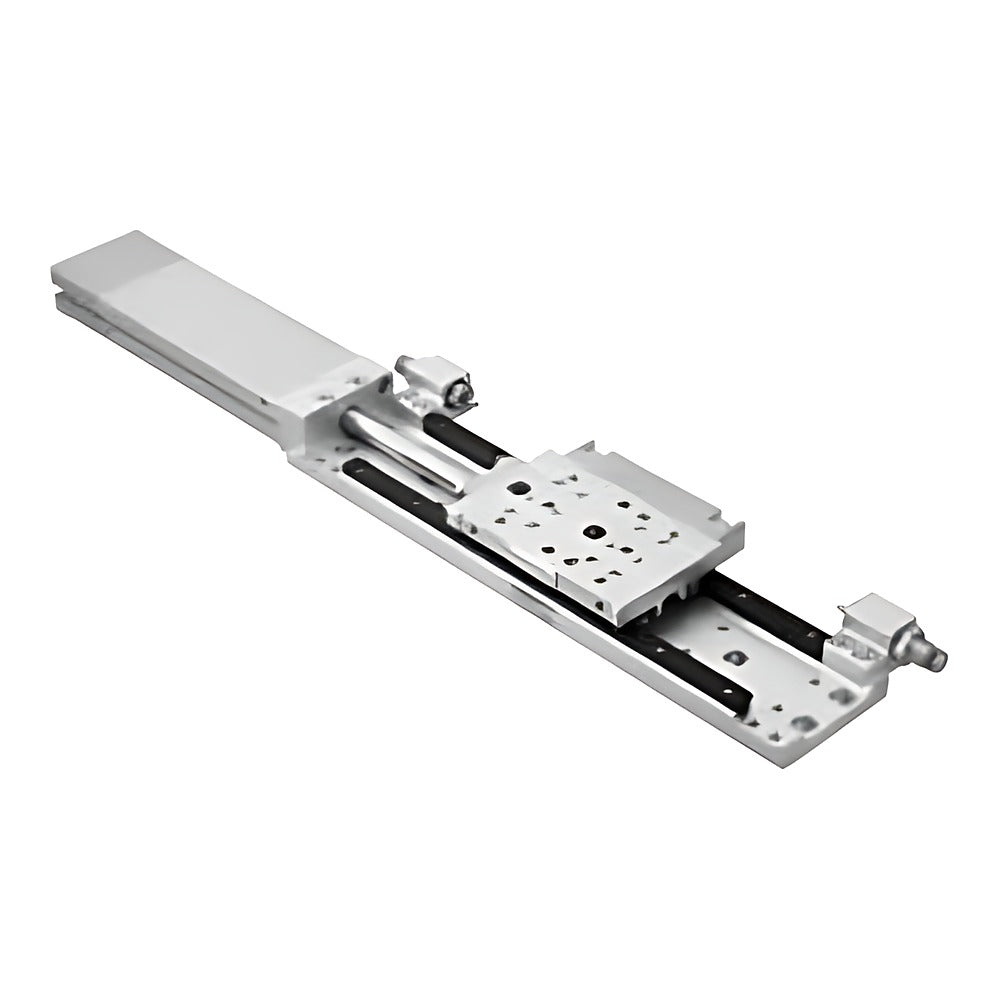

CKD LCX-Q-L Linear Slide Cylinder (Drop Prevention, Long Stroke)

CKD LCX-Q-L Linear Slide Cylinder (Drop Prevention, Long Stroke)

CKD LCX-Q-L slim linear slide cylinder with head-end drop prevention lock, long-stroke type, bore 25 and 32 mm.

Key features

  • Head-end drop prevention mechanism holds the table when air pressure is lost
  • Long strokes 75 to 150 mm; switch magnet built in
  • Optional stoppers at position 1/2: rubber cushion (S1/S2), metal (M1/M2) or shock absorber (A1/A2)
  • Switches T0/T5/T2/T3/T3P/T2W/T3W with R/H/D count specified in the code
  • Seal kits LCX-Q-25K / LCX-Q-32K

Specifications

Action Double acting, drop prevention
Fluid Compressed air
Operating pressure 0.15 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient temperature -10 to 60 C (no freezing)
Port size M5
Lock position Head end
Piston speed 20 to 500 mm/s (metal stopper 20-200)
Cushion Rubber cushion
Stroke tolerance +2.0/0 mm
Source CKD Korea catalog CB-030SK-9, p. 374-379
LCX-Q-25L-75 Bore: 25 mm | Stroke: 75 mm | Holding force: 130 N
LCX-Q-25L-100 Bore: 25 mm | Stroke: 100 mm | Holding force: 130 N
LCX-Q-25L-125 Bore: 25 mm | Stroke: 125 mm | Holding force: 130 N
LCX-Q-25L-150 Bore: 25 mm | Stroke: 150 mm | Holding force: 130 N
LCX-Q-32L-75 Bore: 32 mm | Stroke: 75 mm | Holding force: 230 N
LCX-Q-32L-100 Bore: 32 mm | Stroke: 100 mm | Holding force: 230 N
LCX-Q-32L-125 Bore: 32 mm | Stroke: 125 mm | Holding force: 230 N
LCX-Q-32L-150 Bore: 32 mm | Stroke: 150 mm | Holding force: 230 N
Guided CylindersCKD
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD LCX-Q-L Linear Slide Cylinder (Drop Prevention, Long Stroke)

Brand CKD·Guided Cylinders

Available part numbers (8)

LCX-Q-25L-75, LCX-Q-25L-100, LCX-Q-25L-125, LCX-Q-25L-150, LCX-Q-32L-75, LCX-Q-32L-100, LCX-Q-32L-125, LCX-Q-32L-150

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LCX-Q-25L-75Bore: 25 mm | Stroke: 75 mm | Holding force: 130 N
LCX-Q-25L-100Bore: 25 mm | Stroke: 100 mm | Holding force: 130 N
LCX-Q-25L-125Bore: 25 mm | Stroke: 125 mm | Holding force: 130 N
LCX-Q-25L-150Bore: 25 mm | Stroke: 150 mm | Holding force: 130 N
LCX-Q-32L-75Bore: 32 mm | Stroke: 75 mm | Holding force: 230 N
LCX-Q-32L-100Bore: 32 mm | Stroke: 100 mm | Holding force: 230 N
LCX-Q-32L-125Bore: 32 mm | Stroke: 125 mm | Holding force: 230 N
LCX-Q-32L-150Bore: 32 mm | Stroke: 150 mm | Holding force: 230 N

Need a different model, or a part not listed here? Send us your parts list →
