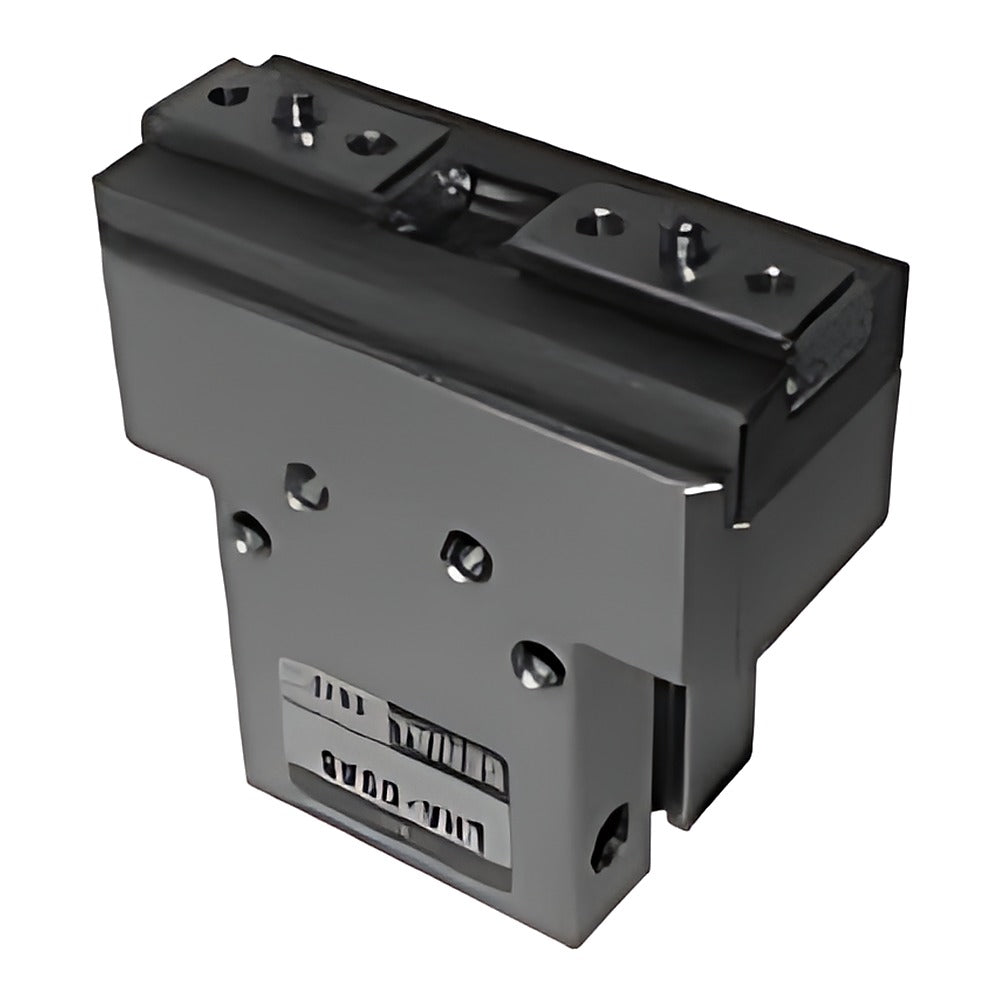

CKD LHAC Linear Guide Parallel Hand, Clean Series (KONSEI)

LHAC clean-series linear guide parallel hand made by KONSEI Co., Ltd. and offered in the CKD clean equipment catalog, built for high durability on high-speed machines.

Key features

One-piece linear guide gives high rigidity, high precision and long life
Cross-roller guide for precise, smooth motion; supports long fingers
Aluminium body, SUS440C-equivalent guide, stainless bolts, fluorine grease
Six sizes, stroke 4-20 mm; standard, normally open (NO) and normally closed (NC) versions
Optional sensors (not expanded): ET3, ET3L, ET2, ET2L (solid state), E24/E24L/E25/E25L (reed), S1/S2 count

Specifications

Manufacturer	KONSEI Co., Ltd. (sold via CKD)
Operating medium	Air 0.1 to 0.7 MPa
Lubrication	Not required
Ambient temperature	5 to 60 C
Repeatability	+/-0.01 mm
Code format	LHAC-<size>[-<sensor>][-NO/NC]
Source	CKD Korea catalog CB-033S-4, p. 1165-1168

LHAC-006AS		Size: 006AS \| Stroke: 4 mm \| Cylinder bore: dia 6 mm \| Action: Standard \| Mass: 0.04 kg
LHAC-006AS-NO		Size: 006AS \| Stroke: 4 mm \| Cylinder bore: dia 6 mm \| Action: Normally open \| Mass: 0.04 kg
LHAC-006AS-NC		Size: 006AS \| Stroke: 4 mm \| Cylinder bore: dia 6 mm \| Action: Normally closed \| Mass: 0.04 kg
LHAC-01AS		Size: 01AS \| Stroke: 5 mm \| Cylinder bore: dia 12 mm \| Action: Standard \| Mass: 0.085 kg
LHAC-01AS-NO		Size: 01AS \| Stroke: 5 mm \| Cylinder bore: dia 12 mm \| Action: Normally open \| Mass: 0.085 kg
LHAC-01AS-NC		Size: 01AS \| Stroke: 5 mm \| Cylinder bore: dia 12 mm \| Action: Normally closed \| Mass: 0.085 kg
LHAC-03AS		Size: 03AS \| Stroke: 9 mm \| Cylinder bore: dia 16 mm \| Action: Standard \| Mass: 0.15 kg
LHAC-03AS-NO		Size: 03AS \| Stroke: 9 mm \| Cylinder bore: dia 16 mm \| Action: Normally open \| Mass: 0.15 kg
LHAC-03AS-NC		Size: 03AS \| Stroke: 9 mm \| Cylinder bore: dia 16 mm \| Action: Normally closed \| Mass: 0.15 kg
LHAC-04AS		Size: 04AS \| Stroke: 11 mm \| Cylinder bore: dia 20 mm \| Action: Standard \| Mass: 0.36 kg
LHAC-04AS-NO		Size: 04AS \| Stroke: 11 mm \| Cylinder bore: dia 20 mm \| Action: Normally open \| Mass: 0.36 kg
LHAC-04AS-NC		Size: 04AS \| Stroke: 11 mm \| Cylinder bore: dia 20 mm \| Action: Normally closed \| Mass: 0.36 kg
LHAC-05AS		Size: 05AS \| Stroke: 15 mm \| Cylinder bore: dia 25 mm \| Action: Standard \| Mass: 0.52 kg
LHAC-05AS-NO		Size: 05AS \| Stroke: 15 mm \| Cylinder bore: dia 25 mm \| Action: Normally open \| Mass: 0.52 kg
LHAC-05AS-NC		Size: 05AS \| Stroke: 15 mm \| Cylinder bore: dia 25 mm \| Action: Normally closed \| Mass: 0.52 kg
LHAC-06AS		Size: 06AS \| Stroke: 20 mm \| Cylinder bore: dia 32 mm \| Action: Standard \| Mass: 0.82 kg
LHAC-06AS-NO		Size: 06AS \| Stroke: 20 mm \| Cylinder bore: dia 32 mm \| Action: Normally open \| Mass: 0.82 kg
LHAC-06AS-NC		Size: 06AS \| Stroke: 20 mm \| Cylinder bore: dia 32 mm \| Action: Normally closed \| Mass: 0.82 kg

Air GrippersCKD

18 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →
