CKD LMB Linear Guide Lock (THK SR/SSR)

CKD LMB Linear Guide Lock (THK SR/SSR)

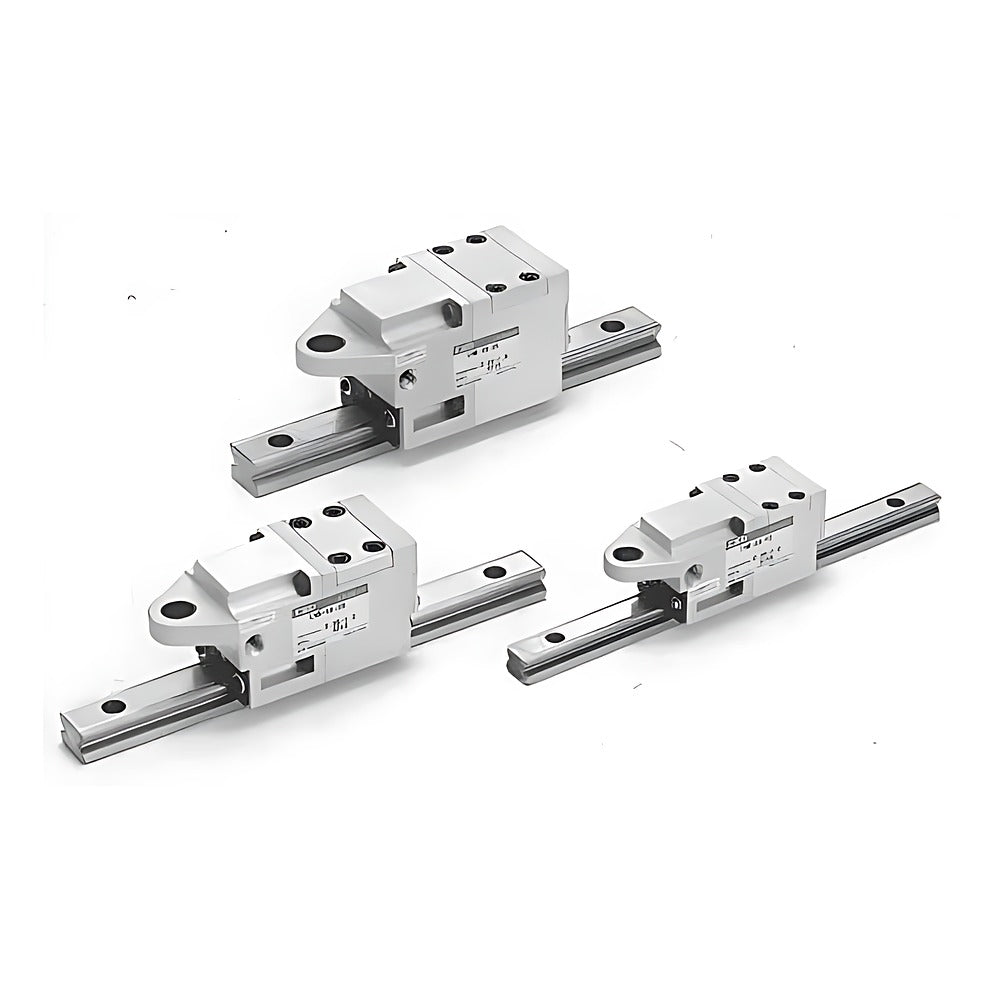

The CKD LMB is a pneumatic linear guide lock that clamps a THK SR/SSR rail to hold a table at any position.

Key features

  • Tapered swash-plate mechanism clamps the rail; air pressure releases the lock
  • For THK SR/SSR rails, sizes 15, 20 and 25
  • Holding force 1175 to 2450 N
  • Table fixing, X-Y table holding and drop prevention

Specifications

Working fluid Compressed air
Max. working pressure 1.0 MPa
Min. working pressure 0.35 MPa
Proof pressure 1.5 MPa
Ambient temperature -5 to 60 C
Port Rc1/8
Source CKD Korea catalog CB-030SK-9, p. 1027-1032
LMB-SR-15 Rail size: 15 | Applicable rail: THK SR-15/SSR-15 | Holding force: 1175 N
LMB-SR-20 Rail size: 20 | Applicable rail: THK SR-20/SSR-20 | Holding force: 1960 N
LMB-SR-25 Rail size: 25 | Applicable rail: THK SR-25/SSR-25 | Holding force: 2450 N
