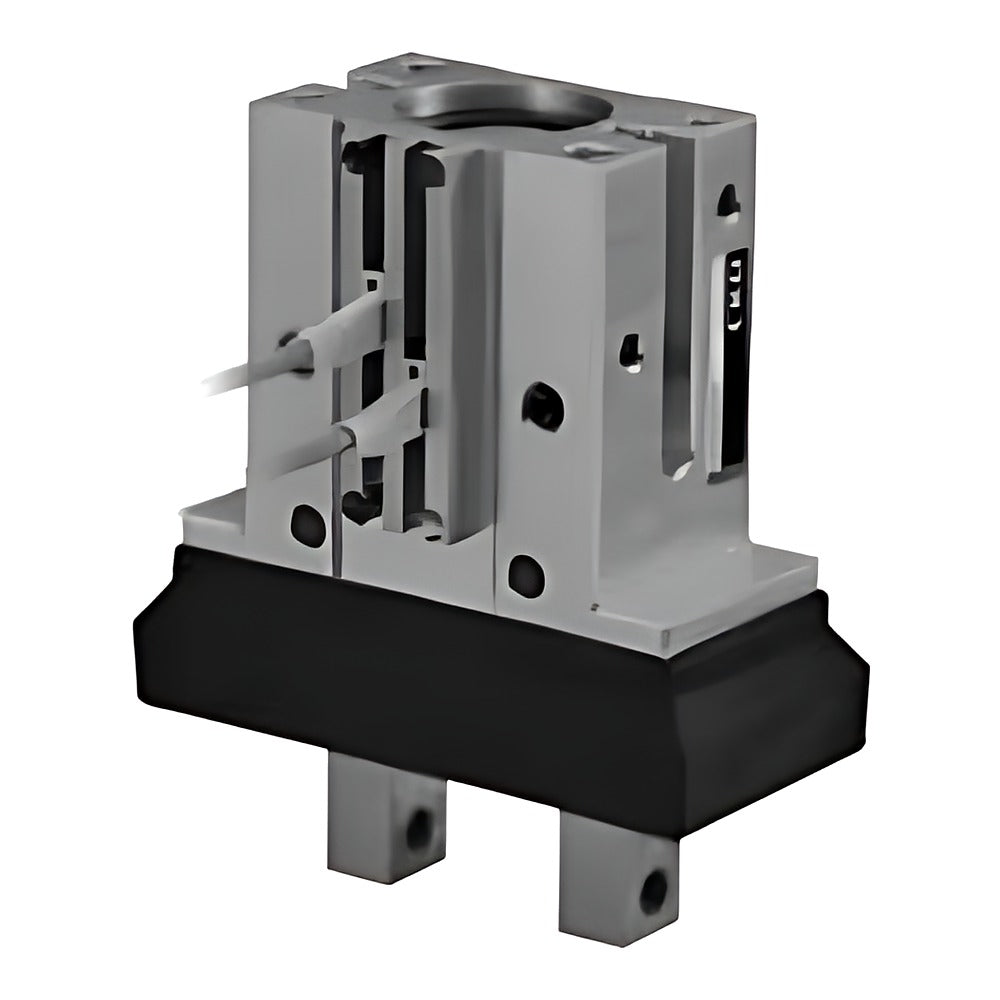

CKD LSH-A Linear Slide Hand (HP1, Bore 6-32 mm)

CKD LSH-A HP1 linear slide hand, a high-precision parallel gripper with integrated linear guide fingers, double or single acting, bore 6 to 32 mm.

Key features

Integrated linear guide and finger structure; repeatability +/-0.01 mm
Packing design optimized for about twice the durability of the previous LSH
Double acting or single acting (normally open / normally closed)
Four finger styles (basic, side tapped, through hole, flat) and optional gripping-centre reference positioning hole on the L or R face
Switch-ready (magnet built in); auto switches F2S/F3S/F2H/F3H/F2V/F3V/F3PH/F3PV (T-type on 32 mm) added as -<switch>-<R/H/D> before the -HP suffix, ordered separately
Seal kits LSH-##K-HP and rail plate kits LSH-RPF-##-HP / LSH-RPT-32-HP available as spare parts

Specifications

Rubber cover	None (A)
Fluid	Compressed air
Max. operating pressure	0.7 MPa
Min. operating pressure	Double 0.15-0.2 MPa (6/10), 0.1 MPa (16-32); single 0.25-0.35 MPa
Port	M3 (6, 10 mm), M5 (16-32 mm)
Ambient temperature	-10 to 60 C (no freezing)
Repeatability	+/-0.01 mm
Lubrication	Not required
Source	CKD Korea catalog CB-030SK-9, p. 1600-1609

LSH-A06D1N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A06D1N-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
LSH-A06D1L-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A06D1L-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A06D1R-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A06D1R-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A06D2N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A06D2N-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
LSH-A06D2L-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A06D2L-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A06D2R-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A06D2R-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A06D3N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A06D3N-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
LSH-A06D3L-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A06D3L-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A06D3R-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A06D3R-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A06D4N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A06D4N-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
LSH-A06D4L-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A06D4L-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A06D4R-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A06D4R-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A06S1N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A06S1N-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
LSH-A06S1L-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A06S1L-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A06S1R-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A06S1R-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A06S2N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A06S2N-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
LSH-A06S2L-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A06S2L-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A06S2R-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A06S2R-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A06S3N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A06S3N-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
LSH-A06S3L-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A06S3L-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A06S3R-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A06S3R-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A06S4N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A06S4N-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
LSH-A06S4L-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A06S4L-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A06S4R-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A06S4R-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A06C1N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A06C1N-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
LSH-A06C1L-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A06C1L-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A06C1R-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A06C1R-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A06C2N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A06C2N-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
LSH-A06C2L-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A06C2L-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A06C2R-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A06C2R-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A06C3N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A06C3N-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
LSH-A06C3L-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A06C3L-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A06C3R-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A06C3R-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A06C4N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A06C4N-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
LSH-A06C4L-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A06C4L-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A06C4R-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A06C4R-N-HP1		Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A10D1N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A10D1N-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
LSH-A10D1L-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A10D1L-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A10D1R-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A10D1R-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A10D2N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A10D2N-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
LSH-A10D2L-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A10D2L-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A10D2R-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A10D2R-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A10D3N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A10D3N-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
LSH-A10D3L-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A10D3L-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A10D3R-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A10D3R-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A10D4N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A10D4N-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
LSH-A10D4L-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A10D4L-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A10D4R-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A10D4R-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A10S1N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A10S1N-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
LSH-A10S1L-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A10S1L-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A10S1R-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A10S1R-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A10S2N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A10S2N-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
LSH-A10S2L-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A10S2L-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A10S2R-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A10S2R-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A10S3N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A10S3N-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
LSH-A10S3L-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A10S3L-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A10S3R-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A10S3R-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A10S4N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A10S4N-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
LSH-A10S4L-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A10S4L-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A10S4R-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A10S4R-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A10C1N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A10C1N-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
LSH-A10C1L-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A10C1L-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A10C1R-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A10C1R-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A10C2N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A10C2N-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
LSH-A10C2L-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A10C2L-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A10C2R-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A10C2R-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A10C3N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A10C3N-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
LSH-A10C3L-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A10C3L-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A10C3R-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A10C3R-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A10C4N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A10C4N-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
LSH-A10C4L-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A10C4L-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A10C4R-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A10C4R-N-HP1		Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A16D1N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A16D1N-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
LSH-A16D1L-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A16D1L-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A16D1R-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A16D1R-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A16D2N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A16D2N-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
LSH-A16D2L-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A16D2L-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A16D2R-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A16D2R-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A16D3N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A16D3N-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
LSH-A16D3L-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A16D3L-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A16D3R-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A16D3R-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A16D4N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A16D4N-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
LSH-A16D4L-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A16D4L-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A16D4R-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A16D4R-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A16S1N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A16S1N-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
LSH-A16S1L-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A16S1L-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A16S1R-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A16S1R-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A16S2N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A16S2N-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
LSH-A16S2L-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A16S2L-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A16S2R-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A16S2R-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A16S3N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A16S3N-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
LSH-A16S3L-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A16S3L-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A16S3R-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A16S3R-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A16S4N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A16S4N-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
LSH-A16S4L-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A16S4L-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A16S4R-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A16S4R-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A16C1N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A16C1N-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
LSH-A16C1L-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A16C1L-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A16C1R-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A16C1R-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A16C2N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A16C2N-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
LSH-A16C2L-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A16C2L-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A16C2R-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A16C2R-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A16C3N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A16C3N-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
LSH-A16C3L-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A16C3L-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A16C3R-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A16C3R-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A16C4N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A16C4N-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
LSH-A16C4L-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A16C4L-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A16C4R-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A16C4R-N-HP1		Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A20D1N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A20D1N-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
LSH-A20D1L-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A20D1L-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A20D1R-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A20D1R-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A20D2N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A20D2N-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
LSH-A20D2L-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A20D2L-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A20D2R-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A20D2R-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A20D3N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A20D3N-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
LSH-A20D3L-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A20D3L-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A20D3R-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A20D3R-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A20D4N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A20D4N-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
LSH-A20D4L-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A20D4L-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A20D4R-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A20D4R-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A20S1N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A20S1N-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
LSH-A20S1L-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A20S1L-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A20S1R-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A20S1R-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A20S2N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A20S2N-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
LSH-A20S2L-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A20S2L-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A20S2R-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A20S2R-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A20S3N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A20S3N-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
LSH-A20S3L-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A20S3L-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A20S3R-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A20S3R-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A20S4N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A20S4N-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
LSH-A20S4L-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A20S4L-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A20S4R-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A20S4R-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A20C1N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A20C1N-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
LSH-A20C1L-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A20C1L-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A20C1R-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A20C1R-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A20C2N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A20C2N-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
LSH-A20C2L-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A20C2L-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A20C2R-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A20C2R-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A20C3N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A20C3N-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
LSH-A20C3L-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A20C3L-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A20C3R-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A20C3R-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A20C4N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A20C4N-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
LSH-A20C4L-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A20C4L-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A20C4R-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A20C4R-N-HP1		Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A25D1N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A25D1N-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
LSH-A25D1L-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A25D1L-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A25D1R-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A25D1R-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A25D2N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A25D2N-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
LSH-A25D2L-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A25D2L-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A25D2R-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A25D2R-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A25D3N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A25D3N-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
LSH-A25D3L-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A25D3L-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A25D3R-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A25D3R-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A25D4N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A25D4N-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
LSH-A25D4L-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A25D4L-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A25D4R-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A25D4R-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A25S1N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A25S1N-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
LSH-A25S1L-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A25S1L-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A25S1R-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A25S1R-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A25S2N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A25S2N-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
LSH-A25S2L-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A25S2L-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A25S2R-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A25S2R-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A25S3N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A25S3N-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
LSH-A25S3L-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A25S3L-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A25S3R-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A25S3R-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A25S4N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A25S4N-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
LSH-A25S4L-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A25S4L-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A25S4R-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A25S4R-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A25C1N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A25C1N-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
LSH-A25C1L-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A25C1L-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A25C1R-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A25C1R-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A25C2N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A25C2N-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
LSH-A25C2L-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A25C2L-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A25C2R-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A25C2R-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A25C3N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A25C3N-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
LSH-A25C3L-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A25C3L-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A25C3R-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A25C3R-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A25C4N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A25C4N-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
LSH-A25C4L-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A25C4L-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A25C4R-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A25C4R-N-HP1		Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A32D1N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A32D1N-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
LSH-A32D1N-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
LSH-A32D1L-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A32D1L-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A32D1L-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
LSH-A32D1R-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A32D1R-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A32D1R-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
LSH-A32D2N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A32D2N-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
LSH-A32D2N-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
LSH-A32D2L-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A32D2L-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A32D2L-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
LSH-A32D2R-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A32D2R-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A32D2R-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
LSH-A32D3N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A32D3N-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
LSH-A32D3N-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
LSH-A32D3L-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A32D3L-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A32D3L-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
LSH-A32D3R-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A32D3R-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A32D3R-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
LSH-A32D4N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A32D4N-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
LSH-A32D4N-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
LSH-A32D4L-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A32D4L-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A32D4L-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
LSH-A32D4R-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A32D4R-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A32D4R-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
LSH-A32S1N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A32S1N-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
LSH-A32S1N-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
LSH-A32S1L-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A32S1L-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A32S1L-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
LSH-A32S1R-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A32S1R-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A32S1R-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
LSH-A32S2N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A32S2N-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
LSH-A32S2N-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
LSH-A32S2L-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A32S2L-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A32S2L-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
LSH-A32S2R-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A32S2R-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A32S2R-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
LSH-A32S3N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A32S3N-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
LSH-A32S3N-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
LSH-A32S3L-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A32S3L-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A32S3L-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
LSH-A32S3R-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A32S3R-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A32S3R-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
LSH-A32S4N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A32S4N-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
LSH-A32S4N-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
LSH-A32S4L-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A32S4L-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A32S4L-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
LSH-A32S4R-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A32S4R-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A32S4R-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
LSH-A32C1N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A32C1N-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
LSH-A32C1N-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
LSH-A32C1L-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A32C1L-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A32C1L-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
LSH-A32C1R-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A32C1R-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A32C1R-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
LSH-A32C2N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A32C2N-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
LSH-A32C2N-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
LSH-A32C2L-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A32C2L-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A32C2L-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
LSH-A32C2R-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A32C2R-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A32C2R-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
LSH-A32C3N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A32C3N-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
LSH-A32C3N-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
LSH-A32C3L-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A32C3L-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A32C3L-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
LSH-A32C3R-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A32C3R-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A32C3R-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
LSH-A32C4N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
LSH-A32C4N-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
LSH-A32C4N-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
LSH-A32C4L-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
LSH-A32C4L-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
LSH-A32C4L-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
LSH-A32C4R-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
LSH-A32C4R-N-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
LSH-A32C4R-A-HP1		Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)

Pneumatic GrippersCKD

468 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD LSH-A Linear Slide Hand (HP1, Bore 6-32 mm)

Brand CKD·Pneumatic Grippers

Available part numbers (468)

LSH-A06D1N-HP1, LSH-A06D1N-N-HP1, LSH-A06D1L-HP1, LSH-A06D1L-N-HP1, LSH-A06D1R-HP1, LSH-A06D1R-N-HP1, LSH-A06D2N-HP1, LSH-A06D2N-N-HP1, LSH-A06D2L-HP1, LSH-A06D2L-N-HP1 + 458 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LSH-A06D1N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A06D1N-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A06D1L-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A06D1L-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A06D1R-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A06D1R-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A06D2N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A06D2N-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A06D2L-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A06D2L-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A06D2R-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A06D2R-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A06D3N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A06D3N-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A06D3L-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A06D3L-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A06D3R-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A06D3R-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A06D4N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A06D4N-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A06D4L-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A06D4L-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A06D4R-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A06D4R-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A06S1N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A06S1N-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A06S1L-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A06S1L-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A06S1R-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A06S1R-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A06S2N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A06S2N-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A06S2L-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A06S2L-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A06S2R-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A06S2R-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A06S3N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A06S3N-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A06S3L-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A06S3L-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A06S3R-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A06S3R-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A06S4N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A06S4N-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A06S4L-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A06S4L-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A06S4R-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A06S4R-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A06C1N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A06C1N-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A06C1L-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A06C1L-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A06C1R-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A06C1R-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A06C2N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A06C2N-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A06C2L-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A06C2L-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A06C2R-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A06C2R-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A06C3N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A06C3N-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A06C3L-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A06C3L-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A06C3R-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A06C3R-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A06C4N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A06C4N-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A06C4L-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A06C4L-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A06C4R-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A06C4R-N-HP1	Bore: 6 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A10D1N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A10D1N-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A10D1L-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A10D1L-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A10D1R-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A10D1R-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A10D2N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A10D2N-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A10D2L-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A10D2L-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A10D2R-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A10D2R-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A10D3N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A10D3N-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A10D3L-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A10D3L-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A10D3R-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A10D3R-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A10D4N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A10D4N-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A10D4L-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A10D4L-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A10D4R-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A10D4R-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A10S1N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A10S1N-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A10S1L-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A10S1L-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A10S1R-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A10S1R-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A10S2N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A10S2N-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A10S2L-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A10S2L-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A10S2R-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A10S2R-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A10S3N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A10S3N-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A10S3L-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A10S3L-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A10S3R-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A10S3R-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A10S4N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A10S4N-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A10S4L-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A10S4L-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A10S4R-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A10S4R-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A10C1N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A10C1N-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A10C1L-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A10C1L-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A10C1R-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A10C1R-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A10C2N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A10C2N-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A10C2L-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A10C2L-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A10C2R-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A10C2R-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A10C3N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A10C3N-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A10C3L-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A10C3L-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A10C3R-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A10C3R-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A10C4N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A10C4N-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A10C4L-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A10C4L-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A10C4R-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A10C4R-N-HP1	Bore: 10 mm \| Stroke: 4 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A16D1N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A16D1N-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A16D1L-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A16D1L-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A16D1R-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A16D1R-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A16D2N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A16D2N-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A16D2L-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A16D2L-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A16D2R-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A16D2R-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A16D3N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A16D3N-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A16D3L-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A16D3L-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A16D3R-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A16D3R-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A16D4N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A16D4N-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A16D4L-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A16D4L-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A16D4R-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A16D4R-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A16S1N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A16S1N-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A16S1L-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A16S1L-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A16S1R-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A16S1R-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A16S2N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A16S2N-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A16S2L-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A16S2L-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A16S2R-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A16S2R-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A16S3N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A16S3N-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A16S3L-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A16S3L-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A16S3R-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A16S3R-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A16S4N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A16S4N-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A16S4L-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A16S4L-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A16S4R-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A16S4R-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A16C1N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A16C1N-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A16C1L-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A16C1L-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A16C1R-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A16C1R-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A16C2N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A16C2N-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A16C2L-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A16C2L-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A16C2R-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A16C2R-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A16C3N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A16C3N-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A16C3L-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A16C3L-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A16C3R-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A16C3R-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A16C4N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A16C4N-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A16C4L-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A16C4L-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A16C4R-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A16C4R-N-HP1	Bore: 16 mm \| Stroke: 6 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A20D1N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A20D1N-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A20D1L-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A20D1L-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A20D1R-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A20D1R-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A20D2N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A20D2N-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A20D2L-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A20D2L-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A20D2R-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A20D2R-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A20D3N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A20D3N-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A20D3L-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A20D3L-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A20D3R-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A20D3R-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A20D4N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A20D4N-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A20D4L-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A20D4L-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A20D4R-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A20D4R-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A20S1N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A20S1N-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A20S1L-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A20S1L-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A20S1R-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A20S1R-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A20S2N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A20S2N-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A20S2L-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A20S2L-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A20S2R-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A20S2R-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A20S3N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A20S3N-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A20S3L-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A20S3L-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A20S3R-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A20S3R-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A20S4N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A20S4N-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A20S4L-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A20S4L-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A20S4R-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A20S4R-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A20C1N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A20C1N-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A20C1L-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A20C1L-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A20C1R-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A20C1R-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A20C2N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A20C2N-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A20C2L-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A20C2L-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A20C2R-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A20C2R-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A20C3N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A20C3N-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A20C3L-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A20C3L-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A20C3R-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A20C3R-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A20C4N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A20C4N-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A20C4L-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A20C4L-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A20C4R-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A20C4R-N-HP1	Bore: 20 mm \| Stroke: 10 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A25D1N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A25D1N-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A25D1L-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A25D1L-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A25D1R-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A25D1R-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A25D2N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A25D2N-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A25D2L-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A25D2L-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A25D2R-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A25D2R-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A25D3N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A25D3N-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A25D3L-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A25D3L-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A25D3R-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A25D3R-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A25D4N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A25D4N-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A25D4L-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A25D4L-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A25D4R-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A25D4R-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A25S1N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A25S1N-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A25S1L-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A25S1L-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A25S1R-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A25S1R-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A25S2N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A25S2N-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A25S2L-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A25S2L-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A25S2R-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A25S2R-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A25S3N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A25S3N-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A25S3L-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A25S3L-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A25S3R-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A25S3R-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A25S4N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A25S4N-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A25S4L-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A25S4L-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A25S4R-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A25S4R-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A25C1N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A25C1N-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A25C1L-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A25C1L-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A25C1R-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A25C1R-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A25C2N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A25C2N-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A25C2L-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A25C2L-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A25C2R-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A25C2R-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A25C3N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A25C3N-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A25C3L-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A25C3L-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A25C3R-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A25C3R-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A25C4N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A25C4N-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A25C4L-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A25C4L-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A25C4R-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A25C4R-N-HP1	Bore: 25 mm \| Stroke: 14 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A32D1N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A32D1N-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A32D1N-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
	LSH-A32D1L-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A32D1L-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A32D1L-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
	LSH-A32D1R-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A32D1R-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A32D1R-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Basic \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
	LSH-A32D2N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A32D2N-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A32D2N-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
	LSH-A32D2L-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A32D2L-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A32D2L-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
	LSH-A32D2R-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A32D2R-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A32D2R-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
	LSH-A32D3N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A32D3N-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A32D3N-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
	LSH-A32D3L-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A32D3L-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A32D3L-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
	LSH-A32D3R-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A32D3R-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A32D3R-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Through hole \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
	LSH-A32D4N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A32D4N-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A32D4N-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
	LSH-A32D4L-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A32D4L-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A32D4L-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
	LSH-A32D4R-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A32D4R-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A32D4R-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Double acting \| Finger: Flat \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
	LSH-A32S1N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A32S1N-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A32S1N-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
	LSH-A32S1L-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A32S1L-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A32S1L-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
	LSH-A32S1R-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A32S1R-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A32S1R-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Basic \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
	LSH-A32S2N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A32S2N-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A32S2N-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
	LSH-A32S2L-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A32S2L-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A32S2L-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
	LSH-A32S2R-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A32S2R-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A32S2R-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
	LSH-A32S3N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A32S3N-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A32S3N-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
	LSH-A32S3L-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A32S3L-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A32S3L-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
	LSH-A32S3R-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A32S3R-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A32S3R-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Through hole \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
	LSH-A32S4N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A32S4N-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A32S4N-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
	LSH-A32S4L-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A32S4L-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A32S4L-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
	LSH-A32S4R-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A32S4R-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A32S4R-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NO \| Finger: Flat \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
	LSH-A32C1N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A32C1N-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A32C1N-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
	LSH-A32C1L-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A32C1L-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A32C1L-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
	LSH-A32C1R-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A32C1R-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A32C1R-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Basic \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
	LSH-A32C2N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A32C2N-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A32C2N-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
	LSH-A32C2L-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A32C2L-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A32C2L-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
	LSH-A32C2R-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A32C2R-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A32C2R-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Side tapped \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
	LSH-A32C3N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A32C3N-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A32C3N-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
	LSH-A32C3L-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A32C3L-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A32C3L-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
	LSH-A32C3R-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A32C3R-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A32C3R-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Through hole \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)
	LSH-A32C4N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: F-switch rail plate included
	LSH-A32C4N-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: No rail plate
	LSH-A32C4N-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: None \| Rail plate: T-switch rail plate (32)
	LSH-A32C4L-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: F-switch rail plate included
	LSH-A32C4L-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: No rail plate
	LSH-A32C4L-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: L side \| Rail plate: T-switch rail plate (32)
	LSH-A32C4R-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: F-switch rail plate included
	LSH-A32C4R-N-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: No rail plate
	LSH-A32C4R-A-HP1	Bore: 32 mm \| Stroke: 22 mm \| Action: Single acting, NC \| Finger: Flat \| Positioning hole: R side \| Rail plate: T-switch rail plate (32)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD LSH-A Linear Slide Hand (HP1, Bore 6-32 mm)
