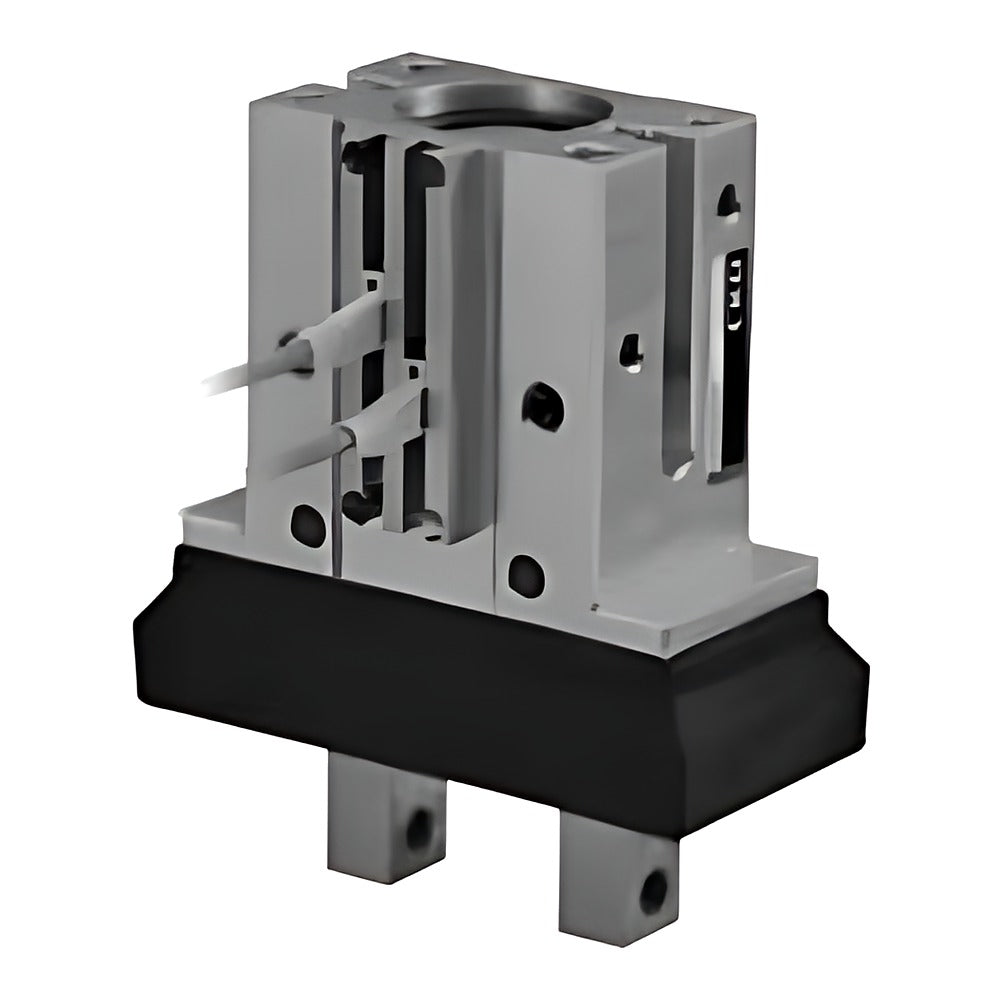

CKD LSH-G/LSH-F Linear Slide Hand (HP1, Rubber Cover, 6-32 mm)

CKD LSH-G/LSH-F Linear Slide Hand (HP1, Rubber Cover, 6-32 mm)

CKD LSH-G/LSH-F HP1 linear slide hand with a chloroprene (G) or fluororubber (F) cover over the finger section for dusty or splash environments, bore 6 to 32 mm.

Key features

  • Rubber cover protects the guide and finger section: G chloroprene rubber, F fluororubber
  • Integrated linear guide fingers; repeatability +/-0.01 mm
  • Double acting or single acting NO/NC (32 mm double acting only)
  • Optional gripping-centre reference positioning hole on the L or R face
  • Switch-ready (magnet built in); auto switches F2S/F3S/F2H/F3H/F2V/F3V/F3PH/F3PV (T-type on 32 mm) added as -<switch>-<R/H/D> before the -HP suffix, ordered separately
  • Replacement rubber covers LSH-G##K / LSH-F##K and seal kits LSH-##K-HP available

Specifications

Finger Basic (1)
Fluid Compressed air
Max. operating pressure 0.7 MPa
Port M3 (6, 10 mm), M5 (16-32 mm)
Ambient temperature -10 to 60 C (no freezing)
Repeatability +/-0.01 mm
Lubrication Not required
Source CKD Korea catalog CB-030SK-9, p. 1610-1619
LSH-G06D1N-HP1 Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G06D1N-N-HP1 Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-G06D1L-HP1 Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G06D1L-N-HP1 Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-G06D1R-HP1 Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G06D1R-N-HP1 Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-G06S1N-HP1 Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G06S1N-N-HP1 Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: No rail plate
LSH-G06S1L-HP1 Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G06S1L-N-HP1 Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: No rail plate
LSH-G06S1R-HP1 Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G06S1R-N-HP1 Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: No rail plate
LSH-G06C1N-HP1 Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G06C1N-N-HP1 Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: No rail plate
LSH-G06C1L-HP1 Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G06C1L-N-HP1 Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: No rail plate
LSH-G06C1R-HP1 Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G06C1R-N-HP1 Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: No rail plate
LSH-G10D1N-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G10D1N-N-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-G10D1L-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G10D1L-N-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-G10D1R-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G10D1R-N-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-G10S1N-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G10S1N-N-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: No rail plate
LSH-G10S1L-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G10S1L-N-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: No rail plate
LSH-G10S1R-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G10S1R-N-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: No rail plate
LSH-G10C1N-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G10C1N-N-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: No rail plate
LSH-G10C1L-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G10C1L-N-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: No rail plate
LSH-G10C1R-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G10C1R-N-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: No rail plate
LSH-G16D1N-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G16D1N-N-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-G16D1L-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G16D1L-N-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-G16D1R-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G16D1R-N-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-G16S1N-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G16S1N-N-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: No rail plate
LSH-G16S1L-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G16S1L-N-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: No rail plate
LSH-G16S1R-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G16S1R-N-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: No rail plate
LSH-G16C1N-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G16C1N-N-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: No rail plate
LSH-G16C1L-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G16C1L-N-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: No rail plate
LSH-G16C1R-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G16C1R-N-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: No rail plate
LSH-G20D1N-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G20D1N-N-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-G20D1L-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G20D1L-N-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-G20D1R-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G20D1R-N-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-G20S1N-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G20S1N-N-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: No rail plate
LSH-G20S1L-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G20S1L-N-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: No rail plate
LSH-G20S1R-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G20S1R-N-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: No rail plate
LSH-G20C1N-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G20C1N-N-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: No rail plate
LSH-G20C1L-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G20C1L-N-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: No rail plate
LSH-G20C1R-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G20C1R-N-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: No rail plate
LSH-G25D1N-HP1 Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G25D1N-N-HP1 Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-G25D1L-HP1 Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G25D1L-N-HP1 Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-G25D1R-HP1 Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G25D1R-N-HP1 Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-G25S1N-HP1 Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G25S1N-N-HP1 Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: No rail plate
LSH-G25S1L-HP1 Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G25S1L-N-HP1 Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: No rail plate
LSH-G25S1R-HP1 Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G25S1R-N-HP1 Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: No rail plate
LSH-G25C1N-HP1 Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G25C1N-N-HP1 Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: No rail plate
LSH-G25C1L-HP1 Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G25C1L-N-HP1 Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: No rail plate
LSH-G25C1R-HP1 Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G25C1R-N-HP1 Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: No rail plate
LSH-G32D1N-HP1 Rubber cover: Chloroprene rubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G32D1N-N-HP1 Rubber cover: Chloroprene rubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-G32D1N-A-HP1 Rubber cover: Chloroprene rubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: None | Rail plate: T-switch rail plate (32)
LSH-G32D1L-HP1 Rubber cover: Chloroprene rubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G32D1L-N-HP1 Rubber cover: Chloroprene rubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-G32D1L-A-HP1 Rubber cover: Chloroprene rubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: L side | Rail plate: T-switch rail plate (32)
LSH-G32D1R-HP1 Rubber cover: Chloroprene rubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G32D1R-N-HP1 Rubber cover: Chloroprene rubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-G32D1R-A-HP1 Rubber cover: Chloroprene rubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: R side | Rail plate: T-switch rail plate (32)
LSH-F06D1N-HP1 Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F06D1N-N-HP1 Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-F06D1L-HP1 Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F06D1L-N-HP1 Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-F06D1R-HP1 Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F06D1R-N-HP1 Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-F06S1N-HP1 Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F06S1N-N-HP1 Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: No rail plate
LSH-F06S1L-HP1 Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F06S1L-N-HP1 Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: No rail plate
LSH-F06S1R-HP1 Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F06S1R-N-HP1 Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: No rail plate
LSH-F06C1N-HP1 Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F06C1N-N-HP1 Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: No rail plate
LSH-F06C1L-HP1 Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F06C1L-N-HP1 Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: No rail plate
LSH-F06C1R-HP1 Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F06C1R-N-HP1 Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: No rail plate
LSH-F10D1N-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F10D1N-N-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-F10D1L-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F10D1L-N-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-F10D1R-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F10D1R-N-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-F10S1N-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F10S1N-N-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: No rail plate
LSH-F10S1L-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F10S1L-N-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: No rail plate
LSH-F10S1R-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F10S1R-N-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: No rail plate
LSH-F10C1N-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F10C1N-N-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: No rail plate
LSH-F10C1L-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F10C1L-N-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: No rail plate
LSH-F10C1R-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F10C1R-N-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: No rail plate
LSH-F16D1N-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F16D1N-N-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-F16D1L-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F16D1L-N-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-F16D1R-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F16D1R-N-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-F16S1N-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F16S1N-N-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: No rail plate
LSH-F16S1L-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F16S1L-N-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: No rail plate
LSH-F16S1R-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F16S1R-N-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: No rail plate
LSH-F16C1N-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F16C1N-N-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: No rail plate
LSH-F16C1L-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F16C1L-N-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: No rail plate
LSH-F16C1R-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F16C1R-N-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: No rail plate
LSH-F20D1N-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F20D1N-N-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-F20D1L-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F20D1L-N-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-F20D1R-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F20D1R-N-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-F20S1N-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F20S1N-N-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: No rail plate
LSH-F20S1L-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F20S1L-N-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: No rail plate
LSH-F20S1R-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F20S1R-N-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: No rail plate
LSH-F20C1N-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F20C1N-N-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: No rail plate
LSH-F20C1L-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F20C1L-N-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: No rail plate
LSH-F20C1R-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F20C1R-N-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: No rail plate
LSH-F25D1N-HP1 Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F25D1N-N-HP1 Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-F25D1L-HP1 Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F25D1L-N-HP1 Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-F25D1R-HP1 Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F25D1R-N-HP1 Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-F25S1N-HP1 Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F25S1N-N-HP1 Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: No rail plate
LSH-F25S1L-HP1 Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F25S1L-N-HP1 Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: No rail plate
LSH-F25S1R-HP1 Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F25S1R-N-HP1 Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: No rail plate
LSH-F25C1N-HP1 Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F25C1N-N-HP1 Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: No rail plate
LSH-F25C1L-HP1 Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F25C1L-N-HP1 Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: No rail plate
LSH-F25C1R-HP1 Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F25C1R-N-HP1 Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: No rail plate
LSH-F32D1N-HP1 Rubber cover: Fluororubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F32D1N-N-HP1 Rubber cover: Fluororubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-F32D1N-A-HP1 Rubber cover: Fluororubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: None | Rail plate: T-switch rail plate (32)
LSH-F32D1L-HP1 Rubber cover: Fluororubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F32D1L-N-HP1 Rubber cover: Fluororubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-F32D1L-A-HP1 Rubber cover: Fluororubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: L side | Rail plate: T-switch rail plate (32)
LSH-F32D1R-HP1 Rubber cover: Fluororubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F32D1R-N-HP1 Rubber cover: Fluororubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-F32D1R-A-HP1 Rubber cover: Fluororubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: R side | Rail plate: T-switch rail plate (32)
Pneumatic GrippersCKD
198 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD LSH-G/LSH-F Linear Slide Hand (HP1, Rubber Cover, 6-32 mm)

Brand CKD·Pneumatic Grippers

Available part numbers (198)

LSH-G06D1N-HP1, LSH-G06D1N-N-HP1, LSH-G06D1L-HP1, LSH-G06D1L-N-HP1, LSH-G06D1R-HP1, LSH-G06D1R-N-HP1, LSH-G06S1N-HP1, LSH-G06S1N-N-HP1, LSH-G06S1L-HP1, LSH-G06S1L-N-HP1 + 188 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LSH-G06D1N-HP1Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G06D1N-N-HP1Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-G06D1L-HP1Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G06D1L-N-HP1Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-G06D1R-HP1Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G06D1R-N-HP1Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-G06S1N-HP1Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G06S1N-N-HP1Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: No rail plate
LSH-G06S1L-HP1Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G06S1L-N-HP1Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: No rail plate
LSH-G06S1R-HP1Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G06S1R-N-HP1Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: No rail plate
LSH-G06C1N-HP1Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G06C1N-N-HP1Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: No rail plate
LSH-G06C1L-HP1Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G06C1L-N-HP1Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: No rail plate
LSH-G06C1R-HP1Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G06C1R-N-HP1Rubber cover: Chloroprene rubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: No rail plate
LSH-G10D1N-HP1Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G10D1N-N-HP1Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-G10D1L-HP1Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G10D1L-N-HP1Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-G10D1R-HP1Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G10D1R-N-HP1Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-G10S1N-HP1Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G10S1N-N-HP1Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: No rail plate
LSH-G10S1L-HP1Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G10S1L-N-HP1Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: No rail plate
LSH-G10S1R-HP1Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G10S1R-N-HP1Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: No rail plate
LSH-G10C1N-HP1Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G10C1N-N-HP1Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: No rail plate
LSH-G10C1L-HP1Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G10C1L-N-HP1Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: No rail plate
LSH-G10C1R-HP1Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G10C1R-N-HP1Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: No rail plate
LSH-G16D1N-HP1Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G16D1N-N-HP1Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-G16D1L-HP1Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G16D1L-N-HP1Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-G16D1R-HP1Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G16D1R-N-HP1Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-G16S1N-HP1Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G16S1N-N-HP1Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: No rail plate
LSH-G16S1L-HP1Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G16S1L-N-HP1Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: No rail plate
LSH-G16S1R-HP1Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G16S1R-N-HP1Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: No rail plate
LSH-G16C1N-HP1Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G16C1N-N-HP1Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: No rail plate
LSH-G16C1L-HP1Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G16C1L-N-HP1Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: No rail plate
LSH-G16C1R-HP1Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G16C1R-N-HP1Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: No rail plate
LSH-G20D1N-HP1Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G20D1N-N-HP1Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-G20D1L-HP1Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G20D1L-N-HP1Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-G20D1R-HP1Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G20D1R-N-HP1Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-G20S1N-HP1Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G20S1N-N-HP1Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: No rail plate
LSH-G20S1L-HP1Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G20S1L-N-HP1Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: No rail plate
LSH-G20S1R-HP1Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G20S1R-N-HP1Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: No rail plate
LSH-G20C1N-HP1Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G20C1N-N-HP1Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: No rail plate
LSH-G20C1L-HP1Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G20C1L-N-HP1Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: No rail plate
LSH-G20C1R-HP1Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G20C1R-N-HP1Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: No rail plate
LSH-G25D1N-HP1Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G25D1N-N-HP1Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-G25D1L-HP1Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G25D1L-N-HP1Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-G25D1R-HP1Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G25D1R-N-HP1Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-G25S1N-HP1Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G25S1N-N-HP1Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: No rail plate
LSH-G25S1L-HP1Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G25S1L-N-HP1Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: No rail plate
LSH-G25S1R-HP1Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G25S1R-N-HP1Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: No rail plate
LSH-G25C1N-HP1Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G25C1N-N-HP1Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: No rail plate
LSH-G25C1L-HP1Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G25C1L-N-HP1Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: No rail plate
LSH-G25C1R-HP1Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G25C1R-N-HP1Rubber cover: Chloroprene rubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: No rail plate
LSH-G32D1N-HP1Rubber cover: Chloroprene rubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-G32D1N-N-HP1Rubber cover: Chloroprene rubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-G32D1N-A-HP1Rubber cover: Chloroprene rubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: None | Rail plate: T-switch rail plate (32)
LSH-G32D1L-HP1Rubber cover: Chloroprene rubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-G32D1L-N-HP1Rubber cover: Chloroprene rubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-G32D1L-A-HP1Rubber cover: Chloroprene rubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: L side | Rail plate: T-switch rail plate (32)
LSH-G32D1R-HP1Rubber cover: Chloroprene rubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-G32D1R-N-HP1Rubber cover: Chloroprene rubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-G32D1R-A-HP1Rubber cover: Chloroprene rubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: R side | Rail plate: T-switch rail plate (32)
LSH-F06D1N-HP1Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F06D1N-N-HP1Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-F06D1L-HP1Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F06D1L-N-HP1Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-F06D1R-HP1Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F06D1R-N-HP1Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-F06S1N-HP1Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F06S1N-N-HP1Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: No rail plate
LSH-F06S1L-HP1Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F06S1L-N-HP1Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: No rail plate
LSH-F06S1R-HP1Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F06S1R-N-HP1Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: No rail plate
LSH-F06C1N-HP1Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F06C1N-N-HP1Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: No rail plate
LSH-F06C1L-HP1Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F06C1L-N-HP1Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: No rail plate
LSH-F06C1R-HP1Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F06C1R-N-HP1Rubber cover: Fluororubber | Bore: 6 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: No rail plate
LSH-F10D1N-HP1Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F10D1N-N-HP1Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-F10D1L-HP1Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F10D1L-N-HP1Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-F10D1R-HP1Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F10D1R-N-HP1Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-F10S1N-HP1Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F10S1N-N-HP1Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: No rail plate
LSH-F10S1L-HP1Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F10S1L-N-HP1Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: No rail plate
LSH-F10S1R-HP1Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F10S1R-N-HP1Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: No rail plate
LSH-F10C1N-HP1Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F10C1N-N-HP1Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: No rail plate
LSH-F10C1L-HP1Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F10C1L-N-HP1Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: No rail plate
LSH-F10C1R-HP1Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F10C1R-N-HP1Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 4 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: No rail plate
LSH-F16D1N-HP1Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F16D1N-N-HP1Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-F16D1L-HP1Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F16D1L-N-HP1Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-F16D1R-HP1Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F16D1R-N-HP1Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-F16S1N-HP1Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F16S1N-N-HP1Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: No rail plate
LSH-F16S1L-HP1Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F16S1L-N-HP1Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: No rail plate
LSH-F16S1R-HP1Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F16S1R-N-HP1Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: No rail plate
LSH-F16C1N-HP1Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F16C1N-N-HP1Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: No rail plate
LSH-F16C1L-HP1Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F16C1L-N-HP1Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: No rail plate
LSH-F16C1R-HP1Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F16C1R-N-HP1Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 6 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: No rail plate
LSH-F20D1N-HP1Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F20D1N-N-HP1Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-F20D1L-HP1Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F20D1L-N-HP1Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-F20D1R-HP1Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F20D1R-N-HP1Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-F20S1N-HP1Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F20S1N-N-HP1Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: No rail plate
LSH-F20S1L-HP1Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F20S1L-N-HP1Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: No rail plate
LSH-F20S1R-HP1Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F20S1R-N-HP1Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: No rail plate
LSH-F20C1N-HP1Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F20C1N-N-HP1Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: No rail plate
LSH-F20C1L-HP1Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F20C1L-N-HP1Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: No rail plate
LSH-F20C1R-HP1Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F20C1R-N-HP1Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 10 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: No rail plate
LSH-F25D1N-HP1Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F25D1N-N-HP1Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-F25D1L-HP1Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F25D1L-N-HP1Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-F25D1R-HP1Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F25D1R-N-HP1Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-F25S1N-HP1Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F25S1N-N-HP1Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: None | Rail plate: No rail plate
LSH-F25S1L-HP1Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F25S1L-N-HP1Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: L side | Rail plate: No rail plate
LSH-F25S1R-HP1Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F25S1R-N-HP1Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NO | Positioning hole: R side | Rail plate: No rail plate
LSH-F25C1N-HP1Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F25C1N-N-HP1Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: None | Rail plate: No rail plate
LSH-F25C1L-HP1Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F25C1L-N-HP1Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: L side | Rail plate: No rail plate
LSH-F25C1R-HP1Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F25C1R-N-HP1Rubber cover: Fluororubber | Bore: 25 mm | Stroke: 14 mm | Action: Single acting, NC | Positioning hole: R side | Rail plate: No rail plate
LSH-F32D1N-HP1Rubber cover: Fluororubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: None | Rail plate: F-switch rail plate included
LSH-F32D1N-N-HP1Rubber cover: Fluororubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: None | Rail plate: No rail plate
LSH-F32D1N-A-HP1Rubber cover: Fluororubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: None | Rail plate: T-switch rail plate (32)
LSH-F32D1L-HP1Rubber cover: Fluororubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: L side | Rail plate: F-switch rail plate included
LSH-F32D1L-N-HP1Rubber cover: Fluororubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: L side | Rail plate: No rail plate
LSH-F32D1L-A-HP1Rubber cover: Fluororubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: L side | Rail plate: T-switch rail plate (32)
LSH-F32D1R-HP1Rubber cover: Fluororubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: R side | Rail plate: F-switch rail plate included
LSH-F32D1R-N-HP1Rubber cover: Fluororubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: R side | Rail plate: No rail plate
LSH-F32D1R-A-HP1Rubber cover: Fluororubber | Bore: 32 mm | Stroke: 22 mm | Action: Double acting | Positioning hole: R side | Rail plate: T-switch rail plate (32)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
