CKD LSH Linear Slide Hand (Double Acting, Standard/Shockless)

CKD LSH Linear Slide Hand (Double Acting, Standard/Shockless)

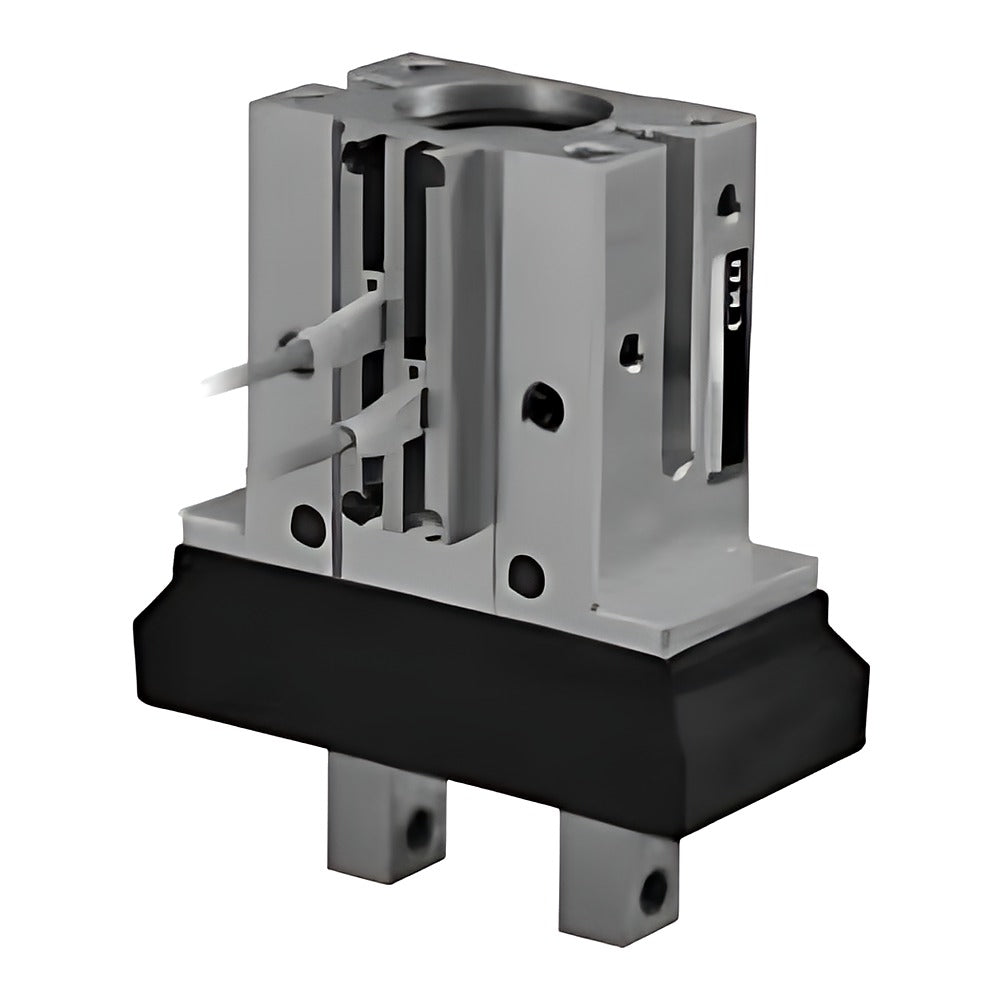

CKD LSH linear slide hand, a double-acting parallel gripper with integrated linear guide fingers and an optional shockless (close side) mechanism, bore 10 to 25 mm.

Key features

  • Integrated guide rail and finger for high rigidity and +/-0.01 mm repeatability
  • Shockless option (-C) reduces close-side gripping impact to about 1/30
  • Three mounting directions: axial, lateral and vertical
  • Switch-ready; F-type auto switches added as -<switch>-<R/H/D> (ordered separately)

Specifications

Action Double acting
Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure Standard 0.2/0.1 MPa, shockless 0.3/0.2 MPa
Ambient temperature -10 to 60 C (no freezing)
Repeatability +/-0.01 mm
Source CKD Korea catalog CB-030SK-9, p. 1668-1676
LSH-10 Bore: 10 mm | Stroke: 4 mm | Type: Standard | Port: M3
LSH-10-C Bore: 10 mm | Stroke: 4 mm | Type: Shockless (close side) | Port: M3
LSH-16 Bore: 16 mm | Stroke: 6 mm | Type: Standard | Port: M5
LSH-16-C Bore: 16 mm | Stroke: 6 mm | Type: Shockless (close side) | Port: M5
LSH-20 Bore: 20 mm | Stroke: 10 mm | Type: Standard | Port: M5
LSH-20-C Bore: 20 mm | Stroke: 10 mm | Type: Shockless (close side) | Port: M5
LSH-25 Bore: 25 mm | Stroke: 14 mm | Type: Standard | Port: M5
LSH-25-C Bore: 25 mm | Stroke: 14 mm | Type: Shockless (close side) | Port: M5
