CKD LSHL-G/LSHL-F Long Stroke Linear Slide Hand (HP1, Rubber Cover)

CKD LSHL-G/LSHL-F Long Stroke Linear Slide Hand (HP1, Rubber Cover)

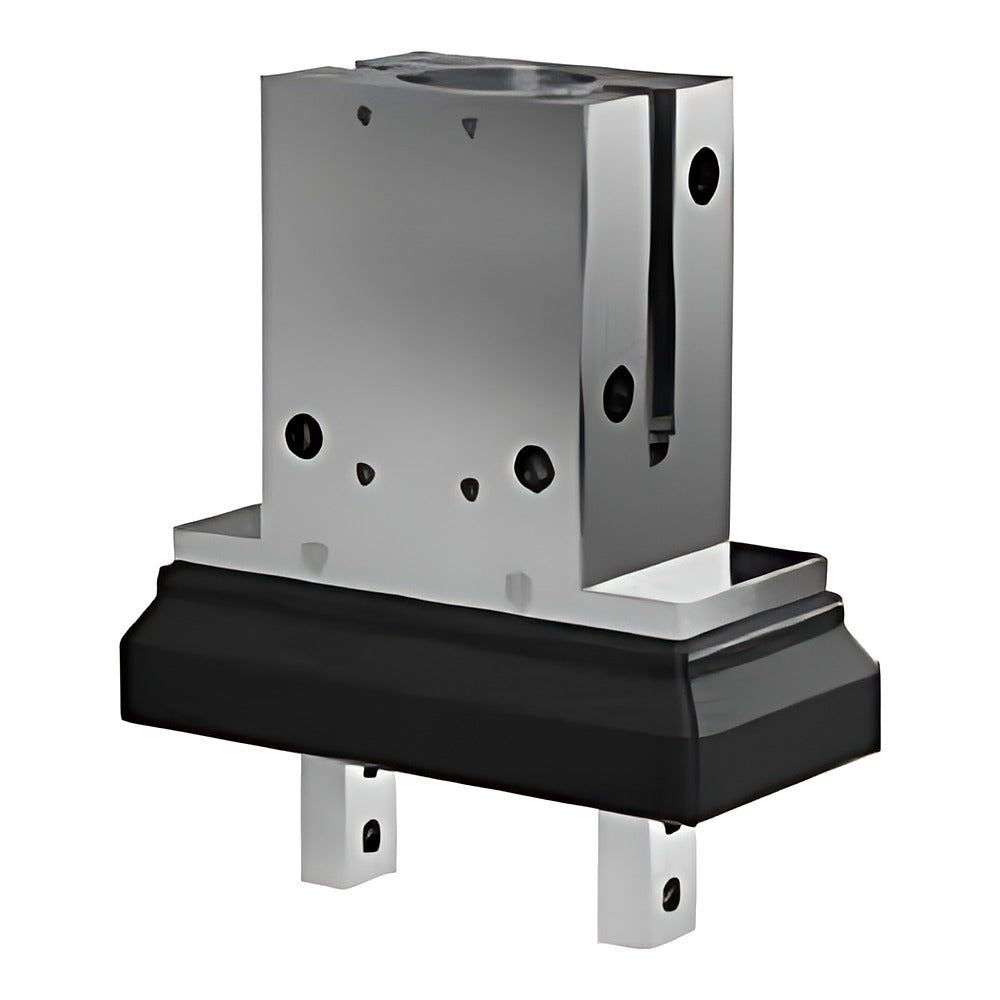

CKD LSHL-G/LSHL-F HP1 long stroke linear slide hand with chloroprene (G) or fluororubber (F) finger cover, double acting, bore 10 to 20 mm.

Key features

  • Rubber cover over the finger section: G chloroprene rubber, F fluororubber
  • Long stroke 8, 12, 18 mm; double acting
  • Integrated linear guide fingers; repeatability +/-0.01 mm
  • Optional gripping-centre reference positioning hole (L/R face)
  • Switch-ready; F-type auto switches ordered as -<switch>-<R/H/D> before -HP1
  • Replacement covers LSHL-G##K / LSHL-F##K, seal kits LSHL-##K-HP

Specifications

Action Double acting (D)
Finger Basic (1)
Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.2 MPa (10), 0.1 MPa (16, 20)
Port M3 (10 mm), M5 (16, 20 mm)
Ambient temperature -10 to 60 C (no freezing)
Repeatability +/-0.01 mm
Source CKD Korea catalog CB-030SK-9, p. 1628-1633
LSHL-G10D1N-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 8 mm | Positioning hole: None | Rail plate: Rail plate included
LSHL-G10D1N-N-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 8 mm | Positioning hole: None | Rail plate: No rail plate
LSHL-G10D1L-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 8 mm | Positioning hole: L side | Rail plate: Rail plate included
LSHL-G10D1L-N-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 8 mm | Positioning hole: L side | Rail plate: No rail plate
LSHL-G10D1R-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 8 mm | Positioning hole: R side | Rail plate: Rail plate included
LSHL-G10D1R-N-HP1 Rubber cover: Chloroprene rubber | Bore: 10 mm | Stroke: 8 mm | Positioning hole: R side | Rail plate: No rail plate
LSHL-G16D1N-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 12 mm | Positioning hole: None | Rail plate: Rail plate included
LSHL-G16D1N-N-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 12 mm | Positioning hole: None | Rail plate: No rail plate
LSHL-G16D1L-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 12 mm | Positioning hole: L side | Rail plate: Rail plate included
LSHL-G16D1L-N-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 12 mm | Positioning hole: L side | Rail plate: No rail plate
LSHL-G16D1R-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 12 mm | Positioning hole: R side | Rail plate: Rail plate included
LSHL-G16D1R-N-HP1 Rubber cover: Chloroprene rubber | Bore: 16 mm | Stroke: 12 mm | Positioning hole: R side | Rail plate: No rail plate
LSHL-G20D1N-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 18 mm | Positioning hole: None | Rail plate: Rail plate included
LSHL-G20D1N-N-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 18 mm | Positioning hole: None | Rail plate: No rail plate
LSHL-G20D1L-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 18 mm | Positioning hole: L side | Rail plate: Rail plate included
LSHL-G20D1L-N-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 18 mm | Positioning hole: L side | Rail plate: No rail plate
LSHL-G20D1R-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 18 mm | Positioning hole: R side | Rail plate: Rail plate included
LSHL-G20D1R-N-HP1 Rubber cover: Chloroprene rubber | Bore: 20 mm | Stroke: 18 mm | Positioning hole: R side | Rail plate: No rail plate
LSHL-F10D1N-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 8 mm | Positioning hole: None | Rail plate: Rail plate included
LSHL-F10D1N-N-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 8 mm | Positioning hole: None | Rail plate: No rail plate
LSHL-F10D1L-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 8 mm | Positioning hole: L side | Rail plate: Rail plate included
LSHL-F10D1L-N-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 8 mm | Positioning hole: L side | Rail plate: No rail plate
LSHL-F10D1R-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 8 mm | Positioning hole: R side | Rail plate: Rail plate included
LSHL-F10D1R-N-HP1 Rubber cover: Fluororubber | Bore: 10 mm | Stroke: 8 mm | Positioning hole: R side | Rail plate: No rail plate
LSHL-F16D1N-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 12 mm | Positioning hole: None | Rail plate: Rail plate included
LSHL-F16D1N-N-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 12 mm | Positioning hole: None | Rail plate: No rail plate
LSHL-F16D1L-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 12 mm | Positioning hole: L side | Rail plate: Rail plate included
LSHL-F16D1L-N-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 12 mm | Positioning hole: L side | Rail plate: No rail plate
LSHL-F16D1R-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 12 mm | Positioning hole: R side | Rail plate: Rail plate included
LSHL-F16D1R-N-HP1 Rubber cover: Fluororubber | Bore: 16 mm | Stroke: 12 mm | Positioning hole: R side | Rail plate: No rail plate
LSHL-F20D1N-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 18 mm | Positioning hole: None | Rail plate: Rail plate included
LSHL-F20D1N-N-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 18 mm | Positioning hole: None | Rail plate: No rail plate
LSHL-F20D1L-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 18 mm | Positioning hole: L side | Rail plate: Rail plate included
LSHL-F20D1L-N-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 18 mm | Positioning hole: L side | Rail plate: No rail plate
LSHL-F20D1R-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 18 mm | Positioning hole: R side | Rail plate: Rail plate included
LSHL-F20D1R-N-HP1 Rubber cover: Fluororubber | Bore: 20 mm | Stroke: 18 mm | Positioning hole: R side | Rail plate: No rail plate
Pneumatic GrippersCKD
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →
