CKD LST-HP1 Slim Long-Stroke Hand (Double Acting, Long-Life)

CKD LST-HP1 Slim Long-Stroke Hand (Double Acting, Long-Life)

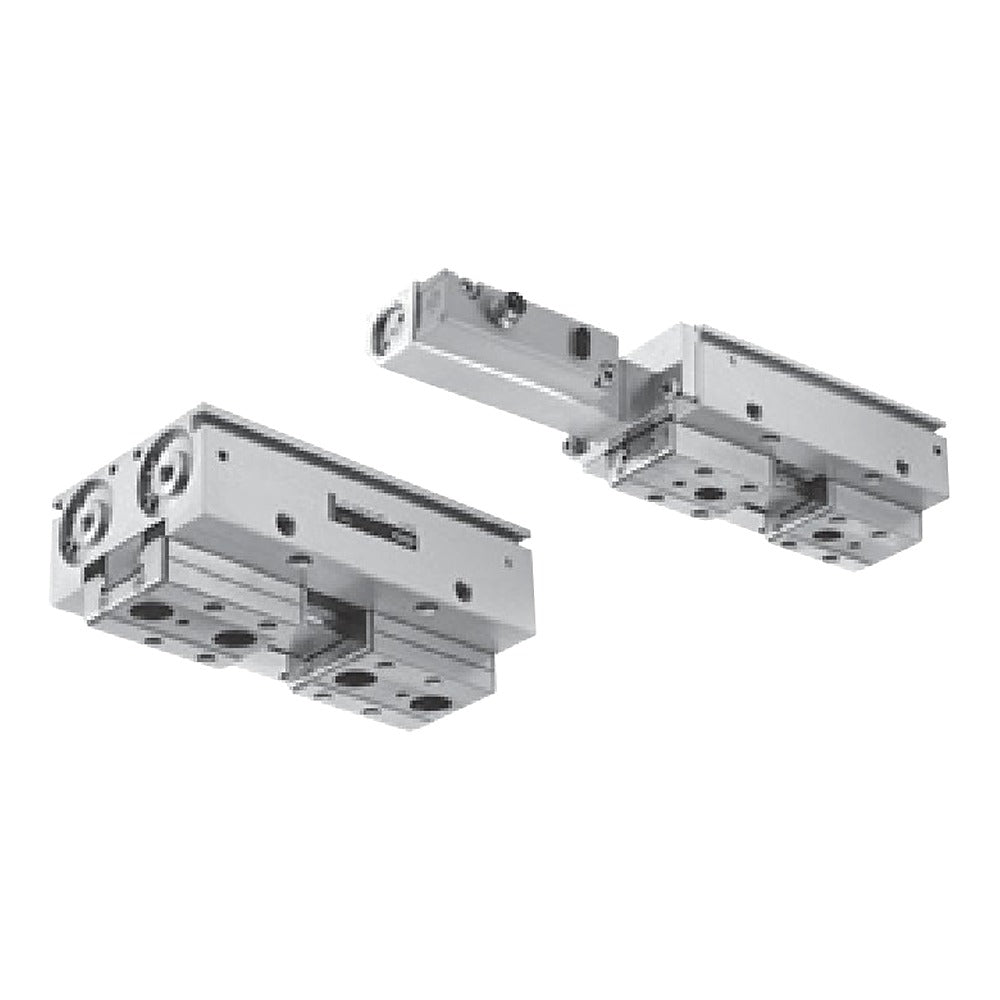

CKD LST-HP1 slim long-stroke parallel hand with twin pistons, short, middle or long finger stroke, bore ø8x2 to ø20x2.

Key features

  • Slim parallel hand with two pistons; finger stroke 8 to 80 mm in three stroke ranges
  • Gripping force 19 N (ø8) to 141 N (ø20) at 0.5 MPa
  • Axial or side piping; optional high-precision locating hole
  • Switch magnet built in; F-type solid-state switches (F2S/F3S, F2H/F2V, F3H/F3V, F3PH/F3PV); example LST-16B2A-F2H3-D-HP1
  • Outline dimensions as slim long-stroke hand catalog CC-1529

Specifications

Action Double acting
Max. operating pressure 0.7 MPa
Min. operating pressure 0.1-0.15 MPa
Port size M3 (ø8), M5 (ø12-ø20)
Repeatability ±0.03 mm
Ambient temperature -10 to 60°C
Source CKD Korea catalog CC-1421KR-7, p. 166-167
LST-08A1N-HP1 Bore: 8 mm x2 | Stroke: Short 8 mm | Port: Axial (standard) | Locating hole: None
LST-08A1A-HP1 Bore: 8 mm x2 | Stroke: Short 8 mm | Port: Axial (standard) | Locating hole: Yes
LST-08A2N-HP1 Bore: 8 mm x2 | Stroke: Short 8 mm | Port: Side piping | Locating hole: None
LST-08A2A-HP1 Bore: 8 mm x2 | Stroke: Short 8 mm | Port: Side piping | Locating hole: Yes
LST-08B1N-HP1 Bore: 8 mm x2 | Stroke: Middle 16 mm | Port: Axial (standard) | Locating hole: None
LST-08B1A-HP1 Bore: 8 mm x2 | Stroke: Middle 16 mm | Port: Axial (standard) | Locating hole: Yes
LST-08B2N-HP1 Bore: 8 mm x2 | Stroke: Middle 16 mm | Port: Side piping | Locating hole: None
LST-08B2A-HP1 Bore: 8 mm x2 | Stroke: Middle 16 mm | Port: Side piping | Locating hole: Yes
LST-08C1N-HP1 Bore: 8 mm x2 | Stroke: Long 32 mm | Port: Axial (standard) | Locating hole: None
LST-08C1A-HP1 Bore: 8 mm x2 | Stroke: Long 32 mm | Port: Axial (standard) | Locating hole: Yes
LST-08C2N-HP1 Bore: 8 mm x2 | Stroke: Long 32 mm | Port: Side piping | Locating hole: None
LST-08C2A-HP1 Bore: 8 mm x2 | Stroke: Long 32 mm | Port: Side piping | Locating hole: Yes
LST-12A1N-HP1 Bore: 12 mm x2 | Stroke: Short 12 mm | Port: Axial (standard) | Locating hole: None
LST-12A1A-HP1 Bore: 12 mm x2 | Stroke: Short 12 mm | Port: Axial (standard) | Locating hole: Yes
LST-12A2N-HP1 Bore: 12 mm x2 | Stroke: Short 12 mm | Port: Side piping | Locating hole: None
LST-12A2A-HP1 Bore: 12 mm x2 | Stroke: Short 12 mm | Port: Side piping | Locating hole: Yes
LST-12B1N-HP1 Bore: 12 mm x2 | Stroke: Middle 24 mm | Port: Axial (standard) | Locating hole: None
LST-12B1A-HP1 Bore: 12 mm x2 | Stroke: Middle 24 mm | Port: Axial (standard) | Locating hole: Yes
LST-12B2N-HP1 Bore: 12 mm x2 | Stroke: Middle 24 mm | Port: Side piping | Locating hole: None
LST-12B2A-HP1 Bore: 12 mm x2 | Stroke: Middle 24 mm | Port: Side piping | Locating hole: Yes
LST-12C1N-HP1 Bore: 12 mm x2 | Stroke: Long 48 mm | Port: Axial (standard) | Locating hole: None
LST-12C1A-HP1 Bore: 12 mm x2 | Stroke: Long 48 mm | Port: Axial (standard) | Locating hole: Yes
LST-12C2N-HP1 Bore: 12 mm x2 | Stroke: Long 48 mm | Port: Side piping | Locating hole: None
LST-12C2A-HP1 Bore: 12 mm x2 | Stroke: Long 48 mm | Port: Side piping | Locating hole: Yes
LST-16A1N-HP1 Bore: 16 mm x2 | Stroke: Short 16 mm | Port: Axial (standard) | Locating hole: None
LST-16A1A-HP1 Bore: 16 mm x2 | Stroke: Short 16 mm | Port: Axial (standard) | Locating hole: Yes
LST-16A2N-HP1 Bore: 16 mm x2 | Stroke: Short 16 mm | Port: Side piping | Locating hole: None
LST-16A2A-HP1 Bore: 16 mm x2 | Stroke: Short 16 mm | Port: Side piping | Locating hole: Yes
LST-16B1N-HP1 Bore: 16 mm x2 | Stroke: Middle 32 mm | Port: Axial (standard) | Locating hole: None
LST-16B1A-HP1 Bore: 16 mm x2 | Stroke: Middle 32 mm | Port: Axial (standard) | Locating hole: Yes
LST-16B2N-HP1 Bore: 16 mm x2 | Stroke: Middle 32 mm | Port: Side piping | Locating hole: None
LST-16B2A-HP1 Bore: 16 mm x2 | Stroke: Middle 32 mm | Port: Side piping | Locating hole: Yes
LST-16C1N-HP1 Bore: 16 mm x2 | Stroke: Long 64 mm | Port: Axial (standard) | Locating hole: None
LST-16C1A-HP1 Bore: 16 mm x2 | Stroke: Long 64 mm | Port: Axial (standard) | Locating hole: Yes
LST-16C2N-HP1 Bore: 16 mm x2 | Stroke: Long 64 mm | Port: Side piping | Locating hole: None
LST-16C2A-HP1 Bore: 16 mm x2 | Stroke: Long 64 mm | Port: Side piping | Locating hole: Yes
LST-20A1N-HP1 Bore: 20 mm x2 | Stroke: Short 20 mm | Port: Axial (standard) | Locating hole: None
LST-20A1A-HP1 Bore: 20 mm x2 | Stroke: Short 20 mm | Port: Axial (standard) | Locating hole: Yes
LST-20A2N-HP1 Bore: 20 mm x2 | Stroke: Short 20 mm | Port: Side piping | Locating hole: None
LST-20A2A-HP1 Bore: 20 mm x2 | Stroke: Short 20 mm | Port: Side piping | Locating hole: Yes
LST-20B1N-HP1 Bore: 20 mm x2 | Stroke: Middle 40 mm | Port: Axial (standard) | Locating hole: None
LST-20B1A-HP1 Bore: 20 mm x2 | Stroke: Middle 40 mm | Port: Axial (standard) | Locating hole: Yes
LST-20B2N-HP1 Bore: 20 mm x2 | Stroke: Middle 40 mm | Port: Side piping | Locating hole: None
LST-20B2A-HP1 Bore: 20 mm x2 | Stroke: Middle 40 mm | Port: Side piping | Locating hole: Yes
LST-20C1N-HP1 Bore: 20 mm x2 | Stroke: Long 80 mm | Port: Axial (standard) | Locating hole: None
LST-20C1A-HP1 Bore: 20 mm x2 | Stroke: Long 80 mm | Port: Axial (standard) | Locating hole: Yes
LST-20C2N-HP1 Bore: 20 mm x2 | Stroke: Long 80 mm | Port: Side piping | Locating hole: None
LST-20C2A-HP1 Bore: 20 mm x2 | Stroke: Long 80 mm | Port: Side piping | Locating hole: Yes
