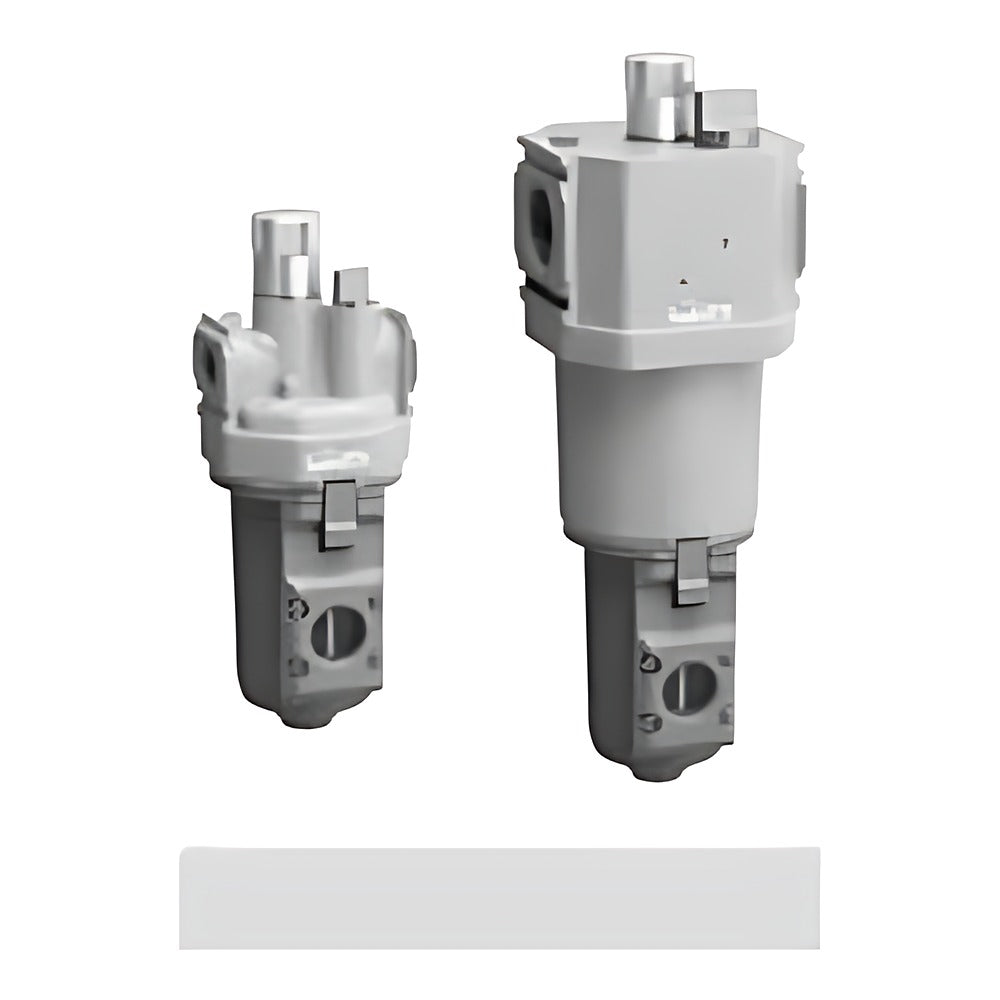

CKD LW3000/LW4000/LW8000-W Lubricator (Outdoor, Port 1/4 to 1)

CKD LW-W outdoor lubricator series supplying fine oil mist to pneumatic equipment in outdoor installations.

Key features

Outdoor WEATHER PROOF series: passed 960 h combined cycle test (JIS H8502), 1000 h sunshine weather meter and 400 h ozone exposure tests
Operates at ambient temperatures from -20 to 60 C
Fine oil mist lubrication
Drain: without manual cock (standard) or with manual cock (C)
Rc, NPT (N) or G (G) thread; G (warranty), X1 and BW bracket options not multiplied

Specifications

Fluid	Compressed air
Proof pressure	1.5 MPa
Fluid temperature	-20 to 60 C (no freezing)
Ambient temperature	-20 to 60 C
Max. operating pressure	1.0 MPa
Lubricant	Turbine oil ISO VG32
Source	CKD Korea catalog CC-1276K, p. 18-21

LW3000-8-W		Model: LW3000-W \| Port size: 1/4 \| Thread: Rc \| Drain: Without manual cock
LW3000-8-W-C		Model: LW3000-W \| Port size: 1/4 \| Thread: Rc \| Drain: With manual cock
LW3000-8N-W		Model: LW3000-W \| Port size: 1/4 \| Thread: NPT \| Drain: Without manual cock
LW3000-8N-W-C		Model: LW3000-W \| Port size: 1/4 \| Thread: NPT \| Drain: With manual cock
LW3000-8G-W		Model: LW3000-W \| Port size: 1/4 \| Thread: G \| Drain: Without manual cock
LW3000-8G-W-C		Model: LW3000-W \| Port size: 1/4 \| Thread: G \| Drain: With manual cock
LW3000-10-W		Model: LW3000-W \| Port size: 3/8 \| Thread: Rc \| Drain: Without manual cock
LW3000-10-W-C		Model: LW3000-W \| Port size: 3/8 \| Thread: Rc \| Drain: With manual cock
LW3000-10N-W		Model: LW3000-W \| Port size: 3/8 \| Thread: NPT \| Drain: Without manual cock
LW3000-10N-W-C		Model: LW3000-W \| Port size: 3/8 \| Thread: NPT \| Drain: With manual cock
LW3000-10G-W		Model: LW3000-W \| Port size: 3/8 \| Thread: G \| Drain: Without manual cock
LW3000-10G-W-C		Model: LW3000-W \| Port size: 3/8 \| Thread: G \| Drain: With manual cock

LubricatorsCKD

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD LW3000/LW4000/LW8000-W Lubricator (Outdoor, Port 1/4 to 1)

Brand CKD·Lubricators

Available part numbers (12)

LW3000-8-W, LW3000-8-W-C, LW3000-8N-W, LW3000-8N-W-C, LW3000-8G-W, LW3000-8G-W-C, LW3000-10-W, LW3000-10-W-C, LW3000-10N-W, LW3000-10N-W-C + 2 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
