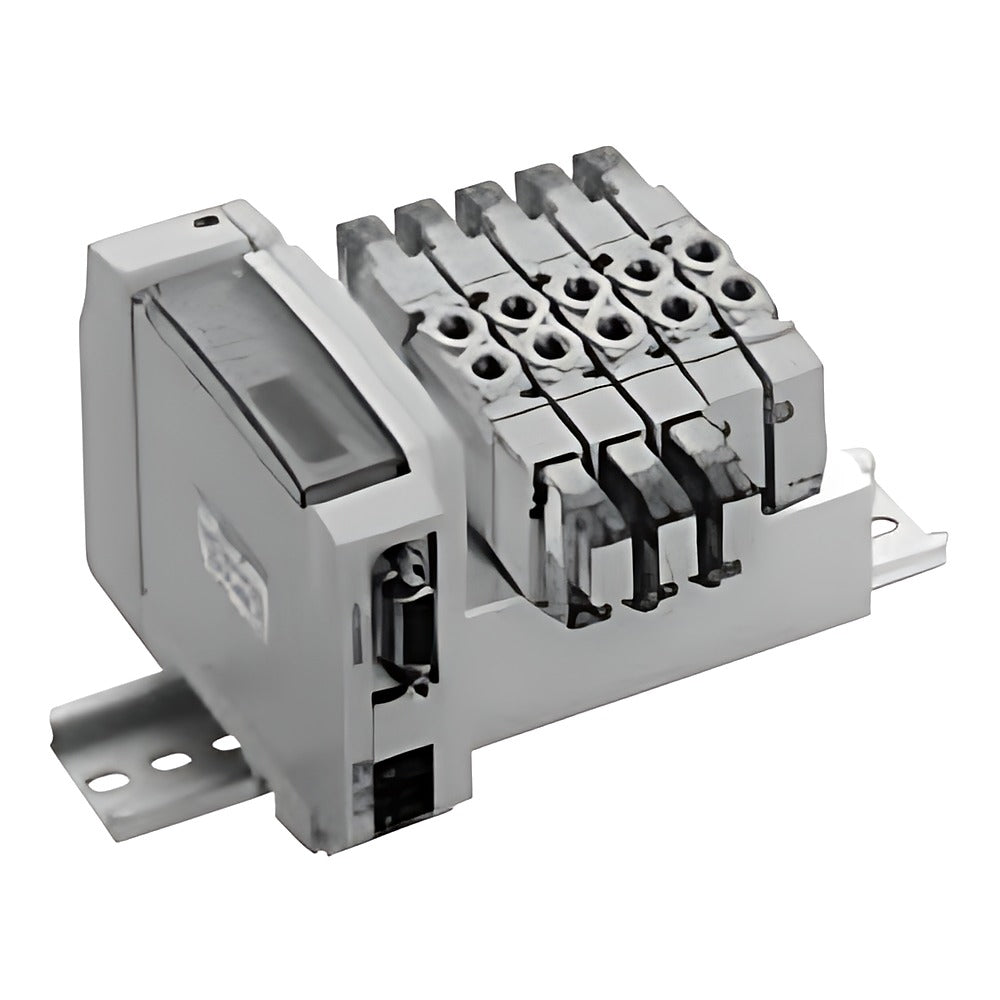

CKD M3GA/M4GA-T-FP1 Wiring-Saving Manifold (Direct Piping, Food)

CKD M3GA/M4GA-T-FP1 Wiring-Saving Manifold (Direct Piping, Food)

CKD M3GA/M4GA1-3-T-FP1 wiring-saving manifolds carry 3GA/4GA-FP1 valves on a metal base with direct A/B piping and collective wiring.

Key features

  • Collective wiring: terminal block (T10/T11), D-sub 25-pin (T30), flat cable (T50-T53) or serial transmission (T6G1, T8 series)
  • Serial transmission covers CC-Link, PROFIBUS-DP, EtherCAT, EtherNet/IP, DeviceNet, CC-Link IE, PROFINET and IO-Link
  • Max. 20 stations (sizes 1/2), 16 stations (size 3); limited by solenoid points of the wiring type
  • Base-mount valves with A2N socket (no lead) listed for station changes
  • Valves lubricated with NSF H1 food-grade grease

Specifications

Manifold type Wiring-saving one-piece metal base
Mounting Direct mount (DIN rail option D)
Operating pressure 0.2-0.7 MPa (internal pilot)
Proof pressure 1.05 MPa
Ambient / fluid temp. -5 to 55 C / 5 to 55 C
Voltage (code 3) DC24V (DC12V = code 4)
Surge killer / indicator Zener diode / LED, standard
Lubricant NSF H1 food-grade grease
Code format M<model><sw>0R-<port>-<T>-<stations>-3-FP1
Source CKD Korea catalog CC-1271K-5, p. 140-143
M4GA110R-C4-T10-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA110R-C4-T10-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA110R-C4-T10-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA110R-C4-T10-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA110R-C4-T10-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA110R-C4-T10-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA110R-C4-T10-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA110R-C4-T30-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA110R-C4-T30-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA110R-C4-T30-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA110R-C4-T30-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA110R-C4-T30-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA110R-C4-T30-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA110R-C4-T30-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA110R-C6-T10-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA110R-C6-T10-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA110R-C6-T10-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA110R-C6-T10-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA110R-C6-T10-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA110R-C6-T10-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA110R-C6-T10-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA110R-C6-T30-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA110R-C6-T30-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA110R-C6-T30-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA110R-C6-T30-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA110R-C6-T30-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA110R-C6-T30-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA110R-C6-T30-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA110R-M5-T10-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA110R-M5-T10-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA110R-M5-T10-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA110R-M5-T10-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA110R-M5-T10-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA110R-M5-T10-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA110R-M5-T10-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA110R-M5-T30-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA110R-M5-T30-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA110R-M5-T30-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA110R-M5-T30-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA110R-M5-T30-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA110R-M5-T30-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA110R-M5-T30-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA120R-C4-T10-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA120R-C4-T10-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA120R-C4-T10-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA120R-C4-T10-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA120R-C4-T10-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA120R-C4-T10-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA120R-C4-T10-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA120R-C4-T30-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA120R-C4-T30-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA120R-C4-T30-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA120R-C4-T30-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA120R-C4-T30-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA120R-C4-T30-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA120R-C4-T30-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA120R-C6-T10-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA120R-C6-T10-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA120R-C6-T10-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA120R-C6-T10-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA120R-C6-T10-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA120R-C6-T10-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA120R-C6-T10-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA120R-C6-T30-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA120R-C6-T30-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA120R-C6-T30-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA120R-C6-T30-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA120R-C6-T30-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA120R-C6-T30-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA120R-C6-T30-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA120R-M5-T10-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA120R-M5-T10-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA120R-M5-T10-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA120R-M5-T10-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA120R-M5-T10-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA120R-M5-T10-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA120R-M5-T10-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA120R-M5-T30-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA120R-M5-T30-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA120R-M5-T30-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA120R-M5-T30-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA120R-M5-T30-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA120R-M5-T30-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA120R-M5-T30-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA130R-C4-T10-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA130R-C4-T10-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA130R-C4-T10-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA130R-C4-T10-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA130R-C4-T10-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA130R-C4-T10-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA130R-C4-T10-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA130R-C4-T30-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA130R-C4-T30-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA130R-C4-T30-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA130R-C4-T30-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA130R-C4-T30-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA130R-C4-T30-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA130R-C4-T30-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA130R-C6-T10-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA130R-C6-T10-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA130R-C6-T10-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA130R-C6-T10-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA130R-C6-T10-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA130R-C6-T10-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA130R-C6-T10-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA130R-C6-T30-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA130R-C6-T30-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA130R-C6-T30-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA130R-C6-T30-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA130R-C6-T30-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA130R-C6-T30-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA130R-C6-T30-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA130R-M5-T10-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA130R-M5-T10-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA130R-M5-T10-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA130R-M5-T10-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA130R-M5-T10-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA130R-M5-T10-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA130R-M5-T10-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA130R-M5-T30-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA130R-M5-T30-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA130R-M5-T30-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA130R-M5-T30-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA130R-M5-T30-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA130R-M5-T30-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA130R-M5-T30-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA140R-C4-T10-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA140R-C4-T10-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA140R-C4-T10-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA140R-C4-T10-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA140R-C4-T10-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA140R-C4-T10-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA140R-C4-T10-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA140R-C4-T30-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA140R-C4-T30-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA140R-C4-T30-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA140R-C4-T30-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA140R-C4-T30-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA140R-C4-T30-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA140R-C4-T30-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA140R-C6-T10-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA140R-C6-T10-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA140R-C6-T10-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA140R-C6-T10-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA140R-C6-T10-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA140R-C6-T10-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA140R-C6-T10-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA140R-C6-T30-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA140R-C6-T30-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA140R-C6-T30-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA140R-C6-T30-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA140R-C6-T30-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA140R-C6-T30-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA140R-C6-T30-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA140R-M5-T10-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA140R-M5-T10-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA140R-M5-T10-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA140R-M5-T10-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA140R-M5-T10-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA140R-M5-T10-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA140R-M5-T10-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA140R-M5-T30-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA140R-M5-T30-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA140R-M5-T30-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA140R-M5-T30-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA140R-M5-T30-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA140R-M5-T30-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA140R-M5-T30-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA150R-C4-T10-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA150R-C4-T10-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA150R-C4-T10-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA150R-C4-T10-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA150R-C4-T10-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA150R-C4-T10-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA150R-C4-T10-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA150R-C4-T30-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA150R-C4-T30-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA150R-C4-T30-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA150R-C4-T30-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA150R-C4-T30-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA150R-C4-T30-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA150R-C4-T30-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA150R-C6-T10-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA150R-C6-T10-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA150R-C6-T10-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA150R-C6-T10-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA150R-C6-T10-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA150R-C6-T10-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA150R-C6-T10-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA150R-C6-T30-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA150R-C6-T30-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA150R-C6-T30-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA150R-C6-T30-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA150R-C6-T30-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA150R-C6-T30-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA150R-C6-T30-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA150R-M5-T10-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA150R-M5-T10-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA150R-M5-T10-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA150R-M5-T10-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA150R-M5-T10-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA150R-M5-T10-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA150R-M5-T10-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA150R-M5-T30-2-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA150R-M5-T30-3-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA150R-M5-T30-4-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA150R-M5-T30-5-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA150R-M5-T30-6-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA150R-M5-T30-7-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA150R-M5-T30-8-3-FP1 Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 8
4GA119R-C4-A2N-3-FP1 Item: Valve for manifold | Model: 4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: A2N socket, no lead | Stations: 1
4GA119R-C6-A2N-3-FP1 Item: Valve for manifold | Model: 4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
4GA119R-M5-A2N-3-FP1 Item: Valve for manifold | Model: 4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: A2N socket, no lead | Stations: 1
4GA129R-C4-A2N-3-FP1 Item: Valve for manifold | Model: 4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: A2N socket, no lead | Stations: 1
4GA129R-C6-A2N-3-FP1 Item: Valve for manifold | Model: 4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
4GA129R-M5-A2N-3-FP1 Item: Valve for manifold | Model: 4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: A2N socket, no lead | Stations: 1
4GA139R-C4-A2N-3-FP1 Item: Valve for manifold | Model: 4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: A2N socket, no lead | Stations: 1
4GA139R-C6-A2N-3-FP1 Item: Valve for manifold | Model: 4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
4GA139R-M5-A2N-3-FP1 Item: Valve for manifold | Model: 4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: A2N socket, no lead | Stations: 1
4GA149R-C4-A2N-3-FP1 Item: Valve for manifold | Model: 4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: A2N socket, no lead | Stations: 1
4GA149R-C6-A2N-3-FP1 Item: Valve for manifold | Model: 4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
4GA149R-M5-A2N-3-FP1 Item: Valve for manifold | Model: 4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: A2N socket, no lead | Stations: 1
4GA159R-C4-A2N-3-FP1 Item: Valve for manifold | Model: 4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: A2N socket, no lead | Stations: 1
4GA159R-C6-A2N-3-FP1 Item: Valve for manifold | Model: 4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
4GA159R-M5-A2N-3-FP1 Item: Valve for manifold | Model: 4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: A2N socket, no lead | Stations: 1
M4GA210R-C6-T10-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA210R-C6-T10-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA210R-C6-T10-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA210R-C6-T10-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA210R-C6-T10-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA210R-C6-T10-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA210R-C6-T10-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA210R-C6-T30-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA210R-C6-T30-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA210R-C6-T30-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA210R-C6-T30-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA210R-C6-T30-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA210R-C6-T30-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA210R-C6-T30-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA210R-C8-T10-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA210R-C8-T10-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA210R-C8-T10-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA210R-C8-T10-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA210R-C8-T10-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA210R-C8-T10-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA210R-C8-T10-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA210R-C8-T30-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA210R-C8-T30-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA210R-C8-T30-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA210R-C8-T30-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA210R-C8-T30-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA210R-C8-T30-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA210R-C8-T30-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA210R-06-T10-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA210R-06-T10-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA210R-06-T10-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA210R-06-T10-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA210R-06-T10-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA210R-06-T10-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA210R-06-T10-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA210R-06-T30-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA210R-06-T30-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA210R-06-T30-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA210R-06-T30-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA210R-06-T30-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA210R-06-T30-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA210R-06-T30-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA220R-C6-T10-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA220R-C6-T10-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA220R-C6-T10-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA220R-C6-T10-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA220R-C6-T10-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA220R-C6-T10-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA220R-C6-T10-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA220R-C6-T30-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA220R-C6-T30-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA220R-C6-T30-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA220R-C6-T30-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA220R-C6-T30-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA220R-C6-T30-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA220R-C6-T30-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA220R-C8-T10-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA220R-C8-T10-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA220R-C8-T10-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA220R-C8-T10-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA220R-C8-T10-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA220R-C8-T10-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA220R-C8-T10-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA220R-C8-T30-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA220R-C8-T30-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA220R-C8-T30-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA220R-C8-T30-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA220R-C8-T30-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA220R-C8-T30-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA220R-C8-T30-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA220R-06-T10-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA220R-06-T10-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA220R-06-T10-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA220R-06-T10-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA220R-06-T10-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA220R-06-T10-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA220R-06-T10-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA220R-06-T30-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA220R-06-T30-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA220R-06-T30-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA220R-06-T30-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA220R-06-T30-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA220R-06-T30-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA220R-06-T30-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA230R-C6-T10-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA230R-C6-T10-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA230R-C6-T10-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA230R-C6-T10-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA230R-C6-T10-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA230R-C6-T10-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA230R-C6-T10-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA230R-C6-T30-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA230R-C6-T30-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA230R-C6-T30-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA230R-C6-T30-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA230R-C6-T30-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA230R-C6-T30-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA230R-C6-T30-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA230R-C8-T10-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA230R-C8-T10-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA230R-C8-T10-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA230R-C8-T10-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA230R-C8-T10-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA230R-C8-T10-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA230R-C8-T10-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA230R-C8-T30-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA230R-C8-T30-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA230R-C8-T30-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA230R-C8-T30-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA230R-C8-T30-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA230R-C8-T30-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA230R-C8-T30-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA230R-06-T10-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA230R-06-T10-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA230R-06-T10-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA230R-06-T10-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA230R-06-T10-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA230R-06-T10-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA230R-06-T10-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA230R-06-T30-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA230R-06-T30-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA230R-06-T30-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA230R-06-T30-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA230R-06-T30-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA230R-06-T30-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA230R-06-T30-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA240R-C6-T10-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA240R-C6-T10-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA240R-C6-T10-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA240R-C6-T10-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA240R-C6-T10-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA240R-C6-T10-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA240R-C6-T10-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA240R-C6-T30-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA240R-C6-T30-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA240R-C6-T30-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA240R-C6-T30-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA240R-C6-T30-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA240R-C6-T30-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA240R-C6-T30-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA240R-C8-T10-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA240R-C8-T10-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA240R-C8-T10-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA240R-C8-T10-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA240R-C8-T10-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA240R-C8-T10-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA240R-C8-T10-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA240R-C8-T30-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA240R-C8-T30-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA240R-C8-T30-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA240R-C8-T30-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA240R-C8-T30-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA240R-C8-T30-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA240R-C8-T30-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA240R-06-T10-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA240R-06-T10-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA240R-06-T10-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA240R-06-T10-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA240R-06-T10-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA240R-06-T10-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA240R-06-T10-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA240R-06-T30-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA240R-06-T30-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA240R-06-T30-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA240R-06-T30-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA240R-06-T30-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA240R-06-T30-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA240R-06-T30-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA250R-C6-T10-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA250R-C6-T10-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA250R-C6-T10-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA250R-C6-T10-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA250R-C6-T10-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA250R-C6-T10-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA250R-C6-T10-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA250R-C6-T30-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA250R-C6-T30-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA250R-C6-T30-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA250R-C6-T30-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA250R-C6-T30-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA250R-C6-T30-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA250R-C6-T30-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA250R-C8-T10-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA250R-C8-T10-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA250R-C8-T10-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA250R-C8-T10-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA250R-C8-T10-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA250R-C8-T10-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA250R-C8-T10-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA250R-C8-T30-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA250R-C8-T30-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA250R-C8-T30-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA250R-C8-T30-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA250R-C8-T30-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA250R-C8-T30-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA250R-C8-T30-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA250R-06-T10-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA250R-06-T10-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA250R-06-T10-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA250R-06-T10-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA250R-06-T10-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA250R-06-T10-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA250R-06-T10-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA250R-06-T30-2-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA250R-06-T30-3-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA250R-06-T30-4-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA250R-06-T30-5-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA250R-06-T30-6-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA250R-06-T30-7-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA250R-06-T30-8-3-FP1 Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 8
4GA219R-C6-A2N-3-FP1 Item: Valve for manifold | Model: 4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
4GA219R-C8-A2N-3-FP1 Item: Valve for manifold | Model: 4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
4GA219R-06-A2N-3-FP1 Item: Valve for manifold | Model: 4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: A2N socket, no lead | Stations: 1
4GA229R-C6-A2N-3-FP1 Item: Valve for manifold | Model: 4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
4GA229R-C8-A2N-3-FP1 Item: Valve for manifold | Model: 4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
4GA229R-06-A2N-3-FP1 Item: Valve for manifold | Model: 4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: A2N socket, no lead | Stations: 1
4GA239R-C6-A2N-3-FP1 Item: Valve for manifold | Model: 4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
4GA239R-C8-A2N-3-FP1 Item: Valve for manifold | Model: 4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
4GA239R-06-A2N-3-FP1 Item: Valve for manifold | Model: 4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: A2N socket, no lead | Stations: 1
4GA249R-C6-A2N-3-FP1 Item: Valve for manifold | Model: 4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
4GA249R-C8-A2N-3-FP1 Item: Valve for manifold | Model: 4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
4GA249R-06-A2N-3-FP1 Item: Valve for manifold | Model: 4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: A2N socket, no lead | Stations: 1
4GA259R-C6-A2N-3-FP1 Item: Valve for manifold | Model: 4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
4GA259R-C8-A2N-3-FP1 Item: Valve for manifold | Model: 4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
4GA259R-06-A2N-3-FP1 Item: Valve for manifold | Model: 4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: A2N socket, no lead | Stations: 1
M4GA310R-C8-T10-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA310R-C8-T10-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA310R-C8-T10-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA310R-C8-T10-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA310R-C8-T10-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA310R-C8-T10-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA310R-C8-T10-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA310R-C8-T30-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA310R-C8-T30-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA310R-C8-T30-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA310R-C8-T30-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA310R-C8-T30-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA310R-C8-T30-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA310R-C8-T30-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA310R-C10-T10-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA310R-C10-T10-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA310R-C10-T10-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA310R-C10-T10-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA310R-C10-T10-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA310R-C10-T10-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA310R-C10-T10-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA310R-C10-T30-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA310R-C10-T30-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA310R-C10-T30-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA310R-C10-T30-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA310R-C10-T30-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA310R-C10-T30-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA310R-C10-T30-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA310R-08-T10-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA310R-08-T10-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA310R-08-T10-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA310R-08-T10-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA310R-08-T10-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA310R-08-T10-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA310R-08-T10-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA310R-08-T30-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA310R-08-T30-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA310R-08-T30-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA310R-08-T30-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA310R-08-T30-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA310R-08-T30-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA310R-08-T30-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA320R-C8-T10-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA320R-C8-T10-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA320R-C8-T10-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA320R-C8-T10-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA320R-C8-T10-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA320R-C8-T10-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA320R-C8-T10-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA320R-C8-T30-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA320R-C8-T30-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA320R-C8-T30-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA320R-C8-T30-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA320R-C8-T30-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA320R-C8-T30-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA320R-C8-T30-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA320R-C10-T10-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA320R-C10-T10-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA320R-C10-T10-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA320R-C10-T10-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA320R-C10-T10-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA320R-C10-T10-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA320R-C10-T10-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA320R-C10-T30-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA320R-C10-T30-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA320R-C10-T30-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA320R-C10-T30-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA320R-C10-T30-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA320R-C10-T30-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA320R-C10-T30-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA320R-08-T10-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA320R-08-T10-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA320R-08-T10-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA320R-08-T10-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA320R-08-T10-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA320R-08-T10-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA320R-08-T10-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA320R-08-T30-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA320R-08-T30-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA320R-08-T30-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA320R-08-T30-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA320R-08-T30-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA320R-08-T30-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA320R-08-T30-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA330R-C8-T10-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA330R-C8-T10-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA330R-C8-T10-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA330R-C8-T10-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA330R-C8-T10-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA330R-C8-T10-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA330R-C8-T10-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA330R-C8-T30-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA330R-C8-T30-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA330R-C8-T30-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA330R-C8-T30-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA330R-C8-T30-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA330R-C8-T30-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA330R-C8-T30-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA330R-C10-T10-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA330R-C10-T10-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA330R-C10-T10-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA330R-C10-T10-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA330R-C10-T10-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA330R-C10-T10-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA330R-C10-T10-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA330R-C10-T30-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA330R-C10-T30-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA330R-C10-T30-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA330R-C10-T30-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA330R-C10-T30-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA330R-C10-T30-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA330R-C10-T30-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA330R-08-T10-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA330R-08-T10-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA330R-08-T10-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA330R-08-T10-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA330R-08-T10-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA330R-08-T10-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA330R-08-T10-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA330R-08-T30-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA330R-08-T30-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA330R-08-T30-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA330R-08-T30-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA330R-08-T30-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA330R-08-T30-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA330R-08-T30-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA340R-C8-T10-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA340R-C8-T10-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA340R-C8-T10-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA340R-C8-T10-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA340R-C8-T10-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA340R-C8-T10-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA340R-C8-T10-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA340R-C8-T30-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA340R-C8-T30-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA340R-C8-T30-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA340R-C8-T30-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA340R-C8-T30-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA340R-C8-T30-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA340R-C8-T30-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA340R-C10-T10-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA340R-C10-T10-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA340R-C10-T10-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA340R-C10-T10-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA340R-C10-T10-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA340R-C10-T10-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA340R-C10-T10-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA340R-C10-T30-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA340R-C10-T30-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA340R-C10-T30-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA340R-C10-T30-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA340R-C10-T30-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA340R-C10-T30-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA340R-C10-T30-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA340R-08-T10-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA340R-08-T10-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA340R-08-T10-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA340R-08-T10-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA340R-08-T10-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA340R-08-T10-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA340R-08-T10-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA340R-08-T30-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA340R-08-T30-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA340R-08-T30-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA340R-08-T30-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA340R-08-T30-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA340R-08-T30-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA340R-08-T30-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA350R-C8-T10-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA350R-C8-T10-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA350R-C8-T10-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA350R-C8-T10-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA350R-C8-T10-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA350R-C8-T10-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA350R-C8-T10-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA350R-C8-T30-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA350R-C8-T30-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA350R-C8-T30-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA350R-C8-T30-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA350R-C8-T30-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA350R-C8-T30-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA350R-C8-T30-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA350R-C10-T10-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA350R-C10-T10-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA350R-C10-T10-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA350R-C10-T10-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA350R-C10-T10-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA350R-C10-T10-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA350R-C10-T10-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA350R-C10-T30-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA350R-C10-T30-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA350R-C10-T30-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA350R-C10-T30-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA350R-C10-T30-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA350R-C10-T30-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA350R-C10-T30-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA350R-08-T10-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA350R-08-T10-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA350R-08-T10-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA350R-08-T10-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA350R-08-T10-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA350R-08-T10-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA350R-08-T10-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA350R-08-T30-2-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA350R-08-T30-3-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA350R-08-T30-4-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA350R-08-T30-5-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA350R-08-T30-6-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA350R-08-T30-7-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA350R-08-T30-8-3-FP1 Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 8
4GA319R-C8-A2N-3-FP1 Item: Valve for manifold | Model: 4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
4GA319R-C10-A2N-3-FP1 Item: Valve for manifold | Model: 4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: A2N socket, no lead | Stations: 1
4GA319R-08-A2N-3-FP1 Item: Valve for manifold | Model: 4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: A2N socket, no lead | Stations: 1
4GA329R-C8-A2N-3-FP1 Item: Valve for manifold | Model: 4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
4GA329R-C10-A2N-3-FP1 Item: Valve for manifold | Model: 4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: A2N socket, no lead | Stations: 1
4GA329R-08-A2N-3-FP1 Item: Valve for manifold | Model: 4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: A2N socket, no lead | Stations: 1
4GA339R-C8-A2N-3-FP1 Item: Valve for manifold | Model: 4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
4GA339R-C10-A2N-3-FP1 Item: Valve for manifold | Model: 4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: A2N socket, no lead | Stations: 1
4GA339R-08-A2N-3-FP1 Item: Valve for manifold | Model: 4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: A2N socket, no lead | Stations: 1
4GA349R-C8-A2N-3-FP1 Item: Valve for manifold | Model: 4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
4GA349R-C10-A2N-3-FP1 Item: Valve for manifold | Model: 4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: A2N socket, no lead | Stations: 1
4GA349R-08-A2N-3-FP1 Item: Valve for manifold | Model: 4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: A2N socket, no lead | Stations: 1
4GA359R-C8-A2N-3-FP1 Item: Valve for manifold | Model: 4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
4GA359R-C10-A2N-3-FP1 Item: Valve for manifold | Model: 4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: A2N socket, no lead | Stations: 1
4GA359R-08-A2N-3-FP1 Item: Valve for manifold | Model: 4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: A2N socket, no lead | Stations: 1
M3GA110R-C4-T10-2-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA110R-C4-T10-3-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA110R-C4-T10-4-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA110R-C4-T10-5-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA110R-C4-T10-6-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA110R-C4-T10-7-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA110R-C4-T10-8-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA110R-C4-T30-2-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA110R-C4-T30-3-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA110R-C4-T30-4-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA110R-C4-T30-5-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA110R-C4-T30-6-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA110R-C4-T30-7-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA110R-C4-T30-8-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA110R-C6-T10-2-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA110R-C6-T10-3-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA110R-C6-T10-4-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA110R-C6-T10-5-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA110R-C6-T10-6-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA110R-C6-T10-7-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA110R-C6-T10-8-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA110R-C6-T30-2-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA110R-C6-T30-3-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA110R-C6-T30-4-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA110R-C6-T30-5-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA110R-C6-T30-6-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA110R-C6-T30-7-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA110R-C6-T30-8-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA110R-M5-T10-2-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA110R-M5-T10-3-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA110R-M5-T10-4-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA110R-M5-T10-5-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA110R-M5-T10-6-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA110R-M5-T10-7-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA110R-M5-T10-8-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA110R-M5-T30-2-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA110R-M5-T30-3-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA110R-M5-T30-4-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA110R-M5-T30-5-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA110R-M5-T30-6-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA110R-M5-T30-7-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA110R-M5-T30-8-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1110R-C4-T10-2-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1110R-C4-T10-3-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1110R-C4-T10-4-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1110R-C4-T10-5-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1110R-C4-T10-6-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1110R-C4-T10-7-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1110R-C4-T10-8-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1110R-C4-T30-2-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1110R-C4-T30-3-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1110R-C4-T30-4-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1110R-C4-T30-5-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1110R-C4-T30-6-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1110R-C4-T30-7-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1110R-C4-T30-8-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1110R-C6-T10-2-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1110R-C6-T10-3-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1110R-C6-T10-4-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1110R-C6-T10-5-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1110R-C6-T10-6-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1110R-C6-T10-7-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1110R-C6-T10-8-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1110R-C6-T30-2-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1110R-C6-T30-3-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1110R-C6-T30-4-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1110R-C6-T30-5-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1110R-C6-T30-6-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1110R-C6-T30-7-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1110R-C6-T30-8-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1110R-M5-T10-2-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1110R-M5-T10-3-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1110R-M5-T10-4-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1110R-M5-T10-5-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1110R-M5-T10-6-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1110R-M5-T10-7-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1110R-M5-T10-8-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1110R-M5-T30-2-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1110R-M5-T30-3-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1110R-M5-T30-4-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1110R-M5-T30-5-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1110R-M5-T30-6-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1110R-M5-T30-7-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1110R-M5-T30-8-3-FP1 Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 8
3GA119R-C4-A2N-3-FP1 Item: Valve for manifold | Model: 3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: A2N socket, no lead | Stations: 1
3GA119R-C6-A2N-3-FP1 Item: Valve for manifold | Model: 3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
3GA119R-M5-A2N-3-FP1 Item: Valve for manifold | Model: 3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: A2N socket, no lead | Stations: 1
3GA1119R-C4-A2N-3-FP1 Item: Valve for manifold | Model: 3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: A2N socket, no lead | Stations: 1
3GA1119R-C6-A2N-3-FP1 Item: Valve for manifold | Model: 3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
3GA1119R-M5-A2N-3-FP1 Item: Valve for manifold | Model: 3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: A2N socket, no lead | Stations: 1
M3GA210R-C6-T10-2-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA210R-C6-T10-3-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA210R-C6-T10-4-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA210R-C6-T10-5-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA210R-C6-T10-6-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA210R-C6-T10-7-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA210R-C6-T10-8-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA210R-C6-T30-2-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA210R-C6-T30-3-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA210R-C6-T30-4-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA210R-C6-T30-5-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA210R-C6-T30-6-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA210R-C6-T30-7-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA210R-C6-T30-8-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA210R-C8-T10-2-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA210R-C8-T10-3-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA210R-C8-T10-4-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA210R-C8-T10-5-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA210R-C8-T10-6-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA210R-C8-T10-7-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA210R-C8-T10-8-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA210R-C8-T30-2-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA210R-C8-T30-3-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA210R-C8-T30-4-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA210R-C8-T30-5-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA210R-C8-T30-6-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA210R-C8-T30-7-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA210R-C8-T30-8-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA210R-06-T10-2-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA210R-06-T10-3-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA210R-06-T10-4-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA210R-06-T10-5-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA210R-06-T10-6-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA210R-06-T10-7-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA210R-06-T10-8-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA210R-06-T30-2-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA210R-06-T30-3-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA210R-06-T30-4-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA210R-06-T30-5-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA210R-06-T30-6-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA210R-06-T30-7-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA210R-06-T30-8-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2110R-C6-T10-2-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2110R-C6-T10-3-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2110R-C6-T10-4-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2110R-C6-T10-5-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2110R-C6-T10-6-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2110R-C6-T10-7-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2110R-C6-T10-8-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2110R-C6-T30-2-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2110R-C6-T30-3-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2110R-C6-T30-4-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2110R-C6-T30-5-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2110R-C6-T30-6-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2110R-C6-T30-7-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2110R-C6-T30-8-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2110R-C8-T10-2-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2110R-C8-T10-3-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2110R-C8-T10-4-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2110R-C8-T10-5-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2110R-C8-T10-6-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2110R-C8-T10-7-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2110R-C8-T10-8-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2110R-C8-T30-2-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2110R-C8-T30-3-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2110R-C8-T30-4-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2110R-C8-T30-5-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2110R-C8-T30-6-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2110R-C8-T30-7-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2110R-C8-T30-8-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2110R-06-T10-2-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2110R-06-T10-3-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2110R-06-T10-4-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2110R-06-T10-5-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2110R-06-T10-6-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2110R-06-T10-7-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2110R-06-T10-8-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2110R-06-T30-2-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2110R-06-T30-3-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2110R-06-T30-4-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2110R-06-T30-5-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2110R-06-T30-6-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2110R-06-T30-7-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2110R-06-T30-8-3-FP1 Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 8
3GA219R-C6-A2N-3-FP1 Item: Valve for manifold | Model: 3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
3GA219R-C8-A2N-3-FP1 Item: Valve for manifold | Model: 3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
3GA219R-06-A2N-3-FP1 Item: Valve for manifold | Model: 3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: A2N socket, no lead | Stations: 1
3GA2119R-C6-A2N-3-FP1 Item: Valve for manifold | Model: 3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
3GA2119R-C8-A2N-3-FP1 Item: Valve for manifold | Model: 3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
3GA2119R-06-A2N-3-FP1 Item: Valve for manifold | Model: 3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: A2N socket, no lead | Stations: 1
M3GA310R-C8-T10-2-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA310R-C8-T10-3-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA310R-C8-T10-4-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA310R-C8-T10-5-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA310R-C8-T10-6-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA310R-C8-T10-7-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA310R-C8-T10-8-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA310R-C8-T30-2-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA310R-C8-T30-3-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA310R-C8-T30-4-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA310R-C8-T30-5-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA310R-C8-T30-6-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA310R-C8-T30-7-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA310R-C8-T30-8-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA310R-C10-T10-2-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA310R-C10-T10-3-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA310R-C10-T10-4-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA310R-C10-T10-5-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA310R-C10-T10-6-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA310R-C10-T10-7-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA310R-C10-T10-8-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA310R-C10-T30-2-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA310R-C10-T30-3-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA310R-C10-T30-4-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA310R-C10-T30-5-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA310R-C10-T30-6-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA310R-C10-T30-7-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA310R-C10-T30-8-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA310R-08-T10-2-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA310R-08-T10-3-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA310R-08-T10-4-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA310R-08-T10-5-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA310R-08-T10-6-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA310R-08-T10-7-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA310R-08-T10-8-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA310R-08-T30-2-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA310R-08-T30-3-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA310R-08-T30-4-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA310R-08-T30-5-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA310R-08-T30-6-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA310R-08-T30-7-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA310R-08-T30-8-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA3110R-C8-T10-2-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA3110R-C8-T10-3-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA3110R-C8-T10-4-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA3110R-C8-T10-5-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA3110R-C8-T10-6-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA3110R-C8-T10-7-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA3110R-C8-T10-8-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA3110R-C8-T30-2-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA3110R-C8-T30-3-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA3110R-C8-T30-4-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA3110R-C8-T30-5-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA3110R-C8-T30-6-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA3110R-C8-T30-7-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA3110R-C8-T30-8-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA3110R-C10-T10-2-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA3110R-C10-T10-3-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA3110R-C10-T10-4-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA3110R-C10-T10-5-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA3110R-C10-T10-6-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA3110R-C10-T10-7-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA3110R-C10-T10-8-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA3110R-C10-T30-2-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA3110R-C10-T30-3-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA3110R-C10-T30-4-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA3110R-C10-T30-5-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA3110R-C10-T30-6-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA3110R-C10-T30-7-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA3110R-C10-T30-8-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA3110R-08-T10-2-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA3110R-08-T10-3-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA3110R-08-T10-4-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA3110R-08-T10-5-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA3110R-08-T10-6-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA3110R-08-T10-7-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA3110R-08-T10-8-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA3110R-08-T30-2-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA3110R-08-T30-3-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA3110R-08-T30-4-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA3110R-08-T30-5-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA3110R-08-T30-6-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA3110R-08-T30-7-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA3110R-08-T30-8-3-FP1 Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 8
3GA319R-C8-A2N-3-FP1 Item: Valve for manifold | Model: 3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
3GA319R-C10-A2N-3-FP1 Item: Valve for manifold | Model: 3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: A2N socket, no lead | Stations: 1
3GA319R-08-A2N-3-FP1 Item: Valve for manifold | Model: 3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: A2N socket, no lead | Stations: 1
3GA3119R-C8-A2N-3-FP1 Item: Valve for manifold | Model: 3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
3GA3119R-C10-A2N-3-FP1 Item: Valve for manifold | Model: 3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: A2N socket, no lead | Stations: 1
3GA3119R-08-A2N-3-FP1 Item: Valve for manifold | Model: 3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: A2N socket, no lead | Stations: 1
Valve ManifoldsCKD
945 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD M3GA/M4GA-T-FP1 Wiring-Saving Manifold (Direct Piping, Food)

Brand CKD·Valve Manifolds

Available part numbers (945)

M4GA110R-C4-T10-2-3-FP1, M4GA110R-C4-T10-3-3-FP1, M4GA110R-C4-T10-4-3-FP1, M4GA110R-C4-T10-5-3-FP1, M4GA110R-C4-T10-6-3-FP1, M4GA110R-C4-T10-7-3-FP1, M4GA110R-C4-T10-8-3-FP1, M4GA110R-C4-T30-2-3-FP1, M4GA110R-C4-T30-3-3-FP1, M4GA110R-C4-T30-4-3-FP1 + 935 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
M4GA110R-C4-T10-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA110R-C4-T10-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA110R-C4-T10-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA110R-C4-T10-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA110R-C4-T10-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA110R-C4-T10-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA110R-C4-T10-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA110R-C4-T30-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA110R-C4-T30-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA110R-C4-T30-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA110R-C4-T30-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA110R-C4-T30-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA110R-C4-T30-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA110R-C4-T30-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA110R-C6-T10-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA110R-C6-T10-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA110R-C6-T10-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA110R-C6-T10-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA110R-C6-T10-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA110R-C6-T10-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA110R-C6-T10-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA110R-C6-T30-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA110R-C6-T30-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA110R-C6-T30-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA110R-C6-T30-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA110R-C6-T30-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA110R-C6-T30-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA110R-C6-T30-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA110R-M5-T10-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA110R-M5-T10-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA110R-M5-T10-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA110R-M5-T10-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA110R-M5-T10-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA110R-M5-T10-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA110R-M5-T10-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA110R-M5-T30-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA110R-M5-T30-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA110R-M5-T30-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA110R-M5-T30-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA110R-M5-T30-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA110R-M5-T30-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA110R-M5-T30-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA120R-C4-T10-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA120R-C4-T10-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA120R-C4-T10-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA120R-C4-T10-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA120R-C4-T10-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA120R-C4-T10-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA120R-C4-T10-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA120R-C4-T30-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA120R-C4-T30-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA120R-C4-T30-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA120R-C4-T30-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA120R-C4-T30-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA120R-C4-T30-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA120R-C4-T30-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA120R-C6-T10-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA120R-C6-T10-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA120R-C6-T10-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA120R-C6-T10-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA120R-C6-T10-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA120R-C6-T10-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA120R-C6-T10-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA120R-C6-T30-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA120R-C6-T30-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA120R-C6-T30-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA120R-C6-T30-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA120R-C6-T30-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA120R-C6-T30-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA120R-C6-T30-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA120R-M5-T10-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA120R-M5-T10-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA120R-M5-T10-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA120R-M5-T10-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA120R-M5-T10-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA120R-M5-T10-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA120R-M5-T10-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA120R-M5-T30-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA120R-M5-T30-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA120R-M5-T30-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA120R-M5-T30-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA120R-M5-T30-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA120R-M5-T30-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA120R-M5-T30-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA130R-C4-T10-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA130R-C4-T10-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA130R-C4-T10-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA130R-C4-T10-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA130R-C4-T10-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA130R-C4-T10-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA130R-C4-T10-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA130R-C4-T30-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA130R-C4-T30-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA130R-C4-T30-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA130R-C4-T30-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA130R-C4-T30-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA130R-C4-T30-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA130R-C4-T30-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA130R-C6-T10-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA130R-C6-T10-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA130R-C6-T10-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA130R-C6-T10-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA130R-C6-T10-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA130R-C6-T10-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA130R-C6-T10-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA130R-C6-T30-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA130R-C6-T30-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA130R-C6-T30-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA130R-C6-T30-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA130R-C6-T30-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA130R-C6-T30-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA130R-C6-T30-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA130R-M5-T10-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA130R-M5-T10-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA130R-M5-T10-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA130R-M5-T10-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA130R-M5-T10-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA130R-M5-T10-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA130R-M5-T10-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA130R-M5-T30-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA130R-M5-T30-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA130R-M5-T30-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA130R-M5-T30-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA130R-M5-T30-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA130R-M5-T30-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA130R-M5-T30-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA140R-C4-T10-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA140R-C4-T10-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA140R-C4-T10-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA140R-C4-T10-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA140R-C4-T10-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA140R-C4-T10-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA140R-C4-T10-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA140R-C4-T30-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA140R-C4-T30-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA140R-C4-T30-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA140R-C4-T30-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA140R-C4-T30-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA140R-C4-T30-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA140R-C4-T30-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA140R-C6-T10-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA140R-C6-T10-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA140R-C6-T10-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA140R-C6-T10-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA140R-C6-T10-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA140R-C6-T10-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA140R-C6-T10-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA140R-C6-T30-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA140R-C6-T30-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA140R-C6-T30-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA140R-C6-T30-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA140R-C6-T30-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA140R-C6-T30-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA140R-C6-T30-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA140R-M5-T10-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA140R-M5-T10-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA140R-M5-T10-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA140R-M5-T10-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA140R-M5-T10-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA140R-M5-T10-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA140R-M5-T10-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA140R-M5-T30-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA140R-M5-T30-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA140R-M5-T30-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA140R-M5-T30-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA140R-M5-T30-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA140R-M5-T30-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA140R-M5-T30-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA150R-C4-T10-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA150R-C4-T10-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA150R-C4-T10-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA150R-C4-T10-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA150R-C4-T10-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA150R-C4-T10-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA150R-C4-T10-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA150R-C4-T30-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA150R-C4-T30-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA150R-C4-T30-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA150R-C4-T30-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA150R-C4-T30-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA150R-C4-T30-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA150R-C4-T30-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA150R-C6-T10-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA150R-C6-T10-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA150R-C6-T10-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA150R-C6-T10-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA150R-C6-T10-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA150R-C6-T10-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA150R-C6-T10-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA150R-C6-T30-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA150R-C6-T30-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA150R-C6-T30-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA150R-C6-T30-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA150R-C6-T30-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA150R-C6-T30-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA150R-C6-T30-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA150R-M5-T10-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA150R-M5-T10-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA150R-M5-T10-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA150R-M5-T10-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA150R-M5-T10-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA150R-M5-T10-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA150R-M5-T10-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA150R-M5-T30-2-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA150R-M5-T30-3-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA150R-M5-T30-4-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA150R-M5-T30-5-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA150R-M5-T30-6-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA150R-M5-T30-7-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA150R-M5-T30-8-3-FP1Item: Manifold | Model: M4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 8
4GA119R-C4-A2N-3-FP1Item: Valve for manifold | Model: 4GA1 | Switching: 2-pos single | A/B port: One-touch 4 mm | Wiring: A2N socket, no lead | Stations: 1
4GA119R-C6-A2N-3-FP1Item: Valve for manifold | Model: 4GA1 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
4GA119R-M5-A2N-3-FP1Item: Valve for manifold | Model: 4GA1 | Switching: 2-pos single | A/B port: M5 | Wiring: A2N socket, no lead | Stations: 1
4GA129R-C4-A2N-3-FP1Item: Valve for manifold | Model: 4GA1 | Switching: 2-pos double | A/B port: One-touch 4 mm | Wiring: A2N socket, no lead | Stations: 1
4GA129R-C6-A2N-3-FP1Item: Valve for manifold | Model: 4GA1 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
4GA129R-M5-A2N-3-FP1Item: Valve for manifold | Model: 4GA1 | Switching: 2-pos double | A/B port: M5 | Wiring: A2N socket, no lead | Stations: 1
4GA139R-C4-A2N-3-FP1Item: Valve for manifold | Model: 4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 4 mm | Wiring: A2N socket, no lead | Stations: 1
4GA139R-C6-A2N-3-FP1Item: Valve for manifold | Model: 4GA1 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
4GA139R-M5-A2N-3-FP1Item: Valve for manifold | Model: 4GA1 | Switching: 3-pos all ports blocked | A/B port: M5 | Wiring: A2N socket, no lead | Stations: 1
4GA149R-C4-A2N-3-FP1Item: Valve for manifold | Model: 4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 4 mm | Wiring: A2N socket, no lead | Stations: 1
4GA149R-C6-A2N-3-FP1Item: Valve for manifold | Model: 4GA1 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
4GA149R-M5-A2N-3-FP1Item: Valve for manifold | Model: 4GA1 | Switching: 3-pos ABR connection | A/B port: M5 | Wiring: A2N socket, no lead | Stations: 1
4GA159R-C4-A2N-3-FP1Item: Valve for manifold | Model: 4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 4 mm | Wiring: A2N socket, no lead | Stations: 1
4GA159R-C6-A2N-3-FP1Item: Valve for manifold | Model: 4GA1 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
4GA159R-M5-A2N-3-FP1Item: Valve for manifold | Model: 4GA1 | Switching: 3-pos PAB connection | A/B port: M5 | Wiring: A2N socket, no lead | Stations: 1
M4GA210R-C6-T10-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA210R-C6-T10-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA210R-C6-T10-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA210R-C6-T10-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA210R-C6-T10-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA210R-C6-T10-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA210R-C6-T10-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA210R-C6-T30-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA210R-C6-T30-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA210R-C6-T30-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA210R-C6-T30-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA210R-C6-T30-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA210R-C6-T30-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA210R-C6-T30-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA210R-C8-T10-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA210R-C8-T10-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA210R-C8-T10-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA210R-C8-T10-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA210R-C8-T10-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA210R-C8-T10-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA210R-C8-T10-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA210R-C8-T30-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA210R-C8-T30-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA210R-C8-T30-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA210R-C8-T30-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA210R-C8-T30-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA210R-C8-T30-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA210R-C8-T30-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA210R-06-T10-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA210R-06-T10-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA210R-06-T10-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA210R-06-T10-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA210R-06-T10-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA210R-06-T10-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA210R-06-T10-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA210R-06-T30-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA210R-06-T30-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA210R-06-T30-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA210R-06-T30-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA210R-06-T30-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA210R-06-T30-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA210R-06-T30-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA220R-C6-T10-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA220R-C6-T10-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA220R-C6-T10-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA220R-C6-T10-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA220R-C6-T10-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA220R-C6-T10-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA220R-C6-T10-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA220R-C6-T30-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA220R-C6-T30-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA220R-C6-T30-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA220R-C6-T30-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA220R-C6-T30-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA220R-C6-T30-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA220R-C6-T30-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA220R-C8-T10-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA220R-C8-T10-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA220R-C8-T10-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA220R-C8-T10-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA220R-C8-T10-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA220R-C8-T10-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA220R-C8-T10-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA220R-C8-T30-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA220R-C8-T30-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA220R-C8-T30-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA220R-C8-T30-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA220R-C8-T30-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA220R-C8-T30-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA220R-C8-T30-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA220R-06-T10-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA220R-06-T10-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA220R-06-T10-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA220R-06-T10-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA220R-06-T10-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA220R-06-T10-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA220R-06-T10-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA220R-06-T30-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA220R-06-T30-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA220R-06-T30-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA220R-06-T30-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA220R-06-T30-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA220R-06-T30-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA220R-06-T30-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA230R-C6-T10-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA230R-C6-T10-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA230R-C6-T10-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA230R-C6-T10-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA230R-C6-T10-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA230R-C6-T10-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA230R-C6-T10-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA230R-C6-T30-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA230R-C6-T30-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA230R-C6-T30-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA230R-C6-T30-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA230R-C6-T30-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA230R-C6-T30-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA230R-C6-T30-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA230R-C8-T10-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA230R-C8-T10-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA230R-C8-T10-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA230R-C8-T10-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA230R-C8-T10-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA230R-C8-T10-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA230R-C8-T10-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA230R-C8-T30-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA230R-C8-T30-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA230R-C8-T30-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA230R-C8-T30-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA230R-C8-T30-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA230R-C8-T30-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA230R-C8-T30-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA230R-06-T10-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA230R-06-T10-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA230R-06-T10-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA230R-06-T10-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA230R-06-T10-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA230R-06-T10-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA230R-06-T10-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA230R-06-T30-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA230R-06-T30-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA230R-06-T30-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA230R-06-T30-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA230R-06-T30-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA230R-06-T30-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA230R-06-T30-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA240R-C6-T10-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA240R-C6-T10-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA240R-C6-T10-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA240R-C6-T10-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA240R-C6-T10-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA240R-C6-T10-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA240R-C6-T10-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA240R-C6-T30-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA240R-C6-T30-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA240R-C6-T30-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA240R-C6-T30-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA240R-C6-T30-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA240R-C6-T30-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA240R-C6-T30-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA240R-C8-T10-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA240R-C8-T10-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA240R-C8-T10-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA240R-C8-T10-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA240R-C8-T10-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA240R-C8-T10-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA240R-C8-T10-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA240R-C8-T30-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA240R-C8-T30-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA240R-C8-T30-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA240R-C8-T30-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA240R-C8-T30-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA240R-C8-T30-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA240R-C8-T30-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA240R-06-T10-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA240R-06-T10-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA240R-06-T10-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA240R-06-T10-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA240R-06-T10-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA240R-06-T10-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA240R-06-T10-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA240R-06-T30-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA240R-06-T30-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA240R-06-T30-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA240R-06-T30-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA240R-06-T30-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA240R-06-T30-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA240R-06-T30-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA250R-C6-T10-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA250R-C6-T10-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA250R-C6-T10-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA250R-C6-T10-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA250R-C6-T10-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA250R-C6-T10-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA250R-C6-T10-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA250R-C6-T30-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA250R-C6-T30-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA250R-C6-T30-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA250R-C6-T30-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA250R-C6-T30-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA250R-C6-T30-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA250R-C6-T30-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA250R-C8-T10-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA250R-C8-T10-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA250R-C8-T10-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA250R-C8-T10-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA250R-C8-T10-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA250R-C8-T10-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA250R-C8-T10-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA250R-C8-T30-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA250R-C8-T30-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA250R-C8-T30-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA250R-C8-T30-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA250R-C8-T30-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA250R-C8-T30-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA250R-C8-T30-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA250R-06-T10-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA250R-06-T10-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA250R-06-T10-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA250R-06-T10-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA250R-06-T10-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA250R-06-T10-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA250R-06-T10-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA250R-06-T30-2-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA250R-06-T30-3-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA250R-06-T30-4-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA250R-06-T30-5-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA250R-06-T30-6-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA250R-06-T30-7-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA250R-06-T30-8-3-FP1Item: Manifold | Model: M4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 8
4GA219R-C6-A2N-3-FP1Item: Valve for manifold | Model: 4GA2 | Switching: 2-pos single | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
4GA219R-C8-A2N-3-FP1Item: Valve for manifold | Model: 4GA2 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
4GA219R-06-A2N-3-FP1Item: Valve for manifold | Model: 4GA2 | Switching: 2-pos single | A/B port: Rc1/8 | Wiring: A2N socket, no lead | Stations: 1
4GA229R-C6-A2N-3-FP1Item: Valve for manifold | Model: 4GA2 | Switching: 2-pos double | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
4GA229R-C8-A2N-3-FP1Item: Valve for manifold | Model: 4GA2 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
4GA229R-06-A2N-3-FP1Item: Valve for manifold | Model: 4GA2 | Switching: 2-pos double | A/B port: Rc1/8 | Wiring: A2N socket, no lead | Stations: 1
4GA239R-C6-A2N-3-FP1Item: Valve for manifold | Model: 4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
4GA239R-C8-A2N-3-FP1Item: Valve for manifold | Model: 4GA2 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
4GA239R-06-A2N-3-FP1Item: Valve for manifold | Model: 4GA2 | Switching: 3-pos all ports blocked | A/B port: Rc1/8 | Wiring: A2N socket, no lead | Stations: 1
4GA249R-C6-A2N-3-FP1Item: Valve for manifold | Model: 4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
4GA249R-C8-A2N-3-FP1Item: Valve for manifold | Model: 4GA2 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
4GA249R-06-A2N-3-FP1Item: Valve for manifold | Model: 4GA2 | Switching: 3-pos ABR connection | A/B port: Rc1/8 | Wiring: A2N socket, no lead | Stations: 1
4GA259R-C6-A2N-3-FP1Item: Valve for manifold | Model: 4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
4GA259R-C8-A2N-3-FP1Item: Valve for manifold | Model: 4GA2 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
4GA259R-06-A2N-3-FP1Item: Valve for manifold | Model: 4GA2 | Switching: 3-pos PAB connection | A/B port: Rc1/8 | Wiring: A2N socket, no lead | Stations: 1
M4GA310R-C8-T10-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA310R-C8-T10-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA310R-C8-T10-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA310R-C8-T10-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA310R-C8-T10-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA310R-C8-T10-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA310R-C8-T10-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA310R-C8-T30-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA310R-C8-T30-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA310R-C8-T30-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA310R-C8-T30-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA310R-C8-T30-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA310R-C8-T30-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA310R-C8-T30-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA310R-C10-T10-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA310R-C10-T10-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA310R-C10-T10-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA310R-C10-T10-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA310R-C10-T10-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA310R-C10-T10-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA310R-C10-T10-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA310R-C10-T30-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA310R-C10-T30-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA310R-C10-T30-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA310R-C10-T30-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA310R-C10-T30-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA310R-C10-T30-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA310R-C10-T30-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA310R-08-T10-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA310R-08-T10-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA310R-08-T10-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA310R-08-T10-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA310R-08-T10-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA310R-08-T10-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA310R-08-T10-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA310R-08-T30-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA310R-08-T30-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA310R-08-T30-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA310R-08-T30-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA310R-08-T30-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA310R-08-T30-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA310R-08-T30-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA320R-C8-T10-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA320R-C8-T10-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA320R-C8-T10-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA320R-C8-T10-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA320R-C8-T10-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA320R-C8-T10-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA320R-C8-T10-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA320R-C8-T30-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA320R-C8-T30-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA320R-C8-T30-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA320R-C8-T30-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA320R-C8-T30-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA320R-C8-T30-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA320R-C8-T30-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA320R-C10-T10-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA320R-C10-T10-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA320R-C10-T10-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA320R-C10-T10-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA320R-C10-T10-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA320R-C10-T10-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA320R-C10-T10-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA320R-C10-T30-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA320R-C10-T30-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA320R-C10-T30-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA320R-C10-T30-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA320R-C10-T30-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA320R-C10-T30-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA320R-C10-T30-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA320R-08-T10-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA320R-08-T10-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA320R-08-T10-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA320R-08-T10-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA320R-08-T10-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA320R-08-T10-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA320R-08-T10-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA320R-08-T30-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA320R-08-T30-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA320R-08-T30-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA320R-08-T30-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA320R-08-T30-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA320R-08-T30-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA320R-08-T30-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA330R-C8-T10-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA330R-C8-T10-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA330R-C8-T10-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA330R-C8-T10-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA330R-C8-T10-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA330R-C8-T10-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA330R-C8-T10-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA330R-C8-T30-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA330R-C8-T30-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA330R-C8-T30-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA330R-C8-T30-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA330R-C8-T30-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA330R-C8-T30-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA330R-C8-T30-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA330R-C10-T10-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA330R-C10-T10-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA330R-C10-T10-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA330R-C10-T10-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA330R-C10-T10-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA330R-C10-T10-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA330R-C10-T10-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA330R-C10-T30-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA330R-C10-T30-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA330R-C10-T30-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA330R-C10-T30-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA330R-C10-T30-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA330R-C10-T30-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA330R-C10-T30-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA330R-08-T10-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA330R-08-T10-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA330R-08-T10-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA330R-08-T10-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA330R-08-T10-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA330R-08-T10-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA330R-08-T10-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA330R-08-T30-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA330R-08-T30-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA330R-08-T30-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA330R-08-T30-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA330R-08-T30-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA330R-08-T30-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA330R-08-T30-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA340R-C8-T10-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA340R-C8-T10-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA340R-C8-T10-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA340R-C8-T10-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA340R-C8-T10-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA340R-C8-T10-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA340R-C8-T10-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA340R-C8-T30-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA340R-C8-T30-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA340R-C8-T30-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA340R-C8-T30-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA340R-C8-T30-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA340R-C8-T30-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA340R-C8-T30-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA340R-C10-T10-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA340R-C10-T10-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA340R-C10-T10-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA340R-C10-T10-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA340R-C10-T10-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA340R-C10-T10-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA340R-C10-T10-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA340R-C10-T30-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA340R-C10-T30-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA340R-C10-T30-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA340R-C10-T30-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA340R-C10-T30-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA340R-C10-T30-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA340R-C10-T30-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA340R-08-T10-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA340R-08-T10-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA340R-08-T10-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA340R-08-T10-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA340R-08-T10-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA340R-08-T10-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA340R-08-T10-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA340R-08-T30-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA340R-08-T30-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA340R-08-T30-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA340R-08-T30-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA340R-08-T30-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA340R-08-T30-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA340R-08-T30-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA350R-C8-T10-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA350R-C8-T10-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA350R-C8-T10-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA350R-C8-T10-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA350R-C8-T10-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA350R-C8-T10-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA350R-C8-T10-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA350R-C8-T30-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA350R-C8-T30-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA350R-C8-T30-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA350R-C8-T30-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA350R-C8-T30-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA350R-C8-T30-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA350R-C8-T30-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA350R-C10-T10-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA350R-C10-T10-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA350R-C10-T10-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA350R-C10-T10-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA350R-C10-T10-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA350R-C10-T10-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA350R-C10-T10-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA350R-C10-T30-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA350R-C10-T30-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA350R-C10-T30-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA350R-C10-T30-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA350R-C10-T30-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA350R-C10-T30-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA350R-C10-T30-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA350R-08-T10-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA350R-08-T10-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA350R-08-T10-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA350R-08-T10-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA350R-08-T10-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA350R-08-T10-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA350R-08-T10-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA350R-08-T30-2-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA350R-08-T30-3-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA350R-08-T30-4-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA350R-08-T30-5-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA350R-08-T30-6-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA350R-08-T30-7-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA350R-08-T30-8-3-FP1Item: Manifold | Model: M4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 8
4GA319R-C8-A2N-3-FP1Item: Valve for manifold | Model: 4GA3 | Switching: 2-pos single | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
4GA319R-C10-A2N-3-FP1Item: Valve for manifold | Model: 4GA3 | Switching: 2-pos single | A/B port: One-touch 10 mm | Wiring: A2N socket, no lead | Stations: 1
4GA319R-08-A2N-3-FP1Item: Valve for manifold | Model: 4GA3 | Switching: 2-pos single | A/B port: Rc1/4 | Wiring: A2N socket, no lead | Stations: 1
4GA329R-C8-A2N-3-FP1Item: Valve for manifold | Model: 4GA3 | Switching: 2-pos double | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
4GA329R-C10-A2N-3-FP1Item: Valve for manifold | Model: 4GA3 | Switching: 2-pos double | A/B port: One-touch 10 mm | Wiring: A2N socket, no lead | Stations: 1
4GA329R-08-A2N-3-FP1Item: Valve for manifold | Model: 4GA3 | Switching: 2-pos double | A/B port: Rc1/4 | Wiring: A2N socket, no lead | Stations: 1
4GA339R-C8-A2N-3-FP1Item: Valve for manifold | Model: 4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
4GA339R-C10-A2N-3-FP1Item: Valve for manifold | Model: 4GA3 | Switching: 3-pos all ports blocked | A/B port: One-touch 10 mm | Wiring: A2N socket, no lead | Stations: 1
4GA339R-08-A2N-3-FP1Item: Valve for manifold | Model: 4GA3 | Switching: 3-pos all ports blocked | A/B port: Rc1/4 | Wiring: A2N socket, no lead | Stations: 1
4GA349R-C8-A2N-3-FP1Item: Valve for manifold | Model: 4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
4GA349R-C10-A2N-3-FP1Item: Valve for manifold | Model: 4GA3 | Switching: 3-pos ABR connection | A/B port: One-touch 10 mm | Wiring: A2N socket, no lead | Stations: 1
4GA349R-08-A2N-3-FP1Item: Valve for manifold | Model: 4GA3 | Switching: 3-pos ABR connection | A/B port: Rc1/4 | Wiring: A2N socket, no lead | Stations: 1
4GA359R-C8-A2N-3-FP1Item: Valve for manifold | Model: 4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
4GA359R-C10-A2N-3-FP1Item: Valve for manifold | Model: 4GA3 | Switching: 3-pos PAB connection | A/B port: One-touch 10 mm | Wiring: A2N socket, no lead | Stations: 1
4GA359R-08-A2N-3-FP1Item: Valve for manifold | Model: 4GA3 | Switching: 3-pos PAB connection | A/B port: Rc1/4 | Wiring: A2N socket, no lead | Stations: 1
M3GA110R-C4-T10-2-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA110R-C4-T10-3-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA110R-C4-T10-4-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA110R-C4-T10-5-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA110R-C4-T10-6-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA110R-C4-T10-7-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA110R-C4-T10-8-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA110R-C4-T30-2-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA110R-C4-T30-3-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA110R-C4-T30-4-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA110R-C4-T30-5-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA110R-C4-T30-6-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA110R-C4-T30-7-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA110R-C4-T30-8-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA110R-C6-T10-2-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA110R-C6-T10-3-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA110R-C6-T10-4-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA110R-C6-T10-5-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA110R-C6-T10-6-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA110R-C6-T10-7-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA110R-C6-T10-8-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA110R-C6-T30-2-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA110R-C6-T30-3-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA110R-C6-T30-4-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA110R-C6-T30-5-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA110R-C6-T30-6-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA110R-C6-T30-7-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA110R-C6-T30-8-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA110R-M5-T10-2-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA110R-M5-T10-3-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA110R-M5-T10-4-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA110R-M5-T10-5-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA110R-M5-T10-6-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA110R-M5-T10-7-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA110R-M5-T10-8-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA110R-M5-T30-2-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA110R-M5-T30-3-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA110R-M5-T30-4-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA110R-M5-T30-5-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA110R-M5-T30-6-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA110R-M5-T30-7-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA110R-M5-T30-8-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1110R-C4-T10-2-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1110R-C4-T10-3-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1110R-C4-T10-4-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1110R-C4-T10-5-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1110R-C4-T10-6-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1110R-C4-T10-7-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1110R-C4-T10-8-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1110R-C4-T30-2-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1110R-C4-T30-3-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1110R-C4-T30-4-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1110R-C4-T30-5-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1110R-C4-T30-6-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1110R-C4-T30-7-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1110R-C4-T30-8-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1110R-C6-T10-2-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1110R-C6-T10-3-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1110R-C6-T10-4-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1110R-C6-T10-5-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1110R-C6-T10-6-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1110R-C6-T10-7-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1110R-C6-T10-8-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1110R-C6-T30-2-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1110R-C6-T30-3-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1110R-C6-T30-4-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1110R-C6-T30-5-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1110R-C6-T30-6-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1110R-C6-T30-7-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1110R-C6-T30-8-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1110R-M5-T10-2-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1110R-M5-T10-3-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1110R-M5-T10-4-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1110R-M5-T10-5-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1110R-M5-T10-6-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1110R-M5-T10-7-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1110R-M5-T10-8-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1110R-M5-T30-2-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1110R-M5-T30-3-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1110R-M5-T30-4-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1110R-M5-T30-5-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1110R-M5-T30-6-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1110R-M5-T30-7-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1110R-M5-T30-8-3-FP1Item: Manifold | Model: M3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: D-sub 25-pin (T30) | Stations: 8
3GA119R-C4-A2N-3-FP1Item: Valve for manifold | Model: 3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 4 mm | Wiring: A2N socket, no lead | Stations: 1
3GA119R-C6-A2N-3-FP1Item: Valve for manifold | Model: 3GA1 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
3GA119R-M5-A2N-3-FP1Item: Valve for manifold | Model: 3GA1 | Switching: 2-pos single, N.C. | A/B port: M5 | Wiring: A2N socket, no lead | Stations: 1
3GA1119R-C4-A2N-3-FP1Item: Valve for manifold | Model: 3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 4 mm | Wiring: A2N socket, no lead | Stations: 1
3GA1119R-C6-A2N-3-FP1Item: Valve for manifold | Model: 3GA1 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
3GA1119R-M5-A2N-3-FP1Item: Valve for manifold | Model: 3GA1 | Switching: 2-pos single, N.O. | A/B port: M5 | Wiring: A2N socket, no lead | Stations: 1
M3GA210R-C6-T10-2-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA210R-C6-T10-3-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA210R-C6-T10-4-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA210R-C6-T10-5-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA210R-C6-T10-6-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA210R-C6-T10-7-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA210R-C6-T10-8-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA210R-C6-T30-2-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA210R-C6-T30-3-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA210R-C6-T30-4-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA210R-C6-T30-5-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA210R-C6-T30-6-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA210R-C6-T30-7-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA210R-C6-T30-8-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA210R-C8-T10-2-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA210R-C8-T10-3-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA210R-C8-T10-4-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA210R-C8-T10-5-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA210R-C8-T10-6-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA210R-C8-T10-7-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA210R-C8-T10-8-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA210R-C8-T30-2-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA210R-C8-T30-3-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA210R-C8-T30-4-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA210R-C8-T30-5-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA210R-C8-T30-6-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA210R-C8-T30-7-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA210R-C8-T30-8-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA210R-06-T10-2-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA210R-06-T10-3-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA210R-06-T10-4-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA210R-06-T10-5-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA210R-06-T10-6-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA210R-06-T10-7-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA210R-06-T10-8-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA210R-06-T30-2-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA210R-06-T30-3-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA210R-06-T30-4-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA210R-06-T30-5-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA210R-06-T30-6-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA210R-06-T30-7-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA210R-06-T30-8-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2110R-C6-T10-2-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2110R-C6-T10-3-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2110R-C6-T10-4-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2110R-C6-T10-5-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2110R-C6-T10-6-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2110R-C6-T10-7-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2110R-C6-T10-8-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2110R-C6-T30-2-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2110R-C6-T30-3-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2110R-C6-T30-4-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2110R-C6-T30-5-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2110R-C6-T30-6-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2110R-C6-T30-7-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2110R-C6-T30-8-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2110R-C8-T10-2-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2110R-C8-T10-3-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2110R-C8-T10-4-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2110R-C8-T10-5-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2110R-C8-T10-6-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2110R-C8-T10-7-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2110R-C8-T10-8-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2110R-C8-T30-2-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2110R-C8-T30-3-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2110R-C8-T30-4-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2110R-C8-T30-5-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2110R-C8-T30-6-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2110R-C8-T30-7-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2110R-C8-T30-8-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2110R-06-T10-2-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2110R-06-T10-3-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2110R-06-T10-4-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2110R-06-T10-5-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2110R-06-T10-6-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2110R-06-T10-7-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2110R-06-T10-8-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2110R-06-T30-2-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2110R-06-T30-3-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2110R-06-T30-4-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2110R-06-T30-5-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2110R-06-T30-6-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2110R-06-T30-7-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2110R-06-T30-8-3-FP1Item: Manifold | Model: M3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: D-sub 25-pin (T30) | Stations: 8
3GA219R-C6-A2N-3-FP1Item: Valve for manifold | Model: 3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
3GA219R-C8-A2N-3-FP1Item: Valve for manifold | Model: 3GA2 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
3GA219R-06-A2N-3-FP1Item: Valve for manifold | Model: 3GA2 | Switching: 2-pos single, N.C. | A/B port: Rc1/8 | Wiring: A2N socket, no lead | Stations: 1
3GA2119R-C6-A2N-3-FP1Item: Valve for manifold | Model: 3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 6 mm | Wiring: A2N socket, no lead | Stations: 1
3GA2119R-C8-A2N-3-FP1Item: Valve for manifold | Model: 3GA2 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
3GA2119R-06-A2N-3-FP1Item: Valve for manifold | Model: 3GA2 | Switching: 2-pos single, N.O. | A/B port: Rc1/8 | Wiring: A2N socket, no lead | Stations: 1
M3GA310R-C8-T10-2-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA310R-C8-T10-3-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA310R-C8-T10-4-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA310R-C8-T10-5-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA310R-C8-T10-6-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA310R-C8-T10-7-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA310R-C8-T10-8-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA310R-C8-T30-2-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA310R-C8-T30-3-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA310R-C8-T30-4-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA310R-C8-T30-5-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA310R-C8-T30-6-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA310R-C8-T30-7-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA310R-C8-T30-8-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA310R-C10-T10-2-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA310R-C10-T10-3-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA310R-C10-T10-4-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA310R-C10-T10-5-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA310R-C10-T10-6-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA310R-C10-T10-7-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA310R-C10-T10-8-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA310R-C10-T30-2-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA310R-C10-T30-3-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA310R-C10-T30-4-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA310R-C10-T30-5-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA310R-C10-T30-6-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA310R-C10-T30-7-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA310R-C10-T30-8-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA310R-08-T10-2-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA310R-08-T10-3-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA310R-08-T10-4-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA310R-08-T10-5-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA310R-08-T10-6-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA310R-08-T10-7-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA310R-08-T10-8-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA310R-08-T30-2-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA310R-08-T30-3-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA310R-08-T30-4-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA310R-08-T30-5-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA310R-08-T30-6-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA310R-08-T30-7-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA310R-08-T30-8-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA3110R-C8-T10-2-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA3110R-C8-T10-3-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA3110R-C8-T10-4-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA3110R-C8-T10-5-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA3110R-C8-T10-6-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA3110R-C8-T10-7-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA3110R-C8-T10-8-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA3110R-C8-T30-2-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA3110R-C8-T30-3-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA3110R-C8-T30-4-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA3110R-C8-T30-5-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA3110R-C8-T30-6-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA3110R-C8-T30-7-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA3110R-C8-T30-8-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA3110R-C10-T10-2-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA3110R-C10-T10-3-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA3110R-C10-T10-4-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA3110R-C10-T10-5-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA3110R-C10-T10-6-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA3110R-C10-T10-7-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA3110R-C10-T10-8-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA3110R-C10-T30-2-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA3110R-C10-T30-3-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA3110R-C10-T30-4-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA3110R-C10-T30-5-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA3110R-C10-T30-6-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA3110R-C10-T30-7-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA3110R-C10-T30-8-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA3110R-08-T10-2-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA3110R-08-T10-3-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA3110R-08-T10-4-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA3110R-08-T10-5-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA3110R-08-T10-6-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA3110R-08-T10-7-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA3110R-08-T10-8-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA3110R-08-T30-2-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA3110R-08-T30-3-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA3110R-08-T30-4-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA3110R-08-T30-5-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA3110R-08-T30-6-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA3110R-08-T30-7-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA3110R-08-T30-8-3-FP1Item: Manifold | Model: M3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: D-sub 25-pin (T30) | Stations: 8
3GA319R-C8-A2N-3-FP1Item: Valve for manifold | Model: 3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
3GA319R-C10-A2N-3-FP1Item: Valve for manifold | Model: 3GA3 | Switching: 2-pos single, N.C. | A/B port: One-touch 10 mm | Wiring: A2N socket, no lead | Stations: 1
3GA319R-08-A2N-3-FP1Item: Valve for manifold | Model: 3GA3 | Switching: 2-pos single, N.C. | A/B port: Rc1/4 | Wiring: A2N socket, no lead | Stations: 1
3GA3119R-C8-A2N-3-FP1Item: Valve for manifold | Model: 3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 8 mm | Wiring: A2N socket, no lead | Stations: 1
3GA3119R-C10-A2N-3-FP1Item: Valve for manifold | Model: 3GA3 | Switching: 2-pos single, N.O. | A/B port: One-touch 10 mm | Wiring: A2N socket, no lead | Stations: 1
3GA3119R-08-A2N-3-FP1Item: Valve for manifold | Model: 3GA3 | Switching: 2-pos single, N.O. | A/B port: Rc1/4 | Wiring: A2N socket, no lead | Stations: 1

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
