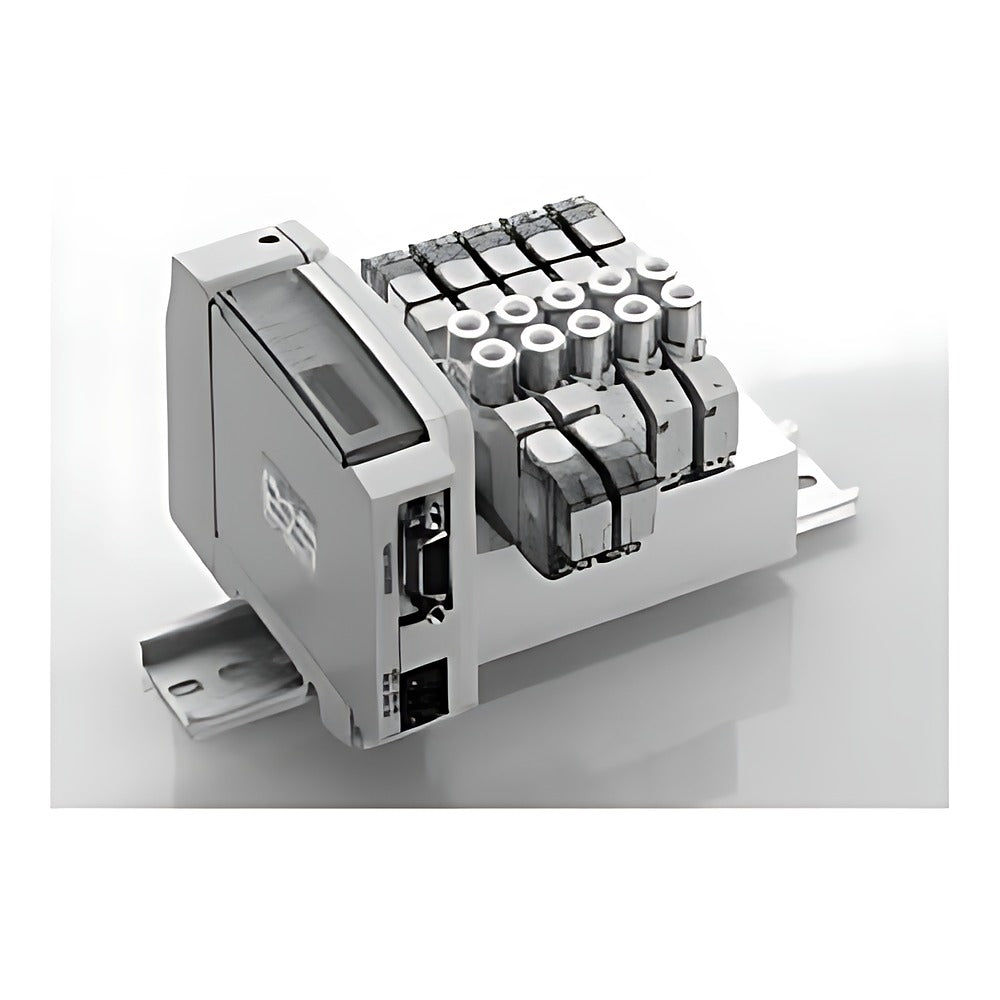

CKD M3GA-T Wiring-Saving Manifold, Direct Piping (Clean P70)

CKD M3GA-T Wiring-Saving Manifold, Direct Piping (Clean P70)

Clean-room (P70) CKD M3GA1/2/3-T wiring-saving manifolds mount 3GA 3-port pilot solenoid valves (N.C., N.O., dual 3-port) on an integrated metal base with direct piping.

Key features

  • Clean spec P70: dust-generation prevention, exhaust piped out of the clean room; P74 adds copper/silicone/halogen-free material (made-to-order)
  • 3-port 2-position single N.C./N.O.; dual 3-port valves (66/67/76/77) on 3GA1 and 3GA2
  • Collective wiring by terminal block, D-sub, flat cable or serial transmission
  • Max 20 stations (3GA1/3GA2), 16 stations (3GA3)
  • Mixing with 5-port valves uses code M4GA*80R

Specifications

Manifold type Wiring-saving integrated metal base
Mounting Direct mount (standard); DIN rail option D
Operating pressure 0.2 to 0.7 MPa (internal pilot)
Proof pressure 1.05 MPa
Ambient / fluid temp. -5 to 55 C / 5 to 55 C
Voltage (code 3) DC24V (DC12V = code 4)
Valve type Pilot-operated soft spool
Clean spec P70: dust-proof, exhaust treatment
Source CKD Korea catalog CB-033S-4, p. 547-568
M3GA110R-C4-T10-2-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA110R-C4-T10-3-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA110R-C4-T10-4-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA110R-C4-T10-5-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA110R-C4-T10-6-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA110R-C4-T10-7-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA110R-C4-T10-8-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA110R-C4-T10-9-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA110R-C4-T10-10-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA110R-C4-T10-11-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA110R-C4-T10-12-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA110R-C4-T10-13-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA110R-C4-T10-14-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA110R-C4-T10-15-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA110R-C4-T10-16-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA110R-C4-T30-2-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA110R-C4-T30-3-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA110R-C4-T30-4-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA110R-C4-T30-5-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA110R-C4-T30-6-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA110R-C4-T30-7-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA110R-C4-T30-8-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA110R-C4-T30-9-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA110R-C4-T30-10-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA110R-C4-T30-11-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA110R-C4-T30-12-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA110R-C4-T30-13-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA110R-C4-T30-14-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA110R-C4-T30-15-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA110R-C4-T30-16-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA110R-C4-T30-17-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA110R-C4-T30-18-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA110R-C4-T30-19-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA110R-C4-T30-20-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA110R-C6-T10-2-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA110R-C6-T10-3-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA110R-C6-T10-4-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA110R-C6-T10-5-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA110R-C6-T10-6-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA110R-C6-T10-7-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA110R-C6-T10-8-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA110R-C6-T10-9-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA110R-C6-T10-10-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA110R-C6-T10-11-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA110R-C6-T10-12-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA110R-C6-T10-13-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA110R-C6-T10-14-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA110R-C6-T10-15-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA110R-C6-T10-16-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA110R-C6-T30-2-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA110R-C6-T30-3-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA110R-C6-T30-4-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA110R-C6-T30-5-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA110R-C6-T30-6-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA110R-C6-T30-7-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA110R-C6-T30-8-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA110R-C6-T30-9-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA110R-C6-T30-10-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA110R-C6-T30-11-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA110R-C6-T30-12-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA110R-C6-T30-13-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA110R-C6-T30-14-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA110R-C6-T30-15-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA110R-C6-T30-16-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA110R-C6-T30-17-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA110R-C6-T30-18-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA110R-C6-T30-19-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA110R-C6-T30-20-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA1110R-C4-T10-2-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1110R-C4-T10-3-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1110R-C4-T10-4-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1110R-C4-T10-5-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1110R-C4-T10-6-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1110R-C4-T10-7-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1110R-C4-T10-8-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1110R-C4-T10-9-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA1110R-C4-T10-10-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA1110R-C4-T10-11-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA1110R-C4-T10-12-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA1110R-C4-T10-13-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA1110R-C4-T10-14-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA1110R-C4-T10-15-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA1110R-C4-T10-16-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA1110R-C4-T30-2-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1110R-C4-T30-3-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1110R-C4-T30-4-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1110R-C4-T30-5-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1110R-C4-T30-6-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1110R-C4-T30-7-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1110R-C4-T30-8-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1110R-C4-T30-9-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA1110R-C4-T30-10-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA1110R-C4-T30-11-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA1110R-C4-T30-12-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA1110R-C4-T30-13-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA1110R-C4-T30-14-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA1110R-C4-T30-15-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA1110R-C4-T30-16-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA1110R-C4-T30-17-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA1110R-C4-T30-18-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA1110R-C4-T30-19-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA1110R-C4-T30-20-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA1110R-C6-T10-2-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1110R-C6-T10-3-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1110R-C6-T10-4-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1110R-C6-T10-5-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1110R-C6-T10-6-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1110R-C6-T10-7-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1110R-C6-T10-8-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1110R-C6-T10-9-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA1110R-C6-T10-10-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA1110R-C6-T10-11-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA1110R-C6-T10-12-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA1110R-C6-T10-13-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA1110R-C6-T10-14-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA1110R-C6-T10-15-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA1110R-C6-T10-16-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA1110R-C6-T30-2-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1110R-C6-T30-3-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1110R-C6-T30-4-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1110R-C6-T30-5-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1110R-C6-T30-6-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1110R-C6-T30-7-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1110R-C6-T30-8-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1110R-C6-T30-9-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA1110R-C6-T30-10-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA1110R-C6-T30-11-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA1110R-C6-T30-12-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA1110R-C6-T30-13-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA1110R-C6-T30-14-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA1110R-C6-T30-15-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA1110R-C6-T30-16-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA1110R-C6-T30-17-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA1110R-C6-T30-18-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA1110R-C6-T30-19-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA1110R-C6-T30-20-3-P70 Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA1660R-C4-T10-2-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1660R-C4-T10-3-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1660R-C4-T10-4-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1660R-C4-T10-5-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1660R-C4-T10-6-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1660R-C4-T10-7-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1660R-C4-T10-8-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1660R-C4-T30-2-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1660R-C4-T30-3-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1660R-C4-T30-4-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1660R-C4-T30-5-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1660R-C4-T30-6-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1660R-C4-T30-7-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1660R-C4-T30-8-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1660R-C4-T30-9-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA1660R-C4-T30-10-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA1660R-C4-T30-11-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA1660R-C4-T30-12-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA1660R-C6-T10-2-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1660R-C6-T10-3-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1660R-C6-T10-4-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1660R-C6-T10-5-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1660R-C6-T10-6-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1660R-C6-T10-7-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1660R-C6-T10-8-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1660R-C6-T30-2-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1660R-C6-T30-3-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1660R-C6-T30-4-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1660R-C6-T30-5-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1660R-C6-T30-6-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1660R-C6-T30-7-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1660R-C6-T30-8-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1660R-C6-T30-9-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA1660R-C6-T30-10-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA1660R-C6-T30-11-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA1660R-C6-T30-12-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA1670R-C4-T10-2-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1670R-C4-T10-3-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1670R-C4-T10-4-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1670R-C4-T10-5-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1670R-C4-T10-6-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1670R-C4-T10-7-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1670R-C4-T10-8-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1670R-C4-T30-2-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1670R-C4-T30-3-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1670R-C4-T30-4-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1670R-C4-T30-5-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1670R-C4-T30-6-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1670R-C4-T30-7-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1670R-C4-T30-8-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1670R-C4-T30-9-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA1670R-C4-T30-10-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA1670R-C4-T30-11-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA1670R-C4-T30-12-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA1670R-C6-T10-2-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1670R-C6-T10-3-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1670R-C6-T10-4-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1670R-C6-T10-5-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1670R-C6-T10-6-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1670R-C6-T10-7-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1670R-C6-T10-8-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1670R-C6-T30-2-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1670R-C6-T30-3-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1670R-C6-T30-4-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1670R-C6-T30-5-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1670R-C6-T30-6-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1670R-C6-T30-7-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1670R-C6-T30-8-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1670R-C6-T30-9-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA1670R-C6-T30-10-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA1670R-C6-T30-11-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA1670R-C6-T30-12-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA1760R-C4-T10-2-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1760R-C4-T10-3-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1760R-C4-T10-4-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1760R-C4-T10-5-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1760R-C4-T10-6-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1760R-C4-T10-7-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1760R-C4-T10-8-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1760R-C4-T30-2-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1760R-C4-T30-3-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1760R-C4-T30-4-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1760R-C4-T30-5-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1760R-C4-T30-6-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1760R-C4-T30-7-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1760R-C4-T30-8-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1760R-C4-T30-9-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA1760R-C4-T30-10-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA1760R-C4-T30-11-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA1760R-C4-T30-12-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA1760R-C6-T10-2-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1760R-C6-T10-3-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1760R-C6-T10-4-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1760R-C6-T10-5-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1760R-C6-T10-6-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1760R-C6-T10-7-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1760R-C6-T10-8-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1760R-C6-T30-2-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1760R-C6-T30-3-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1760R-C6-T30-4-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1760R-C6-T30-5-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1760R-C6-T30-6-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1760R-C6-T30-7-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1760R-C6-T30-8-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1760R-C6-T30-9-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA1760R-C6-T30-10-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA1760R-C6-T30-11-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA1760R-C6-T30-12-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA1770R-C4-T10-2-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1770R-C4-T10-3-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1770R-C4-T10-4-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1770R-C4-T10-5-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1770R-C4-T10-6-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1770R-C4-T10-7-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1770R-C4-T10-8-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1770R-C4-T30-2-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1770R-C4-T30-3-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1770R-C4-T30-4-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1770R-C4-T30-5-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1770R-C4-T30-6-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1770R-C4-T30-7-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1770R-C4-T30-8-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1770R-C4-T30-9-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA1770R-C4-T30-10-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA1770R-C4-T30-11-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA1770R-C4-T30-12-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA1770R-C6-T10-2-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1770R-C6-T10-3-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1770R-C6-T10-4-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1770R-C6-T10-5-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1770R-C6-T10-6-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1770R-C6-T10-7-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1770R-C6-T10-8-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1770R-C6-T30-2-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1770R-C6-T30-3-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1770R-C6-T30-4-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1770R-C6-T30-5-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1770R-C6-T30-6-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1770R-C6-T30-7-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1770R-C6-T30-8-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1770R-C6-T30-9-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA1770R-C6-T30-10-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA1770R-C6-T30-11-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA1770R-C6-T30-12-3-P70 Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA180R-C4-T10-2-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA180R-C4-T10-3-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA180R-C4-T10-4-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA180R-C4-T10-5-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA180R-C4-T10-6-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA180R-C4-T10-7-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA180R-C4-T10-8-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA180R-C4-T10-9-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA180R-C4-T10-10-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA180R-C4-T10-11-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA180R-C4-T10-12-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA180R-C4-T10-13-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA180R-C4-T10-14-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA180R-C4-T10-15-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA180R-C4-T10-16-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA180R-C4-T30-2-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA180R-C4-T30-3-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA180R-C4-T30-4-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA180R-C4-T30-5-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA180R-C4-T30-6-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA180R-C4-T30-7-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA180R-C4-T30-8-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA180R-C4-T30-9-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA180R-C4-T30-10-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA180R-C4-T30-11-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA180R-C4-T30-12-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA180R-C4-T30-13-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA180R-C4-T30-14-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA180R-C4-T30-15-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA180R-C4-T30-16-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA180R-C4-T30-17-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA180R-C4-T30-18-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA180R-C4-T30-19-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA180R-C4-T30-20-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA180R-C6-T10-2-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA180R-C6-T10-3-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA180R-C6-T10-4-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA180R-C6-T10-5-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA180R-C6-T10-6-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA180R-C6-T10-7-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA180R-C6-T10-8-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA180R-C6-T10-9-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA180R-C6-T10-10-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA180R-C6-T10-11-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA180R-C6-T10-12-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA180R-C6-T10-13-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA180R-C6-T10-14-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA180R-C6-T10-15-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA180R-C6-T10-16-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA180R-C6-T30-2-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA180R-C6-T30-3-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA180R-C6-T30-4-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA180R-C6-T30-5-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA180R-C6-T30-6-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA180R-C6-T30-7-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA180R-C6-T30-8-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA180R-C6-T30-9-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA180R-C6-T30-10-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA180R-C6-T30-11-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA180R-C6-T30-12-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA180R-C6-T30-13-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA180R-C6-T30-14-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA180R-C6-T30-15-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA180R-C6-T30-16-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA180R-C6-T30-17-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA180R-C6-T30-18-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA180R-C6-T30-19-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA180R-C6-T30-20-3-P70 Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
3GA119R-C4-A2N-3-P70 Model: 3GA1 single valve | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA119R-C6-A2N-3-P70 Model: 3GA1 single valve | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA1119R-C4-A2N-3-P70 Model: 3GA1 single valve | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA1119R-C6-A2N-3-P70 Model: 3GA1 single valve | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA1669R-C4-A2N-3-P70 Model: 3GA1 single valve | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA1669R-C6-A2N-3-P70 Model: 3GA1 single valve | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA1679R-C4-A2N-3-P70 Model: 3GA1 single valve | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA1679R-C6-A2N-3-P70 Model: 3GA1 single valve | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA1769R-C4-A2N-3-P70 Model: 3GA1 single valve | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA1769R-C6-A2N-3-P70 Model: 3GA1 single valve | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA1779R-C4-A2N-3-P70 Model: 3GA1 single valve | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA1779R-C6-A2N-3-P70 Model: 3GA1 single valve | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
M3GA210R-C4-T10-2-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA210R-C4-T10-3-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA210R-C4-T10-4-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA210R-C4-T10-5-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA210R-C4-T10-6-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA210R-C4-T10-7-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA210R-C4-T10-8-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA210R-C4-T10-9-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA210R-C4-T10-10-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA210R-C4-T10-11-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA210R-C4-T10-12-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA210R-C4-T10-13-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA210R-C4-T10-14-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA210R-C4-T10-15-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA210R-C4-T10-16-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA210R-C4-T30-2-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA210R-C4-T30-3-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA210R-C4-T30-4-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA210R-C4-T30-5-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA210R-C4-T30-6-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA210R-C4-T30-7-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA210R-C4-T30-8-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA210R-C4-T30-9-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA210R-C4-T30-10-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA210R-C4-T30-11-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA210R-C4-T30-12-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA210R-C4-T30-13-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA210R-C4-T30-14-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA210R-C4-T30-15-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA210R-C4-T30-16-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA210R-C4-T30-17-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA210R-C4-T30-18-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA210R-C4-T30-19-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA210R-C4-T30-20-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA210R-C6-T10-2-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA210R-C6-T10-3-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA210R-C6-T10-4-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA210R-C6-T10-5-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA210R-C6-T10-6-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA210R-C6-T10-7-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA210R-C6-T10-8-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA210R-C6-T10-9-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA210R-C6-T10-10-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA210R-C6-T10-11-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA210R-C6-T10-12-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA210R-C6-T10-13-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA210R-C6-T10-14-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA210R-C6-T10-15-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA210R-C6-T10-16-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA210R-C6-T30-2-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA210R-C6-T30-3-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA210R-C6-T30-4-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA210R-C6-T30-5-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA210R-C6-T30-6-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA210R-C6-T30-7-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA210R-C6-T30-8-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA210R-C6-T30-9-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA210R-C6-T30-10-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA210R-C6-T30-11-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA210R-C6-T30-12-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA210R-C6-T30-13-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA210R-C6-T30-14-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA210R-C6-T30-15-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA210R-C6-T30-16-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA210R-C6-T30-17-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA210R-C6-T30-18-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA210R-C6-T30-19-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA210R-C6-T30-20-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA210R-C8-T10-2-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA210R-C8-T10-3-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA210R-C8-T10-4-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA210R-C8-T10-5-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA210R-C8-T10-6-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA210R-C8-T10-7-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA210R-C8-T10-8-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA210R-C8-T10-9-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA210R-C8-T10-10-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA210R-C8-T10-11-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA210R-C8-T10-12-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA210R-C8-T10-13-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA210R-C8-T10-14-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA210R-C8-T10-15-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA210R-C8-T10-16-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA210R-C8-T30-2-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA210R-C8-T30-3-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA210R-C8-T30-4-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA210R-C8-T30-5-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA210R-C8-T30-6-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA210R-C8-T30-7-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA210R-C8-T30-8-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA210R-C8-T30-9-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA210R-C8-T30-10-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA210R-C8-T30-11-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA210R-C8-T30-12-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA210R-C8-T30-13-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA210R-C8-T30-14-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA210R-C8-T30-15-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA210R-C8-T30-16-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA210R-C8-T30-17-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA210R-C8-T30-18-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA210R-C8-T30-19-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA210R-C8-T30-20-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA2110R-C4-T10-2-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2110R-C4-T10-3-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2110R-C4-T10-4-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2110R-C4-T10-5-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2110R-C4-T10-6-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2110R-C4-T10-7-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2110R-C4-T10-8-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2110R-C4-T10-9-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA2110R-C4-T10-10-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA2110R-C4-T10-11-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA2110R-C4-T10-12-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA2110R-C4-T10-13-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA2110R-C4-T10-14-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA2110R-C4-T10-15-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA2110R-C4-T10-16-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA2110R-C4-T30-2-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2110R-C4-T30-3-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2110R-C4-T30-4-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2110R-C4-T30-5-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2110R-C4-T30-6-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2110R-C4-T30-7-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2110R-C4-T30-8-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2110R-C4-T30-9-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2110R-C4-T30-10-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2110R-C4-T30-11-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2110R-C4-T30-12-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2110R-C4-T30-13-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA2110R-C4-T30-14-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA2110R-C4-T30-15-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA2110R-C4-T30-16-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA2110R-C4-T30-17-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA2110R-C4-T30-18-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA2110R-C4-T30-19-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA2110R-C4-T30-20-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA2110R-C6-T10-2-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2110R-C6-T10-3-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2110R-C6-T10-4-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2110R-C6-T10-5-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2110R-C6-T10-6-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2110R-C6-T10-7-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2110R-C6-T10-8-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2110R-C6-T10-9-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA2110R-C6-T10-10-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA2110R-C6-T10-11-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA2110R-C6-T10-12-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA2110R-C6-T10-13-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA2110R-C6-T10-14-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA2110R-C6-T10-15-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA2110R-C6-T10-16-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA2110R-C6-T30-2-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2110R-C6-T30-3-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2110R-C6-T30-4-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2110R-C6-T30-5-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2110R-C6-T30-6-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2110R-C6-T30-7-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2110R-C6-T30-8-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2110R-C6-T30-9-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2110R-C6-T30-10-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2110R-C6-T30-11-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2110R-C6-T30-12-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2110R-C6-T30-13-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA2110R-C6-T30-14-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA2110R-C6-T30-15-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA2110R-C6-T30-16-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA2110R-C6-T30-17-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA2110R-C6-T30-18-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA2110R-C6-T30-19-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA2110R-C6-T30-20-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA2110R-C8-T10-2-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2110R-C8-T10-3-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2110R-C8-T10-4-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2110R-C8-T10-5-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2110R-C8-T10-6-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2110R-C8-T10-7-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2110R-C8-T10-8-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2110R-C8-T10-9-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA2110R-C8-T10-10-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA2110R-C8-T10-11-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA2110R-C8-T10-12-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA2110R-C8-T10-13-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA2110R-C8-T10-14-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA2110R-C8-T10-15-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA2110R-C8-T10-16-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA2110R-C8-T30-2-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2110R-C8-T30-3-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2110R-C8-T30-4-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2110R-C8-T30-5-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2110R-C8-T30-6-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2110R-C8-T30-7-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2110R-C8-T30-8-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2110R-C8-T30-9-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2110R-C8-T30-10-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2110R-C8-T30-11-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2110R-C8-T30-12-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2110R-C8-T30-13-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA2110R-C8-T30-14-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA2110R-C8-T30-15-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA2110R-C8-T30-16-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA2110R-C8-T30-17-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA2110R-C8-T30-18-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA2110R-C8-T30-19-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA2110R-C8-T30-20-3-P70 Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA2660R-C4-T10-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2660R-C4-T10-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2660R-C4-T10-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2660R-C4-T10-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2660R-C4-T10-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2660R-C4-T10-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2660R-C4-T10-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2660R-C4-T30-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2660R-C4-T30-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2660R-C4-T30-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2660R-C4-T30-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2660R-C4-T30-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2660R-C4-T30-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2660R-C4-T30-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2660R-C4-T30-9-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2660R-C4-T30-10-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2660R-C4-T30-11-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2660R-C4-T30-12-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2660R-C6-T10-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2660R-C6-T10-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2660R-C6-T10-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2660R-C6-T10-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2660R-C6-T10-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2660R-C6-T10-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2660R-C6-T10-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2660R-C6-T30-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2660R-C6-T30-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2660R-C6-T30-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2660R-C6-T30-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2660R-C6-T30-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2660R-C6-T30-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2660R-C6-T30-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2660R-C6-T30-9-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2660R-C6-T30-10-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2660R-C6-T30-11-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2660R-C6-T30-12-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2660R-C8-T10-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2660R-C8-T10-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2660R-C8-T10-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2660R-C8-T10-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2660R-C8-T10-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2660R-C8-T10-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2660R-C8-T10-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2660R-C8-T30-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2660R-C8-T30-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2660R-C8-T30-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2660R-C8-T30-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2660R-C8-T30-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2660R-C8-T30-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2660R-C8-T30-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2660R-C8-T30-9-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2660R-C8-T30-10-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2660R-C8-T30-11-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2660R-C8-T30-12-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2670R-C4-T10-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2670R-C4-T10-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2670R-C4-T10-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2670R-C4-T10-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2670R-C4-T10-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2670R-C4-T10-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2670R-C4-T10-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2670R-C4-T30-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2670R-C4-T30-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2670R-C4-T30-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2670R-C4-T30-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2670R-C4-T30-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2670R-C4-T30-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2670R-C4-T30-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2670R-C4-T30-9-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2670R-C4-T30-10-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2670R-C4-T30-11-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2670R-C4-T30-12-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2670R-C6-T10-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2670R-C6-T10-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2670R-C6-T10-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2670R-C6-T10-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2670R-C6-T10-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2670R-C6-T10-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2670R-C6-T10-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2670R-C6-T30-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2670R-C6-T30-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2670R-C6-T30-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2670R-C6-T30-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2670R-C6-T30-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2670R-C6-T30-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2670R-C6-T30-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2670R-C6-T30-9-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2670R-C6-T30-10-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2670R-C6-T30-11-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2670R-C6-T30-12-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2670R-C8-T10-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2670R-C8-T10-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2670R-C8-T10-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2670R-C8-T10-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2670R-C8-T10-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2670R-C8-T10-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2670R-C8-T10-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2670R-C8-T30-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2670R-C8-T30-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2670R-C8-T30-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2670R-C8-T30-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2670R-C8-T30-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2670R-C8-T30-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2670R-C8-T30-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2670R-C8-T30-9-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2670R-C8-T30-10-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2670R-C8-T30-11-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2670R-C8-T30-12-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2760R-C4-T10-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2760R-C4-T10-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2760R-C4-T10-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2760R-C4-T10-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2760R-C4-T10-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2760R-C4-T10-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2760R-C4-T10-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2760R-C4-T30-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2760R-C4-T30-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2760R-C4-T30-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2760R-C4-T30-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2760R-C4-T30-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2760R-C4-T30-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2760R-C4-T30-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2760R-C4-T30-9-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2760R-C4-T30-10-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2760R-C4-T30-11-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2760R-C4-T30-12-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2760R-C6-T10-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2760R-C6-T10-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2760R-C6-T10-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2760R-C6-T10-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2760R-C6-T10-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2760R-C6-T10-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2760R-C6-T10-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2760R-C6-T30-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2760R-C6-T30-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2760R-C6-T30-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2760R-C6-T30-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2760R-C6-T30-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2760R-C6-T30-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2760R-C6-T30-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2760R-C6-T30-9-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2760R-C6-T30-10-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2760R-C6-T30-11-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2760R-C6-T30-12-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2760R-C8-T10-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2760R-C8-T10-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2760R-C8-T10-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2760R-C8-T10-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2760R-C8-T10-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2760R-C8-T10-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2760R-C8-T10-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2760R-C8-T30-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2760R-C8-T30-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2760R-C8-T30-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2760R-C8-T30-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2760R-C8-T30-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2760R-C8-T30-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2760R-C8-T30-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2760R-C8-T30-9-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2760R-C8-T30-10-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2760R-C8-T30-11-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2760R-C8-T30-12-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2770R-C4-T10-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2770R-C4-T10-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2770R-C4-T10-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2770R-C4-T10-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2770R-C4-T10-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2770R-C4-T10-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2770R-C4-T10-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2770R-C4-T30-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2770R-C4-T30-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2770R-C4-T30-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2770R-C4-T30-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2770R-C4-T30-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2770R-C4-T30-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2770R-C4-T30-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2770R-C4-T30-9-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2770R-C4-T30-10-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2770R-C4-T30-11-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2770R-C4-T30-12-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2770R-C6-T10-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2770R-C6-T10-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2770R-C6-T10-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2770R-C6-T10-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2770R-C6-T10-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2770R-C6-T10-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2770R-C6-T10-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2770R-C6-T30-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2770R-C6-T30-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2770R-C6-T30-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2770R-C6-T30-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2770R-C6-T30-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2770R-C6-T30-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2770R-C6-T30-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2770R-C6-T30-9-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2770R-C6-T30-10-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2770R-C6-T30-11-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2770R-C6-T30-12-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2770R-C8-T10-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2770R-C8-T10-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2770R-C8-T10-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2770R-C8-T10-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2770R-C8-T10-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2770R-C8-T10-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2770R-C8-T10-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2770R-C8-T30-2-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2770R-C8-T30-3-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2770R-C8-T30-4-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2770R-C8-T30-5-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2770R-C8-T30-6-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2770R-C8-T30-7-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2770R-C8-T30-8-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2770R-C8-T30-9-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2770R-C8-T30-10-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2770R-C8-T30-11-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2770R-C8-T30-12-3-P70 Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA280R-C4-T10-2-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA280R-C4-T10-3-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA280R-C4-T10-4-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA280R-C4-T10-5-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA280R-C4-T10-6-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA280R-C4-T10-7-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA280R-C4-T10-8-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA280R-C4-T10-9-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA280R-C4-T10-10-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA280R-C4-T10-11-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA280R-C4-T10-12-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA280R-C4-T10-13-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA280R-C4-T10-14-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA280R-C4-T10-15-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA280R-C4-T10-16-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA280R-C4-T30-2-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA280R-C4-T30-3-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA280R-C4-T30-4-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA280R-C4-T30-5-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA280R-C4-T30-6-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA280R-C4-T30-7-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA280R-C4-T30-8-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA280R-C4-T30-9-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA280R-C4-T30-10-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA280R-C4-T30-11-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA280R-C4-T30-12-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA280R-C4-T30-13-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA280R-C4-T30-14-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA280R-C4-T30-15-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA280R-C4-T30-16-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA280R-C4-T30-17-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA280R-C4-T30-18-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA280R-C4-T30-19-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA280R-C4-T30-20-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA280R-C6-T10-2-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA280R-C6-T10-3-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA280R-C6-T10-4-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA280R-C6-T10-5-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA280R-C6-T10-6-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA280R-C6-T10-7-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA280R-C6-T10-8-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA280R-C6-T10-9-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA280R-C6-T10-10-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA280R-C6-T10-11-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA280R-C6-T10-12-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA280R-C6-T10-13-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA280R-C6-T10-14-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA280R-C6-T10-15-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA280R-C6-T10-16-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA280R-C6-T30-2-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA280R-C6-T30-3-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA280R-C6-T30-4-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA280R-C6-T30-5-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA280R-C6-T30-6-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA280R-C6-T30-7-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA280R-C6-T30-8-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA280R-C6-T30-9-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA280R-C6-T30-10-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA280R-C6-T30-11-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA280R-C6-T30-12-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA280R-C6-T30-13-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA280R-C6-T30-14-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA280R-C6-T30-15-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA280R-C6-T30-16-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA280R-C6-T30-17-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA280R-C6-T30-18-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA280R-C6-T30-19-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA280R-C6-T30-20-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA280R-C8-T10-2-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA280R-C8-T10-3-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA280R-C8-T10-4-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA280R-C8-T10-5-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA280R-C8-T10-6-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA280R-C8-T10-7-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA280R-C8-T10-8-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA280R-C8-T10-9-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA280R-C8-T10-10-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA280R-C8-T10-11-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA280R-C8-T10-12-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA280R-C8-T10-13-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA280R-C8-T10-14-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA280R-C8-T10-15-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA280R-C8-T10-16-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA280R-C8-T30-2-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA280R-C8-T30-3-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA280R-C8-T30-4-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA280R-C8-T30-5-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA280R-C8-T30-6-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA280R-C8-T30-7-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA280R-C8-T30-8-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA280R-C8-T30-9-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA280R-C8-T30-10-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA280R-C8-T30-11-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA280R-C8-T30-12-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA280R-C8-T30-13-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA280R-C8-T30-14-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA280R-C8-T30-15-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA280R-C8-T30-16-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA280R-C8-T30-17-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA280R-C8-T30-18-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA280R-C8-T30-19-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA280R-C8-T30-20-3-P70 Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
3GA219R-C4-A2N-3-P70 Model: 3GA2 single valve | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA219R-C6-A2N-3-P70 Model: 3GA2 single valve | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA219R-C8-A2N-3-P70 Model: 3GA2 single valve | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2119R-C4-A2N-3-P70 Model: 3GA2 single valve | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2119R-C6-A2N-3-P70 Model: 3GA2 single valve | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2119R-C8-A2N-3-P70 Model: 3GA2 single valve | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2669R-C4-A2N-3-P70 Model: 3GA2 single valve | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2669R-C6-A2N-3-P70 Model: 3GA2 single valve | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2669R-C8-A2N-3-P70 Model: 3GA2 single valve | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2679R-C4-A2N-3-P70 Model: 3GA2 single valve | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2679R-C6-A2N-3-P70 Model: 3GA2 single valve | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2679R-C8-A2N-3-P70 Model: 3GA2 single valve | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2769R-C4-A2N-3-P70 Model: 3GA2 single valve | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2769R-C6-A2N-3-P70 Model: 3GA2 single valve | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2769R-C8-A2N-3-P70 Model: 3GA2 single valve | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2779R-C4-A2N-3-P70 Model: 3GA2 single valve | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2779R-C6-A2N-3-P70 Model: 3GA2 single valve | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2779R-C8-A2N-3-P70 Model: 3GA2 single valve | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
M3GA310R-C6-T10-2-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA310R-C6-T10-3-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA310R-C6-T10-4-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA310R-C6-T10-5-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA310R-C6-T10-6-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA310R-C6-T10-7-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA310R-C6-T10-8-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA310R-C6-T10-9-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA310R-C6-T10-10-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA310R-C6-T10-11-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA310R-C6-T10-12-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA310R-C6-T10-13-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA310R-C6-T10-14-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA310R-C6-T10-15-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA310R-C6-T10-16-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA310R-C6-T30-2-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA310R-C6-T30-3-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA310R-C6-T30-4-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA310R-C6-T30-5-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA310R-C6-T30-6-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA310R-C6-T30-7-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA310R-C6-T30-8-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA310R-C6-T30-9-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA310R-C6-T30-10-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA310R-C6-T30-11-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA310R-C6-T30-12-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA310R-C6-T30-13-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA310R-C6-T30-14-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA310R-C6-T30-15-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA310R-C6-T30-16-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA310R-C8-T10-2-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA310R-C8-T10-3-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA310R-C8-T10-4-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA310R-C8-T10-5-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA310R-C8-T10-6-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA310R-C8-T10-7-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA310R-C8-T10-8-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA310R-C8-T10-9-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA310R-C8-T10-10-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA310R-C8-T10-11-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA310R-C8-T10-12-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA310R-C8-T10-13-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA310R-C8-T10-14-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA310R-C8-T10-15-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA310R-C8-T10-16-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA310R-C8-T30-2-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA310R-C8-T30-3-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA310R-C8-T30-4-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA310R-C8-T30-5-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA310R-C8-T30-6-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA310R-C8-T30-7-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA310R-C8-T30-8-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA310R-C8-T30-9-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA310R-C8-T30-10-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA310R-C8-T30-11-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA310R-C8-T30-12-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA310R-C8-T30-13-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA310R-C8-T30-14-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA310R-C8-T30-15-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA310R-C8-T30-16-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA310R-C10-T10-2-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA310R-C10-T10-3-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA310R-C10-T10-4-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA310R-C10-T10-5-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA310R-C10-T10-6-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA310R-C10-T10-7-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA310R-C10-T10-8-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA310R-C10-T10-9-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA310R-C10-T10-10-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA310R-C10-T10-11-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA310R-C10-T10-12-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA310R-C10-T10-13-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA310R-C10-T10-14-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA310R-C10-T10-15-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA310R-C10-T10-16-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA310R-C10-T30-2-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA310R-C10-T30-3-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA310R-C10-T30-4-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA310R-C10-T30-5-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA310R-C10-T30-6-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA310R-C10-T30-7-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA310R-C10-T30-8-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA310R-C10-T30-9-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA310R-C10-T30-10-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA310R-C10-T30-11-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA310R-C10-T30-12-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA310R-C10-T30-13-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA310R-C10-T30-14-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA310R-C10-T30-15-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA310R-C10-T30-16-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA3110R-C6-T10-2-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA3110R-C6-T10-3-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA3110R-C6-T10-4-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA3110R-C6-T10-5-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA3110R-C6-T10-6-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA3110R-C6-T10-7-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA3110R-C6-T10-8-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA3110R-C6-T10-9-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA3110R-C6-T10-10-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA3110R-C6-T10-11-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA3110R-C6-T10-12-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA3110R-C6-T10-13-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA3110R-C6-T10-14-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA3110R-C6-T10-15-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA3110R-C6-T10-16-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA3110R-C6-T30-2-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA3110R-C6-T30-3-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA3110R-C6-T30-4-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA3110R-C6-T30-5-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA3110R-C6-T30-6-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA3110R-C6-T30-7-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA3110R-C6-T30-8-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA3110R-C6-T30-9-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA3110R-C6-T30-10-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA3110R-C6-T30-11-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA3110R-C6-T30-12-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA3110R-C6-T30-13-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA3110R-C6-T30-14-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA3110R-C6-T30-15-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA3110R-C6-T30-16-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA3110R-C8-T10-2-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA3110R-C8-T10-3-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA3110R-C8-T10-4-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA3110R-C8-T10-5-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA3110R-C8-T10-6-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA3110R-C8-T10-7-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA3110R-C8-T10-8-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA3110R-C8-T10-9-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA3110R-C8-T10-10-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA3110R-C8-T10-11-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA3110R-C8-T10-12-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA3110R-C8-T10-13-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA3110R-C8-T10-14-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA3110R-C8-T10-15-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA3110R-C8-T10-16-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA3110R-C8-T30-2-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA3110R-C8-T30-3-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA3110R-C8-T30-4-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA3110R-C8-T30-5-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA3110R-C8-T30-6-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA3110R-C8-T30-7-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA3110R-C8-T30-8-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA3110R-C8-T30-9-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA3110R-C8-T30-10-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA3110R-C8-T30-11-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA3110R-C8-T30-12-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA3110R-C8-T30-13-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA3110R-C8-T30-14-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA3110R-C8-T30-15-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA3110R-C8-T30-16-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA3110R-C10-T10-2-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA3110R-C10-T10-3-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA3110R-C10-T10-4-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA3110R-C10-T10-5-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA3110R-C10-T10-6-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA3110R-C10-T10-7-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA3110R-C10-T10-8-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA3110R-C10-T10-9-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA3110R-C10-T10-10-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA3110R-C10-T10-11-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA3110R-C10-T10-12-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA3110R-C10-T10-13-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA3110R-C10-T10-14-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA3110R-C10-T10-15-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA3110R-C10-T10-16-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA3110R-C10-T30-2-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA3110R-C10-T30-3-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA3110R-C10-T30-4-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA3110R-C10-T30-5-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA3110R-C10-T30-6-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA3110R-C10-T30-7-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA3110R-C10-T30-8-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA3110R-C10-T30-9-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA3110R-C10-T30-10-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA3110R-C10-T30-11-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA3110R-C10-T30-12-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA3110R-C10-T30-13-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA3110R-C10-T30-14-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA3110R-C10-T30-15-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA3110R-C10-T30-16-3-P70 Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA380R-C6-T10-2-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA380R-C6-T10-3-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA380R-C6-T10-4-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA380R-C6-T10-5-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA380R-C6-T10-6-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA380R-C6-T10-7-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA380R-C6-T10-8-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA380R-C6-T10-9-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA380R-C6-T10-10-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA380R-C6-T10-11-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA380R-C6-T10-12-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA380R-C6-T10-13-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA380R-C6-T10-14-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA380R-C6-T10-15-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA380R-C6-T10-16-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA380R-C6-T30-2-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA380R-C6-T30-3-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA380R-C6-T30-4-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA380R-C6-T30-5-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA380R-C6-T30-6-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA380R-C6-T30-7-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA380R-C6-T30-8-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA380R-C6-T30-9-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA380R-C6-T30-10-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA380R-C6-T30-11-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA380R-C6-T30-12-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA380R-C6-T30-13-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA380R-C6-T30-14-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA380R-C6-T30-15-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA380R-C6-T30-16-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA380R-C8-T10-2-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA380R-C8-T10-3-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA380R-C8-T10-4-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA380R-C8-T10-5-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA380R-C8-T10-6-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA380R-C8-T10-7-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA380R-C8-T10-8-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA380R-C8-T10-9-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA380R-C8-T10-10-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA380R-C8-T10-11-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA380R-C8-T10-12-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA380R-C8-T10-13-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA380R-C8-T10-14-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA380R-C8-T10-15-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA380R-C8-T10-16-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA380R-C8-T30-2-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA380R-C8-T30-3-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA380R-C8-T30-4-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA380R-C8-T30-5-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA380R-C8-T30-6-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA380R-C8-T30-7-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA380R-C8-T30-8-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA380R-C8-T30-9-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA380R-C8-T30-10-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA380R-C8-T30-11-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA380R-C8-T30-12-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA380R-C8-T30-13-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA380R-C8-T30-14-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA380R-C8-T30-15-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA380R-C8-T30-16-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA380R-C10-T10-2-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA380R-C10-T10-3-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA380R-C10-T10-4-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA380R-C10-T10-5-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA380R-C10-T10-6-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA380R-C10-T10-7-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA380R-C10-T10-8-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA380R-C10-T10-9-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA380R-C10-T10-10-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA380R-C10-T10-11-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA380R-C10-T10-12-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA380R-C10-T10-13-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA380R-C10-T10-14-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA380R-C10-T10-15-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA380R-C10-T10-16-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA380R-C10-T30-2-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA380R-C10-T30-3-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA380R-C10-T30-4-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA380R-C10-T30-5-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA380R-C10-T30-6-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA380R-C10-T30-7-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA380R-C10-T30-8-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA380R-C10-T30-9-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA380R-C10-T30-10-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA380R-C10-T30-11-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA380R-C10-T30-12-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA380R-C10-T30-13-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA380R-C10-T30-14-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA380R-C10-T30-15-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA380R-C10-T30-16-3-P70 Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
3GA319R-C6-A2N-3-P70 Model: 3GA3 single valve | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA319R-C8-A2N-3-P70 Model: 3GA3 single valve | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA319R-C10-A2N-3-P70 Model: 3GA3 single valve | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA3119R-C6-A2N-3-P70 Model: 3GA3 single valve | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA3119R-C8-A2N-3-P70 Model: 3GA3 single valve | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA3119R-C10-A2N-3-P70 Model: 3GA3 single valve | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
Valve ManifoldsCKD
1176 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD M3GA-T Wiring-Saving Manifold, Direct Piping (Clean P70)

Brand CKD·Valve Manifolds

Available part numbers (1176)

M3GA110R-C4-T10-2-3-P70, M3GA110R-C4-T10-3-3-P70, M3GA110R-C4-T10-4-3-P70, M3GA110R-C4-T10-5-3-P70, M3GA110R-C4-T10-6-3-P70, M3GA110R-C4-T10-7-3-P70, M3GA110R-C4-T10-8-3-P70, M3GA110R-C4-T10-9-3-P70, M3GA110R-C4-T10-10-3-P70, M3GA110R-C4-T10-11-3-P70 + 1166 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
M3GA110R-C4-T10-2-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA110R-C4-T10-3-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA110R-C4-T10-4-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA110R-C4-T10-5-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA110R-C4-T10-6-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA110R-C4-T10-7-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA110R-C4-T10-8-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA110R-C4-T10-9-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA110R-C4-T10-10-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA110R-C4-T10-11-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA110R-C4-T10-12-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA110R-C4-T10-13-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA110R-C4-T10-14-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA110R-C4-T10-15-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA110R-C4-T10-16-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA110R-C4-T30-2-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA110R-C4-T30-3-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA110R-C4-T30-4-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA110R-C4-T30-5-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA110R-C4-T30-6-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA110R-C4-T30-7-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA110R-C4-T30-8-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA110R-C4-T30-9-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA110R-C4-T30-10-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA110R-C4-T30-11-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA110R-C4-T30-12-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA110R-C4-T30-13-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA110R-C4-T30-14-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA110R-C4-T30-15-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA110R-C4-T30-16-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA110R-C4-T30-17-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA110R-C4-T30-18-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA110R-C4-T30-19-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA110R-C4-T30-20-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA110R-C6-T10-2-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA110R-C6-T10-3-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA110R-C6-T10-4-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA110R-C6-T10-5-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA110R-C6-T10-6-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA110R-C6-T10-7-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA110R-C6-T10-8-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA110R-C6-T10-9-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA110R-C6-T10-10-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA110R-C6-T10-11-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA110R-C6-T10-12-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA110R-C6-T10-13-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA110R-C6-T10-14-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA110R-C6-T10-15-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA110R-C6-T10-16-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA110R-C6-T30-2-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA110R-C6-T30-3-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA110R-C6-T30-4-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA110R-C6-T30-5-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA110R-C6-T30-6-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA110R-C6-T30-7-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA110R-C6-T30-8-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA110R-C6-T30-9-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA110R-C6-T30-10-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA110R-C6-T30-11-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA110R-C6-T30-12-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA110R-C6-T30-13-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA110R-C6-T30-14-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA110R-C6-T30-15-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA110R-C6-T30-16-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA110R-C6-T30-17-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA110R-C6-T30-18-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA110R-C6-T30-19-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA110R-C6-T30-20-3-P70Model: M3GA1 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA1110R-C4-T10-2-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1110R-C4-T10-3-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1110R-C4-T10-4-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1110R-C4-T10-5-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1110R-C4-T10-6-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1110R-C4-T10-7-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1110R-C4-T10-8-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1110R-C4-T10-9-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA1110R-C4-T10-10-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA1110R-C4-T10-11-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA1110R-C4-T10-12-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA1110R-C4-T10-13-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA1110R-C4-T10-14-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA1110R-C4-T10-15-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA1110R-C4-T10-16-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA1110R-C4-T30-2-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1110R-C4-T30-3-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1110R-C4-T30-4-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1110R-C4-T30-5-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1110R-C4-T30-6-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1110R-C4-T30-7-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1110R-C4-T30-8-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1110R-C4-T30-9-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA1110R-C4-T30-10-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA1110R-C4-T30-11-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA1110R-C4-T30-12-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA1110R-C4-T30-13-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA1110R-C4-T30-14-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA1110R-C4-T30-15-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA1110R-C4-T30-16-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA1110R-C4-T30-17-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA1110R-C4-T30-18-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA1110R-C4-T30-19-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA1110R-C4-T30-20-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA1110R-C6-T10-2-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1110R-C6-T10-3-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1110R-C6-T10-4-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1110R-C6-T10-5-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1110R-C6-T10-6-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1110R-C6-T10-7-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1110R-C6-T10-8-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1110R-C6-T10-9-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA1110R-C6-T10-10-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA1110R-C6-T10-11-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA1110R-C6-T10-12-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA1110R-C6-T10-13-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA1110R-C6-T10-14-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA1110R-C6-T10-15-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA1110R-C6-T10-16-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA1110R-C6-T30-2-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1110R-C6-T30-3-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1110R-C6-T30-4-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1110R-C6-T30-5-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1110R-C6-T30-6-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1110R-C6-T30-7-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1110R-C6-T30-8-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1110R-C6-T30-9-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA1110R-C6-T30-10-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA1110R-C6-T30-11-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA1110R-C6-T30-12-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA1110R-C6-T30-13-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA1110R-C6-T30-14-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA1110R-C6-T30-15-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA1110R-C6-T30-16-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA1110R-C6-T30-17-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA1110R-C6-T30-18-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA1110R-C6-T30-19-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA1110R-C6-T30-20-3-P70Model: M3GA1 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA1660R-C4-T10-2-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1660R-C4-T10-3-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1660R-C4-T10-4-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1660R-C4-T10-5-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1660R-C4-T10-6-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1660R-C4-T10-7-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1660R-C4-T10-8-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1660R-C4-T30-2-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1660R-C4-T30-3-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1660R-C4-T30-4-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1660R-C4-T30-5-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1660R-C4-T30-6-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1660R-C4-T30-7-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1660R-C4-T30-8-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1660R-C4-T30-9-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA1660R-C4-T30-10-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA1660R-C4-T30-11-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA1660R-C4-T30-12-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA1660R-C6-T10-2-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1660R-C6-T10-3-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1660R-C6-T10-4-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1660R-C6-T10-5-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1660R-C6-T10-6-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1660R-C6-T10-7-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1660R-C6-T10-8-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1660R-C6-T30-2-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1660R-C6-T30-3-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1660R-C6-T30-4-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1660R-C6-T30-5-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1660R-C6-T30-6-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1660R-C6-T30-7-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1660R-C6-T30-8-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1660R-C6-T30-9-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA1660R-C6-T30-10-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA1660R-C6-T30-11-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA1660R-C6-T30-12-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA1670R-C4-T10-2-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1670R-C4-T10-3-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1670R-C4-T10-4-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1670R-C4-T10-5-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1670R-C4-T10-6-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1670R-C4-T10-7-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1670R-C4-T10-8-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1670R-C4-T30-2-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1670R-C4-T30-3-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1670R-C4-T30-4-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1670R-C4-T30-5-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1670R-C4-T30-6-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1670R-C4-T30-7-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1670R-C4-T30-8-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1670R-C4-T30-9-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA1670R-C4-T30-10-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA1670R-C4-T30-11-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA1670R-C4-T30-12-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA1670R-C6-T10-2-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1670R-C6-T10-3-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1670R-C6-T10-4-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1670R-C6-T10-5-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1670R-C6-T10-6-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1670R-C6-T10-7-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1670R-C6-T10-8-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1670R-C6-T30-2-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1670R-C6-T30-3-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1670R-C6-T30-4-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1670R-C6-T30-5-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1670R-C6-T30-6-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1670R-C6-T30-7-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1670R-C6-T30-8-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1670R-C6-T30-9-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA1670R-C6-T30-10-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA1670R-C6-T30-11-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA1670R-C6-T30-12-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA1760R-C4-T10-2-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1760R-C4-T10-3-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1760R-C4-T10-4-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1760R-C4-T10-5-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1760R-C4-T10-6-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1760R-C4-T10-7-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1760R-C4-T10-8-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1760R-C4-T30-2-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1760R-C4-T30-3-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1760R-C4-T30-4-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1760R-C4-T30-5-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1760R-C4-T30-6-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1760R-C4-T30-7-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1760R-C4-T30-8-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1760R-C4-T30-9-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA1760R-C4-T30-10-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA1760R-C4-T30-11-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA1760R-C4-T30-12-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA1760R-C6-T10-2-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1760R-C6-T10-3-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1760R-C6-T10-4-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1760R-C6-T10-5-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1760R-C6-T10-6-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1760R-C6-T10-7-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1760R-C6-T10-8-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1760R-C6-T30-2-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1760R-C6-T30-3-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1760R-C6-T30-4-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1760R-C6-T30-5-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1760R-C6-T30-6-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1760R-C6-T30-7-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1760R-C6-T30-8-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1760R-C6-T30-9-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA1760R-C6-T30-10-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA1760R-C6-T30-11-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA1760R-C6-T30-12-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA1770R-C4-T10-2-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1770R-C4-T10-3-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1770R-C4-T10-4-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1770R-C4-T10-5-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1770R-C4-T10-6-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1770R-C4-T10-7-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1770R-C4-T10-8-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1770R-C4-T30-2-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1770R-C4-T30-3-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1770R-C4-T30-4-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1770R-C4-T30-5-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1770R-C4-T30-6-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1770R-C4-T30-7-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1770R-C4-T30-8-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1770R-C4-T30-9-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA1770R-C4-T30-10-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA1770R-C4-T30-11-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA1770R-C4-T30-12-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA1770R-C6-T10-2-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA1770R-C6-T10-3-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA1770R-C6-T10-4-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA1770R-C6-T10-5-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA1770R-C6-T10-6-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA1770R-C6-T10-7-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA1770R-C6-T10-8-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA1770R-C6-T30-2-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA1770R-C6-T30-3-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA1770R-C6-T30-4-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA1770R-C6-T30-5-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA1770R-C6-T30-6-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA1770R-C6-T30-7-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA1770R-C6-T30-8-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA1770R-C6-T30-9-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA1770R-C6-T30-10-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA1770R-C6-T30-11-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA1770R-C6-T30-12-3-P70Model: M3GA1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA180R-C4-T10-2-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA180R-C4-T10-3-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA180R-C4-T10-4-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA180R-C4-T10-5-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA180R-C4-T10-6-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA180R-C4-T10-7-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA180R-C4-T10-8-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA180R-C4-T10-9-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA180R-C4-T10-10-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA180R-C4-T10-11-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA180R-C4-T10-12-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA180R-C4-T10-13-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA180R-C4-T10-14-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA180R-C4-T10-15-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA180R-C4-T10-16-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA180R-C4-T30-2-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA180R-C4-T30-3-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA180R-C4-T30-4-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA180R-C4-T30-5-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA180R-C4-T30-6-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA180R-C4-T30-7-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA180R-C4-T30-8-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA180R-C4-T30-9-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA180R-C4-T30-10-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA180R-C4-T30-11-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA180R-C4-T30-12-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA180R-C4-T30-13-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA180R-C4-T30-14-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA180R-C4-T30-15-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA180R-C4-T30-16-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA180R-C4-T30-17-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA180R-C4-T30-18-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA180R-C4-T30-19-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA180R-C4-T30-20-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA180R-C6-T10-2-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA180R-C6-T10-3-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA180R-C6-T10-4-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA180R-C6-T10-5-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA180R-C6-T10-6-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA180R-C6-T10-7-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA180R-C6-T10-8-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA180R-C6-T10-9-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA180R-C6-T10-10-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA180R-C6-T10-11-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA180R-C6-T10-12-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA180R-C6-T10-13-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA180R-C6-T10-14-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA180R-C6-T10-15-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA180R-C6-T10-16-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA180R-C6-T30-2-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA180R-C6-T30-3-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA180R-C6-T30-4-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA180R-C6-T30-5-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA180R-C6-T30-6-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA180R-C6-T30-7-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA180R-C6-T30-8-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA180R-C6-T30-9-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA180R-C6-T30-10-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA180R-C6-T30-11-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA180R-C6-T30-12-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA180R-C6-T30-13-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA180R-C6-T30-14-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA180R-C6-T30-15-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA180R-C6-T30-16-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA180R-C6-T30-17-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA180R-C6-T30-18-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA180R-C6-T30-19-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA180R-C6-T30-20-3-P70Model: M3GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
3GA119R-C4-A2N-3-P70Model: 3GA1 single valve | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA119R-C6-A2N-3-P70Model: 3GA1 single valve | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA1119R-C4-A2N-3-P70Model: 3GA1 single valve | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA1119R-C6-A2N-3-P70Model: 3GA1 single valve | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA1669R-C4-A2N-3-P70Model: 3GA1 single valve | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA1669R-C6-A2N-3-P70Model: 3GA1 single valve | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA1679R-C4-A2N-3-P70Model: 3GA1 single valve | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA1679R-C6-A2N-3-P70Model: 3GA1 single valve | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA1769R-C4-A2N-3-P70Model: 3GA1 single valve | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA1769R-C6-A2N-3-P70Model: 3GA1 single valve | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA1779R-C4-A2N-3-P70Model: 3GA1 single valve | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA1779R-C6-A2N-3-P70Model: 3GA1 single valve | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
M3GA210R-C4-T10-2-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA210R-C4-T10-3-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA210R-C4-T10-4-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA210R-C4-T10-5-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA210R-C4-T10-6-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA210R-C4-T10-7-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA210R-C4-T10-8-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA210R-C4-T10-9-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA210R-C4-T10-10-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA210R-C4-T10-11-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA210R-C4-T10-12-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA210R-C4-T10-13-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA210R-C4-T10-14-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA210R-C4-T10-15-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA210R-C4-T10-16-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA210R-C4-T30-2-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA210R-C4-T30-3-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA210R-C4-T30-4-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA210R-C4-T30-5-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA210R-C4-T30-6-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA210R-C4-T30-7-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA210R-C4-T30-8-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA210R-C4-T30-9-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA210R-C4-T30-10-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA210R-C4-T30-11-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA210R-C4-T30-12-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA210R-C4-T30-13-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA210R-C4-T30-14-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA210R-C4-T30-15-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA210R-C4-T30-16-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA210R-C4-T30-17-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA210R-C4-T30-18-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA210R-C4-T30-19-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA210R-C4-T30-20-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA210R-C6-T10-2-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA210R-C6-T10-3-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA210R-C6-T10-4-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA210R-C6-T10-5-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA210R-C6-T10-6-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA210R-C6-T10-7-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA210R-C6-T10-8-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA210R-C6-T10-9-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA210R-C6-T10-10-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA210R-C6-T10-11-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA210R-C6-T10-12-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA210R-C6-T10-13-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA210R-C6-T10-14-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA210R-C6-T10-15-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA210R-C6-T10-16-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA210R-C6-T30-2-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA210R-C6-T30-3-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA210R-C6-T30-4-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA210R-C6-T30-5-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA210R-C6-T30-6-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA210R-C6-T30-7-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA210R-C6-T30-8-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA210R-C6-T30-9-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA210R-C6-T30-10-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA210R-C6-T30-11-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA210R-C6-T30-12-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA210R-C6-T30-13-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA210R-C6-T30-14-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA210R-C6-T30-15-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA210R-C6-T30-16-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA210R-C6-T30-17-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA210R-C6-T30-18-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA210R-C6-T30-19-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA210R-C6-T30-20-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA210R-C8-T10-2-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA210R-C8-T10-3-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA210R-C8-T10-4-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA210R-C8-T10-5-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA210R-C8-T10-6-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA210R-C8-T10-7-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA210R-C8-T10-8-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA210R-C8-T10-9-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA210R-C8-T10-10-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA210R-C8-T10-11-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA210R-C8-T10-12-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA210R-C8-T10-13-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA210R-C8-T10-14-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA210R-C8-T10-15-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA210R-C8-T10-16-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA210R-C8-T30-2-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA210R-C8-T30-3-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA210R-C8-T30-4-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA210R-C8-T30-5-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA210R-C8-T30-6-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA210R-C8-T30-7-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA210R-C8-T30-8-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA210R-C8-T30-9-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA210R-C8-T30-10-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA210R-C8-T30-11-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA210R-C8-T30-12-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA210R-C8-T30-13-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA210R-C8-T30-14-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA210R-C8-T30-15-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA210R-C8-T30-16-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA210R-C8-T30-17-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA210R-C8-T30-18-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA210R-C8-T30-19-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA210R-C8-T30-20-3-P70Model: M3GA2 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA2110R-C4-T10-2-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2110R-C4-T10-3-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2110R-C4-T10-4-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2110R-C4-T10-5-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2110R-C4-T10-6-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2110R-C4-T10-7-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2110R-C4-T10-8-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2110R-C4-T10-9-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA2110R-C4-T10-10-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA2110R-C4-T10-11-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA2110R-C4-T10-12-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA2110R-C4-T10-13-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA2110R-C4-T10-14-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA2110R-C4-T10-15-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA2110R-C4-T10-16-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA2110R-C4-T30-2-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2110R-C4-T30-3-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2110R-C4-T30-4-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2110R-C4-T30-5-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2110R-C4-T30-6-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2110R-C4-T30-7-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2110R-C4-T30-8-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2110R-C4-T30-9-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2110R-C4-T30-10-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2110R-C4-T30-11-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2110R-C4-T30-12-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2110R-C4-T30-13-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA2110R-C4-T30-14-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA2110R-C4-T30-15-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA2110R-C4-T30-16-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA2110R-C4-T30-17-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA2110R-C4-T30-18-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA2110R-C4-T30-19-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA2110R-C4-T30-20-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA2110R-C6-T10-2-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2110R-C6-T10-3-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2110R-C6-T10-4-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2110R-C6-T10-5-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2110R-C6-T10-6-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2110R-C6-T10-7-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2110R-C6-T10-8-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2110R-C6-T10-9-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA2110R-C6-T10-10-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA2110R-C6-T10-11-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA2110R-C6-T10-12-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA2110R-C6-T10-13-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA2110R-C6-T10-14-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA2110R-C6-T10-15-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA2110R-C6-T10-16-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA2110R-C6-T30-2-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2110R-C6-T30-3-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2110R-C6-T30-4-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2110R-C6-T30-5-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2110R-C6-T30-6-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2110R-C6-T30-7-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2110R-C6-T30-8-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2110R-C6-T30-9-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2110R-C6-T30-10-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2110R-C6-T30-11-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2110R-C6-T30-12-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2110R-C6-T30-13-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA2110R-C6-T30-14-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA2110R-C6-T30-15-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA2110R-C6-T30-16-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA2110R-C6-T30-17-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA2110R-C6-T30-18-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA2110R-C6-T30-19-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA2110R-C6-T30-20-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA2110R-C8-T10-2-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2110R-C8-T10-3-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2110R-C8-T10-4-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2110R-C8-T10-5-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2110R-C8-T10-6-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2110R-C8-T10-7-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2110R-C8-T10-8-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2110R-C8-T10-9-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA2110R-C8-T10-10-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA2110R-C8-T10-11-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA2110R-C8-T10-12-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA2110R-C8-T10-13-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA2110R-C8-T10-14-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA2110R-C8-T10-15-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA2110R-C8-T10-16-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA2110R-C8-T30-2-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2110R-C8-T30-3-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2110R-C8-T30-4-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2110R-C8-T30-5-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2110R-C8-T30-6-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2110R-C8-T30-7-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2110R-C8-T30-8-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2110R-C8-T30-9-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2110R-C8-T30-10-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2110R-C8-T30-11-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2110R-C8-T30-12-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2110R-C8-T30-13-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA2110R-C8-T30-14-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA2110R-C8-T30-15-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA2110R-C8-T30-16-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA2110R-C8-T30-17-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA2110R-C8-T30-18-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA2110R-C8-T30-19-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA2110R-C8-T30-20-3-P70Model: M3GA2 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA2660R-C4-T10-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2660R-C4-T10-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2660R-C4-T10-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2660R-C4-T10-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2660R-C4-T10-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2660R-C4-T10-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2660R-C4-T10-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2660R-C4-T30-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2660R-C4-T30-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2660R-C4-T30-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2660R-C4-T30-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2660R-C4-T30-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2660R-C4-T30-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2660R-C4-T30-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2660R-C4-T30-9-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2660R-C4-T30-10-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2660R-C4-T30-11-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2660R-C4-T30-12-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2660R-C6-T10-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2660R-C6-T10-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2660R-C6-T10-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2660R-C6-T10-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2660R-C6-T10-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2660R-C6-T10-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2660R-C6-T10-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2660R-C6-T30-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2660R-C6-T30-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2660R-C6-T30-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2660R-C6-T30-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2660R-C6-T30-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2660R-C6-T30-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2660R-C6-T30-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2660R-C6-T30-9-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2660R-C6-T30-10-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2660R-C6-T30-11-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2660R-C6-T30-12-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2660R-C8-T10-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2660R-C8-T10-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2660R-C8-T10-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2660R-C8-T10-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2660R-C8-T10-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2660R-C8-T10-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2660R-C8-T10-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2660R-C8-T30-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2660R-C8-T30-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2660R-C8-T30-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2660R-C8-T30-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2660R-C8-T30-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2660R-C8-T30-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2660R-C8-T30-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2660R-C8-T30-9-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2660R-C8-T30-10-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2660R-C8-T30-11-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2660R-C8-T30-12-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2670R-C4-T10-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2670R-C4-T10-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2670R-C4-T10-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2670R-C4-T10-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2670R-C4-T10-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2670R-C4-T10-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2670R-C4-T10-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2670R-C4-T30-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2670R-C4-T30-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2670R-C4-T30-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2670R-C4-T30-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2670R-C4-T30-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2670R-C4-T30-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2670R-C4-T30-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2670R-C4-T30-9-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2670R-C4-T30-10-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2670R-C4-T30-11-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2670R-C4-T30-12-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2670R-C6-T10-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2670R-C6-T10-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2670R-C6-T10-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2670R-C6-T10-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2670R-C6-T10-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2670R-C6-T10-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2670R-C6-T10-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2670R-C6-T30-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2670R-C6-T30-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2670R-C6-T30-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2670R-C6-T30-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2670R-C6-T30-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2670R-C6-T30-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2670R-C6-T30-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2670R-C6-T30-9-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2670R-C6-T30-10-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2670R-C6-T30-11-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2670R-C6-T30-12-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2670R-C8-T10-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2670R-C8-T10-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2670R-C8-T10-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2670R-C8-T10-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2670R-C8-T10-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2670R-C8-T10-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2670R-C8-T10-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2670R-C8-T30-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2670R-C8-T30-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2670R-C8-T30-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2670R-C8-T30-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2670R-C8-T30-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2670R-C8-T30-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2670R-C8-T30-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2670R-C8-T30-9-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2670R-C8-T30-10-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2670R-C8-T30-11-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2670R-C8-T30-12-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2760R-C4-T10-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2760R-C4-T10-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2760R-C4-T10-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2760R-C4-T10-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2760R-C4-T10-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2760R-C4-T10-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2760R-C4-T10-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2760R-C4-T30-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2760R-C4-T30-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2760R-C4-T30-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2760R-C4-T30-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2760R-C4-T30-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2760R-C4-T30-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2760R-C4-T30-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2760R-C4-T30-9-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2760R-C4-T30-10-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2760R-C4-T30-11-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2760R-C4-T30-12-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2760R-C6-T10-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2760R-C6-T10-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2760R-C6-T10-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2760R-C6-T10-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2760R-C6-T10-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2760R-C6-T10-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2760R-C6-T10-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2760R-C6-T30-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2760R-C6-T30-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2760R-C6-T30-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2760R-C6-T30-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2760R-C6-T30-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2760R-C6-T30-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2760R-C6-T30-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2760R-C6-T30-9-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2760R-C6-T30-10-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2760R-C6-T30-11-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2760R-C6-T30-12-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2760R-C8-T10-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2760R-C8-T10-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2760R-C8-T10-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2760R-C8-T10-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2760R-C8-T10-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2760R-C8-T10-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2760R-C8-T10-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2760R-C8-T30-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2760R-C8-T30-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2760R-C8-T30-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2760R-C8-T30-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2760R-C8-T30-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2760R-C8-T30-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2760R-C8-T30-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2760R-C8-T30-9-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2760R-C8-T30-10-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2760R-C8-T30-11-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2760R-C8-T30-12-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2770R-C4-T10-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2770R-C4-T10-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2770R-C4-T10-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2770R-C4-T10-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2770R-C4-T10-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2770R-C4-T10-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2770R-C4-T10-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2770R-C4-T30-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2770R-C4-T30-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2770R-C4-T30-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2770R-C4-T30-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2770R-C4-T30-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2770R-C4-T30-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2770R-C4-T30-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2770R-C4-T30-9-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2770R-C4-T30-10-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2770R-C4-T30-11-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2770R-C4-T30-12-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2770R-C6-T10-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2770R-C6-T10-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2770R-C6-T10-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2770R-C6-T10-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2770R-C6-T10-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2770R-C6-T10-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2770R-C6-T10-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2770R-C6-T30-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2770R-C6-T30-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2770R-C6-T30-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2770R-C6-T30-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2770R-C6-T30-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2770R-C6-T30-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2770R-C6-T30-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2770R-C6-T30-9-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2770R-C6-T30-10-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2770R-C6-T30-11-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2770R-C6-T30-12-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA2770R-C8-T10-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA2770R-C8-T10-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA2770R-C8-T10-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA2770R-C8-T10-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA2770R-C8-T10-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA2770R-C8-T10-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA2770R-C8-T10-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA2770R-C8-T30-2-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA2770R-C8-T30-3-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA2770R-C8-T30-4-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA2770R-C8-T30-5-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA2770R-C8-T30-6-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA2770R-C8-T30-7-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA2770R-C8-T30-8-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA2770R-C8-T30-9-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA2770R-C8-T30-10-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA2770R-C8-T30-11-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA2770R-C8-T30-12-3-P70Model: M3GA2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA280R-C4-T10-2-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA280R-C4-T10-3-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA280R-C4-T10-4-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA280R-C4-T10-5-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA280R-C4-T10-6-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA280R-C4-T10-7-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA280R-C4-T10-8-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA280R-C4-T10-9-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA280R-C4-T10-10-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA280R-C4-T10-11-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA280R-C4-T10-12-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA280R-C4-T10-13-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA280R-C4-T10-14-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA280R-C4-T10-15-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA280R-C4-T10-16-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA280R-C4-T30-2-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA280R-C4-T30-3-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA280R-C4-T30-4-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA280R-C4-T30-5-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA280R-C4-T30-6-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA280R-C4-T30-7-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA280R-C4-T30-8-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA280R-C4-T30-9-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA280R-C4-T30-10-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA280R-C4-T30-11-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA280R-C4-T30-12-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA280R-C4-T30-13-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA280R-C4-T30-14-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA280R-C4-T30-15-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA280R-C4-T30-16-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA280R-C4-T30-17-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA280R-C4-T30-18-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA280R-C4-T30-19-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA280R-C4-T30-20-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA280R-C6-T10-2-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA280R-C6-T10-3-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA280R-C6-T10-4-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA280R-C6-T10-5-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA280R-C6-T10-6-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA280R-C6-T10-7-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA280R-C6-T10-8-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA280R-C6-T10-9-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA280R-C6-T10-10-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA280R-C6-T10-11-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA280R-C6-T10-12-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA280R-C6-T10-13-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA280R-C6-T10-14-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA280R-C6-T10-15-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA280R-C6-T10-16-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA280R-C6-T30-2-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA280R-C6-T30-3-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA280R-C6-T30-4-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA280R-C6-T30-5-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA280R-C6-T30-6-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA280R-C6-T30-7-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA280R-C6-T30-8-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA280R-C6-T30-9-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA280R-C6-T30-10-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA280R-C6-T30-11-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA280R-C6-T30-12-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA280R-C6-T30-13-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA280R-C6-T30-14-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA280R-C6-T30-15-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA280R-C6-T30-16-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA280R-C6-T30-17-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA280R-C6-T30-18-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA280R-C6-T30-19-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA280R-C6-T30-20-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GA280R-C8-T10-2-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA280R-C8-T10-3-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA280R-C8-T10-4-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA280R-C8-T10-5-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA280R-C8-T10-6-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA280R-C8-T10-7-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA280R-C8-T10-8-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA280R-C8-T10-9-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA280R-C8-T10-10-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA280R-C8-T10-11-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA280R-C8-T10-12-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA280R-C8-T10-13-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA280R-C8-T10-14-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA280R-C8-T10-15-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA280R-C8-T10-16-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA280R-C8-T30-2-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA280R-C8-T30-3-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA280R-C8-T30-4-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA280R-C8-T30-5-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA280R-C8-T30-6-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA280R-C8-T30-7-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA280R-C8-T30-8-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA280R-C8-T30-9-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA280R-C8-T30-10-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA280R-C8-T30-11-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA280R-C8-T30-12-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA280R-C8-T30-13-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA280R-C8-T30-14-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA280R-C8-T30-15-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA280R-C8-T30-16-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA280R-C8-T30-17-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GA280R-C8-T30-18-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GA280R-C8-T30-19-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GA280R-C8-T30-20-3-P70Model: M3GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
3GA219R-C4-A2N-3-P70Model: 3GA2 single valve | Position: 2-pos single N.C. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA219R-C6-A2N-3-P70Model: 3GA2 single valve | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA219R-C8-A2N-3-P70Model: 3GA2 single valve | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2119R-C4-A2N-3-P70Model: 3GA2 single valve | Position: 2-pos single N.O. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2119R-C6-A2N-3-P70Model: 3GA2 single valve | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2119R-C8-A2N-3-P70Model: 3GA2 single valve | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2669R-C4-A2N-3-P70Model: 3GA2 single valve | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2669R-C6-A2N-3-P70Model: 3GA2 single valve | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2669R-C8-A2N-3-P70Model: 3GA2 single valve | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2679R-C4-A2N-3-P70Model: 3GA2 single valve | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2679R-C6-A2N-3-P70Model: 3GA2 single valve | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2679R-C8-A2N-3-P70Model: 3GA2 single valve | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2769R-C4-A2N-3-P70Model: 3GA2 single valve | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2769R-C6-A2N-3-P70Model: 3GA2 single valve | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2769R-C8-A2N-3-P70Model: 3GA2 single valve | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2779R-C4-A2N-3-P70Model: 3GA2 single valve | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2779R-C6-A2N-3-P70Model: 3GA2 single valve | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA2779R-C8-A2N-3-P70Model: 3GA2 single valve | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
M3GA310R-C6-T10-2-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA310R-C6-T10-3-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA310R-C6-T10-4-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA310R-C6-T10-5-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA310R-C6-T10-6-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA310R-C6-T10-7-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA310R-C6-T10-8-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA310R-C6-T10-9-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA310R-C6-T10-10-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA310R-C6-T10-11-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA310R-C6-T10-12-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA310R-C6-T10-13-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA310R-C6-T10-14-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA310R-C6-T10-15-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA310R-C6-T10-16-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA310R-C6-T30-2-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA310R-C6-T30-3-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA310R-C6-T30-4-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA310R-C6-T30-5-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA310R-C6-T30-6-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA310R-C6-T30-7-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA310R-C6-T30-8-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA310R-C6-T30-9-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA310R-C6-T30-10-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA310R-C6-T30-11-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA310R-C6-T30-12-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA310R-C6-T30-13-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA310R-C6-T30-14-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA310R-C6-T30-15-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA310R-C6-T30-16-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA310R-C8-T10-2-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA310R-C8-T10-3-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA310R-C8-T10-4-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA310R-C8-T10-5-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA310R-C8-T10-6-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA310R-C8-T10-7-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA310R-C8-T10-8-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA310R-C8-T10-9-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA310R-C8-T10-10-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA310R-C8-T10-11-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA310R-C8-T10-12-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA310R-C8-T10-13-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA310R-C8-T10-14-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA310R-C8-T10-15-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA310R-C8-T10-16-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA310R-C8-T30-2-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA310R-C8-T30-3-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA310R-C8-T30-4-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA310R-C8-T30-5-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA310R-C8-T30-6-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA310R-C8-T30-7-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA310R-C8-T30-8-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA310R-C8-T30-9-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA310R-C8-T30-10-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA310R-C8-T30-11-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA310R-C8-T30-12-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA310R-C8-T30-13-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA310R-C8-T30-14-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA310R-C8-T30-15-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA310R-C8-T30-16-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA310R-C10-T10-2-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA310R-C10-T10-3-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA310R-C10-T10-4-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA310R-C10-T10-5-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA310R-C10-T10-6-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA310R-C10-T10-7-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA310R-C10-T10-8-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA310R-C10-T10-9-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA310R-C10-T10-10-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA310R-C10-T10-11-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA310R-C10-T10-12-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA310R-C10-T10-13-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA310R-C10-T10-14-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA310R-C10-T10-15-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA310R-C10-T10-16-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA310R-C10-T30-2-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA310R-C10-T30-3-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA310R-C10-T30-4-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA310R-C10-T30-5-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA310R-C10-T30-6-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA310R-C10-T30-7-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA310R-C10-T30-8-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA310R-C10-T30-9-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA310R-C10-T30-10-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA310R-C10-T30-11-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA310R-C10-T30-12-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA310R-C10-T30-13-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA310R-C10-T30-14-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA310R-C10-T30-15-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA310R-C10-T30-16-3-P70Model: M3GA3 manifold | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA3110R-C6-T10-2-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA3110R-C6-T10-3-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA3110R-C6-T10-4-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA3110R-C6-T10-5-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA3110R-C6-T10-6-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA3110R-C6-T10-7-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA3110R-C6-T10-8-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA3110R-C6-T10-9-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA3110R-C6-T10-10-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA3110R-C6-T10-11-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA3110R-C6-T10-12-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA3110R-C6-T10-13-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA3110R-C6-T10-14-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA3110R-C6-T10-15-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA3110R-C6-T10-16-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA3110R-C6-T30-2-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA3110R-C6-T30-3-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA3110R-C6-T30-4-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA3110R-C6-T30-5-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA3110R-C6-T30-6-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA3110R-C6-T30-7-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA3110R-C6-T30-8-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA3110R-C6-T30-9-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA3110R-C6-T30-10-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA3110R-C6-T30-11-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA3110R-C6-T30-12-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA3110R-C6-T30-13-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA3110R-C6-T30-14-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA3110R-C6-T30-15-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA3110R-C6-T30-16-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA3110R-C8-T10-2-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA3110R-C8-T10-3-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA3110R-C8-T10-4-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA3110R-C8-T10-5-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA3110R-C8-T10-6-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA3110R-C8-T10-7-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA3110R-C8-T10-8-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA3110R-C8-T10-9-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA3110R-C8-T10-10-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA3110R-C8-T10-11-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA3110R-C8-T10-12-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA3110R-C8-T10-13-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA3110R-C8-T10-14-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA3110R-C8-T10-15-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA3110R-C8-T10-16-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA3110R-C8-T30-2-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA3110R-C8-T30-3-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA3110R-C8-T30-4-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA3110R-C8-T30-5-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA3110R-C8-T30-6-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA3110R-C8-T30-7-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA3110R-C8-T30-8-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA3110R-C8-T30-9-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA3110R-C8-T30-10-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA3110R-C8-T30-11-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA3110R-C8-T30-12-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA3110R-C8-T30-13-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA3110R-C8-T30-14-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA3110R-C8-T30-15-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA3110R-C8-T30-16-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA3110R-C10-T10-2-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA3110R-C10-T10-3-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA3110R-C10-T10-4-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA3110R-C10-T10-5-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA3110R-C10-T10-6-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA3110R-C10-T10-7-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA3110R-C10-T10-8-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA3110R-C10-T10-9-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA3110R-C10-T10-10-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA3110R-C10-T10-11-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA3110R-C10-T10-12-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA3110R-C10-T10-13-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA3110R-C10-T10-14-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA3110R-C10-T10-15-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA3110R-C10-T10-16-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA3110R-C10-T30-2-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA3110R-C10-T30-3-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA3110R-C10-T30-4-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA3110R-C10-T30-5-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA3110R-C10-T30-6-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA3110R-C10-T30-7-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA3110R-C10-T30-8-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA3110R-C10-T30-9-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA3110R-C10-T30-10-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA3110R-C10-T30-11-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA3110R-C10-T30-12-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA3110R-C10-T30-13-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA3110R-C10-T30-14-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA3110R-C10-T30-15-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA3110R-C10-T30-16-3-P70Model: M3GA3 manifold | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA380R-C6-T10-2-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA380R-C6-T10-3-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA380R-C6-T10-4-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA380R-C6-T10-5-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA380R-C6-T10-6-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA380R-C6-T10-7-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA380R-C6-T10-8-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA380R-C6-T10-9-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA380R-C6-T10-10-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA380R-C6-T10-11-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA380R-C6-T10-12-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA380R-C6-T10-13-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA380R-C6-T10-14-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA380R-C6-T10-15-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA380R-C6-T10-16-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA380R-C6-T30-2-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA380R-C6-T30-3-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA380R-C6-T30-4-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA380R-C6-T30-5-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA380R-C6-T30-6-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA380R-C6-T30-7-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA380R-C6-T30-8-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA380R-C6-T30-9-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA380R-C6-T30-10-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA380R-C6-T30-11-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA380R-C6-T30-12-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA380R-C6-T30-13-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA380R-C6-T30-14-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA380R-C6-T30-15-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA380R-C6-T30-16-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA380R-C8-T10-2-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA380R-C8-T10-3-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA380R-C8-T10-4-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA380R-C8-T10-5-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA380R-C8-T10-6-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA380R-C8-T10-7-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA380R-C8-T10-8-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA380R-C8-T10-9-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA380R-C8-T10-10-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA380R-C8-T10-11-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA380R-C8-T10-12-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA380R-C8-T10-13-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA380R-C8-T10-14-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA380R-C8-T10-15-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA380R-C8-T10-16-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA380R-C8-T30-2-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA380R-C8-T30-3-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA380R-C8-T30-4-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA380R-C8-T30-5-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA380R-C8-T30-6-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA380R-C8-T30-7-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA380R-C8-T30-8-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA380R-C8-T30-9-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA380R-C8-T30-10-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA380R-C8-T30-11-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA380R-C8-T30-12-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA380R-C8-T30-13-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA380R-C8-T30-14-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA380R-C8-T30-15-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA380R-C8-T30-16-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GA380R-C10-T10-2-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GA380R-C10-T10-3-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GA380R-C10-T10-4-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GA380R-C10-T10-5-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GA380R-C10-T10-6-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GA380R-C10-T10-7-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GA380R-C10-T10-8-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GA380R-C10-T10-9-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GA380R-C10-T10-10-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GA380R-C10-T10-11-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GA380R-C10-T10-12-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GA380R-C10-T10-13-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GA380R-C10-T10-14-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GA380R-C10-T10-15-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GA380R-C10-T10-16-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GA380R-C10-T30-2-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GA380R-C10-T30-3-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GA380R-C10-T30-4-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GA380R-C10-T30-5-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GA380R-C10-T30-6-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GA380R-C10-T30-7-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GA380R-C10-T30-8-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GA380R-C10-T30-9-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GA380R-C10-T30-10-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GA380R-C10-T30-11-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GA380R-C10-T30-12-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GA380R-C10-T30-13-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GA380R-C10-T30-14-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GA380R-C10-T30-15-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GA380R-C10-T30-16-3-P70Model: M3GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
3GA319R-C6-A2N-3-P70Model: 3GA3 single valve | Position: 2-pos single N.C. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA319R-C8-A2N-3-P70Model: 3GA3 single valve | Position: 2-pos single N.C. | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA319R-C10-A2N-3-P70Model: 3GA3 single valve | Position: 2-pos single N.C. | A/B port: Push-in 10 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA3119R-C6-A2N-3-P70Model: 3GA3 single valve | Position: 2-pos single N.O. | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA3119R-C8-A2N-3-P70Model: 3GA3 single valve | Position: 2-pos single N.O. | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
3GA3119R-C10-A2N-3-P70Model: 3GA3 single valve | Position: 2-pos single N.O. | A/B port: Push-in 10 mm | Wiring: A2N socket, no lead wire | Stations: Single valve

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
