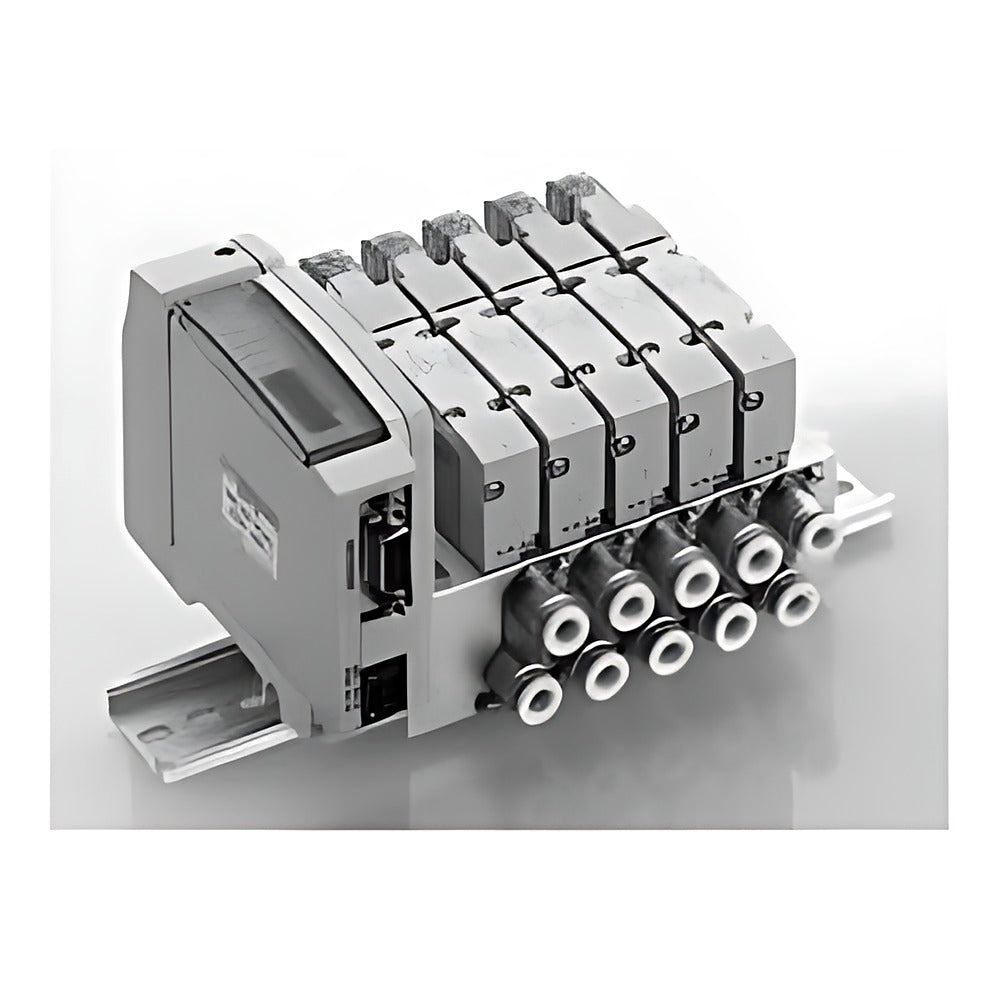

CKD M3GB-T Wiring-Saving Manifold, Base Piping (3GB1/2)

CKD M3GB-T Wiring-Saving Manifold, Base Piping (3GB1/2)

CKD M3GB1/2-T wiring-saving manifolds mount 3GB dual 3-port pilot solenoid valves on an integrated metal base with base-side A/B piping and collective wiring.

Key features

  • Dual 3-port valves (two 3-port valves in one body): N.C./N.C., N.C./N.O., N.O./N.C., N.O./N.O.
  • Mixed manifolds with 4GB 5-port valves use code M4GB80R
  • Collective wiring by terminal block, D-sub, flat cable or serial transmission
  • Max 20 stations; direct or DIN rail mounting
  • Base-mounted single valves 3GB9R-00-A2N for maintenance

Specifications

Manifold type Wiring-saving integrated metal base
Mounting Direct mount (standard); DIN rail option D
Operating pressure 0.2 to 0.7 MPa (internal pilot)
Proof pressure 1.05 MPa
Ambient / fluid temp. -5 to 55 C / 5 to 55 C
Voltage (code 3) DC24V (DC12V = code 4)
Valve type Pilot-operated soft spool
Lubrication Not required
Source CKD Korea catalog CB-023SK-9, p. 234-263
M3GB1660R-C4-T10-2-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB1660R-C4-T10-3-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB1660R-C4-T10-4-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB1660R-C4-T10-5-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB1660R-C4-T10-6-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB1660R-C4-T10-7-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB1660R-C4-T10-8-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB1660R-C4-T30-2-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB1660R-C4-T30-3-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB1660R-C4-T30-4-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB1660R-C4-T30-5-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB1660R-C4-T30-6-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB1660R-C4-T30-7-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB1660R-C4-T30-8-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB1660R-C4-T30-9-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB1660R-C4-T30-10-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB1660R-C4-T30-11-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB1660R-C4-T30-12-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB1660R-C6-T10-2-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB1660R-C6-T10-3-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB1660R-C6-T10-4-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB1660R-C6-T10-5-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB1660R-C6-T10-6-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB1660R-C6-T10-7-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB1660R-C6-T10-8-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB1660R-C6-T30-2-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB1660R-C6-T30-3-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB1660R-C6-T30-4-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB1660R-C6-T30-5-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB1660R-C6-T30-6-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB1660R-C6-T30-7-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB1660R-C6-T30-8-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB1660R-C6-T30-9-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB1660R-C6-T30-10-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB1660R-C6-T30-11-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB1660R-C6-T30-12-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB1670R-C4-T10-2-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB1670R-C4-T10-3-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB1670R-C4-T10-4-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB1670R-C4-T10-5-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB1670R-C4-T10-6-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB1670R-C4-T10-7-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB1670R-C4-T10-8-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB1670R-C4-T30-2-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB1670R-C4-T30-3-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB1670R-C4-T30-4-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB1670R-C4-T30-5-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB1670R-C4-T30-6-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB1670R-C4-T30-7-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB1670R-C4-T30-8-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB1670R-C4-T30-9-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB1670R-C4-T30-10-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB1670R-C4-T30-11-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB1670R-C4-T30-12-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB1670R-C6-T10-2-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB1670R-C6-T10-3-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB1670R-C6-T10-4-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB1670R-C6-T10-5-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB1670R-C6-T10-6-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB1670R-C6-T10-7-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB1670R-C6-T10-8-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB1670R-C6-T30-2-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB1670R-C6-T30-3-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB1670R-C6-T30-4-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB1670R-C6-T30-5-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB1670R-C6-T30-6-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB1670R-C6-T30-7-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB1670R-C6-T30-8-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB1670R-C6-T30-9-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB1670R-C6-T30-10-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB1670R-C6-T30-11-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB1670R-C6-T30-12-3 Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB1760R-C4-T10-2-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB1760R-C4-T10-3-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB1760R-C4-T10-4-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB1760R-C4-T10-5-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB1760R-C4-T10-6-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB1760R-C4-T10-7-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB1760R-C4-T10-8-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB1760R-C4-T30-2-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB1760R-C4-T30-3-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB1760R-C4-T30-4-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB1760R-C4-T30-5-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB1760R-C4-T30-6-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB1760R-C4-T30-7-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB1760R-C4-T30-8-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB1760R-C4-T30-9-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB1760R-C4-T30-10-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB1760R-C4-T30-11-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB1760R-C4-T30-12-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB1760R-C6-T10-2-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB1760R-C6-T10-3-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB1760R-C6-T10-4-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB1760R-C6-T10-5-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB1760R-C6-T10-6-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB1760R-C6-T10-7-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB1760R-C6-T10-8-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB1760R-C6-T30-2-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB1760R-C6-T30-3-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB1760R-C6-T30-4-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB1760R-C6-T30-5-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB1760R-C6-T30-6-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB1760R-C6-T30-7-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB1760R-C6-T30-8-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB1760R-C6-T30-9-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB1760R-C6-T30-10-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB1760R-C6-T30-11-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB1760R-C6-T30-12-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB1770R-C4-T10-2-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB1770R-C4-T10-3-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB1770R-C4-T10-4-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB1770R-C4-T10-5-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB1770R-C4-T10-6-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB1770R-C4-T10-7-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB1770R-C4-T10-8-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB1770R-C4-T30-2-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB1770R-C4-T30-3-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB1770R-C4-T30-4-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB1770R-C4-T30-5-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB1770R-C4-T30-6-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB1770R-C4-T30-7-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB1770R-C4-T30-8-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB1770R-C4-T30-9-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB1770R-C4-T30-10-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB1770R-C4-T30-11-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB1770R-C4-T30-12-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB1770R-C6-T10-2-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB1770R-C6-T10-3-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB1770R-C6-T10-4-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB1770R-C6-T10-5-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB1770R-C6-T10-6-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB1770R-C6-T10-7-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB1770R-C6-T10-8-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB1770R-C6-T30-2-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB1770R-C6-T30-3-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB1770R-C6-T30-4-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB1770R-C6-T30-5-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB1770R-C6-T30-6-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB1770R-C6-T30-7-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB1770R-C6-T30-8-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB1770R-C6-T30-9-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB1770R-C6-T30-10-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB1770R-C6-T30-11-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB1770R-C6-T30-12-3 Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB180R-C4-T10-2-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB180R-C4-T10-3-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB180R-C4-T10-4-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB180R-C4-T10-5-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB180R-C4-T10-6-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB180R-C4-T10-7-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB180R-C4-T10-8-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB180R-C4-T10-9-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GB180R-C4-T10-10-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GB180R-C4-T10-11-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GB180R-C4-T10-12-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GB180R-C4-T10-13-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GB180R-C4-T10-14-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GB180R-C4-T10-15-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GB180R-C4-T10-16-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GB180R-C4-T30-2-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB180R-C4-T30-3-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB180R-C4-T30-4-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB180R-C4-T30-5-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB180R-C4-T30-6-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB180R-C4-T30-7-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB180R-C4-T30-8-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB180R-C4-T30-9-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB180R-C4-T30-10-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB180R-C4-T30-11-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB180R-C4-T30-12-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB180R-C4-T30-13-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GB180R-C4-T30-14-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GB180R-C4-T30-15-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GB180R-C4-T30-16-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GB180R-C4-T30-17-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GB180R-C4-T30-18-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GB180R-C4-T30-19-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GB180R-C4-T30-20-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GB180R-C6-T10-2-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB180R-C6-T10-3-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB180R-C6-T10-4-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB180R-C6-T10-5-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB180R-C6-T10-6-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB180R-C6-T10-7-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB180R-C6-T10-8-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB180R-C6-T10-9-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GB180R-C6-T10-10-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GB180R-C6-T10-11-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GB180R-C6-T10-12-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GB180R-C6-T10-13-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GB180R-C6-T10-14-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GB180R-C6-T10-15-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GB180R-C6-T10-16-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GB180R-C6-T30-2-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB180R-C6-T30-3-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB180R-C6-T30-4-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB180R-C6-T30-5-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB180R-C6-T30-6-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB180R-C6-T30-7-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB180R-C6-T30-8-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB180R-C6-T30-9-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB180R-C6-T30-10-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB180R-C6-T30-11-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB180R-C6-T30-12-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB180R-C6-T30-13-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GB180R-C6-T30-14-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GB180R-C6-T30-15-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GB180R-C6-T30-16-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GB180R-C6-T30-17-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GB180R-C6-T30-18-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GB180R-C6-T30-19-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GB180R-C6-T30-20-3 Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
3GB1669R-00-A2N-3 Model: 3GB1 single valve | Position: Dual 3-port N.C./N.C. | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
3GB1679R-00-A2N-3 Model: 3GB1 single valve | Position: Dual 3-port N.C./N.O. | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
3GB1769R-00-A2N-3 Model: 3GB1 single valve | Position: Dual 3-port N.O./N.C. | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
3GB1779R-00-A2N-3 Model: 3GB1 single valve | Position: Dual 3-port N.O./N.O. | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
M3GB2660R-C4-T10-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2660R-C4-T10-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2660R-C4-T10-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2660R-C4-T10-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2660R-C4-T10-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2660R-C4-T10-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2660R-C4-T10-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2660R-C4-T30-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2660R-C4-T30-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2660R-C4-T30-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2660R-C4-T30-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2660R-C4-T30-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2660R-C4-T30-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2660R-C4-T30-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2660R-C4-T30-9-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2660R-C4-T30-10-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2660R-C4-T30-11-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2660R-C4-T30-12-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2660R-C6-T10-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2660R-C6-T10-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2660R-C6-T10-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2660R-C6-T10-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2660R-C6-T10-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2660R-C6-T10-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2660R-C6-T10-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2660R-C6-T30-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2660R-C6-T30-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2660R-C6-T30-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2660R-C6-T30-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2660R-C6-T30-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2660R-C6-T30-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2660R-C6-T30-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2660R-C6-T30-9-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2660R-C6-T30-10-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2660R-C6-T30-11-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2660R-C6-T30-12-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2660R-C8-T10-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2660R-C8-T10-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2660R-C8-T10-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2660R-C8-T10-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2660R-C8-T10-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2660R-C8-T10-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2660R-C8-T10-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2660R-C8-T30-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2660R-C8-T30-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2660R-C8-T30-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2660R-C8-T30-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2660R-C8-T30-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2660R-C8-T30-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2660R-C8-T30-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2660R-C8-T30-9-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2660R-C8-T30-10-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2660R-C8-T30-11-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2660R-C8-T30-12-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2670R-C4-T10-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2670R-C4-T10-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2670R-C4-T10-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2670R-C4-T10-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2670R-C4-T10-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2670R-C4-T10-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2670R-C4-T10-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2670R-C4-T30-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2670R-C4-T30-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2670R-C4-T30-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2670R-C4-T30-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2670R-C4-T30-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2670R-C4-T30-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2670R-C4-T30-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2670R-C4-T30-9-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2670R-C4-T30-10-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2670R-C4-T30-11-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2670R-C4-T30-12-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2670R-C6-T10-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2670R-C6-T10-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2670R-C6-T10-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2670R-C6-T10-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2670R-C6-T10-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2670R-C6-T10-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2670R-C6-T10-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2670R-C6-T30-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2670R-C6-T30-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2670R-C6-T30-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2670R-C6-T30-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2670R-C6-T30-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2670R-C6-T30-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2670R-C6-T30-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2670R-C6-T30-9-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2670R-C6-T30-10-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2670R-C6-T30-11-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2670R-C6-T30-12-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2670R-C8-T10-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2670R-C8-T10-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2670R-C8-T10-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2670R-C8-T10-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2670R-C8-T10-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2670R-C8-T10-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2670R-C8-T10-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2670R-C8-T30-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2670R-C8-T30-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2670R-C8-T30-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2670R-C8-T30-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2670R-C8-T30-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2670R-C8-T30-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2670R-C8-T30-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2670R-C8-T30-9-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2670R-C8-T30-10-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2670R-C8-T30-11-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2670R-C8-T30-12-3 Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2760R-C4-T10-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2760R-C4-T10-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2760R-C4-T10-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2760R-C4-T10-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2760R-C4-T10-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2760R-C4-T10-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2760R-C4-T10-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2760R-C4-T30-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2760R-C4-T30-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2760R-C4-T30-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2760R-C4-T30-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2760R-C4-T30-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2760R-C4-T30-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2760R-C4-T30-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2760R-C4-T30-9-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2760R-C4-T30-10-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2760R-C4-T30-11-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2760R-C4-T30-12-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2760R-C6-T10-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2760R-C6-T10-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2760R-C6-T10-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2760R-C6-T10-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2760R-C6-T10-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2760R-C6-T10-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2760R-C6-T10-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2760R-C6-T30-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2760R-C6-T30-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2760R-C6-T30-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2760R-C6-T30-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2760R-C6-T30-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2760R-C6-T30-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2760R-C6-T30-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2760R-C6-T30-9-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2760R-C6-T30-10-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2760R-C6-T30-11-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2760R-C6-T30-12-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2760R-C8-T10-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2760R-C8-T10-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2760R-C8-T10-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2760R-C8-T10-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2760R-C8-T10-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2760R-C8-T10-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2760R-C8-T10-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2760R-C8-T30-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2760R-C8-T30-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2760R-C8-T30-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2760R-C8-T30-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2760R-C8-T30-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2760R-C8-T30-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2760R-C8-T30-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2760R-C8-T30-9-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2760R-C8-T30-10-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2760R-C8-T30-11-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2760R-C8-T30-12-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2770R-C4-T10-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2770R-C4-T10-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2770R-C4-T10-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2770R-C4-T10-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2770R-C4-T10-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2770R-C4-T10-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2770R-C4-T10-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2770R-C4-T30-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2770R-C4-T30-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2770R-C4-T30-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2770R-C4-T30-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2770R-C4-T30-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2770R-C4-T30-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2770R-C4-T30-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2770R-C4-T30-9-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2770R-C4-T30-10-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2770R-C4-T30-11-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2770R-C4-T30-12-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2770R-C6-T10-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2770R-C6-T10-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2770R-C6-T10-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2770R-C6-T10-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2770R-C6-T10-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2770R-C6-T10-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2770R-C6-T10-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2770R-C6-T30-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2770R-C6-T30-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2770R-C6-T30-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2770R-C6-T30-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2770R-C6-T30-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2770R-C6-T30-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2770R-C6-T30-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2770R-C6-T30-9-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2770R-C6-T30-10-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2770R-C6-T30-11-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2770R-C6-T30-12-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2770R-C8-T10-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2770R-C8-T10-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2770R-C8-T10-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2770R-C8-T10-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2770R-C8-T10-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2770R-C8-T10-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2770R-C8-T10-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2770R-C8-T30-2-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2770R-C8-T30-3-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2770R-C8-T30-4-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2770R-C8-T30-5-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2770R-C8-T30-6-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2770R-C8-T30-7-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2770R-C8-T30-8-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2770R-C8-T30-9-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2770R-C8-T30-10-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2770R-C8-T30-11-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2770R-C8-T30-12-3 Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB280R-C4-T10-2-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB280R-C4-T10-3-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB280R-C4-T10-4-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB280R-C4-T10-5-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB280R-C4-T10-6-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB280R-C4-T10-7-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB280R-C4-T10-8-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB280R-C4-T10-9-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GB280R-C4-T10-10-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GB280R-C4-T10-11-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GB280R-C4-T10-12-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GB280R-C4-T10-13-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GB280R-C4-T10-14-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GB280R-C4-T10-15-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GB280R-C4-T10-16-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GB280R-C4-T30-2-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB280R-C4-T30-3-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB280R-C4-T30-4-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB280R-C4-T30-5-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB280R-C4-T30-6-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB280R-C4-T30-7-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB280R-C4-T30-8-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB280R-C4-T30-9-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB280R-C4-T30-10-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB280R-C4-T30-11-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB280R-C4-T30-12-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB280R-C4-T30-13-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GB280R-C4-T30-14-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GB280R-C4-T30-15-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GB280R-C4-T30-16-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GB280R-C4-T30-17-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GB280R-C4-T30-18-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GB280R-C4-T30-19-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GB280R-C4-T30-20-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GB280R-C6-T10-2-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB280R-C6-T10-3-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB280R-C6-T10-4-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB280R-C6-T10-5-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB280R-C6-T10-6-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB280R-C6-T10-7-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB280R-C6-T10-8-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB280R-C6-T10-9-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GB280R-C6-T10-10-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GB280R-C6-T10-11-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GB280R-C6-T10-12-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GB280R-C6-T10-13-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GB280R-C6-T10-14-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GB280R-C6-T10-15-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GB280R-C6-T10-16-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GB280R-C6-T30-2-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB280R-C6-T30-3-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB280R-C6-T30-4-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB280R-C6-T30-5-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB280R-C6-T30-6-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB280R-C6-T30-7-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB280R-C6-T30-8-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB280R-C6-T30-9-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB280R-C6-T30-10-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB280R-C6-T30-11-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB280R-C6-T30-12-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB280R-C6-T30-13-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GB280R-C6-T30-14-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GB280R-C6-T30-15-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GB280R-C6-T30-16-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GB280R-C6-T30-17-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GB280R-C6-T30-18-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GB280R-C6-T30-19-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GB280R-C6-T30-20-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GB280R-C8-T10-2-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB280R-C8-T10-3-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB280R-C8-T10-4-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB280R-C8-T10-5-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB280R-C8-T10-6-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB280R-C8-T10-7-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB280R-C8-T10-8-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB280R-C8-T10-9-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GB280R-C8-T10-10-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GB280R-C8-T10-11-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GB280R-C8-T10-12-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GB280R-C8-T10-13-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GB280R-C8-T10-14-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GB280R-C8-T10-15-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GB280R-C8-T10-16-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GB280R-C8-T30-2-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB280R-C8-T30-3-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB280R-C8-T30-4-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB280R-C8-T30-5-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB280R-C8-T30-6-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB280R-C8-T30-7-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB280R-C8-T30-8-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB280R-C8-T30-9-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB280R-C8-T30-10-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB280R-C8-T30-11-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB280R-C8-T30-12-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB280R-C8-T30-13-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GB280R-C8-T30-14-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GB280R-C8-T30-15-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GB280R-C8-T30-16-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GB280R-C8-T30-17-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GB280R-C8-T30-18-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GB280R-C8-T30-19-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GB280R-C8-T30-20-3 Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
3GB2669R-00-A2N-3 Model: 3GB2 single valve | Position: Dual 3-port N.C./N.C. | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
3GB2679R-00-A2N-3 Model: 3GB2 single valve | Position: Dual 3-port N.C./N.O. | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
3GB2769R-00-A2N-3 Model: 3GB2 single valve | Position: Dual 3-port N.O./N.C. | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
3GB2779R-00-A2N-3 Model: 3GB2 single valve | Position: Dual 3-port N.O./N.O. | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
Valve ManifoldsCKD
538 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD M3GB-T Wiring-Saving Manifold, Base Piping (3GB1/2)

Brand CKD·Valve Manifolds

Available part numbers (538)

M3GB1660R-C4-T10-2-3, M3GB1660R-C4-T10-3-3, M3GB1660R-C4-T10-4-3, M3GB1660R-C4-T10-5-3, M3GB1660R-C4-T10-6-3, M3GB1660R-C4-T10-7-3, M3GB1660R-C4-T10-8-3, M3GB1660R-C4-T30-2-3, M3GB1660R-C4-T30-3-3, M3GB1660R-C4-T30-4-3 + 528 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
M3GB1660R-C4-T10-2-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB1660R-C4-T10-3-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB1660R-C4-T10-4-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB1660R-C4-T10-5-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB1660R-C4-T10-6-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB1660R-C4-T10-7-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB1660R-C4-T10-8-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB1660R-C4-T30-2-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB1660R-C4-T30-3-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB1660R-C4-T30-4-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB1660R-C4-T30-5-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB1660R-C4-T30-6-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB1660R-C4-T30-7-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB1660R-C4-T30-8-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB1660R-C4-T30-9-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB1660R-C4-T30-10-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB1660R-C4-T30-11-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB1660R-C4-T30-12-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB1660R-C6-T10-2-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB1660R-C6-T10-3-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB1660R-C6-T10-4-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB1660R-C6-T10-5-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB1660R-C6-T10-6-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB1660R-C6-T10-7-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB1660R-C6-T10-8-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB1660R-C6-T30-2-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB1660R-C6-T30-3-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB1660R-C6-T30-4-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB1660R-C6-T30-5-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB1660R-C6-T30-6-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB1660R-C6-T30-7-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB1660R-C6-T30-8-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB1660R-C6-T30-9-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB1660R-C6-T30-10-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB1660R-C6-T30-11-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB1660R-C6-T30-12-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB1670R-C4-T10-2-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB1670R-C4-T10-3-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB1670R-C4-T10-4-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB1670R-C4-T10-5-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB1670R-C4-T10-6-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB1670R-C4-T10-7-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB1670R-C4-T10-8-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB1670R-C4-T30-2-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB1670R-C4-T30-3-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB1670R-C4-T30-4-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB1670R-C4-T30-5-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB1670R-C4-T30-6-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB1670R-C4-T30-7-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB1670R-C4-T30-8-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB1670R-C4-T30-9-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB1670R-C4-T30-10-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB1670R-C4-T30-11-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB1670R-C4-T30-12-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB1670R-C6-T10-2-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB1670R-C6-T10-3-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB1670R-C6-T10-4-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB1670R-C6-T10-5-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB1670R-C6-T10-6-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB1670R-C6-T10-7-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB1670R-C6-T10-8-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB1670R-C6-T30-2-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB1670R-C6-T30-3-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB1670R-C6-T30-4-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB1670R-C6-T30-5-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB1670R-C6-T30-6-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB1670R-C6-T30-7-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB1670R-C6-T30-8-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB1670R-C6-T30-9-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB1670R-C6-T30-10-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB1670R-C6-T30-11-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB1670R-C6-T30-12-3Model: M3GB1 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB1760R-C4-T10-2-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB1760R-C4-T10-3-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB1760R-C4-T10-4-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB1760R-C4-T10-5-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB1760R-C4-T10-6-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB1760R-C4-T10-7-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB1760R-C4-T10-8-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB1760R-C4-T30-2-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB1760R-C4-T30-3-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB1760R-C4-T30-4-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB1760R-C4-T30-5-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB1760R-C4-T30-6-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB1760R-C4-T30-7-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB1760R-C4-T30-8-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB1760R-C4-T30-9-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB1760R-C4-T30-10-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB1760R-C4-T30-11-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB1760R-C4-T30-12-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB1760R-C6-T10-2-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB1760R-C6-T10-3-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB1760R-C6-T10-4-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB1760R-C6-T10-5-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB1760R-C6-T10-6-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB1760R-C6-T10-7-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB1760R-C6-T10-8-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB1760R-C6-T30-2-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB1760R-C6-T30-3-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB1760R-C6-T30-4-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB1760R-C6-T30-5-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB1760R-C6-T30-6-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB1760R-C6-T30-7-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB1760R-C6-T30-8-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB1760R-C6-T30-9-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB1760R-C6-T30-10-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB1760R-C6-T30-11-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB1760R-C6-T30-12-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB1770R-C4-T10-2-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB1770R-C4-T10-3-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB1770R-C4-T10-4-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB1770R-C4-T10-5-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB1770R-C4-T10-6-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB1770R-C4-T10-7-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB1770R-C4-T10-8-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB1770R-C4-T30-2-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB1770R-C4-T30-3-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB1770R-C4-T30-4-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB1770R-C4-T30-5-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB1770R-C4-T30-6-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB1770R-C4-T30-7-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB1770R-C4-T30-8-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB1770R-C4-T30-9-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB1770R-C4-T30-10-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB1770R-C4-T30-11-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB1770R-C4-T30-12-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB1770R-C6-T10-2-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB1770R-C6-T10-3-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB1770R-C6-T10-4-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB1770R-C6-T10-5-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB1770R-C6-T10-6-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB1770R-C6-T10-7-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB1770R-C6-T10-8-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB1770R-C6-T30-2-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB1770R-C6-T30-3-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB1770R-C6-T30-4-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB1770R-C6-T30-5-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB1770R-C6-T30-6-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB1770R-C6-T30-7-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB1770R-C6-T30-8-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB1770R-C6-T30-9-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB1770R-C6-T30-10-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB1770R-C6-T30-11-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB1770R-C6-T30-12-3Model: M3GB1 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB180R-C4-T10-2-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB180R-C4-T10-3-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB180R-C4-T10-4-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB180R-C4-T10-5-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB180R-C4-T10-6-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB180R-C4-T10-7-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB180R-C4-T10-8-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB180R-C4-T10-9-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GB180R-C4-T10-10-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GB180R-C4-T10-11-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GB180R-C4-T10-12-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GB180R-C4-T10-13-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GB180R-C4-T10-14-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GB180R-C4-T10-15-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GB180R-C4-T10-16-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GB180R-C4-T30-2-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB180R-C4-T30-3-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB180R-C4-T30-4-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB180R-C4-T30-5-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB180R-C4-T30-6-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB180R-C4-T30-7-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB180R-C4-T30-8-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB180R-C4-T30-9-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB180R-C4-T30-10-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB180R-C4-T30-11-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB180R-C4-T30-12-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB180R-C4-T30-13-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GB180R-C4-T30-14-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GB180R-C4-T30-15-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GB180R-C4-T30-16-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GB180R-C4-T30-17-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GB180R-C4-T30-18-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GB180R-C4-T30-19-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GB180R-C4-T30-20-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GB180R-C6-T10-2-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB180R-C6-T10-3-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB180R-C6-T10-4-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB180R-C6-T10-5-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB180R-C6-T10-6-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB180R-C6-T10-7-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB180R-C6-T10-8-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB180R-C6-T10-9-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GB180R-C6-T10-10-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GB180R-C6-T10-11-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GB180R-C6-T10-12-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GB180R-C6-T10-13-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GB180R-C6-T10-14-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GB180R-C6-T10-15-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GB180R-C6-T10-16-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GB180R-C6-T30-2-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB180R-C6-T30-3-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB180R-C6-T30-4-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB180R-C6-T30-5-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB180R-C6-T30-6-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB180R-C6-T30-7-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB180R-C6-T30-8-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB180R-C6-T30-9-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB180R-C6-T30-10-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB180R-C6-T30-11-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB180R-C6-T30-12-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB180R-C6-T30-13-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GB180R-C6-T30-14-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GB180R-C6-T30-15-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GB180R-C6-T30-16-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GB180R-C6-T30-17-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GB180R-C6-T30-18-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GB180R-C6-T30-19-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GB180R-C6-T30-20-3Model: M3GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
3GB1669R-00-A2N-3Model: 3GB1 single valve | Position: Dual 3-port N.C./N.C. | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
3GB1679R-00-A2N-3Model: 3GB1 single valve | Position: Dual 3-port N.C./N.O. | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
3GB1769R-00-A2N-3Model: 3GB1 single valve | Position: Dual 3-port N.O./N.C. | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
3GB1779R-00-A2N-3Model: 3GB1 single valve | Position: Dual 3-port N.O./N.O. | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
M3GB2660R-C4-T10-2-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2660R-C4-T10-3-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2660R-C4-T10-4-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2660R-C4-T10-5-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2660R-C4-T10-6-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2660R-C4-T10-7-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2660R-C4-T10-8-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2660R-C4-T30-2-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2660R-C4-T30-3-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2660R-C4-T30-4-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2660R-C4-T30-5-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2660R-C4-T30-6-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2660R-C4-T30-7-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2660R-C4-T30-8-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2660R-C4-T30-9-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2660R-C4-T30-10-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2660R-C4-T30-11-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2660R-C4-T30-12-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2660R-C6-T10-2-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2660R-C6-T10-3-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2660R-C6-T10-4-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2660R-C6-T10-5-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2660R-C6-T10-6-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2660R-C6-T10-7-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2660R-C6-T10-8-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2660R-C6-T30-2-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2660R-C6-T30-3-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2660R-C6-T30-4-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2660R-C6-T30-5-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2660R-C6-T30-6-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2660R-C6-T30-7-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2660R-C6-T30-8-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2660R-C6-T30-9-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2660R-C6-T30-10-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2660R-C6-T30-11-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2660R-C6-T30-12-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2660R-C8-T10-2-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2660R-C8-T10-3-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2660R-C8-T10-4-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2660R-C8-T10-5-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2660R-C8-T10-6-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2660R-C8-T10-7-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2660R-C8-T10-8-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2660R-C8-T30-2-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2660R-C8-T30-3-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2660R-C8-T30-4-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2660R-C8-T30-5-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2660R-C8-T30-6-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2660R-C8-T30-7-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2660R-C8-T30-8-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2660R-C8-T30-9-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2660R-C8-T30-10-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2660R-C8-T30-11-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2660R-C8-T30-12-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2670R-C4-T10-2-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2670R-C4-T10-3-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2670R-C4-T10-4-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2670R-C4-T10-5-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2670R-C4-T10-6-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2670R-C4-T10-7-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2670R-C4-T10-8-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2670R-C4-T30-2-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2670R-C4-T30-3-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2670R-C4-T30-4-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2670R-C4-T30-5-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2670R-C4-T30-6-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2670R-C4-T30-7-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2670R-C4-T30-8-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2670R-C4-T30-9-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2670R-C4-T30-10-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2670R-C4-T30-11-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2670R-C4-T30-12-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2670R-C6-T10-2-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2670R-C6-T10-3-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2670R-C6-T10-4-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2670R-C6-T10-5-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2670R-C6-T10-6-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2670R-C6-T10-7-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2670R-C6-T10-8-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2670R-C6-T30-2-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2670R-C6-T30-3-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2670R-C6-T30-4-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2670R-C6-T30-5-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2670R-C6-T30-6-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2670R-C6-T30-7-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2670R-C6-T30-8-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2670R-C6-T30-9-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2670R-C6-T30-10-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2670R-C6-T30-11-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2670R-C6-T30-12-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2670R-C8-T10-2-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2670R-C8-T10-3-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2670R-C8-T10-4-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2670R-C8-T10-5-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2670R-C8-T10-6-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2670R-C8-T10-7-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2670R-C8-T10-8-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2670R-C8-T30-2-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2670R-C8-T30-3-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2670R-C8-T30-4-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2670R-C8-T30-5-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2670R-C8-T30-6-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2670R-C8-T30-7-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2670R-C8-T30-8-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2670R-C8-T30-9-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2670R-C8-T30-10-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2670R-C8-T30-11-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2670R-C8-T30-12-3Model: M3GB2 manifold | Position: Dual 3-port N.C./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2760R-C4-T10-2-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2760R-C4-T10-3-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2760R-C4-T10-4-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2760R-C4-T10-5-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2760R-C4-T10-6-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2760R-C4-T10-7-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2760R-C4-T10-8-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2760R-C4-T30-2-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2760R-C4-T30-3-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2760R-C4-T30-4-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2760R-C4-T30-5-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2760R-C4-T30-6-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2760R-C4-T30-7-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2760R-C4-T30-8-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2760R-C4-T30-9-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2760R-C4-T30-10-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2760R-C4-T30-11-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2760R-C4-T30-12-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2760R-C6-T10-2-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2760R-C6-T10-3-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2760R-C6-T10-4-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2760R-C6-T10-5-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2760R-C6-T10-6-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2760R-C6-T10-7-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2760R-C6-T10-8-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2760R-C6-T30-2-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2760R-C6-T30-3-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2760R-C6-T30-4-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2760R-C6-T30-5-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2760R-C6-T30-6-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2760R-C6-T30-7-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2760R-C6-T30-8-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2760R-C6-T30-9-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2760R-C6-T30-10-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2760R-C6-T30-11-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2760R-C6-T30-12-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2760R-C8-T10-2-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2760R-C8-T10-3-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2760R-C8-T10-4-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2760R-C8-T10-5-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2760R-C8-T10-6-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2760R-C8-T10-7-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2760R-C8-T10-8-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2760R-C8-T30-2-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2760R-C8-T30-3-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2760R-C8-T30-4-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2760R-C8-T30-5-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2760R-C8-T30-6-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2760R-C8-T30-7-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2760R-C8-T30-8-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2760R-C8-T30-9-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2760R-C8-T30-10-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2760R-C8-T30-11-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2760R-C8-T30-12-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.C. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2770R-C4-T10-2-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2770R-C4-T10-3-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2770R-C4-T10-4-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2770R-C4-T10-5-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2770R-C4-T10-6-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2770R-C4-T10-7-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2770R-C4-T10-8-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2770R-C4-T30-2-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2770R-C4-T30-3-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2770R-C4-T30-4-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2770R-C4-T30-5-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2770R-C4-T30-6-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2770R-C4-T30-7-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2770R-C4-T30-8-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2770R-C4-T30-9-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2770R-C4-T30-10-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2770R-C4-T30-11-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2770R-C4-T30-12-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2770R-C6-T10-2-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2770R-C6-T10-3-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2770R-C6-T10-4-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2770R-C6-T10-5-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2770R-C6-T10-6-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2770R-C6-T10-7-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2770R-C6-T10-8-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2770R-C6-T30-2-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2770R-C6-T30-3-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2770R-C6-T30-4-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2770R-C6-T30-5-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2770R-C6-T30-6-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2770R-C6-T30-7-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2770R-C6-T30-8-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2770R-C6-T30-9-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2770R-C6-T30-10-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2770R-C6-T30-11-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2770R-C6-T30-12-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB2770R-C8-T10-2-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB2770R-C8-T10-3-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB2770R-C8-T10-4-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB2770R-C8-T10-5-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB2770R-C8-T10-6-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB2770R-C8-T10-7-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB2770R-C8-T10-8-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB2770R-C8-T30-2-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB2770R-C8-T30-3-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB2770R-C8-T30-4-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB2770R-C8-T30-5-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB2770R-C8-T30-6-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB2770R-C8-T30-7-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB2770R-C8-T30-8-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB2770R-C8-T30-9-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB2770R-C8-T30-10-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB2770R-C8-T30-11-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB2770R-C8-T30-12-3Model: M3GB2 manifold | Position: Dual 3-port N.O./N.O. | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB280R-C4-T10-2-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB280R-C4-T10-3-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB280R-C4-T10-4-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB280R-C4-T10-5-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB280R-C4-T10-6-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB280R-C4-T10-7-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB280R-C4-T10-8-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB280R-C4-T10-9-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GB280R-C4-T10-10-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GB280R-C4-T10-11-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GB280R-C4-T10-12-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GB280R-C4-T10-13-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GB280R-C4-T10-14-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GB280R-C4-T10-15-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GB280R-C4-T10-16-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GB280R-C4-T30-2-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB280R-C4-T30-3-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB280R-C4-T30-4-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB280R-C4-T30-5-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB280R-C4-T30-6-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB280R-C4-T30-7-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB280R-C4-T30-8-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB280R-C4-T30-9-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB280R-C4-T30-10-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB280R-C4-T30-11-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB280R-C4-T30-12-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB280R-C4-T30-13-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GB280R-C4-T30-14-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GB280R-C4-T30-15-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GB280R-C4-T30-16-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GB280R-C4-T30-17-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GB280R-C4-T30-18-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GB280R-C4-T30-19-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GB280R-C4-T30-20-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GB280R-C6-T10-2-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB280R-C6-T10-3-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB280R-C6-T10-4-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB280R-C6-T10-5-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB280R-C6-T10-6-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB280R-C6-T10-7-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB280R-C6-T10-8-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB280R-C6-T10-9-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GB280R-C6-T10-10-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GB280R-C6-T10-11-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GB280R-C6-T10-12-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GB280R-C6-T10-13-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GB280R-C6-T10-14-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GB280R-C6-T10-15-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GB280R-C6-T10-16-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GB280R-C6-T30-2-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB280R-C6-T30-3-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB280R-C6-T30-4-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB280R-C6-T30-5-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB280R-C6-T30-6-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB280R-C6-T30-7-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB280R-C6-T30-8-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB280R-C6-T30-9-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB280R-C6-T30-10-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB280R-C6-T30-11-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB280R-C6-T30-12-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB280R-C6-T30-13-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GB280R-C6-T30-14-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GB280R-C6-T30-15-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GB280R-C6-T30-16-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GB280R-C6-T30-17-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GB280R-C6-T30-18-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GB280R-C6-T30-19-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GB280R-C6-T30-20-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M3GB280R-C8-T10-2-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M3GB280R-C8-T10-3-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M3GB280R-C8-T10-4-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M3GB280R-C8-T10-5-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M3GB280R-C8-T10-6-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M3GB280R-C8-T10-7-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M3GB280R-C8-T10-8-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M3GB280R-C8-T10-9-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M3GB280R-C8-T10-10-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M3GB280R-C8-T10-11-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M3GB280R-C8-T10-12-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M3GB280R-C8-T10-13-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M3GB280R-C8-T10-14-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M3GB280R-C8-T10-15-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M3GB280R-C8-T10-16-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M3GB280R-C8-T30-2-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M3GB280R-C8-T30-3-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M3GB280R-C8-T30-4-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M3GB280R-C8-T30-5-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M3GB280R-C8-T30-6-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M3GB280R-C8-T30-7-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M3GB280R-C8-T30-8-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M3GB280R-C8-T30-9-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M3GB280R-C8-T30-10-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M3GB280R-C8-T30-11-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M3GB280R-C8-T30-12-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M3GB280R-C8-T30-13-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M3GB280R-C8-T30-14-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M3GB280R-C8-T30-15-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M3GB280R-C8-T30-16-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M3GB280R-C8-T30-17-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M3GB280R-C8-T30-18-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M3GB280R-C8-T30-19-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M3GB280R-C8-T30-20-3Model: M3GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
3GB2669R-00-A2N-3Model: 3GB2 single valve | Position: Dual 3-port N.C./N.C. | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
3GB2679R-00-A2N-3Model: 3GB2 single valve | Position: Dual 3-port N.C./N.O. | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
3GB2769R-00-A2N-3Model: 3GB2 single valve | Position: Dual 3-port N.O./N.C. | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
3GB2779R-00-A2N-3Model: 3GB2 single valve | Position: Dual 3-port N.O./N.O. | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
