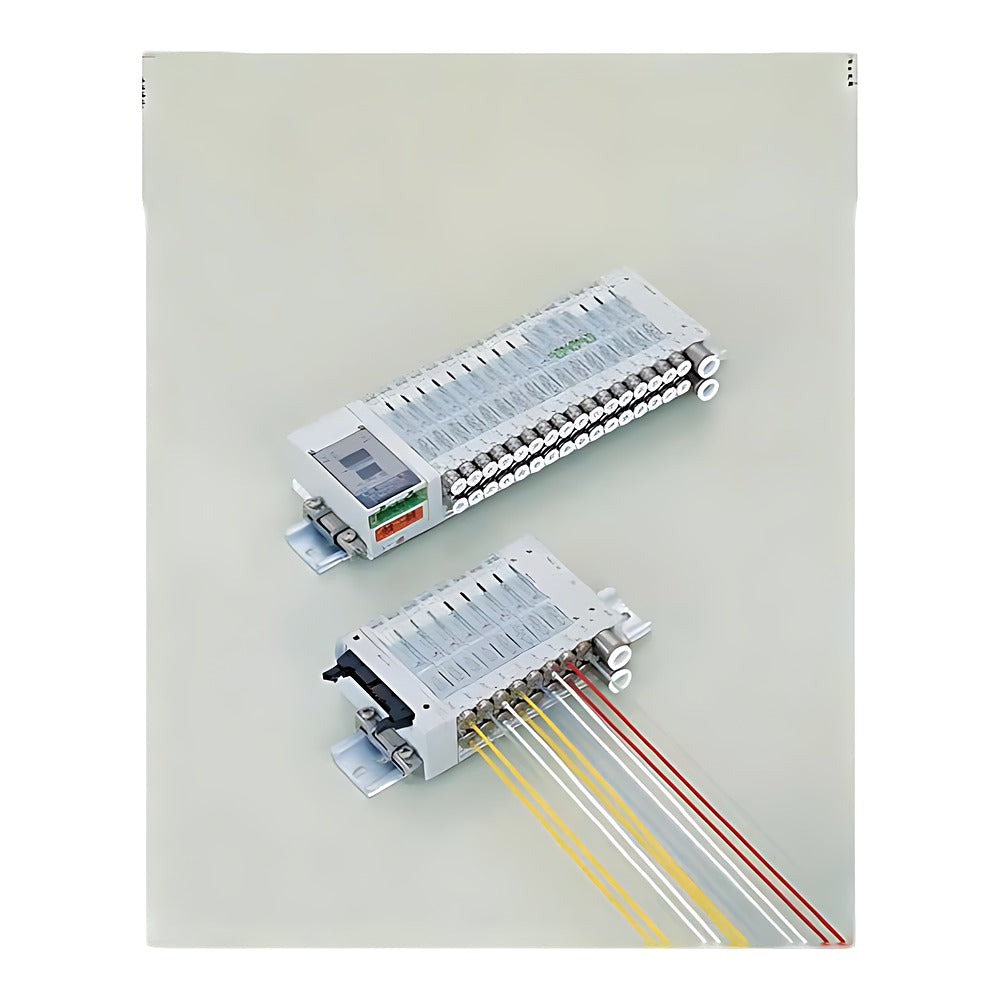

CKD M3KA1/M4KA1-4 Master Valve Manifold (Direct Piping)

CKD M3KA1/M4KA1-4 Master Valve Manifold (Direct Piping)

CKD M3KA1/M4KA1-4 manifolds of air-piloted 3/5-port master valves with common P/R ports and direct-piped A/B ports, 2 to 20 stations.

Key features

  • Common supply P and exhaust R1/R2 on manifold base; A/B ports on each valve
  • M3KA1/M4KA1/M4KA2 2-20 stations, M4KA3/M4KA4 2-15 stations
  • A/B ports M5 to Rc3/8 or ø4-ø12 push-in fittings; NPT and G thread versions (N/G suffix) available
  • Mixed switching manifolds (8) with function counts S1-S5/MP specified on order
  • Manifold P/R ports Rc1/8 (M3KA1/M4KA1) up to Rc1/2 (M4KA4)

Specifications

Valve type Pilot operated soft spool valve (air pilot)
Fluid Compressed air
Max. operating pressure 0.70 MPa
Proof pressure 1.05 MPa
Ambient temperature -5 to 50°C (no freezing)
Pilot port M5
Lubrication Not required
Source CKD Korea catalog CB-023SK-9, p. 1426-1431
M3KA111-M5-2 Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 2
M3KA111-M5-3 Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 3
M3KA111-M5-4 Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 4
M3KA111-M5-5 Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 5
M3KA111-M5-6 Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 6
M3KA111-M5-7 Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 7
M3KA111-M5-8 Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 8
M3KA111-M5-9 Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 9
M3KA111-M5-10 Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 10
M3KA111-M5-11 Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 11
M3KA111-M5-12 Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 12
M3KA111-M5-13 Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 13
M3KA111-M5-14 Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 14
M3KA111-M5-15 Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 15
M3KA111-M5-16 Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 16
M3KA111-M5-17 Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 17
M3KA111-M5-18 Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 18
M3KA111-M5-19 Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 19
M3KA111-M5-20 Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 20
M3KA111-GS4-2 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 2
M3KA111-GS4-3 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 3
M3KA111-GS4-4 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 4
M3KA111-GS4-5 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 5
M3KA111-GS4-6 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 6
M3KA111-GS4-7 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 7
M3KA111-GS4-8 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 8
M3KA111-GS4-9 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 9
M3KA111-GS4-10 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 10
M3KA111-GS4-11 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 11
M3KA111-GS4-12 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 12
M3KA111-GS4-13 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 13
M3KA111-GS4-14 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 14
M3KA111-GS4-15 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 15
M3KA111-GS4-16 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 16
M3KA111-GS4-17 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 17
M3KA111-GS4-18 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 18
M3KA111-GS4-19 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 19
M3KA111-GS4-20 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 20
M3KA111-GS6-2 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 2
M3KA111-GS6-3 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 3
M3KA111-GS6-4 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 4
M3KA111-GS6-5 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 5
M3KA111-GS6-6 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 6
M3KA111-GS6-7 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 7
M3KA111-GS6-8 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 8
M3KA111-GS6-9 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 9
M3KA111-GS6-10 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 10
M3KA111-GS6-11 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 11
M3KA111-GS6-12 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 12
M3KA111-GS6-13 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 13
M3KA111-GS6-14 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 14
M3KA111-GS6-15 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 15
M3KA111-GS6-16 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 16
M3KA111-GS6-17 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 17
M3KA111-GS6-18 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 18
M3KA111-GS6-19 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 19
M3KA111-GS6-20 Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 20
M3KA1111-M5-2 Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 2
M3KA1111-M5-3 Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 3
M3KA1111-M5-4 Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 4
M3KA1111-M5-5 Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 5
M3KA1111-M5-6 Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 6
M3KA1111-M5-7 Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 7
M3KA1111-M5-8 Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 8
M3KA1111-M5-9 Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 9
M3KA1111-M5-10 Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 10
M3KA1111-M5-11 Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 11
M3KA1111-M5-12 Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 12
M3KA1111-M5-13 Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 13
M3KA1111-M5-14 Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 14
M3KA1111-M5-15 Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 15
M3KA1111-M5-16 Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 16
M3KA1111-M5-17 Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 17
M3KA1111-M5-18 Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 18
M3KA1111-M5-19 Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 19
M3KA1111-M5-20 Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 20
M3KA1111-GS4-2 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 2
M3KA1111-GS4-3 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 3
M3KA1111-GS4-4 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 4
M3KA1111-GS4-5 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 5
M3KA1111-GS4-6 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 6
M3KA1111-GS4-7 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 7
M3KA1111-GS4-8 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 8
M3KA1111-GS4-9 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 9
M3KA1111-GS4-10 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 10
M3KA1111-GS4-11 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 11
M3KA1111-GS4-12 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 12
M3KA1111-GS4-13 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 13
M3KA1111-GS4-14 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 14
M3KA1111-GS4-15 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 15
M3KA1111-GS4-16 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 16
M3KA1111-GS4-17 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 17
M3KA1111-GS4-18 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 18
M3KA1111-GS4-19 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 19
M3KA1111-GS4-20 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 20
M3KA1111-GS6-2 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 2
M3KA1111-GS6-3 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 3
M3KA1111-GS6-4 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 4
M3KA1111-GS6-5 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 5
M3KA1111-GS6-6 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 6
M3KA1111-GS6-7 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 7
M3KA1111-GS6-8 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 8
M3KA1111-GS6-9 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 9
M3KA1111-GS6-10 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 10
M3KA1111-GS6-11 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 11
M3KA1111-GS6-12 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 12
M3KA1111-GS6-13 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 13
M3KA1111-GS6-14 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 14
M3KA1111-GS6-15 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 15
M3KA1111-GS6-16 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 16
M3KA1111-GS6-17 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 17
M3KA1111-GS6-18 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 18
M3KA1111-GS6-19 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 19
M3KA1111-GS6-20 Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 20
M3KA121-M5-2 Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 2
M3KA121-M5-3 Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 3
M3KA121-M5-4 Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 4
M3KA121-M5-5 Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 5
M3KA121-M5-6 Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 6
M3KA121-M5-7 Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 7
M3KA121-M5-8 Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 8
M3KA121-M5-9 Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 9
M3KA121-M5-10 Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 10
M3KA121-M5-11 Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 11
M3KA121-M5-12 Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 12
M3KA121-M5-13 Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 13
M3KA121-M5-14 Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 14
M3KA121-M5-15 Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 15
M3KA121-M5-16 Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 16
M3KA121-M5-17 Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 17
M3KA121-M5-18 Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 18
M3KA121-M5-19 Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 19
M3KA121-M5-20 Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 20
M3KA121-GS4-2 Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 2
M3KA121-GS4-3 Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 3
M3KA121-GS4-4 Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 4
M3KA121-GS4-5 Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 5
M3KA121-GS4-6 Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 6
M3KA121-GS4-7 Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 7
M3KA121-GS4-8 Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 8
M3KA121-GS4-9 Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 9
M3KA121-GS4-10 Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 10
M3KA121-GS4-11 Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 11
M3KA121-GS4-12 Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 12
M3KA121-GS4-13 Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 13
M3KA121-GS4-14 Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 14
M3KA121-GS4-15 Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 15
M3KA121-GS4-16 Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 16
M3KA121-GS4-17 Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 17
M3KA121-GS4-18 Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 18
M3KA121-GS4-19 Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 19
M3KA121-GS4-20 Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 20
M3KA121-GS6-2 Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 2
M3KA121-GS6-3 Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 3
M3KA121-GS6-4 Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 4
M3KA121-GS6-5 Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 5
M3KA121-GS6-6 Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 6
M3KA121-GS6-7 Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 7
M3KA121-GS6-8 Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 8
M3KA121-GS6-9 Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 9
M3KA121-GS6-10 Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 10
M3KA121-GS6-11 Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 11
M3KA121-GS6-12 Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 12
M3KA121-GS6-13 Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 13
M3KA121-GS6-14 Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 14
M3KA121-GS6-15 Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 15
M3KA121-GS6-16 Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 16
M3KA121-GS6-17 Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 17
M3KA121-GS6-18 Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 18
M3KA121-GS6-19 Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 19
M3KA121-GS6-20 Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 20
M4KA111-M5-2 Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 2
M4KA111-M5-3 Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 3
M4KA111-M5-4 Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 4
M4KA111-M5-5 Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 5
M4KA111-M5-6 Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 6
M4KA111-M5-7 Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 7
M4KA111-M5-8 Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 8
M4KA111-M5-9 Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 9
M4KA111-M5-10 Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 10
M4KA111-M5-11 Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 11
M4KA111-M5-12 Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 12
M4KA111-M5-13 Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 13
M4KA111-M5-14 Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 14
M4KA111-M5-15 Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 15
M4KA111-M5-16 Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 16
M4KA111-M5-17 Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 17
M4KA111-M5-18 Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 18
M4KA111-M5-19 Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 19
M4KA111-M5-20 Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 20
M4KA111-GS4-2 Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 2
M4KA111-GS4-3 Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 3
M4KA111-GS4-4 Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 4
M4KA111-GS4-5 Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 5
M4KA111-GS4-6 Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 6
M4KA111-GS4-7 Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 7
M4KA111-GS4-8 Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 8
M4KA111-GS4-9 Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 9
M4KA111-GS4-10 Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 10
M4KA111-GS4-11 Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 11
M4KA111-GS4-12 Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 12
M4KA111-GS4-13 Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 13
M4KA111-GS4-14 Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 14
M4KA111-GS4-15 Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 15
M4KA111-GS4-16 Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 16
M4KA111-GS4-17 Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 17
M4KA111-GS4-18 Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 18
M4KA111-GS4-19 Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 19
M4KA111-GS4-20 Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 20
M4KA111-GS6-2 Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 2
M4KA111-GS6-3 Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 3
M4KA111-GS6-4 Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 4
M4KA111-GS6-5 Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 5
M4KA111-GS6-6 Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 6
M4KA111-GS6-7 Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 7
M4KA111-GS6-8 Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 8
M4KA111-GS6-9 Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 9
M4KA111-GS6-10 Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 10
M4KA111-GS6-11 Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 11
M4KA111-GS6-12 Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 12
M4KA111-GS6-13 Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 13
M4KA111-GS6-14 Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 14
M4KA111-GS6-15 Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 15
M4KA111-GS6-16 Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 16
M4KA111-GS6-17 Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 17
M4KA111-GS6-18 Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 18
M4KA111-GS6-19 Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 19
M4KA111-GS6-20 Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 20
M4KA121-M5-2 Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 2
M4KA121-M5-3 Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 3
M4KA121-M5-4 Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 4
M4KA121-M5-5 Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 5
M4KA121-M5-6 Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 6
M4KA121-M5-7 Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 7
M4KA121-M5-8 Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 8
M4KA121-M5-9 Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 9
M4KA121-M5-10 Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 10
M4KA121-M5-11 Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 11
M4KA121-M5-12 Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 12
M4KA121-M5-13 Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 13
M4KA121-M5-14 Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 14
M4KA121-M5-15 Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 15
M4KA121-M5-16 Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 16
M4KA121-M5-17 Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 17
M4KA121-M5-18 Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 18
M4KA121-M5-19 Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 19
M4KA121-M5-20 Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 20
M4KA121-GS4-2 Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 2
M4KA121-GS4-3 Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 3
M4KA121-GS4-4 Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 4
M4KA121-GS4-5 Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 5
M4KA121-GS4-6 Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 6
M4KA121-GS4-7 Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 7
M4KA121-GS4-8 Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 8
M4KA121-GS4-9 Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 9
M4KA121-GS4-10 Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 10
M4KA121-GS4-11 Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 11
M4KA121-GS4-12 Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 12
M4KA121-GS4-13 Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 13
M4KA121-GS4-14 Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 14
M4KA121-GS4-15 Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 15
M4KA121-GS4-16 Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 16
M4KA121-GS4-17 Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 17
M4KA121-GS4-18 Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 18
M4KA121-GS4-19 Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 19
M4KA121-GS4-20 Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 20
M4KA121-GS6-2 Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 2
M4KA121-GS6-3 Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 3
M4KA121-GS6-4 Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 4
M4KA121-GS6-5 Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 5
M4KA121-GS6-6 Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 6
M4KA121-GS6-7 Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 7
M4KA121-GS6-8 Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 8
M4KA121-GS6-9 Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 9
M4KA121-GS6-10 Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 10
M4KA121-GS6-11 Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 11
M4KA121-GS6-12 Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 12
M4KA121-GS6-13 Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 13
M4KA121-GS6-14 Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 14
M4KA121-GS6-15 Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 15
M4KA121-GS6-16 Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 16
M4KA121-GS6-17 Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 17
M4KA121-GS6-18 Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 18
M4KA121-GS6-19 Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 19
M4KA121-GS6-20 Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 20
M4KA131-M5-2 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 2
M4KA131-M5-3 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 3
M4KA131-M5-4 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 4
M4KA131-M5-5 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 5
M4KA131-M5-6 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 6
M4KA131-M5-7 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 7
M4KA131-M5-8 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 8
M4KA131-M5-9 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 9
M4KA131-M5-10 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 10
M4KA131-M5-11 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 11
M4KA131-M5-12 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 12
M4KA131-M5-13 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 13
M4KA131-M5-14 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 14
M4KA131-M5-15 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 15
M4KA131-M5-16 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 16
M4KA131-M5-17 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 17
M4KA131-M5-18 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 18
M4KA131-M5-19 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 19
M4KA131-M5-20 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 20
M4KA131-GS4-2 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 2
M4KA131-GS4-3 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 3
M4KA131-GS4-4 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 4
M4KA131-GS4-5 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 5
M4KA131-GS4-6 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 6
M4KA131-GS4-7 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 7
M4KA131-GS4-8 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 8
M4KA131-GS4-9 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 9
M4KA131-GS4-10 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 10
M4KA131-GS4-11 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 11
M4KA131-GS4-12 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 12
M4KA131-GS4-13 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 13
M4KA131-GS4-14 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 14
M4KA131-GS4-15 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 15
M4KA131-GS4-16 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 16
M4KA131-GS4-17 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 17
M4KA131-GS4-18 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 18
M4KA131-GS4-19 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 19
M4KA131-GS4-20 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 20
M4KA131-GS6-2 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 2
M4KA131-GS6-3 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 3
M4KA131-GS6-4 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 4
M4KA131-GS6-5 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 5
M4KA131-GS6-6 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 6
M4KA131-GS6-7 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 7
M4KA131-GS6-8 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 8
M4KA131-GS6-9 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 9
M4KA131-GS6-10 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 10
M4KA131-GS6-11 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 11
M4KA131-GS6-12 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 12
M4KA131-GS6-13 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 13
M4KA131-GS6-14 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 14
M4KA131-GS6-15 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 15
M4KA131-GS6-16 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 16
M4KA131-GS6-17 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 17
M4KA131-GS6-18 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 18
M4KA131-GS6-19 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 19
M4KA131-GS6-20 Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 20
M4KA141-M5-2 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 2
M4KA141-M5-3 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 3
M4KA141-M5-4 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 4
M4KA141-M5-5 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 5
M4KA141-M5-6 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 6
M4KA141-M5-7 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 7
M4KA141-M5-8 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 8
M4KA141-M5-9 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 9
M4KA141-M5-10 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 10
M4KA141-M5-11 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 11
M4KA141-M5-12 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 12
M4KA141-M5-13 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 13
M4KA141-M5-14 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 14
M4KA141-M5-15 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 15
M4KA141-M5-16 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 16
M4KA141-M5-17 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 17
M4KA141-M5-18 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 18
M4KA141-M5-19 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 19
M4KA141-M5-20 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 20
M4KA141-GS4-2 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 2
M4KA141-GS4-3 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 3
M4KA141-GS4-4 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 4
M4KA141-GS4-5 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 5
M4KA141-GS4-6 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 6
M4KA141-GS4-7 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 7
M4KA141-GS4-8 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 8
M4KA141-GS4-9 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 9
M4KA141-GS4-10 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 10
M4KA141-GS4-11 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 11
M4KA141-GS4-12 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 12
M4KA141-GS4-13 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 13
M4KA141-GS4-14 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 14
M4KA141-GS4-15 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 15
M4KA141-GS4-16 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 16
M4KA141-GS4-17 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 17
M4KA141-GS4-18 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 18
M4KA141-GS4-19 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 19
M4KA141-GS4-20 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 20
M4KA141-GS6-2 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 2
M4KA141-GS6-3 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 3
M4KA141-GS6-4 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 4
M4KA141-GS6-5 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 5
M4KA141-GS6-6 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 6
M4KA141-GS6-7 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 7
M4KA141-GS6-8 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 8
M4KA141-GS6-9 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 9
M4KA141-GS6-10 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 10
M4KA141-GS6-11 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 11
M4KA141-GS6-12 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 12
M4KA141-GS6-13 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 13
M4KA141-GS6-14 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 14
M4KA141-GS6-15 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 15
M4KA141-GS6-16 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 16
M4KA141-GS6-17 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 17
M4KA141-GS6-18 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 18
M4KA141-GS6-19 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 19
M4KA141-GS6-20 Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 20
M4KA151-M5-2 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 2
M4KA151-M5-3 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 3
M4KA151-M5-4 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 4
M4KA151-M5-5 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 5
M4KA151-M5-6 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 6
M4KA151-M5-7 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 7
M4KA151-M5-8 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 8
M4KA151-M5-9 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 9
M4KA151-M5-10 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 10
M4KA151-M5-11 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 11
M4KA151-M5-12 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 12
M4KA151-M5-13 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 13
M4KA151-M5-14 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 14
M4KA151-M5-15 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 15
M4KA151-M5-16 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 16
M4KA151-M5-17 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 17
M4KA151-M5-18 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 18
M4KA151-M5-19 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 19
M4KA151-M5-20 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 20
M4KA151-GS4-2 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 2
M4KA151-GS4-3 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 3
M4KA151-GS4-4 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 4
M4KA151-GS4-5 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 5
M4KA151-GS4-6 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 6
M4KA151-GS4-7 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 7
M4KA151-GS4-8 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 8
M4KA151-GS4-9 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 9
M4KA151-GS4-10 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 10
M4KA151-GS4-11 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 11
M4KA151-GS4-12 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 12
M4KA151-GS4-13 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 13
M4KA151-GS4-14 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 14
M4KA151-GS4-15 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 15
M4KA151-GS4-16 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 16
M4KA151-GS4-17 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 17
M4KA151-GS4-18 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 18
M4KA151-GS4-19 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 19
M4KA151-GS4-20 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 20
M4KA151-GS6-2 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 2
M4KA151-GS6-3 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 3
M4KA151-GS6-4 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 4
M4KA151-GS6-5 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 5
M4KA151-GS6-6 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 6
M4KA151-GS6-7 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 7
M4KA151-GS6-8 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 8
M4KA151-GS6-9 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 9
M4KA151-GS6-10 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 10
M4KA151-GS6-11 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 11
M4KA151-GS6-12 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 12
M4KA151-GS6-13 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 13
M4KA151-GS6-14 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 14
M4KA151-GS6-15 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 15
M4KA151-GS6-16 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 16
M4KA151-GS6-17 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 17
M4KA151-GS6-18 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 18
M4KA151-GS6-19 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 19
M4KA151-GS6-20 Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 20
M4KA211-06-2 Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 2
M4KA211-06-3 Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 3
M4KA211-06-4 Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 4
M4KA211-06-5 Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 5
M4KA211-06-6 Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 6
M4KA211-06-7 Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 7
M4KA211-06-8 Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 8
M4KA211-06-9 Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 9
M4KA211-06-10 Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 10
M4KA211-06-11 Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 11
M4KA211-06-12 Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 12
M4KA211-06-13 Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 13
M4KA211-06-14 Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 14
M4KA211-06-15 Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 15
M4KA211-06-16 Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 16
M4KA211-06-17 Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 17
M4KA211-06-18 Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 18
M4KA211-06-19 Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 19
M4KA211-06-20 Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 20
M4KA211-GS6-2 Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 2
M4KA211-GS6-3 Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 3
M4KA211-GS6-4 Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 4
M4KA211-GS6-5 Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 5
M4KA211-GS6-6 Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 6
M4KA211-GS6-7 Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 7
M4KA211-GS6-8 Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 8
M4KA211-GS6-9 Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 9
M4KA211-GS6-10 Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 10
M4KA211-GS6-11 Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 11
M4KA211-GS6-12 Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 12
M4KA211-GS6-13 Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 13
M4KA211-GS6-14 Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 14
M4KA211-GS6-15 Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 15
M4KA211-GS6-16 Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 16
M4KA211-GS6-17 Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 17
M4KA211-GS6-18 Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 18
M4KA211-GS6-19 Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 19
M4KA211-GS6-20 Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 20
M4KA211-GS8-2 Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 2
M4KA211-GS8-3 Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 3
M4KA211-GS8-4 Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 4
M4KA211-GS8-5 Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 5
M4KA211-GS8-6 Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 6
M4KA211-GS8-7 Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 7
M4KA211-GS8-8 Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 8
M4KA211-GS8-9 Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 9
M4KA211-GS8-10 Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 10
M4KA211-GS8-11 Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 11
M4KA211-GS8-12 Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 12
M4KA211-GS8-13 Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 13
M4KA211-GS8-14 Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 14
M4KA211-GS8-15 Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 15
M4KA211-GS8-16 Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 16
M4KA211-GS8-17 Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 17
M4KA211-GS8-18 Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 18
M4KA211-GS8-19 Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 19
M4KA211-GS8-20 Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 20
M4KA221-06-2 Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 2
M4KA221-06-3 Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 3
M4KA221-06-4 Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 4
M4KA221-06-5 Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 5
M4KA221-06-6 Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 6
M4KA221-06-7 Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 7
M4KA221-06-8 Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 8
M4KA221-06-9 Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 9
M4KA221-06-10 Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 10
M4KA221-06-11 Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 11
M4KA221-06-12 Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 12
M4KA221-06-13 Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 13
M4KA221-06-14 Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 14
M4KA221-06-15 Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 15
M4KA221-06-16 Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 16
M4KA221-06-17 Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 17
M4KA221-06-18 Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 18
M4KA221-06-19 Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 19
M4KA221-06-20 Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 20
M4KA221-GS6-2 Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 2
M4KA221-GS6-3 Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 3
M4KA221-GS6-4 Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 4
M4KA221-GS6-5 Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 5
M4KA221-GS6-6 Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 6
M4KA221-GS6-7 Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 7
M4KA221-GS6-8 Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 8
M4KA221-GS6-9 Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 9
M4KA221-GS6-10 Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 10
M4KA221-GS6-11 Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 11
M4KA221-GS6-12 Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 12
M4KA221-GS6-13 Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 13
M4KA221-GS6-14 Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 14
M4KA221-GS6-15 Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 15
M4KA221-GS6-16 Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 16
M4KA221-GS6-17 Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 17
M4KA221-GS6-18 Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 18
M4KA221-GS6-19 Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 19
M4KA221-GS6-20 Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 20
M4KA221-GS8-2 Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 2
M4KA221-GS8-3 Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 3
M4KA221-GS8-4 Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 4
M4KA221-GS8-5 Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 5
M4KA221-GS8-6 Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 6
M4KA221-GS8-7 Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 7
M4KA221-GS8-8 Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 8
M4KA221-GS8-9 Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 9
M4KA221-GS8-10 Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 10
M4KA221-GS8-11 Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 11
M4KA221-GS8-12 Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 12
M4KA221-GS8-13 Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 13
M4KA221-GS8-14 Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 14
M4KA221-GS8-15 Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 15
M4KA221-GS8-16 Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 16
M4KA221-GS8-17 Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 17
M4KA221-GS8-18 Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 18
M4KA221-GS8-19 Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 19
M4KA221-GS8-20 Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 20
M4KA231-06-2 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 2
M4KA231-06-3 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 3
M4KA231-06-4 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 4
M4KA231-06-5 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 5
M4KA231-06-6 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 6
M4KA231-06-7 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 7
M4KA231-06-8 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 8
M4KA231-06-9 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 9
M4KA231-06-10 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 10
M4KA231-06-11 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 11
M4KA231-06-12 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 12
M4KA231-06-13 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 13
M4KA231-06-14 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 14
M4KA231-06-15 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 15
M4KA231-06-16 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 16
M4KA231-06-17 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 17
M4KA231-06-18 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 18
M4KA231-06-19 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 19
M4KA231-06-20 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 20
M4KA231-GS6-2 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 2
M4KA231-GS6-3 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 3
M4KA231-GS6-4 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 4
M4KA231-GS6-5 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 5
M4KA231-GS6-6 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 6
M4KA231-GS6-7 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 7
M4KA231-GS6-8 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 8
M4KA231-GS6-9 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 9
M4KA231-GS6-10 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 10
M4KA231-GS6-11 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 11
M4KA231-GS6-12 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 12
M4KA231-GS6-13 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 13
M4KA231-GS6-14 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 14
M4KA231-GS6-15 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 15
M4KA231-GS6-16 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 16
M4KA231-GS6-17 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 17
M4KA231-GS6-18 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 18
M4KA231-GS6-19 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 19
M4KA231-GS6-20 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 20
M4KA231-GS8-2 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 2
M4KA231-GS8-3 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 3
M4KA231-GS8-4 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 4
M4KA231-GS8-5 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 5
M4KA231-GS8-6 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 6
M4KA231-GS8-7 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 7
M4KA231-GS8-8 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 8
M4KA231-GS8-9 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 9
M4KA231-GS8-10 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 10
M4KA231-GS8-11 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 11
M4KA231-GS8-12 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 12
M4KA231-GS8-13 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 13
M4KA231-GS8-14 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 14
M4KA231-GS8-15 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 15
M4KA231-GS8-16 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 16
M4KA231-GS8-17 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 17
M4KA231-GS8-18 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 18
M4KA231-GS8-19 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 19
M4KA231-GS8-20 Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 20
M4KA241-06-2 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 2
M4KA241-06-3 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 3
M4KA241-06-4 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 4
M4KA241-06-5 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 5
M4KA241-06-6 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 6
M4KA241-06-7 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 7
M4KA241-06-8 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 8
M4KA241-06-9 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 9
M4KA241-06-10 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 10
M4KA241-06-11 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 11
M4KA241-06-12 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 12
M4KA241-06-13 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 13
M4KA241-06-14 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 14
M4KA241-06-15 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 15
M4KA241-06-16 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 16
M4KA241-06-17 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 17
M4KA241-06-18 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 18
M4KA241-06-19 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 19
M4KA241-06-20 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 20
M4KA241-GS6-2 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 2
M4KA241-GS6-3 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 3
M4KA241-GS6-4 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 4
M4KA241-GS6-5 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 5
M4KA241-GS6-6 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 6
M4KA241-GS6-7 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 7
M4KA241-GS6-8 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 8
M4KA241-GS6-9 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 9
M4KA241-GS6-10 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 10
M4KA241-GS6-11 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 11
M4KA241-GS6-12 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 12
M4KA241-GS6-13 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 13
M4KA241-GS6-14 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 14
M4KA241-GS6-15 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 15
M4KA241-GS6-16 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 16
M4KA241-GS6-17 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 17
M4KA241-GS6-18 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 18
M4KA241-GS6-19 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 19
M4KA241-GS6-20 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 20
M4KA241-GS8-2 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 2
M4KA241-GS8-3 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 3
M4KA241-GS8-4 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 4
M4KA241-GS8-5 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 5
M4KA241-GS8-6 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 6
M4KA241-GS8-7 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 7
M4KA241-GS8-8 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 8
M4KA241-GS8-9 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 9
M4KA241-GS8-10 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 10
M4KA241-GS8-11 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 11
M4KA241-GS8-12 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 12
M4KA241-GS8-13 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 13
M4KA241-GS8-14 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 14
M4KA241-GS8-15 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 15
M4KA241-GS8-16 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 16
M4KA241-GS8-17 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 17
M4KA241-GS8-18 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 18
M4KA241-GS8-19 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 19
M4KA241-GS8-20 Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 20
M4KA251-06-2 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 2
M4KA251-06-3 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 3
M4KA251-06-4 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 4
M4KA251-06-5 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 5
M4KA251-06-6 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 6
M4KA251-06-7 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 7
M4KA251-06-8 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 8
M4KA251-06-9 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 9
M4KA251-06-10 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 10
M4KA251-06-11 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 11
M4KA251-06-12 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 12
M4KA251-06-13 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 13
M4KA251-06-14 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 14
M4KA251-06-15 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 15
M4KA251-06-16 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 16
M4KA251-06-17 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 17
M4KA251-06-18 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 18
M4KA251-06-19 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 19
M4KA251-06-20 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 20
M4KA251-GS6-2 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 2
M4KA251-GS6-3 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 3
M4KA251-GS6-4 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 4
M4KA251-GS6-5 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 5
M4KA251-GS6-6 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 6
M4KA251-GS6-7 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 7
M4KA251-GS6-8 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 8
M4KA251-GS6-9 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 9
M4KA251-GS6-10 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 10
M4KA251-GS6-11 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 11
M4KA251-GS6-12 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 12
M4KA251-GS6-13 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 13
M4KA251-GS6-14 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 14
M4KA251-GS6-15 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 15
M4KA251-GS6-16 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 16
M4KA251-GS6-17 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 17
M4KA251-GS6-18 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 18
M4KA251-GS6-19 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 19
M4KA251-GS6-20 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 20
M4KA251-GS8-2 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 2
M4KA251-GS8-3 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 3
M4KA251-GS8-4 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 4
M4KA251-GS8-5 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 5
M4KA251-GS8-6 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 6
M4KA251-GS8-7 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 7
M4KA251-GS8-8 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 8
M4KA251-GS8-9 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 9
M4KA251-GS8-10 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 10
M4KA251-GS8-11 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 11
M4KA251-GS8-12 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 12
M4KA251-GS8-13 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 13
M4KA251-GS8-14 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 14
M4KA251-GS8-15 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 15
M4KA251-GS8-16 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 16
M4KA251-GS8-17 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 17
M4KA251-GS8-18 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 18
M4KA251-GS8-19 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 19
M4KA251-GS8-20 Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 20
M4KA311-08-2 Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 2
M4KA311-08-3 Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 3
M4KA311-08-4 Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 4
M4KA311-08-5 Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 5
M4KA311-08-6 Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 6
M4KA311-08-7 Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 7
M4KA311-08-8 Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 8
M4KA311-08-9 Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 9
M4KA311-08-10 Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 10
M4KA311-08-11 Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 11
M4KA311-08-12 Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 12
M4KA311-08-13 Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 13
M4KA311-08-14 Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 14
M4KA311-08-15 Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 15
M4KA311-GS8-2 Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 2
M4KA311-GS8-3 Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 3
M4KA311-GS8-4 Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 4
M4KA311-GS8-5 Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 5
M4KA311-GS8-6 Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 6
M4KA311-GS8-7 Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 7
M4KA311-GS8-8 Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 8
M4KA311-GS8-9 Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 9
M4KA311-GS8-10 Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 10
M4KA311-GS8-11 Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 11
M4KA311-GS8-12 Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 12
M4KA311-GS8-13 Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 13
M4KA311-GS8-14 Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 14
M4KA311-GS8-15 Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 15
M4KA311-GS10-2 Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 2
M4KA311-GS10-3 Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 3
M4KA311-GS10-4 Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 4
M4KA311-GS10-5 Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 5
M4KA311-GS10-6 Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 6
M4KA311-GS10-7 Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 7
M4KA311-GS10-8 Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 8
M4KA311-GS10-9 Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 9
M4KA311-GS10-10 Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 10
M4KA311-GS10-11 Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 11
M4KA311-GS10-12 Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 12
M4KA311-GS10-13 Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 13
M4KA311-GS10-14 Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 14
M4KA311-GS10-15 Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 15
M4KA321-08-2 Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 2
M4KA321-08-3 Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 3
M4KA321-08-4 Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 4
M4KA321-08-5 Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 5
M4KA321-08-6 Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 6
M4KA321-08-7 Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 7
M4KA321-08-8 Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 8
M4KA321-08-9 Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 9
M4KA321-08-10 Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 10
M4KA321-08-11 Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 11
M4KA321-08-12 Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 12
M4KA321-08-13 Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 13
M4KA321-08-14 Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 14
M4KA321-08-15 Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 15
M4KA321-GS8-2 Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 2
M4KA321-GS8-3 Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 3
M4KA321-GS8-4 Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 4
M4KA321-GS8-5 Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 5
M4KA321-GS8-6 Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 6
M4KA321-GS8-7 Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 7
M4KA321-GS8-8 Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 8
M4KA321-GS8-9 Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 9
M4KA321-GS8-10 Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 10
M4KA321-GS8-11 Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 11
M4KA321-GS8-12 Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 12
M4KA321-GS8-13 Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 13
M4KA321-GS8-14 Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 14
M4KA321-GS8-15 Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 15
M4KA321-GS10-2 Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 2
M4KA321-GS10-3 Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 3
M4KA321-GS10-4 Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 4
M4KA321-GS10-5 Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 5
M4KA321-GS10-6 Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 6
M4KA321-GS10-7 Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 7
M4KA321-GS10-8 Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 8
M4KA321-GS10-9 Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 9
M4KA321-GS10-10 Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 10
M4KA321-GS10-11 Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 11
M4KA321-GS10-12 Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 12
M4KA321-GS10-13 Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 13
M4KA321-GS10-14 Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 14
M4KA321-GS10-15 Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 15
M4KA331-08-2 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 2
M4KA331-08-3 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 3
M4KA331-08-4 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 4
M4KA331-08-5 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 5
M4KA331-08-6 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 6
M4KA331-08-7 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 7
M4KA331-08-8 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 8
M4KA331-08-9 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 9
M4KA331-08-10 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 10
M4KA331-08-11 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 11
M4KA331-08-12 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 12
M4KA331-08-13 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 13
M4KA331-08-14 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 14
M4KA331-08-15 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 15
M4KA331-GS8-2 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 2
M4KA331-GS8-3 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 3
M4KA331-GS8-4 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 4
M4KA331-GS8-5 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 5
M4KA331-GS8-6 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 6
M4KA331-GS8-7 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 7
M4KA331-GS8-8 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 8
M4KA331-GS8-9 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 9
M4KA331-GS8-10 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 10
M4KA331-GS8-11 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 11
M4KA331-GS8-12 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 12
M4KA331-GS8-13 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 13
M4KA331-GS8-14 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 14
M4KA331-GS8-15 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 15
M4KA331-GS10-2 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 2
M4KA331-GS10-3 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 3
M4KA331-GS10-4 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 4
M4KA331-GS10-5 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 5
M4KA331-GS10-6 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 6
M4KA331-GS10-7 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 7
M4KA331-GS10-8 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 8
M4KA331-GS10-9 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 9
M4KA331-GS10-10 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 10
M4KA331-GS10-11 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 11
M4KA331-GS10-12 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 12
M4KA331-GS10-13 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 13
M4KA331-GS10-14 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 14
M4KA331-GS10-15 Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 15
M4KA341-08-2 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 2
M4KA341-08-3 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 3
M4KA341-08-4 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 4
M4KA341-08-5 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 5
M4KA341-08-6 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 6
M4KA341-08-7 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 7
M4KA341-08-8 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 8
M4KA341-08-9 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 9
M4KA341-08-10 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 10
M4KA341-08-11 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 11
M4KA341-08-12 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 12
M4KA341-08-13 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 13
M4KA341-08-14 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 14
M4KA341-08-15 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 15
M4KA341-GS8-2 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 2
M4KA341-GS8-3 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 3
M4KA341-GS8-4 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 4
M4KA341-GS8-5 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 5
M4KA341-GS8-6 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 6
M4KA341-GS8-7 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 7
M4KA341-GS8-8 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 8
M4KA341-GS8-9 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 9
M4KA341-GS8-10 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 10
M4KA341-GS8-11 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 11
M4KA341-GS8-12 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 12
M4KA341-GS8-13 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 13
M4KA341-GS8-14 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 14
M4KA341-GS8-15 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 15
M4KA341-GS10-2 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 2
M4KA341-GS10-3 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 3
M4KA341-GS10-4 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 4
M4KA341-GS10-5 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 5
M4KA341-GS10-6 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 6
M4KA341-GS10-7 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 7
M4KA341-GS10-8 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 8
M4KA341-GS10-9 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 9
M4KA341-GS10-10 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 10
M4KA341-GS10-11 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 11
M4KA341-GS10-12 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 12
M4KA341-GS10-13 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 13
M4KA341-GS10-14 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 14
M4KA341-GS10-15 Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 15
M4KA351-08-2 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 2
M4KA351-08-3 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 3
M4KA351-08-4 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 4
M4KA351-08-5 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 5
M4KA351-08-6 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 6
M4KA351-08-7 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 7
M4KA351-08-8 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 8
M4KA351-08-9 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 9
M4KA351-08-10 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 10
M4KA351-08-11 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 11
M4KA351-08-12 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 12
M4KA351-08-13 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 13
M4KA351-08-14 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 14
M4KA351-08-15 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 15
M4KA351-GS8-2 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 2
M4KA351-GS8-3 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 3
M4KA351-GS8-4 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 4
M4KA351-GS8-5 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 5
M4KA351-GS8-6 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 6
M4KA351-GS8-7 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 7
M4KA351-GS8-8 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 8
M4KA351-GS8-9 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 9
M4KA351-GS8-10 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 10
M4KA351-GS8-11 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 11
M4KA351-GS8-12 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 12
M4KA351-GS8-13 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 13
M4KA351-GS8-14 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 14
M4KA351-GS8-15 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 15
M4KA351-GS10-2 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 2
M4KA351-GS10-3 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 3
M4KA351-GS10-4 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 4
M4KA351-GS10-5 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 5
M4KA351-GS10-6 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 6
M4KA351-GS10-7 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 7
M4KA351-GS10-8 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 8
M4KA351-GS10-9 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 9
M4KA351-GS10-10 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 10
M4KA351-GS10-11 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 11
M4KA351-GS10-12 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 12
M4KA351-GS10-13 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 13
M4KA351-GS10-14 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 14
M4KA351-GS10-15 Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 15
M4KA411-10-2 Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 2
M4KA411-10-3 Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 3
M4KA411-10-4 Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 4
M4KA411-10-5 Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 5
M4KA411-10-6 Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 6
M4KA411-10-7 Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 7
M4KA411-10-8 Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 8
M4KA411-10-9 Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 9
M4KA411-10-10 Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 10
M4KA411-10-11 Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 11
M4KA411-10-12 Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 12
M4KA411-10-13 Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 13
M4KA411-10-14 Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 14
M4KA411-10-15 Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 15
M4KA411-GS10-2 Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 2
M4KA411-GS10-3 Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 3
M4KA411-GS10-4 Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 4
M4KA411-GS10-5 Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 5
M4KA411-GS10-6 Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 6
M4KA411-GS10-7 Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 7
M4KA411-GS10-8 Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 8
M4KA411-GS10-9 Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 9
M4KA411-GS10-10 Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 10
M4KA411-GS10-11 Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 11
M4KA411-GS10-12 Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 12
M4KA411-GS10-13 Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 13
M4KA411-GS10-14 Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 14
M4KA411-GS10-15 Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 15
M4KA411-GS12-2 Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 2
M4KA411-GS12-3 Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 3
M4KA411-GS12-4 Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 4
M4KA411-GS12-5 Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 5
M4KA411-GS12-6 Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 6
M4KA411-GS12-7 Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 7
M4KA411-GS12-8 Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 8
M4KA411-GS12-9 Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 9
M4KA411-GS12-10 Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 10
M4KA411-GS12-11 Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 11
M4KA411-GS12-12 Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 12
M4KA411-GS12-13 Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 13
M4KA411-GS12-14 Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 14
M4KA411-GS12-15 Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 15
M4KA421-10-2 Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 2
M4KA421-10-3 Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 3
M4KA421-10-4 Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 4
M4KA421-10-5 Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 5
M4KA421-10-6 Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 6
M4KA421-10-7 Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 7
M4KA421-10-8 Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 8
M4KA421-10-9 Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 9
M4KA421-10-10 Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 10
M4KA421-10-11 Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 11
M4KA421-10-12 Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 12
M4KA421-10-13 Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 13
M4KA421-10-14 Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 14
M4KA421-10-15 Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 15
M4KA421-GS10-2 Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 2
M4KA421-GS10-3 Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 3
M4KA421-GS10-4 Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 4
M4KA421-GS10-5 Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 5
M4KA421-GS10-6 Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 6
M4KA421-GS10-7 Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 7
M4KA421-GS10-8 Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 8
M4KA421-GS10-9 Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 9
M4KA421-GS10-10 Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 10
M4KA421-GS10-11 Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 11
M4KA421-GS10-12 Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 12
M4KA421-GS10-13 Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 13
M4KA421-GS10-14 Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 14
M4KA421-GS10-15 Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 15
M4KA421-GS12-2 Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 2
M4KA421-GS12-3 Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 3
M4KA421-GS12-4 Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 4
M4KA421-GS12-5 Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 5
M4KA421-GS12-6 Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 6
M4KA421-GS12-7 Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 7
M4KA421-GS12-8 Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 8
M4KA421-GS12-9 Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 9
M4KA421-GS12-10 Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 10
M4KA421-GS12-11 Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 11
M4KA421-GS12-12 Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 12
M4KA421-GS12-13 Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 13
M4KA421-GS12-14 Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 14
M4KA421-GS12-15 Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 15
M4KA431-10-2 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 2
M4KA431-10-3 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 3
M4KA431-10-4 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 4
M4KA431-10-5 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 5
M4KA431-10-6 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 6
M4KA431-10-7 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 7
M4KA431-10-8 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 8
M4KA431-10-9 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 9
M4KA431-10-10 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 10
M4KA431-10-11 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 11
M4KA431-10-12 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 12
M4KA431-10-13 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 13
M4KA431-10-14 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 14
M4KA431-10-15 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 15
M4KA431-GS10-2 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 2
M4KA431-GS10-3 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 3
M4KA431-GS10-4 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 4
M4KA431-GS10-5 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 5
M4KA431-GS10-6 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 6
M4KA431-GS10-7 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 7
M4KA431-GS10-8 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 8
M4KA431-GS10-9 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 9
M4KA431-GS10-10 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 10
M4KA431-GS10-11 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 11
M4KA431-GS10-12 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 12
M4KA431-GS10-13 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 13
M4KA431-GS10-14 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 14
M4KA431-GS10-15 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 15
M4KA431-GS12-2 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 2
M4KA431-GS12-3 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 3
M4KA431-GS12-4 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 4
M4KA431-GS12-5 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 5
M4KA431-GS12-6 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 6
M4KA431-GS12-7 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 7
M4KA431-GS12-8 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 8
M4KA431-GS12-9 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 9
M4KA431-GS12-10 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 10
M4KA431-GS12-11 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 11
M4KA431-GS12-12 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 12
M4KA431-GS12-13 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 13
M4KA431-GS12-14 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 14
M4KA431-GS12-15 Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 15
M4KA441-10-2 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 2
M4KA441-10-3 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 3
M4KA441-10-4 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 4
M4KA441-10-5 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 5
M4KA441-10-6 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 6
M4KA441-10-7 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 7
M4KA441-10-8 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 8
M4KA441-10-9 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 9
M4KA441-10-10 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 10
M4KA441-10-11 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 11
M4KA441-10-12 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 12
M4KA441-10-13 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 13
M4KA441-10-14 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 14
M4KA441-10-15 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 15
M4KA441-GS10-2 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 2
M4KA441-GS10-3 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 3
M4KA441-GS10-4 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 4
M4KA441-GS10-5 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 5
M4KA441-GS10-6 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 6
M4KA441-GS10-7 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 7
M4KA441-GS10-8 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 8
M4KA441-GS10-9 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 9
M4KA441-GS10-10 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 10
M4KA441-GS10-11 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 11
M4KA441-GS10-12 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 12
M4KA441-GS10-13 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 13
M4KA441-GS10-14 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 14
M4KA441-GS10-15 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 15
M4KA441-GS12-2 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 2
M4KA441-GS12-3 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 3
M4KA441-GS12-4 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 4
M4KA441-GS12-5 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 5
M4KA441-GS12-6 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 6
M4KA441-GS12-7 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 7
M4KA441-GS12-8 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 8
M4KA441-GS12-9 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 9
M4KA441-GS12-10 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 10
M4KA441-GS12-11 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 11
M4KA441-GS12-12 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 12
M4KA441-GS12-13 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 13
M4KA441-GS12-14 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 14
M4KA441-GS12-15 Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 15
M4KA451-10-2 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 2
M4KA451-10-3 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 3
M4KA451-10-4 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 4
M4KA451-10-5 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 5
M4KA451-10-6 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 6
M4KA451-10-7 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 7
M4KA451-10-8 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 8
M4KA451-10-9 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 9
M4KA451-10-10 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 10
M4KA451-10-11 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 11
M4KA451-10-12 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 12
M4KA451-10-13 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 13
M4KA451-10-14 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 14
M4KA451-10-15 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 15
M4KA451-GS10-2 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 2
M4KA451-GS10-3 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 3
M4KA451-GS10-4 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 4
M4KA451-GS10-5 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 5
M4KA451-GS10-6 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 6
M4KA451-GS10-7 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 7
M4KA451-GS10-8 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 8
M4KA451-GS10-9 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 9
M4KA451-GS10-10 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 10
M4KA451-GS10-11 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 11
M4KA451-GS10-12 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 12
M4KA451-GS10-13 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 13
M4KA451-GS10-14 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 14
M4KA451-GS10-15 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 15
M4KA451-GS12-2 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 2
M4KA451-GS12-3 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 3
M4KA451-GS12-4 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 4
M4KA451-GS12-5 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 5
M4KA451-GS12-6 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 6
M4KA451-GS12-7 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 7
M4KA451-GS12-8 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 8
M4KA451-GS12-9 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 9
M4KA451-GS12-10 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 10
M4KA451-GS12-11 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 11
M4KA451-GS12-12 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 12
M4KA451-GS12-13 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 13
M4KA451-GS12-14 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 14
M4KA451-GS12-15 Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 15
Valve ManifoldsCKD
1161 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD M3KA1/M4KA1-4 Master Valve Manifold (Direct Piping)

Brand CKD·Valve Manifolds

Available part numbers (1161)

M3KA111-M5-2, M3KA111-M5-3, M3KA111-M5-4, M3KA111-M5-5, M3KA111-M5-6, M3KA111-M5-7, M3KA111-M5-8, M3KA111-M5-9, M3KA111-M5-10, M3KA111-M5-11 + 1151 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
M3KA111-M5-2Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 2
M3KA111-M5-3Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 3
M3KA111-M5-4Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 4
M3KA111-M5-5Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 5
M3KA111-M5-6Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 6
M3KA111-M5-7Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 7
M3KA111-M5-8Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 8
M3KA111-M5-9Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 9
M3KA111-M5-10Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 10
M3KA111-M5-11Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 11
M3KA111-M5-12Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 12
M3KA111-M5-13Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 13
M3KA111-M5-14Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 14
M3KA111-M5-15Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 15
M3KA111-M5-16Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 16
M3KA111-M5-17Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 17
M3KA111-M5-18Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 18
M3KA111-M5-19Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 19
M3KA111-M5-20Model: M3KA1 | Switching: 2-position NC single | A/B port: M5 | Stations: 20
M3KA111-GS4-2Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 2
M3KA111-GS4-3Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 3
M3KA111-GS4-4Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 4
M3KA111-GS4-5Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 5
M3KA111-GS4-6Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 6
M3KA111-GS4-7Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 7
M3KA111-GS4-8Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 8
M3KA111-GS4-9Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 9
M3KA111-GS4-10Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 10
M3KA111-GS4-11Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 11
M3KA111-GS4-12Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 12
M3KA111-GS4-13Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 13
M3KA111-GS4-14Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 14
M3KA111-GS4-15Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 15
M3KA111-GS4-16Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 16
M3KA111-GS4-17Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 17
M3KA111-GS4-18Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 18
M3KA111-GS4-19Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 19
M3KA111-GS4-20Model: M3KA1 | Switching: 2-position NC single | A/B port: ø4 push-in fitting | Stations: 20
M3KA111-GS6-2Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 2
M3KA111-GS6-3Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 3
M3KA111-GS6-4Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 4
M3KA111-GS6-5Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 5
M3KA111-GS6-6Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 6
M3KA111-GS6-7Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 7
M3KA111-GS6-8Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 8
M3KA111-GS6-9Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 9
M3KA111-GS6-10Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 10
M3KA111-GS6-11Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 11
M3KA111-GS6-12Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 12
M3KA111-GS6-13Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 13
M3KA111-GS6-14Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 14
M3KA111-GS6-15Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 15
M3KA111-GS6-16Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 16
M3KA111-GS6-17Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 17
M3KA111-GS6-18Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 18
M3KA111-GS6-19Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 19
M3KA111-GS6-20Model: M3KA1 | Switching: 2-position NC single | A/B port: ø6 push-in fitting | Stations: 20
M3KA1111-M5-2Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 2
M3KA1111-M5-3Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 3
M3KA1111-M5-4Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 4
M3KA1111-M5-5Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 5
M3KA1111-M5-6Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 6
M3KA1111-M5-7Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 7
M3KA1111-M5-8Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 8
M3KA1111-M5-9Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 9
M3KA1111-M5-10Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 10
M3KA1111-M5-11Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 11
M3KA1111-M5-12Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 12
M3KA1111-M5-13Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 13
M3KA1111-M5-14Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 14
M3KA1111-M5-15Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 15
M3KA1111-M5-16Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 16
M3KA1111-M5-17Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 17
M3KA1111-M5-18Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 18
M3KA1111-M5-19Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 19
M3KA1111-M5-20Model: M3KA1 | Switching: 2-position NO single | A/B port: M5 | Stations: 20
M3KA1111-GS4-2Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 2
M3KA1111-GS4-3Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 3
M3KA1111-GS4-4Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 4
M3KA1111-GS4-5Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 5
M3KA1111-GS4-6Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 6
M3KA1111-GS4-7Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 7
M3KA1111-GS4-8Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 8
M3KA1111-GS4-9Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 9
M3KA1111-GS4-10Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 10
M3KA1111-GS4-11Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 11
M3KA1111-GS4-12Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 12
M3KA1111-GS4-13Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 13
M3KA1111-GS4-14Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 14
M3KA1111-GS4-15Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 15
M3KA1111-GS4-16Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 16
M3KA1111-GS4-17Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 17
M3KA1111-GS4-18Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 18
M3KA1111-GS4-19Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 19
M3KA1111-GS4-20Model: M3KA1 | Switching: 2-position NO single | A/B port: ø4 push-in fitting | Stations: 20
M3KA1111-GS6-2Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 2
M3KA1111-GS6-3Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 3
M3KA1111-GS6-4Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 4
M3KA1111-GS6-5Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 5
M3KA1111-GS6-6Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 6
M3KA1111-GS6-7Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 7
M3KA1111-GS6-8Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 8
M3KA1111-GS6-9Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 9
M3KA1111-GS6-10Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 10
M3KA1111-GS6-11Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 11
M3KA1111-GS6-12Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 12
M3KA1111-GS6-13Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 13
M3KA1111-GS6-14Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 14
M3KA1111-GS6-15Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 15
M3KA1111-GS6-16Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 16
M3KA1111-GS6-17Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 17
M3KA1111-GS6-18Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 18
M3KA1111-GS6-19Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 19
M3KA1111-GS6-20Model: M3KA1 | Switching: 2-position NO single | A/B port: ø6 push-in fitting | Stations: 20
M3KA121-M5-2Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 2
M3KA121-M5-3Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 3
M3KA121-M5-4Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 4
M3KA121-M5-5Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 5
M3KA121-M5-6Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 6
M3KA121-M5-7Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 7
M3KA121-M5-8Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 8
M3KA121-M5-9Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 9
M3KA121-M5-10Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 10
M3KA121-M5-11Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 11
M3KA121-M5-12Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 12
M3KA121-M5-13Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 13
M3KA121-M5-14Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 14
M3KA121-M5-15Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 15
M3KA121-M5-16Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 16
M3KA121-M5-17Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 17
M3KA121-M5-18Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 18
M3KA121-M5-19Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 19
M3KA121-M5-20Model: M3KA1 | Switching: 2-position double | A/B port: M5 | Stations: 20
M3KA121-GS4-2Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 2
M3KA121-GS4-3Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 3
M3KA121-GS4-4Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 4
M3KA121-GS4-5Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 5
M3KA121-GS4-6Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 6
M3KA121-GS4-7Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 7
M3KA121-GS4-8Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 8
M3KA121-GS4-9Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 9
M3KA121-GS4-10Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 10
M3KA121-GS4-11Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 11
M3KA121-GS4-12Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 12
M3KA121-GS4-13Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 13
M3KA121-GS4-14Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 14
M3KA121-GS4-15Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 15
M3KA121-GS4-16Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 16
M3KA121-GS4-17Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 17
M3KA121-GS4-18Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 18
M3KA121-GS4-19Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 19
M3KA121-GS4-20Model: M3KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 20
M3KA121-GS6-2Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 2
M3KA121-GS6-3Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 3
M3KA121-GS6-4Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 4
M3KA121-GS6-5Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 5
M3KA121-GS6-6Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 6
M3KA121-GS6-7Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 7
M3KA121-GS6-8Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 8
M3KA121-GS6-9Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 9
M3KA121-GS6-10Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 10
M3KA121-GS6-11Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 11
M3KA121-GS6-12Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 12
M3KA121-GS6-13Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 13
M3KA121-GS6-14Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 14
M3KA121-GS6-15Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 15
M3KA121-GS6-16Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 16
M3KA121-GS6-17Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 17
M3KA121-GS6-18Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 18
M3KA121-GS6-19Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 19
M3KA121-GS6-20Model: M3KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 20
M4KA111-M5-2Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 2
M4KA111-M5-3Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 3
M4KA111-M5-4Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 4
M4KA111-M5-5Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 5
M4KA111-M5-6Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 6
M4KA111-M5-7Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 7
M4KA111-M5-8Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 8
M4KA111-M5-9Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 9
M4KA111-M5-10Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 10
M4KA111-M5-11Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 11
M4KA111-M5-12Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 12
M4KA111-M5-13Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 13
M4KA111-M5-14Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 14
M4KA111-M5-15Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 15
M4KA111-M5-16Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 16
M4KA111-M5-17Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 17
M4KA111-M5-18Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 18
M4KA111-M5-19Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 19
M4KA111-M5-20Model: M4KA1 | Switching: 2-position single | A/B port: M5 | Stations: 20
M4KA111-GS4-2Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 2
M4KA111-GS4-3Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 3
M4KA111-GS4-4Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 4
M4KA111-GS4-5Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 5
M4KA111-GS4-6Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 6
M4KA111-GS4-7Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 7
M4KA111-GS4-8Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 8
M4KA111-GS4-9Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 9
M4KA111-GS4-10Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 10
M4KA111-GS4-11Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 11
M4KA111-GS4-12Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 12
M4KA111-GS4-13Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 13
M4KA111-GS4-14Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 14
M4KA111-GS4-15Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 15
M4KA111-GS4-16Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 16
M4KA111-GS4-17Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 17
M4KA111-GS4-18Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 18
M4KA111-GS4-19Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 19
M4KA111-GS4-20Model: M4KA1 | Switching: 2-position single | A/B port: ø4 push-in fitting | Stations: 20
M4KA111-GS6-2Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 2
M4KA111-GS6-3Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 3
M4KA111-GS6-4Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 4
M4KA111-GS6-5Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 5
M4KA111-GS6-6Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 6
M4KA111-GS6-7Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 7
M4KA111-GS6-8Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 8
M4KA111-GS6-9Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 9
M4KA111-GS6-10Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 10
M4KA111-GS6-11Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 11
M4KA111-GS6-12Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 12
M4KA111-GS6-13Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 13
M4KA111-GS6-14Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 14
M4KA111-GS6-15Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 15
M4KA111-GS6-16Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 16
M4KA111-GS6-17Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 17
M4KA111-GS6-18Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 18
M4KA111-GS6-19Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 19
M4KA111-GS6-20Model: M4KA1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 20
M4KA121-M5-2Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 2
M4KA121-M5-3Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 3
M4KA121-M5-4Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 4
M4KA121-M5-5Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 5
M4KA121-M5-6Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 6
M4KA121-M5-7Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 7
M4KA121-M5-8Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 8
M4KA121-M5-9Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 9
M4KA121-M5-10Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 10
M4KA121-M5-11Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 11
M4KA121-M5-12Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 12
M4KA121-M5-13Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 13
M4KA121-M5-14Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 14
M4KA121-M5-15Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 15
M4KA121-M5-16Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 16
M4KA121-M5-17Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 17
M4KA121-M5-18Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 18
M4KA121-M5-19Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 19
M4KA121-M5-20Model: M4KA1 | Switching: 2-position double | A/B port: M5 | Stations: 20
M4KA121-GS4-2Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 2
M4KA121-GS4-3Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 3
M4KA121-GS4-4Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 4
M4KA121-GS4-5Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 5
M4KA121-GS4-6Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 6
M4KA121-GS4-7Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 7
M4KA121-GS4-8Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 8
M4KA121-GS4-9Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 9
M4KA121-GS4-10Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 10
M4KA121-GS4-11Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 11
M4KA121-GS4-12Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 12
M4KA121-GS4-13Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 13
M4KA121-GS4-14Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 14
M4KA121-GS4-15Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 15
M4KA121-GS4-16Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 16
M4KA121-GS4-17Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 17
M4KA121-GS4-18Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 18
M4KA121-GS4-19Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 19
M4KA121-GS4-20Model: M4KA1 | Switching: 2-position double | A/B port: ø4 push-in fitting | Stations: 20
M4KA121-GS6-2Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 2
M4KA121-GS6-3Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 3
M4KA121-GS6-4Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 4
M4KA121-GS6-5Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 5
M4KA121-GS6-6Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 6
M4KA121-GS6-7Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 7
M4KA121-GS6-8Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 8
M4KA121-GS6-9Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 9
M4KA121-GS6-10Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 10
M4KA121-GS6-11Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 11
M4KA121-GS6-12Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 12
M4KA121-GS6-13Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 13
M4KA121-GS6-14Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 14
M4KA121-GS6-15Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 15
M4KA121-GS6-16Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 16
M4KA121-GS6-17Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 17
M4KA121-GS6-18Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 18
M4KA121-GS6-19Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 19
M4KA121-GS6-20Model: M4KA1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 20
M4KA131-M5-2Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 2
M4KA131-M5-3Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 3
M4KA131-M5-4Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 4
M4KA131-M5-5Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 5
M4KA131-M5-6Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 6
M4KA131-M5-7Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 7
M4KA131-M5-8Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 8
M4KA131-M5-9Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 9
M4KA131-M5-10Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 10
M4KA131-M5-11Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 11
M4KA131-M5-12Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 12
M4KA131-M5-13Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 13
M4KA131-M5-14Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 14
M4KA131-M5-15Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 15
M4KA131-M5-16Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 16
M4KA131-M5-17Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 17
M4KA131-M5-18Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 18
M4KA131-M5-19Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 19
M4KA131-M5-20Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 20
M4KA131-GS4-2Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 2
M4KA131-GS4-3Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 3
M4KA131-GS4-4Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 4
M4KA131-GS4-5Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 5
M4KA131-GS4-6Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 6
M4KA131-GS4-7Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 7
M4KA131-GS4-8Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 8
M4KA131-GS4-9Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 9
M4KA131-GS4-10Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 10
M4KA131-GS4-11Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 11
M4KA131-GS4-12Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 12
M4KA131-GS4-13Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 13
M4KA131-GS4-14Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 14
M4KA131-GS4-15Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 15
M4KA131-GS4-16Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 16
M4KA131-GS4-17Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 17
M4KA131-GS4-18Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 18
M4KA131-GS4-19Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 19
M4KA131-GS4-20Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø4 push-in fitting | Stations: 20
M4KA131-GS6-2Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 2
M4KA131-GS6-3Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 3
M4KA131-GS6-4Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 4
M4KA131-GS6-5Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 5
M4KA131-GS6-6Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 6
M4KA131-GS6-7Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 7
M4KA131-GS6-8Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 8
M4KA131-GS6-9Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 9
M4KA131-GS6-10Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 10
M4KA131-GS6-11Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 11
M4KA131-GS6-12Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 12
M4KA131-GS6-13Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 13
M4KA131-GS6-14Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 14
M4KA131-GS6-15Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 15
M4KA131-GS6-16Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 16
M4KA131-GS6-17Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 17
M4KA131-GS6-18Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 18
M4KA131-GS6-19Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 19
M4KA131-GS6-20Model: M4KA1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 20
M4KA141-M5-2Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 2
M4KA141-M5-3Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 3
M4KA141-M5-4Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 4
M4KA141-M5-5Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 5
M4KA141-M5-6Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 6
M4KA141-M5-7Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 7
M4KA141-M5-8Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 8
M4KA141-M5-9Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 9
M4KA141-M5-10Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 10
M4KA141-M5-11Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 11
M4KA141-M5-12Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 12
M4KA141-M5-13Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 13
M4KA141-M5-14Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 14
M4KA141-M5-15Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 15
M4KA141-M5-16Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 16
M4KA141-M5-17Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 17
M4KA141-M5-18Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 18
M4KA141-M5-19Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 19
M4KA141-M5-20Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 20
M4KA141-GS4-2Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 2
M4KA141-GS4-3Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 3
M4KA141-GS4-4Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 4
M4KA141-GS4-5Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 5
M4KA141-GS4-6Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 6
M4KA141-GS4-7Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 7
M4KA141-GS4-8Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 8
M4KA141-GS4-9Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 9
M4KA141-GS4-10Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 10
M4KA141-GS4-11Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 11
M4KA141-GS4-12Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 12
M4KA141-GS4-13Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 13
M4KA141-GS4-14Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 14
M4KA141-GS4-15Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 15
M4KA141-GS4-16Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 16
M4KA141-GS4-17Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 17
M4KA141-GS4-18Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 18
M4KA141-GS4-19Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 19
M4KA141-GS4-20Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø4 push-in fitting | Stations: 20
M4KA141-GS6-2Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 2
M4KA141-GS6-3Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 3
M4KA141-GS6-4Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 4
M4KA141-GS6-5Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 5
M4KA141-GS6-6Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 6
M4KA141-GS6-7Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 7
M4KA141-GS6-8Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 8
M4KA141-GS6-9Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 9
M4KA141-GS6-10Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 10
M4KA141-GS6-11Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 11
M4KA141-GS6-12Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 12
M4KA141-GS6-13Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 13
M4KA141-GS6-14Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 14
M4KA141-GS6-15Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 15
M4KA141-GS6-16Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 16
M4KA141-GS6-17Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 17
M4KA141-GS6-18Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 18
M4KA141-GS6-19Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 19
M4KA141-GS6-20Model: M4KA1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 20
M4KA151-M5-2Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 2
M4KA151-M5-3Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 3
M4KA151-M5-4Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 4
M4KA151-M5-5Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 5
M4KA151-M5-6Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 6
M4KA151-M5-7Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 7
M4KA151-M5-8Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 8
M4KA151-M5-9Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 9
M4KA151-M5-10Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 10
M4KA151-M5-11Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 11
M4KA151-M5-12Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 12
M4KA151-M5-13Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 13
M4KA151-M5-14Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 14
M4KA151-M5-15Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 15
M4KA151-M5-16Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 16
M4KA151-M5-17Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 17
M4KA151-M5-18Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 18
M4KA151-M5-19Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 19
M4KA151-M5-20Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 20
M4KA151-GS4-2Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 2
M4KA151-GS4-3Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 3
M4KA151-GS4-4Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 4
M4KA151-GS4-5Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 5
M4KA151-GS4-6Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 6
M4KA151-GS4-7Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 7
M4KA151-GS4-8Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 8
M4KA151-GS4-9Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 9
M4KA151-GS4-10Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 10
M4KA151-GS4-11Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 11
M4KA151-GS4-12Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 12
M4KA151-GS4-13Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 13
M4KA151-GS4-14Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 14
M4KA151-GS4-15Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 15
M4KA151-GS4-16Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 16
M4KA151-GS4-17Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 17
M4KA151-GS4-18Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 18
M4KA151-GS4-19Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 19
M4KA151-GS4-20Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø4 push-in fitting | Stations: 20
M4KA151-GS6-2Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 2
M4KA151-GS6-3Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 3
M4KA151-GS6-4Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 4
M4KA151-GS6-5Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 5
M4KA151-GS6-6Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 6
M4KA151-GS6-7Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 7
M4KA151-GS6-8Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 8
M4KA151-GS6-9Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 9
M4KA151-GS6-10Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 10
M4KA151-GS6-11Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 11
M4KA151-GS6-12Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 12
M4KA151-GS6-13Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 13
M4KA151-GS6-14Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 14
M4KA151-GS6-15Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 15
M4KA151-GS6-16Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 16
M4KA151-GS6-17Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 17
M4KA151-GS6-18Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 18
M4KA151-GS6-19Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 19
M4KA151-GS6-20Model: M4KA1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 20
M4KA211-06-2Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 2
M4KA211-06-3Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 3
M4KA211-06-4Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 4
M4KA211-06-5Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 5
M4KA211-06-6Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 6
M4KA211-06-7Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 7
M4KA211-06-8Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 8
M4KA211-06-9Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 9
M4KA211-06-10Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 10
M4KA211-06-11Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 11
M4KA211-06-12Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 12
M4KA211-06-13Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 13
M4KA211-06-14Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 14
M4KA211-06-15Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 15
M4KA211-06-16Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 16
M4KA211-06-17Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 17
M4KA211-06-18Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 18
M4KA211-06-19Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 19
M4KA211-06-20Model: M4KA2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 20
M4KA211-GS6-2Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 2
M4KA211-GS6-3Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 3
M4KA211-GS6-4Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 4
M4KA211-GS6-5Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 5
M4KA211-GS6-6Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 6
M4KA211-GS6-7Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 7
M4KA211-GS6-8Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 8
M4KA211-GS6-9Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 9
M4KA211-GS6-10Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 10
M4KA211-GS6-11Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 11
M4KA211-GS6-12Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 12
M4KA211-GS6-13Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 13
M4KA211-GS6-14Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 14
M4KA211-GS6-15Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 15
M4KA211-GS6-16Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 16
M4KA211-GS6-17Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 17
M4KA211-GS6-18Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 18
M4KA211-GS6-19Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 19
M4KA211-GS6-20Model: M4KA2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 20
M4KA211-GS8-2Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 2
M4KA211-GS8-3Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 3
M4KA211-GS8-4Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 4
M4KA211-GS8-5Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 5
M4KA211-GS8-6Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 6
M4KA211-GS8-7Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 7
M4KA211-GS8-8Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 8
M4KA211-GS8-9Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 9
M4KA211-GS8-10Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 10
M4KA211-GS8-11Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 11
M4KA211-GS8-12Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 12
M4KA211-GS8-13Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 13
M4KA211-GS8-14Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 14
M4KA211-GS8-15Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 15
M4KA211-GS8-16Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 16
M4KA211-GS8-17Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 17
M4KA211-GS8-18Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 18
M4KA211-GS8-19Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 19
M4KA211-GS8-20Model: M4KA2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 20
M4KA221-06-2Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 2
M4KA221-06-3Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 3
M4KA221-06-4Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 4
M4KA221-06-5Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 5
M4KA221-06-6Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 6
M4KA221-06-7Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 7
M4KA221-06-8Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 8
M4KA221-06-9Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 9
M4KA221-06-10Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 10
M4KA221-06-11Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 11
M4KA221-06-12Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 12
M4KA221-06-13Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 13
M4KA221-06-14Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 14
M4KA221-06-15Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 15
M4KA221-06-16Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 16
M4KA221-06-17Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 17
M4KA221-06-18Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 18
M4KA221-06-19Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 19
M4KA221-06-20Model: M4KA2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 20
M4KA221-GS6-2Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 2
M4KA221-GS6-3Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 3
M4KA221-GS6-4Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 4
M4KA221-GS6-5Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 5
M4KA221-GS6-6Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 6
M4KA221-GS6-7Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 7
M4KA221-GS6-8Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 8
M4KA221-GS6-9Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 9
M4KA221-GS6-10Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 10
M4KA221-GS6-11Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 11
M4KA221-GS6-12Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 12
M4KA221-GS6-13Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 13
M4KA221-GS6-14Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 14
M4KA221-GS6-15Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 15
M4KA221-GS6-16Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 16
M4KA221-GS6-17Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 17
M4KA221-GS6-18Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 18
M4KA221-GS6-19Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 19
M4KA221-GS6-20Model: M4KA2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 20
M4KA221-GS8-2Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 2
M4KA221-GS8-3Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 3
M4KA221-GS8-4Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 4
M4KA221-GS8-5Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 5
M4KA221-GS8-6Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 6
M4KA221-GS8-7Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 7
M4KA221-GS8-8Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 8
M4KA221-GS8-9Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 9
M4KA221-GS8-10Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 10
M4KA221-GS8-11Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 11
M4KA221-GS8-12Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 12
M4KA221-GS8-13Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 13
M4KA221-GS8-14Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 14
M4KA221-GS8-15Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 15
M4KA221-GS8-16Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 16
M4KA221-GS8-17Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 17
M4KA221-GS8-18Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 18
M4KA221-GS8-19Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 19
M4KA221-GS8-20Model: M4KA2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 20
M4KA231-06-2Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 2
M4KA231-06-3Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 3
M4KA231-06-4Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 4
M4KA231-06-5Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 5
M4KA231-06-6Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 6
M4KA231-06-7Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 7
M4KA231-06-8Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 8
M4KA231-06-9Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 9
M4KA231-06-10Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 10
M4KA231-06-11Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 11
M4KA231-06-12Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 12
M4KA231-06-13Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 13
M4KA231-06-14Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 14
M4KA231-06-15Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 15
M4KA231-06-16Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 16
M4KA231-06-17Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 17
M4KA231-06-18Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 18
M4KA231-06-19Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 19
M4KA231-06-20Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 20
M4KA231-GS6-2Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 2
M4KA231-GS6-3Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 3
M4KA231-GS6-4Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 4
M4KA231-GS6-5Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 5
M4KA231-GS6-6Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 6
M4KA231-GS6-7Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 7
M4KA231-GS6-8Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 8
M4KA231-GS6-9Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 9
M4KA231-GS6-10Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 10
M4KA231-GS6-11Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 11
M4KA231-GS6-12Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 12
M4KA231-GS6-13Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 13
M4KA231-GS6-14Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 14
M4KA231-GS6-15Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 15
M4KA231-GS6-16Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 16
M4KA231-GS6-17Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 17
M4KA231-GS6-18Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 18
M4KA231-GS6-19Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 19
M4KA231-GS6-20Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 20
M4KA231-GS8-2Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 2
M4KA231-GS8-3Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 3
M4KA231-GS8-4Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 4
M4KA231-GS8-5Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 5
M4KA231-GS8-6Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 6
M4KA231-GS8-7Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 7
M4KA231-GS8-8Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 8
M4KA231-GS8-9Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 9
M4KA231-GS8-10Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 10
M4KA231-GS8-11Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 11
M4KA231-GS8-12Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 12
M4KA231-GS8-13Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 13
M4KA231-GS8-14Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 14
M4KA231-GS8-15Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 15
M4KA231-GS8-16Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 16
M4KA231-GS8-17Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 17
M4KA231-GS8-18Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 18
M4KA231-GS8-19Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 19
M4KA231-GS8-20Model: M4KA2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 20
M4KA241-06-2Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 2
M4KA241-06-3Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 3
M4KA241-06-4Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 4
M4KA241-06-5Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 5
M4KA241-06-6Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 6
M4KA241-06-7Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 7
M4KA241-06-8Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 8
M4KA241-06-9Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 9
M4KA241-06-10Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 10
M4KA241-06-11Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 11
M4KA241-06-12Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 12
M4KA241-06-13Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 13
M4KA241-06-14Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 14
M4KA241-06-15Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 15
M4KA241-06-16Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 16
M4KA241-06-17Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 17
M4KA241-06-18Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 18
M4KA241-06-19Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 19
M4KA241-06-20Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 20
M4KA241-GS6-2Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 2
M4KA241-GS6-3Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 3
M4KA241-GS6-4Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 4
M4KA241-GS6-5Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 5
M4KA241-GS6-6Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 6
M4KA241-GS6-7Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 7
M4KA241-GS6-8Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 8
M4KA241-GS6-9Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 9
M4KA241-GS6-10Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 10
M4KA241-GS6-11Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 11
M4KA241-GS6-12Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 12
M4KA241-GS6-13Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 13
M4KA241-GS6-14Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 14
M4KA241-GS6-15Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 15
M4KA241-GS6-16Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 16
M4KA241-GS6-17Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 17
M4KA241-GS6-18Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 18
M4KA241-GS6-19Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 19
M4KA241-GS6-20Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 20
M4KA241-GS8-2Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 2
M4KA241-GS8-3Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 3
M4KA241-GS8-4Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 4
M4KA241-GS8-5Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 5
M4KA241-GS8-6Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 6
M4KA241-GS8-7Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 7
M4KA241-GS8-8Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 8
M4KA241-GS8-9Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 9
M4KA241-GS8-10Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 10
M4KA241-GS8-11Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 11
M4KA241-GS8-12Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 12
M4KA241-GS8-13Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 13
M4KA241-GS8-14Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 14
M4KA241-GS8-15Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 15
M4KA241-GS8-16Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 16
M4KA241-GS8-17Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 17
M4KA241-GS8-18Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 18
M4KA241-GS8-19Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 19
M4KA241-GS8-20Model: M4KA2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 20
M4KA251-06-2Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 2
M4KA251-06-3Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 3
M4KA251-06-4Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 4
M4KA251-06-5Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 5
M4KA251-06-6Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 6
M4KA251-06-7Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 7
M4KA251-06-8Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 8
M4KA251-06-9Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 9
M4KA251-06-10Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 10
M4KA251-06-11Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 11
M4KA251-06-12Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 12
M4KA251-06-13Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 13
M4KA251-06-14Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 14
M4KA251-06-15Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 15
M4KA251-06-16Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 16
M4KA251-06-17Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 17
M4KA251-06-18Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 18
M4KA251-06-19Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 19
M4KA251-06-20Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 20
M4KA251-GS6-2Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 2
M4KA251-GS6-3Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 3
M4KA251-GS6-4Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 4
M4KA251-GS6-5Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 5
M4KA251-GS6-6Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 6
M4KA251-GS6-7Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 7
M4KA251-GS6-8Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 8
M4KA251-GS6-9Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 9
M4KA251-GS6-10Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 10
M4KA251-GS6-11Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 11
M4KA251-GS6-12Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 12
M4KA251-GS6-13Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 13
M4KA251-GS6-14Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 14
M4KA251-GS6-15Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 15
M4KA251-GS6-16Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 16
M4KA251-GS6-17Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 17
M4KA251-GS6-18Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 18
M4KA251-GS6-19Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 19
M4KA251-GS6-20Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 20
M4KA251-GS8-2Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 2
M4KA251-GS8-3Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 3
M4KA251-GS8-4Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 4
M4KA251-GS8-5Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 5
M4KA251-GS8-6Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 6
M4KA251-GS8-7Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 7
M4KA251-GS8-8Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 8
M4KA251-GS8-9Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 9
M4KA251-GS8-10Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 10
M4KA251-GS8-11Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 11
M4KA251-GS8-12Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 12
M4KA251-GS8-13Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 13
M4KA251-GS8-14Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 14
M4KA251-GS8-15Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 15
M4KA251-GS8-16Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 16
M4KA251-GS8-17Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 17
M4KA251-GS8-18Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 18
M4KA251-GS8-19Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 19
M4KA251-GS8-20Model: M4KA2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 20
M4KA311-08-2Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 2
M4KA311-08-3Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 3
M4KA311-08-4Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 4
M4KA311-08-5Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 5
M4KA311-08-6Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 6
M4KA311-08-7Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 7
M4KA311-08-8Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 8
M4KA311-08-9Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 9
M4KA311-08-10Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 10
M4KA311-08-11Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 11
M4KA311-08-12Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 12
M4KA311-08-13Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 13
M4KA311-08-14Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 14
M4KA311-08-15Model: M4KA3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 15
M4KA311-GS8-2Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 2
M4KA311-GS8-3Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 3
M4KA311-GS8-4Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 4
M4KA311-GS8-5Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 5
M4KA311-GS8-6Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 6
M4KA311-GS8-7Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 7
M4KA311-GS8-8Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 8
M4KA311-GS8-9Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 9
M4KA311-GS8-10Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 10
M4KA311-GS8-11Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 11
M4KA311-GS8-12Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 12
M4KA311-GS8-13Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 13
M4KA311-GS8-14Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 14
M4KA311-GS8-15Model: M4KA3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 15
M4KA311-GS10-2Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 2
M4KA311-GS10-3Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 3
M4KA311-GS10-4Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 4
M4KA311-GS10-5Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 5
M4KA311-GS10-6Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 6
M4KA311-GS10-7Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 7
M4KA311-GS10-8Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 8
M4KA311-GS10-9Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 9
M4KA311-GS10-10Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 10
M4KA311-GS10-11Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 11
M4KA311-GS10-12Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 12
M4KA311-GS10-13Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 13
M4KA311-GS10-14Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 14
M4KA311-GS10-15Model: M4KA3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 15
M4KA321-08-2Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 2
M4KA321-08-3Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 3
M4KA321-08-4Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 4
M4KA321-08-5Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 5
M4KA321-08-6Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 6
M4KA321-08-7Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 7
M4KA321-08-8Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 8
M4KA321-08-9Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 9
M4KA321-08-10Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 10
M4KA321-08-11Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 11
M4KA321-08-12Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 12
M4KA321-08-13Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 13
M4KA321-08-14Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 14
M4KA321-08-15Model: M4KA3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 15
M4KA321-GS8-2Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 2
M4KA321-GS8-3Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 3
M4KA321-GS8-4Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 4
M4KA321-GS8-5Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 5
M4KA321-GS8-6Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 6
M4KA321-GS8-7Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 7
M4KA321-GS8-8Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 8
M4KA321-GS8-9Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 9
M4KA321-GS8-10Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 10
M4KA321-GS8-11Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 11
M4KA321-GS8-12Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 12
M4KA321-GS8-13Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 13
M4KA321-GS8-14Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 14
M4KA321-GS8-15Model: M4KA3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 15
M4KA321-GS10-2Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 2
M4KA321-GS10-3Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 3
M4KA321-GS10-4Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 4
M4KA321-GS10-5Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 5
M4KA321-GS10-6Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 6
M4KA321-GS10-7Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 7
M4KA321-GS10-8Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 8
M4KA321-GS10-9Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 9
M4KA321-GS10-10Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 10
M4KA321-GS10-11Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 11
M4KA321-GS10-12Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 12
M4KA321-GS10-13Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 13
M4KA321-GS10-14Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 14
M4KA321-GS10-15Model: M4KA3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 15
M4KA331-08-2Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 2
M4KA331-08-3Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 3
M4KA331-08-4Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 4
M4KA331-08-5Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 5
M4KA331-08-6Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 6
M4KA331-08-7Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 7
M4KA331-08-8Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 8
M4KA331-08-9Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 9
M4KA331-08-10Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 10
M4KA331-08-11Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 11
M4KA331-08-12Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 12
M4KA331-08-13Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 13
M4KA331-08-14Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 14
M4KA331-08-15Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 15
M4KA331-GS8-2Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 2
M4KA331-GS8-3Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 3
M4KA331-GS8-4Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 4
M4KA331-GS8-5Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 5
M4KA331-GS8-6Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 6
M4KA331-GS8-7Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 7
M4KA331-GS8-8Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 8
M4KA331-GS8-9Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 9
M4KA331-GS8-10Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 10
M4KA331-GS8-11Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 11
M4KA331-GS8-12Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 12
M4KA331-GS8-13Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 13
M4KA331-GS8-14Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 14
M4KA331-GS8-15Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 15
M4KA331-GS10-2Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 2
M4KA331-GS10-3Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 3
M4KA331-GS10-4Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 4
M4KA331-GS10-5Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 5
M4KA331-GS10-6Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 6
M4KA331-GS10-7Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 7
M4KA331-GS10-8Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 8
M4KA331-GS10-9Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 9
M4KA331-GS10-10Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 10
M4KA331-GS10-11Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 11
M4KA331-GS10-12Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 12
M4KA331-GS10-13Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 13
M4KA331-GS10-14Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 14
M4KA331-GS10-15Model: M4KA3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 15
M4KA341-08-2Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 2
M4KA341-08-3Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 3
M4KA341-08-4Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 4
M4KA341-08-5Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 5
M4KA341-08-6Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 6
M4KA341-08-7Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 7
M4KA341-08-8Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 8
M4KA341-08-9Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 9
M4KA341-08-10Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 10
M4KA341-08-11Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 11
M4KA341-08-12Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 12
M4KA341-08-13Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 13
M4KA341-08-14Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 14
M4KA341-08-15Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 15
M4KA341-GS8-2Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 2
M4KA341-GS8-3Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 3
M4KA341-GS8-4Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 4
M4KA341-GS8-5Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 5
M4KA341-GS8-6Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 6
M4KA341-GS8-7Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 7
M4KA341-GS8-8Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 8
M4KA341-GS8-9Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 9
M4KA341-GS8-10Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 10
M4KA341-GS8-11Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 11
M4KA341-GS8-12Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 12
M4KA341-GS8-13Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 13
M4KA341-GS8-14Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 14
M4KA341-GS8-15Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 15
M4KA341-GS10-2Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 2
M4KA341-GS10-3Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 3
M4KA341-GS10-4Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 4
M4KA341-GS10-5Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 5
M4KA341-GS10-6Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 6
M4KA341-GS10-7Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 7
M4KA341-GS10-8Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 8
M4KA341-GS10-9Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 9
M4KA341-GS10-10Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 10
M4KA341-GS10-11Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 11
M4KA341-GS10-12Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 12
M4KA341-GS10-13Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 13
M4KA341-GS10-14Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 14
M4KA341-GS10-15Model: M4KA3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 15
M4KA351-08-2Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 2
M4KA351-08-3Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 3
M4KA351-08-4Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 4
M4KA351-08-5Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 5
M4KA351-08-6Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 6
M4KA351-08-7Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 7
M4KA351-08-8Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 8
M4KA351-08-9Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 9
M4KA351-08-10Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 10
M4KA351-08-11Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 11
M4KA351-08-12Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 12
M4KA351-08-13Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 13
M4KA351-08-14Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 14
M4KA351-08-15Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 15
M4KA351-GS8-2Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 2
M4KA351-GS8-3Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 3
M4KA351-GS8-4Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 4
M4KA351-GS8-5Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 5
M4KA351-GS8-6Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 6
M4KA351-GS8-7Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 7
M4KA351-GS8-8Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 8
M4KA351-GS8-9Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 9
M4KA351-GS8-10Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 10
M4KA351-GS8-11Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 11
M4KA351-GS8-12Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 12
M4KA351-GS8-13Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 13
M4KA351-GS8-14Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 14
M4KA351-GS8-15Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 15
M4KA351-GS10-2Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 2
M4KA351-GS10-3Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 3
M4KA351-GS10-4Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 4
M4KA351-GS10-5Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 5
M4KA351-GS10-6Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 6
M4KA351-GS10-7Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 7
M4KA351-GS10-8Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 8
M4KA351-GS10-9Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 9
M4KA351-GS10-10Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 10
M4KA351-GS10-11Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 11
M4KA351-GS10-12Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 12
M4KA351-GS10-13Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 13
M4KA351-GS10-14Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 14
M4KA351-GS10-15Model: M4KA3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 15
M4KA411-10-2Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 2
M4KA411-10-3Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 3
M4KA411-10-4Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 4
M4KA411-10-5Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 5
M4KA411-10-6Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 6
M4KA411-10-7Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 7
M4KA411-10-8Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 8
M4KA411-10-9Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 9
M4KA411-10-10Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 10
M4KA411-10-11Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 11
M4KA411-10-12Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 12
M4KA411-10-13Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 13
M4KA411-10-14Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 14
M4KA411-10-15Model: M4KA4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 15
M4KA411-GS10-2Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 2
M4KA411-GS10-3Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 3
M4KA411-GS10-4Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 4
M4KA411-GS10-5Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 5
M4KA411-GS10-6Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 6
M4KA411-GS10-7Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 7
M4KA411-GS10-8Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 8
M4KA411-GS10-9Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 9
M4KA411-GS10-10Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 10
M4KA411-GS10-11Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 11
M4KA411-GS10-12Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 12
M4KA411-GS10-13Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 13
M4KA411-GS10-14Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 14
M4KA411-GS10-15Model: M4KA4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 15
M4KA411-GS12-2Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 2
M4KA411-GS12-3Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 3
M4KA411-GS12-4Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 4
M4KA411-GS12-5Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 5
M4KA411-GS12-6Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 6
M4KA411-GS12-7Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 7
M4KA411-GS12-8Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 8
M4KA411-GS12-9Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 9
M4KA411-GS12-10Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 10
M4KA411-GS12-11Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 11
M4KA411-GS12-12Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 12
M4KA411-GS12-13Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 13
M4KA411-GS12-14Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 14
M4KA411-GS12-15Model: M4KA4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 15
M4KA421-10-2Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 2
M4KA421-10-3Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 3
M4KA421-10-4Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 4
M4KA421-10-5Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 5
M4KA421-10-6Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 6
M4KA421-10-7Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 7
M4KA421-10-8Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 8
M4KA421-10-9Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 9
M4KA421-10-10Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 10
M4KA421-10-11Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 11
M4KA421-10-12Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 12
M4KA421-10-13Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 13
M4KA421-10-14Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 14
M4KA421-10-15Model: M4KA4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 15
M4KA421-GS10-2Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 2
M4KA421-GS10-3Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 3
M4KA421-GS10-4Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 4
M4KA421-GS10-5Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 5
M4KA421-GS10-6Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 6
M4KA421-GS10-7Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 7
M4KA421-GS10-8Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 8
M4KA421-GS10-9Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 9
M4KA421-GS10-10Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 10
M4KA421-GS10-11Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 11
M4KA421-GS10-12Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 12
M4KA421-GS10-13Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 13
M4KA421-GS10-14Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 14
M4KA421-GS10-15Model: M4KA4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 15
M4KA421-GS12-2Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 2
M4KA421-GS12-3Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 3
M4KA421-GS12-4Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 4
M4KA421-GS12-5Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 5
M4KA421-GS12-6Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 6
M4KA421-GS12-7Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 7
M4KA421-GS12-8Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 8
M4KA421-GS12-9Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 9
M4KA421-GS12-10Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 10
M4KA421-GS12-11Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 11
M4KA421-GS12-12Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 12
M4KA421-GS12-13Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 13
M4KA421-GS12-14Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 14
M4KA421-GS12-15Model: M4KA4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 15
M4KA431-10-2Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 2
M4KA431-10-3Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 3
M4KA431-10-4Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 4
M4KA431-10-5Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 5
M4KA431-10-6Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 6
M4KA431-10-7Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 7
M4KA431-10-8Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 8
M4KA431-10-9Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 9
M4KA431-10-10Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 10
M4KA431-10-11Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 11
M4KA431-10-12Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 12
M4KA431-10-13Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 13
M4KA431-10-14Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 14
M4KA431-10-15Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 15
M4KA431-GS10-2Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 2
M4KA431-GS10-3Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 3
M4KA431-GS10-4Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 4
M4KA431-GS10-5Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 5
M4KA431-GS10-6Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 6
M4KA431-GS10-7Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 7
M4KA431-GS10-8Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 8
M4KA431-GS10-9Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 9
M4KA431-GS10-10Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 10
M4KA431-GS10-11Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 11
M4KA431-GS10-12Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 12
M4KA431-GS10-13Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 13
M4KA431-GS10-14Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 14
M4KA431-GS10-15Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 15
M4KA431-GS12-2Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 2
M4KA431-GS12-3Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 3
M4KA431-GS12-4Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 4
M4KA431-GS12-5Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 5
M4KA431-GS12-6Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 6
M4KA431-GS12-7Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 7
M4KA431-GS12-8Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 8
M4KA431-GS12-9Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 9
M4KA431-GS12-10Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 10
M4KA431-GS12-11Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 11
M4KA431-GS12-12Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 12
M4KA431-GS12-13Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 13
M4KA431-GS12-14Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 14
M4KA431-GS12-15Model: M4KA4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 15
M4KA441-10-2Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 2
M4KA441-10-3Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 3
M4KA441-10-4Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 4
M4KA441-10-5Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 5
M4KA441-10-6Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 6
M4KA441-10-7Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 7
M4KA441-10-8Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 8
M4KA441-10-9Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 9
M4KA441-10-10Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 10
M4KA441-10-11Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 11
M4KA441-10-12Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 12
M4KA441-10-13Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 13
M4KA441-10-14Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 14
M4KA441-10-15Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 15
M4KA441-GS10-2Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 2
M4KA441-GS10-3Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 3
M4KA441-GS10-4Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 4
M4KA441-GS10-5Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 5
M4KA441-GS10-6Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 6
M4KA441-GS10-7Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 7
M4KA441-GS10-8Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 8
M4KA441-GS10-9Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 9
M4KA441-GS10-10Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 10
M4KA441-GS10-11Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 11
M4KA441-GS10-12Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 12
M4KA441-GS10-13Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 13
M4KA441-GS10-14Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 14
M4KA441-GS10-15Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 15
M4KA441-GS12-2Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 2
M4KA441-GS12-3Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 3
M4KA441-GS12-4Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 4
M4KA441-GS12-5Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 5
M4KA441-GS12-6Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 6
M4KA441-GS12-7Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 7
M4KA441-GS12-8Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 8
M4KA441-GS12-9Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 9
M4KA441-GS12-10Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 10
M4KA441-GS12-11Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 11
M4KA441-GS12-12Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 12
M4KA441-GS12-13Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 13
M4KA441-GS12-14Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 14
M4KA441-GS12-15Model: M4KA4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 15
M4KA451-10-2Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 2
M4KA451-10-3Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 3
M4KA451-10-4Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 4
M4KA451-10-5Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 5
M4KA451-10-6Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 6
M4KA451-10-7Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 7
M4KA451-10-8Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 8
M4KA451-10-9Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 9
M4KA451-10-10Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 10
M4KA451-10-11Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 11
M4KA451-10-12Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 12
M4KA451-10-13Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 13
M4KA451-10-14Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 14
M4KA451-10-15Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 15
M4KA451-GS10-2Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 2
M4KA451-GS10-3Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 3
M4KA451-GS10-4Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 4
M4KA451-GS10-5Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 5
M4KA451-GS10-6Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 6
M4KA451-GS10-7Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 7
M4KA451-GS10-8Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 8
M4KA451-GS10-9Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 9
M4KA451-GS10-10Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 10
M4KA451-GS10-11Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 11
M4KA451-GS10-12Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 12
M4KA451-GS10-13Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 13
M4KA451-GS10-14Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 14
M4KA451-GS10-15Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 15
M4KA451-GS12-2Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 2
M4KA451-GS12-3Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 3
M4KA451-GS12-4Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 4
M4KA451-GS12-5Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 5
M4KA451-GS12-6Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 6
M4KA451-GS12-7Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 7
M4KA451-GS12-8Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 8
M4KA451-GS12-9Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 9
M4KA451-GS12-10Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 10
M4KA451-GS12-11Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 11
M4KA451-GS12-12Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 12
M4KA451-GS12-13Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 13
M4KA451-GS12-14Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 14
M4KA451-GS12-15Model: M4KA4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 15

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
