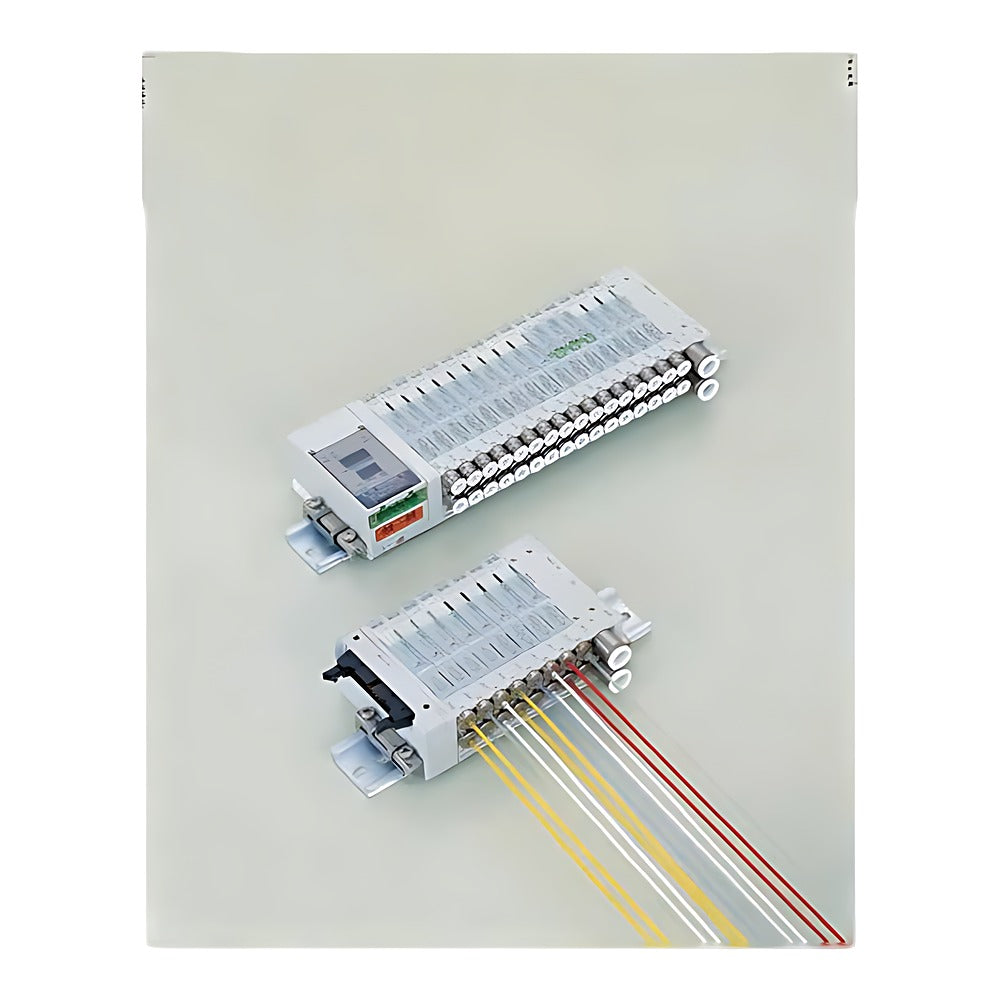

CKD M4F2 5-Port Solenoid Valve Manifold (Direct Piping)

CKD M4F2 individual-wiring manifolds of pilot operated 5-port Selex solenoid valves with direct-piped A/B ports, 2 to 10 stations.

Key features

Individual wiring manifold; common exhaust or individual exhaust bodies with L or U mounting brackets
Switching: 2-position single/double, 3-position (A-B-R, all-ports-blocked; P-A-B on M4F3); mixed manifolds (8) via spec sheet
A/B ports Rp1/4; NPT and G versions available
Codes listed with standard manual override and wiring; connectors, grommet and conduit wiring, surge killer and 3-port plug options available
Standard coils AC100V, AC200V, DC24V; AC110V, AC220V, DC12V optional
Masking plate kits and gasket kits listed for maintenance

Specifications

Manifold type	Individual wiring, direct piping
Valve type	Pilot operated soft spool valve
Fluid	Compressed air
Max. operating pressure	1.0 MPa
Ambient temperature	-10 to 60°C (no freezing)
Stations	2 to 10
Lubrication	Not required
Source	CKD Korea catalog CB-023SK-9, p. 1486-1513

M4F210-08-2-CL-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC100V 50/60Hz
M4F210-08-2-CL-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC200V 50/60Hz
M4F210-08-2-CL-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: DC24V
M4F210-08-2-CU-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F210-08-2-CU-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F210-08-2-CU-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F210-08-2-IL-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC100V 50/60Hz
M4F210-08-2-IL-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC200V 50/60Hz
M4F210-08-2-IL-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: DC24V
M4F210-08-2-IU-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F210-08-2-IU-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F210-08-2-IU-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F210-08-2-C-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F210-08-2-C-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F210-08-2-C-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F210-08-2-I-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F210-08-2-I-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F210-08-2-I-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F210-08-3-CL-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC100V 50/60Hz
M4F210-08-3-CL-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC200V 50/60Hz
M4F210-08-3-CL-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: DC24V
M4F210-08-3-CU-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F210-08-3-CU-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F210-08-3-CU-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F210-08-3-IL-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC100V 50/60Hz
M4F210-08-3-IL-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC200V 50/60Hz
M4F210-08-3-IL-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: DC24V
M4F210-08-3-IU-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F210-08-3-IU-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F210-08-3-IU-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F210-08-3-C-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F210-08-3-C-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F210-08-3-C-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F210-08-3-I-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F210-08-3-I-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F210-08-3-I-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F210-08-4-CL-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC100V 50/60Hz
M4F210-08-4-CL-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC200V 50/60Hz
M4F210-08-4-CL-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: DC24V
M4F210-08-4-CU-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F210-08-4-CU-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F210-08-4-CU-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F210-08-4-IL-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC100V 50/60Hz
M4F210-08-4-IL-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC200V 50/60Hz
M4F210-08-4-IL-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: DC24V
M4F210-08-4-IU-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F210-08-4-IU-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F210-08-4-IU-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F210-08-4-C-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F210-08-4-C-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F210-08-4-C-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F210-08-4-I-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F210-08-4-I-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F210-08-4-I-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F210-08-5-CL-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC100V 50/60Hz
M4F210-08-5-CL-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC200V 50/60Hz
M4F210-08-5-CL-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: DC24V
M4F210-08-5-CU-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F210-08-5-CU-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F210-08-5-CU-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F210-08-5-IL-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC100V 50/60Hz
M4F210-08-5-IL-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC200V 50/60Hz
M4F210-08-5-IL-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: DC24V
M4F210-08-5-IU-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F210-08-5-IU-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F210-08-5-IU-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F210-08-5-C-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F210-08-5-C-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F210-08-5-C-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F210-08-5-I-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F210-08-5-I-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F210-08-5-I-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F210-08-6-CL-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC100V 50/60Hz
M4F210-08-6-CL-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC200V 50/60Hz
M4F210-08-6-CL-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: DC24V
M4F210-08-6-CU-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F210-08-6-CU-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F210-08-6-CU-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F210-08-6-IL-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC100V 50/60Hz
M4F210-08-6-IL-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC200V 50/60Hz
M4F210-08-6-IL-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: DC24V
M4F210-08-6-IU-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F210-08-6-IU-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F210-08-6-IU-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F210-08-6-C-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F210-08-6-C-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F210-08-6-C-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F210-08-6-I-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F210-08-6-I-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F210-08-6-I-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F210-08-7-CL-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC100V 50/60Hz
M4F210-08-7-CL-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC200V 50/60Hz
M4F210-08-7-CL-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: DC24V
M4F210-08-7-CU-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F210-08-7-CU-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F210-08-7-CU-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F210-08-7-IL-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC100V 50/60Hz
M4F210-08-7-IL-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC200V 50/60Hz
M4F210-08-7-IL-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: DC24V
M4F210-08-7-IU-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F210-08-7-IU-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F210-08-7-IU-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F210-08-7-C-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F210-08-7-C-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F210-08-7-C-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F210-08-7-I-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F210-08-7-I-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F210-08-7-I-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F210-08-8-CL-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC100V 50/60Hz
M4F210-08-8-CL-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC200V 50/60Hz
M4F210-08-8-CL-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: DC24V
M4F210-08-8-CU-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F210-08-8-CU-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F210-08-8-CU-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F210-08-8-IL-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC100V 50/60Hz
M4F210-08-8-IL-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC200V 50/60Hz
M4F210-08-8-IL-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: DC24V
M4F210-08-8-IU-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F210-08-8-IU-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F210-08-8-IU-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F210-08-8-C-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F210-08-8-C-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F210-08-8-C-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F210-08-8-I-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F210-08-8-I-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F210-08-8-I-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F210-08-9-CL-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC100V 50/60Hz
M4F210-08-9-CL-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC200V 50/60Hz
M4F210-08-9-CL-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: DC24V
M4F210-08-9-CU-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F210-08-9-CU-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F210-08-9-CU-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F210-08-9-IL-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC100V 50/60Hz
M4F210-08-9-IL-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC200V 50/60Hz
M4F210-08-9-IL-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: DC24V
M4F210-08-9-IU-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F210-08-9-IU-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F210-08-9-IU-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F210-08-9-C-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F210-08-9-C-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F210-08-9-C-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F210-08-9-I-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F210-08-9-I-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F210-08-9-I-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F210-08-10-CL-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC100V 50/60Hz
M4F210-08-10-CL-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC200V 50/60Hz
M4F210-08-10-CL-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: DC24V
M4F210-08-10-CU-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F210-08-10-CU-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F210-08-10-CU-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F210-08-10-IL-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC100V 50/60Hz
M4F210-08-10-IL-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC200V 50/60Hz
M4F210-08-10-IL-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: DC24V
M4F210-08-10-IU-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F210-08-10-IU-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F210-08-10-IU-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F210-08-10-C-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F210-08-10-C-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F210-08-10-C-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F210-08-10-I-AC100V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F210-08-10-I-AC200V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F210-08-10-I-DC24V		Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F220-08-2-CU-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F220-08-2-CU-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F220-08-2-CU-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F220-08-2-IU-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F220-08-2-IU-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F220-08-2-IU-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F220-08-2-C-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F220-08-2-C-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F220-08-2-C-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F220-08-2-I-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F220-08-2-I-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F220-08-2-I-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F220-08-3-CU-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F220-08-3-CU-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F220-08-3-CU-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F220-08-3-IU-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F220-08-3-IU-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F220-08-3-IU-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F220-08-3-C-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F220-08-3-C-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F220-08-3-C-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F220-08-3-I-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F220-08-3-I-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F220-08-3-I-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F220-08-4-CU-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F220-08-4-CU-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F220-08-4-CU-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F220-08-4-IU-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F220-08-4-IU-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F220-08-4-IU-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F220-08-4-C-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F220-08-4-C-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F220-08-4-C-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F220-08-4-I-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F220-08-4-I-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F220-08-4-I-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F220-08-5-CU-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F220-08-5-CU-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F220-08-5-CU-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F220-08-5-IU-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F220-08-5-IU-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F220-08-5-IU-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F220-08-5-C-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F220-08-5-C-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F220-08-5-C-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F220-08-5-I-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F220-08-5-I-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F220-08-5-I-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F220-08-6-CU-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F220-08-6-CU-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F220-08-6-CU-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F220-08-6-IU-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F220-08-6-IU-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F220-08-6-IU-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F220-08-6-C-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F220-08-6-C-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F220-08-6-C-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F220-08-6-I-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F220-08-6-I-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F220-08-6-I-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F220-08-7-CU-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F220-08-7-CU-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F220-08-7-CU-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F220-08-7-IU-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F220-08-7-IU-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F220-08-7-IU-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F220-08-7-C-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F220-08-7-C-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F220-08-7-C-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F220-08-7-I-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F220-08-7-I-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F220-08-7-I-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F220-08-8-CU-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F220-08-8-CU-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F220-08-8-CU-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F220-08-8-IU-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F220-08-8-IU-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F220-08-8-IU-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F220-08-8-C-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F220-08-8-C-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F220-08-8-C-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F220-08-8-I-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F220-08-8-I-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F220-08-8-I-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F220-08-9-CU-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F220-08-9-CU-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F220-08-9-CU-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F220-08-9-IU-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F220-08-9-IU-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F220-08-9-IU-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F220-08-9-C-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F220-08-9-C-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F220-08-9-C-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F220-08-9-I-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F220-08-9-I-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F220-08-9-I-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F220-08-10-CU-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F220-08-10-CU-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F220-08-10-CU-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F220-08-10-IU-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F220-08-10-IU-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F220-08-10-IU-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F220-08-10-C-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F220-08-10-C-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F220-08-10-C-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F220-08-10-I-AC100V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F220-08-10-I-AC200V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F220-08-10-I-DC24V		Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F230-08-2-CU-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F230-08-2-CU-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F230-08-2-CU-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F230-08-2-IU-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F230-08-2-IU-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F230-08-2-IU-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F230-08-2-C-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F230-08-2-C-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F230-08-2-C-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F230-08-2-I-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F230-08-2-I-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F230-08-2-I-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F230-08-3-CU-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F230-08-3-CU-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F230-08-3-CU-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F230-08-3-IU-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F230-08-3-IU-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F230-08-3-IU-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F230-08-3-C-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F230-08-3-C-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F230-08-3-C-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F230-08-3-I-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F230-08-3-I-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F230-08-3-I-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F230-08-4-CU-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F230-08-4-CU-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F230-08-4-CU-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F230-08-4-IU-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F230-08-4-IU-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F230-08-4-IU-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F230-08-4-C-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F230-08-4-C-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F230-08-4-C-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F230-08-4-I-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F230-08-4-I-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F230-08-4-I-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F230-08-5-CU-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F230-08-5-CU-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F230-08-5-CU-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F230-08-5-IU-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F230-08-5-IU-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F230-08-5-IU-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F230-08-5-C-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F230-08-5-C-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F230-08-5-C-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F230-08-5-I-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F230-08-5-I-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F230-08-5-I-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F230-08-6-CU-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F230-08-6-CU-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F230-08-6-CU-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F230-08-6-IU-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F230-08-6-IU-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F230-08-6-IU-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F230-08-6-C-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F230-08-6-C-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F230-08-6-C-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F230-08-6-I-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F230-08-6-I-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F230-08-6-I-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F230-08-7-CU-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F230-08-7-CU-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F230-08-7-CU-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F230-08-7-IU-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F230-08-7-IU-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F230-08-7-IU-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F230-08-7-C-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F230-08-7-C-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F230-08-7-C-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F230-08-7-I-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F230-08-7-I-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F230-08-7-I-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F230-08-8-CU-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F230-08-8-CU-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F230-08-8-CU-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F230-08-8-IU-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F230-08-8-IU-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F230-08-8-IU-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F230-08-8-C-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F230-08-8-C-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F230-08-8-C-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F230-08-8-I-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F230-08-8-I-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F230-08-8-I-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F230-08-9-CU-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F230-08-9-CU-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F230-08-9-CU-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F230-08-9-IU-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F230-08-9-IU-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F230-08-9-IU-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F230-08-9-C-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F230-08-9-C-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F230-08-9-C-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F230-08-9-I-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F230-08-9-I-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F230-08-9-I-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F230-08-10-CU-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F230-08-10-CU-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F230-08-10-CU-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F230-08-10-IU-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F230-08-10-IU-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F230-08-10-IU-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F230-08-10-C-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F230-08-10-C-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F230-08-10-C-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F230-08-10-I-AC100V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F230-08-10-I-AC200V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F230-08-10-I-DC24V		Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F240-08-2-CU-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F240-08-2-CU-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F240-08-2-CU-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F240-08-2-IU-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F240-08-2-IU-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F240-08-2-IU-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F240-08-2-C-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F240-08-2-C-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F240-08-2-C-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F240-08-2-I-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F240-08-2-I-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F240-08-2-I-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F240-08-3-CU-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F240-08-3-CU-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F240-08-3-CU-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F240-08-3-IU-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F240-08-3-IU-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F240-08-3-IU-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F240-08-3-C-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F240-08-3-C-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F240-08-3-C-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F240-08-3-I-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F240-08-3-I-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F240-08-3-I-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F240-08-4-CU-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F240-08-4-CU-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F240-08-4-CU-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F240-08-4-IU-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F240-08-4-IU-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F240-08-4-IU-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F240-08-4-C-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F240-08-4-C-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F240-08-4-C-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F240-08-4-I-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F240-08-4-I-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F240-08-4-I-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F240-08-5-CU-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F240-08-5-CU-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F240-08-5-CU-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F240-08-5-IU-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F240-08-5-IU-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F240-08-5-IU-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F240-08-5-C-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F240-08-5-C-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F240-08-5-C-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F240-08-5-I-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F240-08-5-I-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F240-08-5-I-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F240-08-6-CU-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F240-08-6-CU-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F240-08-6-CU-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F240-08-6-IU-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F240-08-6-IU-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F240-08-6-IU-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F240-08-6-C-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F240-08-6-C-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F240-08-6-C-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F240-08-6-I-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F240-08-6-I-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F240-08-6-I-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F240-08-7-CU-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F240-08-7-CU-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F240-08-7-CU-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F240-08-7-IU-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F240-08-7-IU-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F240-08-7-IU-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F240-08-7-C-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F240-08-7-C-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F240-08-7-C-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F240-08-7-I-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F240-08-7-I-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F240-08-7-I-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F240-08-8-CU-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F240-08-8-CU-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F240-08-8-CU-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F240-08-8-IU-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F240-08-8-IU-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F240-08-8-IU-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F240-08-8-C-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F240-08-8-C-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F240-08-8-C-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F240-08-8-I-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F240-08-8-I-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F240-08-8-I-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F240-08-9-CU-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F240-08-9-CU-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F240-08-9-CU-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F240-08-9-IU-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F240-08-9-IU-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F240-08-9-IU-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F240-08-9-C-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F240-08-9-C-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F240-08-9-C-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F240-08-9-I-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F240-08-9-I-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F240-08-9-I-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F240-08-10-CU-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F240-08-10-CU-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F240-08-10-CU-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
M4F240-08-10-IU-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
M4F240-08-10-IU-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
M4F240-08-10-IU-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
M4F240-08-10-C-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
M4F240-08-10-C-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
M4F240-08-10-C-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
M4F240-08-10-I-AC100V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
M4F240-08-10-I-AC200V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
M4F240-08-10-I-DC24V		Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
M4F2-MP-KIT		Part: Masking plate kit (with gasket) for M4F2 \| Switching: - \| A/B port: - \| Stations: - \| Exhaust/bracket: - \| Voltage: -
M4F2-GASKET-KIT		Part: Gasket kit for M4F2 \| Switching: - \| A/B port: - \| Stations: - \| Exhaust/bracket: - \| Voltage: -

Valve ManifoldsCKD

488 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD M4F2 5-Port Solenoid Valve Manifold (Direct Piping)

Brand CKD·Valve Manifolds

Available part numbers (488)

M4F210-08-2-CL-AC100V, M4F210-08-2-CL-AC200V, M4F210-08-2-CL-DC24V, M4F210-08-2-CU-AC100V, M4F210-08-2-CU-AC200V, M4F210-08-2-CU-DC24V, M4F210-08-2-IL-AC100V, M4F210-08-2-IL-AC200V, M4F210-08-2-IL-DC24V, M4F210-08-2-IU-AC100V + 478 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	M4F210-08-2-CL-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-2-CL-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-2-CL-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: DC24V
	M4F210-08-2-CU-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-2-CU-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-2-CU-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F210-08-2-IL-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-2-IL-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-2-IL-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: DC24V
	M4F210-08-2-IU-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-2-IU-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-2-IU-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F210-08-2-C-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F210-08-2-C-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F210-08-2-C-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F210-08-2-I-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F210-08-2-I-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F210-08-2-I-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F210-08-3-CL-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-3-CL-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-3-CL-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: DC24V
	M4F210-08-3-CU-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-3-CU-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-3-CU-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F210-08-3-IL-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-3-IL-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-3-IL-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: DC24V
	M4F210-08-3-IU-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-3-IU-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-3-IU-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F210-08-3-C-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F210-08-3-C-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F210-08-3-C-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F210-08-3-I-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F210-08-3-I-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F210-08-3-I-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F210-08-4-CL-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-4-CL-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-4-CL-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: DC24V
	M4F210-08-4-CU-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-4-CU-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-4-CU-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F210-08-4-IL-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-4-IL-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-4-IL-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: DC24V
	M4F210-08-4-IU-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-4-IU-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-4-IU-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F210-08-4-C-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F210-08-4-C-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F210-08-4-C-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F210-08-4-I-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F210-08-4-I-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F210-08-4-I-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F210-08-5-CL-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-5-CL-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-5-CL-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: DC24V
	M4F210-08-5-CU-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-5-CU-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-5-CU-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F210-08-5-IL-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-5-IL-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-5-IL-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: DC24V
	M4F210-08-5-IU-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-5-IU-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-5-IU-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F210-08-5-C-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F210-08-5-C-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F210-08-5-C-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F210-08-5-I-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F210-08-5-I-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F210-08-5-I-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F210-08-6-CL-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-6-CL-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-6-CL-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: DC24V
	M4F210-08-6-CU-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-6-CU-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-6-CU-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F210-08-6-IL-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-6-IL-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-6-IL-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: DC24V
	M4F210-08-6-IU-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-6-IU-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-6-IU-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F210-08-6-C-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F210-08-6-C-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F210-08-6-C-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F210-08-6-I-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F210-08-6-I-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F210-08-6-I-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F210-08-7-CL-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-7-CL-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-7-CL-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: DC24V
	M4F210-08-7-CU-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-7-CU-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-7-CU-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F210-08-7-IL-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-7-IL-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-7-IL-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: DC24V
	M4F210-08-7-IU-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-7-IU-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-7-IU-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F210-08-7-C-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F210-08-7-C-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F210-08-7-C-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F210-08-7-I-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F210-08-7-I-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F210-08-7-I-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F210-08-8-CL-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-8-CL-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-8-CL-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: DC24V
	M4F210-08-8-CU-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-8-CU-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-8-CU-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F210-08-8-IL-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-8-IL-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-8-IL-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: DC24V
	M4F210-08-8-IU-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-8-IU-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-8-IU-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F210-08-8-C-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F210-08-8-C-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F210-08-8-C-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F210-08-8-I-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F210-08-8-I-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F210-08-8-I-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F210-08-9-CL-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-9-CL-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-9-CL-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: DC24V
	M4F210-08-9-CU-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-9-CU-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-9-CU-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F210-08-9-IL-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-9-IL-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-9-IL-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: DC24V
	M4F210-08-9-IU-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-9-IU-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-9-IU-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F210-08-9-C-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F210-08-9-C-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F210-08-9-C-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F210-08-9-I-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F210-08-9-I-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F210-08-9-I-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F210-08-10-CL-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-10-CL-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-10-CL-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, L bracket \| Voltage: DC24V
	M4F210-08-10-CU-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-10-CU-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-10-CU-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F210-08-10-IL-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-10-IL-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-10-IL-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, L bracket \| Voltage: DC24V
	M4F210-08-10-IU-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F210-08-10-IU-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F210-08-10-IU-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F210-08-10-C-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F210-08-10-C-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F210-08-10-C-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F210-08-10-I-AC100V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F210-08-10-I-AC200V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F210-08-10-I-DC24V	Part: Manifold assembly \| Switching: 2-position single \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F220-08-2-CU-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F220-08-2-CU-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F220-08-2-CU-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F220-08-2-IU-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F220-08-2-IU-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F220-08-2-IU-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F220-08-2-C-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F220-08-2-C-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F220-08-2-C-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F220-08-2-I-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F220-08-2-I-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F220-08-2-I-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F220-08-3-CU-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F220-08-3-CU-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F220-08-3-CU-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F220-08-3-IU-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F220-08-3-IU-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F220-08-3-IU-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F220-08-3-C-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F220-08-3-C-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F220-08-3-C-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F220-08-3-I-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F220-08-3-I-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F220-08-3-I-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F220-08-4-CU-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F220-08-4-CU-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F220-08-4-CU-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F220-08-4-IU-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F220-08-4-IU-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F220-08-4-IU-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F220-08-4-C-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F220-08-4-C-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F220-08-4-C-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F220-08-4-I-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F220-08-4-I-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F220-08-4-I-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F220-08-5-CU-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F220-08-5-CU-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F220-08-5-CU-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F220-08-5-IU-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F220-08-5-IU-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F220-08-5-IU-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F220-08-5-C-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F220-08-5-C-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F220-08-5-C-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F220-08-5-I-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F220-08-5-I-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F220-08-5-I-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F220-08-6-CU-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F220-08-6-CU-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F220-08-6-CU-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F220-08-6-IU-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F220-08-6-IU-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F220-08-6-IU-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F220-08-6-C-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F220-08-6-C-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F220-08-6-C-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F220-08-6-I-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F220-08-6-I-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F220-08-6-I-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F220-08-7-CU-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F220-08-7-CU-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F220-08-7-CU-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F220-08-7-IU-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F220-08-7-IU-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F220-08-7-IU-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F220-08-7-C-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F220-08-7-C-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F220-08-7-C-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F220-08-7-I-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F220-08-7-I-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F220-08-7-I-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F220-08-8-CU-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F220-08-8-CU-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F220-08-8-CU-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F220-08-8-IU-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F220-08-8-IU-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F220-08-8-IU-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F220-08-8-C-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F220-08-8-C-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F220-08-8-C-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F220-08-8-I-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F220-08-8-I-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F220-08-8-I-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F220-08-9-CU-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F220-08-9-CU-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F220-08-9-CU-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F220-08-9-IU-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F220-08-9-IU-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F220-08-9-IU-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F220-08-9-C-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F220-08-9-C-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F220-08-9-C-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F220-08-9-I-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F220-08-9-I-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F220-08-9-I-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F220-08-10-CU-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F220-08-10-CU-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F220-08-10-CU-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F220-08-10-IU-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F220-08-10-IU-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F220-08-10-IU-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F220-08-10-C-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F220-08-10-C-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F220-08-10-C-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F220-08-10-I-AC100V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F220-08-10-I-AC200V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F220-08-10-I-DC24V	Part: Manifold assembly \| Switching: 2-position double \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F230-08-2-CU-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F230-08-2-CU-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F230-08-2-CU-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F230-08-2-IU-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F230-08-2-IU-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F230-08-2-IU-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F230-08-2-C-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F230-08-2-C-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F230-08-2-C-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F230-08-2-I-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F230-08-2-I-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F230-08-2-I-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F230-08-3-CU-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F230-08-3-CU-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F230-08-3-CU-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F230-08-3-IU-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F230-08-3-IU-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F230-08-3-IU-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F230-08-3-C-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F230-08-3-C-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F230-08-3-C-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F230-08-3-I-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F230-08-3-I-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F230-08-3-I-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F230-08-4-CU-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F230-08-4-CU-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F230-08-4-CU-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F230-08-4-IU-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F230-08-4-IU-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F230-08-4-IU-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F230-08-4-C-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F230-08-4-C-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F230-08-4-C-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F230-08-4-I-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F230-08-4-I-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F230-08-4-I-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F230-08-5-CU-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F230-08-5-CU-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F230-08-5-CU-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F230-08-5-IU-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F230-08-5-IU-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F230-08-5-IU-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F230-08-5-C-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F230-08-5-C-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F230-08-5-C-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F230-08-5-I-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F230-08-5-I-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F230-08-5-I-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F230-08-6-CU-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F230-08-6-CU-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F230-08-6-CU-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F230-08-6-IU-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F230-08-6-IU-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F230-08-6-IU-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F230-08-6-C-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F230-08-6-C-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F230-08-6-C-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F230-08-6-I-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F230-08-6-I-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F230-08-6-I-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F230-08-7-CU-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F230-08-7-CU-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F230-08-7-CU-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F230-08-7-IU-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F230-08-7-IU-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F230-08-7-IU-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F230-08-7-C-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F230-08-7-C-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F230-08-7-C-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F230-08-7-I-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F230-08-7-I-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F230-08-7-I-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F230-08-8-CU-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F230-08-8-CU-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F230-08-8-CU-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F230-08-8-IU-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F230-08-8-IU-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F230-08-8-IU-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F230-08-8-C-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F230-08-8-C-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F230-08-8-C-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F230-08-8-I-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F230-08-8-I-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F230-08-8-I-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F230-08-9-CU-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F230-08-9-CU-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F230-08-9-CU-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F230-08-9-IU-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F230-08-9-IU-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F230-08-9-IU-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F230-08-9-C-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F230-08-9-C-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F230-08-9-C-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F230-08-9-I-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F230-08-9-I-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F230-08-9-I-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F230-08-10-CU-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F230-08-10-CU-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F230-08-10-CU-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F230-08-10-IU-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F230-08-10-IU-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F230-08-10-IU-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F230-08-10-C-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F230-08-10-C-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F230-08-10-C-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F230-08-10-I-AC100V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F230-08-10-I-AC200V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F230-08-10-I-DC24V	Part: Manifold assembly \| Switching: 3-position all ports blocked \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F240-08-2-CU-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F240-08-2-CU-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F240-08-2-CU-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F240-08-2-IU-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F240-08-2-IU-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F240-08-2-IU-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F240-08-2-C-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F240-08-2-C-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F240-08-2-C-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F240-08-2-I-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F240-08-2-I-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F240-08-2-I-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 2 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F240-08-3-CU-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F240-08-3-CU-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F240-08-3-CU-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F240-08-3-IU-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F240-08-3-IU-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F240-08-3-IU-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F240-08-3-C-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F240-08-3-C-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F240-08-3-C-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F240-08-3-I-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F240-08-3-I-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F240-08-3-I-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 3 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F240-08-4-CU-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F240-08-4-CU-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F240-08-4-CU-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F240-08-4-IU-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F240-08-4-IU-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F240-08-4-IU-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F240-08-4-C-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F240-08-4-C-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F240-08-4-C-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F240-08-4-I-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F240-08-4-I-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F240-08-4-I-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 4 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F240-08-5-CU-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F240-08-5-CU-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F240-08-5-CU-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F240-08-5-IU-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F240-08-5-IU-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F240-08-5-IU-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F240-08-5-C-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F240-08-5-C-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F240-08-5-C-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F240-08-5-I-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F240-08-5-I-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F240-08-5-I-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 5 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F240-08-6-CU-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F240-08-6-CU-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F240-08-6-CU-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F240-08-6-IU-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F240-08-6-IU-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F240-08-6-IU-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F240-08-6-C-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F240-08-6-C-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F240-08-6-C-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F240-08-6-I-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F240-08-6-I-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F240-08-6-I-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 6 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F240-08-7-CU-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F240-08-7-CU-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F240-08-7-CU-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F240-08-7-IU-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F240-08-7-IU-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F240-08-7-IU-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F240-08-7-C-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F240-08-7-C-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F240-08-7-C-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F240-08-7-I-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F240-08-7-I-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F240-08-7-I-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 7 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F240-08-8-CU-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F240-08-8-CU-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F240-08-8-CU-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F240-08-8-IU-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F240-08-8-IU-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F240-08-8-IU-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F240-08-8-C-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F240-08-8-C-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F240-08-8-C-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F240-08-8-I-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F240-08-8-I-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F240-08-8-I-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 8 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F240-08-9-CU-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F240-08-9-CU-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F240-08-9-CU-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F240-08-9-IU-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F240-08-9-IU-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F240-08-9-IU-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F240-08-9-C-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F240-08-9-C-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F240-08-9-C-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F240-08-9-I-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F240-08-9-I-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F240-08-9-I-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 9 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F240-08-10-CU-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F240-08-10-CU-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F240-08-10-CU-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust, U bracket \| Voltage: DC24V
	M4F240-08-10-IU-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC100V 50/60Hz
	M4F240-08-10-IU-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: AC200V 50/60Hz
	M4F240-08-10-IU-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust, U bracket \| Voltage: DC24V
	M4F240-08-10-C-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: AC100V 50/60Hz
	M4F240-08-10-C-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: AC200V 50/60Hz
	M4F240-08-10-C-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Common exhaust \| Voltage: DC24V
	M4F240-08-10-I-AC100V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: AC100V 50/60Hz
	M4F240-08-10-I-AC200V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: AC200V 50/60Hz
	M4F240-08-10-I-DC24V	Part: Manifold assembly \| Switching: 3-position A-B-R connection \| A/B port: Rp1/4 \| Stations: 10 \| Exhaust/bracket: Individual exhaust \| Voltage: DC24V
	M4F2-MP-KIT	Part: Masking plate kit (with gasket) for M4F2 \| Switching: - \| A/B port: - \| Stations: - \| Exhaust/bracket: - \| Voltage: -
	M4F2-GASKET-KIT	Part: Gasket kit for M4F2 \| Switching: - \| A/B port: - \| Stations: - \| Exhaust/bracket: - \| Voltage: -

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD M4F2 5-Port Solenoid Valve Manifold (Direct Piping)
