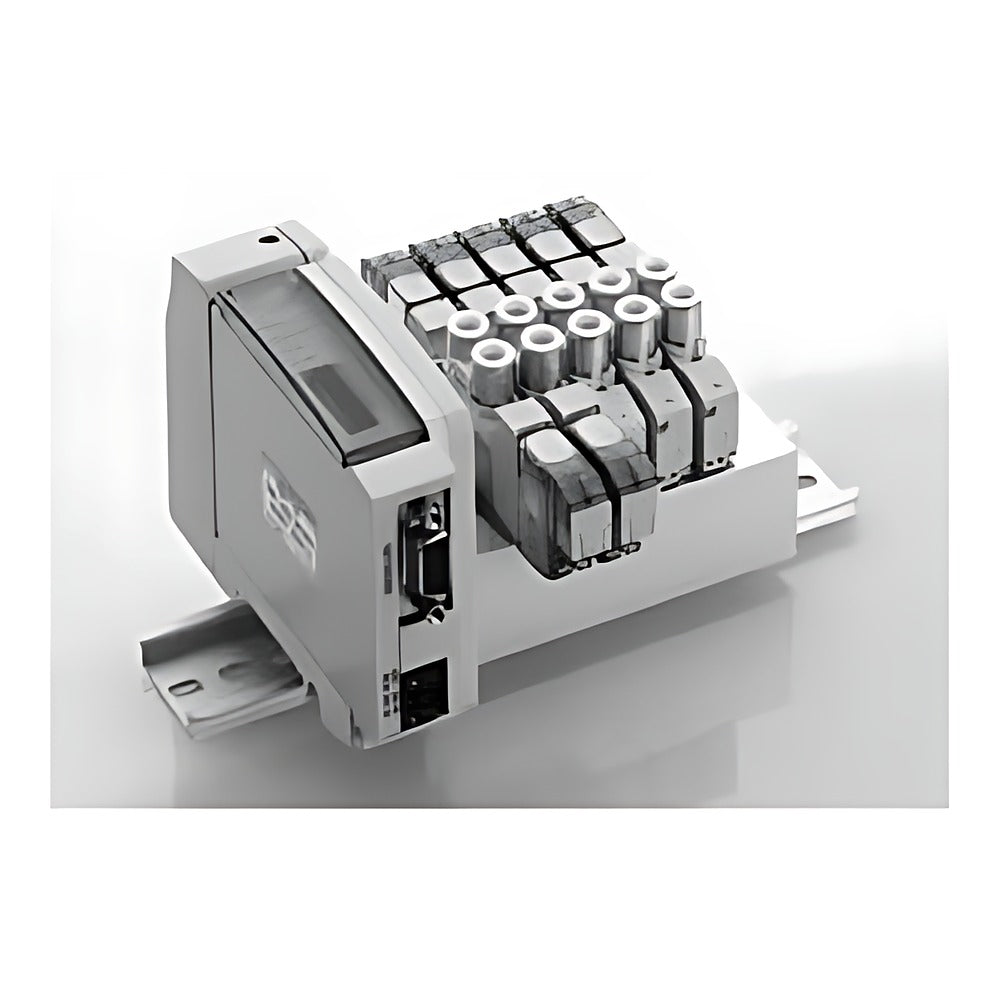

CKD M4GA-T Wiring-Saving Manifold, Direct Piping (Clean P70)

CKD M4GA-T Wiring-Saving Manifold, Direct Piping (Clean P70)

Clean-room (P70) CKD M4GA1/2/3-T wiring-saving manifolds carry 4GA 5-port pilot solenoid valves on an integrated metal base with top A/B piping and collective wiring.

Key features

  • Clean spec P70: dust-generation prevention, exhaust piped out of the clean room; P74 adds copper/silicone/halogen-free material (made-to-order)
  • Integrated metal base, central supply/exhaust with built-in exhaust malfunction prevention valve
  • Terminal block (T10/T11), D-sub 25-pin (T30), flat cable (T50-T53) or serial transmission (T6/T8)
  • 2-position single/double and 3-position closed, ABR and PAB centre valves
  • Valve sizes 4G1/4G2/4G3 for cylinders 20-100 mm; max 20 stations (4GA1/2), 16 (4GA3)
  • Base-mounted single valves (A2N, no lead wire) for maintenance

Specifications

Manifold type Wiring-saving integrated metal base
Mounting Direct mount (standard); DIN rail option D
Operating pressure 0.2 to 0.7 MPa (internal pilot)
Proof pressure 1.05 MPa
Ambient / fluid temp. -5 to 55 C / 5 to 55 C
Voltage (code 3) DC24V (DC12V = code 4)
Valve type Pilot-operated soft spool
Clean spec P70: dust-proof, exhaust treatment
Source CKD Korea catalog CB-033S-4, p. 547-568
M4GA110R-C4-T10-2-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA110R-C4-T10-3-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA110R-C4-T10-4-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA110R-C4-T10-5-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA110R-C4-T10-6-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA110R-C4-T10-7-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA110R-C4-T10-8-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA110R-C4-T10-9-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA110R-C4-T10-10-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA110R-C4-T10-11-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA110R-C4-T10-12-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA110R-C4-T10-13-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA110R-C4-T10-14-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA110R-C4-T10-15-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA110R-C4-T10-16-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA110R-C4-T30-2-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA110R-C4-T30-3-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA110R-C4-T30-4-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA110R-C4-T30-5-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA110R-C4-T30-6-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA110R-C4-T30-7-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA110R-C4-T30-8-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA110R-C4-T30-9-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA110R-C4-T30-10-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA110R-C4-T30-11-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA110R-C4-T30-12-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA110R-C4-T30-13-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA110R-C4-T30-14-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA110R-C4-T30-15-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA110R-C4-T30-16-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA110R-C4-T30-17-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GA110R-C4-T30-18-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GA110R-C4-T30-19-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GA110R-C4-T30-20-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GA110R-C6-T10-2-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA110R-C6-T10-3-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA110R-C6-T10-4-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA110R-C6-T10-5-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA110R-C6-T10-6-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA110R-C6-T10-7-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA110R-C6-T10-8-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA110R-C6-T10-9-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA110R-C6-T10-10-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA110R-C6-T10-11-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA110R-C6-T10-12-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA110R-C6-T10-13-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA110R-C6-T10-14-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA110R-C6-T10-15-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA110R-C6-T10-16-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA110R-C6-T30-2-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA110R-C6-T30-3-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA110R-C6-T30-4-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA110R-C6-T30-5-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA110R-C6-T30-6-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA110R-C6-T30-7-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA110R-C6-T30-8-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA110R-C6-T30-9-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA110R-C6-T30-10-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA110R-C6-T30-11-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA110R-C6-T30-12-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA110R-C6-T30-13-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA110R-C6-T30-14-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA110R-C6-T30-15-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA110R-C6-T30-16-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA110R-C6-T30-17-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GA110R-C6-T30-18-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GA110R-C6-T30-19-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GA110R-C6-T30-20-3-P70 Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GA120R-C4-T10-2-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA120R-C4-T10-3-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA120R-C4-T10-4-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA120R-C4-T10-5-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA120R-C4-T10-6-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA120R-C4-T10-7-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA120R-C4-T10-8-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA120R-C4-T30-2-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA120R-C4-T30-3-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA120R-C4-T30-4-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA120R-C4-T30-5-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA120R-C4-T30-6-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA120R-C4-T30-7-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA120R-C4-T30-8-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA120R-C4-T30-9-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA120R-C4-T30-10-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA120R-C4-T30-11-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA120R-C4-T30-12-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA120R-C6-T10-2-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA120R-C6-T10-3-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA120R-C6-T10-4-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA120R-C6-T10-5-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA120R-C6-T10-6-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA120R-C6-T10-7-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA120R-C6-T10-8-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA120R-C6-T30-2-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA120R-C6-T30-3-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA120R-C6-T30-4-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA120R-C6-T30-5-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA120R-C6-T30-6-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA120R-C6-T30-7-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA120R-C6-T30-8-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA120R-C6-T30-9-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA120R-C6-T30-10-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA120R-C6-T30-11-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA120R-C6-T30-12-3-P70 Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA130R-C4-T10-2-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA130R-C4-T10-3-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA130R-C4-T10-4-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA130R-C4-T10-5-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA130R-C4-T10-6-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA130R-C4-T10-7-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA130R-C4-T10-8-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA130R-C4-T30-2-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA130R-C4-T30-3-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA130R-C4-T30-4-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA130R-C4-T30-5-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA130R-C4-T30-6-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA130R-C4-T30-7-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA130R-C4-T30-8-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA130R-C4-T30-9-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA130R-C4-T30-10-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA130R-C4-T30-11-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA130R-C4-T30-12-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA130R-C6-T10-2-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA130R-C6-T10-3-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA130R-C6-T10-4-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA130R-C6-T10-5-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA130R-C6-T10-6-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA130R-C6-T10-7-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA130R-C6-T10-8-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA130R-C6-T30-2-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA130R-C6-T30-3-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA130R-C6-T30-4-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA130R-C6-T30-5-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA130R-C6-T30-6-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA130R-C6-T30-7-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA130R-C6-T30-8-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA130R-C6-T30-9-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA130R-C6-T30-10-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA130R-C6-T30-11-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA130R-C6-T30-12-3-P70 Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA140R-C4-T10-2-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA140R-C4-T10-3-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA140R-C4-T10-4-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA140R-C4-T10-5-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA140R-C4-T10-6-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA140R-C4-T10-7-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA140R-C4-T10-8-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA140R-C4-T30-2-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA140R-C4-T30-3-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA140R-C4-T30-4-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA140R-C4-T30-5-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA140R-C4-T30-6-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA140R-C4-T30-7-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA140R-C4-T30-8-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA140R-C4-T30-9-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA140R-C4-T30-10-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA140R-C4-T30-11-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA140R-C4-T30-12-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA140R-C6-T10-2-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA140R-C6-T10-3-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA140R-C6-T10-4-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA140R-C6-T10-5-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA140R-C6-T10-6-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA140R-C6-T10-7-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA140R-C6-T10-8-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA140R-C6-T30-2-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA140R-C6-T30-3-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA140R-C6-T30-4-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA140R-C6-T30-5-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA140R-C6-T30-6-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA140R-C6-T30-7-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA140R-C6-T30-8-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA140R-C6-T30-9-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA140R-C6-T30-10-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA140R-C6-T30-11-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA140R-C6-T30-12-3-P70 Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA150R-C4-T10-2-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA150R-C4-T10-3-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA150R-C4-T10-4-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA150R-C4-T10-5-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA150R-C4-T10-6-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA150R-C4-T10-7-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA150R-C4-T10-8-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA150R-C4-T30-2-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA150R-C4-T30-3-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA150R-C4-T30-4-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA150R-C4-T30-5-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA150R-C4-T30-6-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA150R-C4-T30-7-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA150R-C4-T30-8-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA150R-C4-T30-9-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA150R-C4-T30-10-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA150R-C4-T30-11-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA150R-C4-T30-12-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA150R-C6-T10-2-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA150R-C6-T10-3-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA150R-C6-T10-4-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA150R-C6-T10-5-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA150R-C6-T10-6-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA150R-C6-T10-7-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA150R-C6-T10-8-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA150R-C6-T30-2-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA150R-C6-T30-3-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA150R-C6-T30-4-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA150R-C6-T30-5-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA150R-C6-T30-6-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA150R-C6-T30-7-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA150R-C6-T30-8-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA150R-C6-T30-9-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA150R-C6-T30-10-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA150R-C6-T30-11-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA150R-C6-T30-12-3-P70 Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA180R-C4-T10-2-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA180R-C4-T10-3-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA180R-C4-T10-4-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA180R-C4-T10-5-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA180R-C4-T10-6-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA180R-C4-T10-7-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA180R-C4-T10-8-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA180R-C4-T10-9-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA180R-C4-T10-10-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA180R-C4-T10-11-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA180R-C4-T10-12-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA180R-C4-T10-13-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA180R-C4-T10-14-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA180R-C4-T10-15-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA180R-C4-T10-16-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA180R-C4-T30-2-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA180R-C4-T30-3-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA180R-C4-T30-4-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA180R-C4-T30-5-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA180R-C4-T30-6-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA180R-C4-T30-7-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA180R-C4-T30-8-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA180R-C4-T30-9-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA180R-C4-T30-10-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA180R-C4-T30-11-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA180R-C4-T30-12-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA180R-C4-T30-13-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA180R-C4-T30-14-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA180R-C4-T30-15-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA180R-C4-T30-16-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA180R-C4-T30-17-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GA180R-C4-T30-18-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GA180R-C4-T30-19-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GA180R-C4-T30-20-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GA180R-C6-T10-2-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA180R-C6-T10-3-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA180R-C6-T10-4-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA180R-C6-T10-5-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA180R-C6-T10-6-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA180R-C6-T10-7-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA180R-C6-T10-8-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA180R-C6-T10-9-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA180R-C6-T10-10-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA180R-C6-T10-11-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA180R-C6-T10-12-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA180R-C6-T10-13-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA180R-C6-T10-14-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA180R-C6-T10-15-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA180R-C6-T10-16-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA180R-C6-T30-2-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA180R-C6-T30-3-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA180R-C6-T30-4-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA180R-C6-T30-5-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA180R-C6-T30-6-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA180R-C6-T30-7-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA180R-C6-T30-8-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA180R-C6-T30-9-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA180R-C6-T30-10-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA180R-C6-T30-11-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA180R-C6-T30-12-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA180R-C6-T30-13-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA180R-C6-T30-14-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA180R-C6-T30-15-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA180R-C6-T30-16-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA180R-C6-T30-17-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GA180R-C6-T30-18-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GA180R-C6-T30-19-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GA180R-C6-T30-20-3-P70 Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
4GA119R-C4-A2N-3-P70 Model: 4GA1 single valve | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA119R-C6-A2N-3-P70 Model: 4GA1 single valve | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA129R-C4-A2N-3-P70 Model: 4GA1 single valve | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA129R-C6-A2N-3-P70 Model: 4GA1 single valve | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA139R-C4-A2N-3-P70 Model: 4GA1 single valve | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA139R-C6-A2N-3-P70 Model: 4GA1 single valve | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA149R-C4-A2N-3-P70 Model: 4GA1 single valve | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA149R-C6-A2N-3-P70 Model: 4GA1 single valve | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA159R-C4-A2N-3-P70 Model: 4GA1 single valve | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA159R-C6-A2N-3-P70 Model: 4GA1 single valve | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
M4GA210R-C4-T10-2-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA210R-C4-T10-3-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA210R-C4-T10-4-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA210R-C4-T10-5-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA210R-C4-T10-6-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA210R-C4-T10-7-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA210R-C4-T10-8-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA210R-C4-T10-9-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA210R-C4-T10-10-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA210R-C4-T10-11-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA210R-C4-T10-12-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA210R-C4-T10-13-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA210R-C4-T10-14-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA210R-C4-T10-15-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA210R-C4-T10-16-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA210R-C4-T30-2-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA210R-C4-T30-3-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA210R-C4-T30-4-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA210R-C4-T30-5-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA210R-C4-T30-6-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA210R-C4-T30-7-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA210R-C4-T30-8-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA210R-C4-T30-9-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA210R-C4-T30-10-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA210R-C4-T30-11-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA210R-C4-T30-12-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA210R-C4-T30-13-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA210R-C4-T30-14-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA210R-C4-T30-15-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA210R-C4-T30-16-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA210R-C4-T30-17-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GA210R-C4-T30-18-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GA210R-C4-T30-19-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GA210R-C4-T30-20-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GA210R-C6-T10-2-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA210R-C6-T10-3-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA210R-C6-T10-4-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA210R-C6-T10-5-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA210R-C6-T10-6-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA210R-C6-T10-7-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA210R-C6-T10-8-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA210R-C6-T10-9-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA210R-C6-T10-10-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA210R-C6-T10-11-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA210R-C6-T10-12-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA210R-C6-T10-13-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA210R-C6-T10-14-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA210R-C6-T10-15-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA210R-C6-T10-16-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA210R-C6-T30-2-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA210R-C6-T30-3-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA210R-C6-T30-4-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA210R-C6-T30-5-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA210R-C6-T30-6-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA210R-C6-T30-7-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA210R-C6-T30-8-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA210R-C6-T30-9-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA210R-C6-T30-10-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA210R-C6-T30-11-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA210R-C6-T30-12-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA210R-C6-T30-13-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA210R-C6-T30-14-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA210R-C6-T30-15-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA210R-C6-T30-16-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA210R-C6-T30-17-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GA210R-C6-T30-18-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GA210R-C6-T30-19-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GA210R-C6-T30-20-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GA210R-C8-T10-2-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA210R-C8-T10-3-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA210R-C8-T10-4-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA210R-C8-T10-5-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA210R-C8-T10-6-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA210R-C8-T10-7-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA210R-C8-T10-8-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA210R-C8-T10-9-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA210R-C8-T10-10-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA210R-C8-T10-11-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA210R-C8-T10-12-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA210R-C8-T10-13-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA210R-C8-T10-14-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA210R-C8-T10-15-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA210R-C8-T10-16-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA210R-C8-T30-2-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA210R-C8-T30-3-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA210R-C8-T30-4-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA210R-C8-T30-5-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA210R-C8-T30-6-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA210R-C8-T30-7-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA210R-C8-T30-8-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA210R-C8-T30-9-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA210R-C8-T30-10-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA210R-C8-T30-11-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA210R-C8-T30-12-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA210R-C8-T30-13-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA210R-C8-T30-14-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA210R-C8-T30-15-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA210R-C8-T30-16-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA210R-C8-T30-17-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GA210R-C8-T30-18-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GA210R-C8-T30-19-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GA210R-C8-T30-20-3-P70 Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GA220R-C4-T10-2-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA220R-C4-T10-3-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA220R-C4-T10-4-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA220R-C4-T10-5-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA220R-C4-T10-6-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA220R-C4-T10-7-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA220R-C4-T10-8-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA220R-C4-T30-2-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA220R-C4-T30-3-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA220R-C4-T30-4-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA220R-C4-T30-5-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA220R-C4-T30-6-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA220R-C4-T30-7-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA220R-C4-T30-8-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA220R-C4-T30-9-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA220R-C4-T30-10-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA220R-C4-T30-11-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA220R-C4-T30-12-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA220R-C6-T10-2-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA220R-C6-T10-3-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA220R-C6-T10-4-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA220R-C6-T10-5-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA220R-C6-T10-6-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA220R-C6-T10-7-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA220R-C6-T10-8-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA220R-C6-T30-2-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA220R-C6-T30-3-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA220R-C6-T30-4-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA220R-C6-T30-5-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA220R-C6-T30-6-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA220R-C6-T30-7-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA220R-C6-T30-8-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA220R-C6-T30-9-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA220R-C6-T30-10-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA220R-C6-T30-11-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA220R-C6-T30-12-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA220R-C8-T10-2-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA220R-C8-T10-3-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA220R-C8-T10-4-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA220R-C8-T10-5-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA220R-C8-T10-6-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA220R-C8-T10-7-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA220R-C8-T10-8-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA220R-C8-T30-2-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA220R-C8-T30-3-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA220R-C8-T30-4-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA220R-C8-T30-5-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA220R-C8-T30-6-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA220R-C8-T30-7-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA220R-C8-T30-8-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA220R-C8-T30-9-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA220R-C8-T30-10-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA220R-C8-T30-11-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA220R-C8-T30-12-3-P70 Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA230R-C4-T10-2-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA230R-C4-T10-3-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA230R-C4-T10-4-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA230R-C4-T10-5-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA230R-C4-T10-6-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA230R-C4-T10-7-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA230R-C4-T10-8-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA230R-C4-T30-2-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA230R-C4-T30-3-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA230R-C4-T30-4-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA230R-C4-T30-5-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA230R-C4-T30-6-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA230R-C4-T30-7-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA230R-C4-T30-8-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA230R-C4-T30-9-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA230R-C4-T30-10-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA230R-C4-T30-11-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA230R-C4-T30-12-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA230R-C6-T10-2-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA230R-C6-T10-3-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA230R-C6-T10-4-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA230R-C6-T10-5-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA230R-C6-T10-6-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA230R-C6-T10-7-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA230R-C6-T10-8-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA230R-C6-T30-2-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA230R-C6-T30-3-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA230R-C6-T30-4-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA230R-C6-T30-5-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA230R-C6-T30-6-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA230R-C6-T30-7-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA230R-C6-T30-8-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA230R-C6-T30-9-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA230R-C6-T30-10-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA230R-C6-T30-11-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA230R-C6-T30-12-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA230R-C8-T10-2-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA230R-C8-T10-3-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA230R-C8-T10-4-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA230R-C8-T10-5-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA230R-C8-T10-6-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA230R-C8-T10-7-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA230R-C8-T10-8-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA230R-C8-T30-2-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA230R-C8-T30-3-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA230R-C8-T30-4-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA230R-C8-T30-5-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA230R-C8-T30-6-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA230R-C8-T30-7-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA230R-C8-T30-8-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA230R-C8-T30-9-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA230R-C8-T30-10-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA230R-C8-T30-11-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA230R-C8-T30-12-3-P70 Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA240R-C4-T10-2-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA240R-C4-T10-3-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA240R-C4-T10-4-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA240R-C4-T10-5-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA240R-C4-T10-6-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA240R-C4-T10-7-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA240R-C4-T10-8-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA240R-C4-T30-2-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA240R-C4-T30-3-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA240R-C4-T30-4-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA240R-C4-T30-5-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA240R-C4-T30-6-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA240R-C4-T30-7-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA240R-C4-T30-8-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA240R-C4-T30-9-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA240R-C4-T30-10-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA240R-C4-T30-11-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA240R-C4-T30-12-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA240R-C6-T10-2-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA240R-C6-T10-3-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA240R-C6-T10-4-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA240R-C6-T10-5-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA240R-C6-T10-6-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA240R-C6-T10-7-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA240R-C6-T10-8-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA240R-C6-T30-2-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA240R-C6-T30-3-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA240R-C6-T30-4-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA240R-C6-T30-5-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA240R-C6-T30-6-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA240R-C6-T30-7-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA240R-C6-T30-8-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA240R-C6-T30-9-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA240R-C6-T30-10-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA240R-C6-T30-11-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA240R-C6-T30-12-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA240R-C8-T10-2-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA240R-C8-T10-3-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA240R-C8-T10-4-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA240R-C8-T10-5-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA240R-C8-T10-6-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA240R-C8-T10-7-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA240R-C8-T10-8-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA240R-C8-T30-2-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA240R-C8-T30-3-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA240R-C8-T30-4-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA240R-C8-T30-5-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA240R-C8-T30-6-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA240R-C8-T30-7-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA240R-C8-T30-8-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA240R-C8-T30-9-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA240R-C8-T30-10-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA240R-C8-T30-11-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA240R-C8-T30-12-3-P70 Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA250R-C4-T10-2-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA250R-C4-T10-3-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA250R-C4-T10-4-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA250R-C4-T10-5-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA250R-C4-T10-6-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA250R-C4-T10-7-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA250R-C4-T10-8-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA250R-C4-T30-2-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA250R-C4-T30-3-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA250R-C4-T30-4-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA250R-C4-T30-5-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA250R-C4-T30-6-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA250R-C4-T30-7-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA250R-C4-T30-8-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA250R-C4-T30-9-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA250R-C4-T30-10-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA250R-C4-T30-11-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA250R-C4-T30-12-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA250R-C6-T10-2-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA250R-C6-T10-3-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA250R-C6-T10-4-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA250R-C6-T10-5-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA250R-C6-T10-6-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA250R-C6-T10-7-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA250R-C6-T10-8-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA250R-C6-T30-2-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA250R-C6-T30-3-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA250R-C6-T30-4-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA250R-C6-T30-5-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA250R-C6-T30-6-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA250R-C6-T30-7-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA250R-C6-T30-8-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA250R-C6-T30-9-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA250R-C6-T30-10-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA250R-C6-T30-11-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA250R-C6-T30-12-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA250R-C8-T10-2-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA250R-C8-T10-3-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA250R-C8-T10-4-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA250R-C8-T10-5-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA250R-C8-T10-6-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA250R-C8-T10-7-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA250R-C8-T10-8-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA250R-C8-T30-2-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA250R-C8-T30-3-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA250R-C8-T30-4-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA250R-C8-T30-5-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA250R-C8-T30-6-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA250R-C8-T30-7-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA250R-C8-T30-8-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA250R-C8-T30-9-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA250R-C8-T30-10-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA250R-C8-T30-11-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA250R-C8-T30-12-3-P70 Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA280R-C4-T10-2-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA280R-C4-T10-3-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA280R-C4-T10-4-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA280R-C4-T10-5-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA280R-C4-T10-6-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA280R-C4-T10-7-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA280R-C4-T10-8-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA280R-C4-T10-9-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA280R-C4-T10-10-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA280R-C4-T10-11-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA280R-C4-T10-12-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA280R-C4-T10-13-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA280R-C4-T10-14-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA280R-C4-T10-15-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA280R-C4-T10-16-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA280R-C4-T30-2-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA280R-C4-T30-3-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA280R-C4-T30-4-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA280R-C4-T30-5-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA280R-C4-T30-6-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA280R-C4-T30-7-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA280R-C4-T30-8-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA280R-C4-T30-9-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA280R-C4-T30-10-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA280R-C4-T30-11-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA280R-C4-T30-12-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA280R-C4-T30-13-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA280R-C4-T30-14-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA280R-C4-T30-15-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA280R-C4-T30-16-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA280R-C4-T30-17-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GA280R-C4-T30-18-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GA280R-C4-T30-19-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GA280R-C4-T30-20-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GA280R-C6-T10-2-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA280R-C6-T10-3-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA280R-C6-T10-4-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA280R-C6-T10-5-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA280R-C6-T10-6-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA280R-C6-T10-7-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA280R-C6-T10-8-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA280R-C6-T10-9-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA280R-C6-T10-10-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA280R-C6-T10-11-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA280R-C6-T10-12-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA280R-C6-T10-13-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA280R-C6-T10-14-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA280R-C6-T10-15-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA280R-C6-T10-16-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA280R-C6-T30-2-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA280R-C6-T30-3-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA280R-C6-T30-4-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA280R-C6-T30-5-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA280R-C6-T30-6-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA280R-C6-T30-7-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA280R-C6-T30-8-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA280R-C6-T30-9-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA280R-C6-T30-10-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA280R-C6-T30-11-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA280R-C6-T30-12-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA280R-C6-T30-13-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA280R-C6-T30-14-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA280R-C6-T30-15-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA280R-C6-T30-16-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA280R-C6-T30-17-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GA280R-C6-T30-18-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GA280R-C6-T30-19-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GA280R-C6-T30-20-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GA280R-C8-T10-2-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA280R-C8-T10-3-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA280R-C8-T10-4-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA280R-C8-T10-5-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA280R-C8-T10-6-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA280R-C8-T10-7-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA280R-C8-T10-8-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA280R-C8-T10-9-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA280R-C8-T10-10-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA280R-C8-T10-11-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA280R-C8-T10-12-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA280R-C8-T10-13-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA280R-C8-T10-14-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA280R-C8-T10-15-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA280R-C8-T10-16-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA280R-C8-T30-2-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA280R-C8-T30-3-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA280R-C8-T30-4-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA280R-C8-T30-5-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA280R-C8-T30-6-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA280R-C8-T30-7-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA280R-C8-T30-8-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA280R-C8-T30-9-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA280R-C8-T30-10-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA280R-C8-T30-11-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA280R-C8-T30-12-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA280R-C8-T30-13-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA280R-C8-T30-14-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA280R-C8-T30-15-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA280R-C8-T30-16-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA280R-C8-T30-17-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GA280R-C8-T30-18-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GA280R-C8-T30-19-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GA280R-C8-T30-20-3-P70 Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
4GA219R-C4-A2N-3-P70 Model: 4GA2 single valve | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA219R-C6-A2N-3-P70 Model: 4GA2 single valve | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA219R-C8-A2N-3-P70 Model: 4GA2 single valve | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA229R-C4-A2N-3-P70 Model: 4GA2 single valve | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA229R-C6-A2N-3-P70 Model: 4GA2 single valve | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA229R-C8-A2N-3-P70 Model: 4GA2 single valve | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA239R-C4-A2N-3-P70 Model: 4GA2 single valve | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA239R-C6-A2N-3-P70 Model: 4GA2 single valve | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA239R-C8-A2N-3-P70 Model: 4GA2 single valve | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA249R-C4-A2N-3-P70 Model: 4GA2 single valve | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA249R-C6-A2N-3-P70 Model: 4GA2 single valve | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA249R-C8-A2N-3-P70 Model: 4GA2 single valve | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA259R-C4-A2N-3-P70 Model: 4GA2 single valve | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA259R-C6-A2N-3-P70 Model: 4GA2 single valve | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA259R-C8-A2N-3-P70 Model: 4GA2 single valve | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
M4GA310R-C6-T10-2-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA310R-C6-T10-3-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA310R-C6-T10-4-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA310R-C6-T10-5-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA310R-C6-T10-6-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA310R-C6-T10-7-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA310R-C6-T10-8-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA310R-C6-T10-9-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA310R-C6-T10-10-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA310R-C6-T10-11-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA310R-C6-T10-12-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA310R-C6-T10-13-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA310R-C6-T10-14-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA310R-C6-T10-15-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA310R-C6-T10-16-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA310R-C6-T30-2-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA310R-C6-T30-3-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA310R-C6-T30-4-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA310R-C6-T30-5-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA310R-C6-T30-6-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA310R-C6-T30-7-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA310R-C6-T30-8-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA310R-C6-T30-9-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA310R-C6-T30-10-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA310R-C6-T30-11-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA310R-C6-T30-12-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA310R-C6-T30-13-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA310R-C6-T30-14-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA310R-C6-T30-15-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA310R-C6-T30-16-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA310R-C8-T10-2-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA310R-C8-T10-3-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA310R-C8-T10-4-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA310R-C8-T10-5-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA310R-C8-T10-6-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA310R-C8-T10-7-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA310R-C8-T10-8-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA310R-C8-T10-9-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA310R-C8-T10-10-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA310R-C8-T10-11-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA310R-C8-T10-12-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA310R-C8-T10-13-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA310R-C8-T10-14-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA310R-C8-T10-15-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA310R-C8-T10-16-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA310R-C8-T30-2-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA310R-C8-T30-3-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA310R-C8-T30-4-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA310R-C8-T30-5-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA310R-C8-T30-6-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA310R-C8-T30-7-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA310R-C8-T30-8-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA310R-C8-T30-9-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA310R-C8-T30-10-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA310R-C8-T30-11-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA310R-C8-T30-12-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA310R-C8-T30-13-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA310R-C8-T30-14-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA310R-C8-T30-15-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA310R-C8-T30-16-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA310R-C10-T10-2-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA310R-C10-T10-3-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA310R-C10-T10-4-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA310R-C10-T10-5-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA310R-C10-T10-6-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA310R-C10-T10-7-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA310R-C10-T10-8-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA310R-C10-T10-9-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA310R-C10-T10-10-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA310R-C10-T10-11-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA310R-C10-T10-12-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA310R-C10-T10-13-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA310R-C10-T10-14-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA310R-C10-T10-15-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA310R-C10-T10-16-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA310R-C10-T30-2-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA310R-C10-T30-3-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA310R-C10-T30-4-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA310R-C10-T30-5-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA310R-C10-T30-6-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA310R-C10-T30-7-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA310R-C10-T30-8-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA310R-C10-T30-9-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA310R-C10-T30-10-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA310R-C10-T30-11-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA310R-C10-T30-12-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA310R-C10-T30-13-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA310R-C10-T30-14-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA310R-C10-T30-15-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA310R-C10-T30-16-3-P70 Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA320R-C6-T10-2-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA320R-C6-T10-3-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA320R-C6-T10-4-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA320R-C6-T10-5-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA320R-C6-T10-6-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA320R-C6-T10-7-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA320R-C6-T10-8-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA320R-C6-T30-2-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA320R-C6-T30-3-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA320R-C6-T30-4-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA320R-C6-T30-5-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA320R-C6-T30-6-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA320R-C6-T30-7-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA320R-C6-T30-8-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA320R-C6-T30-9-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA320R-C6-T30-10-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA320R-C6-T30-11-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA320R-C6-T30-12-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA320R-C8-T10-2-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA320R-C8-T10-3-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA320R-C8-T10-4-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA320R-C8-T10-5-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA320R-C8-T10-6-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA320R-C8-T10-7-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA320R-C8-T10-8-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA320R-C8-T30-2-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA320R-C8-T30-3-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA320R-C8-T30-4-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA320R-C8-T30-5-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA320R-C8-T30-6-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA320R-C8-T30-7-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA320R-C8-T30-8-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA320R-C8-T30-9-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA320R-C8-T30-10-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA320R-C8-T30-11-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA320R-C8-T30-12-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA320R-C10-T10-2-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA320R-C10-T10-3-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA320R-C10-T10-4-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA320R-C10-T10-5-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA320R-C10-T10-6-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA320R-C10-T10-7-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA320R-C10-T10-8-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA320R-C10-T30-2-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA320R-C10-T30-3-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA320R-C10-T30-4-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA320R-C10-T30-5-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA320R-C10-T30-6-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA320R-C10-T30-7-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA320R-C10-T30-8-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA320R-C10-T30-9-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA320R-C10-T30-10-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA320R-C10-T30-11-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA320R-C10-T30-12-3-P70 Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA330R-C6-T10-2-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA330R-C6-T10-3-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA330R-C6-T10-4-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA330R-C6-T10-5-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA330R-C6-T10-6-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA330R-C6-T10-7-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA330R-C6-T10-8-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA330R-C6-T30-2-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA330R-C6-T30-3-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA330R-C6-T30-4-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA330R-C6-T30-5-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA330R-C6-T30-6-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA330R-C6-T30-7-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA330R-C6-T30-8-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA330R-C6-T30-9-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA330R-C6-T30-10-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA330R-C6-T30-11-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA330R-C6-T30-12-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA330R-C8-T10-2-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA330R-C8-T10-3-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA330R-C8-T10-4-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA330R-C8-T10-5-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA330R-C8-T10-6-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA330R-C8-T10-7-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA330R-C8-T10-8-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA330R-C8-T30-2-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA330R-C8-T30-3-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA330R-C8-T30-4-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA330R-C8-T30-5-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA330R-C8-T30-6-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA330R-C8-T30-7-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA330R-C8-T30-8-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA330R-C8-T30-9-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA330R-C8-T30-10-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA330R-C8-T30-11-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA330R-C8-T30-12-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA330R-C10-T10-2-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA330R-C10-T10-3-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA330R-C10-T10-4-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA330R-C10-T10-5-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA330R-C10-T10-6-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA330R-C10-T10-7-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA330R-C10-T10-8-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA330R-C10-T30-2-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA330R-C10-T30-3-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA330R-C10-T30-4-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA330R-C10-T30-5-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA330R-C10-T30-6-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA330R-C10-T30-7-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA330R-C10-T30-8-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA330R-C10-T30-9-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA330R-C10-T30-10-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA330R-C10-T30-11-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA330R-C10-T30-12-3-P70 Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA340R-C6-T10-2-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA340R-C6-T10-3-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA340R-C6-T10-4-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA340R-C6-T10-5-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA340R-C6-T10-6-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA340R-C6-T10-7-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA340R-C6-T10-8-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA340R-C6-T30-2-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA340R-C6-T30-3-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA340R-C6-T30-4-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA340R-C6-T30-5-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA340R-C6-T30-6-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA340R-C6-T30-7-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA340R-C6-T30-8-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA340R-C6-T30-9-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA340R-C6-T30-10-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA340R-C6-T30-11-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA340R-C6-T30-12-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA340R-C8-T10-2-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA340R-C8-T10-3-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA340R-C8-T10-4-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA340R-C8-T10-5-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA340R-C8-T10-6-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA340R-C8-T10-7-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA340R-C8-T10-8-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA340R-C8-T30-2-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA340R-C8-T30-3-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA340R-C8-T30-4-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA340R-C8-T30-5-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA340R-C8-T30-6-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA340R-C8-T30-7-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA340R-C8-T30-8-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA340R-C8-T30-9-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA340R-C8-T30-10-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA340R-C8-T30-11-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA340R-C8-T30-12-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA340R-C10-T10-2-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA340R-C10-T10-3-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA340R-C10-T10-4-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA340R-C10-T10-5-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA340R-C10-T10-6-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA340R-C10-T10-7-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA340R-C10-T10-8-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA340R-C10-T30-2-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA340R-C10-T30-3-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA340R-C10-T30-4-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA340R-C10-T30-5-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA340R-C10-T30-6-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA340R-C10-T30-7-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA340R-C10-T30-8-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA340R-C10-T30-9-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA340R-C10-T30-10-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA340R-C10-T30-11-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA340R-C10-T30-12-3-P70 Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA350R-C6-T10-2-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA350R-C6-T10-3-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA350R-C6-T10-4-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA350R-C6-T10-5-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA350R-C6-T10-6-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA350R-C6-T10-7-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA350R-C6-T10-8-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA350R-C6-T30-2-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA350R-C6-T30-3-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA350R-C6-T30-4-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA350R-C6-T30-5-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA350R-C6-T30-6-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA350R-C6-T30-7-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA350R-C6-T30-8-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA350R-C6-T30-9-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA350R-C6-T30-10-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA350R-C6-T30-11-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA350R-C6-T30-12-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA350R-C8-T10-2-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA350R-C8-T10-3-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA350R-C8-T10-4-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA350R-C8-T10-5-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA350R-C8-T10-6-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA350R-C8-T10-7-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA350R-C8-T10-8-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA350R-C8-T30-2-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA350R-C8-T30-3-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA350R-C8-T30-4-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA350R-C8-T30-5-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA350R-C8-T30-6-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA350R-C8-T30-7-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA350R-C8-T30-8-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA350R-C8-T30-9-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA350R-C8-T30-10-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA350R-C8-T30-11-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA350R-C8-T30-12-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA350R-C10-T10-2-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA350R-C10-T10-3-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA350R-C10-T10-4-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA350R-C10-T10-5-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA350R-C10-T10-6-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA350R-C10-T10-7-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA350R-C10-T10-8-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA350R-C10-T30-2-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA350R-C10-T30-3-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA350R-C10-T30-4-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA350R-C10-T30-5-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA350R-C10-T30-6-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA350R-C10-T30-7-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA350R-C10-T30-8-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA350R-C10-T30-9-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA350R-C10-T30-10-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA350R-C10-T30-11-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA350R-C10-T30-12-3-P70 Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA380R-C6-T10-2-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA380R-C6-T10-3-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA380R-C6-T10-4-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA380R-C6-T10-5-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA380R-C6-T10-6-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA380R-C6-T10-7-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA380R-C6-T10-8-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA380R-C6-T10-9-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA380R-C6-T10-10-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA380R-C6-T10-11-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA380R-C6-T10-12-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA380R-C6-T10-13-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA380R-C6-T10-14-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA380R-C6-T10-15-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA380R-C6-T10-16-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA380R-C6-T30-2-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA380R-C6-T30-3-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA380R-C6-T30-4-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA380R-C6-T30-5-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA380R-C6-T30-6-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA380R-C6-T30-7-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA380R-C6-T30-8-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA380R-C6-T30-9-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA380R-C6-T30-10-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA380R-C6-T30-11-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA380R-C6-T30-12-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA380R-C6-T30-13-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA380R-C6-T30-14-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA380R-C6-T30-15-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA380R-C6-T30-16-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA380R-C8-T10-2-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA380R-C8-T10-3-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA380R-C8-T10-4-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA380R-C8-T10-5-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA380R-C8-T10-6-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA380R-C8-T10-7-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA380R-C8-T10-8-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA380R-C8-T10-9-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA380R-C8-T10-10-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA380R-C8-T10-11-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA380R-C8-T10-12-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA380R-C8-T10-13-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA380R-C8-T10-14-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA380R-C8-T10-15-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA380R-C8-T10-16-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA380R-C8-T30-2-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA380R-C8-T30-3-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA380R-C8-T30-4-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA380R-C8-T30-5-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA380R-C8-T30-6-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA380R-C8-T30-7-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA380R-C8-T30-8-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA380R-C8-T30-9-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA380R-C8-T30-10-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA380R-C8-T30-11-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA380R-C8-T30-12-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA380R-C8-T30-13-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA380R-C8-T30-14-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA380R-C8-T30-15-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA380R-C8-T30-16-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA380R-C10-T10-2-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA380R-C10-T10-3-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA380R-C10-T10-4-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA380R-C10-T10-5-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA380R-C10-T10-6-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA380R-C10-T10-7-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA380R-C10-T10-8-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA380R-C10-T10-9-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA380R-C10-T10-10-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA380R-C10-T10-11-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA380R-C10-T10-12-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA380R-C10-T10-13-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA380R-C10-T10-14-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA380R-C10-T10-15-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA380R-C10-T10-16-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA380R-C10-T30-2-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA380R-C10-T30-3-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA380R-C10-T30-4-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA380R-C10-T30-5-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA380R-C10-T30-6-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA380R-C10-T30-7-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA380R-C10-T30-8-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA380R-C10-T30-9-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA380R-C10-T30-10-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA380R-C10-T30-11-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA380R-C10-T30-12-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA380R-C10-T30-13-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA380R-C10-T30-14-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA380R-C10-T30-15-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA380R-C10-T30-16-3-P70 Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
4GA319R-C6-A2N-3-P70 Model: 4GA3 single valve | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA319R-C8-A2N-3-P70 Model: 4GA3 single valve | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA319R-C10-A2N-3-P70 Model: 4GA3 single valve | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA329R-C6-A2N-3-P70 Model: 4GA3 single valve | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA329R-C8-A2N-3-P70 Model: 4GA3 single valve | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA329R-C10-A2N-3-P70 Model: 4GA3 single valve | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA339R-C6-A2N-3-P70 Model: 4GA3 single valve | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA339R-C8-A2N-3-P70 Model: 4GA3 single valve | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA339R-C10-A2N-3-P70 Model: 4GA3 single valve | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA349R-C6-A2N-3-P70 Model: 4GA3 single valve | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA349R-C8-A2N-3-P70 Model: 4GA3 single valve | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA349R-C10-A2N-3-P70 Model: 4GA3 single valve | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA359R-C6-A2N-3-P70 Model: 4GA3 single valve | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA359R-C8-A2N-3-P70 Model: 4GA3 single valve | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA359R-C10-A2N-3-P70 Model: 4GA3 single valve | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
Valve ManifoldsCKD
1136 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD M4GA-T Wiring-Saving Manifold, Direct Piping (Clean P70)

Brand CKD·Valve Manifolds

Available part numbers (1136)

M4GA110R-C4-T10-2-3-P70, M4GA110R-C4-T10-3-3-P70, M4GA110R-C4-T10-4-3-P70, M4GA110R-C4-T10-5-3-P70, M4GA110R-C4-T10-6-3-P70, M4GA110R-C4-T10-7-3-P70, M4GA110R-C4-T10-8-3-P70, M4GA110R-C4-T10-9-3-P70, M4GA110R-C4-T10-10-3-P70, M4GA110R-C4-T10-11-3-P70 + 1126 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
M4GA110R-C4-T10-2-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA110R-C4-T10-3-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA110R-C4-T10-4-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA110R-C4-T10-5-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA110R-C4-T10-6-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA110R-C4-T10-7-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA110R-C4-T10-8-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA110R-C4-T10-9-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA110R-C4-T10-10-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA110R-C4-T10-11-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA110R-C4-T10-12-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA110R-C4-T10-13-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA110R-C4-T10-14-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA110R-C4-T10-15-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA110R-C4-T10-16-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA110R-C4-T30-2-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA110R-C4-T30-3-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA110R-C4-T30-4-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA110R-C4-T30-5-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA110R-C4-T30-6-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA110R-C4-T30-7-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA110R-C4-T30-8-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA110R-C4-T30-9-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA110R-C4-T30-10-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA110R-C4-T30-11-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA110R-C4-T30-12-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA110R-C4-T30-13-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA110R-C4-T30-14-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA110R-C4-T30-15-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA110R-C4-T30-16-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA110R-C4-T30-17-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GA110R-C4-T30-18-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GA110R-C4-T30-19-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GA110R-C4-T30-20-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GA110R-C6-T10-2-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA110R-C6-T10-3-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA110R-C6-T10-4-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA110R-C6-T10-5-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA110R-C6-T10-6-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA110R-C6-T10-7-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA110R-C6-T10-8-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA110R-C6-T10-9-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA110R-C6-T10-10-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA110R-C6-T10-11-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA110R-C6-T10-12-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA110R-C6-T10-13-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA110R-C6-T10-14-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA110R-C6-T10-15-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA110R-C6-T10-16-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA110R-C6-T30-2-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA110R-C6-T30-3-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA110R-C6-T30-4-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA110R-C6-T30-5-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA110R-C6-T30-6-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA110R-C6-T30-7-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA110R-C6-T30-8-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA110R-C6-T30-9-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA110R-C6-T30-10-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA110R-C6-T30-11-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA110R-C6-T30-12-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA110R-C6-T30-13-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA110R-C6-T30-14-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA110R-C6-T30-15-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA110R-C6-T30-16-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA110R-C6-T30-17-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GA110R-C6-T30-18-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GA110R-C6-T30-19-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GA110R-C6-T30-20-3-P70Model: M4GA1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GA120R-C4-T10-2-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA120R-C4-T10-3-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA120R-C4-T10-4-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA120R-C4-T10-5-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA120R-C4-T10-6-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA120R-C4-T10-7-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA120R-C4-T10-8-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA120R-C4-T30-2-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA120R-C4-T30-3-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA120R-C4-T30-4-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA120R-C4-T30-5-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA120R-C4-T30-6-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA120R-C4-T30-7-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA120R-C4-T30-8-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA120R-C4-T30-9-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA120R-C4-T30-10-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA120R-C4-T30-11-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA120R-C4-T30-12-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA120R-C6-T10-2-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA120R-C6-T10-3-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA120R-C6-T10-4-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA120R-C6-T10-5-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA120R-C6-T10-6-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA120R-C6-T10-7-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA120R-C6-T10-8-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA120R-C6-T30-2-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA120R-C6-T30-3-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA120R-C6-T30-4-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA120R-C6-T30-5-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA120R-C6-T30-6-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA120R-C6-T30-7-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA120R-C6-T30-8-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA120R-C6-T30-9-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA120R-C6-T30-10-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA120R-C6-T30-11-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA120R-C6-T30-12-3-P70Model: M4GA1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA130R-C4-T10-2-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA130R-C4-T10-3-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA130R-C4-T10-4-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA130R-C4-T10-5-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA130R-C4-T10-6-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA130R-C4-T10-7-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA130R-C4-T10-8-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA130R-C4-T30-2-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA130R-C4-T30-3-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA130R-C4-T30-4-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA130R-C4-T30-5-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA130R-C4-T30-6-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA130R-C4-T30-7-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA130R-C4-T30-8-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA130R-C4-T30-9-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA130R-C4-T30-10-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA130R-C4-T30-11-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA130R-C4-T30-12-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA130R-C6-T10-2-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA130R-C6-T10-3-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA130R-C6-T10-4-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA130R-C6-T10-5-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA130R-C6-T10-6-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA130R-C6-T10-7-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA130R-C6-T10-8-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA130R-C6-T30-2-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA130R-C6-T30-3-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA130R-C6-T30-4-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA130R-C6-T30-5-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA130R-C6-T30-6-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA130R-C6-T30-7-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA130R-C6-T30-8-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA130R-C6-T30-9-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA130R-C6-T30-10-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA130R-C6-T30-11-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA130R-C6-T30-12-3-P70Model: M4GA1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA140R-C4-T10-2-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA140R-C4-T10-3-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA140R-C4-T10-4-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA140R-C4-T10-5-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA140R-C4-T10-6-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA140R-C4-T10-7-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA140R-C4-T10-8-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA140R-C4-T30-2-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA140R-C4-T30-3-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA140R-C4-T30-4-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA140R-C4-T30-5-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA140R-C4-T30-6-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA140R-C4-T30-7-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA140R-C4-T30-8-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA140R-C4-T30-9-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA140R-C4-T30-10-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA140R-C4-T30-11-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA140R-C4-T30-12-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA140R-C6-T10-2-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA140R-C6-T10-3-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA140R-C6-T10-4-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA140R-C6-T10-5-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA140R-C6-T10-6-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA140R-C6-T10-7-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA140R-C6-T10-8-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA140R-C6-T30-2-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA140R-C6-T30-3-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA140R-C6-T30-4-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA140R-C6-T30-5-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA140R-C6-T30-6-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA140R-C6-T30-7-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA140R-C6-T30-8-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA140R-C6-T30-9-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA140R-C6-T30-10-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA140R-C6-T30-11-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA140R-C6-T30-12-3-P70Model: M4GA1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA150R-C4-T10-2-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA150R-C4-T10-3-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA150R-C4-T10-4-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA150R-C4-T10-5-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA150R-C4-T10-6-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA150R-C4-T10-7-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA150R-C4-T10-8-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA150R-C4-T30-2-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA150R-C4-T30-3-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA150R-C4-T30-4-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA150R-C4-T30-5-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA150R-C4-T30-6-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA150R-C4-T30-7-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA150R-C4-T30-8-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA150R-C4-T30-9-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA150R-C4-T30-10-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA150R-C4-T30-11-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA150R-C4-T30-12-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA150R-C6-T10-2-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA150R-C6-T10-3-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA150R-C6-T10-4-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA150R-C6-T10-5-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA150R-C6-T10-6-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA150R-C6-T10-7-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA150R-C6-T10-8-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA150R-C6-T30-2-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA150R-C6-T30-3-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA150R-C6-T30-4-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA150R-C6-T30-5-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA150R-C6-T30-6-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA150R-C6-T30-7-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA150R-C6-T30-8-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA150R-C6-T30-9-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA150R-C6-T30-10-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA150R-C6-T30-11-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA150R-C6-T30-12-3-P70Model: M4GA1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA180R-C4-T10-2-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA180R-C4-T10-3-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA180R-C4-T10-4-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA180R-C4-T10-5-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA180R-C4-T10-6-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA180R-C4-T10-7-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA180R-C4-T10-8-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA180R-C4-T10-9-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA180R-C4-T10-10-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA180R-C4-T10-11-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA180R-C4-T10-12-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA180R-C4-T10-13-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA180R-C4-T10-14-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA180R-C4-T10-15-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA180R-C4-T10-16-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA180R-C4-T30-2-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA180R-C4-T30-3-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA180R-C4-T30-4-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA180R-C4-T30-5-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA180R-C4-T30-6-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA180R-C4-T30-7-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA180R-C4-T30-8-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA180R-C4-T30-9-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA180R-C4-T30-10-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA180R-C4-T30-11-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA180R-C4-T30-12-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA180R-C4-T30-13-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA180R-C4-T30-14-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA180R-C4-T30-15-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA180R-C4-T30-16-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA180R-C4-T30-17-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GA180R-C4-T30-18-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GA180R-C4-T30-19-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GA180R-C4-T30-20-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GA180R-C6-T10-2-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA180R-C6-T10-3-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA180R-C6-T10-4-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA180R-C6-T10-5-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA180R-C6-T10-6-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA180R-C6-T10-7-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA180R-C6-T10-8-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA180R-C6-T10-9-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA180R-C6-T10-10-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA180R-C6-T10-11-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA180R-C6-T10-12-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA180R-C6-T10-13-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA180R-C6-T10-14-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA180R-C6-T10-15-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA180R-C6-T10-16-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA180R-C6-T30-2-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA180R-C6-T30-3-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA180R-C6-T30-4-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA180R-C6-T30-5-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA180R-C6-T30-6-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA180R-C6-T30-7-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA180R-C6-T30-8-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA180R-C6-T30-9-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA180R-C6-T30-10-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA180R-C6-T30-11-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA180R-C6-T30-12-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA180R-C6-T30-13-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA180R-C6-T30-14-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA180R-C6-T30-15-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA180R-C6-T30-16-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA180R-C6-T30-17-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GA180R-C6-T30-18-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GA180R-C6-T30-19-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GA180R-C6-T30-20-3-P70Model: M4GA1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
4GA119R-C4-A2N-3-P70Model: 4GA1 single valve | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA119R-C6-A2N-3-P70Model: 4GA1 single valve | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA129R-C4-A2N-3-P70Model: 4GA1 single valve | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA129R-C6-A2N-3-P70Model: 4GA1 single valve | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA139R-C4-A2N-3-P70Model: 4GA1 single valve | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA139R-C6-A2N-3-P70Model: 4GA1 single valve | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA149R-C4-A2N-3-P70Model: 4GA1 single valve | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA149R-C6-A2N-3-P70Model: 4GA1 single valve | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA159R-C4-A2N-3-P70Model: 4GA1 single valve | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA159R-C6-A2N-3-P70Model: 4GA1 single valve | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
M4GA210R-C4-T10-2-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA210R-C4-T10-3-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA210R-C4-T10-4-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA210R-C4-T10-5-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA210R-C4-T10-6-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA210R-C4-T10-7-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA210R-C4-T10-8-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA210R-C4-T10-9-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA210R-C4-T10-10-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA210R-C4-T10-11-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA210R-C4-T10-12-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA210R-C4-T10-13-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA210R-C4-T10-14-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA210R-C4-T10-15-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA210R-C4-T10-16-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA210R-C4-T30-2-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA210R-C4-T30-3-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA210R-C4-T30-4-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA210R-C4-T30-5-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA210R-C4-T30-6-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA210R-C4-T30-7-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA210R-C4-T30-8-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA210R-C4-T30-9-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA210R-C4-T30-10-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA210R-C4-T30-11-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA210R-C4-T30-12-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA210R-C4-T30-13-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA210R-C4-T30-14-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA210R-C4-T30-15-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA210R-C4-T30-16-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA210R-C4-T30-17-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GA210R-C4-T30-18-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GA210R-C4-T30-19-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GA210R-C4-T30-20-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GA210R-C6-T10-2-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA210R-C6-T10-3-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA210R-C6-T10-4-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA210R-C6-T10-5-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA210R-C6-T10-6-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA210R-C6-T10-7-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA210R-C6-T10-8-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA210R-C6-T10-9-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA210R-C6-T10-10-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA210R-C6-T10-11-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA210R-C6-T10-12-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA210R-C6-T10-13-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA210R-C6-T10-14-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA210R-C6-T10-15-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA210R-C6-T10-16-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA210R-C6-T30-2-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA210R-C6-T30-3-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA210R-C6-T30-4-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA210R-C6-T30-5-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA210R-C6-T30-6-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA210R-C6-T30-7-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA210R-C6-T30-8-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA210R-C6-T30-9-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA210R-C6-T30-10-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA210R-C6-T30-11-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA210R-C6-T30-12-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA210R-C6-T30-13-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA210R-C6-T30-14-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA210R-C6-T30-15-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA210R-C6-T30-16-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA210R-C6-T30-17-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GA210R-C6-T30-18-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GA210R-C6-T30-19-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GA210R-C6-T30-20-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GA210R-C8-T10-2-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA210R-C8-T10-3-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA210R-C8-T10-4-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA210R-C8-T10-5-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA210R-C8-T10-6-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA210R-C8-T10-7-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA210R-C8-T10-8-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA210R-C8-T10-9-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA210R-C8-T10-10-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA210R-C8-T10-11-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA210R-C8-T10-12-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA210R-C8-T10-13-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA210R-C8-T10-14-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA210R-C8-T10-15-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA210R-C8-T10-16-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA210R-C8-T30-2-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA210R-C8-T30-3-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA210R-C8-T30-4-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA210R-C8-T30-5-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA210R-C8-T30-6-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA210R-C8-T30-7-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA210R-C8-T30-8-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA210R-C8-T30-9-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA210R-C8-T30-10-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA210R-C8-T30-11-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA210R-C8-T30-12-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA210R-C8-T30-13-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA210R-C8-T30-14-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA210R-C8-T30-15-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA210R-C8-T30-16-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA210R-C8-T30-17-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GA210R-C8-T30-18-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GA210R-C8-T30-19-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GA210R-C8-T30-20-3-P70Model: M4GA2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GA220R-C4-T10-2-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA220R-C4-T10-3-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA220R-C4-T10-4-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA220R-C4-T10-5-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA220R-C4-T10-6-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA220R-C4-T10-7-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA220R-C4-T10-8-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA220R-C4-T30-2-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA220R-C4-T30-3-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA220R-C4-T30-4-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA220R-C4-T30-5-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA220R-C4-T30-6-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA220R-C4-T30-7-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA220R-C4-T30-8-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA220R-C4-T30-9-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA220R-C4-T30-10-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA220R-C4-T30-11-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA220R-C4-T30-12-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA220R-C6-T10-2-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA220R-C6-T10-3-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA220R-C6-T10-4-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA220R-C6-T10-5-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA220R-C6-T10-6-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA220R-C6-T10-7-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA220R-C6-T10-8-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA220R-C6-T30-2-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA220R-C6-T30-3-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA220R-C6-T30-4-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA220R-C6-T30-5-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA220R-C6-T30-6-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA220R-C6-T30-7-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA220R-C6-T30-8-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA220R-C6-T30-9-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA220R-C6-T30-10-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA220R-C6-T30-11-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA220R-C6-T30-12-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA220R-C8-T10-2-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA220R-C8-T10-3-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA220R-C8-T10-4-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA220R-C8-T10-5-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA220R-C8-T10-6-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA220R-C8-T10-7-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA220R-C8-T10-8-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA220R-C8-T30-2-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA220R-C8-T30-3-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA220R-C8-T30-4-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA220R-C8-T30-5-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA220R-C8-T30-6-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA220R-C8-T30-7-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA220R-C8-T30-8-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA220R-C8-T30-9-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA220R-C8-T30-10-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA220R-C8-T30-11-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA220R-C8-T30-12-3-P70Model: M4GA2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA230R-C4-T10-2-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA230R-C4-T10-3-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA230R-C4-T10-4-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA230R-C4-T10-5-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA230R-C4-T10-6-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA230R-C4-T10-7-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA230R-C4-T10-8-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA230R-C4-T30-2-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA230R-C4-T30-3-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA230R-C4-T30-4-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA230R-C4-T30-5-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA230R-C4-T30-6-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA230R-C4-T30-7-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA230R-C4-T30-8-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA230R-C4-T30-9-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA230R-C4-T30-10-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA230R-C4-T30-11-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA230R-C4-T30-12-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA230R-C6-T10-2-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA230R-C6-T10-3-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA230R-C6-T10-4-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA230R-C6-T10-5-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA230R-C6-T10-6-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA230R-C6-T10-7-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA230R-C6-T10-8-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA230R-C6-T30-2-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA230R-C6-T30-3-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA230R-C6-T30-4-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA230R-C6-T30-5-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA230R-C6-T30-6-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA230R-C6-T30-7-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA230R-C6-T30-8-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA230R-C6-T30-9-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA230R-C6-T30-10-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA230R-C6-T30-11-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA230R-C6-T30-12-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA230R-C8-T10-2-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA230R-C8-T10-3-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA230R-C8-T10-4-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA230R-C8-T10-5-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA230R-C8-T10-6-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA230R-C8-T10-7-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA230R-C8-T10-8-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA230R-C8-T30-2-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA230R-C8-T30-3-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA230R-C8-T30-4-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA230R-C8-T30-5-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA230R-C8-T30-6-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA230R-C8-T30-7-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA230R-C8-T30-8-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA230R-C8-T30-9-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA230R-C8-T30-10-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA230R-C8-T30-11-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA230R-C8-T30-12-3-P70Model: M4GA2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA240R-C4-T10-2-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA240R-C4-T10-3-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA240R-C4-T10-4-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA240R-C4-T10-5-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA240R-C4-T10-6-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA240R-C4-T10-7-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA240R-C4-T10-8-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA240R-C4-T30-2-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA240R-C4-T30-3-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA240R-C4-T30-4-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA240R-C4-T30-5-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA240R-C4-T30-6-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA240R-C4-T30-7-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA240R-C4-T30-8-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA240R-C4-T30-9-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA240R-C4-T30-10-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA240R-C4-T30-11-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA240R-C4-T30-12-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA240R-C6-T10-2-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA240R-C6-T10-3-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA240R-C6-T10-4-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA240R-C6-T10-5-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA240R-C6-T10-6-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA240R-C6-T10-7-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA240R-C6-T10-8-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA240R-C6-T30-2-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA240R-C6-T30-3-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA240R-C6-T30-4-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA240R-C6-T30-5-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA240R-C6-T30-6-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA240R-C6-T30-7-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA240R-C6-T30-8-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA240R-C6-T30-9-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA240R-C6-T30-10-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA240R-C6-T30-11-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA240R-C6-T30-12-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA240R-C8-T10-2-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA240R-C8-T10-3-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA240R-C8-T10-4-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA240R-C8-T10-5-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA240R-C8-T10-6-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA240R-C8-T10-7-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA240R-C8-T10-8-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA240R-C8-T30-2-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA240R-C8-T30-3-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA240R-C8-T30-4-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA240R-C8-T30-5-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA240R-C8-T30-6-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA240R-C8-T30-7-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA240R-C8-T30-8-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA240R-C8-T30-9-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA240R-C8-T30-10-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA240R-C8-T30-11-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA240R-C8-T30-12-3-P70Model: M4GA2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA250R-C4-T10-2-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA250R-C4-T10-3-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA250R-C4-T10-4-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA250R-C4-T10-5-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA250R-C4-T10-6-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA250R-C4-T10-7-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA250R-C4-T10-8-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA250R-C4-T30-2-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA250R-C4-T30-3-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA250R-C4-T30-4-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA250R-C4-T30-5-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA250R-C4-T30-6-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA250R-C4-T30-7-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA250R-C4-T30-8-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA250R-C4-T30-9-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA250R-C4-T30-10-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA250R-C4-T30-11-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA250R-C4-T30-12-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA250R-C6-T10-2-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA250R-C6-T10-3-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA250R-C6-T10-4-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA250R-C6-T10-5-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA250R-C6-T10-6-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA250R-C6-T10-7-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA250R-C6-T10-8-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA250R-C6-T30-2-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA250R-C6-T30-3-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA250R-C6-T30-4-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA250R-C6-T30-5-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA250R-C6-T30-6-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA250R-C6-T30-7-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA250R-C6-T30-8-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA250R-C6-T30-9-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA250R-C6-T30-10-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA250R-C6-T30-11-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA250R-C6-T30-12-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA250R-C8-T10-2-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA250R-C8-T10-3-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA250R-C8-T10-4-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA250R-C8-T10-5-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA250R-C8-T10-6-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA250R-C8-T10-7-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA250R-C8-T10-8-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA250R-C8-T30-2-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA250R-C8-T30-3-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA250R-C8-T30-4-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA250R-C8-T30-5-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA250R-C8-T30-6-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA250R-C8-T30-7-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA250R-C8-T30-8-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA250R-C8-T30-9-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA250R-C8-T30-10-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA250R-C8-T30-11-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA250R-C8-T30-12-3-P70Model: M4GA2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA280R-C4-T10-2-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA280R-C4-T10-3-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA280R-C4-T10-4-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA280R-C4-T10-5-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA280R-C4-T10-6-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA280R-C4-T10-7-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA280R-C4-T10-8-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA280R-C4-T10-9-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA280R-C4-T10-10-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA280R-C4-T10-11-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA280R-C4-T10-12-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA280R-C4-T10-13-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA280R-C4-T10-14-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA280R-C4-T10-15-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA280R-C4-T10-16-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA280R-C4-T30-2-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA280R-C4-T30-3-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA280R-C4-T30-4-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA280R-C4-T30-5-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA280R-C4-T30-6-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA280R-C4-T30-7-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA280R-C4-T30-8-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA280R-C4-T30-9-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA280R-C4-T30-10-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA280R-C4-T30-11-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA280R-C4-T30-12-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA280R-C4-T30-13-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA280R-C4-T30-14-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA280R-C4-T30-15-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA280R-C4-T30-16-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA280R-C4-T30-17-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GA280R-C4-T30-18-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GA280R-C4-T30-19-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GA280R-C4-T30-20-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GA280R-C6-T10-2-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA280R-C6-T10-3-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA280R-C6-T10-4-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA280R-C6-T10-5-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA280R-C6-T10-6-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA280R-C6-T10-7-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA280R-C6-T10-8-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA280R-C6-T10-9-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA280R-C6-T10-10-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA280R-C6-T10-11-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA280R-C6-T10-12-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA280R-C6-T10-13-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA280R-C6-T10-14-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA280R-C6-T10-15-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA280R-C6-T10-16-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA280R-C6-T30-2-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA280R-C6-T30-3-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA280R-C6-T30-4-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA280R-C6-T30-5-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA280R-C6-T30-6-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA280R-C6-T30-7-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA280R-C6-T30-8-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA280R-C6-T30-9-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA280R-C6-T30-10-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA280R-C6-T30-11-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA280R-C6-T30-12-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA280R-C6-T30-13-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA280R-C6-T30-14-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA280R-C6-T30-15-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA280R-C6-T30-16-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA280R-C6-T30-17-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GA280R-C6-T30-18-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GA280R-C6-T30-19-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GA280R-C6-T30-20-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GA280R-C8-T10-2-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA280R-C8-T10-3-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA280R-C8-T10-4-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA280R-C8-T10-5-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA280R-C8-T10-6-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA280R-C8-T10-7-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA280R-C8-T10-8-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA280R-C8-T10-9-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA280R-C8-T10-10-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA280R-C8-T10-11-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA280R-C8-T10-12-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA280R-C8-T10-13-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA280R-C8-T10-14-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA280R-C8-T10-15-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA280R-C8-T10-16-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA280R-C8-T30-2-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA280R-C8-T30-3-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA280R-C8-T30-4-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA280R-C8-T30-5-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA280R-C8-T30-6-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA280R-C8-T30-7-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA280R-C8-T30-8-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA280R-C8-T30-9-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA280R-C8-T30-10-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA280R-C8-T30-11-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA280R-C8-T30-12-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA280R-C8-T30-13-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA280R-C8-T30-14-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA280R-C8-T30-15-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA280R-C8-T30-16-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA280R-C8-T30-17-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GA280R-C8-T30-18-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GA280R-C8-T30-19-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GA280R-C8-T30-20-3-P70Model: M4GA2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
4GA219R-C4-A2N-3-P70Model: 4GA2 single valve | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA219R-C6-A2N-3-P70Model: 4GA2 single valve | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA219R-C8-A2N-3-P70Model: 4GA2 single valve | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA229R-C4-A2N-3-P70Model: 4GA2 single valve | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA229R-C6-A2N-3-P70Model: 4GA2 single valve | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA229R-C8-A2N-3-P70Model: 4GA2 single valve | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA239R-C4-A2N-3-P70Model: 4GA2 single valve | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA239R-C6-A2N-3-P70Model: 4GA2 single valve | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA239R-C8-A2N-3-P70Model: 4GA2 single valve | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA249R-C4-A2N-3-P70Model: 4GA2 single valve | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA249R-C6-A2N-3-P70Model: 4GA2 single valve | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA249R-C8-A2N-3-P70Model: 4GA2 single valve | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA259R-C4-A2N-3-P70Model: 4GA2 single valve | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA259R-C6-A2N-3-P70Model: 4GA2 single valve | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA259R-C8-A2N-3-P70Model: 4GA2 single valve | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
M4GA310R-C6-T10-2-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA310R-C6-T10-3-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA310R-C6-T10-4-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA310R-C6-T10-5-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA310R-C6-T10-6-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA310R-C6-T10-7-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA310R-C6-T10-8-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA310R-C6-T10-9-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA310R-C6-T10-10-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA310R-C6-T10-11-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA310R-C6-T10-12-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA310R-C6-T10-13-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA310R-C6-T10-14-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA310R-C6-T10-15-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA310R-C6-T10-16-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA310R-C6-T30-2-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA310R-C6-T30-3-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA310R-C6-T30-4-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA310R-C6-T30-5-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA310R-C6-T30-6-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA310R-C6-T30-7-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA310R-C6-T30-8-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA310R-C6-T30-9-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA310R-C6-T30-10-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA310R-C6-T30-11-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA310R-C6-T30-12-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA310R-C6-T30-13-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA310R-C6-T30-14-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA310R-C6-T30-15-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA310R-C6-T30-16-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA310R-C8-T10-2-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA310R-C8-T10-3-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA310R-C8-T10-4-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA310R-C8-T10-5-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA310R-C8-T10-6-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA310R-C8-T10-7-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA310R-C8-T10-8-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA310R-C8-T10-9-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA310R-C8-T10-10-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA310R-C8-T10-11-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA310R-C8-T10-12-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA310R-C8-T10-13-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA310R-C8-T10-14-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA310R-C8-T10-15-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA310R-C8-T10-16-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA310R-C8-T30-2-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA310R-C8-T30-3-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA310R-C8-T30-4-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA310R-C8-T30-5-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA310R-C8-T30-6-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA310R-C8-T30-7-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA310R-C8-T30-8-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA310R-C8-T30-9-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA310R-C8-T30-10-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA310R-C8-T30-11-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA310R-C8-T30-12-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA310R-C8-T30-13-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA310R-C8-T30-14-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA310R-C8-T30-15-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA310R-C8-T30-16-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA310R-C10-T10-2-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA310R-C10-T10-3-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA310R-C10-T10-4-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA310R-C10-T10-5-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA310R-C10-T10-6-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA310R-C10-T10-7-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA310R-C10-T10-8-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA310R-C10-T10-9-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA310R-C10-T10-10-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA310R-C10-T10-11-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA310R-C10-T10-12-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA310R-C10-T10-13-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA310R-C10-T10-14-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA310R-C10-T10-15-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA310R-C10-T10-16-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA310R-C10-T30-2-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA310R-C10-T30-3-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA310R-C10-T30-4-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA310R-C10-T30-5-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA310R-C10-T30-6-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA310R-C10-T30-7-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA310R-C10-T30-8-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA310R-C10-T30-9-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA310R-C10-T30-10-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA310R-C10-T30-11-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA310R-C10-T30-12-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA310R-C10-T30-13-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA310R-C10-T30-14-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA310R-C10-T30-15-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA310R-C10-T30-16-3-P70Model: M4GA3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA320R-C6-T10-2-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA320R-C6-T10-3-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA320R-C6-T10-4-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA320R-C6-T10-5-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA320R-C6-T10-6-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA320R-C6-T10-7-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA320R-C6-T10-8-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA320R-C6-T30-2-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA320R-C6-T30-3-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA320R-C6-T30-4-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA320R-C6-T30-5-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA320R-C6-T30-6-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA320R-C6-T30-7-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA320R-C6-T30-8-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA320R-C6-T30-9-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA320R-C6-T30-10-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA320R-C6-T30-11-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA320R-C6-T30-12-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA320R-C8-T10-2-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA320R-C8-T10-3-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA320R-C8-T10-4-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA320R-C8-T10-5-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA320R-C8-T10-6-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA320R-C8-T10-7-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA320R-C8-T10-8-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA320R-C8-T30-2-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA320R-C8-T30-3-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA320R-C8-T30-4-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA320R-C8-T30-5-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA320R-C8-T30-6-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA320R-C8-T30-7-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA320R-C8-T30-8-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA320R-C8-T30-9-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA320R-C8-T30-10-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA320R-C8-T30-11-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA320R-C8-T30-12-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA320R-C10-T10-2-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA320R-C10-T10-3-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA320R-C10-T10-4-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA320R-C10-T10-5-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA320R-C10-T10-6-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA320R-C10-T10-7-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA320R-C10-T10-8-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA320R-C10-T30-2-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA320R-C10-T30-3-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA320R-C10-T30-4-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA320R-C10-T30-5-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA320R-C10-T30-6-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA320R-C10-T30-7-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA320R-C10-T30-8-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA320R-C10-T30-9-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA320R-C10-T30-10-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA320R-C10-T30-11-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA320R-C10-T30-12-3-P70Model: M4GA3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA330R-C6-T10-2-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA330R-C6-T10-3-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA330R-C6-T10-4-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA330R-C6-T10-5-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA330R-C6-T10-6-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA330R-C6-T10-7-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA330R-C6-T10-8-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA330R-C6-T30-2-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA330R-C6-T30-3-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA330R-C6-T30-4-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA330R-C6-T30-5-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA330R-C6-T30-6-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA330R-C6-T30-7-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA330R-C6-T30-8-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA330R-C6-T30-9-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA330R-C6-T30-10-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA330R-C6-T30-11-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA330R-C6-T30-12-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA330R-C8-T10-2-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA330R-C8-T10-3-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA330R-C8-T10-4-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA330R-C8-T10-5-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA330R-C8-T10-6-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA330R-C8-T10-7-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA330R-C8-T10-8-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA330R-C8-T30-2-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA330R-C8-T30-3-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA330R-C8-T30-4-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA330R-C8-T30-5-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA330R-C8-T30-6-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA330R-C8-T30-7-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA330R-C8-T30-8-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA330R-C8-T30-9-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA330R-C8-T30-10-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA330R-C8-T30-11-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA330R-C8-T30-12-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA330R-C10-T10-2-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA330R-C10-T10-3-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA330R-C10-T10-4-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA330R-C10-T10-5-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA330R-C10-T10-6-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA330R-C10-T10-7-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA330R-C10-T10-8-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA330R-C10-T30-2-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA330R-C10-T30-3-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA330R-C10-T30-4-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA330R-C10-T30-5-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA330R-C10-T30-6-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA330R-C10-T30-7-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA330R-C10-T30-8-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA330R-C10-T30-9-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA330R-C10-T30-10-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA330R-C10-T30-11-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA330R-C10-T30-12-3-P70Model: M4GA3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA340R-C6-T10-2-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA340R-C6-T10-3-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA340R-C6-T10-4-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA340R-C6-T10-5-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA340R-C6-T10-6-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA340R-C6-T10-7-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA340R-C6-T10-8-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA340R-C6-T30-2-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA340R-C6-T30-3-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA340R-C6-T30-4-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA340R-C6-T30-5-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA340R-C6-T30-6-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA340R-C6-T30-7-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA340R-C6-T30-8-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA340R-C6-T30-9-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA340R-C6-T30-10-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA340R-C6-T30-11-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA340R-C6-T30-12-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA340R-C8-T10-2-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA340R-C8-T10-3-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA340R-C8-T10-4-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA340R-C8-T10-5-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA340R-C8-T10-6-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA340R-C8-T10-7-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA340R-C8-T10-8-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA340R-C8-T30-2-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA340R-C8-T30-3-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA340R-C8-T30-4-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA340R-C8-T30-5-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA340R-C8-T30-6-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA340R-C8-T30-7-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA340R-C8-T30-8-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA340R-C8-T30-9-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA340R-C8-T30-10-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA340R-C8-T30-11-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA340R-C8-T30-12-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA340R-C10-T10-2-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA340R-C10-T10-3-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA340R-C10-T10-4-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA340R-C10-T10-5-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA340R-C10-T10-6-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA340R-C10-T10-7-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA340R-C10-T10-8-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA340R-C10-T30-2-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA340R-C10-T30-3-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA340R-C10-T30-4-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA340R-C10-T30-5-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA340R-C10-T30-6-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA340R-C10-T30-7-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA340R-C10-T30-8-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA340R-C10-T30-9-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA340R-C10-T30-10-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA340R-C10-T30-11-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA340R-C10-T30-12-3-P70Model: M4GA3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA350R-C6-T10-2-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA350R-C6-T10-3-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA350R-C6-T10-4-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA350R-C6-T10-5-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA350R-C6-T10-6-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA350R-C6-T10-7-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA350R-C6-T10-8-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA350R-C6-T30-2-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA350R-C6-T30-3-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA350R-C6-T30-4-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA350R-C6-T30-5-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA350R-C6-T30-6-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA350R-C6-T30-7-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA350R-C6-T30-8-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA350R-C6-T30-9-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA350R-C6-T30-10-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA350R-C6-T30-11-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA350R-C6-T30-12-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA350R-C8-T10-2-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA350R-C8-T10-3-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA350R-C8-T10-4-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA350R-C8-T10-5-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA350R-C8-T10-6-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA350R-C8-T10-7-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA350R-C8-T10-8-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA350R-C8-T30-2-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA350R-C8-T30-3-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA350R-C8-T30-4-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA350R-C8-T30-5-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA350R-C8-T30-6-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA350R-C8-T30-7-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA350R-C8-T30-8-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA350R-C8-T30-9-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA350R-C8-T30-10-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA350R-C8-T30-11-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA350R-C8-T30-12-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA350R-C10-T10-2-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA350R-C10-T10-3-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA350R-C10-T10-4-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA350R-C10-T10-5-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA350R-C10-T10-6-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA350R-C10-T10-7-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA350R-C10-T10-8-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA350R-C10-T30-2-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA350R-C10-T30-3-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA350R-C10-T30-4-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA350R-C10-T30-5-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA350R-C10-T30-6-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA350R-C10-T30-7-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA350R-C10-T30-8-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA350R-C10-T30-9-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA350R-C10-T30-10-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA350R-C10-T30-11-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA350R-C10-T30-12-3-P70Model: M4GA3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA380R-C6-T10-2-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA380R-C6-T10-3-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA380R-C6-T10-4-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA380R-C6-T10-5-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA380R-C6-T10-6-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA380R-C6-T10-7-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA380R-C6-T10-8-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA380R-C6-T10-9-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA380R-C6-T10-10-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA380R-C6-T10-11-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA380R-C6-T10-12-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA380R-C6-T10-13-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA380R-C6-T10-14-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA380R-C6-T10-15-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA380R-C6-T10-16-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA380R-C6-T30-2-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA380R-C6-T30-3-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA380R-C6-T30-4-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA380R-C6-T30-5-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA380R-C6-T30-6-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA380R-C6-T30-7-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA380R-C6-T30-8-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA380R-C6-T30-9-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA380R-C6-T30-10-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA380R-C6-T30-11-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA380R-C6-T30-12-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA380R-C6-T30-13-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA380R-C6-T30-14-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA380R-C6-T30-15-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA380R-C6-T30-16-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA380R-C8-T10-2-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA380R-C8-T10-3-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA380R-C8-T10-4-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA380R-C8-T10-5-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA380R-C8-T10-6-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA380R-C8-T10-7-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA380R-C8-T10-8-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA380R-C8-T10-9-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA380R-C8-T10-10-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA380R-C8-T10-11-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA380R-C8-T10-12-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA380R-C8-T10-13-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA380R-C8-T10-14-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA380R-C8-T10-15-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA380R-C8-T10-16-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA380R-C8-T30-2-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA380R-C8-T30-3-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA380R-C8-T30-4-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA380R-C8-T30-5-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA380R-C8-T30-6-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA380R-C8-T30-7-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA380R-C8-T30-8-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA380R-C8-T30-9-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA380R-C8-T30-10-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA380R-C8-T30-11-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA380R-C8-T30-12-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA380R-C8-T30-13-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA380R-C8-T30-14-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA380R-C8-T30-15-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA380R-C8-T30-16-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GA380R-C10-T10-2-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GA380R-C10-T10-3-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GA380R-C10-T10-4-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GA380R-C10-T10-5-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GA380R-C10-T10-6-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GA380R-C10-T10-7-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GA380R-C10-T10-8-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GA380R-C10-T10-9-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GA380R-C10-T10-10-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GA380R-C10-T10-11-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GA380R-C10-T10-12-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GA380R-C10-T10-13-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GA380R-C10-T10-14-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GA380R-C10-T10-15-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GA380R-C10-T10-16-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GA380R-C10-T30-2-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GA380R-C10-T30-3-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GA380R-C10-T30-4-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GA380R-C10-T30-5-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GA380R-C10-T30-6-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GA380R-C10-T30-7-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GA380R-C10-T30-8-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GA380R-C10-T30-9-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GA380R-C10-T30-10-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GA380R-C10-T30-11-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GA380R-C10-T30-12-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GA380R-C10-T30-13-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GA380R-C10-T30-14-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GA380R-C10-T30-15-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GA380R-C10-T30-16-3-P70Model: M4GA3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
4GA319R-C6-A2N-3-P70Model: 4GA3 single valve | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA319R-C8-A2N-3-P70Model: 4GA3 single valve | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA319R-C10-A2N-3-P70Model: 4GA3 single valve | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA329R-C6-A2N-3-P70Model: 4GA3 single valve | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA329R-C8-A2N-3-P70Model: 4GA3 single valve | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA329R-C10-A2N-3-P70Model: 4GA3 single valve | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA339R-C6-A2N-3-P70Model: 4GA3 single valve | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA339R-C8-A2N-3-P70Model: 4GA3 single valve | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA339R-C10-A2N-3-P70Model: 4GA3 single valve | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA349R-C6-A2N-3-P70Model: 4GA3 single valve | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA349R-C8-A2N-3-P70Model: 4GA3 single valve | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA349R-C10-A2N-3-P70Model: 4GA3 single valve | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA359R-C6-A2N-3-P70Model: 4GA3 single valve | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA359R-C8-A2N-3-P70Model: 4GA3 single valve | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: A2N socket, no lead wire | Stations: Single valve
4GA359R-C10-A2N-3-P70Model: 4GA3 single valve | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: A2N socket, no lead wire | Stations: Single valve

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
