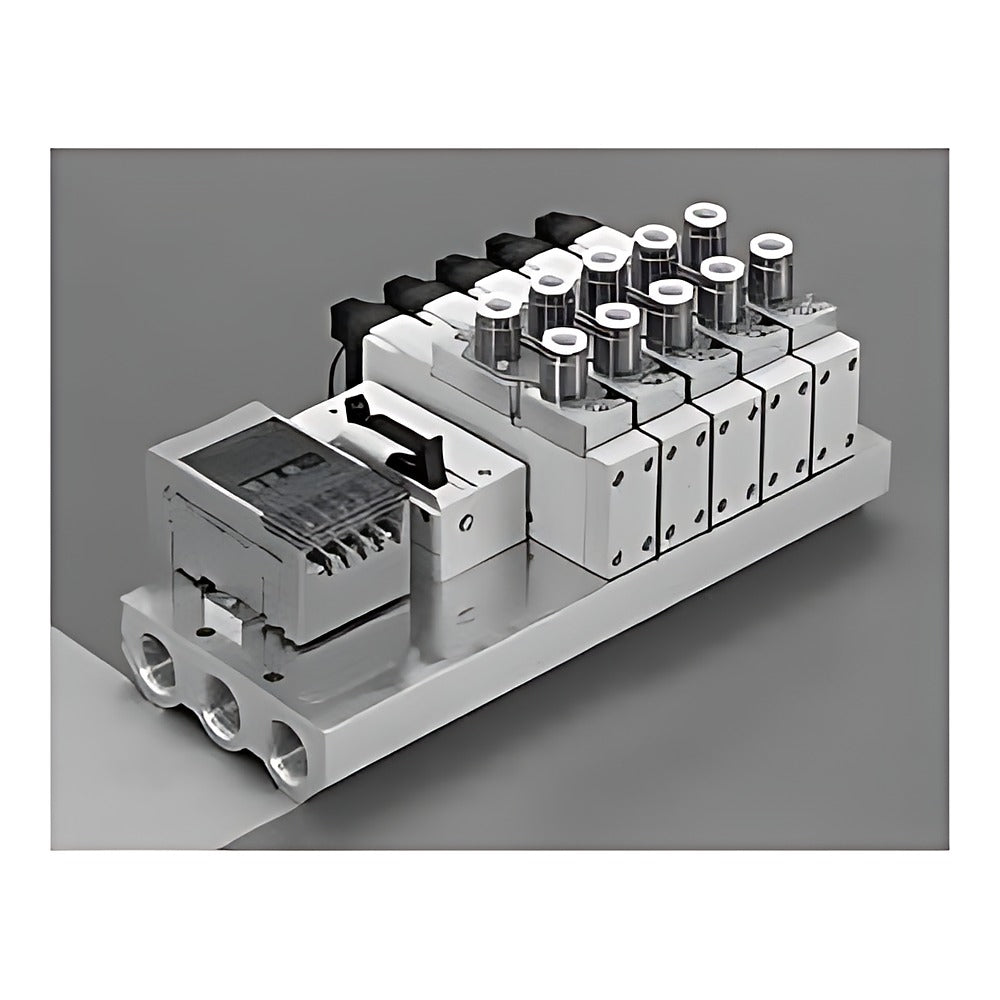

CKD M4GA4-T6G1 Serial Transmission Manifold (CC-Link, 2-8 Stn)

CKD M4GA4-T6G1 Serial Transmission Manifold (CC-Link, 2-8 Stn)

The CKD M4GA4-T6G1 is a direct-piping 4GA4 valve manifold with an integrated CC-Link Ver.1.10 serial transmission slave (16 outputs), 2 to 8 stations.

Key features

  • CC-Link Ver.1.10 slave, 16 output points, occupies 1 station
  • LED display of power and communication status
  • A/B ports on valves: one-touch fittings 8/10/12 mm or Rc3/8; P/R ports Rc1/2
  • Surge killer and LED standard; valves 4GA4#9-##-A2N
  • Double wiring W, options K/A/F/Z1/Z3/Q, G/N threads and CX mix available but not expanded

Specifications

Manifold type Wiring-saving one-piece metal base
Serial protocol CC-Link Ver.1.10 (T6G1)
Output points 16
Voltage DC24V (code 3)
Operating pressure 0.2 to 0.7 MPa
P/R1/R2 port Rc1/2
Applicable cylinder bore 100 to 140 mm
Source CKD Korea catalog CB-023SK-9, p. 846-851
M4GA410-C8-T6G1-2-3 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 2
M4GA410-C8-T6G1-3-3 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 3
M4GA410-C8-T6G1-4-3 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 4
M4GA410-C8-T6G1-5-3 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 5
M4GA410-C8-T6G1-6-3 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 6
M4GA410-C8-T6G1-7-3 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 7
M4GA410-C8-T6G1-8-3 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 8
M4GA410-C10-T6G1-2-3 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 2
M4GA410-C10-T6G1-3-3 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 3
M4GA410-C10-T6G1-4-3 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 4
M4GA410-C10-T6G1-5-3 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 5
M4GA410-C10-T6G1-6-3 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 6
M4GA410-C10-T6G1-7-3 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 7
M4GA410-C10-T6G1-8-3 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 8
M4GA410-C12-T6G1-2-3 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 2
M4GA410-C12-T6G1-3-3 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 3
M4GA410-C12-T6G1-4-3 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 4
M4GA410-C12-T6G1-5-3 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 5
M4GA410-C12-T6G1-6-3 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 6
M4GA410-C12-T6G1-7-3 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 7
M4GA410-C12-T6G1-8-3 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 8
M4GA410-10-T6G1-2-3 Function: 2-position single | A/B port: Rc3/8 | Stations: 2
M4GA410-10-T6G1-3-3 Function: 2-position single | A/B port: Rc3/8 | Stations: 3
M4GA410-10-T6G1-4-3 Function: 2-position single | A/B port: Rc3/8 | Stations: 4
M4GA410-10-T6G1-5-3 Function: 2-position single | A/B port: Rc3/8 | Stations: 5
M4GA410-10-T6G1-6-3 Function: 2-position single | A/B port: Rc3/8 | Stations: 6
M4GA410-10-T6G1-7-3 Function: 2-position single | A/B port: Rc3/8 | Stations: 7
M4GA410-10-T6G1-8-3 Function: 2-position single | A/B port: Rc3/8 | Stations: 8
M4GA420-C8-T6G1-2-3 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 2
M4GA420-C8-T6G1-3-3 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 3
M4GA420-C8-T6G1-4-3 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 4
M4GA420-C8-T6G1-5-3 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 5
M4GA420-C8-T6G1-6-3 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 6
M4GA420-C8-T6G1-7-3 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 7
M4GA420-C8-T6G1-8-3 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 8
M4GA420-C10-T6G1-2-3 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 2
M4GA420-C10-T6G1-3-3 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 3
M4GA420-C10-T6G1-4-3 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 4
M4GA420-C10-T6G1-5-3 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 5
M4GA420-C10-T6G1-6-3 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 6
M4GA420-C10-T6G1-7-3 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 7
M4GA420-C10-T6G1-8-3 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 8
M4GA420-C12-T6G1-2-3 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 2
M4GA420-C12-T6G1-3-3 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 3
M4GA420-C12-T6G1-4-3 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 4
M4GA420-C12-T6G1-5-3 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 5
M4GA420-C12-T6G1-6-3 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 6
M4GA420-C12-T6G1-7-3 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 7
M4GA420-C12-T6G1-8-3 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 8
M4GA420-10-T6G1-2-3 Function: 2-position double | A/B port: Rc3/8 | Stations: 2
M4GA420-10-T6G1-3-3 Function: 2-position double | A/B port: Rc3/8 | Stations: 3
M4GA420-10-T6G1-4-3 Function: 2-position double | A/B port: Rc3/8 | Stations: 4
M4GA420-10-T6G1-5-3 Function: 2-position double | A/B port: Rc3/8 | Stations: 5
M4GA420-10-T6G1-6-3 Function: 2-position double | A/B port: Rc3/8 | Stations: 6
M4GA420-10-T6G1-7-3 Function: 2-position double | A/B port: Rc3/8 | Stations: 7
M4GA420-10-T6G1-8-3 Function: 2-position double | A/B port: Rc3/8 | Stations: 8
M4GA430-C8-T6G1-2-3 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 2
M4GA430-C8-T6G1-3-3 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 3
M4GA430-C8-T6G1-4-3 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 4
M4GA430-C8-T6G1-5-3 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 5
M4GA430-C8-T6G1-6-3 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 6
M4GA430-C8-T6G1-7-3 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 7
M4GA430-C8-T6G1-8-3 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 8
M4GA430-C10-T6G1-2-3 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 2
M4GA430-C10-T6G1-3-3 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 3
M4GA430-C10-T6G1-4-3 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 4
M4GA430-C10-T6G1-5-3 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 5
M4GA430-C10-T6G1-6-3 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 6
M4GA430-C10-T6G1-7-3 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 7
M4GA430-C10-T6G1-8-3 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 8
M4GA430-C12-T6G1-2-3 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 2
M4GA430-C12-T6G1-3-3 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 3
M4GA430-C12-T6G1-4-3 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 4
M4GA430-C12-T6G1-5-3 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 5
M4GA430-C12-T6G1-6-3 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 6
M4GA430-C12-T6G1-7-3 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 7
M4GA430-C12-T6G1-8-3 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 8
M4GA430-10-T6G1-2-3 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 2
M4GA430-10-T6G1-3-3 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 3
M4GA430-10-T6G1-4-3 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 4
M4GA430-10-T6G1-5-3 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 5
M4GA430-10-T6G1-6-3 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 6
M4GA430-10-T6G1-7-3 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 7
M4GA430-10-T6G1-8-3 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 8
M4GA440-C8-T6G1-2-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 2
M4GA440-C8-T6G1-3-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 3
M4GA440-C8-T6G1-4-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 4
M4GA440-C8-T6G1-5-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 5
M4GA440-C8-T6G1-6-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 6
M4GA440-C8-T6G1-7-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 7
M4GA440-C8-T6G1-8-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 8
M4GA440-C10-T6G1-2-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 2
M4GA440-C10-T6G1-3-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 3
M4GA440-C10-T6G1-4-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 4
M4GA440-C10-T6G1-5-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 5
M4GA440-C10-T6G1-6-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 6
M4GA440-C10-T6G1-7-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 7
M4GA440-C10-T6G1-8-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 8
M4GA440-C12-T6G1-2-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 2
M4GA440-C12-T6G1-3-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 3
M4GA440-C12-T6G1-4-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 4
M4GA440-C12-T6G1-5-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 5
M4GA440-C12-T6G1-6-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 6
M4GA440-C12-T6G1-7-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 7
M4GA440-C12-T6G1-8-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 8
M4GA440-10-T6G1-2-3 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 2
M4GA440-10-T6G1-3-3 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 3
M4GA440-10-T6G1-4-3 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 4
M4GA440-10-T6G1-5-3 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 5
M4GA440-10-T6G1-6-3 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 6
M4GA440-10-T6G1-7-3 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 7
M4GA440-10-T6G1-8-3 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 8
M4GA450-C8-T6G1-2-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 2
M4GA450-C8-T6G1-3-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 3
M4GA450-C8-T6G1-4-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 4
M4GA450-C8-T6G1-5-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 5
M4GA450-C8-T6G1-6-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 6
M4GA450-C8-T6G1-7-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 7
M4GA450-C8-T6G1-8-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 8
M4GA450-C10-T6G1-2-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 2
M4GA450-C10-T6G1-3-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 3
M4GA450-C10-T6G1-4-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 4
M4GA450-C10-T6G1-5-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 5
M4GA450-C10-T6G1-6-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 6
M4GA450-C10-T6G1-7-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 7
M4GA450-C10-T6G1-8-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 8
M4GA450-C12-T6G1-2-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 2
M4GA450-C12-T6G1-3-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 3
M4GA450-C12-T6G1-4-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 4
M4GA450-C12-T6G1-5-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 5
M4GA450-C12-T6G1-6-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 6
M4GA450-C12-T6G1-7-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 7
M4GA450-C12-T6G1-8-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 8
M4GA450-10-T6G1-2-3 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 2
M4GA450-10-T6G1-3-3 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 3
M4GA450-10-T6G1-4-3 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 4
M4GA450-10-T6G1-5-3 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 5
M4GA450-10-T6G1-6-3 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 6
M4GA450-10-T6G1-7-3 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 7
M4GA450-10-T6G1-8-3 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 8
M4GA480-C8-T6G1-2-3 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 2
M4GA480-C8-T6G1-3-3 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 3
M4GA480-C8-T6G1-4-3 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 4
M4GA480-C8-T6G1-5-3 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 5
M4GA480-C8-T6G1-6-3 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 6
M4GA480-C8-T6G1-7-3 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 7
M4GA480-C8-T6G1-8-3 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 8
M4GA480-C10-T6G1-2-3 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 2
M4GA480-C10-T6G1-3-3 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 3
M4GA480-C10-T6G1-4-3 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 4
M4GA480-C10-T6G1-5-3 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 5
M4GA480-C10-T6G1-6-3 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 6
M4GA480-C10-T6G1-7-3 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 7
M4GA480-C10-T6G1-8-3 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 8
M4GA480-C12-T6G1-2-3 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 2
M4GA480-C12-T6G1-3-3 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 3
M4GA480-C12-T6G1-4-3 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 4
M4GA480-C12-T6G1-5-3 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 5
M4GA480-C12-T6G1-6-3 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 6
M4GA480-C12-T6G1-7-3 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 7
M4GA480-C12-T6G1-8-3 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 8
M4GA480-10-T6G1-2-3 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 2
M4GA480-10-T6G1-3-3 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 3
M4GA480-10-T6G1-4-3 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 4
M4GA480-10-T6G1-5-3 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 5
M4GA480-10-T6G1-6-3 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 6
M4GA480-10-T6G1-7-3 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 7
M4GA480-10-T6G1-8-3 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 8
Valve ManifoldsCKD
168 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD M4GA4-T6G1 Serial Transmission Manifold (CC-Link, 2-8 Stn)

Brand CKD·Valve Manifolds

Available part numbers (168)

M4GA410-C8-T6G1-2-3, M4GA410-C8-T6G1-3-3, M4GA410-C8-T6G1-4-3, M4GA410-C8-T6G1-5-3, M4GA410-C8-T6G1-6-3, M4GA410-C8-T6G1-7-3, M4GA410-C8-T6G1-8-3, M4GA410-C10-T6G1-2-3, M4GA410-C10-T6G1-3-3, M4GA410-C10-T6G1-4-3 + 158 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
M4GA410-C8-T6G1-2-3Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 2
M4GA410-C8-T6G1-3-3Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 3
M4GA410-C8-T6G1-4-3Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 4
M4GA410-C8-T6G1-5-3Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 5
M4GA410-C8-T6G1-6-3Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 6
M4GA410-C8-T6G1-7-3Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 7
M4GA410-C8-T6G1-8-3Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 8
M4GA410-C10-T6G1-2-3Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 2
M4GA410-C10-T6G1-3-3Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 3
M4GA410-C10-T6G1-4-3Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 4
M4GA410-C10-T6G1-5-3Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 5
M4GA410-C10-T6G1-6-3Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 6
M4GA410-C10-T6G1-7-3Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 7
M4GA410-C10-T6G1-8-3Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 8
M4GA410-C12-T6G1-2-3Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 2
M4GA410-C12-T6G1-3-3Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 3
M4GA410-C12-T6G1-4-3Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 4
M4GA410-C12-T6G1-5-3Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 5
M4GA410-C12-T6G1-6-3Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 6
M4GA410-C12-T6G1-7-3Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 7
M4GA410-C12-T6G1-8-3Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 8
M4GA410-10-T6G1-2-3Function: 2-position single | A/B port: Rc3/8 | Stations: 2
M4GA410-10-T6G1-3-3Function: 2-position single | A/B port: Rc3/8 | Stations: 3
M4GA410-10-T6G1-4-3Function: 2-position single | A/B port: Rc3/8 | Stations: 4
M4GA410-10-T6G1-5-3Function: 2-position single | A/B port: Rc3/8 | Stations: 5
M4GA410-10-T6G1-6-3Function: 2-position single | A/B port: Rc3/8 | Stations: 6
M4GA410-10-T6G1-7-3Function: 2-position single | A/B port: Rc3/8 | Stations: 7
M4GA410-10-T6G1-8-3Function: 2-position single | A/B port: Rc3/8 | Stations: 8
M4GA420-C8-T6G1-2-3Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 2
M4GA420-C8-T6G1-3-3Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 3
M4GA420-C8-T6G1-4-3Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 4
M4GA420-C8-T6G1-5-3Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 5
M4GA420-C8-T6G1-6-3Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 6
M4GA420-C8-T6G1-7-3Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 7
M4GA420-C8-T6G1-8-3Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 8
M4GA420-C10-T6G1-2-3Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 2
M4GA420-C10-T6G1-3-3Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 3
M4GA420-C10-T6G1-4-3Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 4
M4GA420-C10-T6G1-5-3Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 5
M4GA420-C10-T6G1-6-3Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 6
M4GA420-C10-T6G1-7-3Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 7
M4GA420-C10-T6G1-8-3Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 8
M4GA420-C12-T6G1-2-3Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 2
M4GA420-C12-T6G1-3-3Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 3
M4GA420-C12-T6G1-4-3Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 4
M4GA420-C12-T6G1-5-3Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 5
M4GA420-C12-T6G1-6-3Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 6
M4GA420-C12-T6G1-7-3Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 7
M4GA420-C12-T6G1-8-3Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 8
M4GA420-10-T6G1-2-3Function: 2-position double | A/B port: Rc3/8 | Stations: 2
M4GA420-10-T6G1-3-3Function: 2-position double | A/B port: Rc3/8 | Stations: 3
M4GA420-10-T6G1-4-3Function: 2-position double | A/B port: Rc3/8 | Stations: 4
M4GA420-10-T6G1-5-3Function: 2-position double | A/B port: Rc3/8 | Stations: 5
M4GA420-10-T6G1-6-3Function: 2-position double | A/B port: Rc3/8 | Stations: 6
M4GA420-10-T6G1-7-3Function: 2-position double | A/B port: Rc3/8 | Stations: 7
M4GA420-10-T6G1-8-3Function: 2-position double | A/B port: Rc3/8 | Stations: 8
M4GA430-C8-T6G1-2-3Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 2
M4GA430-C8-T6G1-3-3Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 3
M4GA430-C8-T6G1-4-3Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 4
M4GA430-C8-T6G1-5-3Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 5
M4GA430-C8-T6G1-6-3Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 6
M4GA430-C8-T6G1-7-3Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 7
M4GA430-C8-T6G1-8-3Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 8
M4GA430-C10-T6G1-2-3Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 2
M4GA430-C10-T6G1-3-3Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 3
M4GA430-C10-T6G1-4-3Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 4
M4GA430-C10-T6G1-5-3Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 5
M4GA430-C10-T6G1-6-3Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 6
M4GA430-C10-T6G1-7-3Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 7
M4GA430-C10-T6G1-8-3Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 8
M4GA430-C12-T6G1-2-3Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 2
M4GA430-C12-T6G1-3-3Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 3
M4GA430-C12-T6G1-4-3Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 4
M4GA430-C12-T6G1-5-3Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 5
M4GA430-C12-T6G1-6-3Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 6
M4GA430-C12-T6G1-7-3Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 7
M4GA430-C12-T6G1-8-3Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 8
M4GA430-10-T6G1-2-3Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 2
M4GA430-10-T6G1-3-3Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 3
M4GA430-10-T6G1-4-3Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 4
M4GA430-10-T6G1-5-3Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 5
M4GA430-10-T6G1-6-3Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 6
M4GA430-10-T6G1-7-3Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 7
M4GA430-10-T6G1-8-3Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 8
M4GA440-C8-T6G1-2-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 2
M4GA440-C8-T6G1-3-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 3
M4GA440-C8-T6G1-4-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 4
M4GA440-C8-T6G1-5-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 5
M4GA440-C8-T6G1-6-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 6
M4GA440-C8-T6G1-7-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 7
M4GA440-C8-T6G1-8-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 8
M4GA440-C10-T6G1-2-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 2
M4GA440-C10-T6G1-3-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 3
M4GA440-C10-T6G1-4-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 4
M4GA440-C10-T6G1-5-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 5
M4GA440-C10-T6G1-6-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 6
M4GA440-C10-T6G1-7-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 7
M4GA440-C10-T6G1-8-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 8
M4GA440-C12-T6G1-2-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 2
M4GA440-C12-T6G1-3-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 3
M4GA440-C12-T6G1-4-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 4
M4GA440-C12-T6G1-5-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 5
M4GA440-C12-T6G1-6-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 6
M4GA440-C12-T6G1-7-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 7
M4GA440-C12-T6G1-8-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 8
M4GA440-10-T6G1-2-3Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 2
M4GA440-10-T6G1-3-3Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 3
M4GA440-10-T6G1-4-3Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 4
M4GA440-10-T6G1-5-3Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 5
M4GA440-10-T6G1-6-3Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 6
M4GA440-10-T6G1-7-3Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 7
M4GA440-10-T6G1-8-3Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 8
M4GA450-C8-T6G1-2-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 2
M4GA450-C8-T6G1-3-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 3
M4GA450-C8-T6G1-4-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 4
M4GA450-C8-T6G1-5-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 5
M4GA450-C8-T6G1-6-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 6
M4GA450-C8-T6G1-7-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 7
M4GA450-C8-T6G1-8-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 8
M4GA450-C10-T6G1-2-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 2
M4GA450-C10-T6G1-3-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 3
M4GA450-C10-T6G1-4-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 4
M4GA450-C10-T6G1-5-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 5
M4GA450-C10-T6G1-6-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 6
M4GA450-C10-T6G1-7-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 7
M4GA450-C10-T6G1-8-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 8
M4GA450-C12-T6G1-2-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 2
M4GA450-C12-T6G1-3-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 3
M4GA450-C12-T6G1-4-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 4
M4GA450-C12-T6G1-5-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 5
M4GA450-C12-T6G1-6-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 6
M4GA450-C12-T6G1-7-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 7
M4GA450-C12-T6G1-8-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 8
M4GA450-10-T6G1-2-3Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 2
M4GA450-10-T6G1-3-3Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 3
M4GA450-10-T6G1-4-3Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 4
M4GA450-10-T6G1-5-3Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 5
M4GA450-10-T6G1-6-3Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 6
M4GA450-10-T6G1-7-3Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 7
M4GA450-10-T6G1-8-3Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 8
M4GA480-C8-T6G1-2-3Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 2
M4GA480-C8-T6G1-3-3Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 3
M4GA480-C8-T6G1-4-3Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 4
M4GA480-C8-T6G1-5-3Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 5
M4GA480-C8-T6G1-6-3Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 6
M4GA480-C8-T6G1-7-3Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 7
M4GA480-C8-T6G1-8-3Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 8
M4GA480-C10-T6G1-2-3Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 2
M4GA480-C10-T6G1-3-3Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 3
M4GA480-C10-T6G1-4-3Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 4
M4GA480-C10-T6G1-5-3Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 5
M4GA480-C10-T6G1-6-3Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 6
M4GA480-C10-T6G1-7-3Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 7
M4GA480-C10-T6G1-8-3Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 8
M4GA480-C12-T6G1-2-3Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 2
M4GA480-C12-T6G1-3-3Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 3
M4GA480-C12-T6G1-4-3Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 4
M4GA480-C12-T6G1-5-3Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 5
M4GA480-C12-T6G1-6-3Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 6
M4GA480-C12-T6G1-7-3Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 7
M4GA480-C12-T6G1-8-3Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 8
M4GA480-10-T6G1-2-3Function: Mixed manifold | A/B port: Rc3/8 | Stations: 2
M4GA480-10-T6G1-3-3Function: Mixed manifold | A/B port: Rc3/8 | Stations: 3
M4GA480-10-T6G1-4-3Function: Mixed manifold | A/B port: Rc3/8 | Stations: 4
M4GA480-10-T6G1-5-3Function: Mixed manifold | A/B port: Rc3/8 | Stations: 5
M4GA480-10-T6G1-6-3Function: Mixed manifold | A/B port: Rc3/8 | Stations: 6
M4GA480-10-T6G1-7-3Function: Mixed manifold | A/B port: Rc3/8 | Stations: 7
M4GA480-10-T6G1-8-3Function: Mixed manifold | A/B port: Rc3/8 | Stations: 8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
