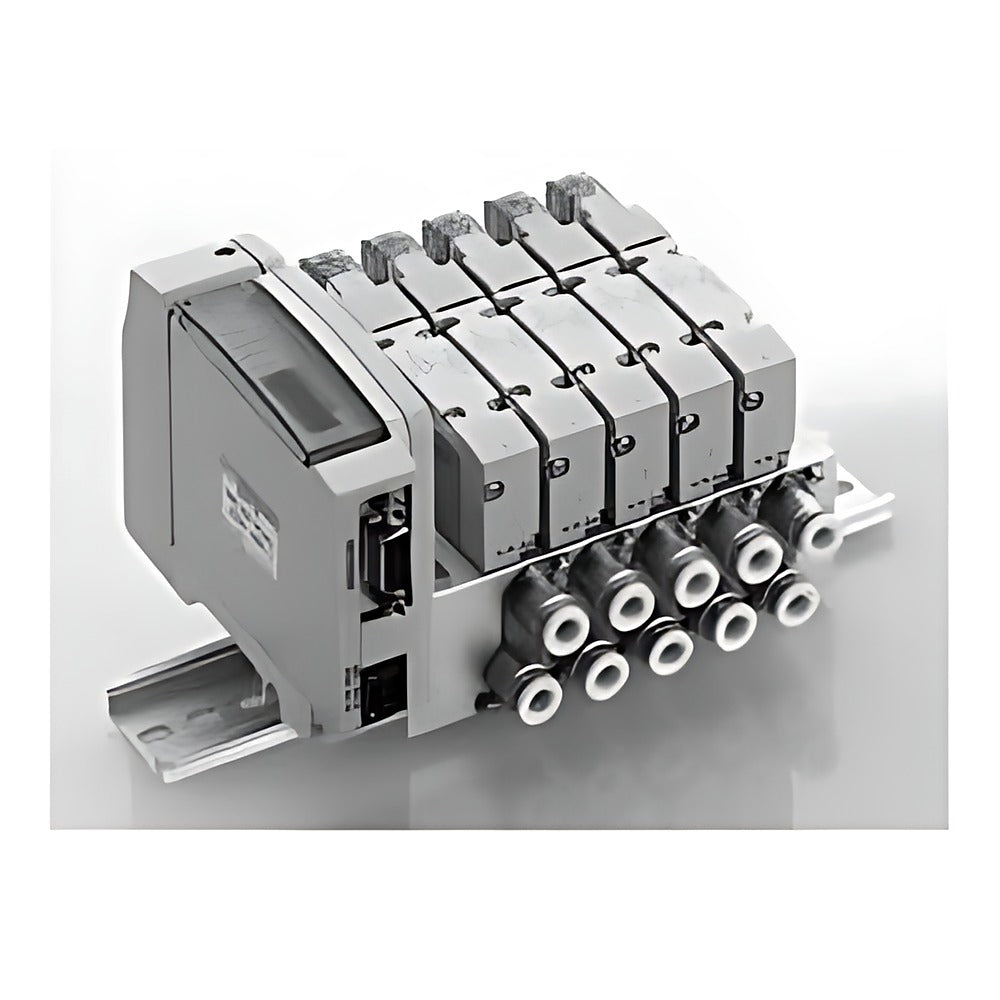

CKD M4GB-T Wiring-Saving Manifold, Base Piping (4GB1/2/3)

CKD M4GB-T Wiring-Saving Manifold, Base Piping (4GB1/2/3)

CKD M4GB1/2/3-T wiring-saving manifolds carry 4GB 5-port pilot solenoid valves on an integrated metal base with side (base) A/B piping and collective wiring.

Key features

  • A/B ports on the base side; valves replaceable without disturbing piping
  • Collective wiring: terminal block, D-sub 25-pin, flat cable or serial transmission
  • 2-position single/double and 3-position closed, exhaust and pressure centre valves
  • Optional residual-pressure exhaust (X/X1) and spacer-type pilot check valve (Z6)
  • Direct mount or DIN rail; max 20 stations (4GB1/4GB2), 16 stations (4GB3)
  • Base-mounted single valves 4GB9R-00-A2N for maintenance

Specifications

Manifold type Wiring-saving integrated metal base
Mounting Direct mount (standard); DIN rail option D
Operating pressure 0.2 to 0.7 MPa (internal pilot)
Proof pressure 1.05 MPa
Ambient / fluid temp. -5 to 55 C / 5 to 55 C
Voltage (code 3) DC24V (DC12V = code 4)
Valve type Pilot-operated soft spool
Lubrication Not required
Source CKD Korea catalog CB-023SK-9, p. 234-263
M4GB110R-C4-T10-2-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB110R-C4-T10-3-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB110R-C4-T10-4-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB110R-C4-T10-5-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB110R-C4-T10-6-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB110R-C4-T10-7-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB110R-C4-T10-8-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB110R-C4-T10-9-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB110R-C4-T10-10-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB110R-C4-T10-11-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB110R-C4-T10-12-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB110R-C4-T10-13-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB110R-C4-T10-14-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB110R-C4-T10-15-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB110R-C4-T10-16-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB110R-C4-T30-2-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB110R-C4-T30-3-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB110R-C4-T30-4-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB110R-C4-T30-5-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB110R-C4-T30-6-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB110R-C4-T30-7-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB110R-C4-T30-8-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB110R-C4-T30-9-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB110R-C4-T30-10-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB110R-C4-T30-11-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB110R-C4-T30-12-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB110R-C4-T30-13-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB110R-C4-T30-14-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB110R-C4-T30-15-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB110R-C4-T30-16-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB110R-C4-T30-17-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GB110R-C4-T30-18-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GB110R-C4-T30-19-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GB110R-C4-T30-20-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GB110R-C6-T10-2-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB110R-C6-T10-3-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB110R-C6-T10-4-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB110R-C6-T10-5-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB110R-C6-T10-6-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB110R-C6-T10-7-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB110R-C6-T10-8-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB110R-C6-T10-9-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB110R-C6-T10-10-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB110R-C6-T10-11-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB110R-C6-T10-12-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB110R-C6-T10-13-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB110R-C6-T10-14-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB110R-C6-T10-15-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB110R-C6-T10-16-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB110R-C6-T30-2-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB110R-C6-T30-3-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB110R-C6-T30-4-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB110R-C6-T30-5-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB110R-C6-T30-6-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB110R-C6-T30-7-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB110R-C6-T30-8-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB110R-C6-T30-9-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB110R-C6-T30-10-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB110R-C6-T30-11-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB110R-C6-T30-12-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB110R-C6-T30-13-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB110R-C6-T30-14-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB110R-C6-T30-15-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB110R-C6-T30-16-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB110R-C6-T30-17-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GB110R-C6-T30-18-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GB110R-C6-T30-19-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GB110R-C6-T30-20-3 Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GB120R-C4-T10-2-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB120R-C4-T10-3-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB120R-C4-T10-4-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB120R-C4-T10-5-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB120R-C4-T10-6-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB120R-C4-T10-7-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB120R-C4-T10-8-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB120R-C4-T30-2-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB120R-C4-T30-3-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB120R-C4-T30-4-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB120R-C4-T30-5-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB120R-C4-T30-6-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB120R-C4-T30-7-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB120R-C4-T30-8-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB120R-C4-T30-9-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB120R-C4-T30-10-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB120R-C4-T30-11-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB120R-C4-T30-12-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB120R-C6-T10-2-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB120R-C6-T10-3-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB120R-C6-T10-4-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB120R-C6-T10-5-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB120R-C6-T10-6-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB120R-C6-T10-7-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB120R-C6-T10-8-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB120R-C6-T30-2-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB120R-C6-T30-3-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB120R-C6-T30-4-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB120R-C6-T30-5-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB120R-C6-T30-6-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB120R-C6-T30-7-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB120R-C6-T30-8-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB120R-C6-T30-9-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB120R-C6-T30-10-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB120R-C6-T30-11-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB120R-C6-T30-12-3 Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB130R-C4-T10-2-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB130R-C4-T10-3-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB130R-C4-T10-4-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB130R-C4-T10-5-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB130R-C4-T10-6-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB130R-C4-T10-7-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB130R-C4-T10-8-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB130R-C4-T30-2-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB130R-C4-T30-3-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB130R-C4-T30-4-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB130R-C4-T30-5-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB130R-C4-T30-6-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB130R-C4-T30-7-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB130R-C4-T30-8-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB130R-C4-T30-9-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB130R-C4-T30-10-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB130R-C4-T30-11-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB130R-C4-T30-12-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB130R-C6-T10-2-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB130R-C6-T10-3-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB130R-C6-T10-4-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB130R-C6-T10-5-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB130R-C6-T10-6-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB130R-C6-T10-7-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB130R-C6-T10-8-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB130R-C6-T30-2-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB130R-C6-T30-3-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB130R-C6-T30-4-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB130R-C6-T30-5-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB130R-C6-T30-6-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB130R-C6-T30-7-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB130R-C6-T30-8-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB130R-C6-T30-9-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB130R-C6-T30-10-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB130R-C6-T30-11-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB130R-C6-T30-12-3 Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB140R-C4-T10-2-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB140R-C4-T10-3-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB140R-C4-T10-4-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB140R-C4-T10-5-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB140R-C4-T10-6-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB140R-C4-T10-7-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB140R-C4-T10-8-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB140R-C4-T30-2-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB140R-C4-T30-3-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB140R-C4-T30-4-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB140R-C4-T30-5-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB140R-C4-T30-6-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB140R-C4-T30-7-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB140R-C4-T30-8-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB140R-C4-T30-9-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB140R-C4-T30-10-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB140R-C4-T30-11-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB140R-C4-T30-12-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB140R-C6-T10-2-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB140R-C6-T10-3-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB140R-C6-T10-4-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB140R-C6-T10-5-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB140R-C6-T10-6-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB140R-C6-T10-7-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB140R-C6-T10-8-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB140R-C6-T30-2-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB140R-C6-T30-3-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB140R-C6-T30-4-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB140R-C6-T30-5-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB140R-C6-T30-6-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB140R-C6-T30-7-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB140R-C6-T30-8-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB140R-C6-T30-9-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB140R-C6-T30-10-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB140R-C6-T30-11-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB140R-C6-T30-12-3 Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB150R-C4-T10-2-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB150R-C4-T10-3-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB150R-C4-T10-4-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB150R-C4-T10-5-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB150R-C4-T10-6-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB150R-C4-T10-7-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB150R-C4-T10-8-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB150R-C4-T30-2-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB150R-C4-T30-3-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB150R-C4-T30-4-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB150R-C4-T30-5-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB150R-C4-T30-6-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB150R-C4-T30-7-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB150R-C4-T30-8-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB150R-C4-T30-9-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB150R-C4-T30-10-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB150R-C4-T30-11-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB150R-C4-T30-12-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB150R-C6-T10-2-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB150R-C6-T10-3-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB150R-C6-T10-4-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB150R-C6-T10-5-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB150R-C6-T10-6-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB150R-C6-T10-7-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB150R-C6-T10-8-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB150R-C6-T30-2-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB150R-C6-T30-3-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB150R-C6-T30-4-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB150R-C6-T30-5-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB150R-C6-T30-6-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB150R-C6-T30-7-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB150R-C6-T30-8-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB150R-C6-T30-9-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB150R-C6-T30-10-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB150R-C6-T30-11-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB150R-C6-T30-12-3 Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB180R-C4-T10-2-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB180R-C4-T10-3-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB180R-C4-T10-4-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB180R-C4-T10-5-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB180R-C4-T10-6-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB180R-C4-T10-7-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB180R-C4-T10-8-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB180R-C4-T10-9-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB180R-C4-T10-10-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB180R-C4-T10-11-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB180R-C4-T10-12-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB180R-C4-T10-13-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB180R-C4-T10-14-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB180R-C4-T10-15-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB180R-C4-T10-16-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB180R-C4-T30-2-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB180R-C4-T30-3-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB180R-C4-T30-4-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB180R-C4-T30-5-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB180R-C4-T30-6-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB180R-C4-T30-7-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB180R-C4-T30-8-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB180R-C4-T30-9-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB180R-C4-T30-10-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB180R-C4-T30-11-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB180R-C4-T30-12-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB180R-C4-T30-13-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB180R-C4-T30-14-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB180R-C4-T30-15-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB180R-C4-T30-16-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB180R-C4-T30-17-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GB180R-C4-T30-18-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GB180R-C4-T30-19-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GB180R-C4-T30-20-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GB180R-C6-T10-2-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB180R-C6-T10-3-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB180R-C6-T10-4-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB180R-C6-T10-5-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB180R-C6-T10-6-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB180R-C6-T10-7-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB180R-C6-T10-8-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB180R-C6-T10-9-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB180R-C6-T10-10-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB180R-C6-T10-11-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB180R-C6-T10-12-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB180R-C6-T10-13-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB180R-C6-T10-14-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB180R-C6-T10-15-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB180R-C6-T10-16-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB180R-C6-T30-2-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB180R-C6-T30-3-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB180R-C6-T30-4-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB180R-C6-T30-5-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB180R-C6-T30-6-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB180R-C6-T30-7-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB180R-C6-T30-8-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB180R-C6-T30-9-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB180R-C6-T30-10-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB180R-C6-T30-11-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB180R-C6-T30-12-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB180R-C6-T30-13-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB180R-C6-T30-14-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB180R-C6-T30-15-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB180R-C6-T30-16-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB180R-C6-T30-17-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GB180R-C6-T30-18-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GB180R-C6-T30-19-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GB180R-C6-T30-20-3 Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
4GB119R-00-A2N-3 Model: 4GB1 single valve | Position: 2-pos single | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB129R-00-A2N-3 Model: 4GB1 single valve | Position: 2-pos double | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB139R-00-A2N-3 Model: 4GB1 single valve | Position: 3-pos all ports blocked | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB149R-00-A2N-3 Model: 4GB1 single valve | Position: 3-pos A-B-R connection | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB159R-00-A2N-3 Model: 4GB1 single valve | Position: 3-pos P-A-B connection | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
M4GB210R-C4-T10-2-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB210R-C4-T10-3-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB210R-C4-T10-4-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB210R-C4-T10-5-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB210R-C4-T10-6-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB210R-C4-T10-7-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB210R-C4-T10-8-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB210R-C4-T10-9-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB210R-C4-T10-10-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB210R-C4-T10-11-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB210R-C4-T10-12-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB210R-C4-T10-13-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB210R-C4-T10-14-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB210R-C4-T10-15-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB210R-C4-T10-16-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB210R-C4-T30-2-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB210R-C4-T30-3-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB210R-C4-T30-4-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB210R-C4-T30-5-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB210R-C4-T30-6-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB210R-C4-T30-7-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB210R-C4-T30-8-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB210R-C4-T30-9-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB210R-C4-T30-10-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB210R-C4-T30-11-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB210R-C4-T30-12-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB210R-C4-T30-13-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB210R-C4-T30-14-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB210R-C4-T30-15-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB210R-C4-T30-16-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB210R-C4-T30-17-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GB210R-C4-T30-18-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GB210R-C4-T30-19-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GB210R-C4-T30-20-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GB210R-C6-T10-2-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB210R-C6-T10-3-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB210R-C6-T10-4-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB210R-C6-T10-5-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB210R-C6-T10-6-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB210R-C6-T10-7-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB210R-C6-T10-8-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB210R-C6-T10-9-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB210R-C6-T10-10-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB210R-C6-T10-11-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB210R-C6-T10-12-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB210R-C6-T10-13-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB210R-C6-T10-14-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB210R-C6-T10-15-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB210R-C6-T10-16-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB210R-C6-T30-2-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB210R-C6-T30-3-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB210R-C6-T30-4-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB210R-C6-T30-5-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB210R-C6-T30-6-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB210R-C6-T30-7-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB210R-C6-T30-8-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB210R-C6-T30-9-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB210R-C6-T30-10-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB210R-C6-T30-11-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB210R-C6-T30-12-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB210R-C6-T30-13-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB210R-C6-T30-14-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB210R-C6-T30-15-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB210R-C6-T30-16-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB210R-C6-T30-17-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GB210R-C6-T30-18-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GB210R-C6-T30-19-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GB210R-C6-T30-20-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GB210R-C8-T10-2-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB210R-C8-T10-3-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB210R-C8-T10-4-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB210R-C8-T10-5-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB210R-C8-T10-6-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB210R-C8-T10-7-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB210R-C8-T10-8-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB210R-C8-T10-9-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB210R-C8-T10-10-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB210R-C8-T10-11-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB210R-C8-T10-12-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB210R-C8-T10-13-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB210R-C8-T10-14-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB210R-C8-T10-15-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB210R-C8-T10-16-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB210R-C8-T30-2-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB210R-C8-T30-3-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB210R-C8-T30-4-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB210R-C8-T30-5-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB210R-C8-T30-6-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB210R-C8-T30-7-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB210R-C8-T30-8-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB210R-C8-T30-9-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB210R-C8-T30-10-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB210R-C8-T30-11-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB210R-C8-T30-12-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB210R-C8-T30-13-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB210R-C8-T30-14-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB210R-C8-T30-15-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB210R-C8-T30-16-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB210R-C8-T30-17-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GB210R-C8-T30-18-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GB210R-C8-T30-19-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GB210R-C8-T30-20-3 Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GB220R-C4-T10-2-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB220R-C4-T10-3-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB220R-C4-T10-4-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB220R-C4-T10-5-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB220R-C4-T10-6-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB220R-C4-T10-7-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB220R-C4-T10-8-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB220R-C4-T30-2-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB220R-C4-T30-3-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB220R-C4-T30-4-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB220R-C4-T30-5-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB220R-C4-T30-6-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB220R-C4-T30-7-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB220R-C4-T30-8-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB220R-C4-T30-9-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB220R-C4-T30-10-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB220R-C4-T30-11-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB220R-C4-T30-12-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB220R-C6-T10-2-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB220R-C6-T10-3-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB220R-C6-T10-4-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB220R-C6-T10-5-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB220R-C6-T10-6-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB220R-C6-T10-7-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB220R-C6-T10-8-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB220R-C6-T30-2-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB220R-C6-T30-3-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB220R-C6-T30-4-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB220R-C6-T30-5-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB220R-C6-T30-6-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB220R-C6-T30-7-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB220R-C6-T30-8-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB220R-C6-T30-9-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB220R-C6-T30-10-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB220R-C6-T30-11-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB220R-C6-T30-12-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB220R-C8-T10-2-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB220R-C8-T10-3-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB220R-C8-T10-4-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB220R-C8-T10-5-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB220R-C8-T10-6-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB220R-C8-T10-7-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB220R-C8-T10-8-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB220R-C8-T30-2-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB220R-C8-T30-3-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB220R-C8-T30-4-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB220R-C8-T30-5-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB220R-C8-T30-6-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB220R-C8-T30-7-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB220R-C8-T30-8-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB220R-C8-T30-9-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB220R-C8-T30-10-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB220R-C8-T30-11-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB220R-C8-T30-12-3 Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB230R-C4-T10-2-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB230R-C4-T10-3-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB230R-C4-T10-4-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB230R-C4-T10-5-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB230R-C4-T10-6-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB230R-C4-T10-7-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB230R-C4-T10-8-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB230R-C4-T30-2-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB230R-C4-T30-3-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB230R-C4-T30-4-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB230R-C4-T30-5-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB230R-C4-T30-6-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB230R-C4-T30-7-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB230R-C4-T30-8-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB230R-C4-T30-9-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB230R-C4-T30-10-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB230R-C4-T30-11-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB230R-C4-T30-12-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB230R-C6-T10-2-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB230R-C6-T10-3-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB230R-C6-T10-4-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB230R-C6-T10-5-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB230R-C6-T10-6-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB230R-C6-T10-7-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB230R-C6-T10-8-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB230R-C6-T30-2-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB230R-C6-T30-3-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB230R-C6-T30-4-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB230R-C6-T30-5-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB230R-C6-T30-6-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB230R-C6-T30-7-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB230R-C6-T30-8-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB230R-C6-T30-9-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB230R-C6-T30-10-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB230R-C6-T30-11-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB230R-C6-T30-12-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB230R-C8-T10-2-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB230R-C8-T10-3-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB230R-C8-T10-4-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB230R-C8-T10-5-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB230R-C8-T10-6-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB230R-C8-T10-7-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB230R-C8-T10-8-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB230R-C8-T30-2-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB230R-C8-T30-3-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB230R-C8-T30-4-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB230R-C8-T30-5-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB230R-C8-T30-6-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB230R-C8-T30-7-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB230R-C8-T30-8-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB230R-C8-T30-9-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB230R-C8-T30-10-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB230R-C8-T30-11-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB230R-C8-T30-12-3 Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB240R-C4-T10-2-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB240R-C4-T10-3-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB240R-C4-T10-4-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB240R-C4-T10-5-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB240R-C4-T10-6-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB240R-C4-T10-7-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB240R-C4-T10-8-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB240R-C4-T30-2-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB240R-C4-T30-3-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB240R-C4-T30-4-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB240R-C4-T30-5-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB240R-C4-T30-6-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB240R-C4-T30-7-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB240R-C4-T30-8-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB240R-C4-T30-9-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB240R-C4-T30-10-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB240R-C4-T30-11-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB240R-C4-T30-12-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB240R-C6-T10-2-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB240R-C6-T10-3-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB240R-C6-T10-4-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB240R-C6-T10-5-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB240R-C6-T10-6-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB240R-C6-T10-7-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB240R-C6-T10-8-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB240R-C6-T30-2-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB240R-C6-T30-3-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB240R-C6-T30-4-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB240R-C6-T30-5-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB240R-C6-T30-6-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB240R-C6-T30-7-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB240R-C6-T30-8-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB240R-C6-T30-9-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB240R-C6-T30-10-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB240R-C6-T30-11-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB240R-C6-T30-12-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB240R-C8-T10-2-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB240R-C8-T10-3-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB240R-C8-T10-4-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB240R-C8-T10-5-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB240R-C8-T10-6-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB240R-C8-T10-7-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB240R-C8-T10-8-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB240R-C8-T30-2-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB240R-C8-T30-3-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB240R-C8-T30-4-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB240R-C8-T30-5-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB240R-C8-T30-6-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB240R-C8-T30-7-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB240R-C8-T30-8-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB240R-C8-T30-9-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB240R-C8-T30-10-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB240R-C8-T30-11-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB240R-C8-T30-12-3 Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB250R-C4-T10-2-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB250R-C4-T10-3-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB250R-C4-T10-4-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB250R-C4-T10-5-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB250R-C4-T10-6-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB250R-C4-T10-7-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB250R-C4-T10-8-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB250R-C4-T30-2-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB250R-C4-T30-3-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB250R-C4-T30-4-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB250R-C4-T30-5-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB250R-C4-T30-6-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB250R-C4-T30-7-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB250R-C4-T30-8-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB250R-C4-T30-9-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB250R-C4-T30-10-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB250R-C4-T30-11-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB250R-C4-T30-12-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB250R-C6-T10-2-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB250R-C6-T10-3-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB250R-C6-T10-4-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB250R-C6-T10-5-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB250R-C6-T10-6-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB250R-C6-T10-7-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB250R-C6-T10-8-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB250R-C6-T30-2-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB250R-C6-T30-3-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB250R-C6-T30-4-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB250R-C6-T30-5-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB250R-C6-T30-6-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB250R-C6-T30-7-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB250R-C6-T30-8-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB250R-C6-T30-9-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB250R-C6-T30-10-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB250R-C6-T30-11-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB250R-C6-T30-12-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB250R-C8-T10-2-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB250R-C8-T10-3-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB250R-C8-T10-4-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB250R-C8-T10-5-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB250R-C8-T10-6-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB250R-C8-T10-7-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB250R-C8-T10-8-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB250R-C8-T30-2-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB250R-C8-T30-3-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB250R-C8-T30-4-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB250R-C8-T30-5-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB250R-C8-T30-6-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB250R-C8-T30-7-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB250R-C8-T30-8-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB250R-C8-T30-9-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB250R-C8-T30-10-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB250R-C8-T30-11-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB250R-C8-T30-12-3 Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB280R-C4-T10-2-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB280R-C4-T10-3-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB280R-C4-T10-4-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB280R-C4-T10-5-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB280R-C4-T10-6-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB280R-C4-T10-7-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB280R-C4-T10-8-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB280R-C4-T10-9-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB280R-C4-T10-10-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB280R-C4-T10-11-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB280R-C4-T10-12-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB280R-C4-T10-13-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB280R-C4-T10-14-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB280R-C4-T10-15-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB280R-C4-T10-16-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB280R-C4-T30-2-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB280R-C4-T30-3-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB280R-C4-T30-4-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB280R-C4-T30-5-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB280R-C4-T30-6-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB280R-C4-T30-7-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB280R-C4-T30-8-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB280R-C4-T30-9-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB280R-C4-T30-10-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB280R-C4-T30-11-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB280R-C4-T30-12-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB280R-C4-T30-13-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB280R-C4-T30-14-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB280R-C4-T30-15-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB280R-C4-T30-16-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB280R-C4-T30-17-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GB280R-C4-T30-18-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GB280R-C4-T30-19-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GB280R-C4-T30-20-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GB280R-C6-T10-2-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB280R-C6-T10-3-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB280R-C6-T10-4-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB280R-C6-T10-5-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB280R-C6-T10-6-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB280R-C6-T10-7-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB280R-C6-T10-8-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB280R-C6-T10-9-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB280R-C6-T10-10-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB280R-C6-T10-11-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB280R-C6-T10-12-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB280R-C6-T10-13-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB280R-C6-T10-14-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB280R-C6-T10-15-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB280R-C6-T10-16-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB280R-C6-T30-2-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB280R-C6-T30-3-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB280R-C6-T30-4-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB280R-C6-T30-5-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB280R-C6-T30-6-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB280R-C6-T30-7-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB280R-C6-T30-8-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB280R-C6-T30-9-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB280R-C6-T30-10-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB280R-C6-T30-11-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB280R-C6-T30-12-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB280R-C6-T30-13-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB280R-C6-T30-14-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB280R-C6-T30-15-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB280R-C6-T30-16-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB280R-C6-T30-17-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GB280R-C6-T30-18-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GB280R-C6-T30-19-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GB280R-C6-T30-20-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GB280R-C8-T10-2-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB280R-C8-T10-3-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB280R-C8-T10-4-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB280R-C8-T10-5-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB280R-C8-T10-6-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB280R-C8-T10-7-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB280R-C8-T10-8-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB280R-C8-T10-9-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB280R-C8-T10-10-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB280R-C8-T10-11-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB280R-C8-T10-12-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB280R-C8-T10-13-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB280R-C8-T10-14-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB280R-C8-T10-15-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB280R-C8-T10-16-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB280R-C8-T30-2-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB280R-C8-T30-3-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB280R-C8-T30-4-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB280R-C8-T30-5-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB280R-C8-T30-6-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB280R-C8-T30-7-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB280R-C8-T30-8-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB280R-C8-T30-9-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB280R-C8-T30-10-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB280R-C8-T30-11-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB280R-C8-T30-12-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB280R-C8-T30-13-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB280R-C8-T30-14-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB280R-C8-T30-15-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB280R-C8-T30-16-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB280R-C8-T30-17-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GB280R-C8-T30-18-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GB280R-C8-T30-19-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GB280R-C8-T30-20-3 Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
4GB219R-00-A2N-3 Model: 4GB2 single valve | Position: 2-pos single | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB229R-00-A2N-3 Model: 4GB2 single valve | Position: 2-pos double | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB239R-00-A2N-3 Model: 4GB2 single valve | Position: 3-pos all ports blocked | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB249R-00-A2N-3 Model: 4GB2 single valve | Position: 3-pos A-B-R connection | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB259R-00-A2N-3 Model: 4GB2 single valve | Position: 3-pos P-A-B connection | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
M4GB310R-C6-T10-2-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB310R-C6-T10-3-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB310R-C6-T10-4-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB310R-C6-T10-5-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB310R-C6-T10-6-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB310R-C6-T10-7-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB310R-C6-T10-8-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB310R-C6-T10-9-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB310R-C6-T10-10-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB310R-C6-T10-11-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB310R-C6-T10-12-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB310R-C6-T10-13-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB310R-C6-T10-14-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB310R-C6-T10-15-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB310R-C6-T10-16-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB310R-C6-T30-2-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB310R-C6-T30-3-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB310R-C6-T30-4-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB310R-C6-T30-5-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB310R-C6-T30-6-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB310R-C6-T30-7-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB310R-C6-T30-8-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB310R-C6-T30-9-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB310R-C6-T30-10-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB310R-C6-T30-11-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB310R-C6-T30-12-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB310R-C6-T30-13-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB310R-C6-T30-14-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB310R-C6-T30-15-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB310R-C6-T30-16-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB310R-C8-T10-2-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB310R-C8-T10-3-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB310R-C8-T10-4-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB310R-C8-T10-5-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB310R-C8-T10-6-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB310R-C8-T10-7-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB310R-C8-T10-8-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB310R-C8-T10-9-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB310R-C8-T10-10-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB310R-C8-T10-11-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB310R-C8-T10-12-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB310R-C8-T10-13-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB310R-C8-T10-14-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB310R-C8-T10-15-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB310R-C8-T10-16-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB310R-C8-T30-2-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB310R-C8-T30-3-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB310R-C8-T30-4-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB310R-C8-T30-5-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB310R-C8-T30-6-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB310R-C8-T30-7-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB310R-C8-T30-8-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB310R-C8-T30-9-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB310R-C8-T30-10-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB310R-C8-T30-11-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB310R-C8-T30-12-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB310R-C8-T30-13-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB310R-C8-T30-14-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB310R-C8-T30-15-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB310R-C8-T30-16-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB310R-C10-T10-2-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB310R-C10-T10-3-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB310R-C10-T10-4-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB310R-C10-T10-5-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB310R-C10-T10-6-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB310R-C10-T10-7-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB310R-C10-T10-8-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB310R-C10-T10-9-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB310R-C10-T10-10-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB310R-C10-T10-11-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB310R-C10-T10-12-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB310R-C10-T10-13-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB310R-C10-T10-14-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB310R-C10-T10-15-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB310R-C10-T10-16-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB310R-C10-T30-2-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB310R-C10-T30-3-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB310R-C10-T30-4-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB310R-C10-T30-5-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB310R-C10-T30-6-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB310R-C10-T30-7-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB310R-C10-T30-8-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB310R-C10-T30-9-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB310R-C10-T30-10-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB310R-C10-T30-11-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB310R-C10-T30-12-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB310R-C10-T30-13-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB310R-C10-T30-14-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB310R-C10-T30-15-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB310R-C10-T30-16-3 Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB320R-C6-T10-2-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB320R-C6-T10-3-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB320R-C6-T10-4-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB320R-C6-T10-5-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB320R-C6-T10-6-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB320R-C6-T10-7-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB320R-C6-T10-8-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB320R-C6-T30-2-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB320R-C6-T30-3-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB320R-C6-T30-4-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB320R-C6-T30-5-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB320R-C6-T30-6-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB320R-C6-T30-7-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB320R-C6-T30-8-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB320R-C6-T30-9-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB320R-C6-T30-10-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB320R-C6-T30-11-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB320R-C6-T30-12-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB320R-C8-T10-2-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB320R-C8-T10-3-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB320R-C8-T10-4-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB320R-C8-T10-5-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB320R-C8-T10-6-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB320R-C8-T10-7-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB320R-C8-T10-8-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB320R-C8-T30-2-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB320R-C8-T30-3-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB320R-C8-T30-4-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB320R-C8-T30-5-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB320R-C8-T30-6-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB320R-C8-T30-7-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB320R-C8-T30-8-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB320R-C8-T30-9-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB320R-C8-T30-10-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB320R-C8-T30-11-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB320R-C8-T30-12-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB320R-C10-T10-2-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB320R-C10-T10-3-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB320R-C10-T10-4-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB320R-C10-T10-5-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB320R-C10-T10-6-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB320R-C10-T10-7-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB320R-C10-T10-8-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB320R-C10-T30-2-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB320R-C10-T30-3-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB320R-C10-T30-4-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB320R-C10-T30-5-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB320R-C10-T30-6-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB320R-C10-T30-7-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB320R-C10-T30-8-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB320R-C10-T30-9-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB320R-C10-T30-10-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB320R-C10-T30-11-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB320R-C10-T30-12-3 Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB330R-C6-T10-2-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB330R-C6-T10-3-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB330R-C6-T10-4-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB330R-C6-T10-5-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB330R-C6-T10-6-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB330R-C6-T10-7-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB330R-C6-T10-8-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB330R-C6-T30-2-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB330R-C6-T30-3-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB330R-C6-T30-4-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB330R-C6-T30-5-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB330R-C6-T30-6-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB330R-C6-T30-7-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB330R-C6-T30-8-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB330R-C6-T30-9-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB330R-C6-T30-10-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB330R-C6-T30-11-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB330R-C6-T30-12-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB330R-C8-T10-2-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB330R-C8-T10-3-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB330R-C8-T10-4-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB330R-C8-T10-5-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB330R-C8-T10-6-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB330R-C8-T10-7-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB330R-C8-T10-8-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB330R-C8-T30-2-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB330R-C8-T30-3-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB330R-C8-T30-4-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB330R-C8-T30-5-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB330R-C8-T30-6-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB330R-C8-T30-7-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB330R-C8-T30-8-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB330R-C8-T30-9-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB330R-C8-T30-10-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB330R-C8-T30-11-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB330R-C8-T30-12-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB330R-C10-T10-2-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB330R-C10-T10-3-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB330R-C10-T10-4-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB330R-C10-T10-5-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB330R-C10-T10-6-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB330R-C10-T10-7-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB330R-C10-T10-8-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB330R-C10-T30-2-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB330R-C10-T30-3-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB330R-C10-T30-4-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB330R-C10-T30-5-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB330R-C10-T30-6-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB330R-C10-T30-7-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB330R-C10-T30-8-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB330R-C10-T30-9-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB330R-C10-T30-10-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB330R-C10-T30-11-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB330R-C10-T30-12-3 Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB340R-C6-T10-2-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB340R-C6-T10-3-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB340R-C6-T10-4-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB340R-C6-T10-5-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB340R-C6-T10-6-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB340R-C6-T10-7-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB340R-C6-T10-8-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB340R-C6-T30-2-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB340R-C6-T30-3-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB340R-C6-T30-4-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB340R-C6-T30-5-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB340R-C6-T30-6-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB340R-C6-T30-7-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB340R-C6-T30-8-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB340R-C6-T30-9-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB340R-C6-T30-10-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB340R-C6-T30-11-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB340R-C6-T30-12-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB340R-C8-T10-2-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB340R-C8-T10-3-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB340R-C8-T10-4-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB340R-C8-T10-5-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB340R-C8-T10-6-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB340R-C8-T10-7-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB340R-C8-T10-8-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB340R-C8-T30-2-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB340R-C8-T30-3-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB340R-C8-T30-4-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB340R-C8-T30-5-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB340R-C8-T30-6-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB340R-C8-T30-7-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB340R-C8-T30-8-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB340R-C8-T30-9-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB340R-C8-T30-10-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB340R-C8-T30-11-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB340R-C8-T30-12-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB340R-C10-T10-2-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB340R-C10-T10-3-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB340R-C10-T10-4-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB340R-C10-T10-5-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB340R-C10-T10-6-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB340R-C10-T10-7-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB340R-C10-T10-8-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB340R-C10-T30-2-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB340R-C10-T30-3-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB340R-C10-T30-4-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB340R-C10-T30-5-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB340R-C10-T30-6-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB340R-C10-T30-7-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB340R-C10-T30-8-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB340R-C10-T30-9-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB340R-C10-T30-10-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB340R-C10-T30-11-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB340R-C10-T30-12-3 Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB350R-C6-T10-2-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB350R-C6-T10-3-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB350R-C6-T10-4-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB350R-C6-T10-5-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB350R-C6-T10-6-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB350R-C6-T10-7-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB350R-C6-T10-8-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB350R-C6-T30-2-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB350R-C6-T30-3-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB350R-C6-T30-4-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB350R-C6-T30-5-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB350R-C6-T30-6-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB350R-C6-T30-7-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB350R-C6-T30-8-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB350R-C6-T30-9-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB350R-C6-T30-10-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB350R-C6-T30-11-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB350R-C6-T30-12-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB350R-C8-T10-2-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB350R-C8-T10-3-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB350R-C8-T10-4-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB350R-C8-T10-5-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB350R-C8-T10-6-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB350R-C8-T10-7-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB350R-C8-T10-8-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB350R-C8-T30-2-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB350R-C8-T30-3-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB350R-C8-T30-4-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB350R-C8-T30-5-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB350R-C8-T30-6-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB350R-C8-T30-7-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB350R-C8-T30-8-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB350R-C8-T30-9-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB350R-C8-T30-10-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB350R-C8-T30-11-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB350R-C8-T30-12-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB350R-C10-T10-2-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB350R-C10-T10-3-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB350R-C10-T10-4-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB350R-C10-T10-5-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB350R-C10-T10-6-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB350R-C10-T10-7-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB350R-C10-T10-8-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB350R-C10-T30-2-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB350R-C10-T30-3-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB350R-C10-T30-4-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB350R-C10-T30-5-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB350R-C10-T30-6-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB350R-C10-T30-7-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB350R-C10-T30-8-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB350R-C10-T30-9-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB350R-C10-T30-10-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB350R-C10-T30-11-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB350R-C10-T30-12-3 Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB380R-C6-T10-2-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB380R-C6-T10-3-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB380R-C6-T10-4-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB380R-C6-T10-5-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB380R-C6-T10-6-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB380R-C6-T10-7-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB380R-C6-T10-8-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB380R-C6-T10-9-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB380R-C6-T10-10-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB380R-C6-T10-11-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB380R-C6-T10-12-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB380R-C6-T10-13-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB380R-C6-T10-14-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB380R-C6-T10-15-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB380R-C6-T10-16-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB380R-C6-T30-2-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB380R-C6-T30-3-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB380R-C6-T30-4-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB380R-C6-T30-5-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB380R-C6-T30-6-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB380R-C6-T30-7-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB380R-C6-T30-8-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB380R-C6-T30-9-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB380R-C6-T30-10-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB380R-C6-T30-11-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB380R-C6-T30-12-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB380R-C6-T30-13-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB380R-C6-T30-14-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB380R-C6-T30-15-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB380R-C6-T30-16-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB380R-C8-T10-2-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB380R-C8-T10-3-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB380R-C8-T10-4-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB380R-C8-T10-5-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB380R-C8-T10-6-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB380R-C8-T10-7-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB380R-C8-T10-8-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB380R-C8-T10-9-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB380R-C8-T10-10-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB380R-C8-T10-11-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB380R-C8-T10-12-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB380R-C8-T10-13-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB380R-C8-T10-14-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB380R-C8-T10-15-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB380R-C8-T10-16-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB380R-C8-T30-2-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB380R-C8-T30-3-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB380R-C8-T30-4-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB380R-C8-T30-5-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB380R-C8-T30-6-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB380R-C8-T30-7-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB380R-C8-T30-8-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB380R-C8-T30-9-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB380R-C8-T30-10-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB380R-C8-T30-11-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB380R-C8-T30-12-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB380R-C8-T30-13-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB380R-C8-T30-14-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB380R-C8-T30-15-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB380R-C8-T30-16-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB380R-C10-T10-2-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB380R-C10-T10-3-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB380R-C10-T10-4-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB380R-C10-T10-5-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB380R-C10-T10-6-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB380R-C10-T10-7-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB380R-C10-T10-8-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB380R-C10-T10-9-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB380R-C10-T10-10-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB380R-C10-T10-11-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB380R-C10-T10-12-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB380R-C10-T10-13-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB380R-C10-T10-14-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB380R-C10-T10-15-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB380R-C10-T10-16-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB380R-C10-T30-2-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB380R-C10-T30-3-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB380R-C10-T30-4-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB380R-C10-T30-5-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB380R-C10-T30-6-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB380R-C10-T30-7-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB380R-C10-T30-8-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB380R-C10-T30-9-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB380R-C10-T30-10-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB380R-C10-T30-11-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB380R-C10-T30-12-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB380R-C10-T30-13-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB380R-C10-T30-14-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB380R-C10-T30-15-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB380R-C10-T30-16-3 Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
4GB319R-00-A2N-3 Model: 4GB3 single valve | Position: 2-pos single | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB329R-00-A2N-3 Model: 4GB3 single valve | Position: 2-pos double | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB339R-00-A2N-3 Model: 4GB3 single valve | Position: 3-pos all ports blocked | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB349R-00-A2N-3 Model: 4GB3 single valve | Position: 3-pos A-B-R connection | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB359R-00-A2N-3 Model: 4GB3 single valve | Position: 3-pos P-A-B connection | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
Valve ManifoldsCKD
1111 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD M4GB-T Wiring-Saving Manifold, Base Piping (4GB1/2/3)

Brand CKD·Valve Manifolds

Available part numbers (1111)

M4GB110R-C4-T10-2-3, M4GB110R-C4-T10-3-3, M4GB110R-C4-T10-4-3, M4GB110R-C4-T10-5-3, M4GB110R-C4-T10-6-3, M4GB110R-C4-T10-7-3, M4GB110R-C4-T10-8-3, M4GB110R-C4-T10-9-3, M4GB110R-C4-T10-10-3, M4GB110R-C4-T10-11-3 + 1101 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
M4GB110R-C4-T10-2-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB110R-C4-T10-3-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB110R-C4-T10-4-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB110R-C4-T10-5-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB110R-C4-T10-6-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB110R-C4-T10-7-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB110R-C4-T10-8-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB110R-C4-T10-9-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB110R-C4-T10-10-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB110R-C4-T10-11-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB110R-C4-T10-12-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB110R-C4-T10-13-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB110R-C4-T10-14-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB110R-C4-T10-15-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB110R-C4-T10-16-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB110R-C4-T30-2-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB110R-C4-T30-3-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB110R-C4-T30-4-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB110R-C4-T30-5-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB110R-C4-T30-6-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB110R-C4-T30-7-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB110R-C4-T30-8-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB110R-C4-T30-9-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB110R-C4-T30-10-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB110R-C4-T30-11-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB110R-C4-T30-12-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB110R-C4-T30-13-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB110R-C4-T30-14-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB110R-C4-T30-15-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB110R-C4-T30-16-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB110R-C4-T30-17-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GB110R-C4-T30-18-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GB110R-C4-T30-19-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GB110R-C4-T30-20-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GB110R-C6-T10-2-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB110R-C6-T10-3-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB110R-C6-T10-4-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB110R-C6-T10-5-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB110R-C6-T10-6-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB110R-C6-T10-7-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB110R-C6-T10-8-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB110R-C6-T10-9-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB110R-C6-T10-10-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB110R-C6-T10-11-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB110R-C6-T10-12-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB110R-C6-T10-13-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB110R-C6-T10-14-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB110R-C6-T10-15-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB110R-C6-T10-16-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB110R-C6-T30-2-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB110R-C6-T30-3-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB110R-C6-T30-4-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB110R-C6-T30-5-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB110R-C6-T30-6-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB110R-C6-T30-7-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB110R-C6-T30-8-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB110R-C6-T30-9-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB110R-C6-T30-10-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB110R-C6-T30-11-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB110R-C6-T30-12-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB110R-C6-T30-13-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB110R-C6-T30-14-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB110R-C6-T30-15-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB110R-C6-T30-16-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB110R-C6-T30-17-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GB110R-C6-T30-18-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GB110R-C6-T30-19-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GB110R-C6-T30-20-3Model: M4GB1 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GB120R-C4-T10-2-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB120R-C4-T10-3-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB120R-C4-T10-4-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB120R-C4-T10-5-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB120R-C4-T10-6-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB120R-C4-T10-7-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB120R-C4-T10-8-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB120R-C4-T30-2-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB120R-C4-T30-3-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB120R-C4-T30-4-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB120R-C4-T30-5-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB120R-C4-T30-6-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB120R-C4-T30-7-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB120R-C4-T30-8-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB120R-C4-T30-9-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB120R-C4-T30-10-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB120R-C4-T30-11-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB120R-C4-T30-12-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB120R-C6-T10-2-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB120R-C6-T10-3-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB120R-C6-T10-4-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB120R-C6-T10-5-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB120R-C6-T10-6-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB120R-C6-T10-7-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB120R-C6-T10-8-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB120R-C6-T30-2-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB120R-C6-T30-3-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB120R-C6-T30-4-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB120R-C6-T30-5-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB120R-C6-T30-6-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB120R-C6-T30-7-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB120R-C6-T30-8-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB120R-C6-T30-9-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB120R-C6-T30-10-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB120R-C6-T30-11-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB120R-C6-T30-12-3Model: M4GB1 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB130R-C4-T10-2-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB130R-C4-T10-3-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB130R-C4-T10-4-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB130R-C4-T10-5-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB130R-C4-T10-6-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB130R-C4-T10-7-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB130R-C4-T10-8-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB130R-C4-T30-2-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB130R-C4-T30-3-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB130R-C4-T30-4-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB130R-C4-T30-5-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB130R-C4-T30-6-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB130R-C4-T30-7-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB130R-C4-T30-8-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB130R-C4-T30-9-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB130R-C4-T30-10-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB130R-C4-T30-11-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB130R-C4-T30-12-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB130R-C6-T10-2-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB130R-C6-T10-3-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB130R-C6-T10-4-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB130R-C6-T10-5-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB130R-C6-T10-6-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB130R-C6-T10-7-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB130R-C6-T10-8-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB130R-C6-T30-2-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB130R-C6-T30-3-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB130R-C6-T30-4-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB130R-C6-T30-5-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB130R-C6-T30-6-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB130R-C6-T30-7-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB130R-C6-T30-8-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB130R-C6-T30-9-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB130R-C6-T30-10-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB130R-C6-T30-11-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB130R-C6-T30-12-3Model: M4GB1 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB140R-C4-T10-2-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB140R-C4-T10-3-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB140R-C4-T10-4-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB140R-C4-T10-5-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB140R-C4-T10-6-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB140R-C4-T10-7-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB140R-C4-T10-8-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB140R-C4-T30-2-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB140R-C4-T30-3-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB140R-C4-T30-4-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB140R-C4-T30-5-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB140R-C4-T30-6-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB140R-C4-T30-7-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB140R-C4-T30-8-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB140R-C4-T30-9-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB140R-C4-T30-10-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB140R-C4-T30-11-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB140R-C4-T30-12-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB140R-C6-T10-2-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB140R-C6-T10-3-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB140R-C6-T10-4-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB140R-C6-T10-5-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB140R-C6-T10-6-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB140R-C6-T10-7-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB140R-C6-T10-8-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB140R-C6-T30-2-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB140R-C6-T30-3-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB140R-C6-T30-4-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB140R-C6-T30-5-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB140R-C6-T30-6-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB140R-C6-T30-7-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB140R-C6-T30-8-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB140R-C6-T30-9-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB140R-C6-T30-10-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB140R-C6-T30-11-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB140R-C6-T30-12-3Model: M4GB1 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB150R-C4-T10-2-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB150R-C4-T10-3-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB150R-C4-T10-4-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB150R-C4-T10-5-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB150R-C4-T10-6-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB150R-C4-T10-7-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB150R-C4-T10-8-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB150R-C4-T30-2-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB150R-C4-T30-3-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB150R-C4-T30-4-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB150R-C4-T30-5-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB150R-C4-T30-6-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB150R-C4-T30-7-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB150R-C4-T30-8-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB150R-C4-T30-9-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB150R-C4-T30-10-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB150R-C4-T30-11-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB150R-C4-T30-12-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB150R-C6-T10-2-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB150R-C6-T10-3-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB150R-C6-T10-4-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB150R-C6-T10-5-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB150R-C6-T10-6-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB150R-C6-T10-7-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB150R-C6-T10-8-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB150R-C6-T30-2-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB150R-C6-T30-3-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB150R-C6-T30-4-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB150R-C6-T30-5-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB150R-C6-T30-6-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB150R-C6-T30-7-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB150R-C6-T30-8-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB150R-C6-T30-9-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB150R-C6-T30-10-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB150R-C6-T30-11-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB150R-C6-T30-12-3Model: M4GB1 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB180R-C4-T10-2-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB180R-C4-T10-3-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB180R-C4-T10-4-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB180R-C4-T10-5-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB180R-C4-T10-6-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB180R-C4-T10-7-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB180R-C4-T10-8-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB180R-C4-T10-9-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB180R-C4-T10-10-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB180R-C4-T10-11-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB180R-C4-T10-12-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB180R-C4-T10-13-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB180R-C4-T10-14-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB180R-C4-T10-15-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB180R-C4-T10-16-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB180R-C4-T30-2-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB180R-C4-T30-3-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB180R-C4-T30-4-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB180R-C4-T30-5-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB180R-C4-T30-6-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB180R-C4-T30-7-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB180R-C4-T30-8-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB180R-C4-T30-9-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB180R-C4-T30-10-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB180R-C4-T30-11-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB180R-C4-T30-12-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB180R-C4-T30-13-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB180R-C4-T30-14-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB180R-C4-T30-15-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB180R-C4-T30-16-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB180R-C4-T30-17-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GB180R-C4-T30-18-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GB180R-C4-T30-19-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GB180R-C4-T30-20-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GB180R-C6-T10-2-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB180R-C6-T10-3-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB180R-C6-T10-4-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB180R-C6-T10-5-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB180R-C6-T10-6-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB180R-C6-T10-7-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB180R-C6-T10-8-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB180R-C6-T10-9-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB180R-C6-T10-10-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB180R-C6-T10-11-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB180R-C6-T10-12-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB180R-C6-T10-13-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB180R-C6-T10-14-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB180R-C6-T10-15-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB180R-C6-T10-16-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB180R-C6-T30-2-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB180R-C6-T30-3-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB180R-C6-T30-4-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB180R-C6-T30-5-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB180R-C6-T30-6-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB180R-C6-T30-7-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB180R-C6-T30-8-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB180R-C6-T30-9-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB180R-C6-T30-10-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB180R-C6-T30-11-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB180R-C6-T30-12-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB180R-C6-T30-13-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB180R-C6-T30-14-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB180R-C6-T30-15-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB180R-C6-T30-16-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB180R-C6-T30-17-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GB180R-C6-T30-18-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GB180R-C6-T30-19-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GB180R-C6-T30-20-3Model: M4GB1 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
4GB119R-00-A2N-3Model: 4GB1 single valve | Position: 2-pos single | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB129R-00-A2N-3Model: 4GB1 single valve | Position: 2-pos double | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB139R-00-A2N-3Model: 4GB1 single valve | Position: 3-pos all ports blocked | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB149R-00-A2N-3Model: 4GB1 single valve | Position: 3-pos A-B-R connection | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB159R-00-A2N-3Model: 4GB1 single valve | Position: 3-pos P-A-B connection | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
M4GB210R-C4-T10-2-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB210R-C4-T10-3-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB210R-C4-T10-4-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB210R-C4-T10-5-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB210R-C4-T10-6-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB210R-C4-T10-7-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB210R-C4-T10-8-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB210R-C4-T10-9-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB210R-C4-T10-10-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB210R-C4-T10-11-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB210R-C4-T10-12-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB210R-C4-T10-13-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB210R-C4-T10-14-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB210R-C4-T10-15-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB210R-C4-T10-16-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB210R-C4-T30-2-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB210R-C4-T30-3-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB210R-C4-T30-4-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB210R-C4-T30-5-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB210R-C4-T30-6-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB210R-C4-T30-7-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB210R-C4-T30-8-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB210R-C4-T30-9-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB210R-C4-T30-10-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB210R-C4-T30-11-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB210R-C4-T30-12-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB210R-C4-T30-13-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB210R-C4-T30-14-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB210R-C4-T30-15-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB210R-C4-T30-16-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB210R-C4-T30-17-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GB210R-C4-T30-18-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GB210R-C4-T30-19-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GB210R-C4-T30-20-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GB210R-C6-T10-2-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB210R-C6-T10-3-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB210R-C6-T10-4-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB210R-C6-T10-5-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB210R-C6-T10-6-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB210R-C6-T10-7-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB210R-C6-T10-8-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB210R-C6-T10-9-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB210R-C6-T10-10-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB210R-C6-T10-11-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB210R-C6-T10-12-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB210R-C6-T10-13-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB210R-C6-T10-14-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB210R-C6-T10-15-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB210R-C6-T10-16-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB210R-C6-T30-2-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB210R-C6-T30-3-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB210R-C6-T30-4-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB210R-C6-T30-5-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB210R-C6-T30-6-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB210R-C6-T30-7-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB210R-C6-T30-8-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB210R-C6-T30-9-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB210R-C6-T30-10-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB210R-C6-T30-11-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB210R-C6-T30-12-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB210R-C6-T30-13-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB210R-C6-T30-14-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB210R-C6-T30-15-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB210R-C6-T30-16-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB210R-C6-T30-17-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GB210R-C6-T30-18-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GB210R-C6-T30-19-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GB210R-C6-T30-20-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GB210R-C8-T10-2-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB210R-C8-T10-3-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB210R-C8-T10-4-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB210R-C8-T10-5-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB210R-C8-T10-6-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB210R-C8-T10-7-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB210R-C8-T10-8-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB210R-C8-T10-9-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB210R-C8-T10-10-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB210R-C8-T10-11-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB210R-C8-T10-12-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB210R-C8-T10-13-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB210R-C8-T10-14-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB210R-C8-T10-15-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB210R-C8-T10-16-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB210R-C8-T30-2-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB210R-C8-T30-3-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB210R-C8-T30-4-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB210R-C8-T30-5-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB210R-C8-T30-6-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB210R-C8-T30-7-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB210R-C8-T30-8-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB210R-C8-T30-9-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB210R-C8-T30-10-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB210R-C8-T30-11-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB210R-C8-T30-12-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB210R-C8-T30-13-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB210R-C8-T30-14-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB210R-C8-T30-15-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB210R-C8-T30-16-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB210R-C8-T30-17-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GB210R-C8-T30-18-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GB210R-C8-T30-19-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GB210R-C8-T30-20-3Model: M4GB2 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GB220R-C4-T10-2-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB220R-C4-T10-3-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB220R-C4-T10-4-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB220R-C4-T10-5-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB220R-C4-T10-6-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB220R-C4-T10-7-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB220R-C4-T10-8-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB220R-C4-T30-2-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB220R-C4-T30-3-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB220R-C4-T30-4-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB220R-C4-T30-5-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB220R-C4-T30-6-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB220R-C4-T30-7-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB220R-C4-T30-8-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB220R-C4-T30-9-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB220R-C4-T30-10-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB220R-C4-T30-11-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB220R-C4-T30-12-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB220R-C6-T10-2-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB220R-C6-T10-3-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB220R-C6-T10-4-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB220R-C6-T10-5-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB220R-C6-T10-6-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB220R-C6-T10-7-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB220R-C6-T10-8-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB220R-C6-T30-2-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB220R-C6-T30-3-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB220R-C6-T30-4-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB220R-C6-T30-5-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB220R-C6-T30-6-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB220R-C6-T30-7-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB220R-C6-T30-8-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB220R-C6-T30-9-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB220R-C6-T30-10-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB220R-C6-T30-11-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB220R-C6-T30-12-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB220R-C8-T10-2-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB220R-C8-T10-3-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB220R-C8-T10-4-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB220R-C8-T10-5-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB220R-C8-T10-6-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB220R-C8-T10-7-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB220R-C8-T10-8-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB220R-C8-T30-2-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB220R-C8-T30-3-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB220R-C8-T30-4-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB220R-C8-T30-5-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB220R-C8-T30-6-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB220R-C8-T30-7-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB220R-C8-T30-8-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB220R-C8-T30-9-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB220R-C8-T30-10-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB220R-C8-T30-11-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB220R-C8-T30-12-3Model: M4GB2 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB230R-C4-T10-2-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB230R-C4-T10-3-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB230R-C4-T10-4-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB230R-C4-T10-5-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB230R-C4-T10-6-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB230R-C4-T10-7-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB230R-C4-T10-8-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB230R-C4-T30-2-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB230R-C4-T30-3-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB230R-C4-T30-4-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB230R-C4-T30-5-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB230R-C4-T30-6-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB230R-C4-T30-7-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB230R-C4-T30-8-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB230R-C4-T30-9-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB230R-C4-T30-10-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB230R-C4-T30-11-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB230R-C4-T30-12-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB230R-C6-T10-2-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB230R-C6-T10-3-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB230R-C6-T10-4-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB230R-C6-T10-5-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB230R-C6-T10-6-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB230R-C6-T10-7-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB230R-C6-T10-8-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB230R-C6-T30-2-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB230R-C6-T30-3-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB230R-C6-T30-4-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB230R-C6-T30-5-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB230R-C6-T30-6-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB230R-C6-T30-7-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB230R-C6-T30-8-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB230R-C6-T30-9-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB230R-C6-T30-10-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB230R-C6-T30-11-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB230R-C6-T30-12-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB230R-C8-T10-2-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB230R-C8-T10-3-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB230R-C8-T10-4-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB230R-C8-T10-5-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB230R-C8-T10-6-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB230R-C8-T10-7-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB230R-C8-T10-8-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB230R-C8-T30-2-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB230R-C8-T30-3-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB230R-C8-T30-4-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB230R-C8-T30-5-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB230R-C8-T30-6-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB230R-C8-T30-7-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB230R-C8-T30-8-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB230R-C8-T30-9-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB230R-C8-T30-10-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB230R-C8-T30-11-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB230R-C8-T30-12-3Model: M4GB2 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB240R-C4-T10-2-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB240R-C4-T10-3-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB240R-C4-T10-4-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB240R-C4-T10-5-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB240R-C4-T10-6-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB240R-C4-T10-7-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB240R-C4-T10-8-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB240R-C4-T30-2-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB240R-C4-T30-3-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB240R-C4-T30-4-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB240R-C4-T30-5-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB240R-C4-T30-6-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB240R-C4-T30-7-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB240R-C4-T30-8-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB240R-C4-T30-9-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB240R-C4-T30-10-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB240R-C4-T30-11-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB240R-C4-T30-12-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB240R-C6-T10-2-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB240R-C6-T10-3-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB240R-C6-T10-4-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB240R-C6-T10-5-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB240R-C6-T10-6-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB240R-C6-T10-7-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB240R-C6-T10-8-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB240R-C6-T30-2-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB240R-C6-T30-3-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB240R-C6-T30-4-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB240R-C6-T30-5-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB240R-C6-T30-6-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB240R-C6-T30-7-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB240R-C6-T30-8-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB240R-C6-T30-9-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB240R-C6-T30-10-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB240R-C6-T30-11-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB240R-C6-T30-12-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB240R-C8-T10-2-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB240R-C8-T10-3-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB240R-C8-T10-4-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB240R-C8-T10-5-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB240R-C8-T10-6-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB240R-C8-T10-7-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB240R-C8-T10-8-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB240R-C8-T30-2-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB240R-C8-T30-3-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB240R-C8-T30-4-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB240R-C8-T30-5-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB240R-C8-T30-6-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB240R-C8-T30-7-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB240R-C8-T30-8-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB240R-C8-T30-9-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB240R-C8-T30-10-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB240R-C8-T30-11-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB240R-C8-T30-12-3Model: M4GB2 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB250R-C4-T10-2-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB250R-C4-T10-3-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB250R-C4-T10-4-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB250R-C4-T10-5-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB250R-C4-T10-6-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB250R-C4-T10-7-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB250R-C4-T10-8-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB250R-C4-T30-2-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB250R-C4-T30-3-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB250R-C4-T30-4-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB250R-C4-T30-5-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB250R-C4-T30-6-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB250R-C4-T30-7-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB250R-C4-T30-8-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB250R-C4-T30-9-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB250R-C4-T30-10-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB250R-C4-T30-11-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB250R-C4-T30-12-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB250R-C6-T10-2-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB250R-C6-T10-3-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB250R-C6-T10-4-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB250R-C6-T10-5-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB250R-C6-T10-6-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB250R-C6-T10-7-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB250R-C6-T10-8-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB250R-C6-T30-2-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB250R-C6-T30-3-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB250R-C6-T30-4-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB250R-C6-T30-5-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB250R-C6-T30-6-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB250R-C6-T30-7-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB250R-C6-T30-8-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB250R-C6-T30-9-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB250R-C6-T30-10-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB250R-C6-T30-11-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB250R-C6-T30-12-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB250R-C8-T10-2-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB250R-C8-T10-3-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB250R-C8-T10-4-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB250R-C8-T10-5-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB250R-C8-T10-6-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB250R-C8-T10-7-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB250R-C8-T10-8-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB250R-C8-T30-2-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB250R-C8-T30-3-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB250R-C8-T30-4-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB250R-C8-T30-5-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB250R-C8-T30-6-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB250R-C8-T30-7-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB250R-C8-T30-8-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB250R-C8-T30-9-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB250R-C8-T30-10-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB250R-C8-T30-11-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB250R-C8-T30-12-3Model: M4GB2 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB280R-C4-T10-2-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB280R-C4-T10-3-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB280R-C4-T10-4-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB280R-C4-T10-5-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB280R-C4-T10-6-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB280R-C4-T10-7-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB280R-C4-T10-8-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB280R-C4-T10-9-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB280R-C4-T10-10-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB280R-C4-T10-11-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB280R-C4-T10-12-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB280R-C4-T10-13-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB280R-C4-T10-14-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB280R-C4-T10-15-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB280R-C4-T10-16-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB280R-C4-T30-2-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB280R-C4-T30-3-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB280R-C4-T30-4-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB280R-C4-T30-5-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB280R-C4-T30-6-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB280R-C4-T30-7-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB280R-C4-T30-8-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB280R-C4-T30-9-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB280R-C4-T30-10-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB280R-C4-T30-11-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB280R-C4-T30-12-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB280R-C4-T30-13-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB280R-C4-T30-14-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB280R-C4-T30-15-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB280R-C4-T30-16-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB280R-C4-T30-17-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GB280R-C4-T30-18-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GB280R-C4-T30-19-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GB280R-C4-T30-20-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 4 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GB280R-C6-T10-2-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB280R-C6-T10-3-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB280R-C6-T10-4-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB280R-C6-T10-5-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB280R-C6-T10-6-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB280R-C6-T10-7-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB280R-C6-T10-8-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB280R-C6-T10-9-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB280R-C6-T10-10-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB280R-C6-T10-11-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB280R-C6-T10-12-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB280R-C6-T10-13-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB280R-C6-T10-14-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB280R-C6-T10-15-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB280R-C6-T10-16-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB280R-C6-T30-2-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB280R-C6-T30-3-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB280R-C6-T30-4-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB280R-C6-T30-5-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB280R-C6-T30-6-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB280R-C6-T30-7-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB280R-C6-T30-8-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB280R-C6-T30-9-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB280R-C6-T30-10-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB280R-C6-T30-11-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB280R-C6-T30-12-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB280R-C6-T30-13-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB280R-C6-T30-14-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB280R-C6-T30-15-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB280R-C6-T30-16-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB280R-C6-T30-17-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GB280R-C6-T30-18-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GB280R-C6-T30-19-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GB280R-C6-T30-20-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
M4GB280R-C8-T10-2-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB280R-C8-T10-3-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB280R-C8-T10-4-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB280R-C8-T10-5-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB280R-C8-T10-6-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB280R-C8-T10-7-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB280R-C8-T10-8-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB280R-C8-T10-9-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB280R-C8-T10-10-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB280R-C8-T10-11-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB280R-C8-T10-12-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB280R-C8-T10-13-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB280R-C8-T10-14-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB280R-C8-T10-15-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB280R-C8-T10-16-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB280R-C8-T30-2-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB280R-C8-T30-3-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB280R-C8-T30-4-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB280R-C8-T30-5-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB280R-C8-T30-6-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB280R-C8-T30-7-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB280R-C8-T30-8-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB280R-C8-T30-9-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB280R-C8-T30-10-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB280R-C8-T30-11-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB280R-C8-T30-12-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB280R-C8-T30-13-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB280R-C8-T30-14-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB280R-C8-T30-15-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB280R-C8-T30-16-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB280R-C8-T30-17-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 17
M4GB280R-C8-T30-18-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 18
M4GB280R-C8-T30-19-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 19
M4GB280R-C8-T30-20-3Model: M4GB2 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 20
4GB219R-00-A2N-3Model: 4GB2 single valve | Position: 2-pos single | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB229R-00-A2N-3Model: 4GB2 single valve | Position: 2-pos double | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB239R-00-A2N-3Model: 4GB2 single valve | Position: 3-pos all ports blocked | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB249R-00-A2N-3Model: 4GB2 single valve | Position: 3-pos A-B-R connection | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB259R-00-A2N-3Model: 4GB2 single valve | Position: 3-pos P-A-B connection | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
M4GB310R-C6-T10-2-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB310R-C6-T10-3-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB310R-C6-T10-4-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB310R-C6-T10-5-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB310R-C6-T10-6-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB310R-C6-T10-7-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB310R-C6-T10-8-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB310R-C6-T10-9-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB310R-C6-T10-10-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB310R-C6-T10-11-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB310R-C6-T10-12-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB310R-C6-T10-13-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB310R-C6-T10-14-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB310R-C6-T10-15-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB310R-C6-T10-16-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB310R-C6-T30-2-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB310R-C6-T30-3-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB310R-C6-T30-4-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB310R-C6-T30-5-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB310R-C6-T30-6-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB310R-C6-T30-7-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB310R-C6-T30-8-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB310R-C6-T30-9-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB310R-C6-T30-10-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB310R-C6-T30-11-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB310R-C6-T30-12-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB310R-C6-T30-13-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB310R-C6-T30-14-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB310R-C6-T30-15-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB310R-C6-T30-16-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB310R-C8-T10-2-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB310R-C8-T10-3-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB310R-C8-T10-4-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB310R-C8-T10-5-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB310R-C8-T10-6-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB310R-C8-T10-7-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB310R-C8-T10-8-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB310R-C8-T10-9-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB310R-C8-T10-10-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB310R-C8-T10-11-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB310R-C8-T10-12-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB310R-C8-T10-13-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB310R-C8-T10-14-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB310R-C8-T10-15-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB310R-C8-T10-16-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB310R-C8-T30-2-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB310R-C8-T30-3-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB310R-C8-T30-4-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB310R-C8-T30-5-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB310R-C8-T30-6-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB310R-C8-T30-7-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB310R-C8-T30-8-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB310R-C8-T30-9-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB310R-C8-T30-10-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB310R-C8-T30-11-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB310R-C8-T30-12-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB310R-C8-T30-13-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB310R-C8-T30-14-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB310R-C8-T30-15-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB310R-C8-T30-16-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB310R-C10-T10-2-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB310R-C10-T10-3-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB310R-C10-T10-4-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB310R-C10-T10-5-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB310R-C10-T10-6-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB310R-C10-T10-7-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB310R-C10-T10-8-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB310R-C10-T10-9-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB310R-C10-T10-10-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB310R-C10-T10-11-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB310R-C10-T10-12-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB310R-C10-T10-13-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB310R-C10-T10-14-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB310R-C10-T10-15-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB310R-C10-T10-16-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB310R-C10-T30-2-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB310R-C10-T30-3-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB310R-C10-T30-4-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB310R-C10-T30-5-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB310R-C10-T30-6-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB310R-C10-T30-7-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB310R-C10-T30-8-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB310R-C10-T30-9-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB310R-C10-T30-10-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB310R-C10-T30-11-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB310R-C10-T30-12-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB310R-C10-T30-13-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB310R-C10-T30-14-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB310R-C10-T30-15-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB310R-C10-T30-16-3Model: M4GB3 manifold | Position: 2-pos single | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB320R-C6-T10-2-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB320R-C6-T10-3-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB320R-C6-T10-4-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB320R-C6-T10-5-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB320R-C6-T10-6-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB320R-C6-T10-7-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB320R-C6-T10-8-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB320R-C6-T30-2-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB320R-C6-T30-3-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB320R-C6-T30-4-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB320R-C6-T30-5-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB320R-C6-T30-6-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB320R-C6-T30-7-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB320R-C6-T30-8-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB320R-C6-T30-9-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB320R-C6-T30-10-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB320R-C6-T30-11-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB320R-C6-T30-12-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB320R-C8-T10-2-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB320R-C8-T10-3-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB320R-C8-T10-4-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB320R-C8-T10-5-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB320R-C8-T10-6-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB320R-C8-T10-7-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB320R-C8-T10-8-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB320R-C8-T30-2-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB320R-C8-T30-3-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB320R-C8-T30-4-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB320R-C8-T30-5-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB320R-C8-T30-6-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB320R-C8-T30-7-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB320R-C8-T30-8-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB320R-C8-T30-9-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB320R-C8-T30-10-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB320R-C8-T30-11-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB320R-C8-T30-12-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB320R-C10-T10-2-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB320R-C10-T10-3-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB320R-C10-T10-4-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB320R-C10-T10-5-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB320R-C10-T10-6-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB320R-C10-T10-7-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB320R-C10-T10-8-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB320R-C10-T30-2-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB320R-C10-T30-3-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB320R-C10-T30-4-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB320R-C10-T30-5-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB320R-C10-T30-6-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB320R-C10-T30-7-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB320R-C10-T30-8-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB320R-C10-T30-9-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB320R-C10-T30-10-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB320R-C10-T30-11-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB320R-C10-T30-12-3Model: M4GB3 manifold | Position: 2-pos double | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB330R-C6-T10-2-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB330R-C6-T10-3-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB330R-C6-T10-4-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB330R-C6-T10-5-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB330R-C6-T10-6-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB330R-C6-T10-7-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB330R-C6-T10-8-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB330R-C6-T30-2-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB330R-C6-T30-3-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB330R-C6-T30-4-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB330R-C6-T30-5-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB330R-C6-T30-6-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB330R-C6-T30-7-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB330R-C6-T30-8-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB330R-C6-T30-9-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB330R-C6-T30-10-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB330R-C6-T30-11-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB330R-C6-T30-12-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB330R-C8-T10-2-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB330R-C8-T10-3-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB330R-C8-T10-4-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB330R-C8-T10-5-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB330R-C8-T10-6-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB330R-C8-T10-7-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB330R-C8-T10-8-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB330R-C8-T30-2-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB330R-C8-T30-3-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB330R-C8-T30-4-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB330R-C8-T30-5-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB330R-C8-T30-6-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB330R-C8-T30-7-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB330R-C8-T30-8-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB330R-C8-T30-9-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB330R-C8-T30-10-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB330R-C8-T30-11-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB330R-C8-T30-12-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB330R-C10-T10-2-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB330R-C10-T10-3-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB330R-C10-T10-4-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB330R-C10-T10-5-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB330R-C10-T10-6-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB330R-C10-T10-7-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB330R-C10-T10-8-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB330R-C10-T30-2-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB330R-C10-T30-3-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB330R-C10-T30-4-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB330R-C10-T30-5-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB330R-C10-T30-6-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB330R-C10-T30-7-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB330R-C10-T30-8-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB330R-C10-T30-9-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB330R-C10-T30-10-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB330R-C10-T30-11-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB330R-C10-T30-12-3Model: M4GB3 manifold | Position: 3-pos all ports blocked | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB340R-C6-T10-2-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB340R-C6-T10-3-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB340R-C6-T10-4-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB340R-C6-T10-5-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB340R-C6-T10-6-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB340R-C6-T10-7-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB340R-C6-T10-8-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB340R-C6-T30-2-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB340R-C6-T30-3-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB340R-C6-T30-4-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB340R-C6-T30-5-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB340R-C6-T30-6-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB340R-C6-T30-7-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB340R-C6-T30-8-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB340R-C6-T30-9-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB340R-C6-T30-10-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB340R-C6-T30-11-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB340R-C6-T30-12-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB340R-C8-T10-2-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB340R-C8-T10-3-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB340R-C8-T10-4-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB340R-C8-T10-5-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB340R-C8-T10-6-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB340R-C8-T10-7-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB340R-C8-T10-8-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB340R-C8-T30-2-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB340R-C8-T30-3-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB340R-C8-T30-4-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB340R-C8-T30-5-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB340R-C8-T30-6-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB340R-C8-T30-7-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB340R-C8-T30-8-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB340R-C8-T30-9-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB340R-C8-T30-10-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB340R-C8-T30-11-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB340R-C8-T30-12-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB340R-C10-T10-2-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB340R-C10-T10-3-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB340R-C10-T10-4-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB340R-C10-T10-5-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB340R-C10-T10-6-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB340R-C10-T10-7-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB340R-C10-T10-8-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB340R-C10-T30-2-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB340R-C10-T30-3-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB340R-C10-T30-4-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB340R-C10-T30-5-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB340R-C10-T30-6-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB340R-C10-T30-7-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB340R-C10-T30-8-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB340R-C10-T30-9-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB340R-C10-T30-10-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB340R-C10-T30-11-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB340R-C10-T30-12-3Model: M4GB3 manifold | Position: 3-pos A-B-R connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB350R-C6-T10-2-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB350R-C6-T10-3-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB350R-C6-T10-4-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB350R-C6-T10-5-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB350R-C6-T10-6-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB350R-C6-T10-7-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB350R-C6-T10-8-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB350R-C6-T30-2-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB350R-C6-T30-3-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB350R-C6-T30-4-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB350R-C6-T30-5-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB350R-C6-T30-6-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB350R-C6-T30-7-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB350R-C6-T30-8-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB350R-C6-T30-9-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB350R-C6-T30-10-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB350R-C6-T30-11-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB350R-C6-T30-12-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB350R-C8-T10-2-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB350R-C8-T10-3-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB350R-C8-T10-4-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB350R-C8-T10-5-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB350R-C8-T10-6-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB350R-C8-T10-7-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB350R-C8-T10-8-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB350R-C8-T30-2-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB350R-C8-T30-3-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB350R-C8-T30-4-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB350R-C8-T30-5-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB350R-C8-T30-6-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB350R-C8-T30-7-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB350R-C8-T30-8-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB350R-C8-T30-9-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB350R-C8-T30-10-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB350R-C8-T30-11-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB350R-C8-T30-12-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB350R-C10-T10-2-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB350R-C10-T10-3-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB350R-C10-T10-4-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB350R-C10-T10-5-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB350R-C10-T10-6-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB350R-C10-T10-7-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB350R-C10-T10-8-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB350R-C10-T30-2-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB350R-C10-T30-3-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB350R-C10-T30-4-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB350R-C10-T30-5-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB350R-C10-T30-6-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB350R-C10-T30-7-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB350R-C10-T30-8-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB350R-C10-T30-9-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB350R-C10-T30-10-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB350R-C10-T30-11-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB350R-C10-T30-12-3Model: M4GB3 manifold | Position: 3-pos P-A-B connection | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB380R-C6-T10-2-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB380R-C6-T10-3-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB380R-C6-T10-4-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB380R-C6-T10-5-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB380R-C6-T10-6-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB380R-C6-T10-7-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB380R-C6-T10-8-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB380R-C6-T10-9-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB380R-C6-T10-10-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB380R-C6-T10-11-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB380R-C6-T10-12-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB380R-C6-T10-13-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB380R-C6-T10-14-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB380R-C6-T10-15-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB380R-C6-T10-16-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB380R-C6-T30-2-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB380R-C6-T30-3-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB380R-C6-T30-4-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB380R-C6-T30-5-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB380R-C6-T30-6-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB380R-C6-T30-7-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB380R-C6-T30-8-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB380R-C6-T30-9-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB380R-C6-T30-10-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB380R-C6-T30-11-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB380R-C6-T30-12-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB380R-C6-T30-13-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB380R-C6-T30-14-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB380R-C6-T30-15-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB380R-C6-T30-16-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 6 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB380R-C8-T10-2-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB380R-C8-T10-3-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB380R-C8-T10-4-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB380R-C8-T10-5-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB380R-C8-T10-6-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB380R-C8-T10-7-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB380R-C8-T10-8-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB380R-C8-T10-9-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB380R-C8-T10-10-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB380R-C8-T10-11-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB380R-C8-T10-12-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB380R-C8-T10-13-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB380R-C8-T10-14-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB380R-C8-T10-15-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB380R-C8-T10-16-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB380R-C8-T30-2-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB380R-C8-T30-3-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB380R-C8-T30-4-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB380R-C8-T30-5-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB380R-C8-T30-6-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB380R-C8-T30-7-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB380R-C8-T30-8-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB380R-C8-T30-9-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB380R-C8-T30-10-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB380R-C8-T30-11-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB380R-C8-T30-12-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB380R-C8-T30-13-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB380R-C8-T30-14-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB380R-C8-T30-15-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB380R-C8-T30-16-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 8 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
M4GB380R-C10-T10-2-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 2
M4GB380R-C10-T10-3-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 3
M4GB380R-C10-T10-4-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 4
M4GB380R-C10-T10-5-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 5
M4GB380R-C10-T10-6-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 6
M4GB380R-C10-T10-7-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 7
M4GB380R-C10-T10-8-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 8
M4GB380R-C10-T10-9-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 9
M4GB380R-C10-T10-10-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 10
M4GB380R-C10-T10-11-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 11
M4GB380R-C10-T10-12-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 12
M4GB380R-C10-T10-13-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 13
M4GB380R-C10-T10-14-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 14
M4GB380R-C10-T10-15-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 15
M4GB380R-C10-T10-16-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: Terminal block M3 (T10) | Stations: 16
M4GB380R-C10-T30-2-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 2
M4GB380R-C10-T30-3-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 3
M4GB380R-C10-T30-4-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 4
M4GB380R-C10-T30-5-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 5
M4GB380R-C10-T30-6-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 6
M4GB380R-C10-T30-7-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 7
M4GB380R-C10-T30-8-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 8
M4GB380R-C10-T30-9-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 9
M4GB380R-C10-T30-10-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 10
M4GB380R-C10-T30-11-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 11
M4GB380R-C10-T30-12-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 12
M4GB380R-C10-T30-13-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 13
M4GB380R-C10-T30-14-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 14
M4GB380R-C10-T30-15-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 15
M4GB380R-C10-T30-16-3Model: M4GB3 manifold | Position: Mixed manifold | A/B port: Push-in 10 mm | Wiring: D-sub 25-pin (T30) | Stations: 16
4GB319R-00-A2N-3Model: 4GB3 single valve | Position: 2-pos single | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB329R-00-A2N-3Model: 4GB3 single valve | Position: 2-pos double | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB339R-00-A2N-3Model: 4GB3 single valve | Position: 3-pos all ports blocked | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB349R-00-A2N-3Model: 4GB3 single valve | Position: 3-pos A-B-R connection | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve
4GB359R-00-A2N-3Model: 4GB3 single valve | Position: 3-pos P-A-B connection | A/B port: On sub-base (base piping) | Wiring: A2N socket, no lead wire | Stations: Single valve

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
