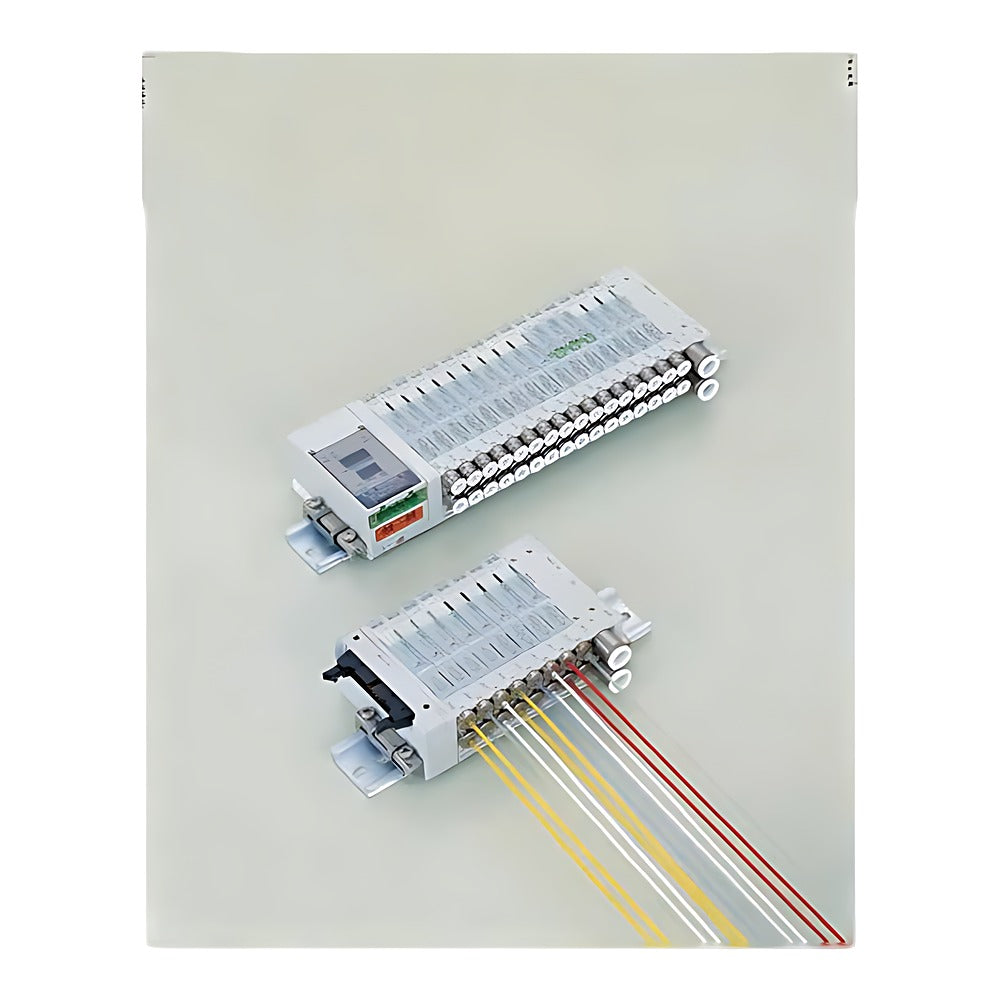

CKD M4GB4-D Individual Wiring Manifold (DIN Rail Mount, 2-5 Stn)

CKD M4GB4-D Individual Wiring Manifold (DIN Rail Mount, 2-5 Stn)

DIN-rail-mount version of the CKD M4GB4 individual-wiring manifold for 4GB4 valves, 2 to 5 stations with supply/exhaust block.

Key features

  • DIN rail mount (option D) always combined with supply/exhaust block (Q)
  • Rc3/8 P/R1/R2 base only, maximum 5 stations
  • A/B ports: one-touch fittings 8/10/12 mm, Rc1/4 or Rc3/8
  • Vibration max 30 m/s2, shock max 150 m/s2 when DIN mounted
  • Codes shown with grommet lead wire; other connections and options available

Specifications

Supply / exhaust Common supply, common exhaust
Valve Pilot-operated soft spool, 5-port
Operating pressure 0.2 to 0.7 MPa
Ambient temperature -5 to 55 C (no freezing)
Applicable cylinder bore 100 to 140 mm
Manifold type Metal one-piece base, DIN rail mount
P/R1/R2 base Rc3/8
Electrical connection Grommet lead wire 300 mm
Source CKD Korea catalog CB-023SK-9, p. 818-835
M4GB410-C8-QD-2-1 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC100V
M4GB410-C8-QD-2-3 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC24V
M4GB410-C8-QD-2-4 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC12V
M4GB410-C8-QD-2-5 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC110V
M4GB410-C8-QD-3-1 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC100V
M4GB410-C8-QD-3-3 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC24V
M4GB410-C8-QD-3-4 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC12V
M4GB410-C8-QD-3-5 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC110V
M4GB410-C8-QD-4-1 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC100V
M4GB410-C8-QD-4-3 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC24V
M4GB410-C8-QD-4-4 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC12V
M4GB410-C8-QD-4-5 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC110V
M4GB410-C8-QD-5-1 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC100V
M4GB410-C8-QD-5-3 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC24V
M4GB410-C8-QD-5-4 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC12V
M4GB410-C8-QD-5-5 Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC110V
M4GB410-C10-QD-2-1 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC100V
M4GB410-C10-QD-2-3 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC24V
M4GB410-C10-QD-2-4 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC12V
M4GB410-C10-QD-2-5 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC110V
M4GB410-C10-QD-3-1 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC100V
M4GB410-C10-QD-3-3 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC24V
M4GB410-C10-QD-3-4 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC12V
M4GB410-C10-QD-3-5 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC110V
M4GB410-C10-QD-4-1 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC100V
M4GB410-C10-QD-4-3 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC24V
M4GB410-C10-QD-4-4 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC12V
M4GB410-C10-QD-4-5 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC110V
M4GB410-C10-QD-5-1 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC100V
M4GB410-C10-QD-5-3 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC24V
M4GB410-C10-QD-5-4 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC12V
M4GB410-C10-QD-5-5 Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC110V
M4GB410-C12-QD-2-1 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC100V
M4GB410-C12-QD-2-3 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC24V
M4GB410-C12-QD-2-4 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC12V
M4GB410-C12-QD-2-5 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC110V
M4GB410-C12-QD-3-1 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC100V
M4GB410-C12-QD-3-3 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC24V
M4GB410-C12-QD-3-4 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC12V
M4GB410-C12-QD-3-5 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC110V
M4GB410-C12-QD-4-1 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC100V
M4GB410-C12-QD-4-3 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC24V
M4GB410-C12-QD-4-4 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC12V
M4GB410-C12-QD-4-5 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC110V
M4GB410-C12-QD-5-1 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC100V
M4GB410-C12-QD-5-3 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC24V
M4GB410-C12-QD-5-4 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC12V
M4GB410-C12-QD-5-5 Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC110V
M4GB410-08-QD-2-1 Function: 2-position single | A/B port: Rc1/4 | Stations: 2 | Voltage: AC100V
M4GB410-08-QD-2-3 Function: 2-position single | A/B port: Rc1/4 | Stations: 2 | Voltage: DC24V
M4GB410-08-QD-2-4 Function: 2-position single | A/B port: Rc1/4 | Stations: 2 | Voltage: DC12V
M4GB410-08-QD-2-5 Function: 2-position single | A/B port: Rc1/4 | Stations: 2 | Voltage: AC110V
M4GB410-08-QD-3-1 Function: 2-position single | A/B port: Rc1/4 | Stations: 3 | Voltage: AC100V
M4GB410-08-QD-3-3 Function: 2-position single | A/B port: Rc1/4 | Stations: 3 | Voltage: DC24V
M4GB410-08-QD-3-4 Function: 2-position single | A/B port: Rc1/4 | Stations: 3 | Voltage: DC12V
M4GB410-08-QD-3-5 Function: 2-position single | A/B port: Rc1/4 | Stations: 3 | Voltage: AC110V
M4GB410-08-QD-4-1 Function: 2-position single | A/B port: Rc1/4 | Stations: 4 | Voltage: AC100V
M4GB410-08-QD-4-3 Function: 2-position single | A/B port: Rc1/4 | Stations: 4 | Voltage: DC24V
M4GB410-08-QD-4-4 Function: 2-position single | A/B port: Rc1/4 | Stations: 4 | Voltage: DC12V
M4GB410-08-QD-4-5 Function: 2-position single | A/B port: Rc1/4 | Stations: 4 | Voltage: AC110V
M4GB410-08-QD-5-1 Function: 2-position single | A/B port: Rc1/4 | Stations: 5 | Voltage: AC100V
M4GB410-08-QD-5-3 Function: 2-position single | A/B port: Rc1/4 | Stations: 5 | Voltage: DC24V
M4GB410-08-QD-5-4 Function: 2-position single | A/B port: Rc1/4 | Stations: 5 | Voltage: DC12V
M4GB410-08-QD-5-5 Function: 2-position single | A/B port: Rc1/4 | Stations: 5 | Voltage: AC110V
M4GB410-10-QD-2-1 Function: 2-position single | A/B port: Rc3/8 | Stations: 2 | Voltage: AC100V
M4GB410-10-QD-2-3 Function: 2-position single | A/B port: Rc3/8 | Stations: 2 | Voltage: DC24V
M4GB410-10-QD-2-4 Function: 2-position single | A/B port: Rc3/8 | Stations: 2 | Voltage: DC12V
M4GB410-10-QD-2-5 Function: 2-position single | A/B port: Rc3/8 | Stations: 2 | Voltage: AC110V
M4GB410-10-QD-3-1 Function: 2-position single | A/B port: Rc3/8 | Stations: 3 | Voltage: AC100V
M4GB410-10-QD-3-3 Function: 2-position single | A/B port: Rc3/8 | Stations: 3 | Voltage: DC24V
M4GB410-10-QD-3-4 Function: 2-position single | A/B port: Rc3/8 | Stations: 3 | Voltage: DC12V
M4GB410-10-QD-3-5 Function: 2-position single | A/B port: Rc3/8 | Stations: 3 | Voltage: AC110V
M4GB410-10-QD-4-1 Function: 2-position single | A/B port: Rc3/8 | Stations: 4 | Voltage: AC100V
M4GB410-10-QD-4-3 Function: 2-position single | A/B port: Rc3/8 | Stations: 4 | Voltage: DC24V
M4GB410-10-QD-4-4 Function: 2-position single | A/B port: Rc3/8 | Stations: 4 | Voltage: DC12V
M4GB410-10-QD-4-5 Function: 2-position single | A/B port: Rc3/8 | Stations: 4 | Voltage: AC110V
M4GB410-10-QD-5-1 Function: 2-position single | A/B port: Rc3/8 | Stations: 5 | Voltage: AC100V
M4GB410-10-QD-5-3 Function: 2-position single | A/B port: Rc3/8 | Stations: 5 | Voltage: DC24V
M4GB410-10-QD-5-4 Function: 2-position single | A/B port: Rc3/8 | Stations: 5 | Voltage: DC12V
M4GB410-10-QD-5-5 Function: 2-position single | A/B port: Rc3/8 | Stations: 5 | Voltage: AC110V
M4GB420-C8-QD-2-1 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC100V
M4GB420-C8-QD-2-3 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC24V
M4GB420-C8-QD-2-4 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC12V
M4GB420-C8-QD-2-5 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC110V
M4GB420-C8-QD-3-1 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC100V
M4GB420-C8-QD-3-3 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC24V
M4GB420-C8-QD-3-4 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC12V
M4GB420-C8-QD-3-5 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC110V
M4GB420-C8-QD-4-1 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC100V
M4GB420-C8-QD-4-3 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC24V
M4GB420-C8-QD-4-4 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC12V
M4GB420-C8-QD-4-5 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC110V
M4GB420-C8-QD-5-1 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC100V
M4GB420-C8-QD-5-3 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC24V
M4GB420-C8-QD-5-4 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC12V
M4GB420-C8-QD-5-5 Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC110V
M4GB420-C10-QD-2-1 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC100V
M4GB420-C10-QD-2-3 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC24V
M4GB420-C10-QD-2-4 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC12V
M4GB420-C10-QD-2-5 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC110V
M4GB420-C10-QD-3-1 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC100V
M4GB420-C10-QD-3-3 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC24V
M4GB420-C10-QD-3-4 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC12V
M4GB420-C10-QD-3-5 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC110V
M4GB420-C10-QD-4-1 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC100V
M4GB420-C10-QD-4-3 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC24V
M4GB420-C10-QD-4-4 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC12V
M4GB420-C10-QD-4-5 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC110V
M4GB420-C10-QD-5-1 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC100V
M4GB420-C10-QD-5-3 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC24V
M4GB420-C10-QD-5-4 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC12V
M4GB420-C10-QD-5-5 Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC110V
M4GB420-C12-QD-2-1 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC100V
M4GB420-C12-QD-2-3 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC24V
M4GB420-C12-QD-2-4 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC12V
M4GB420-C12-QD-2-5 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC110V
M4GB420-C12-QD-3-1 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC100V
M4GB420-C12-QD-3-3 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC24V
M4GB420-C12-QD-3-4 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC12V
M4GB420-C12-QD-3-5 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC110V
M4GB420-C12-QD-4-1 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC100V
M4GB420-C12-QD-4-3 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC24V
M4GB420-C12-QD-4-4 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC12V
M4GB420-C12-QD-4-5 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC110V
M4GB420-C12-QD-5-1 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC100V
M4GB420-C12-QD-5-3 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC24V
M4GB420-C12-QD-5-4 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC12V
M4GB420-C12-QD-5-5 Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC110V
M4GB420-08-QD-2-1 Function: 2-position double | A/B port: Rc1/4 | Stations: 2 | Voltage: AC100V
M4GB420-08-QD-2-3 Function: 2-position double | A/B port: Rc1/4 | Stations: 2 | Voltage: DC24V
M4GB420-08-QD-2-4 Function: 2-position double | A/B port: Rc1/4 | Stations: 2 | Voltage: DC12V
M4GB420-08-QD-2-5 Function: 2-position double | A/B port: Rc1/4 | Stations: 2 | Voltage: AC110V
M4GB420-08-QD-3-1 Function: 2-position double | A/B port: Rc1/4 | Stations: 3 | Voltage: AC100V
M4GB420-08-QD-3-3 Function: 2-position double | A/B port: Rc1/4 | Stations: 3 | Voltage: DC24V
M4GB420-08-QD-3-4 Function: 2-position double | A/B port: Rc1/4 | Stations: 3 | Voltage: DC12V
M4GB420-08-QD-3-5 Function: 2-position double | A/B port: Rc1/4 | Stations: 3 | Voltage: AC110V
M4GB420-08-QD-4-1 Function: 2-position double | A/B port: Rc1/4 | Stations: 4 | Voltage: AC100V
M4GB420-08-QD-4-3 Function: 2-position double | A/B port: Rc1/4 | Stations: 4 | Voltage: DC24V
M4GB420-08-QD-4-4 Function: 2-position double | A/B port: Rc1/4 | Stations: 4 | Voltage: DC12V
M4GB420-08-QD-4-5 Function: 2-position double | A/B port: Rc1/4 | Stations: 4 | Voltage: AC110V
M4GB420-08-QD-5-1 Function: 2-position double | A/B port: Rc1/4 | Stations: 5 | Voltage: AC100V
M4GB420-08-QD-5-3 Function: 2-position double | A/B port: Rc1/4 | Stations: 5 | Voltage: DC24V
M4GB420-08-QD-5-4 Function: 2-position double | A/B port: Rc1/4 | Stations: 5 | Voltage: DC12V
M4GB420-08-QD-5-5 Function: 2-position double | A/B port: Rc1/4 | Stations: 5 | Voltage: AC110V
M4GB420-10-QD-2-1 Function: 2-position double | A/B port: Rc3/8 | Stations: 2 | Voltage: AC100V
M4GB420-10-QD-2-3 Function: 2-position double | A/B port: Rc3/8 | Stations: 2 | Voltage: DC24V
M4GB420-10-QD-2-4 Function: 2-position double | A/B port: Rc3/8 | Stations: 2 | Voltage: DC12V
M4GB420-10-QD-2-5 Function: 2-position double | A/B port: Rc3/8 | Stations: 2 | Voltage: AC110V
M4GB420-10-QD-3-1 Function: 2-position double | A/B port: Rc3/8 | Stations: 3 | Voltage: AC100V
M4GB420-10-QD-3-3 Function: 2-position double | A/B port: Rc3/8 | Stations: 3 | Voltage: DC24V
M4GB420-10-QD-3-4 Function: 2-position double | A/B port: Rc3/8 | Stations: 3 | Voltage: DC12V
M4GB420-10-QD-3-5 Function: 2-position double | A/B port: Rc3/8 | Stations: 3 | Voltage: AC110V
M4GB420-10-QD-4-1 Function: 2-position double | A/B port: Rc3/8 | Stations: 4 | Voltage: AC100V
M4GB420-10-QD-4-3 Function: 2-position double | A/B port: Rc3/8 | Stations: 4 | Voltage: DC24V
M4GB420-10-QD-4-4 Function: 2-position double | A/B port: Rc3/8 | Stations: 4 | Voltage: DC12V
M4GB420-10-QD-4-5 Function: 2-position double | A/B port: Rc3/8 | Stations: 4 | Voltage: AC110V
M4GB420-10-QD-5-1 Function: 2-position double | A/B port: Rc3/8 | Stations: 5 | Voltage: AC100V
M4GB420-10-QD-5-3 Function: 2-position double | A/B port: Rc3/8 | Stations: 5 | Voltage: DC24V
M4GB420-10-QD-5-4 Function: 2-position double | A/B port: Rc3/8 | Stations: 5 | Voltage: DC12V
M4GB420-10-QD-5-5 Function: 2-position double | A/B port: Rc3/8 | Stations: 5 | Voltage: AC110V
M4GB430-C8-QD-2-1 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC100V
M4GB430-C8-QD-2-3 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC24V
M4GB430-C8-QD-2-4 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC12V
M4GB430-C8-QD-2-5 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC110V
M4GB430-C8-QD-3-1 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC100V
M4GB430-C8-QD-3-3 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC24V
M4GB430-C8-QD-3-4 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC12V
M4GB430-C8-QD-3-5 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC110V
M4GB430-C8-QD-4-1 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC100V
M4GB430-C8-QD-4-3 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC24V
M4GB430-C8-QD-4-4 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC12V
M4GB430-C8-QD-4-5 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC110V
M4GB430-C8-QD-5-1 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC100V
M4GB430-C8-QD-5-3 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC24V
M4GB430-C8-QD-5-4 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC12V
M4GB430-C8-QD-5-5 Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC110V
M4GB430-C10-QD-2-1 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC100V
M4GB430-C10-QD-2-3 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC24V
M4GB430-C10-QD-2-4 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC12V
M4GB430-C10-QD-2-5 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC110V
M4GB430-C10-QD-3-1 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC100V
M4GB430-C10-QD-3-3 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC24V
M4GB430-C10-QD-3-4 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC12V
M4GB430-C10-QD-3-5 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC110V
M4GB430-C10-QD-4-1 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC100V
M4GB430-C10-QD-4-3 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC24V
M4GB430-C10-QD-4-4 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC12V
M4GB430-C10-QD-4-5 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC110V
M4GB430-C10-QD-5-1 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC100V
M4GB430-C10-QD-5-3 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC24V
M4GB430-C10-QD-5-4 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC12V
M4GB430-C10-QD-5-5 Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC110V
M4GB430-C12-QD-2-1 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC100V
M4GB430-C12-QD-2-3 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC24V
M4GB430-C12-QD-2-4 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC12V
M4GB430-C12-QD-2-5 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC110V
M4GB430-C12-QD-3-1 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC100V
M4GB430-C12-QD-3-3 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC24V
M4GB430-C12-QD-3-4 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC12V
M4GB430-C12-QD-3-5 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC110V
M4GB430-C12-QD-4-1 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC100V
M4GB430-C12-QD-4-3 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC24V
M4GB430-C12-QD-4-4 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC12V
M4GB430-C12-QD-4-5 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC110V
M4GB430-C12-QD-5-1 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC100V
M4GB430-C12-QD-5-3 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC24V
M4GB430-C12-QD-5-4 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC12V
M4GB430-C12-QD-5-5 Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC110V
M4GB430-08-QD-2-1 Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 2 | Voltage: AC100V
M4GB430-08-QD-2-3 Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 2 | Voltage: DC24V
M4GB430-08-QD-2-4 Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 2 | Voltage: DC12V
M4GB430-08-QD-2-5 Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 2 | Voltage: AC110V
M4GB430-08-QD-3-1 Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 3 | Voltage: AC100V
M4GB430-08-QD-3-3 Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 3 | Voltage: DC24V
M4GB430-08-QD-3-4 Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 3 | Voltage: DC12V
M4GB430-08-QD-3-5 Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 3 | Voltage: AC110V
M4GB430-08-QD-4-1 Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 4 | Voltage: AC100V
M4GB430-08-QD-4-3 Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 4 | Voltage: DC24V
M4GB430-08-QD-4-4 Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 4 | Voltage: DC12V
M4GB430-08-QD-4-5 Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 4 | Voltage: AC110V
M4GB430-08-QD-5-1 Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 5 | Voltage: AC100V
M4GB430-08-QD-5-3 Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 5 | Voltage: DC24V
M4GB430-08-QD-5-4 Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 5 | Voltage: DC12V
M4GB430-08-QD-5-5 Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 5 | Voltage: AC110V
M4GB430-10-QD-2-1 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 2 | Voltage: AC100V
M4GB430-10-QD-2-3 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 2 | Voltage: DC24V
M4GB430-10-QD-2-4 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 2 | Voltage: DC12V
M4GB430-10-QD-2-5 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 2 | Voltage: AC110V
M4GB430-10-QD-3-1 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 3 | Voltage: AC100V
M4GB430-10-QD-3-3 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 3 | Voltage: DC24V
M4GB430-10-QD-3-4 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 3 | Voltage: DC12V
M4GB430-10-QD-3-5 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 3 | Voltage: AC110V
M4GB430-10-QD-4-1 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 4 | Voltage: AC100V
M4GB430-10-QD-4-3 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 4 | Voltage: DC24V
M4GB430-10-QD-4-4 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 4 | Voltage: DC12V
M4GB430-10-QD-4-5 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 4 | Voltage: AC110V
M4GB430-10-QD-5-1 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 5 | Voltage: AC100V
M4GB430-10-QD-5-3 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 5 | Voltage: DC24V
M4GB430-10-QD-5-4 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 5 | Voltage: DC12V
M4GB430-10-QD-5-5 Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 5 | Voltage: AC110V
M4GB440-C8-QD-2-1 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC100V
M4GB440-C8-QD-2-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC24V
M4GB440-C8-QD-2-4 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC12V
M4GB440-C8-QD-2-5 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC110V
M4GB440-C8-QD-3-1 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC100V
M4GB440-C8-QD-3-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC24V
M4GB440-C8-QD-3-4 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC12V
M4GB440-C8-QD-3-5 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC110V
M4GB440-C8-QD-4-1 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC100V
M4GB440-C8-QD-4-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC24V
M4GB440-C8-QD-4-4 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC12V
M4GB440-C8-QD-4-5 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC110V
M4GB440-C8-QD-5-1 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC100V
M4GB440-C8-QD-5-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC24V
M4GB440-C8-QD-5-4 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC12V
M4GB440-C8-QD-5-5 Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC110V
M4GB440-C10-QD-2-1 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC100V
M4GB440-C10-QD-2-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC24V
M4GB440-C10-QD-2-4 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC12V
M4GB440-C10-QD-2-5 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC110V
M4GB440-C10-QD-3-1 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC100V
M4GB440-C10-QD-3-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC24V
M4GB440-C10-QD-3-4 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC12V
M4GB440-C10-QD-3-5 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC110V
M4GB440-C10-QD-4-1 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC100V
M4GB440-C10-QD-4-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC24V
M4GB440-C10-QD-4-4 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC12V
M4GB440-C10-QD-4-5 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC110V
M4GB440-C10-QD-5-1 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC100V
M4GB440-C10-QD-5-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC24V
M4GB440-C10-QD-5-4 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC12V
M4GB440-C10-QD-5-5 Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC110V
M4GB440-C12-QD-2-1 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC100V
M4GB440-C12-QD-2-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC24V
M4GB440-C12-QD-2-4 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC12V
M4GB440-C12-QD-2-5 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC110V
M4GB440-C12-QD-3-1 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC100V
M4GB440-C12-QD-3-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC24V
M4GB440-C12-QD-3-4 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC12V
M4GB440-C12-QD-3-5 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC110V
M4GB440-C12-QD-4-1 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC100V
M4GB440-C12-QD-4-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC24V
M4GB440-C12-QD-4-4 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC12V
M4GB440-C12-QD-4-5 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC110V
M4GB440-C12-QD-5-1 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC100V
M4GB440-C12-QD-5-3 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC24V
M4GB440-C12-QD-5-4 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC12V
M4GB440-C12-QD-5-5 Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC110V
M4GB440-08-QD-2-1 Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 2 | Voltage: AC100V
M4GB440-08-QD-2-3 Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 2 | Voltage: DC24V
M4GB440-08-QD-2-4 Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 2 | Voltage: DC12V
M4GB440-08-QD-2-5 Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 2 | Voltage: AC110V
M4GB440-08-QD-3-1 Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 3 | Voltage: AC100V
M4GB440-08-QD-3-3 Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 3 | Voltage: DC24V
M4GB440-08-QD-3-4 Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 3 | Voltage: DC12V
M4GB440-08-QD-3-5 Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 3 | Voltage: AC110V
M4GB440-08-QD-4-1 Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 4 | Voltage: AC100V
M4GB440-08-QD-4-3 Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 4 | Voltage: DC24V
M4GB440-08-QD-4-4 Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 4 | Voltage: DC12V
M4GB440-08-QD-4-5 Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 4 | Voltage: AC110V
M4GB440-08-QD-5-1 Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 5 | Voltage: AC100V
M4GB440-08-QD-5-3 Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 5 | Voltage: DC24V
M4GB440-08-QD-5-4 Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 5 | Voltage: DC12V
M4GB440-08-QD-5-5 Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 5 | Voltage: AC110V
M4GB440-10-QD-2-1 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 2 | Voltage: AC100V
M4GB440-10-QD-2-3 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 2 | Voltage: DC24V
M4GB440-10-QD-2-4 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 2 | Voltage: DC12V
M4GB440-10-QD-2-5 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 2 | Voltage: AC110V
M4GB440-10-QD-3-1 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 3 | Voltage: AC100V
M4GB440-10-QD-3-3 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 3 | Voltage: DC24V
M4GB440-10-QD-3-4 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 3 | Voltage: DC12V
M4GB440-10-QD-3-5 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 3 | Voltage: AC110V
M4GB440-10-QD-4-1 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 4 | Voltage: AC100V
M4GB440-10-QD-4-3 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 4 | Voltage: DC24V
M4GB440-10-QD-4-4 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 4 | Voltage: DC12V
M4GB440-10-QD-4-5 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 4 | Voltage: AC110V
M4GB440-10-QD-5-1 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 5 | Voltage: AC100V
M4GB440-10-QD-5-3 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 5 | Voltage: DC24V
M4GB440-10-QD-5-4 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 5 | Voltage: DC12V
M4GB440-10-QD-5-5 Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 5 | Voltage: AC110V
M4GB450-C8-QD-2-1 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC100V
M4GB450-C8-QD-2-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC24V
M4GB450-C8-QD-2-4 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC12V
M4GB450-C8-QD-2-5 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC110V
M4GB450-C8-QD-3-1 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC100V
M4GB450-C8-QD-3-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC24V
M4GB450-C8-QD-3-4 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC12V
M4GB450-C8-QD-3-5 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC110V
M4GB450-C8-QD-4-1 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC100V
M4GB450-C8-QD-4-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC24V
M4GB450-C8-QD-4-4 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC12V
M4GB450-C8-QD-4-5 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC110V
M4GB450-C8-QD-5-1 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC100V
M4GB450-C8-QD-5-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC24V
M4GB450-C8-QD-5-4 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC12V
M4GB450-C8-QD-5-5 Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC110V
M4GB450-C10-QD-2-1 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC100V
M4GB450-C10-QD-2-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC24V
M4GB450-C10-QD-2-4 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC12V
M4GB450-C10-QD-2-5 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC110V
M4GB450-C10-QD-3-1 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC100V
M4GB450-C10-QD-3-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC24V
M4GB450-C10-QD-3-4 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC12V
M4GB450-C10-QD-3-5 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC110V
M4GB450-C10-QD-4-1 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC100V
M4GB450-C10-QD-4-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC24V
M4GB450-C10-QD-4-4 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC12V
M4GB450-C10-QD-4-5 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC110V
M4GB450-C10-QD-5-1 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC100V
M4GB450-C10-QD-5-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC24V
M4GB450-C10-QD-5-4 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC12V
M4GB450-C10-QD-5-5 Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC110V
M4GB450-C12-QD-2-1 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC100V
M4GB450-C12-QD-2-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC24V
M4GB450-C12-QD-2-4 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC12V
M4GB450-C12-QD-2-5 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC110V
M4GB450-C12-QD-3-1 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC100V
M4GB450-C12-QD-3-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC24V
M4GB450-C12-QD-3-4 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC12V
M4GB450-C12-QD-3-5 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC110V
M4GB450-C12-QD-4-1 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC100V
M4GB450-C12-QD-4-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC24V
M4GB450-C12-QD-4-4 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC12V
M4GB450-C12-QD-4-5 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC110V
M4GB450-C12-QD-5-1 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC100V
M4GB450-C12-QD-5-3 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC24V
M4GB450-C12-QD-5-4 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC12V
M4GB450-C12-QD-5-5 Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC110V
M4GB450-08-QD-2-1 Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 2 | Voltage: AC100V
M4GB450-08-QD-2-3 Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 2 | Voltage: DC24V
M4GB450-08-QD-2-4 Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 2 | Voltage: DC12V
M4GB450-08-QD-2-5 Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 2 | Voltage: AC110V
M4GB450-08-QD-3-1 Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 3 | Voltage: AC100V
M4GB450-08-QD-3-3 Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 3 | Voltage: DC24V
M4GB450-08-QD-3-4 Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 3 | Voltage: DC12V
M4GB450-08-QD-3-5 Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 3 | Voltage: AC110V
M4GB450-08-QD-4-1 Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 4 | Voltage: AC100V
M4GB450-08-QD-4-3 Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 4 | Voltage: DC24V
M4GB450-08-QD-4-4 Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 4 | Voltage: DC12V
M4GB450-08-QD-4-5 Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 4 | Voltage: AC110V
M4GB450-08-QD-5-1 Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 5 | Voltage: AC100V
M4GB450-08-QD-5-3 Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 5 | Voltage: DC24V
M4GB450-08-QD-5-4 Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 5 | Voltage: DC12V
M4GB450-08-QD-5-5 Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 5 | Voltage: AC110V
M4GB450-10-QD-2-1 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 2 | Voltage: AC100V
M4GB450-10-QD-2-3 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 2 | Voltage: DC24V
M4GB450-10-QD-2-4 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 2 | Voltage: DC12V
M4GB450-10-QD-2-5 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 2 | Voltage: AC110V
M4GB450-10-QD-3-1 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 3 | Voltage: AC100V
M4GB450-10-QD-3-3 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 3 | Voltage: DC24V
M4GB450-10-QD-3-4 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 3 | Voltage: DC12V
M4GB450-10-QD-3-5 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 3 | Voltage: AC110V
M4GB450-10-QD-4-1 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 4 | Voltage: AC100V
M4GB450-10-QD-4-3 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 4 | Voltage: DC24V
M4GB450-10-QD-4-4 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 4 | Voltage: DC12V
M4GB450-10-QD-4-5 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 4 | Voltage: AC110V
M4GB450-10-QD-5-1 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 5 | Voltage: AC100V
M4GB450-10-QD-5-3 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 5 | Voltage: DC24V
M4GB450-10-QD-5-4 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 5 | Voltage: DC12V
M4GB450-10-QD-5-5 Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 5 | Voltage: AC110V
M4GB480-C8-QD-2-1 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC100V
M4GB480-C8-QD-2-3 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC24V
M4GB480-C8-QD-2-4 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC12V
M4GB480-C8-QD-2-5 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC110V
M4GB480-C8-QD-3-1 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC100V
M4GB480-C8-QD-3-3 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC24V
M4GB480-C8-QD-3-4 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC12V
M4GB480-C8-QD-3-5 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC110V
M4GB480-C8-QD-4-1 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC100V
M4GB480-C8-QD-4-3 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC24V
M4GB480-C8-QD-4-4 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC12V
M4GB480-C8-QD-4-5 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC110V
M4GB480-C8-QD-5-1 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC100V
M4GB480-C8-QD-5-3 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC24V
M4GB480-C8-QD-5-4 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC12V
M4GB480-C8-QD-5-5 Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC110V
M4GB480-C10-QD-2-1 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC100V
M4GB480-C10-QD-2-3 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC24V
M4GB480-C10-QD-2-4 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC12V
M4GB480-C10-QD-2-5 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC110V
M4GB480-C10-QD-3-1 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC100V
M4GB480-C10-QD-3-3 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC24V
M4GB480-C10-QD-3-4 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC12V
M4GB480-C10-QD-3-5 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC110V
M4GB480-C10-QD-4-1 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC100V
M4GB480-C10-QD-4-3 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC24V
M4GB480-C10-QD-4-4 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC12V
M4GB480-C10-QD-4-5 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC110V
M4GB480-C10-QD-5-1 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC100V
M4GB480-C10-QD-5-3 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC24V
M4GB480-C10-QD-5-4 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC12V
M4GB480-C10-QD-5-5 Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC110V
M4GB480-C12-QD-2-1 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC100V
M4GB480-C12-QD-2-3 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC24V
M4GB480-C12-QD-2-4 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC12V
M4GB480-C12-QD-2-5 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC110V
M4GB480-C12-QD-3-1 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC100V
M4GB480-C12-QD-3-3 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC24V
M4GB480-C12-QD-3-4 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC12V
M4GB480-C12-QD-3-5 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC110V
M4GB480-C12-QD-4-1 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC100V
M4GB480-C12-QD-4-3 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC24V
M4GB480-C12-QD-4-4 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC12V
M4GB480-C12-QD-4-5 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC110V
M4GB480-C12-QD-5-1 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC100V
M4GB480-C12-QD-5-3 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC24V
M4GB480-C12-QD-5-4 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC12V
M4GB480-C12-QD-5-5 Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC110V
M4GB480-08-QD-2-1 Function: Mixed manifold | A/B port: Rc1/4 | Stations: 2 | Voltage: AC100V
M4GB480-08-QD-2-3 Function: Mixed manifold | A/B port: Rc1/4 | Stations: 2 | Voltage: DC24V
M4GB480-08-QD-2-4 Function: Mixed manifold | A/B port: Rc1/4 | Stations: 2 | Voltage: DC12V
M4GB480-08-QD-2-5 Function: Mixed manifold | A/B port: Rc1/4 | Stations: 2 | Voltage: AC110V
M4GB480-08-QD-3-1 Function: Mixed manifold | A/B port: Rc1/4 | Stations: 3 | Voltage: AC100V
M4GB480-08-QD-3-3 Function: Mixed manifold | A/B port: Rc1/4 | Stations: 3 | Voltage: DC24V
M4GB480-08-QD-3-4 Function: Mixed manifold | A/B port: Rc1/4 | Stations: 3 | Voltage: DC12V
M4GB480-08-QD-3-5 Function: Mixed manifold | A/B port: Rc1/4 | Stations: 3 | Voltage: AC110V
M4GB480-08-QD-4-1 Function: Mixed manifold | A/B port: Rc1/4 | Stations: 4 | Voltage: AC100V
M4GB480-08-QD-4-3 Function: Mixed manifold | A/B port: Rc1/4 | Stations: 4 | Voltage: DC24V
M4GB480-08-QD-4-4 Function: Mixed manifold | A/B port: Rc1/4 | Stations: 4 | Voltage: DC12V
M4GB480-08-QD-4-5 Function: Mixed manifold | A/B port: Rc1/4 | Stations: 4 | Voltage: AC110V
M4GB480-08-QD-5-1 Function: Mixed manifold | A/B port: Rc1/4 | Stations: 5 | Voltage: AC100V
M4GB480-08-QD-5-3 Function: Mixed manifold | A/B port: Rc1/4 | Stations: 5 | Voltage: DC24V
M4GB480-08-QD-5-4 Function: Mixed manifold | A/B port: Rc1/4 | Stations: 5 | Voltage: DC12V
M4GB480-08-QD-5-5 Function: Mixed manifold | A/B port: Rc1/4 | Stations: 5 | Voltage: AC110V
M4GB480-10-QD-2-1 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 2 | Voltage: AC100V
M4GB480-10-QD-2-3 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 2 | Voltage: DC24V
M4GB480-10-QD-2-4 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 2 | Voltage: DC12V
M4GB480-10-QD-2-5 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 2 | Voltage: AC110V
M4GB480-10-QD-3-1 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 3 | Voltage: AC100V
M4GB480-10-QD-3-3 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 3 | Voltage: DC24V
M4GB480-10-QD-3-4 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 3 | Voltage: DC12V
M4GB480-10-QD-3-5 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 3 | Voltage: AC110V
M4GB480-10-QD-4-1 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 4 | Voltage: AC100V
M4GB480-10-QD-4-3 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 4 | Voltage: DC24V
M4GB480-10-QD-4-4 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 4 | Voltage: DC12V
M4GB480-10-QD-4-5 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 4 | Voltage: AC110V
M4GB480-10-QD-5-1 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 5 | Voltage: AC100V
M4GB480-10-QD-5-3 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 5 | Voltage: DC24V
M4GB480-10-QD-5-4 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 5 | Voltage: DC12V
M4GB480-10-QD-5-5 Function: Mixed manifold | A/B port: Rc3/8 | Stations: 5 | Voltage: AC110V
Valve ManifoldsCKD
480 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD M4GB4-D Individual Wiring Manifold (DIN Rail Mount, 2-5 Stn)

Brand CKD·Valve Manifolds

Available part numbers (480)

M4GB410-C8-QD-2-1, M4GB410-C8-QD-2-3, M4GB410-C8-QD-2-4, M4GB410-C8-QD-2-5, M4GB410-C8-QD-3-1, M4GB410-C8-QD-3-3, M4GB410-C8-QD-3-4, M4GB410-C8-QD-3-5, M4GB410-C8-QD-4-1, M4GB410-C8-QD-4-3 + 470 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
M4GB410-C8-QD-2-1Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC100V
M4GB410-C8-QD-2-3Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC24V
M4GB410-C8-QD-2-4Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC12V
M4GB410-C8-QD-2-5Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC110V
M4GB410-C8-QD-3-1Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC100V
M4GB410-C8-QD-3-3Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC24V
M4GB410-C8-QD-3-4Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC12V
M4GB410-C8-QD-3-5Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC110V
M4GB410-C8-QD-4-1Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC100V
M4GB410-C8-QD-4-3Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC24V
M4GB410-C8-QD-4-4Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC12V
M4GB410-C8-QD-4-5Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC110V
M4GB410-C8-QD-5-1Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC100V
M4GB410-C8-QD-5-3Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC24V
M4GB410-C8-QD-5-4Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC12V
M4GB410-C8-QD-5-5Function: 2-position single | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC110V
M4GB410-C10-QD-2-1Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC100V
M4GB410-C10-QD-2-3Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC24V
M4GB410-C10-QD-2-4Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC12V
M4GB410-C10-QD-2-5Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC110V
M4GB410-C10-QD-3-1Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC100V
M4GB410-C10-QD-3-3Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC24V
M4GB410-C10-QD-3-4Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC12V
M4GB410-C10-QD-3-5Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC110V
M4GB410-C10-QD-4-1Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC100V
M4GB410-C10-QD-4-3Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC24V
M4GB410-C10-QD-4-4Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC12V
M4GB410-C10-QD-4-5Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC110V
M4GB410-C10-QD-5-1Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC100V
M4GB410-C10-QD-5-3Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC24V
M4GB410-C10-QD-5-4Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC12V
M4GB410-C10-QD-5-5Function: 2-position single | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC110V
M4GB410-C12-QD-2-1Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC100V
M4GB410-C12-QD-2-3Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC24V
M4GB410-C12-QD-2-4Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC12V
M4GB410-C12-QD-2-5Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC110V
M4GB410-C12-QD-3-1Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC100V
M4GB410-C12-QD-3-3Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC24V
M4GB410-C12-QD-3-4Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC12V
M4GB410-C12-QD-3-5Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC110V
M4GB410-C12-QD-4-1Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC100V
M4GB410-C12-QD-4-3Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC24V
M4GB410-C12-QD-4-4Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC12V
M4GB410-C12-QD-4-5Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC110V
M4GB410-C12-QD-5-1Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC100V
M4GB410-C12-QD-5-3Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC24V
M4GB410-C12-QD-5-4Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC12V
M4GB410-C12-QD-5-5Function: 2-position single | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC110V
M4GB410-08-QD-2-1Function: 2-position single | A/B port: Rc1/4 | Stations: 2 | Voltage: AC100V
M4GB410-08-QD-2-3Function: 2-position single | A/B port: Rc1/4 | Stations: 2 | Voltage: DC24V
M4GB410-08-QD-2-4Function: 2-position single | A/B port: Rc1/4 | Stations: 2 | Voltage: DC12V
M4GB410-08-QD-2-5Function: 2-position single | A/B port: Rc1/4 | Stations: 2 | Voltage: AC110V
M4GB410-08-QD-3-1Function: 2-position single | A/B port: Rc1/4 | Stations: 3 | Voltage: AC100V
M4GB410-08-QD-3-3Function: 2-position single | A/B port: Rc1/4 | Stations: 3 | Voltage: DC24V
M4GB410-08-QD-3-4Function: 2-position single | A/B port: Rc1/4 | Stations: 3 | Voltage: DC12V
M4GB410-08-QD-3-5Function: 2-position single | A/B port: Rc1/4 | Stations: 3 | Voltage: AC110V
M4GB410-08-QD-4-1Function: 2-position single | A/B port: Rc1/4 | Stations: 4 | Voltage: AC100V
M4GB410-08-QD-4-3Function: 2-position single | A/B port: Rc1/4 | Stations: 4 | Voltage: DC24V
M4GB410-08-QD-4-4Function: 2-position single | A/B port: Rc1/4 | Stations: 4 | Voltage: DC12V
M4GB410-08-QD-4-5Function: 2-position single | A/B port: Rc1/4 | Stations: 4 | Voltage: AC110V
M4GB410-08-QD-5-1Function: 2-position single | A/B port: Rc1/4 | Stations: 5 | Voltage: AC100V
M4GB410-08-QD-5-3Function: 2-position single | A/B port: Rc1/4 | Stations: 5 | Voltage: DC24V
M4GB410-08-QD-5-4Function: 2-position single | A/B port: Rc1/4 | Stations: 5 | Voltage: DC12V
M4GB410-08-QD-5-5Function: 2-position single | A/B port: Rc1/4 | Stations: 5 | Voltage: AC110V
M4GB410-10-QD-2-1Function: 2-position single | A/B port: Rc3/8 | Stations: 2 | Voltage: AC100V
M4GB410-10-QD-2-3Function: 2-position single | A/B port: Rc3/8 | Stations: 2 | Voltage: DC24V
M4GB410-10-QD-2-4Function: 2-position single | A/B port: Rc3/8 | Stations: 2 | Voltage: DC12V
M4GB410-10-QD-2-5Function: 2-position single | A/B port: Rc3/8 | Stations: 2 | Voltage: AC110V
M4GB410-10-QD-3-1Function: 2-position single | A/B port: Rc3/8 | Stations: 3 | Voltage: AC100V
M4GB410-10-QD-3-3Function: 2-position single | A/B port: Rc3/8 | Stations: 3 | Voltage: DC24V
M4GB410-10-QD-3-4Function: 2-position single | A/B port: Rc3/8 | Stations: 3 | Voltage: DC12V
M4GB410-10-QD-3-5Function: 2-position single | A/B port: Rc3/8 | Stations: 3 | Voltage: AC110V
M4GB410-10-QD-4-1Function: 2-position single | A/B port: Rc3/8 | Stations: 4 | Voltage: AC100V
M4GB410-10-QD-4-3Function: 2-position single | A/B port: Rc3/8 | Stations: 4 | Voltage: DC24V
M4GB410-10-QD-4-4Function: 2-position single | A/B port: Rc3/8 | Stations: 4 | Voltage: DC12V
M4GB410-10-QD-4-5Function: 2-position single | A/B port: Rc3/8 | Stations: 4 | Voltage: AC110V
M4GB410-10-QD-5-1Function: 2-position single | A/B port: Rc3/8 | Stations: 5 | Voltage: AC100V
M4GB410-10-QD-5-3Function: 2-position single | A/B port: Rc3/8 | Stations: 5 | Voltage: DC24V
M4GB410-10-QD-5-4Function: 2-position single | A/B port: Rc3/8 | Stations: 5 | Voltage: DC12V
M4GB410-10-QD-5-5Function: 2-position single | A/B port: Rc3/8 | Stations: 5 | Voltage: AC110V
M4GB420-C8-QD-2-1Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC100V
M4GB420-C8-QD-2-3Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC24V
M4GB420-C8-QD-2-4Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC12V
M4GB420-C8-QD-2-5Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC110V
M4GB420-C8-QD-3-1Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC100V
M4GB420-C8-QD-3-3Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC24V
M4GB420-C8-QD-3-4Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC12V
M4GB420-C8-QD-3-5Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC110V
M4GB420-C8-QD-4-1Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC100V
M4GB420-C8-QD-4-3Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC24V
M4GB420-C8-QD-4-4Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC12V
M4GB420-C8-QD-4-5Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC110V
M4GB420-C8-QD-5-1Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC100V
M4GB420-C8-QD-5-3Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC24V
M4GB420-C8-QD-5-4Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC12V
M4GB420-C8-QD-5-5Function: 2-position double | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC110V
M4GB420-C10-QD-2-1Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC100V
M4GB420-C10-QD-2-3Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC24V
M4GB420-C10-QD-2-4Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC12V
M4GB420-C10-QD-2-5Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC110V
M4GB420-C10-QD-3-1Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC100V
M4GB420-C10-QD-3-3Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC24V
M4GB420-C10-QD-3-4Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC12V
M4GB420-C10-QD-3-5Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC110V
M4GB420-C10-QD-4-1Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC100V
M4GB420-C10-QD-4-3Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC24V
M4GB420-C10-QD-4-4Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC12V
M4GB420-C10-QD-4-5Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC110V
M4GB420-C10-QD-5-1Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC100V
M4GB420-C10-QD-5-3Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC24V
M4GB420-C10-QD-5-4Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC12V
M4GB420-C10-QD-5-5Function: 2-position double | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC110V
M4GB420-C12-QD-2-1Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC100V
M4GB420-C12-QD-2-3Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC24V
M4GB420-C12-QD-2-4Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC12V
M4GB420-C12-QD-2-5Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC110V
M4GB420-C12-QD-3-1Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC100V
M4GB420-C12-QD-3-3Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC24V
M4GB420-C12-QD-3-4Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC12V
M4GB420-C12-QD-3-5Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC110V
M4GB420-C12-QD-4-1Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC100V
M4GB420-C12-QD-4-3Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC24V
M4GB420-C12-QD-4-4Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC12V
M4GB420-C12-QD-4-5Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC110V
M4GB420-C12-QD-5-1Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC100V
M4GB420-C12-QD-5-3Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC24V
M4GB420-C12-QD-5-4Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC12V
M4GB420-C12-QD-5-5Function: 2-position double | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC110V
M4GB420-08-QD-2-1Function: 2-position double | A/B port: Rc1/4 | Stations: 2 | Voltage: AC100V
M4GB420-08-QD-2-3Function: 2-position double | A/B port: Rc1/4 | Stations: 2 | Voltage: DC24V
M4GB420-08-QD-2-4Function: 2-position double | A/B port: Rc1/4 | Stations: 2 | Voltage: DC12V
M4GB420-08-QD-2-5Function: 2-position double | A/B port: Rc1/4 | Stations: 2 | Voltage: AC110V
M4GB420-08-QD-3-1Function: 2-position double | A/B port: Rc1/4 | Stations: 3 | Voltage: AC100V
M4GB420-08-QD-3-3Function: 2-position double | A/B port: Rc1/4 | Stations: 3 | Voltage: DC24V
M4GB420-08-QD-3-4Function: 2-position double | A/B port: Rc1/4 | Stations: 3 | Voltage: DC12V
M4GB420-08-QD-3-5Function: 2-position double | A/B port: Rc1/4 | Stations: 3 | Voltage: AC110V
M4GB420-08-QD-4-1Function: 2-position double | A/B port: Rc1/4 | Stations: 4 | Voltage: AC100V
M4GB420-08-QD-4-3Function: 2-position double | A/B port: Rc1/4 | Stations: 4 | Voltage: DC24V
M4GB420-08-QD-4-4Function: 2-position double | A/B port: Rc1/4 | Stations: 4 | Voltage: DC12V
M4GB420-08-QD-4-5Function: 2-position double | A/B port: Rc1/4 | Stations: 4 | Voltage: AC110V
M4GB420-08-QD-5-1Function: 2-position double | A/B port: Rc1/4 | Stations: 5 | Voltage: AC100V
M4GB420-08-QD-5-3Function: 2-position double | A/B port: Rc1/4 | Stations: 5 | Voltage: DC24V
M4GB420-08-QD-5-4Function: 2-position double | A/B port: Rc1/4 | Stations: 5 | Voltage: DC12V
M4GB420-08-QD-5-5Function: 2-position double | A/B port: Rc1/4 | Stations: 5 | Voltage: AC110V
M4GB420-10-QD-2-1Function: 2-position double | A/B port: Rc3/8 | Stations: 2 | Voltage: AC100V
M4GB420-10-QD-2-3Function: 2-position double | A/B port: Rc3/8 | Stations: 2 | Voltage: DC24V
M4GB420-10-QD-2-4Function: 2-position double | A/B port: Rc3/8 | Stations: 2 | Voltage: DC12V
M4GB420-10-QD-2-5Function: 2-position double | A/B port: Rc3/8 | Stations: 2 | Voltage: AC110V
M4GB420-10-QD-3-1Function: 2-position double | A/B port: Rc3/8 | Stations: 3 | Voltage: AC100V
M4GB420-10-QD-3-3Function: 2-position double | A/B port: Rc3/8 | Stations: 3 | Voltage: DC24V
M4GB420-10-QD-3-4Function: 2-position double | A/B port: Rc3/8 | Stations: 3 | Voltage: DC12V
M4GB420-10-QD-3-5Function: 2-position double | A/B port: Rc3/8 | Stations: 3 | Voltage: AC110V
M4GB420-10-QD-4-1Function: 2-position double | A/B port: Rc3/8 | Stations: 4 | Voltage: AC100V
M4GB420-10-QD-4-3Function: 2-position double | A/B port: Rc3/8 | Stations: 4 | Voltage: DC24V
M4GB420-10-QD-4-4Function: 2-position double | A/B port: Rc3/8 | Stations: 4 | Voltage: DC12V
M4GB420-10-QD-4-5Function: 2-position double | A/B port: Rc3/8 | Stations: 4 | Voltage: AC110V
M4GB420-10-QD-5-1Function: 2-position double | A/B port: Rc3/8 | Stations: 5 | Voltage: AC100V
M4GB420-10-QD-5-3Function: 2-position double | A/B port: Rc3/8 | Stations: 5 | Voltage: DC24V
M4GB420-10-QD-5-4Function: 2-position double | A/B port: Rc3/8 | Stations: 5 | Voltage: DC12V
M4GB420-10-QD-5-5Function: 2-position double | A/B port: Rc3/8 | Stations: 5 | Voltage: AC110V
M4GB430-C8-QD-2-1Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC100V
M4GB430-C8-QD-2-3Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC24V
M4GB430-C8-QD-2-4Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC12V
M4GB430-C8-QD-2-5Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC110V
M4GB430-C8-QD-3-1Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC100V
M4GB430-C8-QD-3-3Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC24V
M4GB430-C8-QD-3-4Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC12V
M4GB430-C8-QD-3-5Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC110V
M4GB430-C8-QD-4-1Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC100V
M4GB430-C8-QD-4-3Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC24V
M4GB430-C8-QD-4-4Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC12V
M4GB430-C8-QD-4-5Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC110V
M4GB430-C8-QD-5-1Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC100V
M4GB430-C8-QD-5-3Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC24V
M4GB430-C8-QD-5-4Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC12V
M4GB430-C8-QD-5-5Function: 3-position all ports closed | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC110V
M4GB430-C10-QD-2-1Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC100V
M4GB430-C10-QD-2-3Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC24V
M4GB430-C10-QD-2-4Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC12V
M4GB430-C10-QD-2-5Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC110V
M4GB430-C10-QD-3-1Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC100V
M4GB430-C10-QD-3-3Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC24V
M4GB430-C10-QD-3-4Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC12V
M4GB430-C10-QD-3-5Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC110V
M4GB430-C10-QD-4-1Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC100V
M4GB430-C10-QD-4-3Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC24V
M4GB430-C10-QD-4-4Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC12V
M4GB430-C10-QD-4-5Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC110V
M4GB430-C10-QD-5-1Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC100V
M4GB430-C10-QD-5-3Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC24V
M4GB430-C10-QD-5-4Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC12V
M4GB430-C10-QD-5-5Function: 3-position all ports closed | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC110V
M4GB430-C12-QD-2-1Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC100V
M4GB430-C12-QD-2-3Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC24V
M4GB430-C12-QD-2-4Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC12V
M4GB430-C12-QD-2-5Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC110V
M4GB430-C12-QD-3-1Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC100V
M4GB430-C12-QD-3-3Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC24V
M4GB430-C12-QD-3-4Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC12V
M4GB430-C12-QD-3-5Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC110V
M4GB430-C12-QD-4-1Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC100V
M4GB430-C12-QD-4-3Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC24V
M4GB430-C12-QD-4-4Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC12V
M4GB430-C12-QD-4-5Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC110V
M4GB430-C12-QD-5-1Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC100V
M4GB430-C12-QD-5-3Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC24V
M4GB430-C12-QD-5-4Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC12V
M4GB430-C12-QD-5-5Function: 3-position all ports closed | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC110V
M4GB430-08-QD-2-1Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 2 | Voltage: AC100V
M4GB430-08-QD-2-3Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 2 | Voltage: DC24V
M4GB430-08-QD-2-4Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 2 | Voltage: DC12V
M4GB430-08-QD-2-5Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 2 | Voltage: AC110V
M4GB430-08-QD-3-1Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 3 | Voltage: AC100V
M4GB430-08-QD-3-3Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 3 | Voltage: DC24V
M4GB430-08-QD-3-4Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 3 | Voltage: DC12V
M4GB430-08-QD-3-5Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 3 | Voltage: AC110V
M4GB430-08-QD-4-1Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 4 | Voltage: AC100V
M4GB430-08-QD-4-3Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 4 | Voltage: DC24V
M4GB430-08-QD-4-4Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 4 | Voltage: DC12V
M4GB430-08-QD-4-5Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 4 | Voltage: AC110V
M4GB430-08-QD-5-1Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 5 | Voltage: AC100V
M4GB430-08-QD-5-3Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 5 | Voltage: DC24V
M4GB430-08-QD-5-4Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 5 | Voltage: DC12V
M4GB430-08-QD-5-5Function: 3-position all ports closed | A/B port: Rc1/4 | Stations: 5 | Voltage: AC110V
M4GB430-10-QD-2-1Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 2 | Voltage: AC100V
M4GB430-10-QD-2-3Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 2 | Voltage: DC24V
M4GB430-10-QD-2-4Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 2 | Voltage: DC12V
M4GB430-10-QD-2-5Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 2 | Voltage: AC110V
M4GB430-10-QD-3-1Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 3 | Voltage: AC100V
M4GB430-10-QD-3-3Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 3 | Voltage: DC24V
M4GB430-10-QD-3-4Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 3 | Voltage: DC12V
M4GB430-10-QD-3-5Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 3 | Voltage: AC110V
M4GB430-10-QD-4-1Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 4 | Voltage: AC100V
M4GB430-10-QD-4-3Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 4 | Voltage: DC24V
M4GB430-10-QD-4-4Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 4 | Voltage: DC12V
M4GB430-10-QD-4-5Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 4 | Voltage: AC110V
M4GB430-10-QD-5-1Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 5 | Voltage: AC100V
M4GB430-10-QD-5-3Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 5 | Voltage: DC24V
M4GB430-10-QD-5-4Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 5 | Voltage: DC12V
M4GB430-10-QD-5-5Function: 3-position all ports closed | A/B port: Rc3/8 | Stations: 5 | Voltage: AC110V
M4GB440-C8-QD-2-1Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC100V
M4GB440-C8-QD-2-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC24V
M4GB440-C8-QD-2-4Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC12V
M4GB440-C8-QD-2-5Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC110V
M4GB440-C8-QD-3-1Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC100V
M4GB440-C8-QD-3-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC24V
M4GB440-C8-QD-3-4Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC12V
M4GB440-C8-QD-3-5Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC110V
M4GB440-C8-QD-4-1Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC100V
M4GB440-C8-QD-4-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC24V
M4GB440-C8-QD-4-4Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC12V
M4GB440-C8-QD-4-5Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC110V
M4GB440-C8-QD-5-1Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC100V
M4GB440-C8-QD-5-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC24V
M4GB440-C8-QD-5-4Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC12V
M4GB440-C8-QD-5-5Function: 3-position A/B/R connection | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC110V
M4GB440-C10-QD-2-1Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC100V
M4GB440-C10-QD-2-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC24V
M4GB440-C10-QD-2-4Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC12V
M4GB440-C10-QD-2-5Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC110V
M4GB440-C10-QD-3-1Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC100V
M4GB440-C10-QD-3-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC24V
M4GB440-C10-QD-3-4Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC12V
M4GB440-C10-QD-3-5Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC110V
M4GB440-C10-QD-4-1Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC100V
M4GB440-C10-QD-4-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC24V
M4GB440-C10-QD-4-4Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC12V
M4GB440-C10-QD-4-5Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC110V
M4GB440-C10-QD-5-1Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC100V
M4GB440-C10-QD-5-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC24V
M4GB440-C10-QD-5-4Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC12V
M4GB440-C10-QD-5-5Function: 3-position A/B/R connection | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC110V
M4GB440-C12-QD-2-1Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC100V
M4GB440-C12-QD-2-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC24V
M4GB440-C12-QD-2-4Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC12V
M4GB440-C12-QD-2-5Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC110V
M4GB440-C12-QD-3-1Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC100V
M4GB440-C12-QD-3-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC24V
M4GB440-C12-QD-3-4Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC12V
M4GB440-C12-QD-3-5Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC110V
M4GB440-C12-QD-4-1Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC100V
M4GB440-C12-QD-4-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC24V
M4GB440-C12-QD-4-4Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC12V
M4GB440-C12-QD-4-5Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC110V
M4GB440-C12-QD-5-1Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC100V
M4GB440-C12-QD-5-3Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC24V
M4GB440-C12-QD-5-4Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC12V
M4GB440-C12-QD-5-5Function: 3-position A/B/R connection | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC110V
M4GB440-08-QD-2-1Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 2 | Voltage: AC100V
M4GB440-08-QD-2-3Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 2 | Voltage: DC24V
M4GB440-08-QD-2-4Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 2 | Voltage: DC12V
M4GB440-08-QD-2-5Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 2 | Voltage: AC110V
M4GB440-08-QD-3-1Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 3 | Voltage: AC100V
M4GB440-08-QD-3-3Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 3 | Voltage: DC24V
M4GB440-08-QD-3-4Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 3 | Voltage: DC12V
M4GB440-08-QD-3-5Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 3 | Voltage: AC110V
M4GB440-08-QD-4-1Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 4 | Voltage: AC100V
M4GB440-08-QD-4-3Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 4 | Voltage: DC24V
M4GB440-08-QD-4-4Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 4 | Voltage: DC12V
M4GB440-08-QD-4-5Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 4 | Voltage: AC110V
M4GB440-08-QD-5-1Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 5 | Voltage: AC100V
M4GB440-08-QD-5-3Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 5 | Voltage: DC24V
M4GB440-08-QD-5-4Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 5 | Voltage: DC12V
M4GB440-08-QD-5-5Function: 3-position A/B/R connection | A/B port: Rc1/4 | Stations: 5 | Voltage: AC110V
M4GB440-10-QD-2-1Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 2 | Voltage: AC100V
M4GB440-10-QD-2-3Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 2 | Voltage: DC24V
M4GB440-10-QD-2-4Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 2 | Voltage: DC12V
M4GB440-10-QD-2-5Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 2 | Voltage: AC110V
M4GB440-10-QD-3-1Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 3 | Voltage: AC100V
M4GB440-10-QD-3-3Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 3 | Voltage: DC24V
M4GB440-10-QD-3-4Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 3 | Voltage: DC12V
M4GB440-10-QD-3-5Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 3 | Voltage: AC110V
M4GB440-10-QD-4-1Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 4 | Voltage: AC100V
M4GB440-10-QD-4-3Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 4 | Voltage: DC24V
M4GB440-10-QD-4-4Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 4 | Voltage: DC12V
M4GB440-10-QD-4-5Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 4 | Voltage: AC110V
M4GB440-10-QD-5-1Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 5 | Voltage: AC100V
M4GB440-10-QD-5-3Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 5 | Voltage: DC24V
M4GB440-10-QD-5-4Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 5 | Voltage: DC12V
M4GB440-10-QD-5-5Function: 3-position A/B/R connection | A/B port: Rc3/8 | Stations: 5 | Voltage: AC110V
M4GB450-C8-QD-2-1Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC100V
M4GB450-C8-QD-2-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC24V
M4GB450-C8-QD-2-4Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC12V
M4GB450-C8-QD-2-5Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC110V
M4GB450-C8-QD-3-1Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC100V
M4GB450-C8-QD-3-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC24V
M4GB450-C8-QD-3-4Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC12V
M4GB450-C8-QD-3-5Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC110V
M4GB450-C8-QD-4-1Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC100V
M4GB450-C8-QD-4-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC24V
M4GB450-C8-QD-4-4Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC12V
M4GB450-C8-QD-4-5Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC110V
M4GB450-C8-QD-5-1Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC100V
M4GB450-C8-QD-5-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC24V
M4GB450-C8-QD-5-4Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC12V
M4GB450-C8-QD-5-5Function: 3-position P/A/B connection | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC110V
M4GB450-C10-QD-2-1Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC100V
M4GB450-C10-QD-2-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC24V
M4GB450-C10-QD-2-4Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC12V
M4GB450-C10-QD-2-5Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC110V
M4GB450-C10-QD-3-1Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC100V
M4GB450-C10-QD-3-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC24V
M4GB450-C10-QD-3-4Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC12V
M4GB450-C10-QD-3-5Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC110V
M4GB450-C10-QD-4-1Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC100V
M4GB450-C10-QD-4-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC24V
M4GB450-C10-QD-4-4Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC12V
M4GB450-C10-QD-4-5Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC110V
M4GB450-C10-QD-5-1Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC100V
M4GB450-C10-QD-5-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC24V
M4GB450-C10-QD-5-4Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC12V
M4GB450-C10-QD-5-5Function: 3-position P/A/B connection | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC110V
M4GB450-C12-QD-2-1Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC100V
M4GB450-C12-QD-2-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC24V
M4GB450-C12-QD-2-4Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC12V
M4GB450-C12-QD-2-5Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC110V
M4GB450-C12-QD-3-1Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC100V
M4GB450-C12-QD-3-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC24V
M4GB450-C12-QD-3-4Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC12V
M4GB450-C12-QD-3-5Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC110V
M4GB450-C12-QD-4-1Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC100V
M4GB450-C12-QD-4-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC24V
M4GB450-C12-QD-4-4Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC12V
M4GB450-C12-QD-4-5Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC110V
M4GB450-C12-QD-5-1Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC100V
M4GB450-C12-QD-5-3Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC24V
M4GB450-C12-QD-5-4Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC12V
M4GB450-C12-QD-5-5Function: 3-position P/A/B connection | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC110V
M4GB450-08-QD-2-1Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 2 | Voltage: AC100V
M4GB450-08-QD-2-3Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 2 | Voltage: DC24V
M4GB450-08-QD-2-4Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 2 | Voltage: DC12V
M4GB450-08-QD-2-5Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 2 | Voltage: AC110V
M4GB450-08-QD-3-1Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 3 | Voltage: AC100V
M4GB450-08-QD-3-3Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 3 | Voltage: DC24V
M4GB450-08-QD-3-4Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 3 | Voltage: DC12V
M4GB450-08-QD-3-5Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 3 | Voltage: AC110V
M4GB450-08-QD-4-1Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 4 | Voltage: AC100V
M4GB450-08-QD-4-3Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 4 | Voltage: DC24V
M4GB450-08-QD-4-4Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 4 | Voltage: DC12V
M4GB450-08-QD-4-5Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 4 | Voltage: AC110V
M4GB450-08-QD-5-1Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 5 | Voltage: AC100V
M4GB450-08-QD-5-3Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 5 | Voltage: DC24V
M4GB450-08-QD-5-4Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 5 | Voltage: DC12V
M4GB450-08-QD-5-5Function: 3-position P/A/B connection | A/B port: Rc1/4 | Stations: 5 | Voltage: AC110V
M4GB450-10-QD-2-1Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 2 | Voltage: AC100V
M4GB450-10-QD-2-3Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 2 | Voltage: DC24V
M4GB450-10-QD-2-4Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 2 | Voltage: DC12V
M4GB450-10-QD-2-5Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 2 | Voltage: AC110V
M4GB450-10-QD-3-1Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 3 | Voltage: AC100V
M4GB450-10-QD-3-3Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 3 | Voltage: DC24V
M4GB450-10-QD-3-4Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 3 | Voltage: DC12V
M4GB450-10-QD-3-5Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 3 | Voltage: AC110V
M4GB450-10-QD-4-1Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 4 | Voltage: AC100V
M4GB450-10-QD-4-3Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 4 | Voltage: DC24V
M4GB450-10-QD-4-4Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 4 | Voltage: DC12V
M4GB450-10-QD-4-5Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 4 | Voltage: AC110V
M4GB450-10-QD-5-1Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 5 | Voltage: AC100V
M4GB450-10-QD-5-3Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 5 | Voltage: DC24V
M4GB450-10-QD-5-4Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 5 | Voltage: DC12V
M4GB450-10-QD-5-5Function: 3-position P/A/B connection | A/B port: Rc3/8 | Stations: 5 | Voltage: AC110V
M4GB480-C8-QD-2-1Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC100V
M4GB480-C8-QD-2-3Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC24V
M4GB480-C8-QD-2-4Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: DC12V
M4GB480-C8-QD-2-5Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 2 | Voltage: AC110V
M4GB480-C8-QD-3-1Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC100V
M4GB480-C8-QD-3-3Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC24V
M4GB480-C8-QD-3-4Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: DC12V
M4GB480-C8-QD-3-5Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 3 | Voltage: AC110V
M4GB480-C8-QD-4-1Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC100V
M4GB480-C8-QD-4-3Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC24V
M4GB480-C8-QD-4-4Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: DC12V
M4GB480-C8-QD-4-5Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 4 | Voltage: AC110V
M4GB480-C8-QD-5-1Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC100V
M4GB480-C8-QD-5-3Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC24V
M4GB480-C8-QD-5-4Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: DC12V
M4GB480-C8-QD-5-5Function: Mixed manifold | A/B port: One-touch fitting 8 mm | Stations: 5 | Voltage: AC110V
M4GB480-C10-QD-2-1Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC100V
M4GB480-C10-QD-2-3Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC24V
M4GB480-C10-QD-2-4Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: DC12V
M4GB480-C10-QD-2-5Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 2 | Voltage: AC110V
M4GB480-C10-QD-3-1Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC100V
M4GB480-C10-QD-3-3Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC24V
M4GB480-C10-QD-3-4Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: DC12V
M4GB480-C10-QD-3-5Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 3 | Voltage: AC110V
M4GB480-C10-QD-4-1Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC100V
M4GB480-C10-QD-4-3Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC24V
M4GB480-C10-QD-4-4Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: DC12V
M4GB480-C10-QD-4-5Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 4 | Voltage: AC110V
M4GB480-C10-QD-5-1Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC100V
M4GB480-C10-QD-5-3Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC24V
M4GB480-C10-QD-5-4Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: DC12V
M4GB480-C10-QD-5-5Function: Mixed manifold | A/B port: One-touch fitting 10 mm | Stations: 5 | Voltage: AC110V
M4GB480-C12-QD-2-1Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC100V
M4GB480-C12-QD-2-3Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC24V
M4GB480-C12-QD-2-4Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: DC12V
M4GB480-C12-QD-2-5Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 2 | Voltage: AC110V
M4GB480-C12-QD-3-1Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC100V
M4GB480-C12-QD-3-3Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC24V
M4GB480-C12-QD-3-4Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: DC12V
M4GB480-C12-QD-3-5Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 3 | Voltage: AC110V
M4GB480-C12-QD-4-1Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC100V
M4GB480-C12-QD-4-3Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC24V
M4GB480-C12-QD-4-4Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: DC12V
M4GB480-C12-QD-4-5Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 4 | Voltage: AC110V
M4GB480-C12-QD-5-1Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC100V
M4GB480-C12-QD-5-3Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC24V
M4GB480-C12-QD-5-4Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: DC12V
M4GB480-C12-QD-5-5Function: Mixed manifold | A/B port: One-touch fitting 12 mm | Stations: 5 | Voltage: AC110V
M4GB480-08-QD-2-1Function: Mixed manifold | A/B port: Rc1/4 | Stations: 2 | Voltage: AC100V
M4GB480-08-QD-2-3Function: Mixed manifold | A/B port: Rc1/4 | Stations: 2 | Voltage: DC24V
M4GB480-08-QD-2-4Function: Mixed manifold | A/B port: Rc1/4 | Stations: 2 | Voltage: DC12V
M4GB480-08-QD-2-5Function: Mixed manifold | A/B port: Rc1/4 | Stations: 2 | Voltage: AC110V
M4GB480-08-QD-3-1Function: Mixed manifold | A/B port: Rc1/4 | Stations: 3 | Voltage: AC100V
M4GB480-08-QD-3-3Function: Mixed manifold | A/B port: Rc1/4 | Stations: 3 | Voltage: DC24V
M4GB480-08-QD-3-4Function: Mixed manifold | A/B port: Rc1/4 | Stations: 3 | Voltage: DC12V
M4GB480-08-QD-3-5Function: Mixed manifold | A/B port: Rc1/4 | Stations: 3 | Voltage: AC110V
M4GB480-08-QD-4-1Function: Mixed manifold | A/B port: Rc1/4 | Stations: 4 | Voltage: AC100V
M4GB480-08-QD-4-3Function: Mixed manifold | A/B port: Rc1/4 | Stations: 4 | Voltage: DC24V
M4GB480-08-QD-4-4Function: Mixed manifold | A/B port: Rc1/4 | Stations: 4 | Voltage: DC12V
M4GB480-08-QD-4-5Function: Mixed manifold | A/B port: Rc1/4 | Stations: 4 | Voltage: AC110V
M4GB480-08-QD-5-1Function: Mixed manifold | A/B port: Rc1/4 | Stations: 5 | Voltage: AC100V
M4GB480-08-QD-5-3Function: Mixed manifold | A/B port: Rc1/4 | Stations: 5 | Voltage: DC24V
M4GB480-08-QD-5-4Function: Mixed manifold | A/B port: Rc1/4 | Stations: 5 | Voltage: DC12V
M4GB480-08-QD-5-5Function: Mixed manifold | A/B port: Rc1/4 | Stations: 5 | Voltage: AC110V
M4GB480-10-QD-2-1Function: Mixed manifold | A/B port: Rc3/8 | Stations: 2 | Voltage: AC100V
M4GB480-10-QD-2-3Function: Mixed manifold | A/B port: Rc3/8 | Stations: 2 | Voltage: DC24V
M4GB480-10-QD-2-4Function: Mixed manifold | A/B port: Rc3/8 | Stations: 2 | Voltage: DC12V
M4GB480-10-QD-2-5Function: Mixed manifold | A/B port: Rc3/8 | Stations: 2 | Voltage: AC110V
M4GB480-10-QD-3-1Function: Mixed manifold | A/B port: Rc3/8 | Stations: 3 | Voltage: AC100V
M4GB480-10-QD-3-3Function: Mixed manifold | A/B port: Rc3/8 | Stations: 3 | Voltage: DC24V
M4GB480-10-QD-3-4Function: Mixed manifold | A/B port: Rc3/8 | Stations: 3 | Voltage: DC12V
M4GB480-10-QD-3-5Function: Mixed manifold | A/B port: Rc3/8 | Stations: 3 | Voltage: AC110V
M4GB480-10-QD-4-1Function: Mixed manifold | A/B port: Rc3/8 | Stations: 4 | Voltage: AC100V
M4GB480-10-QD-4-3Function: Mixed manifold | A/B port: Rc3/8 | Stations: 4 | Voltage: DC24V
M4GB480-10-QD-4-4Function: Mixed manifold | A/B port: Rc3/8 | Stations: 4 | Voltage: DC12V
M4GB480-10-QD-4-5Function: Mixed manifold | A/B port: Rc3/8 | Stations: 4 | Voltage: AC110V
M4GB480-10-QD-5-1Function: Mixed manifold | A/B port: Rc3/8 | Stations: 5 | Voltage: AC100V
M4GB480-10-QD-5-3Function: Mixed manifold | A/B port: Rc3/8 | Stations: 5 | Voltage: DC24V
M4GB480-10-QD-5-4Function: Mixed manifold | A/B port: Rc3/8 | Stations: 5 | Voltage: DC12V
M4GB480-10-QD-5-5Function: Mixed manifold | A/B port: Rc3/8 | Stations: 5 | Voltage: AC110V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
