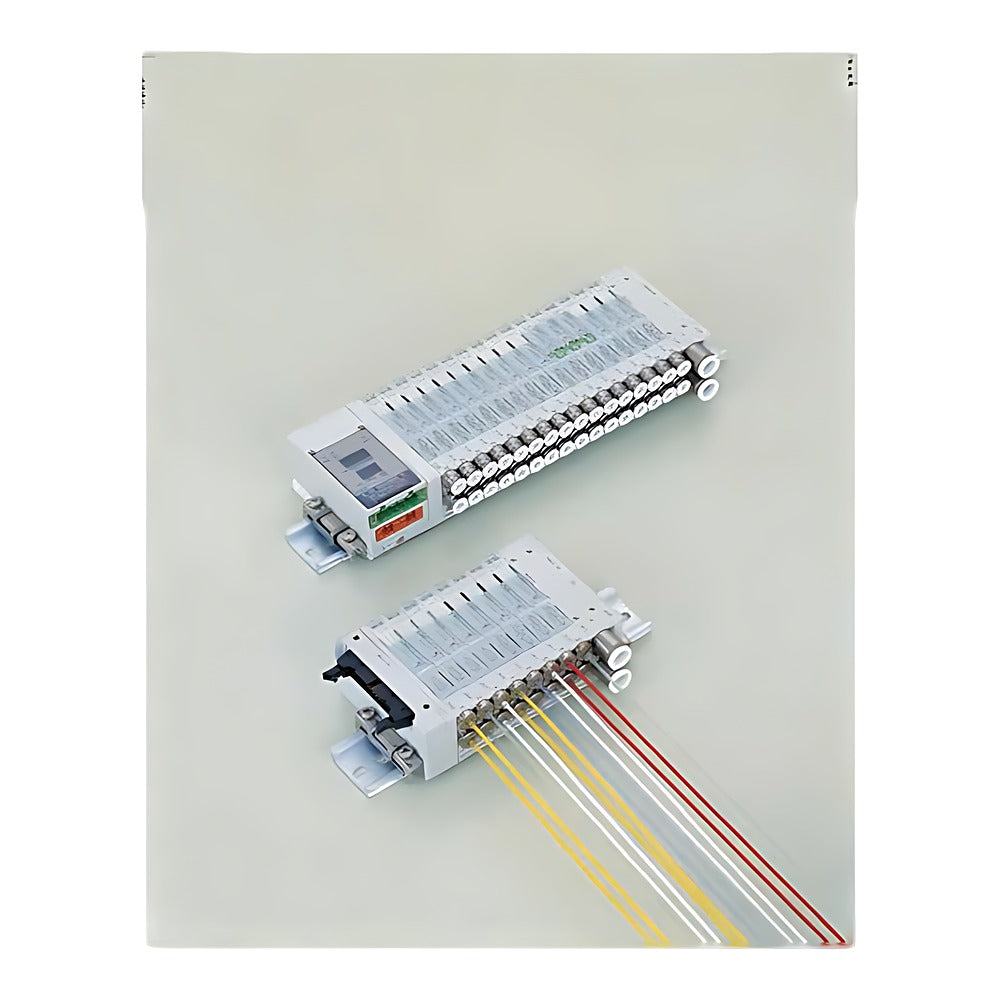

CKD M3GD/M4GD EJ Intrinsically Safe Manifold (Direct, 4G1/4G2)

CKD M3GD/M4GD EJ Intrinsically Safe Manifold (Direct, 4G1/4G2)

CKD M3GD1/M3GD2/M4GD1/M4GD2 EJ series intrinsically safe individual-wiring valve manifold with direct piping (ports on the valves), Ex ib IIC T4 Gb.

Key features

  • Intrinsically safe Ex ib IIC T4 Gb individual-wiring manifold; DC12V 0.6 W coils with M8 connectors, safety barrier sold separately
  • Integrated (one-piece) manifold base, common supply and exhaust; 3-port dual valves (M3G) or 5-port valves with mixed manifold (8) option
  • Listed manifold codes use M8 connector without cable (RN) and direct mount; R1/R2 cable and DIN-rail mount (D) are ordered by symbol substitution
  • Options H, A, F, Z1 supply spacer, Z2 in-stop valve spacer, Z3 exhaust spacer and mixed layouts are specified on the manifold specification sheet
  • Valves for base mounting (code with 9) are listed for replacement and expansion

Specifications

Valve type Pilot-operated soft spool valve
Fluid Compressed air
Operating pressure 0.2 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient / fluid temperature -5 to 55°C / 5 to 55°C
Explosion protection Intrinsically safe Ex ib IIC T4 Gb
Coil DC12V, 0.05 A, 0.6 W, class B
Barrier input voltage DC24V (barrier sold separately)
Protection IP67
Manual override Non-locking / locking (standard)
Piping Direct piping (valve top)
Wiring (listed codes) RN M8 connector, no cable
Source CKD Korea catalog CB-023SK-9, p. 1816-1823
M3GD1660EJ-CXRN-2-4 Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 2
M3GD1660EJ-CXRN-3-4 Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 3
M3GD1660EJ-CXRN-4-4 Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 4
M3GD1660EJ-CXRN-5-4 Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 5
M3GD1660EJ-CXRN-6-4 Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 6
M3GD1660EJ-CXRN-7-4 Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 7
M3GD1660EJ-CXRN-8-4 Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 8
M3GD1660EJ-CXRN-9-4 Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 9
M3GD1660EJ-CXRN-10-4 Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 10
M3GD1660EJ-CXRN-11-4 Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 11
M3GD1660EJ-CXRN-12-4 Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 12
M3GD1660EJ-CXRN-13-4 Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 13
M3GD1660EJ-CXRN-14-4 Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 14
M3GD1660EJ-CXRN-15-4 Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 15
M3GD1660EJ-CXRN-16-4 Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 16
M3GD1660EJ-CXRN-17-4 Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 17
M3GD1660EJ-CXRN-18-4 Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 18
M3GD1660EJ-CXRN-19-4 Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 19
M3GD1660EJ-CXRN-20-4 Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 20
M4GD110EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 2
M4GD110EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 3
M4GD110EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 4
M4GD110EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 5
M4GD110EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 6
M4GD110EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 7
M4GD110EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 8
M4GD110EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 9
M4GD110EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 10
M4GD110EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 11
M4GD110EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 12
M4GD110EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 13
M4GD110EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 14
M4GD110EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 15
M4GD110EJ-CXRN-16-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 16
M4GD110EJ-CXRN-17-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 17
M4GD110EJ-CXRN-18-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 18
M4GD110EJ-CXRN-19-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 19
M4GD110EJ-CXRN-20-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 20
M4GD120EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 2
M4GD120EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 3
M4GD120EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 4
M4GD120EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 5
M4GD120EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 6
M4GD120EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 7
M4GD120EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 8
M4GD120EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 9
M4GD120EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 10
M4GD120EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 11
M4GD120EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 12
M4GD120EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 13
M4GD120EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 14
M4GD120EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 15
M4GD120EJ-CXRN-16-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 16
M4GD120EJ-CXRN-17-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 17
M4GD120EJ-CXRN-18-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 18
M4GD120EJ-CXRN-19-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 19
M4GD120EJ-CXRN-20-4 Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 20
M4GD130EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 2
M4GD130EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 3
M4GD130EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 4
M4GD130EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 5
M4GD130EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 6
M4GD130EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 7
M4GD130EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 8
M4GD130EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 9
M4GD130EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 10
M4GD130EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 11
M4GD130EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 12
M4GD130EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 13
M4GD130EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 14
M4GD130EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 15
M4GD130EJ-CXRN-16-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 16
M4GD130EJ-CXRN-17-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 17
M4GD130EJ-CXRN-18-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 18
M4GD130EJ-CXRN-19-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 19
M4GD130EJ-CXRN-20-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 20
M4GD140EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 2
M4GD140EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 3
M4GD140EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 4
M4GD140EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 5
M4GD140EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 6
M4GD140EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 7
M4GD140EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 8
M4GD140EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 9
M4GD140EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 10
M4GD140EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 11
M4GD140EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 12
M4GD140EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 13
M4GD140EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 14
M4GD140EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 15
M4GD140EJ-CXRN-16-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 16
M4GD140EJ-CXRN-17-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 17
M4GD140EJ-CXRN-18-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 18
M4GD140EJ-CXRN-19-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 19
M4GD140EJ-CXRN-20-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 20
M4GD150EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 2
M4GD150EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 3
M4GD150EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 4
M4GD150EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 5
M4GD150EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 6
M4GD150EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 7
M4GD150EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 8
M4GD150EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 9
M4GD150EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 10
M4GD150EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 11
M4GD150EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 12
M4GD150EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 13
M4GD150EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 14
M4GD150EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 15
M4GD150EJ-CXRN-16-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 16
M4GD150EJ-CXRN-17-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 17
M4GD150EJ-CXRN-18-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 18
M4GD150EJ-CXRN-19-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 19
M4GD150EJ-CXRN-20-4 Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 20
M4GD180EJ-C18RN-2-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 2
M4GD180EJ-C18RN-3-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 3
M4GD180EJ-C18RN-4-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 4
M4GD180EJ-C18RN-5-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 5
M4GD180EJ-C18RN-6-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 6
M4GD180EJ-C18RN-7-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 7
M4GD180EJ-C18RN-8-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 8
M4GD180EJ-C18RN-9-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 9
M4GD180EJ-C18RN-10-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 10
M4GD180EJ-C18RN-11-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 11
M4GD180EJ-C18RN-12-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 12
M4GD180EJ-C18RN-13-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 13
M4GD180EJ-C18RN-14-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 14
M4GD180EJ-C18RN-15-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 15
M4GD180EJ-C18RN-16-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 16
M4GD180EJ-C18RN-17-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 17
M4GD180EJ-C18RN-18-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 18
M4GD180EJ-C18RN-19-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 19
M4GD180EJ-C18RN-20-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 20
M4GD180EJ-C4RN-2-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 2
M4GD180EJ-C4RN-3-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 3
M4GD180EJ-C4RN-4-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 4
M4GD180EJ-C4RN-5-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 5
M4GD180EJ-C4RN-6-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 6
M4GD180EJ-C4RN-7-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 7
M4GD180EJ-C4RN-8-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 8
M4GD180EJ-C4RN-9-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 9
M4GD180EJ-C4RN-10-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 10
M4GD180EJ-C4RN-11-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 11
M4GD180EJ-C4RN-12-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 12
M4GD180EJ-C4RN-13-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 13
M4GD180EJ-C4RN-14-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 14
M4GD180EJ-C4RN-15-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 15
M4GD180EJ-C4RN-16-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 16
M4GD180EJ-C4RN-17-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 17
M4GD180EJ-C4RN-18-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 18
M4GD180EJ-C4RN-19-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 19
M4GD180EJ-C4RN-20-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 20
M4GD180EJ-C6RN-2-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 2
M4GD180EJ-C6RN-3-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 3
M4GD180EJ-C6RN-4-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 4
M4GD180EJ-C6RN-5-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 5
M4GD180EJ-C6RN-6-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 6
M4GD180EJ-C6RN-7-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 7
M4GD180EJ-C6RN-8-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 8
M4GD180EJ-C6RN-9-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 9
M4GD180EJ-C6RN-10-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 10
M4GD180EJ-C6RN-11-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 11
M4GD180EJ-C6RN-12-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 12
M4GD180EJ-C6RN-13-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 13
M4GD180EJ-C6RN-14-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 14
M4GD180EJ-C6RN-15-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 15
M4GD180EJ-C6RN-16-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 16
M4GD180EJ-C6RN-17-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 17
M4GD180EJ-C6RN-18-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 18
M4GD180EJ-C6RN-19-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 19
M4GD180EJ-C6RN-20-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 20
M4GD180EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 2
M4GD180EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 3
M4GD180EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 4
M4GD180EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 5
M4GD180EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 6
M4GD180EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 7
M4GD180EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 8
M4GD180EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 9
M4GD180EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 10
M4GD180EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 11
M4GD180EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 12
M4GD180EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 13
M4GD180EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 14
M4GD180EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 15
M4GD180EJ-CXRN-16-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 16
M4GD180EJ-CXRN-17-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 17
M4GD180EJ-CXRN-18-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 18
M4GD180EJ-CXRN-19-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 19
M4GD180EJ-CXRN-20-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 20
M4GD180EJ-M5RN-2-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 2
M4GD180EJ-M5RN-3-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 3
M4GD180EJ-M5RN-4-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 4
M4GD180EJ-M5RN-5-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 5
M4GD180EJ-M5RN-6-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 6
M4GD180EJ-M5RN-7-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 7
M4GD180EJ-M5RN-8-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 8
M4GD180EJ-M5RN-9-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 9
M4GD180EJ-M5RN-10-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 10
M4GD180EJ-M5RN-11-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 11
M4GD180EJ-M5RN-12-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 12
M4GD180EJ-M5RN-13-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 13
M4GD180EJ-M5RN-14-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 14
M4GD180EJ-M5RN-15-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 15
M4GD180EJ-M5RN-16-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 16
M4GD180EJ-M5RN-17-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 17
M4GD180EJ-M5RN-18-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 18
M4GD180EJ-M5RN-19-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 19
M4GD180EJ-M5RN-20-4 Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 20
M3GD2660EJ-CXRN-2-4 Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 2
M3GD2660EJ-CXRN-3-4 Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 3
M3GD2660EJ-CXRN-4-4 Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 4
M3GD2660EJ-CXRN-5-4 Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 5
M3GD2660EJ-CXRN-6-4 Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 6
M3GD2660EJ-CXRN-7-4 Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 7
M3GD2660EJ-CXRN-8-4 Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 8
M3GD2660EJ-CXRN-9-4 Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 9
M3GD2660EJ-CXRN-10-4 Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 10
M3GD2660EJ-CXRN-11-4 Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 11
M3GD2660EJ-CXRN-12-4 Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 12
M3GD2660EJ-CXRN-13-4 Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 13
M3GD2660EJ-CXRN-14-4 Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 14
M3GD2660EJ-CXRN-15-4 Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 15
M3GD2660EJ-CXRN-16-4 Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 16
M3GD2660EJ-CXRN-17-4 Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 17
M3GD2660EJ-CXRN-18-4 Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 18
M3GD2660EJ-CXRN-19-4 Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 19
M3GD2660EJ-CXRN-20-4 Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 20
M4GD210EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 2
M4GD210EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 3
M4GD210EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 4
M4GD210EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 5
M4GD210EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 6
M4GD210EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 7
M4GD210EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 8
M4GD210EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 9
M4GD210EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 10
M4GD210EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 11
M4GD210EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 12
M4GD210EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 13
M4GD210EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 14
M4GD210EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 15
M4GD210EJ-CXRN-16-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 16
M4GD210EJ-CXRN-17-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 17
M4GD210EJ-CXRN-18-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 18
M4GD210EJ-CXRN-19-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 19
M4GD210EJ-CXRN-20-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 20
M4GD220EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 2
M4GD220EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 3
M4GD220EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 4
M4GD220EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 5
M4GD220EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 6
M4GD220EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 7
M4GD220EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 8
M4GD220EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 9
M4GD220EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 10
M4GD220EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 11
M4GD220EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 12
M4GD220EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 13
M4GD220EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 14
M4GD220EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 15
M4GD220EJ-CXRN-16-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 16
M4GD220EJ-CXRN-17-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 17
M4GD220EJ-CXRN-18-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 18
M4GD220EJ-CXRN-19-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 19
M4GD220EJ-CXRN-20-4 Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 20
M4GD230EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 2
M4GD230EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 3
M4GD230EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 4
M4GD230EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 5
M4GD230EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 6
M4GD230EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 7
M4GD230EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 8
M4GD230EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 9
M4GD230EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 10
M4GD230EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 11
M4GD230EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 12
M4GD230EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 13
M4GD230EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 14
M4GD230EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 15
M4GD230EJ-CXRN-16-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 16
M4GD230EJ-CXRN-17-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 17
M4GD230EJ-CXRN-18-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 18
M4GD230EJ-CXRN-19-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 19
M4GD230EJ-CXRN-20-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 20
M4GD240EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 2
M4GD240EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 3
M4GD240EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 4
M4GD240EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 5
M4GD240EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 6
M4GD240EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 7
M4GD240EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 8
M4GD240EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 9
M4GD240EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 10
M4GD240EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 11
M4GD240EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 12
M4GD240EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 13
M4GD240EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 14
M4GD240EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 15
M4GD240EJ-CXRN-16-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 16
M4GD240EJ-CXRN-17-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 17
M4GD240EJ-CXRN-18-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 18
M4GD240EJ-CXRN-19-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 19
M4GD240EJ-CXRN-20-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 20
M4GD250EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 2
M4GD250EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 3
M4GD250EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 4
M4GD250EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 5
M4GD250EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 6
M4GD250EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 7
M4GD250EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 8
M4GD250EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 9
M4GD250EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 10
M4GD250EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 11
M4GD250EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 12
M4GD250EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 13
M4GD250EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 14
M4GD250EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 15
M4GD250EJ-CXRN-16-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 16
M4GD250EJ-CXRN-17-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 17
M4GD250EJ-CXRN-18-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 18
M4GD250EJ-CXRN-19-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 19
M4GD250EJ-CXRN-20-4 Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 20
M4GD280EJ-C4RN-2-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 2
M4GD280EJ-C4RN-3-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 3
M4GD280EJ-C4RN-4-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 4
M4GD280EJ-C4RN-5-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 5
M4GD280EJ-C4RN-6-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 6
M4GD280EJ-C4RN-7-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 7
M4GD280EJ-C4RN-8-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 8
M4GD280EJ-C4RN-9-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 9
M4GD280EJ-C4RN-10-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 10
M4GD280EJ-C4RN-11-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 11
M4GD280EJ-C4RN-12-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 12
M4GD280EJ-C4RN-13-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 13
M4GD280EJ-C4RN-14-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 14
M4GD280EJ-C4RN-15-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 15
M4GD280EJ-C4RN-16-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 16
M4GD280EJ-C4RN-17-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 17
M4GD280EJ-C4RN-18-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 18
M4GD280EJ-C4RN-19-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 19
M4GD280EJ-C4RN-20-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 20
M4GD280EJ-C6RN-2-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 2
M4GD280EJ-C6RN-3-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 3
M4GD280EJ-C6RN-4-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 4
M4GD280EJ-C6RN-5-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 5
M4GD280EJ-C6RN-6-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 6
M4GD280EJ-C6RN-7-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 7
M4GD280EJ-C6RN-8-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 8
M4GD280EJ-C6RN-9-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 9
M4GD280EJ-C6RN-10-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 10
M4GD280EJ-C6RN-11-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 11
M4GD280EJ-C6RN-12-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 12
M4GD280EJ-C6RN-13-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 13
M4GD280EJ-C6RN-14-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 14
M4GD280EJ-C6RN-15-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 15
M4GD280EJ-C6RN-16-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 16
M4GD280EJ-C6RN-17-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 17
M4GD280EJ-C6RN-18-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 18
M4GD280EJ-C6RN-19-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 19
M4GD280EJ-C6RN-20-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 20
M4GD280EJ-C8RN-2-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 2
M4GD280EJ-C8RN-3-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 3
M4GD280EJ-C8RN-4-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 4
M4GD280EJ-C8RN-5-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 5
M4GD280EJ-C8RN-6-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 6
M4GD280EJ-C8RN-7-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 7
M4GD280EJ-C8RN-8-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 8
M4GD280EJ-C8RN-9-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 9
M4GD280EJ-C8RN-10-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 10
M4GD280EJ-C8RN-11-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 11
M4GD280EJ-C8RN-12-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 12
M4GD280EJ-C8RN-13-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 13
M4GD280EJ-C8RN-14-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 14
M4GD280EJ-C8RN-15-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 15
M4GD280EJ-C8RN-16-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 16
M4GD280EJ-C8RN-17-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 17
M4GD280EJ-C8RN-18-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 18
M4GD280EJ-C8RN-19-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 19
M4GD280EJ-C8RN-20-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 20
M4GD280EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 2
M4GD280EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 3
M4GD280EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 4
M4GD280EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 5
M4GD280EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 6
M4GD280EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 7
M4GD280EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 8
M4GD280EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 9
M4GD280EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 10
M4GD280EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 11
M4GD280EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 12
M4GD280EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 13
M4GD280EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 14
M4GD280EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 15
M4GD280EJ-CXRN-16-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 16
M4GD280EJ-CXRN-17-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 17
M4GD280EJ-CXRN-18-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 18
M4GD280EJ-CXRN-19-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 19
M4GD280EJ-CXRN-20-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 20
M4GD280EJ-06RN-2-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 2
M4GD280EJ-06RN-3-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 3
M4GD280EJ-06RN-4-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 4
M4GD280EJ-06RN-5-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 5
M4GD280EJ-06RN-6-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 6
M4GD280EJ-06RN-7-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 7
M4GD280EJ-06RN-8-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 8
M4GD280EJ-06RN-9-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 9
M4GD280EJ-06RN-10-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 10
M4GD280EJ-06RN-11-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 11
M4GD280EJ-06RN-12-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 12
M4GD280EJ-06RN-13-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 13
M4GD280EJ-06RN-14-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 14
M4GD280EJ-06RN-15-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 15
M4GD280EJ-06RN-16-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 16
M4GD280EJ-06RN-17-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 17
M4GD280EJ-06RN-18-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 18
M4GD280EJ-06RN-19-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 19
M4GD280EJ-06RN-20-4 Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 20
Valve ManifoldsCKD
418 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD M3GD/M4GD EJ Intrinsically Safe Manifold (Direct, 4G1/4G2)

Brand CKD·Valve Manifolds

Available part numbers (418)

M3GD1660EJ-CXRN-2-4, M3GD1660EJ-CXRN-3-4, M3GD1660EJ-CXRN-4-4, M3GD1660EJ-CXRN-5-4, M3GD1660EJ-CXRN-6-4, M3GD1660EJ-CXRN-7-4, M3GD1660EJ-CXRN-8-4, M3GD1660EJ-CXRN-9-4, M3GD1660EJ-CXRN-10-4, M3GD1660EJ-CXRN-11-4 + 408 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
M3GD1660EJ-CXRN-2-4Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 2
M3GD1660EJ-CXRN-3-4Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 3
M3GD1660EJ-CXRN-4-4Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 4
M3GD1660EJ-CXRN-5-4Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 5
M3GD1660EJ-CXRN-6-4Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 6
M3GD1660EJ-CXRN-7-4Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 7
M3GD1660EJ-CXRN-8-4Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 8
M3GD1660EJ-CXRN-9-4Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 9
M3GD1660EJ-CXRN-10-4Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 10
M3GD1660EJ-CXRN-11-4Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 11
M3GD1660EJ-CXRN-12-4Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 12
M3GD1660EJ-CXRN-13-4Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 13
M3GD1660EJ-CXRN-14-4Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 14
M3GD1660EJ-CXRN-15-4Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 15
M3GD1660EJ-CXRN-16-4Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 16
M3GD1660EJ-CXRN-17-4Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 17
M3GD1660EJ-CXRN-18-4Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 18
M3GD1660EJ-CXRN-19-4Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 19
M3GD1660EJ-CXRN-20-4Item: Manifold assembly | Model: M3GD1 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 20
M4GD110EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 2
M4GD110EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 3
M4GD110EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 4
M4GD110EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 5
M4GD110EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 6
M4GD110EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 7
M4GD110EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 8
M4GD110EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 9
M4GD110EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 10
M4GD110EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 11
M4GD110EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 12
M4GD110EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 13
M4GD110EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 14
M4GD110EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 15
M4GD110EJ-CXRN-16-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 16
M4GD110EJ-CXRN-17-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 17
M4GD110EJ-CXRN-18-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 18
M4GD110EJ-CXRN-19-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 19
M4GD110EJ-CXRN-20-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 20
M4GD120EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 2
M4GD120EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 3
M4GD120EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 4
M4GD120EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 5
M4GD120EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 6
M4GD120EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 7
M4GD120EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 8
M4GD120EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 9
M4GD120EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 10
M4GD120EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 11
M4GD120EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 12
M4GD120EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 13
M4GD120EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 14
M4GD120EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 15
M4GD120EJ-CXRN-16-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 16
M4GD120EJ-CXRN-17-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 17
M4GD120EJ-CXRN-18-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 18
M4GD120EJ-CXRN-19-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 19
M4GD120EJ-CXRN-20-4Item: Manifold assembly | Model: M4GD1 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 20
M4GD130EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 2
M4GD130EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 3
M4GD130EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 4
M4GD130EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 5
M4GD130EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 6
M4GD130EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 7
M4GD130EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 8
M4GD130EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 9
M4GD130EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 10
M4GD130EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 11
M4GD130EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 12
M4GD130EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 13
M4GD130EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 14
M4GD130EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 15
M4GD130EJ-CXRN-16-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 16
M4GD130EJ-CXRN-17-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 17
M4GD130EJ-CXRN-18-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 18
M4GD130EJ-CXRN-19-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 19
M4GD130EJ-CXRN-20-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 20
M4GD140EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 2
M4GD140EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 3
M4GD140EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 4
M4GD140EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 5
M4GD140EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 6
M4GD140EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 7
M4GD140EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 8
M4GD140EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 9
M4GD140EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 10
M4GD140EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 11
M4GD140EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 12
M4GD140EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 13
M4GD140EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 14
M4GD140EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 15
M4GD140EJ-CXRN-16-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 16
M4GD140EJ-CXRN-17-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 17
M4GD140EJ-CXRN-18-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 18
M4GD140EJ-CXRN-19-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 19
M4GD140EJ-CXRN-20-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 20
M4GD150EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 2
M4GD150EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 3
M4GD150EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 4
M4GD150EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 5
M4GD150EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 6
M4GD150EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 7
M4GD150EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 8
M4GD150EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 9
M4GD150EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 10
M4GD150EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 11
M4GD150EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 12
M4GD150EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 13
M4GD150EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 14
M4GD150EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 15
M4GD150EJ-CXRN-16-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 16
M4GD150EJ-CXRN-17-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 17
M4GD150EJ-CXRN-18-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 18
M4GD150EJ-CXRN-19-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 19
M4GD150EJ-CXRN-20-4Item: Manifold assembly | Model: M4GD1 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 20
M4GD180EJ-C18RN-2-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 2
M4GD180EJ-C18RN-3-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 3
M4GD180EJ-C18RN-4-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 4
M4GD180EJ-C18RN-5-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 5
M4GD180EJ-C18RN-6-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 6
M4GD180EJ-C18RN-7-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 7
M4GD180EJ-C18RN-8-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 8
M4GD180EJ-C18RN-9-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 9
M4GD180EJ-C18RN-10-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 10
M4GD180EJ-C18RN-11-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 11
M4GD180EJ-C18RN-12-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 12
M4GD180EJ-C18RN-13-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 13
M4GD180EJ-C18RN-14-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 14
M4GD180EJ-C18RN-15-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 15
M4GD180EJ-C18RN-16-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 16
M4GD180EJ-C18RN-17-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 17
M4GD180EJ-C18RN-18-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 18
M4GD180EJ-C18RN-19-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 19
M4GD180EJ-C18RN-20-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 1.8 mm | Stations: 20
M4GD180EJ-C4RN-2-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 2
M4GD180EJ-C4RN-3-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 3
M4GD180EJ-C4RN-4-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 4
M4GD180EJ-C4RN-5-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 5
M4GD180EJ-C4RN-6-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 6
M4GD180EJ-C4RN-7-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 7
M4GD180EJ-C4RN-8-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 8
M4GD180EJ-C4RN-9-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 9
M4GD180EJ-C4RN-10-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 10
M4GD180EJ-C4RN-11-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 11
M4GD180EJ-C4RN-12-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 12
M4GD180EJ-C4RN-13-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 13
M4GD180EJ-C4RN-14-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 14
M4GD180EJ-C4RN-15-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 15
M4GD180EJ-C4RN-16-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 16
M4GD180EJ-C4RN-17-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 17
M4GD180EJ-C4RN-18-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 18
M4GD180EJ-C4RN-19-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 19
M4GD180EJ-C4RN-20-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 20
M4GD180EJ-C6RN-2-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 2
M4GD180EJ-C6RN-3-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 3
M4GD180EJ-C6RN-4-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 4
M4GD180EJ-C6RN-5-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 5
M4GD180EJ-C6RN-6-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 6
M4GD180EJ-C6RN-7-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 7
M4GD180EJ-C6RN-8-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 8
M4GD180EJ-C6RN-9-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 9
M4GD180EJ-C6RN-10-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 10
M4GD180EJ-C6RN-11-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 11
M4GD180EJ-C6RN-12-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 12
M4GD180EJ-C6RN-13-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 13
M4GD180EJ-C6RN-14-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 14
M4GD180EJ-C6RN-15-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 15
M4GD180EJ-C6RN-16-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 16
M4GD180EJ-C6RN-17-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 17
M4GD180EJ-C6RN-18-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 18
M4GD180EJ-C6RN-19-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 19
M4GD180EJ-C6RN-20-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 20
M4GD180EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 2
M4GD180EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 3
M4GD180EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 4
M4GD180EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 5
M4GD180EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 6
M4GD180EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 7
M4GD180EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 8
M4GD180EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 9
M4GD180EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 10
M4GD180EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 11
M4GD180EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 12
M4GD180EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 13
M4GD180EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 14
M4GD180EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 15
M4GD180EJ-CXRN-16-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 16
M4GD180EJ-CXRN-17-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 17
M4GD180EJ-CXRN-18-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 18
M4GD180EJ-CXRN-19-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 19
M4GD180EJ-CXRN-20-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 20
M4GD180EJ-M5RN-2-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 2
M4GD180EJ-M5RN-3-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 3
M4GD180EJ-M5RN-4-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 4
M4GD180EJ-M5RN-5-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 5
M4GD180EJ-M5RN-6-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 6
M4GD180EJ-M5RN-7-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 7
M4GD180EJ-M5RN-8-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 8
M4GD180EJ-M5RN-9-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 9
M4GD180EJ-M5RN-10-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 10
M4GD180EJ-M5RN-11-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 11
M4GD180EJ-M5RN-12-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 12
M4GD180EJ-M5RN-13-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 13
M4GD180EJ-M5RN-14-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 14
M4GD180EJ-M5RN-15-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 15
M4GD180EJ-M5RN-16-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 16
M4GD180EJ-M5RN-17-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 17
M4GD180EJ-M5RN-18-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 18
M4GD180EJ-M5RN-19-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 19
M4GD180EJ-M5RN-20-4Item: Manifold assembly | Model: M4GD1 | Switching: Mixed manifold | A/B port: M5 | Stations: 20
M3GD2660EJ-CXRN-2-4Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 2
M3GD2660EJ-CXRN-3-4Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 3
M3GD2660EJ-CXRN-4-4Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 4
M3GD2660EJ-CXRN-5-4Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 5
M3GD2660EJ-CXRN-6-4Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 6
M3GD2660EJ-CXRN-7-4Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 7
M3GD2660EJ-CXRN-8-4Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 8
M3GD2660EJ-CXRN-9-4Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 9
M3GD2660EJ-CXRN-10-4Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 10
M3GD2660EJ-CXRN-11-4Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 11
M3GD2660EJ-CXRN-12-4Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 12
M3GD2660EJ-CXRN-13-4Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 13
M3GD2660EJ-CXRN-14-4Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 14
M3GD2660EJ-CXRN-15-4Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 15
M3GD2660EJ-CXRN-16-4Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 16
M3GD2660EJ-CXRN-17-4Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 17
M3GD2660EJ-CXRN-18-4Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 18
M3GD2660EJ-CXRN-19-4Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 19
M3GD2660EJ-CXRN-20-4Item: Manifold assembly | Model: M3GD2 | Switching: Dual 3-port (A NC, B NC) | A/B port: Push-in fitting mix | Stations: 20
M4GD210EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 2
M4GD210EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 3
M4GD210EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 4
M4GD210EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 5
M4GD210EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 6
M4GD210EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 7
M4GD210EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 8
M4GD210EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 9
M4GD210EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 10
M4GD210EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 11
M4GD210EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 12
M4GD210EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 13
M4GD210EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 14
M4GD210EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 15
M4GD210EJ-CXRN-16-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 16
M4GD210EJ-CXRN-17-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 17
M4GD210EJ-CXRN-18-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 18
M4GD210EJ-CXRN-19-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 19
M4GD210EJ-CXRN-20-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 20
M4GD220EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 2
M4GD220EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 3
M4GD220EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 4
M4GD220EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 5
M4GD220EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 6
M4GD220EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 7
M4GD220EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 8
M4GD220EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 9
M4GD220EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 10
M4GD220EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 11
M4GD220EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 12
M4GD220EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 13
M4GD220EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 14
M4GD220EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 15
M4GD220EJ-CXRN-16-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 16
M4GD220EJ-CXRN-17-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 17
M4GD220EJ-CXRN-18-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 18
M4GD220EJ-CXRN-19-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 19
M4GD220EJ-CXRN-20-4Item: Manifold assembly | Model: M4GD2 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 20
M4GD230EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 2
M4GD230EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 3
M4GD230EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 4
M4GD230EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 5
M4GD230EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 6
M4GD230EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 7
M4GD230EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 8
M4GD230EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 9
M4GD230EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 10
M4GD230EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 11
M4GD230EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 12
M4GD230EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 13
M4GD230EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 14
M4GD230EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 15
M4GD230EJ-CXRN-16-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 16
M4GD230EJ-CXRN-17-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 17
M4GD230EJ-CXRN-18-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 18
M4GD230EJ-CXRN-19-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 19
M4GD230EJ-CXRN-20-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 20
M4GD240EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 2
M4GD240EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 3
M4GD240EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 4
M4GD240EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 5
M4GD240EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 6
M4GD240EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 7
M4GD240EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 8
M4GD240EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 9
M4GD240EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 10
M4GD240EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 11
M4GD240EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 12
M4GD240EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 13
M4GD240EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 14
M4GD240EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 15
M4GD240EJ-CXRN-16-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 16
M4GD240EJ-CXRN-17-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 17
M4GD240EJ-CXRN-18-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 18
M4GD240EJ-CXRN-19-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 19
M4GD240EJ-CXRN-20-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 20
M4GD250EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 2
M4GD250EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 3
M4GD250EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 4
M4GD250EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 5
M4GD250EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 6
M4GD250EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 7
M4GD250EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 8
M4GD250EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 9
M4GD250EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 10
M4GD250EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 11
M4GD250EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 12
M4GD250EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 13
M4GD250EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 14
M4GD250EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 15
M4GD250EJ-CXRN-16-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 16
M4GD250EJ-CXRN-17-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 17
M4GD250EJ-CXRN-18-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 18
M4GD250EJ-CXRN-19-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 19
M4GD250EJ-CXRN-20-4Item: Manifold assembly | Model: M4GD2 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 20
M4GD280EJ-C4RN-2-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 2
M4GD280EJ-C4RN-3-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 3
M4GD280EJ-C4RN-4-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 4
M4GD280EJ-C4RN-5-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 5
M4GD280EJ-C4RN-6-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 6
M4GD280EJ-C4RN-7-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 7
M4GD280EJ-C4RN-8-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 8
M4GD280EJ-C4RN-9-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 9
M4GD280EJ-C4RN-10-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 10
M4GD280EJ-C4RN-11-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 11
M4GD280EJ-C4RN-12-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 12
M4GD280EJ-C4RN-13-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 13
M4GD280EJ-C4RN-14-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 14
M4GD280EJ-C4RN-15-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 15
M4GD280EJ-C4RN-16-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 16
M4GD280EJ-C4RN-17-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 17
M4GD280EJ-C4RN-18-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 18
M4GD280EJ-C4RN-19-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 19
M4GD280EJ-C4RN-20-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 4 mm | Stations: 20
M4GD280EJ-C6RN-2-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 2
M4GD280EJ-C6RN-3-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 3
M4GD280EJ-C6RN-4-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 4
M4GD280EJ-C6RN-5-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 5
M4GD280EJ-C6RN-6-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 6
M4GD280EJ-C6RN-7-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 7
M4GD280EJ-C6RN-8-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 8
M4GD280EJ-C6RN-9-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 9
M4GD280EJ-C6RN-10-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 10
M4GD280EJ-C6RN-11-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 11
M4GD280EJ-C6RN-12-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 12
M4GD280EJ-C6RN-13-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 13
M4GD280EJ-C6RN-14-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 14
M4GD280EJ-C6RN-15-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 15
M4GD280EJ-C6RN-16-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 16
M4GD280EJ-C6RN-17-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 17
M4GD280EJ-C6RN-18-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 18
M4GD280EJ-C6RN-19-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 19
M4GD280EJ-C6RN-20-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 20
M4GD280EJ-C8RN-2-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 2
M4GD280EJ-C8RN-3-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 3
M4GD280EJ-C8RN-4-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 4
M4GD280EJ-C8RN-5-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 5
M4GD280EJ-C8RN-6-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 6
M4GD280EJ-C8RN-7-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 7
M4GD280EJ-C8RN-8-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 8
M4GD280EJ-C8RN-9-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 9
M4GD280EJ-C8RN-10-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 10
M4GD280EJ-C8RN-11-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 11
M4GD280EJ-C8RN-12-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 12
M4GD280EJ-C8RN-13-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 13
M4GD280EJ-C8RN-14-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 14
M4GD280EJ-C8RN-15-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 15
M4GD280EJ-C8RN-16-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 16
M4GD280EJ-C8RN-17-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 17
M4GD280EJ-C8RN-18-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 18
M4GD280EJ-C8RN-19-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 19
M4GD280EJ-C8RN-20-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 20
M4GD280EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 2
M4GD280EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 3
M4GD280EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 4
M4GD280EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 5
M4GD280EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 6
M4GD280EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 7
M4GD280EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 8
M4GD280EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 9
M4GD280EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 10
M4GD280EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 11
M4GD280EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 12
M4GD280EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 13
M4GD280EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 14
M4GD280EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 15
M4GD280EJ-CXRN-16-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 16
M4GD280EJ-CXRN-17-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 17
M4GD280EJ-CXRN-18-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 18
M4GD280EJ-CXRN-19-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 19
M4GD280EJ-CXRN-20-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 20
M4GD280EJ-06RN-2-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 2
M4GD280EJ-06RN-3-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 3
M4GD280EJ-06RN-4-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 4
M4GD280EJ-06RN-5-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 5
M4GD280EJ-06RN-6-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 6
M4GD280EJ-06RN-7-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 7
M4GD280EJ-06RN-8-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 8
M4GD280EJ-06RN-9-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 9
M4GD280EJ-06RN-10-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 10
M4GD280EJ-06RN-11-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 11
M4GD280EJ-06RN-12-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 12
M4GD280EJ-06RN-13-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 13
M4GD280EJ-06RN-14-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 14
M4GD280EJ-06RN-15-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 15
M4GD280EJ-06RN-16-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 16
M4GD280EJ-06RN-17-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 17
M4GD280EJ-06RN-18-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 18
M4GD280EJ-06RN-19-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 19
M4GD280EJ-06RN-20-4Item: Manifold assembly | Model: M4GD2 | Switching: Mixed manifold | A/B port: Rc1/8 | Stations: 20

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
