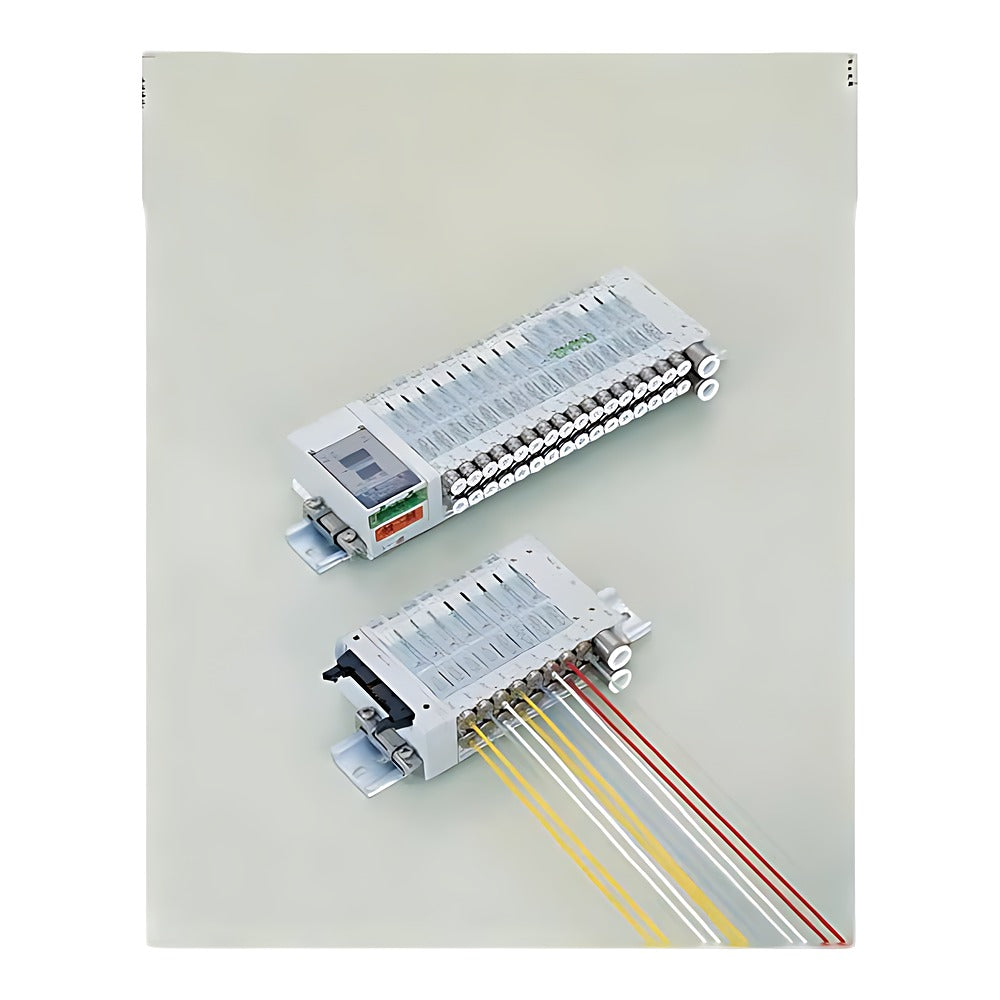

CKD M4GD EJ Intrinsically Safe Manifold (Direct Piping, 4G3/4G4)

CKD M4GD EJ Intrinsically Safe Manifold (Direct Piping, 4G3/4G4)

CKD M4GD3/M4GD4 EJ series intrinsically safe individual-wiring valve manifold with direct piping (ports on the valves), Ex ib IIC T4 Gb.

Key features

  • Intrinsically safe Ex ib IIC T4 Gb individual-wiring manifold; DC12V 0.6 W coils with M8 connectors, safety barrier sold separately
  • Integrated (one-piece) manifold base, common supply and exhaust; 3-port dual valves (M3G) or 5-port valves with mixed manifold (8) option
  • Listed manifold codes use M8 connector without cable (RN) and direct mount; R1/R2 cable and DIN-rail mount (D) are ordered by symbol substitution
  • Options H, A, F, Z1 supply spacer, Z2 in-stop valve spacer, Z3 exhaust spacer and mixed layouts are specified on the manifold specification sheet
  • Valves for base mounting (code with 9) are listed for replacement and expansion

Specifications

Valve type Pilot-operated soft spool valve
Fluid Compressed air
Operating pressure 0.2 to 0.7 MPa
Proof pressure 1.05 MPa
Ambient / fluid temperature -5 to 55°C / 5 to 55°C
Explosion protection Intrinsically safe Ex ib IIC T4 Gb
Coil DC12V, 0.05 A, 0.6 W, class B
Barrier input voltage DC24V (barrier sold separately)
Protection IP67
Manual override Non-locking / locking (standard)
Piping Direct piping (valve top)
Wiring (listed codes) RN M8 connector, no cable
Source CKD Korea catalog CB-023SK-9, p. 1816-1823
M4GD310EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 2
M4GD310EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 3
M4GD310EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 4
M4GD310EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 5
M4GD310EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 6
M4GD310EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 7
M4GD310EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 8
M4GD310EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 9
M4GD310EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 10
M4GD310EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 11
M4GD310EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 12
M4GD310EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 13
M4GD310EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 14
M4GD310EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 15
M4GD310EJ-CXRN-16-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 16
M4GD310EJ-CXRN-17-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 17
M4GD310EJ-CXRN-18-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 18
M4GD310EJ-CXRN-19-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 19
M4GD310EJ-CXRN-20-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 20
M4GD320EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 2
M4GD320EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 3
M4GD320EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 4
M4GD320EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 5
M4GD320EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 6
M4GD320EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 7
M4GD320EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 8
M4GD320EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 9
M4GD320EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 10
M4GD320EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 11
M4GD320EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 12
M4GD320EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 13
M4GD320EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 14
M4GD320EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 15
M4GD320EJ-CXRN-16-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 16
M4GD320EJ-CXRN-17-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 17
M4GD320EJ-CXRN-18-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 18
M4GD320EJ-CXRN-19-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 19
M4GD320EJ-CXRN-20-4 Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 20
M4GD330EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 2
M4GD330EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 3
M4GD330EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 4
M4GD330EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 5
M4GD330EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 6
M4GD330EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 7
M4GD330EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 8
M4GD330EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 9
M4GD330EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 10
M4GD330EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 11
M4GD330EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 12
M4GD330EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 13
M4GD330EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 14
M4GD330EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 15
M4GD330EJ-CXRN-16-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 16
M4GD330EJ-CXRN-17-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 17
M4GD330EJ-CXRN-18-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 18
M4GD330EJ-CXRN-19-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 19
M4GD330EJ-CXRN-20-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 20
M4GD340EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 2
M4GD340EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 3
M4GD340EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 4
M4GD340EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 5
M4GD340EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 6
M4GD340EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 7
M4GD340EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 8
M4GD340EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 9
M4GD340EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 10
M4GD340EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 11
M4GD340EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 12
M4GD340EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 13
M4GD340EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 14
M4GD340EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 15
M4GD340EJ-CXRN-16-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 16
M4GD340EJ-CXRN-17-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 17
M4GD340EJ-CXRN-18-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 18
M4GD340EJ-CXRN-19-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 19
M4GD340EJ-CXRN-20-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 20
M4GD350EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 2
M4GD350EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 3
M4GD350EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 4
M4GD350EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 5
M4GD350EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 6
M4GD350EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 7
M4GD350EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 8
M4GD350EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 9
M4GD350EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 10
M4GD350EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 11
M4GD350EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 12
M4GD350EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 13
M4GD350EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 14
M4GD350EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 15
M4GD350EJ-CXRN-16-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 16
M4GD350EJ-CXRN-17-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 17
M4GD350EJ-CXRN-18-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 18
M4GD350EJ-CXRN-19-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 19
M4GD350EJ-CXRN-20-4 Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 20
M4GD380EJ-C6RN-2-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 2
M4GD380EJ-C6RN-3-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 3
M4GD380EJ-C6RN-4-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 4
M4GD380EJ-C6RN-5-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 5
M4GD380EJ-C6RN-6-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 6
M4GD380EJ-C6RN-7-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 7
M4GD380EJ-C6RN-8-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 8
M4GD380EJ-C6RN-9-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 9
M4GD380EJ-C6RN-10-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 10
M4GD380EJ-C6RN-11-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 11
M4GD380EJ-C6RN-12-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 12
M4GD380EJ-C6RN-13-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 13
M4GD380EJ-C6RN-14-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 14
M4GD380EJ-C6RN-15-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 15
M4GD380EJ-C6RN-16-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 16
M4GD380EJ-C6RN-17-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 17
M4GD380EJ-C6RN-18-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 18
M4GD380EJ-C6RN-19-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 19
M4GD380EJ-C6RN-20-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 20
M4GD380EJ-C8RN-2-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 2
M4GD380EJ-C8RN-3-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 3
M4GD380EJ-C8RN-4-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 4
M4GD380EJ-C8RN-5-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 5
M4GD380EJ-C8RN-6-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 6
M4GD380EJ-C8RN-7-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 7
M4GD380EJ-C8RN-8-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 8
M4GD380EJ-C8RN-9-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 9
M4GD380EJ-C8RN-10-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 10
M4GD380EJ-C8RN-11-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 11
M4GD380EJ-C8RN-12-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 12
M4GD380EJ-C8RN-13-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 13
M4GD380EJ-C8RN-14-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 14
M4GD380EJ-C8RN-15-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 15
M4GD380EJ-C8RN-16-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 16
M4GD380EJ-C8RN-17-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 17
M4GD380EJ-C8RN-18-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 18
M4GD380EJ-C8RN-19-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 19
M4GD380EJ-C8RN-20-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 20
M4GD380EJ-C10RN-2-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 2
M4GD380EJ-C10RN-3-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 3
M4GD380EJ-C10RN-4-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 4
M4GD380EJ-C10RN-5-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 5
M4GD380EJ-C10RN-6-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 6
M4GD380EJ-C10RN-7-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 7
M4GD380EJ-C10RN-8-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 8
M4GD380EJ-C10RN-9-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 9
M4GD380EJ-C10RN-10-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 10
M4GD380EJ-C10RN-11-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 11
M4GD380EJ-C10RN-12-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 12
M4GD380EJ-C10RN-13-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 13
M4GD380EJ-C10RN-14-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 14
M4GD380EJ-C10RN-15-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 15
M4GD380EJ-C10RN-16-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 16
M4GD380EJ-C10RN-17-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 17
M4GD380EJ-C10RN-18-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 18
M4GD380EJ-C10RN-19-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 19
M4GD380EJ-C10RN-20-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 20
M4GD380EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 2
M4GD380EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 3
M4GD380EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 4
M4GD380EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 5
M4GD380EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 6
M4GD380EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 7
M4GD380EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 8
M4GD380EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 9
M4GD380EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 10
M4GD380EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 11
M4GD380EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 12
M4GD380EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 13
M4GD380EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 14
M4GD380EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 15
M4GD380EJ-CXRN-16-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 16
M4GD380EJ-CXRN-17-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 17
M4GD380EJ-CXRN-18-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 18
M4GD380EJ-CXRN-19-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 19
M4GD380EJ-CXRN-20-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 20
M4GD380EJ-08RN-2-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 2
M4GD380EJ-08RN-3-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 3
M4GD380EJ-08RN-4-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 4
M4GD380EJ-08RN-5-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 5
M4GD380EJ-08RN-6-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 6
M4GD380EJ-08RN-7-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 7
M4GD380EJ-08RN-8-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 8
M4GD380EJ-08RN-9-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 9
M4GD380EJ-08RN-10-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 10
M4GD380EJ-08RN-11-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 11
M4GD380EJ-08RN-12-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 12
M4GD380EJ-08RN-13-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 13
M4GD380EJ-08RN-14-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 14
M4GD380EJ-08RN-15-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 15
M4GD380EJ-08RN-16-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 16
M4GD380EJ-08RN-17-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 17
M4GD380EJ-08RN-18-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 18
M4GD380EJ-08RN-19-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 19
M4GD380EJ-08RN-20-4 Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 20
M4GD410EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 2
M4GD410EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 3
M4GD410EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 4
M4GD410EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 5
M4GD410EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 6
M4GD410EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 7
M4GD410EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 8
M4GD410EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 9
M4GD410EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 10
M4GD410EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 11
M4GD410EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 12
M4GD410EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 13
M4GD410EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 14
M4GD410EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 15
M4GD420EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 2
M4GD420EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 3
M4GD420EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 4
M4GD420EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 5
M4GD420EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 6
M4GD420EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 7
M4GD420EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 8
M4GD420EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 9
M4GD420EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 10
M4GD420EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 11
M4GD420EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 12
M4GD420EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 13
M4GD420EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 14
M4GD420EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 15
M4GD430EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 2
M4GD430EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 3
M4GD430EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 4
M4GD430EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 5
M4GD430EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 6
M4GD430EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 7
M4GD430EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 8
M4GD430EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 9
M4GD430EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 10
M4GD430EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 11
M4GD430EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 12
M4GD430EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 13
M4GD430EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 14
M4GD430EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 15
M4GD440EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 2
M4GD440EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 3
M4GD440EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 4
M4GD440EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 5
M4GD440EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 6
M4GD440EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 7
M4GD440EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 8
M4GD440EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 9
M4GD440EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 10
M4GD440EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 11
M4GD440EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 12
M4GD440EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 13
M4GD440EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 14
M4GD440EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 15
M4GD450EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 2
M4GD450EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 3
M4GD450EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 4
M4GD450EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 5
M4GD450EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 6
M4GD450EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 7
M4GD450EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 8
M4GD450EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 9
M4GD450EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 10
M4GD450EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 11
M4GD450EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 12
M4GD450EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 13
M4GD450EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 14
M4GD450EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 15
M4GD480EJ-C8RN-2-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 2
M4GD480EJ-C8RN-3-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 3
M4GD480EJ-C8RN-4-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 4
M4GD480EJ-C8RN-5-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 5
M4GD480EJ-C8RN-6-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 6
M4GD480EJ-C8RN-7-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 7
M4GD480EJ-C8RN-8-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 8
M4GD480EJ-C8RN-9-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 9
M4GD480EJ-C8RN-10-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 10
M4GD480EJ-C8RN-11-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 11
M4GD480EJ-C8RN-12-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 12
M4GD480EJ-C8RN-13-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 13
M4GD480EJ-C8RN-14-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 14
M4GD480EJ-C8RN-15-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 15
M4GD480EJ-C10RN-2-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 2
M4GD480EJ-C10RN-3-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 3
M4GD480EJ-C10RN-4-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 4
M4GD480EJ-C10RN-5-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 5
M4GD480EJ-C10RN-6-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 6
M4GD480EJ-C10RN-7-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 7
M4GD480EJ-C10RN-8-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 8
M4GD480EJ-C10RN-9-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 9
M4GD480EJ-C10RN-10-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 10
M4GD480EJ-C10RN-11-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 11
M4GD480EJ-C10RN-12-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 12
M4GD480EJ-C10RN-13-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 13
M4GD480EJ-C10RN-14-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 14
M4GD480EJ-C10RN-15-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 15
M4GD480EJ-C12RN-2-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 2
M4GD480EJ-C12RN-3-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 3
M4GD480EJ-C12RN-4-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 4
M4GD480EJ-C12RN-5-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 5
M4GD480EJ-C12RN-6-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 6
M4GD480EJ-C12RN-7-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 7
M4GD480EJ-C12RN-8-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 8
M4GD480EJ-C12RN-9-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 9
M4GD480EJ-C12RN-10-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 10
M4GD480EJ-C12RN-11-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 11
M4GD480EJ-C12RN-12-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 12
M4GD480EJ-C12RN-13-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 13
M4GD480EJ-C12RN-14-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 14
M4GD480EJ-C12RN-15-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 15
M4GD480EJ-CXRN-2-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 2
M4GD480EJ-CXRN-3-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 3
M4GD480EJ-CXRN-4-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 4
M4GD480EJ-CXRN-5-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 5
M4GD480EJ-CXRN-6-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 6
M4GD480EJ-CXRN-7-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 7
M4GD480EJ-CXRN-8-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 8
M4GD480EJ-CXRN-9-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 9
M4GD480EJ-CXRN-10-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 10
M4GD480EJ-CXRN-11-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 11
M4GD480EJ-CXRN-12-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 12
M4GD480EJ-CXRN-13-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 13
M4GD480EJ-CXRN-14-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 14
M4GD480EJ-CXRN-15-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 15
M4GD480EJ-10RN-2-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 2
M4GD480EJ-10RN-3-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 3
M4GD480EJ-10RN-4-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 4
M4GD480EJ-10RN-5-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 5
M4GD480EJ-10RN-6-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 6
M4GD480EJ-10RN-7-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 7
M4GD480EJ-10RN-8-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 8
M4GD480EJ-10RN-9-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 9
M4GD480EJ-10RN-10-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 10
M4GD480EJ-10RN-11-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 11
M4GD480EJ-10RN-12-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 12
M4GD480EJ-10RN-13-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 13
M4GD480EJ-10RN-14-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 14
M4GD480EJ-10RN-15-4 Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 15
Valve ManifoldsCKD
330 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD M4GD EJ Intrinsically Safe Manifold (Direct Piping, 4G3/4G4)

Brand CKD·Valve Manifolds

Available part numbers (330)

M4GD310EJ-CXRN-2-4, M4GD310EJ-CXRN-3-4, M4GD310EJ-CXRN-4-4, M4GD310EJ-CXRN-5-4, M4GD310EJ-CXRN-6-4, M4GD310EJ-CXRN-7-4, M4GD310EJ-CXRN-8-4, M4GD310EJ-CXRN-9-4, M4GD310EJ-CXRN-10-4, M4GD310EJ-CXRN-11-4 + 320 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
M4GD310EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 2
M4GD310EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 3
M4GD310EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 4
M4GD310EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 5
M4GD310EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 6
M4GD310EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 7
M4GD310EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 8
M4GD310EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 9
M4GD310EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 10
M4GD310EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 11
M4GD310EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 12
M4GD310EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 13
M4GD310EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 14
M4GD310EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 15
M4GD310EJ-CXRN-16-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 16
M4GD310EJ-CXRN-17-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 17
M4GD310EJ-CXRN-18-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 18
M4GD310EJ-CXRN-19-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 19
M4GD310EJ-CXRN-20-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 20
M4GD320EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 2
M4GD320EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 3
M4GD320EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 4
M4GD320EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 5
M4GD320EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 6
M4GD320EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 7
M4GD320EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 8
M4GD320EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 9
M4GD320EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 10
M4GD320EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 11
M4GD320EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 12
M4GD320EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 13
M4GD320EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 14
M4GD320EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 15
M4GD320EJ-CXRN-16-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 16
M4GD320EJ-CXRN-17-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 17
M4GD320EJ-CXRN-18-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 18
M4GD320EJ-CXRN-19-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 19
M4GD320EJ-CXRN-20-4Item: Manifold assembly | Model: M4GD3 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 20
M4GD330EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 2
M4GD330EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 3
M4GD330EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 4
M4GD330EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 5
M4GD330EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 6
M4GD330EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 7
M4GD330EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 8
M4GD330EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 9
M4GD330EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 10
M4GD330EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 11
M4GD330EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 12
M4GD330EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 13
M4GD330EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 14
M4GD330EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 15
M4GD330EJ-CXRN-16-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 16
M4GD330EJ-CXRN-17-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 17
M4GD330EJ-CXRN-18-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 18
M4GD330EJ-CXRN-19-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 19
M4GD330EJ-CXRN-20-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 20
M4GD340EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 2
M4GD340EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 3
M4GD340EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 4
M4GD340EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 5
M4GD340EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 6
M4GD340EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 7
M4GD340EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 8
M4GD340EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 9
M4GD340EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 10
M4GD340EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 11
M4GD340EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 12
M4GD340EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 13
M4GD340EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 14
M4GD340EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 15
M4GD340EJ-CXRN-16-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 16
M4GD340EJ-CXRN-17-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 17
M4GD340EJ-CXRN-18-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 18
M4GD340EJ-CXRN-19-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 19
M4GD340EJ-CXRN-20-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 20
M4GD350EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 2
M4GD350EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 3
M4GD350EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 4
M4GD350EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 5
M4GD350EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 6
M4GD350EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 7
M4GD350EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 8
M4GD350EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 9
M4GD350EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 10
M4GD350EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 11
M4GD350EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 12
M4GD350EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 13
M4GD350EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 14
M4GD350EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 15
M4GD350EJ-CXRN-16-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 16
M4GD350EJ-CXRN-17-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 17
M4GD350EJ-CXRN-18-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 18
M4GD350EJ-CXRN-19-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 19
M4GD350EJ-CXRN-20-4Item: Manifold assembly | Model: M4GD3 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 20
M4GD380EJ-C6RN-2-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 2
M4GD380EJ-C6RN-3-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 3
M4GD380EJ-C6RN-4-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 4
M4GD380EJ-C6RN-5-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 5
M4GD380EJ-C6RN-6-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 6
M4GD380EJ-C6RN-7-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 7
M4GD380EJ-C6RN-8-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 8
M4GD380EJ-C6RN-9-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 9
M4GD380EJ-C6RN-10-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 10
M4GD380EJ-C6RN-11-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 11
M4GD380EJ-C6RN-12-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 12
M4GD380EJ-C6RN-13-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 13
M4GD380EJ-C6RN-14-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 14
M4GD380EJ-C6RN-15-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 15
M4GD380EJ-C6RN-16-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 16
M4GD380EJ-C6RN-17-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 17
M4GD380EJ-C6RN-18-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 18
M4GD380EJ-C6RN-19-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 19
M4GD380EJ-C6RN-20-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 6 mm | Stations: 20
M4GD380EJ-C8RN-2-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 2
M4GD380EJ-C8RN-3-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 3
M4GD380EJ-C8RN-4-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 4
M4GD380EJ-C8RN-5-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 5
M4GD380EJ-C8RN-6-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 6
M4GD380EJ-C8RN-7-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 7
M4GD380EJ-C8RN-8-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 8
M4GD380EJ-C8RN-9-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 9
M4GD380EJ-C8RN-10-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 10
M4GD380EJ-C8RN-11-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 11
M4GD380EJ-C8RN-12-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 12
M4GD380EJ-C8RN-13-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 13
M4GD380EJ-C8RN-14-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 14
M4GD380EJ-C8RN-15-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 15
M4GD380EJ-C8RN-16-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 16
M4GD380EJ-C8RN-17-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 17
M4GD380EJ-C8RN-18-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 18
M4GD380EJ-C8RN-19-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 19
M4GD380EJ-C8RN-20-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 20
M4GD380EJ-C10RN-2-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 2
M4GD380EJ-C10RN-3-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 3
M4GD380EJ-C10RN-4-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 4
M4GD380EJ-C10RN-5-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 5
M4GD380EJ-C10RN-6-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 6
M4GD380EJ-C10RN-7-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 7
M4GD380EJ-C10RN-8-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 8
M4GD380EJ-C10RN-9-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 9
M4GD380EJ-C10RN-10-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 10
M4GD380EJ-C10RN-11-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 11
M4GD380EJ-C10RN-12-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 12
M4GD380EJ-C10RN-13-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 13
M4GD380EJ-C10RN-14-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 14
M4GD380EJ-C10RN-15-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 15
M4GD380EJ-C10RN-16-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 16
M4GD380EJ-C10RN-17-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 17
M4GD380EJ-C10RN-18-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 18
M4GD380EJ-C10RN-19-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 19
M4GD380EJ-C10RN-20-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 20
M4GD380EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 2
M4GD380EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 3
M4GD380EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 4
M4GD380EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 5
M4GD380EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 6
M4GD380EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 7
M4GD380EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 8
M4GD380EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 9
M4GD380EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 10
M4GD380EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 11
M4GD380EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 12
M4GD380EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 13
M4GD380EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 14
M4GD380EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 15
M4GD380EJ-CXRN-16-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 16
M4GD380EJ-CXRN-17-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 17
M4GD380EJ-CXRN-18-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 18
M4GD380EJ-CXRN-19-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 19
M4GD380EJ-CXRN-20-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 20
M4GD380EJ-08RN-2-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 2
M4GD380EJ-08RN-3-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 3
M4GD380EJ-08RN-4-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 4
M4GD380EJ-08RN-5-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 5
M4GD380EJ-08RN-6-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 6
M4GD380EJ-08RN-7-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 7
M4GD380EJ-08RN-8-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 8
M4GD380EJ-08RN-9-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 9
M4GD380EJ-08RN-10-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 10
M4GD380EJ-08RN-11-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 11
M4GD380EJ-08RN-12-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 12
M4GD380EJ-08RN-13-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 13
M4GD380EJ-08RN-14-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 14
M4GD380EJ-08RN-15-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 15
M4GD380EJ-08RN-16-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 16
M4GD380EJ-08RN-17-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 17
M4GD380EJ-08RN-18-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 18
M4GD380EJ-08RN-19-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 19
M4GD380EJ-08RN-20-4Item: Manifold assembly | Model: M4GD3 | Switching: Mixed manifold | A/B port: Rc1/4 | Stations: 20
M4GD410EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 2
M4GD410EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 3
M4GD410EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 4
M4GD410EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 5
M4GD410EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 6
M4GD410EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 7
M4GD410EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 8
M4GD410EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 9
M4GD410EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 10
M4GD410EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 11
M4GD410EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 12
M4GD410EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 13
M4GD410EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 14
M4GD410EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos single | A/B port: Push-in fitting mix | Stations: 15
M4GD420EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 2
M4GD420EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 3
M4GD420EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 4
M4GD420EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 5
M4GD420EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 6
M4GD420EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 7
M4GD420EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 8
M4GD420EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 9
M4GD420EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 10
M4GD420EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 11
M4GD420EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 12
M4GD420EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 13
M4GD420EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 14
M4GD420EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD4 | Switching: 2-pos double | A/B port: Push-in fitting mix | Stations: 15
M4GD430EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 2
M4GD430EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 3
M4GD430EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 4
M4GD430EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 5
M4GD430EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 6
M4GD430EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 7
M4GD430EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 8
M4GD430EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 9
M4GD430EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 10
M4GD430EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 11
M4GD430EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 12
M4GD430EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 13
M4GD430EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 14
M4GD430EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos all ports blocked | A/B port: Push-in fitting mix | Stations: 15
M4GD440EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 2
M4GD440EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 3
M4GD440EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 4
M4GD440EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 5
M4GD440EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 6
M4GD440EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 7
M4GD440EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 8
M4GD440EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 9
M4GD440EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 10
M4GD440EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 11
M4GD440EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 12
M4GD440EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 13
M4GD440EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 14
M4GD440EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos A-B-R connection | A/B port: Push-in fitting mix | Stations: 15
M4GD450EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 2
M4GD450EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 3
M4GD450EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 4
M4GD450EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 5
M4GD450EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 6
M4GD450EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 7
M4GD450EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 8
M4GD450EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 9
M4GD450EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 10
M4GD450EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 11
M4GD450EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 12
M4GD450EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 13
M4GD450EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 14
M4GD450EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD4 | Switching: 3-pos P-A-B connection | A/B port: Push-in fitting mix | Stations: 15
M4GD480EJ-C8RN-2-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 2
M4GD480EJ-C8RN-3-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 3
M4GD480EJ-C8RN-4-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 4
M4GD480EJ-C8RN-5-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 5
M4GD480EJ-C8RN-6-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 6
M4GD480EJ-C8RN-7-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 7
M4GD480EJ-C8RN-8-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 8
M4GD480EJ-C8RN-9-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 9
M4GD480EJ-C8RN-10-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 10
M4GD480EJ-C8RN-11-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 11
M4GD480EJ-C8RN-12-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 12
M4GD480EJ-C8RN-13-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 13
M4GD480EJ-C8RN-14-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 14
M4GD480EJ-C8RN-15-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 8 mm | Stations: 15
M4GD480EJ-C10RN-2-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 2
M4GD480EJ-C10RN-3-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 3
M4GD480EJ-C10RN-4-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 4
M4GD480EJ-C10RN-5-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 5
M4GD480EJ-C10RN-6-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 6
M4GD480EJ-C10RN-7-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 7
M4GD480EJ-C10RN-8-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 8
M4GD480EJ-C10RN-9-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 9
M4GD480EJ-C10RN-10-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 10
M4GD480EJ-C10RN-11-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 11
M4GD480EJ-C10RN-12-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 12
M4GD480EJ-C10RN-13-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 13
M4GD480EJ-C10RN-14-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 14
M4GD480EJ-C10RN-15-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 10 mm | Stations: 15
M4GD480EJ-C12RN-2-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 2
M4GD480EJ-C12RN-3-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 3
M4GD480EJ-C12RN-4-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 4
M4GD480EJ-C12RN-5-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 5
M4GD480EJ-C12RN-6-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 6
M4GD480EJ-C12RN-7-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 7
M4GD480EJ-C12RN-8-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 8
M4GD480EJ-C12RN-9-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 9
M4GD480EJ-C12RN-10-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 10
M4GD480EJ-C12RN-11-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 11
M4GD480EJ-C12RN-12-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 12
M4GD480EJ-C12RN-13-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 13
M4GD480EJ-C12RN-14-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 14
M4GD480EJ-C12RN-15-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting 12 mm | Stations: 15
M4GD480EJ-CXRN-2-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 2
M4GD480EJ-CXRN-3-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 3
M4GD480EJ-CXRN-4-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 4
M4GD480EJ-CXRN-5-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 5
M4GD480EJ-CXRN-6-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 6
M4GD480EJ-CXRN-7-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 7
M4GD480EJ-CXRN-8-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 8
M4GD480EJ-CXRN-9-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 9
M4GD480EJ-CXRN-10-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 10
M4GD480EJ-CXRN-11-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 11
M4GD480EJ-CXRN-12-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 12
M4GD480EJ-CXRN-13-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 13
M4GD480EJ-CXRN-14-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 14
M4GD480EJ-CXRN-15-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Push-in fitting mix | Stations: 15
M4GD480EJ-10RN-2-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 2
M4GD480EJ-10RN-3-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 3
M4GD480EJ-10RN-4-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 4
M4GD480EJ-10RN-5-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 5
M4GD480EJ-10RN-6-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 6
M4GD480EJ-10RN-7-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 7
M4GD480EJ-10RN-8-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 8
M4GD480EJ-10RN-9-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 9
M4GD480EJ-10RN-10-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 10
M4GD480EJ-10RN-11-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 11
M4GD480EJ-10RN-12-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 12
M4GD480EJ-10RN-13-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 13
M4GD480EJ-10RN-14-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 14
M4GD480EJ-10RN-15-4Item: Manifold assembly | Model: M4GD4 | Switching: Mixed manifold | A/B port: Rc3/8 | Stations: 15

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
