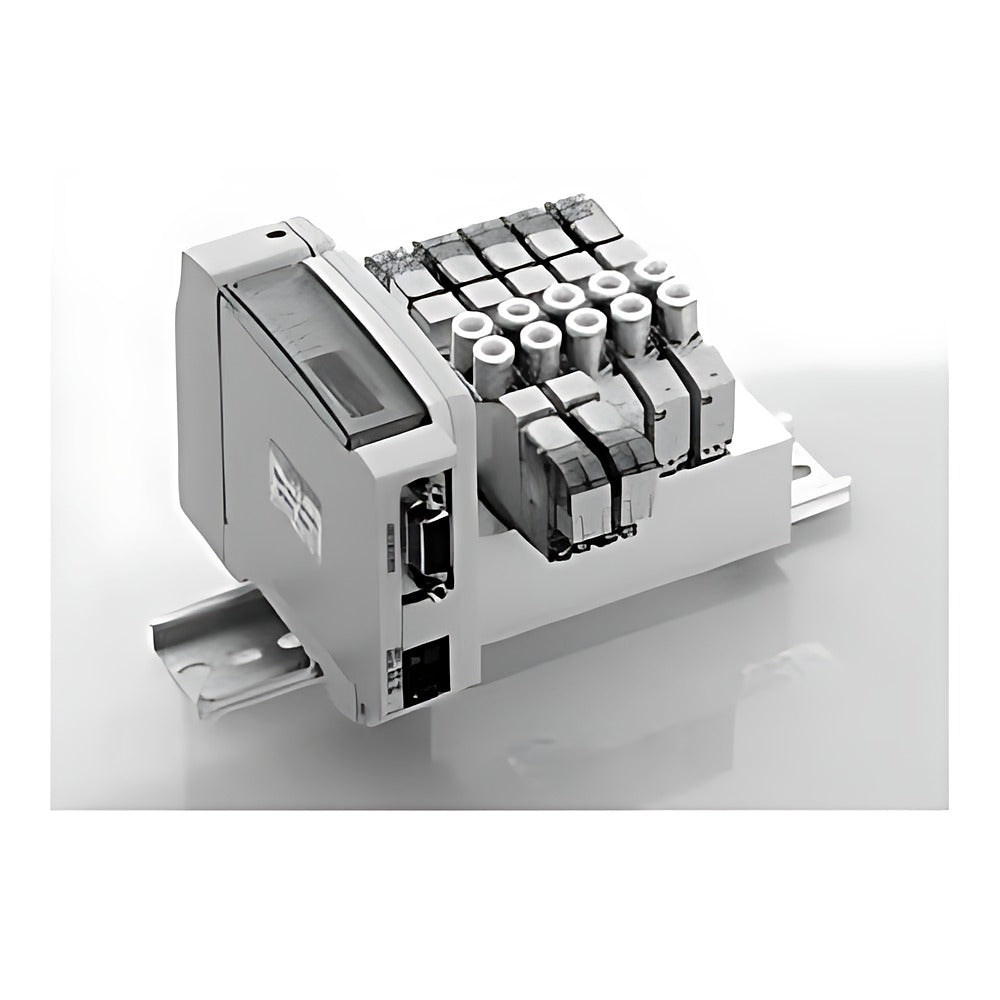

CKD M3GD1/M4GD1-T Wiring-Reduced Manifold (Direct Piping, Size 1)

CKD M3GD1/M4GD1-T Wiring-Reduced Manifold (Direct Piping, Size 1)

CKD M3GD1/M4GD1-T integrated-base wiring-reduced manifolds (direct piping) with valves mounted, listed as mixed-valve (switching code 8) full order codes per wiring type and station count.

Key features

  • Integrated wiring-reduced base with common supply and common exhaust; exhaust malfunction prevention valve built in
  • Wiring: M3 or PCB terminal block, D-sub 25-pin, flat cable 10/20/26-pin, CC-Link (T6G1) or slim serial T8 (EtherCAT, EtherNet/IP, PROFINET, etc.)
  • Pilot-operated soft-spool valves, non-lock/lock manual override, lamp and surge killer standard
  • Uniform manifolds replace switching code 8 with 1-5 (5-port) or 1/11/66 (3-port); right-side wiring (T*R), double wiring (W), H/A/F/Z options and DIN rail mount (D) via the manifold specification sheet
  • Serial T8 (slim) and DC12V (voltage code 4, parallel wiring only) versions are orderable but not listed; mixed 3/5-port manifolds use M4GD*80R

Specifications

Manifold Integrated wiring-reduced base
Piping Direct Piping
Switching Mixed manifold (code 8)
P/R1/R2 port Rc1/8
Voltage DC24V (code 3)
Operating pressure 0.2 to 0.7 MPa
Ambient / fluid temp. -5 to 55 C / 5 to 55 C
Fluid Compressed air
Source CKD Korea catalog CB-023SK-9, p. 610-628
M3GD180R-C4-T10-2-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 2
M3GD180R-C4-T10-3-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 3
M3GD180R-C4-T10-4-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 4
M3GD180R-C4-T10-5-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 5
M3GD180R-C4-T10-6-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 6
M3GD180R-C4-T10-7-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 7
M3GD180R-C4-T10-8-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 8
M3GD180R-C4-T10-9-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 9
M3GD180R-C4-T10-10-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 10
M3GD180R-C4-T10-11-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 11
M3GD180R-C4-T10-12-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 12
M3GD180R-C4-T10-13-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 13
M3GD180R-C4-T10-14-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 14
M3GD180R-C4-T10-15-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 15
M3GD180R-C4-T10-16-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 16
M3GD180R-C4-T11-2-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 2
M3GD180R-C4-T11-3-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 3
M3GD180R-C4-T11-4-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 4
M3GD180R-C4-T11-5-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 5
M3GD180R-C4-T11-6-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 6
M3GD180R-C4-T11-7-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 7
M3GD180R-C4-T11-8-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 8
M3GD180R-C4-T11-9-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 9
M3GD180R-C4-T11-10-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 10
M3GD180R-C4-T11-11-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 11
M3GD180R-C4-T11-12-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 12
M3GD180R-C4-T11-13-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 13
M3GD180R-C4-T11-14-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 14
M3GD180R-C4-T11-15-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 15
M3GD180R-C4-T11-16-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 16
M3GD180R-C4-T11-17-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 17
M3GD180R-C4-T11-18-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 18
M3GD180R-C4-T11-19-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 19
M3GD180R-C4-T11-20-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 20
M3GD180R-C4-T30-2-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 2
M3GD180R-C4-T30-3-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 3
M3GD180R-C4-T30-4-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 4
M3GD180R-C4-T30-5-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 5
M3GD180R-C4-T30-6-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 6
M3GD180R-C4-T30-7-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 7
M3GD180R-C4-T30-8-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 8
M3GD180R-C4-T30-9-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 9
M3GD180R-C4-T30-10-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 10
M3GD180R-C4-T30-11-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 11
M3GD180R-C4-T30-12-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 12
M3GD180R-C4-T30-13-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 13
M3GD180R-C4-T30-14-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 14
M3GD180R-C4-T30-15-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 15
M3GD180R-C4-T30-16-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 16
M3GD180R-C4-T30-17-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 17
M3GD180R-C4-T30-18-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 18
M3GD180R-C4-T30-19-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 19
M3GD180R-C4-T30-20-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 20
M3GD180R-C4-T50-2-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 2
M3GD180R-C4-T50-3-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 3
M3GD180R-C4-T50-4-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 4
M3GD180R-C4-T50-5-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 5
M3GD180R-C4-T50-6-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 6
M3GD180R-C4-T50-7-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 7
M3GD180R-C4-T50-8-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 8
M3GD180R-C4-T50-9-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 9
M3GD180R-C4-T50-10-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 10
M3GD180R-C4-T50-11-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 11
M3GD180R-C4-T50-12-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 12
M3GD180R-C4-T50-13-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 13
M3GD180R-C4-T50-14-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 14
M3GD180R-C4-T50-15-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 15
M3GD180R-C4-T50-16-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 16
M3GD180R-C4-T51-2-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 2
M3GD180R-C4-T51-3-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 3
M3GD180R-C4-T51-4-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 4
M3GD180R-C4-T51-5-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 5
M3GD180R-C4-T51-6-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 6
M3GD180R-C4-T51-7-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 7
M3GD180R-C4-T51-8-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 8
M3GD180R-C4-T51-9-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 9
M3GD180R-C4-T51-10-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 10
M3GD180R-C4-T51-11-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 11
M3GD180R-C4-T51-12-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 12
M3GD180R-C4-T51-13-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 13
M3GD180R-C4-T51-14-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 14
M3GD180R-C4-T51-15-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 15
M3GD180R-C4-T51-16-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 16
M3GD180R-C4-T51-17-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 17
M3GD180R-C4-T51-18-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 18
M3GD180R-C4-T52-2-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 2
M3GD180R-C4-T52-3-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 3
M3GD180R-C4-T52-4-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 4
M3GD180R-C4-T52-5-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 5
M3GD180R-C4-T52-6-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 6
M3GD180R-C4-T52-7-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 7
M3GD180R-C4-T52-8-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 8
M3GD180R-C4-T53-2-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 2
M3GD180R-C4-T53-3-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 3
M3GD180R-C4-T53-4-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 4
M3GD180R-C4-T53-5-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 5
M3GD180R-C4-T53-6-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 6
M3GD180R-C4-T53-7-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 7
M3GD180R-C4-T53-8-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 8
M3GD180R-C4-T53-9-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 9
M3GD180R-C4-T53-10-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 10
M3GD180R-C4-T53-11-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 11
M3GD180R-C4-T53-12-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 12
M3GD180R-C4-T53-13-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 13
M3GD180R-C4-T53-14-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 14
M3GD180R-C4-T53-15-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 15
M3GD180R-C4-T53-16-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 16
M3GD180R-C4-T53-17-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 17
M3GD180R-C4-T53-18-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 18
M3GD180R-C4-T53-19-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 19
M3GD180R-C4-T53-20-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 20
M3GD180R-C4-T6G1D-2-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 2
M3GD180R-C4-T6G1D-3-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 3
M3GD180R-C4-T6G1D-4-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 4
M3GD180R-C4-T6G1D-5-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 5
M3GD180R-C4-T6G1D-6-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 6
M3GD180R-C4-T6G1D-7-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 7
M3GD180R-C4-T6G1D-8-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 8
M3GD180R-C4-T6G1D-9-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 9
M3GD180R-C4-T6G1D-10-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 10
M3GD180R-C4-T6G1D-11-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 11
M3GD180R-C4-T6G1D-12-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 12
M3GD180R-C4-T6G1D-13-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 13
M3GD180R-C4-T6G1D-14-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 14
M3GD180R-C4-T6G1D-15-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 15
M3GD180R-C4-T6G1D-16-3 Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 16
M3GD180R-C6-T10-2-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 2
M3GD180R-C6-T10-3-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 3
M3GD180R-C6-T10-4-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 4
M3GD180R-C6-T10-5-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 5
M3GD180R-C6-T10-6-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 6
M3GD180R-C6-T10-7-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 7
M3GD180R-C6-T10-8-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 8
M3GD180R-C6-T10-9-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 9
M3GD180R-C6-T10-10-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 10
M3GD180R-C6-T10-11-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 11
M3GD180R-C6-T10-12-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 12
M3GD180R-C6-T10-13-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 13
M3GD180R-C6-T10-14-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 14
M3GD180R-C6-T10-15-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 15
M3GD180R-C6-T10-16-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 16
M3GD180R-C6-T11-2-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 2
M3GD180R-C6-T11-3-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 3
M3GD180R-C6-T11-4-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 4
M3GD180R-C6-T11-5-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 5
M3GD180R-C6-T11-6-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 6
M3GD180R-C6-T11-7-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 7
M3GD180R-C6-T11-8-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 8
M3GD180R-C6-T11-9-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 9
M3GD180R-C6-T11-10-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 10
M3GD180R-C6-T11-11-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 11
M3GD180R-C6-T11-12-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 12
M3GD180R-C6-T11-13-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 13
M3GD180R-C6-T11-14-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 14
M3GD180R-C6-T11-15-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 15
M3GD180R-C6-T11-16-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 16
M3GD180R-C6-T11-17-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 17
M3GD180R-C6-T11-18-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 18
M3GD180R-C6-T11-19-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 19
M3GD180R-C6-T11-20-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 20
M3GD180R-C6-T30-2-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 2
M3GD180R-C6-T30-3-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 3
M3GD180R-C6-T30-4-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 4
M3GD180R-C6-T30-5-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 5
M3GD180R-C6-T30-6-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 6
M3GD180R-C6-T30-7-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 7
M3GD180R-C6-T30-8-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 8
M3GD180R-C6-T30-9-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 9
M3GD180R-C6-T30-10-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 10
M3GD180R-C6-T30-11-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 11
M3GD180R-C6-T30-12-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 12
M3GD180R-C6-T30-13-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 13
M3GD180R-C6-T30-14-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 14
M3GD180R-C6-T30-15-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 15
M3GD180R-C6-T30-16-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 16
M3GD180R-C6-T30-17-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 17
M3GD180R-C6-T30-18-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 18
M3GD180R-C6-T30-19-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 19
M3GD180R-C6-T30-20-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 20
M3GD180R-C6-T50-2-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 2
M3GD180R-C6-T50-3-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 3
M3GD180R-C6-T50-4-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 4
M3GD180R-C6-T50-5-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 5
M3GD180R-C6-T50-6-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 6
M3GD180R-C6-T50-7-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 7
M3GD180R-C6-T50-8-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 8
M3GD180R-C6-T50-9-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 9
M3GD180R-C6-T50-10-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 10
M3GD180R-C6-T50-11-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 11
M3GD180R-C6-T50-12-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 12
M3GD180R-C6-T50-13-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 13
M3GD180R-C6-T50-14-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 14
M3GD180R-C6-T50-15-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 15
M3GD180R-C6-T50-16-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 16
M3GD180R-C6-T51-2-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 2
M3GD180R-C6-T51-3-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 3
M3GD180R-C6-T51-4-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 4
M3GD180R-C6-T51-5-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 5
M3GD180R-C6-T51-6-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 6
M3GD180R-C6-T51-7-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 7
M3GD180R-C6-T51-8-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 8
M3GD180R-C6-T51-9-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 9
M3GD180R-C6-T51-10-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 10
M3GD180R-C6-T51-11-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 11
M3GD180R-C6-T51-12-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 12
M3GD180R-C6-T51-13-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 13
M3GD180R-C6-T51-14-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 14
M3GD180R-C6-T51-15-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 15
M3GD180R-C6-T51-16-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 16
M3GD180R-C6-T51-17-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 17
M3GD180R-C6-T51-18-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 18
M3GD180R-C6-T52-2-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 2
M3GD180R-C6-T52-3-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 3
M3GD180R-C6-T52-4-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 4
M3GD180R-C6-T52-5-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 5
M3GD180R-C6-T52-6-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 6
M3GD180R-C6-T52-7-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 7
M3GD180R-C6-T52-8-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 8
M3GD180R-C6-T53-2-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 2
M3GD180R-C6-T53-3-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 3
M3GD180R-C6-T53-4-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 4
M3GD180R-C6-T53-5-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 5
M3GD180R-C6-T53-6-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 6
M3GD180R-C6-T53-7-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 7
M3GD180R-C6-T53-8-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 8
M3GD180R-C6-T53-9-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 9
M3GD180R-C6-T53-10-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 10
M3GD180R-C6-T53-11-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 11
M3GD180R-C6-T53-12-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 12
M3GD180R-C6-T53-13-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 13
M3GD180R-C6-T53-14-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 14
M3GD180R-C6-T53-15-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 15
M3GD180R-C6-T53-16-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 16
M3GD180R-C6-T53-17-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 17
M3GD180R-C6-T53-18-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 18
M3GD180R-C6-T53-19-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 19
M3GD180R-C6-T53-20-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 20
M3GD180R-C6-T6G1D-2-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 2
M3GD180R-C6-T6G1D-3-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 3
M3GD180R-C6-T6G1D-4-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 4
M3GD180R-C6-T6G1D-5-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 5
M3GD180R-C6-T6G1D-6-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 6
M3GD180R-C6-T6G1D-7-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 7
M3GD180R-C6-T6G1D-8-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 8
M3GD180R-C6-T6G1D-9-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 9
M3GD180R-C6-T6G1D-10-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 10
M3GD180R-C6-T6G1D-11-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 11
M3GD180R-C6-T6G1D-12-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 12
M3GD180R-C6-T6G1D-13-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 13
M3GD180R-C6-T6G1D-14-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 14
M3GD180R-C6-T6G1D-15-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 15
M3GD180R-C6-T6G1D-16-3 Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 16
M3GD180R-CX-T10-2-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 2
M3GD180R-CX-T10-3-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 3
M3GD180R-CX-T10-4-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 4
M3GD180R-CX-T10-5-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 5
M3GD180R-CX-T10-6-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 6
M3GD180R-CX-T10-7-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 7
M3GD180R-CX-T10-8-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 8
M3GD180R-CX-T10-9-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 9
M3GD180R-CX-T10-10-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 10
M3GD180R-CX-T10-11-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 11
M3GD180R-CX-T10-12-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 12
M3GD180R-CX-T10-13-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 13
M3GD180R-CX-T10-14-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 14
M3GD180R-CX-T10-15-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 15
M3GD180R-CX-T10-16-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 16
M3GD180R-CX-T11-2-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 2
M3GD180R-CX-T11-3-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 3
M3GD180R-CX-T11-4-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 4
M3GD180R-CX-T11-5-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 5
M3GD180R-CX-T11-6-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 6
M3GD180R-CX-T11-7-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 7
M3GD180R-CX-T11-8-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 8
M3GD180R-CX-T11-9-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 9
M3GD180R-CX-T11-10-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 10
M3GD180R-CX-T11-11-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 11
M3GD180R-CX-T11-12-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 12
M3GD180R-CX-T11-13-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 13
M3GD180R-CX-T11-14-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 14
M3GD180R-CX-T11-15-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 15
M3GD180R-CX-T11-16-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 16
M3GD180R-CX-T11-17-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 17
M3GD180R-CX-T11-18-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 18
M3GD180R-CX-T11-19-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 19
M3GD180R-CX-T11-20-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 20
M3GD180R-CX-T30-2-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 2
M3GD180R-CX-T30-3-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 3
M3GD180R-CX-T30-4-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 4
M3GD180R-CX-T30-5-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 5
M3GD180R-CX-T30-6-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 6
M3GD180R-CX-T30-7-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 7
M3GD180R-CX-T30-8-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 8
M3GD180R-CX-T30-9-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 9
M3GD180R-CX-T30-10-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 10
M3GD180R-CX-T30-11-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 11
M3GD180R-CX-T30-12-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 12
M3GD180R-CX-T30-13-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 13
M3GD180R-CX-T30-14-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 14
M3GD180R-CX-T30-15-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 15
M3GD180R-CX-T30-16-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 16
M3GD180R-CX-T30-17-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 17
M3GD180R-CX-T30-18-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 18
M3GD180R-CX-T30-19-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 19
M3GD180R-CX-T30-20-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 20
M3GD180R-CX-T50-2-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 2
M3GD180R-CX-T50-3-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 3
M3GD180R-CX-T50-4-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 4
M3GD180R-CX-T50-5-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 5
M3GD180R-CX-T50-6-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 6
M3GD180R-CX-T50-7-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 7
M3GD180R-CX-T50-8-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 8
M3GD180R-CX-T50-9-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 9
M3GD180R-CX-T50-10-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 10
M3GD180R-CX-T50-11-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 11
M3GD180R-CX-T50-12-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 12
M3GD180R-CX-T50-13-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 13
M3GD180R-CX-T50-14-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 14
M3GD180R-CX-T50-15-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 15
M3GD180R-CX-T50-16-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 16
M3GD180R-CX-T51-2-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 2
M3GD180R-CX-T51-3-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 3
M3GD180R-CX-T51-4-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 4
M3GD180R-CX-T51-5-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 5
M3GD180R-CX-T51-6-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 6
M3GD180R-CX-T51-7-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 7
M3GD180R-CX-T51-8-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 8
M3GD180R-CX-T51-9-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 9
M3GD180R-CX-T51-10-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 10
M3GD180R-CX-T51-11-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 11
M3GD180R-CX-T51-12-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 12
M3GD180R-CX-T51-13-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 13
M3GD180R-CX-T51-14-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 14
M3GD180R-CX-T51-15-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 15
M3GD180R-CX-T51-16-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 16
M3GD180R-CX-T51-17-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 17
M3GD180R-CX-T51-18-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 18
M3GD180R-CX-T52-2-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 2
M3GD180R-CX-T52-3-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 3
M3GD180R-CX-T52-4-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 4
M3GD180R-CX-T52-5-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 5
M3GD180R-CX-T52-6-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 6
M3GD180R-CX-T52-7-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 7
M3GD180R-CX-T52-8-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 8
M3GD180R-CX-T53-2-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 2
M3GD180R-CX-T53-3-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 3
M3GD180R-CX-T53-4-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 4
M3GD180R-CX-T53-5-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 5
M3GD180R-CX-T53-6-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 6
M3GD180R-CX-T53-7-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 7
M3GD180R-CX-T53-8-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 8
M3GD180R-CX-T53-9-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 9
M3GD180R-CX-T53-10-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 10
M3GD180R-CX-T53-11-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 11
M3GD180R-CX-T53-12-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 12
M3GD180R-CX-T53-13-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 13
M3GD180R-CX-T53-14-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 14
M3GD180R-CX-T53-15-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 15
M3GD180R-CX-T53-16-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 16
M3GD180R-CX-T53-17-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 17
M3GD180R-CX-T53-18-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 18
M3GD180R-CX-T53-19-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 19
M3GD180R-CX-T53-20-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 20
M3GD180R-CX-T6G1D-2-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 2
M3GD180R-CX-T6G1D-3-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 3
M3GD180R-CX-T6G1D-4-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 4
M3GD180R-CX-T6G1D-5-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 5
M3GD180R-CX-T6G1D-6-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 6
M3GD180R-CX-T6G1D-7-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 7
M3GD180R-CX-T6G1D-8-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 8
M3GD180R-CX-T6G1D-9-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 9
M3GD180R-CX-T6G1D-10-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 10
M3GD180R-CX-T6G1D-11-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 11
M3GD180R-CX-T6G1D-12-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 12
M3GD180R-CX-T6G1D-13-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 13
M3GD180R-CX-T6G1D-14-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 14
M3GD180R-CX-T6G1D-15-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 15
M3GD180R-CX-T6G1D-16-3 Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 16
M3GD180R-M5-T10-2-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 2
M3GD180R-M5-T10-3-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 3
M3GD180R-M5-T10-4-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 4
M3GD180R-M5-T10-5-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 5
M3GD180R-M5-T10-6-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 6
M3GD180R-M5-T10-7-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 7
M3GD180R-M5-T10-8-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 8
M3GD180R-M5-T10-9-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 9
M3GD180R-M5-T10-10-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 10
M3GD180R-M5-T10-11-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 11
M3GD180R-M5-T10-12-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 12
M3GD180R-M5-T10-13-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 13
M3GD180R-M5-T10-14-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 14
M3GD180R-M5-T10-15-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 15
M3GD180R-M5-T10-16-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 16
M3GD180R-M5-T11-2-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 2
M3GD180R-M5-T11-3-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 3
M3GD180R-M5-T11-4-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 4
M3GD180R-M5-T11-5-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 5
M3GD180R-M5-T11-6-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 6
M3GD180R-M5-T11-7-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 7
M3GD180R-M5-T11-8-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 8
M3GD180R-M5-T11-9-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 9
M3GD180R-M5-T11-10-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 10
M3GD180R-M5-T11-11-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 11
M3GD180R-M5-T11-12-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 12
M3GD180R-M5-T11-13-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 13
M3GD180R-M5-T11-14-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 14
M3GD180R-M5-T11-15-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 15
M3GD180R-M5-T11-16-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 16
M3GD180R-M5-T11-17-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 17
M3GD180R-M5-T11-18-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 18
M3GD180R-M5-T11-19-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 19
M3GD180R-M5-T11-20-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 20
M3GD180R-M5-T30-2-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 2
M3GD180R-M5-T30-3-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 3
M3GD180R-M5-T30-4-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 4
M3GD180R-M5-T30-5-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 5
M3GD180R-M5-T30-6-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 6
M3GD180R-M5-T30-7-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 7
M3GD180R-M5-T30-8-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 8
M3GD180R-M5-T30-9-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 9
M3GD180R-M5-T30-10-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 10
M3GD180R-M5-T30-11-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 11
M3GD180R-M5-T30-12-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 12
M3GD180R-M5-T30-13-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 13
M3GD180R-M5-T30-14-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 14
M3GD180R-M5-T30-15-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 15
M3GD180R-M5-T30-16-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 16
M3GD180R-M5-T30-17-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 17
M3GD180R-M5-T30-18-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 18
M3GD180R-M5-T30-19-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 19
M3GD180R-M5-T30-20-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 20
M3GD180R-M5-T50-2-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 2
M3GD180R-M5-T50-3-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 3
M3GD180R-M5-T50-4-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 4
M3GD180R-M5-T50-5-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 5
M3GD180R-M5-T50-6-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 6
M3GD180R-M5-T50-7-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 7
M3GD180R-M5-T50-8-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 8
M3GD180R-M5-T50-9-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 9
M3GD180R-M5-T50-10-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 10
M3GD180R-M5-T50-11-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 11
M3GD180R-M5-T50-12-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 12
M3GD180R-M5-T50-13-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 13
M3GD180R-M5-T50-14-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 14
M3GD180R-M5-T50-15-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 15
M3GD180R-M5-T50-16-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 16
M3GD180R-M5-T51-2-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 2
M3GD180R-M5-T51-3-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 3
M3GD180R-M5-T51-4-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 4
M3GD180R-M5-T51-5-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 5
M3GD180R-M5-T51-6-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 6
M3GD180R-M5-T51-7-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 7
M3GD180R-M5-T51-8-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 8
M3GD180R-M5-T51-9-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 9
M3GD180R-M5-T51-10-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 10
M3GD180R-M5-T51-11-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 11
M3GD180R-M5-T51-12-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 12
M3GD180R-M5-T51-13-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 13
M3GD180R-M5-T51-14-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 14
M3GD180R-M5-T51-15-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 15
M3GD180R-M5-T51-16-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 16
M3GD180R-M5-T51-17-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 17
M3GD180R-M5-T51-18-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 18
M3GD180R-M5-T52-2-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 2
M3GD180R-M5-T52-3-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 3
M3GD180R-M5-T52-4-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 4
M3GD180R-M5-T52-5-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 5
M3GD180R-M5-T52-6-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 6
M3GD180R-M5-T52-7-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 7
M3GD180R-M5-T52-8-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 8
M3GD180R-M5-T53-2-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 2
M3GD180R-M5-T53-3-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 3
M3GD180R-M5-T53-4-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 4
M3GD180R-M5-T53-5-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 5
M3GD180R-M5-T53-6-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 6
M3GD180R-M5-T53-7-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 7
M3GD180R-M5-T53-8-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 8
M3GD180R-M5-T53-9-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 9
M3GD180R-M5-T53-10-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 10
M3GD180R-M5-T53-11-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 11
M3GD180R-M5-T53-12-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 12
M3GD180R-M5-T53-13-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 13
M3GD180R-M5-T53-14-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 14
M3GD180R-M5-T53-15-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 15
M3GD180R-M5-T53-16-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 16
M3GD180R-M5-T53-17-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 17
M3GD180R-M5-T53-18-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 18
M3GD180R-M5-T53-19-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 19
M3GD180R-M5-T53-20-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 20
M3GD180R-M5-T6G1D-2-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 2
M3GD180R-M5-T6G1D-3-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 3
M3GD180R-M5-T6G1D-4-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 4
M3GD180R-M5-T6G1D-5-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 5
M3GD180R-M5-T6G1D-6-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 6
M3GD180R-M5-T6G1D-7-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 7
M3GD180R-M5-T6G1D-8-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 8
M3GD180R-M5-T6G1D-9-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 9
M3GD180R-M5-T6G1D-10-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 10
M3GD180R-M5-T6G1D-11-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 11
M3GD180R-M5-T6G1D-12-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 12
M3GD180R-M5-T6G1D-13-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 13
M3GD180R-M5-T6G1D-14-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 14
M3GD180R-M5-T6G1D-15-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 15
M3GD180R-M5-T6G1D-16-3 Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 16
M4GD180R-C4-T10-2-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 2
M4GD180R-C4-T10-3-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 3
M4GD180R-C4-T10-4-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 4
M4GD180R-C4-T10-5-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 5
M4GD180R-C4-T10-6-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 6
M4GD180R-C4-T10-7-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 7
M4GD180R-C4-T10-8-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 8
M4GD180R-C4-T10-9-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 9
M4GD180R-C4-T10-10-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 10
M4GD180R-C4-T10-11-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 11
M4GD180R-C4-T10-12-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 12
M4GD180R-C4-T10-13-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 13
M4GD180R-C4-T10-14-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 14
M4GD180R-C4-T10-15-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 15
M4GD180R-C4-T10-16-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 16
M4GD180R-C4-T11-2-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 2
M4GD180R-C4-T11-3-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 3
M4GD180R-C4-T11-4-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 4
M4GD180R-C4-T11-5-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 5
M4GD180R-C4-T11-6-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 6
M4GD180R-C4-T11-7-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 7
M4GD180R-C4-T11-8-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 8
M4GD180R-C4-T11-9-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 9
M4GD180R-C4-T11-10-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 10
M4GD180R-C4-T11-11-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 11
M4GD180R-C4-T11-12-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 12
M4GD180R-C4-T11-13-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 13
M4GD180R-C4-T11-14-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 14
M4GD180R-C4-T11-15-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 15
M4GD180R-C4-T11-16-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 16
M4GD180R-C4-T11-17-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 17
M4GD180R-C4-T11-18-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 18
M4GD180R-C4-T11-19-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 19
M4GD180R-C4-T11-20-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 20
M4GD180R-C4-T30-2-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 2
M4GD180R-C4-T30-3-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 3
M4GD180R-C4-T30-4-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 4
M4GD180R-C4-T30-5-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 5
M4GD180R-C4-T30-6-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 6
M4GD180R-C4-T30-7-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 7
M4GD180R-C4-T30-8-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 8
M4GD180R-C4-T30-9-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 9
M4GD180R-C4-T30-10-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 10
M4GD180R-C4-T30-11-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 11
M4GD180R-C4-T30-12-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 12
M4GD180R-C4-T30-13-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 13
M4GD180R-C4-T30-14-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 14
M4GD180R-C4-T30-15-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 15
M4GD180R-C4-T30-16-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 16
M4GD180R-C4-T30-17-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 17
M4GD180R-C4-T30-18-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 18
M4GD180R-C4-T30-19-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 19
M4GD180R-C4-T30-20-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 20
M4GD180R-C4-T50-2-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 2
M4GD180R-C4-T50-3-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 3
M4GD180R-C4-T50-4-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 4
M4GD180R-C4-T50-5-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 5
M4GD180R-C4-T50-6-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 6
M4GD180R-C4-T50-7-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 7
M4GD180R-C4-T50-8-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 8
M4GD180R-C4-T50-9-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 9
M4GD180R-C4-T50-10-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 10
M4GD180R-C4-T50-11-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 11
M4GD180R-C4-T50-12-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 12
M4GD180R-C4-T50-13-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 13
M4GD180R-C4-T50-14-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 14
M4GD180R-C4-T50-15-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 15
M4GD180R-C4-T50-16-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 16
M4GD180R-C4-T51-2-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 2
M4GD180R-C4-T51-3-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 3
M4GD180R-C4-T51-4-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 4
M4GD180R-C4-T51-5-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 5
M4GD180R-C4-T51-6-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 6
M4GD180R-C4-T51-7-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 7
M4GD180R-C4-T51-8-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 8
M4GD180R-C4-T51-9-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 9
M4GD180R-C4-T51-10-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 10
M4GD180R-C4-T51-11-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 11
M4GD180R-C4-T51-12-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 12
M4GD180R-C4-T51-13-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 13
M4GD180R-C4-T51-14-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 14
M4GD180R-C4-T51-15-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 15
M4GD180R-C4-T51-16-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 16
M4GD180R-C4-T51-17-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 17
M4GD180R-C4-T51-18-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 18
M4GD180R-C4-T52-2-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 2
M4GD180R-C4-T52-3-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 3
M4GD180R-C4-T52-4-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 4
M4GD180R-C4-T52-5-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 5
M4GD180R-C4-T52-6-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 6
M4GD180R-C4-T52-7-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 7
M4GD180R-C4-T52-8-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 8
M4GD180R-C4-T53-2-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 2
M4GD180R-C4-T53-3-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 3
M4GD180R-C4-T53-4-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 4
M4GD180R-C4-T53-5-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 5
M4GD180R-C4-T53-6-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 6
M4GD180R-C4-T53-7-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 7
M4GD180R-C4-T53-8-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 8
M4GD180R-C4-T53-9-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 9
M4GD180R-C4-T53-10-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 10
M4GD180R-C4-T53-11-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 11
M4GD180R-C4-T53-12-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 12
M4GD180R-C4-T53-13-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 13
M4GD180R-C4-T53-14-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 14
M4GD180R-C4-T53-15-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 15
M4GD180R-C4-T53-16-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 16
M4GD180R-C4-T53-17-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 17
M4GD180R-C4-T53-18-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 18
M4GD180R-C4-T53-19-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 19
M4GD180R-C4-T53-20-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 20
M4GD180R-C4-T6G1D-2-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 2
M4GD180R-C4-T6G1D-3-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 3
M4GD180R-C4-T6G1D-4-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 4
M4GD180R-C4-T6G1D-5-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 5
M4GD180R-C4-T6G1D-6-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 6
M4GD180R-C4-T6G1D-7-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 7
M4GD180R-C4-T6G1D-8-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 8
M4GD180R-C4-T6G1D-9-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 9
M4GD180R-C4-T6G1D-10-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 10
M4GD180R-C4-T6G1D-11-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 11
M4GD180R-C4-T6G1D-12-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 12
M4GD180R-C4-T6G1D-13-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 13
M4GD180R-C4-T6G1D-14-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 14
M4GD180R-C4-T6G1D-15-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 15
M4GD180R-C4-T6G1D-16-3 Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 16
M4GD180R-C6-T10-2-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 2
M4GD180R-C6-T10-3-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 3
M4GD180R-C6-T10-4-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 4
M4GD180R-C6-T10-5-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 5
M4GD180R-C6-T10-6-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 6
M4GD180R-C6-T10-7-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 7
M4GD180R-C6-T10-8-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 8
M4GD180R-C6-T10-9-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 9
M4GD180R-C6-T10-10-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 10
M4GD180R-C6-T10-11-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 11
M4GD180R-C6-T10-12-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 12
M4GD180R-C6-T10-13-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 13
M4GD180R-C6-T10-14-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 14
M4GD180R-C6-T10-15-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 15
M4GD180R-C6-T10-16-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 16
M4GD180R-C6-T11-2-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 2
M4GD180R-C6-T11-3-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 3
M4GD180R-C6-T11-4-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 4
M4GD180R-C6-T11-5-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 5
M4GD180R-C6-T11-6-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 6
M4GD180R-C6-T11-7-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 7
M4GD180R-C6-T11-8-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 8
M4GD180R-C6-T11-9-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 9
M4GD180R-C6-T11-10-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 10
M4GD180R-C6-T11-11-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 11
M4GD180R-C6-T11-12-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 12
M4GD180R-C6-T11-13-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 13
M4GD180R-C6-T11-14-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 14
M4GD180R-C6-T11-15-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 15
M4GD180R-C6-T11-16-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 16
M4GD180R-C6-T11-17-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 17
M4GD180R-C6-T11-18-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 18
M4GD180R-C6-T11-19-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 19
M4GD180R-C6-T11-20-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 20
M4GD180R-C6-T30-2-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 2
M4GD180R-C6-T30-3-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 3
M4GD180R-C6-T30-4-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 4
M4GD180R-C6-T30-5-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 5
M4GD180R-C6-T30-6-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 6
M4GD180R-C6-T30-7-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 7
M4GD180R-C6-T30-8-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 8
M4GD180R-C6-T30-9-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 9
M4GD180R-C6-T30-10-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 10
M4GD180R-C6-T30-11-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 11
M4GD180R-C6-T30-12-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 12
M4GD180R-C6-T30-13-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 13
M4GD180R-C6-T30-14-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 14
M4GD180R-C6-T30-15-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 15
M4GD180R-C6-T30-16-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 16
M4GD180R-C6-T30-17-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 17
M4GD180R-C6-T30-18-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 18
M4GD180R-C6-T30-19-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 19
M4GD180R-C6-T30-20-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 20
M4GD180R-C6-T50-2-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 2
M4GD180R-C6-T50-3-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 3
M4GD180R-C6-T50-4-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 4
M4GD180R-C6-T50-5-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 5
M4GD180R-C6-T50-6-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 6
M4GD180R-C6-T50-7-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 7
M4GD180R-C6-T50-8-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 8
M4GD180R-C6-T50-9-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 9
M4GD180R-C6-T50-10-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 10
M4GD180R-C6-T50-11-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 11
M4GD180R-C6-T50-12-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 12
M4GD180R-C6-T50-13-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 13
M4GD180R-C6-T50-14-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 14
M4GD180R-C6-T50-15-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 15
M4GD180R-C6-T50-16-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 16
M4GD180R-C6-T51-2-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 2
M4GD180R-C6-T51-3-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 3
M4GD180R-C6-T51-4-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 4
M4GD180R-C6-T51-5-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 5
M4GD180R-C6-T51-6-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 6
M4GD180R-C6-T51-7-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 7
M4GD180R-C6-T51-8-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 8
M4GD180R-C6-T51-9-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 9
M4GD180R-C6-T51-10-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 10
M4GD180R-C6-T51-11-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 11
M4GD180R-C6-T51-12-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 12
M4GD180R-C6-T51-13-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 13
M4GD180R-C6-T51-14-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 14
M4GD180R-C6-T51-15-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 15
M4GD180R-C6-T51-16-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 16
M4GD180R-C6-T51-17-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 17
M4GD180R-C6-T51-18-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 18
M4GD180R-C6-T52-2-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 2
M4GD180R-C6-T52-3-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 3
M4GD180R-C6-T52-4-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 4
M4GD180R-C6-T52-5-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 5
M4GD180R-C6-T52-6-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 6
M4GD180R-C6-T52-7-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 7
M4GD180R-C6-T52-8-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 8
M4GD180R-C6-T53-2-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 2
M4GD180R-C6-T53-3-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 3
M4GD180R-C6-T53-4-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 4
M4GD180R-C6-T53-5-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 5
M4GD180R-C6-T53-6-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 6
M4GD180R-C6-T53-7-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 7
M4GD180R-C6-T53-8-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 8
M4GD180R-C6-T53-9-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 9
M4GD180R-C6-T53-10-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 10
M4GD180R-C6-T53-11-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 11
M4GD180R-C6-T53-12-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 12
M4GD180R-C6-T53-13-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 13
M4GD180R-C6-T53-14-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 14
M4GD180R-C6-T53-15-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 15
M4GD180R-C6-T53-16-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 16
M4GD180R-C6-T53-17-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 17
M4GD180R-C6-T53-18-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 18
M4GD180R-C6-T53-19-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 19
M4GD180R-C6-T53-20-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 20
M4GD180R-C6-T6G1D-2-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 2
M4GD180R-C6-T6G1D-3-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 3
M4GD180R-C6-T6G1D-4-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 4
M4GD180R-C6-T6G1D-5-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 5
M4GD180R-C6-T6G1D-6-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 6
M4GD180R-C6-T6G1D-7-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 7
M4GD180R-C6-T6G1D-8-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 8
M4GD180R-C6-T6G1D-9-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 9
M4GD180R-C6-T6G1D-10-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 10
M4GD180R-C6-T6G1D-11-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 11
M4GD180R-C6-T6G1D-12-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 12
M4GD180R-C6-T6G1D-13-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 13
M4GD180R-C6-T6G1D-14-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 14
M4GD180R-C6-T6G1D-15-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 15
M4GD180R-C6-T6G1D-16-3 Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 16
M4GD180R-CX-T10-2-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 2
M4GD180R-CX-T10-3-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 3
M4GD180R-CX-T10-4-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 4
M4GD180R-CX-T10-5-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 5
M4GD180R-CX-T10-6-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 6
M4GD180R-CX-T10-7-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 7
M4GD180R-CX-T10-8-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 8
M4GD180R-CX-T10-9-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 9
M4GD180R-CX-T10-10-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 10
M4GD180R-CX-T10-11-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 11
M4GD180R-CX-T10-12-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 12
M4GD180R-CX-T10-13-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 13
M4GD180R-CX-T10-14-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 14
M4GD180R-CX-T10-15-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 15
M4GD180R-CX-T10-16-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 16
M4GD180R-CX-T11-2-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 2
M4GD180R-CX-T11-3-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 3
M4GD180R-CX-T11-4-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 4
M4GD180R-CX-T11-5-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 5
M4GD180R-CX-T11-6-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 6
M4GD180R-CX-T11-7-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 7
M4GD180R-CX-T11-8-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 8
M4GD180R-CX-T11-9-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 9
M4GD180R-CX-T11-10-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 10
M4GD180R-CX-T11-11-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 11
M4GD180R-CX-T11-12-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 12
M4GD180R-CX-T11-13-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 13
M4GD180R-CX-T11-14-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 14
M4GD180R-CX-T11-15-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 15
M4GD180R-CX-T11-16-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 16
M4GD180R-CX-T11-17-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 17
M4GD180R-CX-T11-18-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 18
M4GD180R-CX-T11-19-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 19
M4GD180R-CX-T11-20-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 20
M4GD180R-CX-T30-2-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 2
M4GD180R-CX-T30-3-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 3
M4GD180R-CX-T30-4-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 4
M4GD180R-CX-T30-5-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 5
M4GD180R-CX-T30-6-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 6
M4GD180R-CX-T30-7-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 7
M4GD180R-CX-T30-8-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 8
M4GD180R-CX-T30-9-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 9
M4GD180R-CX-T30-10-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 10
M4GD180R-CX-T30-11-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 11
M4GD180R-CX-T30-12-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 12
M4GD180R-CX-T30-13-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 13
M4GD180R-CX-T30-14-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 14
M4GD180R-CX-T30-15-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 15
M4GD180R-CX-T30-16-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 16
M4GD180R-CX-T30-17-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 17
M4GD180R-CX-T30-18-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 18
M4GD180R-CX-T30-19-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 19
M4GD180R-CX-T30-20-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 20
M4GD180R-CX-T50-2-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 2
M4GD180R-CX-T50-3-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 3
M4GD180R-CX-T50-4-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 4
M4GD180R-CX-T50-5-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 5
M4GD180R-CX-T50-6-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 6
M4GD180R-CX-T50-7-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 7
M4GD180R-CX-T50-8-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 8
M4GD180R-CX-T50-9-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 9
M4GD180R-CX-T50-10-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 10
M4GD180R-CX-T50-11-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 11
M4GD180R-CX-T50-12-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 12
M4GD180R-CX-T50-13-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 13
M4GD180R-CX-T50-14-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 14
M4GD180R-CX-T50-15-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 15
M4GD180R-CX-T50-16-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 16
M4GD180R-CX-T51-2-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 2
M4GD180R-CX-T51-3-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 3
M4GD180R-CX-T51-4-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 4
M4GD180R-CX-T51-5-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 5
M4GD180R-CX-T51-6-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 6
M4GD180R-CX-T51-7-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 7
M4GD180R-CX-T51-8-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 8
M4GD180R-CX-T51-9-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 9
M4GD180R-CX-T51-10-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 10
M4GD180R-CX-T51-11-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 11
M4GD180R-CX-T51-12-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 12
M4GD180R-CX-T51-13-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 13
M4GD180R-CX-T51-14-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 14
M4GD180R-CX-T51-15-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 15
M4GD180R-CX-T51-16-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 16
M4GD180R-CX-T51-17-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 17
M4GD180R-CX-T51-18-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 18
M4GD180R-CX-T52-2-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 2
M4GD180R-CX-T52-3-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 3
M4GD180R-CX-T52-4-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 4
M4GD180R-CX-T52-5-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 5
M4GD180R-CX-T52-6-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 6
M4GD180R-CX-T52-7-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 7
M4GD180R-CX-T52-8-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 8
M4GD180R-CX-T53-2-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 2
M4GD180R-CX-T53-3-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 3
M4GD180R-CX-T53-4-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 4
M4GD180R-CX-T53-5-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 5
M4GD180R-CX-T53-6-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 6
M4GD180R-CX-T53-7-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 7
M4GD180R-CX-T53-8-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 8
M4GD180R-CX-T53-9-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 9
M4GD180R-CX-T53-10-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 10
M4GD180R-CX-T53-11-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 11
M4GD180R-CX-T53-12-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 12
M4GD180R-CX-T53-13-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 13
M4GD180R-CX-T53-14-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 14
M4GD180R-CX-T53-15-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 15
M4GD180R-CX-T53-16-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 16
M4GD180R-CX-T53-17-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 17
M4GD180R-CX-T53-18-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 18
M4GD180R-CX-T53-19-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 19
M4GD180R-CX-T53-20-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 20
M4GD180R-CX-T6G1D-2-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 2
M4GD180R-CX-T6G1D-3-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 3
M4GD180R-CX-T6G1D-4-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 4
M4GD180R-CX-T6G1D-5-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 5
M4GD180R-CX-T6G1D-6-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 6
M4GD180R-CX-T6G1D-7-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 7
M4GD180R-CX-T6G1D-8-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 8
M4GD180R-CX-T6G1D-9-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 9
M4GD180R-CX-T6G1D-10-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 10
M4GD180R-CX-T6G1D-11-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 11
M4GD180R-CX-T6G1D-12-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 12
M4GD180R-CX-T6G1D-13-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 13
M4GD180R-CX-T6G1D-14-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 14
M4GD180R-CX-T6G1D-15-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 15
M4GD180R-CX-T6G1D-16-3 Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 16
M4GD180R-M5-T10-2-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 2
M4GD180R-M5-T10-3-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 3
M4GD180R-M5-T10-4-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 4
M4GD180R-M5-T10-5-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 5
M4GD180R-M5-T10-6-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 6
M4GD180R-M5-T10-7-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 7
M4GD180R-M5-T10-8-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 8
M4GD180R-M5-T10-9-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 9
M4GD180R-M5-T10-10-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 10
M4GD180R-M5-T10-11-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 11
M4GD180R-M5-T10-12-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 12
M4GD180R-M5-T10-13-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 13
M4GD180R-M5-T10-14-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 14
M4GD180R-M5-T10-15-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 15
M4GD180R-M5-T10-16-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 16
M4GD180R-M5-T11-2-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 2
M4GD180R-M5-T11-3-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 3
M4GD180R-M5-T11-4-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 4
M4GD180R-M5-T11-5-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 5
M4GD180R-M5-T11-6-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 6
M4GD180R-M5-T11-7-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 7
M4GD180R-M5-T11-8-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 8
M4GD180R-M5-T11-9-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 9
M4GD180R-M5-T11-10-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 10
M4GD180R-M5-T11-11-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 11
M4GD180R-M5-T11-12-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 12
M4GD180R-M5-T11-13-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 13
M4GD180R-M5-T11-14-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 14
M4GD180R-M5-T11-15-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 15
M4GD180R-M5-T11-16-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 16
M4GD180R-M5-T11-17-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 17
M4GD180R-M5-T11-18-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 18
M4GD180R-M5-T11-19-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 19
M4GD180R-M5-T11-20-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 20
M4GD180R-M5-T30-2-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 2
M4GD180R-M5-T30-3-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 3
M4GD180R-M5-T30-4-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 4
M4GD180R-M5-T30-5-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 5
M4GD180R-M5-T30-6-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 6
M4GD180R-M5-T30-7-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 7
M4GD180R-M5-T30-8-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 8
M4GD180R-M5-T30-9-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 9
M4GD180R-M5-T30-10-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 10
M4GD180R-M5-T30-11-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 11
M4GD180R-M5-T30-12-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 12
M4GD180R-M5-T30-13-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 13
M4GD180R-M5-T30-14-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 14
M4GD180R-M5-T30-15-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 15
M4GD180R-M5-T30-16-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 16
M4GD180R-M5-T30-17-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 17
M4GD180R-M5-T30-18-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 18
M4GD180R-M5-T30-19-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 19
M4GD180R-M5-T30-20-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 20
M4GD180R-M5-T50-2-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 2
M4GD180R-M5-T50-3-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 3
M4GD180R-M5-T50-4-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 4
M4GD180R-M5-T50-5-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 5
M4GD180R-M5-T50-6-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 6
M4GD180R-M5-T50-7-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 7
M4GD180R-M5-T50-8-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 8
M4GD180R-M5-T50-9-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 9
M4GD180R-M5-T50-10-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 10
M4GD180R-M5-T50-11-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 11
M4GD180R-M5-T50-12-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 12
M4GD180R-M5-T50-13-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 13
M4GD180R-M5-T50-14-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 14
M4GD180R-M5-T50-15-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 15
M4GD180R-M5-T50-16-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 16
M4GD180R-M5-T51-2-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 2
M4GD180R-M5-T51-3-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 3
M4GD180R-M5-T51-4-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 4
M4GD180R-M5-T51-5-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 5
M4GD180R-M5-T51-6-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 6
M4GD180R-M5-T51-7-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 7
M4GD180R-M5-T51-8-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 8
M4GD180R-M5-T51-9-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 9
M4GD180R-M5-T51-10-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 10
M4GD180R-M5-T51-11-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 11
M4GD180R-M5-T51-12-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 12
M4GD180R-M5-T51-13-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 13
M4GD180R-M5-T51-14-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 14
M4GD180R-M5-T51-15-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 15
M4GD180R-M5-T51-16-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 16
M4GD180R-M5-T51-17-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 17
M4GD180R-M5-T51-18-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 18
M4GD180R-M5-T52-2-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 2
M4GD180R-M5-T52-3-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 3
M4GD180R-M5-T52-4-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 4
M4GD180R-M5-T52-5-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 5
M4GD180R-M5-T52-6-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 6
M4GD180R-M5-T52-7-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 7
M4GD180R-M5-T52-8-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 8
M4GD180R-M5-T53-2-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 2
M4GD180R-M5-T53-3-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 3
M4GD180R-M5-T53-4-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 4
M4GD180R-M5-T53-5-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 5
M4GD180R-M5-T53-6-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 6
M4GD180R-M5-T53-7-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 7
M4GD180R-M5-T53-8-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 8
M4GD180R-M5-T53-9-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 9
M4GD180R-M5-T53-10-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 10
M4GD180R-M5-T53-11-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 11
M4GD180R-M5-T53-12-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 12
M4GD180R-M5-T53-13-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 13
M4GD180R-M5-T53-14-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 14
M4GD180R-M5-T53-15-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 15
M4GD180R-M5-T53-16-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 16
M4GD180R-M5-T53-17-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 17
M4GD180R-M5-T53-18-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 18
M4GD180R-M5-T53-19-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 19
M4GD180R-M5-T53-20-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 20
M4GD180R-M5-T6G1D-2-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 2
M4GD180R-M5-T6G1D-3-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 3
M4GD180R-M5-T6G1D-4-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 4
M4GD180R-M5-T6G1D-5-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 5
M4GD180R-M5-T6G1D-6-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 6
M4GD180R-M5-T6G1D-7-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 7
M4GD180R-M5-T6G1D-8-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 8
M4GD180R-M5-T6G1D-9-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 9
M4GD180R-M5-T6G1D-10-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 10
M4GD180R-M5-T6G1D-11-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 11
M4GD180R-M5-T6G1D-12-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 12
M4GD180R-M5-T6G1D-13-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 13
M4GD180R-M5-T6G1D-14-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 14
M4GD180R-M5-T6G1D-15-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 15
M4GD180R-M5-T6G1D-16-3 Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 16
Valve ManifoldsCKD
1008 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD M3GD1/M4GD1-T Wiring-Reduced Manifold (Direct Piping, Size 1)

Brand CKD·Valve Manifolds

Available part numbers (1008)

M3GD180R-C4-T10-2-3, M3GD180R-C4-T10-3-3, M3GD180R-C4-T10-4-3, M3GD180R-C4-T10-5-3, M3GD180R-C4-T10-6-3, M3GD180R-C4-T10-7-3, M3GD180R-C4-T10-8-3, M3GD180R-C4-T10-9-3, M3GD180R-C4-T10-10-3, M3GD180R-C4-T10-11-3 + 998 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
M3GD180R-C4-T10-2-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 2
M3GD180R-C4-T10-3-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 3
M3GD180R-C4-T10-4-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 4
M3GD180R-C4-T10-5-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 5
M3GD180R-C4-T10-6-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 6
M3GD180R-C4-T10-7-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 7
M3GD180R-C4-T10-8-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 8
M3GD180R-C4-T10-9-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 9
M3GD180R-C4-T10-10-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 10
M3GD180R-C4-T10-11-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 11
M3GD180R-C4-T10-12-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 12
M3GD180R-C4-T10-13-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 13
M3GD180R-C4-T10-14-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 14
M3GD180R-C4-T10-15-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 15
M3GD180R-C4-T10-16-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 16
M3GD180R-C4-T11-2-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 2
M3GD180R-C4-T11-3-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 3
M3GD180R-C4-T11-4-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 4
M3GD180R-C4-T11-5-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 5
M3GD180R-C4-T11-6-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 6
M3GD180R-C4-T11-7-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 7
M3GD180R-C4-T11-8-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 8
M3GD180R-C4-T11-9-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 9
M3GD180R-C4-T11-10-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 10
M3GD180R-C4-T11-11-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 11
M3GD180R-C4-T11-12-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 12
M3GD180R-C4-T11-13-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 13
M3GD180R-C4-T11-14-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 14
M3GD180R-C4-T11-15-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 15
M3GD180R-C4-T11-16-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 16
M3GD180R-C4-T11-17-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 17
M3GD180R-C4-T11-18-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 18
M3GD180R-C4-T11-19-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 19
M3GD180R-C4-T11-20-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 20
M3GD180R-C4-T30-2-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 2
M3GD180R-C4-T30-3-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 3
M3GD180R-C4-T30-4-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 4
M3GD180R-C4-T30-5-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 5
M3GD180R-C4-T30-6-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 6
M3GD180R-C4-T30-7-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 7
M3GD180R-C4-T30-8-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 8
M3GD180R-C4-T30-9-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 9
M3GD180R-C4-T30-10-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 10
M3GD180R-C4-T30-11-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 11
M3GD180R-C4-T30-12-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 12
M3GD180R-C4-T30-13-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 13
M3GD180R-C4-T30-14-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 14
M3GD180R-C4-T30-15-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 15
M3GD180R-C4-T30-16-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 16
M3GD180R-C4-T30-17-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 17
M3GD180R-C4-T30-18-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 18
M3GD180R-C4-T30-19-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 19
M3GD180R-C4-T30-20-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 20
M3GD180R-C4-T50-2-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 2
M3GD180R-C4-T50-3-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 3
M3GD180R-C4-T50-4-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 4
M3GD180R-C4-T50-5-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 5
M3GD180R-C4-T50-6-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 6
M3GD180R-C4-T50-7-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 7
M3GD180R-C4-T50-8-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 8
M3GD180R-C4-T50-9-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 9
M3GD180R-C4-T50-10-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 10
M3GD180R-C4-T50-11-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 11
M3GD180R-C4-T50-12-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 12
M3GD180R-C4-T50-13-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 13
M3GD180R-C4-T50-14-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 14
M3GD180R-C4-T50-15-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 15
M3GD180R-C4-T50-16-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 16
M3GD180R-C4-T51-2-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 2
M3GD180R-C4-T51-3-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 3
M3GD180R-C4-T51-4-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 4
M3GD180R-C4-T51-5-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 5
M3GD180R-C4-T51-6-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 6
M3GD180R-C4-T51-7-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 7
M3GD180R-C4-T51-8-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 8
M3GD180R-C4-T51-9-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 9
M3GD180R-C4-T51-10-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 10
M3GD180R-C4-T51-11-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 11
M3GD180R-C4-T51-12-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 12
M3GD180R-C4-T51-13-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 13
M3GD180R-C4-T51-14-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 14
M3GD180R-C4-T51-15-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 15
M3GD180R-C4-T51-16-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 16
M3GD180R-C4-T51-17-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 17
M3GD180R-C4-T51-18-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 18
M3GD180R-C4-T52-2-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 2
M3GD180R-C4-T52-3-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 3
M3GD180R-C4-T52-4-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 4
M3GD180R-C4-T52-5-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 5
M3GD180R-C4-T52-6-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 6
M3GD180R-C4-T52-7-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 7
M3GD180R-C4-T52-8-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 8
M3GD180R-C4-T53-2-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 2
M3GD180R-C4-T53-3-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 3
M3GD180R-C4-T53-4-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 4
M3GD180R-C4-T53-5-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 5
M3GD180R-C4-T53-6-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 6
M3GD180R-C4-T53-7-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 7
M3GD180R-C4-T53-8-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 8
M3GD180R-C4-T53-9-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 9
M3GD180R-C4-T53-10-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 10
M3GD180R-C4-T53-11-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 11
M3GD180R-C4-T53-12-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 12
M3GD180R-C4-T53-13-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 13
M3GD180R-C4-T53-14-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 14
M3GD180R-C4-T53-15-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 15
M3GD180R-C4-T53-16-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 16
M3GD180R-C4-T53-17-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 17
M3GD180R-C4-T53-18-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 18
M3GD180R-C4-T53-19-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 19
M3GD180R-C4-T53-20-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 20
M3GD180R-C4-T6G1D-2-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 2
M3GD180R-C4-T6G1D-3-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 3
M3GD180R-C4-T6G1D-4-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 4
M3GD180R-C4-T6G1D-5-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 5
M3GD180R-C4-T6G1D-6-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 6
M3GD180R-C4-T6G1D-7-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 7
M3GD180R-C4-T6G1D-8-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 8
M3GD180R-C4-T6G1D-9-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 9
M3GD180R-C4-T6G1D-10-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 10
M3GD180R-C4-T6G1D-11-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 11
M3GD180R-C4-T6G1D-12-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 12
M3GD180R-C4-T6G1D-13-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 13
M3GD180R-C4-T6G1D-14-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 14
M3GD180R-C4-T6G1D-15-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 15
M3GD180R-C4-T6G1D-16-3Model: M3GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 16
M3GD180R-C6-T10-2-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 2
M3GD180R-C6-T10-3-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 3
M3GD180R-C6-T10-4-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 4
M3GD180R-C6-T10-5-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 5
M3GD180R-C6-T10-6-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 6
M3GD180R-C6-T10-7-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 7
M3GD180R-C6-T10-8-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 8
M3GD180R-C6-T10-9-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 9
M3GD180R-C6-T10-10-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 10
M3GD180R-C6-T10-11-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 11
M3GD180R-C6-T10-12-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 12
M3GD180R-C6-T10-13-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 13
M3GD180R-C6-T10-14-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 14
M3GD180R-C6-T10-15-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 15
M3GD180R-C6-T10-16-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 16
M3GD180R-C6-T11-2-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 2
M3GD180R-C6-T11-3-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 3
M3GD180R-C6-T11-4-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 4
M3GD180R-C6-T11-5-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 5
M3GD180R-C6-T11-6-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 6
M3GD180R-C6-T11-7-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 7
M3GD180R-C6-T11-8-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 8
M3GD180R-C6-T11-9-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 9
M3GD180R-C6-T11-10-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 10
M3GD180R-C6-T11-11-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 11
M3GD180R-C6-T11-12-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 12
M3GD180R-C6-T11-13-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 13
M3GD180R-C6-T11-14-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 14
M3GD180R-C6-T11-15-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 15
M3GD180R-C6-T11-16-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 16
M3GD180R-C6-T11-17-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 17
M3GD180R-C6-T11-18-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 18
M3GD180R-C6-T11-19-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 19
M3GD180R-C6-T11-20-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 20
M3GD180R-C6-T30-2-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 2
M3GD180R-C6-T30-3-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 3
M3GD180R-C6-T30-4-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 4
M3GD180R-C6-T30-5-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 5
M3GD180R-C6-T30-6-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 6
M3GD180R-C6-T30-7-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 7
M3GD180R-C6-T30-8-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 8
M3GD180R-C6-T30-9-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 9
M3GD180R-C6-T30-10-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 10
M3GD180R-C6-T30-11-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 11
M3GD180R-C6-T30-12-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 12
M3GD180R-C6-T30-13-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 13
M3GD180R-C6-T30-14-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 14
M3GD180R-C6-T30-15-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 15
M3GD180R-C6-T30-16-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 16
M3GD180R-C6-T30-17-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 17
M3GD180R-C6-T30-18-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 18
M3GD180R-C6-T30-19-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 19
M3GD180R-C6-T30-20-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 20
M3GD180R-C6-T50-2-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 2
M3GD180R-C6-T50-3-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 3
M3GD180R-C6-T50-4-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 4
M3GD180R-C6-T50-5-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 5
M3GD180R-C6-T50-6-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 6
M3GD180R-C6-T50-7-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 7
M3GD180R-C6-T50-8-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 8
M3GD180R-C6-T50-9-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 9
M3GD180R-C6-T50-10-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 10
M3GD180R-C6-T50-11-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 11
M3GD180R-C6-T50-12-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 12
M3GD180R-C6-T50-13-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 13
M3GD180R-C6-T50-14-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 14
M3GD180R-C6-T50-15-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 15
M3GD180R-C6-T50-16-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 16
M3GD180R-C6-T51-2-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 2
M3GD180R-C6-T51-3-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 3
M3GD180R-C6-T51-4-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 4
M3GD180R-C6-T51-5-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 5
M3GD180R-C6-T51-6-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 6
M3GD180R-C6-T51-7-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 7
M3GD180R-C6-T51-8-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 8
M3GD180R-C6-T51-9-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 9
M3GD180R-C6-T51-10-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 10
M3GD180R-C6-T51-11-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 11
M3GD180R-C6-T51-12-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 12
M3GD180R-C6-T51-13-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 13
M3GD180R-C6-T51-14-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 14
M3GD180R-C6-T51-15-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 15
M3GD180R-C6-T51-16-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 16
M3GD180R-C6-T51-17-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 17
M3GD180R-C6-T51-18-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 18
M3GD180R-C6-T52-2-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 2
M3GD180R-C6-T52-3-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 3
M3GD180R-C6-T52-4-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 4
M3GD180R-C6-T52-5-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 5
M3GD180R-C6-T52-6-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 6
M3GD180R-C6-T52-7-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 7
M3GD180R-C6-T52-8-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 8
M3GD180R-C6-T53-2-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 2
M3GD180R-C6-T53-3-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 3
M3GD180R-C6-T53-4-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 4
M3GD180R-C6-T53-5-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 5
M3GD180R-C6-T53-6-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 6
M3GD180R-C6-T53-7-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 7
M3GD180R-C6-T53-8-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 8
M3GD180R-C6-T53-9-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 9
M3GD180R-C6-T53-10-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 10
M3GD180R-C6-T53-11-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 11
M3GD180R-C6-T53-12-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 12
M3GD180R-C6-T53-13-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 13
M3GD180R-C6-T53-14-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 14
M3GD180R-C6-T53-15-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 15
M3GD180R-C6-T53-16-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 16
M3GD180R-C6-T53-17-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 17
M3GD180R-C6-T53-18-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 18
M3GD180R-C6-T53-19-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 19
M3GD180R-C6-T53-20-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 20
M3GD180R-C6-T6G1D-2-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 2
M3GD180R-C6-T6G1D-3-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 3
M3GD180R-C6-T6G1D-4-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 4
M3GD180R-C6-T6G1D-5-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 5
M3GD180R-C6-T6G1D-6-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 6
M3GD180R-C6-T6G1D-7-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 7
M3GD180R-C6-T6G1D-8-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 8
M3GD180R-C6-T6G1D-9-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 9
M3GD180R-C6-T6G1D-10-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 10
M3GD180R-C6-T6G1D-11-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 11
M3GD180R-C6-T6G1D-12-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 12
M3GD180R-C6-T6G1D-13-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 13
M3GD180R-C6-T6G1D-14-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 14
M3GD180R-C6-T6G1D-15-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 15
M3GD180R-C6-T6G1D-16-3Model: M3GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 16
M3GD180R-CX-T10-2-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 2
M3GD180R-CX-T10-3-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 3
M3GD180R-CX-T10-4-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 4
M3GD180R-CX-T10-5-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 5
M3GD180R-CX-T10-6-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 6
M3GD180R-CX-T10-7-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 7
M3GD180R-CX-T10-8-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 8
M3GD180R-CX-T10-9-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 9
M3GD180R-CX-T10-10-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 10
M3GD180R-CX-T10-11-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 11
M3GD180R-CX-T10-12-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 12
M3GD180R-CX-T10-13-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 13
M3GD180R-CX-T10-14-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 14
M3GD180R-CX-T10-15-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 15
M3GD180R-CX-T10-16-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 16
M3GD180R-CX-T11-2-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 2
M3GD180R-CX-T11-3-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 3
M3GD180R-CX-T11-4-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 4
M3GD180R-CX-T11-5-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 5
M3GD180R-CX-T11-6-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 6
M3GD180R-CX-T11-7-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 7
M3GD180R-CX-T11-8-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 8
M3GD180R-CX-T11-9-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 9
M3GD180R-CX-T11-10-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 10
M3GD180R-CX-T11-11-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 11
M3GD180R-CX-T11-12-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 12
M3GD180R-CX-T11-13-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 13
M3GD180R-CX-T11-14-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 14
M3GD180R-CX-T11-15-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 15
M3GD180R-CX-T11-16-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 16
M3GD180R-CX-T11-17-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 17
M3GD180R-CX-T11-18-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 18
M3GD180R-CX-T11-19-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 19
M3GD180R-CX-T11-20-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 20
M3GD180R-CX-T30-2-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 2
M3GD180R-CX-T30-3-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 3
M3GD180R-CX-T30-4-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 4
M3GD180R-CX-T30-5-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 5
M3GD180R-CX-T30-6-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 6
M3GD180R-CX-T30-7-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 7
M3GD180R-CX-T30-8-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 8
M3GD180R-CX-T30-9-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 9
M3GD180R-CX-T30-10-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 10
M3GD180R-CX-T30-11-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 11
M3GD180R-CX-T30-12-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 12
M3GD180R-CX-T30-13-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 13
M3GD180R-CX-T30-14-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 14
M3GD180R-CX-T30-15-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 15
M3GD180R-CX-T30-16-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 16
M3GD180R-CX-T30-17-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 17
M3GD180R-CX-T30-18-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 18
M3GD180R-CX-T30-19-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 19
M3GD180R-CX-T30-20-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 20
M3GD180R-CX-T50-2-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 2
M3GD180R-CX-T50-3-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 3
M3GD180R-CX-T50-4-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 4
M3GD180R-CX-T50-5-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 5
M3GD180R-CX-T50-6-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 6
M3GD180R-CX-T50-7-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 7
M3GD180R-CX-T50-8-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 8
M3GD180R-CX-T50-9-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 9
M3GD180R-CX-T50-10-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 10
M3GD180R-CX-T50-11-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 11
M3GD180R-CX-T50-12-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 12
M3GD180R-CX-T50-13-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 13
M3GD180R-CX-T50-14-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 14
M3GD180R-CX-T50-15-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 15
M3GD180R-CX-T50-16-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 16
M3GD180R-CX-T51-2-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 2
M3GD180R-CX-T51-3-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 3
M3GD180R-CX-T51-4-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 4
M3GD180R-CX-T51-5-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 5
M3GD180R-CX-T51-6-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 6
M3GD180R-CX-T51-7-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 7
M3GD180R-CX-T51-8-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 8
M3GD180R-CX-T51-9-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 9
M3GD180R-CX-T51-10-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 10
M3GD180R-CX-T51-11-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 11
M3GD180R-CX-T51-12-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 12
M3GD180R-CX-T51-13-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 13
M3GD180R-CX-T51-14-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 14
M3GD180R-CX-T51-15-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 15
M3GD180R-CX-T51-16-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 16
M3GD180R-CX-T51-17-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 17
M3GD180R-CX-T51-18-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 18
M3GD180R-CX-T52-2-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 2
M3GD180R-CX-T52-3-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 3
M3GD180R-CX-T52-4-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 4
M3GD180R-CX-T52-5-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 5
M3GD180R-CX-T52-6-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 6
M3GD180R-CX-T52-7-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 7
M3GD180R-CX-T52-8-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 8
M3GD180R-CX-T53-2-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 2
M3GD180R-CX-T53-3-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 3
M3GD180R-CX-T53-4-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 4
M3GD180R-CX-T53-5-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 5
M3GD180R-CX-T53-6-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 6
M3GD180R-CX-T53-7-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 7
M3GD180R-CX-T53-8-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 8
M3GD180R-CX-T53-9-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 9
M3GD180R-CX-T53-10-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 10
M3GD180R-CX-T53-11-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 11
M3GD180R-CX-T53-12-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 12
M3GD180R-CX-T53-13-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 13
M3GD180R-CX-T53-14-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 14
M3GD180R-CX-T53-15-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 15
M3GD180R-CX-T53-16-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 16
M3GD180R-CX-T53-17-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 17
M3GD180R-CX-T53-18-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 18
M3GD180R-CX-T53-19-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 19
M3GD180R-CX-T53-20-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 20
M3GD180R-CX-T6G1D-2-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 2
M3GD180R-CX-T6G1D-3-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 3
M3GD180R-CX-T6G1D-4-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 4
M3GD180R-CX-T6G1D-5-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 5
M3GD180R-CX-T6G1D-6-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 6
M3GD180R-CX-T6G1D-7-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 7
M3GD180R-CX-T6G1D-8-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 8
M3GD180R-CX-T6G1D-9-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 9
M3GD180R-CX-T6G1D-10-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 10
M3GD180R-CX-T6G1D-11-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 11
M3GD180R-CX-T6G1D-12-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 12
M3GD180R-CX-T6G1D-13-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 13
M3GD180R-CX-T6G1D-14-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 14
M3GD180R-CX-T6G1D-15-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 15
M3GD180R-CX-T6G1D-16-3Model: M3GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 16
M3GD180R-M5-T10-2-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 2
M3GD180R-M5-T10-3-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 3
M3GD180R-M5-T10-4-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 4
M3GD180R-M5-T10-5-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 5
M3GD180R-M5-T10-6-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 6
M3GD180R-M5-T10-7-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 7
M3GD180R-M5-T10-8-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 8
M3GD180R-M5-T10-9-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 9
M3GD180R-M5-T10-10-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 10
M3GD180R-M5-T10-11-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 11
M3GD180R-M5-T10-12-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 12
M3GD180R-M5-T10-13-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 13
M3GD180R-M5-T10-14-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 14
M3GD180R-M5-T10-15-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 15
M3GD180R-M5-T10-16-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 16
M3GD180R-M5-T11-2-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 2
M3GD180R-M5-T11-3-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 3
M3GD180R-M5-T11-4-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 4
M3GD180R-M5-T11-5-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 5
M3GD180R-M5-T11-6-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 6
M3GD180R-M5-T11-7-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 7
M3GD180R-M5-T11-8-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 8
M3GD180R-M5-T11-9-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 9
M3GD180R-M5-T11-10-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 10
M3GD180R-M5-T11-11-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 11
M3GD180R-M5-T11-12-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 12
M3GD180R-M5-T11-13-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 13
M3GD180R-M5-T11-14-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 14
M3GD180R-M5-T11-15-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 15
M3GD180R-M5-T11-16-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 16
M3GD180R-M5-T11-17-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 17
M3GD180R-M5-T11-18-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 18
M3GD180R-M5-T11-19-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 19
M3GD180R-M5-T11-20-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 20
M3GD180R-M5-T30-2-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 2
M3GD180R-M5-T30-3-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 3
M3GD180R-M5-T30-4-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 4
M3GD180R-M5-T30-5-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 5
M3GD180R-M5-T30-6-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 6
M3GD180R-M5-T30-7-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 7
M3GD180R-M5-T30-8-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 8
M3GD180R-M5-T30-9-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 9
M3GD180R-M5-T30-10-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 10
M3GD180R-M5-T30-11-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 11
M3GD180R-M5-T30-12-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 12
M3GD180R-M5-T30-13-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 13
M3GD180R-M5-T30-14-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 14
M3GD180R-M5-T30-15-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 15
M3GD180R-M5-T30-16-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 16
M3GD180R-M5-T30-17-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 17
M3GD180R-M5-T30-18-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 18
M3GD180R-M5-T30-19-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 19
M3GD180R-M5-T30-20-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 20
M3GD180R-M5-T50-2-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 2
M3GD180R-M5-T50-3-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 3
M3GD180R-M5-T50-4-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 4
M3GD180R-M5-T50-5-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 5
M3GD180R-M5-T50-6-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 6
M3GD180R-M5-T50-7-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 7
M3GD180R-M5-T50-8-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 8
M3GD180R-M5-T50-9-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 9
M3GD180R-M5-T50-10-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 10
M3GD180R-M5-T50-11-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 11
M3GD180R-M5-T50-12-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 12
M3GD180R-M5-T50-13-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 13
M3GD180R-M5-T50-14-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 14
M3GD180R-M5-T50-15-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 15
M3GD180R-M5-T50-16-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 16
M3GD180R-M5-T51-2-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 2
M3GD180R-M5-T51-3-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 3
M3GD180R-M5-T51-4-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 4
M3GD180R-M5-T51-5-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 5
M3GD180R-M5-T51-6-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 6
M3GD180R-M5-T51-7-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 7
M3GD180R-M5-T51-8-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 8
M3GD180R-M5-T51-9-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 9
M3GD180R-M5-T51-10-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 10
M3GD180R-M5-T51-11-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 11
M3GD180R-M5-T51-12-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 12
M3GD180R-M5-T51-13-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 13
M3GD180R-M5-T51-14-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 14
M3GD180R-M5-T51-15-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 15
M3GD180R-M5-T51-16-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 16
M3GD180R-M5-T51-17-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 17
M3GD180R-M5-T51-18-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 18
M3GD180R-M5-T52-2-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 2
M3GD180R-M5-T52-3-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 3
M3GD180R-M5-T52-4-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 4
M3GD180R-M5-T52-5-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 5
M3GD180R-M5-T52-6-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 6
M3GD180R-M5-T52-7-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 7
M3GD180R-M5-T52-8-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 8
M3GD180R-M5-T53-2-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 2
M3GD180R-M5-T53-3-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 3
M3GD180R-M5-T53-4-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 4
M3GD180R-M5-T53-5-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 5
M3GD180R-M5-T53-6-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 6
M3GD180R-M5-T53-7-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 7
M3GD180R-M5-T53-8-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 8
M3GD180R-M5-T53-9-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 9
M3GD180R-M5-T53-10-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 10
M3GD180R-M5-T53-11-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 11
M3GD180R-M5-T53-12-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 12
M3GD180R-M5-T53-13-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 13
M3GD180R-M5-T53-14-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 14
M3GD180R-M5-T53-15-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 15
M3GD180R-M5-T53-16-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 16
M3GD180R-M5-T53-17-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 17
M3GD180R-M5-T53-18-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 18
M3GD180R-M5-T53-19-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 19
M3GD180R-M5-T53-20-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 20
M3GD180R-M5-T6G1D-2-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 2
M3GD180R-M5-T6G1D-3-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 3
M3GD180R-M5-T6G1D-4-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 4
M3GD180R-M5-T6G1D-5-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 5
M3GD180R-M5-T6G1D-6-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 6
M3GD180R-M5-T6G1D-7-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 7
M3GD180R-M5-T6G1D-8-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 8
M3GD180R-M5-T6G1D-9-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 9
M3GD180R-M5-T6G1D-10-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 10
M3GD180R-M5-T6G1D-11-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 11
M3GD180R-M5-T6G1D-12-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 12
M3GD180R-M5-T6G1D-13-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 13
M3GD180R-M5-T6G1D-14-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 14
M3GD180R-M5-T6G1D-15-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 15
M3GD180R-M5-T6G1D-16-3Model: M3GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 16
M4GD180R-C4-T10-2-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 2
M4GD180R-C4-T10-3-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 3
M4GD180R-C4-T10-4-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 4
M4GD180R-C4-T10-5-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 5
M4GD180R-C4-T10-6-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 6
M4GD180R-C4-T10-7-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 7
M4GD180R-C4-T10-8-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 8
M4GD180R-C4-T10-9-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 9
M4GD180R-C4-T10-10-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 10
M4GD180R-C4-T10-11-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 11
M4GD180R-C4-T10-12-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 12
M4GD180R-C4-T10-13-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 13
M4GD180R-C4-T10-14-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 14
M4GD180R-C4-T10-15-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 15
M4GD180R-C4-T10-16-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block M3 (left) | Stations: 16
M4GD180R-C4-T11-2-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 2
M4GD180R-C4-T11-3-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 3
M4GD180R-C4-T11-4-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 4
M4GD180R-C4-T11-5-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 5
M4GD180R-C4-T11-6-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 6
M4GD180R-C4-T11-7-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 7
M4GD180R-C4-T11-8-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 8
M4GD180R-C4-T11-9-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 9
M4GD180R-C4-T11-10-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 10
M4GD180R-C4-T11-11-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 11
M4GD180R-C4-T11-12-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 12
M4GD180R-C4-T11-13-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 13
M4GD180R-C4-T11-14-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 14
M4GD180R-C4-T11-15-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 15
M4GD180R-C4-T11-16-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 16
M4GD180R-C4-T11-17-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 17
M4GD180R-C4-T11-18-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 18
M4GD180R-C4-T11-19-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 19
M4GD180R-C4-T11-20-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Terminal block PCB (left) | Stations: 20
M4GD180R-C4-T30-2-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 2
M4GD180R-C4-T30-3-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 3
M4GD180R-C4-T30-4-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 4
M4GD180R-C4-T30-5-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 5
M4GD180R-C4-T30-6-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 6
M4GD180R-C4-T30-7-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 7
M4GD180R-C4-T30-8-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 8
M4GD180R-C4-T30-9-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 9
M4GD180R-C4-T30-10-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 10
M4GD180R-C4-T30-11-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 11
M4GD180R-C4-T30-12-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 12
M4GD180R-C4-T30-13-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 13
M4GD180R-C4-T30-14-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 14
M4GD180R-C4-T30-15-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 15
M4GD180R-C4-T30-16-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 16
M4GD180R-C4-T30-17-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 17
M4GD180R-C4-T30-18-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 18
M4GD180R-C4-T30-19-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 19
M4GD180R-C4-T30-20-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: D-sub 25-pin (left) | Stations: 20
M4GD180R-C4-T50-2-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 2
M4GD180R-C4-T50-3-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 3
M4GD180R-C4-T50-4-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 4
M4GD180R-C4-T50-5-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 5
M4GD180R-C4-T50-6-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 6
M4GD180R-C4-T50-7-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 7
M4GD180R-C4-T50-8-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 8
M4GD180R-C4-T50-9-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 9
M4GD180R-C4-T50-10-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 10
M4GD180R-C4-T50-11-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 11
M4GD180R-C4-T50-12-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 12
M4GD180R-C4-T50-13-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 13
M4GD180R-C4-T50-14-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 14
M4GD180R-C4-T50-15-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 15
M4GD180R-C4-T50-16-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20P+power (left) | Stations: 16
M4GD180R-C4-T51-2-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 2
M4GD180R-C4-T51-3-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 3
M4GD180R-C4-T51-4-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 4
M4GD180R-C4-T51-5-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 5
M4GD180R-C4-T51-6-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 6
M4GD180R-C4-T51-7-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 7
M4GD180R-C4-T51-8-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 8
M4GD180R-C4-T51-9-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 9
M4GD180R-C4-T51-10-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 10
M4GD180R-C4-T51-11-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 11
M4GD180R-C4-T51-12-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 12
M4GD180R-C4-T51-13-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 13
M4GD180R-C4-T51-14-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 14
M4GD180R-C4-T51-15-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 15
M4GD180R-C4-T51-16-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 16
M4GD180R-C4-T51-17-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 17
M4GD180R-C4-T51-18-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 20-pin (left) | Stations: 18
M4GD180R-C4-T52-2-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 2
M4GD180R-C4-T52-3-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 3
M4GD180R-C4-T52-4-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 4
M4GD180R-C4-T52-5-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 5
M4GD180R-C4-T52-6-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 6
M4GD180R-C4-T52-7-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 7
M4GD180R-C4-T52-8-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 10-pin (left) | Stations: 8
M4GD180R-C4-T53-2-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 2
M4GD180R-C4-T53-3-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 3
M4GD180R-C4-T53-4-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 4
M4GD180R-C4-T53-5-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 5
M4GD180R-C4-T53-6-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 6
M4GD180R-C4-T53-7-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 7
M4GD180R-C4-T53-8-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 8
M4GD180R-C4-T53-9-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 9
M4GD180R-C4-T53-10-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 10
M4GD180R-C4-T53-11-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 11
M4GD180R-C4-T53-12-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 12
M4GD180R-C4-T53-13-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 13
M4GD180R-C4-T53-14-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 14
M4GD180R-C4-T53-15-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 15
M4GD180R-C4-T53-16-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 16
M4GD180R-C4-T53-17-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 17
M4GD180R-C4-T53-18-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 18
M4GD180R-C4-T53-19-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 19
M4GD180R-C4-T53-20-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: Flat cable 26-pin (left) | Stations: 20
M4GD180R-C4-T6G1D-2-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 2
M4GD180R-C4-T6G1D-3-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 3
M4GD180R-C4-T6G1D-4-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 4
M4GD180R-C4-T6G1D-5-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 5
M4GD180R-C4-T6G1D-6-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 6
M4GD180R-C4-T6G1D-7-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 7
M4GD180R-C4-T6G1D-8-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 8
M4GD180R-C4-T6G1D-9-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 9
M4GD180R-C4-T6G1D-10-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 10
M4GD180R-C4-T6G1D-11-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 11
M4GD180R-C4-T6G1D-12-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 12
M4GD180R-C4-T6G1D-13-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 13
M4GD180R-C4-T6G1D-14-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 14
M4GD180R-C4-T6G1D-15-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 15
M4GD180R-C4-T6G1D-16-3Model: M4GD1 (mixed) | A/B port: ø4 push-in | Wiring: CC-Link serial, DIN rail | Stations: 16
M4GD180R-C6-T10-2-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 2
M4GD180R-C6-T10-3-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 3
M4GD180R-C6-T10-4-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 4
M4GD180R-C6-T10-5-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 5
M4GD180R-C6-T10-6-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 6
M4GD180R-C6-T10-7-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 7
M4GD180R-C6-T10-8-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 8
M4GD180R-C6-T10-9-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 9
M4GD180R-C6-T10-10-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 10
M4GD180R-C6-T10-11-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 11
M4GD180R-C6-T10-12-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 12
M4GD180R-C6-T10-13-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 13
M4GD180R-C6-T10-14-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 14
M4GD180R-C6-T10-15-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 15
M4GD180R-C6-T10-16-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block M3 (left) | Stations: 16
M4GD180R-C6-T11-2-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 2
M4GD180R-C6-T11-3-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 3
M4GD180R-C6-T11-4-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 4
M4GD180R-C6-T11-5-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 5
M4GD180R-C6-T11-6-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 6
M4GD180R-C6-T11-7-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 7
M4GD180R-C6-T11-8-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 8
M4GD180R-C6-T11-9-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 9
M4GD180R-C6-T11-10-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 10
M4GD180R-C6-T11-11-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 11
M4GD180R-C6-T11-12-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 12
M4GD180R-C6-T11-13-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 13
M4GD180R-C6-T11-14-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 14
M4GD180R-C6-T11-15-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 15
M4GD180R-C6-T11-16-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 16
M4GD180R-C6-T11-17-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 17
M4GD180R-C6-T11-18-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 18
M4GD180R-C6-T11-19-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 19
M4GD180R-C6-T11-20-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Terminal block PCB (left) | Stations: 20
M4GD180R-C6-T30-2-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 2
M4GD180R-C6-T30-3-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 3
M4GD180R-C6-T30-4-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 4
M4GD180R-C6-T30-5-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 5
M4GD180R-C6-T30-6-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 6
M4GD180R-C6-T30-7-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 7
M4GD180R-C6-T30-8-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 8
M4GD180R-C6-T30-9-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 9
M4GD180R-C6-T30-10-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 10
M4GD180R-C6-T30-11-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 11
M4GD180R-C6-T30-12-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 12
M4GD180R-C6-T30-13-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 13
M4GD180R-C6-T30-14-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 14
M4GD180R-C6-T30-15-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 15
M4GD180R-C6-T30-16-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 16
M4GD180R-C6-T30-17-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 17
M4GD180R-C6-T30-18-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 18
M4GD180R-C6-T30-19-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 19
M4GD180R-C6-T30-20-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: D-sub 25-pin (left) | Stations: 20
M4GD180R-C6-T50-2-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 2
M4GD180R-C6-T50-3-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 3
M4GD180R-C6-T50-4-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 4
M4GD180R-C6-T50-5-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 5
M4GD180R-C6-T50-6-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 6
M4GD180R-C6-T50-7-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 7
M4GD180R-C6-T50-8-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 8
M4GD180R-C6-T50-9-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 9
M4GD180R-C6-T50-10-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 10
M4GD180R-C6-T50-11-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 11
M4GD180R-C6-T50-12-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 12
M4GD180R-C6-T50-13-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 13
M4GD180R-C6-T50-14-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 14
M4GD180R-C6-T50-15-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 15
M4GD180R-C6-T50-16-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20P+power (left) | Stations: 16
M4GD180R-C6-T51-2-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 2
M4GD180R-C6-T51-3-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 3
M4GD180R-C6-T51-4-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 4
M4GD180R-C6-T51-5-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 5
M4GD180R-C6-T51-6-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 6
M4GD180R-C6-T51-7-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 7
M4GD180R-C6-T51-8-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 8
M4GD180R-C6-T51-9-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 9
M4GD180R-C6-T51-10-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 10
M4GD180R-C6-T51-11-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 11
M4GD180R-C6-T51-12-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 12
M4GD180R-C6-T51-13-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 13
M4GD180R-C6-T51-14-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 14
M4GD180R-C6-T51-15-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 15
M4GD180R-C6-T51-16-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 16
M4GD180R-C6-T51-17-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 17
M4GD180R-C6-T51-18-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 20-pin (left) | Stations: 18
M4GD180R-C6-T52-2-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 2
M4GD180R-C6-T52-3-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 3
M4GD180R-C6-T52-4-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 4
M4GD180R-C6-T52-5-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 5
M4GD180R-C6-T52-6-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 6
M4GD180R-C6-T52-7-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 7
M4GD180R-C6-T52-8-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 10-pin (left) | Stations: 8
M4GD180R-C6-T53-2-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 2
M4GD180R-C6-T53-3-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 3
M4GD180R-C6-T53-4-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 4
M4GD180R-C6-T53-5-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 5
M4GD180R-C6-T53-6-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 6
M4GD180R-C6-T53-7-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 7
M4GD180R-C6-T53-8-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 8
M4GD180R-C6-T53-9-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 9
M4GD180R-C6-T53-10-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 10
M4GD180R-C6-T53-11-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 11
M4GD180R-C6-T53-12-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 12
M4GD180R-C6-T53-13-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 13
M4GD180R-C6-T53-14-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 14
M4GD180R-C6-T53-15-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 15
M4GD180R-C6-T53-16-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 16
M4GD180R-C6-T53-17-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 17
M4GD180R-C6-T53-18-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 18
M4GD180R-C6-T53-19-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 19
M4GD180R-C6-T53-20-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: Flat cable 26-pin (left) | Stations: 20
M4GD180R-C6-T6G1D-2-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 2
M4GD180R-C6-T6G1D-3-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 3
M4GD180R-C6-T6G1D-4-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 4
M4GD180R-C6-T6G1D-5-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 5
M4GD180R-C6-T6G1D-6-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 6
M4GD180R-C6-T6G1D-7-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 7
M4GD180R-C6-T6G1D-8-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 8
M4GD180R-C6-T6G1D-9-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 9
M4GD180R-C6-T6G1D-10-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 10
M4GD180R-C6-T6G1D-11-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 11
M4GD180R-C6-T6G1D-12-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 12
M4GD180R-C6-T6G1D-13-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 13
M4GD180R-C6-T6G1D-14-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 14
M4GD180R-C6-T6G1D-15-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 15
M4GD180R-C6-T6G1D-16-3Model: M4GD1 (mixed) | A/B port: ø6 push-in | Wiring: CC-Link serial, DIN rail | Stations: 16
M4GD180R-CX-T10-2-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 2
M4GD180R-CX-T10-3-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 3
M4GD180R-CX-T10-4-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 4
M4GD180R-CX-T10-5-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 5
M4GD180R-CX-T10-6-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 6
M4GD180R-CX-T10-7-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 7
M4GD180R-CX-T10-8-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 8
M4GD180R-CX-T10-9-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 9
M4GD180R-CX-T10-10-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 10
M4GD180R-CX-T10-11-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 11
M4GD180R-CX-T10-12-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 12
M4GD180R-CX-T10-13-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 13
M4GD180R-CX-T10-14-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 14
M4GD180R-CX-T10-15-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 15
M4GD180R-CX-T10-16-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block M3 (left) | Stations: 16
M4GD180R-CX-T11-2-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 2
M4GD180R-CX-T11-3-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 3
M4GD180R-CX-T11-4-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 4
M4GD180R-CX-T11-5-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 5
M4GD180R-CX-T11-6-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 6
M4GD180R-CX-T11-7-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 7
M4GD180R-CX-T11-8-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 8
M4GD180R-CX-T11-9-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 9
M4GD180R-CX-T11-10-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 10
M4GD180R-CX-T11-11-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 11
M4GD180R-CX-T11-12-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 12
M4GD180R-CX-T11-13-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 13
M4GD180R-CX-T11-14-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 14
M4GD180R-CX-T11-15-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 15
M4GD180R-CX-T11-16-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 16
M4GD180R-CX-T11-17-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 17
M4GD180R-CX-T11-18-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 18
M4GD180R-CX-T11-19-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 19
M4GD180R-CX-T11-20-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Terminal block PCB (left) | Stations: 20
M4GD180R-CX-T30-2-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 2
M4GD180R-CX-T30-3-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 3
M4GD180R-CX-T30-4-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 4
M4GD180R-CX-T30-5-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 5
M4GD180R-CX-T30-6-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 6
M4GD180R-CX-T30-7-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 7
M4GD180R-CX-T30-8-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 8
M4GD180R-CX-T30-9-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 9
M4GD180R-CX-T30-10-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 10
M4GD180R-CX-T30-11-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 11
M4GD180R-CX-T30-12-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 12
M4GD180R-CX-T30-13-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 13
M4GD180R-CX-T30-14-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 14
M4GD180R-CX-T30-15-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 15
M4GD180R-CX-T30-16-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 16
M4GD180R-CX-T30-17-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 17
M4GD180R-CX-T30-18-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 18
M4GD180R-CX-T30-19-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 19
M4GD180R-CX-T30-20-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: D-sub 25-pin (left) | Stations: 20
M4GD180R-CX-T50-2-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 2
M4GD180R-CX-T50-3-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 3
M4GD180R-CX-T50-4-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 4
M4GD180R-CX-T50-5-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 5
M4GD180R-CX-T50-6-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 6
M4GD180R-CX-T50-7-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 7
M4GD180R-CX-T50-8-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 8
M4GD180R-CX-T50-9-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 9
M4GD180R-CX-T50-10-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 10
M4GD180R-CX-T50-11-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 11
M4GD180R-CX-T50-12-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 12
M4GD180R-CX-T50-13-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 13
M4GD180R-CX-T50-14-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 14
M4GD180R-CX-T50-15-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 15
M4GD180R-CX-T50-16-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20P+power (left) | Stations: 16
M4GD180R-CX-T51-2-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 2
M4GD180R-CX-T51-3-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 3
M4GD180R-CX-T51-4-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 4
M4GD180R-CX-T51-5-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 5
M4GD180R-CX-T51-6-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 6
M4GD180R-CX-T51-7-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 7
M4GD180R-CX-T51-8-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 8
M4GD180R-CX-T51-9-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 9
M4GD180R-CX-T51-10-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 10
M4GD180R-CX-T51-11-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 11
M4GD180R-CX-T51-12-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 12
M4GD180R-CX-T51-13-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 13
M4GD180R-CX-T51-14-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 14
M4GD180R-CX-T51-15-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 15
M4GD180R-CX-T51-16-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 16
M4GD180R-CX-T51-17-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 17
M4GD180R-CX-T51-18-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 20-pin (left) | Stations: 18
M4GD180R-CX-T52-2-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 2
M4GD180R-CX-T52-3-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 3
M4GD180R-CX-T52-4-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 4
M4GD180R-CX-T52-5-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 5
M4GD180R-CX-T52-6-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 6
M4GD180R-CX-T52-7-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 7
M4GD180R-CX-T52-8-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 10-pin (left) | Stations: 8
M4GD180R-CX-T53-2-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 2
M4GD180R-CX-T53-3-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 3
M4GD180R-CX-T53-4-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 4
M4GD180R-CX-T53-5-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 5
M4GD180R-CX-T53-6-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 6
M4GD180R-CX-T53-7-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 7
M4GD180R-CX-T53-8-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 8
M4GD180R-CX-T53-9-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 9
M4GD180R-CX-T53-10-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 10
M4GD180R-CX-T53-11-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 11
M4GD180R-CX-T53-12-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 12
M4GD180R-CX-T53-13-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 13
M4GD180R-CX-T53-14-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 14
M4GD180R-CX-T53-15-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 15
M4GD180R-CX-T53-16-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 16
M4GD180R-CX-T53-17-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 17
M4GD180R-CX-T53-18-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 18
M4GD180R-CX-T53-19-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 19
M4GD180R-CX-T53-20-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: Flat cable 26-pin (left) | Stations: 20
M4GD180R-CX-T6G1D-2-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 2
M4GD180R-CX-T6G1D-3-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 3
M4GD180R-CX-T6G1D-4-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 4
M4GD180R-CX-T6G1D-5-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 5
M4GD180R-CX-T6G1D-6-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 6
M4GD180R-CX-T6G1D-7-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 7
M4GD180R-CX-T6G1D-8-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 8
M4GD180R-CX-T6G1D-9-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 9
M4GD180R-CX-T6G1D-10-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 10
M4GD180R-CX-T6G1D-11-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 11
M4GD180R-CX-T6G1D-12-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 12
M4GD180R-CX-T6G1D-13-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 13
M4GD180R-CX-T6G1D-14-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 14
M4GD180R-CX-T6G1D-15-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 15
M4GD180R-CX-T6G1D-16-3Model: M4GD1 (mixed) | A/B port: Mixed push-in | Wiring: CC-Link serial, DIN rail | Stations: 16
M4GD180R-M5-T10-2-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 2
M4GD180R-M5-T10-3-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 3
M4GD180R-M5-T10-4-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 4
M4GD180R-M5-T10-5-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 5
M4GD180R-M5-T10-6-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 6
M4GD180R-M5-T10-7-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 7
M4GD180R-M5-T10-8-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 8
M4GD180R-M5-T10-9-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 9
M4GD180R-M5-T10-10-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 10
M4GD180R-M5-T10-11-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 11
M4GD180R-M5-T10-12-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 12
M4GD180R-M5-T10-13-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 13
M4GD180R-M5-T10-14-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 14
M4GD180R-M5-T10-15-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 15
M4GD180R-M5-T10-16-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block M3 (left) | Stations: 16
M4GD180R-M5-T11-2-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 2
M4GD180R-M5-T11-3-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 3
M4GD180R-M5-T11-4-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 4
M4GD180R-M5-T11-5-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 5
M4GD180R-M5-T11-6-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 6
M4GD180R-M5-T11-7-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 7
M4GD180R-M5-T11-8-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 8
M4GD180R-M5-T11-9-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 9
M4GD180R-M5-T11-10-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 10
M4GD180R-M5-T11-11-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 11
M4GD180R-M5-T11-12-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 12
M4GD180R-M5-T11-13-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 13
M4GD180R-M5-T11-14-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 14
M4GD180R-M5-T11-15-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 15
M4GD180R-M5-T11-16-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 16
M4GD180R-M5-T11-17-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 17
M4GD180R-M5-T11-18-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 18
M4GD180R-M5-T11-19-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 19
M4GD180R-M5-T11-20-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Terminal block PCB (left) | Stations: 20
M4GD180R-M5-T30-2-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 2
M4GD180R-M5-T30-3-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 3
M4GD180R-M5-T30-4-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 4
M4GD180R-M5-T30-5-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 5
M4GD180R-M5-T30-6-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 6
M4GD180R-M5-T30-7-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 7
M4GD180R-M5-T30-8-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 8
M4GD180R-M5-T30-9-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 9
M4GD180R-M5-T30-10-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 10
M4GD180R-M5-T30-11-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 11
M4GD180R-M5-T30-12-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 12
M4GD180R-M5-T30-13-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 13
M4GD180R-M5-T30-14-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 14
M4GD180R-M5-T30-15-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 15
M4GD180R-M5-T30-16-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 16
M4GD180R-M5-T30-17-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 17
M4GD180R-M5-T30-18-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 18
M4GD180R-M5-T30-19-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 19
M4GD180R-M5-T30-20-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: D-sub 25-pin (left) | Stations: 20
M4GD180R-M5-T50-2-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 2
M4GD180R-M5-T50-3-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 3
M4GD180R-M5-T50-4-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 4
M4GD180R-M5-T50-5-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 5
M4GD180R-M5-T50-6-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 6
M4GD180R-M5-T50-7-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 7
M4GD180R-M5-T50-8-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 8
M4GD180R-M5-T50-9-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 9
M4GD180R-M5-T50-10-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 10
M4GD180R-M5-T50-11-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 11
M4GD180R-M5-T50-12-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 12
M4GD180R-M5-T50-13-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 13
M4GD180R-M5-T50-14-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 14
M4GD180R-M5-T50-15-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 15
M4GD180R-M5-T50-16-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20P+power (left) | Stations: 16
M4GD180R-M5-T51-2-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 2
M4GD180R-M5-T51-3-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 3
M4GD180R-M5-T51-4-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 4
M4GD180R-M5-T51-5-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 5
M4GD180R-M5-T51-6-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 6
M4GD180R-M5-T51-7-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 7
M4GD180R-M5-T51-8-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 8
M4GD180R-M5-T51-9-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 9
M4GD180R-M5-T51-10-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 10
M4GD180R-M5-T51-11-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 11
M4GD180R-M5-T51-12-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 12
M4GD180R-M5-T51-13-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 13
M4GD180R-M5-T51-14-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 14
M4GD180R-M5-T51-15-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 15
M4GD180R-M5-T51-16-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 16
M4GD180R-M5-T51-17-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 17
M4GD180R-M5-T51-18-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 20-pin (left) | Stations: 18
M4GD180R-M5-T52-2-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 2
M4GD180R-M5-T52-3-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 3
M4GD180R-M5-T52-4-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 4
M4GD180R-M5-T52-5-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 5
M4GD180R-M5-T52-6-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 6
M4GD180R-M5-T52-7-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 7
M4GD180R-M5-T52-8-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 10-pin (left) | Stations: 8
M4GD180R-M5-T53-2-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 2
M4GD180R-M5-T53-3-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 3
M4GD180R-M5-T53-4-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 4
M4GD180R-M5-T53-5-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 5
M4GD180R-M5-T53-6-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 6
M4GD180R-M5-T53-7-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 7
M4GD180R-M5-T53-8-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 8
M4GD180R-M5-T53-9-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 9
M4GD180R-M5-T53-10-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 10
M4GD180R-M5-T53-11-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 11
M4GD180R-M5-T53-12-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 12
M4GD180R-M5-T53-13-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 13
M4GD180R-M5-T53-14-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 14
M4GD180R-M5-T53-15-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 15
M4GD180R-M5-T53-16-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 16
M4GD180R-M5-T53-17-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 17
M4GD180R-M5-T53-18-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 18
M4GD180R-M5-T53-19-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 19
M4GD180R-M5-T53-20-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: Flat cable 26-pin (left) | Stations: 20
M4GD180R-M5-T6G1D-2-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 2
M4GD180R-M5-T6G1D-3-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 3
M4GD180R-M5-T6G1D-4-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 4
M4GD180R-M5-T6G1D-5-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 5
M4GD180R-M5-T6G1D-6-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 6
M4GD180R-M5-T6G1D-7-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 7
M4GD180R-M5-T6G1D-8-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 8
M4GD180R-M5-T6G1D-9-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 9
M4GD180R-M5-T6G1D-10-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 10
M4GD180R-M5-T6G1D-11-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 11
M4GD180R-M5-T6G1D-12-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 12
M4GD180R-M5-T6G1D-13-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 13
M4GD180R-M5-T6G1D-14-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 14
M4GD180R-M5-T6G1D-15-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 15
M4GD180R-M5-T6G1D-16-3Model: M4GD1 (mixed) | A/B port: M5 female | Wiring: CC-Link serial, DIN rail | Stations: 16

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
