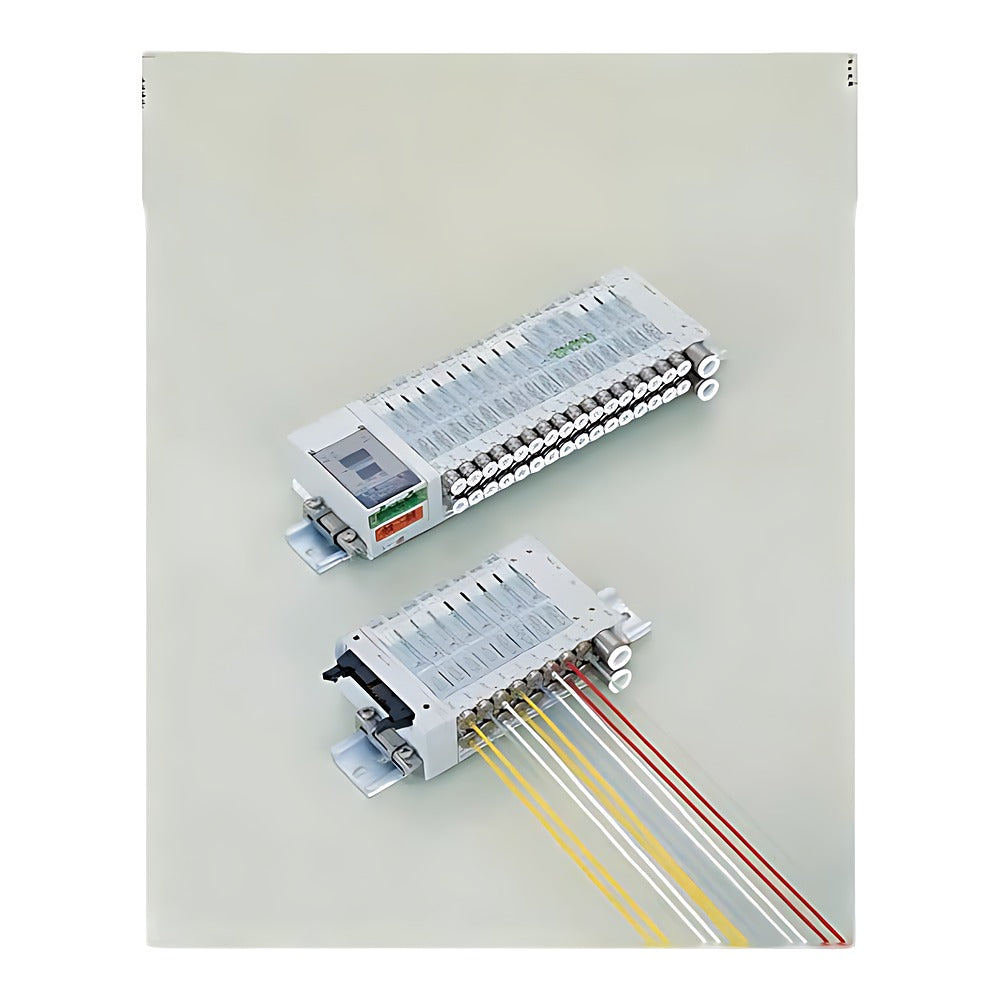

CKD M4KB1-4 Master Valve Manifold (Sub-plate Piping)

CKD M4KB1-4 Master Valve Manifold (Sub-plate Piping)

CKD M4KB1-4 sub-plate manifolds of air-piloted 5-port master valves with A/B ports on the manifold base (side or rear), 2 to 20 stations.

Key features

  • A/B ports on manifold base: side or rear (Y) threaded ports, or push-in fittings (H6-H12)
  • M4KB1/M4KB2 2-20, M4KB3 2-15, M4KB4 2-12 stations; M5, H6 and H8 ports up to 10 stations
  • Manifold P/R ports Rc1/8 (M4KB1) to Rc1/2 (M4KB4); NPT and G versions available
  • Mixed switching manifolds (8) with S1-S5/MP function counts specified on order
  • Valves replaceable without disturbing piping

Specifications

Valve type Pilot operated soft spool valve (air pilot)
Fluid Compressed air
Max. operating pressure 0.70 MPa
Proof pressure 1.05 MPa
Ambient temperature -5 to 50°C
Pilot port M5
Source CKD Korea catalog CB-023SK-9, p. 1432-1437
M4KB111-M5-2 Model: M4KB1 | Switching: 2-position single | A/B port: M5 | Stations: 2
M4KB111-M5-3 Model: M4KB1 | Switching: 2-position single | A/B port: M5 | Stations: 3
M4KB111-M5-4 Model: M4KB1 | Switching: 2-position single | A/B port: M5 | Stations: 4
M4KB111-M5-5 Model: M4KB1 | Switching: 2-position single | A/B port: M5 | Stations: 5
M4KB111-M5-6 Model: M4KB1 | Switching: 2-position single | A/B port: M5 | Stations: 6
M4KB111-M5-7 Model: M4KB1 | Switching: 2-position single | A/B port: M5 | Stations: 7
M4KB111-M5-8 Model: M4KB1 | Switching: 2-position single | A/B port: M5 | Stations: 8
M4KB111-M5-9 Model: M4KB1 | Switching: 2-position single | A/B port: M5 | Stations: 9
M4KB111-M5-10 Model: M4KB1 | Switching: 2-position single | A/B port: M5 | Stations: 10
M4KB111-06-2 Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 2
M4KB111-06-3 Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 3
M4KB111-06-4 Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 4
M4KB111-06-5 Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 5
M4KB111-06-6 Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 6
M4KB111-06-7 Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 7
M4KB111-06-8 Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 8
M4KB111-06-9 Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 9
M4KB111-06-10 Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 10
M4KB111-06-11 Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 11
M4KB111-06-12 Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 12
M4KB111-06-13 Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 13
M4KB111-06-14 Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 14
M4KB111-06-15 Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 15
M4KB111-06-16 Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 16
M4KB111-06-17 Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 17
M4KB111-06-18 Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 18
M4KB111-06-19 Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 19
M4KB111-06-20 Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 20
M4KB111-M5Y-2 Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 2
M4KB111-M5Y-3 Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 3
M4KB111-M5Y-4 Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 4
M4KB111-M5Y-5 Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 5
M4KB111-M5Y-6 Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 6
M4KB111-M5Y-7 Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 7
M4KB111-M5Y-8 Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 8
M4KB111-M5Y-9 Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 9
M4KB111-M5Y-10 Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 10
M4KB111-M5Y-11 Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 11
M4KB111-M5Y-12 Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 12
M4KB111-M5Y-13 Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 13
M4KB111-M5Y-14 Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 14
M4KB111-M5Y-15 Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 15
M4KB111-M5Y-16 Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 16
M4KB111-M5Y-17 Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 17
M4KB111-M5Y-18 Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 18
M4KB111-M5Y-19 Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 19
M4KB111-M5Y-20 Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 20
M4KB111-H6-2 Model: M4KB1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 2
M4KB111-H6-3 Model: M4KB1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 3
M4KB111-H6-4 Model: M4KB1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 4
M4KB111-H6-5 Model: M4KB1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 5
M4KB111-H6-6 Model: M4KB1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 6
M4KB111-H6-7 Model: M4KB1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 7
M4KB111-H6-8 Model: M4KB1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 8
M4KB111-H6-9 Model: M4KB1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 9
M4KB111-H6-10 Model: M4KB1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 10
M4KB121-M5-2 Model: M4KB1 | Switching: 2-position double | A/B port: M5 | Stations: 2
M4KB121-M5-3 Model: M4KB1 | Switching: 2-position double | A/B port: M5 | Stations: 3
M4KB121-M5-4 Model: M4KB1 | Switching: 2-position double | A/B port: M5 | Stations: 4
M4KB121-M5-5 Model: M4KB1 | Switching: 2-position double | A/B port: M5 | Stations: 5
M4KB121-M5-6 Model: M4KB1 | Switching: 2-position double | A/B port: M5 | Stations: 6
M4KB121-M5-7 Model: M4KB1 | Switching: 2-position double | A/B port: M5 | Stations: 7
M4KB121-M5-8 Model: M4KB1 | Switching: 2-position double | A/B port: M5 | Stations: 8
M4KB121-M5-9 Model: M4KB1 | Switching: 2-position double | A/B port: M5 | Stations: 9
M4KB121-M5-10 Model: M4KB1 | Switching: 2-position double | A/B port: M5 | Stations: 10
M4KB121-06-2 Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 2
M4KB121-06-3 Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 3
M4KB121-06-4 Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 4
M4KB121-06-5 Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 5
M4KB121-06-6 Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 6
M4KB121-06-7 Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 7
M4KB121-06-8 Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 8
M4KB121-06-9 Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 9
M4KB121-06-10 Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 10
M4KB121-06-11 Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 11
M4KB121-06-12 Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 12
M4KB121-06-13 Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 13
M4KB121-06-14 Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 14
M4KB121-06-15 Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 15
M4KB121-06-16 Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 16
M4KB121-06-17 Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 17
M4KB121-06-18 Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 18
M4KB121-06-19 Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 19
M4KB121-06-20 Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 20
M4KB121-M5Y-2 Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 2
M4KB121-M5Y-3 Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 3
M4KB121-M5Y-4 Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 4
M4KB121-M5Y-5 Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 5
M4KB121-M5Y-6 Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 6
M4KB121-M5Y-7 Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 7
M4KB121-M5Y-8 Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 8
M4KB121-M5Y-9 Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 9
M4KB121-M5Y-10 Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 10
M4KB121-M5Y-11 Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 11
M4KB121-M5Y-12 Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 12
M4KB121-M5Y-13 Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 13
M4KB121-M5Y-14 Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 14
M4KB121-M5Y-15 Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 15
M4KB121-M5Y-16 Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 16
M4KB121-M5Y-17 Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 17
M4KB121-M5Y-18 Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 18
M4KB121-M5Y-19 Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 19
M4KB121-M5Y-20 Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 20
M4KB121-H6-2 Model: M4KB1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 2
M4KB121-H6-3 Model: M4KB1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 3
M4KB121-H6-4 Model: M4KB1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 4
M4KB121-H6-5 Model: M4KB1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 5
M4KB121-H6-6 Model: M4KB1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 6
M4KB121-H6-7 Model: M4KB1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 7
M4KB121-H6-8 Model: M4KB1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 8
M4KB121-H6-9 Model: M4KB1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 9
M4KB121-H6-10 Model: M4KB1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 10
M4KB131-M5-2 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 2
M4KB131-M5-3 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 3
M4KB131-M5-4 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 4
M4KB131-M5-5 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 5
M4KB131-M5-6 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 6
M4KB131-M5-7 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 7
M4KB131-M5-8 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 8
M4KB131-M5-9 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 9
M4KB131-M5-10 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 10
M4KB131-06-2 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 2
M4KB131-06-3 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 3
M4KB131-06-4 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 4
M4KB131-06-5 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 5
M4KB131-06-6 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 6
M4KB131-06-7 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 7
M4KB131-06-8 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 8
M4KB131-06-9 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 9
M4KB131-06-10 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 10
M4KB131-06-11 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 11
M4KB131-06-12 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 12
M4KB131-06-13 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 13
M4KB131-06-14 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 14
M4KB131-06-15 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 15
M4KB131-06-16 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 16
M4KB131-06-17 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 17
M4KB131-06-18 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 18
M4KB131-06-19 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 19
M4KB131-06-20 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 20
M4KB131-M5Y-2 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 2
M4KB131-M5Y-3 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 3
M4KB131-M5Y-4 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 4
M4KB131-M5Y-5 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 5
M4KB131-M5Y-6 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 6
M4KB131-M5Y-7 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 7
M4KB131-M5Y-8 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 8
M4KB131-M5Y-9 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 9
M4KB131-M5Y-10 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 10
M4KB131-M5Y-11 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 11
M4KB131-M5Y-12 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 12
M4KB131-M5Y-13 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 13
M4KB131-M5Y-14 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 14
M4KB131-M5Y-15 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 15
M4KB131-M5Y-16 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 16
M4KB131-M5Y-17 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 17
M4KB131-M5Y-18 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 18
M4KB131-M5Y-19 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 19
M4KB131-M5Y-20 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 20
M4KB131-H6-2 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 2
M4KB131-H6-3 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 3
M4KB131-H6-4 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 4
M4KB131-H6-5 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 5
M4KB131-H6-6 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 6
M4KB131-H6-7 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 7
M4KB131-H6-8 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 8
M4KB131-H6-9 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 9
M4KB131-H6-10 Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 10
M4KB141-M5-2 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 2
M4KB141-M5-3 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 3
M4KB141-M5-4 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 4
M4KB141-M5-5 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 5
M4KB141-M5-6 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 6
M4KB141-M5-7 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 7
M4KB141-M5-8 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 8
M4KB141-M5-9 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 9
M4KB141-M5-10 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 10
M4KB141-06-2 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 2
M4KB141-06-3 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 3
M4KB141-06-4 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 4
M4KB141-06-5 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 5
M4KB141-06-6 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 6
M4KB141-06-7 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 7
M4KB141-06-8 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 8
M4KB141-06-9 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 9
M4KB141-06-10 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 10
M4KB141-06-11 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 11
M4KB141-06-12 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 12
M4KB141-06-13 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 13
M4KB141-06-14 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 14
M4KB141-06-15 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 15
M4KB141-06-16 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 16
M4KB141-06-17 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 17
M4KB141-06-18 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 18
M4KB141-06-19 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 19
M4KB141-06-20 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 20
M4KB141-M5Y-2 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 2
M4KB141-M5Y-3 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 3
M4KB141-M5Y-4 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 4
M4KB141-M5Y-5 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 5
M4KB141-M5Y-6 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 6
M4KB141-M5Y-7 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 7
M4KB141-M5Y-8 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 8
M4KB141-M5Y-9 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 9
M4KB141-M5Y-10 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 10
M4KB141-M5Y-11 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 11
M4KB141-M5Y-12 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 12
M4KB141-M5Y-13 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 13
M4KB141-M5Y-14 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 14
M4KB141-M5Y-15 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 15
M4KB141-M5Y-16 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 16
M4KB141-M5Y-17 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 17
M4KB141-M5Y-18 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 18
M4KB141-M5Y-19 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 19
M4KB141-M5Y-20 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 20
M4KB141-H6-2 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 2
M4KB141-H6-3 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 3
M4KB141-H6-4 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 4
M4KB141-H6-5 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 5
M4KB141-H6-6 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 6
M4KB141-H6-7 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 7
M4KB141-H6-8 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 8
M4KB141-H6-9 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 9
M4KB141-H6-10 Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 10
M4KB151-M5-2 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 2
M4KB151-M5-3 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 3
M4KB151-M5-4 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 4
M4KB151-M5-5 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 5
M4KB151-M5-6 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 6
M4KB151-M5-7 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 7
M4KB151-M5-8 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 8
M4KB151-M5-9 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 9
M4KB151-M5-10 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 10
M4KB151-06-2 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 2
M4KB151-06-3 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 3
M4KB151-06-4 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 4
M4KB151-06-5 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 5
M4KB151-06-6 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 6
M4KB151-06-7 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 7
M4KB151-06-8 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 8
M4KB151-06-9 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 9
M4KB151-06-10 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 10
M4KB151-06-11 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 11
M4KB151-06-12 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 12
M4KB151-06-13 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 13
M4KB151-06-14 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 14
M4KB151-06-15 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 15
M4KB151-06-16 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 16
M4KB151-06-17 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 17
M4KB151-06-18 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 18
M4KB151-06-19 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 19
M4KB151-06-20 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 20
M4KB151-M5Y-2 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 2
M4KB151-M5Y-3 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 3
M4KB151-M5Y-4 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 4
M4KB151-M5Y-5 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 5
M4KB151-M5Y-6 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 6
M4KB151-M5Y-7 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 7
M4KB151-M5Y-8 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 8
M4KB151-M5Y-9 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 9
M4KB151-M5Y-10 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 10
M4KB151-M5Y-11 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 11
M4KB151-M5Y-12 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 12
M4KB151-M5Y-13 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 13
M4KB151-M5Y-14 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 14
M4KB151-M5Y-15 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 15
M4KB151-M5Y-16 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 16
M4KB151-M5Y-17 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 17
M4KB151-M5Y-18 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 18
M4KB151-M5Y-19 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 19
M4KB151-M5Y-20 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 20
M4KB151-H6-2 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 2
M4KB151-H6-3 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 3
M4KB151-H6-4 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 4
M4KB151-H6-5 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 5
M4KB151-H6-6 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 6
M4KB151-H6-7 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 7
M4KB151-H6-8 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 8
M4KB151-H6-9 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 9
M4KB151-H6-10 Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 10
M4KB211-06-2 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 2
M4KB211-06-3 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 3
M4KB211-06-4 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 4
M4KB211-06-5 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 5
M4KB211-06-6 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 6
M4KB211-06-7 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 7
M4KB211-06-8 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 8
M4KB211-06-9 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 9
M4KB211-06-10 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 10
M4KB211-06-11 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 11
M4KB211-06-12 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 12
M4KB211-06-13 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 13
M4KB211-06-14 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 14
M4KB211-06-15 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 15
M4KB211-06-16 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 16
M4KB211-06-17 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 17
M4KB211-06-18 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 18
M4KB211-06-19 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 19
M4KB211-06-20 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 20
M4KB211-08-2 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 2
M4KB211-08-3 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 3
M4KB211-08-4 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 4
M4KB211-08-5 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 5
M4KB211-08-6 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 6
M4KB211-08-7 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 7
M4KB211-08-8 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 8
M4KB211-08-9 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 9
M4KB211-08-10 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 10
M4KB211-08-11 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 11
M4KB211-08-12 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 12
M4KB211-08-13 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 13
M4KB211-08-14 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 14
M4KB211-08-15 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 15
M4KB211-08-16 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 16
M4KB211-08-17 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 17
M4KB211-08-18 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 18
M4KB211-08-19 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 19
M4KB211-08-20 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 20
M4KB211-06Y-2 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 2
M4KB211-06Y-3 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 3
M4KB211-06Y-4 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 4
M4KB211-06Y-5 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 5
M4KB211-06Y-6 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 6
M4KB211-06Y-7 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 7
M4KB211-06Y-8 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 8
M4KB211-06Y-9 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 9
M4KB211-06Y-10 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 10
M4KB211-06Y-11 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 11
M4KB211-06Y-12 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 12
M4KB211-06Y-13 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 13
M4KB211-06Y-14 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 14
M4KB211-06Y-15 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 15
M4KB211-06Y-16 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 16
M4KB211-06Y-17 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 17
M4KB211-06Y-18 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 18
M4KB211-06Y-19 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 19
M4KB211-06Y-20 Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 20
M4KB211-H6-2 Model: M4KB2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 2
M4KB211-H6-3 Model: M4KB2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 3
M4KB211-H6-4 Model: M4KB2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 4
M4KB211-H6-5 Model: M4KB2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 5
M4KB211-H6-6 Model: M4KB2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 6
M4KB211-H6-7 Model: M4KB2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 7
M4KB211-H6-8 Model: M4KB2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 8
M4KB211-H6-9 Model: M4KB2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 9
M4KB211-H6-10 Model: M4KB2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 10
M4KB211-H8-2 Model: M4KB2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 2
M4KB211-H8-3 Model: M4KB2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 3
M4KB211-H8-4 Model: M4KB2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 4
M4KB211-H8-5 Model: M4KB2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 5
M4KB211-H8-6 Model: M4KB2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 6
M4KB211-H8-7 Model: M4KB2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 7
M4KB211-H8-8 Model: M4KB2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 8
M4KB211-H8-9 Model: M4KB2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 9
M4KB211-H8-10 Model: M4KB2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 10
M4KB221-06-2 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 2
M4KB221-06-3 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 3
M4KB221-06-4 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 4
M4KB221-06-5 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 5
M4KB221-06-6 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 6
M4KB221-06-7 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 7
M4KB221-06-8 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 8
M4KB221-06-9 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 9
M4KB221-06-10 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 10
M4KB221-06-11 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 11
M4KB221-06-12 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 12
M4KB221-06-13 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 13
M4KB221-06-14 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 14
M4KB221-06-15 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 15
M4KB221-06-16 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 16
M4KB221-06-17 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 17
M4KB221-06-18 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 18
M4KB221-06-19 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 19
M4KB221-06-20 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 20
M4KB221-08-2 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 2
M4KB221-08-3 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 3
M4KB221-08-4 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 4
M4KB221-08-5 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 5
M4KB221-08-6 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 6
M4KB221-08-7 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 7
M4KB221-08-8 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 8
M4KB221-08-9 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 9
M4KB221-08-10 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 10
M4KB221-08-11 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 11
M4KB221-08-12 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 12
M4KB221-08-13 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 13
M4KB221-08-14 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 14
M4KB221-08-15 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 15
M4KB221-08-16 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 16
M4KB221-08-17 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 17
M4KB221-08-18 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 18
M4KB221-08-19 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 19
M4KB221-08-20 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 20
M4KB221-06Y-2 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 2
M4KB221-06Y-3 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 3
M4KB221-06Y-4 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 4
M4KB221-06Y-5 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 5
M4KB221-06Y-6 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 6
M4KB221-06Y-7 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 7
M4KB221-06Y-8 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 8
M4KB221-06Y-9 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 9
M4KB221-06Y-10 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 10
M4KB221-06Y-11 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 11
M4KB221-06Y-12 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 12
M4KB221-06Y-13 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 13
M4KB221-06Y-14 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 14
M4KB221-06Y-15 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 15
M4KB221-06Y-16 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 16
M4KB221-06Y-17 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 17
M4KB221-06Y-18 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 18
M4KB221-06Y-19 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 19
M4KB221-06Y-20 Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 20
M4KB221-H6-2 Model: M4KB2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 2
M4KB221-H6-3 Model: M4KB2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 3
M4KB221-H6-4 Model: M4KB2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 4
M4KB221-H6-5 Model: M4KB2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 5
M4KB221-H6-6 Model: M4KB2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 6
M4KB221-H6-7 Model: M4KB2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 7
M4KB221-H6-8 Model: M4KB2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 8
M4KB221-H6-9 Model: M4KB2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 9
M4KB221-H6-10 Model: M4KB2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 10
M4KB221-H8-2 Model: M4KB2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 2
M4KB221-H8-3 Model: M4KB2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 3
M4KB221-H8-4 Model: M4KB2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 4
M4KB221-H8-5 Model: M4KB2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 5
M4KB221-H8-6 Model: M4KB2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 6
M4KB221-H8-7 Model: M4KB2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 7
M4KB221-H8-8 Model: M4KB2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 8
M4KB221-H8-9 Model: M4KB2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 9
M4KB221-H8-10 Model: M4KB2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 10
M4KB231-06-2 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 2
M4KB231-06-3 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 3
M4KB231-06-4 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 4
M4KB231-06-5 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 5
M4KB231-06-6 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 6
M4KB231-06-7 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 7
M4KB231-06-8 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 8
M4KB231-06-9 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 9
M4KB231-06-10 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 10
M4KB231-06-11 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 11
M4KB231-06-12 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 12
M4KB231-06-13 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 13
M4KB231-06-14 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 14
M4KB231-06-15 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 15
M4KB231-06-16 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 16
M4KB231-06-17 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 17
M4KB231-06-18 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 18
M4KB231-06-19 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 19
M4KB231-06-20 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 20
M4KB231-08-2 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 2
M4KB231-08-3 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 3
M4KB231-08-4 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 4
M4KB231-08-5 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 5
M4KB231-08-6 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 6
M4KB231-08-7 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 7
M4KB231-08-8 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 8
M4KB231-08-9 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 9
M4KB231-08-10 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 10
M4KB231-08-11 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 11
M4KB231-08-12 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 12
M4KB231-08-13 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 13
M4KB231-08-14 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 14
M4KB231-08-15 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 15
M4KB231-08-16 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 16
M4KB231-08-17 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 17
M4KB231-08-18 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 18
M4KB231-08-19 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 19
M4KB231-08-20 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 20
M4KB231-06Y-2 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 2
M4KB231-06Y-3 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 3
M4KB231-06Y-4 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 4
M4KB231-06Y-5 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 5
M4KB231-06Y-6 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 6
M4KB231-06Y-7 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 7
M4KB231-06Y-8 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 8
M4KB231-06Y-9 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 9
M4KB231-06Y-10 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 10
M4KB231-06Y-11 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 11
M4KB231-06Y-12 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 12
M4KB231-06Y-13 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 13
M4KB231-06Y-14 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 14
M4KB231-06Y-15 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 15
M4KB231-06Y-16 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 16
M4KB231-06Y-17 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 17
M4KB231-06Y-18 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 18
M4KB231-06Y-19 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 19
M4KB231-06Y-20 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 20
M4KB231-H6-2 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 2
M4KB231-H6-3 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 3
M4KB231-H6-4 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 4
M4KB231-H6-5 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 5
M4KB231-H6-6 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 6
M4KB231-H6-7 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 7
M4KB231-H6-8 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 8
M4KB231-H6-9 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 9
M4KB231-H6-10 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 10
M4KB231-H8-2 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 2
M4KB231-H8-3 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 3
M4KB231-H8-4 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 4
M4KB231-H8-5 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 5
M4KB231-H8-6 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 6
M4KB231-H8-7 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 7
M4KB231-H8-8 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 8
M4KB231-H8-9 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 9
M4KB231-H8-10 Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 10
M4KB241-06-2 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 2
M4KB241-06-3 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 3
M4KB241-06-4 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 4
M4KB241-06-5 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 5
M4KB241-06-6 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 6
M4KB241-06-7 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 7
M4KB241-06-8 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 8
M4KB241-06-9 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 9
M4KB241-06-10 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 10
M4KB241-06-11 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 11
M4KB241-06-12 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 12
M4KB241-06-13 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 13
M4KB241-06-14 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 14
M4KB241-06-15 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 15
M4KB241-06-16 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 16
M4KB241-06-17 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 17
M4KB241-06-18 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 18
M4KB241-06-19 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 19
M4KB241-06-20 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 20
M4KB241-08-2 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 2
M4KB241-08-3 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 3
M4KB241-08-4 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 4
M4KB241-08-5 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 5
M4KB241-08-6 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 6
M4KB241-08-7 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 7
M4KB241-08-8 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 8
M4KB241-08-9 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 9
M4KB241-08-10 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 10
M4KB241-08-11 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 11
M4KB241-08-12 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 12
M4KB241-08-13 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 13
M4KB241-08-14 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 14
M4KB241-08-15 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 15
M4KB241-08-16 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 16
M4KB241-08-17 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 17
M4KB241-08-18 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 18
M4KB241-08-19 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 19
M4KB241-08-20 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 20
M4KB241-06Y-2 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 2
M4KB241-06Y-3 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 3
M4KB241-06Y-4 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 4
M4KB241-06Y-5 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 5
M4KB241-06Y-6 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 6
M4KB241-06Y-7 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 7
M4KB241-06Y-8 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 8
M4KB241-06Y-9 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 9
M4KB241-06Y-10 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 10
M4KB241-06Y-11 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 11
M4KB241-06Y-12 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 12
M4KB241-06Y-13 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 13
M4KB241-06Y-14 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 14
M4KB241-06Y-15 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 15
M4KB241-06Y-16 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 16
M4KB241-06Y-17 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 17
M4KB241-06Y-18 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 18
M4KB241-06Y-19 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 19
M4KB241-06Y-20 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 20
M4KB241-H6-2 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 2
M4KB241-H6-3 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 3
M4KB241-H6-4 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 4
M4KB241-H6-5 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 5
M4KB241-H6-6 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 6
M4KB241-H6-7 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 7
M4KB241-H6-8 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 8
M4KB241-H6-9 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 9
M4KB241-H6-10 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 10
M4KB241-H8-2 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 2
M4KB241-H8-3 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 3
M4KB241-H8-4 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 4
M4KB241-H8-5 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 5
M4KB241-H8-6 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 6
M4KB241-H8-7 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 7
M4KB241-H8-8 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 8
M4KB241-H8-9 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 9
M4KB241-H8-10 Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 10
M4KB251-06-2 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 2
M4KB251-06-3 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 3
M4KB251-06-4 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 4
M4KB251-06-5 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 5
M4KB251-06-6 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 6
M4KB251-06-7 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 7
M4KB251-06-8 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 8
M4KB251-06-9 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 9
M4KB251-06-10 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 10
M4KB251-06-11 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 11
M4KB251-06-12 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 12
M4KB251-06-13 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 13
M4KB251-06-14 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 14
M4KB251-06-15 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 15
M4KB251-06-16 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 16
M4KB251-06-17 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 17
M4KB251-06-18 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 18
M4KB251-06-19 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 19
M4KB251-06-20 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 20
M4KB251-08-2 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 2
M4KB251-08-3 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 3
M4KB251-08-4 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 4
M4KB251-08-5 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 5
M4KB251-08-6 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 6
M4KB251-08-7 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 7
M4KB251-08-8 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 8
M4KB251-08-9 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 9
M4KB251-08-10 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 10
M4KB251-08-11 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 11
M4KB251-08-12 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 12
M4KB251-08-13 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 13
M4KB251-08-14 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 14
M4KB251-08-15 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 15
M4KB251-08-16 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 16
M4KB251-08-17 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 17
M4KB251-08-18 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 18
M4KB251-08-19 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 19
M4KB251-08-20 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 20
M4KB251-06Y-2 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 2
M4KB251-06Y-3 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 3
M4KB251-06Y-4 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 4
M4KB251-06Y-5 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 5
M4KB251-06Y-6 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 6
M4KB251-06Y-7 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 7
M4KB251-06Y-8 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 8
M4KB251-06Y-9 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 9
M4KB251-06Y-10 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 10
M4KB251-06Y-11 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 11
M4KB251-06Y-12 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 12
M4KB251-06Y-13 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 13
M4KB251-06Y-14 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 14
M4KB251-06Y-15 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 15
M4KB251-06Y-16 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 16
M4KB251-06Y-17 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 17
M4KB251-06Y-18 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 18
M4KB251-06Y-19 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 19
M4KB251-06Y-20 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 20
M4KB251-H6-2 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 2
M4KB251-H6-3 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 3
M4KB251-H6-4 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 4
M4KB251-H6-5 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 5
M4KB251-H6-6 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 6
M4KB251-H6-7 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 7
M4KB251-H6-8 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 8
M4KB251-H6-9 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 9
M4KB251-H6-10 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 10
M4KB251-H8-2 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 2
M4KB251-H8-3 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 3
M4KB251-H8-4 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 4
M4KB251-H8-5 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 5
M4KB251-H8-6 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 6
M4KB251-H8-7 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 7
M4KB251-H8-8 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 8
M4KB251-H8-9 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 9
M4KB251-H8-10 Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 10
M4KB311-08-2 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 2
M4KB311-08-3 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 3
M4KB311-08-4 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 4
M4KB311-08-5 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 5
M4KB311-08-6 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 6
M4KB311-08-7 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 7
M4KB311-08-8 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 8
M4KB311-08-9 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 9
M4KB311-08-10 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 10
M4KB311-08-11 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 11
M4KB311-08-12 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 12
M4KB311-08-13 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 13
M4KB311-08-14 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 14
M4KB311-08-15 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 15
M4KB311-10-2 Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 2
M4KB311-10-3 Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 3
M4KB311-10-4 Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 4
M4KB311-10-5 Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 5
M4KB311-10-6 Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 6
M4KB311-10-7 Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 7
M4KB311-10-8 Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 8
M4KB311-10-9 Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 9
M4KB311-10-10 Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 10
M4KB311-10-11 Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 11
M4KB311-10-12 Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 12
M4KB311-10-13 Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 13
M4KB311-10-14 Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 14
M4KB311-10-15 Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 15
M4KB311-08Y-2 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 2
M4KB311-08Y-3 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 3
M4KB311-08Y-4 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 4
M4KB311-08Y-5 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 5
M4KB311-08Y-6 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 6
M4KB311-08Y-7 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 7
M4KB311-08Y-8 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 8
M4KB311-08Y-9 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 9
M4KB311-08Y-10 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 10
M4KB311-08Y-11 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 11
M4KB311-08Y-12 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 12
M4KB311-08Y-13 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 13
M4KB311-08Y-14 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 14
M4KB311-08Y-15 Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 15
M4KB311-H8-2 Model: M4KB3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 2
M4KB311-H8-3 Model: M4KB3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 3
M4KB311-H8-4 Model: M4KB3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 4
M4KB311-H8-5 Model: M4KB3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 5
M4KB311-H8-6 Model: M4KB3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 6
M4KB311-H8-7 Model: M4KB3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 7
M4KB311-H8-8 Model: M4KB3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 8
M4KB311-H8-9 Model: M4KB3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 9
M4KB311-H8-10 Model: M4KB3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 10
M4KB311-H10-2 Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 2
M4KB311-H10-3 Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 3
M4KB311-H10-4 Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 4
M4KB311-H10-5 Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 5
M4KB311-H10-6 Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 6
M4KB311-H10-7 Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 7
M4KB311-H10-8 Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 8
M4KB311-H10-9 Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 9
M4KB311-H10-10 Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 10
M4KB311-H10-11 Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 11
M4KB311-H10-12 Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 12
M4KB311-H10-13 Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 13
M4KB311-H10-14 Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 14
M4KB311-H10-15 Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 15
M4KB321-08-2 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 2
M4KB321-08-3 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 3
M4KB321-08-4 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 4
M4KB321-08-5 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 5
M4KB321-08-6 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 6
M4KB321-08-7 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 7
M4KB321-08-8 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 8
M4KB321-08-9 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 9
M4KB321-08-10 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 10
M4KB321-08-11 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 11
M4KB321-08-12 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 12
M4KB321-08-13 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 13
M4KB321-08-14 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 14
M4KB321-08-15 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 15
M4KB321-10-2 Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 2
M4KB321-10-3 Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 3
M4KB321-10-4 Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 4
M4KB321-10-5 Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 5
M4KB321-10-6 Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 6
M4KB321-10-7 Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 7
M4KB321-10-8 Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 8
M4KB321-10-9 Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 9
M4KB321-10-10 Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 10
M4KB321-10-11 Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 11
M4KB321-10-12 Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 12
M4KB321-10-13 Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 13
M4KB321-10-14 Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 14
M4KB321-10-15 Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 15
M4KB321-08Y-2 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 2
M4KB321-08Y-3 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 3
M4KB321-08Y-4 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 4
M4KB321-08Y-5 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 5
M4KB321-08Y-6 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 6
M4KB321-08Y-7 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 7
M4KB321-08Y-8 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 8
M4KB321-08Y-9 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 9
M4KB321-08Y-10 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 10
M4KB321-08Y-11 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 11
M4KB321-08Y-12 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 12
M4KB321-08Y-13 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 13
M4KB321-08Y-14 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 14
M4KB321-08Y-15 Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 15
M4KB321-H8-2 Model: M4KB3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 2
M4KB321-H8-3 Model: M4KB3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 3
M4KB321-H8-4 Model: M4KB3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 4
M4KB321-H8-5 Model: M4KB3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 5
M4KB321-H8-6 Model: M4KB3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 6
M4KB321-H8-7 Model: M4KB3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 7
M4KB321-H8-8 Model: M4KB3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 8
M4KB321-H8-9 Model: M4KB3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 9
M4KB321-H8-10 Model: M4KB3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 10
M4KB321-H10-2 Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 2
M4KB321-H10-3 Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 3
M4KB321-H10-4 Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 4
M4KB321-H10-5 Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 5
M4KB321-H10-6 Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 6
M4KB321-H10-7 Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 7
M4KB321-H10-8 Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 8
M4KB321-H10-9 Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 9
M4KB321-H10-10 Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 10
M4KB321-H10-11 Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 11
M4KB321-H10-12 Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 12
M4KB321-H10-13 Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 13
M4KB321-H10-14 Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 14
M4KB321-H10-15 Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 15
M4KB331-08-2 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 2
M4KB331-08-3 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 3
M4KB331-08-4 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 4
M4KB331-08-5 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 5
M4KB331-08-6 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 6
M4KB331-08-7 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 7
M4KB331-08-8 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 8
M4KB331-08-9 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 9
M4KB331-08-10 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 10
M4KB331-08-11 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 11
M4KB331-08-12 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 12
M4KB331-08-13 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 13
M4KB331-08-14 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 14
M4KB331-08-15 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 15
M4KB331-10-2 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 2
M4KB331-10-3 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 3
M4KB331-10-4 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 4
M4KB331-10-5 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 5
M4KB331-10-6 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 6
M4KB331-10-7 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 7
M4KB331-10-8 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 8
M4KB331-10-9 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 9
M4KB331-10-10 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 10
M4KB331-10-11 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 11
M4KB331-10-12 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 12
M4KB331-10-13 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 13
M4KB331-10-14 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 14
M4KB331-10-15 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 15
M4KB331-08Y-2 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 2
M4KB331-08Y-3 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 3
M4KB331-08Y-4 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 4
M4KB331-08Y-5 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 5
M4KB331-08Y-6 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 6
M4KB331-08Y-7 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 7
M4KB331-08Y-8 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 8
M4KB331-08Y-9 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 9
M4KB331-08Y-10 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 10
M4KB331-08Y-11 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 11
M4KB331-08Y-12 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 12
M4KB331-08Y-13 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 13
M4KB331-08Y-14 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 14
M4KB331-08Y-15 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 15
M4KB331-H8-2 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 2
M4KB331-H8-3 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 3
M4KB331-H8-4 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 4
M4KB331-H8-5 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 5
M4KB331-H8-6 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 6
M4KB331-H8-7 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 7
M4KB331-H8-8 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 8
M4KB331-H8-9 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 9
M4KB331-H8-10 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 10
M4KB331-H10-2 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 2
M4KB331-H10-3 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 3
M4KB331-H10-4 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 4
M4KB331-H10-5 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 5
M4KB331-H10-6 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 6
M4KB331-H10-7 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 7
M4KB331-H10-8 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 8
M4KB331-H10-9 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 9
M4KB331-H10-10 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 10
M4KB331-H10-11 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 11
M4KB331-H10-12 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 12
M4KB331-H10-13 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 13
M4KB331-H10-14 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 14
M4KB331-H10-15 Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 15
M4KB341-08-2 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 2
M4KB341-08-3 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 3
M4KB341-08-4 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 4
M4KB341-08-5 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 5
M4KB341-08-6 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 6
M4KB341-08-7 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 7
M4KB341-08-8 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 8
M4KB341-08-9 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 9
M4KB341-08-10 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 10
M4KB341-08-11 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 11
M4KB341-08-12 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 12
M4KB341-08-13 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 13
M4KB341-08-14 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 14
M4KB341-08-15 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 15
M4KB341-10-2 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 2
M4KB341-10-3 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 3
M4KB341-10-4 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 4
M4KB341-10-5 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 5
M4KB341-10-6 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 6
M4KB341-10-7 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 7
M4KB341-10-8 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 8
M4KB341-10-9 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 9
M4KB341-10-10 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 10
M4KB341-10-11 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 11
M4KB341-10-12 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 12
M4KB341-10-13 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 13
M4KB341-10-14 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 14
M4KB341-10-15 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 15
M4KB341-08Y-2 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 2
M4KB341-08Y-3 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 3
M4KB341-08Y-4 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 4
M4KB341-08Y-5 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 5
M4KB341-08Y-6 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 6
M4KB341-08Y-7 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 7
M4KB341-08Y-8 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 8
M4KB341-08Y-9 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 9
M4KB341-08Y-10 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 10
M4KB341-08Y-11 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 11
M4KB341-08Y-12 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 12
M4KB341-08Y-13 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 13
M4KB341-08Y-14 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 14
M4KB341-08Y-15 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 15
M4KB341-H8-2 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 2
M4KB341-H8-3 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 3
M4KB341-H8-4 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 4
M4KB341-H8-5 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 5
M4KB341-H8-6 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 6
M4KB341-H8-7 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 7
M4KB341-H8-8 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 8
M4KB341-H8-9 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 9
M4KB341-H8-10 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 10
M4KB341-H10-2 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 2
M4KB341-H10-3 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 3
M4KB341-H10-4 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 4
M4KB341-H10-5 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 5
M4KB341-H10-6 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 6
M4KB341-H10-7 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 7
M4KB341-H10-8 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 8
M4KB341-H10-9 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 9
M4KB341-H10-10 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 10
M4KB341-H10-11 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 11
M4KB341-H10-12 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 12
M4KB341-H10-13 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 13
M4KB341-H10-14 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 14
M4KB341-H10-15 Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 15
M4KB351-08-2 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 2
M4KB351-08-3 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 3
M4KB351-08-4 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 4
M4KB351-08-5 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 5
M4KB351-08-6 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 6
M4KB351-08-7 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 7
M4KB351-08-8 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 8
M4KB351-08-9 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 9
M4KB351-08-10 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 10
M4KB351-08-11 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 11
M4KB351-08-12 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 12
M4KB351-08-13 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 13
M4KB351-08-14 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 14
M4KB351-08-15 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 15
M4KB351-10-2 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 2
M4KB351-10-3 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 3
M4KB351-10-4 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 4
M4KB351-10-5 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 5
M4KB351-10-6 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 6
M4KB351-10-7 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 7
M4KB351-10-8 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 8
M4KB351-10-9 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 9
M4KB351-10-10 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 10
M4KB351-10-11 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 11
M4KB351-10-12 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 12
M4KB351-10-13 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 13
M4KB351-10-14 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 14
M4KB351-10-15 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 15
M4KB351-08Y-2 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 2
M4KB351-08Y-3 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 3
M4KB351-08Y-4 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 4
M4KB351-08Y-5 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 5
M4KB351-08Y-6 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 6
M4KB351-08Y-7 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 7
M4KB351-08Y-8 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 8
M4KB351-08Y-9 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 9
M4KB351-08Y-10 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 10
M4KB351-08Y-11 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 11
M4KB351-08Y-12 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 12
M4KB351-08Y-13 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 13
M4KB351-08Y-14 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 14
M4KB351-08Y-15 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 15
M4KB351-H8-2 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 2
M4KB351-H8-3 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 3
M4KB351-H8-4 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 4
M4KB351-H8-5 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 5
M4KB351-H8-6 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 6
M4KB351-H8-7 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 7
M4KB351-H8-8 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 8
M4KB351-H8-9 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 9
M4KB351-H8-10 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 10
M4KB351-H10-2 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 2
M4KB351-H10-3 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 3
M4KB351-H10-4 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 4
M4KB351-H10-5 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 5
M4KB351-H10-6 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 6
M4KB351-H10-7 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 7
M4KB351-H10-8 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 8
M4KB351-H10-9 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 9
M4KB351-H10-10 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 10
M4KB351-H10-11 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 11
M4KB351-H10-12 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 12
M4KB351-H10-13 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 13
M4KB351-H10-14 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 14
M4KB351-H10-15 Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 15
M4KB411-10-2 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 2
M4KB411-10-3 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 3
M4KB411-10-4 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 4
M4KB411-10-5 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 5
M4KB411-10-6 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 6
M4KB411-10-7 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 7
M4KB411-10-8 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 8
M4KB411-10-9 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 9
M4KB411-10-10 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 10
M4KB411-10-11 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 11
M4KB411-10-12 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 12
M4KB411-15-2 Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 2
M4KB411-15-3 Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 3
M4KB411-15-4 Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 4
M4KB411-15-5 Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 5
M4KB411-15-6 Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 6
M4KB411-15-7 Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 7
M4KB411-15-8 Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 8
M4KB411-15-9 Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 9
M4KB411-15-10 Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 10
M4KB411-15-11 Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 11
M4KB411-15-12 Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 12
M4KB411-10Y-2 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 2
M4KB411-10Y-3 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 3
M4KB411-10Y-4 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 4
M4KB411-10Y-5 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 5
M4KB411-10Y-6 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 6
M4KB411-10Y-7 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 7
M4KB411-10Y-8 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 8
M4KB411-10Y-9 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 9
M4KB411-10Y-10 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 10
M4KB411-10Y-11 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 11
M4KB411-10Y-12 Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 12
M4KB411-H10-2 Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 2
M4KB411-H10-3 Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 3
M4KB411-H10-4 Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 4
M4KB411-H10-5 Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 5
M4KB411-H10-6 Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 6
M4KB411-H10-7 Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 7
M4KB411-H10-8 Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 8
M4KB411-H10-9 Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 9
M4KB411-H10-10 Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 10
M4KB411-H10-11 Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 11
M4KB411-H10-12 Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 12
M4KB411-H12-2 Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 2
M4KB411-H12-3 Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 3
M4KB411-H12-4 Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 4
M4KB411-H12-5 Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 5
M4KB411-H12-6 Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 6
M4KB411-H12-7 Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 7
M4KB411-H12-8 Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 8
M4KB411-H12-9 Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 9
M4KB411-H12-10 Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 10
M4KB411-H12-11 Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 11
M4KB411-H12-12 Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 12
M4KB421-10-2 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 2
M4KB421-10-3 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 3
M4KB421-10-4 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 4
M4KB421-10-5 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 5
M4KB421-10-6 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 6
M4KB421-10-7 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 7
M4KB421-10-8 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 8
M4KB421-10-9 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 9
M4KB421-10-10 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 10
M4KB421-10-11 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 11
M4KB421-10-12 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 12
M4KB421-15-2 Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 2
M4KB421-15-3 Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 3
M4KB421-15-4 Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 4
M4KB421-15-5 Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 5
M4KB421-15-6 Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 6
M4KB421-15-7 Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 7
M4KB421-15-8 Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 8
M4KB421-15-9 Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 9
M4KB421-15-10 Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 10
M4KB421-15-11 Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 11
M4KB421-15-12 Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 12
M4KB421-10Y-2 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 2
M4KB421-10Y-3 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 3
M4KB421-10Y-4 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 4
M4KB421-10Y-5 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 5
M4KB421-10Y-6 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 6
M4KB421-10Y-7 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 7
M4KB421-10Y-8 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 8
M4KB421-10Y-9 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 9
M4KB421-10Y-10 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 10
M4KB421-10Y-11 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 11
M4KB421-10Y-12 Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 12
M4KB421-H10-2 Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 2
M4KB421-H10-3 Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 3
M4KB421-H10-4 Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 4
M4KB421-H10-5 Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 5
M4KB421-H10-6 Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 6
M4KB421-H10-7 Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 7
M4KB421-H10-8 Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 8
M4KB421-H10-9 Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 9
M4KB421-H10-10 Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 10
M4KB421-H10-11 Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 11
M4KB421-H10-12 Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 12
M4KB421-H12-2 Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 2
M4KB421-H12-3 Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 3
M4KB421-H12-4 Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 4
M4KB421-H12-5 Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 5
M4KB421-H12-6 Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 6
M4KB421-H12-7 Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 7
M4KB421-H12-8 Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 8
M4KB421-H12-9 Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 9
M4KB421-H12-10 Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 10
M4KB421-H12-11 Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 11
M4KB421-H12-12 Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 12
M4KB431-10-2 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 2
M4KB431-10-3 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 3
M4KB431-10-4 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 4
M4KB431-10-5 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 5
M4KB431-10-6 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 6
M4KB431-10-7 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 7
M4KB431-10-8 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 8
M4KB431-10-9 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 9
M4KB431-10-10 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 10
M4KB431-10-11 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 11
M4KB431-10-12 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 12
M4KB431-15-2 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 2
M4KB431-15-3 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 3
M4KB431-15-4 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 4
M4KB431-15-5 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 5
M4KB431-15-6 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 6
M4KB431-15-7 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 7
M4KB431-15-8 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 8
M4KB431-15-9 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 9
M4KB431-15-10 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 10
M4KB431-15-11 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 11
M4KB431-15-12 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 12
M4KB431-10Y-2 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 2
M4KB431-10Y-3 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 3
M4KB431-10Y-4 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 4
M4KB431-10Y-5 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 5
M4KB431-10Y-6 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 6
M4KB431-10Y-7 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 7
M4KB431-10Y-8 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 8
M4KB431-10Y-9 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 9
M4KB431-10Y-10 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 10
M4KB431-10Y-11 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 11
M4KB431-10Y-12 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 12
M4KB431-H10-2 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 2
M4KB431-H10-3 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 3
M4KB431-H10-4 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 4
M4KB431-H10-5 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 5
M4KB431-H10-6 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 6
M4KB431-H10-7 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 7
M4KB431-H10-8 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 8
M4KB431-H10-9 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 9
M4KB431-H10-10 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 10
M4KB431-H10-11 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 11
M4KB431-H10-12 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 12
M4KB431-H12-2 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 2
M4KB431-H12-3 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 3
M4KB431-H12-4 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 4
M4KB431-H12-5 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 5
M4KB431-H12-6 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 6
M4KB431-H12-7 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 7
M4KB431-H12-8 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 8
M4KB431-H12-9 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 9
M4KB431-H12-10 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 10
M4KB431-H12-11 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 11
M4KB431-H12-12 Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 12
M4KB441-10-2 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 2
M4KB441-10-3 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 3
M4KB441-10-4 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 4
M4KB441-10-5 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 5
M4KB441-10-6 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 6
M4KB441-10-7 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 7
M4KB441-10-8 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 8
M4KB441-10-9 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 9
M4KB441-10-10 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 10
M4KB441-10-11 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 11
M4KB441-10-12 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 12
M4KB441-15-2 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 2
M4KB441-15-3 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 3
M4KB441-15-4 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 4
M4KB441-15-5 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 5
M4KB441-15-6 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 6
M4KB441-15-7 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 7
M4KB441-15-8 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 8
M4KB441-15-9 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 9
M4KB441-15-10 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 10
M4KB441-15-11 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 11
M4KB441-15-12 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 12
M4KB441-10Y-2 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 2
M4KB441-10Y-3 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 3
M4KB441-10Y-4 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 4
M4KB441-10Y-5 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 5
M4KB441-10Y-6 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 6
M4KB441-10Y-7 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 7
M4KB441-10Y-8 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 8
M4KB441-10Y-9 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 9
M4KB441-10Y-10 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 10
M4KB441-10Y-11 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 11
M4KB441-10Y-12 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 12
M4KB441-H10-2 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 2
M4KB441-H10-3 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 3
M4KB441-H10-4 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 4
M4KB441-H10-5 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 5
M4KB441-H10-6 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 6
M4KB441-H10-7 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 7
M4KB441-H10-8 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 8
M4KB441-H10-9 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 9
M4KB441-H10-10 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 10
M4KB441-H10-11 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 11
M4KB441-H10-12 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 12
M4KB441-H12-2 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 2
M4KB441-H12-3 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 3
M4KB441-H12-4 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 4
M4KB441-H12-5 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 5
M4KB441-H12-6 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 6
M4KB441-H12-7 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 7
M4KB441-H12-8 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 8
M4KB441-H12-9 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 9
M4KB441-H12-10 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 10
M4KB441-H12-11 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 11
M4KB441-H12-12 Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 12
M4KB451-10-2 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 2
M4KB451-10-3 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 3
M4KB451-10-4 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 4
M4KB451-10-5 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 5
M4KB451-10-6 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 6
M4KB451-10-7 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 7
M4KB451-10-8 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 8
M4KB451-10-9 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 9
M4KB451-10-10 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 10
M4KB451-10-11 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 11
M4KB451-10-12 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 12
M4KB451-15-2 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 2
M4KB451-15-3 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 3
M4KB451-15-4 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 4
M4KB451-15-5 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 5
M4KB451-15-6 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 6
M4KB451-15-7 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 7
M4KB451-15-8 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 8
M4KB451-15-9 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 9
M4KB451-15-10 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 10
M4KB451-15-11 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 11
M4KB451-15-12 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 12
M4KB451-10Y-2 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 2
M4KB451-10Y-3 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 3
M4KB451-10Y-4 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 4
M4KB451-10Y-5 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 5
M4KB451-10Y-6 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 6
M4KB451-10Y-7 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 7
M4KB451-10Y-8 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 8
M4KB451-10Y-9 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 9
M4KB451-10Y-10 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 10
M4KB451-10Y-11 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 11
M4KB451-10Y-12 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 12
M4KB451-H10-2 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 2
M4KB451-H10-3 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 3
M4KB451-H10-4 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 4
M4KB451-H10-5 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 5
M4KB451-H10-6 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 6
M4KB451-H10-7 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 7
M4KB451-H10-8 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 8
M4KB451-H10-9 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 9
M4KB451-H10-10 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 10
M4KB451-H10-11 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 11
M4KB451-H10-12 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 12
M4KB451-H12-2 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 2
M4KB451-H12-3 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 3
M4KB451-H12-4 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 4
M4KB451-H12-5 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 5
M4KB451-H12-6 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 6
M4KB451-H12-7 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 7
M4KB451-H12-8 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 8
M4KB451-H12-9 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 9
M4KB451-H12-10 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 10
M4KB451-H12-11 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 11
M4KB451-H12-12 Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 12
Valve ManifoldsCKD
1255 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD M4KB1-4 Master Valve Manifold (Sub-plate Piping)

Brand CKD·Valve Manifolds

Available part numbers (1255)

M4KB111-M5-2, M4KB111-M5-3, M4KB111-M5-4, M4KB111-M5-5, M4KB111-M5-6, M4KB111-M5-7, M4KB111-M5-8, M4KB111-M5-9, M4KB111-M5-10, M4KB111-06-2 + 1245 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
M4KB111-M5-2Model: M4KB1 | Switching: 2-position single | A/B port: M5 | Stations: 2
M4KB111-M5-3Model: M4KB1 | Switching: 2-position single | A/B port: M5 | Stations: 3
M4KB111-M5-4Model: M4KB1 | Switching: 2-position single | A/B port: M5 | Stations: 4
M4KB111-M5-5Model: M4KB1 | Switching: 2-position single | A/B port: M5 | Stations: 5
M4KB111-M5-6Model: M4KB1 | Switching: 2-position single | A/B port: M5 | Stations: 6
M4KB111-M5-7Model: M4KB1 | Switching: 2-position single | A/B port: M5 | Stations: 7
M4KB111-M5-8Model: M4KB1 | Switching: 2-position single | A/B port: M5 | Stations: 8
M4KB111-M5-9Model: M4KB1 | Switching: 2-position single | A/B port: M5 | Stations: 9
M4KB111-M5-10Model: M4KB1 | Switching: 2-position single | A/B port: M5 | Stations: 10
M4KB111-06-2Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 2
M4KB111-06-3Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 3
M4KB111-06-4Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 4
M4KB111-06-5Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 5
M4KB111-06-6Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 6
M4KB111-06-7Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 7
M4KB111-06-8Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 8
M4KB111-06-9Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 9
M4KB111-06-10Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 10
M4KB111-06-11Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 11
M4KB111-06-12Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 12
M4KB111-06-13Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 13
M4KB111-06-14Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 14
M4KB111-06-15Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 15
M4KB111-06-16Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 16
M4KB111-06-17Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 17
M4KB111-06-18Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 18
M4KB111-06-19Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 19
M4KB111-06-20Model: M4KB1 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 20
M4KB111-M5Y-2Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 2
M4KB111-M5Y-3Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 3
M4KB111-M5Y-4Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 4
M4KB111-M5Y-5Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 5
M4KB111-M5Y-6Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 6
M4KB111-M5Y-7Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 7
M4KB111-M5Y-8Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 8
M4KB111-M5Y-9Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 9
M4KB111-M5Y-10Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 10
M4KB111-M5Y-11Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 11
M4KB111-M5Y-12Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 12
M4KB111-M5Y-13Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 13
M4KB111-M5Y-14Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 14
M4KB111-M5Y-15Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 15
M4KB111-M5Y-16Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 16
M4KB111-M5Y-17Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 17
M4KB111-M5Y-18Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 18
M4KB111-M5Y-19Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 19
M4KB111-M5Y-20Model: M4KB1 | Switching: 2-position single | A/B port: M5 (rear piping) | Stations: 20
M4KB111-H6-2Model: M4KB1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 2
M4KB111-H6-3Model: M4KB1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 3
M4KB111-H6-4Model: M4KB1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 4
M4KB111-H6-5Model: M4KB1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 5
M4KB111-H6-6Model: M4KB1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 6
M4KB111-H6-7Model: M4KB1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 7
M4KB111-H6-8Model: M4KB1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 8
M4KB111-H6-9Model: M4KB1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 9
M4KB111-H6-10Model: M4KB1 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 10
M4KB121-M5-2Model: M4KB1 | Switching: 2-position double | A/B port: M5 | Stations: 2
M4KB121-M5-3Model: M4KB1 | Switching: 2-position double | A/B port: M5 | Stations: 3
M4KB121-M5-4Model: M4KB1 | Switching: 2-position double | A/B port: M5 | Stations: 4
M4KB121-M5-5Model: M4KB1 | Switching: 2-position double | A/B port: M5 | Stations: 5
M4KB121-M5-6Model: M4KB1 | Switching: 2-position double | A/B port: M5 | Stations: 6
M4KB121-M5-7Model: M4KB1 | Switching: 2-position double | A/B port: M5 | Stations: 7
M4KB121-M5-8Model: M4KB1 | Switching: 2-position double | A/B port: M5 | Stations: 8
M4KB121-M5-9Model: M4KB1 | Switching: 2-position double | A/B port: M5 | Stations: 9
M4KB121-M5-10Model: M4KB1 | Switching: 2-position double | A/B port: M5 | Stations: 10
M4KB121-06-2Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 2
M4KB121-06-3Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 3
M4KB121-06-4Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 4
M4KB121-06-5Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 5
M4KB121-06-6Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 6
M4KB121-06-7Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 7
M4KB121-06-8Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 8
M4KB121-06-9Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 9
M4KB121-06-10Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 10
M4KB121-06-11Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 11
M4KB121-06-12Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 12
M4KB121-06-13Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 13
M4KB121-06-14Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 14
M4KB121-06-15Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 15
M4KB121-06-16Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 16
M4KB121-06-17Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 17
M4KB121-06-18Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 18
M4KB121-06-19Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 19
M4KB121-06-20Model: M4KB1 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 20
M4KB121-M5Y-2Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 2
M4KB121-M5Y-3Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 3
M4KB121-M5Y-4Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 4
M4KB121-M5Y-5Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 5
M4KB121-M5Y-6Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 6
M4KB121-M5Y-7Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 7
M4KB121-M5Y-8Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 8
M4KB121-M5Y-9Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 9
M4KB121-M5Y-10Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 10
M4KB121-M5Y-11Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 11
M4KB121-M5Y-12Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 12
M4KB121-M5Y-13Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 13
M4KB121-M5Y-14Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 14
M4KB121-M5Y-15Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 15
M4KB121-M5Y-16Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 16
M4KB121-M5Y-17Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 17
M4KB121-M5Y-18Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 18
M4KB121-M5Y-19Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 19
M4KB121-M5Y-20Model: M4KB1 | Switching: 2-position double | A/B port: M5 (rear piping) | Stations: 20
M4KB121-H6-2Model: M4KB1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 2
M4KB121-H6-3Model: M4KB1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 3
M4KB121-H6-4Model: M4KB1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 4
M4KB121-H6-5Model: M4KB1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 5
M4KB121-H6-6Model: M4KB1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 6
M4KB121-H6-7Model: M4KB1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 7
M4KB121-H6-8Model: M4KB1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 8
M4KB121-H6-9Model: M4KB1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 9
M4KB121-H6-10Model: M4KB1 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 10
M4KB131-M5-2Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 2
M4KB131-M5-3Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 3
M4KB131-M5-4Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 4
M4KB131-M5-5Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 5
M4KB131-M5-6Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 6
M4KB131-M5-7Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 7
M4KB131-M5-8Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 8
M4KB131-M5-9Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 9
M4KB131-M5-10Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 | Stations: 10
M4KB131-06-2Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 2
M4KB131-06-3Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 3
M4KB131-06-4Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 4
M4KB131-06-5Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 5
M4KB131-06-6Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 6
M4KB131-06-7Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 7
M4KB131-06-8Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 8
M4KB131-06-9Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 9
M4KB131-06-10Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 10
M4KB131-06-11Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 11
M4KB131-06-12Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 12
M4KB131-06-13Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 13
M4KB131-06-14Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 14
M4KB131-06-15Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 15
M4KB131-06-16Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 16
M4KB131-06-17Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 17
M4KB131-06-18Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 18
M4KB131-06-19Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 19
M4KB131-06-20Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 20
M4KB131-M5Y-2Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 2
M4KB131-M5Y-3Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 3
M4KB131-M5Y-4Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 4
M4KB131-M5Y-5Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 5
M4KB131-M5Y-6Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 6
M4KB131-M5Y-7Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 7
M4KB131-M5Y-8Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 8
M4KB131-M5Y-9Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 9
M4KB131-M5Y-10Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 10
M4KB131-M5Y-11Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 11
M4KB131-M5Y-12Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 12
M4KB131-M5Y-13Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 13
M4KB131-M5Y-14Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 14
M4KB131-M5Y-15Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 15
M4KB131-M5Y-16Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 16
M4KB131-M5Y-17Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 17
M4KB131-M5Y-18Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 18
M4KB131-M5Y-19Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 19
M4KB131-M5Y-20Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: M5 (rear piping) | Stations: 20
M4KB131-H6-2Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 2
M4KB131-H6-3Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 3
M4KB131-H6-4Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 4
M4KB131-H6-5Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 5
M4KB131-H6-6Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 6
M4KB131-H6-7Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 7
M4KB131-H6-8Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 8
M4KB131-H6-9Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 9
M4KB131-H6-10Model: M4KB1 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 10
M4KB141-M5-2Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 2
M4KB141-M5-3Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 3
M4KB141-M5-4Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 4
M4KB141-M5-5Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 5
M4KB141-M5-6Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 6
M4KB141-M5-7Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 7
M4KB141-M5-8Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 8
M4KB141-M5-9Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 9
M4KB141-M5-10Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 | Stations: 10
M4KB141-06-2Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 2
M4KB141-06-3Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 3
M4KB141-06-4Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 4
M4KB141-06-5Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 5
M4KB141-06-6Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 6
M4KB141-06-7Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 7
M4KB141-06-8Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 8
M4KB141-06-9Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 9
M4KB141-06-10Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 10
M4KB141-06-11Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 11
M4KB141-06-12Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 12
M4KB141-06-13Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 13
M4KB141-06-14Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 14
M4KB141-06-15Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 15
M4KB141-06-16Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 16
M4KB141-06-17Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 17
M4KB141-06-18Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 18
M4KB141-06-19Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 19
M4KB141-06-20Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 20
M4KB141-M5Y-2Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 2
M4KB141-M5Y-3Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 3
M4KB141-M5Y-4Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 4
M4KB141-M5Y-5Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 5
M4KB141-M5Y-6Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 6
M4KB141-M5Y-7Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 7
M4KB141-M5Y-8Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 8
M4KB141-M5Y-9Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 9
M4KB141-M5Y-10Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 10
M4KB141-M5Y-11Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 11
M4KB141-M5Y-12Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 12
M4KB141-M5Y-13Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 13
M4KB141-M5Y-14Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 14
M4KB141-M5Y-15Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 15
M4KB141-M5Y-16Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 16
M4KB141-M5Y-17Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 17
M4KB141-M5Y-18Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 18
M4KB141-M5Y-19Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 19
M4KB141-M5Y-20Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: M5 (rear piping) | Stations: 20
M4KB141-H6-2Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 2
M4KB141-H6-3Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 3
M4KB141-H6-4Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 4
M4KB141-H6-5Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 5
M4KB141-H6-6Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 6
M4KB141-H6-7Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 7
M4KB141-H6-8Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 8
M4KB141-H6-9Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 9
M4KB141-H6-10Model: M4KB1 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 10
M4KB151-M5-2Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 2
M4KB151-M5-3Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 3
M4KB151-M5-4Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 4
M4KB151-M5-5Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 5
M4KB151-M5-6Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 6
M4KB151-M5-7Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 7
M4KB151-M5-8Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 8
M4KB151-M5-9Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 9
M4KB151-M5-10Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 | Stations: 10
M4KB151-06-2Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 2
M4KB151-06-3Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 3
M4KB151-06-4Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 4
M4KB151-06-5Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 5
M4KB151-06-6Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 6
M4KB151-06-7Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 7
M4KB151-06-8Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 8
M4KB151-06-9Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 9
M4KB151-06-10Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 10
M4KB151-06-11Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 11
M4KB151-06-12Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 12
M4KB151-06-13Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 13
M4KB151-06-14Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 14
M4KB151-06-15Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 15
M4KB151-06-16Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 16
M4KB151-06-17Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 17
M4KB151-06-18Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 18
M4KB151-06-19Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 19
M4KB151-06-20Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 20
M4KB151-M5Y-2Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 2
M4KB151-M5Y-3Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 3
M4KB151-M5Y-4Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 4
M4KB151-M5Y-5Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 5
M4KB151-M5Y-6Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 6
M4KB151-M5Y-7Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 7
M4KB151-M5Y-8Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 8
M4KB151-M5Y-9Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 9
M4KB151-M5Y-10Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 10
M4KB151-M5Y-11Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 11
M4KB151-M5Y-12Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 12
M4KB151-M5Y-13Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 13
M4KB151-M5Y-14Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 14
M4KB151-M5Y-15Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 15
M4KB151-M5Y-16Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 16
M4KB151-M5Y-17Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 17
M4KB151-M5Y-18Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 18
M4KB151-M5Y-19Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 19
M4KB151-M5Y-20Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: M5 (rear piping) | Stations: 20
M4KB151-H6-2Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 2
M4KB151-H6-3Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 3
M4KB151-H6-4Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 4
M4KB151-H6-5Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 5
M4KB151-H6-6Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 6
M4KB151-H6-7Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 7
M4KB151-H6-8Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 8
M4KB151-H6-9Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 9
M4KB151-H6-10Model: M4KB1 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 10
M4KB211-06-2Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 2
M4KB211-06-3Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 3
M4KB211-06-4Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 4
M4KB211-06-5Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 5
M4KB211-06-6Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 6
M4KB211-06-7Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 7
M4KB211-06-8Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 8
M4KB211-06-9Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 9
M4KB211-06-10Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 10
M4KB211-06-11Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 11
M4KB211-06-12Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 12
M4KB211-06-13Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 13
M4KB211-06-14Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 14
M4KB211-06-15Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 15
M4KB211-06-16Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 16
M4KB211-06-17Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 17
M4KB211-06-18Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 18
M4KB211-06-19Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 19
M4KB211-06-20Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 | Stations: 20
M4KB211-08-2Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 2
M4KB211-08-3Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 3
M4KB211-08-4Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 4
M4KB211-08-5Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 5
M4KB211-08-6Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 6
M4KB211-08-7Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 7
M4KB211-08-8Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 8
M4KB211-08-9Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 9
M4KB211-08-10Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 10
M4KB211-08-11Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 11
M4KB211-08-12Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 12
M4KB211-08-13Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 13
M4KB211-08-14Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 14
M4KB211-08-15Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 15
M4KB211-08-16Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 16
M4KB211-08-17Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 17
M4KB211-08-18Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 18
M4KB211-08-19Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 19
M4KB211-08-20Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 20
M4KB211-06Y-2Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 2
M4KB211-06Y-3Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 3
M4KB211-06Y-4Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 4
M4KB211-06Y-5Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 5
M4KB211-06Y-6Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 6
M4KB211-06Y-7Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 7
M4KB211-06Y-8Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 8
M4KB211-06Y-9Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 9
M4KB211-06Y-10Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 10
M4KB211-06Y-11Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 11
M4KB211-06Y-12Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 12
M4KB211-06Y-13Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 13
M4KB211-06Y-14Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 14
M4KB211-06Y-15Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 15
M4KB211-06Y-16Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 16
M4KB211-06Y-17Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 17
M4KB211-06Y-18Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 18
M4KB211-06Y-19Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 19
M4KB211-06Y-20Model: M4KB2 | Switching: 2-position single | A/B port: Rc1/8 (rear piping) | Stations: 20
M4KB211-H6-2Model: M4KB2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 2
M4KB211-H6-3Model: M4KB2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 3
M4KB211-H6-4Model: M4KB2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 4
M4KB211-H6-5Model: M4KB2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 5
M4KB211-H6-6Model: M4KB2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 6
M4KB211-H6-7Model: M4KB2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 7
M4KB211-H6-8Model: M4KB2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 8
M4KB211-H6-9Model: M4KB2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 9
M4KB211-H6-10Model: M4KB2 | Switching: 2-position single | A/B port: ø6 push-in fitting | Stations: 10
M4KB211-H8-2Model: M4KB2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 2
M4KB211-H8-3Model: M4KB2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 3
M4KB211-H8-4Model: M4KB2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 4
M4KB211-H8-5Model: M4KB2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 5
M4KB211-H8-6Model: M4KB2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 6
M4KB211-H8-7Model: M4KB2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 7
M4KB211-H8-8Model: M4KB2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 8
M4KB211-H8-9Model: M4KB2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 9
M4KB211-H8-10Model: M4KB2 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 10
M4KB221-06-2Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 2
M4KB221-06-3Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 3
M4KB221-06-4Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 4
M4KB221-06-5Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 5
M4KB221-06-6Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 6
M4KB221-06-7Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 7
M4KB221-06-8Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 8
M4KB221-06-9Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 9
M4KB221-06-10Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 10
M4KB221-06-11Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 11
M4KB221-06-12Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 12
M4KB221-06-13Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 13
M4KB221-06-14Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 14
M4KB221-06-15Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 15
M4KB221-06-16Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 16
M4KB221-06-17Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 17
M4KB221-06-18Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 18
M4KB221-06-19Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 19
M4KB221-06-20Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 | Stations: 20
M4KB221-08-2Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 2
M4KB221-08-3Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 3
M4KB221-08-4Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 4
M4KB221-08-5Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 5
M4KB221-08-6Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 6
M4KB221-08-7Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 7
M4KB221-08-8Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 8
M4KB221-08-9Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 9
M4KB221-08-10Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 10
M4KB221-08-11Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 11
M4KB221-08-12Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 12
M4KB221-08-13Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 13
M4KB221-08-14Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 14
M4KB221-08-15Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 15
M4KB221-08-16Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 16
M4KB221-08-17Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 17
M4KB221-08-18Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 18
M4KB221-08-19Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 19
M4KB221-08-20Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 20
M4KB221-06Y-2Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 2
M4KB221-06Y-3Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 3
M4KB221-06Y-4Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 4
M4KB221-06Y-5Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 5
M4KB221-06Y-6Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 6
M4KB221-06Y-7Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 7
M4KB221-06Y-8Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 8
M4KB221-06Y-9Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 9
M4KB221-06Y-10Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 10
M4KB221-06Y-11Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 11
M4KB221-06Y-12Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 12
M4KB221-06Y-13Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 13
M4KB221-06Y-14Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 14
M4KB221-06Y-15Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 15
M4KB221-06Y-16Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 16
M4KB221-06Y-17Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 17
M4KB221-06Y-18Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 18
M4KB221-06Y-19Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 19
M4KB221-06Y-20Model: M4KB2 | Switching: 2-position double | A/B port: Rc1/8 (rear piping) | Stations: 20
M4KB221-H6-2Model: M4KB2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 2
M4KB221-H6-3Model: M4KB2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 3
M4KB221-H6-4Model: M4KB2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 4
M4KB221-H6-5Model: M4KB2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 5
M4KB221-H6-6Model: M4KB2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 6
M4KB221-H6-7Model: M4KB2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 7
M4KB221-H6-8Model: M4KB2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 8
M4KB221-H6-9Model: M4KB2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 9
M4KB221-H6-10Model: M4KB2 | Switching: 2-position double | A/B port: ø6 push-in fitting | Stations: 10
M4KB221-H8-2Model: M4KB2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 2
M4KB221-H8-3Model: M4KB2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 3
M4KB221-H8-4Model: M4KB2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 4
M4KB221-H8-5Model: M4KB2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 5
M4KB221-H8-6Model: M4KB2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 6
M4KB221-H8-7Model: M4KB2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 7
M4KB221-H8-8Model: M4KB2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 8
M4KB221-H8-9Model: M4KB2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 9
M4KB221-H8-10Model: M4KB2 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 10
M4KB231-06-2Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 2
M4KB231-06-3Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 3
M4KB231-06-4Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 4
M4KB231-06-5Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 5
M4KB231-06-6Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 6
M4KB231-06-7Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 7
M4KB231-06-8Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 8
M4KB231-06-9Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 9
M4KB231-06-10Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 10
M4KB231-06-11Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 11
M4KB231-06-12Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 12
M4KB231-06-13Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 13
M4KB231-06-14Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 14
M4KB231-06-15Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 15
M4KB231-06-16Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 16
M4KB231-06-17Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 17
M4KB231-06-18Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 18
M4KB231-06-19Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 19
M4KB231-06-20Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 | Stations: 20
M4KB231-08-2Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 2
M4KB231-08-3Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 3
M4KB231-08-4Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 4
M4KB231-08-5Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 5
M4KB231-08-6Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 6
M4KB231-08-7Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 7
M4KB231-08-8Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 8
M4KB231-08-9Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 9
M4KB231-08-10Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 10
M4KB231-08-11Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 11
M4KB231-08-12Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 12
M4KB231-08-13Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 13
M4KB231-08-14Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 14
M4KB231-08-15Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 15
M4KB231-08-16Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 16
M4KB231-08-17Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 17
M4KB231-08-18Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 18
M4KB231-08-19Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 19
M4KB231-08-20Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 20
M4KB231-06Y-2Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 2
M4KB231-06Y-3Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 3
M4KB231-06Y-4Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 4
M4KB231-06Y-5Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 5
M4KB231-06Y-6Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 6
M4KB231-06Y-7Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 7
M4KB231-06Y-8Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 8
M4KB231-06Y-9Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 9
M4KB231-06Y-10Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 10
M4KB231-06Y-11Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 11
M4KB231-06Y-12Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 12
M4KB231-06Y-13Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 13
M4KB231-06Y-14Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 14
M4KB231-06Y-15Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 15
M4KB231-06Y-16Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 16
M4KB231-06Y-17Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 17
M4KB231-06Y-18Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 18
M4KB231-06Y-19Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 19
M4KB231-06Y-20Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: Rc1/8 (rear piping) | Stations: 20
M4KB231-H6-2Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 2
M4KB231-H6-3Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 3
M4KB231-H6-4Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 4
M4KB231-H6-5Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 5
M4KB231-H6-6Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 6
M4KB231-H6-7Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 7
M4KB231-H6-8Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 8
M4KB231-H6-9Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 9
M4KB231-H6-10Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø6 push-in fitting | Stations: 10
M4KB231-H8-2Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 2
M4KB231-H8-3Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 3
M4KB231-H8-4Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 4
M4KB231-H8-5Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 5
M4KB231-H8-6Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 6
M4KB231-H8-7Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 7
M4KB231-H8-8Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 8
M4KB231-H8-9Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 9
M4KB231-H8-10Model: M4KB2 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 10
M4KB241-06-2Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 2
M4KB241-06-3Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 3
M4KB241-06-4Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 4
M4KB241-06-5Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 5
M4KB241-06-6Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 6
M4KB241-06-7Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 7
M4KB241-06-8Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 8
M4KB241-06-9Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 9
M4KB241-06-10Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 10
M4KB241-06-11Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 11
M4KB241-06-12Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 12
M4KB241-06-13Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 13
M4KB241-06-14Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 14
M4KB241-06-15Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 15
M4KB241-06-16Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 16
M4KB241-06-17Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 17
M4KB241-06-18Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 18
M4KB241-06-19Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 19
M4KB241-06-20Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 | Stations: 20
M4KB241-08-2Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 2
M4KB241-08-3Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 3
M4KB241-08-4Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 4
M4KB241-08-5Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 5
M4KB241-08-6Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 6
M4KB241-08-7Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 7
M4KB241-08-8Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 8
M4KB241-08-9Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 9
M4KB241-08-10Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 10
M4KB241-08-11Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 11
M4KB241-08-12Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 12
M4KB241-08-13Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 13
M4KB241-08-14Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 14
M4KB241-08-15Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 15
M4KB241-08-16Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 16
M4KB241-08-17Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 17
M4KB241-08-18Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 18
M4KB241-08-19Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 19
M4KB241-08-20Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 20
M4KB241-06Y-2Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 2
M4KB241-06Y-3Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 3
M4KB241-06Y-4Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 4
M4KB241-06Y-5Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 5
M4KB241-06Y-6Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 6
M4KB241-06Y-7Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 7
M4KB241-06Y-8Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 8
M4KB241-06Y-9Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 9
M4KB241-06Y-10Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 10
M4KB241-06Y-11Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 11
M4KB241-06Y-12Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 12
M4KB241-06Y-13Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 13
M4KB241-06Y-14Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 14
M4KB241-06Y-15Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 15
M4KB241-06Y-16Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 16
M4KB241-06Y-17Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 17
M4KB241-06Y-18Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 18
M4KB241-06Y-19Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 19
M4KB241-06Y-20Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: Rc1/8 (rear piping) | Stations: 20
M4KB241-H6-2Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 2
M4KB241-H6-3Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 3
M4KB241-H6-4Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 4
M4KB241-H6-5Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 5
M4KB241-H6-6Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 6
M4KB241-H6-7Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 7
M4KB241-H6-8Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 8
M4KB241-H6-9Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 9
M4KB241-H6-10Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø6 push-in fitting | Stations: 10
M4KB241-H8-2Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 2
M4KB241-H8-3Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 3
M4KB241-H8-4Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 4
M4KB241-H8-5Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 5
M4KB241-H8-6Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 6
M4KB241-H8-7Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 7
M4KB241-H8-8Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 8
M4KB241-H8-9Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 9
M4KB241-H8-10Model: M4KB2 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 10
M4KB251-06-2Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 2
M4KB251-06-3Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 3
M4KB251-06-4Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 4
M4KB251-06-5Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 5
M4KB251-06-6Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 6
M4KB251-06-7Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 7
M4KB251-06-8Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 8
M4KB251-06-9Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 9
M4KB251-06-10Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 10
M4KB251-06-11Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 11
M4KB251-06-12Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 12
M4KB251-06-13Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 13
M4KB251-06-14Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 14
M4KB251-06-15Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 15
M4KB251-06-16Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 16
M4KB251-06-17Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 17
M4KB251-06-18Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 18
M4KB251-06-19Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 19
M4KB251-06-20Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 | Stations: 20
M4KB251-08-2Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 2
M4KB251-08-3Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 3
M4KB251-08-4Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 4
M4KB251-08-5Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 5
M4KB251-08-6Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 6
M4KB251-08-7Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 7
M4KB251-08-8Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 8
M4KB251-08-9Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 9
M4KB251-08-10Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 10
M4KB251-08-11Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 11
M4KB251-08-12Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 12
M4KB251-08-13Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 13
M4KB251-08-14Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 14
M4KB251-08-15Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 15
M4KB251-08-16Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 16
M4KB251-08-17Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 17
M4KB251-08-18Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 18
M4KB251-08-19Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 19
M4KB251-08-20Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 20
M4KB251-06Y-2Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 2
M4KB251-06Y-3Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 3
M4KB251-06Y-4Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 4
M4KB251-06Y-5Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 5
M4KB251-06Y-6Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 6
M4KB251-06Y-7Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 7
M4KB251-06Y-8Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 8
M4KB251-06Y-9Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 9
M4KB251-06Y-10Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 10
M4KB251-06Y-11Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 11
M4KB251-06Y-12Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 12
M4KB251-06Y-13Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 13
M4KB251-06Y-14Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 14
M4KB251-06Y-15Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 15
M4KB251-06Y-16Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 16
M4KB251-06Y-17Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 17
M4KB251-06Y-18Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 18
M4KB251-06Y-19Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 19
M4KB251-06Y-20Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: Rc1/8 (rear piping) | Stations: 20
M4KB251-H6-2Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 2
M4KB251-H6-3Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 3
M4KB251-H6-4Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 4
M4KB251-H6-5Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 5
M4KB251-H6-6Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 6
M4KB251-H6-7Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 7
M4KB251-H6-8Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 8
M4KB251-H6-9Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 9
M4KB251-H6-10Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø6 push-in fitting | Stations: 10
M4KB251-H8-2Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 2
M4KB251-H8-3Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 3
M4KB251-H8-4Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 4
M4KB251-H8-5Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 5
M4KB251-H8-6Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 6
M4KB251-H8-7Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 7
M4KB251-H8-8Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 8
M4KB251-H8-9Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 9
M4KB251-H8-10Model: M4KB2 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 10
M4KB311-08-2Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 2
M4KB311-08-3Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 3
M4KB311-08-4Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 4
M4KB311-08-5Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 5
M4KB311-08-6Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 6
M4KB311-08-7Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 7
M4KB311-08-8Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 8
M4KB311-08-9Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 9
M4KB311-08-10Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 10
M4KB311-08-11Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 11
M4KB311-08-12Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 12
M4KB311-08-13Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 13
M4KB311-08-14Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 14
M4KB311-08-15Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 | Stations: 15
M4KB311-10-2Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 2
M4KB311-10-3Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 3
M4KB311-10-4Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 4
M4KB311-10-5Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 5
M4KB311-10-6Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 6
M4KB311-10-7Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 7
M4KB311-10-8Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 8
M4KB311-10-9Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 9
M4KB311-10-10Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 10
M4KB311-10-11Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 11
M4KB311-10-12Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 12
M4KB311-10-13Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 13
M4KB311-10-14Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 14
M4KB311-10-15Model: M4KB3 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 15
M4KB311-08Y-2Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 2
M4KB311-08Y-3Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 3
M4KB311-08Y-4Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 4
M4KB311-08Y-5Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 5
M4KB311-08Y-6Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 6
M4KB311-08Y-7Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 7
M4KB311-08Y-8Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 8
M4KB311-08Y-9Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 9
M4KB311-08Y-10Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 10
M4KB311-08Y-11Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 11
M4KB311-08Y-12Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 12
M4KB311-08Y-13Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 13
M4KB311-08Y-14Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 14
M4KB311-08Y-15Model: M4KB3 | Switching: 2-position single | A/B port: Rc1/4 (rear piping) | Stations: 15
M4KB311-H8-2Model: M4KB3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 2
M4KB311-H8-3Model: M4KB3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 3
M4KB311-H8-4Model: M4KB3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 4
M4KB311-H8-5Model: M4KB3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 5
M4KB311-H8-6Model: M4KB3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 6
M4KB311-H8-7Model: M4KB3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 7
M4KB311-H8-8Model: M4KB3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 8
M4KB311-H8-9Model: M4KB3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 9
M4KB311-H8-10Model: M4KB3 | Switching: 2-position single | A/B port: ø8 push-in fitting | Stations: 10
M4KB311-H10-2Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 2
M4KB311-H10-3Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 3
M4KB311-H10-4Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 4
M4KB311-H10-5Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 5
M4KB311-H10-6Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 6
M4KB311-H10-7Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 7
M4KB311-H10-8Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 8
M4KB311-H10-9Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 9
M4KB311-H10-10Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 10
M4KB311-H10-11Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 11
M4KB311-H10-12Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 12
M4KB311-H10-13Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 13
M4KB311-H10-14Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 14
M4KB311-H10-15Model: M4KB3 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 15
M4KB321-08-2Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 2
M4KB321-08-3Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 3
M4KB321-08-4Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 4
M4KB321-08-5Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 5
M4KB321-08-6Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 6
M4KB321-08-7Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 7
M4KB321-08-8Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 8
M4KB321-08-9Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 9
M4KB321-08-10Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 10
M4KB321-08-11Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 11
M4KB321-08-12Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 12
M4KB321-08-13Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 13
M4KB321-08-14Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 14
M4KB321-08-15Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 | Stations: 15
M4KB321-10-2Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 2
M4KB321-10-3Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 3
M4KB321-10-4Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 4
M4KB321-10-5Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 5
M4KB321-10-6Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 6
M4KB321-10-7Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 7
M4KB321-10-8Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 8
M4KB321-10-9Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 9
M4KB321-10-10Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 10
M4KB321-10-11Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 11
M4KB321-10-12Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 12
M4KB321-10-13Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 13
M4KB321-10-14Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 14
M4KB321-10-15Model: M4KB3 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 15
M4KB321-08Y-2Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 2
M4KB321-08Y-3Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 3
M4KB321-08Y-4Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 4
M4KB321-08Y-5Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 5
M4KB321-08Y-6Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 6
M4KB321-08Y-7Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 7
M4KB321-08Y-8Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 8
M4KB321-08Y-9Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 9
M4KB321-08Y-10Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 10
M4KB321-08Y-11Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 11
M4KB321-08Y-12Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 12
M4KB321-08Y-13Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 13
M4KB321-08Y-14Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 14
M4KB321-08Y-15Model: M4KB3 | Switching: 2-position double | A/B port: Rc1/4 (rear piping) | Stations: 15
M4KB321-H8-2Model: M4KB3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 2
M4KB321-H8-3Model: M4KB3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 3
M4KB321-H8-4Model: M4KB3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 4
M4KB321-H8-5Model: M4KB3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 5
M4KB321-H8-6Model: M4KB3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 6
M4KB321-H8-7Model: M4KB3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 7
M4KB321-H8-8Model: M4KB3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 8
M4KB321-H8-9Model: M4KB3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 9
M4KB321-H8-10Model: M4KB3 | Switching: 2-position double | A/B port: ø8 push-in fitting | Stations: 10
M4KB321-H10-2Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 2
M4KB321-H10-3Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 3
M4KB321-H10-4Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 4
M4KB321-H10-5Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 5
M4KB321-H10-6Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 6
M4KB321-H10-7Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 7
M4KB321-H10-8Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 8
M4KB321-H10-9Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 9
M4KB321-H10-10Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 10
M4KB321-H10-11Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 11
M4KB321-H10-12Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 12
M4KB321-H10-13Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 13
M4KB321-H10-14Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 14
M4KB321-H10-15Model: M4KB3 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 15
M4KB331-08-2Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 2
M4KB331-08-3Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 3
M4KB331-08-4Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 4
M4KB331-08-5Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 5
M4KB331-08-6Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 6
M4KB331-08-7Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 7
M4KB331-08-8Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 8
M4KB331-08-9Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 9
M4KB331-08-10Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 10
M4KB331-08-11Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 11
M4KB331-08-12Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 12
M4KB331-08-13Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 13
M4KB331-08-14Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 14
M4KB331-08-15Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 | Stations: 15
M4KB331-10-2Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 2
M4KB331-10-3Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 3
M4KB331-10-4Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 4
M4KB331-10-5Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 5
M4KB331-10-6Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 6
M4KB331-10-7Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 7
M4KB331-10-8Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 8
M4KB331-10-9Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 9
M4KB331-10-10Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 10
M4KB331-10-11Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 11
M4KB331-10-12Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 12
M4KB331-10-13Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 13
M4KB331-10-14Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 14
M4KB331-10-15Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 15
M4KB331-08Y-2Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 2
M4KB331-08Y-3Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 3
M4KB331-08Y-4Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 4
M4KB331-08Y-5Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 5
M4KB331-08Y-6Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 6
M4KB331-08Y-7Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 7
M4KB331-08Y-8Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 8
M4KB331-08Y-9Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 9
M4KB331-08Y-10Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 10
M4KB331-08Y-11Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 11
M4KB331-08Y-12Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 12
M4KB331-08Y-13Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 13
M4KB331-08Y-14Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 14
M4KB331-08Y-15Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: Rc1/4 (rear piping) | Stations: 15
M4KB331-H8-2Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 2
M4KB331-H8-3Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 3
M4KB331-H8-4Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 4
M4KB331-H8-5Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 5
M4KB331-H8-6Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 6
M4KB331-H8-7Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 7
M4KB331-H8-8Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 8
M4KB331-H8-9Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 9
M4KB331-H8-10Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø8 push-in fitting | Stations: 10
M4KB331-H10-2Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 2
M4KB331-H10-3Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 3
M4KB331-H10-4Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 4
M4KB331-H10-5Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 5
M4KB331-H10-6Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 6
M4KB331-H10-7Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 7
M4KB331-H10-8Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 8
M4KB331-H10-9Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 9
M4KB331-H10-10Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 10
M4KB331-H10-11Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 11
M4KB331-H10-12Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 12
M4KB331-H10-13Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 13
M4KB331-H10-14Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 14
M4KB331-H10-15Model: M4KB3 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 15
M4KB341-08-2Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 2
M4KB341-08-3Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 3
M4KB341-08-4Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 4
M4KB341-08-5Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 5
M4KB341-08-6Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 6
M4KB341-08-7Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 7
M4KB341-08-8Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 8
M4KB341-08-9Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 9
M4KB341-08-10Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 10
M4KB341-08-11Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 11
M4KB341-08-12Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 12
M4KB341-08-13Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 13
M4KB341-08-14Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 14
M4KB341-08-15Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 | Stations: 15
M4KB341-10-2Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 2
M4KB341-10-3Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 3
M4KB341-10-4Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 4
M4KB341-10-5Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 5
M4KB341-10-6Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 6
M4KB341-10-7Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 7
M4KB341-10-8Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 8
M4KB341-10-9Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 9
M4KB341-10-10Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 10
M4KB341-10-11Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 11
M4KB341-10-12Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 12
M4KB341-10-13Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 13
M4KB341-10-14Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 14
M4KB341-10-15Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 15
M4KB341-08Y-2Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 2
M4KB341-08Y-3Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 3
M4KB341-08Y-4Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 4
M4KB341-08Y-5Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 5
M4KB341-08Y-6Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 6
M4KB341-08Y-7Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 7
M4KB341-08Y-8Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 8
M4KB341-08Y-9Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 9
M4KB341-08Y-10Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 10
M4KB341-08Y-11Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 11
M4KB341-08Y-12Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 12
M4KB341-08Y-13Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 13
M4KB341-08Y-14Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 14
M4KB341-08Y-15Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: Rc1/4 (rear piping) | Stations: 15
M4KB341-H8-2Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 2
M4KB341-H8-3Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 3
M4KB341-H8-4Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 4
M4KB341-H8-5Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 5
M4KB341-H8-6Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 6
M4KB341-H8-7Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 7
M4KB341-H8-8Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 8
M4KB341-H8-9Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 9
M4KB341-H8-10Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø8 push-in fitting | Stations: 10
M4KB341-H10-2Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 2
M4KB341-H10-3Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 3
M4KB341-H10-4Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 4
M4KB341-H10-5Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 5
M4KB341-H10-6Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 6
M4KB341-H10-7Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 7
M4KB341-H10-8Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 8
M4KB341-H10-9Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 9
M4KB341-H10-10Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 10
M4KB341-H10-11Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 11
M4KB341-H10-12Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 12
M4KB341-H10-13Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 13
M4KB341-H10-14Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 14
M4KB341-H10-15Model: M4KB3 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 15
M4KB351-08-2Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 2
M4KB351-08-3Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 3
M4KB351-08-4Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 4
M4KB351-08-5Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 5
M4KB351-08-6Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 6
M4KB351-08-7Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 7
M4KB351-08-8Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 8
M4KB351-08-9Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 9
M4KB351-08-10Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 10
M4KB351-08-11Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 11
M4KB351-08-12Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 12
M4KB351-08-13Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 13
M4KB351-08-14Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 14
M4KB351-08-15Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 | Stations: 15
M4KB351-10-2Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 2
M4KB351-10-3Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 3
M4KB351-10-4Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 4
M4KB351-10-5Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 5
M4KB351-10-6Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 6
M4KB351-10-7Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 7
M4KB351-10-8Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 8
M4KB351-10-9Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 9
M4KB351-10-10Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 10
M4KB351-10-11Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 11
M4KB351-10-12Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 12
M4KB351-10-13Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 13
M4KB351-10-14Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 14
M4KB351-10-15Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 15
M4KB351-08Y-2Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 2
M4KB351-08Y-3Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 3
M4KB351-08Y-4Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 4
M4KB351-08Y-5Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 5
M4KB351-08Y-6Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 6
M4KB351-08Y-7Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 7
M4KB351-08Y-8Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 8
M4KB351-08Y-9Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 9
M4KB351-08Y-10Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 10
M4KB351-08Y-11Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 11
M4KB351-08Y-12Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 12
M4KB351-08Y-13Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 13
M4KB351-08Y-14Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 14
M4KB351-08Y-15Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: Rc1/4 (rear piping) | Stations: 15
M4KB351-H8-2Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 2
M4KB351-H8-3Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 3
M4KB351-H8-4Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 4
M4KB351-H8-5Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 5
M4KB351-H8-6Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 6
M4KB351-H8-7Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 7
M4KB351-H8-8Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 8
M4KB351-H8-9Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 9
M4KB351-H8-10Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø8 push-in fitting | Stations: 10
M4KB351-H10-2Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 2
M4KB351-H10-3Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 3
M4KB351-H10-4Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 4
M4KB351-H10-5Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 5
M4KB351-H10-6Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 6
M4KB351-H10-7Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 7
M4KB351-H10-8Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 8
M4KB351-H10-9Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 9
M4KB351-H10-10Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 10
M4KB351-H10-11Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 11
M4KB351-H10-12Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 12
M4KB351-H10-13Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 13
M4KB351-H10-14Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 14
M4KB351-H10-15Model: M4KB3 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 15
M4KB411-10-2Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 2
M4KB411-10-3Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 3
M4KB411-10-4Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 4
M4KB411-10-5Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 5
M4KB411-10-6Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 6
M4KB411-10-7Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 7
M4KB411-10-8Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 8
M4KB411-10-9Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 9
M4KB411-10-10Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 10
M4KB411-10-11Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 11
M4KB411-10-12Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 | Stations: 12
M4KB411-15-2Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 2
M4KB411-15-3Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 3
M4KB411-15-4Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 4
M4KB411-15-5Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 5
M4KB411-15-6Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 6
M4KB411-15-7Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 7
M4KB411-15-8Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 8
M4KB411-15-9Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 9
M4KB411-15-10Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 10
M4KB411-15-11Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 11
M4KB411-15-12Model: M4KB4 | Switching: 2-position single | A/B port: Rc1/2 | Stations: 12
M4KB411-10Y-2Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 2
M4KB411-10Y-3Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 3
M4KB411-10Y-4Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 4
M4KB411-10Y-5Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 5
M4KB411-10Y-6Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 6
M4KB411-10Y-7Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 7
M4KB411-10Y-8Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 8
M4KB411-10Y-9Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 9
M4KB411-10Y-10Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 10
M4KB411-10Y-11Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 11
M4KB411-10Y-12Model: M4KB4 | Switching: 2-position single | A/B port: Rc3/8 (rear piping) | Stations: 12
M4KB411-H10-2Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 2
M4KB411-H10-3Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 3
M4KB411-H10-4Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 4
M4KB411-H10-5Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 5
M4KB411-H10-6Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 6
M4KB411-H10-7Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 7
M4KB411-H10-8Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 8
M4KB411-H10-9Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 9
M4KB411-H10-10Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 10
M4KB411-H10-11Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 11
M4KB411-H10-12Model: M4KB4 | Switching: 2-position single | A/B port: ø10 push-in fitting | Stations: 12
M4KB411-H12-2Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 2
M4KB411-H12-3Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 3
M4KB411-H12-4Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 4
M4KB411-H12-5Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 5
M4KB411-H12-6Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 6
M4KB411-H12-7Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 7
M4KB411-H12-8Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 8
M4KB411-H12-9Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 9
M4KB411-H12-10Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 10
M4KB411-H12-11Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 11
M4KB411-H12-12Model: M4KB4 | Switching: 2-position single | A/B port: ø12 push-in fitting | Stations: 12
M4KB421-10-2Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 2
M4KB421-10-3Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 3
M4KB421-10-4Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 4
M4KB421-10-5Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 5
M4KB421-10-6Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 6
M4KB421-10-7Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 7
M4KB421-10-8Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 8
M4KB421-10-9Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 9
M4KB421-10-10Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 10
M4KB421-10-11Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 11
M4KB421-10-12Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 | Stations: 12
M4KB421-15-2Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 2
M4KB421-15-3Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 3
M4KB421-15-4Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 4
M4KB421-15-5Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 5
M4KB421-15-6Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 6
M4KB421-15-7Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 7
M4KB421-15-8Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 8
M4KB421-15-9Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 9
M4KB421-15-10Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 10
M4KB421-15-11Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 11
M4KB421-15-12Model: M4KB4 | Switching: 2-position double | A/B port: Rc1/2 | Stations: 12
M4KB421-10Y-2Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 2
M4KB421-10Y-3Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 3
M4KB421-10Y-4Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 4
M4KB421-10Y-5Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 5
M4KB421-10Y-6Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 6
M4KB421-10Y-7Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 7
M4KB421-10Y-8Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 8
M4KB421-10Y-9Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 9
M4KB421-10Y-10Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 10
M4KB421-10Y-11Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 11
M4KB421-10Y-12Model: M4KB4 | Switching: 2-position double | A/B port: Rc3/8 (rear piping) | Stations: 12
M4KB421-H10-2Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 2
M4KB421-H10-3Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 3
M4KB421-H10-4Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 4
M4KB421-H10-5Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 5
M4KB421-H10-6Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 6
M4KB421-H10-7Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 7
M4KB421-H10-8Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 8
M4KB421-H10-9Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 9
M4KB421-H10-10Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 10
M4KB421-H10-11Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 11
M4KB421-H10-12Model: M4KB4 | Switching: 2-position double | A/B port: ø10 push-in fitting | Stations: 12
M4KB421-H12-2Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 2
M4KB421-H12-3Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 3
M4KB421-H12-4Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 4
M4KB421-H12-5Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 5
M4KB421-H12-6Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 6
M4KB421-H12-7Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 7
M4KB421-H12-8Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 8
M4KB421-H12-9Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 9
M4KB421-H12-10Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 10
M4KB421-H12-11Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 11
M4KB421-H12-12Model: M4KB4 | Switching: 2-position double | A/B port: ø12 push-in fitting | Stations: 12
M4KB431-10-2Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 2
M4KB431-10-3Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 3
M4KB431-10-4Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 4
M4KB431-10-5Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 5
M4KB431-10-6Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 6
M4KB431-10-7Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 7
M4KB431-10-8Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 8
M4KB431-10-9Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 9
M4KB431-10-10Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 10
M4KB431-10-11Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 11
M4KB431-10-12Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 | Stations: 12
M4KB431-15-2Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 2
M4KB431-15-3Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 3
M4KB431-15-4Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 4
M4KB431-15-5Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 5
M4KB431-15-6Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 6
M4KB431-15-7Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 7
M4KB431-15-8Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 8
M4KB431-15-9Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 9
M4KB431-15-10Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 10
M4KB431-15-11Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 11
M4KB431-15-12Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc1/2 | Stations: 12
M4KB431-10Y-2Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 2
M4KB431-10Y-3Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 3
M4KB431-10Y-4Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 4
M4KB431-10Y-5Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 5
M4KB431-10Y-6Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 6
M4KB431-10Y-7Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 7
M4KB431-10Y-8Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 8
M4KB431-10Y-9Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 9
M4KB431-10Y-10Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 10
M4KB431-10Y-11Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 11
M4KB431-10Y-12Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: Rc3/8 (rear piping) | Stations: 12
M4KB431-H10-2Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 2
M4KB431-H10-3Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 3
M4KB431-H10-4Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 4
M4KB431-H10-5Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 5
M4KB431-H10-6Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 6
M4KB431-H10-7Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 7
M4KB431-H10-8Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 8
M4KB431-H10-9Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 9
M4KB431-H10-10Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 10
M4KB431-H10-11Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 11
M4KB431-H10-12Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø10 push-in fitting | Stations: 12
M4KB431-H12-2Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 2
M4KB431-H12-3Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 3
M4KB431-H12-4Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 4
M4KB431-H12-5Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 5
M4KB431-H12-6Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 6
M4KB431-H12-7Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 7
M4KB431-H12-8Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 8
M4KB431-H12-9Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 9
M4KB431-H12-10Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 10
M4KB431-H12-11Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 11
M4KB431-H12-12Model: M4KB4 | Switching: 3-position all ports blocked | A/B port: ø12 push-in fitting | Stations: 12
M4KB441-10-2Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 2
M4KB441-10-3Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 3
M4KB441-10-4Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 4
M4KB441-10-5Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 5
M4KB441-10-6Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 6
M4KB441-10-7Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 7
M4KB441-10-8Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 8
M4KB441-10-9Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 9
M4KB441-10-10Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 10
M4KB441-10-11Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 11
M4KB441-10-12Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 | Stations: 12
M4KB441-15-2Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 2
M4KB441-15-3Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 3
M4KB441-15-4Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 4
M4KB441-15-5Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 5
M4KB441-15-6Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 6
M4KB441-15-7Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 7
M4KB441-15-8Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 8
M4KB441-15-9Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 9
M4KB441-15-10Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 10
M4KB441-15-11Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 11
M4KB441-15-12Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc1/2 | Stations: 12
M4KB441-10Y-2Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 2
M4KB441-10Y-3Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 3
M4KB441-10Y-4Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 4
M4KB441-10Y-5Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 5
M4KB441-10Y-6Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 6
M4KB441-10Y-7Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 7
M4KB441-10Y-8Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 8
M4KB441-10Y-9Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 9
M4KB441-10Y-10Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 10
M4KB441-10Y-11Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 11
M4KB441-10Y-12Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: Rc3/8 (rear piping) | Stations: 12
M4KB441-H10-2Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 2
M4KB441-H10-3Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 3
M4KB441-H10-4Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 4
M4KB441-H10-5Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 5
M4KB441-H10-6Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 6
M4KB441-H10-7Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 7
M4KB441-H10-8Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 8
M4KB441-H10-9Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 9
M4KB441-H10-10Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 10
M4KB441-H10-11Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 11
M4KB441-H10-12Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø10 push-in fitting | Stations: 12
M4KB441-H12-2Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 2
M4KB441-H12-3Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 3
M4KB441-H12-4Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 4
M4KB441-H12-5Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 5
M4KB441-H12-6Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 6
M4KB441-H12-7Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 7
M4KB441-H12-8Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 8
M4KB441-H12-9Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 9
M4KB441-H12-10Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 10
M4KB441-H12-11Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 11
M4KB441-H12-12Model: M4KB4 | Switching: 3-position A-B-R connection | A/B port: ø12 push-in fitting | Stations: 12
M4KB451-10-2Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 2
M4KB451-10-3Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 3
M4KB451-10-4Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 4
M4KB451-10-5Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 5
M4KB451-10-6Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 6
M4KB451-10-7Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 7
M4KB451-10-8Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 8
M4KB451-10-9Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 9
M4KB451-10-10Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 10
M4KB451-10-11Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 11
M4KB451-10-12Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 | Stations: 12
M4KB451-15-2Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 2
M4KB451-15-3Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 3
M4KB451-15-4Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 4
M4KB451-15-5Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 5
M4KB451-15-6Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 6
M4KB451-15-7Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 7
M4KB451-15-8Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 8
M4KB451-15-9Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 9
M4KB451-15-10Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 10
M4KB451-15-11Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 11
M4KB451-15-12Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc1/2 | Stations: 12
M4KB451-10Y-2Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 2
M4KB451-10Y-3Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 3
M4KB451-10Y-4Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 4
M4KB451-10Y-5Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 5
M4KB451-10Y-6Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 6
M4KB451-10Y-7Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 7
M4KB451-10Y-8Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 8
M4KB451-10Y-9Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 9
M4KB451-10Y-10Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 10
M4KB451-10Y-11Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 11
M4KB451-10Y-12Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: Rc3/8 (rear piping) | Stations: 12
M4KB451-H10-2Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 2
M4KB451-H10-3Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 3
M4KB451-H10-4Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 4
M4KB451-H10-5Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 5
M4KB451-H10-6Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 6
M4KB451-H10-7Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 7
M4KB451-H10-8Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 8
M4KB451-H10-9Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 9
M4KB451-H10-10Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 10
M4KB451-H10-11Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 11
M4KB451-H10-12Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø10 push-in fitting | Stations: 12
M4KB451-H12-2Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 2
M4KB451-H12-3Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 3
M4KB451-H12-4Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 4
M4KB451-H12-5Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 5
M4KB451-H12-6Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 6
M4KB451-H12-7Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 7
M4KB451-H12-8Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 8
M4KB451-H12-9Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 9
M4KB451-H12-10Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 10
M4KB451-H12-11Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 11
M4KB451-H12-12Model: M4KB4 | Switching: 3-position P-A-B connection | A/B port: ø12 push-in fitting | Stations: 12

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
