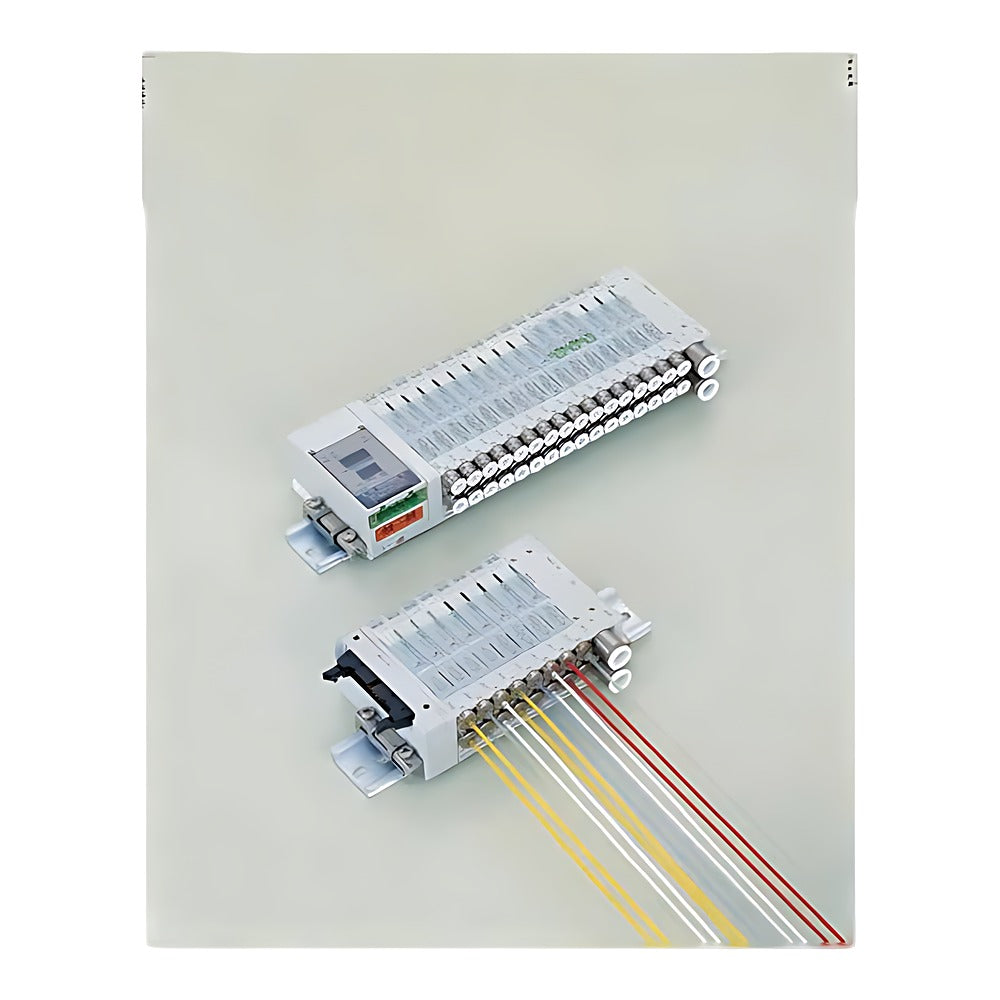

CKD M4SB0 Individual Wiring Manifold (P Port Rc1/8)

CKD M4SB0 sub-plate individual wiring manifold with Rc1/8 P supply port for Picosol 4SB0 10 mm 5-port solenoid valves.

Key features

Individual wiring manifold with 10.5 mm valve pitch, 2 to 20 stations; manifold length L = 10.5 x (n-1) + 36.5 (M4SA0)
Listed codes: grommet lead; C/D connectors (C, C2, D, D2 etc.) inserted before the station count, e.g. M4SB010-M5-C2-2-3
Mixed manifold: switching 8 plus S1-S5/MP quantity string (e.g. M4SB080-M5-C02-7-3-222100); DC6V/DC5V optional
M1 locking manual override optional; masking plate 4SA0-MP / 4SB0-MP
A/B ports M5, ø4 one-touch (GWS4-M5-S) or ø4/ø6 barb (FTS4-M5/FTS6-M5); R port Rc1/8

Specifications

Valve type	Pilot operated soft spool valve, 5-port
Fluid	Compressed air
Operating pressure	0.2 to 0.7 MPa
Proof pressure	1.05 MPa
Ambient / fluid temperature	5 to 50°C
Manifold	Integrated base, common supply and exhaust
Stations	2 to 20
Applicable cylinder bore	ø6 to ø25
Wiring (listed codes)	Grommet lead 300 mm
Model	M4SB0
Source	CKD Korea catalog CB-023SK-9, p. 1320-1323

M4SB010-PM5-2-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
M4SB010-PM5-2-4		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
M4SB010-PM5-3-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
M4SB010-PM5-3-4		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
M4SB010-PM5-4-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
M4SB010-PM5-4-4		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
M4SB010-PM5-5-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
M4SB010-PM5-5-4		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
M4SB010-PM5-6-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
M4SB010-PM5-6-4		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
M4SB010-PM5-7-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
M4SB010-PM5-7-4		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
M4SB010-PM5-8-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
M4SB010-PM5-8-4		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
M4SB010-PM5-9-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
M4SB010-PM5-9-4		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
M4SB010-PM5-10-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
M4SB010-PM5-10-4		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
M4SB010-PM5-11-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
M4SB010-PM5-11-4		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
M4SB010-PM5-12-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
M4SB010-PM5-12-4		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
M4SB010-PM5-13-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
M4SB010-PM5-13-4		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
M4SB010-PM5-14-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
M4SB010-PM5-14-4		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
M4SB010-PM5-15-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
M4SB010-PM5-15-4		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
M4SB010-PM5-16-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
M4SB010-PM5-16-4		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
M4SB010-PM5-17-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
M4SB010-PM5-17-4		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
M4SB010-PM5-18-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
M4SB010-PM5-18-4		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
M4SB010-PM5-19-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
M4SB010-PM5-19-4		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
M4SB010-PM5-20-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
M4SB010-PM5-20-4		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
M4SB010-PGS4-2-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
M4SB010-PGS4-2-4		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
M4SB010-PGS4-3-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
M4SB010-PGS4-3-4		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
M4SB010-PGS4-4-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
M4SB010-PGS4-4-4		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
M4SB010-PGS4-5-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
M4SB010-PGS4-5-4		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
M4SB010-PGS4-6-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
M4SB010-PGS4-6-4		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
M4SB010-PGS4-7-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
M4SB010-PGS4-7-4		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
M4SB010-PGS4-8-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
M4SB010-PGS4-8-4		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
M4SB010-PGS4-9-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
M4SB010-PGS4-9-4		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
M4SB010-PGS4-10-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
M4SB010-PGS4-10-4		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
M4SB010-PGS4-11-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
M4SB010-PGS4-11-4		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
M4SB010-PGS4-12-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
M4SB010-PGS4-12-4		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
M4SB010-PGS4-13-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
M4SB010-PGS4-13-4		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
M4SB010-PGS4-14-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
M4SB010-PGS4-14-4		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
M4SB010-PGS4-15-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
M4SB010-PGS4-15-4		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
M4SB010-PGS4-16-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
M4SB010-PGS4-16-4		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
M4SB010-PGS4-17-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
M4SB010-PGS4-17-4		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
M4SB010-PGS4-18-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
M4SB010-PGS4-18-4		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
M4SB010-PGS4-19-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
M4SB010-PGS4-19-4		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
M4SB010-PGS4-20-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
M4SB010-PGS4-20-4		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
M4SB010-PT4-2-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
M4SB010-PT4-2-4		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
M4SB010-PT4-3-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
M4SB010-PT4-3-4		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
M4SB010-PT4-4-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
M4SB010-PT4-4-4		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
M4SB010-PT4-5-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
M4SB010-PT4-5-4		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
M4SB010-PT4-6-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
M4SB010-PT4-6-4		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
M4SB010-PT4-7-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
M4SB010-PT4-7-4		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
M4SB010-PT4-8-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
M4SB010-PT4-8-4		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
M4SB010-PT4-9-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
M4SB010-PT4-9-4		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
M4SB010-PT4-10-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
M4SB010-PT4-10-4		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
M4SB010-PT4-11-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
M4SB010-PT4-11-4		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
M4SB010-PT4-12-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
M4SB010-PT4-12-4		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
M4SB010-PT4-13-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
M4SB010-PT4-13-4		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
M4SB010-PT4-14-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
M4SB010-PT4-14-4		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
M4SB010-PT4-15-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
M4SB010-PT4-15-4		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
M4SB010-PT4-16-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
M4SB010-PT4-16-4		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
M4SB010-PT4-17-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
M4SB010-PT4-17-4		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
M4SB010-PT4-18-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
M4SB010-PT4-18-4		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
M4SB010-PT4-19-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
M4SB010-PT4-19-4		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
M4SB010-PT4-20-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
M4SB010-PT4-20-4		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
M4SB010-PT6-2-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
M4SB010-PT6-2-4		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
M4SB010-PT6-3-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
M4SB010-PT6-3-4		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
M4SB010-PT6-4-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
M4SB010-PT6-4-4		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
M4SB010-PT6-5-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
M4SB010-PT6-5-4		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
M4SB010-PT6-6-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
M4SB010-PT6-6-4		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
M4SB010-PT6-7-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
M4SB010-PT6-7-4		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
M4SB010-PT6-8-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
M4SB010-PT6-8-4		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
M4SB010-PT6-9-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
M4SB010-PT6-9-4		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
M4SB010-PT6-10-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
M4SB010-PT6-10-4		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
M4SB010-PT6-11-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
M4SB010-PT6-11-4		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
M4SB010-PT6-12-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
M4SB010-PT6-12-4		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
M4SB010-PT6-13-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
M4SB010-PT6-13-4		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
M4SB010-PT6-14-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
M4SB010-PT6-14-4		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
M4SB010-PT6-15-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
M4SB010-PT6-15-4		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
M4SB010-PT6-16-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
M4SB010-PT6-16-4		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
M4SB010-PT6-17-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
M4SB010-PT6-17-4		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
M4SB010-PT6-18-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
M4SB010-PT6-18-4		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
M4SB010-PT6-19-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
M4SB010-PT6-19-4		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
M4SB010-PT6-20-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
M4SB010-PT6-20-4		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
M4SB020-PM5-2-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
M4SB020-PM5-2-4		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
M4SB020-PM5-3-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
M4SB020-PM5-3-4		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
M4SB020-PM5-4-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
M4SB020-PM5-4-4		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
M4SB020-PM5-5-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
M4SB020-PM5-5-4		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
M4SB020-PM5-6-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
M4SB020-PM5-6-4		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
M4SB020-PM5-7-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
M4SB020-PM5-7-4		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
M4SB020-PM5-8-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
M4SB020-PM5-8-4		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
M4SB020-PM5-9-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
M4SB020-PM5-9-4		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
M4SB020-PM5-10-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
M4SB020-PM5-10-4		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
M4SB020-PM5-11-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
M4SB020-PM5-11-4		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
M4SB020-PM5-12-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
M4SB020-PM5-12-4		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
M4SB020-PM5-13-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
M4SB020-PM5-13-4		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
M4SB020-PM5-14-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
M4SB020-PM5-14-4		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
M4SB020-PM5-15-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
M4SB020-PM5-15-4		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
M4SB020-PM5-16-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
M4SB020-PM5-16-4		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
M4SB020-PM5-17-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
M4SB020-PM5-17-4		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
M4SB020-PM5-18-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
M4SB020-PM5-18-4		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
M4SB020-PM5-19-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
M4SB020-PM5-19-4		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
M4SB020-PM5-20-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
M4SB020-PM5-20-4		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
M4SB020-PGS4-2-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
M4SB020-PGS4-2-4		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
M4SB020-PGS4-3-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
M4SB020-PGS4-3-4		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
M4SB020-PGS4-4-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
M4SB020-PGS4-4-4		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
M4SB020-PGS4-5-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
M4SB020-PGS4-5-4		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
M4SB020-PGS4-6-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
M4SB020-PGS4-6-4		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
M4SB020-PGS4-7-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
M4SB020-PGS4-7-4		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
M4SB020-PGS4-8-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
M4SB020-PGS4-8-4		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
M4SB020-PGS4-9-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
M4SB020-PGS4-9-4		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
M4SB020-PGS4-10-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
M4SB020-PGS4-10-4		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
M4SB020-PGS4-11-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
M4SB020-PGS4-11-4		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
M4SB020-PGS4-12-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
M4SB020-PGS4-12-4		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
M4SB020-PGS4-13-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
M4SB020-PGS4-13-4		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
M4SB020-PGS4-14-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
M4SB020-PGS4-14-4		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
M4SB020-PGS4-15-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
M4SB020-PGS4-15-4		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
M4SB020-PGS4-16-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
M4SB020-PGS4-16-4		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
M4SB020-PGS4-17-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
M4SB020-PGS4-17-4		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
M4SB020-PGS4-18-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
M4SB020-PGS4-18-4		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
M4SB020-PGS4-19-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
M4SB020-PGS4-19-4		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
M4SB020-PGS4-20-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
M4SB020-PGS4-20-4		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
M4SB020-PT4-2-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
M4SB020-PT4-2-4		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
M4SB020-PT4-3-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
M4SB020-PT4-3-4		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
M4SB020-PT4-4-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
M4SB020-PT4-4-4		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
M4SB020-PT4-5-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
M4SB020-PT4-5-4		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
M4SB020-PT4-6-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
M4SB020-PT4-6-4		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
M4SB020-PT4-7-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
M4SB020-PT4-7-4		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
M4SB020-PT4-8-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
M4SB020-PT4-8-4		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
M4SB020-PT4-9-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
M4SB020-PT4-9-4		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
M4SB020-PT4-10-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
M4SB020-PT4-10-4		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
M4SB020-PT4-11-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
M4SB020-PT4-11-4		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
M4SB020-PT4-12-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
M4SB020-PT4-12-4		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
M4SB020-PT4-13-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
M4SB020-PT4-13-4		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
M4SB020-PT4-14-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
M4SB020-PT4-14-4		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
M4SB020-PT4-15-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
M4SB020-PT4-15-4		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
M4SB020-PT4-16-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
M4SB020-PT4-16-4		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
M4SB020-PT4-17-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
M4SB020-PT4-17-4		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
M4SB020-PT4-18-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
M4SB020-PT4-18-4		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
M4SB020-PT4-19-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
M4SB020-PT4-19-4		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
M4SB020-PT4-20-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
M4SB020-PT4-20-4		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
M4SB020-PT6-2-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
M4SB020-PT6-2-4		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
M4SB020-PT6-3-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
M4SB020-PT6-3-4		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
M4SB020-PT6-4-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
M4SB020-PT6-4-4		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
M4SB020-PT6-5-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
M4SB020-PT6-5-4		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
M4SB020-PT6-6-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
M4SB020-PT6-6-4		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
M4SB020-PT6-7-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
M4SB020-PT6-7-4		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
M4SB020-PT6-8-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
M4SB020-PT6-8-4		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
M4SB020-PT6-9-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
M4SB020-PT6-9-4		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
M4SB020-PT6-10-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
M4SB020-PT6-10-4		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
M4SB020-PT6-11-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
M4SB020-PT6-11-4		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
M4SB020-PT6-12-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
M4SB020-PT6-12-4		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
M4SB020-PT6-13-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
M4SB020-PT6-13-4		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
M4SB020-PT6-14-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
M4SB020-PT6-14-4		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
M4SB020-PT6-15-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
M4SB020-PT6-15-4		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
M4SB020-PT6-16-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
M4SB020-PT6-16-4		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
M4SB020-PT6-17-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
M4SB020-PT6-17-4		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
M4SB020-PT6-18-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
M4SB020-PT6-18-4		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
M4SB020-PT6-19-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
M4SB020-PT6-19-4		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
M4SB020-PT6-20-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
M4SB020-PT6-20-4		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
M4SB030-PM5-2-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
M4SB030-PM5-2-4		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
M4SB030-PM5-3-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
M4SB030-PM5-3-4		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
M4SB030-PM5-4-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
M4SB030-PM5-4-4		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
M4SB030-PM5-5-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
M4SB030-PM5-5-4		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
M4SB030-PM5-6-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
M4SB030-PM5-6-4		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
M4SB030-PM5-7-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
M4SB030-PM5-7-4		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
M4SB030-PM5-8-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
M4SB030-PM5-8-4		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
M4SB030-PM5-9-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
M4SB030-PM5-9-4		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
M4SB030-PM5-10-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
M4SB030-PM5-10-4		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
M4SB030-PM5-11-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
M4SB030-PM5-11-4		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
M4SB030-PM5-12-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
M4SB030-PM5-12-4		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
M4SB030-PM5-13-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
M4SB030-PM5-13-4		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
M4SB030-PM5-14-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
M4SB030-PM5-14-4		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
M4SB030-PM5-15-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
M4SB030-PM5-15-4		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
M4SB030-PM5-16-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
M4SB030-PM5-16-4		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
M4SB030-PM5-17-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
M4SB030-PM5-17-4		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
M4SB030-PM5-18-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
M4SB030-PM5-18-4		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
M4SB030-PM5-19-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
M4SB030-PM5-19-4		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
M4SB030-PM5-20-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
M4SB030-PM5-20-4		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
M4SB030-PGS4-2-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
M4SB030-PGS4-2-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
M4SB030-PGS4-3-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
M4SB030-PGS4-3-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
M4SB030-PGS4-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
M4SB030-PGS4-4-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
M4SB030-PGS4-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
M4SB030-PGS4-5-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
M4SB030-PGS4-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
M4SB030-PGS4-6-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
M4SB030-PGS4-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
M4SB030-PGS4-7-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
M4SB030-PGS4-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
M4SB030-PGS4-8-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
M4SB030-PGS4-9-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
M4SB030-PGS4-9-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
M4SB030-PGS4-10-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
M4SB030-PGS4-10-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
M4SB030-PGS4-11-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
M4SB030-PGS4-11-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
M4SB030-PGS4-12-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
M4SB030-PGS4-12-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
M4SB030-PGS4-13-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
M4SB030-PGS4-13-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
M4SB030-PGS4-14-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
M4SB030-PGS4-14-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
M4SB030-PGS4-15-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
M4SB030-PGS4-15-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
M4SB030-PGS4-16-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
M4SB030-PGS4-16-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
M4SB030-PGS4-17-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
M4SB030-PGS4-17-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
M4SB030-PGS4-18-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
M4SB030-PGS4-18-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
M4SB030-PGS4-19-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
M4SB030-PGS4-19-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
M4SB030-PGS4-20-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
M4SB030-PGS4-20-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
M4SB030-PT4-2-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
M4SB030-PT4-2-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
M4SB030-PT4-3-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
M4SB030-PT4-3-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
M4SB030-PT4-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
M4SB030-PT4-4-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
M4SB030-PT4-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
M4SB030-PT4-5-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
M4SB030-PT4-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
M4SB030-PT4-6-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
M4SB030-PT4-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
M4SB030-PT4-7-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
M4SB030-PT4-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
M4SB030-PT4-8-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
M4SB030-PT4-9-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
M4SB030-PT4-9-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
M4SB030-PT4-10-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
M4SB030-PT4-10-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
M4SB030-PT4-11-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
M4SB030-PT4-11-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
M4SB030-PT4-12-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
M4SB030-PT4-12-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
M4SB030-PT4-13-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
M4SB030-PT4-13-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
M4SB030-PT4-14-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
M4SB030-PT4-14-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
M4SB030-PT4-15-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
M4SB030-PT4-15-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
M4SB030-PT4-16-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
M4SB030-PT4-16-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
M4SB030-PT4-17-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
M4SB030-PT4-17-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
M4SB030-PT4-18-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
M4SB030-PT4-18-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
M4SB030-PT4-19-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
M4SB030-PT4-19-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
M4SB030-PT4-20-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
M4SB030-PT4-20-4		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
M4SB030-PT6-2-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
M4SB030-PT6-2-4		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
M4SB030-PT6-3-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
M4SB030-PT6-3-4		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
M4SB030-PT6-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
M4SB030-PT6-4-4		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
M4SB030-PT6-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
M4SB030-PT6-5-4		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
M4SB030-PT6-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
M4SB030-PT6-6-4		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
M4SB030-PT6-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
M4SB030-PT6-7-4		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
M4SB030-PT6-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
M4SB030-PT6-8-4		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
M4SB030-PT6-9-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
M4SB030-PT6-9-4		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
M4SB030-PT6-10-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
M4SB030-PT6-10-4		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
M4SB030-PT6-11-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
M4SB030-PT6-11-4		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
M4SB030-PT6-12-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
M4SB030-PT6-12-4		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
M4SB030-PT6-13-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
M4SB030-PT6-13-4		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
M4SB030-PT6-14-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
M4SB030-PT6-14-4		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
M4SB030-PT6-15-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
M4SB030-PT6-15-4		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
M4SB030-PT6-16-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
M4SB030-PT6-16-4		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
M4SB030-PT6-17-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
M4SB030-PT6-17-4		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
M4SB030-PT6-18-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
M4SB030-PT6-18-4		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
M4SB030-PT6-19-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
M4SB030-PT6-19-4		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
M4SB030-PT6-20-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
M4SB030-PT6-20-4		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
M4SB040-PM5-2-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
M4SB040-PM5-2-4		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
M4SB040-PM5-3-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
M4SB040-PM5-3-4		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
M4SB040-PM5-4-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
M4SB040-PM5-4-4		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
M4SB040-PM5-5-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
M4SB040-PM5-5-4		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
M4SB040-PM5-6-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
M4SB040-PM5-6-4		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
M4SB040-PM5-7-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
M4SB040-PM5-7-4		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
M4SB040-PM5-8-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
M4SB040-PM5-8-4		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
M4SB040-PM5-9-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
M4SB040-PM5-9-4		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
M4SB040-PM5-10-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
M4SB040-PM5-10-4		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
M4SB040-PM5-11-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
M4SB040-PM5-11-4		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
M4SB040-PM5-12-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
M4SB040-PM5-12-4		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
M4SB040-PM5-13-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
M4SB040-PM5-13-4		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
M4SB040-PM5-14-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
M4SB040-PM5-14-4		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
M4SB040-PM5-15-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
M4SB040-PM5-15-4		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
M4SB040-PM5-16-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
M4SB040-PM5-16-4		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
M4SB040-PM5-17-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
M4SB040-PM5-17-4		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
M4SB040-PM5-18-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
M4SB040-PM5-18-4		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
M4SB040-PM5-19-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
M4SB040-PM5-19-4		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
M4SB040-PM5-20-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
M4SB040-PM5-20-4		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
M4SB040-PGS4-2-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
M4SB040-PGS4-2-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
M4SB040-PGS4-3-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
M4SB040-PGS4-3-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
M4SB040-PGS4-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
M4SB040-PGS4-4-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
M4SB040-PGS4-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
M4SB040-PGS4-5-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
M4SB040-PGS4-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
M4SB040-PGS4-6-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
M4SB040-PGS4-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
M4SB040-PGS4-7-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
M4SB040-PGS4-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
M4SB040-PGS4-8-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
M4SB040-PGS4-9-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
M4SB040-PGS4-9-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
M4SB040-PGS4-10-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
M4SB040-PGS4-10-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
M4SB040-PGS4-11-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
M4SB040-PGS4-11-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
M4SB040-PGS4-12-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
M4SB040-PGS4-12-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
M4SB040-PGS4-13-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
M4SB040-PGS4-13-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
M4SB040-PGS4-14-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
M4SB040-PGS4-14-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
M4SB040-PGS4-15-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
M4SB040-PGS4-15-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
M4SB040-PGS4-16-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
M4SB040-PGS4-16-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
M4SB040-PGS4-17-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
M4SB040-PGS4-17-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
M4SB040-PGS4-18-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
M4SB040-PGS4-18-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
M4SB040-PGS4-19-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
M4SB040-PGS4-19-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
M4SB040-PGS4-20-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
M4SB040-PGS4-20-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
M4SB040-PT4-2-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
M4SB040-PT4-2-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
M4SB040-PT4-3-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
M4SB040-PT4-3-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
M4SB040-PT4-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
M4SB040-PT4-4-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
M4SB040-PT4-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
M4SB040-PT4-5-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
M4SB040-PT4-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
M4SB040-PT4-6-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
M4SB040-PT4-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
M4SB040-PT4-7-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
M4SB040-PT4-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
M4SB040-PT4-8-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
M4SB040-PT4-9-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
M4SB040-PT4-9-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
M4SB040-PT4-10-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
M4SB040-PT4-10-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
M4SB040-PT4-11-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
M4SB040-PT4-11-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
M4SB040-PT4-12-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
M4SB040-PT4-12-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
M4SB040-PT4-13-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
M4SB040-PT4-13-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
M4SB040-PT4-14-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
M4SB040-PT4-14-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
M4SB040-PT4-15-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
M4SB040-PT4-15-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
M4SB040-PT4-16-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
M4SB040-PT4-16-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
M4SB040-PT4-17-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
M4SB040-PT4-17-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
M4SB040-PT4-18-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
M4SB040-PT4-18-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
M4SB040-PT4-19-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
M4SB040-PT4-19-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
M4SB040-PT4-20-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
M4SB040-PT4-20-4		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
M4SB040-PT6-2-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
M4SB040-PT6-2-4		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
M4SB040-PT6-3-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
M4SB040-PT6-3-4		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
M4SB040-PT6-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
M4SB040-PT6-4-4		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
M4SB040-PT6-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
M4SB040-PT6-5-4		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
M4SB040-PT6-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
M4SB040-PT6-6-4		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
M4SB040-PT6-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
M4SB040-PT6-7-4		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
M4SB040-PT6-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
M4SB040-PT6-8-4		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
M4SB040-PT6-9-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
M4SB040-PT6-9-4		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
M4SB040-PT6-10-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
M4SB040-PT6-10-4		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
M4SB040-PT6-11-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
M4SB040-PT6-11-4		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
M4SB040-PT6-12-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
M4SB040-PT6-12-4		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
M4SB040-PT6-13-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
M4SB040-PT6-13-4		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
M4SB040-PT6-14-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
M4SB040-PT6-14-4		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
M4SB040-PT6-15-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
M4SB040-PT6-15-4		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
M4SB040-PT6-16-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
M4SB040-PT6-16-4		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
M4SB040-PT6-17-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
M4SB040-PT6-17-4		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
M4SB040-PT6-18-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
M4SB040-PT6-18-4		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
M4SB040-PT6-19-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
M4SB040-PT6-19-4		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
M4SB040-PT6-20-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
M4SB040-PT6-20-4		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
M4SB050-PM5-2-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
M4SB050-PM5-2-4		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
M4SB050-PM5-3-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
M4SB050-PM5-3-4		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
M4SB050-PM5-4-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
M4SB050-PM5-4-4		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
M4SB050-PM5-5-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
M4SB050-PM5-5-4		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
M4SB050-PM5-6-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
M4SB050-PM5-6-4		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
M4SB050-PM5-7-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
M4SB050-PM5-7-4		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
M4SB050-PM5-8-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
M4SB050-PM5-8-4		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
M4SB050-PM5-9-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
M4SB050-PM5-9-4		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
M4SB050-PM5-10-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
M4SB050-PM5-10-4		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
M4SB050-PM5-11-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
M4SB050-PM5-11-4		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
M4SB050-PM5-12-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
M4SB050-PM5-12-4		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
M4SB050-PM5-13-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
M4SB050-PM5-13-4		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
M4SB050-PM5-14-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
M4SB050-PM5-14-4		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
M4SB050-PM5-15-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
M4SB050-PM5-15-4		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
M4SB050-PM5-16-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
M4SB050-PM5-16-4		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
M4SB050-PM5-17-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
M4SB050-PM5-17-4		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
M4SB050-PM5-18-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
M4SB050-PM5-18-4		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
M4SB050-PM5-19-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
M4SB050-PM5-19-4		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
M4SB050-PM5-20-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
M4SB050-PM5-20-4		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
M4SB050-PGS4-2-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
M4SB050-PGS4-2-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
M4SB050-PGS4-3-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
M4SB050-PGS4-3-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
M4SB050-PGS4-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
M4SB050-PGS4-4-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
M4SB050-PGS4-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
M4SB050-PGS4-5-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
M4SB050-PGS4-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
M4SB050-PGS4-6-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
M4SB050-PGS4-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
M4SB050-PGS4-7-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
M4SB050-PGS4-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
M4SB050-PGS4-8-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
M4SB050-PGS4-9-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
M4SB050-PGS4-9-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
M4SB050-PGS4-10-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
M4SB050-PGS4-10-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
M4SB050-PGS4-11-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
M4SB050-PGS4-11-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
M4SB050-PGS4-12-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
M4SB050-PGS4-12-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
M4SB050-PGS4-13-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
M4SB050-PGS4-13-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
M4SB050-PGS4-14-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
M4SB050-PGS4-14-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
M4SB050-PGS4-15-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
M4SB050-PGS4-15-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
M4SB050-PGS4-16-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
M4SB050-PGS4-16-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
M4SB050-PGS4-17-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
M4SB050-PGS4-17-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
M4SB050-PGS4-18-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
M4SB050-PGS4-18-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
M4SB050-PGS4-19-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
M4SB050-PGS4-19-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
M4SB050-PGS4-20-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
M4SB050-PGS4-20-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
M4SB050-PT4-2-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
M4SB050-PT4-2-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
M4SB050-PT4-3-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
M4SB050-PT4-3-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
M4SB050-PT4-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
M4SB050-PT4-4-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
M4SB050-PT4-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
M4SB050-PT4-5-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
M4SB050-PT4-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
M4SB050-PT4-6-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
M4SB050-PT4-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
M4SB050-PT4-7-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
M4SB050-PT4-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
M4SB050-PT4-8-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
M4SB050-PT4-9-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
M4SB050-PT4-9-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
M4SB050-PT4-10-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
M4SB050-PT4-10-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
M4SB050-PT4-11-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
M4SB050-PT4-11-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
M4SB050-PT4-12-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
M4SB050-PT4-12-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
M4SB050-PT4-13-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
M4SB050-PT4-13-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
M4SB050-PT4-14-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
M4SB050-PT4-14-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
M4SB050-PT4-15-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
M4SB050-PT4-15-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
M4SB050-PT4-16-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
M4SB050-PT4-16-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
M4SB050-PT4-17-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
M4SB050-PT4-17-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
M4SB050-PT4-18-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
M4SB050-PT4-18-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
M4SB050-PT4-19-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
M4SB050-PT4-19-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
M4SB050-PT4-20-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
M4SB050-PT4-20-4		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
M4SB050-PT6-2-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
M4SB050-PT6-2-4		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
M4SB050-PT6-3-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
M4SB050-PT6-3-4		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
M4SB050-PT6-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
M4SB050-PT6-4-4		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
M4SB050-PT6-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
M4SB050-PT6-5-4		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
M4SB050-PT6-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
M4SB050-PT6-6-4		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
M4SB050-PT6-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
M4SB050-PT6-7-4		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
M4SB050-PT6-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
M4SB050-PT6-8-4		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
M4SB050-PT6-9-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
M4SB050-PT6-9-4		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
M4SB050-PT6-10-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
M4SB050-PT6-10-4		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
M4SB050-PT6-11-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
M4SB050-PT6-11-4		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
M4SB050-PT6-12-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
M4SB050-PT6-12-4		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
M4SB050-PT6-13-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
M4SB050-PT6-13-4		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
M4SB050-PT6-14-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
M4SB050-PT6-14-4		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
M4SB050-PT6-15-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
M4SB050-PT6-15-4		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
M4SB050-PT6-16-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
M4SB050-PT6-16-4		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
M4SB050-PT6-17-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
M4SB050-PT6-17-4		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
M4SB050-PT6-18-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
M4SB050-PT6-18-4		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
M4SB050-PT6-19-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
M4SB050-PT6-19-4		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
M4SB050-PT6-20-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
M4SB050-PT6-20-4		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC12V

Valve ManifoldsCKD

760 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD M4SB0 Individual Wiring Manifold (P Port Rc1/8)

Brand CKD·Valve Manifolds

Available part numbers (760)

M4SB010-PM5-2-3, M4SB010-PM5-2-4, M4SB010-PM5-3-3, M4SB010-PM5-3-4, M4SB010-PM5-4-3, M4SB010-PM5-4-4, M4SB010-PM5-5-3, M4SB010-PM5-5-4, M4SB010-PM5-6-3, M4SB010-PM5-6-4 + 750 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	M4SB010-PM5-2-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
	M4SB010-PM5-2-4	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
	M4SB010-PM5-3-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
	M4SB010-PM5-3-4	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
	M4SB010-PM5-4-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
	M4SB010-PM5-4-4	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
	M4SB010-PM5-5-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
	M4SB010-PM5-5-4	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
	M4SB010-PM5-6-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
	M4SB010-PM5-6-4	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
	M4SB010-PM5-7-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
	M4SB010-PM5-7-4	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
	M4SB010-PM5-8-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
	M4SB010-PM5-8-4	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
	M4SB010-PM5-9-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
	M4SB010-PM5-9-4	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
	M4SB010-PM5-10-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
	M4SB010-PM5-10-4	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
	M4SB010-PM5-11-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
	M4SB010-PM5-11-4	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
	M4SB010-PM5-12-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
	M4SB010-PM5-12-4	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
	M4SB010-PM5-13-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
	M4SB010-PM5-13-4	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
	M4SB010-PM5-14-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
	M4SB010-PM5-14-4	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
	M4SB010-PM5-15-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
	M4SB010-PM5-15-4	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
	M4SB010-PM5-16-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
	M4SB010-PM5-16-4	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
	M4SB010-PM5-17-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
	M4SB010-PM5-17-4	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
	M4SB010-PM5-18-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
	M4SB010-PM5-18-4	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
	M4SB010-PM5-19-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
	M4SB010-PM5-19-4	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
	M4SB010-PM5-20-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
	M4SB010-PM5-20-4	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
	M4SB010-PGS4-2-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
	M4SB010-PGS4-2-4	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
	M4SB010-PGS4-3-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
	M4SB010-PGS4-3-4	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
	M4SB010-PGS4-4-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
	M4SB010-PGS4-4-4	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
	M4SB010-PGS4-5-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
	M4SB010-PGS4-5-4	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
	M4SB010-PGS4-6-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
	M4SB010-PGS4-6-4	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
	M4SB010-PGS4-7-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
	M4SB010-PGS4-7-4	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
	M4SB010-PGS4-8-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
	M4SB010-PGS4-8-4	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
	M4SB010-PGS4-9-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
	M4SB010-PGS4-9-4	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
	M4SB010-PGS4-10-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
	M4SB010-PGS4-10-4	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
	M4SB010-PGS4-11-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
	M4SB010-PGS4-11-4	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
	M4SB010-PGS4-12-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
	M4SB010-PGS4-12-4	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
	M4SB010-PGS4-13-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
	M4SB010-PGS4-13-4	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
	M4SB010-PGS4-14-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
	M4SB010-PGS4-14-4	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
	M4SB010-PGS4-15-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
	M4SB010-PGS4-15-4	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
	M4SB010-PGS4-16-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
	M4SB010-PGS4-16-4	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
	M4SB010-PGS4-17-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
	M4SB010-PGS4-17-4	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
	M4SB010-PGS4-18-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
	M4SB010-PGS4-18-4	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
	M4SB010-PGS4-19-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
	M4SB010-PGS4-19-4	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
	M4SB010-PGS4-20-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
	M4SB010-PGS4-20-4	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
	M4SB010-PT4-2-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
	M4SB010-PT4-2-4	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
	M4SB010-PT4-3-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
	M4SB010-PT4-3-4	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
	M4SB010-PT4-4-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
	M4SB010-PT4-4-4	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
	M4SB010-PT4-5-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
	M4SB010-PT4-5-4	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
	M4SB010-PT4-6-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
	M4SB010-PT4-6-4	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
	M4SB010-PT4-7-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
	M4SB010-PT4-7-4	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
	M4SB010-PT4-8-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
	M4SB010-PT4-8-4	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
	M4SB010-PT4-9-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
	M4SB010-PT4-9-4	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
	M4SB010-PT4-10-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
	M4SB010-PT4-10-4	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
	M4SB010-PT4-11-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
	M4SB010-PT4-11-4	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
	M4SB010-PT4-12-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
	M4SB010-PT4-12-4	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
	M4SB010-PT4-13-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
	M4SB010-PT4-13-4	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
	M4SB010-PT4-14-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
	M4SB010-PT4-14-4	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
	M4SB010-PT4-15-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
	M4SB010-PT4-15-4	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
	M4SB010-PT4-16-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
	M4SB010-PT4-16-4	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
	M4SB010-PT4-17-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
	M4SB010-PT4-17-4	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
	M4SB010-PT4-18-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
	M4SB010-PT4-18-4	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
	M4SB010-PT4-19-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
	M4SB010-PT4-19-4	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
	M4SB010-PT4-20-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
	M4SB010-PT4-20-4	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
	M4SB010-PT6-2-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
	M4SB010-PT6-2-4	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
	M4SB010-PT6-3-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
	M4SB010-PT6-3-4	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
	M4SB010-PT6-4-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
	M4SB010-PT6-4-4	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
	M4SB010-PT6-5-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
	M4SB010-PT6-5-4	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
	M4SB010-PT6-6-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
	M4SB010-PT6-6-4	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
	M4SB010-PT6-7-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
	M4SB010-PT6-7-4	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
	M4SB010-PT6-8-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
	M4SB010-PT6-8-4	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
	M4SB010-PT6-9-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
	M4SB010-PT6-9-4	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
	M4SB010-PT6-10-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
	M4SB010-PT6-10-4	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
	M4SB010-PT6-11-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
	M4SB010-PT6-11-4	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
	M4SB010-PT6-12-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
	M4SB010-PT6-12-4	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
	M4SB010-PT6-13-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
	M4SB010-PT6-13-4	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
	M4SB010-PT6-14-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
	M4SB010-PT6-14-4	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
	M4SB010-PT6-15-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
	M4SB010-PT6-15-4	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
	M4SB010-PT6-16-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
	M4SB010-PT6-16-4	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
	M4SB010-PT6-17-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
	M4SB010-PT6-17-4	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
	M4SB010-PT6-18-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
	M4SB010-PT6-18-4	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
	M4SB010-PT6-19-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
	M4SB010-PT6-19-4	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
	M4SB010-PT6-20-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
	M4SB010-PT6-20-4	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
	M4SB020-PM5-2-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
	M4SB020-PM5-2-4	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
	M4SB020-PM5-3-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
	M4SB020-PM5-3-4	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
	M4SB020-PM5-4-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
	M4SB020-PM5-4-4	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
	M4SB020-PM5-5-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
	M4SB020-PM5-5-4	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
	M4SB020-PM5-6-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
	M4SB020-PM5-6-4	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
	M4SB020-PM5-7-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
	M4SB020-PM5-7-4	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
	M4SB020-PM5-8-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
	M4SB020-PM5-8-4	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
	M4SB020-PM5-9-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
	M4SB020-PM5-9-4	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
	M4SB020-PM5-10-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
	M4SB020-PM5-10-4	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
	M4SB020-PM5-11-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
	M4SB020-PM5-11-4	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
	M4SB020-PM5-12-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
	M4SB020-PM5-12-4	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
	M4SB020-PM5-13-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
	M4SB020-PM5-13-4	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
	M4SB020-PM5-14-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
	M4SB020-PM5-14-4	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
	M4SB020-PM5-15-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
	M4SB020-PM5-15-4	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
	M4SB020-PM5-16-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
	M4SB020-PM5-16-4	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
	M4SB020-PM5-17-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
	M4SB020-PM5-17-4	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
	M4SB020-PM5-18-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
	M4SB020-PM5-18-4	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
	M4SB020-PM5-19-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
	M4SB020-PM5-19-4	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
	M4SB020-PM5-20-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
	M4SB020-PM5-20-4	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
	M4SB020-PGS4-2-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
	M4SB020-PGS4-2-4	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
	M4SB020-PGS4-3-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
	M4SB020-PGS4-3-4	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
	M4SB020-PGS4-4-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
	M4SB020-PGS4-4-4	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
	M4SB020-PGS4-5-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
	M4SB020-PGS4-5-4	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
	M4SB020-PGS4-6-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
	M4SB020-PGS4-6-4	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
	M4SB020-PGS4-7-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
	M4SB020-PGS4-7-4	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
	M4SB020-PGS4-8-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
	M4SB020-PGS4-8-4	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
	M4SB020-PGS4-9-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
	M4SB020-PGS4-9-4	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
	M4SB020-PGS4-10-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
	M4SB020-PGS4-10-4	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
	M4SB020-PGS4-11-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
	M4SB020-PGS4-11-4	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
	M4SB020-PGS4-12-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
	M4SB020-PGS4-12-4	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
	M4SB020-PGS4-13-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
	M4SB020-PGS4-13-4	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
	M4SB020-PGS4-14-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
	M4SB020-PGS4-14-4	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
	M4SB020-PGS4-15-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
	M4SB020-PGS4-15-4	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
	M4SB020-PGS4-16-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
	M4SB020-PGS4-16-4	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
	M4SB020-PGS4-17-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
	M4SB020-PGS4-17-4	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
	M4SB020-PGS4-18-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
	M4SB020-PGS4-18-4	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
	M4SB020-PGS4-19-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
	M4SB020-PGS4-19-4	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
	M4SB020-PGS4-20-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
	M4SB020-PGS4-20-4	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
	M4SB020-PT4-2-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
	M4SB020-PT4-2-4	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
	M4SB020-PT4-3-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
	M4SB020-PT4-3-4	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
	M4SB020-PT4-4-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
	M4SB020-PT4-4-4	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
	M4SB020-PT4-5-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
	M4SB020-PT4-5-4	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
	M4SB020-PT4-6-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
	M4SB020-PT4-6-4	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
	M4SB020-PT4-7-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
	M4SB020-PT4-7-4	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
	M4SB020-PT4-8-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
	M4SB020-PT4-8-4	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
	M4SB020-PT4-9-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
	M4SB020-PT4-9-4	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
	M4SB020-PT4-10-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
	M4SB020-PT4-10-4	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
	M4SB020-PT4-11-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
	M4SB020-PT4-11-4	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
	M4SB020-PT4-12-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
	M4SB020-PT4-12-4	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
	M4SB020-PT4-13-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
	M4SB020-PT4-13-4	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
	M4SB020-PT4-14-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
	M4SB020-PT4-14-4	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
	M4SB020-PT4-15-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
	M4SB020-PT4-15-4	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
	M4SB020-PT4-16-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
	M4SB020-PT4-16-4	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
	M4SB020-PT4-17-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
	M4SB020-PT4-17-4	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
	M4SB020-PT4-18-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
	M4SB020-PT4-18-4	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
	M4SB020-PT4-19-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
	M4SB020-PT4-19-4	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
	M4SB020-PT4-20-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
	M4SB020-PT4-20-4	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
	M4SB020-PT6-2-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
	M4SB020-PT6-2-4	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
	M4SB020-PT6-3-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
	M4SB020-PT6-3-4	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
	M4SB020-PT6-4-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
	M4SB020-PT6-4-4	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
	M4SB020-PT6-5-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
	M4SB020-PT6-5-4	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
	M4SB020-PT6-6-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
	M4SB020-PT6-6-4	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
	M4SB020-PT6-7-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
	M4SB020-PT6-7-4	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
	M4SB020-PT6-8-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
	M4SB020-PT6-8-4	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
	M4SB020-PT6-9-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
	M4SB020-PT6-9-4	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
	M4SB020-PT6-10-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
	M4SB020-PT6-10-4	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
	M4SB020-PT6-11-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
	M4SB020-PT6-11-4	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
	M4SB020-PT6-12-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
	M4SB020-PT6-12-4	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
	M4SB020-PT6-13-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
	M4SB020-PT6-13-4	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
	M4SB020-PT6-14-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
	M4SB020-PT6-14-4	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
	M4SB020-PT6-15-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
	M4SB020-PT6-15-4	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
	M4SB020-PT6-16-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
	M4SB020-PT6-16-4	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
	M4SB020-PT6-17-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
	M4SB020-PT6-17-4	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
	M4SB020-PT6-18-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
	M4SB020-PT6-18-4	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
	M4SB020-PT6-19-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
	M4SB020-PT6-19-4	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
	M4SB020-PT6-20-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
	M4SB020-PT6-20-4	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
	M4SB030-PM5-2-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
	M4SB030-PM5-2-4	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
	M4SB030-PM5-3-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
	M4SB030-PM5-3-4	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
	M4SB030-PM5-4-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
	M4SB030-PM5-4-4	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
	M4SB030-PM5-5-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
	M4SB030-PM5-5-4	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
	M4SB030-PM5-6-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
	M4SB030-PM5-6-4	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
	M4SB030-PM5-7-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
	M4SB030-PM5-7-4	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
	M4SB030-PM5-8-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
	M4SB030-PM5-8-4	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
	M4SB030-PM5-9-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
	M4SB030-PM5-9-4	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
	M4SB030-PM5-10-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
	M4SB030-PM5-10-4	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
	M4SB030-PM5-11-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
	M4SB030-PM5-11-4	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
	M4SB030-PM5-12-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
	M4SB030-PM5-12-4	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
	M4SB030-PM5-13-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
	M4SB030-PM5-13-4	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
	M4SB030-PM5-14-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
	M4SB030-PM5-14-4	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
	M4SB030-PM5-15-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
	M4SB030-PM5-15-4	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
	M4SB030-PM5-16-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
	M4SB030-PM5-16-4	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
	M4SB030-PM5-17-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
	M4SB030-PM5-17-4	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
	M4SB030-PM5-18-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
	M4SB030-PM5-18-4	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
	M4SB030-PM5-19-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
	M4SB030-PM5-19-4	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
	M4SB030-PM5-20-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
	M4SB030-PM5-20-4	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
	M4SB030-PGS4-2-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
	M4SB030-PGS4-2-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
	M4SB030-PGS4-3-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
	M4SB030-PGS4-3-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
	M4SB030-PGS4-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
	M4SB030-PGS4-4-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
	M4SB030-PGS4-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
	M4SB030-PGS4-5-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
	M4SB030-PGS4-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
	M4SB030-PGS4-6-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
	M4SB030-PGS4-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
	M4SB030-PGS4-7-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
	M4SB030-PGS4-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
	M4SB030-PGS4-8-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
	M4SB030-PGS4-9-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
	M4SB030-PGS4-9-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
	M4SB030-PGS4-10-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
	M4SB030-PGS4-10-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
	M4SB030-PGS4-11-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
	M4SB030-PGS4-11-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
	M4SB030-PGS4-12-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
	M4SB030-PGS4-12-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
	M4SB030-PGS4-13-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
	M4SB030-PGS4-13-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
	M4SB030-PGS4-14-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
	M4SB030-PGS4-14-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
	M4SB030-PGS4-15-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
	M4SB030-PGS4-15-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
	M4SB030-PGS4-16-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
	M4SB030-PGS4-16-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
	M4SB030-PGS4-17-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
	M4SB030-PGS4-17-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
	M4SB030-PGS4-18-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
	M4SB030-PGS4-18-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
	M4SB030-PGS4-19-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
	M4SB030-PGS4-19-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
	M4SB030-PGS4-20-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
	M4SB030-PGS4-20-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
	M4SB030-PT4-2-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
	M4SB030-PT4-2-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
	M4SB030-PT4-3-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
	M4SB030-PT4-3-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
	M4SB030-PT4-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
	M4SB030-PT4-4-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
	M4SB030-PT4-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
	M4SB030-PT4-5-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
	M4SB030-PT4-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
	M4SB030-PT4-6-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
	M4SB030-PT4-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
	M4SB030-PT4-7-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
	M4SB030-PT4-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
	M4SB030-PT4-8-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
	M4SB030-PT4-9-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
	M4SB030-PT4-9-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
	M4SB030-PT4-10-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
	M4SB030-PT4-10-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
	M4SB030-PT4-11-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
	M4SB030-PT4-11-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
	M4SB030-PT4-12-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
	M4SB030-PT4-12-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
	M4SB030-PT4-13-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
	M4SB030-PT4-13-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
	M4SB030-PT4-14-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
	M4SB030-PT4-14-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
	M4SB030-PT4-15-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
	M4SB030-PT4-15-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
	M4SB030-PT4-16-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
	M4SB030-PT4-16-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
	M4SB030-PT4-17-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
	M4SB030-PT4-17-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
	M4SB030-PT4-18-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
	M4SB030-PT4-18-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
	M4SB030-PT4-19-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
	M4SB030-PT4-19-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
	M4SB030-PT4-20-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
	M4SB030-PT4-20-4	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
	M4SB030-PT6-2-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
	M4SB030-PT6-2-4	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
	M4SB030-PT6-3-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
	M4SB030-PT6-3-4	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
	M4SB030-PT6-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
	M4SB030-PT6-4-4	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
	M4SB030-PT6-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
	M4SB030-PT6-5-4	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
	M4SB030-PT6-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
	M4SB030-PT6-6-4	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
	M4SB030-PT6-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
	M4SB030-PT6-7-4	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
	M4SB030-PT6-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
	M4SB030-PT6-8-4	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
	M4SB030-PT6-9-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
	M4SB030-PT6-9-4	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
	M4SB030-PT6-10-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
	M4SB030-PT6-10-4	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
	M4SB030-PT6-11-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
	M4SB030-PT6-11-4	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
	M4SB030-PT6-12-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
	M4SB030-PT6-12-4	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
	M4SB030-PT6-13-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
	M4SB030-PT6-13-4	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
	M4SB030-PT6-14-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
	M4SB030-PT6-14-4	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
	M4SB030-PT6-15-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
	M4SB030-PT6-15-4	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
	M4SB030-PT6-16-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
	M4SB030-PT6-16-4	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
	M4SB030-PT6-17-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
	M4SB030-PT6-17-4	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
	M4SB030-PT6-18-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
	M4SB030-PT6-18-4	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
	M4SB030-PT6-19-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
	M4SB030-PT6-19-4	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
	M4SB030-PT6-20-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
	M4SB030-PT6-20-4	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
	M4SB040-PM5-2-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
	M4SB040-PM5-2-4	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
	M4SB040-PM5-3-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
	M4SB040-PM5-3-4	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
	M4SB040-PM5-4-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
	M4SB040-PM5-4-4	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
	M4SB040-PM5-5-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
	M4SB040-PM5-5-4	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
	M4SB040-PM5-6-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
	M4SB040-PM5-6-4	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
	M4SB040-PM5-7-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
	M4SB040-PM5-7-4	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
	M4SB040-PM5-8-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
	M4SB040-PM5-8-4	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
	M4SB040-PM5-9-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
	M4SB040-PM5-9-4	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
	M4SB040-PM5-10-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
	M4SB040-PM5-10-4	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
	M4SB040-PM5-11-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
	M4SB040-PM5-11-4	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
	M4SB040-PM5-12-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
	M4SB040-PM5-12-4	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
	M4SB040-PM5-13-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
	M4SB040-PM5-13-4	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
	M4SB040-PM5-14-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
	M4SB040-PM5-14-4	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
	M4SB040-PM5-15-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
	M4SB040-PM5-15-4	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
	M4SB040-PM5-16-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
	M4SB040-PM5-16-4	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
	M4SB040-PM5-17-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
	M4SB040-PM5-17-4	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
	M4SB040-PM5-18-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
	M4SB040-PM5-18-4	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
	M4SB040-PM5-19-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
	M4SB040-PM5-19-4	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
	M4SB040-PM5-20-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
	M4SB040-PM5-20-4	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
	M4SB040-PGS4-2-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
	M4SB040-PGS4-2-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
	M4SB040-PGS4-3-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
	M4SB040-PGS4-3-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
	M4SB040-PGS4-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
	M4SB040-PGS4-4-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
	M4SB040-PGS4-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
	M4SB040-PGS4-5-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
	M4SB040-PGS4-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
	M4SB040-PGS4-6-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
	M4SB040-PGS4-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
	M4SB040-PGS4-7-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
	M4SB040-PGS4-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
	M4SB040-PGS4-8-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
	M4SB040-PGS4-9-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
	M4SB040-PGS4-9-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
	M4SB040-PGS4-10-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
	M4SB040-PGS4-10-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
	M4SB040-PGS4-11-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
	M4SB040-PGS4-11-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
	M4SB040-PGS4-12-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
	M4SB040-PGS4-12-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
	M4SB040-PGS4-13-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
	M4SB040-PGS4-13-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
	M4SB040-PGS4-14-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
	M4SB040-PGS4-14-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
	M4SB040-PGS4-15-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
	M4SB040-PGS4-15-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
	M4SB040-PGS4-16-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
	M4SB040-PGS4-16-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
	M4SB040-PGS4-17-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
	M4SB040-PGS4-17-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
	M4SB040-PGS4-18-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
	M4SB040-PGS4-18-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
	M4SB040-PGS4-19-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
	M4SB040-PGS4-19-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
	M4SB040-PGS4-20-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
	M4SB040-PGS4-20-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
	M4SB040-PT4-2-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
	M4SB040-PT4-2-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
	M4SB040-PT4-3-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
	M4SB040-PT4-3-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
	M4SB040-PT4-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
	M4SB040-PT4-4-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
	M4SB040-PT4-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
	M4SB040-PT4-5-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
	M4SB040-PT4-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
	M4SB040-PT4-6-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
	M4SB040-PT4-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
	M4SB040-PT4-7-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
	M4SB040-PT4-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
	M4SB040-PT4-8-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
	M4SB040-PT4-9-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
	M4SB040-PT4-9-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
	M4SB040-PT4-10-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
	M4SB040-PT4-10-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
	M4SB040-PT4-11-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
	M4SB040-PT4-11-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
	M4SB040-PT4-12-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
	M4SB040-PT4-12-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
	M4SB040-PT4-13-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
	M4SB040-PT4-13-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
	M4SB040-PT4-14-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
	M4SB040-PT4-14-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
	M4SB040-PT4-15-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
	M4SB040-PT4-15-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
	M4SB040-PT4-16-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
	M4SB040-PT4-16-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
	M4SB040-PT4-17-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
	M4SB040-PT4-17-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
	M4SB040-PT4-18-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
	M4SB040-PT4-18-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
	M4SB040-PT4-19-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
	M4SB040-PT4-19-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
	M4SB040-PT4-20-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
	M4SB040-PT4-20-4	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
	M4SB040-PT6-2-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
	M4SB040-PT6-2-4	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
	M4SB040-PT6-3-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
	M4SB040-PT6-3-4	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
	M4SB040-PT6-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
	M4SB040-PT6-4-4	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
	M4SB040-PT6-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
	M4SB040-PT6-5-4	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
	M4SB040-PT6-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
	M4SB040-PT6-6-4	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
	M4SB040-PT6-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
	M4SB040-PT6-7-4	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
	M4SB040-PT6-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
	M4SB040-PT6-8-4	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
	M4SB040-PT6-9-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
	M4SB040-PT6-9-4	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
	M4SB040-PT6-10-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
	M4SB040-PT6-10-4	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
	M4SB040-PT6-11-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
	M4SB040-PT6-11-4	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
	M4SB040-PT6-12-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
	M4SB040-PT6-12-4	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
	M4SB040-PT6-13-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
	M4SB040-PT6-13-4	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
	M4SB040-PT6-14-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
	M4SB040-PT6-14-4	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
	M4SB040-PT6-15-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
	M4SB040-PT6-15-4	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
	M4SB040-PT6-16-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
	M4SB040-PT6-16-4	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
	M4SB040-PT6-17-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
	M4SB040-PT6-17-4	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
	M4SB040-PT6-18-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
	M4SB040-PT6-18-4	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
	M4SB040-PT6-19-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
	M4SB040-PT6-19-4	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
	M4SB040-PT6-20-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
	M4SB040-PT6-20-4	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
	M4SB050-PM5-2-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
	M4SB050-PM5-2-4	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
	M4SB050-PM5-3-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
	M4SB050-PM5-3-4	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
	M4SB050-PM5-4-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
	M4SB050-PM5-4-4	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
	M4SB050-PM5-5-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
	M4SB050-PM5-5-4	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
	M4SB050-PM5-6-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
	M4SB050-PM5-6-4	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
	M4SB050-PM5-7-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
	M4SB050-PM5-7-4	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
	M4SB050-PM5-8-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
	M4SB050-PM5-8-4	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
	M4SB050-PM5-9-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
	M4SB050-PM5-9-4	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
	M4SB050-PM5-10-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
	M4SB050-PM5-10-4	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
	M4SB050-PM5-11-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
	M4SB050-PM5-11-4	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
	M4SB050-PM5-12-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
	M4SB050-PM5-12-4	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
	M4SB050-PM5-13-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
	M4SB050-PM5-13-4	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
	M4SB050-PM5-14-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
	M4SB050-PM5-14-4	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
	M4SB050-PM5-15-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
	M4SB050-PM5-15-4	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
	M4SB050-PM5-16-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
	M4SB050-PM5-16-4	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
	M4SB050-PM5-17-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
	M4SB050-PM5-17-4	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
	M4SB050-PM5-18-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
	M4SB050-PM5-18-4	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
	M4SB050-PM5-19-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
	M4SB050-PM5-19-4	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
	M4SB050-PM5-20-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
	M4SB050-PM5-20-4	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
	M4SB050-PGS4-2-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
	M4SB050-PGS4-2-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
	M4SB050-PGS4-3-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
	M4SB050-PGS4-3-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
	M4SB050-PGS4-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
	M4SB050-PGS4-4-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
	M4SB050-PGS4-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
	M4SB050-PGS4-5-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
	M4SB050-PGS4-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
	M4SB050-PGS4-6-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
	M4SB050-PGS4-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
	M4SB050-PGS4-7-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
	M4SB050-PGS4-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
	M4SB050-PGS4-8-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
	M4SB050-PGS4-9-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
	M4SB050-PGS4-9-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
	M4SB050-PGS4-10-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
	M4SB050-PGS4-10-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
	M4SB050-PGS4-11-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
	M4SB050-PGS4-11-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
	M4SB050-PGS4-12-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
	M4SB050-PGS4-12-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
	M4SB050-PGS4-13-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
	M4SB050-PGS4-13-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
	M4SB050-PGS4-14-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
	M4SB050-PGS4-14-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
	M4SB050-PGS4-15-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
	M4SB050-PGS4-15-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
	M4SB050-PGS4-16-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
	M4SB050-PGS4-16-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
	M4SB050-PGS4-17-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
	M4SB050-PGS4-17-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
	M4SB050-PGS4-18-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
	M4SB050-PGS4-18-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
	M4SB050-PGS4-19-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
	M4SB050-PGS4-19-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
	M4SB050-PGS4-20-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
	M4SB050-PGS4-20-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
	M4SB050-PT4-2-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
	M4SB050-PT4-2-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
	M4SB050-PT4-3-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
	M4SB050-PT4-3-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
	M4SB050-PT4-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
	M4SB050-PT4-4-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
	M4SB050-PT4-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
	M4SB050-PT4-5-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
	M4SB050-PT4-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
	M4SB050-PT4-6-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
	M4SB050-PT4-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
	M4SB050-PT4-7-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
	M4SB050-PT4-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
	M4SB050-PT4-8-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
	M4SB050-PT4-9-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
	M4SB050-PT4-9-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
	M4SB050-PT4-10-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
	M4SB050-PT4-10-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
	M4SB050-PT4-11-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
	M4SB050-PT4-11-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
	M4SB050-PT4-12-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
	M4SB050-PT4-12-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
	M4SB050-PT4-13-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
	M4SB050-PT4-13-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
	M4SB050-PT4-14-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
	M4SB050-PT4-14-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
	M4SB050-PT4-15-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
	M4SB050-PT4-15-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
	M4SB050-PT4-16-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
	M4SB050-PT4-16-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
	M4SB050-PT4-17-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
	M4SB050-PT4-17-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
	M4SB050-PT4-18-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
	M4SB050-PT4-18-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
	M4SB050-PT4-19-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
	M4SB050-PT4-19-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
	M4SB050-PT4-20-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
	M4SB050-PT4-20-4	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC12V
	M4SB050-PT6-2-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC24V
	M4SB050-PT6-2-4	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 2 \| Voltage: DC12V
	M4SB050-PT6-3-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC24V
	M4SB050-PT6-3-4	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 3 \| Voltage: DC12V
	M4SB050-PT6-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC24V
	M4SB050-PT6-4-4	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 4 \| Voltage: DC12V
	M4SB050-PT6-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC24V
	M4SB050-PT6-5-4	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 5 \| Voltage: DC12V
	M4SB050-PT6-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC24V
	M4SB050-PT6-6-4	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 6 \| Voltage: DC12V
	M4SB050-PT6-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC24V
	M4SB050-PT6-7-4	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 7 \| Voltage: DC12V
	M4SB050-PT6-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC24V
	M4SB050-PT6-8-4	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 8 \| Voltage: DC12V
	M4SB050-PT6-9-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC24V
	M4SB050-PT6-9-4	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 9 \| Voltage: DC12V
	M4SB050-PT6-10-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC24V
	M4SB050-PT6-10-4	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 10 \| Voltage: DC12V
	M4SB050-PT6-11-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC24V
	M4SB050-PT6-11-4	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 11 \| Voltage: DC12V
	M4SB050-PT6-12-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC24V
	M4SB050-PT6-12-4	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 12 \| Voltage: DC12V
	M4SB050-PT6-13-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC24V
	M4SB050-PT6-13-4	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 13 \| Voltage: DC12V
	M4SB050-PT6-14-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC24V
	M4SB050-PT6-14-4	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 14 \| Voltage: DC12V
	M4SB050-PT6-15-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC24V
	M4SB050-PT6-15-4	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 15 \| Voltage: DC12V
	M4SB050-PT6-16-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC24V
	M4SB050-PT6-16-4	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 16 \| Voltage: DC12V
	M4SB050-PT6-17-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC24V
	M4SB050-PT6-17-4	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 17 \| Voltage: DC12V
	M4SB050-PT6-18-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC24V
	M4SB050-PT6-18-4	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 18 \| Voltage: DC12V
	M4SB050-PT6-19-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC24V
	M4SB050-PT6-19-4	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 19 \| Voltage: DC12V
	M4SB050-PT6-20-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC24V
	M4SB050-PT6-20-4	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Stations: 20 \| Voltage: DC12V

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD M4SB0 Individual Wiring Manifold (P Port Rc1/8)
