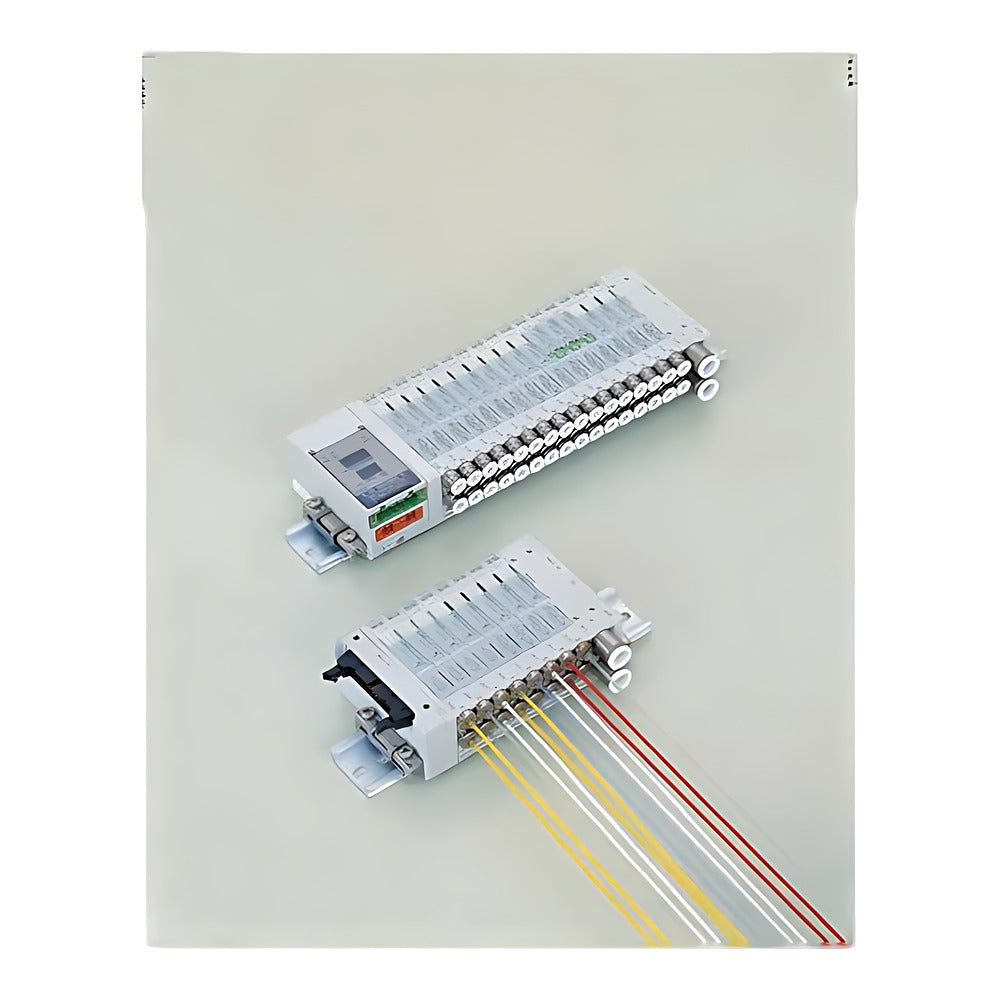

CKD M4SB0 Wiring-Saving Manifold (D-Sub / Flat Cable)

CKD M4SB0 wiring-saving sub-plate manifold for Picosol 4SB0 5-port solenoid valves with D-sub (T30/T31) or flat cable (T50) connector.

Key features

D-sub 25P connector with cable up (D4T30) or sideways (C4T31), or 20P flat cable connector (C4T50); surge killer and lamp included
Stations 4 to 20; T30/T31 max. 20 single solenoids, T50 max. 16 single solenoids (double solenoid valves count twice)
Manifold valves 4SB09-00-C4/D4 come with 270 mm wiring-saving socket assembly
Listed with DC24V (-3); DC12V (-4), DC6V/DC5V optional; mixed manifold (8 + quantity string) on spec sheet
D-sub cable N4T-CABLE-D00/D01 (1, 3, 5 m) available separately

Specifications

Valve type	Pilot operated soft spool valve, 5-port
Fluid	Compressed air
Operating pressure	0.2 to 0.7 MPa
Proof pressure	1.05 MPa
Ambient / fluid temperature	5 to 50°C
Power consumption	0.7 W
Supply / exhaust	Common supply, common exhaust
Rated voltage (listed codes)	DC24V
Source	CKD Korea catalog CB-023SK-9, p. 1324-1331

M4SB010-M5-C4T31-4-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB010-M5-C4T31-5-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB010-M5-C4T31-6-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB010-M5-C4T31-7-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB010-M5-C4T31-8-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB010-M5-C4T31-9-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB010-M5-C4T31-10-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB010-M5-C4T31-11-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 11
M4SB010-M5-C4T31-12-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 12
M4SB010-M5-C4T31-13-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 13
M4SB010-M5-C4T31-14-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 14
M4SB010-M5-C4T31-15-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 15
M4SB010-M5-C4T31-16-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 16
M4SB010-M5-C4T31-17-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 17
M4SB010-M5-C4T31-18-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 18
M4SB010-M5-C4T31-19-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 19
M4SB010-M5-C4T31-20-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 20
M4SB010-M5-D4T30-4-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB010-M5-D4T30-5-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB010-M5-D4T30-6-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB010-M5-D4T30-7-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB010-M5-D4T30-8-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB010-M5-D4T30-9-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB010-M5-D4T30-10-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB010-M5-D4T30-11-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 11
M4SB010-M5-D4T30-12-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 12
M4SB010-M5-D4T30-13-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 13
M4SB010-M5-D4T30-14-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 14
M4SB010-M5-D4T30-15-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 15
M4SB010-M5-D4T30-16-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 16
M4SB010-M5-D4T30-17-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 17
M4SB010-M5-D4T30-18-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 18
M4SB010-M5-D4T30-19-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 19
M4SB010-M5-D4T30-20-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 20
M4SB010-M5-C4T50-4-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB010-M5-C4T50-5-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB010-M5-C4T50-6-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB010-M5-C4T50-7-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB010-M5-C4T50-8-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB010-M5-C4T50-9-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 9
M4SB010-M5-C4T50-10-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 10
M4SB010-M5-C4T50-11-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 11
M4SB010-M5-C4T50-12-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 12
M4SB010-M5-C4T50-13-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 13
M4SB010-M5-C4T50-14-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 14
M4SB010-M5-C4T50-15-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 15
M4SB010-M5-C4T50-16-3		Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 16
M4SB010-GS4-C4T31-4-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB010-GS4-C4T31-5-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB010-GS4-C4T31-6-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB010-GS4-C4T31-7-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB010-GS4-C4T31-8-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB010-GS4-C4T31-9-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB010-GS4-C4T31-10-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB010-GS4-C4T31-11-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 11
M4SB010-GS4-C4T31-12-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 12
M4SB010-GS4-C4T31-13-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 13
M4SB010-GS4-C4T31-14-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 14
M4SB010-GS4-C4T31-15-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 15
M4SB010-GS4-C4T31-16-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 16
M4SB010-GS4-C4T31-17-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 17
M4SB010-GS4-C4T31-18-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 18
M4SB010-GS4-C4T31-19-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 19
M4SB010-GS4-C4T31-20-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 20
M4SB010-GS4-D4T30-4-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB010-GS4-D4T30-5-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB010-GS4-D4T30-6-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB010-GS4-D4T30-7-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB010-GS4-D4T30-8-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB010-GS4-D4T30-9-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB010-GS4-D4T30-10-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB010-GS4-D4T30-11-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 11
M4SB010-GS4-D4T30-12-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 12
M4SB010-GS4-D4T30-13-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 13
M4SB010-GS4-D4T30-14-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 14
M4SB010-GS4-D4T30-15-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 15
M4SB010-GS4-D4T30-16-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 16
M4SB010-GS4-D4T30-17-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 17
M4SB010-GS4-D4T30-18-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 18
M4SB010-GS4-D4T30-19-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 19
M4SB010-GS4-D4T30-20-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 20
M4SB010-GS4-C4T50-4-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB010-GS4-C4T50-5-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB010-GS4-C4T50-6-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB010-GS4-C4T50-7-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB010-GS4-C4T50-8-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB010-GS4-C4T50-9-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 9
M4SB010-GS4-C4T50-10-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 10
M4SB010-GS4-C4T50-11-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 11
M4SB010-GS4-C4T50-12-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 12
M4SB010-GS4-C4T50-13-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 13
M4SB010-GS4-C4T50-14-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 14
M4SB010-GS4-C4T50-15-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 15
M4SB010-GS4-C4T50-16-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 16
M4SB010-T4-C4T31-4-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB010-T4-C4T31-5-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB010-T4-C4T31-6-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB010-T4-C4T31-7-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB010-T4-C4T31-8-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB010-T4-C4T31-9-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB010-T4-C4T31-10-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB010-T4-C4T31-11-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 11
M4SB010-T4-C4T31-12-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 12
M4SB010-T4-C4T31-13-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 13
M4SB010-T4-C4T31-14-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 14
M4SB010-T4-C4T31-15-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 15
M4SB010-T4-C4T31-16-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 16
M4SB010-T4-C4T31-17-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 17
M4SB010-T4-C4T31-18-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 18
M4SB010-T4-C4T31-19-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 19
M4SB010-T4-C4T31-20-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 20
M4SB010-T4-D4T30-4-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB010-T4-D4T30-5-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB010-T4-D4T30-6-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB010-T4-D4T30-7-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB010-T4-D4T30-8-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB010-T4-D4T30-9-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB010-T4-D4T30-10-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB010-T4-D4T30-11-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 11
M4SB010-T4-D4T30-12-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 12
M4SB010-T4-D4T30-13-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 13
M4SB010-T4-D4T30-14-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 14
M4SB010-T4-D4T30-15-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 15
M4SB010-T4-D4T30-16-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 16
M4SB010-T4-D4T30-17-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 17
M4SB010-T4-D4T30-18-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 18
M4SB010-T4-D4T30-19-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 19
M4SB010-T4-D4T30-20-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 20
M4SB010-T4-C4T50-4-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB010-T4-C4T50-5-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB010-T4-C4T50-6-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB010-T4-C4T50-7-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB010-T4-C4T50-8-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB010-T4-C4T50-9-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 9
M4SB010-T4-C4T50-10-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 10
M4SB010-T4-C4T50-11-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 11
M4SB010-T4-C4T50-12-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 12
M4SB010-T4-C4T50-13-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 13
M4SB010-T4-C4T50-14-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 14
M4SB010-T4-C4T50-15-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 15
M4SB010-T4-C4T50-16-3		Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 16
M4SB010-T6-C4T31-4-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB010-T6-C4T31-5-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB010-T6-C4T31-6-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB010-T6-C4T31-7-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB010-T6-C4T31-8-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB010-T6-C4T31-9-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB010-T6-C4T31-10-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB010-T6-C4T31-11-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 11
M4SB010-T6-C4T31-12-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 12
M4SB010-T6-C4T31-13-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 13
M4SB010-T6-C4T31-14-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 14
M4SB010-T6-C4T31-15-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 15
M4SB010-T6-C4T31-16-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 16
M4SB010-T6-C4T31-17-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 17
M4SB010-T6-C4T31-18-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 18
M4SB010-T6-C4T31-19-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 19
M4SB010-T6-C4T31-20-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 20
M4SB010-T6-D4T30-4-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB010-T6-D4T30-5-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB010-T6-D4T30-6-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB010-T6-D4T30-7-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB010-T6-D4T30-8-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB010-T6-D4T30-9-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB010-T6-D4T30-10-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB010-T6-D4T30-11-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 11
M4SB010-T6-D4T30-12-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 12
M4SB010-T6-D4T30-13-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 13
M4SB010-T6-D4T30-14-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 14
M4SB010-T6-D4T30-15-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 15
M4SB010-T6-D4T30-16-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 16
M4SB010-T6-D4T30-17-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 17
M4SB010-T6-D4T30-18-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 18
M4SB010-T6-D4T30-19-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 19
M4SB010-T6-D4T30-20-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 20
M4SB010-T6-C4T50-4-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB010-T6-C4T50-5-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB010-T6-C4T50-6-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB010-T6-C4T50-7-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB010-T6-C4T50-8-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB010-T6-C4T50-9-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 9
M4SB010-T6-C4T50-10-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 10
M4SB010-T6-C4T50-11-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 11
M4SB010-T6-C4T50-12-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 12
M4SB010-T6-C4T50-13-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 13
M4SB010-T6-C4T50-14-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 14
M4SB010-T6-C4T50-15-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 15
M4SB010-T6-C4T50-16-3		Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 16
M4SB010-PM5-C4T31-4-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB010-PM5-C4T31-5-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB010-PM5-C4T31-6-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB010-PM5-C4T31-7-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB010-PM5-C4T31-8-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB010-PM5-C4T31-9-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB010-PM5-C4T31-10-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB010-PM5-C4T31-11-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 11
M4SB010-PM5-C4T31-12-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 12
M4SB010-PM5-C4T31-13-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 13
M4SB010-PM5-C4T31-14-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 14
M4SB010-PM5-C4T31-15-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 15
M4SB010-PM5-C4T31-16-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 16
M4SB010-PM5-C4T31-17-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 17
M4SB010-PM5-C4T31-18-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 18
M4SB010-PM5-C4T31-19-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 19
M4SB010-PM5-C4T31-20-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 20
M4SB010-PM5-D4T30-4-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB010-PM5-D4T30-5-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB010-PM5-D4T30-6-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB010-PM5-D4T30-7-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB010-PM5-D4T30-8-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB010-PM5-D4T30-9-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB010-PM5-D4T30-10-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB010-PM5-D4T30-11-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 11
M4SB010-PM5-D4T30-12-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 12
M4SB010-PM5-D4T30-13-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 13
M4SB010-PM5-D4T30-14-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 14
M4SB010-PM5-D4T30-15-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 15
M4SB010-PM5-D4T30-16-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 16
M4SB010-PM5-D4T30-17-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 17
M4SB010-PM5-D4T30-18-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 18
M4SB010-PM5-D4T30-19-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 19
M4SB010-PM5-D4T30-20-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 20
M4SB010-PM5-C4T50-4-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB010-PM5-C4T50-5-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB010-PM5-C4T50-6-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB010-PM5-C4T50-7-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB010-PM5-C4T50-8-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB010-PM5-C4T50-9-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 9
M4SB010-PM5-C4T50-10-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 10
M4SB010-PM5-C4T50-11-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 11
M4SB010-PM5-C4T50-12-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 12
M4SB010-PM5-C4T50-13-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 13
M4SB010-PM5-C4T50-14-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 14
M4SB010-PM5-C4T50-15-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 15
M4SB010-PM5-C4T50-16-3		Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 16
M4SB010-PGS4-C4T31-4-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB010-PGS4-C4T31-5-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB010-PGS4-C4T31-6-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB010-PGS4-C4T31-7-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB010-PGS4-C4T31-8-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB010-PGS4-C4T31-9-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB010-PGS4-C4T31-10-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB010-PGS4-C4T31-11-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 11
M4SB010-PGS4-C4T31-12-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 12
M4SB010-PGS4-C4T31-13-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 13
M4SB010-PGS4-C4T31-14-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 14
M4SB010-PGS4-C4T31-15-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 15
M4SB010-PGS4-C4T31-16-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 16
M4SB010-PGS4-C4T31-17-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 17
M4SB010-PGS4-C4T31-18-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 18
M4SB010-PGS4-C4T31-19-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 19
M4SB010-PGS4-C4T31-20-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 20
M4SB010-PGS4-D4T30-4-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB010-PGS4-D4T30-5-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB010-PGS4-D4T30-6-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB010-PGS4-D4T30-7-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB010-PGS4-D4T30-8-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB010-PGS4-D4T30-9-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB010-PGS4-D4T30-10-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB010-PGS4-D4T30-11-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 11
M4SB010-PGS4-D4T30-12-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 12
M4SB010-PGS4-D4T30-13-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 13
M4SB010-PGS4-D4T30-14-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 14
M4SB010-PGS4-D4T30-15-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 15
M4SB010-PGS4-D4T30-16-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 16
M4SB010-PGS4-D4T30-17-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 17
M4SB010-PGS4-D4T30-18-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 18
M4SB010-PGS4-D4T30-19-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 19
M4SB010-PGS4-D4T30-20-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 20
M4SB010-PGS4-C4T50-4-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB010-PGS4-C4T50-5-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB010-PGS4-C4T50-6-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB010-PGS4-C4T50-7-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB010-PGS4-C4T50-8-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB010-PGS4-C4T50-9-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 9
M4SB010-PGS4-C4T50-10-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 10
M4SB010-PGS4-C4T50-11-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 11
M4SB010-PGS4-C4T50-12-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 12
M4SB010-PGS4-C4T50-13-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 13
M4SB010-PGS4-C4T50-14-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 14
M4SB010-PGS4-C4T50-15-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 15
M4SB010-PGS4-C4T50-16-3		Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 16
M4SB010-PT4-C4T31-4-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB010-PT4-C4T31-5-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB010-PT4-C4T31-6-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB010-PT4-C4T31-7-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB010-PT4-C4T31-8-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB010-PT4-C4T31-9-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB010-PT4-C4T31-10-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB010-PT4-C4T31-11-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 11
M4SB010-PT4-C4T31-12-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 12
M4SB010-PT4-C4T31-13-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 13
M4SB010-PT4-C4T31-14-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 14
M4SB010-PT4-C4T31-15-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 15
M4SB010-PT4-C4T31-16-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 16
M4SB010-PT4-C4T31-17-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 17
M4SB010-PT4-C4T31-18-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 18
M4SB010-PT4-C4T31-19-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 19
M4SB010-PT4-C4T31-20-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 20
M4SB010-PT4-D4T30-4-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB010-PT4-D4T30-5-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB010-PT4-D4T30-6-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB010-PT4-D4T30-7-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB010-PT4-D4T30-8-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB010-PT4-D4T30-9-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB010-PT4-D4T30-10-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB010-PT4-D4T30-11-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 11
M4SB010-PT4-D4T30-12-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 12
M4SB010-PT4-D4T30-13-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 13
M4SB010-PT4-D4T30-14-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 14
M4SB010-PT4-D4T30-15-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 15
M4SB010-PT4-D4T30-16-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 16
M4SB010-PT4-D4T30-17-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 17
M4SB010-PT4-D4T30-18-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 18
M4SB010-PT4-D4T30-19-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 19
M4SB010-PT4-D4T30-20-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 20
M4SB010-PT4-C4T50-4-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB010-PT4-C4T50-5-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB010-PT4-C4T50-6-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB010-PT4-C4T50-7-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB010-PT4-C4T50-8-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB010-PT4-C4T50-9-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 9
M4SB010-PT4-C4T50-10-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 10
M4SB010-PT4-C4T50-11-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 11
M4SB010-PT4-C4T50-12-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 12
M4SB010-PT4-C4T50-13-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 13
M4SB010-PT4-C4T50-14-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 14
M4SB010-PT4-C4T50-15-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 15
M4SB010-PT4-C4T50-16-3		Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 16
M4SB010-PT6-C4T31-4-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB010-PT6-C4T31-5-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB010-PT6-C4T31-6-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB010-PT6-C4T31-7-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB010-PT6-C4T31-8-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB010-PT6-C4T31-9-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB010-PT6-C4T31-10-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB010-PT6-C4T31-11-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 11
M4SB010-PT6-C4T31-12-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 12
M4SB010-PT6-C4T31-13-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 13
M4SB010-PT6-C4T31-14-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 14
M4SB010-PT6-C4T31-15-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 15
M4SB010-PT6-C4T31-16-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 16
M4SB010-PT6-C4T31-17-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 17
M4SB010-PT6-C4T31-18-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 18
M4SB010-PT6-C4T31-19-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 19
M4SB010-PT6-C4T31-20-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 20
M4SB010-PT6-D4T30-4-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB010-PT6-D4T30-5-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB010-PT6-D4T30-6-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB010-PT6-D4T30-7-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB010-PT6-D4T30-8-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB010-PT6-D4T30-9-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB010-PT6-D4T30-10-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB010-PT6-D4T30-11-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 11
M4SB010-PT6-D4T30-12-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 12
M4SB010-PT6-D4T30-13-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 13
M4SB010-PT6-D4T30-14-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 14
M4SB010-PT6-D4T30-15-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 15
M4SB010-PT6-D4T30-16-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 16
M4SB010-PT6-D4T30-17-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 17
M4SB010-PT6-D4T30-18-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 18
M4SB010-PT6-D4T30-19-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 19
M4SB010-PT6-D4T30-20-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 20
M4SB010-PT6-C4T50-4-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB010-PT6-C4T50-5-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB010-PT6-C4T50-6-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB010-PT6-C4T50-7-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB010-PT6-C4T50-8-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB010-PT6-C4T50-9-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 9
M4SB010-PT6-C4T50-10-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 10
M4SB010-PT6-C4T50-11-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 11
M4SB010-PT6-C4T50-12-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 12
M4SB010-PT6-C4T50-13-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 13
M4SB010-PT6-C4T50-14-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 14
M4SB010-PT6-C4T50-15-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 15
M4SB010-PT6-C4T50-16-3		Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 16
M4SB020-M5-C4T31-4-3		Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB020-M5-C4T31-5-3		Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB020-M5-C4T31-6-3		Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB020-M5-C4T31-7-3		Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB020-M5-C4T31-8-3		Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB020-M5-C4T31-9-3		Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB020-M5-C4T31-10-3		Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB020-M5-D4T30-4-3		Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB020-M5-D4T30-5-3		Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB020-M5-D4T30-6-3		Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB020-M5-D4T30-7-3		Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB020-M5-D4T30-8-3		Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB020-M5-D4T30-9-3		Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB020-M5-D4T30-10-3		Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB020-M5-C4T50-4-3		Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB020-M5-C4T50-5-3		Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB020-M5-C4T50-6-3		Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB020-M5-C4T50-7-3		Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB020-M5-C4T50-8-3		Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB020-GS4-C4T31-4-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB020-GS4-C4T31-5-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB020-GS4-C4T31-6-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB020-GS4-C4T31-7-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB020-GS4-C4T31-8-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB020-GS4-C4T31-9-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB020-GS4-C4T31-10-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB020-GS4-D4T30-4-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB020-GS4-D4T30-5-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB020-GS4-D4T30-6-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB020-GS4-D4T30-7-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB020-GS4-D4T30-8-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB020-GS4-D4T30-9-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB020-GS4-D4T30-10-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB020-GS4-C4T50-4-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB020-GS4-C4T50-5-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB020-GS4-C4T50-6-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB020-GS4-C4T50-7-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB020-GS4-C4T50-8-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB020-T4-C4T31-4-3		Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB020-T4-C4T31-5-3		Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB020-T4-C4T31-6-3		Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB020-T4-C4T31-7-3		Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB020-T4-C4T31-8-3		Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB020-T4-C4T31-9-3		Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB020-T4-C4T31-10-3		Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB020-T4-D4T30-4-3		Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB020-T4-D4T30-5-3		Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB020-T4-D4T30-6-3		Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB020-T4-D4T30-7-3		Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB020-T4-D4T30-8-3		Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB020-T4-D4T30-9-3		Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB020-T4-D4T30-10-3		Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB020-T4-C4T50-4-3		Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB020-T4-C4T50-5-3		Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB020-T4-C4T50-6-3		Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB020-T4-C4T50-7-3		Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB020-T4-C4T50-8-3		Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB020-T6-C4T31-4-3		Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB020-T6-C4T31-5-3		Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB020-T6-C4T31-6-3		Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB020-T6-C4T31-7-3		Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB020-T6-C4T31-8-3		Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB020-T6-C4T31-9-3		Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB020-T6-C4T31-10-3		Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB020-T6-D4T30-4-3		Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB020-T6-D4T30-5-3		Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB020-T6-D4T30-6-3		Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB020-T6-D4T30-7-3		Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB020-T6-D4T30-8-3		Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB020-T6-D4T30-9-3		Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB020-T6-D4T30-10-3		Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB020-T6-C4T50-4-3		Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB020-T6-C4T50-5-3		Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB020-T6-C4T50-6-3		Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB020-T6-C4T50-7-3		Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB020-T6-C4T50-8-3		Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB020-PM5-C4T31-4-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB020-PM5-C4T31-5-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB020-PM5-C4T31-6-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB020-PM5-C4T31-7-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB020-PM5-C4T31-8-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB020-PM5-C4T31-9-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB020-PM5-C4T31-10-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB020-PM5-D4T30-4-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB020-PM5-D4T30-5-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB020-PM5-D4T30-6-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB020-PM5-D4T30-7-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB020-PM5-D4T30-8-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB020-PM5-D4T30-9-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB020-PM5-D4T30-10-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB020-PM5-C4T50-4-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB020-PM5-C4T50-5-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB020-PM5-C4T50-6-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB020-PM5-C4T50-7-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB020-PM5-C4T50-8-3		Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB020-PGS4-C4T31-4-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB020-PGS4-C4T31-5-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB020-PGS4-C4T31-6-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB020-PGS4-C4T31-7-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB020-PGS4-C4T31-8-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB020-PGS4-C4T31-9-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB020-PGS4-C4T31-10-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB020-PGS4-D4T30-4-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB020-PGS4-D4T30-5-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB020-PGS4-D4T30-6-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB020-PGS4-D4T30-7-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB020-PGS4-D4T30-8-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB020-PGS4-D4T30-9-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB020-PGS4-D4T30-10-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB020-PGS4-C4T50-4-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB020-PGS4-C4T50-5-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB020-PGS4-C4T50-6-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB020-PGS4-C4T50-7-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB020-PGS4-C4T50-8-3		Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB020-PT4-C4T31-4-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB020-PT4-C4T31-5-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB020-PT4-C4T31-6-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB020-PT4-C4T31-7-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB020-PT4-C4T31-8-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB020-PT4-C4T31-9-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB020-PT4-C4T31-10-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB020-PT4-D4T30-4-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB020-PT4-D4T30-5-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB020-PT4-D4T30-6-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB020-PT4-D4T30-7-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB020-PT4-D4T30-8-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB020-PT4-D4T30-9-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB020-PT4-D4T30-10-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB020-PT4-C4T50-4-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB020-PT4-C4T50-5-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB020-PT4-C4T50-6-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB020-PT4-C4T50-7-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB020-PT4-C4T50-8-3		Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB020-PT6-C4T31-4-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB020-PT6-C4T31-5-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB020-PT6-C4T31-6-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB020-PT6-C4T31-7-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB020-PT6-C4T31-8-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB020-PT6-C4T31-9-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB020-PT6-C4T31-10-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB020-PT6-D4T30-4-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB020-PT6-D4T30-5-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB020-PT6-D4T30-6-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB020-PT6-D4T30-7-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB020-PT6-D4T30-8-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB020-PT6-D4T30-9-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB020-PT6-D4T30-10-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB020-PT6-C4T50-4-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB020-PT6-C4T50-5-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB020-PT6-C4T50-6-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB020-PT6-C4T50-7-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB020-PT6-C4T50-8-3		Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB030-M5-C4T31-4-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB030-M5-C4T31-5-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB030-M5-C4T31-6-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB030-M5-C4T31-7-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB030-M5-C4T31-8-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB030-M5-C4T31-9-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB030-M5-C4T31-10-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB030-M5-D4T30-4-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB030-M5-D4T30-5-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB030-M5-D4T30-6-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB030-M5-D4T30-7-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB030-M5-D4T30-8-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB030-M5-D4T30-9-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB030-M5-D4T30-10-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB030-M5-C4T50-4-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB030-M5-C4T50-5-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB030-M5-C4T50-6-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB030-M5-C4T50-7-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB030-M5-C4T50-8-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB030-GS4-C4T31-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB030-GS4-C4T31-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB030-GS4-C4T31-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB030-GS4-C4T31-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB030-GS4-C4T31-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB030-GS4-C4T31-9-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB030-GS4-C4T31-10-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB030-GS4-D4T30-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB030-GS4-D4T30-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB030-GS4-D4T30-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB030-GS4-D4T30-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB030-GS4-D4T30-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB030-GS4-D4T30-9-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB030-GS4-D4T30-10-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB030-GS4-C4T50-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB030-GS4-C4T50-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB030-GS4-C4T50-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB030-GS4-C4T50-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB030-GS4-C4T50-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB030-T4-C4T31-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB030-T4-C4T31-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB030-T4-C4T31-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB030-T4-C4T31-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB030-T4-C4T31-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB030-T4-C4T31-9-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB030-T4-C4T31-10-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB030-T4-D4T30-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB030-T4-D4T30-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB030-T4-D4T30-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB030-T4-D4T30-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB030-T4-D4T30-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB030-T4-D4T30-9-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB030-T4-D4T30-10-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB030-T4-C4T50-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB030-T4-C4T50-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB030-T4-C4T50-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB030-T4-C4T50-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB030-T4-C4T50-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB030-T6-C4T31-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB030-T6-C4T31-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB030-T6-C4T31-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB030-T6-C4T31-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB030-T6-C4T31-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB030-T6-C4T31-9-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB030-T6-C4T31-10-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB030-T6-D4T30-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB030-T6-D4T30-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB030-T6-D4T30-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB030-T6-D4T30-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB030-T6-D4T30-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB030-T6-D4T30-9-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB030-T6-D4T30-10-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB030-T6-C4T50-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB030-T6-C4T50-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB030-T6-C4T50-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB030-T6-C4T50-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB030-T6-C4T50-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB030-PM5-C4T31-4-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB030-PM5-C4T31-5-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB030-PM5-C4T31-6-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB030-PM5-C4T31-7-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB030-PM5-C4T31-8-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB030-PM5-C4T31-9-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB030-PM5-C4T31-10-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB030-PM5-D4T30-4-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB030-PM5-D4T30-5-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB030-PM5-D4T30-6-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB030-PM5-D4T30-7-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB030-PM5-D4T30-8-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB030-PM5-D4T30-9-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB030-PM5-D4T30-10-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB030-PM5-C4T50-4-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB030-PM5-C4T50-5-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB030-PM5-C4T50-6-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB030-PM5-C4T50-7-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB030-PM5-C4T50-8-3		Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB030-PGS4-C4T31-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB030-PGS4-C4T31-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB030-PGS4-C4T31-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB030-PGS4-C4T31-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB030-PGS4-C4T31-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB030-PGS4-C4T31-9-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB030-PGS4-C4T31-10-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB030-PGS4-D4T30-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB030-PGS4-D4T30-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB030-PGS4-D4T30-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB030-PGS4-D4T30-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB030-PGS4-D4T30-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB030-PGS4-D4T30-9-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB030-PGS4-D4T30-10-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB030-PGS4-C4T50-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB030-PGS4-C4T50-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB030-PGS4-C4T50-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB030-PGS4-C4T50-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB030-PGS4-C4T50-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB030-PT4-C4T31-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB030-PT4-C4T31-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB030-PT4-C4T31-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB030-PT4-C4T31-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB030-PT4-C4T31-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB030-PT4-C4T31-9-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB030-PT4-C4T31-10-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB030-PT4-D4T30-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB030-PT4-D4T30-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB030-PT4-D4T30-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB030-PT4-D4T30-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB030-PT4-D4T30-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB030-PT4-D4T30-9-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB030-PT4-D4T30-10-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB030-PT4-C4T50-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB030-PT4-C4T50-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB030-PT4-C4T50-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB030-PT4-C4T50-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB030-PT4-C4T50-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB030-PT6-C4T31-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB030-PT6-C4T31-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB030-PT6-C4T31-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB030-PT6-C4T31-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB030-PT6-C4T31-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB030-PT6-C4T31-9-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB030-PT6-C4T31-10-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB030-PT6-D4T30-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB030-PT6-D4T30-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB030-PT6-D4T30-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB030-PT6-D4T30-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB030-PT6-D4T30-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB030-PT6-D4T30-9-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB030-PT6-D4T30-10-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB030-PT6-C4T50-4-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB030-PT6-C4T50-5-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB030-PT6-C4T50-6-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB030-PT6-C4T50-7-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB030-PT6-C4T50-8-3		Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB040-M5-C4T31-4-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB040-M5-C4T31-5-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB040-M5-C4T31-6-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB040-M5-C4T31-7-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB040-M5-C4T31-8-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB040-M5-C4T31-9-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB040-M5-C4T31-10-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB040-M5-D4T30-4-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB040-M5-D4T30-5-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB040-M5-D4T30-6-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB040-M5-D4T30-7-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB040-M5-D4T30-8-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB040-M5-D4T30-9-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB040-M5-D4T30-10-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB040-M5-C4T50-4-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB040-M5-C4T50-5-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB040-M5-C4T50-6-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB040-M5-C4T50-7-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB040-M5-C4T50-8-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB040-GS4-C4T31-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB040-GS4-C4T31-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB040-GS4-C4T31-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB040-GS4-C4T31-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB040-GS4-C4T31-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB040-GS4-C4T31-9-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB040-GS4-C4T31-10-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB040-GS4-D4T30-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB040-GS4-D4T30-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB040-GS4-D4T30-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB040-GS4-D4T30-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB040-GS4-D4T30-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB040-GS4-D4T30-9-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB040-GS4-D4T30-10-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB040-GS4-C4T50-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB040-GS4-C4T50-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB040-GS4-C4T50-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB040-GS4-C4T50-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB040-GS4-C4T50-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB040-T4-C4T31-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB040-T4-C4T31-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB040-T4-C4T31-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB040-T4-C4T31-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB040-T4-C4T31-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB040-T4-C4T31-9-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB040-T4-C4T31-10-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB040-T4-D4T30-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB040-T4-D4T30-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB040-T4-D4T30-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB040-T4-D4T30-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB040-T4-D4T30-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB040-T4-D4T30-9-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB040-T4-D4T30-10-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB040-T4-C4T50-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB040-T4-C4T50-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB040-T4-C4T50-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB040-T4-C4T50-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB040-T4-C4T50-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB040-T6-C4T31-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB040-T6-C4T31-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB040-T6-C4T31-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB040-T6-C4T31-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB040-T6-C4T31-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB040-T6-C4T31-9-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB040-T6-C4T31-10-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB040-T6-D4T30-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB040-T6-D4T30-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB040-T6-D4T30-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB040-T6-D4T30-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB040-T6-D4T30-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB040-T6-D4T30-9-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB040-T6-D4T30-10-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB040-T6-C4T50-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB040-T6-C4T50-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB040-T6-C4T50-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB040-T6-C4T50-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB040-T6-C4T50-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB040-PM5-C4T31-4-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB040-PM5-C4T31-5-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB040-PM5-C4T31-6-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB040-PM5-C4T31-7-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB040-PM5-C4T31-8-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB040-PM5-C4T31-9-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB040-PM5-C4T31-10-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB040-PM5-D4T30-4-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB040-PM5-D4T30-5-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB040-PM5-D4T30-6-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB040-PM5-D4T30-7-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB040-PM5-D4T30-8-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB040-PM5-D4T30-9-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB040-PM5-D4T30-10-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB040-PM5-C4T50-4-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB040-PM5-C4T50-5-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB040-PM5-C4T50-6-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB040-PM5-C4T50-7-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB040-PM5-C4T50-8-3		Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB040-PGS4-C4T31-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB040-PGS4-C4T31-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB040-PGS4-C4T31-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB040-PGS4-C4T31-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB040-PGS4-C4T31-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB040-PGS4-C4T31-9-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB040-PGS4-C4T31-10-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB040-PGS4-D4T30-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB040-PGS4-D4T30-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB040-PGS4-D4T30-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB040-PGS4-D4T30-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB040-PGS4-D4T30-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB040-PGS4-D4T30-9-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB040-PGS4-D4T30-10-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB040-PGS4-C4T50-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB040-PGS4-C4T50-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB040-PGS4-C4T50-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB040-PGS4-C4T50-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB040-PGS4-C4T50-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB040-PT4-C4T31-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB040-PT4-C4T31-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB040-PT4-C4T31-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB040-PT4-C4T31-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB040-PT4-C4T31-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB040-PT4-C4T31-9-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB040-PT4-C4T31-10-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB040-PT4-D4T30-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB040-PT4-D4T30-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB040-PT4-D4T30-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB040-PT4-D4T30-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB040-PT4-D4T30-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB040-PT4-D4T30-9-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB040-PT4-D4T30-10-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB040-PT4-C4T50-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB040-PT4-C4T50-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB040-PT4-C4T50-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB040-PT4-C4T50-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB040-PT4-C4T50-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB040-PT6-C4T31-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB040-PT6-C4T31-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB040-PT6-C4T31-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB040-PT6-C4T31-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB040-PT6-C4T31-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB040-PT6-C4T31-9-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB040-PT6-C4T31-10-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB040-PT6-D4T30-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB040-PT6-D4T30-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB040-PT6-D4T30-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB040-PT6-D4T30-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB040-PT6-D4T30-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB040-PT6-D4T30-9-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB040-PT6-D4T30-10-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB040-PT6-C4T50-4-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB040-PT6-C4T50-5-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB040-PT6-C4T50-6-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB040-PT6-C4T50-7-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB040-PT6-C4T50-8-3		Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB050-M5-C4T31-4-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB050-M5-C4T31-5-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB050-M5-C4T31-6-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB050-M5-C4T31-7-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB050-M5-C4T31-8-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB050-M5-C4T31-9-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB050-M5-C4T31-10-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB050-M5-D4T30-4-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB050-M5-D4T30-5-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB050-M5-D4T30-6-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB050-M5-D4T30-7-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB050-M5-D4T30-8-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB050-M5-D4T30-9-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB050-M5-D4T30-10-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB050-M5-C4T50-4-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB050-M5-C4T50-5-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB050-M5-C4T50-6-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB050-M5-C4T50-7-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB050-M5-C4T50-8-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB050-GS4-C4T31-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB050-GS4-C4T31-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB050-GS4-C4T31-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB050-GS4-C4T31-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB050-GS4-C4T31-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB050-GS4-C4T31-9-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB050-GS4-C4T31-10-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB050-GS4-D4T30-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB050-GS4-D4T30-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB050-GS4-D4T30-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB050-GS4-D4T30-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB050-GS4-D4T30-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB050-GS4-D4T30-9-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB050-GS4-D4T30-10-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB050-GS4-C4T50-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB050-GS4-C4T50-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB050-GS4-C4T50-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB050-GS4-C4T50-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB050-GS4-C4T50-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB050-T4-C4T31-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB050-T4-C4T31-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB050-T4-C4T31-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB050-T4-C4T31-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB050-T4-C4T31-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB050-T4-C4T31-9-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB050-T4-C4T31-10-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB050-T4-D4T30-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB050-T4-D4T30-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB050-T4-D4T30-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB050-T4-D4T30-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB050-T4-D4T30-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB050-T4-D4T30-9-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB050-T4-D4T30-10-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB050-T4-C4T50-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB050-T4-C4T50-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB050-T4-C4T50-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB050-T4-C4T50-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB050-T4-C4T50-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB050-T6-C4T31-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB050-T6-C4T31-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB050-T6-C4T31-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB050-T6-C4T31-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB050-T6-C4T31-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB050-T6-C4T31-9-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB050-T6-C4T31-10-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB050-T6-D4T30-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB050-T6-D4T30-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB050-T6-D4T30-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB050-T6-D4T30-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB050-T6-D4T30-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB050-T6-D4T30-9-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB050-T6-D4T30-10-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB050-T6-C4T50-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB050-T6-C4T50-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB050-T6-C4T50-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB050-T6-C4T50-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB050-T6-C4T50-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB050-PM5-C4T31-4-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB050-PM5-C4T31-5-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB050-PM5-C4T31-6-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB050-PM5-C4T31-7-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB050-PM5-C4T31-8-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB050-PM5-C4T31-9-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB050-PM5-C4T31-10-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB050-PM5-D4T30-4-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB050-PM5-D4T30-5-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB050-PM5-D4T30-6-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB050-PM5-D4T30-7-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB050-PM5-D4T30-8-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB050-PM5-D4T30-9-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB050-PM5-D4T30-10-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB050-PM5-C4T50-4-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB050-PM5-C4T50-5-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB050-PM5-C4T50-6-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB050-PM5-C4T50-7-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB050-PM5-C4T50-8-3		Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB050-PGS4-C4T31-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB050-PGS4-C4T31-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB050-PGS4-C4T31-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB050-PGS4-C4T31-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB050-PGS4-C4T31-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB050-PGS4-C4T31-9-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB050-PGS4-C4T31-10-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB050-PGS4-D4T30-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB050-PGS4-D4T30-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB050-PGS4-D4T30-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB050-PGS4-D4T30-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB050-PGS4-D4T30-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB050-PGS4-D4T30-9-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB050-PGS4-D4T30-10-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB050-PGS4-C4T50-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB050-PGS4-C4T50-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB050-PGS4-C4T50-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB050-PGS4-C4T50-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB050-PGS4-C4T50-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB050-PT4-C4T31-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB050-PT4-C4T31-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB050-PT4-C4T31-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB050-PT4-C4T31-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB050-PT4-C4T31-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB050-PT4-C4T31-9-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB050-PT4-C4T31-10-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB050-PT4-D4T30-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB050-PT4-D4T30-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB050-PT4-D4T30-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB050-PT4-D4T30-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB050-PT4-D4T30-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB050-PT4-D4T30-9-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB050-PT4-D4T30-10-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB050-PT4-C4T50-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB050-PT4-C4T50-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB050-PT4-C4T50-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB050-PT4-C4T50-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB050-PT4-C4T50-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
M4SB050-PT6-C4T31-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
M4SB050-PT6-C4T31-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
M4SB050-PT6-C4T31-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
M4SB050-PT6-C4T31-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
M4SB050-PT6-C4T31-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
M4SB050-PT6-C4T31-9-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
M4SB050-PT6-C4T31-10-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
M4SB050-PT6-D4T30-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
M4SB050-PT6-D4T30-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
M4SB050-PT6-D4T30-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
M4SB050-PT6-D4T30-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
M4SB050-PT6-D4T30-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
M4SB050-PT6-D4T30-9-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
M4SB050-PT6-D4T30-10-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
M4SB050-PT6-C4T50-4-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
M4SB050-PT6-C4T50-5-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
M4SB050-PT6-C4T50-6-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
M4SB050-PT6-C4T50-7-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
M4SB050-PT6-C4T50-8-3		Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
4SB019-00-C4-3		Switching: 2-pos single \| Port: Manifold valve (00) \| Wiring: C connector (T31/T50) \| Stations: -
4SB019-00-D4-3		Switching: 2-pos single \| Port: Manifold valve (00) \| Wiring: D connector (T30) \| Stations: -
4SB029-00-C4-3		Switching: 2-pos double \| Port: Manifold valve (00) \| Wiring: C connector (T31/T50) \| Stations: -
4SB029-00-D4-3		Switching: 2-pos double \| Port: Manifold valve (00) \| Wiring: D connector (T30) \| Stations: -
4SB039-00-C4-3		Switching: 3-pos all ports blocked \| Port: Manifold valve (00) \| Wiring: C connector (T31/T50) \| Stations: -
4SB039-00-D4-3		Switching: 3-pos all ports blocked \| Port: Manifold valve (00) \| Wiring: D connector (T30) \| Stations: -
4SB049-00-C4-3		Switching: 3-pos A-B-R connection \| Port: Manifold valve (00) \| Wiring: C connector (T31/T50) \| Stations: -
4SB049-00-D4-3		Switching: 3-pos A-B-R connection \| Port: Manifold valve (00) \| Wiring: D connector (T30) \| Stations: -
4SB059-00-C4-3		Switching: 3-pos P-A-B connection \| Port: Manifold valve (00) \| Wiring: C connector (T31/T50) \| Stations: -
4SB059-00-D4-3		Switching: 3-pos P-A-B connection \| Port: Manifold valve (00) \| Wiring: D connector (T30) \| Stations: -

Valve ManifoldsCKD

994 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD M4SB0 Wiring-Saving Manifold (D-Sub / Flat Cable)

Brand CKD·Valve Manifolds

Available part numbers (994)

M4SB010-M5-C4T31-4-3, M4SB010-M5-C4T31-5-3, M4SB010-M5-C4T31-6-3, M4SB010-M5-C4T31-7-3, M4SB010-M5-C4T31-8-3, M4SB010-M5-C4T31-9-3, M4SB010-M5-C4T31-10-3, M4SB010-M5-C4T31-11-3, M4SB010-M5-C4T31-12-3, M4SB010-M5-C4T31-13-3 + 984 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	M4SB010-M5-C4T31-4-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB010-M5-C4T31-5-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB010-M5-C4T31-6-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB010-M5-C4T31-7-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB010-M5-C4T31-8-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB010-M5-C4T31-9-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB010-M5-C4T31-10-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB010-M5-C4T31-11-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 11
	M4SB010-M5-C4T31-12-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 12
	M4SB010-M5-C4T31-13-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 13
	M4SB010-M5-C4T31-14-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 14
	M4SB010-M5-C4T31-15-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 15
	M4SB010-M5-C4T31-16-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 16
	M4SB010-M5-C4T31-17-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 17
	M4SB010-M5-C4T31-18-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 18
	M4SB010-M5-C4T31-19-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 19
	M4SB010-M5-C4T31-20-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 20
	M4SB010-M5-D4T30-4-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB010-M5-D4T30-5-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB010-M5-D4T30-6-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB010-M5-D4T30-7-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB010-M5-D4T30-8-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB010-M5-D4T30-9-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB010-M5-D4T30-10-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB010-M5-D4T30-11-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 11
	M4SB010-M5-D4T30-12-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 12
	M4SB010-M5-D4T30-13-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 13
	M4SB010-M5-D4T30-14-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 14
	M4SB010-M5-D4T30-15-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 15
	M4SB010-M5-D4T30-16-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 16
	M4SB010-M5-D4T30-17-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 17
	M4SB010-M5-D4T30-18-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 18
	M4SB010-M5-D4T30-19-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 19
	M4SB010-M5-D4T30-20-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 20
	M4SB010-M5-C4T50-4-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB010-M5-C4T50-5-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB010-M5-C4T50-6-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB010-M5-C4T50-7-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB010-M5-C4T50-8-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB010-M5-C4T50-9-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 9
	M4SB010-M5-C4T50-10-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 10
	M4SB010-M5-C4T50-11-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 11
	M4SB010-M5-C4T50-12-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 12
	M4SB010-M5-C4T50-13-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 13
	M4SB010-M5-C4T50-14-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 14
	M4SB010-M5-C4T50-15-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 15
	M4SB010-M5-C4T50-16-3	Switching: 2-pos single \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 16
	M4SB010-GS4-C4T31-4-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB010-GS4-C4T31-5-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB010-GS4-C4T31-6-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB010-GS4-C4T31-7-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB010-GS4-C4T31-8-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB010-GS4-C4T31-9-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB010-GS4-C4T31-10-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB010-GS4-C4T31-11-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 11
	M4SB010-GS4-C4T31-12-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 12
	M4SB010-GS4-C4T31-13-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 13
	M4SB010-GS4-C4T31-14-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 14
	M4SB010-GS4-C4T31-15-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 15
	M4SB010-GS4-C4T31-16-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 16
	M4SB010-GS4-C4T31-17-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 17
	M4SB010-GS4-C4T31-18-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 18
	M4SB010-GS4-C4T31-19-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 19
	M4SB010-GS4-C4T31-20-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 20
	M4SB010-GS4-D4T30-4-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB010-GS4-D4T30-5-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB010-GS4-D4T30-6-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB010-GS4-D4T30-7-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB010-GS4-D4T30-8-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB010-GS4-D4T30-9-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB010-GS4-D4T30-10-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB010-GS4-D4T30-11-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 11
	M4SB010-GS4-D4T30-12-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 12
	M4SB010-GS4-D4T30-13-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 13
	M4SB010-GS4-D4T30-14-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 14
	M4SB010-GS4-D4T30-15-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 15
	M4SB010-GS4-D4T30-16-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 16
	M4SB010-GS4-D4T30-17-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 17
	M4SB010-GS4-D4T30-18-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 18
	M4SB010-GS4-D4T30-19-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 19
	M4SB010-GS4-D4T30-20-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 20
	M4SB010-GS4-C4T50-4-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB010-GS4-C4T50-5-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB010-GS4-C4T50-6-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB010-GS4-C4T50-7-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB010-GS4-C4T50-8-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB010-GS4-C4T50-9-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 9
	M4SB010-GS4-C4T50-10-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 10
	M4SB010-GS4-C4T50-11-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 11
	M4SB010-GS4-C4T50-12-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 12
	M4SB010-GS4-C4T50-13-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 13
	M4SB010-GS4-C4T50-14-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 14
	M4SB010-GS4-C4T50-15-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 15
	M4SB010-GS4-C4T50-16-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 16
	M4SB010-T4-C4T31-4-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB010-T4-C4T31-5-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB010-T4-C4T31-6-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB010-T4-C4T31-7-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB010-T4-C4T31-8-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB010-T4-C4T31-9-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB010-T4-C4T31-10-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB010-T4-C4T31-11-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 11
	M4SB010-T4-C4T31-12-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 12
	M4SB010-T4-C4T31-13-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 13
	M4SB010-T4-C4T31-14-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 14
	M4SB010-T4-C4T31-15-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 15
	M4SB010-T4-C4T31-16-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 16
	M4SB010-T4-C4T31-17-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 17
	M4SB010-T4-C4T31-18-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 18
	M4SB010-T4-C4T31-19-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 19
	M4SB010-T4-C4T31-20-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 20
	M4SB010-T4-D4T30-4-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB010-T4-D4T30-5-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB010-T4-D4T30-6-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB010-T4-D4T30-7-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB010-T4-D4T30-8-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB010-T4-D4T30-9-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB010-T4-D4T30-10-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB010-T4-D4T30-11-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 11
	M4SB010-T4-D4T30-12-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 12
	M4SB010-T4-D4T30-13-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 13
	M4SB010-T4-D4T30-14-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 14
	M4SB010-T4-D4T30-15-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 15
	M4SB010-T4-D4T30-16-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 16
	M4SB010-T4-D4T30-17-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 17
	M4SB010-T4-D4T30-18-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 18
	M4SB010-T4-D4T30-19-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 19
	M4SB010-T4-D4T30-20-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 20
	M4SB010-T4-C4T50-4-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB010-T4-C4T50-5-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB010-T4-C4T50-6-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB010-T4-C4T50-7-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB010-T4-C4T50-8-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB010-T4-C4T50-9-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 9
	M4SB010-T4-C4T50-10-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 10
	M4SB010-T4-C4T50-11-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 11
	M4SB010-T4-C4T50-12-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 12
	M4SB010-T4-C4T50-13-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 13
	M4SB010-T4-C4T50-14-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 14
	M4SB010-T4-C4T50-15-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 15
	M4SB010-T4-C4T50-16-3	Switching: 2-pos single \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 16
	M4SB010-T6-C4T31-4-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB010-T6-C4T31-5-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB010-T6-C4T31-6-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB010-T6-C4T31-7-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB010-T6-C4T31-8-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB010-T6-C4T31-9-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB010-T6-C4T31-10-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB010-T6-C4T31-11-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 11
	M4SB010-T6-C4T31-12-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 12
	M4SB010-T6-C4T31-13-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 13
	M4SB010-T6-C4T31-14-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 14
	M4SB010-T6-C4T31-15-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 15
	M4SB010-T6-C4T31-16-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 16
	M4SB010-T6-C4T31-17-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 17
	M4SB010-T6-C4T31-18-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 18
	M4SB010-T6-C4T31-19-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 19
	M4SB010-T6-C4T31-20-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 20
	M4SB010-T6-D4T30-4-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB010-T6-D4T30-5-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB010-T6-D4T30-6-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB010-T6-D4T30-7-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB010-T6-D4T30-8-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB010-T6-D4T30-9-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB010-T6-D4T30-10-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB010-T6-D4T30-11-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 11
	M4SB010-T6-D4T30-12-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 12
	M4SB010-T6-D4T30-13-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 13
	M4SB010-T6-D4T30-14-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 14
	M4SB010-T6-D4T30-15-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 15
	M4SB010-T6-D4T30-16-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 16
	M4SB010-T6-D4T30-17-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 17
	M4SB010-T6-D4T30-18-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 18
	M4SB010-T6-D4T30-19-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 19
	M4SB010-T6-D4T30-20-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 20
	M4SB010-T6-C4T50-4-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB010-T6-C4T50-5-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB010-T6-C4T50-6-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB010-T6-C4T50-7-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB010-T6-C4T50-8-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB010-T6-C4T50-9-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 9
	M4SB010-T6-C4T50-10-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 10
	M4SB010-T6-C4T50-11-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 11
	M4SB010-T6-C4T50-12-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 12
	M4SB010-T6-C4T50-13-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 13
	M4SB010-T6-C4T50-14-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 14
	M4SB010-T6-C4T50-15-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 15
	M4SB010-T6-C4T50-16-3	Switching: 2-pos single \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 16
	M4SB010-PM5-C4T31-4-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB010-PM5-C4T31-5-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB010-PM5-C4T31-6-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB010-PM5-C4T31-7-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB010-PM5-C4T31-8-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB010-PM5-C4T31-9-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB010-PM5-C4T31-10-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB010-PM5-C4T31-11-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 11
	M4SB010-PM5-C4T31-12-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 12
	M4SB010-PM5-C4T31-13-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 13
	M4SB010-PM5-C4T31-14-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 14
	M4SB010-PM5-C4T31-15-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 15
	M4SB010-PM5-C4T31-16-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 16
	M4SB010-PM5-C4T31-17-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 17
	M4SB010-PM5-C4T31-18-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 18
	M4SB010-PM5-C4T31-19-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 19
	M4SB010-PM5-C4T31-20-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 20
	M4SB010-PM5-D4T30-4-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB010-PM5-D4T30-5-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB010-PM5-D4T30-6-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB010-PM5-D4T30-7-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB010-PM5-D4T30-8-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB010-PM5-D4T30-9-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB010-PM5-D4T30-10-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB010-PM5-D4T30-11-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 11
	M4SB010-PM5-D4T30-12-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 12
	M4SB010-PM5-D4T30-13-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 13
	M4SB010-PM5-D4T30-14-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 14
	M4SB010-PM5-D4T30-15-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 15
	M4SB010-PM5-D4T30-16-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 16
	M4SB010-PM5-D4T30-17-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 17
	M4SB010-PM5-D4T30-18-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 18
	M4SB010-PM5-D4T30-19-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 19
	M4SB010-PM5-D4T30-20-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 20
	M4SB010-PM5-C4T50-4-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB010-PM5-C4T50-5-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB010-PM5-C4T50-6-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB010-PM5-C4T50-7-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB010-PM5-C4T50-8-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB010-PM5-C4T50-9-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 9
	M4SB010-PM5-C4T50-10-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 10
	M4SB010-PM5-C4T50-11-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 11
	M4SB010-PM5-C4T50-12-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 12
	M4SB010-PM5-C4T50-13-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 13
	M4SB010-PM5-C4T50-14-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 14
	M4SB010-PM5-C4T50-15-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 15
	M4SB010-PM5-C4T50-16-3	Switching: 2-pos single \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 16
	M4SB010-PGS4-C4T31-4-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB010-PGS4-C4T31-5-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB010-PGS4-C4T31-6-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB010-PGS4-C4T31-7-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB010-PGS4-C4T31-8-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB010-PGS4-C4T31-9-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB010-PGS4-C4T31-10-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB010-PGS4-C4T31-11-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 11
	M4SB010-PGS4-C4T31-12-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 12
	M4SB010-PGS4-C4T31-13-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 13
	M4SB010-PGS4-C4T31-14-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 14
	M4SB010-PGS4-C4T31-15-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 15
	M4SB010-PGS4-C4T31-16-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 16
	M4SB010-PGS4-C4T31-17-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 17
	M4SB010-PGS4-C4T31-18-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 18
	M4SB010-PGS4-C4T31-19-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 19
	M4SB010-PGS4-C4T31-20-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 20
	M4SB010-PGS4-D4T30-4-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB010-PGS4-D4T30-5-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB010-PGS4-D4T30-6-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB010-PGS4-D4T30-7-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB010-PGS4-D4T30-8-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB010-PGS4-D4T30-9-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB010-PGS4-D4T30-10-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB010-PGS4-D4T30-11-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 11
	M4SB010-PGS4-D4T30-12-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 12
	M4SB010-PGS4-D4T30-13-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 13
	M4SB010-PGS4-D4T30-14-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 14
	M4SB010-PGS4-D4T30-15-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 15
	M4SB010-PGS4-D4T30-16-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 16
	M4SB010-PGS4-D4T30-17-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 17
	M4SB010-PGS4-D4T30-18-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 18
	M4SB010-PGS4-D4T30-19-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 19
	M4SB010-PGS4-D4T30-20-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 20
	M4SB010-PGS4-C4T50-4-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB010-PGS4-C4T50-5-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB010-PGS4-C4T50-6-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB010-PGS4-C4T50-7-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB010-PGS4-C4T50-8-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB010-PGS4-C4T50-9-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 9
	M4SB010-PGS4-C4T50-10-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 10
	M4SB010-PGS4-C4T50-11-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 11
	M4SB010-PGS4-C4T50-12-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 12
	M4SB010-PGS4-C4T50-13-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 13
	M4SB010-PGS4-C4T50-14-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 14
	M4SB010-PGS4-C4T50-15-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 15
	M4SB010-PGS4-C4T50-16-3	Switching: 2-pos single \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 16
	M4SB010-PT4-C4T31-4-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB010-PT4-C4T31-5-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB010-PT4-C4T31-6-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB010-PT4-C4T31-7-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB010-PT4-C4T31-8-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB010-PT4-C4T31-9-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB010-PT4-C4T31-10-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB010-PT4-C4T31-11-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 11
	M4SB010-PT4-C4T31-12-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 12
	M4SB010-PT4-C4T31-13-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 13
	M4SB010-PT4-C4T31-14-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 14
	M4SB010-PT4-C4T31-15-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 15
	M4SB010-PT4-C4T31-16-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 16
	M4SB010-PT4-C4T31-17-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 17
	M4SB010-PT4-C4T31-18-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 18
	M4SB010-PT4-C4T31-19-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 19
	M4SB010-PT4-C4T31-20-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 20
	M4SB010-PT4-D4T30-4-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB010-PT4-D4T30-5-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB010-PT4-D4T30-6-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB010-PT4-D4T30-7-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB010-PT4-D4T30-8-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB010-PT4-D4T30-9-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB010-PT4-D4T30-10-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB010-PT4-D4T30-11-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 11
	M4SB010-PT4-D4T30-12-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 12
	M4SB010-PT4-D4T30-13-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 13
	M4SB010-PT4-D4T30-14-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 14
	M4SB010-PT4-D4T30-15-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 15
	M4SB010-PT4-D4T30-16-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 16
	M4SB010-PT4-D4T30-17-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 17
	M4SB010-PT4-D4T30-18-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 18
	M4SB010-PT4-D4T30-19-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 19
	M4SB010-PT4-D4T30-20-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 20
	M4SB010-PT4-C4T50-4-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB010-PT4-C4T50-5-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB010-PT4-C4T50-6-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB010-PT4-C4T50-7-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB010-PT4-C4T50-8-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB010-PT4-C4T50-9-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 9
	M4SB010-PT4-C4T50-10-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 10
	M4SB010-PT4-C4T50-11-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 11
	M4SB010-PT4-C4T50-12-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 12
	M4SB010-PT4-C4T50-13-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 13
	M4SB010-PT4-C4T50-14-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 14
	M4SB010-PT4-C4T50-15-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 15
	M4SB010-PT4-C4T50-16-3	Switching: 2-pos single \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 16
	M4SB010-PT6-C4T31-4-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB010-PT6-C4T31-5-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB010-PT6-C4T31-6-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB010-PT6-C4T31-7-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB010-PT6-C4T31-8-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB010-PT6-C4T31-9-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB010-PT6-C4T31-10-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB010-PT6-C4T31-11-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 11
	M4SB010-PT6-C4T31-12-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 12
	M4SB010-PT6-C4T31-13-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 13
	M4SB010-PT6-C4T31-14-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 14
	M4SB010-PT6-C4T31-15-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 15
	M4SB010-PT6-C4T31-16-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 16
	M4SB010-PT6-C4T31-17-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 17
	M4SB010-PT6-C4T31-18-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 18
	M4SB010-PT6-C4T31-19-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 19
	M4SB010-PT6-C4T31-20-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 20
	M4SB010-PT6-D4T30-4-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB010-PT6-D4T30-5-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB010-PT6-D4T30-6-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB010-PT6-D4T30-7-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB010-PT6-D4T30-8-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB010-PT6-D4T30-9-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB010-PT6-D4T30-10-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB010-PT6-D4T30-11-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 11
	M4SB010-PT6-D4T30-12-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 12
	M4SB010-PT6-D4T30-13-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 13
	M4SB010-PT6-D4T30-14-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 14
	M4SB010-PT6-D4T30-15-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 15
	M4SB010-PT6-D4T30-16-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 16
	M4SB010-PT6-D4T30-17-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 17
	M4SB010-PT6-D4T30-18-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 18
	M4SB010-PT6-D4T30-19-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 19
	M4SB010-PT6-D4T30-20-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 20
	M4SB010-PT6-C4T50-4-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB010-PT6-C4T50-5-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB010-PT6-C4T50-6-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB010-PT6-C4T50-7-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB010-PT6-C4T50-8-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB010-PT6-C4T50-9-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 9
	M4SB010-PT6-C4T50-10-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 10
	M4SB010-PT6-C4T50-11-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 11
	M4SB010-PT6-C4T50-12-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 12
	M4SB010-PT6-C4T50-13-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 13
	M4SB010-PT6-C4T50-14-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 14
	M4SB010-PT6-C4T50-15-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 15
	M4SB010-PT6-C4T50-16-3	Switching: 2-pos single \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 16
	M4SB020-M5-C4T31-4-3	Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB020-M5-C4T31-5-3	Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB020-M5-C4T31-6-3	Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB020-M5-C4T31-7-3	Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB020-M5-C4T31-8-3	Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB020-M5-C4T31-9-3	Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB020-M5-C4T31-10-3	Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB020-M5-D4T30-4-3	Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB020-M5-D4T30-5-3	Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB020-M5-D4T30-6-3	Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB020-M5-D4T30-7-3	Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB020-M5-D4T30-8-3	Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB020-M5-D4T30-9-3	Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB020-M5-D4T30-10-3	Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB020-M5-C4T50-4-3	Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB020-M5-C4T50-5-3	Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB020-M5-C4T50-6-3	Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB020-M5-C4T50-7-3	Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB020-M5-C4T50-8-3	Switching: 2-pos double \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB020-GS4-C4T31-4-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB020-GS4-C4T31-5-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB020-GS4-C4T31-6-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB020-GS4-C4T31-7-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB020-GS4-C4T31-8-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB020-GS4-C4T31-9-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB020-GS4-C4T31-10-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB020-GS4-D4T30-4-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB020-GS4-D4T30-5-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB020-GS4-D4T30-6-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB020-GS4-D4T30-7-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB020-GS4-D4T30-8-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB020-GS4-D4T30-9-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB020-GS4-D4T30-10-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB020-GS4-C4T50-4-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB020-GS4-C4T50-5-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB020-GS4-C4T50-6-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB020-GS4-C4T50-7-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB020-GS4-C4T50-8-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB020-T4-C4T31-4-3	Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB020-T4-C4T31-5-3	Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB020-T4-C4T31-6-3	Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB020-T4-C4T31-7-3	Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB020-T4-C4T31-8-3	Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB020-T4-C4T31-9-3	Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB020-T4-C4T31-10-3	Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB020-T4-D4T30-4-3	Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB020-T4-D4T30-5-3	Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB020-T4-D4T30-6-3	Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB020-T4-D4T30-7-3	Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB020-T4-D4T30-8-3	Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB020-T4-D4T30-9-3	Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB020-T4-D4T30-10-3	Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB020-T4-C4T50-4-3	Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB020-T4-C4T50-5-3	Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB020-T4-C4T50-6-3	Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB020-T4-C4T50-7-3	Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB020-T4-C4T50-8-3	Switching: 2-pos double \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB020-T6-C4T31-4-3	Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB020-T6-C4T31-5-3	Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB020-T6-C4T31-6-3	Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB020-T6-C4T31-7-3	Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB020-T6-C4T31-8-3	Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB020-T6-C4T31-9-3	Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB020-T6-C4T31-10-3	Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB020-T6-D4T30-4-3	Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB020-T6-D4T30-5-3	Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB020-T6-D4T30-6-3	Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB020-T6-D4T30-7-3	Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB020-T6-D4T30-8-3	Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB020-T6-D4T30-9-3	Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB020-T6-D4T30-10-3	Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB020-T6-C4T50-4-3	Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB020-T6-C4T50-5-3	Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB020-T6-C4T50-6-3	Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB020-T6-C4T50-7-3	Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB020-T6-C4T50-8-3	Switching: 2-pos double \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB020-PM5-C4T31-4-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB020-PM5-C4T31-5-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB020-PM5-C4T31-6-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB020-PM5-C4T31-7-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB020-PM5-C4T31-8-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB020-PM5-C4T31-9-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB020-PM5-C4T31-10-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB020-PM5-D4T30-4-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB020-PM5-D4T30-5-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB020-PM5-D4T30-6-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB020-PM5-D4T30-7-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB020-PM5-D4T30-8-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB020-PM5-D4T30-9-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB020-PM5-D4T30-10-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB020-PM5-C4T50-4-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB020-PM5-C4T50-5-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB020-PM5-C4T50-6-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB020-PM5-C4T50-7-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB020-PM5-C4T50-8-3	Switching: 2-pos double \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB020-PGS4-C4T31-4-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB020-PGS4-C4T31-5-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB020-PGS4-C4T31-6-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB020-PGS4-C4T31-7-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB020-PGS4-C4T31-8-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB020-PGS4-C4T31-9-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB020-PGS4-C4T31-10-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB020-PGS4-D4T30-4-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB020-PGS4-D4T30-5-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB020-PGS4-D4T30-6-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB020-PGS4-D4T30-7-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB020-PGS4-D4T30-8-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB020-PGS4-D4T30-9-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB020-PGS4-D4T30-10-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB020-PGS4-C4T50-4-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB020-PGS4-C4T50-5-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB020-PGS4-C4T50-6-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB020-PGS4-C4T50-7-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB020-PGS4-C4T50-8-3	Switching: 2-pos double \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB020-PT4-C4T31-4-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB020-PT4-C4T31-5-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB020-PT4-C4T31-6-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB020-PT4-C4T31-7-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB020-PT4-C4T31-8-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB020-PT4-C4T31-9-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB020-PT4-C4T31-10-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB020-PT4-D4T30-4-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB020-PT4-D4T30-5-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB020-PT4-D4T30-6-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB020-PT4-D4T30-7-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB020-PT4-D4T30-8-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB020-PT4-D4T30-9-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB020-PT4-D4T30-10-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB020-PT4-C4T50-4-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB020-PT4-C4T50-5-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB020-PT4-C4T50-6-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB020-PT4-C4T50-7-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB020-PT4-C4T50-8-3	Switching: 2-pos double \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB020-PT6-C4T31-4-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB020-PT6-C4T31-5-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB020-PT6-C4T31-6-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB020-PT6-C4T31-7-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB020-PT6-C4T31-8-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB020-PT6-C4T31-9-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB020-PT6-C4T31-10-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB020-PT6-D4T30-4-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB020-PT6-D4T30-5-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB020-PT6-D4T30-6-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB020-PT6-D4T30-7-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB020-PT6-D4T30-8-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB020-PT6-D4T30-9-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB020-PT6-D4T30-10-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB020-PT6-C4T50-4-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB020-PT6-C4T50-5-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB020-PT6-C4T50-6-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB020-PT6-C4T50-7-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB020-PT6-C4T50-8-3	Switching: 2-pos double \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB030-M5-C4T31-4-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB030-M5-C4T31-5-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB030-M5-C4T31-6-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB030-M5-C4T31-7-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB030-M5-C4T31-8-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB030-M5-C4T31-9-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB030-M5-C4T31-10-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB030-M5-D4T30-4-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB030-M5-D4T30-5-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB030-M5-D4T30-6-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB030-M5-D4T30-7-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB030-M5-D4T30-8-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB030-M5-D4T30-9-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB030-M5-D4T30-10-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB030-M5-C4T50-4-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB030-M5-C4T50-5-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB030-M5-C4T50-6-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB030-M5-C4T50-7-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB030-M5-C4T50-8-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB030-GS4-C4T31-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB030-GS4-C4T31-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB030-GS4-C4T31-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB030-GS4-C4T31-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB030-GS4-C4T31-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB030-GS4-C4T31-9-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB030-GS4-C4T31-10-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB030-GS4-D4T30-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB030-GS4-D4T30-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB030-GS4-D4T30-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB030-GS4-D4T30-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB030-GS4-D4T30-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB030-GS4-D4T30-9-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB030-GS4-D4T30-10-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB030-GS4-C4T50-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB030-GS4-C4T50-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB030-GS4-C4T50-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB030-GS4-C4T50-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB030-GS4-C4T50-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB030-T4-C4T31-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB030-T4-C4T31-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB030-T4-C4T31-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB030-T4-C4T31-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB030-T4-C4T31-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB030-T4-C4T31-9-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB030-T4-C4T31-10-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB030-T4-D4T30-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB030-T4-D4T30-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB030-T4-D4T30-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB030-T4-D4T30-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB030-T4-D4T30-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB030-T4-D4T30-9-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB030-T4-D4T30-10-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB030-T4-C4T50-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB030-T4-C4T50-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB030-T4-C4T50-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB030-T4-C4T50-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB030-T4-C4T50-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB030-T6-C4T31-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB030-T6-C4T31-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB030-T6-C4T31-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB030-T6-C4T31-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB030-T6-C4T31-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB030-T6-C4T31-9-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB030-T6-C4T31-10-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB030-T6-D4T30-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB030-T6-D4T30-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB030-T6-D4T30-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB030-T6-D4T30-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB030-T6-D4T30-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB030-T6-D4T30-9-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB030-T6-D4T30-10-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB030-T6-C4T50-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB030-T6-C4T50-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB030-T6-C4T50-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB030-T6-C4T50-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB030-T6-C4T50-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB030-PM5-C4T31-4-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB030-PM5-C4T31-5-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB030-PM5-C4T31-6-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB030-PM5-C4T31-7-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB030-PM5-C4T31-8-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB030-PM5-C4T31-9-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB030-PM5-C4T31-10-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB030-PM5-D4T30-4-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB030-PM5-D4T30-5-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB030-PM5-D4T30-6-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB030-PM5-D4T30-7-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB030-PM5-D4T30-8-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB030-PM5-D4T30-9-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB030-PM5-D4T30-10-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB030-PM5-C4T50-4-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB030-PM5-C4T50-5-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB030-PM5-C4T50-6-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB030-PM5-C4T50-7-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB030-PM5-C4T50-8-3	Switching: 3-pos all ports blocked \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB030-PGS4-C4T31-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB030-PGS4-C4T31-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB030-PGS4-C4T31-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB030-PGS4-C4T31-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB030-PGS4-C4T31-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB030-PGS4-C4T31-9-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB030-PGS4-C4T31-10-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB030-PGS4-D4T30-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB030-PGS4-D4T30-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB030-PGS4-D4T30-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB030-PGS4-D4T30-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB030-PGS4-D4T30-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB030-PGS4-D4T30-9-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB030-PGS4-D4T30-10-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB030-PGS4-C4T50-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB030-PGS4-C4T50-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB030-PGS4-C4T50-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB030-PGS4-C4T50-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB030-PGS4-C4T50-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB030-PT4-C4T31-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB030-PT4-C4T31-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB030-PT4-C4T31-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB030-PT4-C4T31-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB030-PT4-C4T31-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB030-PT4-C4T31-9-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB030-PT4-C4T31-10-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB030-PT4-D4T30-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB030-PT4-D4T30-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB030-PT4-D4T30-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB030-PT4-D4T30-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB030-PT4-D4T30-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB030-PT4-D4T30-9-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB030-PT4-D4T30-10-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB030-PT4-C4T50-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB030-PT4-C4T50-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB030-PT4-C4T50-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB030-PT4-C4T50-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB030-PT4-C4T50-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB030-PT6-C4T31-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB030-PT6-C4T31-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB030-PT6-C4T31-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB030-PT6-C4T31-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB030-PT6-C4T31-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB030-PT6-C4T31-9-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB030-PT6-C4T31-10-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB030-PT6-D4T30-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB030-PT6-D4T30-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB030-PT6-D4T30-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB030-PT6-D4T30-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB030-PT6-D4T30-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB030-PT6-D4T30-9-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB030-PT6-D4T30-10-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB030-PT6-C4T50-4-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB030-PT6-C4T50-5-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB030-PT6-C4T50-6-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB030-PT6-C4T50-7-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB030-PT6-C4T50-8-3	Switching: 3-pos all ports blocked \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB040-M5-C4T31-4-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB040-M5-C4T31-5-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB040-M5-C4T31-6-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB040-M5-C4T31-7-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB040-M5-C4T31-8-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB040-M5-C4T31-9-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB040-M5-C4T31-10-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB040-M5-D4T30-4-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB040-M5-D4T30-5-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB040-M5-D4T30-6-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB040-M5-D4T30-7-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB040-M5-D4T30-8-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB040-M5-D4T30-9-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB040-M5-D4T30-10-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB040-M5-C4T50-4-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB040-M5-C4T50-5-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB040-M5-C4T50-6-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB040-M5-C4T50-7-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB040-M5-C4T50-8-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB040-GS4-C4T31-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB040-GS4-C4T31-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB040-GS4-C4T31-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB040-GS4-C4T31-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB040-GS4-C4T31-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB040-GS4-C4T31-9-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB040-GS4-C4T31-10-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB040-GS4-D4T30-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB040-GS4-D4T30-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB040-GS4-D4T30-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB040-GS4-D4T30-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB040-GS4-D4T30-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB040-GS4-D4T30-9-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB040-GS4-D4T30-10-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB040-GS4-C4T50-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB040-GS4-C4T50-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB040-GS4-C4T50-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB040-GS4-C4T50-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB040-GS4-C4T50-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB040-T4-C4T31-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB040-T4-C4T31-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB040-T4-C4T31-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB040-T4-C4T31-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB040-T4-C4T31-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB040-T4-C4T31-9-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB040-T4-C4T31-10-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB040-T4-D4T30-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB040-T4-D4T30-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB040-T4-D4T30-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB040-T4-D4T30-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB040-T4-D4T30-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB040-T4-D4T30-9-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB040-T4-D4T30-10-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB040-T4-C4T50-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB040-T4-C4T50-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB040-T4-C4T50-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB040-T4-C4T50-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB040-T4-C4T50-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB040-T6-C4T31-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB040-T6-C4T31-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB040-T6-C4T31-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB040-T6-C4T31-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB040-T6-C4T31-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB040-T6-C4T31-9-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB040-T6-C4T31-10-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB040-T6-D4T30-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB040-T6-D4T30-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB040-T6-D4T30-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB040-T6-D4T30-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB040-T6-D4T30-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB040-T6-D4T30-9-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB040-T6-D4T30-10-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB040-T6-C4T50-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB040-T6-C4T50-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB040-T6-C4T50-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB040-T6-C4T50-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB040-T6-C4T50-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB040-PM5-C4T31-4-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB040-PM5-C4T31-5-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB040-PM5-C4T31-6-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB040-PM5-C4T31-7-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB040-PM5-C4T31-8-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB040-PM5-C4T31-9-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB040-PM5-C4T31-10-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB040-PM5-D4T30-4-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB040-PM5-D4T30-5-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB040-PM5-D4T30-6-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB040-PM5-D4T30-7-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB040-PM5-D4T30-8-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB040-PM5-D4T30-9-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB040-PM5-D4T30-10-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB040-PM5-C4T50-4-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB040-PM5-C4T50-5-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB040-PM5-C4T50-6-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB040-PM5-C4T50-7-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB040-PM5-C4T50-8-3	Switching: 3-pos A-B-R connection \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB040-PGS4-C4T31-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB040-PGS4-C4T31-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB040-PGS4-C4T31-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB040-PGS4-C4T31-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB040-PGS4-C4T31-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB040-PGS4-C4T31-9-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB040-PGS4-C4T31-10-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB040-PGS4-D4T30-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB040-PGS4-D4T30-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB040-PGS4-D4T30-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB040-PGS4-D4T30-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB040-PGS4-D4T30-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB040-PGS4-D4T30-9-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB040-PGS4-D4T30-10-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB040-PGS4-C4T50-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB040-PGS4-C4T50-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB040-PGS4-C4T50-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB040-PGS4-C4T50-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB040-PGS4-C4T50-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB040-PT4-C4T31-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB040-PT4-C4T31-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB040-PT4-C4T31-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB040-PT4-C4T31-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB040-PT4-C4T31-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB040-PT4-C4T31-9-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB040-PT4-C4T31-10-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB040-PT4-D4T30-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB040-PT4-D4T30-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB040-PT4-D4T30-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB040-PT4-D4T30-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB040-PT4-D4T30-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB040-PT4-D4T30-9-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB040-PT4-D4T30-10-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB040-PT4-C4T50-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB040-PT4-C4T50-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB040-PT4-C4T50-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB040-PT4-C4T50-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB040-PT4-C4T50-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB040-PT6-C4T31-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB040-PT6-C4T31-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB040-PT6-C4T31-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB040-PT6-C4T31-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB040-PT6-C4T31-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB040-PT6-C4T31-9-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB040-PT6-C4T31-10-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB040-PT6-D4T30-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB040-PT6-D4T30-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB040-PT6-D4T30-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB040-PT6-D4T30-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB040-PT6-D4T30-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB040-PT6-D4T30-9-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB040-PT6-D4T30-10-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB040-PT6-C4T50-4-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB040-PT6-C4T50-5-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB040-PT6-C4T50-6-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB040-PT6-C4T50-7-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB040-PT6-C4T50-8-3	Switching: 3-pos A-B-R connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB050-M5-C4T31-4-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB050-M5-C4T31-5-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB050-M5-C4T31-6-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB050-M5-C4T31-7-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB050-M5-C4T31-8-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB050-M5-C4T31-9-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB050-M5-C4T31-10-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB050-M5-D4T30-4-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB050-M5-D4T30-5-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB050-M5-D4T30-6-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB050-M5-D4T30-7-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB050-M5-D4T30-8-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB050-M5-D4T30-9-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB050-M5-D4T30-10-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB050-M5-C4T50-4-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB050-M5-C4T50-5-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB050-M5-C4T50-6-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB050-M5-C4T50-7-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB050-M5-C4T50-8-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB050-GS4-C4T31-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB050-GS4-C4T31-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB050-GS4-C4T31-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB050-GS4-C4T31-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB050-GS4-C4T31-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB050-GS4-C4T31-9-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB050-GS4-C4T31-10-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB050-GS4-D4T30-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB050-GS4-D4T30-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB050-GS4-D4T30-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB050-GS4-D4T30-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB050-GS4-D4T30-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB050-GS4-D4T30-9-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB050-GS4-D4T30-10-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB050-GS4-C4T50-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB050-GS4-C4T50-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB050-GS4-C4T50-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB050-GS4-C4T50-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB050-GS4-C4T50-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB050-T4-C4T31-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB050-T4-C4T31-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB050-T4-C4T31-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB050-T4-C4T31-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB050-T4-C4T31-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB050-T4-C4T31-9-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB050-T4-C4T31-10-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB050-T4-D4T30-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB050-T4-D4T30-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB050-T4-D4T30-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB050-T4-D4T30-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB050-T4-D4T30-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB050-T4-D4T30-9-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB050-T4-D4T30-10-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB050-T4-C4T50-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB050-T4-C4T50-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB050-T4-C4T50-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB050-T4-C4T50-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB050-T4-C4T50-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB050-T6-C4T31-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB050-T6-C4T31-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB050-T6-C4T31-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB050-T6-C4T31-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB050-T6-C4T31-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB050-T6-C4T31-9-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB050-T6-C4T31-10-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB050-T6-D4T30-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB050-T6-D4T30-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB050-T6-D4T30-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB050-T6-D4T30-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB050-T6-D4T30-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB050-T6-D4T30-9-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB050-T6-D4T30-10-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB050-T6-C4T50-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB050-T6-C4T50-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB050-T6-C4T50-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB050-T6-C4T50-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB050-T6-C4T50-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P M5 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB050-PM5-C4T31-4-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB050-PM5-C4T31-5-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB050-PM5-C4T31-6-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB050-PM5-C4T31-7-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB050-PM5-C4T31-8-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB050-PM5-C4T31-9-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB050-PM5-C4T31-10-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB050-PM5-D4T30-4-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB050-PM5-D4T30-5-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB050-PM5-D4T30-6-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB050-PM5-D4T30-7-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB050-PM5-D4T30-8-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB050-PM5-D4T30-9-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB050-PM5-D4T30-10-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB050-PM5-C4T50-4-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB050-PM5-C4T50-5-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB050-PM5-C4T50-6-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB050-PM5-C4T50-7-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB050-PM5-C4T50-8-3	Switching: 3-pos P-A-B connection \| Port: A/B M5, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB050-PGS4-C4T31-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB050-PGS4-C4T31-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB050-PGS4-C4T31-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB050-PGS4-C4T31-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB050-PGS4-C4T31-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB050-PGS4-C4T31-9-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB050-PGS4-C4T31-10-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB050-PGS4-D4T30-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB050-PGS4-D4T30-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB050-PGS4-D4T30-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB050-PGS4-D4T30-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB050-PGS4-D4T30-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB050-PGS4-D4T30-9-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB050-PGS4-D4T30-10-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB050-PGS4-C4T50-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB050-PGS4-C4T50-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB050-PGS4-C4T50-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB050-PGS4-C4T50-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB050-PGS4-C4T50-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 one-touch, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB050-PT4-C4T31-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB050-PT4-C4T31-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB050-PT4-C4T31-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB050-PT4-C4T31-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB050-PT4-C4T31-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB050-PT4-C4T31-9-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB050-PT4-C4T31-10-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB050-PT4-D4T30-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB050-PT4-D4T30-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB050-PT4-D4T30-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB050-PT4-D4T30-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB050-PT4-D4T30-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB050-PT4-D4T30-9-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB050-PT4-D4T30-10-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB050-PT4-C4T50-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB050-PT4-C4T50-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB050-PT4-C4T50-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB050-PT4-C4T50-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB050-PT4-C4T50-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø4 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
	M4SB050-PT6-C4T31-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 4
	M4SB050-PT6-C4T31-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 5
	M4SB050-PT6-C4T31-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 6
	M4SB050-PT6-C4T31-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 7
	M4SB050-PT6-C4T31-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 8
	M4SB050-PT6-C4T31-9-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 9
	M4SB050-PT6-C4T31-10-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, side direction (T31) \| Stations: 10
	M4SB050-PT6-D4T30-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 4
	M4SB050-PT6-D4T30-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 5
	M4SB050-PT6-D4T30-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 6
	M4SB050-PT6-D4T30-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 7
	M4SB050-PT6-D4T30-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 8
	M4SB050-PT6-D4T30-9-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 9
	M4SB050-PT6-D4T30-10-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: D-sub, up direction (T30) \| Stations: 10
	M4SB050-PT6-C4T50-4-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 4
	M4SB050-PT6-C4T50-5-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 5
	M4SB050-PT6-C4T50-6-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 6
	M4SB050-PT6-C4T50-7-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 7
	M4SB050-PT6-C4T50-8-3	Switching: 3-pos P-A-B connection \| Port: A/B ø6 barb, P Rc1/8 \| Wiring: Flat cable (T50) \| Stations: 8
	4SB019-00-C4-3	Switching: 2-pos single \| Port: Manifold valve (00) \| Wiring: C connector (T31/T50) \| Stations: -
	4SB019-00-D4-3	Switching: 2-pos single \| Port: Manifold valve (00) \| Wiring: D connector (T30) \| Stations: -
	4SB029-00-C4-3	Switching: 2-pos double \| Port: Manifold valve (00) \| Wiring: C connector (T31/T50) \| Stations: -
	4SB029-00-D4-3	Switching: 2-pos double \| Port: Manifold valve (00) \| Wiring: D connector (T30) \| Stations: -
	4SB039-00-C4-3	Switching: 3-pos all ports blocked \| Port: Manifold valve (00) \| Wiring: C connector (T31/T50) \| Stations: -
	4SB039-00-D4-3	Switching: 3-pos all ports blocked \| Port: Manifold valve (00) \| Wiring: D connector (T30) \| Stations: -
	4SB049-00-C4-3	Switching: 3-pos A-B-R connection \| Port: Manifold valve (00) \| Wiring: C connector (T31/T50) \| Stations: -
	4SB049-00-D4-3	Switching: 3-pos A-B-R connection \| Port: Manifold valve (00) \| Wiring: D connector (T30) \| Stations: -
	4SB059-00-C4-3	Switching: 3-pos P-A-B connection \| Port: Manifold valve (00) \| Wiring: C connector (T31/T50) \| Stations: -
	4SB059-00-D4-3	Switching: 3-pos P-A-B connection \| Port: Manifold valve (00) \| Wiring: D connector (T30) \| Stations: -

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD M4SB0 Wiring-Saving Manifold (D-Sub / Flat Cable)
