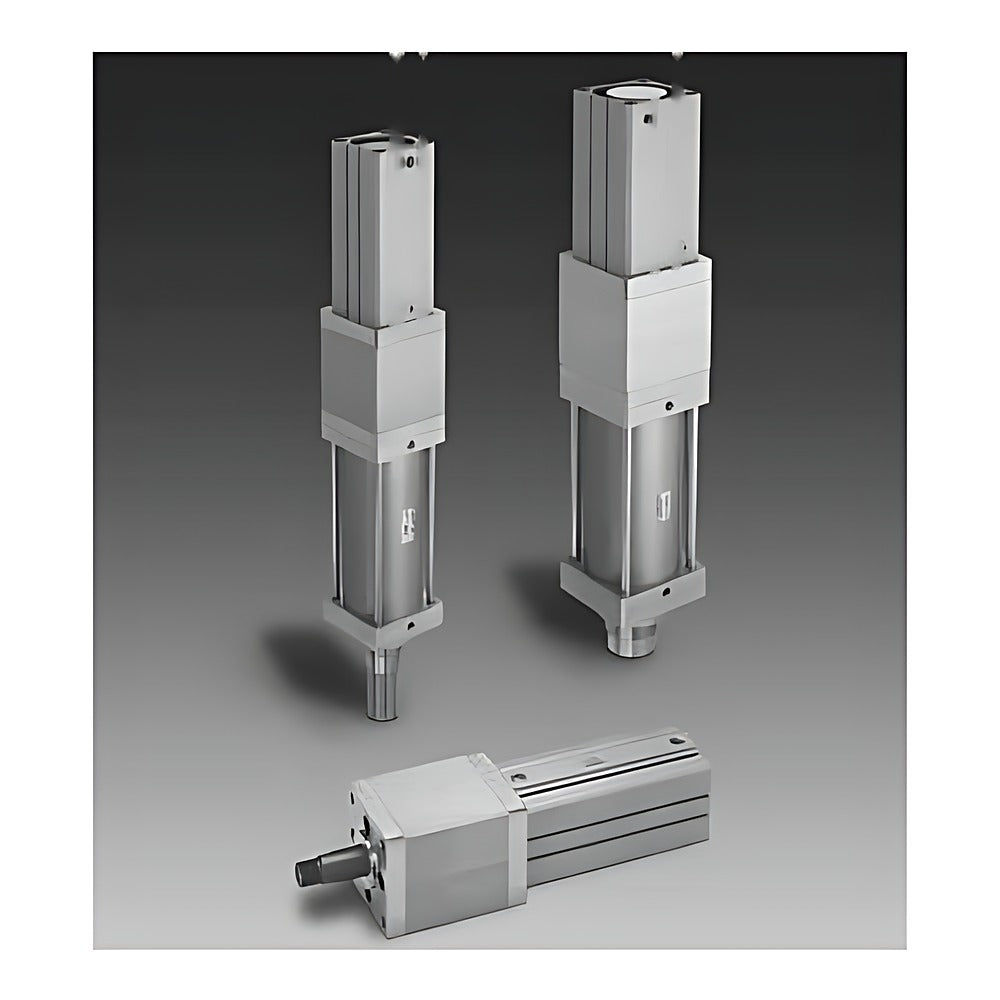

CKD MCP Mechanical Power Cylinder (2 t / 5 t Thrust)

CKD MCP Mechanical Power Cylinder (2 t / 5 t Thrust)

CKD MCP mechanical power cylinder that produces 2 t or 5 t effective thrust from shop air alone, combining high-speed feed with a mechanical boost stroke at any position.

Key features

  • 2 t or 5 t effective thrust (at 0.6 MPa) using compressed air only, no hydraulic unit or oil
  • MCP-W: high-speed feed plus boost at any position; MCP-S: boost section only
  • Boost in 10 mm steps by repeating boost-section pressurize/exhaust within the total stroke
  • Switch magnet built in; T-type switches (T0H, T2H, T3H, T2YH etc.) and switch qty appended to code
  • Female rod end standard; male thread rod end option N; mounting brackets assembled at shipment

Specifications

Fluid Compressed air
Action Feed: double acting; boost: single acting push
Operating pressure Feed 0.3-0.6 MPa; boost and MCP-S 0.2-0.6 MPa
Proof pressure 1.0 MPa
Ambient temperature -5 to 60 C (no freezing)
Boost stroke 10 (+5/0) mm
Port size Feed Rc1/4 (2 t), Rc3/8 (5 t); boost Rc3/8
Piston speed Feed 50-300 mm/s; boost 10-50 mm/s
Lubrication Not allowed
Source CKD Korea catalog CB-030SK-9, p. 1263-1279
MCP-W-00-2-50 Type: High-speed feed + boost (MCP-W) | Mounting: Basic | Effective thrust: 2 t | Total stroke: 50 mm
MCP-W-00-2-100 Type: High-speed feed + boost (MCP-W) | Mounting: Basic | Effective thrust: 2 t | Total stroke: 100 mm
MCP-W-00-2-150 Type: High-speed feed + boost (MCP-W) | Mounting: Basic | Effective thrust: 2 t | Total stroke: 150 mm
MCP-W-00-2-200 Type: High-speed feed + boost (MCP-W) | Mounting: Basic | Effective thrust: 2 t | Total stroke: 200 mm
MCP-W-00-2-250 Type: High-speed feed + boost (MCP-W) | Mounting: Basic | Effective thrust: 2 t | Total stroke: 250 mm
MCP-W-00-2-300 Type: High-speed feed + boost (MCP-W) | Mounting: Basic | Effective thrust: 2 t | Total stroke: 300 mm
MCP-W-00-2-350 Type: High-speed feed + boost (MCP-W) | Mounting: Basic | Effective thrust: 2 t | Total stroke: 350 mm
MCP-W-00-2-400 Type: High-speed feed + boost (MCP-W) | Mounting: Basic | Effective thrust: 2 t | Total stroke: 400 mm
MCP-W-00-2-450 Type: High-speed feed + boost (MCP-W) | Mounting: Basic | Effective thrust: 2 t | Total stroke: 450 mm
MCP-W-00-2-500 Type: High-speed feed + boost (MCP-W) | Mounting: Basic | Effective thrust: 2 t | Total stroke: 500 mm
MCP-S-00-2 Type: Boost section only (MCP-S) | Mounting: Basic | Effective thrust: 2 t | Total stroke: 10 mm boost (fixed)
MCP-W-00-5-50 Type: High-speed feed + boost (MCP-W) | Mounting: Basic | Effective thrust: 5 t | Total stroke: 50 mm
MCP-W-00-5-100 Type: High-speed feed + boost (MCP-W) | Mounting: Basic | Effective thrust: 5 t | Total stroke: 100 mm
MCP-W-00-5-150 Type: High-speed feed + boost (MCP-W) | Mounting: Basic | Effective thrust: 5 t | Total stroke: 150 mm
MCP-W-00-5-200 Type: High-speed feed + boost (MCP-W) | Mounting: Basic | Effective thrust: 5 t | Total stroke: 200 mm
MCP-W-00-5-250 Type: High-speed feed + boost (MCP-W) | Mounting: Basic | Effective thrust: 5 t | Total stroke: 250 mm
MCP-W-00-5-300 Type: High-speed feed + boost (MCP-W) | Mounting: Basic | Effective thrust: 5 t | Total stroke: 300 mm
MCP-W-00-5-350 Type: High-speed feed + boost (MCP-W) | Mounting: Basic | Effective thrust: 5 t | Total stroke: 350 mm
MCP-W-00-5-400 Type: High-speed feed + boost (MCP-W) | Mounting: Basic | Effective thrust: 5 t | Total stroke: 400 mm
MCP-W-00-5-450 Type: High-speed feed + boost (MCP-W) | Mounting: Basic | Effective thrust: 5 t | Total stroke: 450 mm
MCP-W-00-5-500 Type: High-speed feed + boost (MCP-W) | Mounting: Basic | Effective thrust: 5 t | Total stroke: 500 mm
MCP-S-00-5 Type: Boost section only (MCP-S) | Mounting: Basic | Effective thrust: 5 t | Total stroke: 10 mm boost (fixed)
MCP-W-FA-2-50 Type: High-speed feed + boost (MCP-W) | Mounting: Rod-end flange | Effective thrust: 2 t | Total stroke: 50 mm
MCP-W-FA-2-100 Type: High-speed feed + boost (MCP-W) | Mounting: Rod-end flange | Effective thrust: 2 t | Total stroke: 100 mm
MCP-W-FA-2-150 Type: High-speed feed + boost (MCP-W) | Mounting: Rod-end flange | Effective thrust: 2 t | Total stroke: 150 mm
MCP-W-FA-2-200 Type: High-speed feed + boost (MCP-W) | Mounting: Rod-end flange | Effective thrust: 2 t | Total stroke: 200 mm
MCP-W-FA-2-250 Type: High-speed feed + boost (MCP-W) | Mounting: Rod-end flange | Effective thrust: 2 t | Total stroke: 250 mm
MCP-W-FA-2-300 Type: High-speed feed + boost (MCP-W) | Mounting: Rod-end flange | Effective thrust: 2 t | Total stroke: 300 mm
MCP-W-FA-2-350 Type: High-speed feed + boost (MCP-W) | Mounting: Rod-end flange | Effective thrust: 2 t | Total stroke: 350 mm
MCP-W-FA-2-400 Type: High-speed feed + boost (MCP-W) | Mounting: Rod-end flange | Effective thrust: 2 t | Total stroke: 400 mm
MCP-W-FA-2-450 Type: High-speed feed + boost (MCP-W) | Mounting: Rod-end flange | Effective thrust: 2 t | Total stroke: 450 mm
MCP-W-FA-2-500 Type: High-speed feed + boost (MCP-W) | Mounting: Rod-end flange | Effective thrust: 2 t | Total stroke: 500 mm
MCP-S-FA-2 Type: Boost section only (MCP-S) | Mounting: Rod-end flange | Effective thrust: 2 t | Total stroke: 10 mm boost (fixed)
MCP-W-FA-5-50 Type: High-speed feed + boost (MCP-W) | Mounting: Rod-end flange | Effective thrust: 5 t | Total stroke: 50 mm
MCP-W-FA-5-100 Type: High-speed feed + boost (MCP-W) | Mounting: Rod-end flange | Effective thrust: 5 t | Total stroke: 100 mm
MCP-W-FA-5-150 Type: High-speed feed + boost (MCP-W) | Mounting: Rod-end flange | Effective thrust: 5 t | Total stroke: 150 mm
MCP-W-FA-5-200 Type: High-speed feed + boost (MCP-W) | Mounting: Rod-end flange | Effective thrust: 5 t | Total stroke: 200 mm
MCP-W-FA-5-250 Type: High-speed feed + boost (MCP-W) | Mounting: Rod-end flange | Effective thrust: 5 t | Total stroke: 250 mm
MCP-W-FA-5-300 Type: High-speed feed + boost (MCP-W) | Mounting: Rod-end flange | Effective thrust: 5 t | Total stroke: 300 mm
MCP-W-FA-5-350 Type: High-speed feed + boost (MCP-W) | Mounting: Rod-end flange | Effective thrust: 5 t | Total stroke: 350 mm
MCP-W-FA-5-400 Type: High-speed feed + boost (MCP-W) | Mounting: Rod-end flange | Effective thrust: 5 t | Total stroke: 400 mm
MCP-W-FA-5-450 Type: High-speed feed + boost (MCP-W) | Mounting: Rod-end flange | Effective thrust: 5 t | Total stroke: 450 mm
MCP-W-FA-5-500 Type: High-speed feed + boost (MCP-W) | Mounting: Rod-end flange | Effective thrust: 5 t | Total stroke: 500 mm
MCP-S-FA-5 Type: Boost section only (MCP-S) | Mounting: Rod-end flange | Effective thrust: 5 t | Total stroke: 10 mm boost (fixed)
