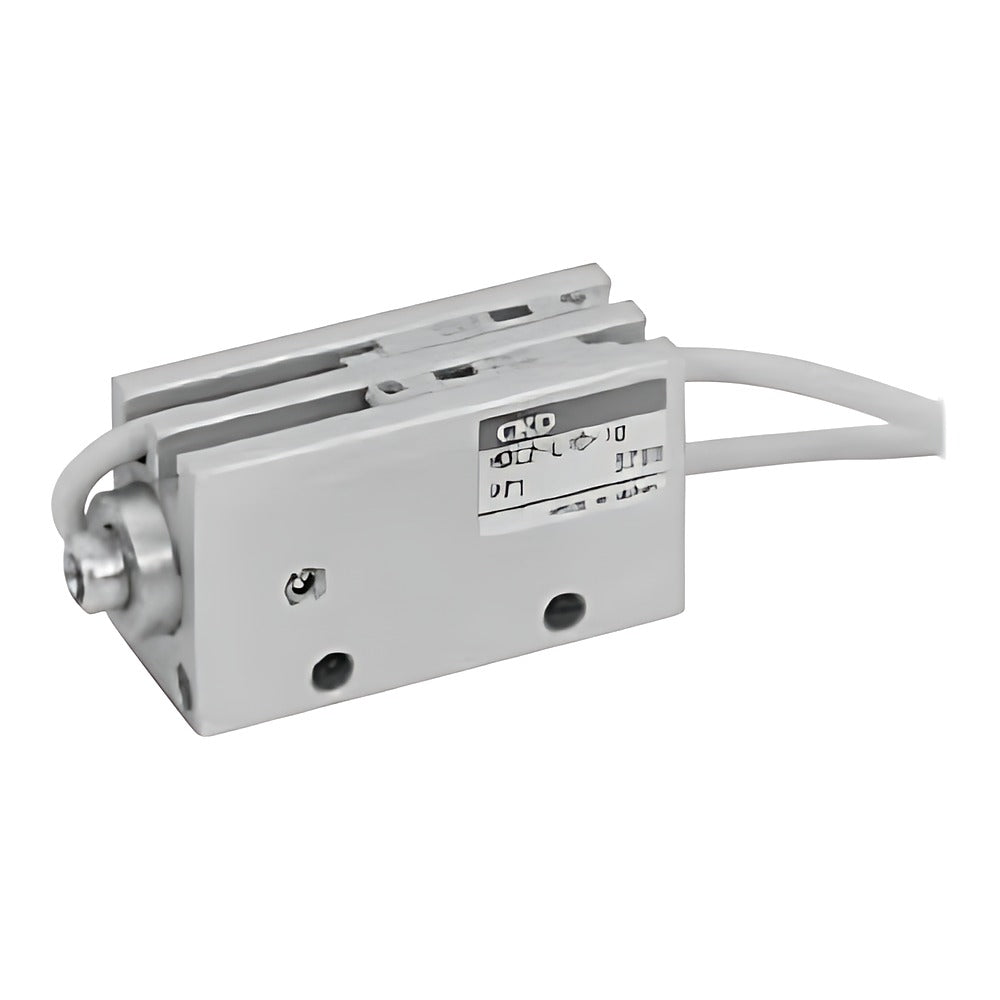

CKD MDC2-F Small Direct Mount Cylinder (Clean P7, Low Speed)

CKD MDC2-F Small Direct Mount Cylinder (Clean P7, Low Speed)

CKD MDC2-F clean-room small direct-mount cylinder, double-acting single rod, bore 6/8/10 mm, low-speed type.

Key features

  • Very short body for direct mounting, bore 6/8/10 mm, strokes 4-10 mm
  • Low-speed type: smooth piston speed from 1 mm/s
  • Clean spec P7 (exhaust treatment) or P71 (vacuum suction)
  • Switch-magnet model accepts F-type auto switches (F0/F2/F3/F2S/F3S/F2Y/F3Y/F3P)
  • Do not mount reed-switch models on magnetic material; use stainless bolts for MDC2-L-6
  • Non-standard strokes not available

Specifications

Operation Double-acting, single rod
Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.15 MPa (6, 8), 0.1 MPa (10)
Proof pressure 1.05 MPa
Ambient temperature 5 to 60 C
Port size M3 (6, 8), M5 (10)
Piston speed 1-200 mm/s
Cushion None
Lubrication Not allowed
Source CKD Korea catalog CB-033S-4, p. 73-78
MDC2-F-6-4-P7 Model: MDC2-F (no switch magnet) | Bore: 6 mm | Stroke: 4 mm | Clean spec: P7 exhaust treatment
MDC2-F-6-4-P71 Model: MDC2-F (no switch magnet) | Bore: 6 mm | Stroke: 4 mm | Clean spec: P71 vacuum suction
MDC2-F-6-6-P7 Model: MDC2-F (no switch magnet) | Bore: 6 mm | Stroke: 6 mm | Clean spec: P7 exhaust treatment
MDC2-F-6-6-P71 Model: MDC2-F (no switch magnet) | Bore: 6 mm | Stroke: 6 mm | Clean spec: P71 vacuum suction
MDC2-F-6-8-P7 Model: MDC2-F (no switch magnet) | Bore: 6 mm | Stroke: 8 mm | Clean spec: P7 exhaust treatment
MDC2-F-6-8-P71 Model: MDC2-F (no switch magnet) | Bore: 6 mm | Stroke: 8 mm | Clean spec: P71 vacuum suction
MDC2-F-8-4-P7 Model: MDC2-F (no switch magnet) | Bore: 8 mm | Stroke: 4 mm | Clean spec: P7 exhaust treatment
MDC2-F-8-4-P71 Model: MDC2-F (no switch magnet) | Bore: 8 mm | Stroke: 4 mm | Clean spec: P71 vacuum suction
MDC2-F-8-6-P7 Model: MDC2-F (no switch magnet) | Bore: 8 mm | Stroke: 6 mm | Clean spec: P7 exhaust treatment
MDC2-F-8-6-P71 Model: MDC2-F (no switch magnet) | Bore: 8 mm | Stroke: 6 mm | Clean spec: P71 vacuum suction
MDC2-F-8-8-P7 Model: MDC2-F (no switch magnet) | Bore: 8 mm | Stroke: 8 mm | Clean spec: P7 exhaust treatment
MDC2-F-8-8-P71 Model: MDC2-F (no switch magnet) | Bore: 8 mm | Stroke: 8 mm | Clean spec: P71 vacuum suction
MDC2-F-10-4-P7 Model: MDC2-F (no switch magnet) | Bore: 10 mm | Stroke: 4 mm | Clean spec: P7 exhaust treatment
MDC2-F-10-4-P71 Model: MDC2-F (no switch magnet) | Bore: 10 mm | Stroke: 4 mm | Clean spec: P71 vacuum suction
MDC2-F-10-6-P7 Model: MDC2-F (no switch magnet) | Bore: 10 mm | Stroke: 6 mm | Clean spec: P7 exhaust treatment
MDC2-F-10-6-P71 Model: MDC2-F (no switch magnet) | Bore: 10 mm | Stroke: 6 mm | Clean spec: P71 vacuum suction
MDC2-F-10-10-P7 Model: MDC2-F (no switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
MDC2-F-10-10-P71 Model: MDC2-F (no switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
MDC2-LF-6-4-P7 Model: MDC2-LF (switch magnet) | Bore: 6 mm | Stroke: 4 mm | Clean spec: P7 exhaust treatment
MDC2-LF-6-4-P71 Model: MDC2-LF (switch magnet) | Bore: 6 mm | Stroke: 4 mm | Clean spec: P71 vacuum suction
MDC2-LF-6-6-P7 Model: MDC2-LF (switch magnet) | Bore: 6 mm | Stroke: 6 mm | Clean spec: P7 exhaust treatment
MDC2-LF-6-6-P71 Model: MDC2-LF (switch magnet) | Bore: 6 mm | Stroke: 6 mm | Clean spec: P71 vacuum suction
MDC2-LF-6-8-P7 Model: MDC2-LF (switch magnet) | Bore: 6 mm | Stroke: 8 mm | Clean spec: P7 exhaust treatment
MDC2-LF-6-8-P71 Model: MDC2-LF (switch magnet) | Bore: 6 mm | Stroke: 8 mm | Clean spec: P71 vacuum suction
MDC2-LF-8-4-P7 Model: MDC2-LF (switch magnet) | Bore: 8 mm | Stroke: 4 mm | Clean spec: P7 exhaust treatment
MDC2-LF-8-4-P71 Model: MDC2-LF (switch magnet) | Bore: 8 mm | Stroke: 4 mm | Clean spec: P71 vacuum suction
MDC2-LF-8-6-P7 Model: MDC2-LF (switch magnet) | Bore: 8 mm | Stroke: 6 mm | Clean spec: P7 exhaust treatment
MDC2-LF-8-6-P71 Model: MDC2-LF (switch magnet) | Bore: 8 mm | Stroke: 6 mm | Clean spec: P71 vacuum suction
MDC2-LF-8-8-P7 Model: MDC2-LF (switch magnet) | Bore: 8 mm | Stroke: 8 mm | Clean spec: P7 exhaust treatment
MDC2-LF-8-8-P71 Model: MDC2-LF (switch magnet) | Bore: 8 mm | Stroke: 8 mm | Clean spec: P71 vacuum suction
MDC2-LF-10-4-P7 Model: MDC2-LF (switch magnet) | Bore: 10 mm | Stroke: 4 mm | Clean spec: P7 exhaust treatment
MDC2-LF-10-4-P71 Model: MDC2-LF (switch magnet) | Bore: 10 mm | Stroke: 4 mm | Clean spec: P71 vacuum suction
MDC2-LF-10-6-P7 Model: MDC2-LF (switch magnet) | Bore: 10 mm | Stroke: 6 mm | Clean spec: P7 exhaust treatment
MDC2-LF-10-6-P71 Model: MDC2-LF (switch magnet) | Bore: 10 mm | Stroke: 6 mm | Clean spec: P71 vacuum suction
MDC2-LF-10-10-P7 Model: MDC2-LF (switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
MDC2-LF-10-10-P71 Model: MDC2-LF (switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
Compact CylindersCKD
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MDC2-F Small Direct Mount Cylinder (Clean P7, Low Speed)

Brand CKD·Compact Cylinders

Available part numbers (36)

MDC2-F-6-4-P7, MDC2-F-6-4-P71, MDC2-F-6-6-P7, MDC2-F-6-6-P71, MDC2-F-6-8-P7, MDC2-F-6-8-P71, MDC2-F-8-4-P7, MDC2-F-8-4-P71, MDC2-F-8-6-P7, MDC2-F-8-6-P71 + 26 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MDC2-F-6-4-P7Model: MDC2-F (no switch magnet) | Bore: 6 mm | Stroke: 4 mm | Clean spec: P7 exhaust treatment
MDC2-F-6-4-P71Model: MDC2-F (no switch magnet) | Bore: 6 mm | Stroke: 4 mm | Clean spec: P71 vacuum suction
MDC2-F-6-6-P7Model: MDC2-F (no switch magnet) | Bore: 6 mm | Stroke: 6 mm | Clean spec: P7 exhaust treatment
MDC2-F-6-6-P71Model: MDC2-F (no switch magnet) | Bore: 6 mm | Stroke: 6 mm | Clean spec: P71 vacuum suction
MDC2-F-6-8-P7Model: MDC2-F (no switch magnet) | Bore: 6 mm | Stroke: 8 mm | Clean spec: P7 exhaust treatment
MDC2-F-6-8-P71Model: MDC2-F (no switch magnet) | Bore: 6 mm | Stroke: 8 mm | Clean spec: P71 vacuum suction
MDC2-F-8-4-P7Model: MDC2-F (no switch magnet) | Bore: 8 mm | Stroke: 4 mm | Clean spec: P7 exhaust treatment
MDC2-F-8-4-P71Model: MDC2-F (no switch magnet) | Bore: 8 mm | Stroke: 4 mm | Clean spec: P71 vacuum suction
MDC2-F-8-6-P7Model: MDC2-F (no switch magnet) | Bore: 8 mm | Stroke: 6 mm | Clean spec: P7 exhaust treatment
MDC2-F-8-6-P71Model: MDC2-F (no switch magnet) | Bore: 8 mm | Stroke: 6 mm | Clean spec: P71 vacuum suction
MDC2-F-8-8-P7Model: MDC2-F (no switch magnet) | Bore: 8 mm | Stroke: 8 mm | Clean spec: P7 exhaust treatment
MDC2-F-8-8-P71Model: MDC2-F (no switch magnet) | Bore: 8 mm | Stroke: 8 mm | Clean spec: P71 vacuum suction
MDC2-F-10-4-P7Model: MDC2-F (no switch magnet) | Bore: 10 mm | Stroke: 4 mm | Clean spec: P7 exhaust treatment
MDC2-F-10-4-P71Model: MDC2-F (no switch magnet) | Bore: 10 mm | Stroke: 4 mm | Clean spec: P71 vacuum suction
MDC2-F-10-6-P7Model: MDC2-F (no switch magnet) | Bore: 10 mm | Stroke: 6 mm | Clean spec: P7 exhaust treatment
MDC2-F-10-6-P71Model: MDC2-F (no switch magnet) | Bore: 10 mm | Stroke: 6 mm | Clean spec: P71 vacuum suction
MDC2-F-10-10-P7Model: MDC2-F (no switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
MDC2-F-10-10-P71Model: MDC2-F (no switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
MDC2-LF-6-4-P7Model: MDC2-LF (switch magnet) | Bore: 6 mm | Stroke: 4 mm | Clean spec: P7 exhaust treatment
MDC2-LF-6-4-P71Model: MDC2-LF (switch magnet) | Bore: 6 mm | Stroke: 4 mm | Clean spec: P71 vacuum suction
MDC2-LF-6-6-P7Model: MDC2-LF (switch magnet) | Bore: 6 mm | Stroke: 6 mm | Clean spec: P7 exhaust treatment
MDC2-LF-6-6-P71Model: MDC2-LF (switch magnet) | Bore: 6 mm | Stroke: 6 mm | Clean spec: P71 vacuum suction
MDC2-LF-6-8-P7Model: MDC2-LF (switch magnet) | Bore: 6 mm | Stroke: 8 mm | Clean spec: P7 exhaust treatment
MDC2-LF-6-8-P71Model: MDC2-LF (switch magnet) | Bore: 6 mm | Stroke: 8 mm | Clean spec: P71 vacuum suction
MDC2-LF-8-4-P7Model: MDC2-LF (switch magnet) | Bore: 8 mm | Stroke: 4 mm | Clean spec: P7 exhaust treatment
MDC2-LF-8-4-P71Model: MDC2-LF (switch magnet) | Bore: 8 mm | Stroke: 4 mm | Clean spec: P71 vacuum suction
MDC2-LF-8-6-P7Model: MDC2-LF (switch magnet) | Bore: 8 mm | Stroke: 6 mm | Clean spec: P7 exhaust treatment
MDC2-LF-8-6-P71Model: MDC2-LF (switch magnet) | Bore: 8 mm | Stroke: 6 mm | Clean spec: P71 vacuum suction
MDC2-LF-8-8-P7Model: MDC2-LF (switch magnet) | Bore: 8 mm | Stroke: 8 mm | Clean spec: P7 exhaust treatment
MDC2-LF-8-8-P71Model: MDC2-LF (switch magnet) | Bore: 8 mm | Stroke: 8 mm | Clean spec: P71 vacuum suction
MDC2-LF-10-4-P7Model: MDC2-LF (switch magnet) | Bore: 10 mm | Stroke: 4 mm | Clean spec: P7 exhaust treatment
MDC2-LF-10-4-P71Model: MDC2-LF (switch magnet) | Bore: 10 mm | Stroke: 4 mm | Clean spec: P71 vacuum suction
MDC2-LF-10-6-P7Model: MDC2-LF (switch magnet) | Bore: 10 mm | Stroke: 6 mm | Clean spec: P7 exhaust treatment
MDC2-LF-10-6-P71Model: MDC2-LF (switch magnet) | Bore: 10 mm | Stroke: 6 mm | Clean spec: P71 vacuum suction
MDC2-LF-10-10-P7Model: MDC2-LF (switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P7 exhaust treatment
MDC2-LF-10-10-P71Model: MDC2-LF (switch magnet) | Bore: 10 mm | Stroke: 10 mm | Clean spec: P71 vacuum suction
