CKD MDC2 Small Direct Cylinder (Double-Acting, 4-10 mm)

CKD MDC2 Small Direct Cylinder (Double-Acting, 4-10 mm)

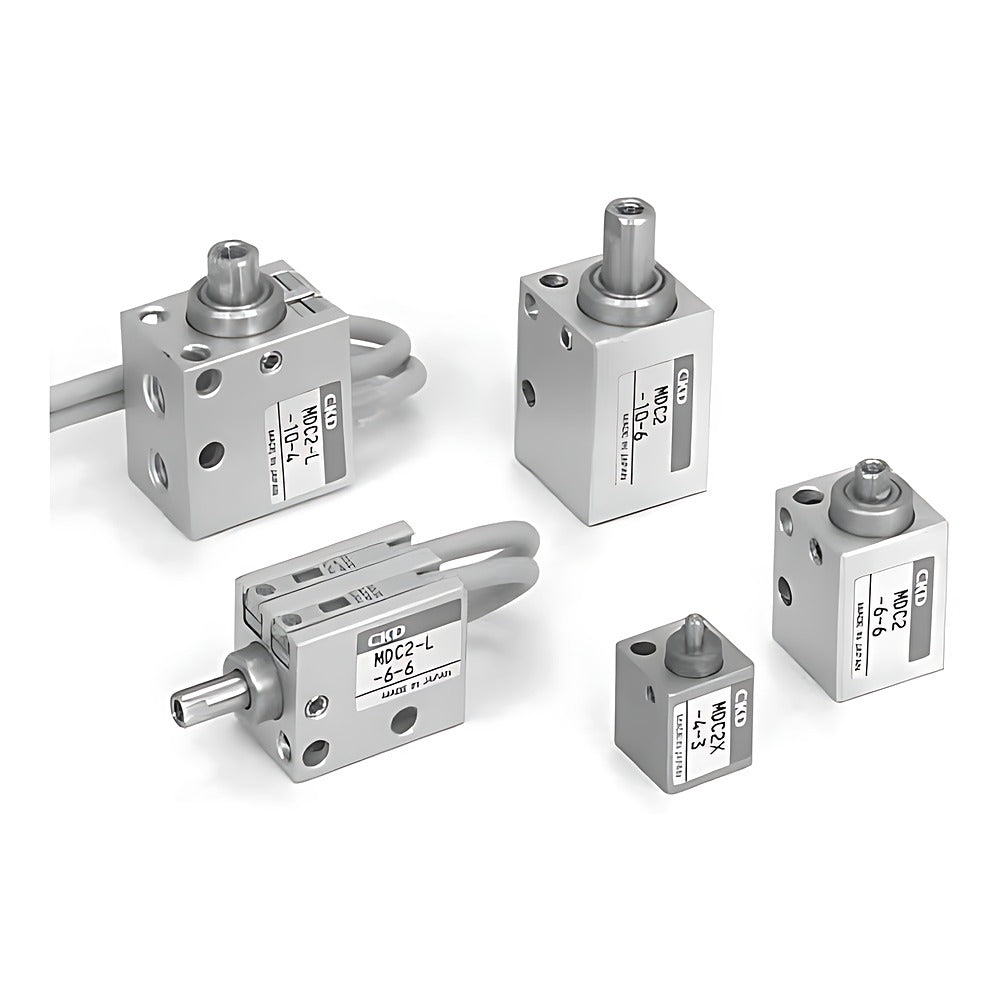

CKD MDC2 small direct cylinder, double-acting single-rod block-type cylinder for direct mounting, bore 4 to 10 mm.

Key features

  • Space-saving block body mounted directly with through bolts
  • MDC2-L has a built-in switch magnet (bore 6-10); F0 reed, F2/F3/F2S/F3S/F2Y/F3Y/F3P solid-state switches on L models (not for bore 4)
  • Standard strokes 3-10 mm; strokes other than standard cannot be produced
  • Clean-room (P7/P5) and secondary-battery (P4) specifications in separate catalogs

Specifications

Action Double-acting
Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure 0.2 MPa (4), 0.15 MPa (6, 8), 0.1 MPa (10)
Proof pressure 1.05 MPa
Ambient temperature -10 to 60 C (no freezing)
Piston speed 50-500 mm/s
Cushion None
Stroke tolerance +0.5/0 mm
Source CKD Korea catalog CB-029SK-9, p. 1346-1352
