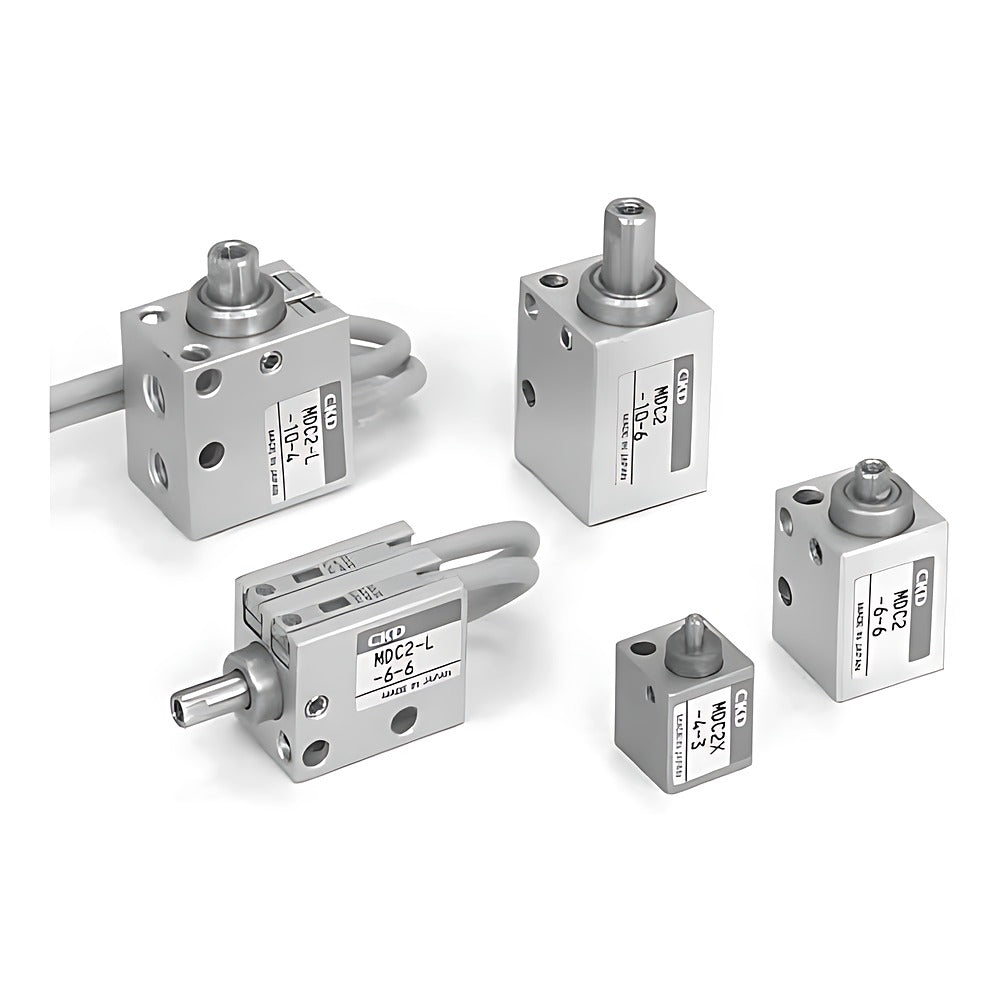

CKD MDC2-X/Y Small Direct Cylinder (Single-Acting Push/Pull)

CKD MDC2-X/Y Small Direct Cylinder (Single-Acting Push/Pull)

CKD MDC2-X (single-acting push) and MDC2-Y (single-acting pull) small direct cylinders with spring return, bore 4 to 10 mm.

Key features

  • MDC2-X: spring-return push type; MDC2-Y: spring-return pull type
  • XL/YL models have a built-in switch magnet (bore 6-10); F0 reed, F2/F3/F2S/F3S/F2Y/F3Y/F3P solid-state switches on L models (not for bore 4)
  • Standard strokes 3-10 mm; strokes other than standard cannot be produced
  • Compact block body for direct mounting

Specifications

Action Single-acting (spring return)
Fluid Compressed air
Max. operating pressure 0.7 MPa
Min. operating pressure X: 0.35/0.3/0.3/0.25 MPa; Y: 0.4/0.4/0.3/0.25 MPa (4/6/8/10)
Proof pressure 1.05 MPa
Ambient temperature -10 to 60 C (no freezing)
Piston speed 50-500 mm/s
Cushion None
Source CKD Korea catalog CB-029SK-9, p. 1354-1362
MDC2-X-4-3 Model: MDC2-X push | Bore: 4 mm | Stroke: 3 mm | Port: M3
MDC2-X-4-6 Model: MDC2-X push | Bore: 4 mm | Stroke: 6 mm | Port: M3
MDC2-X-6-4 Model: MDC2-X push | Bore: 6 mm | Stroke: 4 mm | Port: M3
MDC2-X-6-6 Model: MDC2-X push | Bore: 6 mm | Stroke: 6 mm | Port: M3
MDC2-X-6-8 Model: MDC2-X push | Bore: 6 mm | Stroke: 8 mm | Port: M3
MDC2-X-8-4 Model: MDC2-X push | Bore: 8 mm | Stroke: 4 mm | Port: M3
MDC2-X-8-6 Model: MDC2-X push | Bore: 8 mm | Stroke: 6 mm | Port: M3
MDC2-X-8-8 Model: MDC2-X push | Bore: 8 mm | Stroke: 8 mm | Port: M3
MDC2-X-10-4 Model: MDC2-X push | Bore: 10 mm | Stroke: 4 mm | Port: M5
MDC2-X-10-6 Model: MDC2-X push | Bore: 10 mm | Stroke: 6 mm | Port: M5
MDC2-X-10-10 Model: MDC2-X push | Bore: 10 mm | Stroke: 10 mm | Port: M5
MDC2-Y-4-3 Model: MDC2-Y pull | Bore: 4 mm | Stroke: 3 mm | Port: M3
MDC2-Y-4-6 Model: MDC2-Y pull | Bore: 4 mm | Stroke: 6 mm | Port: M3
MDC2-Y-6-4 Model: MDC2-Y pull | Bore: 6 mm | Stroke: 4 mm | Port: M3
MDC2-Y-6-6 Model: MDC2-Y pull | Bore: 6 mm | Stroke: 6 mm | Port: M3
MDC2-Y-6-8 Model: MDC2-Y pull | Bore: 6 mm | Stroke: 8 mm | Port: M3
MDC2-Y-8-4 Model: MDC2-Y pull | Bore: 8 mm | Stroke: 4 mm | Port: M3
MDC2-Y-8-6 Model: MDC2-Y pull | Bore: 8 mm | Stroke: 6 mm | Port: M3
MDC2-Y-8-8 Model: MDC2-Y pull | Bore: 8 mm | Stroke: 8 mm | Port: M3
MDC2-Y-10-4 Model: MDC2-Y pull | Bore: 10 mm | Stroke: 4 mm | Port: M5
MDC2-Y-10-6 Model: MDC2-Y pull | Bore: 10 mm | Stroke: 6 mm | Port: M5
MDC2-Y-10-10 Model: MDC2-Y pull | Bore: 10 mm | Stroke: 10 mm | Port: M5
MDC2-XL-6-4 Model: MDC2-XL push, magnet | Bore: 6 mm | Stroke: 4 mm | Port: M3
MDC2-XL-6-6 Model: MDC2-XL push, magnet | Bore: 6 mm | Stroke: 6 mm | Port: M3
MDC2-XL-6-8 Model: MDC2-XL push, magnet | Bore: 6 mm | Stroke: 8 mm | Port: M3
MDC2-XL-8-4 Model: MDC2-XL push, magnet | Bore: 8 mm | Stroke: 4 mm | Port: M3
MDC2-XL-8-6 Model: MDC2-XL push, magnet | Bore: 8 mm | Stroke: 6 mm | Port: M3
MDC2-XL-8-8 Model: MDC2-XL push, magnet | Bore: 8 mm | Stroke: 8 mm | Port: M3
MDC2-XL-10-4 Model: MDC2-XL push, magnet | Bore: 10 mm | Stroke: 4 mm | Port: M5
MDC2-XL-10-6 Model: MDC2-XL push, magnet | Bore: 10 mm | Stroke: 6 mm | Port: M5
MDC2-XL-10-10 Model: MDC2-XL push, magnet | Bore: 10 mm | Stroke: 10 mm | Port: M5
MDC2-YL-6-4 Model: MDC2-YL pull, magnet | Bore: 6 mm | Stroke: 4 mm | Port: M3
MDC2-YL-6-6 Model: MDC2-YL pull, magnet | Bore: 6 mm | Stroke: 6 mm | Port: M3
MDC2-YL-6-8 Model: MDC2-YL pull, magnet | Bore: 6 mm | Stroke: 8 mm | Port: M3
MDC2-YL-8-4 Model: MDC2-YL pull, magnet | Bore: 8 mm | Stroke: 4 mm | Port: M3
MDC2-YL-8-6 Model: MDC2-YL pull, magnet | Bore: 8 mm | Stroke: 6 mm | Port: M3
MDC2-YL-8-8 Model: MDC2-YL pull, magnet | Bore: 8 mm | Stroke: 8 mm | Port: M3
MDC2-YL-10-4 Model: MDC2-YL pull, magnet | Bore: 10 mm | Stroke: 4 mm | Port: M5
MDC2-YL-10-6 Model: MDC2-YL pull, magnet | Bore: 10 mm | Stroke: 6 mm | Port: M5
MDC2-YL-10-10 Model: MDC2-YL pull, magnet | Bore: 10 mm | Stroke: 10 mm | Port: M5
