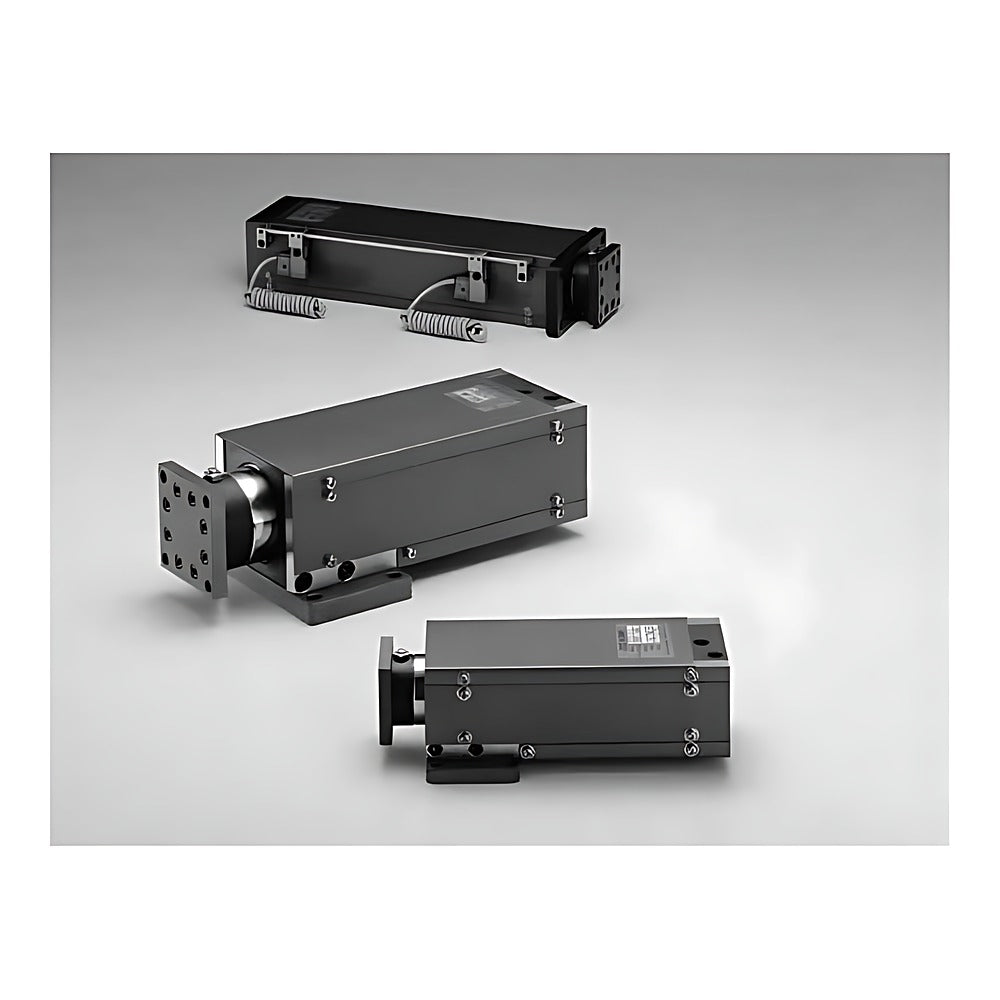

CKD MFC-BK Robot Cylinder with Brake (High Load, Discontinued)

The CKD MFC-BK is the high-load version of the MFC-B robot cylinder with brake, with a reinforced guide for heavier side loads.

Key features

Robot cylinder with a sleeve (cylinder tube) that travels along a fixed rod, with an integral pneumatic brake
Brake holds the sleeve at any intermediate position for simple pick-and-place axes
High-load type takes larger lateral loads and moments than the standard MFC-B
Mounting brackets (rod-end foot, rod/head-end flange) are shipped with the product
Intermediate strokes available in 5 mm increments up to 500 mm (30/40) or 1000 mm (50-80)
L models have a built-in magnet for robot-cylinder switches (R1-R6 types, ordered by suffix)

Specifications

Actuation	Double acting, with brake
Bore sizes	30, 40, 50, 63, 80 mm
Operating pressure	0.15-1.0 MPa (brake 0.35-1.0 MPa)
Proof pressure	1.6 MPa
Ambient temperature	-10 to 50 C (no freezing)
Port size	Rc1/8 (30, 40), Rc1/4 (50, 63), Rc3/8 (80)
Piston speed	50-300 mm/s (no load)
Standard strokes	50, 75, 100, 150, 200, 300 mm
Status	Production ended February 2022
Source	CKD Korea catalog CB-030SK-9, p. 1314-1322

MFC-BK-00-30B-50		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BK-00-30B-75		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BK-00-30B-100		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BK-00-30B-150		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BK-00-30B-200		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BK-00-30B-300		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BK-00-30R-50		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BK-00-30R-75		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BK-00-30R-100		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BK-00-30R-150		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BK-00-30R-200		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BK-00-30R-300		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BK-00-30H-50		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BK-00-30H-75		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BK-00-30H-100		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BK-00-30H-150		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BK-00-30H-200		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BK-00-30H-300		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BK-00-30N-50		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BK-00-30N-75		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BK-00-30N-100		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BK-00-30N-150		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BK-00-30N-200		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BK-00-30N-300		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BK-00-40B-50		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BK-00-40B-75		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BK-00-40B-100		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BK-00-40B-150		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BK-00-40B-200		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BK-00-40B-300		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BK-00-40R-50		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BK-00-40R-75		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BK-00-40R-100		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BK-00-40R-150		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BK-00-40R-200		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BK-00-40R-300		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BK-00-40H-50		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BK-00-40H-75		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BK-00-40H-100		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BK-00-40H-150		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BK-00-40H-200		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BK-00-40H-300		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BK-00-40N-50		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BK-00-40N-75		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BK-00-40N-100		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BK-00-40N-150		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BK-00-40N-200		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BK-00-40N-300		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BK-00-50B-50		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BK-00-50B-75		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BK-00-50B-100		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BK-00-50B-150		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BK-00-50B-200		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BK-00-50B-300		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BK-00-50R-50		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BK-00-50R-75		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BK-00-50R-100		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BK-00-50R-150		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BK-00-50R-200		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BK-00-50R-300		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BK-00-50H-50		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BK-00-50H-75		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BK-00-50H-100		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BK-00-50H-150		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BK-00-50H-200		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BK-00-50H-300		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BK-00-50N-50		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BK-00-50N-75		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BK-00-50N-100		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BK-00-50N-150		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BK-00-50N-200		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BK-00-50N-300		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BK-00-63B-50		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BK-00-63B-75		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BK-00-63B-100		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BK-00-63B-150		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BK-00-63B-200		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BK-00-63B-300		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BK-00-63R-50		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BK-00-63R-75		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BK-00-63R-100		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BK-00-63R-150		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BK-00-63R-200		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BK-00-63R-300		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BK-00-63H-50		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BK-00-63H-75		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BK-00-63H-100		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BK-00-63H-150		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BK-00-63H-200		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BK-00-63H-300		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BK-00-63N-50		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BK-00-63N-75		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BK-00-63N-100		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BK-00-63N-150		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BK-00-63N-200		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BK-00-63N-300		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BK-00-80B-50		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BK-00-80B-75		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BK-00-80B-100		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BK-00-80B-150		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BK-00-80B-200		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BK-00-80B-300		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BK-00-80R-50		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BK-00-80R-75		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BK-00-80R-100		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BK-00-80R-150		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BK-00-80R-200		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BK-00-80R-300		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BK-00-80H-50		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BK-00-80H-75		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BK-00-80H-100		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BK-00-80H-150		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BK-00-80H-200		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BK-00-80H-300		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BK-00-80N-50		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BK-00-80N-75		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BK-00-80N-100		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BK-00-80N-150		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BK-00-80N-200		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BK-00-80N-300		Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BK-LA-30B-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BK-LA-30B-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BK-LA-30B-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BK-LA-30B-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BK-LA-30B-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BK-LA-30B-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BK-LA-30R-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BK-LA-30R-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BK-LA-30R-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BK-LA-30R-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BK-LA-30R-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BK-LA-30R-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BK-LA-30H-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BK-LA-30H-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BK-LA-30H-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BK-LA-30H-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BK-LA-30H-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BK-LA-30H-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BK-LA-30N-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BK-LA-30N-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BK-LA-30N-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BK-LA-30N-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BK-LA-30N-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BK-LA-30N-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BK-LA-40B-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BK-LA-40B-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BK-LA-40B-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BK-LA-40B-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BK-LA-40B-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BK-LA-40B-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BK-LA-40R-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BK-LA-40R-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BK-LA-40R-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BK-LA-40R-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BK-LA-40R-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BK-LA-40R-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BK-LA-40H-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BK-LA-40H-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BK-LA-40H-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BK-LA-40H-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BK-LA-40H-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BK-LA-40H-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BK-LA-40N-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BK-LA-40N-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BK-LA-40N-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BK-LA-40N-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BK-LA-40N-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BK-LA-40N-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BK-LA-50B-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BK-LA-50B-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BK-LA-50B-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BK-LA-50B-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BK-LA-50B-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BK-LA-50B-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BK-LA-50R-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BK-LA-50R-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BK-LA-50R-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BK-LA-50R-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BK-LA-50R-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BK-LA-50R-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BK-LA-50H-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BK-LA-50H-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BK-LA-50H-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BK-LA-50H-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BK-LA-50H-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BK-LA-50H-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BK-LA-50N-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BK-LA-50N-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BK-LA-50N-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BK-LA-50N-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BK-LA-50N-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BK-LA-50N-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BK-LA-63B-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BK-LA-63B-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BK-LA-63B-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BK-LA-63B-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BK-LA-63B-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BK-LA-63B-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BK-LA-63R-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BK-LA-63R-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BK-LA-63R-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BK-LA-63R-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BK-LA-63R-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BK-LA-63R-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BK-LA-63H-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BK-LA-63H-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BK-LA-63H-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BK-LA-63H-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BK-LA-63H-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BK-LA-63H-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BK-LA-63N-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BK-LA-63N-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BK-LA-63N-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BK-LA-63N-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BK-LA-63N-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BK-LA-63N-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BK-LA-80B-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BK-LA-80B-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BK-LA-80B-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BK-LA-80B-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BK-LA-80B-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BK-LA-80B-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BK-LA-80R-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BK-LA-80R-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BK-LA-80R-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BK-LA-80R-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BK-LA-80R-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BK-LA-80R-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BK-LA-80H-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BK-LA-80H-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BK-LA-80H-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BK-LA-80H-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BK-LA-80H-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BK-LA-80H-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BK-LA-80N-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BK-LA-80N-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BK-LA-80N-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BK-LA-80N-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BK-LA-80N-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BK-LA-80N-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BK-FA-30B-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BK-FA-30B-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BK-FA-30B-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BK-FA-30B-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BK-FA-30B-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BK-FA-30B-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BK-FA-30R-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BK-FA-30R-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BK-FA-30R-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BK-FA-30R-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BK-FA-30R-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BK-FA-30R-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BK-FA-30H-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BK-FA-30H-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BK-FA-30H-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BK-FA-30H-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BK-FA-30H-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BK-FA-30H-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BK-FA-30N-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BK-FA-30N-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BK-FA-30N-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BK-FA-30N-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BK-FA-30N-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BK-FA-30N-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BK-FA-40B-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BK-FA-40B-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BK-FA-40B-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BK-FA-40B-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BK-FA-40B-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BK-FA-40B-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BK-FA-40R-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BK-FA-40R-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BK-FA-40R-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BK-FA-40R-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BK-FA-40R-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BK-FA-40R-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BK-FA-40H-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BK-FA-40H-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BK-FA-40H-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BK-FA-40H-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BK-FA-40H-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BK-FA-40H-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BK-FA-40N-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BK-FA-40N-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BK-FA-40N-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BK-FA-40N-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BK-FA-40N-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BK-FA-40N-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BK-FA-50B-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BK-FA-50B-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BK-FA-50B-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BK-FA-50B-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BK-FA-50B-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BK-FA-50B-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BK-FA-50R-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BK-FA-50R-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BK-FA-50R-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BK-FA-50R-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BK-FA-50R-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BK-FA-50R-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BK-FA-50H-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BK-FA-50H-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BK-FA-50H-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BK-FA-50H-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BK-FA-50H-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BK-FA-50H-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BK-FA-50N-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BK-FA-50N-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BK-FA-50N-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BK-FA-50N-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BK-FA-50N-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BK-FA-50N-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BK-FA-63B-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BK-FA-63B-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BK-FA-63B-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BK-FA-63B-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BK-FA-63B-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BK-FA-63B-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BK-FA-63R-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BK-FA-63R-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BK-FA-63R-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BK-FA-63R-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BK-FA-63R-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BK-FA-63R-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BK-FA-63H-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BK-FA-63H-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BK-FA-63H-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BK-FA-63H-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BK-FA-63H-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BK-FA-63H-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BK-FA-63N-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BK-FA-63N-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BK-FA-63N-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BK-FA-63N-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BK-FA-63N-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BK-FA-63N-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BK-FA-80B-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BK-FA-80B-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BK-FA-80B-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BK-FA-80B-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BK-FA-80B-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BK-FA-80B-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BK-FA-80R-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BK-FA-80R-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BK-FA-80R-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BK-FA-80R-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BK-FA-80R-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BK-FA-80R-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BK-FA-80H-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BK-FA-80H-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BK-FA-80H-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BK-FA-80H-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BK-FA-80H-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BK-FA-80H-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BK-FA-80N-50		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BK-FA-80N-75		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BK-FA-80N-100		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BK-FA-80N-150		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BK-FA-80N-200		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BK-FA-80N-300		Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BK-FB-30B-50		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BK-FB-30B-75		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BK-FB-30B-100		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BK-FB-30B-150		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BK-FB-30B-200		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BK-FB-30B-300		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BK-FB-30R-50		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BK-FB-30R-75		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BK-FB-30R-100		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BK-FB-30R-150		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BK-FB-30R-200		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BK-FB-30R-300		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BK-FB-30H-50		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BK-FB-30H-75		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BK-FB-30H-100		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BK-FB-30H-150		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BK-FB-30H-200		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BK-FB-30H-300		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BK-FB-30N-50		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BK-FB-30N-75		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BK-FB-30N-100		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BK-FB-30N-150		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BK-FB-30N-200		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BK-FB-30N-300		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BK-FB-40B-50		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BK-FB-40B-75		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BK-FB-40B-100		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BK-FB-40B-150		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BK-FB-40B-200		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BK-FB-40B-300		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BK-FB-40R-50		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BK-FB-40R-75		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BK-FB-40R-100		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BK-FB-40R-150		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BK-FB-40R-200		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BK-FB-40R-300		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BK-FB-40H-50		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BK-FB-40H-75		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BK-FB-40H-100		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BK-FB-40H-150		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BK-FB-40H-200		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BK-FB-40H-300		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BK-FB-40N-50		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BK-FB-40N-75		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BK-FB-40N-100		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BK-FB-40N-150		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BK-FB-40N-200		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BK-FB-40N-300		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BK-FB-50B-50		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BK-FB-50B-75		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BK-FB-50B-100		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BK-FB-50B-150		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BK-FB-50B-200		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BK-FB-50B-300		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BK-FB-50R-50		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BK-FB-50R-75		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BK-FB-50R-100		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BK-FB-50R-150		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BK-FB-50R-200		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BK-FB-50R-300		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BK-FB-50H-50		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BK-FB-50H-75		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BK-FB-50H-100		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BK-FB-50H-150		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BK-FB-50H-200		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BK-FB-50H-300		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BK-FB-50N-50		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BK-FB-50N-75		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BK-FB-50N-100		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BK-FB-50N-150		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BK-FB-50N-200		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BK-FB-50N-300		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BK-FB-63B-50		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BK-FB-63B-75		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BK-FB-63B-100		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BK-FB-63B-150		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BK-FB-63B-200		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BK-FB-63B-300		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BK-FB-63R-50		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BK-FB-63R-75		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BK-FB-63R-100		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BK-FB-63R-150		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BK-FB-63R-200		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BK-FB-63R-300		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BK-FB-63H-50		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BK-FB-63H-75		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BK-FB-63H-100		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BK-FB-63H-150		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BK-FB-63H-200		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BK-FB-63H-300		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BK-FB-63N-50		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BK-FB-63N-75		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BK-FB-63N-100		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BK-FB-63N-150		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BK-FB-63N-200		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BK-FB-63N-300		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BK-FB-80B-50		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BK-FB-80B-75		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BK-FB-80B-100		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BK-FB-80B-150		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BK-FB-80B-200		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BK-FB-80B-300		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BK-FB-80R-50		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BK-FB-80R-75		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BK-FB-80R-100		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BK-FB-80R-150		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BK-FB-80R-200		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BK-FB-80R-300		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BK-FB-80H-50		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BK-FB-80H-75		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BK-FB-80H-100		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BK-FB-80H-150		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BK-FB-80H-200		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BK-FB-80H-300		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BK-FB-80N-50		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BK-FB-80N-75		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BK-FB-80N-100		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BK-FB-80N-150		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BK-FB-80N-200		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BK-FB-80N-300		Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BKL-00-30B-50		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BKL-00-30B-75		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BKL-00-30B-100		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BKL-00-30B-150		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BKL-00-30B-200		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BKL-00-30B-300		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BKL-00-30R-50		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BKL-00-30R-75		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BKL-00-30R-100		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BKL-00-30R-150		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BKL-00-30R-200		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BKL-00-30R-300		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BKL-00-30H-50		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BKL-00-30H-75		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BKL-00-30H-100		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BKL-00-30H-150		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BKL-00-30H-200		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BKL-00-30H-300		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BKL-00-30N-50		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BKL-00-30N-75		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BKL-00-30N-100		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BKL-00-30N-150		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BKL-00-30N-200		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BKL-00-30N-300		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BKL-00-40B-50		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BKL-00-40B-75		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BKL-00-40B-100		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BKL-00-40B-150		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BKL-00-40B-200		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BKL-00-40B-300		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BKL-00-40R-50		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BKL-00-40R-75		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BKL-00-40R-100		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BKL-00-40R-150		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BKL-00-40R-200		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BKL-00-40R-300		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BKL-00-40H-50		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BKL-00-40H-75		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BKL-00-40H-100		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BKL-00-40H-150		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BKL-00-40H-200		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BKL-00-40H-300		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BKL-00-40N-50		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BKL-00-40N-75		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BKL-00-40N-100		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BKL-00-40N-150		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BKL-00-40N-200		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BKL-00-40N-300		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BKL-00-50B-50		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BKL-00-50B-75		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BKL-00-50B-100		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BKL-00-50B-150		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BKL-00-50B-200		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BKL-00-50B-300		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BKL-00-50R-50		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BKL-00-50R-75		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BKL-00-50R-100		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BKL-00-50R-150		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BKL-00-50R-200		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BKL-00-50R-300		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BKL-00-50H-50		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BKL-00-50H-75		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BKL-00-50H-100		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BKL-00-50H-150		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BKL-00-50H-200		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BKL-00-50H-300		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BKL-00-50N-50		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BKL-00-50N-75		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BKL-00-50N-100		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BKL-00-50N-150		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BKL-00-50N-200		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BKL-00-50N-300		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BKL-00-63B-50		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BKL-00-63B-75		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BKL-00-63B-100		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BKL-00-63B-150		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BKL-00-63B-200		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BKL-00-63B-300		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BKL-00-63R-50		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BKL-00-63R-75		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BKL-00-63R-100		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BKL-00-63R-150		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BKL-00-63R-200		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BKL-00-63R-300		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BKL-00-63H-50		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BKL-00-63H-75		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BKL-00-63H-100		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BKL-00-63H-150		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BKL-00-63H-200		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BKL-00-63H-300		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BKL-00-63N-50		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BKL-00-63N-75		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BKL-00-63N-100		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BKL-00-63N-150		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BKL-00-63N-200		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BKL-00-63N-300		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BKL-00-80B-50		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BKL-00-80B-75		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BKL-00-80B-100		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BKL-00-80B-150		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BKL-00-80B-200		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BKL-00-80B-300		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BKL-00-80R-50		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BKL-00-80R-75		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BKL-00-80R-100		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BKL-00-80R-150		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BKL-00-80R-200		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BKL-00-80R-300		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BKL-00-80H-50		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BKL-00-80H-75		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BKL-00-80H-100		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BKL-00-80H-150		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BKL-00-80H-200		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BKL-00-80H-300		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BKL-00-80N-50		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BKL-00-80N-75		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BKL-00-80N-100		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BKL-00-80N-150		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BKL-00-80N-200		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BKL-00-80N-300		Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BKL-LA-30B-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BKL-LA-30B-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BKL-LA-30B-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BKL-LA-30B-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BKL-LA-30B-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BKL-LA-30B-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BKL-LA-30R-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BKL-LA-30R-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BKL-LA-30R-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BKL-LA-30R-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BKL-LA-30R-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BKL-LA-30R-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BKL-LA-30H-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BKL-LA-30H-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BKL-LA-30H-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BKL-LA-30H-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BKL-LA-30H-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BKL-LA-30H-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BKL-LA-30N-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BKL-LA-30N-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BKL-LA-30N-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BKL-LA-30N-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BKL-LA-30N-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BKL-LA-30N-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BKL-LA-40B-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BKL-LA-40B-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BKL-LA-40B-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BKL-LA-40B-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BKL-LA-40B-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BKL-LA-40B-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BKL-LA-40R-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BKL-LA-40R-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BKL-LA-40R-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BKL-LA-40R-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BKL-LA-40R-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BKL-LA-40R-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BKL-LA-40H-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BKL-LA-40H-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BKL-LA-40H-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BKL-LA-40H-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BKL-LA-40H-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BKL-LA-40H-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BKL-LA-40N-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BKL-LA-40N-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BKL-LA-40N-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BKL-LA-40N-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BKL-LA-40N-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BKL-LA-40N-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BKL-LA-50B-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BKL-LA-50B-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BKL-LA-50B-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BKL-LA-50B-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BKL-LA-50B-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BKL-LA-50B-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BKL-LA-50R-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BKL-LA-50R-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BKL-LA-50R-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BKL-LA-50R-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BKL-LA-50R-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BKL-LA-50R-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BKL-LA-50H-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BKL-LA-50H-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BKL-LA-50H-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BKL-LA-50H-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BKL-LA-50H-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BKL-LA-50H-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BKL-LA-50N-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BKL-LA-50N-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BKL-LA-50N-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BKL-LA-50N-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BKL-LA-50N-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BKL-LA-50N-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BKL-LA-63B-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BKL-LA-63B-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BKL-LA-63B-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BKL-LA-63B-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BKL-LA-63B-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BKL-LA-63B-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BKL-LA-63R-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BKL-LA-63R-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BKL-LA-63R-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BKL-LA-63R-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BKL-LA-63R-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BKL-LA-63R-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BKL-LA-63H-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BKL-LA-63H-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BKL-LA-63H-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BKL-LA-63H-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BKL-LA-63H-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BKL-LA-63H-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BKL-LA-63N-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BKL-LA-63N-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BKL-LA-63N-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BKL-LA-63N-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BKL-LA-63N-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BKL-LA-63N-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BKL-LA-80B-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BKL-LA-80B-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BKL-LA-80B-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BKL-LA-80B-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BKL-LA-80B-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BKL-LA-80B-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BKL-LA-80R-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BKL-LA-80R-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BKL-LA-80R-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BKL-LA-80R-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BKL-LA-80R-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BKL-LA-80R-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BKL-LA-80H-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BKL-LA-80H-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BKL-LA-80H-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BKL-LA-80H-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BKL-LA-80H-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BKL-LA-80H-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BKL-LA-80N-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BKL-LA-80N-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BKL-LA-80N-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BKL-LA-80N-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BKL-LA-80N-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BKL-LA-80N-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BKL-FA-30B-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BKL-FA-30B-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BKL-FA-30B-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BKL-FA-30B-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BKL-FA-30B-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BKL-FA-30B-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BKL-FA-30R-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BKL-FA-30R-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BKL-FA-30R-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BKL-FA-30R-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BKL-FA-30R-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BKL-FA-30R-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BKL-FA-30H-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BKL-FA-30H-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BKL-FA-30H-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BKL-FA-30H-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BKL-FA-30H-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BKL-FA-30H-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BKL-FA-30N-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BKL-FA-30N-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BKL-FA-30N-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BKL-FA-30N-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BKL-FA-30N-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BKL-FA-30N-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BKL-FA-40B-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BKL-FA-40B-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BKL-FA-40B-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BKL-FA-40B-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BKL-FA-40B-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BKL-FA-40B-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BKL-FA-40R-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BKL-FA-40R-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BKL-FA-40R-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BKL-FA-40R-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BKL-FA-40R-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BKL-FA-40R-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BKL-FA-40H-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BKL-FA-40H-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BKL-FA-40H-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BKL-FA-40H-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BKL-FA-40H-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BKL-FA-40H-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BKL-FA-40N-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BKL-FA-40N-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BKL-FA-40N-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BKL-FA-40N-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BKL-FA-40N-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BKL-FA-40N-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BKL-FA-50B-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BKL-FA-50B-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BKL-FA-50B-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BKL-FA-50B-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BKL-FA-50B-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BKL-FA-50B-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BKL-FA-50R-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BKL-FA-50R-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BKL-FA-50R-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BKL-FA-50R-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BKL-FA-50R-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BKL-FA-50R-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BKL-FA-50H-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BKL-FA-50H-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BKL-FA-50H-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BKL-FA-50H-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BKL-FA-50H-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BKL-FA-50H-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BKL-FA-50N-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BKL-FA-50N-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BKL-FA-50N-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BKL-FA-50N-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BKL-FA-50N-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BKL-FA-50N-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BKL-FA-63B-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BKL-FA-63B-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BKL-FA-63B-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BKL-FA-63B-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BKL-FA-63B-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BKL-FA-63B-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BKL-FA-63R-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BKL-FA-63R-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BKL-FA-63R-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BKL-FA-63R-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BKL-FA-63R-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BKL-FA-63R-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BKL-FA-63H-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BKL-FA-63H-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BKL-FA-63H-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BKL-FA-63H-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BKL-FA-63H-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BKL-FA-63H-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BKL-FA-63N-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BKL-FA-63N-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BKL-FA-63N-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BKL-FA-63N-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BKL-FA-63N-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BKL-FA-63N-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BKL-FA-80B-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BKL-FA-80B-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BKL-FA-80B-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BKL-FA-80B-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BKL-FA-80B-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BKL-FA-80B-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BKL-FA-80R-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BKL-FA-80R-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BKL-FA-80R-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BKL-FA-80R-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BKL-FA-80R-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BKL-FA-80R-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BKL-FA-80H-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BKL-FA-80H-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BKL-FA-80H-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BKL-FA-80H-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BKL-FA-80H-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BKL-FA-80H-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BKL-FA-80N-50		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BKL-FA-80N-75		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BKL-FA-80N-100		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BKL-FA-80N-150		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BKL-FA-80N-200		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BKL-FA-80N-300		Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BKL-FB-30B-50		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BKL-FB-30B-75		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BKL-FB-30B-100		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BKL-FB-30B-150		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BKL-FB-30B-200		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BKL-FB-30B-300		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BKL-FB-30R-50		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BKL-FB-30R-75		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BKL-FB-30R-100		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BKL-FB-30R-150		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BKL-FB-30R-200		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BKL-FB-30R-300		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BKL-FB-30H-50		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BKL-FB-30H-75		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BKL-FB-30H-100		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BKL-FB-30H-150		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BKL-FB-30H-200		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BKL-FB-30H-300		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BKL-FB-30N-50		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BKL-FB-30N-75		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BKL-FB-30N-100		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BKL-FB-30N-150		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BKL-FB-30N-200		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BKL-FB-30N-300		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BKL-FB-40B-50		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BKL-FB-40B-75		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BKL-FB-40B-100		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BKL-FB-40B-150		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BKL-FB-40B-200		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BKL-FB-40B-300		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BKL-FB-40R-50		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BKL-FB-40R-75		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BKL-FB-40R-100		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BKL-FB-40R-150		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BKL-FB-40R-200		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BKL-FB-40R-300		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BKL-FB-40H-50		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BKL-FB-40H-75		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BKL-FB-40H-100		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BKL-FB-40H-150		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BKL-FB-40H-200		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BKL-FB-40H-300		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BKL-FB-40N-50		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BKL-FB-40N-75		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BKL-FB-40N-100		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BKL-FB-40N-150		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BKL-FB-40N-200		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BKL-FB-40N-300		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BKL-FB-50B-50		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BKL-FB-50B-75		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BKL-FB-50B-100		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BKL-FB-50B-150		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BKL-FB-50B-200		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BKL-FB-50B-300		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BKL-FB-50R-50		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BKL-FB-50R-75		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BKL-FB-50R-100		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BKL-FB-50R-150		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BKL-FB-50R-200		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BKL-FB-50R-300		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BKL-FB-50H-50		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BKL-FB-50H-75		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BKL-FB-50H-100		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BKL-FB-50H-150		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BKL-FB-50H-200		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BKL-FB-50H-300		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BKL-FB-50N-50		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BKL-FB-50N-75		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BKL-FB-50N-100		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BKL-FB-50N-150		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BKL-FB-50N-200		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BKL-FB-50N-300		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BKL-FB-63B-50		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BKL-FB-63B-75		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BKL-FB-63B-100		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BKL-FB-63B-150		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BKL-FB-63B-200		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BKL-FB-63B-300		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BKL-FB-63R-50		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BKL-FB-63R-75		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BKL-FB-63R-100		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BKL-FB-63R-150		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BKL-FB-63R-200		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BKL-FB-63R-300		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BKL-FB-63H-50		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BKL-FB-63H-75		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BKL-FB-63H-100		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BKL-FB-63H-150		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BKL-FB-63H-200		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BKL-FB-63H-300		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BKL-FB-63N-50		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BKL-FB-63N-75		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BKL-FB-63N-100		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BKL-FB-63N-150		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BKL-FB-63N-200		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BKL-FB-63N-300		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BKL-FB-80B-50		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BKL-FB-80B-75		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BKL-FB-80B-100		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BKL-FB-80B-150		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BKL-FB-80B-200		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BKL-FB-80B-300		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BKL-FB-80R-50		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BKL-FB-80R-75		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BKL-FB-80R-100		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BKL-FB-80R-150		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BKL-FB-80R-200		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BKL-FB-80R-300		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BKL-FB-80H-50		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BKL-FB-80H-75		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BKL-FB-80H-100		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BKL-FB-80H-150		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BKL-FB-80H-200		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BKL-FB-80H-300		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BKL-FB-80N-50		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BKL-FB-80N-75		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BKL-FB-80N-100		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BKL-FB-80N-150		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BKL-FB-80N-200		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BKL-FB-80N-300		Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm

Pneumatic CylindersCKD

960 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MFC-BK Robot Cylinder with Brake (High Load, Discontinued)

Brand CKD·Pneumatic Cylinders

Available part numbers (960)

MFC-BK-00-30B-50, MFC-BK-00-30B-75, MFC-BK-00-30B-100, MFC-BK-00-30B-150, MFC-BK-00-30B-200, MFC-BK-00-30B-300, MFC-BK-00-30R-50, MFC-BK-00-30R-75, MFC-BK-00-30R-100, MFC-BK-00-30R-150 + 950 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MFC-BK-00-30B-50	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BK-00-30B-75	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BK-00-30B-100	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BK-00-30B-150	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BK-00-30B-200	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BK-00-30B-300	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BK-00-30R-50	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BK-00-30R-75	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BK-00-30R-100	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BK-00-30R-150	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BK-00-30R-200	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BK-00-30R-300	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BK-00-30H-50	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BK-00-30H-75	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BK-00-30H-100	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BK-00-30H-150	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BK-00-30H-200	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BK-00-30H-300	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BK-00-30N-50	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BK-00-30N-75	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BK-00-30N-100	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BK-00-30N-150	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BK-00-30N-200	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BK-00-30N-300	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BK-00-40B-50	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BK-00-40B-75	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BK-00-40B-100	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BK-00-40B-150	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BK-00-40B-200	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BK-00-40B-300	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BK-00-40R-50	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BK-00-40R-75	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BK-00-40R-100	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BK-00-40R-150	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BK-00-40R-200	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BK-00-40R-300	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BK-00-40H-50	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BK-00-40H-75	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BK-00-40H-100	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BK-00-40H-150	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BK-00-40H-200	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BK-00-40H-300	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BK-00-40N-50	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BK-00-40N-75	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BK-00-40N-100	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BK-00-40N-150	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BK-00-40N-200	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BK-00-40N-300	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BK-00-50B-50	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BK-00-50B-75	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BK-00-50B-100	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BK-00-50B-150	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BK-00-50B-200	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BK-00-50B-300	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BK-00-50R-50	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BK-00-50R-75	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BK-00-50R-100	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BK-00-50R-150	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BK-00-50R-200	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BK-00-50R-300	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BK-00-50H-50	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BK-00-50H-75	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BK-00-50H-100	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BK-00-50H-150	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BK-00-50H-200	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BK-00-50H-300	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BK-00-50N-50	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BK-00-50N-75	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BK-00-50N-100	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BK-00-50N-150	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BK-00-50N-200	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BK-00-50N-300	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BK-00-63B-50	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BK-00-63B-75	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BK-00-63B-100	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BK-00-63B-150	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BK-00-63B-200	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BK-00-63B-300	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BK-00-63R-50	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BK-00-63R-75	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BK-00-63R-100	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BK-00-63R-150	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BK-00-63R-200	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BK-00-63R-300	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BK-00-63H-50	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BK-00-63H-75	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BK-00-63H-100	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BK-00-63H-150	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BK-00-63H-200	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BK-00-63H-300	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BK-00-63N-50	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BK-00-63N-75	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BK-00-63N-100	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BK-00-63N-150	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BK-00-63N-200	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BK-00-63N-300	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BK-00-80B-50	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BK-00-80B-75	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BK-00-80B-100	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BK-00-80B-150	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BK-00-80B-200	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BK-00-80B-300	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BK-00-80R-50	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BK-00-80R-75	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BK-00-80R-100	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BK-00-80R-150	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BK-00-80R-200	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BK-00-80R-300	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BK-00-80H-50	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BK-00-80H-75	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BK-00-80H-100	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BK-00-80H-150	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BK-00-80H-200	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BK-00-80H-300	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BK-00-80N-50	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BK-00-80N-75	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BK-00-80N-100	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BK-00-80N-150	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BK-00-80N-200	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BK-00-80N-300	Model: MFC-BK (brake, high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BK-LA-30B-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BK-LA-30B-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BK-LA-30B-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BK-LA-30B-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BK-LA-30B-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BK-LA-30B-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BK-LA-30R-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BK-LA-30R-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BK-LA-30R-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BK-LA-30R-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BK-LA-30R-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BK-LA-30R-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BK-LA-30H-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BK-LA-30H-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BK-LA-30H-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BK-LA-30H-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BK-LA-30H-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BK-LA-30H-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BK-LA-30N-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BK-LA-30N-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BK-LA-30N-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BK-LA-30N-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BK-LA-30N-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BK-LA-30N-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BK-LA-40B-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BK-LA-40B-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BK-LA-40B-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BK-LA-40B-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BK-LA-40B-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BK-LA-40B-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BK-LA-40R-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BK-LA-40R-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BK-LA-40R-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BK-LA-40R-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BK-LA-40R-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BK-LA-40R-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BK-LA-40H-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BK-LA-40H-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BK-LA-40H-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BK-LA-40H-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BK-LA-40H-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BK-LA-40H-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BK-LA-40N-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BK-LA-40N-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BK-LA-40N-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BK-LA-40N-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BK-LA-40N-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BK-LA-40N-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BK-LA-50B-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BK-LA-50B-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BK-LA-50B-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BK-LA-50B-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BK-LA-50B-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BK-LA-50B-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BK-LA-50R-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BK-LA-50R-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BK-LA-50R-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BK-LA-50R-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BK-LA-50R-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BK-LA-50R-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BK-LA-50H-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BK-LA-50H-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BK-LA-50H-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BK-LA-50H-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BK-LA-50H-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BK-LA-50H-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BK-LA-50N-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BK-LA-50N-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BK-LA-50N-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BK-LA-50N-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BK-LA-50N-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BK-LA-50N-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BK-LA-63B-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BK-LA-63B-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BK-LA-63B-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BK-LA-63B-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BK-LA-63B-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BK-LA-63B-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BK-LA-63R-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BK-LA-63R-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BK-LA-63R-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BK-LA-63R-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BK-LA-63R-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BK-LA-63R-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BK-LA-63H-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BK-LA-63H-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BK-LA-63H-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BK-LA-63H-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BK-LA-63H-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BK-LA-63H-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BK-LA-63N-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BK-LA-63N-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BK-LA-63N-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BK-LA-63N-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BK-LA-63N-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BK-LA-63N-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BK-LA-80B-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BK-LA-80B-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BK-LA-80B-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BK-LA-80B-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BK-LA-80B-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BK-LA-80B-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BK-LA-80R-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BK-LA-80R-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BK-LA-80R-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BK-LA-80R-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BK-LA-80R-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BK-LA-80R-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BK-LA-80H-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BK-LA-80H-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BK-LA-80H-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BK-LA-80H-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BK-LA-80H-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BK-LA-80H-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BK-LA-80N-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BK-LA-80N-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BK-LA-80N-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BK-LA-80N-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BK-LA-80N-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BK-LA-80N-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BK-FA-30B-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BK-FA-30B-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BK-FA-30B-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BK-FA-30B-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BK-FA-30B-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BK-FA-30B-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BK-FA-30R-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BK-FA-30R-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BK-FA-30R-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BK-FA-30R-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BK-FA-30R-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BK-FA-30R-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BK-FA-30H-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BK-FA-30H-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BK-FA-30H-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BK-FA-30H-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BK-FA-30H-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BK-FA-30H-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BK-FA-30N-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BK-FA-30N-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BK-FA-30N-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BK-FA-30N-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BK-FA-30N-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BK-FA-30N-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BK-FA-40B-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BK-FA-40B-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BK-FA-40B-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BK-FA-40B-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BK-FA-40B-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BK-FA-40B-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BK-FA-40R-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BK-FA-40R-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BK-FA-40R-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BK-FA-40R-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BK-FA-40R-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BK-FA-40R-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BK-FA-40H-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BK-FA-40H-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BK-FA-40H-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BK-FA-40H-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BK-FA-40H-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BK-FA-40H-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BK-FA-40N-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BK-FA-40N-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BK-FA-40N-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BK-FA-40N-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BK-FA-40N-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BK-FA-40N-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BK-FA-50B-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BK-FA-50B-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BK-FA-50B-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BK-FA-50B-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BK-FA-50B-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BK-FA-50B-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BK-FA-50R-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BK-FA-50R-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BK-FA-50R-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BK-FA-50R-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BK-FA-50R-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BK-FA-50R-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BK-FA-50H-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BK-FA-50H-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BK-FA-50H-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BK-FA-50H-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BK-FA-50H-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BK-FA-50H-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BK-FA-50N-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BK-FA-50N-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BK-FA-50N-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BK-FA-50N-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BK-FA-50N-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BK-FA-50N-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BK-FA-63B-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BK-FA-63B-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BK-FA-63B-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BK-FA-63B-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BK-FA-63B-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BK-FA-63B-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BK-FA-63R-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BK-FA-63R-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BK-FA-63R-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BK-FA-63R-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BK-FA-63R-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BK-FA-63R-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BK-FA-63H-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BK-FA-63H-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BK-FA-63H-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BK-FA-63H-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BK-FA-63H-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BK-FA-63H-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BK-FA-63N-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BK-FA-63N-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BK-FA-63N-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BK-FA-63N-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BK-FA-63N-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BK-FA-63N-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BK-FA-80B-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BK-FA-80B-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BK-FA-80B-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BK-FA-80B-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BK-FA-80B-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BK-FA-80B-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BK-FA-80R-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BK-FA-80R-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BK-FA-80R-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BK-FA-80R-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BK-FA-80R-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BK-FA-80R-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BK-FA-80H-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BK-FA-80H-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BK-FA-80H-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BK-FA-80H-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BK-FA-80H-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BK-FA-80H-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BK-FA-80N-50	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BK-FA-80N-75	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BK-FA-80N-100	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BK-FA-80N-150	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BK-FA-80N-200	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BK-FA-80N-300	Model: MFC-BK (brake, high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BK-FB-30B-50	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BK-FB-30B-75	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BK-FB-30B-100	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BK-FB-30B-150	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BK-FB-30B-200	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BK-FB-30B-300	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BK-FB-30R-50	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BK-FB-30R-75	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BK-FB-30R-100	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BK-FB-30R-150	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BK-FB-30R-200	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BK-FB-30R-300	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BK-FB-30H-50	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BK-FB-30H-75	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BK-FB-30H-100	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BK-FB-30H-150	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BK-FB-30H-200	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BK-FB-30H-300	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BK-FB-30N-50	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BK-FB-30N-75	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BK-FB-30N-100	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BK-FB-30N-150	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BK-FB-30N-200	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BK-FB-30N-300	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BK-FB-40B-50	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BK-FB-40B-75	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BK-FB-40B-100	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BK-FB-40B-150	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BK-FB-40B-200	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BK-FB-40B-300	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BK-FB-40R-50	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BK-FB-40R-75	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BK-FB-40R-100	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BK-FB-40R-150	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BK-FB-40R-200	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BK-FB-40R-300	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BK-FB-40H-50	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BK-FB-40H-75	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BK-FB-40H-100	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BK-FB-40H-150	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BK-FB-40H-200	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BK-FB-40H-300	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BK-FB-40N-50	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BK-FB-40N-75	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BK-FB-40N-100	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BK-FB-40N-150	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BK-FB-40N-200	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BK-FB-40N-300	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BK-FB-50B-50	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BK-FB-50B-75	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BK-FB-50B-100	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BK-FB-50B-150	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BK-FB-50B-200	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BK-FB-50B-300	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BK-FB-50R-50	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BK-FB-50R-75	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BK-FB-50R-100	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BK-FB-50R-150	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BK-FB-50R-200	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BK-FB-50R-300	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BK-FB-50H-50	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BK-FB-50H-75	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BK-FB-50H-100	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BK-FB-50H-150	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BK-FB-50H-200	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BK-FB-50H-300	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BK-FB-50N-50	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BK-FB-50N-75	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BK-FB-50N-100	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BK-FB-50N-150	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BK-FB-50N-200	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BK-FB-50N-300	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BK-FB-63B-50	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BK-FB-63B-75	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BK-FB-63B-100	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BK-FB-63B-150	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BK-FB-63B-200	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BK-FB-63B-300	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BK-FB-63R-50	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BK-FB-63R-75	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BK-FB-63R-100	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BK-FB-63R-150	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BK-FB-63R-200	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BK-FB-63R-300	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BK-FB-63H-50	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BK-FB-63H-75	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BK-FB-63H-100	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BK-FB-63H-150	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BK-FB-63H-200	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BK-FB-63H-300	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BK-FB-63N-50	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BK-FB-63N-75	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BK-FB-63N-100	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BK-FB-63N-150	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BK-FB-63N-200	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BK-FB-63N-300	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BK-FB-80B-50	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BK-FB-80B-75	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BK-FB-80B-100	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BK-FB-80B-150	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BK-FB-80B-200	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BK-FB-80B-300	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BK-FB-80R-50	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BK-FB-80R-75	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BK-FB-80R-100	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BK-FB-80R-150	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BK-FB-80R-200	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BK-FB-80R-300	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BK-FB-80H-50	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BK-FB-80H-75	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BK-FB-80H-100	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BK-FB-80H-150	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BK-FB-80H-200	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BK-FB-80H-300	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BK-FB-80N-50	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BK-FB-80N-75	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BK-FB-80N-100	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BK-FB-80N-150	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BK-FB-80N-200	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BK-FB-80N-300	Model: MFC-BK (brake, high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BKL-00-30B-50	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BKL-00-30B-75	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BKL-00-30B-100	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BKL-00-30B-150	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BKL-00-30B-200	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BKL-00-30B-300	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BKL-00-30R-50	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BKL-00-30R-75	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BKL-00-30R-100	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BKL-00-30R-150	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BKL-00-30R-200	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BKL-00-30R-300	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BKL-00-30H-50	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BKL-00-30H-75	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BKL-00-30H-100	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BKL-00-30H-150	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BKL-00-30H-200	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BKL-00-30H-300	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BKL-00-30N-50	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BKL-00-30N-75	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BKL-00-30N-100	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BKL-00-30N-150	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BKL-00-30N-200	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BKL-00-30N-300	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BKL-00-40B-50	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BKL-00-40B-75	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BKL-00-40B-100	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BKL-00-40B-150	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BKL-00-40B-200	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BKL-00-40B-300	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BKL-00-40R-50	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BKL-00-40R-75	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BKL-00-40R-100	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BKL-00-40R-150	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BKL-00-40R-200	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BKL-00-40R-300	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BKL-00-40H-50	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BKL-00-40H-75	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BKL-00-40H-100	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BKL-00-40H-150	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BKL-00-40H-200	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BKL-00-40H-300	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BKL-00-40N-50	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BKL-00-40N-75	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BKL-00-40N-100	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BKL-00-40N-150	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BKL-00-40N-200	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BKL-00-40N-300	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BKL-00-50B-50	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BKL-00-50B-75	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BKL-00-50B-100	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BKL-00-50B-150	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BKL-00-50B-200	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BKL-00-50B-300	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BKL-00-50R-50	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BKL-00-50R-75	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BKL-00-50R-100	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BKL-00-50R-150	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BKL-00-50R-200	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BKL-00-50R-300	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BKL-00-50H-50	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BKL-00-50H-75	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BKL-00-50H-100	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BKL-00-50H-150	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BKL-00-50H-200	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BKL-00-50H-300	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BKL-00-50N-50	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BKL-00-50N-75	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BKL-00-50N-100	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BKL-00-50N-150	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BKL-00-50N-200	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BKL-00-50N-300	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BKL-00-63B-50	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BKL-00-63B-75	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BKL-00-63B-100	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BKL-00-63B-150	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BKL-00-63B-200	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BKL-00-63B-300	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BKL-00-63R-50	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BKL-00-63R-75	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BKL-00-63R-100	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BKL-00-63R-150	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BKL-00-63R-200	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BKL-00-63R-300	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BKL-00-63H-50	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BKL-00-63H-75	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BKL-00-63H-100	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BKL-00-63H-150	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BKL-00-63H-200	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BKL-00-63H-300	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BKL-00-63N-50	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BKL-00-63N-75	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BKL-00-63N-100	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BKL-00-63N-150	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BKL-00-63N-200	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BKL-00-63N-300	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BKL-00-80B-50	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BKL-00-80B-75	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BKL-00-80B-100	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BKL-00-80B-150	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BKL-00-80B-200	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BKL-00-80B-300	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BKL-00-80R-50	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BKL-00-80R-75	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BKL-00-80R-100	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BKL-00-80R-150	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BKL-00-80R-200	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BKL-00-80R-300	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BKL-00-80H-50	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BKL-00-80H-75	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BKL-00-80H-100	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BKL-00-80H-150	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BKL-00-80H-200	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BKL-00-80H-300	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BKL-00-80N-50	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BKL-00-80N-75	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BKL-00-80N-100	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BKL-00-80N-150	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BKL-00-80N-200	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BKL-00-80N-300	Model: MFC-BKL (high load, magnet) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BKL-LA-30B-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BKL-LA-30B-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BKL-LA-30B-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BKL-LA-30B-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BKL-LA-30B-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BKL-LA-30B-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BKL-LA-30R-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BKL-LA-30R-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BKL-LA-30R-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BKL-LA-30R-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BKL-LA-30R-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BKL-LA-30R-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BKL-LA-30H-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BKL-LA-30H-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BKL-LA-30H-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BKL-LA-30H-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BKL-LA-30H-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BKL-LA-30H-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BKL-LA-30N-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BKL-LA-30N-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BKL-LA-30N-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BKL-LA-30N-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BKL-LA-30N-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BKL-LA-30N-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BKL-LA-40B-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BKL-LA-40B-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BKL-LA-40B-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BKL-LA-40B-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BKL-LA-40B-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BKL-LA-40B-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BKL-LA-40R-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BKL-LA-40R-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BKL-LA-40R-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BKL-LA-40R-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BKL-LA-40R-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BKL-LA-40R-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BKL-LA-40H-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BKL-LA-40H-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BKL-LA-40H-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BKL-LA-40H-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BKL-LA-40H-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BKL-LA-40H-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BKL-LA-40N-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BKL-LA-40N-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BKL-LA-40N-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BKL-LA-40N-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BKL-LA-40N-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BKL-LA-40N-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BKL-LA-50B-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BKL-LA-50B-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BKL-LA-50B-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BKL-LA-50B-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BKL-LA-50B-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BKL-LA-50B-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BKL-LA-50R-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BKL-LA-50R-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BKL-LA-50R-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BKL-LA-50R-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BKL-LA-50R-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BKL-LA-50R-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BKL-LA-50H-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BKL-LA-50H-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BKL-LA-50H-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BKL-LA-50H-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BKL-LA-50H-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BKL-LA-50H-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BKL-LA-50N-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BKL-LA-50N-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BKL-LA-50N-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BKL-LA-50N-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BKL-LA-50N-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BKL-LA-50N-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BKL-LA-63B-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BKL-LA-63B-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BKL-LA-63B-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BKL-LA-63B-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BKL-LA-63B-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BKL-LA-63B-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BKL-LA-63R-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BKL-LA-63R-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BKL-LA-63R-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BKL-LA-63R-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BKL-LA-63R-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BKL-LA-63R-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BKL-LA-63H-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BKL-LA-63H-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BKL-LA-63H-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BKL-LA-63H-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BKL-LA-63H-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BKL-LA-63H-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BKL-LA-63N-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BKL-LA-63N-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BKL-LA-63N-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BKL-LA-63N-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BKL-LA-63N-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BKL-LA-63N-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BKL-LA-80B-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BKL-LA-80B-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BKL-LA-80B-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BKL-LA-80B-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BKL-LA-80B-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BKL-LA-80B-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BKL-LA-80R-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BKL-LA-80R-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BKL-LA-80R-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BKL-LA-80R-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BKL-LA-80R-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BKL-LA-80R-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BKL-LA-80H-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BKL-LA-80H-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BKL-LA-80H-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BKL-LA-80H-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BKL-LA-80H-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BKL-LA-80H-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BKL-LA-80N-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BKL-LA-80N-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BKL-LA-80N-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BKL-LA-80N-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BKL-LA-80N-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BKL-LA-80N-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BKL-FA-30B-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BKL-FA-30B-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BKL-FA-30B-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BKL-FA-30B-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BKL-FA-30B-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BKL-FA-30B-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BKL-FA-30R-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BKL-FA-30R-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BKL-FA-30R-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BKL-FA-30R-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BKL-FA-30R-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BKL-FA-30R-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BKL-FA-30H-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BKL-FA-30H-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BKL-FA-30H-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BKL-FA-30H-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BKL-FA-30H-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BKL-FA-30H-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BKL-FA-30N-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BKL-FA-30N-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BKL-FA-30N-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BKL-FA-30N-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BKL-FA-30N-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BKL-FA-30N-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BKL-FA-40B-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BKL-FA-40B-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BKL-FA-40B-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BKL-FA-40B-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BKL-FA-40B-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BKL-FA-40B-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BKL-FA-40R-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BKL-FA-40R-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BKL-FA-40R-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BKL-FA-40R-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BKL-FA-40R-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BKL-FA-40R-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BKL-FA-40H-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BKL-FA-40H-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BKL-FA-40H-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BKL-FA-40H-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BKL-FA-40H-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BKL-FA-40H-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BKL-FA-40N-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BKL-FA-40N-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BKL-FA-40N-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BKL-FA-40N-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BKL-FA-40N-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BKL-FA-40N-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BKL-FA-50B-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BKL-FA-50B-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BKL-FA-50B-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BKL-FA-50B-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BKL-FA-50B-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BKL-FA-50B-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BKL-FA-50R-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BKL-FA-50R-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BKL-FA-50R-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BKL-FA-50R-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BKL-FA-50R-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BKL-FA-50R-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BKL-FA-50H-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BKL-FA-50H-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BKL-FA-50H-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BKL-FA-50H-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BKL-FA-50H-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BKL-FA-50H-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BKL-FA-50N-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BKL-FA-50N-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BKL-FA-50N-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BKL-FA-50N-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BKL-FA-50N-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BKL-FA-50N-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BKL-FA-63B-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BKL-FA-63B-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BKL-FA-63B-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BKL-FA-63B-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BKL-FA-63B-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BKL-FA-63B-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BKL-FA-63R-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BKL-FA-63R-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BKL-FA-63R-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BKL-FA-63R-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BKL-FA-63R-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BKL-FA-63R-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BKL-FA-63H-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BKL-FA-63H-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BKL-FA-63H-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BKL-FA-63H-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BKL-FA-63H-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BKL-FA-63H-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BKL-FA-63N-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BKL-FA-63N-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BKL-FA-63N-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BKL-FA-63N-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BKL-FA-63N-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BKL-FA-63N-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BKL-FA-80B-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BKL-FA-80B-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BKL-FA-80B-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BKL-FA-80B-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BKL-FA-80B-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BKL-FA-80B-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BKL-FA-80R-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BKL-FA-80R-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BKL-FA-80R-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BKL-FA-80R-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BKL-FA-80R-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BKL-FA-80R-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BKL-FA-80H-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BKL-FA-80H-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BKL-FA-80H-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BKL-FA-80H-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BKL-FA-80H-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BKL-FA-80H-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BKL-FA-80N-50	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BKL-FA-80N-75	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BKL-FA-80N-100	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BKL-FA-80N-150	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BKL-FA-80N-200	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BKL-FA-80N-300	Model: MFC-BKL (high load, magnet) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BKL-FB-30B-50	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BKL-FB-30B-75	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BKL-FB-30B-100	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BKL-FB-30B-150	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BKL-FB-30B-200	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BKL-FB-30B-300	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BKL-FB-30R-50	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BKL-FB-30R-75	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BKL-FB-30R-100	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BKL-FB-30R-150	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BKL-FB-30R-200	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BKL-FB-30R-300	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BKL-FB-30H-50	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BKL-FB-30H-75	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BKL-FB-30H-100	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BKL-FB-30H-150	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BKL-FB-30H-200	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BKL-FB-30H-300	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BKL-FB-30N-50	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BKL-FB-30N-75	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BKL-FB-30N-100	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BKL-FB-30N-150	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BKL-FB-30N-200	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BKL-FB-30N-300	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BKL-FB-40B-50	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BKL-FB-40B-75	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BKL-FB-40B-100	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BKL-FB-40B-150	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BKL-FB-40B-200	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BKL-FB-40B-300	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BKL-FB-40R-50	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BKL-FB-40R-75	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BKL-FB-40R-100	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BKL-FB-40R-150	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BKL-FB-40R-200	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BKL-FB-40R-300	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BKL-FB-40H-50	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BKL-FB-40H-75	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BKL-FB-40H-100	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BKL-FB-40H-150	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BKL-FB-40H-200	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BKL-FB-40H-300	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BKL-FB-40N-50	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BKL-FB-40N-75	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BKL-FB-40N-100	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BKL-FB-40N-150	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BKL-FB-40N-200	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BKL-FB-40N-300	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BKL-FB-50B-50	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BKL-FB-50B-75	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BKL-FB-50B-100	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BKL-FB-50B-150	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BKL-FB-50B-200	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BKL-FB-50B-300	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BKL-FB-50R-50	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BKL-FB-50R-75	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BKL-FB-50R-100	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BKL-FB-50R-150	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BKL-FB-50R-200	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BKL-FB-50R-300	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BKL-FB-50H-50	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BKL-FB-50H-75	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BKL-FB-50H-100	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BKL-FB-50H-150	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BKL-FB-50H-200	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BKL-FB-50H-300	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BKL-FB-50N-50	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BKL-FB-50N-75	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BKL-FB-50N-100	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BKL-FB-50N-150	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BKL-FB-50N-200	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BKL-FB-50N-300	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BKL-FB-63B-50	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BKL-FB-63B-75	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BKL-FB-63B-100	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BKL-FB-63B-150	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BKL-FB-63B-200	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BKL-FB-63B-300	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BKL-FB-63R-50	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BKL-FB-63R-75	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BKL-FB-63R-100	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BKL-FB-63R-150	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BKL-FB-63R-200	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BKL-FB-63R-300	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BKL-FB-63H-50	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BKL-FB-63H-75	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BKL-FB-63H-100	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BKL-FB-63H-150	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BKL-FB-63H-200	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BKL-FB-63H-300	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BKL-FB-63N-50	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BKL-FB-63N-75	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BKL-FB-63N-100	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BKL-FB-63N-150	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BKL-FB-63N-200	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BKL-FB-63N-300	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BKL-FB-80B-50	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BKL-FB-80B-75	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BKL-FB-80B-100	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BKL-FB-80B-150	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BKL-FB-80B-200	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BKL-FB-80B-300	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BKL-FB-80R-50	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BKL-FB-80R-75	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BKL-FB-80R-100	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BKL-FB-80R-150	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BKL-FB-80R-200	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BKL-FB-80R-300	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BKL-FB-80H-50	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BKL-FB-80H-75	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BKL-FB-80H-100	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BKL-FB-80H-150	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BKL-FB-80H-200	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BKL-FB-80H-300	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BKL-FB-80N-50	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BKL-FB-80N-75	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BKL-FB-80N-100	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BKL-FB-80N-150	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BKL-FB-80N-200	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BKL-FB-80N-300	Model: MFC-BKL (high load, magnet) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD MFC-BK Robot Cylinder with Brake (High Load, Discontinued)
