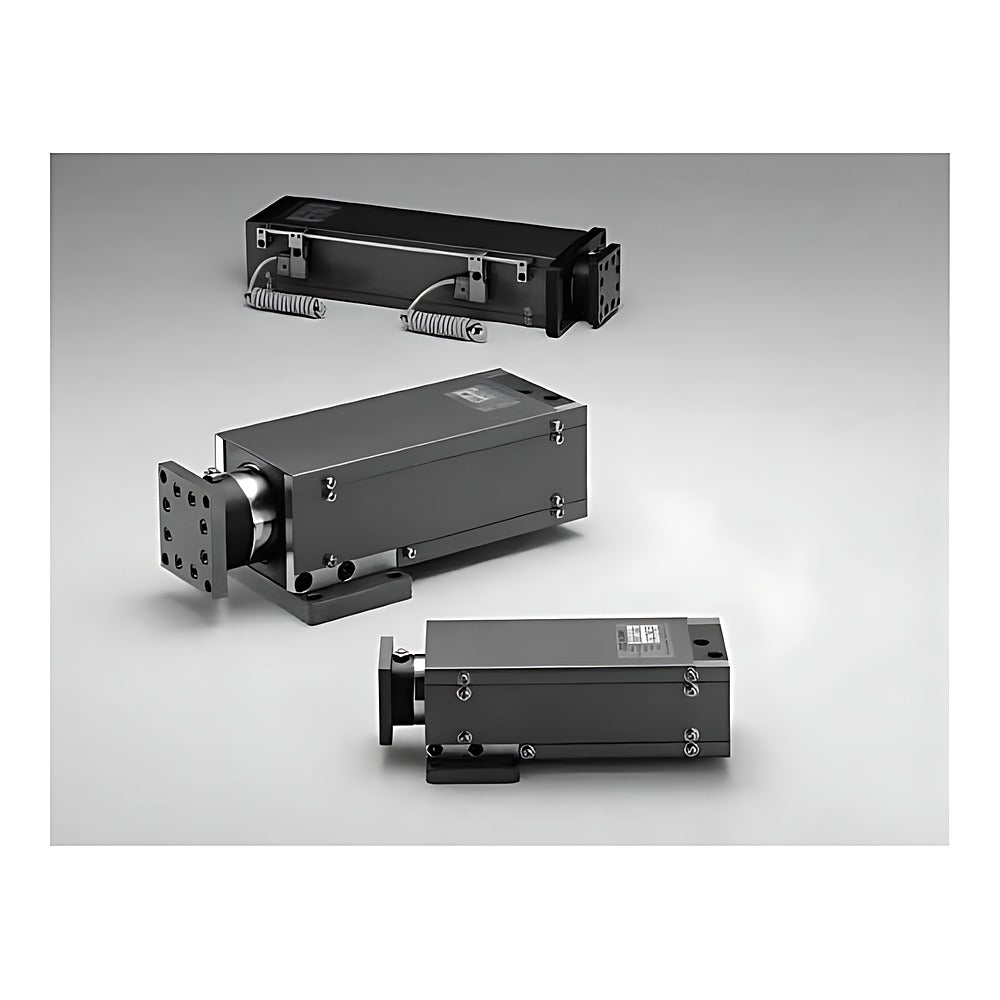

CKD MFC-BS Robot Cylinder with Brake and Encoder (Discontinued)

The CKD MFC-BS is a robot cylinder with brake and a built-in pulse encoder for multi-point positioning with a counter controller.

Key features

Built-in encoder outputs 0.1 mm/pulse signals for multi-point positioning
Pneumatic brake stops the sleeve with a stopping accuracy of +/-1.0 mm (at 300 mm/s)
Standard type MFC-BS and high-load type MFC-BSK
Mounting brackets (rod-end foot, rod/head-end flange) are shipped with the product
Intermediate strokes available in 5 mm increments

Specifications

Actuation	Double acting, brake and encoder
Operating pressure	0.15-1.0 MPa (brake 0.35-1.0 MPa)
Ambient temperature	0 to 50 C
Port size	Rc1/8 (30, 40), Rc1/4 (50, 63), Rc3/8 (80)
Encoder	DC5-12 V, 0.1 mm/pulse, 25 kHz
Holding force	431 N (30) to 3922 N (80)
Standard strokes	50, 75, 100, 150, 200, 300 mm
Status	Production ended February 2022
Source	CKD Korea catalog CB-030SK-9, p. 1324-1339

MFC-BS-00-30B-50		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BS-00-30B-75		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BS-00-30B-100		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BS-00-30B-150		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BS-00-30B-200		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BS-00-30B-300		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BS-00-30R-50		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BS-00-30R-75		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BS-00-30R-100		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BS-00-30R-150		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BS-00-30R-200		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BS-00-30R-300		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BS-00-30H-50		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BS-00-30H-75		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BS-00-30H-100		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BS-00-30H-150		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BS-00-30H-200		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BS-00-30H-300		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BS-00-30N-50		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BS-00-30N-75		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BS-00-30N-100		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BS-00-30N-150		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BS-00-30N-200		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BS-00-30N-300		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BS-00-40B-50		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BS-00-40B-75		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BS-00-40B-100		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BS-00-40B-150		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BS-00-40B-200		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BS-00-40B-300		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BS-00-40R-50		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BS-00-40R-75		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BS-00-40R-100		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BS-00-40R-150		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BS-00-40R-200		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BS-00-40R-300		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BS-00-40H-50		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BS-00-40H-75		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BS-00-40H-100		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BS-00-40H-150		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BS-00-40H-200		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BS-00-40H-300		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BS-00-40N-50		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BS-00-40N-75		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BS-00-40N-100		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BS-00-40N-150		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BS-00-40N-200		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BS-00-40N-300		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BS-00-50B-50		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BS-00-50B-75		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BS-00-50B-100		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BS-00-50B-150		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BS-00-50B-200		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BS-00-50B-300		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BS-00-50R-50		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BS-00-50R-75		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BS-00-50R-100		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BS-00-50R-150		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BS-00-50R-200		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BS-00-50R-300		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BS-00-50H-50		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BS-00-50H-75		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BS-00-50H-100		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BS-00-50H-150		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BS-00-50H-200		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BS-00-50H-300		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BS-00-50N-50		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BS-00-50N-75		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BS-00-50N-100		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BS-00-50N-150		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BS-00-50N-200		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BS-00-50N-300		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BS-00-63B-50		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BS-00-63B-75		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BS-00-63B-100		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BS-00-63B-150		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BS-00-63B-200		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BS-00-63B-300		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BS-00-63R-50		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BS-00-63R-75		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BS-00-63R-100		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BS-00-63R-150		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BS-00-63R-200		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BS-00-63R-300		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BS-00-63H-50		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BS-00-63H-75		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BS-00-63H-100		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BS-00-63H-150		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BS-00-63H-200		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BS-00-63H-300		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BS-00-63N-50		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BS-00-63N-75		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BS-00-63N-100		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BS-00-63N-150		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BS-00-63N-200		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BS-00-63N-300		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BS-00-80B-50		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BS-00-80B-75		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BS-00-80B-100		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BS-00-80B-150		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BS-00-80B-200		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BS-00-80B-300		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BS-00-80R-50		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BS-00-80R-75		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BS-00-80R-100		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BS-00-80R-150		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BS-00-80R-200		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BS-00-80R-300		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BS-00-80H-50		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BS-00-80H-75		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BS-00-80H-100		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BS-00-80H-150		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BS-00-80H-200		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BS-00-80H-300		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BS-00-80N-50		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BS-00-80N-75		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BS-00-80N-100		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BS-00-80N-150		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BS-00-80N-200		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BS-00-80N-300		Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BS-LA-30B-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BS-LA-30B-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BS-LA-30B-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BS-LA-30B-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BS-LA-30B-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BS-LA-30B-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BS-LA-30R-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BS-LA-30R-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BS-LA-30R-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BS-LA-30R-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BS-LA-30R-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BS-LA-30R-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BS-LA-30H-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BS-LA-30H-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BS-LA-30H-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BS-LA-30H-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BS-LA-30H-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BS-LA-30H-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BS-LA-30N-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BS-LA-30N-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BS-LA-30N-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BS-LA-30N-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BS-LA-30N-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BS-LA-30N-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BS-LA-40B-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BS-LA-40B-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BS-LA-40B-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BS-LA-40B-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BS-LA-40B-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BS-LA-40B-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BS-LA-40R-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BS-LA-40R-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BS-LA-40R-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BS-LA-40R-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BS-LA-40R-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BS-LA-40R-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BS-LA-40H-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BS-LA-40H-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BS-LA-40H-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BS-LA-40H-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BS-LA-40H-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BS-LA-40H-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BS-LA-40N-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BS-LA-40N-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BS-LA-40N-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BS-LA-40N-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BS-LA-40N-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BS-LA-40N-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BS-LA-50B-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BS-LA-50B-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BS-LA-50B-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BS-LA-50B-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BS-LA-50B-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BS-LA-50B-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BS-LA-50R-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BS-LA-50R-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BS-LA-50R-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BS-LA-50R-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BS-LA-50R-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BS-LA-50R-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BS-LA-50H-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BS-LA-50H-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BS-LA-50H-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BS-LA-50H-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BS-LA-50H-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BS-LA-50H-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BS-LA-50N-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BS-LA-50N-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BS-LA-50N-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BS-LA-50N-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BS-LA-50N-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BS-LA-50N-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BS-LA-63B-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BS-LA-63B-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BS-LA-63B-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BS-LA-63B-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BS-LA-63B-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BS-LA-63B-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BS-LA-63R-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BS-LA-63R-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BS-LA-63R-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BS-LA-63R-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BS-LA-63R-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BS-LA-63R-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BS-LA-63H-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BS-LA-63H-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BS-LA-63H-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BS-LA-63H-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BS-LA-63H-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BS-LA-63H-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BS-LA-63N-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BS-LA-63N-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BS-LA-63N-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BS-LA-63N-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BS-LA-63N-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BS-LA-63N-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BS-LA-80B-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BS-LA-80B-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BS-LA-80B-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BS-LA-80B-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BS-LA-80B-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BS-LA-80B-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BS-LA-80R-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BS-LA-80R-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BS-LA-80R-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BS-LA-80R-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BS-LA-80R-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BS-LA-80R-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BS-LA-80H-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BS-LA-80H-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BS-LA-80H-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BS-LA-80H-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BS-LA-80H-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BS-LA-80H-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BS-LA-80N-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BS-LA-80N-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BS-LA-80N-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BS-LA-80N-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BS-LA-80N-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BS-LA-80N-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BS-FA-30B-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BS-FA-30B-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BS-FA-30B-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BS-FA-30B-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BS-FA-30B-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BS-FA-30B-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BS-FA-30R-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BS-FA-30R-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BS-FA-30R-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BS-FA-30R-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BS-FA-30R-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BS-FA-30R-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BS-FA-30H-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BS-FA-30H-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BS-FA-30H-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BS-FA-30H-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BS-FA-30H-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BS-FA-30H-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BS-FA-30N-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BS-FA-30N-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BS-FA-30N-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BS-FA-30N-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BS-FA-30N-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BS-FA-30N-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BS-FA-40B-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BS-FA-40B-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BS-FA-40B-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BS-FA-40B-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BS-FA-40B-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BS-FA-40B-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BS-FA-40R-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BS-FA-40R-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BS-FA-40R-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BS-FA-40R-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BS-FA-40R-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BS-FA-40R-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BS-FA-40H-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BS-FA-40H-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BS-FA-40H-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BS-FA-40H-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BS-FA-40H-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BS-FA-40H-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BS-FA-40N-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BS-FA-40N-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BS-FA-40N-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BS-FA-40N-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BS-FA-40N-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BS-FA-40N-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BS-FA-50B-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BS-FA-50B-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BS-FA-50B-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BS-FA-50B-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BS-FA-50B-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BS-FA-50B-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BS-FA-50R-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BS-FA-50R-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BS-FA-50R-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BS-FA-50R-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BS-FA-50R-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BS-FA-50R-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BS-FA-50H-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BS-FA-50H-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BS-FA-50H-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BS-FA-50H-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BS-FA-50H-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BS-FA-50H-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BS-FA-50N-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BS-FA-50N-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BS-FA-50N-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BS-FA-50N-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BS-FA-50N-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BS-FA-50N-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BS-FA-63B-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BS-FA-63B-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BS-FA-63B-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BS-FA-63B-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BS-FA-63B-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BS-FA-63B-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BS-FA-63R-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BS-FA-63R-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BS-FA-63R-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BS-FA-63R-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BS-FA-63R-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BS-FA-63R-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BS-FA-63H-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BS-FA-63H-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BS-FA-63H-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BS-FA-63H-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BS-FA-63H-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BS-FA-63H-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BS-FA-63N-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BS-FA-63N-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BS-FA-63N-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BS-FA-63N-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BS-FA-63N-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BS-FA-63N-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BS-FA-80B-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BS-FA-80B-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BS-FA-80B-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BS-FA-80B-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BS-FA-80B-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BS-FA-80B-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BS-FA-80R-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BS-FA-80R-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BS-FA-80R-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BS-FA-80R-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BS-FA-80R-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BS-FA-80R-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BS-FA-80H-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BS-FA-80H-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BS-FA-80H-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BS-FA-80H-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BS-FA-80H-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BS-FA-80H-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BS-FA-80N-50		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BS-FA-80N-75		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BS-FA-80N-100		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BS-FA-80N-150		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BS-FA-80N-200		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BS-FA-80N-300		Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BS-FB-30B-50		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BS-FB-30B-75		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BS-FB-30B-100		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BS-FB-30B-150		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BS-FB-30B-200		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BS-FB-30B-300		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BS-FB-30R-50		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BS-FB-30R-75		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BS-FB-30R-100		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BS-FB-30R-150		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BS-FB-30R-200		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BS-FB-30R-300		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BS-FB-30H-50		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BS-FB-30H-75		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BS-FB-30H-100		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BS-FB-30H-150		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BS-FB-30H-200		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BS-FB-30H-300		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BS-FB-30N-50		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BS-FB-30N-75		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BS-FB-30N-100		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BS-FB-30N-150		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BS-FB-30N-200		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BS-FB-30N-300		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BS-FB-40B-50		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BS-FB-40B-75		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BS-FB-40B-100		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BS-FB-40B-150		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BS-FB-40B-200		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BS-FB-40B-300		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BS-FB-40R-50		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BS-FB-40R-75		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BS-FB-40R-100		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BS-FB-40R-150		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BS-FB-40R-200		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BS-FB-40R-300		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BS-FB-40H-50		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BS-FB-40H-75		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BS-FB-40H-100		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BS-FB-40H-150		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BS-FB-40H-200		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BS-FB-40H-300		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BS-FB-40N-50		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BS-FB-40N-75		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BS-FB-40N-100		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BS-FB-40N-150		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BS-FB-40N-200		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BS-FB-40N-300		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BS-FB-50B-50		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BS-FB-50B-75		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BS-FB-50B-100		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BS-FB-50B-150		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BS-FB-50B-200		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BS-FB-50B-300		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BS-FB-50R-50		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BS-FB-50R-75		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BS-FB-50R-100		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BS-FB-50R-150		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BS-FB-50R-200		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BS-FB-50R-300		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BS-FB-50H-50		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BS-FB-50H-75		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BS-FB-50H-100		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BS-FB-50H-150		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BS-FB-50H-200		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BS-FB-50H-300		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BS-FB-50N-50		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BS-FB-50N-75		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BS-FB-50N-100		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BS-FB-50N-150		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BS-FB-50N-200		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BS-FB-50N-300		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BS-FB-63B-50		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BS-FB-63B-75		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BS-FB-63B-100		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BS-FB-63B-150		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BS-FB-63B-200		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BS-FB-63B-300		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BS-FB-63R-50		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BS-FB-63R-75		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BS-FB-63R-100		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BS-FB-63R-150		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BS-FB-63R-200		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BS-FB-63R-300		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BS-FB-63H-50		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BS-FB-63H-75		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BS-FB-63H-100		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BS-FB-63H-150		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BS-FB-63H-200		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BS-FB-63H-300		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BS-FB-63N-50		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BS-FB-63N-75		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BS-FB-63N-100		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BS-FB-63N-150		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BS-FB-63N-200		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BS-FB-63N-300		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BS-FB-80B-50		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BS-FB-80B-75		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BS-FB-80B-100		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BS-FB-80B-150		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BS-FB-80B-200		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BS-FB-80B-300		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BS-FB-80R-50		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BS-FB-80R-75		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BS-FB-80R-100		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BS-FB-80R-150		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BS-FB-80R-200		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BS-FB-80R-300		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BS-FB-80H-50		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BS-FB-80H-75		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BS-FB-80H-100		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BS-FB-80H-150		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BS-FB-80H-200		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BS-FB-80H-300		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BS-FB-80N-50		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BS-FB-80N-75		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BS-FB-80N-100		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BS-FB-80N-150		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BS-FB-80N-200		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BS-FB-80N-300		Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BSK-00-30B-50		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BSK-00-30B-75		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BSK-00-30B-100		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BSK-00-30B-150		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BSK-00-30B-200		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BSK-00-30B-300		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BSK-00-30R-50		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BSK-00-30R-75		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BSK-00-30R-100		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BSK-00-30R-150		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BSK-00-30R-200		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BSK-00-30R-300		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BSK-00-30H-50		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BSK-00-30H-75		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BSK-00-30H-100		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BSK-00-30H-150		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BSK-00-30H-200		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BSK-00-30H-300		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BSK-00-30N-50		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BSK-00-30N-75		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BSK-00-30N-100		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BSK-00-30N-150		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BSK-00-30N-200		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BSK-00-30N-300		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BSK-00-40B-50		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BSK-00-40B-75		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BSK-00-40B-100		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BSK-00-40B-150		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BSK-00-40B-200		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BSK-00-40B-300		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BSK-00-40R-50		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BSK-00-40R-75		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BSK-00-40R-100		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BSK-00-40R-150		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BSK-00-40R-200		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BSK-00-40R-300		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BSK-00-40H-50		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BSK-00-40H-75		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BSK-00-40H-100		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BSK-00-40H-150		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BSK-00-40H-200		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BSK-00-40H-300		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BSK-00-40N-50		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BSK-00-40N-75		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BSK-00-40N-100		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BSK-00-40N-150		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BSK-00-40N-200		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BSK-00-40N-300		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BSK-00-50B-50		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BSK-00-50B-75		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BSK-00-50B-100		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BSK-00-50B-150		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BSK-00-50B-200		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BSK-00-50B-300		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BSK-00-50R-50		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BSK-00-50R-75		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BSK-00-50R-100		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BSK-00-50R-150		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BSK-00-50R-200		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BSK-00-50R-300		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BSK-00-50H-50		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BSK-00-50H-75		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BSK-00-50H-100		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BSK-00-50H-150		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BSK-00-50H-200		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BSK-00-50H-300		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BSK-00-50N-50		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BSK-00-50N-75		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BSK-00-50N-100		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BSK-00-50N-150		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BSK-00-50N-200		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BSK-00-50N-300		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BSK-00-63B-50		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BSK-00-63B-75		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BSK-00-63B-100		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BSK-00-63B-150		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BSK-00-63B-200		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BSK-00-63B-300		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BSK-00-63R-50		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BSK-00-63R-75		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BSK-00-63R-100		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BSK-00-63R-150		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BSK-00-63R-200		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BSK-00-63R-300		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BSK-00-63H-50		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BSK-00-63H-75		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BSK-00-63H-100		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BSK-00-63H-150		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BSK-00-63H-200		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BSK-00-63H-300		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BSK-00-63N-50		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BSK-00-63N-75		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BSK-00-63N-100		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BSK-00-63N-150		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BSK-00-63N-200		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BSK-00-63N-300		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BSK-00-80B-50		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BSK-00-80B-75		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BSK-00-80B-100		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BSK-00-80B-150		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BSK-00-80B-200		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BSK-00-80B-300		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BSK-00-80R-50		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BSK-00-80R-75		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BSK-00-80R-100		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BSK-00-80R-150		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BSK-00-80R-200		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BSK-00-80R-300		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BSK-00-80H-50		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BSK-00-80H-75		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BSK-00-80H-100		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BSK-00-80H-150		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BSK-00-80H-200		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BSK-00-80H-300		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BSK-00-80N-50		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BSK-00-80N-75		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BSK-00-80N-100		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BSK-00-80N-150		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BSK-00-80N-200		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BSK-00-80N-300		Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BSK-LA-30B-50		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BSK-LA-30B-75		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BSK-LA-30B-100		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BSK-LA-30B-150		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BSK-LA-30B-200		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BSK-LA-30B-300		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BSK-LA-30R-50		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BSK-LA-30R-75		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BSK-LA-30R-100		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BSK-LA-30R-150		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BSK-LA-30R-200		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BSK-LA-30R-300		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BSK-LA-30H-50		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BSK-LA-30H-75		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BSK-LA-30H-100		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BSK-LA-30H-150		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BSK-LA-30H-200		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BSK-LA-30H-300		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BSK-LA-30N-50		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BSK-LA-30N-75		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BSK-LA-30N-100		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BSK-LA-30N-150		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BSK-LA-30N-200		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BSK-LA-30N-300		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BSK-LA-40B-50		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BSK-LA-40B-75		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BSK-LA-40B-100		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BSK-LA-40B-150		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BSK-LA-40B-200		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BSK-LA-40B-300		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BSK-LA-40R-50		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BSK-LA-40R-75		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BSK-LA-40R-100		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BSK-LA-40R-150		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BSK-LA-40R-200		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BSK-LA-40R-300		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BSK-LA-40H-50		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BSK-LA-40H-75		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BSK-LA-40H-100		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BSK-LA-40H-150		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BSK-LA-40H-200		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BSK-LA-40H-300		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BSK-LA-40N-50		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BSK-LA-40N-75		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BSK-LA-40N-100		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BSK-LA-40N-150		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BSK-LA-40N-200		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BSK-LA-40N-300		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BSK-LA-50B-50		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BSK-LA-50B-75		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BSK-LA-50B-100		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BSK-LA-50B-150		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BSK-LA-50B-200		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BSK-LA-50B-300		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BSK-LA-50R-50		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BSK-LA-50R-75		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BSK-LA-50R-100		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BSK-LA-50R-150		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BSK-LA-50R-200		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BSK-LA-50R-300		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BSK-LA-50H-50		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BSK-LA-50H-75		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BSK-LA-50H-100		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BSK-LA-50H-150		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BSK-LA-50H-200		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BSK-LA-50H-300		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BSK-LA-50N-50		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BSK-LA-50N-75		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BSK-LA-50N-100		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BSK-LA-50N-150		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BSK-LA-50N-200		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BSK-LA-50N-300		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BSK-LA-63B-50		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BSK-LA-63B-75		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BSK-LA-63B-100		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BSK-LA-63B-150		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BSK-LA-63B-200		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BSK-LA-63B-300		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BSK-LA-63R-50		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BSK-LA-63R-75		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BSK-LA-63R-100		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BSK-LA-63R-150		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BSK-LA-63R-200		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BSK-LA-63R-300		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BSK-LA-63H-50		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BSK-LA-63H-75		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BSK-LA-63H-100		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BSK-LA-63H-150		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BSK-LA-63H-200		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BSK-LA-63H-300		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BSK-LA-63N-50		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BSK-LA-63N-75		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BSK-LA-63N-100		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BSK-LA-63N-150		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BSK-LA-63N-200		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BSK-LA-63N-300		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BSK-LA-80B-50		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BSK-LA-80B-75		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BSK-LA-80B-100		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BSK-LA-80B-150		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BSK-LA-80B-200		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BSK-LA-80B-300		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BSK-LA-80R-50		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BSK-LA-80R-75		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BSK-LA-80R-100		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BSK-LA-80R-150		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BSK-LA-80R-200		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BSK-LA-80R-300		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BSK-LA-80H-50		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BSK-LA-80H-75		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BSK-LA-80H-100		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BSK-LA-80H-150		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BSK-LA-80H-200		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BSK-LA-80H-300		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BSK-LA-80N-50		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BSK-LA-80N-75		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BSK-LA-80N-100		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BSK-LA-80N-150		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BSK-LA-80N-200		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BSK-LA-80N-300		Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BSK-FA-30B-50		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BSK-FA-30B-75		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BSK-FA-30B-100		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BSK-FA-30B-150		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BSK-FA-30B-200		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BSK-FA-30B-300		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BSK-FA-30R-50		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BSK-FA-30R-75		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BSK-FA-30R-100		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BSK-FA-30R-150		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BSK-FA-30R-200		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BSK-FA-30R-300		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BSK-FA-30H-50		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BSK-FA-30H-75		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BSK-FA-30H-100		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BSK-FA-30H-150		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BSK-FA-30H-200		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BSK-FA-30H-300		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BSK-FA-30N-50		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BSK-FA-30N-75		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BSK-FA-30N-100		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BSK-FA-30N-150		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BSK-FA-30N-200		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BSK-FA-30N-300		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BSK-FA-40B-50		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BSK-FA-40B-75		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BSK-FA-40B-100		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BSK-FA-40B-150		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BSK-FA-40B-200		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BSK-FA-40B-300		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BSK-FA-40R-50		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BSK-FA-40R-75		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BSK-FA-40R-100		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BSK-FA-40R-150		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BSK-FA-40R-200		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BSK-FA-40R-300		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BSK-FA-40H-50		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BSK-FA-40H-75		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BSK-FA-40H-100		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BSK-FA-40H-150		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BSK-FA-40H-200		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BSK-FA-40H-300		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BSK-FA-40N-50		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BSK-FA-40N-75		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BSK-FA-40N-100		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BSK-FA-40N-150		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BSK-FA-40N-200		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BSK-FA-40N-300		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BSK-FA-50B-50		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BSK-FA-50B-75		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BSK-FA-50B-100		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BSK-FA-50B-150		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BSK-FA-50B-200		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BSK-FA-50B-300		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BSK-FA-50R-50		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BSK-FA-50R-75		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BSK-FA-50R-100		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BSK-FA-50R-150		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BSK-FA-50R-200		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BSK-FA-50R-300		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BSK-FA-50H-50		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BSK-FA-50H-75		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BSK-FA-50H-100		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BSK-FA-50H-150		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BSK-FA-50H-200		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BSK-FA-50H-300		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BSK-FA-50N-50		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BSK-FA-50N-75		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BSK-FA-50N-100		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BSK-FA-50N-150		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BSK-FA-50N-200		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BSK-FA-50N-300		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BSK-FA-63B-50		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BSK-FA-63B-75		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BSK-FA-63B-100		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BSK-FA-63B-150		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BSK-FA-63B-200		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BSK-FA-63B-300		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BSK-FA-63R-50		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BSK-FA-63R-75		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BSK-FA-63R-100		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BSK-FA-63R-150		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BSK-FA-63R-200		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BSK-FA-63R-300		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BSK-FA-63H-50		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BSK-FA-63H-75		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BSK-FA-63H-100		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BSK-FA-63H-150		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BSK-FA-63H-200		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BSK-FA-63H-300		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BSK-FA-63N-50		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BSK-FA-63N-75		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BSK-FA-63N-100		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BSK-FA-63N-150		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BSK-FA-63N-200		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BSK-FA-63N-300		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BSK-FA-80B-50		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BSK-FA-80B-75		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BSK-FA-80B-100		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BSK-FA-80B-150		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BSK-FA-80B-200		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BSK-FA-80B-300		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BSK-FA-80R-50		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BSK-FA-80R-75		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BSK-FA-80R-100		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BSK-FA-80R-150		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BSK-FA-80R-200		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BSK-FA-80R-300		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BSK-FA-80H-50		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BSK-FA-80H-75		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BSK-FA-80H-100		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BSK-FA-80H-150		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BSK-FA-80H-200		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BSK-FA-80H-300		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BSK-FA-80N-50		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BSK-FA-80N-75		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BSK-FA-80N-100		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BSK-FA-80N-150		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BSK-FA-80N-200		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BSK-FA-80N-300		Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BSK-FB-30B-50		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BSK-FB-30B-75		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BSK-FB-30B-100		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BSK-FB-30B-150		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BSK-FB-30B-200		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BSK-FB-30B-300		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BSK-FB-30R-50		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BSK-FB-30R-75		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BSK-FB-30R-100		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BSK-FB-30R-150		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BSK-FB-30R-200		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BSK-FB-30R-300		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BSK-FB-30H-50		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BSK-FB-30H-75		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BSK-FB-30H-100		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BSK-FB-30H-150		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BSK-FB-30H-200		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BSK-FB-30H-300		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BSK-FB-30N-50		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BSK-FB-30N-75		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BSK-FB-30N-100		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BSK-FB-30N-150		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BSK-FB-30N-200		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BSK-FB-30N-300		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BSK-FB-40B-50		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BSK-FB-40B-75		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BSK-FB-40B-100		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BSK-FB-40B-150		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BSK-FB-40B-200		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BSK-FB-40B-300		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BSK-FB-40R-50		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BSK-FB-40R-75		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BSK-FB-40R-100		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BSK-FB-40R-150		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BSK-FB-40R-200		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BSK-FB-40R-300		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BSK-FB-40H-50		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BSK-FB-40H-75		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BSK-FB-40H-100		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BSK-FB-40H-150		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BSK-FB-40H-200		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BSK-FB-40H-300		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BSK-FB-40N-50		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BSK-FB-40N-75		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BSK-FB-40N-100		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BSK-FB-40N-150		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BSK-FB-40N-200		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BSK-FB-40N-300		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BSK-FB-50B-50		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BSK-FB-50B-75		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BSK-FB-50B-100		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BSK-FB-50B-150		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BSK-FB-50B-200		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BSK-FB-50B-300		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BSK-FB-50R-50		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BSK-FB-50R-75		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BSK-FB-50R-100		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BSK-FB-50R-150		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BSK-FB-50R-200		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BSK-FB-50R-300		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BSK-FB-50H-50		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BSK-FB-50H-75		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BSK-FB-50H-100		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BSK-FB-50H-150		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BSK-FB-50H-200		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BSK-FB-50H-300		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BSK-FB-50N-50		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BSK-FB-50N-75		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BSK-FB-50N-100		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BSK-FB-50N-150		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BSK-FB-50N-200		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BSK-FB-50N-300		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BSK-FB-63B-50		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BSK-FB-63B-75		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BSK-FB-63B-100		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BSK-FB-63B-150		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BSK-FB-63B-200		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BSK-FB-63B-300		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BSK-FB-63R-50		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BSK-FB-63R-75		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BSK-FB-63R-100		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BSK-FB-63R-150		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BSK-FB-63R-200		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BSK-FB-63R-300		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BSK-FB-63H-50		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BSK-FB-63H-75		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BSK-FB-63H-100		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BSK-FB-63H-150		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BSK-FB-63H-200		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BSK-FB-63H-300		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BSK-FB-63N-50		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BSK-FB-63N-75		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BSK-FB-63N-100		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BSK-FB-63N-150		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BSK-FB-63N-200		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BSK-FB-63N-300		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
MFC-BSK-FB-80B-50		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
MFC-BSK-FB-80B-75		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
MFC-BSK-FB-80B-100		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
MFC-BSK-FB-80B-150		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
MFC-BSK-FB-80B-200		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
MFC-BSK-FB-80B-300		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
MFC-BSK-FB-80R-50		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
MFC-BSK-FB-80R-75		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
MFC-BSK-FB-80R-100		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
MFC-BSK-FB-80R-150		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
MFC-BSK-FB-80R-200		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
MFC-BSK-FB-80R-300		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
MFC-BSK-FB-80H-50		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
MFC-BSK-FB-80H-75		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
MFC-BSK-FB-80H-100		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
MFC-BSK-FB-80H-150		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
MFC-BSK-FB-80H-200		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
MFC-BSK-FB-80H-300		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
MFC-BSK-FB-80N-50		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
MFC-BSK-FB-80N-75		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
MFC-BSK-FB-80N-100		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
MFC-BSK-FB-80N-150		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
MFC-BSK-FB-80N-200		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
MFC-BSK-FB-80N-300		Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm

Pneumatic CylindersCKD

960 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MFC-BS Robot Cylinder with Brake and Encoder (Discontinued)

Brand CKD·Pneumatic Cylinders

Available part numbers (960)

MFC-BS-00-30B-50, MFC-BS-00-30B-75, MFC-BS-00-30B-100, MFC-BS-00-30B-150, MFC-BS-00-30B-200, MFC-BS-00-30B-300, MFC-BS-00-30R-50, MFC-BS-00-30R-75, MFC-BS-00-30R-100, MFC-BS-00-30R-150 + 950 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MFC-BS-00-30B-50	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BS-00-30B-75	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BS-00-30B-100	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BS-00-30B-150	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BS-00-30B-200	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BS-00-30B-300	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BS-00-30R-50	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BS-00-30R-75	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BS-00-30R-100	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BS-00-30R-150	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BS-00-30R-200	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BS-00-30R-300	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BS-00-30H-50	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BS-00-30H-75	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BS-00-30H-100	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BS-00-30H-150	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BS-00-30H-200	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BS-00-30H-300	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BS-00-30N-50	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BS-00-30N-75	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BS-00-30N-100	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BS-00-30N-150	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BS-00-30N-200	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BS-00-30N-300	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BS-00-40B-50	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BS-00-40B-75	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BS-00-40B-100	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BS-00-40B-150	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BS-00-40B-200	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BS-00-40B-300	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BS-00-40R-50	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BS-00-40R-75	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BS-00-40R-100	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BS-00-40R-150	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BS-00-40R-200	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BS-00-40R-300	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BS-00-40H-50	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BS-00-40H-75	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BS-00-40H-100	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BS-00-40H-150	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BS-00-40H-200	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BS-00-40H-300	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BS-00-40N-50	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BS-00-40N-75	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BS-00-40N-100	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BS-00-40N-150	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BS-00-40N-200	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BS-00-40N-300	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BS-00-50B-50	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BS-00-50B-75	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BS-00-50B-100	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BS-00-50B-150	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BS-00-50B-200	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BS-00-50B-300	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BS-00-50R-50	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BS-00-50R-75	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BS-00-50R-100	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BS-00-50R-150	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BS-00-50R-200	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BS-00-50R-300	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BS-00-50H-50	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BS-00-50H-75	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BS-00-50H-100	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BS-00-50H-150	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BS-00-50H-200	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BS-00-50H-300	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BS-00-50N-50	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BS-00-50N-75	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BS-00-50N-100	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BS-00-50N-150	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BS-00-50N-200	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BS-00-50N-300	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BS-00-63B-50	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BS-00-63B-75	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BS-00-63B-100	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BS-00-63B-150	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BS-00-63B-200	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BS-00-63B-300	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BS-00-63R-50	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BS-00-63R-75	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BS-00-63R-100	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BS-00-63R-150	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BS-00-63R-200	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BS-00-63R-300	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BS-00-63H-50	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BS-00-63H-75	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BS-00-63H-100	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BS-00-63H-150	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BS-00-63H-200	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BS-00-63H-300	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BS-00-63N-50	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BS-00-63N-75	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BS-00-63N-100	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BS-00-63N-150	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BS-00-63N-200	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BS-00-63N-300	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BS-00-80B-50	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BS-00-80B-75	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BS-00-80B-100	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BS-00-80B-150	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BS-00-80B-200	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BS-00-80B-300	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BS-00-80R-50	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BS-00-80R-75	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BS-00-80R-100	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BS-00-80R-150	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BS-00-80R-200	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BS-00-80R-300	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BS-00-80H-50	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BS-00-80H-75	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BS-00-80H-100	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BS-00-80H-150	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BS-00-80H-200	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BS-00-80H-300	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BS-00-80N-50	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BS-00-80N-75	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BS-00-80N-100	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BS-00-80N-150	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BS-00-80N-200	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BS-00-80N-300	Model: MFC-BS (brake + encoder) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BS-LA-30B-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BS-LA-30B-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BS-LA-30B-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BS-LA-30B-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BS-LA-30B-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BS-LA-30B-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BS-LA-30R-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BS-LA-30R-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BS-LA-30R-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BS-LA-30R-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BS-LA-30R-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BS-LA-30R-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BS-LA-30H-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BS-LA-30H-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BS-LA-30H-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BS-LA-30H-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BS-LA-30H-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BS-LA-30H-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BS-LA-30N-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BS-LA-30N-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BS-LA-30N-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BS-LA-30N-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BS-LA-30N-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BS-LA-30N-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BS-LA-40B-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BS-LA-40B-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BS-LA-40B-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BS-LA-40B-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BS-LA-40B-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BS-LA-40B-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BS-LA-40R-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BS-LA-40R-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BS-LA-40R-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BS-LA-40R-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BS-LA-40R-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BS-LA-40R-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BS-LA-40H-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BS-LA-40H-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BS-LA-40H-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BS-LA-40H-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BS-LA-40H-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BS-LA-40H-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BS-LA-40N-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BS-LA-40N-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BS-LA-40N-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BS-LA-40N-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BS-LA-40N-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BS-LA-40N-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BS-LA-50B-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BS-LA-50B-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BS-LA-50B-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BS-LA-50B-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BS-LA-50B-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BS-LA-50B-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BS-LA-50R-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BS-LA-50R-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BS-LA-50R-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BS-LA-50R-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BS-LA-50R-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BS-LA-50R-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BS-LA-50H-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BS-LA-50H-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BS-LA-50H-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BS-LA-50H-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BS-LA-50H-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BS-LA-50H-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BS-LA-50N-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BS-LA-50N-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BS-LA-50N-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BS-LA-50N-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BS-LA-50N-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BS-LA-50N-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BS-LA-63B-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BS-LA-63B-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BS-LA-63B-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BS-LA-63B-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BS-LA-63B-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BS-LA-63B-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BS-LA-63R-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BS-LA-63R-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BS-LA-63R-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BS-LA-63R-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BS-LA-63R-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BS-LA-63R-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BS-LA-63H-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BS-LA-63H-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BS-LA-63H-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BS-LA-63H-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BS-LA-63H-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BS-LA-63H-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BS-LA-63N-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BS-LA-63N-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BS-LA-63N-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BS-LA-63N-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BS-LA-63N-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BS-LA-63N-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BS-LA-80B-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BS-LA-80B-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BS-LA-80B-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BS-LA-80B-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BS-LA-80B-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BS-LA-80B-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BS-LA-80R-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BS-LA-80R-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BS-LA-80R-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BS-LA-80R-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BS-LA-80R-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BS-LA-80R-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BS-LA-80H-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BS-LA-80H-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BS-LA-80H-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BS-LA-80H-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BS-LA-80H-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BS-LA-80H-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BS-LA-80N-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BS-LA-80N-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BS-LA-80N-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BS-LA-80N-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BS-LA-80N-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BS-LA-80N-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BS-FA-30B-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BS-FA-30B-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BS-FA-30B-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BS-FA-30B-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BS-FA-30B-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BS-FA-30B-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BS-FA-30R-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BS-FA-30R-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BS-FA-30R-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BS-FA-30R-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BS-FA-30R-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BS-FA-30R-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BS-FA-30H-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BS-FA-30H-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BS-FA-30H-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BS-FA-30H-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BS-FA-30H-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BS-FA-30H-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BS-FA-30N-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BS-FA-30N-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BS-FA-30N-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BS-FA-30N-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BS-FA-30N-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BS-FA-30N-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BS-FA-40B-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BS-FA-40B-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BS-FA-40B-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BS-FA-40B-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BS-FA-40B-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BS-FA-40B-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BS-FA-40R-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BS-FA-40R-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BS-FA-40R-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BS-FA-40R-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BS-FA-40R-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BS-FA-40R-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BS-FA-40H-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BS-FA-40H-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BS-FA-40H-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BS-FA-40H-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BS-FA-40H-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BS-FA-40H-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BS-FA-40N-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BS-FA-40N-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BS-FA-40N-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BS-FA-40N-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BS-FA-40N-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BS-FA-40N-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BS-FA-50B-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BS-FA-50B-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BS-FA-50B-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BS-FA-50B-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BS-FA-50B-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BS-FA-50B-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BS-FA-50R-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BS-FA-50R-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BS-FA-50R-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BS-FA-50R-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BS-FA-50R-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BS-FA-50R-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BS-FA-50H-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BS-FA-50H-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BS-FA-50H-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BS-FA-50H-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BS-FA-50H-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BS-FA-50H-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BS-FA-50N-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BS-FA-50N-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BS-FA-50N-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BS-FA-50N-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BS-FA-50N-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BS-FA-50N-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BS-FA-63B-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BS-FA-63B-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BS-FA-63B-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BS-FA-63B-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BS-FA-63B-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BS-FA-63B-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BS-FA-63R-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BS-FA-63R-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BS-FA-63R-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BS-FA-63R-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BS-FA-63R-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BS-FA-63R-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BS-FA-63H-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BS-FA-63H-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BS-FA-63H-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BS-FA-63H-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BS-FA-63H-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BS-FA-63H-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BS-FA-63N-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BS-FA-63N-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BS-FA-63N-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BS-FA-63N-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BS-FA-63N-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BS-FA-63N-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BS-FA-80B-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BS-FA-80B-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BS-FA-80B-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BS-FA-80B-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BS-FA-80B-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BS-FA-80B-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BS-FA-80R-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BS-FA-80R-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BS-FA-80R-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BS-FA-80R-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BS-FA-80R-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BS-FA-80R-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BS-FA-80H-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BS-FA-80H-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BS-FA-80H-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BS-FA-80H-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BS-FA-80H-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BS-FA-80H-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BS-FA-80N-50	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BS-FA-80N-75	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BS-FA-80N-100	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BS-FA-80N-150	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BS-FA-80N-200	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BS-FA-80N-300	Model: MFC-BS (brake + encoder) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BS-FB-30B-50	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BS-FB-30B-75	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BS-FB-30B-100	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BS-FB-30B-150	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BS-FB-30B-200	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BS-FB-30B-300	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BS-FB-30R-50	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BS-FB-30R-75	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BS-FB-30R-100	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BS-FB-30R-150	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BS-FB-30R-200	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BS-FB-30R-300	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BS-FB-30H-50	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BS-FB-30H-75	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BS-FB-30H-100	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BS-FB-30H-150	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BS-FB-30H-200	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BS-FB-30H-300	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BS-FB-30N-50	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BS-FB-30N-75	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BS-FB-30N-100	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BS-FB-30N-150	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BS-FB-30N-200	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BS-FB-30N-300	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BS-FB-40B-50	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BS-FB-40B-75	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BS-FB-40B-100	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BS-FB-40B-150	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BS-FB-40B-200	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BS-FB-40B-300	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BS-FB-40R-50	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BS-FB-40R-75	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BS-FB-40R-100	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BS-FB-40R-150	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BS-FB-40R-200	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BS-FB-40R-300	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BS-FB-40H-50	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BS-FB-40H-75	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BS-FB-40H-100	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BS-FB-40H-150	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BS-FB-40H-200	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BS-FB-40H-300	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BS-FB-40N-50	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BS-FB-40N-75	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BS-FB-40N-100	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BS-FB-40N-150	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BS-FB-40N-200	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BS-FB-40N-300	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BS-FB-50B-50	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BS-FB-50B-75	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BS-FB-50B-100	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BS-FB-50B-150	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BS-FB-50B-200	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BS-FB-50B-300	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BS-FB-50R-50	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BS-FB-50R-75	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BS-FB-50R-100	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BS-FB-50R-150	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BS-FB-50R-200	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BS-FB-50R-300	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BS-FB-50H-50	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BS-FB-50H-75	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BS-FB-50H-100	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BS-FB-50H-150	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BS-FB-50H-200	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BS-FB-50H-300	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BS-FB-50N-50	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BS-FB-50N-75	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BS-FB-50N-100	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BS-FB-50N-150	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BS-FB-50N-200	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BS-FB-50N-300	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BS-FB-63B-50	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BS-FB-63B-75	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BS-FB-63B-100	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BS-FB-63B-150	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BS-FB-63B-200	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BS-FB-63B-300	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BS-FB-63R-50	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BS-FB-63R-75	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BS-FB-63R-100	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BS-FB-63R-150	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BS-FB-63R-200	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BS-FB-63R-300	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BS-FB-63H-50	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BS-FB-63H-75	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BS-FB-63H-100	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BS-FB-63H-150	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BS-FB-63H-200	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BS-FB-63H-300	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BS-FB-63N-50	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BS-FB-63N-75	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BS-FB-63N-100	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BS-FB-63N-150	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BS-FB-63N-200	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BS-FB-63N-300	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BS-FB-80B-50	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BS-FB-80B-75	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BS-FB-80B-100	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BS-FB-80B-150	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BS-FB-80B-200	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BS-FB-80B-300	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BS-FB-80R-50	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BS-FB-80R-75	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BS-FB-80R-100	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BS-FB-80R-150	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BS-FB-80R-200	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BS-FB-80R-300	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BS-FB-80H-50	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BS-FB-80H-75	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BS-FB-80H-100	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BS-FB-80H-150	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BS-FB-80H-200	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BS-FB-80H-300	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BS-FB-80N-50	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BS-FB-80N-75	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BS-FB-80N-100	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BS-FB-80N-150	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BS-FB-80N-200	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BS-FB-80N-300	Model: MFC-BS (brake + encoder) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BSK-00-30B-50	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BSK-00-30B-75	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BSK-00-30B-100	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BSK-00-30B-150	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BSK-00-30B-200	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BSK-00-30B-300	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BSK-00-30R-50	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BSK-00-30R-75	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BSK-00-30R-100	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BSK-00-30R-150	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BSK-00-30R-200	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BSK-00-30R-300	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BSK-00-30H-50	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BSK-00-30H-75	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BSK-00-30H-100	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BSK-00-30H-150	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BSK-00-30H-200	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BSK-00-30H-300	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BSK-00-30N-50	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BSK-00-30N-75	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BSK-00-30N-100	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BSK-00-30N-150	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BSK-00-30N-200	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BSK-00-30N-300	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BSK-00-40B-50	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BSK-00-40B-75	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BSK-00-40B-100	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BSK-00-40B-150	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BSK-00-40B-200	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BSK-00-40B-300	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BSK-00-40R-50	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BSK-00-40R-75	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BSK-00-40R-100	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BSK-00-40R-150	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BSK-00-40R-200	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BSK-00-40R-300	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BSK-00-40H-50	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BSK-00-40H-75	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BSK-00-40H-100	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BSK-00-40H-150	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BSK-00-40H-200	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BSK-00-40H-300	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BSK-00-40N-50	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BSK-00-40N-75	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BSK-00-40N-100	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BSK-00-40N-150	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BSK-00-40N-200	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BSK-00-40N-300	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BSK-00-50B-50	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BSK-00-50B-75	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BSK-00-50B-100	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BSK-00-50B-150	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BSK-00-50B-200	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BSK-00-50B-300	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BSK-00-50R-50	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BSK-00-50R-75	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BSK-00-50R-100	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BSK-00-50R-150	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BSK-00-50R-200	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BSK-00-50R-300	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BSK-00-50H-50	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BSK-00-50H-75	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BSK-00-50H-100	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BSK-00-50H-150	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BSK-00-50H-200	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BSK-00-50H-300	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BSK-00-50N-50	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BSK-00-50N-75	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BSK-00-50N-100	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BSK-00-50N-150	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BSK-00-50N-200	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BSK-00-50N-300	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BSK-00-63B-50	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BSK-00-63B-75	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BSK-00-63B-100	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BSK-00-63B-150	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BSK-00-63B-200	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BSK-00-63B-300	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BSK-00-63R-50	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BSK-00-63R-75	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BSK-00-63R-100	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BSK-00-63R-150	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BSK-00-63R-200	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BSK-00-63R-300	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BSK-00-63H-50	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BSK-00-63H-75	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BSK-00-63H-100	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BSK-00-63H-150	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BSK-00-63H-200	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BSK-00-63H-300	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BSK-00-63N-50	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BSK-00-63N-75	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BSK-00-63N-100	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BSK-00-63N-150	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BSK-00-63N-200	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BSK-00-63N-300	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BSK-00-80B-50	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BSK-00-80B-75	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BSK-00-80B-100	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BSK-00-80B-150	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BSK-00-80B-200	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BSK-00-80B-300	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BSK-00-80R-50	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BSK-00-80R-75	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BSK-00-80R-100	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BSK-00-80R-150	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BSK-00-80R-200	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BSK-00-80R-300	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BSK-00-80H-50	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BSK-00-80H-75	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BSK-00-80H-100	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BSK-00-80H-150	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BSK-00-80H-200	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BSK-00-80H-300	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BSK-00-80N-50	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BSK-00-80N-75	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BSK-00-80N-100	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BSK-00-80N-150	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BSK-00-80N-200	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BSK-00-80N-300	Model: MFC-BSK (high load) \| Mounting: Basic \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BSK-LA-30B-50	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BSK-LA-30B-75	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BSK-LA-30B-100	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BSK-LA-30B-150	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BSK-LA-30B-200	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BSK-LA-30B-300	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BSK-LA-30R-50	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BSK-LA-30R-75	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BSK-LA-30R-100	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BSK-LA-30R-150	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BSK-LA-30R-200	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BSK-LA-30R-300	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BSK-LA-30H-50	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BSK-LA-30H-75	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BSK-LA-30H-100	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BSK-LA-30H-150	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BSK-LA-30H-200	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BSK-LA-30H-300	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BSK-LA-30N-50	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BSK-LA-30N-75	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BSK-LA-30N-100	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BSK-LA-30N-150	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BSK-LA-30N-200	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BSK-LA-30N-300	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BSK-LA-40B-50	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BSK-LA-40B-75	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BSK-LA-40B-100	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BSK-LA-40B-150	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BSK-LA-40B-200	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BSK-LA-40B-300	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BSK-LA-40R-50	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BSK-LA-40R-75	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BSK-LA-40R-100	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BSK-LA-40R-150	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BSK-LA-40R-200	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BSK-LA-40R-300	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BSK-LA-40H-50	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BSK-LA-40H-75	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BSK-LA-40H-100	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BSK-LA-40H-150	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BSK-LA-40H-200	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BSK-LA-40H-300	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BSK-LA-40N-50	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BSK-LA-40N-75	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BSK-LA-40N-100	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BSK-LA-40N-150	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BSK-LA-40N-200	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BSK-LA-40N-300	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BSK-LA-50B-50	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BSK-LA-50B-75	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BSK-LA-50B-100	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BSK-LA-50B-150	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BSK-LA-50B-200	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BSK-LA-50B-300	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BSK-LA-50R-50	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BSK-LA-50R-75	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BSK-LA-50R-100	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BSK-LA-50R-150	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BSK-LA-50R-200	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BSK-LA-50R-300	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BSK-LA-50H-50	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BSK-LA-50H-75	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BSK-LA-50H-100	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BSK-LA-50H-150	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BSK-LA-50H-200	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BSK-LA-50H-300	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BSK-LA-50N-50	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BSK-LA-50N-75	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BSK-LA-50N-100	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BSK-LA-50N-150	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BSK-LA-50N-200	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BSK-LA-50N-300	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BSK-LA-63B-50	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BSK-LA-63B-75	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BSK-LA-63B-100	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BSK-LA-63B-150	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BSK-LA-63B-200	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BSK-LA-63B-300	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BSK-LA-63R-50	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BSK-LA-63R-75	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BSK-LA-63R-100	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BSK-LA-63R-150	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BSK-LA-63R-200	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BSK-LA-63R-300	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BSK-LA-63H-50	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BSK-LA-63H-75	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BSK-LA-63H-100	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BSK-LA-63H-150	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BSK-LA-63H-200	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BSK-LA-63H-300	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BSK-LA-63N-50	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BSK-LA-63N-75	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BSK-LA-63N-100	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BSK-LA-63N-150	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BSK-LA-63N-200	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BSK-LA-63N-300	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BSK-LA-80B-50	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BSK-LA-80B-75	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BSK-LA-80B-100	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BSK-LA-80B-150	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BSK-LA-80B-200	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BSK-LA-80B-300	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BSK-LA-80R-50	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BSK-LA-80R-75	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BSK-LA-80R-100	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BSK-LA-80R-150	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BSK-LA-80R-200	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BSK-LA-80R-300	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BSK-LA-80H-50	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BSK-LA-80H-75	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BSK-LA-80H-100	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BSK-LA-80H-150	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BSK-LA-80H-200	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BSK-LA-80H-300	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BSK-LA-80N-50	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BSK-LA-80N-75	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BSK-LA-80N-100	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BSK-LA-80N-150	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BSK-LA-80N-200	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BSK-LA-80N-300	Model: MFC-BSK (high load) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BSK-FA-30B-50	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BSK-FA-30B-75	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BSK-FA-30B-100	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BSK-FA-30B-150	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BSK-FA-30B-200	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BSK-FA-30B-300	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BSK-FA-30R-50	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BSK-FA-30R-75	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BSK-FA-30R-100	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BSK-FA-30R-150	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BSK-FA-30R-200	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BSK-FA-30R-300	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BSK-FA-30H-50	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BSK-FA-30H-75	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BSK-FA-30H-100	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BSK-FA-30H-150	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BSK-FA-30H-200	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BSK-FA-30H-300	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BSK-FA-30N-50	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BSK-FA-30N-75	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BSK-FA-30N-100	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BSK-FA-30N-150	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BSK-FA-30N-200	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BSK-FA-30N-300	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BSK-FA-40B-50	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BSK-FA-40B-75	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BSK-FA-40B-100	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BSK-FA-40B-150	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BSK-FA-40B-200	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BSK-FA-40B-300	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BSK-FA-40R-50	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BSK-FA-40R-75	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BSK-FA-40R-100	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BSK-FA-40R-150	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BSK-FA-40R-200	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BSK-FA-40R-300	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BSK-FA-40H-50	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BSK-FA-40H-75	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BSK-FA-40H-100	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BSK-FA-40H-150	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BSK-FA-40H-200	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BSK-FA-40H-300	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BSK-FA-40N-50	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BSK-FA-40N-75	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BSK-FA-40N-100	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BSK-FA-40N-150	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BSK-FA-40N-200	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BSK-FA-40N-300	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BSK-FA-50B-50	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BSK-FA-50B-75	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BSK-FA-50B-100	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BSK-FA-50B-150	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BSK-FA-50B-200	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BSK-FA-50B-300	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BSK-FA-50R-50	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BSK-FA-50R-75	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BSK-FA-50R-100	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BSK-FA-50R-150	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BSK-FA-50R-200	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BSK-FA-50R-300	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BSK-FA-50H-50	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BSK-FA-50H-75	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BSK-FA-50H-100	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BSK-FA-50H-150	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BSK-FA-50H-200	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BSK-FA-50H-300	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BSK-FA-50N-50	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BSK-FA-50N-75	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BSK-FA-50N-100	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BSK-FA-50N-150	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BSK-FA-50N-200	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BSK-FA-50N-300	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BSK-FA-63B-50	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BSK-FA-63B-75	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BSK-FA-63B-100	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BSK-FA-63B-150	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BSK-FA-63B-200	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BSK-FA-63B-300	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BSK-FA-63R-50	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BSK-FA-63R-75	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BSK-FA-63R-100	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BSK-FA-63R-150	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BSK-FA-63R-200	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BSK-FA-63R-300	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BSK-FA-63H-50	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BSK-FA-63H-75	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BSK-FA-63H-100	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BSK-FA-63H-150	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BSK-FA-63H-200	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BSK-FA-63H-300	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BSK-FA-63N-50	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BSK-FA-63N-75	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BSK-FA-63N-100	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BSK-FA-63N-150	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BSK-FA-63N-200	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BSK-FA-63N-300	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BSK-FA-80B-50	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BSK-FA-80B-75	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BSK-FA-80B-100	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BSK-FA-80B-150	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BSK-FA-80B-200	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BSK-FA-80B-300	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BSK-FA-80R-50	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BSK-FA-80R-75	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BSK-FA-80R-100	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BSK-FA-80R-150	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BSK-FA-80R-200	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BSK-FA-80R-300	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BSK-FA-80H-50	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BSK-FA-80H-75	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BSK-FA-80H-100	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BSK-FA-80H-150	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BSK-FA-80H-200	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BSK-FA-80H-300	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BSK-FA-80N-50	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BSK-FA-80N-75	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BSK-FA-80N-100	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BSK-FA-80N-150	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BSK-FA-80N-200	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BSK-FA-80N-300	Model: MFC-BSK (high load) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BSK-FB-30B-50	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BSK-FB-30B-75	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BSK-FB-30B-100	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BSK-FB-30B-150	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BSK-FB-30B-200	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BSK-FB-30B-300	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BSK-FB-30R-50	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BSK-FB-30R-75	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BSK-FB-30R-100	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BSK-FB-30R-150	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BSK-FB-30R-200	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BSK-FB-30R-300	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BSK-FB-30H-50	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BSK-FB-30H-75	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BSK-FB-30H-100	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BSK-FB-30H-150	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BSK-FB-30H-200	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BSK-FB-30H-300	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BSK-FB-30N-50	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BSK-FB-30N-75	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BSK-FB-30N-100	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BSK-FB-30N-150	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BSK-FB-30N-200	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BSK-FB-30N-300	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BSK-FB-40B-50	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BSK-FB-40B-75	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BSK-FB-40B-100	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BSK-FB-40B-150	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BSK-FB-40B-200	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BSK-FB-40B-300	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BSK-FB-40R-50	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BSK-FB-40R-75	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BSK-FB-40R-100	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BSK-FB-40R-150	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BSK-FB-40R-200	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BSK-FB-40R-300	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BSK-FB-40H-50	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BSK-FB-40H-75	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BSK-FB-40H-100	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BSK-FB-40H-150	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BSK-FB-40H-200	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BSK-FB-40H-300	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BSK-FB-40N-50	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BSK-FB-40N-75	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BSK-FB-40N-100	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BSK-FB-40N-150	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BSK-FB-40N-200	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BSK-FB-40N-300	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BSK-FB-50B-50	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BSK-FB-50B-75	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BSK-FB-50B-100	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BSK-FB-50B-150	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BSK-FB-50B-200	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BSK-FB-50B-300	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BSK-FB-50R-50	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BSK-FB-50R-75	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BSK-FB-50R-100	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BSK-FB-50R-150	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BSK-FB-50R-200	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BSK-FB-50R-300	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BSK-FB-50H-50	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BSK-FB-50H-75	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BSK-FB-50H-100	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BSK-FB-50H-150	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BSK-FB-50H-200	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BSK-FB-50H-300	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BSK-FB-50N-50	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BSK-FB-50N-75	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BSK-FB-50N-100	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BSK-FB-50N-150	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BSK-FB-50N-200	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BSK-FB-50N-300	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BSK-FB-63B-50	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BSK-FB-63B-75	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BSK-FB-63B-100	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BSK-FB-63B-150	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BSK-FB-63B-200	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BSK-FB-63B-300	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BSK-FB-63R-50	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BSK-FB-63R-75	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BSK-FB-63R-100	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BSK-FB-63R-150	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BSK-FB-63R-200	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BSK-FB-63R-300	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BSK-FB-63H-50	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BSK-FB-63H-75	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BSK-FB-63H-100	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BSK-FB-63H-150	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BSK-FB-63H-200	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BSK-FB-63H-300	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BSK-FB-63N-50	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BSK-FB-63N-75	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BSK-FB-63N-100	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BSK-FB-63N-150	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BSK-FB-63N-200	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BSK-FB-63N-300	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: No cushion \| Stroke: 300 mm
	MFC-BSK-FB-80B-50	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 50 mm
	MFC-BSK-FB-80B-75	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 75 mm
	MFC-BSK-FB-80B-100	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 100 mm
	MFC-BSK-FB-80B-150	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 150 mm
	MFC-BSK-FB-80B-200	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 200 mm
	MFC-BSK-FB-80B-300	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, both ends \| Stroke: 300 mm
	MFC-BSK-FB-80R-50	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 50 mm
	MFC-BSK-FB-80R-75	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 75 mm
	MFC-BSK-FB-80R-100	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 100 mm
	MFC-BSK-FB-80R-150	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 150 mm
	MFC-BSK-FB-80R-200	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 200 mm
	MFC-BSK-FB-80R-300	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, rod end \| Stroke: 300 mm
	MFC-BSK-FB-80H-50	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 50 mm
	MFC-BSK-FB-80H-75	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 75 mm
	MFC-BSK-FB-80H-100	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 100 mm
	MFC-BSK-FB-80H-150	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 150 mm
	MFC-BSK-FB-80H-200	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 200 mm
	MFC-BSK-FB-80H-300	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Air cushion, head end \| Stroke: 300 mm
	MFC-BSK-FB-80N-50	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 50 mm
	MFC-BSK-FB-80N-75	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 75 mm
	MFC-BSK-FB-80N-100	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 100 mm
	MFC-BSK-FB-80N-150	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 150 mm
	MFC-BSK-FB-80N-200	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 200 mm
	MFC-BSK-FB-80N-300	Model: MFC-BSK (high load) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: No cushion \| Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD MFC-BS Robot Cylinder with Brake and Encoder (Discontinued)
