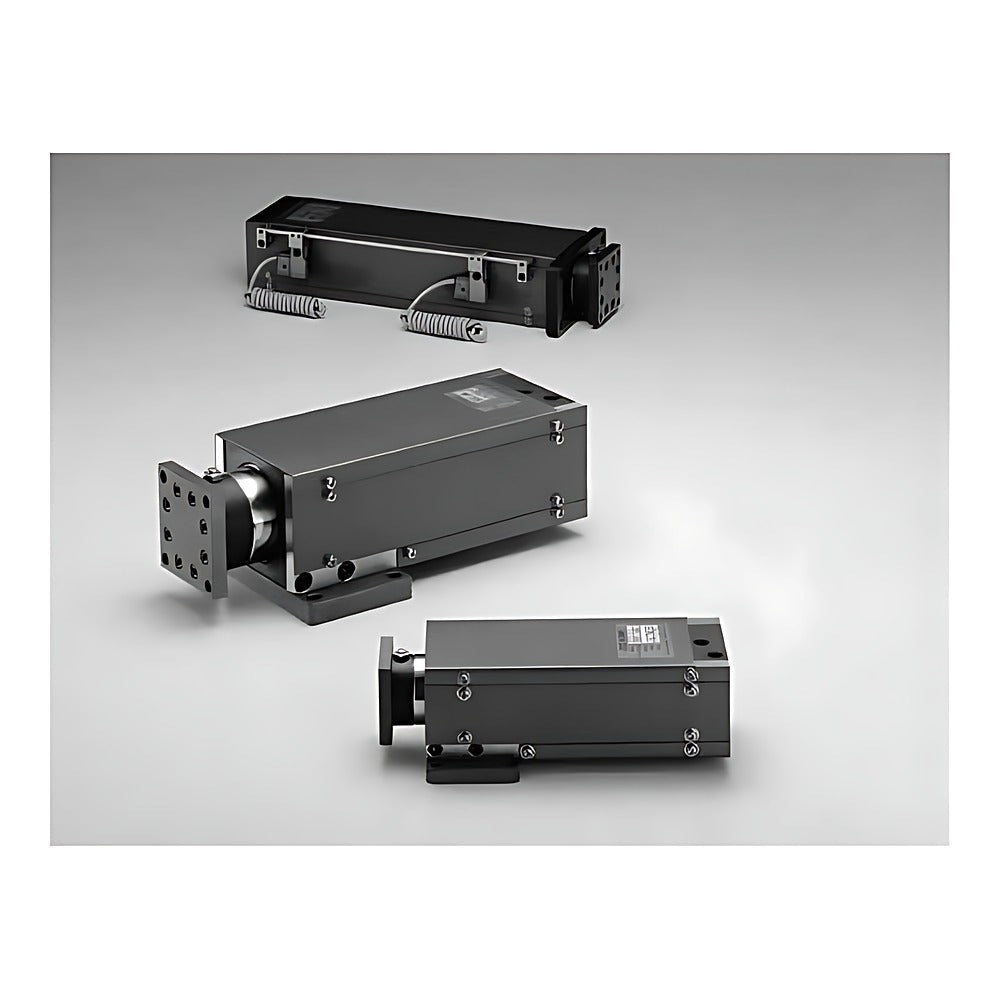

CKD MFC-K Robot Cylinder (High Load, Bore 30-80) (Discontinued)

CKD MFC-K high-load robot cylinder: a double-acting frame-type cylinder with reinforced lateral load capacity, anti-rotation and switch-ready option, bore 30 to 80 mm (production ended February 2022).

Key features

Load is carried by the whole frame; anti-rotation and lateral load resistance built in
Dry bearing in rod cover for anti-rotation; good intermediate stop performance
Switch-ready version (L) has a built-in magnet for R-type switches (R0-R6, R1-R3, R2Y, R3Y), switch and qty appended
Mountings: basic (00), rod-end foot (LA), rod-end flange (FA), head-end flange (FB); intermediate strokes in 5 mm steps
Seal kits MFC-30K to MFC-80K

Specifications

Action	Double acting
Fluid	Compressed air
Operating pressure	0.15 to 1.0 MPa
Proof pressure	1.6 MPa
Ambient temperature	-10 to 60 C (no freezing)
Port size	Rc1/8 (30, 40), Rc1/4 (50, 63), Rc3/8 (80)
Piston speed	50 to 300 mm/s (no load)
Cushion	Air cushion
Lubrication	Not required
Status	Production ended Feb 2022
Source	CKD Korea catalog CB-030SK-9, p. 1301-1313

MFC-K-00-30B-50		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-K-00-30B-75		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-K-00-30B-100		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-K-00-30B-150		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-K-00-30B-200		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-K-00-30B-300		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-K-00-30R-50		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-K-00-30R-75		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-K-00-30R-100		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-K-00-30R-150		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-K-00-30R-200		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-K-00-30R-300		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-K-00-30H-50		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-K-00-30H-75		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-K-00-30H-100		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-K-00-30H-150		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-K-00-30H-200		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-K-00-30H-300		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-K-00-30N-50		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 50 mm
MFC-K-00-30N-75		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 75 mm
MFC-K-00-30N-100		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 100 mm
MFC-K-00-30N-150		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 150 mm
MFC-K-00-30N-200		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 200 mm
MFC-K-00-30N-300		Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 300 mm
MFC-K-00-40B-50		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-K-00-40B-75		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-K-00-40B-100		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-K-00-40B-150		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-K-00-40B-200		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-K-00-40B-300		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-K-00-40R-50		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-K-00-40R-75		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-K-00-40R-100		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-K-00-40R-150		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-K-00-40R-200		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-K-00-40R-300		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-K-00-40H-50		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-K-00-40H-75		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-K-00-40H-100		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-K-00-40H-150		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-K-00-40H-200		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-K-00-40H-300		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-K-00-40N-50		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
MFC-K-00-40N-75		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
MFC-K-00-40N-100		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
MFC-K-00-40N-150		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
MFC-K-00-40N-200		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
MFC-K-00-40N-300		Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
MFC-K-00-50B-50		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-K-00-50B-75		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-K-00-50B-100		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-K-00-50B-150		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-K-00-50B-200		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-K-00-50B-300		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-K-00-50R-50		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-K-00-50R-75		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-K-00-50R-100		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-K-00-50R-150		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-K-00-50R-200		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-K-00-50R-300		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-K-00-50H-50		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-K-00-50H-75		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-K-00-50H-100		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-K-00-50H-150		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-K-00-50H-200		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-K-00-50H-300		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-K-00-50N-50		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
MFC-K-00-50N-75		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
MFC-K-00-50N-100		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
MFC-K-00-50N-150		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
MFC-K-00-50N-200		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
MFC-K-00-50N-300		Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
MFC-K-00-63B-50		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-K-00-63B-75		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-K-00-63B-100		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-K-00-63B-150		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-K-00-63B-200		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-K-00-63B-300		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-K-00-63R-50		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-K-00-63R-75		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-K-00-63R-100		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-K-00-63R-150		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-K-00-63R-200		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-K-00-63R-300		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-K-00-63H-50		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-K-00-63H-75		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-K-00-63H-100		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-K-00-63H-150		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-K-00-63H-200		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-K-00-63H-300		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-K-00-63N-50		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
MFC-K-00-63N-75		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
MFC-K-00-63N-100		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
MFC-K-00-63N-150		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
MFC-K-00-63N-200		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
MFC-K-00-63N-300		Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
MFC-K-00-80B-50		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-K-00-80B-75		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-K-00-80B-100		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-K-00-80B-150		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-K-00-80B-200		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-K-00-80B-300		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-K-00-80R-50		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-K-00-80R-75		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-K-00-80R-100		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-K-00-80R-150		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-K-00-80R-200		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-K-00-80R-300		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-K-00-80H-50		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-K-00-80H-75		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-K-00-80H-100		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-K-00-80H-150		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-K-00-80H-200		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-K-00-80H-300		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-K-00-80N-50		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
MFC-K-00-80N-75		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
MFC-K-00-80N-100		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
MFC-K-00-80N-150		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
MFC-K-00-80N-200		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
MFC-K-00-80N-300		Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
MFC-K-LA-30B-50		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-K-LA-30B-75		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-K-LA-30B-100		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-K-LA-30B-150		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-K-LA-30B-200		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-K-LA-30B-300		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-K-LA-30R-50		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-K-LA-30R-75		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-K-LA-30R-100		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-K-LA-30R-150		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-K-LA-30R-200		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-K-LA-30R-300		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-K-LA-30H-50		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-K-LA-30H-75		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-K-LA-30H-100		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-K-LA-30H-150		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-K-LA-30H-200		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-K-LA-30H-300		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-K-LA-30N-50		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 50 mm
MFC-K-LA-30N-75		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 75 mm
MFC-K-LA-30N-100		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 100 mm
MFC-K-LA-30N-150		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 150 mm
MFC-K-LA-30N-200		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 200 mm
MFC-K-LA-30N-300		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 300 mm
MFC-K-LA-40B-50		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-K-LA-40B-75		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-K-LA-40B-100		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-K-LA-40B-150		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-K-LA-40B-200		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-K-LA-40B-300		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-K-LA-40R-50		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-K-LA-40R-75		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-K-LA-40R-100		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-K-LA-40R-150		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-K-LA-40R-200		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-K-LA-40R-300		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-K-LA-40H-50		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-K-LA-40H-75		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-K-LA-40H-100		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-K-LA-40H-150		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-K-LA-40H-200		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-K-LA-40H-300		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-K-LA-40N-50		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
MFC-K-LA-40N-75		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
MFC-K-LA-40N-100		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
MFC-K-LA-40N-150		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
MFC-K-LA-40N-200		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
MFC-K-LA-40N-300		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
MFC-K-LA-50B-50		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-K-LA-50B-75		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-K-LA-50B-100		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-K-LA-50B-150		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-K-LA-50B-200		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-K-LA-50B-300		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-K-LA-50R-50		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-K-LA-50R-75		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-K-LA-50R-100		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-K-LA-50R-150		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-K-LA-50R-200		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-K-LA-50R-300		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-K-LA-50H-50		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-K-LA-50H-75		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-K-LA-50H-100		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-K-LA-50H-150		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-K-LA-50H-200		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-K-LA-50H-300		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-K-LA-50N-50		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
MFC-K-LA-50N-75		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
MFC-K-LA-50N-100		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
MFC-K-LA-50N-150		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
MFC-K-LA-50N-200		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
MFC-K-LA-50N-300		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
MFC-K-LA-63B-50		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-K-LA-63B-75		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-K-LA-63B-100		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-K-LA-63B-150		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-K-LA-63B-200		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-K-LA-63B-300		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-K-LA-63R-50		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-K-LA-63R-75		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-K-LA-63R-100		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-K-LA-63R-150		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-K-LA-63R-200		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-K-LA-63R-300		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-K-LA-63H-50		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-K-LA-63H-75		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-K-LA-63H-100		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-K-LA-63H-150		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-K-LA-63H-200		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-K-LA-63H-300		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-K-LA-63N-50		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
MFC-K-LA-63N-75		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
MFC-K-LA-63N-100		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
MFC-K-LA-63N-150		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
MFC-K-LA-63N-200		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
MFC-K-LA-63N-300		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
MFC-K-LA-80B-50		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-K-LA-80B-75		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-K-LA-80B-100		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-K-LA-80B-150		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-K-LA-80B-200		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-K-LA-80B-300		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-K-LA-80R-50		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-K-LA-80R-75		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-K-LA-80R-100		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-K-LA-80R-150		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-K-LA-80R-200		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-K-LA-80R-300		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-K-LA-80H-50		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-K-LA-80H-75		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-K-LA-80H-100		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-K-LA-80H-150		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-K-LA-80H-200		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-K-LA-80H-300		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-K-LA-80N-50		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
MFC-K-LA-80N-75		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
MFC-K-LA-80N-100		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
MFC-K-LA-80N-150		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
MFC-K-LA-80N-200		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
MFC-K-LA-80N-300		Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
MFC-K-FA-30B-50		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-K-FA-30B-75		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-K-FA-30B-100		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-K-FA-30B-150		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-K-FA-30B-200		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-K-FA-30B-300		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-K-FA-30R-50		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-K-FA-30R-75		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-K-FA-30R-100		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-K-FA-30R-150		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-K-FA-30R-200		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-K-FA-30R-300		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-K-FA-30H-50		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-K-FA-30H-75		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-K-FA-30H-100		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-K-FA-30H-150		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-K-FA-30H-200		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-K-FA-30H-300		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-K-FA-30N-50		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 50 mm
MFC-K-FA-30N-75		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 75 mm
MFC-K-FA-30N-100		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 100 mm
MFC-K-FA-30N-150		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 150 mm
MFC-K-FA-30N-200		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 200 mm
MFC-K-FA-30N-300		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 300 mm
MFC-K-FA-40B-50		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-K-FA-40B-75		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-K-FA-40B-100		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-K-FA-40B-150		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-K-FA-40B-200		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-K-FA-40B-300		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-K-FA-40R-50		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-K-FA-40R-75		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-K-FA-40R-100		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-K-FA-40R-150		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-K-FA-40R-200		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-K-FA-40R-300		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-K-FA-40H-50		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-K-FA-40H-75		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-K-FA-40H-100		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-K-FA-40H-150		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-K-FA-40H-200		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-K-FA-40H-300		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-K-FA-40N-50		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
MFC-K-FA-40N-75		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
MFC-K-FA-40N-100		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
MFC-K-FA-40N-150		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
MFC-K-FA-40N-200		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
MFC-K-FA-40N-300		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
MFC-K-FA-50B-50		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-K-FA-50B-75		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-K-FA-50B-100		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-K-FA-50B-150		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-K-FA-50B-200		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-K-FA-50B-300		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-K-FA-50R-50		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-K-FA-50R-75		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-K-FA-50R-100		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-K-FA-50R-150		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-K-FA-50R-200		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-K-FA-50R-300		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-K-FA-50H-50		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-K-FA-50H-75		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-K-FA-50H-100		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-K-FA-50H-150		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-K-FA-50H-200		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-K-FA-50H-300		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-K-FA-50N-50		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
MFC-K-FA-50N-75		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
MFC-K-FA-50N-100		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
MFC-K-FA-50N-150		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
MFC-K-FA-50N-200		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
MFC-K-FA-50N-300		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
MFC-K-FA-63B-50		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-K-FA-63B-75		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-K-FA-63B-100		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-K-FA-63B-150		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-K-FA-63B-200		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-K-FA-63B-300		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-K-FA-63R-50		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-K-FA-63R-75		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-K-FA-63R-100		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-K-FA-63R-150		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-K-FA-63R-200		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-K-FA-63R-300		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-K-FA-63H-50		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-K-FA-63H-75		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-K-FA-63H-100		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-K-FA-63H-150		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-K-FA-63H-200		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-K-FA-63H-300		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-K-FA-63N-50		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
MFC-K-FA-63N-75		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
MFC-K-FA-63N-100		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
MFC-K-FA-63N-150		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
MFC-K-FA-63N-200		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
MFC-K-FA-63N-300		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
MFC-K-FA-80B-50		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-K-FA-80B-75		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-K-FA-80B-100		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-K-FA-80B-150		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-K-FA-80B-200		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-K-FA-80B-300		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-K-FA-80R-50		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-K-FA-80R-75		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-K-FA-80R-100		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-K-FA-80R-150		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-K-FA-80R-200		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-K-FA-80R-300		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-K-FA-80H-50		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-K-FA-80H-75		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-K-FA-80H-100		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-K-FA-80H-150		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-K-FA-80H-200		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-K-FA-80H-300		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-K-FA-80N-50		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
MFC-K-FA-80N-75		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
MFC-K-FA-80N-100		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
MFC-K-FA-80N-150		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
MFC-K-FA-80N-200		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
MFC-K-FA-80N-300		Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
MFC-K-FB-30B-50		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-K-FB-30B-75		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-K-FB-30B-100		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-K-FB-30B-150		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-K-FB-30B-200		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-K-FB-30B-300		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-K-FB-30R-50		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-K-FB-30R-75		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-K-FB-30R-100		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-K-FB-30R-150		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-K-FB-30R-200		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-K-FB-30R-300		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-K-FB-30H-50		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-K-FB-30H-75		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-K-FB-30H-100		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-K-FB-30H-150		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-K-FB-30H-200		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-K-FB-30H-300		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-K-FB-30N-50		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 50 mm
MFC-K-FB-30N-75		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 75 mm
MFC-K-FB-30N-100		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 100 mm
MFC-K-FB-30N-150		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 150 mm
MFC-K-FB-30N-200		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 200 mm
MFC-K-FB-30N-300		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 300 mm
MFC-K-FB-40B-50		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-K-FB-40B-75		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-K-FB-40B-100		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-K-FB-40B-150		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-K-FB-40B-200		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-K-FB-40B-300		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-K-FB-40R-50		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-K-FB-40R-75		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-K-FB-40R-100		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-K-FB-40R-150		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-K-FB-40R-200		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-K-FB-40R-300		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-K-FB-40H-50		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-K-FB-40H-75		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-K-FB-40H-100		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-K-FB-40H-150		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-K-FB-40H-200		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-K-FB-40H-300		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-K-FB-40N-50		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
MFC-K-FB-40N-75		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
MFC-K-FB-40N-100		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
MFC-K-FB-40N-150		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
MFC-K-FB-40N-200		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
MFC-K-FB-40N-300		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
MFC-K-FB-50B-50		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-K-FB-50B-75		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-K-FB-50B-100		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-K-FB-50B-150		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-K-FB-50B-200		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-K-FB-50B-300		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-K-FB-50R-50		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-K-FB-50R-75		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-K-FB-50R-100		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-K-FB-50R-150		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-K-FB-50R-200		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-K-FB-50R-300		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-K-FB-50H-50		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-K-FB-50H-75		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-K-FB-50H-100		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-K-FB-50H-150		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-K-FB-50H-200		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-K-FB-50H-300		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-K-FB-50N-50		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
MFC-K-FB-50N-75		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
MFC-K-FB-50N-100		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
MFC-K-FB-50N-150		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
MFC-K-FB-50N-200		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
MFC-K-FB-50N-300		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
MFC-K-FB-63B-50		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-K-FB-63B-75		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-K-FB-63B-100		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-K-FB-63B-150		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-K-FB-63B-200		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-K-FB-63B-300		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-K-FB-63R-50		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-K-FB-63R-75		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-K-FB-63R-100		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-K-FB-63R-150		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-K-FB-63R-200		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-K-FB-63R-300		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-K-FB-63H-50		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-K-FB-63H-75		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-K-FB-63H-100		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-K-FB-63H-150		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-K-FB-63H-200		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-K-FB-63H-300		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-K-FB-63N-50		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
MFC-K-FB-63N-75		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
MFC-K-FB-63N-100		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
MFC-K-FB-63N-150		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
MFC-K-FB-63N-200		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
MFC-K-FB-63N-300		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
MFC-K-FB-80B-50		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-K-FB-80B-75		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-K-FB-80B-100		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-K-FB-80B-150		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-K-FB-80B-200		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-K-FB-80B-300		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-K-FB-80R-50		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-K-FB-80R-75		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-K-FB-80R-100		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-K-FB-80R-150		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-K-FB-80R-200		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-K-FB-80R-300		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-K-FB-80H-50		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-K-FB-80H-75		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-K-FB-80H-100		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-K-FB-80H-150		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-K-FB-80H-200		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-K-FB-80H-300		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-K-FB-80N-50		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
MFC-K-FB-80N-75		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
MFC-K-FB-80N-100		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
MFC-K-FB-80N-150		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
MFC-K-FB-80N-200		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
MFC-K-FB-80N-300		Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
MFC-KL-00-30B-50		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-KL-00-30B-75		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-KL-00-30B-100		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-KL-00-30B-150		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-KL-00-30B-200		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-KL-00-30B-300		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-KL-00-30R-50		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-KL-00-30R-75		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-KL-00-30R-100		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-KL-00-30R-150		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-KL-00-30R-200		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-KL-00-30R-300		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-KL-00-30H-50		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-KL-00-30H-75		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-KL-00-30H-100		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-KL-00-30H-150		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-KL-00-30H-200		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-KL-00-30H-300		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-KL-00-30N-50		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 50 mm
MFC-KL-00-30N-75		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 75 mm
MFC-KL-00-30N-100		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 100 mm
MFC-KL-00-30N-150		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 150 mm
MFC-KL-00-30N-200		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 200 mm
MFC-KL-00-30N-300		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 300 mm
MFC-KL-00-40B-50		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-KL-00-40B-75		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-KL-00-40B-100		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-KL-00-40B-150		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-KL-00-40B-200		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-KL-00-40B-300		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-KL-00-40R-50		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-KL-00-40R-75		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-KL-00-40R-100		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-KL-00-40R-150		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-KL-00-40R-200		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-KL-00-40R-300		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-KL-00-40H-50		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-KL-00-40H-75		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-KL-00-40H-100		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-KL-00-40H-150		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-KL-00-40H-200		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-KL-00-40H-300		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-KL-00-40N-50		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
MFC-KL-00-40N-75		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
MFC-KL-00-40N-100		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
MFC-KL-00-40N-150		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
MFC-KL-00-40N-200		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
MFC-KL-00-40N-300		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
MFC-KL-00-50B-50		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-KL-00-50B-75		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-KL-00-50B-100		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-KL-00-50B-150		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-KL-00-50B-200		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-KL-00-50B-300		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-KL-00-50R-50		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-KL-00-50R-75		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-KL-00-50R-100		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-KL-00-50R-150		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-KL-00-50R-200		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-KL-00-50R-300		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-KL-00-50H-50		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-KL-00-50H-75		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-KL-00-50H-100		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-KL-00-50H-150		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-KL-00-50H-200		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-KL-00-50H-300		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-KL-00-50N-50		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
MFC-KL-00-50N-75		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
MFC-KL-00-50N-100		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
MFC-KL-00-50N-150		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
MFC-KL-00-50N-200		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
MFC-KL-00-50N-300		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
MFC-KL-00-63B-50		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-KL-00-63B-75		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-KL-00-63B-100		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-KL-00-63B-150		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-KL-00-63B-200		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-KL-00-63B-300		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-KL-00-63R-50		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-KL-00-63R-75		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-KL-00-63R-100		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-KL-00-63R-150		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-KL-00-63R-200		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-KL-00-63R-300		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-KL-00-63H-50		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-KL-00-63H-75		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-KL-00-63H-100		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-KL-00-63H-150		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-KL-00-63H-200		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-KL-00-63H-300		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-KL-00-63N-50		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
MFC-KL-00-63N-75		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
MFC-KL-00-63N-100		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
MFC-KL-00-63N-150		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
MFC-KL-00-63N-200		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
MFC-KL-00-63N-300		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
MFC-KL-00-80B-50		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-KL-00-80B-75		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-KL-00-80B-100		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-KL-00-80B-150		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-KL-00-80B-200		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-KL-00-80B-300		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-KL-00-80R-50		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-KL-00-80R-75		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-KL-00-80R-100		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-KL-00-80R-150		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-KL-00-80R-200		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-KL-00-80R-300		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-KL-00-80H-50		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-KL-00-80H-75		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-KL-00-80H-100		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-KL-00-80H-150		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-KL-00-80H-200		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-KL-00-80H-300		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-KL-00-80N-50		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
MFC-KL-00-80N-75		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
MFC-KL-00-80N-100		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
MFC-KL-00-80N-150		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
MFC-KL-00-80N-200		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
MFC-KL-00-80N-300		Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
MFC-KL-LA-30B-50		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-KL-LA-30B-75		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-KL-LA-30B-100		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-KL-LA-30B-150		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-KL-LA-30B-200		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-KL-LA-30B-300		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-KL-LA-30R-50		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-KL-LA-30R-75		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-KL-LA-30R-100		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-KL-LA-30R-150		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-KL-LA-30R-200		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-KL-LA-30R-300		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-KL-LA-30H-50		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-KL-LA-30H-75		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-KL-LA-30H-100		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-KL-LA-30H-150		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-KL-LA-30H-200		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-KL-LA-30H-300		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-KL-LA-30N-50		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 50 mm
MFC-KL-LA-30N-75		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 75 mm
MFC-KL-LA-30N-100		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 100 mm
MFC-KL-LA-30N-150		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 150 mm
MFC-KL-LA-30N-200		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 200 mm
MFC-KL-LA-30N-300		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 300 mm
MFC-KL-LA-40B-50		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-KL-LA-40B-75		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-KL-LA-40B-100		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-KL-LA-40B-150		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-KL-LA-40B-200		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-KL-LA-40B-300		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-KL-LA-40R-50		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-KL-LA-40R-75		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-KL-LA-40R-100		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-KL-LA-40R-150		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-KL-LA-40R-200		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-KL-LA-40R-300		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-KL-LA-40H-50		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-KL-LA-40H-75		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-KL-LA-40H-100		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-KL-LA-40H-150		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-KL-LA-40H-200		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-KL-LA-40H-300		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-KL-LA-40N-50		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
MFC-KL-LA-40N-75		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
MFC-KL-LA-40N-100		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
MFC-KL-LA-40N-150		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
MFC-KL-LA-40N-200		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
MFC-KL-LA-40N-300		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
MFC-KL-LA-50B-50		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-KL-LA-50B-75		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-KL-LA-50B-100		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-KL-LA-50B-150		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-KL-LA-50B-200		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-KL-LA-50B-300		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-KL-LA-50R-50		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-KL-LA-50R-75		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-KL-LA-50R-100		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-KL-LA-50R-150		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-KL-LA-50R-200		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-KL-LA-50R-300		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-KL-LA-50H-50		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-KL-LA-50H-75		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-KL-LA-50H-100		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-KL-LA-50H-150		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-KL-LA-50H-200		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-KL-LA-50H-300		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-KL-LA-50N-50		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
MFC-KL-LA-50N-75		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
MFC-KL-LA-50N-100		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
MFC-KL-LA-50N-150		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
MFC-KL-LA-50N-200		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
MFC-KL-LA-50N-300		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
MFC-KL-LA-63B-50		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-KL-LA-63B-75		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-KL-LA-63B-100		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-KL-LA-63B-150		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-KL-LA-63B-200		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-KL-LA-63B-300		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-KL-LA-63R-50		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-KL-LA-63R-75		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-KL-LA-63R-100		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-KL-LA-63R-150		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-KL-LA-63R-200		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-KL-LA-63R-300		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-KL-LA-63H-50		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-KL-LA-63H-75		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-KL-LA-63H-100		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-KL-LA-63H-150		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-KL-LA-63H-200		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-KL-LA-63H-300		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-KL-LA-63N-50		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
MFC-KL-LA-63N-75		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
MFC-KL-LA-63N-100		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
MFC-KL-LA-63N-150		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
MFC-KL-LA-63N-200		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
MFC-KL-LA-63N-300		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
MFC-KL-LA-80B-50		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-KL-LA-80B-75		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-KL-LA-80B-100		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-KL-LA-80B-150		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-KL-LA-80B-200		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-KL-LA-80B-300		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-KL-LA-80R-50		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-KL-LA-80R-75		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-KL-LA-80R-100		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-KL-LA-80R-150		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-KL-LA-80R-200		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-KL-LA-80R-300		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-KL-LA-80H-50		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-KL-LA-80H-75		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-KL-LA-80H-100		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-KL-LA-80H-150		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-KL-LA-80H-200		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-KL-LA-80H-300		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-KL-LA-80N-50		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
MFC-KL-LA-80N-75		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
MFC-KL-LA-80N-100		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
MFC-KL-LA-80N-150		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
MFC-KL-LA-80N-200		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
MFC-KL-LA-80N-300		Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
MFC-KL-FA-30B-50		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-KL-FA-30B-75		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-KL-FA-30B-100		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-KL-FA-30B-150		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-KL-FA-30B-200		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-KL-FA-30B-300		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-KL-FA-30R-50		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-KL-FA-30R-75		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-KL-FA-30R-100		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-KL-FA-30R-150		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-KL-FA-30R-200		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-KL-FA-30R-300		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-KL-FA-30H-50		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-KL-FA-30H-75		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-KL-FA-30H-100		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-KL-FA-30H-150		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-KL-FA-30H-200		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-KL-FA-30H-300		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-KL-FA-30N-50		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 50 mm
MFC-KL-FA-30N-75		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 75 mm
MFC-KL-FA-30N-100		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 100 mm
MFC-KL-FA-30N-150		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 150 mm
MFC-KL-FA-30N-200		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 200 mm
MFC-KL-FA-30N-300		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 300 mm
MFC-KL-FA-40B-50		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-KL-FA-40B-75		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-KL-FA-40B-100		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-KL-FA-40B-150		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-KL-FA-40B-200		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-KL-FA-40B-300		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-KL-FA-40R-50		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-KL-FA-40R-75		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-KL-FA-40R-100		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-KL-FA-40R-150		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-KL-FA-40R-200		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-KL-FA-40R-300		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-KL-FA-40H-50		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-KL-FA-40H-75		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-KL-FA-40H-100		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-KL-FA-40H-150		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-KL-FA-40H-200		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-KL-FA-40H-300		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-KL-FA-40N-50		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
MFC-KL-FA-40N-75		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
MFC-KL-FA-40N-100		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
MFC-KL-FA-40N-150		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
MFC-KL-FA-40N-200		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
MFC-KL-FA-40N-300		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
MFC-KL-FA-50B-50		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-KL-FA-50B-75		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-KL-FA-50B-100		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-KL-FA-50B-150		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-KL-FA-50B-200		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-KL-FA-50B-300		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-KL-FA-50R-50		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-KL-FA-50R-75		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-KL-FA-50R-100		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-KL-FA-50R-150		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-KL-FA-50R-200		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-KL-FA-50R-300		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-KL-FA-50H-50		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-KL-FA-50H-75		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-KL-FA-50H-100		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-KL-FA-50H-150		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-KL-FA-50H-200		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-KL-FA-50H-300		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-KL-FA-50N-50		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
MFC-KL-FA-50N-75		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
MFC-KL-FA-50N-100		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
MFC-KL-FA-50N-150		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
MFC-KL-FA-50N-200		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
MFC-KL-FA-50N-300		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
MFC-KL-FA-63B-50		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-KL-FA-63B-75		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-KL-FA-63B-100		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-KL-FA-63B-150		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-KL-FA-63B-200		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-KL-FA-63B-300		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-KL-FA-63R-50		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-KL-FA-63R-75		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-KL-FA-63R-100		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-KL-FA-63R-150		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-KL-FA-63R-200		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-KL-FA-63R-300		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-KL-FA-63H-50		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-KL-FA-63H-75		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-KL-FA-63H-100		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-KL-FA-63H-150		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-KL-FA-63H-200		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-KL-FA-63H-300		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-KL-FA-63N-50		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
MFC-KL-FA-63N-75		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
MFC-KL-FA-63N-100		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
MFC-KL-FA-63N-150		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
MFC-KL-FA-63N-200		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
MFC-KL-FA-63N-300		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
MFC-KL-FA-80B-50		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-KL-FA-80B-75		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-KL-FA-80B-100		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-KL-FA-80B-150		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-KL-FA-80B-200		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-KL-FA-80B-300		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-KL-FA-80R-50		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-KL-FA-80R-75		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-KL-FA-80R-100		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-KL-FA-80R-150		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-KL-FA-80R-200		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-KL-FA-80R-300		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-KL-FA-80H-50		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-KL-FA-80H-75		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-KL-FA-80H-100		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-KL-FA-80H-150		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-KL-FA-80H-200		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-KL-FA-80H-300		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-KL-FA-80N-50		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
MFC-KL-FA-80N-75		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
MFC-KL-FA-80N-100		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
MFC-KL-FA-80N-150		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
MFC-KL-FA-80N-200		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
MFC-KL-FA-80N-300		Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
MFC-KL-FB-30B-50		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-KL-FB-30B-75		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-KL-FB-30B-100		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-KL-FB-30B-150		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-KL-FB-30B-200		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-KL-FB-30B-300		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-KL-FB-30R-50		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-KL-FB-30R-75		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-KL-FB-30R-100		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-KL-FB-30R-150		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-KL-FB-30R-200		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-KL-FB-30R-300		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-KL-FB-30H-50		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-KL-FB-30H-75		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-KL-FB-30H-100		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-KL-FB-30H-150		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-KL-FB-30H-200		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-KL-FB-30H-300		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-KL-FB-30N-50		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 50 mm
MFC-KL-FB-30N-75		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 75 mm
MFC-KL-FB-30N-100		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 100 mm
MFC-KL-FB-30N-150		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 150 mm
MFC-KL-FB-30N-200		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 200 mm
MFC-KL-FB-30N-300		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 300 mm
MFC-KL-FB-40B-50		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-KL-FB-40B-75		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-KL-FB-40B-100		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-KL-FB-40B-150		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-KL-FB-40B-200		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-KL-FB-40B-300		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-KL-FB-40R-50		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-KL-FB-40R-75		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-KL-FB-40R-100		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-KL-FB-40R-150		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-KL-FB-40R-200		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-KL-FB-40R-300		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-KL-FB-40H-50		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-KL-FB-40H-75		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-KL-FB-40H-100		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-KL-FB-40H-150		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-KL-FB-40H-200		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-KL-FB-40H-300		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-KL-FB-40N-50		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
MFC-KL-FB-40N-75		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
MFC-KL-FB-40N-100		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
MFC-KL-FB-40N-150		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
MFC-KL-FB-40N-200		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
MFC-KL-FB-40N-300		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
MFC-KL-FB-50B-50		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-KL-FB-50B-75		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-KL-FB-50B-100		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-KL-FB-50B-150		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-KL-FB-50B-200		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-KL-FB-50B-300		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-KL-FB-50R-50		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-KL-FB-50R-75		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-KL-FB-50R-100		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-KL-FB-50R-150		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-KL-FB-50R-200		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-KL-FB-50R-300		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-KL-FB-50H-50		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-KL-FB-50H-75		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-KL-FB-50H-100		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-KL-FB-50H-150		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-KL-FB-50H-200		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-KL-FB-50H-300		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-KL-FB-50N-50		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
MFC-KL-FB-50N-75		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
MFC-KL-FB-50N-100		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
MFC-KL-FB-50N-150		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
MFC-KL-FB-50N-200		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
MFC-KL-FB-50N-300		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
MFC-KL-FB-63B-50		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-KL-FB-63B-75		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-KL-FB-63B-100		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-KL-FB-63B-150		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-KL-FB-63B-200		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-KL-FB-63B-300		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-KL-FB-63R-50		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-KL-FB-63R-75		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-KL-FB-63R-100		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-KL-FB-63R-150		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-KL-FB-63R-200		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-KL-FB-63R-300		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-KL-FB-63H-50		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-KL-FB-63H-75		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-KL-FB-63H-100		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-KL-FB-63H-150		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-KL-FB-63H-200		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-KL-FB-63H-300		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-KL-FB-63N-50		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
MFC-KL-FB-63N-75		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
MFC-KL-FB-63N-100		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
MFC-KL-FB-63N-150		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
MFC-KL-FB-63N-200		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
MFC-KL-FB-63N-300		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
MFC-KL-FB-80B-50		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
MFC-KL-FB-80B-75		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
MFC-KL-FB-80B-100		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
MFC-KL-FB-80B-150		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
MFC-KL-FB-80B-200		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
MFC-KL-FB-80B-300		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
MFC-KL-FB-80R-50		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
MFC-KL-FB-80R-75		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
MFC-KL-FB-80R-100		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
MFC-KL-FB-80R-150		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
MFC-KL-FB-80R-200		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
MFC-KL-FB-80R-300		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
MFC-KL-FB-80H-50		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
MFC-KL-FB-80H-75		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
MFC-KL-FB-80H-100		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
MFC-KL-FB-80H-150		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
MFC-KL-FB-80H-200		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
MFC-KL-FB-80H-300		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
MFC-KL-FB-80N-50		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
MFC-KL-FB-80N-75		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
MFC-KL-FB-80N-100		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
MFC-KL-FB-80N-150		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
MFC-KL-FB-80N-200		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
MFC-KL-FB-80N-300		Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm

Pneumatic CylindersCKD

960 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

CKD MFC-K Robot Cylinder (High Load, Bore 30-80) (Discontinued)

Brand CKD·Pneumatic Cylinders

Available part numbers (960)

MFC-K-00-30B-50, MFC-K-00-30B-75, MFC-K-00-30B-100, MFC-K-00-30B-150, MFC-K-00-30B-200, MFC-K-00-30B-300, MFC-K-00-30R-50, MFC-K-00-30R-75, MFC-K-00-30R-100, MFC-K-00-30R-150 + 950 more — see full table ↓

How to order

Send the CKD part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MFC-K-00-30B-50	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-K-00-30B-75	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-K-00-30B-100	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-K-00-30B-150	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-K-00-30B-200	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-K-00-30B-300	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-K-00-30R-50	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-K-00-30R-75	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-K-00-30R-100	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-K-00-30R-150	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-K-00-30R-200	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-K-00-30R-300	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-K-00-30H-50	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-K-00-30H-75	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-K-00-30H-100	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-K-00-30H-150	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-K-00-30H-200	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-K-00-30H-300	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-K-00-30N-50	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 50 mm
	MFC-K-00-30N-75	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 75 mm
	MFC-K-00-30N-100	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 100 mm
	MFC-K-00-30N-150	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 150 mm
	MFC-K-00-30N-200	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 200 mm
	MFC-K-00-30N-300	Switch magnet: Without \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 300 mm
	MFC-K-00-40B-50	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-K-00-40B-75	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-K-00-40B-100	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-K-00-40B-150	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-K-00-40B-200	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-K-00-40B-300	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-K-00-40R-50	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-K-00-40R-75	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-K-00-40R-100	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-K-00-40R-150	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-K-00-40R-200	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-K-00-40R-300	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-K-00-40H-50	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-K-00-40H-75	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-K-00-40H-100	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-K-00-40H-150	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-K-00-40H-200	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-K-00-40H-300	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-K-00-40N-50	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
	MFC-K-00-40N-75	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
	MFC-K-00-40N-100	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
	MFC-K-00-40N-150	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
	MFC-K-00-40N-200	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
	MFC-K-00-40N-300	Switch magnet: Without \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
	MFC-K-00-50B-50	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-K-00-50B-75	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-K-00-50B-100	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-K-00-50B-150	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-K-00-50B-200	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-K-00-50B-300	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-K-00-50R-50	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-K-00-50R-75	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-K-00-50R-100	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-K-00-50R-150	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-K-00-50R-200	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-K-00-50R-300	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-K-00-50H-50	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-K-00-50H-75	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-K-00-50H-100	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-K-00-50H-150	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-K-00-50H-200	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-K-00-50H-300	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-K-00-50N-50	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
	MFC-K-00-50N-75	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
	MFC-K-00-50N-100	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
	MFC-K-00-50N-150	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
	MFC-K-00-50N-200	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
	MFC-K-00-50N-300	Switch magnet: Without \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
	MFC-K-00-63B-50	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-K-00-63B-75	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-K-00-63B-100	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-K-00-63B-150	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-K-00-63B-200	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-K-00-63B-300	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-K-00-63R-50	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-K-00-63R-75	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-K-00-63R-100	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-K-00-63R-150	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-K-00-63R-200	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-K-00-63R-300	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-K-00-63H-50	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-K-00-63H-75	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-K-00-63H-100	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-K-00-63H-150	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-K-00-63H-200	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-K-00-63H-300	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-K-00-63N-50	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
	MFC-K-00-63N-75	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
	MFC-K-00-63N-100	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
	MFC-K-00-63N-150	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
	MFC-K-00-63N-200	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
	MFC-K-00-63N-300	Switch magnet: Without \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
	MFC-K-00-80B-50	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-K-00-80B-75	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-K-00-80B-100	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-K-00-80B-150	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-K-00-80B-200	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-K-00-80B-300	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-K-00-80R-50	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-K-00-80R-75	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-K-00-80R-100	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-K-00-80R-150	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-K-00-80R-200	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-K-00-80R-300	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-K-00-80H-50	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-K-00-80H-75	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-K-00-80H-100	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-K-00-80H-150	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-K-00-80H-200	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-K-00-80H-300	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-K-00-80N-50	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
	MFC-K-00-80N-75	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
	MFC-K-00-80N-100	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
	MFC-K-00-80N-150	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
	MFC-K-00-80N-200	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
	MFC-K-00-80N-300	Switch magnet: Without \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
	MFC-K-LA-30B-50	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-K-LA-30B-75	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-K-LA-30B-100	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-K-LA-30B-150	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-K-LA-30B-200	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-K-LA-30B-300	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-K-LA-30R-50	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-K-LA-30R-75	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-K-LA-30R-100	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-K-LA-30R-150	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-K-LA-30R-200	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-K-LA-30R-300	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-K-LA-30H-50	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-K-LA-30H-75	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-K-LA-30H-100	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-K-LA-30H-150	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-K-LA-30H-200	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-K-LA-30H-300	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-K-LA-30N-50	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 50 mm
	MFC-K-LA-30N-75	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 75 mm
	MFC-K-LA-30N-100	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 100 mm
	MFC-K-LA-30N-150	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 150 mm
	MFC-K-LA-30N-200	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 200 mm
	MFC-K-LA-30N-300	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 300 mm
	MFC-K-LA-40B-50	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-K-LA-40B-75	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-K-LA-40B-100	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-K-LA-40B-150	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-K-LA-40B-200	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-K-LA-40B-300	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-K-LA-40R-50	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-K-LA-40R-75	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-K-LA-40R-100	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-K-LA-40R-150	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-K-LA-40R-200	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-K-LA-40R-300	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-K-LA-40H-50	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-K-LA-40H-75	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-K-LA-40H-100	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-K-LA-40H-150	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-K-LA-40H-200	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-K-LA-40H-300	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-K-LA-40N-50	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
	MFC-K-LA-40N-75	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
	MFC-K-LA-40N-100	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
	MFC-K-LA-40N-150	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
	MFC-K-LA-40N-200	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
	MFC-K-LA-40N-300	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
	MFC-K-LA-50B-50	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-K-LA-50B-75	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-K-LA-50B-100	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-K-LA-50B-150	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-K-LA-50B-200	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-K-LA-50B-300	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-K-LA-50R-50	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-K-LA-50R-75	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-K-LA-50R-100	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-K-LA-50R-150	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-K-LA-50R-200	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-K-LA-50R-300	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-K-LA-50H-50	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-K-LA-50H-75	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-K-LA-50H-100	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-K-LA-50H-150	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-K-LA-50H-200	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-K-LA-50H-300	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-K-LA-50N-50	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
	MFC-K-LA-50N-75	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
	MFC-K-LA-50N-100	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
	MFC-K-LA-50N-150	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
	MFC-K-LA-50N-200	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
	MFC-K-LA-50N-300	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
	MFC-K-LA-63B-50	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-K-LA-63B-75	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-K-LA-63B-100	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-K-LA-63B-150	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-K-LA-63B-200	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-K-LA-63B-300	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-K-LA-63R-50	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-K-LA-63R-75	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-K-LA-63R-100	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-K-LA-63R-150	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-K-LA-63R-200	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-K-LA-63R-300	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-K-LA-63H-50	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-K-LA-63H-75	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-K-LA-63H-100	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-K-LA-63H-150	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-K-LA-63H-200	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-K-LA-63H-300	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-K-LA-63N-50	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
	MFC-K-LA-63N-75	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
	MFC-K-LA-63N-100	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
	MFC-K-LA-63N-150	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
	MFC-K-LA-63N-200	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
	MFC-K-LA-63N-300	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
	MFC-K-LA-80B-50	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-K-LA-80B-75	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-K-LA-80B-100	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-K-LA-80B-150	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-K-LA-80B-200	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-K-LA-80B-300	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-K-LA-80R-50	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-K-LA-80R-75	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-K-LA-80R-100	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-K-LA-80R-150	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-K-LA-80R-200	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-K-LA-80R-300	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-K-LA-80H-50	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-K-LA-80H-75	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-K-LA-80H-100	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-K-LA-80H-150	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-K-LA-80H-200	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-K-LA-80H-300	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-K-LA-80N-50	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
	MFC-K-LA-80N-75	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
	MFC-K-LA-80N-100	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
	MFC-K-LA-80N-150	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
	MFC-K-LA-80N-200	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
	MFC-K-LA-80N-300	Switch magnet: Without \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
	MFC-K-FA-30B-50	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-K-FA-30B-75	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-K-FA-30B-100	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-K-FA-30B-150	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-K-FA-30B-200	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-K-FA-30B-300	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-K-FA-30R-50	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-K-FA-30R-75	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-K-FA-30R-100	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-K-FA-30R-150	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-K-FA-30R-200	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-K-FA-30R-300	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-K-FA-30H-50	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-K-FA-30H-75	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-K-FA-30H-100	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-K-FA-30H-150	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-K-FA-30H-200	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-K-FA-30H-300	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-K-FA-30N-50	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 50 mm
	MFC-K-FA-30N-75	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 75 mm
	MFC-K-FA-30N-100	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 100 mm
	MFC-K-FA-30N-150	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 150 mm
	MFC-K-FA-30N-200	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 200 mm
	MFC-K-FA-30N-300	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 300 mm
	MFC-K-FA-40B-50	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-K-FA-40B-75	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-K-FA-40B-100	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-K-FA-40B-150	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-K-FA-40B-200	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-K-FA-40B-300	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-K-FA-40R-50	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-K-FA-40R-75	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-K-FA-40R-100	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-K-FA-40R-150	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-K-FA-40R-200	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-K-FA-40R-300	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-K-FA-40H-50	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-K-FA-40H-75	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-K-FA-40H-100	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-K-FA-40H-150	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-K-FA-40H-200	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-K-FA-40H-300	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-K-FA-40N-50	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
	MFC-K-FA-40N-75	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
	MFC-K-FA-40N-100	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
	MFC-K-FA-40N-150	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
	MFC-K-FA-40N-200	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
	MFC-K-FA-40N-300	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
	MFC-K-FA-50B-50	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-K-FA-50B-75	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-K-FA-50B-100	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-K-FA-50B-150	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-K-FA-50B-200	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-K-FA-50B-300	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-K-FA-50R-50	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-K-FA-50R-75	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-K-FA-50R-100	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-K-FA-50R-150	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-K-FA-50R-200	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-K-FA-50R-300	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-K-FA-50H-50	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-K-FA-50H-75	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-K-FA-50H-100	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-K-FA-50H-150	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-K-FA-50H-200	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-K-FA-50H-300	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-K-FA-50N-50	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
	MFC-K-FA-50N-75	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
	MFC-K-FA-50N-100	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
	MFC-K-FA-50N-150	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
	MFC-K-FA-50N-200	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
	MFC-K-FA-50N-300	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
	MFC-K-FA-63B-50	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-K-FA-63B-75	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-K-FA-63B-100	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-K-FA-63B-150	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-K-FA-63B-200	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-K-FA-63B-300	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-K-FA-63R-50	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-K-FA-63R-75	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-K-FA-63R-100	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-K-FA-63R-150	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-K-FA-63R-200	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-K-FA-63R-300	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-K-FA-63H-50	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-K-FA-63H-75	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-K-FA-63H-100	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-K-FA-63H-150	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-K-FA-63H-200	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-K-FA-63H-300	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-K-FA-63N-50	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
	MFC-K-FA-63N-75	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
	MFC-K-FA-63N-100	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
	MFC-K-FA-63N-150	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
	MFC-K-FA-63N-200	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
	MFC-K-FA-63N-300	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
	MFC-K-FA-80B-50	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-K-FA-80B-75	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-K-FA-80B-100	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-K-FA-80B-150	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-K-FA-80B-200	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-K-FA-80B-300	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-K-FA-80R-50	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-K-FA-80R-75	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-K-FA-80R-100	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-K-FA-80R-150	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-K-FA-80R-200	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-K-FA-80R-300	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-K-FA-80H-50	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-K-FA-80H-75	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-K-FA-80H-100	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-K-FA-80H-150	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-K-FA-80H-200	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-K-FA-80H-300	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-K-FA-80N-50	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
	MFC-K-FA-80N-75	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
	MFC-K-FA-80N-100	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
	MFC-K-FA-80N-150	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
	MFC-K-FA-80N-200	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
	MFC-K-FA-80N-300	Switch magnet: Without \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
	MFC-K-FB-30B-50	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-K-FB-30B-75	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-K-FB-30B-100	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-K-FB-30B-150	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-K-FB-30B-200	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-K-FB-30B-300	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-K-FB-30R-50	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-K-FB-30R-75	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-K-FB-30R-100	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-K-FB-30R-150	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-K-FB-30R-200	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-K-FB-30R-300	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-K-FB-30H-50	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-K-FB-30H-75	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-K-FB-30H-100	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-K-FB-30H-150	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-K-FB-30H-200	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-K-FB-30H-300	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-K-FB-30N-50	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 50 mm
	MFC-K-FB-30N-75	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 75 mm
	MFC-K-FB-30N-100	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 100 mm
	MFC-K-FB-30N-150	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 150 mm
	MFC-K-FB-30N-200	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 200 mm
	MFC-K-FB-30N-300	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 300 mm
	MFC-K-FB-40B-50	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-K-FB-40B-75	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-K-FB-40B-100	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-K-FB-40B-150	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-K-FB-40B-200	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-K-FB-40B-300	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-K-FB-40R-50	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-K-FB-40R-75	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-K-FB-40R-100	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-K-FB-40R-150	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-K-FB-40R-200	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-K-FB-40R-300	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-K-FB-40H-50	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-K-FB-40H-75	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-K-FB-40H-100	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-K-FB-40H-150	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-K-FB-40H-200	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-K-FB-40H-300	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-K-FB-40N-50	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
	MFC-K-FB-40N-75	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
	MFC-K-FB-40N-100	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
	MFC-K-FB-40N-150	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
	MFC-K-FB-40N-200	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
	MFC-K-FB-40N-300	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
	MFC-K-FB-50B-50	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-K-FB-50B-75	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-K-FB-50B-100	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-K-FB-50B-150	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-K-FB-50B-200	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-K-FB-50B-300	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-K-FB-50R-50	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-K-FB-50R-75	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-K-FB-50R-100	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-K-FB-50R-150	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-K-FB-50R-200	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-K-FB-50R-300	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-K-FB-50H-50	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-K-FB-50H-75	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-K-FB-50H-100	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-K-FB-50H-150	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-K-FB-50H-200	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-K-FB-50H-300	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-K-FB-50N-50	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
	MFC-K-FB-50N-75	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
	MFC-K-FB-50N-100	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
	MFC-K-FB-50N-150	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
	MFC-K-FB-50N-200	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
	MFC-K-FB-50N-300	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
	MFC-K-FB-63B-50	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-K-FB-63B-75	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-K-FB-63B-100	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-K-FB-63B-150	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-K-FB-63B-200	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-K-FB-63B-300	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-K-FB-63R-50	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-K-FB-63R-75	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-K-FB-63R-100	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-K-FB-63R-150	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-K-FB-63R-200	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-K-FB-63R-300	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-K-FB-63H-50	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-K-FB-63H-75	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-K-FB-63H-100	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-K-FB-63H-150	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-K-FB-63H-200	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-K-FB-63H-300	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-K-FB-63N-50	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
	MFC-K-FB-63N-75	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
	MFC-K-FB-63N-100	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
	MFC-K-FB-63N-150	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
	MFC-K-FB-63N-200	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
	MFC-K-FB-63N-300	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
	MFC-K-FB-80B-50	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-K-FB-80B-75	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-K-FB-80B-100	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-K-FB-80B-150	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-K-FB-80B-200	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-K-FB-80B-300	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-K-FB-80R-50	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-K-FB-80R-75	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-K-FB-80R-100	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-K-FB-80R-150	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-K-FB-80R-200	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-K-FB-80R-300	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-K-FB-80H-50	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-K-FB-80H-75	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-K-FB-80H-100	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-K-FB-80H-150	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-K-FB-80H-200	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-K-FB-80H-300	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-K-FB-80N-50	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
	MFC-K-FB-80N-75	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
	MFC-K-FB-80N-100	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
	MFC-K-FB-80N-150	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
	MFC-K-FB-80N-200	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
	MFC-K-FB-80N-300	Switch magnet: Without \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
	MFC-KL-00-30B-50	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-KL-00-30B-75	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-KL-00-30B-100	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-KL-00-30B-150	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-KL-00-30B-200	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-KL-00-30B-300	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-KL-00-30R-50	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-KL-00-30R-75	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-KL-00-30R-100	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-KL-00-30R-150	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-KL-00-30R-200	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-KL-00-30R-300	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-KL-00-30H-50	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-KL-00-30H-75	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-KL-00-30H-100	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-KL-00-30H-150	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-KL-00-30H-200	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-KL-00-30H-300	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-KL-00-30N-50	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 50 mm
	MFC-KL-00-30N-75	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 75 mm
	MFC-KL-00-30N-100	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 100 mm
	MFC-KL-00-30N-150	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 150 mm
	MFC-KL-00-30N-200	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 200 mm
	MFC-KL-00-30N-300	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 30 mm \| Cushion: None \| Stroke: 300 mm
	MFC-KL-00-40B-50	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-KL-00-40B-75	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-KL-00-40B-100	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-KL-00-40B-150	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-KL-00-40B-200	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-KL-00-40B-300	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-KL-00-40R-50	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-KL-00-40R-75	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-KL-00-40R-100	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-KL-00-40R-150	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-KL-00-40R-200	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-KL-00-40R-300	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-KL-00-40H-50	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-KL-00-40H-75	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-KL-00-40H-100	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-KL-00-40H-150	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-KL-00-40H-200	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-KL-00-40H-300	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-KL-00-40N-50	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
	MFC-KL-00-40N-75	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
	MFC-KL-00-40N-100	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
	MFC-KL-00-40N-150	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
	MFC-KL-00-40N-200	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
	MFC-KL-00-40N-300	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
	MFC-KL-00-50B-50	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-KL-00-50B-75	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-KL-00-50B-100	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-KL-00-50B-150	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-KL-00-50B-200	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-KL-00-50B-300	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-KL-00-50R-50	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-KL-00-50R-75	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-KL-00-50R-100	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-KL-00-50R-150	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-KL-00-50R-200	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-KL-00-50R-300	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-KL-00-50H-50	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-KL-00-50H-75	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-KL-00-50H-100	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-KL-00-50H-150	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-KL-00-50H-200	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-KL-00-50H-300	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-KL-00-50N-50	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
	MFC-KL-00-50N-75	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
	MFC-KL-00-50N-100	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
	MFC-KL-00-50N-150	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
	MFC-KL-00-50N-200	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
	MFC-KL-00-50N-300	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
	MFC-KL-00-63B-50	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-KL-00-63B-75	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-KL-00-63B-100	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-KL-00-63B-150	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-KL-00-63B-200	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-KL-00-63B-300	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-KL-00-63R-50	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-KL-00-63R-75	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-KL-00-63R-100	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-KL-00-63R-150	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-KL-00-63R-200	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-KL-00-63R-300	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-KL-00-63H-50	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-KL-00-63H-75	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-KL-00-63H-100	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-KL-00-63H-150	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-KL-00-63H-200	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-KL-00-63H-300	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-KL-00-63N-50	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
	MFC-KL-00-63N-75	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
	MFC-KL-00-63N-100	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
	MFC-KL-00-63N-150	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
	MFC-KL-00-63N-200	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
	MFC-KL-00-63N-300	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
	MFC-KL-00-80B-50	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-KL-00-80B-75	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-KL-00-80B-100	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-KL-00-80B-150	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-KL-00-80B-200	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-KL-00-80B-300	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-KL-00-80R-50	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-KL-00-80R-75	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-KL-00-80R-100	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-KL-00-80R-150	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-KL-00-80R-200	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-KL-00-80R-300	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-KL-00-80H-50	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-KL-00-80H-75	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-KL-00-80H-100	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-KL-00-80H-150	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-KL-00-80H-200	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-KL-00-80H-300	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-KL-00-80N-50	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
	MFC-KL-00-80N-75	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
	MFC-KL-00-80N-100	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
	MFC-KL-00-80N-150	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
	MFC-KL-00-80N-200	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
	MFC-KL-00-80N-300	Switch magnet: With (switch ready) \| Mounting: Basic \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
	MFC-KL-LA-30B-50	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-KL-LA-30B-75	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-KL-LA-30B-100	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-KL-LA-30B-150	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-KL-LA-30B-200	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-KL-LA-30B-300	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-KL-LA-30R-50	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-KL-LA-30R-75	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-KL-LA-30R-100	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-KL-LA-30R-150	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-KL-LA-30R-200	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-KL-LA-30R-300	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-KL-LA-30H-50	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-KL-LA-30H-75	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-KL-LA-30H-100	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-KL-LA-30H-150	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-KL-LA-30H-200	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-KL-LA-30H-300	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-KL-LA-30N-50	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 50 mm
	MFC-KL-LA-30N-75	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 75 mm
	MFC-KL-LA-30N-100	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 100 mm
	MFC-KL-LA-30N-150	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 150 mm
	MFC-KL-LA-30N-200	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 200 mm
	MFC-KL-LA-30N-300	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 30 mm \| Cushion: None \| Stroke: 300 mm
	MFC-KL-LA-40B-50	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-KL-LA-40B-75	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-KL-LA-40B-100	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-KL-LA-40B-150	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-KL-LA-40B-200	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-KL-LA-40B-300	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-KL-LA-40R-50	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-KL-LA-40R-75	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-KL-LA-40R-100	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-KL-LA-40R-150	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-KL-LA-40R-200	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-KL-LA-40R-300	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-KL-LA-40H-50	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-KL-LA-40H-75	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-KL-LA-40H-100	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-KL-LA-40H-150	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-KL-LA-40H-200	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-KL-LA-40H-300	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-KL-LA-40N-50	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
	MFC-KL-LA-40N-75	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
	MFC-KL-LA-40N-100	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
	MFC-KL-LA-40N-150	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
	MFC-KL-LA-40N-200	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
	MFC-KL-LA-40N-300	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
	MFC-KL-LA-50B-50	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-KL-LA-50B-75	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-KL-LA-50B-100	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-KL-LA-50B-150	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-KL-LA-50B-200	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-KL-LA-50B-300	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-KL-LA-50R-50	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-KL-LA-50R-75	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-KL-LA-50R-100	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-KL-LA-50R-150	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-KL-LA-50R-200	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-KL-LA-50R-300	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-KL-LA-50H-50	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-KL-LA-50H-75	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-KL-LA-50H-100	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-KL-LA-50H-150	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-KL-LA-50H-200	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-KL-LA-50H-300	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-KL-LA-50N-50	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
	MFC-KL-LA-50N-75	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
	MFC-KL-LA-50N-100	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
	MFC-KL-LA-50N-150	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
	MFC-KL-LA-50N-200	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
	MFC-KL-LA-50N-300	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
	MFC-KL-LA-63B-50	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-KL-LA-63B-75	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-KL-LA-63B-100	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-KL-LA-63B-150	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-KL-LA-63B-200	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-KL-LA-63B-300	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-KL-LA-63R-50	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-KL-LA-63R-75	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-KL-LA-63R-100	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-KL-LA-63R-150	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-KL-LA-63R-200	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-KL-LA-63R-300	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-KL-LA-63H-50	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-KL-LA-63H-75	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-KL-LA-63H-100	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-KL-LA-63H-150	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-KL-LA-63H-200	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-KL-LA-63H-300	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-KL-LA-63N-50	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
	MFC-KL-LA-63N-75	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
	MFC-KL-LA-63N-100	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
	MFC-KL-LA-63N-150	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
	MFC-KL-LA-63N-200	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
	MFC-KL-LA-63N-300	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
	MFC-KL-LA-80B-50	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-KL-LA-80B-75	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-KL-LA-80B-100	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-KL-LA-80B-150	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-KL-LA-80B-200	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-KL-LA-80B-300	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-KL-LA-80R-50	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-KL-LA-80R-75	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-KL-LA-80R-100	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-KL-LA-80R-150	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-KL-LA-80R-200	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-KL-LA-80R-300	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-KL-LA-80H-50	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-KL-LA-80H-75	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-KL-LA-80H-100	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-KL-LA-80H-150	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-KL-LA-80H-200	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-KL-LA-80H-300	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-KL-LA-80N-50	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
	MFC-KL-LA-80N-75	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
	MFC-KL-LA-80N-100	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
	MFC-KL-LA-80N-150	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
	MFC-KL-LA-80N-200	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
	MFC-KL-LA-80N-300	Switch magnet: With (switch ready) \| Mounting: Rod-end foot \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
	MFC-KL-FA-30B-50	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-KL-FA-30B-75	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-KL-FA-30B-100	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-KL-FA-30B-150	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-KL-FA-30B-200	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-KL-FA-30B-300	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-KL-FA-30R-50	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-KL-FA-30R-75	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-KL-FA-30R-100	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-KL-FA-30R-150	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-KL-FA-30R-200	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-KL-FA-30R-300	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-KL-FA-30H-50	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-KL-FA-30H-75	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-KL-FA-30H-100	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-KL-FA-30H-150	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-KL-FA-30H-200	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-KL-FA-30H-300	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-KL-FA-30N-50	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 50 mm
	MFC-KL-FA-30N-75	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 75 mm
	MFC-KL-FA-30N-100	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 100 mm
	MFC-KL-FA-30N-150	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 150 mm
	MFC-KL-FA-30N-200	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 200 mm
	MFC-KL-FA-30N-300	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 300 mm
	MFC-KL-FA-40B-50	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-KL-FA-40B-75	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-KL-FA-40B-100	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-KL-FA-40B-150	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-KL-FA-40B-200	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-KL-FA-40B-300	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-KL-FA-40R-50	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-KL-FA-40R-75	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-KL-FA-40R-100	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-KL-FA-40R-150	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-KL-FA-40R-200	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-KL-FA-40R-300	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-KL-FA-40H-50	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-KL-FA-40H-75	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-KL-FA-40H-100	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-KL-FA-40H-150	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-KL-FA-40H-200	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-KL-FA-40H-300	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-KL-FA-40N-50	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
	MFC-KL-FA-40N-75	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
	MFC-KL-FA-40N-100	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
	MFC-KL-FA-40N-150	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
	MFC-KL-FA-40N-200	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
	MFC-KL-FA-40N-300	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
	MFC-KL-FA-50B-50	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-KL-FA-50B-75	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-KL-FA-50B-100	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-KL-FA-50B-150	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-KL-FA-50B-200	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-KL-FA-50B-300	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-KL-FA-50R-50	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-KL-FA-50R-75	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-KL-FA-50R-100	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-KL-FA-50R-150	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-KL-FA-50R-200	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-KL-FA-50R-300	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-KL-FA-50H-50	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-KL-FA-50H-75	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-KL-FA-50H-100	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-KL-FA-50H-150	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-KL-FA-50H-200	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-KL-FA-50H-300	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-KL-FA-50N-50	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
	MFC-KL-FA-50N-75	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
	MFC-KL-FA-50N-100	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
	MFC-KL-FA-50N-150	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
	MFC-KL-FA-50N-200	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
	MFC-KL-FA-50N-300	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
	MFC-KL-FA-63B-50	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-KL-FA-63B-75	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-KL-FA-63B-100	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-KL-FA-63B-150	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-KL-FA-63B-200	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-KL-FA-63B-300	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-KL-FA-63R-50	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-KL-FA-63R-75	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-KL-FA-63R-100	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-KL-FA-63R-150	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-KL-FA-63R-200	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-KL-FA-63R-300	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-KL-FA-63H-50	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-KL-FA-63H-75	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-KL-FA-63H-100	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-KL-FA-63H-150	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-KL-FA-63H-200	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-KL-FA-63H-300	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-KL-FA-63N-50	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
	MFC-KL-FA-63N-75	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
	MFC-KL-FA-63N-100	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
	MFC-KL-FA-63N-150	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
	MFC-KL-FA-63N-200	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
	MFC-KL-FA-63N-300	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
	MFC-KL-FA-80B-50	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-KL-FA-80B-75	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-KL-FA-80B-100	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-KL-FA-80B-150	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-KL-FA-80B-200	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-KL-FA-80B-300	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-KL-FA-80R-50	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-KL-FA-80R-75	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-KL-FA-80R-100	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-KL-FA-80R-150	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-KL-FA-80R-200	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-KL-FA-80R-300	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-KL-FA-80H-50	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-KL-FA-80H-75	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-KL-FA-80H-100	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-KL-FA-80H-150	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-KL-FA-80H-200	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-KL-FA-80H-300	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-KL-FA-80N-50	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
	MFC-KL-FA-80N-75	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
	MFC-KL-FA-80N-100	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
	MFC-KL-FA-80N-150	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
	MFC-KL-FA-80N-200	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
	MFC-KL-FA-80N-300	Switch magnet: With (switch ready) \| Mounting: Rod-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm
	MFC-KL-FB-30B-50	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-KL-FB-30B-75	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-KL-FB-30B-100	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-KL-FB-30B-150	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-KL-FB-30B-200	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-KL-FB-30B-300	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-KL-FB-30R-50	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-KL-FB-30R-75	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-KL-FB-30R-100	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-KL-FB-30R-150	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-KL-FB-30R-200	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-KL-FB-30R-300	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-KL-FB-30H-50	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-KL-FB-30H-75	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-KL-FB-30H-100	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-KL-FB-30H-150	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-KL-FB-30H-200	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-KL-FB-30H-300	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-KL-FB-30N-50	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 50 mm
	MFC-KL-FB-30N-75	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 75 mm
	MFC-KL-FB-30N-100	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 100 mm
	MFC-KL-FB-30N-150	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 150 mm
	MFC-KL-FB-30N-200	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 200 mm
	MFC-KL-FB-30N-300	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 30 mm \| Cushion: None \| Stroke: 300 mm
	MFC-KL-FB-40B-50	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-KL-FB-40B-75	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-KL-FB-40B-100	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-KL-FB-40B-150	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-KL-FB-40B-200	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-KL-FB-40B-300	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-KL-FB-40R-50	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-KL-FB-40R-75	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-KL-FB-40R-100	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-KL-FB-40R-150	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-KL-FB-40R-200	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-KL-FB-40R-300	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-KL-FB-40H-50	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-KL-FB-40H-75	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-KL-FB-40H-100	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-KL-FB-40H-150	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-KL-FB-40H-200	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-KL-FB-40H-300	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-KL-FB-40N-50	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 50 mm
	MFC-KL-FB-40N-75	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 75 mm
	MFC-KL-FB-40N-100	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 100 mm
	MFC-KL-FB-40N-150	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 150 mm
	MFC-KL-FB-40N-200	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 200 mm
	MFC-KL-FB-40N-300	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 40 mm \| Cushion: None \| Stroke: 300 mm
	MFC-KL-FB-50B-50	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-KL-FB-50B-75	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-KL-FB-50B-100	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-KL-FB-50B-150	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-KL-FB-50B-200	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-KL-FB-50B-300	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-KL-FB-50R-50	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-KL-FB-50R-75	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-KL-FB-50R-100	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-KL-FB-50R-150	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-KL-FB-50R-200	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-KL-FB-50R-300	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-KL-FB-50H-50	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-KL-FB-50H-75	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-KL-FB-50H-100	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-KL-FB-50H-150	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-KL-FB-50H-200	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-KL-FB-50H-300	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-KL-FB-50N-50	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 50 mm
	MFC-KL-FB-50N-75	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 75 mm
	MFC-KL-FB-50N-100	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 100 mm
	MFC-KL-FB-50N-150	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 150 mm
	MFC-KL-FB-50N-200	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 200 mm
	MFC-KL-FB-50N-300	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 50 mm \| Cushion: None \| Stroke: 300 mm
	MFC-KL-FB-63B-50	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-KL-FB-63B-75	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-KL-FB-63B-100	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-KL-FB-63B-150	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-KL-FB-63B-200	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-KL-FB-63B-300	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-KL-FB-63R-50	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-KL-FB-63R-75	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-KL-FB-63R-100	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-KL-FB-63R-150	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-KL-FB-63R-200	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-KL-FB-63R-300	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-KL-FB-63H-50	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-KL-FB-63H-75	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-KL-FB-63H-100	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-KL-FB-63H-150	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-KL-FB-63H-200	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-KL-FB-63H-300	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-KL-FB-63N-50	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 50 mm
	MFC-KL-FB-63N-75	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 75 mm
	MFC-KL-FB-63N-100	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 100 mm
	MFC-KL-FB-63N-150	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 150 mm
	MFC-KL-FB-63N-200	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 200 mm
	MFC-KL-FB-63N-300	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 63 mm \| Cushion: None \| Stroke: 300 mm
	MFC-KL-FB-80B-50	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 50 mm
	MFC-KL-FB-80B-75	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 75 mm
	MFC-KL-FB-80B-100	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 100 mm
	MFC-KL-FB-80B-150	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 150 mm
	MFC-KL-FB-80B-200	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 200 mm
	MFC-KL-FB-80B-300	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Both ends \| Stroke: 300 mm
	MFC-KL-FB-80R-50	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 50 mm
	MFC-KL-FB-80R-75	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 75 mm
	MFC-KL-FB-80R-100	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 100 mm
	MFC-KL-FB-80R-150	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 150 mm
	MFC-KL-FB-80R-200	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 200 mm
	MFC-KL-FB-80R-300	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Rod end \| Stroke: 300 mm
	MFC-KL-FB-80H-50	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 50 mm
	MFC-KL-FB-80H-75	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 75 mm
	MFC-KL-FB-80H-100	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 100 mm
	MFC-KL-FB-80H-150	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 150 mm
	MFC-KL-FB-80H-200	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 200 mm
	MFC-KL-FB-80H-300	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: Head end \| Stroke: 300 mm
	MFC-KL-FB-80N-50	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 50 mm
	MFC-KL-FB-80N-75	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 75 mm
	MFC-KL-FB-80N-100	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 100 mm
	MFC-KL-FB-80N-150	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 150 mm
	MFC-KL-FB-80N-200	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 200 mm
	MFC-KL-FB-80N-300	Switch magnet: With (switch ready) \| Mounting: Head-end flange \| Bore: 80 mm \| Cushion: None \| Stroke: 300 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

CKD MFC-K Robot Cylinder (High Load, Bore 30-80) (Discontinued)
